OWNER’S MANUAL
LED TV*
* LG LED TV applies LCD screen
with LED backlights.
Click! User Guide
Please read this manual carefully before operating your set
and retain it for future reference.
UB85**
UB95**
UB98**
P/NO : MFL68066605 (1404-REV01)
Printed in Korea
www.lg.com
*MFL68066605*

A-2 TABLE OF CONTENTS
TABLE OF CONTENTS
A-3 SETTING UP THE TV
A-3 Attaching the stand
A-7 Tyding cables
A-8 MAKING CONNECTIONS
A-8 Antenna Connection
A-8 Satellite dish Connection

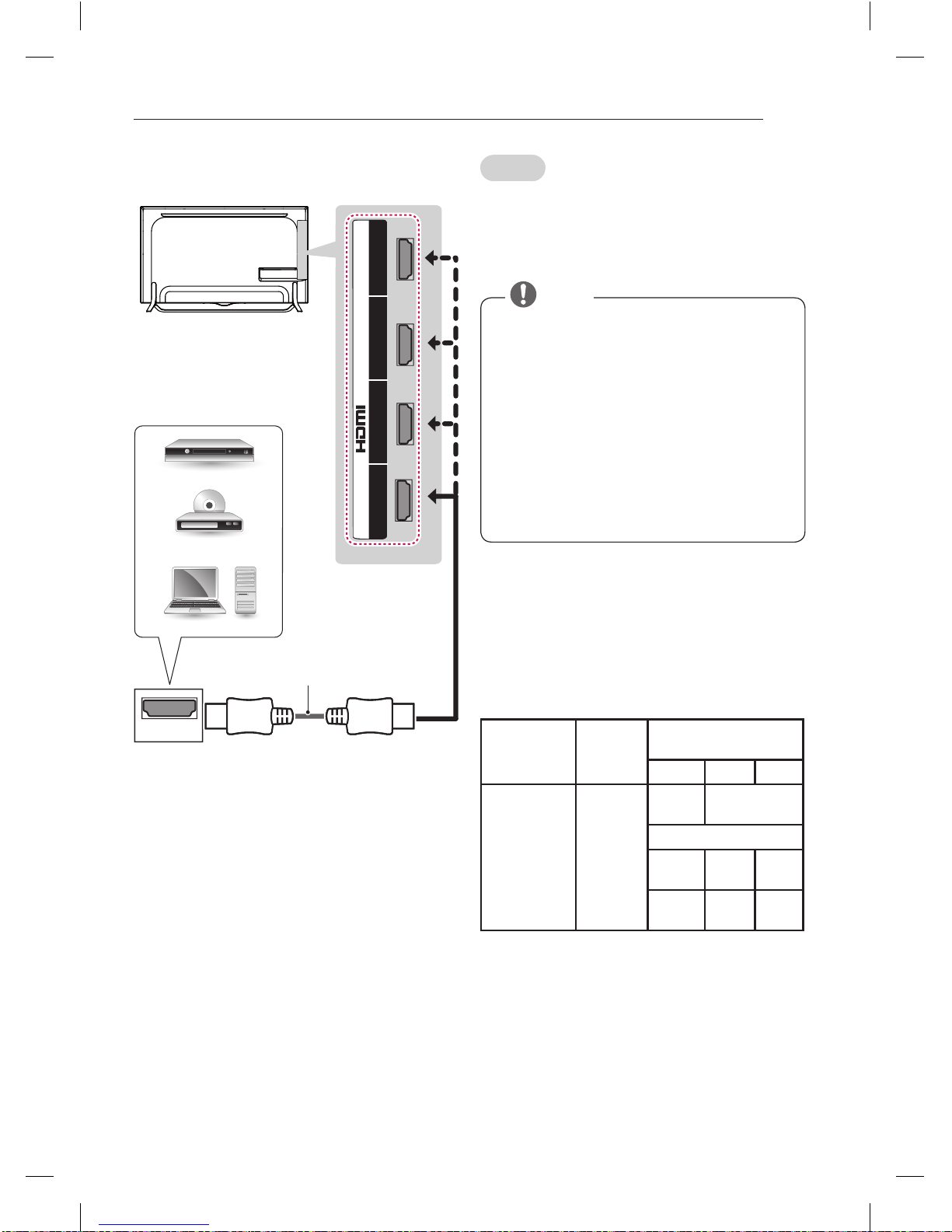

A-9 HDMI Connection
A-10 - ARC (Audio Return Channel)

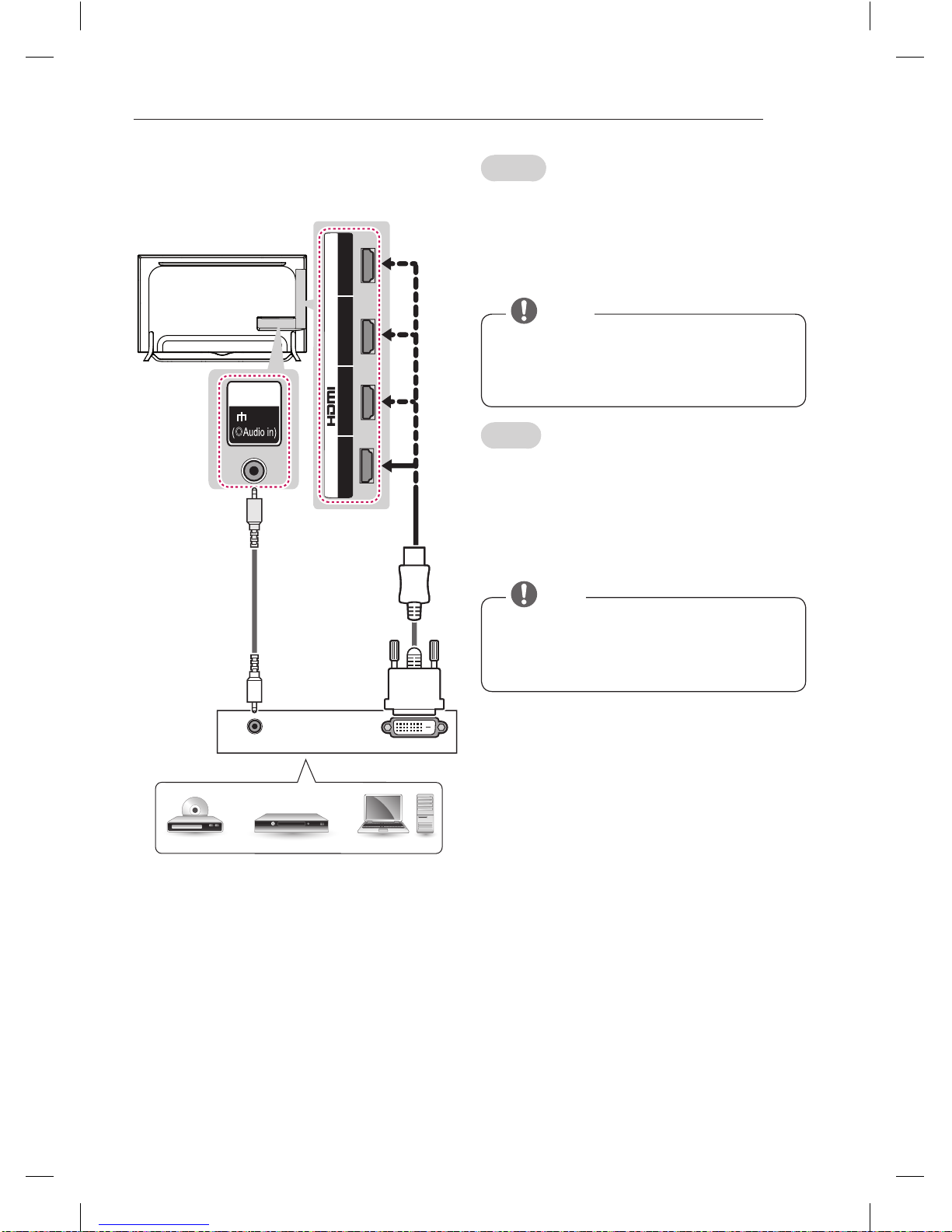

A-11 DVI to HDMI Connection
A-12 Component Connection

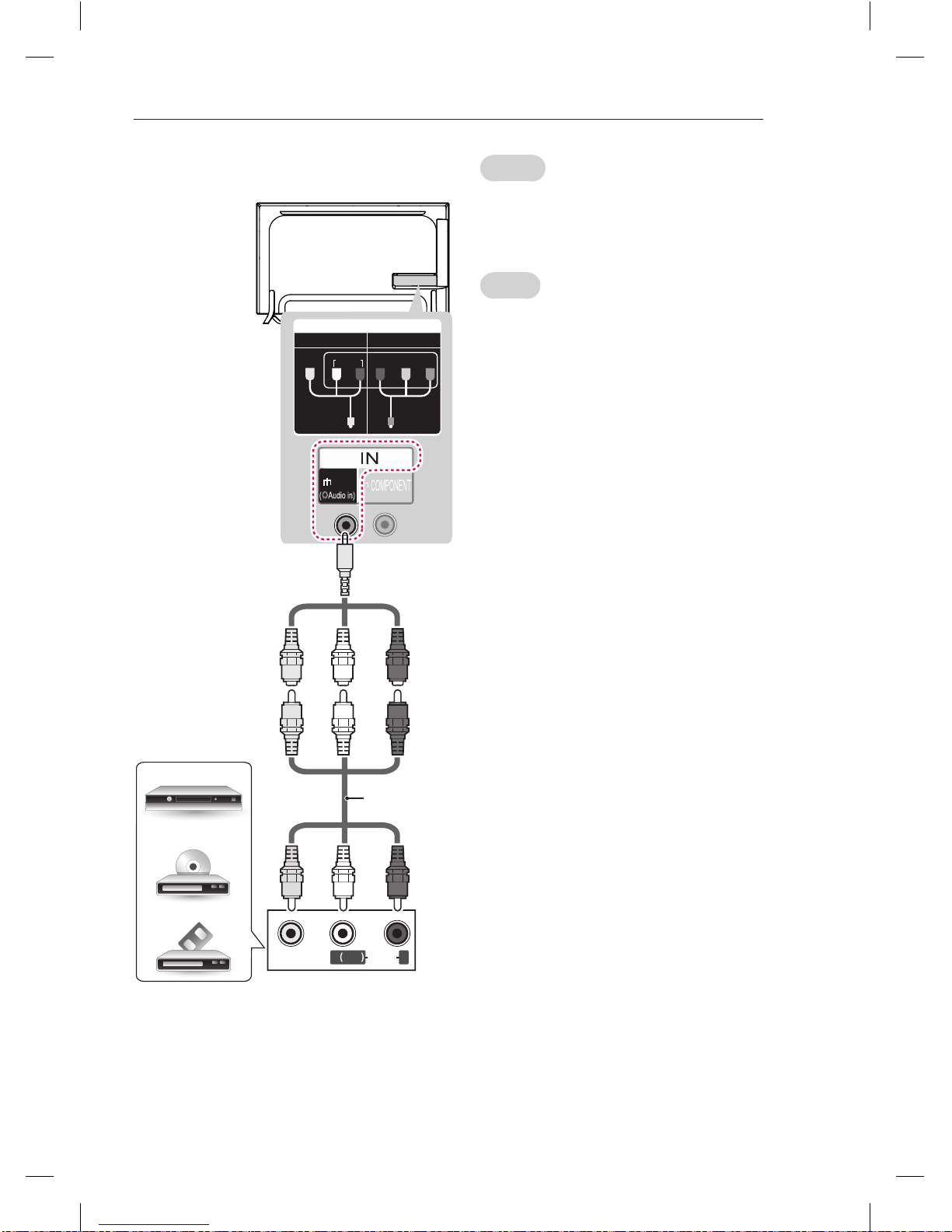

A-13 Composite Connection
A-14 MHL Connection
A-15 Audio Connection
A-15 - Digital optical audio Connection
A-16 Headphone Connection

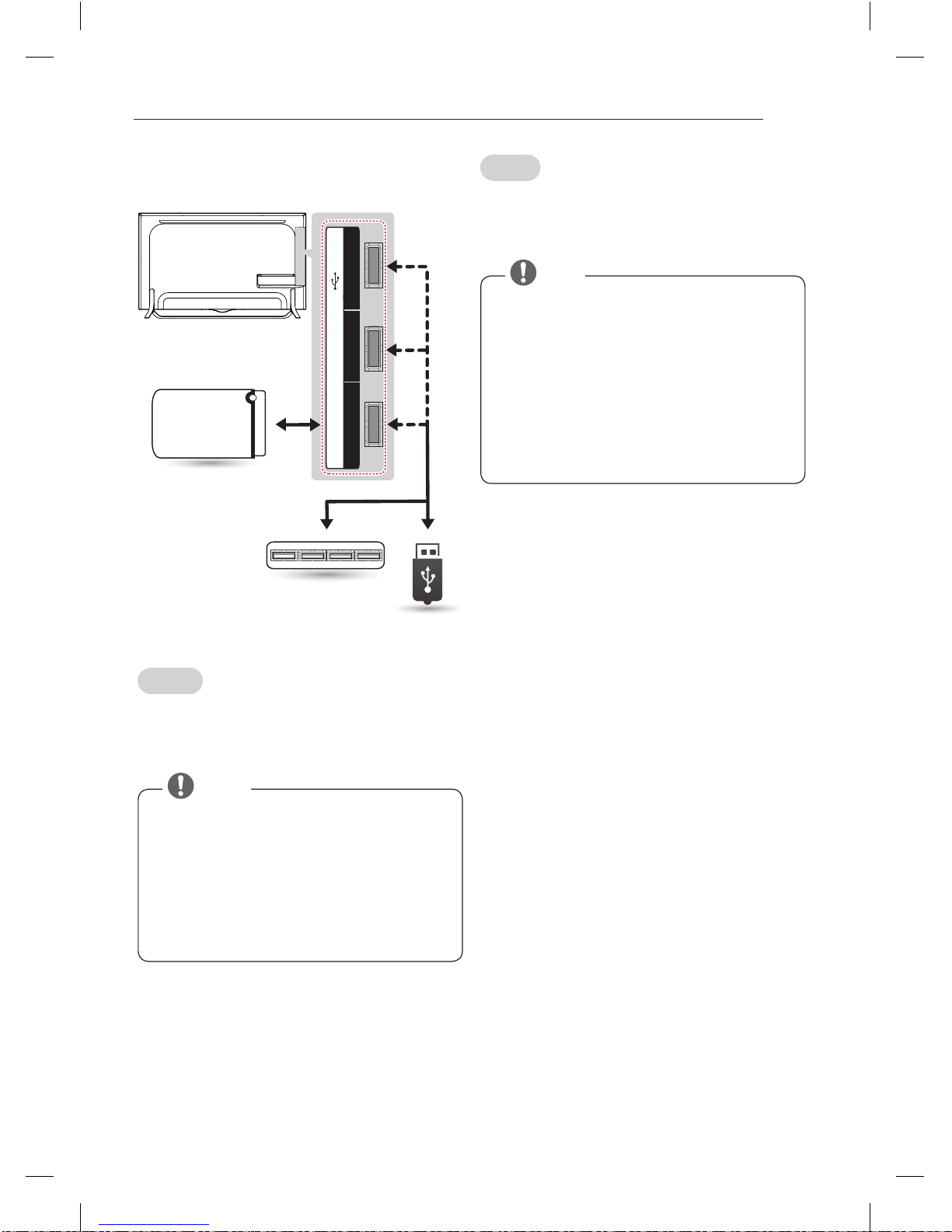

A-17 USB Connection
A-18 CI module Connection
A-19 Euro Scart Connection
LANGUAGE LIST
English
Türkçe
B-1 SPECIFICATIONS
COMMON
COMMON
LANGUAGE

A-3
SETTING UP THE TV
SETTING UP THE TV
Image shown may differ from your TV.

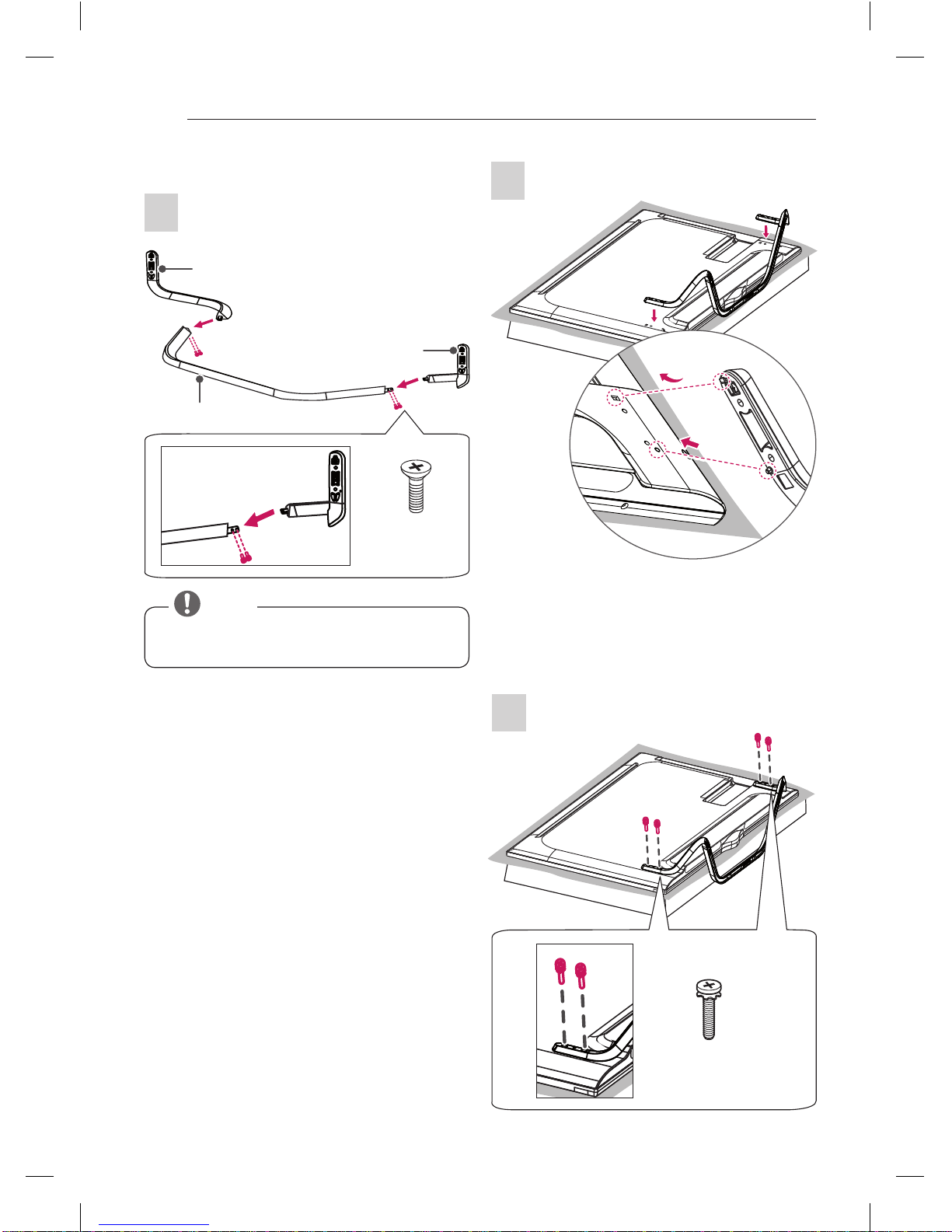

Attaching the stand
1
2
Stand Base
Stand Body (R)
Stand Body (L)
M4 x L20
4EA
UB85**-ZA, UB95**-ZA
1
2
yBe sure to check the Stand Body (L), (R), when
installing on the stand base.
NOTE
1 Attach the stand to the TV using the upper mounting
hole on the back of the TV.
2 Attach the stand to the TV using the lower
connection on the back of the TV.
3
M4 x L20
4EA

A-4 SETTING UP THE TV
UB85**-ZD, UB95**-ZB
Stand Body (L)
Stand Body (R)
Stand Base
yBe sure to check the Stand Body (L), (R), when
installing on the stand base.
NOTE
M4 x L10
4EA
1
1 Attach the stand to the TV using the upper mounting
hole on the back of the TV.
2 Attach the stand to the TV using the lower
connection on the back of the TV.
1
2
2
3
M4 x L20
4EA

A-5
SETTING UP THE TV
Stand Base
1
UB98**
65/79UB98**
2
3
1
2
Wrench
4EA
M6 x L45
(65UB98**)
M6 x L50
(79UB98**)
1
2
1
2
Wrench
4EA
M6 x L50
1
2
4EA
(Insulation
Holder)
84UB98**

A-6 SETTING UP THE TV

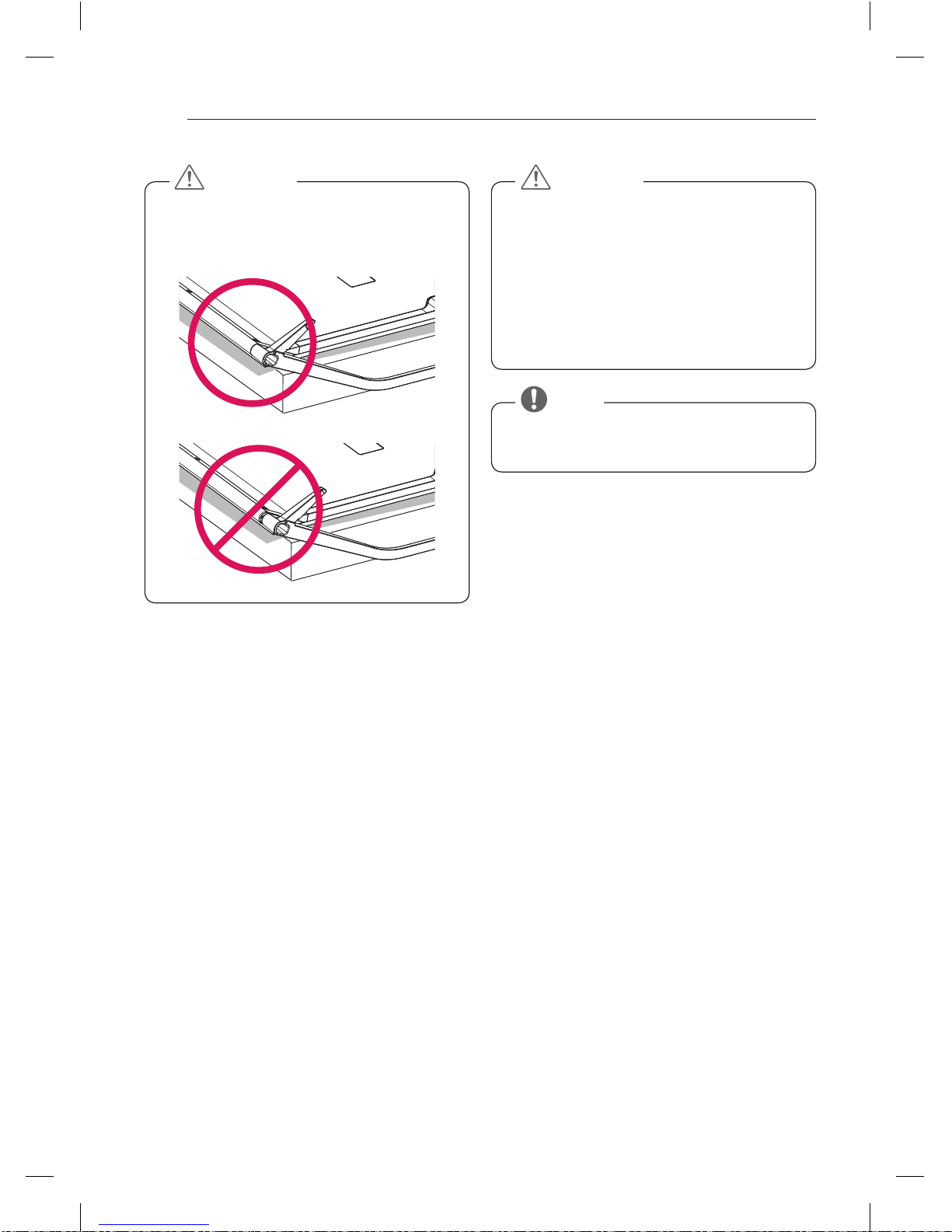

yWhen attaching the stand to the TV set, place
the screen facing down on a cushioned table or
flat surface to protect the screen from scratches.
yMake sure that the screws are inserted correctly
and fastened securely. (If they are not fastened
securely enough, the TV may tilt forward after
being installed.)
Do not use too much force and over tighten the
screws; otherwise screw may be damaged and
not tighten correctly.
CAUTION
yRemove the stand before installing the TV on a
wall mount by performing the stand attachment in
reverse.
NOTE
yMake sure that the screws are inserted correctly
and fastened securely. (If they are not fastened
securely enough, the TV may tilt forward after
being installed.)
CAUTION

A-7
SETTING UP THE TV
Tidying cables
Image shown may differ from your TV.
1 Gather and bind the cables with the Cable Holder
and the Cable Management.
2 Fix the Cable Management firmly to the TV.
(Only UB85**-ZA, UB95**-ZA)
Cable Holder
Cable management
(Only UB85**-ZD, UB95**-ZB)
Cable Holder
Cable management
(Only UB98**)
Cable Holder
1 Gather and bind the cables with the Cable Holder.

A-8 MAKING CONNECTIONS
MAKING CONNECTIONS
This section on MAKING CONNECTIONS mainly uses
diagrams for the UB85** models.

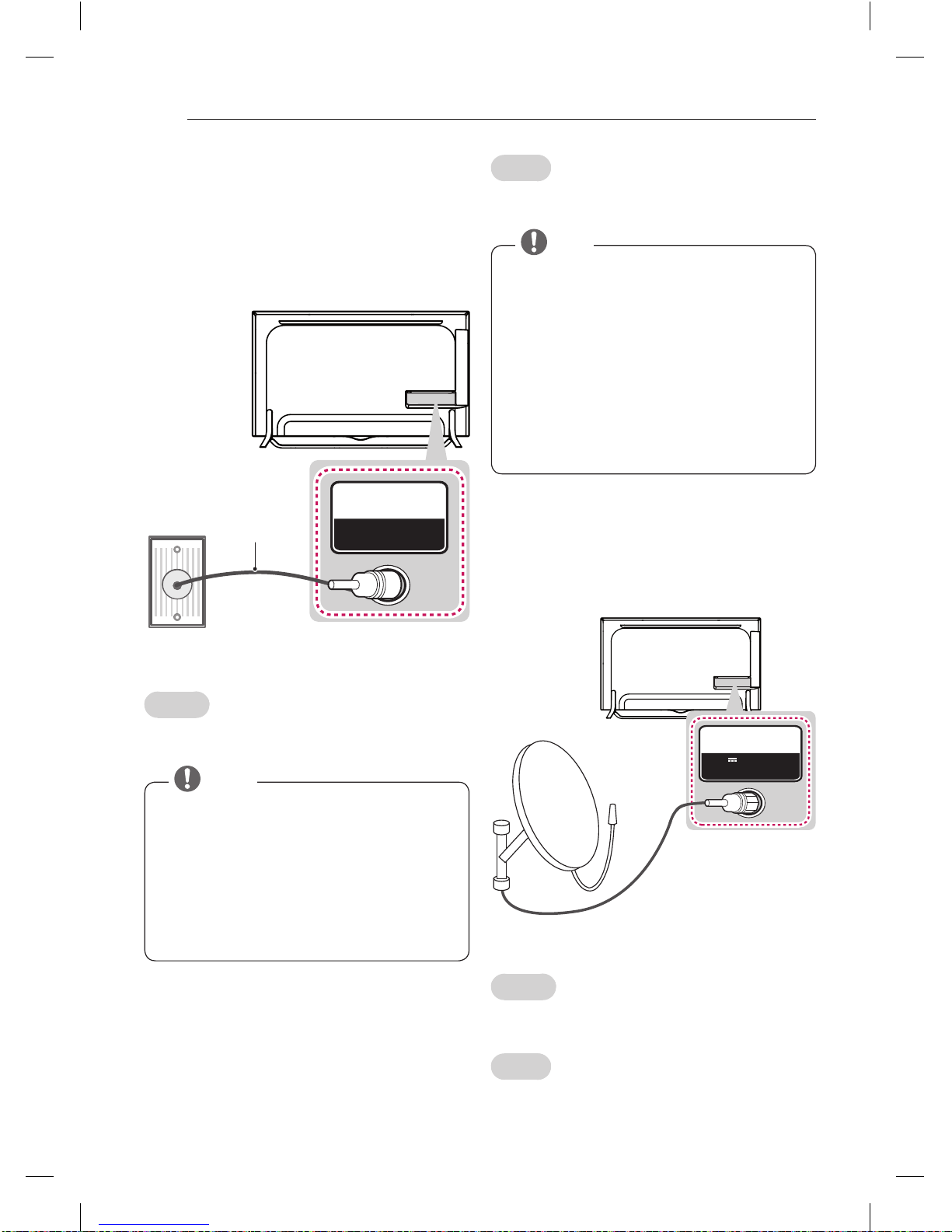

Antenna Connection
Wall Antenna Socket
IN
ANTENNA / CABLE
(*Not Provided)
English
Connect the TV to a wall antenna socket with an RF
cable (75 Ω).
yUse a signal splitter to use more than 2 TVs.
yIf the image quality is poor, install a signal
amplifier properly to improve the image quality.
yIf the image quality is poor with an antenna
connected, try to realign the antenna in the
correct direction.
yAn antenna cable and converter are not supplied.
ySupported DTV Audio: MPEG, Dolby Digital,
Dolby Digital Plus, HE-AAC
NOTE
IN
13 / 18 V 700mA Max LNB IN
Satellite
Satellite Dish
Satellite dish Connection
(Only satellite models)
English
Connect the TV to a satellite dish to a satellite socket
with a satellite RF cable (75 Ω).
Türkçe
TV’yi uydu RF kablosu (75 Ω) kullanarak çanak antene
ve uydu soketine bağlayın.
(*Not Provided)
Türkçe
TV’yi RF kablosu (75 Ω) ile duvar anten soketine
bağlayın.
yİkiden fazla TV’de kullanmak için bir sinyal
ayırıcısı kullanın.
yGörüntü kalitesinin kötü olması durumunda
görüntü kalitesini artırmak üzere bir sinyal
güçlendiricisi kullanın.
yAnten bağlıyken görüntü kalitesinin kötü olması
durumunda anteni doğru yönde yeniden
hizalamayı deneyin.
yAnten kablosu ve dönüştürücü ürünle birlikte
verilmemektedir.
yDesteklenen DTV Ses: MPEG, Dolby Digital,
Dolby Digital Plus, HE-AAC
NOT
