LG 26LN45 Series User manual

Printed in KoreaP/NO : MFL67739001 (1303-REV00)
CHASSIS : LJ31A / LD31T
MODEL : 26LN45** 26LN45**-T*
CAUTION
BEFORE SERVICING THE CHASSIS,
READ THE SAFETY PRECAUTIONS IN THIS MANUAL.
LED TV
SERVICE MANUAL
North/Latin America http://aic.lgservice.com
Europe/Africa http://eic.lgservice.com
Asia/Oceania http://biz.lgservice.com
Internal Use Only

- 2 - LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.
Only for training and service purposes
CONTENTS
CONTENTS .............................................................................................. 2
SAFETY PRECAUTIONS ........................................................................ 3
SERVICING PRECAUTIONS ................................................................... 4
SPECIFICATION ...................................................................................... 6
ADJUSTMENT INSTRUCTION ............................................................... 9
TROUBLE SHOOTING .......................................................................... 13
BLOCK DIAGRAM ................................................................................. 17
EXPLODED VIEW .................................................................................. 18
SCHEMATIC CIRCUIT DIAGRAM ..............................................................

- 3 - LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.
Only for training and service purposes
Many electrical and mechanical parts in this chassis have special safety-related characteristics. These parts are identified by in the
Schematic Diagram and Exploded View.
It is essential that these special safety parts should be replaced with the same components as recommended in this manual to prevent
Shock, Fire, or other Hazards.
Do not modify the original design without permission of manufacturer.
General Guidance
An isolation Transformer should always be used during the
servicing of a receiver whose chassis is not isolated from the AC
power line. Use a transformer of adequate power rating as this
protects the technician from accidents resulting in personal injury
from electrical shocks.
It will also protect the receiver and it's components from being
damaged by accidental shorts of the circuitry that may be
inadvertently introduced during the service operation.
If any fuse (or Fusible Resistor) in this TV receiver is blown,
replace it with the specified.
When replacing a high wattage resistor (Oxide Metal Film Resistor,
over 1 W), keep the resistor 10 mm away from PCB.
Keep wires away from high voltage or high temperature parts.
Before returning the receiver to the customer,
always perform an AC leakage current check on the exposed
metallic parts of the cabinet, such as antennas, terminals, etc., to
be sure the set is safe to operate without damage of electrical
shock.
Leakage Current Cold Check(Antenna Cold Check)
With the instrument AC plug removed from AC source, connect an
electrical jumper across the two AC plug prongs. Place the AC
switch in the on position, connect one lead of ohm-meter to the AC
plug prongs tied together and touch other ohm-meter lead in turn to
each exposed metallic parts such as antenna terminals, phone
jacks, etc.
If the exposed metallic part has a return path to the chassis, the
measured resistance should be between 1 MΩ and 5.2 MΩ.
When the exposed metal has no return path to the chassis the
reading must be infinite.
An other abnormality exists that must be corrected before the
receiver is returned to the customer.
Leakage Current Hot Check (See below Figure)
Plug the AC cord directly into the AC outlet.
Do not use a line Isolation Transformer during this check.
Connect 1.5 K / 10 watt resistor in parallel with a 0.15 uF capacitor
between a known good earth ground (Water Pipe, Conduit, etc.)
and the exposed metallic parts.
Measure the AC voltage across the resistor using AC voltmeter
with 1000 ohms/volt or more sensitivity.
Reverse plug the AC cord into the AC outlet and repeat AC voltage
measurements for each exposed metallic part. Any voltage
measured must not exceed 0.75 volt RMS which is corresponds to
0.5 mA.
In case any measurement is out of the limits specified, there is
possibility of shock hazard and the set must be checked and
repaired before it is returned to the customer.
Leakage Current Hot Check circuit
IMPORTANT SAFETY NOTICE
SAFETY PRECAUTIONS

- 4 - LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.
Only for training and service purposes
SERVICING PRECAUTIONS
CAUTION: Before servicing receivers covered by this service
manual and its supplements and addenda, read and follow the
SAFETY PRECAUTIONS on page 3 of this publication.
NOTE: If unforeseen circumstances create conict between the
following servicing precautions and any of the safety precautions
on page 3 of this publication, always follow the safety precau-
tions. Remember: Safety First.
General Servicing Precautions
1. Always unplug the receiver AC power cord from the AC power
source before;
a. Removing or reinstalling any component, circuit board
module or any other receiver assembly.
b. Disconnecting or reconnecting any receiver electrical plug
or other electrical connection.
c. Connecting a test substitute in parallel with an electrolytic
capacitor in the receiver.
CAUTION: A wrong part substitution or incorrect polarity
installation of electrolytic capacitors may result in an explo-
sion hazard.
2. Test high voltage only by measuring it with an appropriate
high voltage meter or other voltage measuring device (DVM,
FETVOM, etc) equipped with a suitable high voltage probe.
Do not test high voltage by "drawing an arc".
3. Do not spray chemicals on or near this receiver or any of its
assemblies.
4. Unless specied otherwise in this service manual, clean
electrical contacts only by applying the following mixture to the
contacts with a pipe cleaner, cotton-tipped stick or comparable
non-abrasive applicator; 10 % (by volume) Acetone and 90 %
(by volume) isopropyl alcohol (90 % - 99 % strength)
CAUTION: This is a ammable mixture.
Unless specied otherwise in this service manual, lubrication
of contacts in not required.
5. Do not defeat any plug/socket B+ voltage interlocks with which
receivers covered by this service manual might be equipped.
6. Do not apply AC power to this instrument and/or any of its
electrical assemblies unless all solid-state device heat sinks
are correctly installed.
7. Always connect the test receiver ground lead to the receiver
chassis ground before connecting the test receiver positive
lead.
Always remove the test receiver ground lead last.
8. Use with this receiver only the test xtures specied in this
service manual.
CAUTION: Do not connect the test xture ground strap to any
heat sink in this receiver.
Electrostatically Sensitive (ES) Devices
Some semiconductor (solid-state) devices can be damaged eas-
ily by static electricity. Such components commonly are called
Electrostatically Sensitive (ES) Devices. Examples of typical ES
devices are integrated circuits and some eld-effect transistors
and semiconductor “chip” components. The following techniques
should be used to help reduce the incidence of component dam-
age caused by static by static electricity.
1. Immediately before handling any semiconductor component or
semiconductor-equipped assembly, drain off any electrostatic
charge on your body by touching a known earth ground. Alter-
natively, obtain and wear a commercially available discharg-
ing wrist strap device, which should be removed to prevent
potential shock reasons prior to applying power to the unit
under test.
2. After removing an electrical assembly equipped with ES
devices, place the assembly on a conductive surface such as
aluminum foil, to prevent electrostatic charge buildup or expo-
sure of the assembly.
3. Use only a grounded-tip soldering iron to solder or unsolder
ES devices.
4. Use only an anti-static type solder removal device. Some sol-
der removal devices not classied as “anti-static” can generate
electrical charges sufcient to damage ES devices.
5. Do not use freon-propelled chemicals. These can generate
electrical charges sufcient to damage ES devices.
6. Do not remove a replacement ES device from its protective
package until immediately before you are ready to install it.
(Most replacement ES devices are packaged with leads elec-
trically shorted together by conductive foam, aluminum foil or
comparable conductive material).
7. Immediately before removing the protective material from the
leads of a replacement ES device, touch the protective mate-
rial to the chassis or circuit assembly into which the device will
be installed.
CAUTION: Be sure no power is applied to the chassis or cir-
cuit, and observe all other safety precautions.
8. Minimize bodily motions when handling unpackaged replace-
ment ES devices. (Otherwise harmless motion such as the
brushing together of your clothes fabric or the lifting of your
foot from a carpeted oor can generate static electricity suf-
cient to damage an ES device.)
General Soldering Guidelines
1. Use a grounded-tip, low-wattage soldering iron and appropri-
ate tip size and shape that will maintain tip temperature within
the range or 500 °F to 600 °F.
2. Use an appropriate gauge of RMA resin-core solder composed
of 60 parts tin/40 parts lead.
3. Keep the soldering iron tip clean and well tinned.
4. Thoroughly clean the surfaces to be soldered. Use a mall wire-
bristle (0.5 inch, or 1.25 cm) brush with a metal handle.
Do not use freon-propelled spray-on cleaners.
5. Use the following unsoldering technique
a. Allow the soldering iron tip to reach normal temperature.
(500 °F to 600 °F)
b. Heat the component lead until the solder melts.
c. Quickly draw the melted solder with an anti-static, suction-
type solder removal device or with solder braid.
CAUTION: Work quickly to avoid overheating the circuit
board printed foil.
6. Use the following soldering technique.
a. Allow the soldering iron tip to reach a normal temperature
(500 °F to 600 °F)
b. First, hold the soldering iron tip and solder the strand
against the component lead until the solder melts.
c. Quickly move the soldering iron tip to the junction of the
component lead and the printed circuit foil, and hold it there
only until the solder ows onto and around both the compo-
nent lead and the foil.
CAUTION: Work quickly to avoid overheating the circuit
board printed foil.
d. Closely inspect the solder area and remove any excess or
splashed solder with a small wire-bristle brush.

- 5 - LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.
Only for training and service purposes
IC Remove/Replacement
Some chassis circuit boards have slotted holes (oblong) through
which the IC leads are inserted and then bent at against the cir-
cuit foil. When holes are the slotted type, the following technique
should be used to remove and replace the IC. When working with
boards using the familiar round hole, use the standard technique
as outlined in paragraphs 5 and 6 above.
Removal
1. Desolder and straighten each IC lead in one operation by
gently prying up on the lead with the soldering iron tip as the
solder melts.
2. Draw away the melted solder with an anti-static suction-type
solder removal device (or with solder braid) before removing
the IC.
Replacement
1. Carefully insert the replacement IC in the circuit board.
2. Carefully bend each IC lead against the circuit foil pad and
solder it.
3. Clean the soldered areas with a small wire-bristle brush.
(It is not necessary to reapply acrylic coating to the areas).
"Small-Signal" Discrete Transistor
Removal/Replacement
1. Remove the defective transistor by clipping its leads as close
as possible to the component body.
2. Bend into a "U" shape the end of each of three leads remain-
ing on the circuit board.
3. Bend into a "U" shape the replacement transistor leads.
4. Connect the replacement transistor leads to the corresponding
leads extending from the circuit board and crimp the "U" with
long nose pliers to insure metal to metal contact then solder
each connection.
Power Output, Transistor Device
Removal/Replacement
1. Heat and remove all solder from around the transistor leads.
2. Remove the heat sink mounting screw (if so equipped).
3. Carefully remove the transistor from the heat sink of the circuit
board.
4. Insert new transistor in the circuit board.
5. Solder each transistor lead, and clip off excess lead.
6. Replace heat sink.
Diode Removal/Replacement
1. Remove defective diode by clipping its leads as close as pos-
sible to diode body.
2. Bend the two remaining leads perpendicular y to the circuit
board.
3. Observing diode polarity, wrap each lead of the new diode
around the corresponding lead on the circuit board.
4. Securely crimp each connection and solder it.
5. Inspect (on the circuit board copper side) the solder joints of
the two "original" leads. If they are not shiny, reheat them and
if necessary, apply additional solder.
Fuse and Conventional Resistor
Removal/Replacement
1. Clip each fuse or resistor lead at top of the circuit board hollow
stake.
2. Securely crimp the leads of replacement component around
notch at stake top.
3. Solder the connections.
CAUTION: Maintain original spacing between the replaced
component and adjacent components and the circuit board to
prevent excessive component temperatures.
Circuit Board Foil Repair
Excessive heat applied to the copper foil of any printed circuit
board will weaken the adhesive that bonds the foil to the circuit
board causing the foil to separate from or "lift-off" the board. The
following guidelines and procedures should be followed when-
ever this condition is encountered.
At IC Connections
To repair a defective copper pattern at IC connections use the
following procedure to install a jumper wire on the copper pattern
side of the circuit board. (Use this technique only on IC connec-
tions).
1. Carefully remove the damaged copper pattern with a sharp
knife. (Remove only as much copper as absolutely necessary).
2. carefully scratch away the solder resist and acrylic coating (if
used) from the end of the remaining copper pattern.
3. Bend a small "U" in one end of a small gauge jumper wire and
carefully crimp it around the IC pin. Solder the IC connection.
4. Route the jumper wire along the path of the out-away copper
pattern and let it overlap the previously scraped end of the
good copper pattern. Solder the overlapped area and clip off
any excess jumper wire.
At Other Connections
Use the following technique to repair the defective copper pattern
at connections other than IC Pins. This technique involves the
installation of a jumper wire on the component side of the circuit
board.
1. Remove the defective copper pattern with a sharp knife.
Remove at least 1/4 inch of copper, to ensure that a hazardous
condition will not exist if the jumper wire opens.
2. Trace along the copper pattern from both sides of the pattern
break and locate the nearest component that is directly con-
nected to the affected copper pattern.
3. Connect insulated 20-gauge jumper wire from the lead of the
nearest component on one side of the pattern break to the
lead of the nearest component on the other side.
Carefully crimp and solder the connections.
CAUTION: Be sure the insulated jumper wire is dressed so the
it does not touch components or sharp edges.

- 6 - LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.
Only for training and service purposes
SPECIFICATION
NOTE : Specifications and others are subject to change without notice for improvement .
1. Application range
This specification is applied to the LED TV used LJ31A /
LD31R chassis.
2. Requirement for Test
Each part is tested as below without special appointment.
1) Temperature: 25 °C ± 5 °C(77 °F ± 9 °F), CST: 40 °C ± 5 °C
2) Relative Humidity: 65 % ± 10 %
3) Power Voltage
: Standard input voltage (AC 100-240 V~, 50/60 Hz)
* Standard Voltage of each products is marked by models.
4) Specification and performance of each parts are followed
each drawing and specification by part number in
accordance with BOM.
5) The receiver must be operated for about 5 minutes prior to
the adjustment.
3. Test method
1) Performance: LGE TV test method followed
2) Demanded other specification
- Safety : CE, IEC specification
- EMC : CE, IEC
4. Model General Specification
No. Item Specication Remarks
1 Market Asia, Oceania, Africa, Middle East
(PAL/DVB Market)
2 Broadcasting system
1) PAL/SECAM-B/G/D/K
2) PAL-I
3) NTSC-M
4) DVB-T
3 Receiving system Analog : Upper Heterodyne
Digital : COFDM(DVB-T)
► DVB-T
- Guard Interval(Bitrate_Mbit/s)
1/4, 1/8, 1/16, 1/32
- Modulation : Code Rate
QPSK : 1/2, 2/3, 3/4, 5/6, 7/8
16-QAM : 1/2, 2/3, 3/4, 5/6, 7/8
64-QAM : 1/2, 2/3, 3/4, 5/6, 7/8
4 Component Input (1EA) Y/Cb/Cr , Y/Pb/Pr
5 CVBS Input (1EA) PAL, SECAM, NTSC 4 System(Rear) : PAL, SECAM, NTSC, PAL60
6 RGB Input RGB-PC Analog(D-SUB 15PIN)
7 HDMI Input (1EA) HDMI1 Rear1EA / HDMI version 1.3/ support PC/ HDMI : MHL Support
8 Audio Input (2EA) Component
CVBS L/R Input
9 Headphone out (1EA) Antenna, AV, Component, RGB,
HDMI1 Angle 1EA
10 USB (1EA) Picture, Music, Movie, SVC Software Update + Picture + Music + Movie
11 Local Key (Touch)

- 7 - LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.
Only for training and service purposes
5. Timing
5.1. RGB/HDMI (PC)
No. Specication Remark
Resolution H-freq(kHz) V-freq.(Hz) Pixel clock(MHz)
1. 720*400 31.468 70.080 28.321
2. 640*480 31.469 59.940 25.175
3. 640*480 37.500 75.000 31.500
4. 800*600 37.879 60.317 40.000
5. 800*600 46.875 75.000 49.500
6. 1024*768 48.363 60.004 65.000
7. 1024*768 60.023 75.029 78.750
8. 1280*800 49.702 59.810 83.500
9. 1366*768 47.717 59.79 85.5
5.2. HDMI (DTV)
No. Specication Remark
Resolution H-freq(kHz) V-freq.(Hz) Pixel clock(MHz)
1. 720*480 31.469
31.5000
59.940
60.000
27.000
27.030 SDTV 480P
2. 720*576 31.250 50.000 27.864 SDTV 576P
3. 1280*720 37.500 50.000 74.250 HDTV 720P
4. 1280*720 44.960
45.000
59.940
60.000
74.170
74.250 HDTV 720P
5. 1920*1080 33.720
33.750
59.940
60.000
74.170
74.250 HDTV 1080I
6. 1920*1080 28.125 50.000 74.250 HDTV 1080I
7. 1920*1080 27.000 24.000 74.250 HDTV 1080P
8. 1920*1080 33.750 30.000 74.250 HDTV 1080P
9. 1920*1080 56.250 50.000 148.500 HDTV 1080P
10. 1920*1080 67.430
67.500
59.940
60.000
148.350
148.500 HDTV 1080P

- 8 - LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.
Only for training and service purposes
5.3. Component
No. Specication Remark
Resolution H-freq(kHz) V-freq.(Hz) Pixel clock(MHz)
1. 720*480 15.730 59.940 13.500 SDTV, DVD 480I(525I)
2. 720*480 15.750 60.000 13.514 SDTV, DVD 480I(525I)
3. 720*576 15.625 50.000 13.500 SDTV, DVD 576I(625I) 50Hz
4. 720*480 31.470 59.940 27.000 SDTV 480P
5. 720*480 31.500 60.000 27.027 SDTV 480P
6. 720*576 31.250 50.000 27.000 SDTV 576P 50Hz
7. 1280*720 44.960 59.940 74.176 HDTV 720P
8. 1280*720 45.000 60.000 74.250 HDTV 720P
9. 1280*720 37.500 50.000 74.250 HDTV 720P 50Hz
10. 1920*1080 33.720 59.940 74.176 HDTV 1080I
11. 1920*1080 33.750 60.000 74.250 HDTV 1080I
12. 1920*1080 28.125 50.000 74.250 HDTV 1080I 50Hz,
13. 1920*1080 56.250 50.000 148.500 HDTV 1080P
14. 1920*1080 67.432 59.940 148.350 HDTV 1080P
15. 1920*1080 67.500 60.000 148.500 HDTV 1080P

- 9 - LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.
Only for training and service purposes
ADJUSTMENT INSTRUCTION
1. Application Range
This document is applied to LJ31A / LD31R chassis LED TV
which is manufactured in TV(or Monitor) Factory or is
produced on the basis of this data.
2. Designation
1) The adjustment is according to the order which is
designated and which must be followed, according to the
plan which can be changed only on agreeing.
2) Power adjustment : Free Voltage.
3) Magnetic Field Condition: Nil.
4) Input signal Unit: Product Specification Standard.
5) Reserve after operation: Above 5 Minutes (Heat Run)
Temperature : at 25 °C ± 5 °C
Relative humidity : 65 % ± 10 %
Input voltage : 110-240 V, 50/60 Hz
6) Adjustment equipments: Color Analyzer(CA-210 or CA-110),
DDC Adjustment Jig equipment, Service remote control.
7) Push The "IN STOP KEY" – For memory initialization

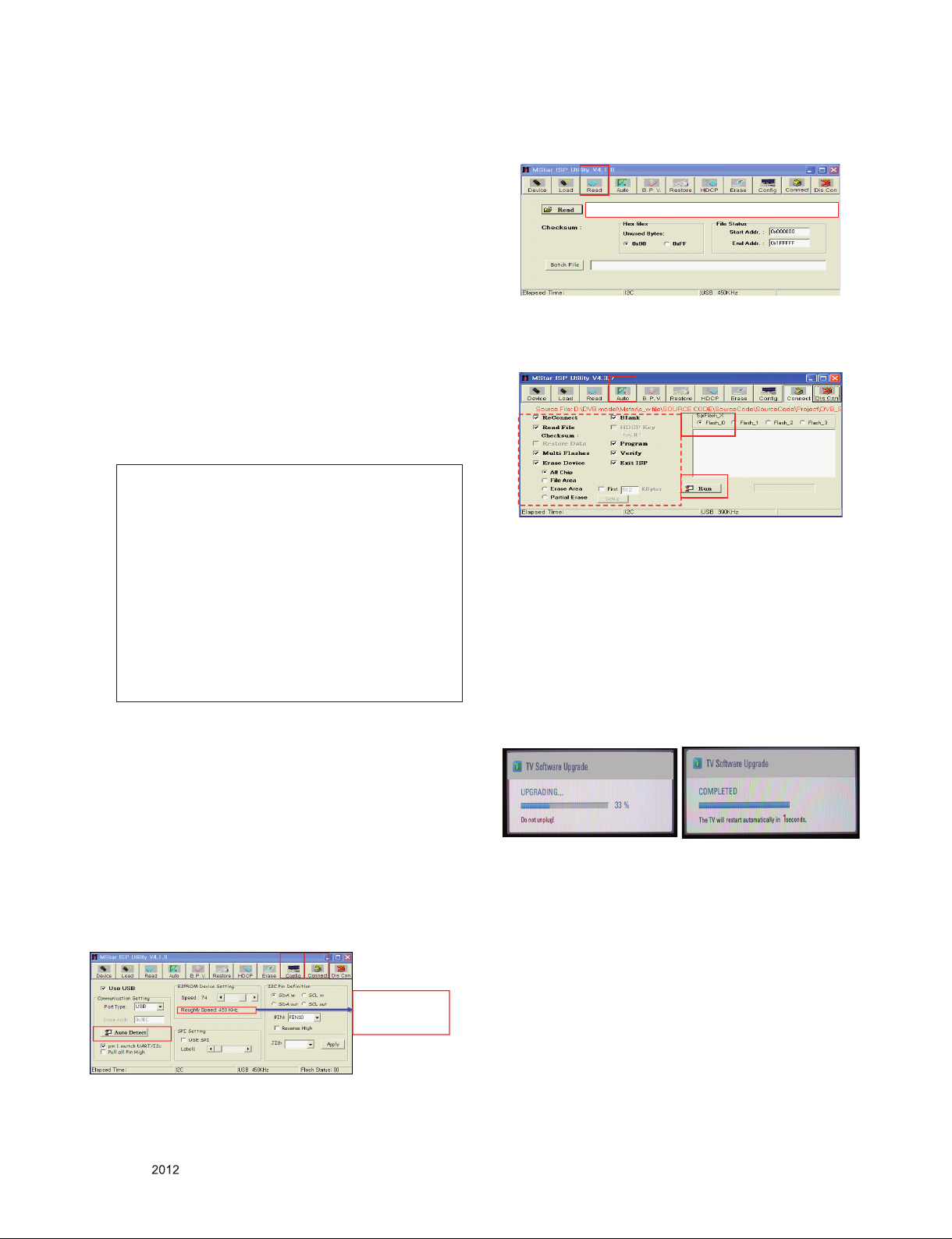

3. Main PCB check process
* APC - After Manual-Insult, executing APC
* Boot le Download
1) Execute ISP program “Mstar ISP Utility” and then click
“Config” tab.
2) Set as below, and then click “Auto Detect” and check “OK”
message. If display “Error”, Check connect computer, jig,
and set.
3) Click “Connect” tab. If display “Can’t”, Check connect
computer, jig, and set.
4) Click “Read” tab, and then load download file(XXXX.bin) by
clicking “Read”.
5) Click “Auto” tab and set as below.
6) Click “Run”.
7) After downloading, check “OK” message.
* USB DOWNLOAD(*.epk file download)
1) Make New folder named “LG_DTV” and put ISP file(*.epk)
in the folder.
2) Put the USB Stick to the USB socket.
3) Automatically detecting update file in USB Stick
- If your downloaded program version in USB Stick is Low,
it didn’t work.
- But your downloaded version is High, USB data is
automatically detecting
4) Show the message "Copying files from memory"
5) Updating is starting.
6) Updating Completed, The Multi-vision will restart
automatically.
7) If your TV is turned on, check your updated version and
Tool option. (explain the Tool option, next stage)
* If downloading version is more high than your TV have,
TV can lost all channel data. In this case, you have to
channel recover. if all channel data is cleared, you didn’t
have a DTV/ATV test on production line.
* After downloading, have to adjust TOOL OPTION again.
1. Push "ADJ" key in service remote control.
2. Select "Tool Option 1" and push "OK" key.
3. Punch in the number. (Each model has their number.)
4. Completed selecting Tool option.
Case1 : Software version up
1. After downloading S/W by USB , TV set will reboot
automatically.
2. Push “In-stop” key.
3. Push “Power on” key.
4. Function inspection
5. After function inspection, Push “In-stop” key.
Case2 : Function check at the assembly line
1. When TV set is entering on the assembly line, Push
“In-stop” key at rst.
2. Push “Power on” key for turning it on.
→ If you push “Power on” key, TV set will recover
channel information by itself.
3. After function inspection, Push “In-stop” key.
(1) (3)
(
2
)
OK
Please Check the Speed :
Use the speed under
200KHz.
(4)
filexxx.bin
(
6
)
(5)
(7) ……….OK
(5)

- 10 - LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.
Only for training and service purposes

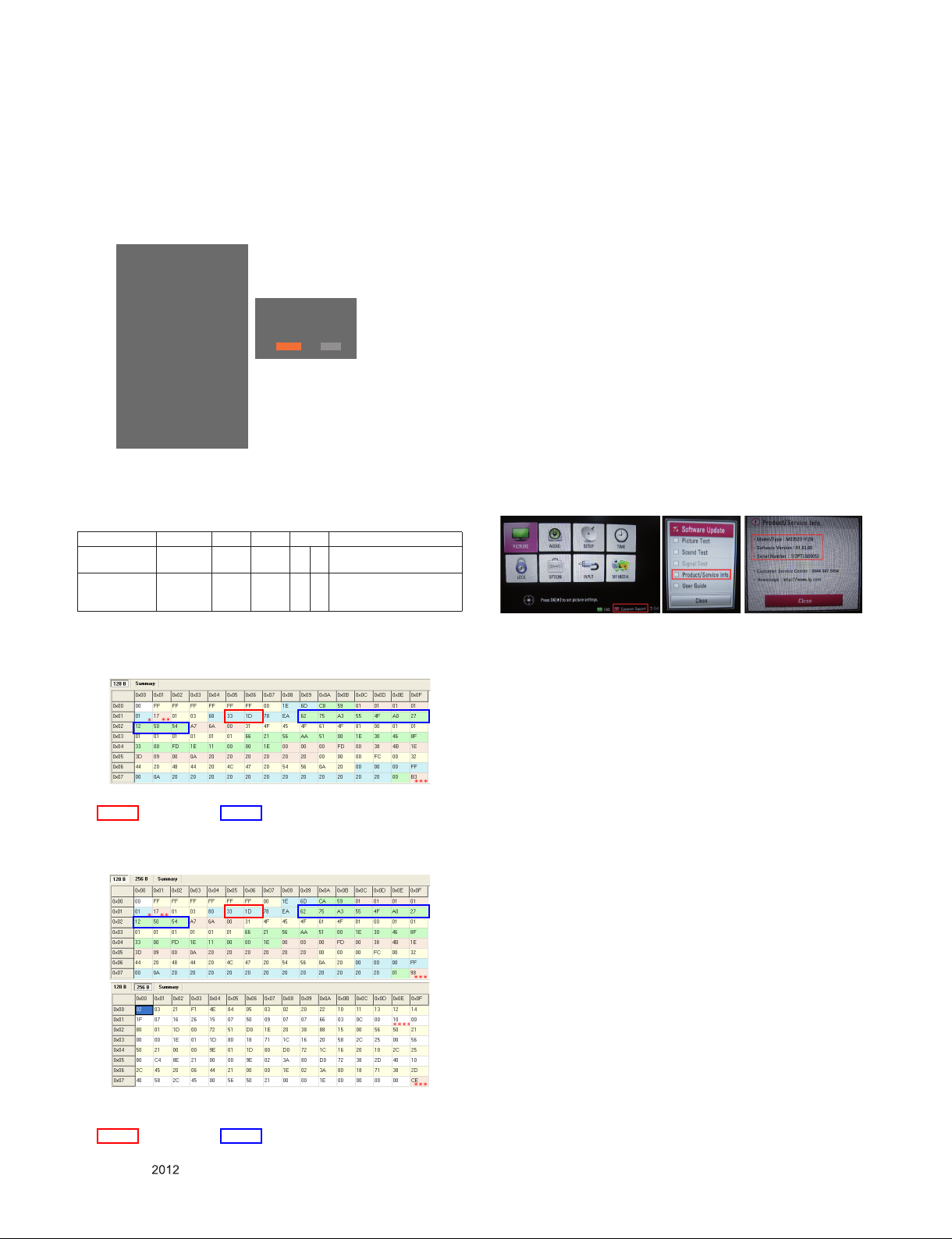

3.1. EDID Process
3.1.1. EDID download
(1) Press "Power only" key of service remote control.
(2) Press the ADJ KEY on R/C and enter EZ ADJUST
(3) Enter EDID D/L mode by pushing "►" key at "11. EDID D/L".
(4) EDID download is executed automatically.
(5) Press EXIT key on service remote control.
<Caution>
- Never connect HDMI & D-sub Cable when download EDID.
- Download HDMI
* Edid data and Model option download (USB)
3.1.2. RGB EDID Data
(1) All models without 29MN33D(Product ID: 22984/HEXA: 59C8)
*(week), **(year), ***(Check sum) : Adjustable Data
: Screen size, : Color Characteristics
3.1.3. HDMI EDID Data
(1) All models(Product ID: 22986/HEXA:59CA)
*(week), **(year), ***(Check sum) : Adjustable Data
**** (physical address): (HDMI : 10), ****(Check sum): (HDMI : CE)
: Screen size, : Color Characteristics
3.2. Function Check
3.2.1. Check display and sound
*Check Input and Signal items. (cf. work instructions)
1) TV
2) AV (SCART/CVBS)
3) COMPONENT (480i)
4) RGB(PC : 1366 x 768 @ 60Hz)
5) HDMI(PC : 1366 x 768 @ 60Hz)
6) PC Audio In
* Display and Sound check is executed by Remote control
<Caution> Not to push the INSTOP key after completion if the
function inspection.
4. Total Assembly line process
4.1. Tool option & ADC Check
(1) Press "Power on" key of service remote control.
(2) Connect USB Port → USB to Serial Adapter (UC-232A) →
RS-232C cable → PC(RS-232C port)
(3) Write Model Name & Serial Number by use USB Port.
(4) Must check the serial number at the Customer Support
menu. (Refer to below.)
4.2. Model name & Serial number download
4.2.1. Model name & Serial number D/L
1) Press "Power on" key of service remote control.
2) Connect RS232 Signal Cable to RS-232 Jack.
3) Write Model Name & Serial Number by use RS-232.
4) Must check the serial number at the Diagnostics of SET UP
menu. (Refer to below.)
4.2.2. Method & notice
(1) Model Name & Serial Number D/L is using of scan equipment.
(2) Setting of scan equipment operated by Manufacturing
Technology Group.
(3) Serial number D/L must be conformed when it is produced
in production line, because serial number D/L is mandatory
by D-book 4.0.
*Manual Download (Model Name and Serial Number)
If the TV set is downloaded By OTA or Service man,
Sometimes model name or serial number is initialized. (Not
always) There is impossible to download by bar code scan,
so It need Manual download.
1) Press the 'Instart' key of ADJ remote control.
2) Go to the menu '6.Model Number D/L' like below photo.
3) Input the Factory model name(ex 24LN4500) or Serial
number like photo.
4) Check the model name Instart menu → Factory name
displayed (ex 24LN4500)
5) Check the Diagnostics (DTV country only) → Buyer
model displayed (ex 24LN4500)
NO Item CMD 1 CMD 2 Data 0
Enter download
MODE
Download
‘Mode In’
A A 0 0 When transfer the ‘Mode
In’, Carry the command.
EDID data and
Model option
download
Download A E 00 10 Automatically download
(The use of a internal Data)
EZ ADJUST
0. Tool Option1
1. Tool Option2
2. Tool Option3
3. Tool Option4
4. Tool Option5
5. Tool Option6
6. Country Group
7. Area Option
8. ADC Calibration
9. White Balance
10. 10 Point WB
11. Test Pattern
12. EDID D/L ►
14. Touch Sensitivity Setting
15. Ext. Input Adjust
16. SPK Lipsync Adjust
17.SPDIF Lipsync Adjust
EDID D/L
HDMI OK
RGB OK
Start Reset

- 11 - LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.
Only for training and service purposes
4.3. Function Check
4.3.1. Check display and sound
■ Check Input and Signal items. (cf. work instructions)
1) TV
2) AV (SCART/CVBS)
3) COMPONENT (480i)
4) RGB(PC : 1366 x 768 @ 60Hz)
5) HDMI(PC : 1366 x 768 @ 60Hz)
6) PC Audio In
* Display and Sound check is executed by Remote control
* Caution : Not to push the INSTOP KEY after completion if
the function inspection.
4.3.2. PIP Check
(1) Press “Power on” key of service remote control.
(2) Input RGB & TV(ATV or DTV) signal.
(3) Set Input mode to RGB.
(4) Press ‘PIP” key of ADJ remote control
(5) Check TV Video & Audio signal of Sub picture.
4.3.3. HDMI MHL function Inspection(HDMI2 port only)
(1) Insert HDMI cable for MHL function JIG connected to
HDMI2 port of the SET.
(2) Check that LED of JIG is green light and check that set
screen is correctly worked.
(3) If NG situation or other HDMI jack connection, LED of JIG
is red light and screen is not displayed.
4.4. White balance adjustment
- Equipment
(1) Color Analyzer: CA-210 (LED Module : CH 14)
(2) Adj. Computer(During auto adj., RS-232C protocol is
needed)
(3) Adjust Remote control
RGB Gains are fixed data for each model.
Insert RS-232C Jack which is connected with PC for White
Balance or equivalent device.
→ Total Assembly line should be check whether the color
coordinate(x,y) data refer to below table were meet or not.
- Cool Panel
* Note : x,y coordinates are drifted about 0.007 after 30 mins
heat-run. So checking color coordinate within 5-min at
total assembly line, consider x,y coordinates might be
up to 0.007 than x,y target of each color temperature.
* Note : Manual W/B process using adjusts Remote control.
1) After enter Service Mode by pushing "ADJ" key,
2) Enter "White Balance" by pushing "►" key at "White
Balance".
* When doing Adjustment, Please make circumstance as
below.
MHL Function JIG(OK) MHL Function JIG(NG)
Color
Temperature
Cool 13,000 K X=0.276 (±0.03)
Y=0.275 (±0.03) <Test Signal>
Inner pattern
(204gray,80IRE)
Medium 9,300 K X=0.290 (±0.03)
Y=0.298 (±0.03)
Warm 6,500 K X=0.318 (±0.03)
Y=0.334 (±0.03)
Luminance
(cd/m²)
Cool Min : 80 K Typ : 110 <Test Signal>
Inner pattern
(204gray,80IRE)
Medium Min : 80 K Typ : 110
Warm Min : 70 K Typ : 110
EZ ADJUST
0. Tool Option1
1. Tool Option2
2. Tool Option3
3. Tool Option4
4. Tool Option5
5. Tool Option6
6. Country Group
7. Area Option
8. ADC Calibration
9. White Balance
10. 10 Point WB
11. Test Pattern
12 EDID D/L
13. Sub B/C
14. Touch Sensitivity Setting
15. Ext. Input Adjust
16. SPK Lipsync Adjust
17.SPDIF Lipsync Adjust
Whit Balance
Color Temp. ◄ ►
R-Gain
G-Gain
B-Gain
R-Cut
G-Cut
B-Cut
Test-Pattern
Backlight
Reset To Set
Cool
100
104
192
64
64
64
ON
100

- 12 - LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.
Only for training and service purposes
4.5. DPM Operation check
■ Measurement Condition: 100-240V@ 50/60Hz
(1) Set Input to RGB-PC and connect D-sub cable to set -
RGB Mode.
Set Input to HDMI(with Input Label set to PC) and connect
HDMI cable to set - HDMI Mode
(2) Cut off H sync or V sync of signal.
(3) Check DPM operation refer to the below table.
■ HDMI DPM Operating condition
- Input Label: HDMI (PC&DVI Mode)
4.6. Model name & SW version & Adjust check
* Press the ‘Instart’ key of ADJ remote control.
4.6.1. Model Name& SW Version Check
(1) Check ‘Model Name’.
(2) Check ‘S/W Version’ (Refer to the IC Ver. in the BOM)
4.6.2. Adjust Check
(1) Check ‘Country Group’
(2) Check ‘Area Option’
(3) Check ‘Tool Option’ (Refer to the BOM Comments)
(4) Check ‘Adjust ADC[Comp&RGB]’ is OK.
(5) Check ‘EDID[RGB&HDMI]’ is OK.
* After check all, Press the 'EXIT' key of ADJ remote control to
go out SVC menu.
4.7. Outgoing condition Configuration
* After all function test, press IN-STOP key by SVC Remote
control. And make Outgoing Condition.
Operating Condition Sync(H/V) Video LED(SET) Wattage(W)
Power S/W On Sleep mode -
RGB, HDMI Off/Off Off Amber 1
MHL Cable HDMI & HDMI to DVI Cable
DPM X O

- 13 - LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.
Only for training and service purposes
TROUBLE SHOOTING
1. No Power
Check C820 All
Voltage Level (19V)
Check Power connector
OK ? Replace Adapter
N N
Check IC802 output
Voltage Level (12V)
Replace IC802 &
Recheck
N
Check IC809 Output
Voltage Level (3.3V_ST) Replace IC809
N
Y
Check IC810 Output
Voltage Level (2.5V) Replace IC810
N
Y
Y
Y
Y
Check IC807 Output
Voltage Level (1.5V) Replace IC807
N
Y
Check IC806 Output
Voltage Level (1.15V) Replace IC806
N
Check X201 Clock
24MHz Replace X201
N
Replace IC100 Flash Memory
Y

- 14 - LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.
Only for training and service purposes
2. No Picture
Module
Back Light On ?
Check WLED_ENABLE high
R131
Check IC101
Replace Main Scaler IC
N N
Check Panel clock
P601(#9,10)
Check IC101
Repair Main B/D
N
Check Panel power
P601(#27,28,29,30) 12V
IC804Output 12V
Replace IC804
N
Y
Replace T-con
Board or module
Check FFC Cable for damage
or open conductors. Replace Cable
N
Y
Y
Y
Check LED Driver output
(LED Driver B’d P1101
#1,2,3,4,9,10,11,12)
Check LED Driver IC1100
Replace LED Driver IC
N
Y
3. No Video - Digital TV
Check RF Cable
Check Tuner(TU2603)
Data, CLK, SYN, VAL
Replace Tuner(TU2603)
Recheck
Y
N
1. Check Tuner(TU2603 #5) Power (3.3V)
2. Check IC803 Output voltage(3.3V)
Replace IC803
Y
N
Check Tuner(TU2602) I2C Signal
SCL(R3735), SDA(R3736)
Check IC101
Y
N
1. Check Tuner(TU2602 #7) Power (1.8V)
2. Check IC805 Output voltage(1.8V)
Replace IC805
Y
N

- 15 - LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.
Only for training and service purposes
4. No Video - Component
Check input signal format
Is it supported?
Check signal
R239,R237,R241
C220,C218,C222
Replace R239,R237,R241
C220,C218,C222
Y
N
Check JK2800 Replace JK2800 or
Check Device
Y
N
Y
IC101 has problem
Y
Check Component Cable
Wave form of C220 Wave f orm of C218 Wave f orm of C222
Wave form of Comp Y Wave form of Comp Pb Wave form of Comp Pr
5. No Video - RGB
Check input signal format
Is it supported?
Check Hsync, Vsync
R4024, R4025 Replace R4024, R4025
Check signal RGB
R228,R230,R232
C204,C206,C208
N
Check JK400 Replace JK400 or
Check Device
Y
N
Y
Replace R228,R230,R232
C204,C206,C208
N
IC101 has problem
Y
Check RGB Cable
Wave form of R4025(Vsync) Wave f orm of R4024(Hsync)
Wave form of R230/C206
Wave form of R228/C204 Wave form of R232/C208
Y
Y

- 16 - LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.
Only for training and service purposes
6. No Video - HDMI
Check input signal format
Is it supported?
Y
Check JK500,501
for proper connection or damage Replace connector
Y
N
Y
Check HDMI Cable for damage
or open connector
Check I2C Signal (JK500,501)
(#15, #16) Re download EDID data
Y
N
Check HDCP Key (IC101) Replace Scaler(IC101)
N
7. No Audio
Make sure you can’t hear any audio and
Device support the audio signal normally.
Check Speaker and
its wire connection (P700)
and the resistance
Check Signal from IC700
L700,L701, L706, L709
Y
Replace IC700
N
Check R4045 Voltage Level (3.3V)
Y
Replace IC807(3.3V)
N
Y
Check Signal from IC101
SDA/SCL
(R703/R214, R707/R213)
Y
Replace IC101
N
Replace connector or Speaker
N

- 17 - LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.
Only for training and service purposes
LGE2121-MS10
(MSD804KKX)
Mstar M1(L13)
COMPONENT
RS-232C
[Option : Only hotel model]
RGB
MAX3232CDR
DSUB_R/G/B/H/V
Audio IN
HP L & R out
COMP_Y , Pb ,Pr
COMP_L & R_IN
USB (Jpeg,MP3,DVIX)
AP2191DSG
LGIT HALF l NIM
(DVB T/C)
SCART (Full)
PCMCIA Slot
FE_Tuner_SDA&SCL
SCART_OUT
74LVC541A
Buffer
IC502
FE_TS_CLK FE_TS_VAL Error FE_TS_SYNC FE_TS_DATA
Buffer_FE_TS_CLK Buffer_FE_TS_VAL Error Buffer_FE_TS_SYNC Buffer_FE_TS_DATA[0]
DDR3 SDRAM
2GB
DDR3 SDRAM
(1GB) NAND Flash
1GB
74LCX244
Buffer IC501
CI_CLK CI_VIAL Error CI_SYNC CI_DATA[0~7]
CI ADDR[0~7]
PCM_DATA [0~7]
PCM_A
[0~7]
CI_ADDR[0~14]
REG CI_OE CI_IORD CI_IOWR CI-WE
PCM_A
[0~14]
FE_DE_SDA&SCL
SERIAL
Flash
CVBS& Scart RGB
TV L&R Sound
F_RB PF-OE PF_CEO
SPI_CK SPI_CI SPI_CS SPI_DO
DDR2 Data[0:15]
DDR2 Address[0:12]
DDR2 Data[0:15]
DDR2 Address[0:12]
System
EEPROM
EEPROM SCL & SDA
Panel
DMB
[LED Driver IC]
Digital amp
(NTP7513)
SP (L)
SP (R)
WLED- Status
WLED_ENABLE OVP_SEL CH_SEL
WLED_DIM_ADJ Audio_ Master_CLK
/DATA[3]
LVDS
1 Ch
SIF
- DVB-T/C : TDSS-G501D(Half NIM)
- ATSC: TDSS-H501F (Half NIM) - ISDB - T : TDSN- B601F (Full NIM)
AMP SCL&SDA
CVBS
HDMI_TMDS & HDMI I2C
DDR3: 800MHz
HDMI(MHL)
Headp hone
Option
Option(Only for DVB)
Option
Option(Only for DVB)
BLOCK DIAGRAM

- 18 - LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.
Only for training and service purposes
A2 A31
900
200
400
401
540
521
800
910
120
300
501
531 510 511
301
122
LV1
801
EXPLODED VIEW
Many electrical and mechanical parts in this chassis have special safety-related characteristics. These
parts are identified by in the Schematic Diagram and EXPLODED VIEW.
It is essential that these special safety parts should be replaced with the same components as
recommended in this manual to prevent X-RADIATION, Shock, Fire, or other Hazards.
Do not modify the original design without permission of manufacturer.
IMPORTANT SAFETY NOTICE

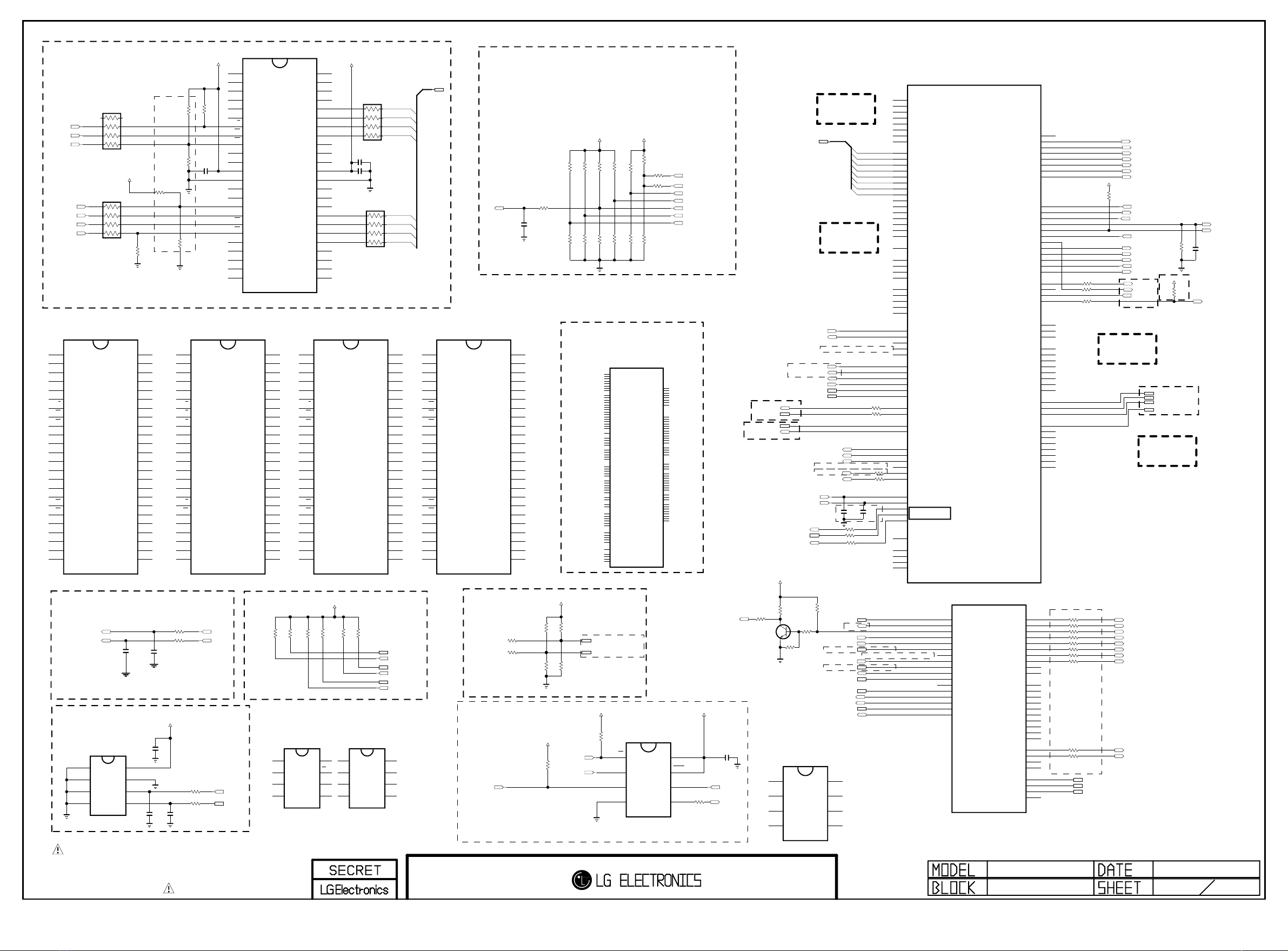

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.
PCM_A[6]
PCM_A[1]
PCM_A[5]
PCM_A[0]
PCM_A[3]
PCM_A[7]
PCM_A[2]
PCM_A[4]
PCM_A[5]
PCM_A[3]
PCM_A[1]
PCM_A[6]
PCM_A[7]
PCM_A[0]
PCM_A[4]
PCM_A[2]
R141
1K
+3.3V_Normal
TUNER_RESET
PM_RXD
+3.3V_ST
PF_ALE
HP_DET
AUD_MASTER_CLK_0
R123 4.7K
OPT
AV_CVBS_DET
R142 4.7K
OPT
C105
0.1uF
R151 33
PC_AUDIO_DET
R160
4.7K
C101
0.1uF
R165 4.7K
+3.3V_ST
PWM0
R108
1K
OPT
R140
1K
AR103
22
/FLASH_WP
KEY_SCL
SPI_SCK
R145
2.2K
AR101
22
R125
10K
BR_RESET_DEMOD
/MHL_OCP_DET
WLED_DIM_ADJ
KEY_SDA
AUD_MASTER_CLK
R116 4.7K
PWM0
MODEL_OPT_3
MODEL_OPT_6
SPI_SDI
/PF_CE1
R161
4.7K
C104
8pF
OPT
HP_MUTE
LNA_CTRL_1
/PF_WE
R153 4.7K
MHL_OCP_EN
PWM1
/PF_CE1
AMP_SCL
SPI_SDI
AMP_SDA
R156 10K
KEY_SDA
R135
10K
OPT
R147 33
KEY2
IC103
AT24C256C-SSHL-T
NVRAM_ATMEL
EAN61133501
3
A2
2
A1
4
GND
1
A0
5SDA
6SCL
7WP
8VCC
+5V_Normal
PM_RXD
R126 10K
DSUB_DET
FE_TS_DATA[0]
LNA_CTRL_2
/PF_WP
R106
1K
R111 22
R136 22
IC102
H27U1G8F2CTR-BC
NON BR(NAND_1G_HYNIX_9103(DEV))
EAN35669103
26 NC_17
27 NC_18
28 NC_19
29 I/O0
30 I/O1
31 I/O2
32 I/O3
33 NC_20
34 NC_21
35 NC_22
36 VSS_2
37 VCC_2
38 NC_23
39 NC_24
40 NC_25
41 I/O4
42 I/O5
43 I/O6
44 I/O7
45 NC_26
46 NC_27
47 NC_28
48 NC_29
17
ALE
3
NC_3
6
NC_6
16
CLE
15
NC_10
14
NC_9
13
VSS_1
12
VCC_1
11
NC_8
10
NC_7
9
CE
8
RE
7
R/B
4
NC_4
5
NC_5
25 NC_16 24
NC_15
23
NC_14
2
NC_2
22
NC_13
21
NC_12
1
NC_1
20
NC_11
19
WP
18
WE
POWER_ON/OFF1
R117 4.7K
OPT
/PF_CE0
I2C_SDA
PANEL_CTL
+3.3V_ST
MODEL_OPT_5
/PF_CE0
R102
3.3K
PCM_A[0-7]
LED_AMBER
C113
0.1uF
50V
R124 4.7K
C106
8pF
OPT
R105
1K
OPT
R178 100 OPT
WLED_ENABLE
/SPI_CS
BLU_CURRENT_CTL
/SPI_CS
/FLASH_WP
LED_RED
AUD_SCK
R164 22
R179 100 OPT
PCM_A[0-7]
R130 10K
LED_RED
LED_AMBER
R146 33
KEY1
MODEL_OPT_4
R118 4.7K
C111
2.2uF
FE_TS_VAL_ERR
R129
4.7K
OPT
SPI_SDI
R109
3.9K
R100 0
OPT
5V_DET_HDMI_2
/PF_OE
PM_TXD
R107
1K
R152 4.7K
OPT
+3.3V_Normal
R139
33

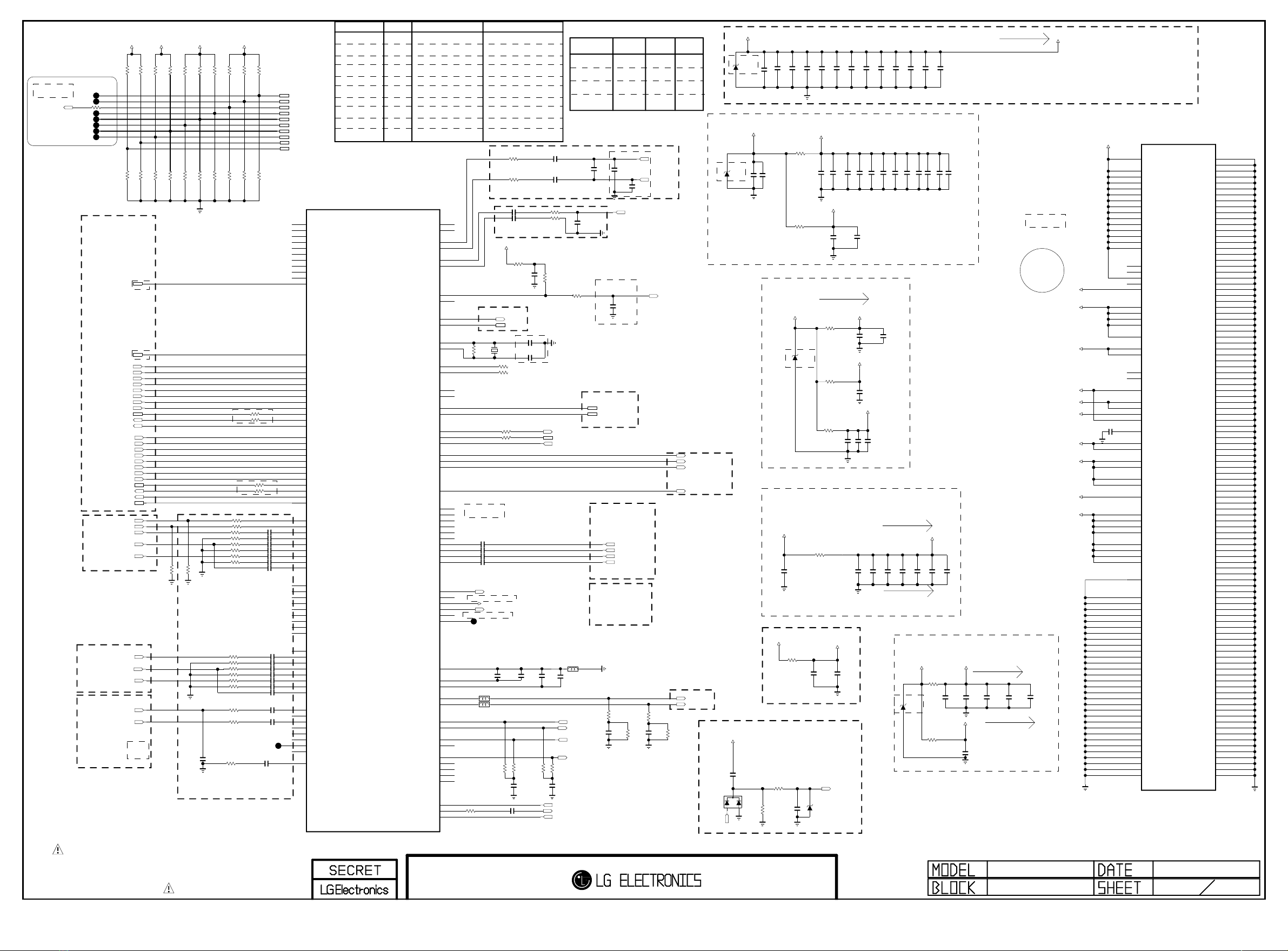

IC101
MSD804KKX
S7LR-M_NON_MS10(KR/US)
PCMDATA[0]/GPIO129
W21
PCMDATA[1]/GPIO130
AA18
PCMDATA[2]/GPIO131
AB22
PCMDATA[3]/GPIO123
AE20
PCMDATA[4]/GPIO122
AA15
PCMDATA[5]/GPIO121
AE21
PCMDATA[6]/GPIO120
AB21
PCMDATA[7]/GPIO119
Y15
PCMADR[0]/GPIO128
W20
PCMADR[1]/GPIO127
V20
PCMADR[2]/GPIO125
W22
PCMADR[3]/GPIO124
AB18
PCMADR[4]/GPIO102
AA20
PCMADR[5]/GPIO104
AA21
PCMADR[6]/GPIO105
Y19
PCMADR[7]/GPIO106
AB17
PCMADR[8]/GPIO111
Y16
PCMADR[9]/GPIO113
AB19
PCMADR[10]/GPIO117
AB20
PCMADR[11]/GPIO115
AA16
PCMADR[12]/GPIO107
AA19
PCMADR[13]/GPIO110
AC21
PCMADR[14]/GPIO109
AA17
PCMREG_N/GPIO126
Y20
PCMOE_N/GPIO116
AB15
PCMWE_N/GPIO195
AA22
PCMIORD_N/GPIO114
AD22
PCMIOWR_N/GPIO112
AD20
PCMCE_N/GPIO118
AD21
PCMIRQA_N/GPIO108
AC20
PCMCD_N/GPIO133
Y18
PCMWAIT_N/GPIO103
Y21
PCM_RESET/GPIO132
Y22
PCM2_CE_N/GPIO134
U21
PCM2_IRQA_N/GPIO135
V21
PCM2_CD_N/GPIO138
R20
PCM2_WAIT_N/GPIO136
T20
PCM2_RESET/GPIO137
U22
UART1_TX/GPIO46
D4
UART1_RX/GPIO47
E4
UART2_TX/GPIO68
N25
UART2_RX/GPIO67
N24
UART3_TX/GPIO50
B8
UART3_RX/GPIO51
A8
I2C_SCKM2/DDCR_CK/GPIO75
P23
I2C_SDAM2/DDCR_DA/GPIO74
P24
DDCA_DA/UART0_TX
D2
DDCA_CK/UART0_RX
D1
PWM0/GPIO69
P21
PWM1/GPIO70
N23
PWM2/GPIO71
P22
PWM3/GPIO72
R21
PWM4/GPIO73
P20
PWM_PM/GPIO197
F6
SAR0/GPIO34
H6
SAR1/GPIO35
G5
SAR2/GPIO36
G4
SAR3/GPIO37
J5
SAR4/GPIO38
J4
VSYNC_LIKE/GPIO146
R23
SPI1_CK/GPIO199
R24
SPI1_DI/GPIO200
R25
SPI2_CK/GPIO201
T21
SPI2_DI/GPIO202
T22
NF_CE1Z/GPIO141 AE18
NF_WPZ/GPIO196 AC17
NF_CEZ/GPIO140 AD18
NF_CLE/GPIO139 AC18
NF_REZ/GPIO142 AC19
NF_WEZ/GPIO143 AD17
NF_ALE/GPIO144 AE17
NF_RBZ/GPIO145 AD19
GPIO_PM[0]/GPIO6 H5
PM_UART_TX/GPIO_PM[1]/GPIO7 K6
GPIO_PM[2]/GPIO8 K5
GPIO_PM[3]/GPIO9 J6
GPIO_PM[4]/GPIO10 K4
PM_UART_RX/GPIO_PM[5]/GPIO11 L6
PM_SPI_SCZ1/GPIO_PM[6]/GPIO12 C2
GPIO_PM[7]/GPIO13 L5
GPIO_PM[8]/GPIO14 M6
GPIO_PM[9]/GPIO15 M5
PM_SPI_SCZ2/GPIO_PM[10]/GPIO16 C1
GPIO_PM[11]/GPIO17 M4
PM_SPI_SCK/GPIO1 A2
PM_SPI_CZ0/GPIO_PM[12]/GPIO0 D3
PM_SPI_SDI/GPIO2 B2
PM_SPI_SDO/GPIO3 B1
TS0CLK/GPIO90 Y14
TS0VALID/GPIO88 AA10
TS0SYNC/GPIO89 Y12
TS0DATA_[0]/GPIO80 Y13
TS0DATA_[1]/GPIO81 Y11
TS0DATA_[2]/GPIO82 AA12
TS0DATA_[3]/GPIO83 AB12
TS0DATA_[4]/GPIO84 AA14
TS0DATA_[5]/GPIO85 AB14
TS0DATA_[6]/GPIO86 AA13
TS0DATA_[7]/GPIO87 AB11
TS1CLK/GPIO101 AC15
TS1VALID/GPI99 AD15
TS1SYNC/GPIO100 AC16
TS1DATA_[0]/GPIO91 AD16
TS1DATA_[1]/GPIO92 AE15
TS1DATA_[2]/GPIO93 AE14
TS1DATA_[3]/GPIO94 AC13
TS1DATA_[4]/GPIO95 AC14
TS1DATA_[5]/GPIO96 AD12
TS1DATA_[6]/GPIO97 AD13
TS1DATA_[7]/GPIO98 AD14
IC103-*2
R1EX24256BSAS0A
NVRAM_RENESAS
EAN62389501
3
A2
2
A1
4
VSS
1
A0
5SDA
6SCL
7WP
8VCC
SPI_SDO
AR104
22
NTP_MUTE
IC102-*4
TC58NVG1S3ETA00
EAN60991001
BR(NAND_2G_TOSHIBA(DEV))
26 NC_17
27 NC_18
28 NC_19
29 I/O1
30 I/O2
31 I/O3
32 I/O4
33 NC_20
34 NC_21
35 NC_22
36 VSS_2
37 VCC_2
38 NC_23
39 NC_24
40 NC_25
41 I/O5
42 I/O6
43 I/O7
44 I/O8
45 NC_26
46 NC_27
47 NC_28
48 NC_29
17
ALE
3
NC_3
6
NC_6
16
CLE
15
NC_10
14
NC_9
13
VSS_1
12
VCC_1
11
NC_8
10
NC_7
9
CE
8
RE
7
RY/BY
4
NC_4
5
NC_5
25 NC_16 24
NC_15
23
NC_14
2
NC_2
22
NC_13
21
NC_12
1
NC_1
20
NC_11
19
WP
18
WE
KEY_SCL
AMP_RST
+3.3V_ST
C112
100pF
50V
OPT
IC102-*3
H27U2G8F2CTR
EAN60708702
BR(NAND_2G_HYNIX(DEV))
26 NC_17
27 NC_18
28 NC_19
29 I/O0
30 I/O1
31 I/O2
32 I/O3
33 NC_20
34 NC_21
35 NC_22
36 VSS_2
37 VCC_2
38 NC_23
39 NC_24
40 NC_25
41 I/O4
42 I/O5
43 I/O6
44 I/O7
45 NC_26
46 NC_27
47 NC_28
48 NC_29
17
ALE
3
NC_3
6
NC_6
16
CLE
15
NC_10
14
NC_9
13
VSS_1
12
VCC_1
11
NC_8
10
NC_7
9
CE
8
RE
7
R/B
4
NC_4
5
NC_5
25 NC_16 24
NC_15
23
NC_14
2
NC_2
22
NC_13
21
NC_12
1
NC_1
20
NC_11
19
WP
18
WE
I2C_SCL
PM_TXD
I2C_SDA
R176
10K
OPT
IC102-*2
NAND01GW3B2CN6E
NON BR(NAND_1G_NUMONYX(DEV))
EAN60762401
26 NC_17
27 NC_18
28 NC_19
29 I/O0
30 I/O1
31 I/O2
32 I/O3
33 NC_20
34 NC_21
35 NC_22
36 VSS_2
37 VDD_2
38 NC_23
39 NC_24
40 NC_25
41 I/O4
42 I/O5
43 I/O6
44 I/O7
45 NC_26
46 NC_27
47 NC_28
48 NC_29
17
AL
3
NC_3
6
NC_6
16
CL
15
NC_10
14
NC_9
13
VSS_1
12
VDD_1
11
NC_8
10
NC_7
9
E
8
R
7
RB
4
NC_4
5
NC_5
25 NC_16 24
NC_15
23
NC_14
2
NC_2
22
NC_13
21
NC_12
1
NC_1
20
NC_11
19
WP
18
W
R128
47K
OPT
OLP
R154 22
R174
10K
OPT
PWM1
R148
33
C114
0.1uF
RGB_DDC_SCL
Q100
MMBT3904(NXP)
E
B
C
PWM2
+3.3V_Normal
FE_TS_CLK
FE_TS_SYNC
+3.3V_ST
C103
0.1uF
PWM2
R103 0
/PF_OE
R121 4.7K
OPT
MULTI_ON
+3.3V_ST
IC103-*1
M24256-BRMN6TP
NVRAM_ST
EAN61548301
3
E2
2
E1
4
VSS
1
E0
5SDA
6SCL
7WC
8VCC
I2C_SCL
C107
0.1uF
16V
MODEL_OPT_1
R177
10K
OPT
USB_OCD
R163 22
ERROR_OUT
MODEL_OPT_2
R112 22
R175
10K
OPT
+3.3V_Normal
AR102
22
R138
4.7K
OPT
PWM0
5V_DET_HDMI_1
IC100-*1
MX25L8006EM2I-12G
S_FLASH_MAIN_MACRONIX
3
WP#
2
SO/SIO1
4
GND
1
CS#
5SI/SIO0
6SCLK
7HOLD#
8VCC
R101 22
SPI_SCK
R157 100
MODEL_OPT_7
/PF_WP
R144
2.2K
R113 22
IC101-*1
LGE2121-MS (M1_L13_MS10)
S7LR-M_MS10(NON KR/US)
PCMDATA[0]/GPIO129
W21
PCMDATA[1]/GPIO130
AA18
PCMDATA[2]/GPIO131
AB22
PCMDATA[3]/GPIO123
AE20
PCMDATA[4]/GPIO122
AA15
PCMDATA[5]/GPIO121
AE21
PCMDATA[6]/GPIO120
AB21
PCMDATA[7]/GPIO119
Y15
PCMADR[0]/GPIO128
W20
PCMADR[1]/GPIO127
V20
PCMADR[2]/GPIO125
W22
PCMADR[3]/GPIO124
AB18
PCMADR[4]/GPIO102
AA20
PCMADR[5]/GPIO104
AA21
PCMADR[6]/GPIO105
Y19
PCMADR[7]/GPIO106
AB17
PCMADR[8]/GPIO111
Y16
PCMADR[9]/GPIO113
AB19
PCMADR[10]/GPIO117
AB20
PCMADR[11]/GPIO115
AA16
PCMADR[12]/GPIO107
AA19
PCMADR[13]/GPIO110
AC21
PCMADR[14]/GPIO109
AA17
PCMREG_N/GPIO126
Y20
PCMOE_N/GPIO116
AB15
PCMWE_N/GPIO195
AA22
PCMIORD_N/GPIO114
AD22
PCMIOWR_N/GPIO112
AD20
PCMCE_N/GPIO118
AD21
PCMIRQA_N/GPIO108
AC20
PCMCD_N/GPIO133
Y18
PCMWAIT_N/GPIO103
Y21
PCM_RESET/GPIO132
Y22
PCM2_CE_N/GPIO134
U21
PCM2_IRQA_N/GPIO135
V21
PCM2_CD_N/GPIO138
R20
PCM2_WAIT_N/GPIO136
T20
PCM2_RESET/GPIO137
U22
UART1_TX/GPIO46
D4
UART1_RX/GPIO47
E4
UART2_TX/GPIO68
N25
UART2_RX/GPIO67
N24
UART3_TX/GPIO50
B8
UART3_RX/GPIO51
A8
I2C_SCKM2/DDCR_CK/GPIO75
P23
I2C_SDAM2/DDCR_DA/GPIO74
P24
DDCA_DA/UART0_TX
D2
DDCA_CK/UART0_RX
D1
PWM0/GPIO69
P21
PWM1/GPIO70
N23
PWM2/GPIO71
P22
PWM3/GPIO72
R21
PWM4/GPIO73
P20
PWM_PM/GPIO197
F6
SAR0/GPIO34
H6
SAR1/GPIO35
G5
SAR2/GPIO36
G4
SAR3/GPIO37
J5
SAR4/GPIO38
J4
VSYNC_LIKE/GPIO146
R23
SPI1_CK/GPIO199
R24
SPI1_DI/GPIO200
R25
SPI2_CK/GPIO201
T21
SPI2_DI/GPIO202
T22
NF_CE1Z/GPIO141 AE18
NF_WPZ/GPIO196 AC17
NF_CEZ/GPIO140 AD18
NF_CLE/GPIO139 AC18
NF_REZ/GPIO142 AC19
NF_WEZ/GPIO143 AD17
NF_ALE/GPIO144 AE17
NF_RBZ/GPIO145 AD19
GPIO_PM[0]/GPIO6 H5
PM_UART_TX/GPIO_PM[1]/GPIO7 K6
GPIO_PM[2]/GPIO8 K5
GPIO_PM[3]/GPIO9 J6
GPIO_PM[4]/GPIO10 K4
PM_UART_RX/GPIO_PM[5]/GPIO11 L6
PM_SPI_SCZ1/GPIO_PM[6]/GPIO12 C2
GPIO_PM[7]/GPIO13 L5
GPIO_PM[8]/GPIO14 M6
GPIO_PM[9]/GPIO15 M5
PM_SPI_SCZ2/GPIO_PM[10]/GPIO16 C1
GPIO_PM[11]/GPIO17 M4
PM_SPI_SCK/GPIO1 A2
PM_SPI_CZ0/GPIO_PM[12]/GPIO0 D3
PM_SPI_SDI/GPIO2 B2
PM_SPI_SDO/GPIO3 B1
TS0CLK/GPIO90 Y14
TS0VALID/GPIO88 AA10
TS0SYNC/GPIO89 Y12
TS0DATA_[0]/GPIO80 Y13
TS0DATA_[1]/GPIO81 Y11
TS0DATA_[2]/GPIO82 AA12
TS0DATA_[3]/GPIO83 AB12
TS0DATA_[4]/GPIO84 AA14
TS0DATA_[5]/GPIO85 AB14
TS0DATA_[6]/GPIO86 AA13
TS0DATA_[7]/GPIO87 AB11
TS1CLK/GPIO101 AC15
TS1VALID/GPI99 AD15
TS1SYNC/GPIO100 AC16
TS1DATA_[0]/GPIO91 AD16
TS1DATA_[1]/GPIO92 AE15
TS1DATA_[2]/GPIO93 AE14
TS1DATA_[3]/GPIO94 AC13
TS1DATA_[4]/GPIO95 AC14
TS1DATA_[5]/GPIO96 AD12
TS1DATA_[6]/GPIO97 AD13
TS1DATA_[7]/GPIO98 AD14
+3.3V_Normal
I2C_SCL
R115 4.7K
OPT
R137 22
PF_ALE
R143 4.7K
OPT
IC101
MSD804KKX
S7LR-M_NON_MS10(KR/US)
GPIO39
C7
GPIO40
E6
GPIO41
F5
GPIO42
B6
GPIO43
E5
GPIO44
D5
GPIO45
B7
GPIO48
E7
GPIO49
F7
GPIO52
AB5
GPIO53
AB3
GPIO54
A9
GPIO55
F4
I2C_SCKM0/GPIO56
AB1
I2C_SDAM0/GPIO57
N6
GPIO76
AB2
GPIO77
AC2
LVA0P AB25
LVA0N AB23
LVA1P AC25
LVA1N AB24
LVA2P AD25
LVA2N AC24
LVA3P AE23
LVA3N AC23
LVA4P AC22
LVA4N AD23
LVB0P V23
LVB0N U24
LVB1P V25
LVB1N V24
LVB2P W25
LVB2N W23
LVB3P AA23
LVB3N Y24
LVB4P AA25
LVB4N AA24
LVACLKP AE24
LVACLKN AD24
LVBCLKP Y23
LVBCLKN W24
GPIO194 T25
GPIO191 U23
GPIO192 T24
GPIO193 T23
C110
0.1uF
16V
I2C_SDA
R127
4.7K
USB_CTL
C102
10uF
10V
/F_RB
MODEL_OPT_0
/PF_WE
SPI_SDO
IC102-*1
K9F1G08U0D-SCB0
NON BR(NAND_1G_SS)
EAN61857001
26 NC_17
27 NC_18
28 NC_19
29 I/O0
30 I/O1
31 I/O2
32 I/O3
33 NC_20
34 NC_21
35 NC_22
36 VSS_2
37 VCC_2
38 NC_23
39 NC_24
40 NC_25
41 I/O4
42 I/O5
43 I/O6
44 I/O7
45 NC_26
46 NC_27
47 NC_28
48 NC_29
17
ALE
3
NC_3
6
NC_6
16
CLE
15
NC_10
14
NC_9
13
VSS_1
12
VCC_1
11
NC_8
10
NC_7
9
CE
8
RE
7
R/B
4
NC_4
5
NC_5
25 NC_16 24
NC_15
23
NC_14
2
NC_2
22
NC_13
21
NC_12
1
NC_1
20
NC_11
19
WP
18
WE
RGB_DDC_SDA
/F_RB
IC100
W25Q80BVSSIG
S_FLASH_MAIN_WINBOND
3
%WP[IO2]
2
DO[IO1]
4
GND
1
CS
5DI[IO0]
6CLK
7HOLD[IO3]
8VCC
C100
1uF
OPT
R131
100
+3.3V_Normal
+3.3V_ST
R180
4.7K
BOOT_POWER_OPTION_0
BOOT_POWER_OPTION_1 MODEL_OPT_8
MODEL_OPT_9
R185 22
RXA3-
RXA0-
RXACK-
R187 22
RXA1-
R188 22
R183 22 RXA0+
R186 22
RXA3+
R189 22
RXA1+
RXACK+
R159 22
R184 22
RXA2-
R182 22
RXA2+
R158 22
MAIN1_NON_EU
DIMMING
for SYSTEM EEPROM
(IC104)
for SERIAL FLASH
A0’h
PM MODEL OPTION
<CHIP Config(LED_R/BUZZ)>
Boot from SPI CS1N(EXT_FLASH) 1’b0
Boot from SPI_CS0N(INT_FLASH) 1’b1
EEPROM
Internal demod out
<CHIP Config>
(I2S_OUT_BCK,I2S_OUT_MCK,PAD_PWM1PAD_PWM0)
I2C
B51_no_EJ : 4’b0000 Boot from 8051 with SPI flash
SB51_WOS : 4’b0001 Secure B51 without scramble
SB51_WS : 4’b0010 Secure B51 with scramble
MIPS_SPE_NO_EJ : 4’b0100 Boot from MIPS with SPI flash
MIPS_SPI_EJ_1 : 4’b0101 Boot from MIPS with SPI flash
MIPS_SPI_EJ_2 : 4’b0110 Boot from MIPS with SPI flash
MIPS_WOS : 4’b1001 Secure MIPS without scramble
MIPS_WS : 4’b1010 Scerur MIPS with SCRAMBLE
applied on only SMALL PCB
2011.11.15
WalkieTalkie Issue
1 12
NAND FLASH MEMORY
SERIAL FLASH MEMORY
NC4_S7LRM
EAX65077302
2012.11.18
120917
Changed
2012.09.15
SCART1_MUTE Delete
120915
SCART1_DET Delete
120915
PCM_5V_CTL Deleted 120915 CI_TS_DATA Deleted
120915
PCM_DATA Deleted
120915
PCM_DATA Deleted
120915
FE_TS_DATA[1]~[7]
Deleted
120915
Pull up added
121018
Net Name Change
121018
ADDED
121018
ADDED
121019
ADDED to improve EMI
LGE2121-NonMS10 (MSD804KKX)
: EAN62651201 (KR/US REGION)
LGE2121-MS10 (MSD804KKX)
: EAN62674101 (NON_KR/US REGION)
Copyright © 2013 LG Electronics. Inc. All rights reserved.
Only for training and service purposes
LGE Internal Use Only

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.
C305
1uF
10uFC228
R222 1K
OPT
HP_ROUT
C243 2.2uF
AVDD_MPLL
C283 0.1uF
DSUB_HSYNC
C304 0.1uF
OPT
IC101
MSD804KKX
S7LR-M_NON_MS10(KR/US)
RXACKP
J2
RXACKN
J3
RXA0P
K3
RXA0N
J1
RXA1P
K2
RXA1N
K1
RXA2P
L2
RXA2N
L3
DDCDA_DA/GPIO27
T5
DDCDA_CK/GPIO26
T4
HOTPLUGA/GPIO22
V5
HOTPLUGD/GPIO25
R5
RXCCKP
AE9
RXCCKN
AC9
RXC0P
AC10
RXC0N
AD9
RXC1P
AC11
RXC1N
AD10
RXC2P
AE11
RXC2N
AD11
DDCDC_DA/GPIO31
AE8
DDCDC_CK/GPIO30
AD8
HOTPLUGC/GPIO24
AC8
RXBCKP
F2
RXBCKN
F3
RXB0P
G3
RXB0N
F1
RXB1P
G2
RXB1N
G1
RXB2P
H2
RXB2N
H3
DDCDB_DA/GPIO29
R6
DDCDB_CK/GPIO28
U6
HOTPLUGB/GPIO23
P5
CEC/GPIO5
R4
HSYNC0
P2
VSYNC0
R3
RIN0P
N2
RIN0M
P3
GIN0P
N3
GIN0M
N1
BIN0P
M3
BIN0M
M2
SOGIN0
M1
HSYNC1
V2
VSYNC1
V3
RIN1P
U3
RIN1M
U2
GIN1P
T1
GIN1M
T2
BIN1P
R2
BIN1M
R1
SOGIN1
T3
HSYNC2
AA2
RIN2P
Y2
RIN2M
AA3
GIN2P
W2
GIN2M
Y3
BIN2P
V1
BIN2M
W3
SOGIN2
W1
CVBS0
AA8
CVBS1
Y4
CVBS2
W4
CVBS3
AA5
NC_5
Y5
NC_7
AA4
NC_6
Y6
CVBSOUT1
AA1
VCOM
AB4
NC_8 AC4
NC_9 AD3
IP AC3
IM AE3
SIFP AD4
SIFM AC5
IF_AGC AD2
RF_AGC AE2
I2C_SCKM1/GPIO78 AE6
I2C_SDAM1/GPIO79 AD6
XIN AD1
XOUT AC1
SPDIF_IN/GPIO150 D7
SPDIF_OUT/GPIO151 D6
USB0_DM E3
USB0_DP E2
USB1_DM AC12
USB1_DP AE12
I2S_IN_BCK/GPIO148 C8
I2S_IN_SD/GPIO149 D8
I2S_IN_WS/GPIO147 D9
I2S_OUT_BCK/GPIO154 B10
I2S_OUT_MCK/GPIO152 C9
I2S_OUT_SD/GPIO155 B9
I2S_OUT_WS/GPIO153 C10
AUL0 AB9
AUR0 AA11
AUL1 Y9
AUR1 AA9
AUL2 AA7
AUR2 AB8
AUL3 Y8
AUR3 Y10
AUL4 AC7
AUR4 AD7
GPIO_PM[13]/GPIO19 W6
AUOUTL2 V6
AVDD5V_MHL V4
GPIO_PM[14]/GPIO20 Y7
AUOUTR2 W5
GPIO_PM[15]/GPIO21 U5
AUVRM AD5
AUVAG AE5
AUVRP AC6
EARPHONE_OUTL AA6
EARPHONE_OUTR AB6
RP/GPIO63 C6
TP/GPIO60 C5
RN/GPIO66 A6
LED1/GPIO59 C4
TN/GPIO62 B5
GPIO61 C3
GPIO64 A3
GPIO65 B3
LED0/GPIO58 B4
IRIN/GPIO4 N4
ARC0 T6
HWRESET N5
AVDD_DVI
MODEL_OPT_7
AVDD5V_MHL
D2+_HDMI1
10uFC275
SOC_RESET
C246 0.1uF
R215
0
1/10W
5%
D0+_HDMI2
R263
49.9
LAN JACK
R214 22
MODEL_OPT_6
C297 0.1uF
ZD200
3.3V
OPT
AVDD_DVI
R212 1K
NON_ASIA
C229 0.1uF
R206 1K
OPT
L205 LN45005.6uH
R271
0
1/10W
5%
10uFC276
OPT
C224 1000pF
X201
24MHz
L202
BLM18SG121TN1D
R219 22
C279 0.1uF
C277 1uF
AVDD_AU33
+1.15V_VDDC
C247
10uF
C303
0.1uF
R207 1K
10uFC202
R200
62K
R276
0
LN4500
+3.3V_Normal
C241
0.1uF
R213 22
MODEL_OPT_0
C239 0.1uF
R224 1K
MODEL_OPT_MIU0-256M(BR/ASIA)
C234
0.1uF
R234 47
C296
0.1uF OPT
R287
1M
C290
0.1uF OPT
R294 1K
OPT
C268
4.7uF
10V
LN4500
DDC_SDA_1
R238 68
+1.15V_VDDC
C280 1uF
R205
10
+1.5V_DDR
C272
4.7uF
10V
LN4500
MODEL_OPT_1
R210 0
OPT
COMP_R_IN
C298 0.1uF
OPT
R274
HALF_NIM
0
MHL_CD_SENSE
C302 0.1uF
OPT
C200
4.7uF
10V
C218 0.047uF
D1-_HDMI2
C232 0.1uF OPT
R208 1K
OPT
C240
0.1uF
C301 0.1uF OPT
R209 1K
10uFC284
D2-_HDMI2
+3.3V_ST
RF_SWITCH_CTL
C201
0.1uF
OPT
AMP_SDA
C252
0.1uF
C260 0.1uF
OPT
IC101
MSD804KKX
S7LR-M_NON_MS10(KR/US)
AVDDLV_USB
K12
VDDC_1
G9
VDDC_2
H9
VDDC_3
K10
VDDC_4
K11
VDDC_5
L10
VDDC_6
M12
VDDC_7
M13
VDDC_8
N12
VDDC_9
P14
VDDC_10
P15
VDDC_11
R10
VDDC_12
R14
VDDC_13
R15
VDDC_14
T10
NC_2
P10
FB_CORE
P19
AVDDL_MOD
R16
NC_1
L11
DVDD_DDR
M14
AVDD2P5_ADC_1
W9
AVDD2P5_ADC_2
W10
AVDD2P5_ADC_3
W11
AVDD2P5_ADC_4
W12
AVDD25_LAN
Y17
AVDD_MOD_1
V18
AVDD_MOD_2
U19
NC_3
W14
NC_4
W15
AVDD_NODIE
U7
AVDD_DVI_USB_1
L7
AVDD_DVI_USB_2
M7
AVDD3P3_MPLL
P7
AVDD_DMPLL
R7
DVDD_NODIE
M19
AVDD_AU33
V7
AVDD_EAR33
W7
VDDP_1
R19
VDDP_2
T19
AVDD_LPLL_1
W18
AVDD_LPLL_2
W19
VDDP_NAND
V19
AVDD_DDR0_D_1
J17
AVDD_DDR0_D_2
K15
AVDD_DDR0_D_3
K16
AVDD_DDR0_C
L15
AVDD_DDR1_D_1
K17
AVDD_DDR1_D_2
L17
AVDD_DDR1_D_3
M17
AVDD_DDR1_C
L16
GND_EFUSE
E9
GND_1
A23
GND_2
B17
GND_3
C23
GND_4
A5
GND_5
C11
GND_6
C19
GND_7
C22
GND_8
D14
GND_9
D18
GND_10
D19
GND_11
E17
GND_12
E18
GND_13
E19
GND_14
E22
GND_15
F8
GND_16
F17
GND_17
F18
GND_18
F19
GND_19
G8
GND_20
H8
GND_21
N22
GND_22
N21
GND_23
N20
GND_24
M22
GND_25
M21
GND_26
M20
GND_27
F10
GND_28
V15
GND_29
W16
GND_30
V8
GND_31
T18
GND_32 G10
GND_33 G11
GND_34 G12
GND_35 G13
GND_36 G14
GND_37 G17
GND_38 G18
GND_39 G19
GND_40 G24
GND_41 H11
GND_42 H12
GND_43 H13
GND_44 H14
GND_45 H15
GND_46 H16
GND_47 H17
GND_48 H18
GND_49 H19
GND_50 J9
GND_51 J10
GND_52 J11
GND_53 J12
GND_54 J13
GND_55 J14
GND_56 J15
GND_57 J16
GND_58 J18
GND_59 J19
GND_60 J25
GND_61 K9
GND_62 K13
GND_63 K14
GND_64 H10
GND_65 K18
GND_66 K19
GND_67 K22
GND_68 L8
GND_69 L9
GND_70 J8
GND_71 L12
GND_72 L13
GND_73 L18
GND_74 L19
GND_75 M8
GND_76 K8
GND_77 M10
GND_78 M11
GND_79 L14
GND_80 M15
GND_81 M16
GND_82 M18
GND_83 M25
GND_84 N10
GND_85 N11
GND_86 N13
GND_87 N14
GND_88 N15
GND_89 N16
GND_90 N17
GND_91 N19
GND_92 K7
GND_93 P8
GND_94 P9
GND_95 M9
GND_96 P11
GND_97 P13
GND_98 P16
GND_99 P17
GND_100 P18
GND_101 P12
GND_102 R8
GND_103 R9
GND_104 R11
GND_105 R12
GND_106 R13
GND_107 R17
GND_108 T8
GND_109 T9
GND_110 N7
GND_111 T11
GND_112 T12
GND_113 T13
GND_114 T14
GND_115 T15
GND_116 T16
GND_117 T17
GND_118 U8
GND_119 U9
GND_120 U10
GND_121 U11
GND_122 U12
GND_123 U13
GND_124 U14
GND_125 U15
GND_126 U16
GND_127 U17
GND_128 R18
GND_129 V9
GND_130 V10
GND_131 V11
GND_132 V12
GND_133 V14
GND_134 V17
GND_135 T7
GND_136 E8
AVDD_NODIE
D0-_HDMI2
AVDD_MIU
R244 33
R243
10K
HALF_NIM
R211 1K
ASIA
AUD_MASTER_CLK_0
R264
49.9
LAN JACK
C289
33pF
ASIA(HALF_NIM/IF_FILTER)
D200
MMBD6100
A2
C
A1
CEC_REMOTE_S7
R293 1K
C282
0.1uF
HALF_NIM
C222 0.047uF
R273
0
1/10W
5%
C225 0.047uF
R229 68
TU_CVBS
C251 0.1uF
+3.3V_Normal
AVDD2P5
EPHY_RN
SB_MUTE
R269
0
1/10W
5%
C307 1uF
MODEL_OPT_4
R235 47
MODEL_OPT_5
C270
0.1uF
OPT
L203 LN45005.6uH
C233 0.047uF
R297 0OPT
DSUB_B+
C227 0.047uF
C231 1uF
OPT
USB_DP
DDC_SDA_2
DDC_SCL_2
SOC_RESET
C299 0.1uF
OPT
C245 2.2uF
C273
0.1uF
R217
0
1/10W
5%
CK-_HDMI1
AVDD_MIU
R233 68
COMP_Y+/AV_CVBS_IN
DSUB_VSYNC
C285
0.047uF
25V
HALF_NIM
D0-_HDMI1
R262
49.9
LAN JACK
+2.5V_Normal
R223 1K
R266 510
HP_LOUT
R239 33
AUD_SCK
R278
0
OPT
R231 68
IR
C244 2.2uF
AMP_SCL
C281
10uF OPT
C219 0.047uF
R270
0
1/10W
5%
COMP_Y+/AV_CVBS_IN
VDD33
IF_AGC_MAIN
C266 0.1uF OPT
R203 100 BR(RF_SW_OPT)
C205 0.047uF
R261
2.4K
AVDD_MPLL
R221 22
C264
1000pF
OPT
50V
R267 510
C306 0.1uF
C210 1000pF
C242 2.2uF
R275
0
LN4500
C204 0.047uF
R265
49.9
LAN JACK
AVDD2P5_MOD
TU_SIF
CK+_HDMI1
R237 33
+1.15V_VDDC
R252 68
C203
1000pF
OPT 50V
D2-_HDMI1
R232 33
TU_SCL
PC_L_IN
R241 33
CK-_HDMI2
C295
0.1uF
LAN JACK
MODEL_OPT_2
+3.3V_Normal
C259 0.1uF
EPHY_TN
+2.5V_Normal
C256
0.1uF
C286
0.1uF
D1+_HDMI2
USB_DM
10uFC254
HPD1
EPHY_RP
R218 22
C209 0.047uF
R247
0
HALF_NIM
COMP_L_IN
R230 33
C250 0.1uF
R277
0
OPT
C269
10uF
C258 0.1uF
HALF_NIM
AUD_LRCH
EPHY_TP
DSUB_R+
C235 0.1uF
AVDD_AU33
C267 0.1uF OPT
D1-_HDMI1
C261 27pF
C223 0.047uF
HPD2
VDD33
C278 10uF
R289 100
HALF_NIM
C265 0.1uF OPT
R246 33
C262 27pF
TP209
C291 0.1uF
OPT
DSUB_G+
R240 68
IF_N_MSTAR
PC_R_IN
C248
0.1uF
C294
0.1uF
LAN JACK
MODEL_OPT_3
+3.3V_Normal
+3.3V_ST
C271
0.1uF
OPT
AVDD_NODIE
MIUVDDC
R296 100OPT
DDC_SCL_1
C220 0.047uF
10uFC293 OPT
CK+_HDMI2
D2+_HDMI2
D1+_HDMI1
R291 1K
C288
33pF
ASIA(HALF_NIM/IF_FILTER)
C238
0.1uF
16V
MIUVDDC
C208 0.047uF
C263
10uF
C292 0.1uF
OPT
AVDD2P5_MOD
VDD33
R268
0
1/10W
5%
D0+_HDMI1
R226 1K
C255 0.1uF OPT
AUD_LRCK
R288 100
HALF_NIM
R242 68
HDMI_ARC
AVDD2P5
C287
100pF
OPT
R220 22
IF_P_MSTAR
C274
0.1uF
C249
4.7uF
/VBUS_EN
R260
10K
COMP_Pr+
R227 1K
OPT
COMP_DET
C257 0.1uF
HALF_NIM
TU_SDA
COMP_Pb+
R216
0
1/10W
5%
R225 1K
MODEL_OPT_MIU0-128M(KR/US)
+1.15V_VDDC
C300
0.1uF
R290 1K
OPT
R272
0
1/10W
5%
C207 0.047uF
R228 33
C221 0.047uF
C206 0.047uF
C253
1uF
R301 10K
OPT
R300 10K
(OPT)TAIWAN
R303 10K
MODEL_OPT_8
R302 10K
ASIA
MODEL_OPT_9
+3.3V_ST
BOOT_POWER_OPTION_0
BOOT_POWER_OPTION_1
ZD201
5.6B
(OPT)ZENER MainIC
ZD202
5.6B
(OPT)ZENER MainIC
ZD203
5.6B
(OPT)ZENER MainIC
ZD204
5.6B
(OPT)ZENER MainIC
MAIN2_NON_EU
AUDIO OUT
DTV_IF
Close to MSTAR
SIDE USB
I2S_I/F
TUNER_I2C
HDMI
AVDD25_PGA:13mA
AVDD2P5:172mA
DSUB
AUDIO IN
CVBS In/OUT
ANALOG SIF
Close to MSTAR
COMP
Close to MSTAR
Normal 2.5V
Close to MSTAR
H/P OUT
2 12
SOC_RESET
111026Switch
EBF32593901 Deletion
120715
Added
120715
Added
NC4_S7LRM
00128M
Note
0
Ginga1
Memory
1
01
MODEL OPTION
MODEL OPTION
Model
OPT 6
MEMORY OPTION
1
Model
OPT 4
128M+128M
256M
256M+128M
12.08.03
22->27pF
VDDC 1.15V
VDDC : 2026mA
Normal Power 3.3V
STby 3.3V
AVDD_NODIE:7.362mA
AVDD_DDR1:55mA
DDR3 1.5V
AVDD_DDR0:55mA
EAX65077302
2012.11.18
120715
Added
120918
DTV/MNT_VOUT deleted
12015
SCART1_LOUT,ROUT
Deleted
FB_CORE
120915
Deleted
120915
Deleted
120915
100->33pF
120915
Deleted
120915
Deleted
120915
Deleted
MODEL_OPT_1
MIU0-128M
A9
HD_LVDS_NON_EU
T25
AB2
PIN NO.
MODEL_OPT_2
A8
NON_M120
FHD
DualStream
AB3
MODEL_OPT_4
F7
LOW
TAIWAN
HD
NON_DVB_S DVB_S
HIGH
MIU1-NO_DDR
MODEL_OPT_5
U23
T24
EU,AJ
F4
NON_DualStream
NON_DVB_T2
MODEL_OPT_3
B8
PIN NAME
MODEL_OPT_9
HD_LVDS_EU
MIU1-128MMODEL_OPT_6
MODEL_OPT_7
MIU0-256M
Other: N.C
M120
Dual Stream is only Korea 3D spec
MODEL_OPT_0
MODEL_OPT_8
DVB_T2
121018
PM_MODEL_OPT_0
->BOOT_POWER_OPTION_0
121018
PM_MODEL_OPT_1
->BOOT_POWER_OPTION_1
121118
APPLY
111128
Zener Add
111128
Zener Add
111128
Zener Add
111128
Zener Add
NON_AJ AJ
Copyright © 2013 LG Electronics. Inc. All rights reserved.
Only for training and service purposes
LGE Internal Use Only
