LG 27TQ625S User manual
*MFL70446317*
(2209-REV01) Copyright 2022 LG Electronics Inc. All Rights Reserved.
www.lg.com
24TQ520S
24TQ510S
27TQ625S
27TQ615S
* LG LED TV applies LCD screen with LED backlights.
Please read this manual carefully before operating your TV and retain it for
future reference.
OWNER’S MANUAL
Safety and Reference
(LED TV*)
2
ENGLISH
TABLE OF CONTENTS
SAFETY PRECAUTIONS ------------------------------3
LICENSES-----------------------------------------------7
OPEN SOURCE SOFTWARE NOTICE
INFORMATION ----------------------------------------7
PREPARING -------------------------------------------7
SEPARATE PURCHASE -------------------------------8
LIFTING AND MOVING THE TV ---------------------8
SETTING UP THE TV----------------------------------9
USING THE BUTTON ---------------------------------9
MOUNTING ON A TABLE--------------------------- 10
MOUNTING ON A WALL --------------------------- 11
CONNECTIONS -------------------------------------- 12
REMOTE CONTROL --------------------------------- 13
USER GUIDE ----------------------------------------- 14
MAINTENANCE-------------------------------------- 15
TROUBLESHOOTING ------------------------------- 15
SPECIFICATIONS------------------------------------ 16
ENVIRONMENTAL INFORMATION --------------- 18
3
ENGLISH
SAFETY PRECAUTIONS
Please read these safety precautions carefully before using the product.
WARNING
If you ignore the warning message, you may be seriously
injured or there is a possibility of accident or death.
CAUTION
If you ignore the caution message, you may be slightly injured
or the product may be damaged.
Precautions in installing the product
WARNING
yKeep away from heat sources like electrical heaters.
►Electrical shock, re, malfunction or deformation may occur.
yKeep the packing anti-moisture material or vinyl packing out of the
reach of children.
►Anti-moisture material is harmful if swallowed. If swallowed
by mistake, force the patient to vomit and visit the nearest
hospital. Additionally, vinyl packing can cause suocation. Keep
it out of the reach of children.
yDo not put heavy objects on the product or sit upon it.
►If the product collapses or is dropped, you may be injured.
Children must pay particular attention.
yDo not leave the power or signal cable unattended on the pathway.
►The passerby can falter, which can cause electrical shock, re,
product breakdown or injury.
yInstall the product in a neat and dry place.
►Dust or moisture can cause electrical shock, re or product
damage.
yIf you can smell smoke or other odors or hear a strange sound
unplug the power cord and contact the service center.
►If you continue to use without taking proper measures,
electrical shock or re can occur.
yIf you dropped the product or the case is broken, turn o the product
and unplug the power cord.
►If you continue to use without taking proper measures,
electrical shock or re can occur. Contact the service center.
yDo not drop an object on or apply impact to the product. Do not
throw any toys or objects on the product screen.
►It can cause injury to human, problem to product and damage
the display.
yDo not let the product fall or drop when connecting it with an
external device.
►This may cause injury and/or damage to the product.
yWhen connecting it with a game device, keep a distance of four
times as long as the diagonal measurement of the screen from the
device.
►If the product falls because of the short cable, this may cause
injury and/or damage to the product.
yLeaving a xed image on the screen for a long time may cause
damage to the screen and cause image burn-in.To use the product
for a long period of time, use a screen saver on the PC or utilize
the residual image prevention function on the product, and when
the product is not used, turn o the power. Burn-in and related
problems are not covered by the warranty on this product.
yDo not install this product on a wall if it could be exposed to oil or
oil mist.
►This may damage the product and cause it to fall.
4
ENGLISH
CAUTION
yMake sure the product ventilation hole is not blocked. Install the
product in a suitably wide place (more than 100 mm from the wall).
►If you install the product too close to the wall, it may be
deformed or re can break out due to internal heat.
yDo not block the ventilation hole of the product by a tablecloth or
curtain.
►The product can be deformed or re can break out due to
overheating inside the product.
yInstall the product on a at and stable place that has no risk of
dropping the product.
►If the product is dropped, you may be injured or the product
may be broken.
yInstall the product where no EMI occurs.
yKeep the product away from direct sunlight.
►The product can be damaged.
yIf you install the product in a place that does not meet the
recommended conditions, this may cause serious damage to the
product’s picture quality, life cycle and appearance. Please check
with LG or a qualied installer before installing. This caution applies
to a place where there is an abundance of ne dust or oil mist,
chemical substances are used, the temperature is very high or low,
the humidity is very high, or the product is likely to remain turned
on for a long period of time (airport and train station), failure to do
so will invalidate the warranty.
yDo not install the product in an area with poor ventilation (e.g.on
a bookshelf, in a closet) or outside and avoid placing on cushions
or carpets.
yIn addition, do not install it where there are heating objects such as
lighting equipment.
Precautions to the AC adapter and electrical
power
WARNING
yIf water or any foreign substance goes inside the product (TV,
monitor, power cord, or AC adapter), disconnect the power cord
immediately and contact the service center.
►Otherwise, this may cause a re or electric shock due to damage
to the product.
yDo not touch the power plug or AC adapter with wet hands. If the
pins of the plug are wet or dusty, wipe and dry them before use.
►Otherwise, this may cause a re or electric shock.
yMake sure to completely insert the power cord into the AC adapter.
►If loosely connected, the poor connection may cause a re or
electric shock.
yBe sure to use power cords and AC adapters provided or approved by
LG Electronics, Inc.
►The use of non-approved products may cause a re or electric
shock.
yWhen unplugging the power cord, always pull it by the plug. Do not
bend the power cord with excessive force.
►The power line can be damaged, which may cause electric
shock or re.
yBe careful not to step or place heavy objects (electronic appliances,
clothing, etc.) on the power cord or AC adapter. Be careful not to
damage the power cord or AC adapter with sharp objects.
►Damaged power cords may cause a re or electric shock.
yNever disassemble, repair or modify the power cord or AC adapter.
►This may cause a re or electric shock.
5
ENGLISH
yMake sure to connect the power cable to the grounded current.
►You may be electrocuted or injured.
yUse the rated voltage only.
►The product can be damaged, or you may be electrocuted.
yIn the presence of thunder and lightning, never touch the power
cord and signal cable because it can be very dangerous.
►It can cause electric shock.
yDo not connect several extension cords, electrical appliances
or electrical heaters to a single outlet. Use a power bar with a
grounding terminal designed for exclusive use with the computer.
►A re can break out due to overheating.
yDo not touch the power plug with wet hands. Additionally, if the
cord pin is wet or covered with dust, dry the power plug completely
or wipe dust o.
►You may be electrocuted due to excess moisture.
yIf you don’t intend to use the product for a long time, unplug the
power cable from the product.
►Covering dust can cause a re, or insulation deterioration can
cause electric leakage, electric shock or re.
yFix the power cable completely.
►If the power cable is not xed completely, a re can break out.
yDo not insert a conductor (like a metal chopstick) into one end of the
power cable while the other end is connected to the input terminal
on the wall. Additionally, do not touch the power cable right after
plugging into the wall input terminal.
►You may be electrocuted.
yThe AC Cord is the disconnecting device.
yPlease make sure the device is installed near the wall outlet to
which it is connected and that the outlet is easily accessible.
yAs long as this unit is connected to the AC wall outlet, it is not
disconnected from the AC power source even if the unit is turned o.
CAUTION
yBe sure to keep the outlet, AC adapter, and pins of the power plug
clean from dust and etc.
►This may cause a re.
yDo not unplug the power cord while the product is in use.
►Electrical shock can damage the product.
yUse only the power cord supplied with the unit. If you use another
power cord, make sure that it is certied by the applicable national
standards when not provided by the supplier. If the power cable is
faulty in any way, please contact the manufacturer or the nearest
authorised repair service provider for a replacement.
Precautions in moving the product
WARNING
yMake sure to turn o the product.
►You may be electrocuted or the product can be damaged.
yMake sure to remove all cables before moving the product.
►You may be electrocuted or the product can be damaged.
yMake sure the panel faces forward and hold it with both hands to
move. If you drop the product, the damaged product can cause
electric shock or re. Contact an authorised the service center for
repair.
yMake sure the product is turned o, unplugged and all cables
have been removed. It may take 2 or more people to carry larger
apparatus. Do not press against or put stress on the front panel of
the apparatus.
CAUTION
yDo not shock the product when moving it.
►You may be electrocuted or the product can be damaged.
yDo not dispose the product-packing box. Use it when you move.
6
ENGLISH
Precautions in using the product
WARNING
yDo not disassemble, repair or modify the product at your own
discretion.
►Fire or electric shock accident can occur.
►Contact the service center for check, calibration or repair.
yWhen the display is to be left unattended for an extended period of
time, unplug it from the wall outlet.
yKeep the product away from water.
►Fire or electric shock accident can occur.
yDo not shock or scratch the front and sides of the screen with
metallic objects.
►Otherwise, it may cause damage to the screen.
yAvoid high temperatures and humidity.
CAUTION
yDo not put or store inammable substances near the product.
►There is a danger of explosion or re due to careless handling of
the inammable substances.
yWhen cleaning the product, unplug the power cord and scrub gently
with a soft cloth to prevent scratching. Do not clean with a wet cloth
or spray water or other liquids directly onto the product. An electric
shock may occur. (Do not use chemicals such as benzene, paint
thinners or alcohol)
yTake a rest from time to time to protect your vision.
yKeep the product clean at all times.
yTake a comfortable and natural position when working with a
product to relax the muscles.
yTake a regular break when working with a product for a long time.
yDo not press strongly upon the panel with a hand or a sharp object
such as a nail, pencil or pen, or make a scratch on it.
yKeep the proper distance from the product.
►Your vision may be impaired if you look at the product too
closely.
ySet the appropriate resolution and clock by referring to the User’s
Guide.
►Your vision can be impaired.
yUse authorised detergent only when cleaning the product. (Do not
use benzene, thinner or alcohol.)
►Product can be deformed.
yDo not expose to dripping or splashing and do not place objects
lled with liquids, such as vases, cups, etc. on or over the apparatus
(e.g. on shelves above the unit).
yFor models using a battery,This device is equipped with a portable
battery or accumulator. Risk of re or explosion if the battery is
replaced by an incorrect type.
yBatteries should not be exposed to excessive heat. For example, keep
away from direct sunlight, open replace and electric heaters.
yDo not place non-rechargeable batteries in charging device.
yUsing headsets (earphones) for a long time or listening loudly can
cause damage to your hearing.
ySpray water onto a soft cloth 2 to 4 times, and use it to clean the
front frame; wipe in one direction only.Too much moisture may
cause staining.
WATER CHEMICALS
yDo not use products using high voltage around the Monitor. (ex.
Electrical Swatter)
►Monitor may have malfunction as its electrical shock.
Mounting on a wall
yDo not install this product by yourself as you may injure yourself
or cause damage to product. Please contact Service personnel
authorised by Manufacturer.
7
ENGLISH
LICENSES
Supported licenses may dier by model. For more information about
licenses, visit www.lg.com.
OPEN SOURCE SOFTWARE
NOTICE INFORMATION
To obtain the source code that is contained in this product, under GPL,
LGPL, MPL, and other open source licenses that have the obligation to
disclose source code, and to access all referred license terms, copyright
notices and other relevant documents, please visit https://opensource.
lge.com.
LG Electronics will also provide open source code to you on CD-ROM
for a charge covering the cost of performing such distribution (such
as the cost of media, shipping, and handling) upon email request to
opensourc[email protected].
This oer is valid to anyone in receipt of this information for a period of
three years after our last shipment of this product.
PREPARING
NOTE
yImage shown may dier from your TV.
yYourTV’s OSD (On Screen Display) may dier slightly from that
shown in this manual.
yThe available menus and options may dier from the input source or
product model that you are using.
yNew features may be added to this TV in the future.
yTheTV can be placed in standby mode in order to reduce the power
consumption. And theTV should be turned o if it will not be
watched for some time, as this will reduce energy consumption.
yThe energy consumed during use can be signicantly reduced if the
level of brightness of the picture is reduced, and this will reduce the
overall running cost.
yThe items supplied with your product may vary depending on the
model.
yProduct specications or contents of this manual may be changed
without prior notice due to upgrade of product functions.
yFor an optimal connection, HDMI cables and USB devices should
have bezels less than 10 mm thick and 18 mm width.
Use an extension cable that supports USB 2.0 if the USB cable or USB
memory stick does not t into your TV’s USB port.
A
B
A
B
*A
<
=
10 mm
*B
<
=
18 mm
yUse a certied cable with the HDMI logo attached. If you do not use
a certied HDMI cable, the screen may not display or a connection
error may occur.
yRecommended HDMI cable types
-Ultra High Speed HDMI®/™ cable (3 m or less)
CAUTION
yDo not use any unapproved items to ensure the safety and product
life span.
yAny damage or injuries caused by using unapproved items are not
covered by the manufacturer's warranty.
8
ENGLISH
SEPARATE PURCHASE
Separate purchase items can be changed or modied for quality
improvement without any notication. Contact your dealer to buy
these items.These devices only work with certain models.
The model name or design may be changed depending on the upgrade
of product functions, manufacturer’s circumstances or policies.
A cable to connect antennas and external devices must be purchased
separately.
Magic remote control
Check whether yourTV model supports Bluetooth in theWireless
Module Specication to verify whether it can be used with the Magic
Remote.
LIFTING AND MOVING THE
TV
Please note the following advice to prevent theTV from being
scratched or damaged and for safe transportation regardless of its type
and size.
yIt is recommended to move the TV in the box or packing material
that theTV originally came in.
yBefore moving or lifting theTV, disconnect the power cord and all
cables.
yWhen holding the TV, the screen should face away from you to avoid
damage.
yHold the top and bottom of theTV frame rmly. Make sure not to
hold the transparent part, speaker, or speaker grill area.
yWhen transporting the TV, do not expose the TV to jolts or excessive
vibration.
yWhen transporting the TV, keep the TV upright, never turn the TV on
its side or tilt towards the left or right.
yDo not apply excessive pressure to cause exing/bending of frame
chassis as it may damage screen.
9
ENGLISH
CAUTION
yAvoid touching the screen at all times, as this may result in damage
to the screen.
yDo not carry theTV upside-down by holding the stand body (or
stand base) as this may cause it to fall o, resulting in damage or
injury.
yWhen handling the TV, be careful not to damage the protruding
button. (Depending on model)
SETTING UP THE TV
CAUTION
yWhen attaching the stand to theTV set, place the screen facing
down on a cushioned table or at surface to protect the screen from
scratches.
yApplying excessive force when tightening screws may cause damage
to the TV. Damage caused in this way will not be covered by the
product manufacturer’s warranty.
yDo not apply foreign substances (oils, lubricants, etc.) to the screw
parts when assembling the product. (Doing so may damage the
product.)
NOTE
yRemove the stand before installing the TV on a wall mount by
performing the stand attachment in reverse.
USING THE BUTTON
yImage shown may dier from your TV.
yYou can operate your TV by pressing the button.
Basic functions
Power On (Press)
Power O1 (Press and Hold)
Menu Control (Press2)
Menu Selection (Press and Hold3)
1 All running apps will close and any recording in progress will stop.
2 You can access and adjust the menu by pressing the button when
TV is on.
3 You can use the function when you access menu control.
Adjusting the menu
When the TV is turned on, press the button one time. You can adjust
the menu items using the button.
Turns the power o.
Changes the input source.
Adjusts the volume level.
Scrolls through the saved programs.
10
ENGLISH

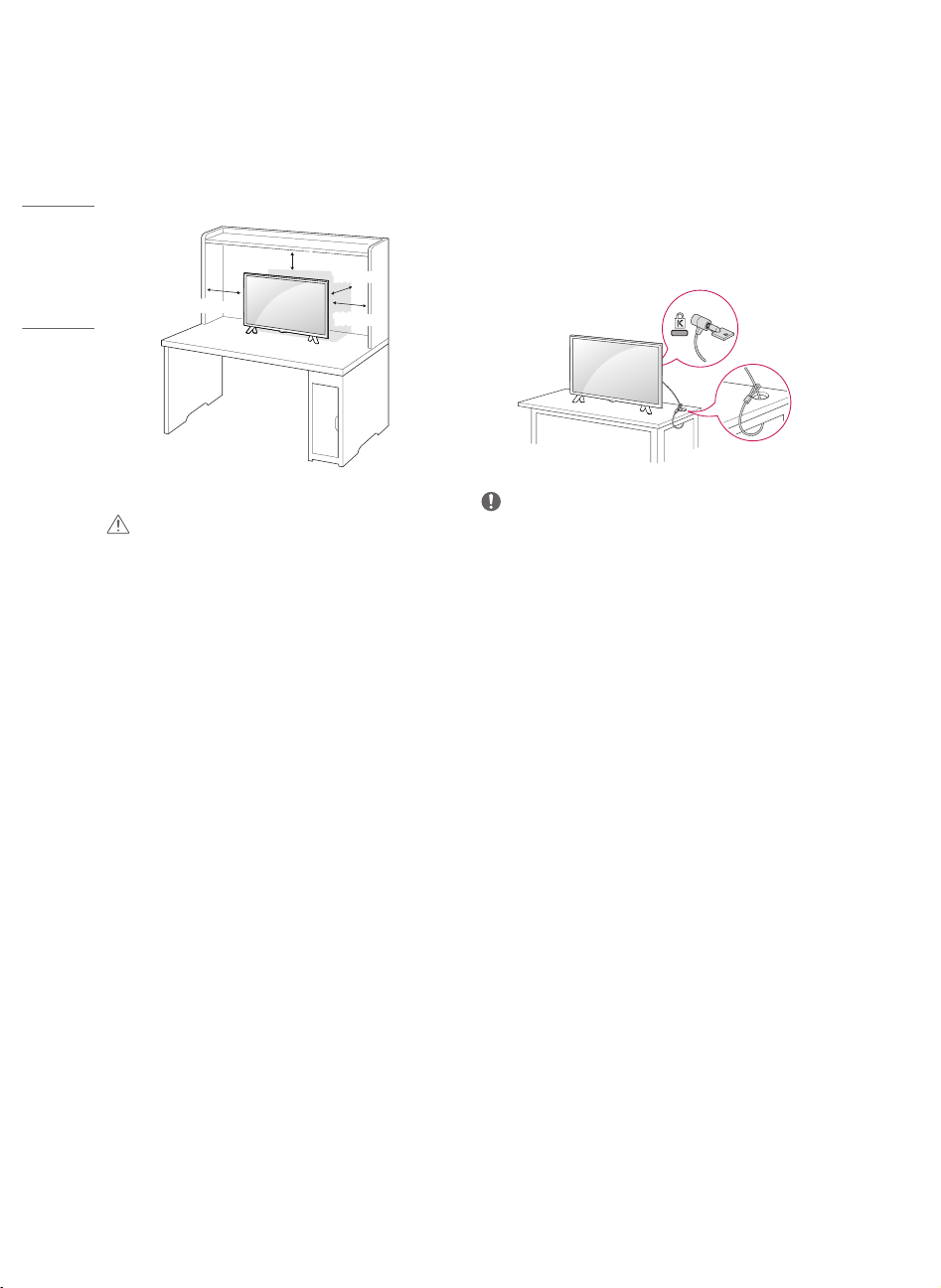

MOUNTING ON A TABLE
yImage shown may dier from your TV.
1 Lift and tilt the TV into its upright position on a table.
-Leave a 100 mm (minimum) space from the wall for proper
ventilation.
100 mm
100 mm
100 mm
100 mm
2 Connect the AC-DC Adapter and Power Cord to a wall outlet.
CAUTION
yDo not place the TV near or on sources of heat, as this may result in
re or other damage.
yPlease be sure to connect theTV to the AC/DC power adapter before
connecting the TV’s power plug to a wall power outlet.
Using the kensington security system
(optional)
(This is not available for all models.)
yImage shown may dier from your TV.
For more information of installation and using, refer to the manual
provided with the Kensington security system or visit http://www.
kensington.com. Connect the Kensington security system cable
between the TV and a table.
NOTE
yThe Kensington security system is optional. You can obtain
additional accessories from most electronics stores.
11
ENGLISH
MOUNTING ON A WALL
For proper ventilation, allow a clearance of 100 mm on each side and
from the wall. Detailed installation instructions are available from your
dealer, see the optional Tilt Wall Mounting Bracket Installation and
Setup Guide.
100 mm
100 mm
100 mm 100 mm
100 mm
If you intend to mount the TV to a wall, attachWall mounting interface
(optional parts) to the back of the TV.
When you install theTV using the wall mounting interface (optional
parts), attach it carefully so it will not drop.
1 If you use a screw longer than standard, theTV might be damaged
internally.
2 If you use an improper screw, the product might be damaged and
drop from mounted position. In this case, LG Electronics is not
responsible for it.
Separate purchase (Wall mounting bracket)
Model 24TQ520S
24TQ510S
27TQ625S
27TQ615S
Wall mount (A x B) (mm)
A
B
75 x 75
Standard screw M4 x L10
Number of screws 4
Wall mount bracket (optional) LSW149
CAUTION
yMust use the enclosed screw in the box. (Depending on model)
yDisconnect the power rst, and then move or install the TV.
Otherwise electric shock may occur.
yIf you install theTV on a ceiling or slanted wall, it may fall and result
in severe injury.
yUse an authorised LG wall mount and contact the local dealer or
qualied personnel.
yDo not over tighten the screws as this may cause damage to theTV
and void your warranty.
yUse the screws and wall mounts that meet the VESA standard. Any
damages or injuries by misuse or using an improper accessory are
not covered by the manufacturer's warranty.
yScrew length from outer surface of back cover should be under 8
mm.
Wall mount Pad
Back Cover
Standard screw:
M4 x L10
Wall mount Pad
Back Cover
Max.8 mm
NOTE
yUse the screws that are listed on theVESA standard screw
specications.
yThe wall mount kit includes an installation manual and necessary
parts.
yThe wall mount bracket is optional.You can obtain additional
accessories from your local dealer.
yThe length of screws may dier depending on the wall mount. Make
sure to use the proper length.
yFor more information, refer to the instructions supplied with the
wall mount.
12
ENGLISH
CONNECTIONS
Connect various external devices to theTV and switch input modes
to select an external device. For more information about an external
device’s connection, refer to the manual supplied with each device.
Available external devices are: Blu-ray player, HD receivers, DVD
players, VCRs, audio systems, USB storage devices, PC, gaming devices,
and other external devices.
NOTE
yThe external device connection may dier from the model.
yConnect external devices to theTV regardless of the order of the
TV port.
yIf you record a TV program on a Blu-ray/DVD recorder or VCR, make
sure to connect theTV signal input cable to the TV through a DVD
recorder or VCR. For more information of recording, refer to the
manual provided with the connected device.
yRefer to the external equipment’s manual for operating instructions.
yIf you connect a gaming device to theTV, use the cable supplied
with the gaming device.
yIn PC mode, there may be noise associated with the resolution,
vertical pattern, contrast or brightness. If noise is present, change
the PC output to another resolution, change the refresh rate to
another rate or adjust the brightness and contrast on the [Picture]
menu until the picture is clear.
yIn PC mode, some resolution settings may not work properly
depending on the graphics card.
yWhen connecting via a wired LAN, it is recommended to use a CAT 7
cable. (Only when port is provided.)
yEthernet only supports 100 Base-T.
Antenna connection
Connect the TV to a wall antenna socket with an RF cable (75 Ω) (Not
Provided).
NOTE
yUse a signal splitter to use more than 2 TVs.
yIf the image quality is poor, install a signal amplier properly to
improve the image quality.
yIf the image quality is poor with an antenna connected, try to
realign the antenna in the correct direction.
yAn antenna cable and converter are not supplied.
Other connections
Connect yourTV to external devices. For the best picture and audio
quality, connect the external device and the TV with the HDMI cable.
Some separate cable is not provided.
NOTE
yUSB port supports 0.5 A electric current. If you need more electric
current in case of HDD, use the separate power adaptor.
ySupported HDMI Audio format:
(Depending on model)
Dolby Digital / Dolby Digital Plus (32 kHz / 44.1 kHz / 48 kHz), PCM
(32 kHz / 44.1 kHz / 48 kHz / 96 kHz / 192 kHz)
13
ENGLISH

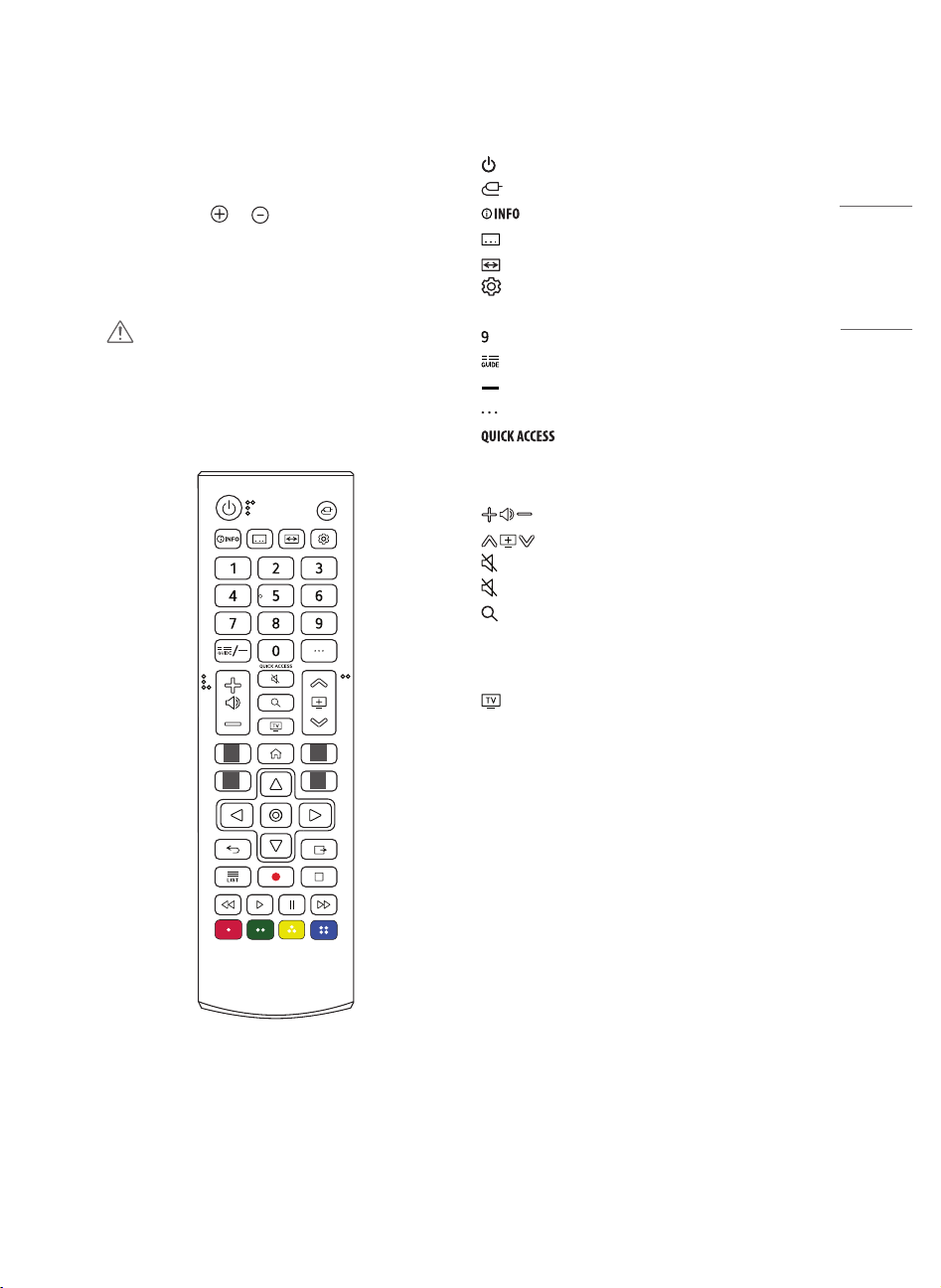

REMOTE CONTROL
The descriptions in this manual are based on the buttons on the remote
control. Please read this manual carefully and use theTV correctly.
To replace batteries, open the battery cover, replace batteries (1.5
V AAA) matching the and ends to the label inside the
compartment, and close the battery cover. To remove the batteries,
perform the installation actions in reverse.
Make sure to point the remote control toward the remote control
sensor on the TV.
CAUTION
yDo not mix old and new batteries, as this may damage the remote
control.
yIn Analogue TV and some countries, some remote control buttons
may not work.
yThe remote control will not be included for all sales market.
#
#
#
#
(Some buttons and services may not be provided depending on models
or regions.)
(Power) Turns the TV on or o.
(Input) Changes the input source.
Shows information on the current program.
(CC/SUB) Recalls your preferred subtitle in digital mode.
(Screen size) Resizes an image.
(Q. Settings) Accesses the Quick Settings.
Number buttons Enters numbers.
1Accesses the [Quick Help].
Shows program guide.
(Dash) Inserts a dash between numbers such as 2-1 and 2-2.
(More actions) Displays more remote control functions.
1Accesses the [Edit Quick Access].
-[Edit Quick Access] is a feature that allows you to enter a
specied app or LiveTV directly by pressing and holding the
number buttons.
Adjusts the volume level.
Scrolls through the saved channels.
(Mute) Mutes all sounds.
(Mute)1Accesses the [Accessibility] menu.
(Search) Check for recommended content. (Some recommended
services may not be available in some countries.)
Search for content such as TV programs, movies and other videos, or
perform a web search by entering text in the search bar.
You can watchTV or LG Channels.
14
ENGLISH
#
Streaming Service buttons Connects to the Video Streaming
Service.
(HOME) Accesses Home menu.
(HOME)1Launches the last used apps.
Navigation buttons (up/down/left/right) Scrolls through menus
or options.
(OK) Selects menus or options and conrms your input.
(OK)1Accesses the [Magic Explorer]. When using [TV Guide],
[Settings], [Sports Alert], or [Art Gallery], press and hold down on the
text.
(Back) Returns to the previous level.
(Exit) Clears on-screen displays and returns to TV viewing.
, , , , Control buttons for media contents.
Accesses the saved channel list.
(REC) Starts to record and displays record menu. (Only Time
MachineReady supported model)
, , , These access special functions in some menus.
1 To use the button, press and hold for more than 3 seconds.
USER GUIDE
For more information about this TV, read the USER GUIDE embedded in
the product. (Depending on model)
yTo open the USER GUIDE [Support] [User Guide]
15
ENGLISH
MAINTENANCE
Cleaning your TV
Clean yourTV regularly to keep the best performance and to extend the
product lifespan.
yMake sure to turn the power o and disconnect the power cord and
all other cables rst.
yWhen the TV is left unattended and unused for a long time,
disconnect the power cord from the wall outlet to prevent possible
damage from lightning or power surges.
Screen, frame, cabinet and stand
To remove dust or light dirt, wipe the surface with a dry, clean, and
soft cloth.
To remove major dirt, wipe the surface with a soft cloth dampened in
clean water or a diluted mild detergent.Then wipe immediately with
a dry cloth.
yAvoid touching the screen at all times, as this may result in damage
to the screen.
yDo not push, rub, or hit the screen surface with your ngernail or a
sharp object, as this may result in scratches and image distortions.
yDo not use any chemicals as this may damage the product.
yDo not spray liquid onto the surface. If water enters the TV, it may
result in re, electric shock, or malfunction.
Power cord
Remove the accumulated dust or dirt on the power cord regularly.
Preventing “Image burn” or “Burn-in” on
your TV screen
yIf a xed image displays on theTV screen for a long period of time,
it will be imprinted and become a permanent disgurement on
the screen.This is“Image burn”or“burn-in”and not covered by the
warranty.
yIf the aspect ratio of the TV is set to 4:3 for a long period of time,
image burn may occur on the letterboxed area of the screen.
yAvoid displaying a xed image on theTV screen for a long period of
time (2 or more hours for LCD) to prevent image burn.
TROUBLESHOOTING
Cannot control the TV with the remote control.
yCheck the remote control sensor on the product and try again.
yCheck if there is any obstacle between the product and the remote
control.
yCheck if the batteries are still working and properly installed ( to
, to ).
No image display and no sound is produced.
yCheck if the product is turned on.
yCheck if the power cord is connected to a wall outlet.
yCheck if there is a problem in the wall outlet by connecting other
products.
The TV turns o suddenly.
yCheck the power control settings.The power supply may be
interrupted.
yCheck if the auto-o function is activated on the settings related
time.
yIf there is no signal while theTV is on, the TV will turn o
automatically after 15 minutes of inactivity.
When connecting to the PC (HDMI), no signal is detected.
yTurn the TV o/on using the remote control.
yReconnect the HDMI cable.
yRestart the PC with the TV on.
16
ENGLISH
SPECIFICATIONS
Product specications may be changed without prior notice due to upgrade of product functions.
Models
Dimensions (W x D x H) (mm) Weight (kg) Power consumption
(Outgoing
condition)
(Typical)
Power
requirement
With stand Without stand With stand Without stand
24TQ510S 563.1 x 148.6 x 393.8 563.1 x 58 x 340.9 3.6 3.25 28 W 19 V 2.0 A
24TQ520S 563.1 x 150.1 x 367 563.1 x 58 x 340.9 3.3 3.25 28 W 19 V 2.0 A
27TQ615S 612 x 152.5 x 423.1 612 x 73.9 x 368.5 3.75 3.5 32 W 19 V 2.0 A
27TQ625S 612 x 150 x 394.8 612 x 73.9 x 368.5 3.55 3.5 32 W 19 V 2.0 A
Wireless module specication
Wireless module (LGSBWAC03) specications
Wireless LAN (IEEE 802.11a/b/g/n/ac)
Frequency Range Output Power (Max.)
2,400 to 2,483.5 MHz
5,150 to 5,725 MHz
5,725 to 5,850 MHz
20 dBm
18.5 dBm
18 dBm
Bluetooth
Frequency Range Output Power (Max.)
2,400 to 2,483.5 MHz 9 dBm
As band channels can vary per country, the user cannot change or adjust the operating frequency.This product is congured for the regional
frequency table.
For consideration of the user, this device should be installed and operated with a minimum distance of 20 cm between the device and the body.
FCC ID: BEJLGSBWAC03 / IC: 2703H-LGSBWAC03
17
ENGLISH
AC/DC Adapter
(Depending on country)
Manufacturer: Honor
Model: ADS-45SQ-19-319040E
Manufacturer: PI
Model: AD10530LF
In: AC 100 – 240V~ 50/60 Hz
Out: DC 19 V 2.1 A
Environment
condition
Operating Temperature 0 °C to 40 °C
Operating Humidity Less than 80 %
Storage Temperature -20 °C to 60 °C
Storage Humidity Less than 85 %
Broadcasting specications
(Depending on country)
Digital TV Analogue TV
Television system ISDB-T NTSC-M
Program coverage UHF VHF, UHF, CATV
Maximum number of storable programs ISDB-T & Analogue TV: 3,000
External antenna impedance 75 Ω
18
ENGLISH
WARNING! (STABILITY HAZARD)
A television set may fall, causing serious personal injury or death.
Many injuries, particularly to children, can be avoided by taking
simple precautions such as:
-ALWAYS use cabinets or stands or mounting methods
recommended by the manufacturer of the television set.
-ALWAYS use furniture that can safely support the television set.
-ALWAYS ensure the television set is not overhanging the edge of
the supporting furniture.
-ALWAYS educate children about the dangers of climbing on
furniture to reach the television set or its controls.
-ALWAYS route cords and cables connected to your television so
they cannot be tripped over, pulled or grabbed.
-NEVER place a television set in an unstable location.
-NEVER place the television set on tall furniture (for example,
cupboards or bookcases) without anchoring both the furniture
and the television set to a suitable support.
-NEVER place the television set on cloth or other materials that
may be located between the television set and supporting
furniture.
-NEVER place items that might tempt children to climb, such
as toys and remote controls, on the top of the television or
furniture on which the television is placed.
If the existing television set is going to be retained and relocated, the
same considerations as above should be applied.
Symbols
Refers to alternating current(AC).
Refers to direct current(DC).
Refers to class II equipment.
Refers to stand-by.
Refers to“ON”(power).
Refers to dangerous voltage.
ENVIRONMENTAL
INFORMATION
Information for environmental preservation
LGE. announced the‘LG Declaration for a Cleaner Environment’in
1994, and this ideal has served as a guiding managerial principle ever
since.The Declaration is a foundation that has allowed us to undertake
environmentally friendly activities in careful consideration of
economic, environmental, and social aspects.We promote activities for
environmental preservation, and we specically develop our products
to embrace the concept of environment-friendly.We minimize the
hazardous materials contained in our products. For example, there is no
cadmium to be found in our product.
Information for recycling
This product may contain parts which could be hazardous to the
environment. It is important that this product be recycled after use.
LGE. handles all waste product through an environmentally acceptable
recycling method.There are several take-back and recycling systems
currently in operation worldwide. Many parts will be reused and
recycled, while harmful substances and heavy metals are treated by
an environmentally friendly method. If you want to nd out more
information about our recycling program, please contact your local LG
vendor or a corporate representative of LG.
We set our vision and policies on a cleaner world by selecting the issue
of the global environment as a task for corporate improvement. Please
visit our website for more information about our‘green’policies.
http://www.lg.com/global/sustainability/environment/take-back-
recycling.jsp
19
ENGLISH
Service
Unplug the monitor from the wall outlet and refer servicing to qualied
service personnel when:
yThe power cord or plug is damaged or frayed.
yLiquid has been spilled into the monitor.
yThe monitor has been exposed to rain or water.
yThe monitor does not operate normally following the operating
instructions. Adjust only those controls that are covered in the
operating instructions. An improper adjustment of other controls
may result in damage and often requires extensive work by a
qualied technician to restore the monitor to normal operation.
yThe monitor has been dropped or the cabinet has been damaged.
yThe monitor exhibits a distinct change in performance.
ySnapping or popping from the monitor is continuous or frequent
while the monitor is operating. It is normal for some monitors to
make occasional sounds when being turned on or o, or when
changing video modes.
Do not attempt to service the monitor yourself, as opening or removing
covers may expose you to dangerous voltage or other hazards. Refer all
servicing to qualied service personnel.
The model and serial number of the product are
located on the back and on one side of the product.
Record them below in case you ever need service.
Model
Serial No.
This manual suits for next models
4
Table of contents
Other LG LED TV manuals
