LG 42LY770M User manual
Printed in KoreaP/NO : MFL68080465 (1410-REV00)
CHASSIS : LA4BY
MODEL : 42LY770M 42LY770M-UA
CAUTION
BEFORE SERVICING THE CHASSIS,
READ THE SAFETY PRECAUTIONS IN THIS MANUAL.
LED TV
SERVICE MANUAL
North/Latin America http://aic.lgservice.com
Europe/Africa http://eic.lgservice.com
Asia/Oceania http://biz.lgservice.com
Internal Use Only
- 2 - LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.
Only for training and service purposes
CONTENTS
CONTENTS .............................................................................................. 2
SAFETY PRECAUTIONS ........................................................................ 3
SERVICING PRECAUTIONS ................................................................... 4
SPECIFICATION ...................................................................................... 6
ADJUSTMENT INSTRUCTION ............................................................... 8
TROUBLE SHOOTING GUIDE............................................................... 20
BLOCK DIAGRAM ................................................................................. 26
EXPLODED VIEW .................................................................................. 27
SCHEMATIC CIRCUIT DIAGRAM ........................................... APPENDIX
- 3 - LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.
Only for training and service purposes
Many electrical and mechanical parts in this chassis have special safety-related characteristics. These parts are identified by in the
Schematic Diagram and Exploded View.
It is essential that these special safety parts should be replaced with the same components as recommended in this manual to prevent
Shock, Fire, or other Hazards.
Do not modify the original design without permission of manufacturer.
General Guidance
An isolation Transformer should always be used during the
servicing of a receiver whose chassis is not isolated from the AC
power line. Use a transformer of adequate power rating as this
protects the technician from accidents resulting in personal injury
from electrical shocks.
It will also protect the receiver and it's components from being
damaged by accidental shorts of the circuitry that may be
inadvertently introduced during the service operation.
If any fuse (or Fusible Resistor) in this TV receiver is blown,
replace it with the specified.
When replacing a high wattage resistor (Oxide Metal Film Resistor,
over 1 W), keep the resistor 10 mm away from PCB.
Keep wires away from high voltage or high temperature parts.
Before returning the receiver to the customer,
Always perform an AC leakage current check on the exposed
metallic parts of the cabinet, such as antennas, terminals, etc., to
be sure the set is safe to operate without damage of electrical
shock.
Leakage Current Cold Check(Antenna Cold Check)
With the instrument AC plug removed from AC source, connect an
electrical jumper across the two AC plug prongs. Place the AC
switch in the on position, connect one lead of ohm-meter to the AC
plug prongs tied together and touch other ohm-meter lead in turn to
each exposed metallic parts such as antenna terminals, phone
jacks, etc.
If the exposed metallic part has a return path to the chassis, the
measured resistance should be between 1 MΩand 5.2 MΩ.
When the exposed metal has no return path to the chassis the
reading must be infinite.
An other abnormality exists that must be corrected before the
receiver is returned to the customer.
Leakage Current Hot Check (See below Figure)
Plug the AC cord directly into the AC outlet.
Do not use a line Isolation Transformer during this check.
Connect 1.5 K / 10 watt resistor in parallel with a 0.15 uF capacitor
between a known good earth ground (Water Pipe, Conduit, etc.)
and the exposed metallic parts.
Measure the AC voltage across the resistor using AC voltmeter
with 1000 ohms/volt or more sensitivity.
Reverse plug the AC cord into the AC outlet and repeat AC voltage
measurements for each exposed metallic part. Any voltage
measured must not exceed 0.75 volt RMS which is corresponds to
0.5 mA.
In case any measurement is out of the limits specified, there is
possibility of shock hazard and the set must be checked and
repaired before it is returned to the customer.
Leakage Current Hot Check circuit
IMPORTANT SAFETY NOTICE
SAFETY PRECAUTIONS
- 4 - LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.
Only for training and service purposes
SERVICING PRECAUTIONS
CAUTION: Before servicing receivers covered by this service
manual and its supplements and addenda, read and follow the
SAFETY PRECAUTIONS on page 3 of this publication.
NOTE: If unforeseen circumstances create conict between the
following servicing precautions and any of the safety precautions
on page 3 of this publication, always follow the safety precau-
tions. Remember: Safety First.
General Servicing Precautions
1. Always unplug the receiver AC power cord from the AC power
source before;
a. Removing or reinstalling any component, circuit board
module or any other receiver assembly.
b. Disconnecting or reconnecting any receiver electrical plug
or other electrical connection.
c. Connecting a test substitute in parallel with an electrolytic
capacitor in the receiver.
CAUTION: A wrong part substitution or incorrect polarity
installation of electrolytic capacitors may result in an explo-
sion hazard.
2. Test high voltage only by measuring it with an appropriate
high voltage meter or other voltage measuring device (DVM,
FETVOM, etc) equipped with a suitable high voltage probe.
Do not test high voltage by "drawing an arc".
3. Do not spray chemicals on or near this receiver or any of its
assemblies.
4. Unless specied otherwise in this service manual, clean
electrical contacts only by applying the following mixture to the
contacts with a pipe cleaner, cotton-tipped stick or comparable
non-abrasive applicator; 10 % (by volume) Acetone and 90 %
(by volume) isopropyl alcohol (90 % - 99 % strength)
CAUTION: This is a ammable mixture.
Unless specied otherwise in this service manual, lubrication
of contacts in not required.
5. Do not defeat any plug/socket B+ voltage interlocks with which
receivers covered by this service manual might be equipped.
6. Do not apply AC power to this instrument and/or any of its
electrical assemblies unless all solid-state device heat sinks
are correctly installed.
7. Always connect the test receiver ground lead to the receiver
chassis ground before connecting the test receiver positive
lead.
Always remove the test receiver ground lead last.
8. Use with this receiver only the test xtures specied in this
service manual.
CAUTION: Do not connect the test xture ground strap to any
heat sink in this receiver.
Electrostatically Sensitive (ES) Devices
Some semiconductor (solid-state) devices can be damaged eas-
ily by static electricity. Such components commonly are called
Electrostatically Sensitive (ES) Devices. Examples of typical ES
devices are integrated circuits and some eld-effect transistors
and semiconductor “chip” components. The following techniques
should be used to help reduce the incidence of component dam-
age caused by static by static electricity.
1. Immediately before handling any semiconductor component or
semiconductor-equipped assembly, drain off any electrostatic
charge on your body by touching a known earth ground. Alter-
natively, obtain and wear a commercially available discharg-
ing wrist strap device, which should be removed to prevent
potential shock reasons prior to applying power to the unit
under test.
2. After removing an electrical assembly equipped with ES
devices, place the assembly on a conductive surface such as
aluminum foil, to prevent electrostatic charge buildup or expo-
sure of the assembly.
3. Use only a grounded-tip soldering iron to solder or unsolder
ES devices.
4. Use only an anti-static type solder removal device. Some sol-
der removal devices not classied as “anti-static” can generate
electrical charges sufcient to damage ES devices.
5. Do not use freon-propelled chemicals. These can generate
electrical charges sufcient to damage ES devices.
6. Do not remove a replacement ES device from its protective
package until immediately before you are ready to install it.
(Most replacement ES devices are packaged with leads elec-
trically shorted together by conductive foam, aluminum foil or
comparable conductive material).
7. Immediately before removing the protective material from the
leads of a replacement ES device, touch the protective mate-
rial to the chassis or circuit assembly into which the device will
be installed.
CAUTION: Be sure no power is applied to the chassis or cir-
cuit, and observe all other safety precautions.
8. Minimize bodily motions when handling unpackaged replace-
ment ES devices. (Otherwise harmless motion such as the
brushing together of your clothes fabric or the lifting of your
foot from a carpeted oor can generate static electricity suf-
cient to damage an ES device.)
General Soldering Guidelines
1. Use a grounded-tip, low-wattage soldering iron and appropri-
ate tip size and shape that will maintain tip temperature within
the range or 500 °F to 600 °F.
2. Use an appropriate gauge of RMA resin-core solder composed
of 60 parts tin/40 parts lead.
3. Keep the soldering iron tip clean and well tinned.
4. Thoroughly clean the surfaces to be soldered. Use a mall wire-
bristle (0.5 inch, or 1.25 cm) brush with a metal handle.
Do not use freon-propelled spray-on cleaners.
5. Use the following unsoldering technique
a. Allow the soldering iron tip to reach normal temperature.
(500 °F to 600 °F)
b. Heat the component lead until the solder melts.
c. Quickly draw the melted solder with an anti-static, suction-
type solder removal device or with solder braid.
CAUTION: Work quickly to avoid overheating the circuit
board printed foil.
6. Use the following soldering technique.
a. Allow the soldering iron tip to reach a normal temperature
(500 °F to 600 °F)
b. First, hold the soldering iron tip and solder the strand
against the component lead until the solder melts.
c. Quickly move the soldering iron tip to the junction of the
component lead and the printed circuit foil, and hold it there
only until the solder ows onto and around both the compo-
nent lead and the foil.
CAUTION: Work quickly to avoid overheating the circuit
board printed foil.
d. Closely inspect the solder area and remove any excess or
splashed solder with a small wire-bristle brush.
- 5 - LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.
Only for training and service purposes
IC Remove/Replacement
Some chassis circuit boards have slotted holes (oblong) through
which the IC leads are inserted and then bent at against the cir-
cuit foil. When holes are the slotted type, the following technique
should be used to remove and replace the IC. When working with
boards using the familiar round hole, use the standard technique
as outlined in paragraphs 5 and 6 above.
Removal
1. Desolder and straighten each IC lead in one operation by
gently prying up on the lead with the soldering iron tip as the
solder melts.
2. Draw away the melted solder with an anti-static suction-type
solder removal device (or with solder braid) before removing
the IC.
Replacement
1. Carefully insert the replacement IC in the circuit board.
2. Carefully bend each IC lead against the circuit foil pad and
solder it.
3. Clean the soldered areas with a small wire-bristle brush.
(It is not necessary to reapply acrylic coating to the areas).
"Small-Signal" Discrete Transistor
Removal/Replacement
1. Remove the defective transistor by clipping its leads as close
as possible to the component body.
2. Bend into a "U" shape the end of each of three leads remain-
ing on the circuit board.
3. Bend into a "U" shape the replacement transistor leads.
4. Connect the replacement transistor leads to the corresponding
leads extending from the circuit board and crimp the "U" with
long nose pliers to insure metal to metal contact then solder
each connection.
Power Output, Transistor Device
Removal/Replacement
1. Heat and remove all solder from around the transistor leads.
2. Remove the heat sink mounting screw (if so equipped).
3. Carefully remove the transistor from the heat sink of the circuit
board.
4. Insert new transistor in the circuit board.
5. Solder each transistor lead, and clip off excess lead.
6. Replace heat sink.
Diode Removal/Replacement
1. Remove defective diode by clipping its leads as close as pos-
sible to diode body.
2. Bend the two remaining leads perpendicular y to the circuit
board.
3. Observing diode polarity, wrap each lead of the new diode
around the corresponding lead on the circuit board.
4. Securely crimp each connection and solder it.
5. Inspect (on the circuit board copper side) the solder joints of
the two "original" leads. If they are not shiny, reheat them and
if necessary, apply additional solder.
Fuse and Conventional Resistor
Removal/Replacement
1. Clip each fuse or resistor lead at top of the circuit board hollow
stake.
2. Securely crimp the leads of replacement component around
notch at stake top.
3. Solder the connections.
CAUTION: Maintain original spacing between the replaced
component and adjacent components and the circuit board to
prevent excessive component temperatures.
Circuit Board Foil Repair
Excessive heat applied to the copper foil of any printed circuit
board will weaken the adhesive that bonds the foil to the circuit
board causing the foil to separate from or "lift-off" the board. The
following guidelines and procedures should be followed when-
ever this condition is encountered.
At IC Connections
To repair a defective copper pattern at IC connections use the
following procedure to install a jumper wire on the copper pattern
side of the circuit board. (Use this technique only on IC connec-
tions).
1. Carefully remove the damaged copper pattern with a sharp
knife. (Remove only as much copper as absolutely necessary).
2. Carefully scratch away the solder resist and acrylic coating (if
used) from the end of the remaining copper pattern.
3. Bend a small "U" in one end of a small gauge jumper wire and
carefully crimp it around the IC pin. Solder the IC connection.
4. Route the jumper wire along the path of the out-away copper
pattern and let it overlap the previously scraped end of the
good copper pattern. Solder the overlapped area and clip off
any excess jumper wire.
At Other Connections
Use the following technique to repair the defective copper pattern
at connections other than IC Pins. This technique involves the
installation of a jumper wire on the component side of the circuit
board.
1. Remove the defective copper pattern with a sharp knife.
Remove at least 1/4 inch of copper, to ensure that a hazardous
condition will not exist if the jumper wire opens.
2. Trace along the copper pattern from both sides of the pattern
break and locate the nearest component that is directly con-
nected to the affected copper pattern.
3. Connect insulated 20-gauge jumper wire from the lead of the
nearest component on one side of the pattern break to the
lead of the nearest component on the other side.
Carefully crimp and solder the connections.
CAUTION: Be sure the insulated jumper wire is dressed so the
it does not touch components or sharp edges.
- 6 - LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.
Only for training and service purposes
SPECIFICATION
NOTE : Specifications and others are subject to change without notice for improvement
.
1. Application range
This specification is applied to the LED TV used LA4BY
chassis.
2. Requirement for Test
Each part is tested as below without special appointment.
1) Temperature: 25 °C ± 5 °C(77 °F ± 9 °F), CST: 40 °C ± 5 °C
2) Relative Humidity: 65 % ± 10 %
3) Power Voltage
: Standard input voltage (AC 100-240 V~, 50/60 Hz)
* Standard Voltage of each products is marked by models.
4) Specification and performance of each parts are followed
each drawing and specification by part number in
accordance with BOM.
5) The receiver must be operated for about 5 minutes prior to
the adjustment.
3. Test method
1) Performance: LGE TV test method followed
2) Demanded other specification
- Safety : CE, IEC specification
- EMC : CE, IEC
4. Model General Specification
No. Item Specication Remarks
1 Receiving System ATSC / NTSC-M / 64 QAM / 256 QAM North America
2 Available Channel
1) VHF : 02~13
2) UHF : 14~69
3) DTV : 02-69
4) CATV : 01~135
5) CADTV : 01~135
3 Input Voltage North America AC 100 ~ 240V@ 50/60Hz AC 120V, 50/60Hz on the label (USA)
4 Market North America
5 Screen Size 32/42 inches FHD / 60Hz
6 Aspect Ratio 16:9
7 Tuning System FS
8 Module LC320DUE-FGA3 LGD 32LY770M-UA
LC420DUE-FGA3 LGD 42LY770M-UA
9 Operating Environment 1) Temp : 0 ~ 40 deg
2) Humidity : ~ 80 %
10 Storage Environment 1) Temp. : -20 ~ 60 deg
2) Humidity : ~ 85%
- 7 - LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.
Only for training and service purposes
5. Video resolutions
5.1. HDMI Input(PC/DTV)
No. Resolution H-freq(kHz) V-freq.(Hz) Pixel clock(MHz) Proposed Remark
PC DDC
1 640*350 31.468 70.09 25.17 EGA X
2 720*400 31.469 70.08 28.32 DOS O
3 640*480 31.469 59.94 25.17 VESA(VGA) O
4 800*600 37.879 60.31 40.00 VESA(SVGA) O
5 1024*768 48.363 60.00 65.00 VESA(XGA) O
6 1152*864 54.348 60.053 80.002 VESA O
7 1360*768 47.712 60.015 85.50 VESA (WXGA) X
8 1280*1024 63.981 60.020 108.00 VESA (SXGA) O
9 1920*1080 67.5 60 148.5 HDTV 1080P O
DTV
1 640*480 31.469 59.94 25.175 SDTV 480P
2 640*480 31.5 60 25.200 SDTV 480P
3 720*480 31.50 60 27.027 SDTV 480P
4 720*480 31.469 59.94 27.00 SDTV 480P
5 1280*720 45.00 60.00 74.25 HDTV 720P
6 1280*720 44.96 59.94 74.176 HDTV 720P
7 1920*1080 33.75 60.00 74.25 HDTV 1080I
8 1920*1080 33.72 59.94 74.176 HDTV 1080I
9 1920*1080 67.500 60 148.50 HDTV 1080P
10 1920*1080 67.43 59.94 148.352 HDTV 1080P
11 1920*1080 27.000 24.000 74.25 HDTV 1080P
12 1920*1080 26.97 23.97 74.176 HDTV 1080P
13 1920*1080 33.75 30.000 74.25 HDTV 1080P
14 1920*1080 33.716 29.976 74.176 HDTV 1080P
- 8 - LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.
Only for training and service purposes
ADJUSTMENT INSTRUCTION
1. Application Range
This specification sheet is applied to all of the LED TV with
LA4BY chassis.
2. Specification
(1) Because this is not a hot chassis, it is not necessary to
use an isolation transformer. However, the use of isolation
transformer will help protect test instrument.
(2) Adjustment must be done in the correct order.
(3) The adjustment must be performed in the circumstance of
25 ±5
ºC
of temperature and 65±10% of relative humidity if
there is no specific designation
(4) The input voltage of the receiver must keep 100~240V,
50/60Hz
(5) At first Worker must turn on the SET by using Power Only
key.
(6) The receiver must be operated for about 5 minutes prior to
the adjustment when module is in the circumstance of over
15
ºC
In case of keeping module is in the circumstance of 0°C, it
should be placed in the circumstance of above 15°C for 2
hours
In case of keeping module is in the circumstance of below
-20°C, it should be placed in the circumstance of above
15°C for 3 hours.
※Caution
When still image is displayed for a period of 20 minutes or
longer (especially where W/B scale is strong.
Digital pattern 13ch and/or Cross hatch pattern 09ch), there
can some afterimage in the black level area
3. Adjustment items
3.1. Main PCBA Adjustments
(1) ADC adjustment: Component 480i, 1080p
(2) EDID downloads for HDMI
* Remark
- Above adjustment items can be also performed in Final
Assembly if needed. Adjustment items in both PCBA and
final assembly stages can be checked by using the
INSTART Menu -> 1.ADJUST CHECK.
3.2. Final assembly adjustment
(1) White Balance adjustment
(2) RS-232C functionality check
(3) Factory Option setting per destination
(4) Shipment mode setting (In-Stop)
(5) GND and HI-POT test
3.3. Appendix
(1) Tool option menu, USB Download (S/W Update, Option
and Service only)
(2) Manual adjustment for ADC calibration and White balance.
(3) Shipment conditions, Channel pre-set
4. MAIN PCBA Adjustments
4.1. ADC Calibration
- An ADC calibration is not necessary because MAIN SoC
(LGExxxx) is already calibrated from IC Maker
- If it needs to adjust manually, refer to appendix.
4.2. MAC Address, ESN Key and Widevine
Key, DTCP Key, HDCP1.4, HDCP2.0
download.
4.2.1. Equipment & Condition
(1) Play file: keydownload.exe
4.2.2. Communication Port connection
(1) Key Write: Com 1,2,3,4 and 115200 (Baudrate)
(2) Barcode: Com 1,2,3,4 and 9600 (Baudrate)

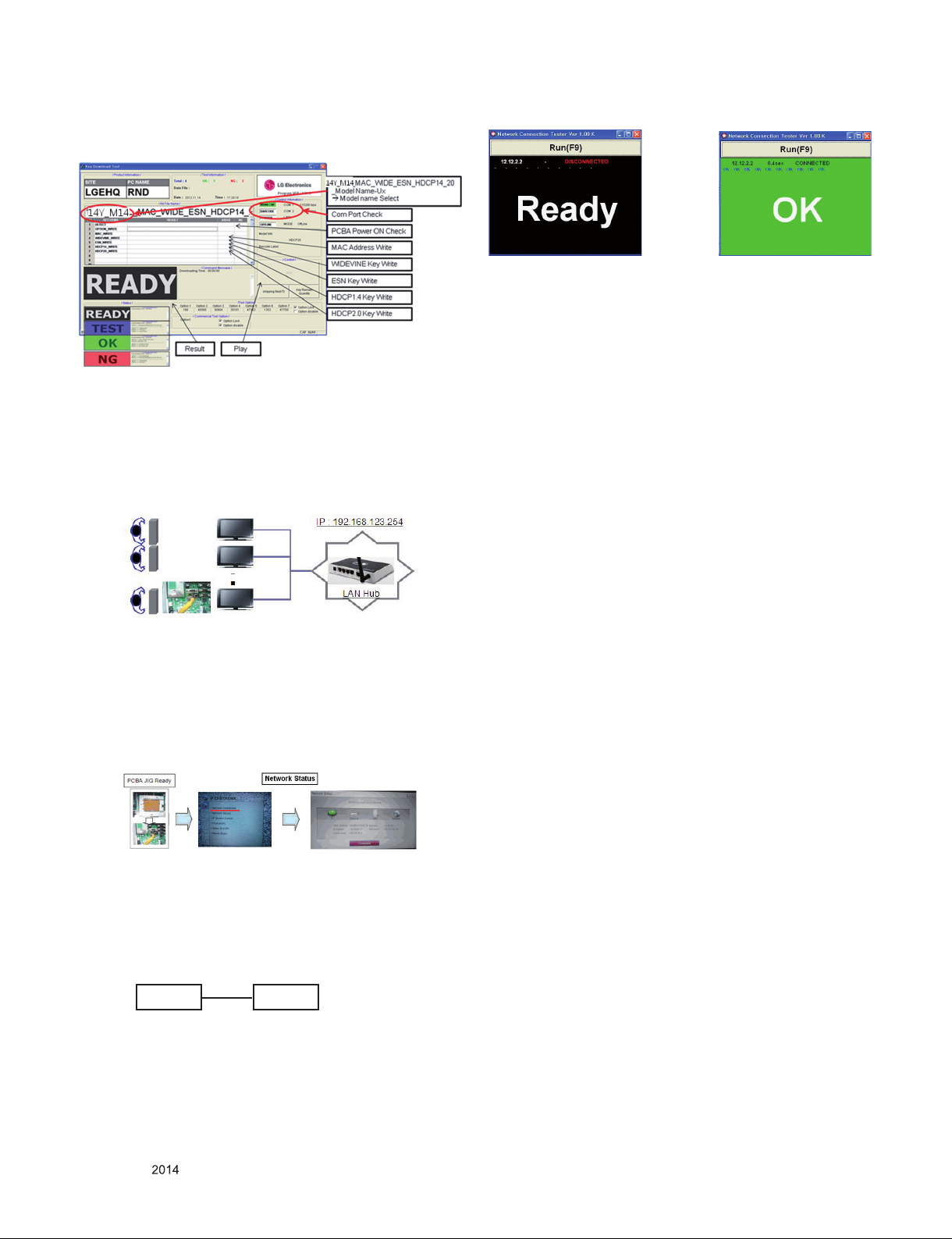

4.2.3. Download process
(1) Select the download items.
(2) Mode check: Online Only
(3) Check the test process
- US, Canada models: DETECT -> MAC_WRITE ->
WIDEVINE_WRITE
- Korea, Mexico models: DETECT -> MAC_WRITE ->
WIDEVINE_WRITE
(4) Play: START
(5) Check of result: Ready, Test, OK or NG

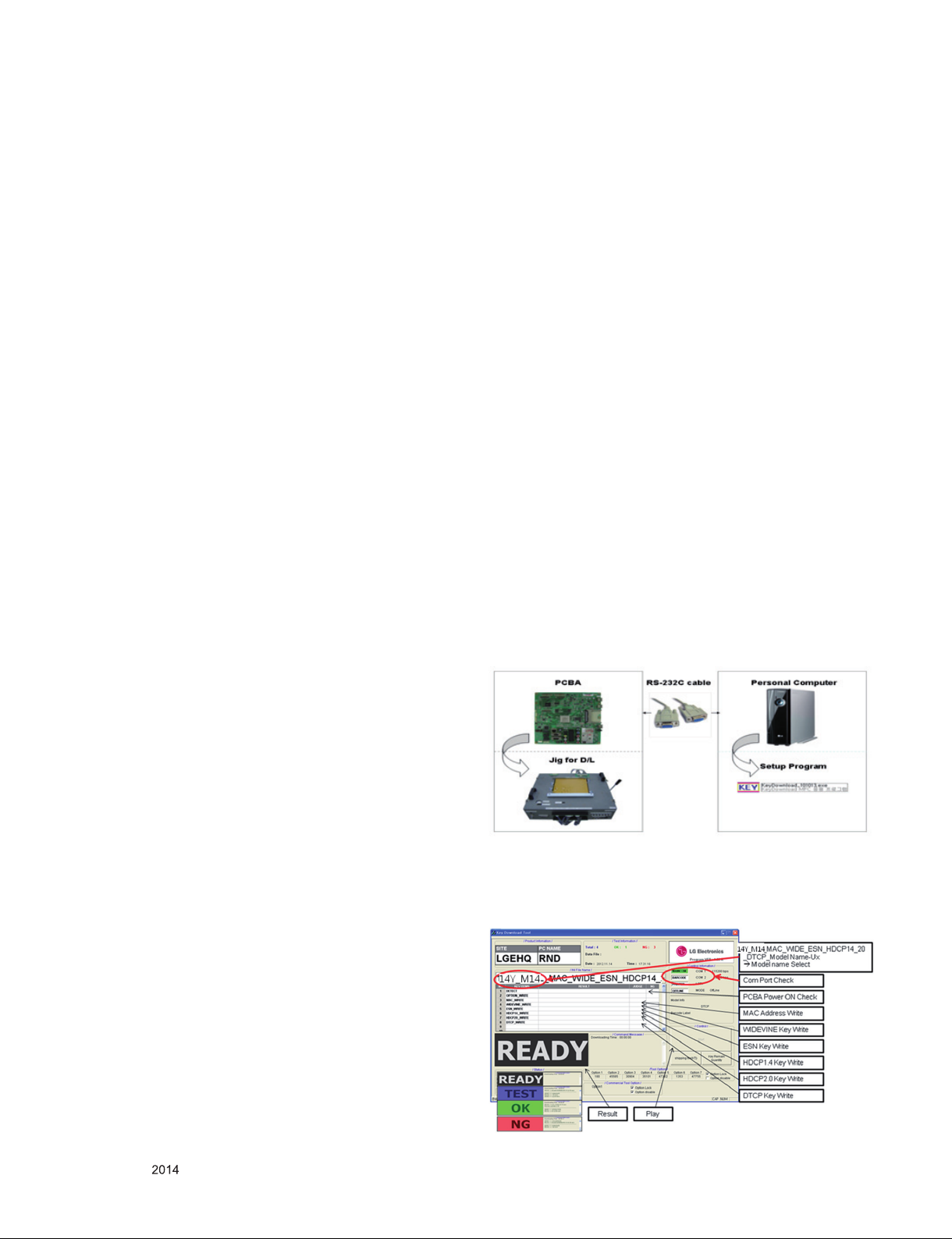

4.2.4. Communication Port connection
1) Connect : PCBA Jig -> RS-232C Port == PC -> RS-232C
Port
4.2.5. Download (**ESN Key : 14Y_CS_M14)
(1) US, Canada models (14Y LCD TV + MAC + Widevine +
ESN Key + DTCP Key + HDCP1.4 and HDCP2.0)
- 9 - LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.
Only for training and service purposes
(2) Mexico models (14Y LCD TV + MAC + Widevine + ESN
Key + HDCP1.4 and HDCP2.0)
4.2.6. Inspection
- In INSTART menu, check these keys.

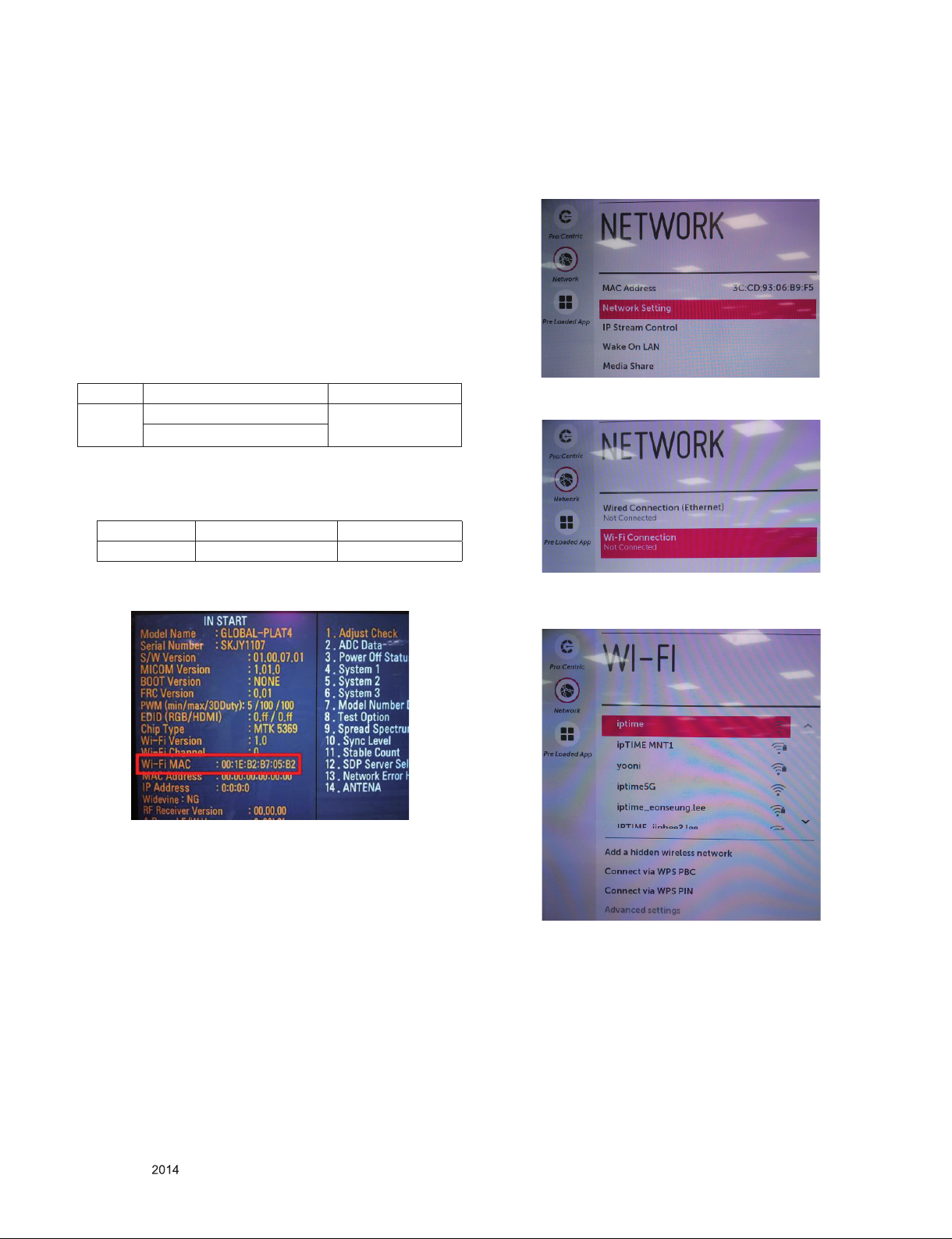

4.3. LAN Inspection
4.3.1. Equipment & Condition
▪ Each other connection to LAN Port of IP Hub and Jig
4.3.2. LAN inspection solution
▪ LAN Port connection with PCB
▪ Network setting at MENU Mode of TV
▪ Setting automatic IP
▪ Setting state confirmation
-> If automatic setting is finished, you confirm IP and MAC
Address.
4.4. LAN PORT INSPECTION(PING TEST)
4.4.1. Equipment setting
(1) Play the LAN Port Test PROGRAM.
(2) Input IP set up for an inspection to Test Program.
* IP Number : 12.12.2.2
Connect SET -> LAN port == PC -> LAN Port
4.4.2. LAN PORT inspection (PING TEST)
(1) Play the LAN Port Test Program.
(2) Connect each other LAN Port Jack.
(3) Play Test (F9) button and confirm OK Message.
(4) Remove LAN cable.
4.5 . Model name & Serial number
Download
4.5.1. Model name & Serial number D/L
■ Press “P-ONLY” key of service remocon.(Baud rate :
115200 bps)
■ Connect RS232 Signal Cable to RS-232 Jack.
■ Write Serial number by use RS-232.
■ Must check the serial number at Instart menu.
4.5.2. Method & notice
A. VESA Serial number D/L is using of scan equipment.
B. Setting of scan equipment operated by Manufacturing
Technology Group.
C. Serial number D/L must be conformed when it is produced
in production line, because serial number D/L is mandatory
by D-book 4.0
* Manual Download (Model Name and Serial Number)
Press If the TV set is downloaded By OTA or Service man,
Sometimes model name or serial number is initialized.(Not
always)
There is impossible to download by bar code scan, so It need
Manual download.
a. Press the ‘instart’ key of ADJ remote controller.
b. Go to the menu ‘16.Model Number D/L’ like below photo.
c. Input the Factory model name or Serial number.
d. Check the model name Instart menu -> Factory name
displayed
e. Check the Diagnostics (DTV country only) -> Buyer model
displayed
4.6. EDID Download
4.6.1. Overview
- It is a VESA regulation. A PC or a MNT will display an
optimal resolution through information sharing without any
necessity of user input. It is a realization of “Plug and Play”.
4.6.2. Equipment
(1) Since EDID data is embedded, EDID download JIG, HDMI
cable and D-sub cable are not need.
(2) Adjust by using remote controller.
SET PC
- 10 - LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.
Only for training and service purposes
4.6.3. EDID DATA
4.6.3.1. 2D_8bit_PCM(US) _ xvYCC : off
- HDMI EDID 2D_8bit_PCM(US)_xvYCC : off
▪ Reference
- HDMI1 ~ HDMI3
- In the data of EDID, bellows may be different by S/W or
Input mode.
a. Product ID
b. Serial No: Controlled on production line.
c. Month, Year: Controlled on production line:
ex) Week : '01' -> '01'
Year : '2014' -> '18'
d. Model Name(Hex): LGTV
e. Checksum(LG TV): Changeable by total EDID data.
f. Vendor Specific(HDMI)
4.6.3.2. 2D_10bit_PCM(US) _ xvYCC : off
- HDMI EDID 2D_10bit_PCM(US)_xvYCC : off
▪ Reference
- HDMI1 ~ HDMI3
- In the data of EDID, bellows may be different by S/W or
Input mode.
a. Product ID
b. Serial No: Controlled on production line.
c. Month, Year: Controlled on production line:
ex) Week : '01' -> '01'
Year : '2014' -> '18'
d. Model Name(Hex): LGTV
e. Checksum(LG TV): Changeable by total EDID data.
f. Vendor Specific(HDMI)
Chassis MODEL NAME(HEX)
LA4BY 00 00 00 FC 00 4C 47 20 54 56 0A 20 20 20 20 20 20 20
INPUT Model name(HEX)_
HDMI1 67 03 0C 00 10 00 80 1E
HDMI2 67 03 0C 00 20 00 80 1E
Ω Ω Ω Ω Ω Ω Ω Ω Ω Ω ΩͲ Ωͳ Ωʹ Ω͵ ΩͶ Ωͷ
Ω ͷͷ ͷͷ ͷͷ ͷͷ ͷͷ ͷͷ Ͷ ͵ ᐓ ᐔ
Ω ᐕ Ͳ Ͳ Ͳ ͶͶ Ͳ ʹ
Ω ͷ Ͳ
Ω Ͳ ͵ ʹ
Ω Ͷ ͳ ͳ
Ω Ͷ ͷ͵ Ͳ
Ω Ͷ Ͷ Ͳ ᐖ
Ω ᐖ ᐗ
Ω ͵ ͷ
Ω ᐘ Ͷ Ͳ
Ω ͵ ʹ Ͳ Ͳ Ͷ
Ω ͵ ʹ ʹ
Ω Ͷ ͵ ͵ Ͷ Ͷ
Ω Ͷ ʹ Ͳ ͵ Ͳ Ͷ ͵ Ͷ
Ω
Ω ᐗ
HEX EDID Table DDC Function
0001 0100 Analog
0001 0100 Digital
e1 e2 e3
HDMI1 E7 E0 X
HDMI2 E7 D0 X
Ω Ω Ω Ω Ω Ω Ω Ω Ω Ω ΩͲ Ωͳ Ωʹ Ω͵ ΩͶ Ωͷ
Ω ͷͷ ͷͷ ͷͷ ͷͷ ͷͷ ͷͷ Ͷ ͵ ᐓ ᐔ
Ω ᐕ Ͳ Ͳ Ͳ ͶͶ Ͳ ʹ
Ω ͷ Ͳ
Ω Ͳ ͵ ʹ
Ω Ͳ Ͳ Ͷ ͳ ͳ
Ω Ͳ Ͳ Ͷ ͷ͵ Ͳ
Ω Ͷ Ͷ Ͳ ᐖ
Ω ᐖ ᐗ
Ω ͵ ͷ
Ω ᐘ Ͷ Ͳ
Ω ͵ ʹ Ͳ Ͳ Ͷ
Ω ͵ ʹ ʹ Ͳ Ͳ
Ω Ͷ ͵ ͵ Ͷ Ͷ Ͳ Ͳ
Ω Ͷ ʹ Ͳ ͵ Ͳ Ͷ ͵ Ͷ Ͳ
Ω Ͳ Ͳ ͳ
Ω Ͳ Ͳ Ͳ ᐗ
HEX EDID Table DDC Function
0001 0100 Analog
0001 0100 Digital
Chassis MODEL NAME(HEX)
LA4BY 00 00 00 FC 00 4C 47 20 54 56 0A 20 20 20 20 20 20 20
e1 e2 e3
HDMI1 E7 02 X
HDMI2 E7 F2 X
INPUT Model name(HEX)_
HDMI1 67 03 0C 00 10 00 B8 2D
HDMI2 67 03 0C 00 20 00 B8 2D
- 11 - LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.
Only for training and service purposes
4.6.3.3. 3D_8bit_PCM(US) _ xvYCC : off
- HDMI EDID 3D_8bit_PCM(US)_xvYCC : off
▪ Reference
- HDMI1 ~ HDMI3
- In the data of EDID, bellows may be different by S/W or
Input mode.
a. Product ID
b. Serial No: Controlled on production line.
c. Month, Year: Controlled on production line:
ex) Week : '01' -> '01'
Year : '2014' -> '18'
d. Model Name(Hex): LGTV
e. Checksum(LG TV): Changeable by total EDID data.
f. Vendor Specific(HDMI)
4.6.3.4. 3D_10bit_PCM(US) _ xvYCC : off
- HDMI EDID 3D_10bit_PCM(US)_xvYCC : off
▪ Reference
- HDMI1 ~ HDMI3
- In the data of EDID, bellows may be different by S/W or
Input mode.
a. Product ID
b. Serial No: Controlled on production line.
c. Month, Year: Controlled on production line:
ex) Week : '01' -> '01'
Year : '2014' -> '18'
d. Model Name(Hex): LGTV
e. Checksum(LG TV): Changeable by total EDID data.
f. Vendor Specific(HDMI)
Chassis MODEL NAME(HEX)
LA4BY 00 00 00 FC 00 4C 47 20 54 56 0A 20 20 20 20 20 20 20
INPUT Model name(HEX)_
HDMI1 78 03 0C 00 10 00 80 1E 20 CO 0E 01 4F 00 FE 08 10 06 10 18 10 28 10 38 10
HDMI2 78 03 0C 00 20 00 80 1E 20 CO 0E 01 4F 00 FE 08 10 06 10 18 10 28 10 38 10
Ω Ω Ω Ω Ω Ω Ω Ω Ω Ω ΩͲ Ωͳ Ωʹ Ω͵ ΩͶ Ωͷ
Ω ͷͷ ͷͷ ͷͷ ͷͷ ͷͷ ͷͷ Ͷ ͵ ᐓ ᐔ
Ω ᐕ Ͳ Ͳ Ͳ ͶͶ Ͳ ʹ
Ω ͷ Ͳ
Ω Ͳ ͵ ʹ
Ω Ͷ ͳ ͳ
Ω Ͷ ͷ͵ Ͳ
Ω Ͷ Ͷ Ͳ ᐖ
Ω ᐖ ᐗ
Ω Ͷ ͷ
Ω ᐘ
Ω ᐘ Ͷ Ͳ
Ω ͵ ʹ Ͷ
Ω ͵ ʹ ʹ
Ω Ͷ ͵ ͵ Ͷ Ͷ
Ω Ͷ
Ω ᐗ
HEX EDID Table DDC Function
0001 0100 Analog
0001 0100 Digital
e1 e2 e3
HDMI1 E7 FC X
HDMI2 E7 EC X
Ω Ω Ω Ω Ω Ω Ω Ω Ω Ω ΩͲ Ωͳ Ωʹ Ω͵ ΩͶ Ωͷ
Ω ͷͷ ͷͷ ͷͷ ͷͷ ͷͷ ͷͷ Ͷ ͵ ᐓ ᐔ
Ω ᐕ Ͳ Ͳ Ͳ ͶͶ Ͳ ʹ
Ω ͷ Ͳ
Ω Ͳ ͵ ʹ
Ω Ͷ ͳ ͳ
Ω Ͷ ͷ͵ Ͳ
Ω Ͷ Ͷ Ͳ ᐖ
Ω ᐖ ᐗ
Ω Ͷ ͷ
Ω ᐘ
Ω ᐘ Ͷ Ͳ
Ω ͵ ʹ Ͷ
Ω ͵ ʹ ʹ
Ω Ͷ ͵ ͵ Ͷ Ͷ
Ω Ͷ
Ω ᐗ
HEX EDID Table DDC Function
0001 0100 Analog
0001 0100 Digital
Chassis MODEL NAME(HEX)
LA4BY 00 00 00 FC 00 4C 47 20 54 56 0A 20 20 20 20 20 20 20
e1 e2 e3
HDMI1 E7 B5 X
HDMI2 E7 A5 X
INPUT Model name(HEX)_
HDMI1 78 03 0C 00 10 00 B8 2D 20 C0 0E 01 4F 00 FE 08 10 06 10 18 10 28 10 38 10
HDMI2 78 03 0C 00 20 00 B8 2D 20 C0 0E 01 4F 00 FE 08 10 06 10 18 10 28 10 38 10
- 12 - LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.
Only for training and service purposes
5. Final Assembly Adjustment
5.1. White Balance Adjustment
5.1.1. Overview
5.1.1.1. W/B adj. Objective & How-it-works
(1) Objective: To reduce each Panel’s W/B deviation
(2) How-it-works: When R/G/B gain in the OSD is at 192, it
means the panel is at its Full Dynamic Range. In order to
prevent saturation of Full Dynamic range and data, one of
R/G/B is fixed at 192, and the other two is lowered to find
the desired value.
(3) Adj. condition: normal temperature
- Surrounding Temperature: 25±5 ºC
- Warm-up time: About 5 Min
- Surrounding Humidity: 20% ~ 80%
- Before White balance adjustment, Keep power on status,
don’t power off
5.1.1.2. Adj. condition and cautionary items
(1) Lighting condition in surrounding area surrounding lighting
should be lower 10 lux. Try to isolate adj. area into dark
surrounding.
(2) Probe location: Color Analyzer (CA-210) probe should be
within 10cm and perpendicular of the module surface
(80°~ 100°)
(3) Aging time
- After Aging Start, Keep the Power ON status during 5
Minutes.
- In case of LCD, Back-light on should be checked using no
signal or Full-white pattern.
5.1.2. Equipment
(1) Color Analyzer: CA-210 (NCG: CH 9 / WCG: CH12 / LED:
CH14)
(2) Adj. Computer(During auto adj., RS-232C protocol is
needed)
(3) Adjust Remocon
(4) Video Signal Generator MSPG-925F 720p/204-Gray
(Model:217, Pattern:49)
→ Only when internal pattern is not available
※Color Analyzer Matrix should be calibrated using
CS-1000

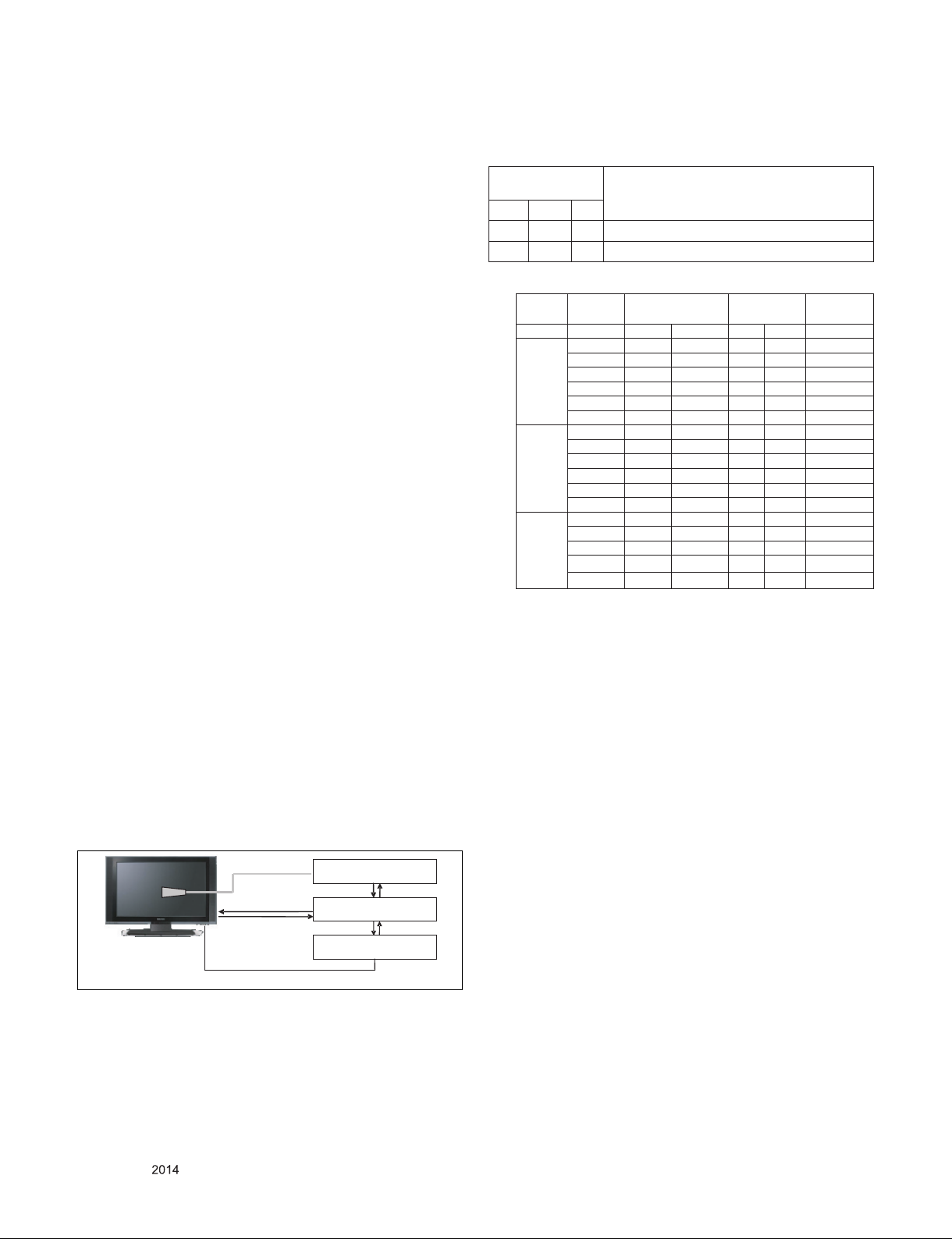

5.1.3. Equipment connection
5.1.4. Adjustment Command (Protocol)
(1) RS-232C Command used during auto-adj
(2) Adjustment Map
5.1.5. Adjustment method
5.1.5.1. Auto WB calibration
(1) Set TV in ADJ mode using P-ONLY key (or POWER ON
key)
(2) Place optical probe on the center of the display
- It need to check probe condition of zero calibration before
adjustment.
(3) Connect RS-232C Cable
(4) Select mode in ADJ Program and begin a adjustment.
(5) When WB adjustment is completed with OK message,
check adjustment status of pre-set mode (Cool, Medium,
Warm)
(6) Remove probe and RS-232C cable.
*W/B Adj. must begin as start command “wb 00 00” , and
finish as end command “wb 00 ff”, and Adj. offset if need.
5.1.5.2. Manual adj. method
(1) Set TV in Adj. mode using POWER ON
(2) Zero Calibrate the probe of Color Analyzer, then place it on
the center of LCD module within 10cm of the surface.
(3) Press ADJ key -> EZ adjust using adj. R/C -> 6. White-
Balance then press the cursor to the right (KEY►).
(When KEY(►) is pressed 204 Gray(80IRE) internal
pattern will be displayed)
(4) Adjust Cool modes
1) Fix the one of R/G/B gain to 192 (default data) and
decrease the others. ( If G gain is adjusted over 172 and
R and B gain less than 192 , Adjust is O.K.)
2) If G gain is less than 172, Increase G gain by up to 172,
and then increase R gain and G gain same amount of
increasing G gain.
3) If R gain or B gain is over 255, Readjust G gain less
than 172, Conform to R gain is 255 or B gain is 255
Co l o r An al yz er
Co m p u te r
Pa t t ern G en er at o r
RS - 23 2 C
RS-2 32 C
RS-2 32 C
Probe
Signal Source
* If TV internal pattern is used, not needed
Adj. item Command
(lower caseASCII)
Data Range
(Hex.)
Default
(Decimal)
CMD1 CMD2 MIN MAX
Cool
R Gain j g 00 C0 TBD
G Gain j h 00 C0 TBD
B Gain j i 00 C0 TBD
R Cut TBD
G Cut TBD
B Cut TBD
Medium
R Gain j a 00 C0 TBD
G Gain j b 00 C0 TBD
B Gain j c 00 C0 TBD
R Cut TBD
G Cut TBD
B Cut TBD
Warm
R Gain j d 00 C0 TBD
G Gain j e 00 C0 TBD
B Gain j f 00 C0 TBD
R Cut TBD
G Cut TBD
RS-232C
COMMAND
Explanation
CMD DATA ID
Wb 00 00 Begin White Balance adj.
Wb 00 ff End White Balance adj. (internal pattern disappears )
- 13 - LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.
Only for training and service purposes
5) Adjust two modes (Medium / Warm) Fix the one of
R/G/B gain to 192 (default data) and decrease the
others.
6) Adj. is completed, Exit adjust mode using “EXIT” key on
Remote controller.
▪ If internal pattern is not available, use RF input. In EZ Adj.
menu
6.White Balance, you can select one of 2 Test-pattern:
ON, OFF. Default is inner (ON). By selecting OFF, you
can adjust using RF signal in 206 Gray pattern.
5.1.6. Reference
(White Balance Adj. coordinate and color
temperature)
▪ Luminance: 204 Gray, 80IRE
▪ Standard color coordinate and temperature using
5.1.7. Reference
(White Balance Adj. coordinate and color
temperature)
▪ Luminance: 204 Gray,
▪ Standard color coordinate and temperature using CS-1000 (over
26 inch)
▪ Standard color coordinate and temperature using
CA-210(CH-14) – by aging time
1) Normal line in Korea (From January to February) : LGD
(LY7xxx Series models)
▪ Standard color coordinate and temperature using
CA-210(CH-14) – by aging time
2) Normal line in Korea (From March to December) : LGD
(LY7xxx Series models)
Normal line in Mexico : LGD (LY7xxx models)
3) O/S Module(AUO, INX, Sharp, CSOT, BOE)
5.2. Tool Option setting & Inspection per
countries
5.2.1. Overview
(1) Tool option selection is only done for models in Non-USA
North America due to rating
(2) Applied model: LA4BX Chassis applied to CANADA and
MEXICO
5.2.2. Country Group selection
(1) Press ADJ key on the Adj. R/C, and then select Country
Group Menu
(2) Depending on destination, select KR or US, then on the
lower Country option, select US, CA, MX. Selection is
done using +, - KEY
5.2.3. Tool Option Inspection
(1) Press Adj. key on the Adj. R/C, and then check Tool option.
* Tool option can be reconstructed by Software
Mode Coordinate Temp ∆uv
x y
Cool 0.271 0.270 13000 K 0.0000
Medium 0.286 0.289 9300 K 0.0000
Warm 0.313 0.329 6500 K 0.0000
Aging time
(Min)
Cool Medium Warm
x y x y x y
271 270 286 289 313 329
1 0-2 286 295 301 314 328 354
2 3-5 284 290 299 309 326 349
3 6-9 282 287 297 306 324 346
4 10-19 279 283 294 302 321 342
5 20-35 276 278 291 297 318 337
6 36-49 274 275 289 294 316 334
7 50-79 273 272 288 291 315 331
8 80-119 272 271 287 290 314 330
9 Over 120 271 270 286 289 313 329
Aging time
(Min)
Cool Medium Warm
x y x y x y
271 270 286 289 313 329
1 0-2 282 289 297 308 324 348
2 3-5 281 287 296 306 323 346
3 6-9 279 284 294 303 321 343
4 10-19 277 280 292 299 319 339
5 20-35 275 277 290 296 317 336
6 36-49 274 274 289 293 316 333
7 50-79 273 272 288 291 315 331
8 80-119 272 271 287 290 314 330
9 Over 120 271 270 286 289 313 329
Cool med warm
xyxyxy
spec 271 270 286 289 313 329
target 278 280 293 299 320 339
- 14 - LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.
Only for training and service purposes
5.3. Magic Motion remote controller Check
5.3.1. Test equipment
- RF-remote controller for check, IR-KEY-CODE remote
controller.
- Check AA battery before test. A recommendation is that a
tester change battery every lots.
5.4.2. Test
(1) Make pairing with TV set by pressing “Start key(Wheel
key)” on RCU.
(2) Check a cursor on screen by pressing ‘Wheel key” of RCU
(3) Stop paring with TV set by pressing “Back+ Home” key of
RCU.
5.4.3. Applied models
5.4. Wi-Fi MAC Address Check
5.4.1. Using RS232 Command
5.4.2. Check the menu on in-start
5.5. Wi-Fi Test
Step 1) Turn on TV
Step 2) Select Network Connection option in Network Menu.
Installer menu -> 119 -> 253 -> Menu -> Network
Step 3) Select Start Connection Button in Network Setting ->
Wi-Fi Connection
Step 4) If the system finds any AP like below PIC, it is working
well.
Chassis Model Name Magic RF receiver
LA4BY 32LY770M-UA Built-in
42LY770M-UA
Command Set ACK
Transmission [A][l][][Set ID][][20][Cr] [O][K][x] or [N][G]
- 15 - LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.
Only for training and service purposes
5.6. HDMI ARC Function Inspection
5.6.1. Test equipment
- Optic Receiver Speaker
- MSHG-600 (SW: 1220 ↑)
- HDMI Cable (for 1.4 version)
5.6.2. Test method
(1) Insert the HDMI Cable to the HDMI ARC port from the
master equipment (HDMI1)
(2) Check the sound from the TV Set
(3) Check the Sound from the Speaker or using AV & Optic
TEST program (It’s connected to MSHG-600)
* Remark : Inspect in Power Only Mode and check SW
version in a master equipment
5.7. EYE-Q Green Function Inspection
Step 1) Turn on the TV..
Step 2) Press 'EYE button' on the adjustment remote-
controller.
Step 3) Cover 'Eye Q sensor' on the front of set with your
hands, hold it for 6 seconds.
Step 4) Check "the Sensor Data" on the screen, make certain
that Data is below 10.
If Data isn’t below 10 in 6 seconds, Eye Q sensor
would be bad. You should change Eye Q sensor.
Step 5) Uncover your hands from Eye Q sensor, hold it for 6
seconds.
Step 6) Check "Back Light(xxx)" on the screen, check data
increase .
You should change Eye Q sensor.
6. Check Commercial features
6.1. External SPK Out
6.1.1. Equipment & Condition
▪ Jig (Speaker out JIG) or Oscilloscope
▪ Power only mode
Commercial Feature
IR
Out
DC
Power
Out
(12V)
Ext
SPK
Out
RJP MPI Pro:Idiom b-LAN Pillow
X X O X O O O O
- 16 - LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.
Only for training and service purposes

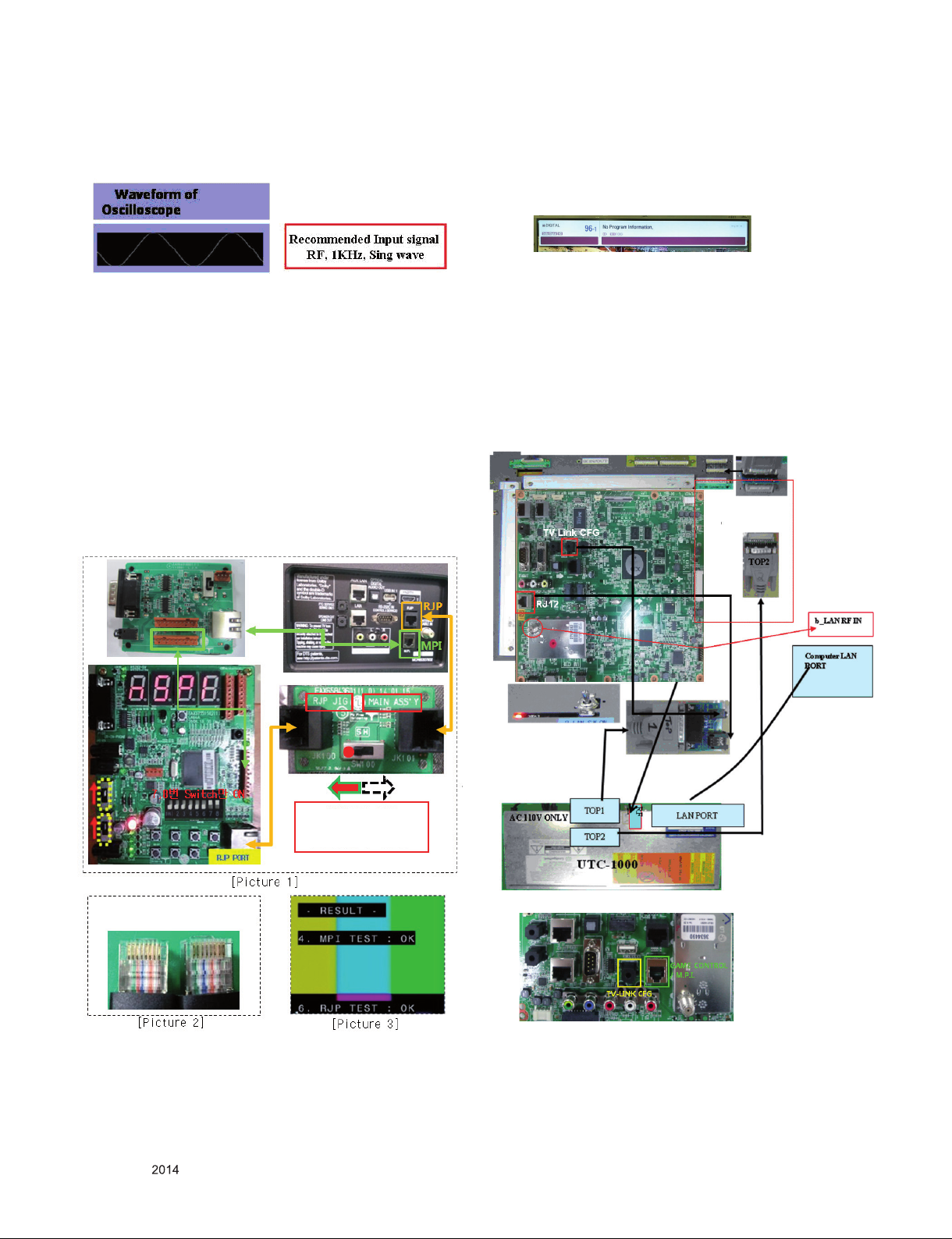

6.1.2. Check the speaker out
1) Connect the External Speaker : check the sound
Connect oscilloscope, you can see this waveform.
6.2. RJP/MPI Check
6.2.1. Initial setting
(1) Select Power switch ( up ) as the picture
(2) Set the Switch No.7&8 to ON (up) as the picture Others
should be set to OFF (down)
6.2.2. Checking Guide
(1) Press the P-ONLY key of R/C.
(2) Press the Exit key of R/C.
(3) Connect with the TV through RJP cable (wait for the JIG
on) and MPI cable.
(4) RJP/MPI Pin check is carried out automatically.
(5) The result is shown as below. [Picture 3]
(6) If RJP/MPI Pin check finished or you check other function,
must remove the RJP/MPI cable from TV
6.3. Pro : Idiom Check
(1) Connect the RF Cable
(2) Turn to the Pro:Idiom channel (No. 333)
(3) Check the video & sound
** Only displayed at “POWER ONLY” mode
6.4. b-LAN Main board Check
6.4.1. Overview
It is LNET RF modem & FTG card
6.4.2. Equipment
(1) b-LAN Checker: UTC-1000 (with Cable accessory)
(2) Computer(for test result monitoring)
(3) Connection JIG
6.4.3. Equipment connection map & b-LAN Check
S/W switch direction: RJP <-->
MAIN ASSY make sure that the
insertion direction is right.
When checking the RJP(<-->)
be sure to use a direct cable.
- 17 - LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.
Only for training and service purposes
6.4.4. Check
6.4.4.1. Setting Procedure
(1) Setting JIG
1) Connect UTC-1000 Equipment to JIG device as a like
left picture
- Connection Line:
UTC-1000 TOP1 <--> Game port(RJ21)
-> TV-LINK CFG (Phone Jack)
UTC-1000 TOP2 -> JIG 11pin Connection
UTC-1000 RF1 <--> b-LAN RF IN
UTC-1000 LAN <--> PC LAN Port
6.4.4.2. Working procedure
(1) Connection
UTC-1000 LAN <--> PC LAN Port
UTC-1000 TOP1 <--> Game port(RJ21)
-> TV-LINK CFG (Phone Jack)
UTC-1000 RF1 <--> b-LAN RF IN
(2) Power on JIG : Switch on front of the JIG
(3) Test Start
UTC-1000 TOP2 <--> JIG 11pin Connection
(4) Checking b-LAN MAC Address
Check whether it is same their address numbers or not
between b-LAN Label and on the pc address numbers.

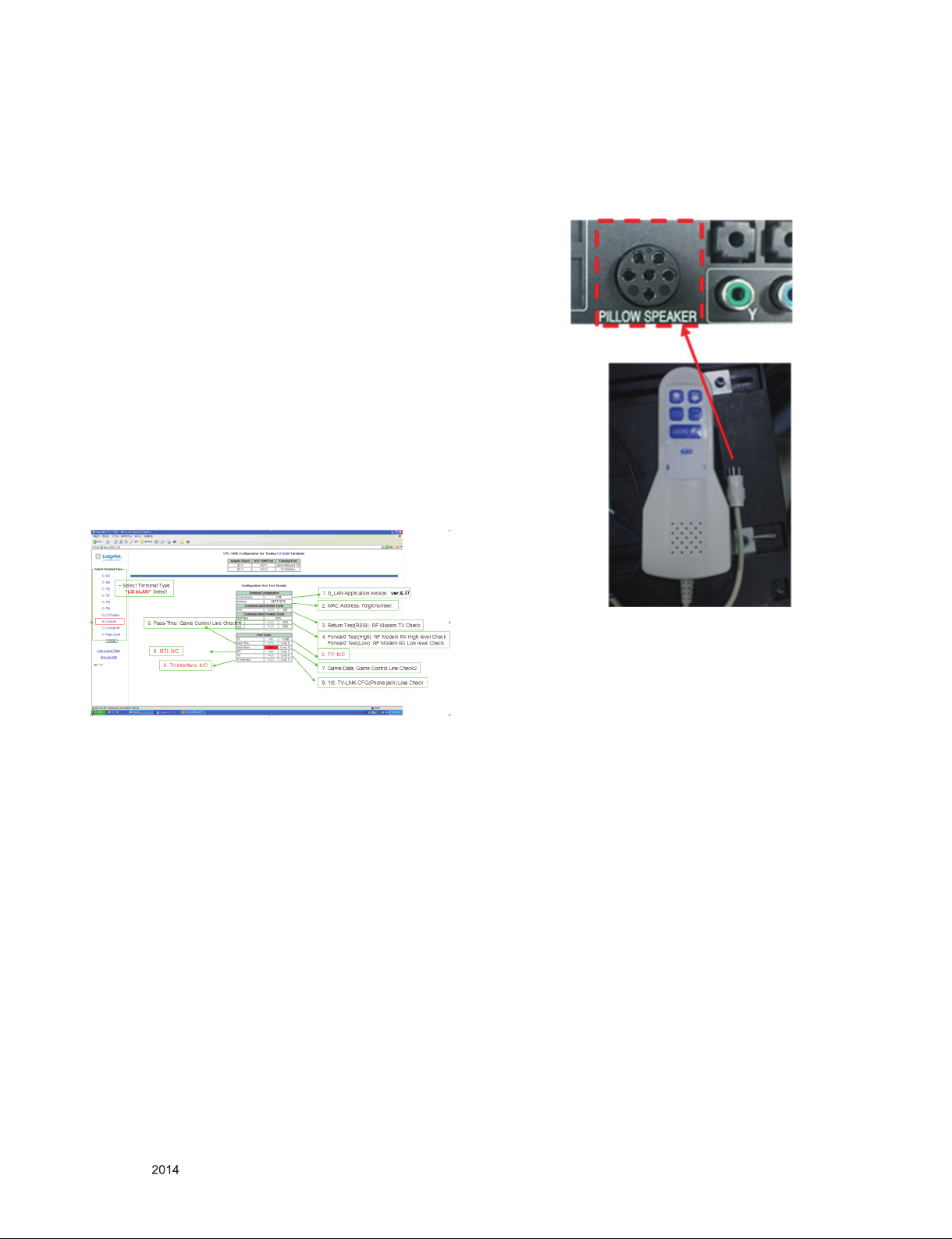

* Checking JIG contents
(1) Check whether displaying all “Pass” or not at the number
3.4.6.7.9 contents of UTC-1000 on the PC
(2) Check “Version 6.27” of the 1. b-LAN Application version
(3) Check whether it is same their address numbers or not
between b-LAN Label and
(4) MAC Address on the pc.
6.5. Pillow speaker
6.5.1. Pillow speaker test method
(1) Connect pillow speaker on the pillow speaker jack
(2) Press channel Up/Down, Volume Up/Down key
(3) If operate Pillow speaker Key, It is OK
6.6. Ship-out mode check (In-stop)
▪ after final inspection, press In-Stop key of the Adj. R/C and
check that the unit goes to Stand-by mode.
- 18 - LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.
Only for training and service purposes
7. AUDIO output check
7.1. Audio input condition
(1) RF input: Mono, 1KHz sine wave signal, 100% Modulation
(2) CVBS, Component: 1KHz sine wave signal (0.4Vrms)
7.2. Specification
8. GND and HI-POT Test
8.1. GND & HI-POT auto-check preparation
(1) Check the POWER CABLE and SIGNAL CABE insertion
condition
8.2 GND & HI-POT auto-check
(1) Pallet moves in the station. (POWER CORD / AV CORD is
tightly inserted)
(2) Connect the AV JACK Tester.
(3) Controller (GWS103-4) on.
(4) GND Test (Auto)
- If Test is failed, Buzzer operates.
- If Test is passed, execute next process (Hi-pot test).
(Remove A/V CORD from A/V JACK BOX)
(5) HI-POT test (Auto)
- If Test is failed, Buzzer operates.
- If Test is passed, GOOD Lamp on and move to next
process automatically.
8.2.1. Checkpoint
▪ TEST voltage
- GND: 1.5 KV / min at 100 mA
- SIGNAL: 3 KV / min at 100 mA
▪ TEST time: 1 second
▪ TEST POINT
- GND TEST = POWER CORD GND & SIGNAL CABLE
METAL GND
- Hi-pot TEST = POWER CORD GND & LIVE & NEUTRAL
▪ LEAKAGE CURRENT: At 0.5 mArms

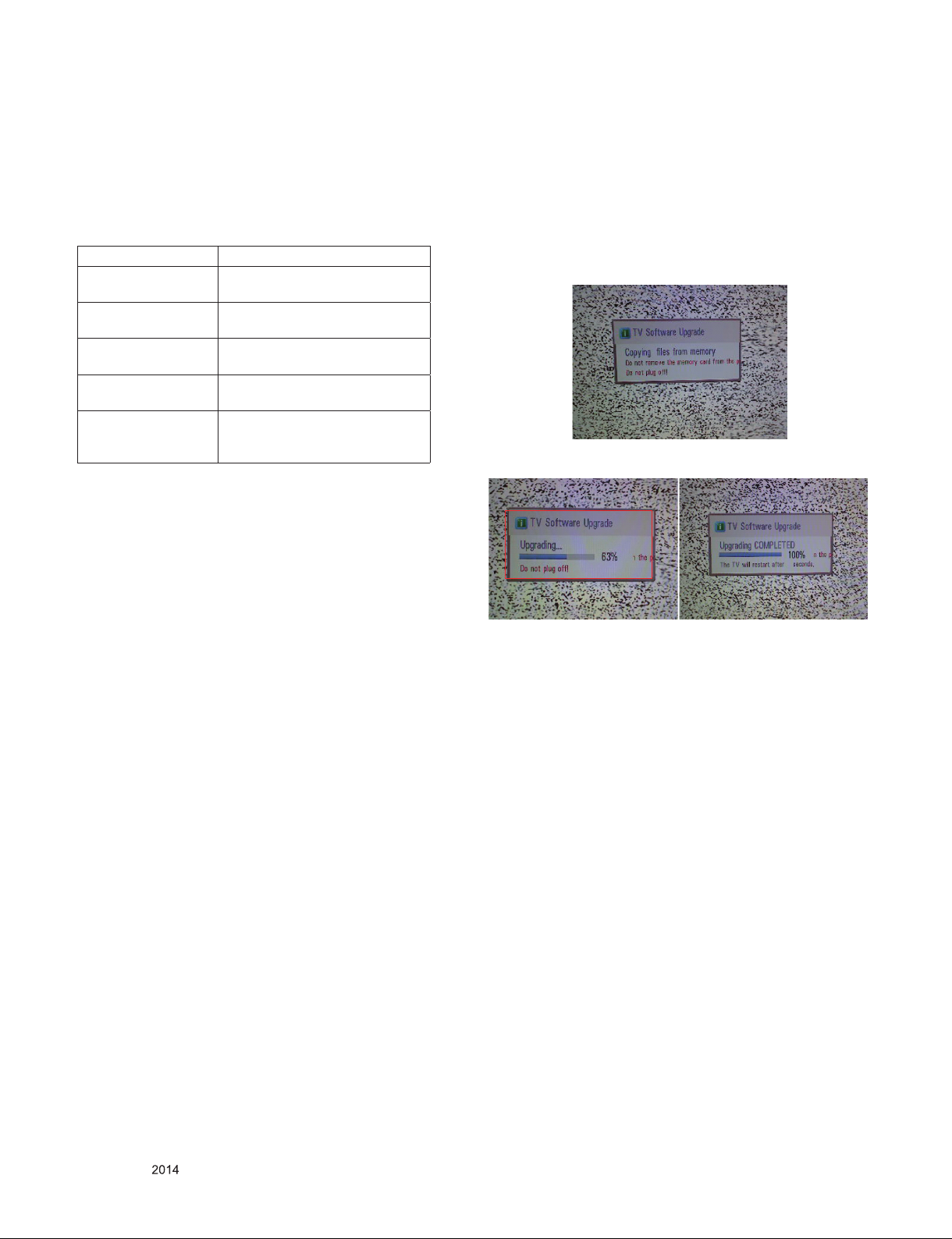

9. USB S/W Download(Service only)
(1) Put the USB Stick to the USB socket
(2) Automatically detecting update file in USB Stick
- If your downloaded program version in USB Stick is
Lower, it didn’t work.
But your downloaded version is Higher, USB data is
automatically detecting (Download Version High & Power
only mode, Set is automatically Download)
(3) Show the message “Copying files from memory”
(4) Updating is starting.
(5) Updating Completed, the TV will restart automatically.
(6) If your TV is turned on, check your updated version and
Tool option. (explain the Tool option, next stage)
* If downloading version is more high than your TV have,
TV can lost all channel data. In this case, you have to
channel recover. if all channel data is cleared, you didn’t
have a DTV/ATV test on production line.
* After downloading, have to adjust Tool Option again.
(1) Push "IN-START" key in service remote control.
(2) Select "Tool Option 1" and push "OK" key.
(3) Punch in the number. (Each model has their number)
Item Audio practical max Output, L/R
Min 9.0
8.5
Typ 10.0
8.9
Max 12.0
9.9
Unit W
Vrms
Remark
(1) Measurement condition
- EQ/AVL/Clear Voice: Off
(2) Speaker (8Ω Impedance)
- 19 - LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.
Only for training and service purposes
10. Optional adjustments
10.1. Manual ADC Calibration
10.1.1. Equipment & Condition
(1) Adjustment Remocon
(2) 801GF (802B, 802F, 802R) or MSPG925FA Pattern
Generator
- Resolution:
480i Comp1 (MSPG-925FA: model-209, pattern-65)
- Resolution:
1080p Comp1 (MSPG-925FA: model-225, pattern-65)
- Resolution :
1080p RGB (MSPG-925FA: model-225, pattern-65)
- Pattern : Horizontal 100% Color Bar Pattern
- Pattern level: 0.7±0.1 Vp-p
10.1.2. Adjust method
10.1.2.1. ADC 480i/1080p Comp
(1) Check connected condition of Comp cable to the
equipment
(2) Give a 480i Mode, Horizontal 100% Color Bar Pattern to
Comp1. (MSPG-925FA -> Model: 209, Pattern: 65)
(3) Change input mode as Component1 and picture mode as
“Standard”
(4) Press the In-start Key on the ADJ remote after at least 1
min of signal reception. Then, select 7.External ADC.
And Press OK or Right Button for going to sub menu.
(5) Press OK in Comp 480i menu
(6) Give a 1080p Mode, Horizontal 100% Color Bar Pattern to
Comp1. (MSPG-925FA -> Model: 225, Pattern: 65)
(7) Press OK in Comp 1080p menu
(8) If ADC Comp is successful, “ADC Component Success” is
displayed.
If ADC calibration is failure, “ADC Component Fail” is
displayed.
(10) If ADC calibration is failure, after rechecking ADC pattern
or condition, retry calibration
(11) If ADC calibration is failure, after recheck ADC pattern or
condition, retry calibration
10.2. Manual White balance Adjustment
10.2.1. Adj. condition and cautionary items
(1) Lighting condition in surrounding area surrounding lighting
should be lower 10 lux.
Try to isolate adj. area into dark surrounding.
(2) Probe location: Color Analyzer (CA-210) probe should be
within 10cm and perpendicular of the module surface
(80°~ 100°)
(3) Aging time
1) After Aging Start, Keep the Power ON status during 5
Minutes.
2) In case of LCD, Back-light on should be checked using
no signal or Full-white pattern.
10.2.2. Equipment
(1) Color Analyzer: CA-210 (NCG: CH 9 / WCG: CH12 / LED:
CH14)
(2) Adj. Computer (During auto adj., RS-232C protocol is
needed)
(3) Adjust Remocon
(4) Video Signal Generator MSPG-925F 720p/216-Gray
(Model: 217, Pattern: 78)
10.2.3. Adjustment
(1) Set TV in Adj. mode using POWER ON
(2) Zero Calibrate the probe of Color Analyzer, then place it on
the center of LCD module within 10cm of the surface.
(3) Press ADJ key -> EZ adjust using adj. R/C -> 6. White-
Balance then press the cursor to the right (KEY►).
When KEY(►) is pressed 216 Gray internal pattern will be
displayed.
(4) One of R Gain / G Gain / B Gain should be fixed at 192,
and the rest will be lowered to meet the desired value.
(5) Adj. is performed in COOL, MEDIUM, WARM 3 modes of
color temperature.
▪ If internal pattern is not available, use RF input. In EZ Adj.
menu 6.White Balance, you can select one of 2 Test-pattern:
ON, OFF. Default is inner(ON). By selecting OFF, you can
adjust using RF signal in 216 Gray pattern.
- 20 - LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.
Only for training and service purposes
TROUBLE SHOOTING GUIDE
1. Power-Up Boot Fail Trouble Shooting guide
Check P2301 All
Voltage Level (3.5V, 12V, 24V)
Y
N
Check Q2302 output Voltage(12V)
Y
Check LVDS Cable
Y
Check LCD Module
Control board
Check power connector and
RL_ON signal OK ?
N
Replace Power Board
Check Q2302 application circuit
Or replace Q2302
N
Replace Cable
N
Y
2. No OSD Trouble Shooting guide
Check P2301 All
Voltage Level (3.5V, 12V, 24V)
Y
N
Check IC8701 RESET and
UPDATE pin
Y
Check X8700 Clock
32.768kHz
Y
Check IC8701 IIC
Communication status
Y
Check IR input state of IC8701
57pin
Y
Re-download PTC Micom
Check power connector and
RL_ON signal OK ?
N
Replace Power Board
Check switch SW8700, SW8701
N
Check X8700 application circuit
or Replace X8700
Check IIC line or replace IC8701
Check IR board
N
N
N
Y
This manual suits for next models
1
Table of contents
Other LG LED TV manuals
