LG INFINIA 50PK950 User manual

iiilkiill_i_
ED LCD TV /PLAS TV
Please read this manual carefully before operating
your set and retain it for future reference.
LED LCD TV MODELS
47LX9500
55LX9500
47LEXS
55LEXS
60LEX9
72LEX9
PLASMA TV MODELS
50PK950
60PK950
P/NO :SAC34134205 (IO04-REV02) www.lg.com

WARNING /CAUTION
2
TO REDUCE THE RISK OF FIRE AND
ELECTRIC SHOCK; DO NOT EXPOSE THIS
PRO DUCTTO R A !N 0 R MO!STU R
This reminder is provided to call the CATV system
installer's attention to Article 820-40 of the National
Electric Code (U.S.A.). The code provides guide-
lines for proper grounding and, in particular, speci-
fies that the cable ground shall be connected to the
grounding system of the building, as close to the
point of the cable entry as practical.
WARNING /CAUTION
To prevent fire or shock hazards, do not expose
this product to rain or moisture.
Class B digital device
This equipment has been tested and found to
comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These
limits are designed to provide reasonable pro-
tection against harmful interference in a residen-
tial installation. This equipment generates, uses
and can radiate radio frequency energy and, if not
installed and used in accordance with the
instructions, may cause harmful interference to
radio communications. However, there is no
guarantee that interference will not occur in a
particular installation. If this equipment does
cause harmful interference to radio or television
reception, which can be determined by turning
the equipment off and on, the user is encour-
aged to try to correct the interference by one or
more of the following measures:
- Reorient or relocate the receiving antenna.
-Increase the separation between the equip-
ment and receiver.
- Connect the equipment to an outlet on a circuit
different from that to which the receiver is con-
nected.
- Consult the dealer or an experienced radio/TV
technician for help.
This device complies with part 15 of the FCC
Rules.
Operation is subject to the following two condi-
tions: (1) This device may not cause (harmful)
interference, and (2) this device must accept
any interference received, including interference
that may cause undesired operation (of the
device).
Any changes or modifications in construction of
this device which are not expressly approved by
the party responsible for compliance could void
the user's authority to operate the equipment.
Do not attempt to modify this product in any
way without written authorization from LG
Electronics.
Unauthorized modification could void the user's
authority to operate this product.

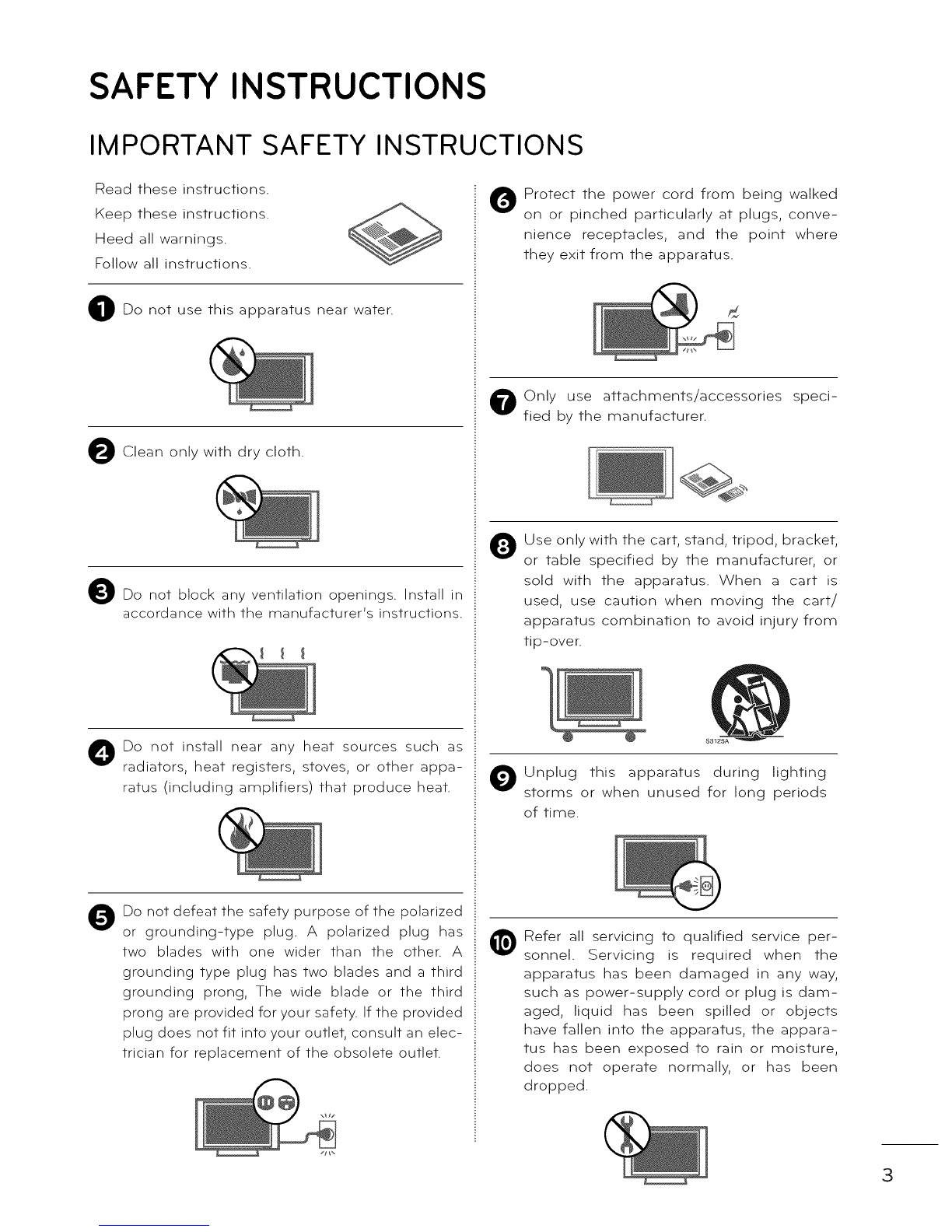

SAFETY INSTRUCTIONS
IMPORTANT SAFETY INSTRUCTIONS
Read these instructions.
Keep these instructions.
Heed all warnings.
Follow all instructions.
O Do not use this apparatus near water.
O Clean only with dry cloth.
_Do not block any ventilation openings. Install in
accordance with the manufacturer's instructions.
O o not install near any heat sources such as
radiators, heat registers, stoves, or other appa-
ratus (including amplifiers) that produce heat.
0Do not defeat the safety purpose of the polarized
or grounding-type plug. A polarized plug has
two blades with one wider than the other. A
grounding type plug has two blades and a third
grounding prong, The wide blade or the third
prong are provided for your safety. If the provided
plug does not fit into your outlet, consult an elec-
trician for replacement of the obsolete outlet.
0Protect the power cord from being walked
on or pinched particularly at plugs, conve-
nience receptacles, and the point where
they exit from the apparatus.
O nly use attachments/accessories speci-
fied by the manufacturer.
QUse only with the cart, stand, tripod, bracket,
or table specified by the manufacturer, or
sold with the apparatus. When a cart is
used, use caution when moving the cart/
apparatus combination to avoid injury from
tip-over.
Unplug this apparatus during lighting
storms or when unused for long periods
of time.
@Refer all servicing to qualified service per-
sonnel. Servicing is required when the
apparatus has been damaged in any way,
such as power-supply cord or plug is dam-
aged, liquid has been spilled or objects
have fallen into the apparatus, the appara-
tus has been exposed to rain or moisture,
does not operate normally, or has been
dropped.
3

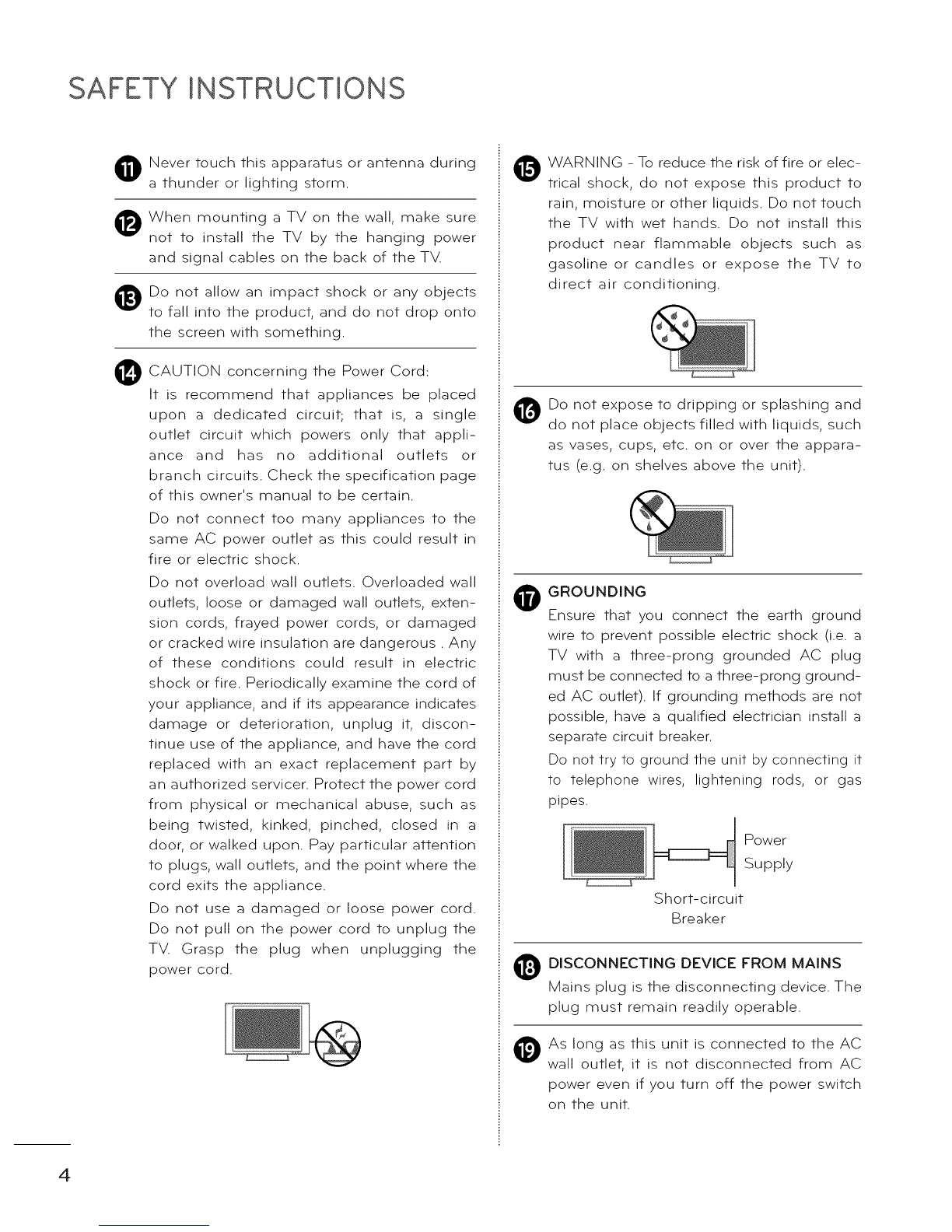

SAFETY INSTRUCTIONS
®
@
Never touch this apparatus or antenna during
a thunder or lighting storm.
When mounting a TV on the wall, make sure
not to install the TV by the hanging power
and signal cables on the back of the TV.
Do not allow an impact shock or any objects
to fall into the product, and do not drop onto
the screen with something.
CAUTION concerning the Power Cord:
It is recommend that appliances be placed
upon a dedicated circuit; that is, a single
outlet circuit which powers only that appli-
ance and has no additional outlets or
branch circuits. Check the specification page
of this owner's manual to be certain.
Do not connect too many appliances to the
same AC power outlet as this could result in
fire or electric shock.
Do not overload wall outlets. Overloaded wall
outlets, loose or damaged wall outlets, exten-
sion cords, frayed power cords, or damaged
or cracked wire insulation are dangerous. Any
of these conditions could result in electric
shock or fire. Periodically examine the cord of
your appliance, and if its appearance indicates
damage or deterioration, unplug it, discon-
tinue use of the appliance, and have the cord
replaced with an exact replacement part by
an authorized servicer. Protect the power cord
from physical or mechanical abuse, such as
being twisted, kinked, pinched, closed in a
door, or walked upon. Pay particular attention
to plugs, wall outlets, and the point where the
cord exits the appliance.
Do not use a damaged or loose power cord.
Do not pull on the power cord to unplug the
TV. Grasp the plug when unplugging the
power cord.
WARNING - To reduce the risk of fire or elec-
trical shock, do not expose this product to
rain, moisture or other liquids. Do not touch
the TV with wet hands. Do not install this
product near flammable objects such as
gasoline or candles or expose the TV to
direct air conditioning.
@Do not expose to dripping or splashing and
do not place objects filled with liquids, such
as vases, cups, etc. on or over the appara-
tus (e.g. on shelves above the unit).
0GROUNDING
Ensure that you connect the earth ground
wire to prevent possible electric shock (i.e. a
TV with a three-prong grounded AC plug
must be connected to a three-prong ground-
ed AC outlet). If grounding methods are not
possible, have a qualified electrician install a
separate circuit breaker.
Do not try to ground the unit by connecting it
to telephone wires, lightening rods, or gas
pipes.
_ Power
Supply
Short-circuit
Breaker
@
DISCONNECTING DEVICE FROM MAINS
Mains plug is the disconnecting device. The
plug must remain readily operable.
As long as this unit is connected to the AC
wall outlet, it is not disconnected from AC
power even if you turn off the power switch
on the unit.
4

ANTENNAS
Outdoor antenna grounding
If an outdoor antenna is installed, follow the
precautions below. An outdoor antenna sys-
tem should not be located in the vicinity of
overhead power lines or other electric light or
power circuits, or where it can come in contact
with such power lines or circuits as death or
serious injury can occur.
Be sure the antenna system is grounded so as
to provide some protection against voltage
surges and built-up static charges.
Section $10 of the National Electrical Code
(NEC) in the U.S.A. provides information with
respect to proper grounding of the mast and
supporting structure, grounding of the lead-in
wire to an antenna discharge unit, size of
grounding conductors, location of antenna
discharge unit, connection to grounding elec-
trodes and requirements for the grounding
electrode.
Antenna grounding according to the National
Electrical Code, ANSI/NFPA 70
Ground Clamp Antenna Lead in Wire
Discharge Unit
(NEC Section 810-20)
Grounding Conductor
(NEC Section 810-21)
Ground Clamps
Power Service Grounding
Electrode System (NEC
Art 250, Part H)
NEC: National Electrical Code
Cleaning
When cleaning, unplug the power cord and
rub gently with a soft cloth to prevent
scratching. Do not spray water or other liquids
directly on the TV as electric shock may occur.
Do not clean with chemicals such as alcohol,
thinners or benzene.
_ oving
Make sure the product is turned off, unplugged
and all cables have been removed. It may take
2 or more people to carry larger TVs. Do not
press against or put stress on the front panel
of the TV.
@
Ventilation
Install your TV where there is proper ventila-
tion. Do not install in a confined space such
as a bookcase. Do not cover the product
with cloth or other materials (e.g.) plastic
while plugged in. Do not install in exces-
sively dusty places.
Take care not to touch the ventilation open-
ings. When watching the TV for a long
period, the ventilation openings may
become hot.
If you smell smoke or other odors coming
from the TV or hear strange sounds, unplug
the power cord contact an authorized service
center.
Do not press strongly upon the panel with
hand or sharp object such as nail, pencil or
pen, or make a scratch on it.
Keep the product away from direct sunlight.
For LED LCD TV
If the TV feels cold to the touch, there may be
a small "flicker" when it is turned on. This is
normal, there is nothing wrong with TV.
Some minute dot defects may be visible on
the screen, appearing as tiny red, green, or
blue spots. However, they have no adverse
effect on the monitor's performance.
Avoid touching the LCD screen or holding
your finger(s) against it for long periods of
time. Doing so may produce some tempo-
rary distortion effects on the screen.
5

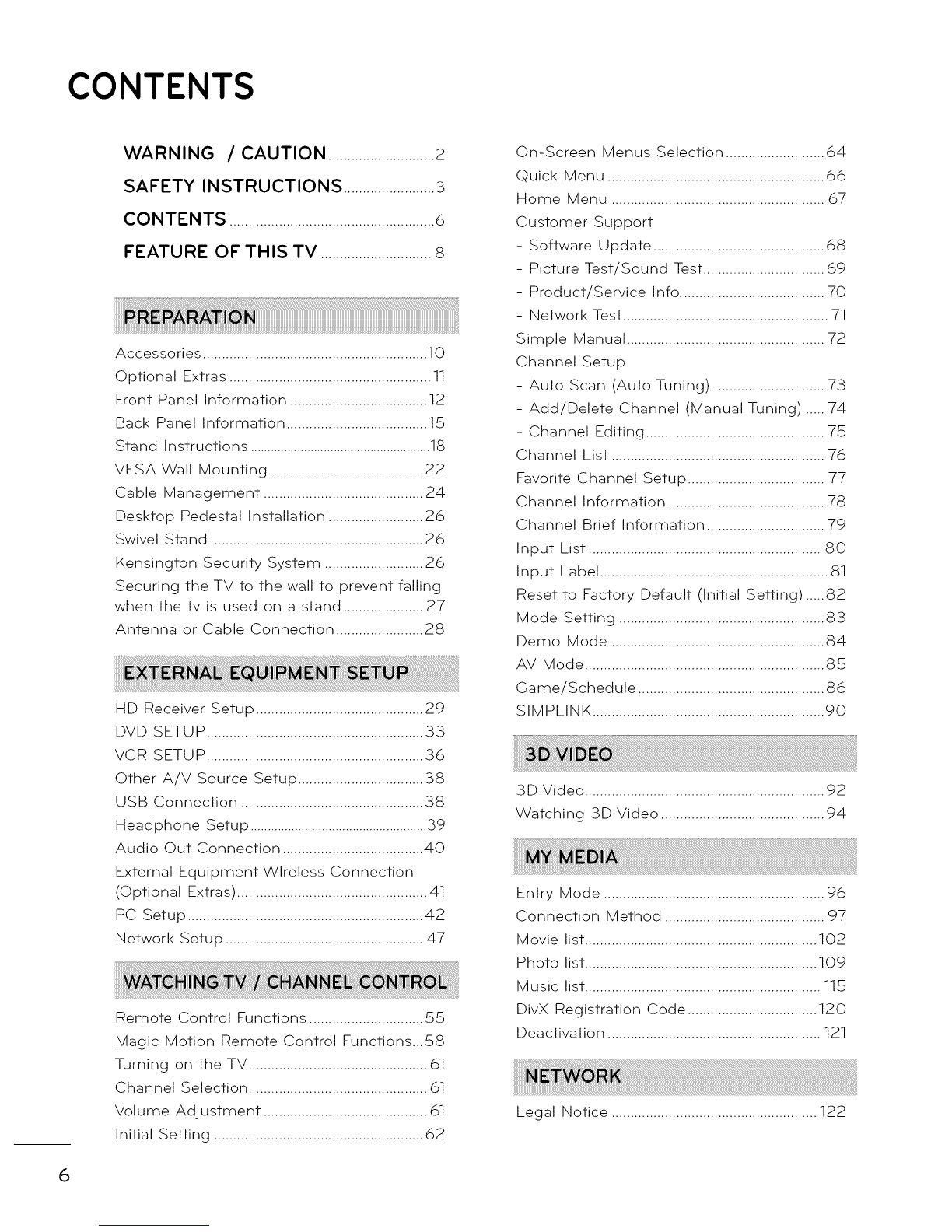

CONTENTS
WARNING /CAUTION ............................2
SAFETY INSTRUCTIONS ........................_3
CONTENTS ......................................................6
FEATURE OF THIS TV .............................8
Accessories ........................................................... 10
Optional Extras ..................................................... 11
Front Panel Information .................................... 12
Back Panel Information ..................................... 15
Stand Instructions ......................................................18
VESA Wall Mounting ........................................ 22
Cable Management .......................................... 24
Desktop Pedestal Installation ......................... 26
Swivel Stand ........................................................ 26
Kensington Security System .......................... 26
Securing the TV to the wall to prevent falling
when the tv is used on a stand ..................... 27
Antenna or Cable Connection ....................... 28
HD Receiver Setup ............................................ 29
DVD SETUP ......................................................... 33
VCR SETUP ......................................................... 36
Other A/V Source Setup ................................. 38
USB Connection ................................................ 38
Headphone Setup ....................................................39
Audio Out Connection ..................................... 40
External Equipment Wireless Connection
(Optional Extras) .................................................. 41
PC Setup .............................................................. 42
Network Setup .................................................... 47
Remote Control Functions .............................. 55
Magic Motion Remote Control Functions...58
Turning on the TV ............................................... 61
Channel Selection ............................................... 61
Volume Adjustment ........................................... 61
Initial Setting ....................................................... 62
6
On-Screen Menus Selection .......................... 64
Quick Menu ......................................................... 66
Home Menu ........................................................ 67
Customer Support
- Software Update ............................................. 68
- Picture Test/Sound Test ................................ 69
- Product/Service Info ...................................... 70
- Network Test ...................................................... 71
Simple Manual .................................................... 72
Channel Setup
- Auto Scan (Auto Tuning) .............................. 73
- Add/Delete Channel (Manual Tuning) ..... 74
- Channel Editing ............................................... 75
Channel List ........................................................ 76
Favorite Channel Setup .................................... 77
Channel Information ......................................... 78
Channel Brief Information ............................... 79
Input List ............................................................. 80
Input Label ............................................................ 81
Reset to Factory Default (initial Setting) .....82
Mode Setting ...................................................... 83
Demo Mode ........................................................ 84
AV Mode ............................................................... 85
Game/Schedule ................................................. 86
SIMPLINK ............................................................. 90
3D Video ...............................................................92
Watching 3D Video ...........................................94
Entry Mode .......................................................... 96
Connection Method .......................................... 97
Movie list ............................................................. 102
Photo list ............................................................. 109
Music list .............................................................. 115
DivX Registration Code .................................. 120
Deactivation ........................................................ 121
Legal Notice ...................................................... 122

ii_i _!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!iiiiiiiiii
Netcast Menu .................................................... 123
YOUTUBE ........................................................... 124
PICASA ............................................................... 126
Picture Size (Aspect Ratio) Control ............ 128
Picture Wizard ................................................... 130
Energy Saving ............................................ 132
Preset Picture Settings (Picture Mode) ..... 133
Manual Picture Adjustment - User Mode 134
Picture Improvement Technology (Advanced
Control) ............................................................... 135
Expert Picture control ..................................... 136
Picture Reset ..................................................... 139
TruMotion ......................................................... 140
LED Local Dimming ........................................ 141
Power Indicator ................................................ 142
Image Sticking Minimization (ISM) Method .143
Auto Volume ...................................................... 144
Clear Voice II ..................................................... 145
Balance ............................................................... 146
Preset Sound Settings (Sound Mode) .......147
Sound Setting Adjustment - User Mode.148
Audio Reset ....................................................... 149
TV Speakers On/Off Setup .......................... 150
Stereo/SAP Broadcast Setup ....................... 151
Audio Language ............................................. 152
On-screen Menus Language Selection .... 153
Caption Mode
- Analog Broadcasting System Captions. 154
- Digital Broadcasting System Captions...155
- Caption Option .............................................. 156
Clock Setting
- Auto Clock Setup .......................................... 157
- Manual Clock Setup .................................... 158
Auto On/Off Time Setting ............................ 159
Sleep Timer Setting ........................................ 160
Set Password & Lock System
- Setting up Your Password ............................ 161
- Set Password ................................................. 162
Lock System ...................................................... 163
Channel Blocking ............................................. 164
Movie & TV Rating .......................................... 165
Downloadable Rating ....................................... 170
External Input Blocking .................................... 171
Key Lock .............................................................. 172
Troubleshooting ................................................. 173
Maintenance ....................................................... 176
Product Specifications .................................... 177
IR Codes ............................................................. 180
External Control Through RS-232C .......... 182
Open Source License ..................................... 188
7

FEATURE OF THIS TV
_ Some of these features are not available on all models.
IT] DOLBY
DiGiTAL PLUS ]
HEJm|
High-definition television. High-
resolution digital television broad-
cast and playback system com-
posed of roughly a million or more
pixels, 16:9 aspect-ratio screens,
and AC3 digital audio. A subset of
digital television, HDTV formats
include 1080p, 1080i, and 720p
resolutions.
Manufactured under license from
Dolby Laboratories. "Dolby "and the
double-D symbol are trademarks of
Dolby Laboratories.
HDMI, the HDMI logo and High-
Definition Multimedia Interface are
trademarks or registered trade-
marks of HDMI Licensing LLC."
Displays HDTV programs in full
1920 x 1080p resolution for a more
detailed picture.
ABOUT DIVX VIDEO: DivX ® is a
digital video format created by
DivX,Inc. This is an official DivX
Certified device that plays DivX
video. Visit www.divx.com for more
information and software tools to
convert your files into DivX video.
ABOUT DIVX VIDEO-ON-
DEMAND: This DivX Certified ®
device must be registered in order
to play DivX Video-on-Demand
(VOD) content. To generate the
registration code, locate the DivX
VOD section in the device setup
menu. Go to vod.divx.com with this
code to complete the registration
process and learn more about
DivX VOD.
"DivX Certified to play DivX video
up to HD 1080p, including premi-
um content"
"Pat. 7,295,673; 7,460,688;7,519,274"
INTELLII3ENT_%
This TV contains the detailed cali-
brations necessary for professional
certification by the Imaging Science
Foundation. The resulting ISF "day"
and "night" modes will then be
accessible by the user to experi-
ence the best their LG HDTV has to
offer.
Sophisticated and detailed calibra-
tions can be made through the
ISFccc mode.
Detailed calibration requires a
licensed technician.
Please contact your local dealer to
inquire about an ISF certified tech-
nician.
THX (Thomlinson Holman's
Experiment) is an audio and video
certification standard established
by George Lucas and Thomlinson.
A THX certified display guarantees
screen quality that exceeds the dis-
play standard specification in both
hardware and software.
A unique invisible speaker system
tuned by renowned audio expert,
Mr. Mark Levinson. Speakers are
embedded in strategic spots
behind the front cabinet and use
minute vibrations to turn the entire
front bezel into the speaker system.
The result s a clean, polished look,
and enhanced audio by increasing
the "sweet spot", giving a wider and
richer sound field.
Unlike other sensors which can only
sense brightness of ambient light,
LG's "Intelligent Sensor" uses
4,096 sensing steps to evaluate its
surroundings. Using a sophisticat-
ed algorithm, the LG processes
picture quality elements including
brightness, contrast, color, sharp-
ness and white balance. The result
is a picture optimized for it's sur-
roundings, more pleasing to watch
and which can also save up to 50%
in power consumption.
8

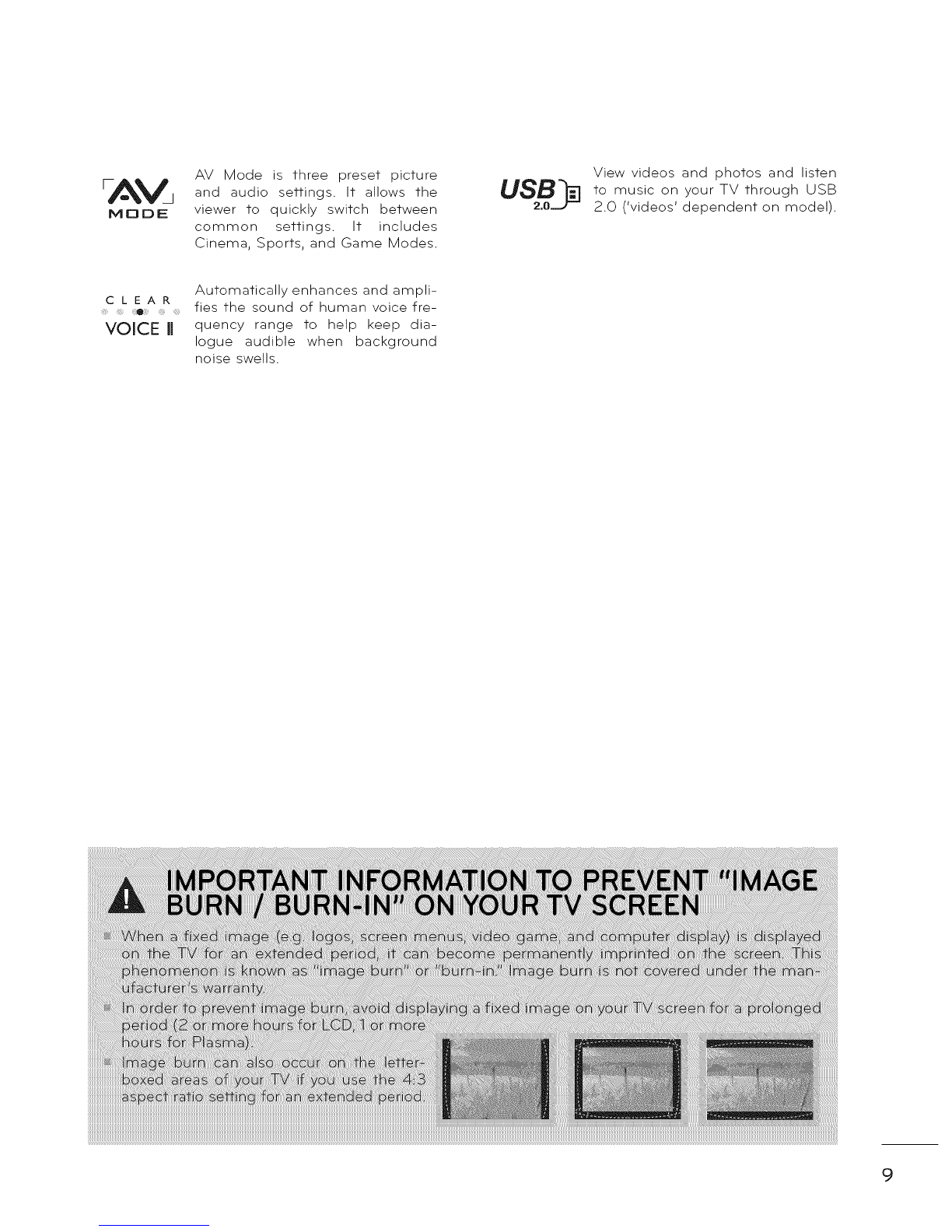

AV Mode is three preset picture
and audio settings. It allows the
viewer to quickly switch between
common settings. It includes
Cinema, Sports, and Game Modes.
View videos and photos and listen
to music on your TV through USB
2.0 ('videos' dependent on model).
CLEAR
VOICE II
Automatically enhances and ampli-
fies the sound of human voice fre-
quency range to help keep dia-
logue audible when background
noise swells.
9

PREPARATION
33
30
m
33
_>
_O
-4
0
Z

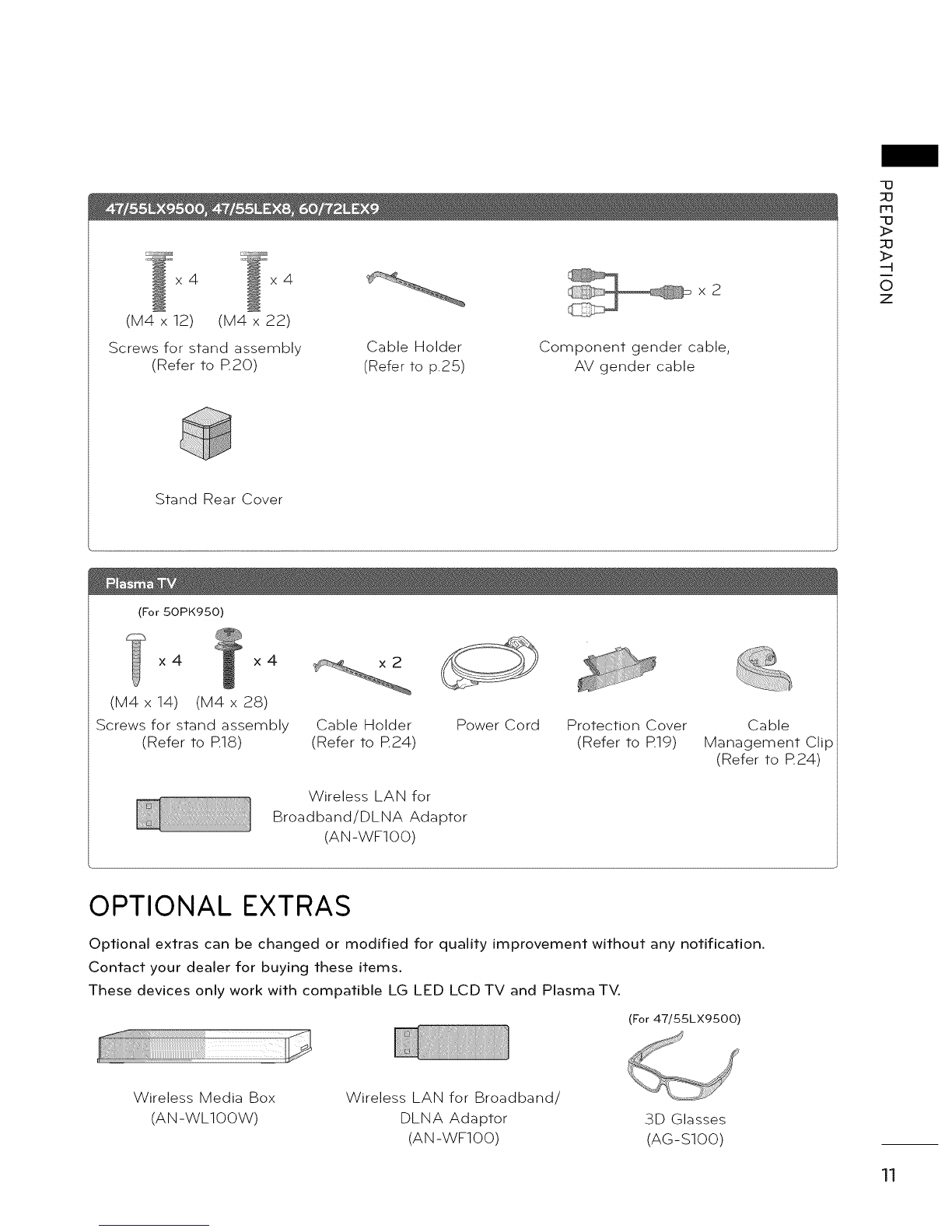

ACCESSORIES
Ensure that the following accessories are included with your TV. If an accessory is missing, please con-
tact the dealer where you purchased the TV.
The accessories included may differ from the images below.
Owner's Manual CD Manual,
Nero MediaHome 4
Essentials CD
Remote Control,
Batteries (AAA)
J
Motion Remote Control,
Strap,
Batteries (AA)
Not included with all models
Polishing Cloth
Wipe spots on the exterior only with the
polishing cloth.
Do not wipe roughly when removing
stains. Excessive pressure may cause
scratches or discoloration. D-sub 15 pin Cable
When using the VGA (D-sub 15
pin cable) PC connection, the user
must use shielded signal interface
cables with ferrite cores to main-
tain standards compliance.
Not included with all models
F-errite Core
(Black)
Ferrite core can be used to reduce the electromagnetic
waves that may interfere with the TV. Install the Ferrite
core on the power cable close to the wall plug. Close to the wall plug.
F-errite Core
(White)
Ferrite core can be used to reduce the electromagnetic
wave when connecting the LAN cable. Place the ferrite
core far from TV and wind the LAN cable in the ferrite
core once.
10

x4 x4
(M4 x 12) (M4 x 22)
Screws for stand assembly
(Refer to R20)
Stand Rear Cover
Cable Holder
(Refer to p.25)
x2
Component gender cable,
AV gender cable
"u
m
'u
]>
_>
-4
0
z
(For 50PK950)
x4 x4
(M4x14) (M4x 28)
Screws for stand assembly
(Refer to R18) Cable Holder (Refer to R24)
Wireless LAN for
Broadband/DLNA Adaptor
(AN-WFIO0)
Power Cord Protection Cover
(Refer to R19) Cable Management Clip
(Refer to R24)
OPTIONAL EXTRAS
Optional extras can be changed or modified for quality improvement without any notification.
Contact your dealer for buying these items.
These devices only work with compatible LG LED LCD TV and Plasma TV.
(For 47/55LX9500)
Wireless Media Box
(AN-WLIOOW) Wireless LAN for Broadband/
DLNA Adaptor
(AN-WFIO0) 3D Glasses
(AG-SIO0)
11

PREPARATION
_]
m
-D
_>
_]
_>
0
Z
FRONT PANEL INFORMATION
_ Image shown may differ from your TV.
50/60PK950
SPEAKER
Intelligent Sensor
Adjusts picture according to the
surrounding conditions
Remote Control Sensor
Power/Standby Indicator
Illuminates red in standby mode.
The lighting is off while the TV remains on.
Touch Button
You can operate the button just by touching the button lightly with your finger.
POWER MENU ENTER VOLUME CHANNEL
Button Button Button (% -) (A,V)
Buttons Buttons
12

47/55LX9500
-D
m
-O
]>
;D
>
--4
O
Z
SPEAKER
Emitter
It is the part equipped with
the emitter exchanging sig-
nal with 3D glasses.
Please be careful not to
block the screen with objects
or people while watching a
3D Video.
A
CH
V
+
VOL
ENTER
MENU
INPUT
_/I
CHANNEL (V,A)
Buttons
VOLUME (-, +)
Buttons
ENTER Button
MENU Button
INPUT Button
POWER Button
Remote Control Sensor
Intelligent Sensor
Adjusts picture according to
the surrounding conditions
Power/Standby Indicator
(Can be adjusted using the Power indicator
in the OPTION menu._,p.142)
13

PREPARATION
-u
m
-u
_>
_>
0
z
_ Image shown may differ from your TV.
47/55LEX8, 60/72LEX9
SPEAKER
Emitter
Remote Control Sensor
Intelligent Sensor
Adjusts picture according to
the surrounding conditions
Power/Standby Indicator
(Can be adjusted using the Power indicator in
the OPTION menu._,, p.142)
Touch Button
You can operate the button just by touching the button lightly with your finger.
CHANNEL VOLUME POWER
(v, ^ ) (-, +) Button
Buttons Buttons
14

BACK PANEL INFORMATION
_ Image shown may differ from your T_L
50/60PK950
"D
::D
m
"D
3>
::D
--t
O
Z
_i _,
15

PREPARATION
-o
30
m
-o
_>
;o
_>
-4
0
z

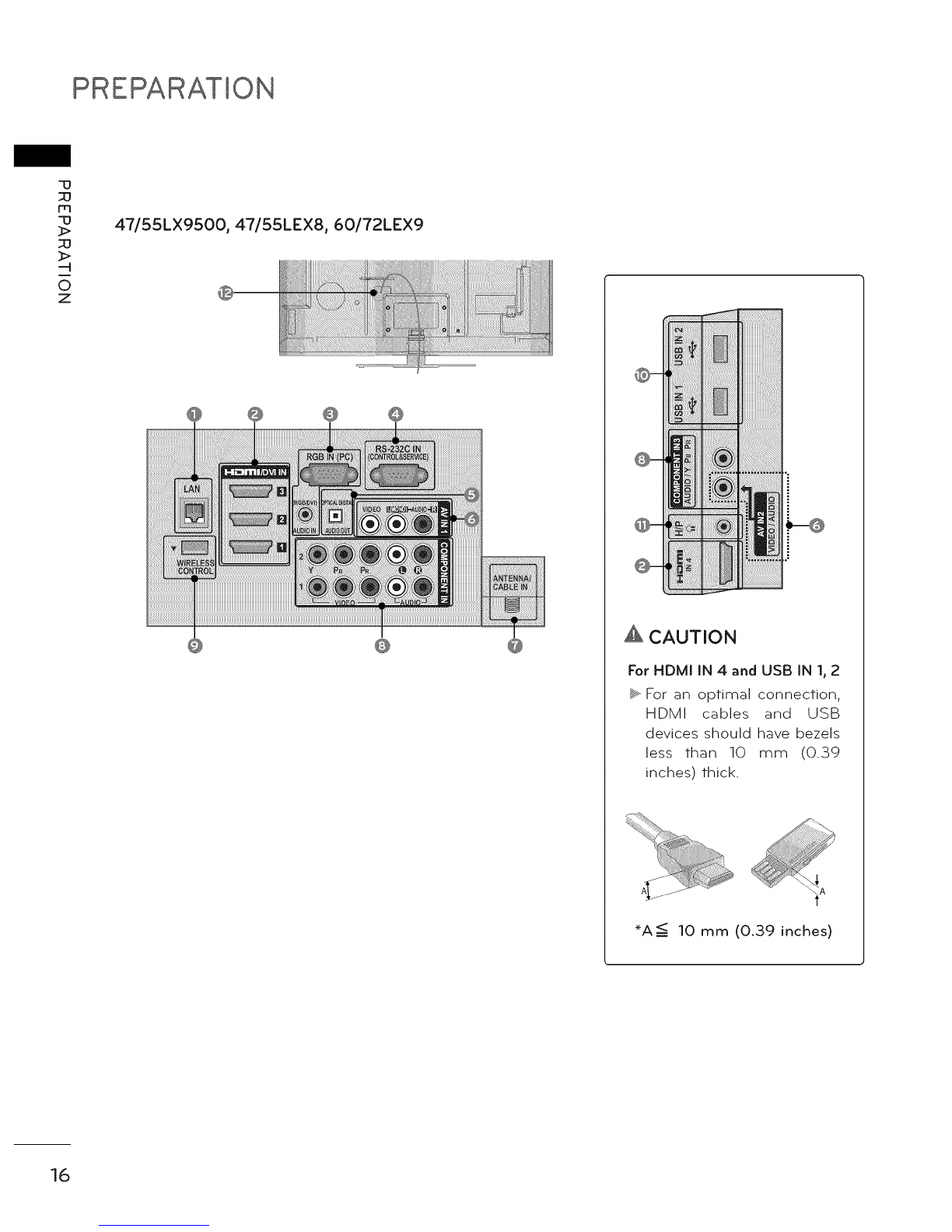

47/55LX9500, 47/55LEX8, 60/72LEX9
A CAUTION
For HDMI iN 4 and USB iN 1, 2
_.For an optimal connection,
HDMI cables and USB
devices should have bezels
less than 10 mm (0.39
inches) thick.
*A_ 10 mm (0.39 inches)
16

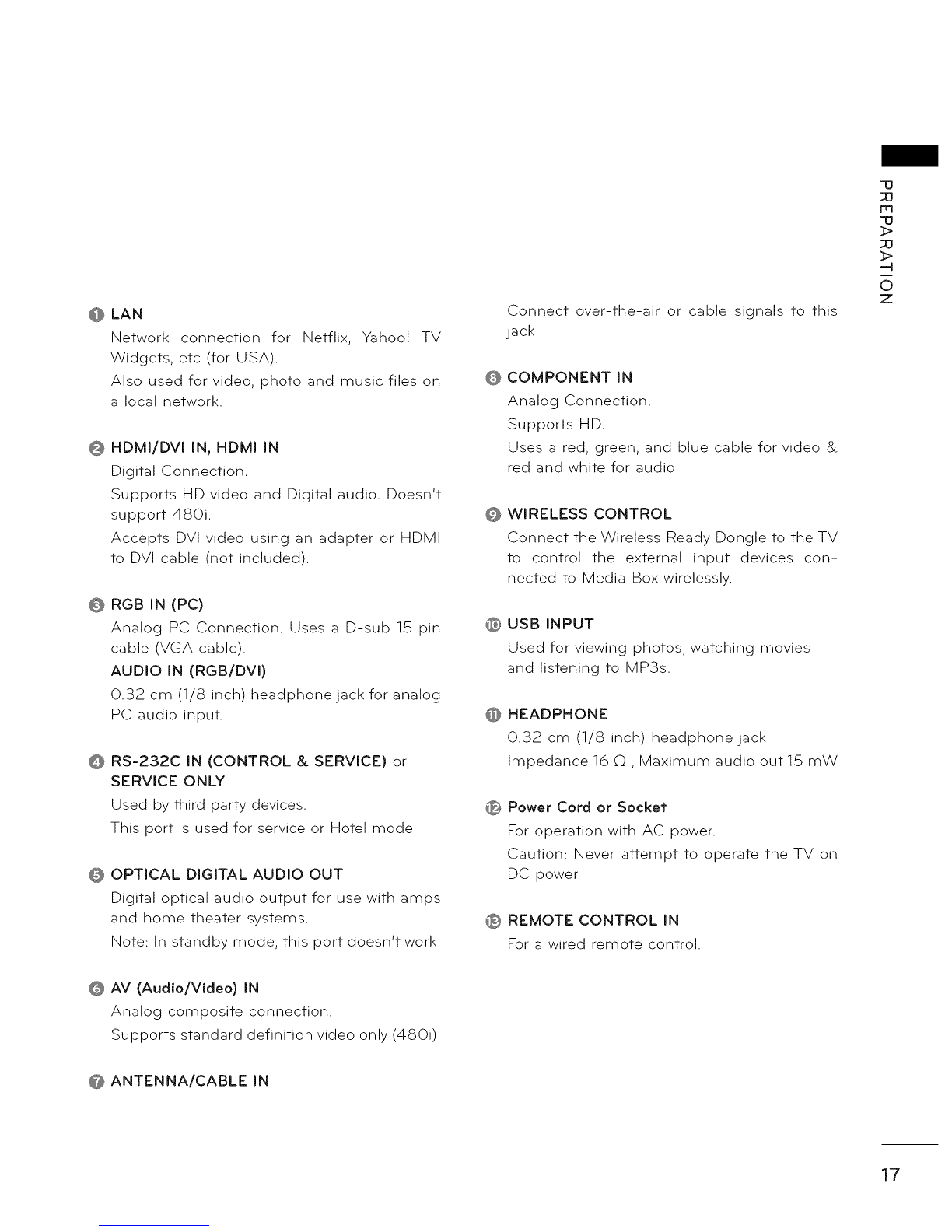

@ LAN
Network connection for Netflix, Yahoo! TV
Widgets, etc (for USA).
Also used for video, photo and music files on
a local network.
@ HDMI/DVI IN, HDMI IN
Digital Connection.
Supports HD video and Digital audio. Doesn't
support 480i.
Accepts DVI video using an adapter or HDMI
to DVI cable (not included).
O RGB IN (PC)
Analog PC Connection. Uses a D-sub 15 pin
cable (VGA cable).
AUDIO IN (RGB/DVI)
0.32 cm (1/8 inch) headphone jack for analog
PC audio input.
@ RS-232C IN (CONTROL & SERVICE) or
SERVICE ONLY
Used by third party devices.
This port is used for service or Hotel mode.
OPTICAL DIGITAL AUDIO OUT
Digital optical audio output for use with amps
and home theater systems.
Note: In standby mode, this port doesn't work.
Connect over-the-air or cable signals to this
jack.
COMPONENT iN
Analog Connection.
Supports HD.
Uses a red, green, and blue cable for video &
red and white for audio.
WIRELESS CONTROL
Connect the Wireless Ready Dongle to the TV
to control the external input devices con-
nected to Media Box wirelessly.
@ USB INPUT
Used for viewing photos, watching movies
and listening to MP3s.
@ HEADPHONE
0.32 cm (1/8 inch) headphone jack
Impedance 16 0 ,Maximum audio out 15 mW
0 Power Cord or Socket
For operation with AC power.
Caution: Never attempt to operate the TV on
DC power.
@ REMOTE CONTROL IN
For a wired remote control.
q3
m
q3
_>
_>
0
Z
AV (Audio/Video) IN
Analog composite connection.
Supports standard definition video only (4800.
ANTENNA/CABLE IN
17

PREPARATION
-u
_3
m
-13
_>
_3
_>
0
Z
STAND INSTRUCTIONS (For 50/60PK950)
_ Image shown may differ from your TV.

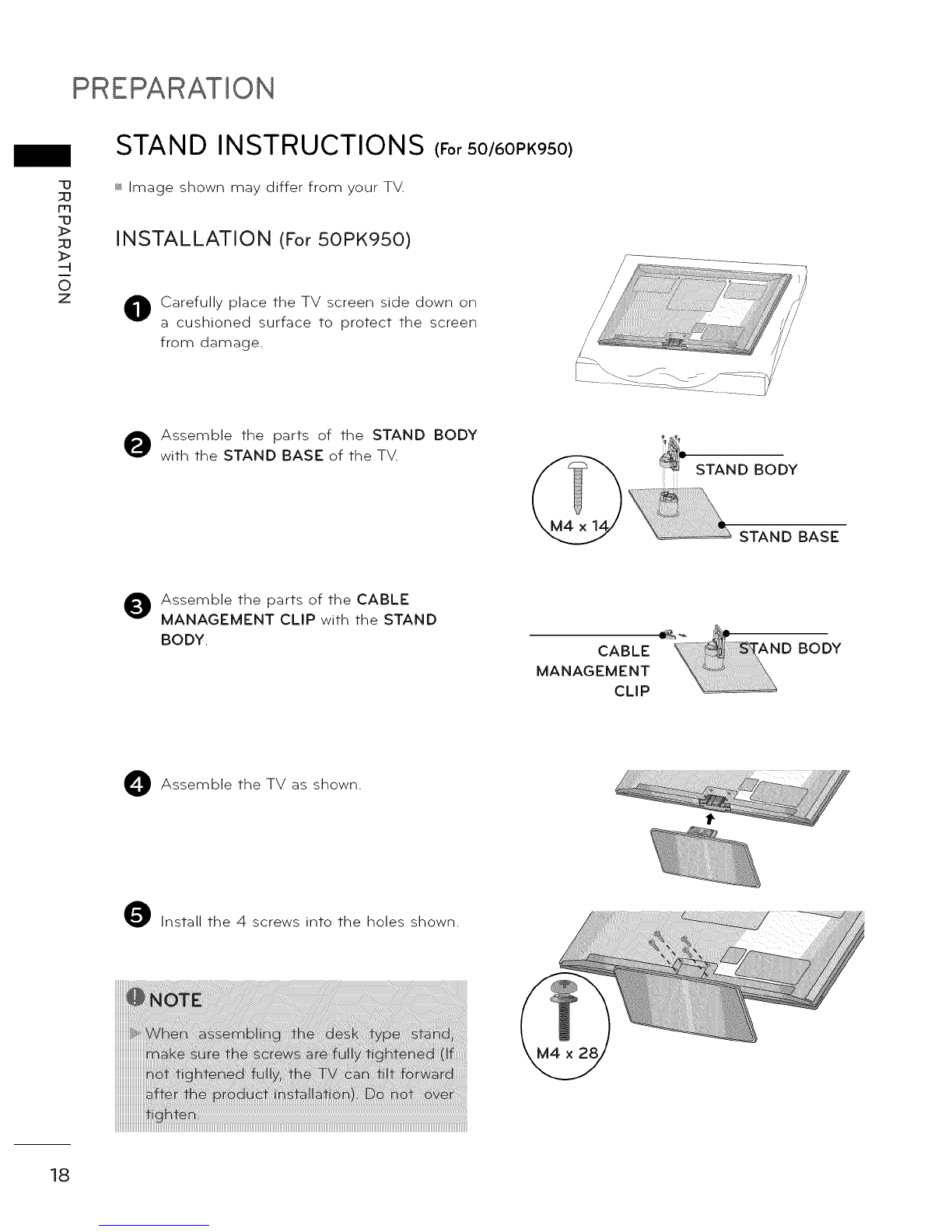

INSTALLATION (For 50PK950)
Carefully place the TV screen side down on
a cushioned surface to protect the screen
from damage.
Assemble the parts of the STAND BODY
with the STAND BASE of the TV.
_ STAND BODY
_ STAND BASE
Assemble the parts of the CABLE
MANAGEMENT CLIP with the STAND
BODY. CABLE
MANAGEMENT
CLIP
BODY
Assemble the TV as shown.
Install the 4 screws into the holes shown.
18

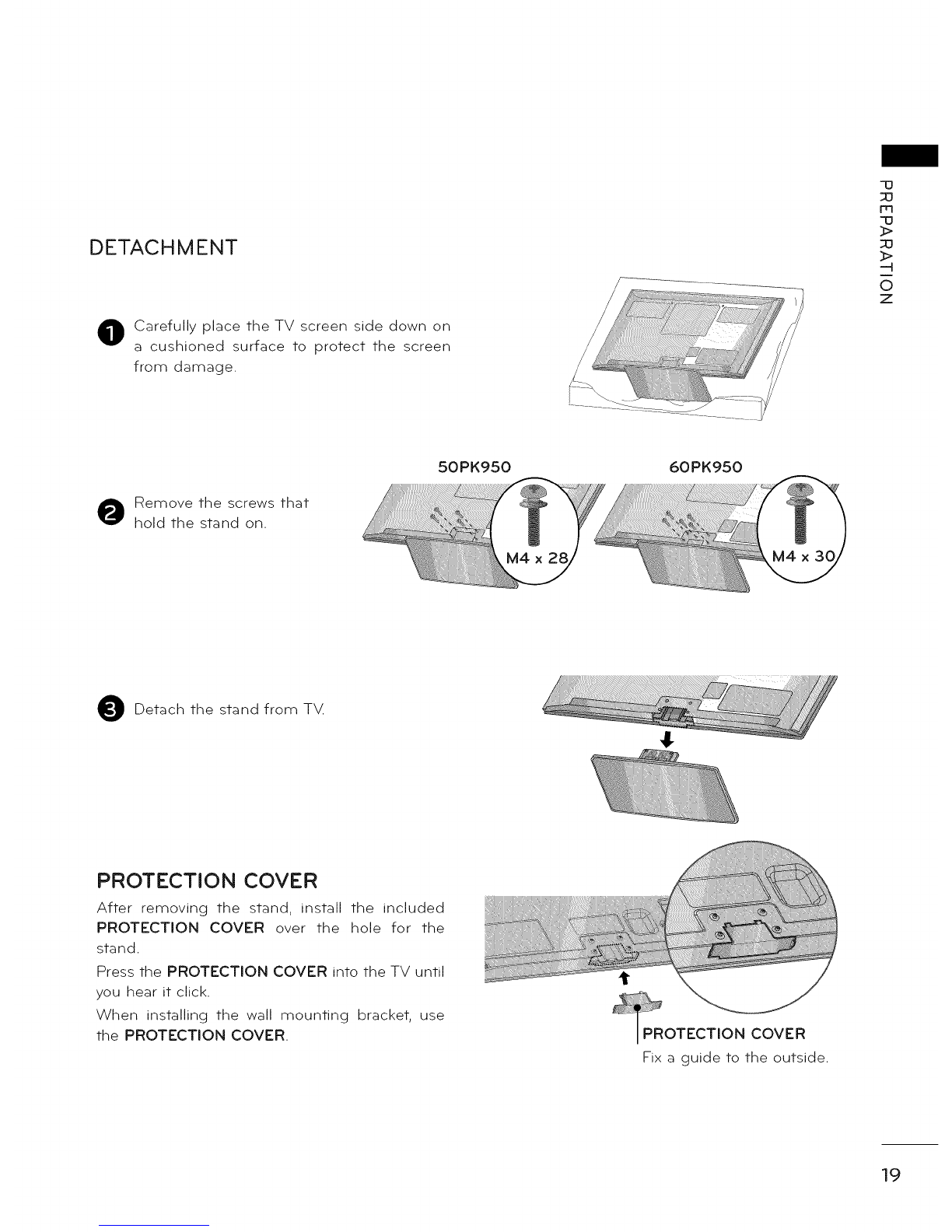

DETACHMENT
Carefully place the TV screen side down on
a cushioned surface to protect the screen
from damage.
m
'u
_>
_>
0
z
Remove the screws that
hold the stand on.
50PK950 60PK950
Detach the stand from TXZ
PROTECTION COVER
After removing the stand, install the included
PROTECTION COVER over the hole for the
stand.
Press the PROTECTION COVER into the TV until
you hear it click.
When installing the wall mounting bracket, use
the PROTECTION COVER. COVER
Fix a guide to the outside.
19

PREPARATION
-u
m
-u
_>
_>
0
z
STAND INSTRUCTIONS (For 47/55LX9500, 47/55LEX8)
_ Image shown may differ from your TV.
INSTALLATION
Carefully place the TV screen side down on
a cushioned surface to protect the screen
from damage.
0Assemble the parts of the STAND
BODY with the STAND BASE of the
TV,
At this time, tighten the screws that
hold the STAND BODY on.
STAND BODY
M4 x 22
.oOAS
Install the 4 screws into the holes shown.
M4 x 12
O Assemble the of the
part
REAR COVER with the TV. STAND
STAND REAR
COVER
20
