LG 42PJ260R User manual

PLASMA TV
SERVICE MANUAL
CAUTION
BEFORE SERVICING THE CHASSIS,
READ THE SAFETY PRECAUTIONS IN THIS MANUAL.
CHASSIS : PP01A
MODEL : 42PJ260R 42PJ260R-MB
North/Latin A erica http://aic.lgservice.co
Europe/Africa http://eic.lgservice.co
Asia/Oceania http://biz.lgservice.co
Internal Use Only
Printed in Korea
P/NO : MFL62881404(1004-REV01)

- 2 - LGE Internal Use OnlyCopyright ©2010 LG Electronics Inc. All rights reserved.
Only or training and service purposes
CONTENTS
CONTENTS ............................................................................................................................... 2
SAFETY PRECAUTIONS ...........................................................................................................3
SPECIFICATION.........................................................................................................................4
ADJUSTMENT INSTRUCTION ..................................................................................................7
BLOCK DIAGRAM ...................................................................................................................15

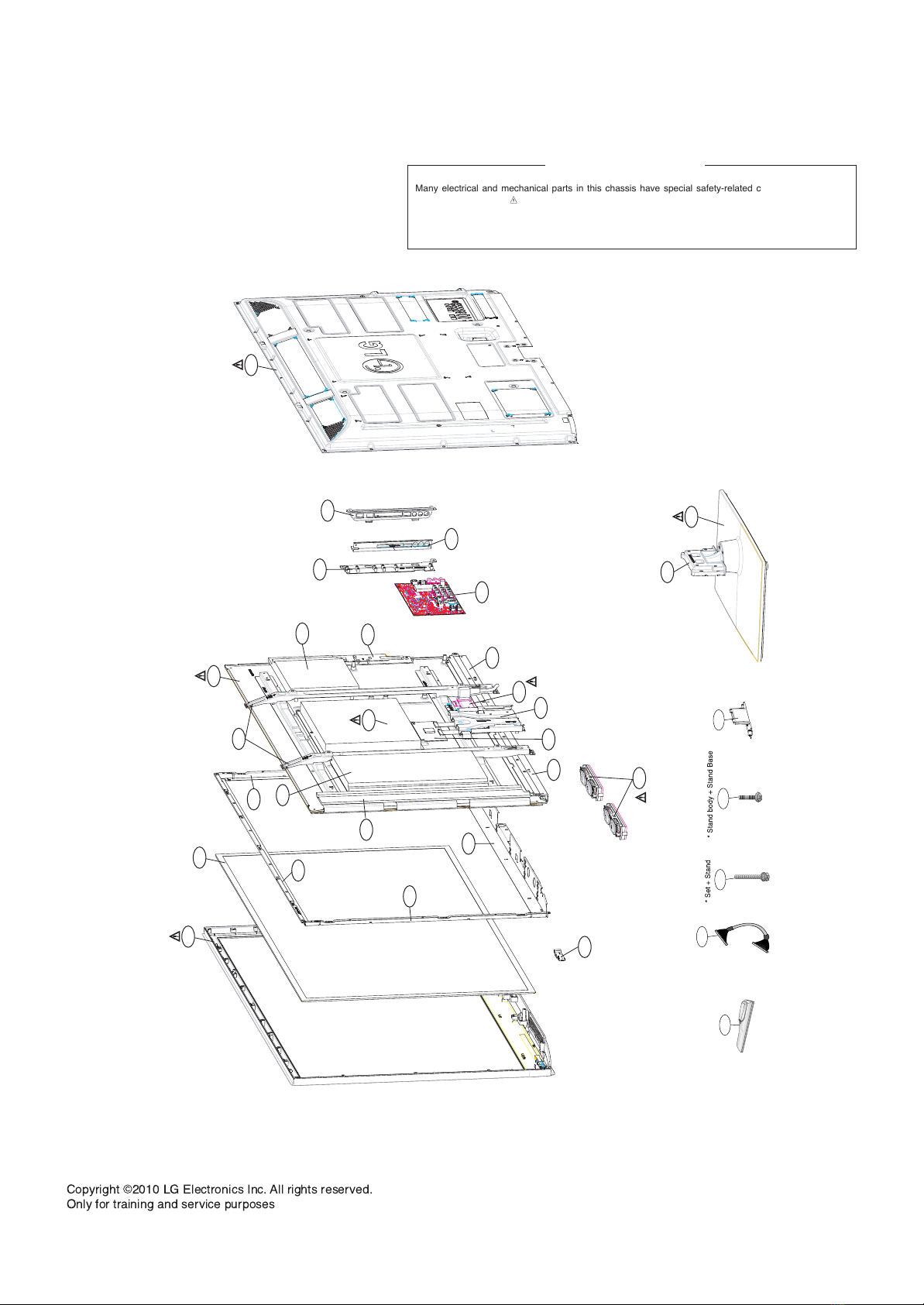

EXPLODED VIEW ..................................................................................................................1

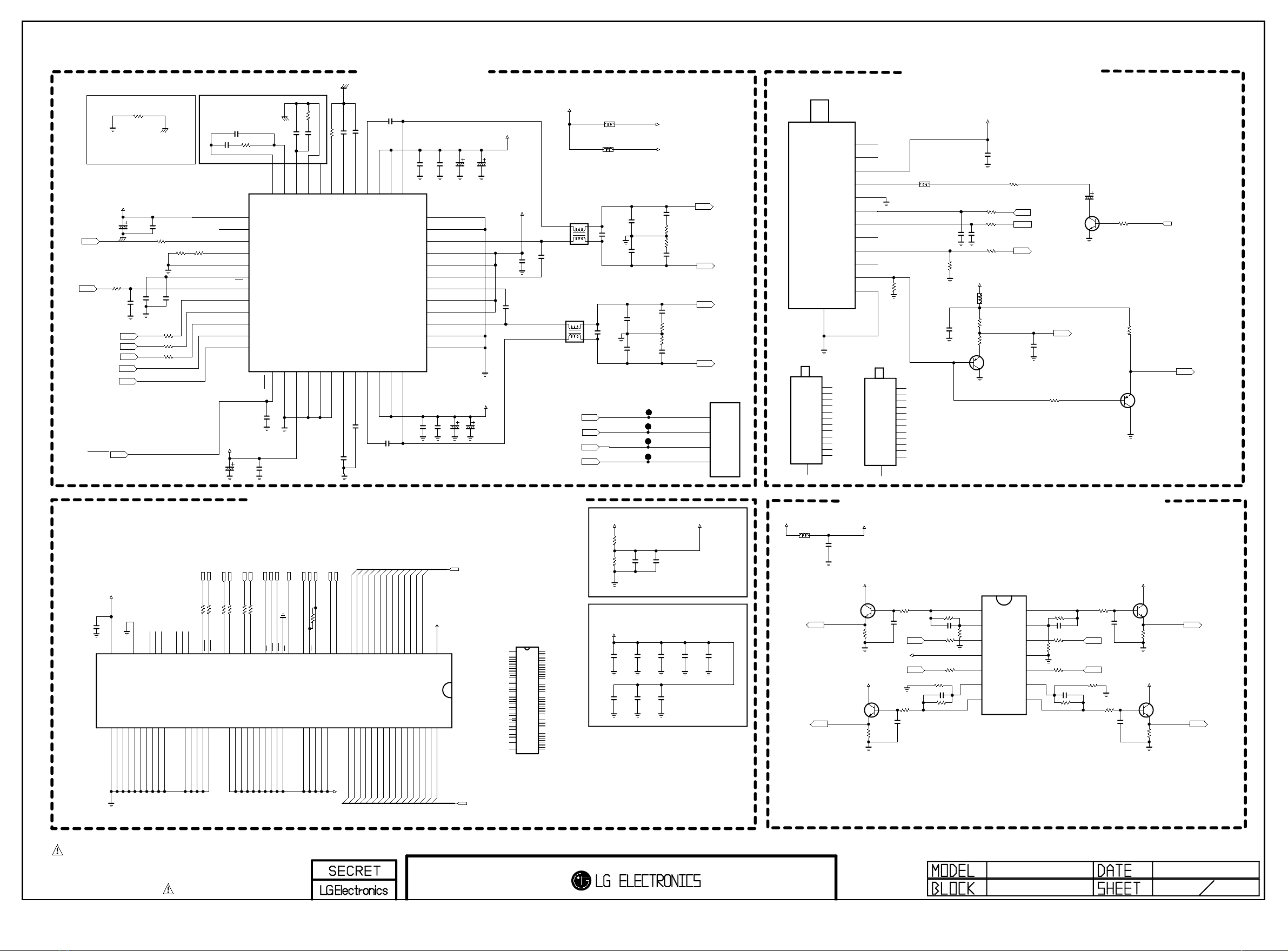

SVC. SHEET ................................................................................................................................

- 3 - LGE Internal Use OnlyCopyright ©2010 LG Electronics Inc. All rights reserved.
Only or training and service purposes
SAFETY PRECAUTIONS
Many electrical and mechanical parts in this chassis have special sa ety-related characteristics. These parts are identi ied by in
the Schematic Diagram and Exploded View.
It is essential that these special sa ety parts should be replaced with the same components as recommended in this manual to
prevent X-RADIATION, Shock, Fire, or other Hazards.
Do not modi y the original design without permission o manu acturer.
General Guidance
An isolation Transformer should always be used during the
servicing o a receiver whose chassis is not isolated rom the AC
power line. Use a trans ormer o adequate power rating as this
protects the technician rom accidents resulting in personal injury
rom electrical shocks.
It will also protect the receiver and it's components rom being
damaged by accidental shorts o the circuitry that may be
inadvertently introduced during the service operation.
I any use (or Fusible Resistor) in this monitor is blown, replace it
with the speci ied.
When replacing a high wattage resistor (Oxide Metal Film
Resistor, over 1W), keep the resistor 10mm away rom PCB.
Keep wires away rom high voltage or high temperature parts.
Due to high vacuum and large sur ace area o picture tube,
extreme care should be used in handling the Picture Tube.
Do not li t the Picture tube by it's Neck.
Leakage Current Cold Check(Antenna Cold Check)
With the instrument AC plug removed rom AC source, connect
an electrical jumper across the two AC plug prongs. Place the
AC switch in the on position, connect one lead o ohm-meter to
the AC plug prongs tied together and touch other ohm-meter
lead in turn to each exposed metallic parts such as antenna
terminals, phone jacks, etc.
I the exposed metallic part has a return path to the chassis, the
measured resistance should be between 1MΩ and 5.2MΩ.
When the exposed metal has no return path to the chassis the
reading must be in inite.
An other abnormality exists that must be corrected be ore the
receiver is returned to the customer.
Leakage Current Hot Check (See below Figure)
Plug the AC cord directly into the AC outlet.
Do not use a line Isolation Transformer during this check.
Connect 1.5K/10watt resistor in parallel with a 0.15uF capacitor
between a known good earth ground (Water Pipe, Conduit, etc.)
and the exposed metallic parts.
Measure the AC voltage across the resistor using AC voltmeter
with 1000 ohms/volt or more sensitivity.
Reverse plug the AC cord into the AC outlet and repeat AC
voltage measurements or each exposed metallic part. Any
voltage measured must not exceed 0.75 volt RMS which is
corresponds to 0.5mA.
In case any measurement is out o the limits speci ied, there is
possibility o shock hazard and the set must be checked and
repaired be ore it is returned to the customer.
Leakage Current Hot Check circuit
1.5 Kohm/10W
To Instrument's
exposed
METALLIC PARTS
Good Earth Ground
such as WATER PIPE,
CONDUIT etc.
AC Volt-meter
IMPORTANT SAFETY NOTICE
0.15uF

- 4 - LGE Internal Use OnlyCopyright ©2010 LG Electronics Inc. All rights reserve .
Only for training an service purposes
SPECIFICATIONS
NOTE : Specifications an others are subject to change without notice for improvement .
VApplication Range
This spec is applie to PDP TV use PP01A Chassis.
V Specification
Each part is teste as below without special appointment.
(1) Temperature : 25 °C ± 5 °C (77 °F ± 9 °F), CST : 40 ± 5
(2) Relative Humi ity: 65 ± 10%
(3) Power Voltage: Stan ar Input voltage (100 V - 240 V ~, 50 / 60 Hz)
* Stan ar Voltage of each pro uct is marke by mo els.
(4) Specification an performance of each parts are followe each rawing an specification by part number in accor ance with
SBOM.
(5) The receiver must be operate for about 20 minutes prior to the a justment.
VTest Method
(1) Performance : LGE TV test metho followe .
(2) Deman e other specification
Safety : CE, IEC specification
EMC : CE, IEC
VModule Specification
(1) 42” XGA
42PJ250R-MA Central an South America LG
Mo el Name Market Place Bran
Mo el Name
42PJ250R-MA
Remark
Safety : IEC/ EN60065, EMI : CISPR13
Market
Central an South America
Appliance
TEST
Display Screen Device
Aspect Ratio
PDP Mo ule
Operating Environment
Storage Environment
Input Voltage
1
2
3
4
5
6
No Item Specification Remark
106 cm (42 inch) 16: 9 Color Plasma Display Mo ule
16:9
PDP42T1###,
RGB Close Type
1) Temp. : 0 eg ~ 60 eg
2) Humi ity : 20 % ~ 80 %
3) Temp. : -20 eg ~ 60 eg
4) Humi ity : 10 % ~ 90 %
AC 100 V - 240 V, 50 / 60 Hz
PDP
Glass Filter
LGE SPEC.
Maker : LGIT

- 5 - LGE Internal Use OnlyCopyright ©2010 LG Electronics Inc. All rights reserved.
Only or training and service purposes
VModel General Specification
(1) Central and South America (MA)
No Item Speci ication Remark
1 Market Central and South America
2 Broadcasting system NTSC, PAL-M, PAL-N
3 Available Channel BAND NTSC
VHF 2~13
UHF 14~69
CATV 1~125
4 Receiving system Upper Heterodyne
5 Video Input (2EA) PAL,SECAM, NTSC Rear 1EA, Side 1EA
6 Component Input (2EA) Y/Cb/Cr, Y/ Pb/Pr
7 RGB Input (1EA) RGB-PC
8 HDMI Input 2ea HDMI-DTV , Only PCM MODE Side HDMI(1), Rear HDMI(1)
: 42/50PJ250-MA only
3ea Side HDMI(1), Rear HDMI(2)
9 Audio Input (5EA) L/R Input(PC 1EA, Component 2EA,
Rear 1EA, Side 1EA)
10 RS-232C (1EA) Remote control
11 USB Input (1EA) SD DivX, MP3, JPEG, PJ250R Rear USB only or service

- 6 - LGE Internal Use OnlyCopyright ©2010 LG Electronics Inc. All rights reserved.
Only or training and service purposes
AChroma & Brightness (Optical)
(1) (With 38 % Filter) 42” T1 module
No Item Min Typ Max Unit Remark
(*) Special Peak Brightness Mode
- 1/ 100 ~ 3/ 100 white window Pattern
60Hz : 315 - cd/ m2(typically 1% window size)
50Hz : 315 - Picture Mode : Vivid
1 White peak Brightness - Mode : HDMI
- Resolution : 1920 x 1080 60H
60Hz : 161 60Hz : 173 - cd/ m2(*) Normal Mode
50Hz : 148 50Hz : 161 - 25 white window pattern
- Picture Mode : Vivid
2 White average brightness 60Hz : 47 60Hz : 52 - Full White Pattern
50Hz : 46 50Hz : 50 cd/ m2
- Picture Mode : Vivid
3 Brightness uni ormity -10 0 +10 - 85IRE Full White Pattern
- Picture Mode: Vivid
White X 0.270 0.285 0.300 White 216 level pattern
Y 0.278 0.293 0.308 Red/ Green/ Blue : 255 level pattern
Red X 0.635 0.640 -
4 Color Y 0.318 0.330 0.340
coordinate Green X 0.242 0.300 0.305
Y 0.595 0.600 -
Blue X - 0.150 0.158
Y - 0.060 0.070
5 Contrast ratio at dark room 100,000: 1 1,000,000 :1
- White : 1/ 100 White Window Pattern
( Peak Mode )
- Black : Full Black
- Picture Mode : Vivid
6 Color coordinate uni ormity -0.01 Average +0.01 - 85IRE Full White Pattern
- Picture Mode : Vivid
Cool X 0.261 0.276 0.291 - 85IRE Full White Pattern
Y 0.268 0.283 0.298 - Picture Mode : Vivid
7 Colour Medium X 0.270 0.285 0.300 - Warm, Cool : Color Temp. UI 30
Temperature Y 0.278 0.293 0.308 - Medium : Color Temp. UI 0
Warm X 0.298 0.313 0.328
Y 0.314 0.329 0.344

- 7 - LGE Internal Use OnlyCopyright ©2010 LG Electronics Inc. All rights reserved.
Only or training and service purposes
ADJUSTMENT INSTRUCTION
1. Application Range
This spec sheet is applied to all o the PP01A chassis.
2. Specification
(1) Because this is not a hot chassis, it is not necessary to use
an isolation trans ormer. However, the use o isolation
trans ormer will help protect test instrument.
(2) Adjustment must be done in the correct order.
(3) The adjustment must be per ormed in the circumstance o
25 °C ± 5 °C o temperature and 65 % ± 10 % o relative
humidity i there is no speci ic designation.
(4) The input voltage o the receiver must keep 100 V
~ 240 V, 50 / 60 Hz.
(5) The receiver must be operated or about 5 minutes prior to
the adjustment when module is in the circumstance o over
15 °C
- In case o keeping module is in the circumstance o 0 °C,
it should be placed in the circumstance o above 15 °C
or 2 hours
- In case o keeping module is in the circumstance o below
-20 °C, it should be placed in the circumstance o above
15 °C or 3 hours,.
3. S/W Program Download
3-1. Profile
This is or downloading the s/w to the lash memory o the
IC402
3-2. Equipment
(1) PC
(2) ISP_tool program
(3) Download jig
3-3. Connection Structure
3-4. Connection Condition
(1) IC name and circuit number : Flash Memory and IC402
(2) Use voltage : 3.3V (5 pin)
(3) SCL : 15 pin
(4) SDA : 12 pin
(5) Tact time : about 2min and 30seconds

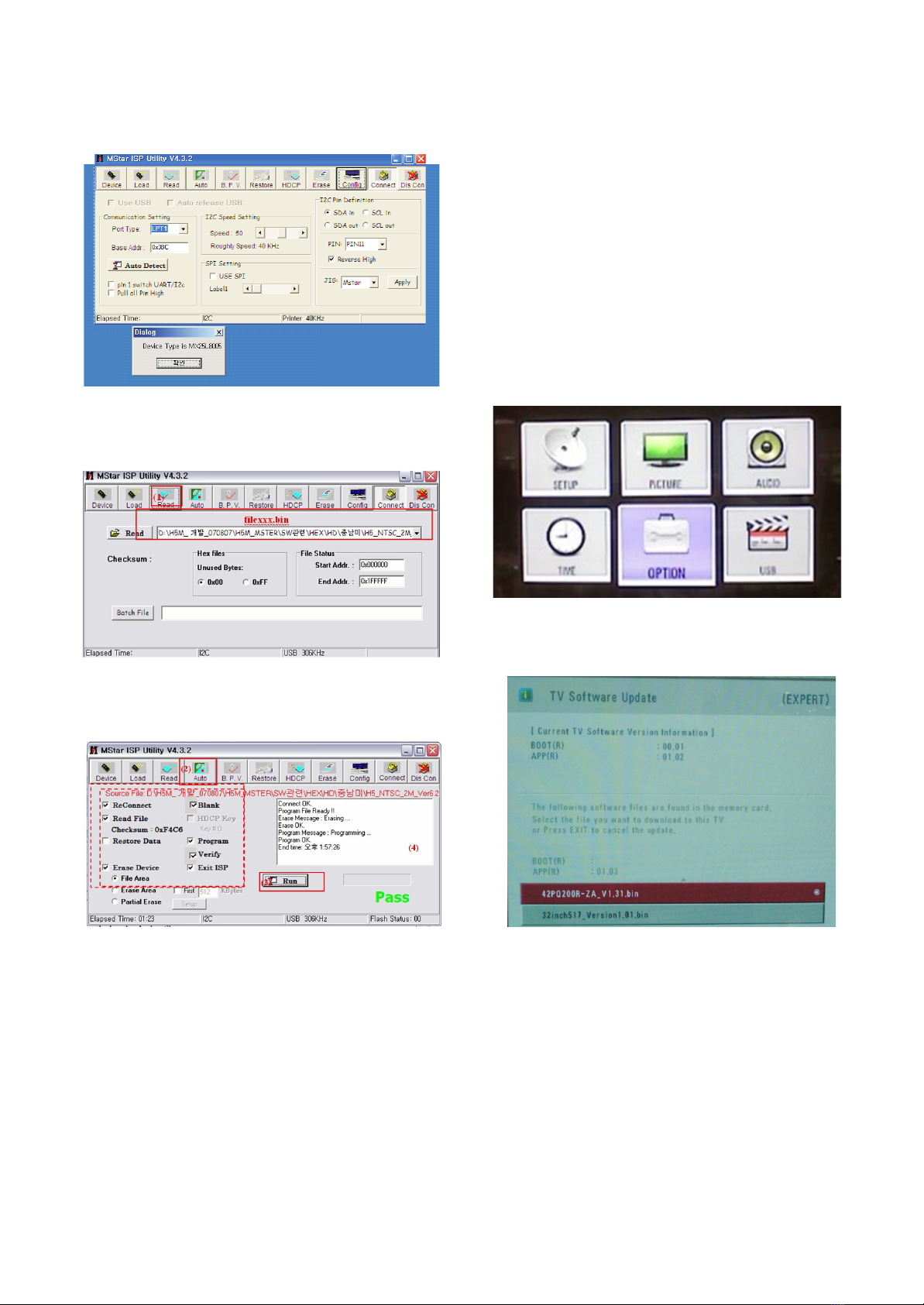

3-5. Download Method (By using MSTAR JIG)
(1) Preliminary Steps
1) Connect the download jig to D-sub jack
2) Connect the PC to USB jack
(2) Download Steps
1) Execute ‘ISP Tool’ program in PC, then a main window
will be opened
2) Click the connect button and con irm “Dialog Box”.
Double click

3) Click the Con ig button and Change speed
E2PROM Device setting : over the 350Khz
4) Read and write bin ile
Click “(1)Read” tab, and then load download
ile(XXXX.bin) by clicking “Read”.
5) Click “Auto(2)” tab and set as below
6) Click “Run(3)”.
7) A ter downloading, check “OK(4)” message.
3- . Download Method (By using USB
Memory Stick)
Caution
- Using ‘power on’ button o the control R/C, power on TV.
- USB ile (EPK) version must be bigger than downloaded
version o main B/D.
- It should be only one SW binary ile in USB Stick
(1) Using ‘Power ON’ button o the control R/C, Power on TV.
(2) Insert the USB memory stick to the SET.
(3) Display USB loding message then, push the ‘Exit’ Key o
control R/C
(4) Push the ‘MENU’ Key and move the cusor ‘OPTION’ o
OSD ( Fig. 1)
* Caution: Don’t push the ‘OK’ key.Just cusor is on the
‘OPTION’ menu.
(5) Push the “7” key o control R/C continuously.
Then, Display “TV So tware Update” Pop-up menu. (Fig. 2)
(6) Select SW ile (XXXX.bin) you want, push the “OK” Key.
(7) S/W download process is excuted automatically.
- 8 - LGE Internal Use OnlyCopyright ©2010 LG Electronics Inc. All rights reserved.
Only or training and service purposes
( Fig. 1)
( Fig. 2)

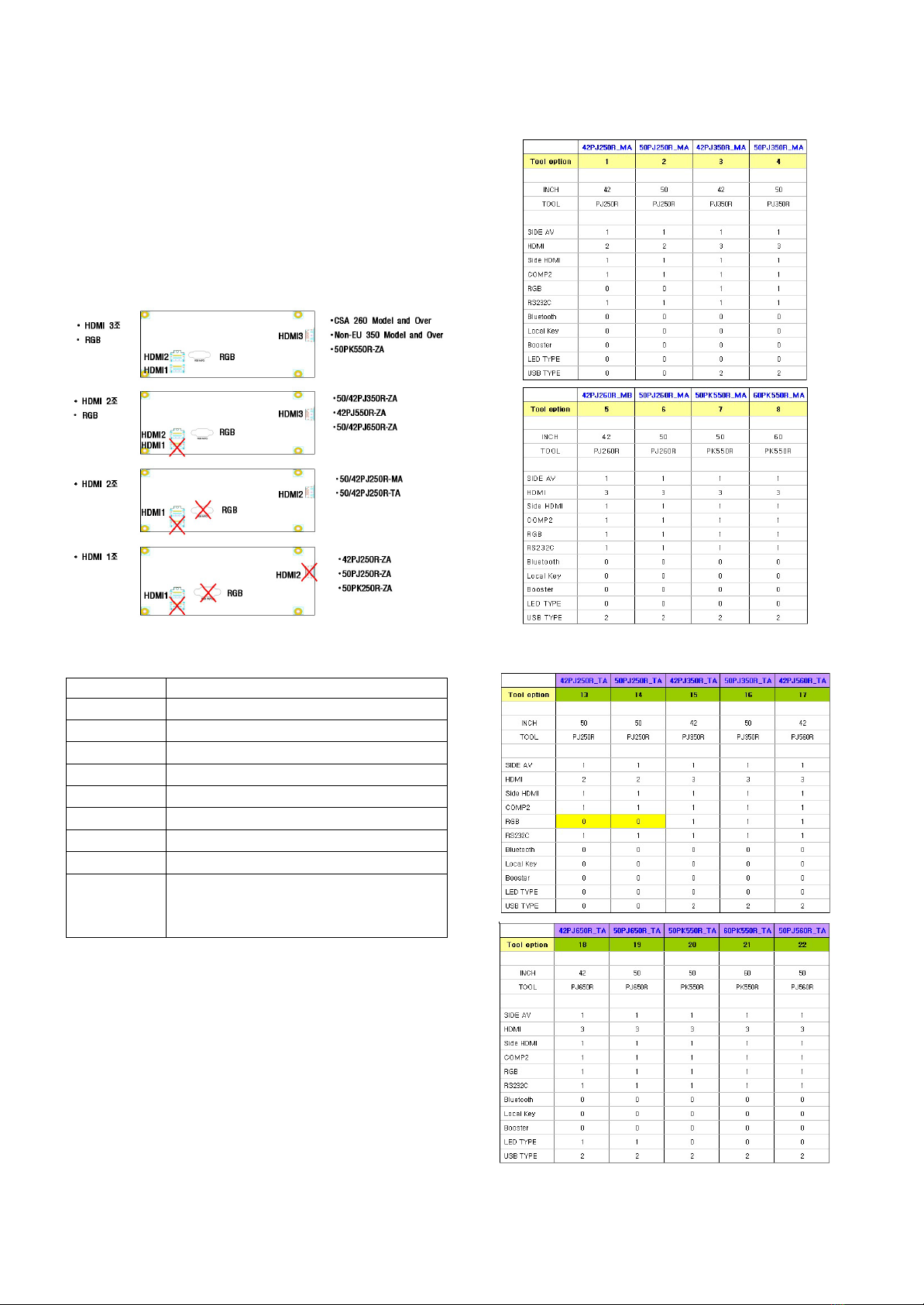

4. PCB Assembly Adjustment Method
4-1. Option Adjustment Following BOM
Tool Option
Area Option
Option 1
Option 2
Option 3(Available or EU & Non EU model)
* Pro ile: Must be changed the option value because being
di erent with some setting value depend on module,
inch and market
* Equipment : Adjustment Remote Controller
(1) Push the IN-START key in the Adjust R/C.
(2) Enter Password number. The value o Password is “0 0 0
0”.
(3) Input the Option Number that was speci ied in the BOM,
into the Shipping area.
(4) Select “Tool Option” by using D/E(CH+/-) key, and press
the number key(0~9) consecutively
ex) I the value o Tool Option1 is 4, input the data using
number key “4” (Fig. 3)
(5) i it is EU model ( such as 42/50PJ**R-ZA ), select “Area
option” by using D/E(CH+/-) key , and press the number
key(0~9) consecutively.
ex) I the value o Area Option is 40, input the data using
number key “40” (Fig. 3)
Caution
- Don’t Push “IN-STOP” key a ter PCB assembly
adjustment.
* PP01A/B/C Tool option
(6) EDID D/L Method
A ter so tware D/L or PCBA manu acturing, you can
download EDID Data.
When you adjust Tool Option, H6 Model EDID download
process is executed automatically
* I the model don’t have HDMI 3, HDMI 3 will be disappeared
at OSD Window.
Caution
- When you adjust tool option, don’t connect HDMI or D-
sub cable.
- I you connect some cable, EDID D/L process will be
ailed.
(7) Adjustment method
Be ore PCBA check, have to change the Tool option and
Area option
[About PDP
A ter done all adjustments, Press IN-START button and
compare Tool option and Area option value with its BOM, i
it is correctly same then Change “RF mode” and then
unplug the AC cable.
I it is not same, then correct it same with BOM and unplug
AC cable.
For correct it to the model’s module rom actory JIG
model.
[Don’t push The IN-STOP KEY a ter completing the unction
inspection.
- 9 - LGE Internal Use OnlyCopyright ©2010 LG Electronics Inc. All rights reserved.
Only or training and service purposes
( Fig. 3)
Model Tool option
50PJ250R-TA 16
42PJ250R-ZA 23
CSA Model Tool option Area option
42PJ25*R-M* 1 40
50PJ25*R-M* 2 40
42PJ35*R-M* 3 40
50PJ35*R-M* 4 40
42PJ26*R-M* 5 40
50PJ26*R-M* 6 40
50PK55*R-M* 7 40
60PK55*R-M* 8 40

- 10 - LGE Internal Use OnlyCopyright ©2010 LG Electronics Inc. All rights reserved.
Only or training and service purposes
5. EDID(The Extended Display
Identification Data)
Caution
- Never Use the cable( HDMI or D-sub cable) or EDID
Writing.
- Automatically PP01A/B/C Model EDID download process
is executed when you adjust Tool Option.
< Jack Layout>
<Tool Option Item>
<CSA AREA>
<NON-EU AREA>
Inch
Tool
SIDE AV 0/1
HDMI 0/1/2/3
Side HDMI 0/1
COMP2 0/1
RGB 0/1
RS232C 0/1
Local Key 0 (7KEY) / 1 (8KEY)
LED TYPE 0 (RED) / 1 (RED/White) / 2 (Reserve)
USB TYPE 0 (NONE) / 1 (PHOTO, MUSIC)
/ 2 (PHOTO, MUSIC, DivX)

- 11 - LGE Internal Use OnlyCopyright ©2010 LG Electronics Inc. All rights reserved.
Only or training and service purposes
<EAST EU / CIS AREA>
5-1. EDID Data
OXGA EDID DATA ( 42 inch)
<Analog(RGB) : 128bytes>
<HDMI 1 : 256bytes>
<HDMI 2 : 256bytes>
<HDMI 3 : 256bytes> SIDE HDMI(HDMI 3)
NO Item Condition Hex Data
1 Manu acturer ID GSM 1E6D
2 Version Digital : 1 01
3 Revision Digital : 3 03

- 12 - LGE Internal Use OnlyCopyright ©2010 LG Electronics Inc. All rights reserved.
Only or training and service purposes
. HDCP(High-Bandwidth Digital
Contents Protection) Download
HDCP download process is deleted in PP01A/B/C Chassis
In PP01A/B/C Chassis, it is usi g the EEPROM masking
HDCP Key
7. Manual ADC Adjustment
(Component 1, RGB)
Caution
- Do not connect external input cable
- Adjustment result is applied to SET On/O later.
* Adjustment is done using internal ADC, so input signal is not
necessary.
7-1. COMPONENT input ADC (SD / HD),
RGB input ADC
(1) Press ADJ key on R/C or adjustment. Need not convert
input mode.
(2) Enter Password number. The value o Password is “0 0 0
0”.
(3) Select “0. ADC calibration” by using D/E(CH +/-) and press
ENTER(V).
(4) Start ADC adjustment by using F/G(VOL +/-) or press
ENTER(V).
(5) Both component and RGB ADC adjustment are executed
automatically
When ADC adjustment is inished, this OSD appear.
Notice : A ter All mode check, set the Speaker Volume “0”.
Caution : Don’t Press the Power Key on Remote Controller.
Just AC Power O . ( Not DC o )
Notice : From this sentence, All working is mass production.
8. POWER PCB Assy Voltage
Adjustment
(Vs voltage Adjustment)
8-1. Test Equipment: D.M.M 1EA
8-2. Connection Diagram for Measuring
Re er to (Fig. 4)
8-3. Adjustment Method
(1) Vs Adjustment
1) Connect + terminal o D. M..M. to Vs pin o P811,
connect -terminal to GND pin o P811.
2) A ter turning VR901, voltage o D.M.M adjustment as
same as Vs voltage which on label o panel right/top
(deviation ; ± 0.5 V)
(2) Va Adjustment
1) Connect + terminal o D. M..M. to Va pin o P811,
connect -terminal to GND pin o P811.
2) A ter turning VR502, voltage o D.M.M adjustment as
same as Va voltage which on label o panel right/top
(deviation ; ± 0.5 V)
RF input
NO SIGNAL or White noise
AV / Component / RGB input
NO SIGNAL
(Fig. 4)

- 13 - LGE Internal Use OnlyCopyright ©2010 LG Electronics Inc. All rights reserved.
Only or training and service purposes
8-4. Adjustment of Area option.
(1) Area Option Adjustment ollowing BOM
(Including SKD models )
Tool Option
Area Option
Option 1
Option 2
Option 3 ( Available or EU & Non EU model )
* Pro ile : Must be changed the option value because being
di erent with some setting value depend on module,
inch and market
* Equipment : Adjustment Remote Controller
1) Push the IN-START key in the Adjust R/C.
2) Enter Password number. The value o Password is “0 0
0 0”.
3) Input the Area Option Number that was speci ied in the
BOM, into the Shipping area.
4) Select “Area Option” by using D/E(CH+/-) key, and
press the number key(0~9) consecutively
ex) I the value o Area Option 40, input the data using
number key “40” (Fig. 3)
Caution:
- Although it is SKD model, adjust area option in SET
assemmbly process.
- Don’t Push “IN-STOP” key a ter PCB assembly
adjustment.
9. Adjustment of White Balance
9-1. Required Equipment
(1) Remote controller or adjustment
(2) Color Analyzer ( CS-1000, CA-100,100+,CA-210 or same
produc : CH 10 (PDP)
lease adjust CA-210, CA-100+ by CS-1000 be ore
measuring
(3) Auto W/B adjustment instrument(only or Auto adjustment)
9-2. AUTO White Balance Process.
Be ore Adjust o White Balance, Please press POWER ONLY
key
Adjust Process will start by execute RS232C Command.
OCS-1000/CA-100+/CA-210(CH 10) White balance adjustment
coordinates and color temperature.
9-3. Manual W/B process (using adjusts
Remote control)
(1) Enter ‘PICTURE RESET’ on Picture Mode, then turn o
Fresh Contrast and Fresh colour in Advanced Control
(2) A ter enter Service Mode by pushing “ADJ” key,
(3) Enter White Pattern o o service mode, and change o ->
on.
(4) Enter “W/B ADJUST” by pushing “G” key at “3. W/B
ADJUST”.
(5) Adjust W/B DATA, or all CSM, choose ‘COPY ALL’
* Gain Max Value is 192. So, Never make any Gain Value
over 192 and please ix one Value on 192, between R, G
and B.
.
.
CSM Color Coordinate Temp Color Coordinate
xy
Cool 0.276 0.283 11000K 0.002
Medium 0.285 0.293 9300K 0.002
Warm 0.313 0.329 6500K 0.002
Min Tpy Max
R-GAIN 0 192 192
G-GAIN 0 192 192
B-GAIN 0 192 192

- 14 - LGE Internal Use OnlyCopyright ©2010 LG Electronics Inc. All rights reserved.
Only or training and service purposes
* Auto-control inter ace and directions
(1) Adjust in the place where the in lux o light like loodlight
around is blocked. (Illumination is less than 10ux).
(2) Measure and adjust a ter sticking the Color Analyzer
(CA-100+, CA210 ) to the side o the module.
(3) Aging time
A ter aging start, keep the Power on (no suspension o
power supply) and heat-run over 5 minutes
*Above optical characteristics are should be measured by
ollowing condition.

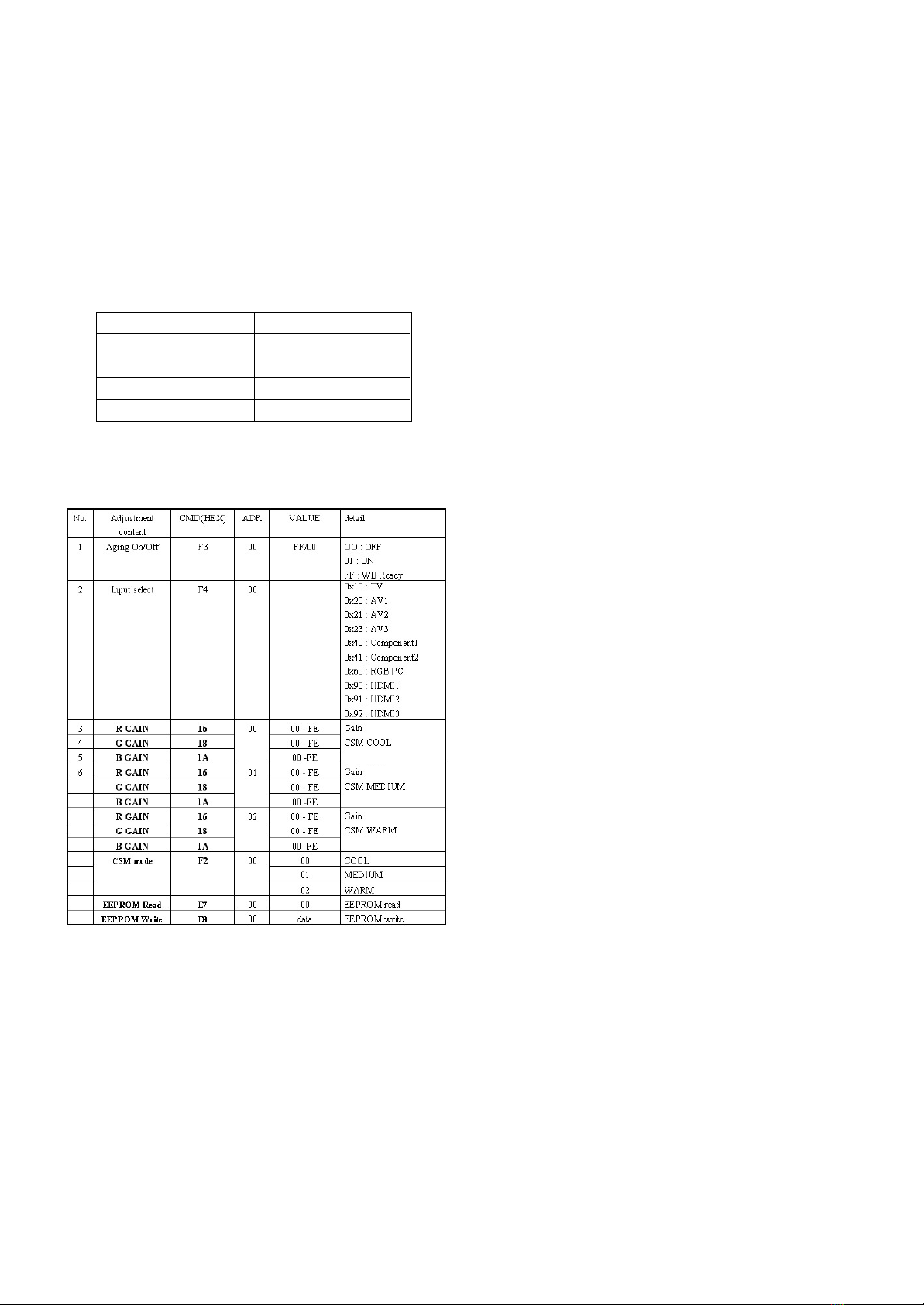

ODDC Adjustment Command Set
Measured Mode
Picture Mode Vivid
Fresh Contrast O
Fresh Color O
Smart Power Saving O
Adjustment
Adjustment
Adjustment

- 15 - LGE Internal Use OnlyCopyright ©2010 LG Electronics Inc. All rights reserved.
Only or training and service purposes
BLOCK DIAGRAM

- 16 - LGE Internal Use Only
EXPLODED VIEW
Copyright ©2010 LG Electronics Inc. All rights reserved.
Only for training and service purposes
Many electrical and mechanical parts in this chassis have special safety-related characteristics. These
parts are identified by in the Schematic iagram and EXPLO E VIEW.
It is essential that these special safety parts should be replaced with the same components as
recommended in this manual to prevent X-RA IATION, Shock, Fire, or other Hazards.
o not modify the original design without permission of manufacturer.
IMPORTANT SAFETY NOTICE
200
120
305
300
400
580
301
302
303
304
202
240
520
207
206
204
203 201 501
590
570
602 601
604
910
900
205
A2 A10 A9
LV1
A12

USB DOWN STREAM
THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.
INPUT
HPD_MST_2
+5V_HDMI_1
TMDS1_RXC-
TMDS1_RX0+
R110
100
DDC_SCL2
R109
100
+5V_HDMI_1
TMDS1_RX2+ R118
100
TMDS1_RXC+
CEC
IC103
MAX3232CDR
3C1-
2V+
4C2+
1C1+
6V-
5C2-
7DOUT2
8RIN2 9
ROUT2
10
DIN2
11
DIN1
12
ROUT1
13
RIN1
14
DOUT1
15
GND
16
VCC
D101
KDS184S
A1
C
A2
TMDS1_RX0-
DDC_SDA2
+5V_HDMI_3
Q101
2SC3875S
RT1C3904-T112
E
B
C
R162
10K
SIDE_HDMI
DDC_SCL1
+5V_HDMI_2
+5V_ST
TMDS2_RX2+
DDC_SCL2
+5V_HDMI_2
TMDS1_RX2-
R160
100
SIDE_HDMI
D102
KDS184S
SIDE_HDMI
A1
C
A2
R161
100
SIDE_HDMI
TMDS2_RX1+
CEC
TMDS2_RX1-
+3.3V_MPLL
+5V_ST
DDC_SDA1
DDC_SCL3
TMDS2_RXC+
DDC_SCL1
+5V_ST
DDC_SDA1
D100
KDS184S
A1
C
A2
DDC_SDA2
DDC_SDA3
R103
10K
R102
1K
R122
4.7K
R114
100
R115
100
TMDS2_RX2-
RXD
R116
10K
R101
1K
BOT_HDMI R129
4.7K
TMDS1_RX1-
R104
10K
BOT_HDMI
HPD_MST_1
TMDS2_RX0-
TMDS2_RXC-
TMDS1_RX1+
R119
10K R163
10K
SIDE_HDMI
+5V_ST
R117
100
Q100
2SC3875S
BOT_HDMI
RT1C3904-T112
E
B
C
TXD
TMDS2_RX0+
DSUB_SCL
ROM_SDA
R120
4.7K C103
68pF
C104
68pF
R111
75
DSUB_SDA
PC_HS
ROM_SCL
PC_B
PC_VS
R128
68
R113
75
PC_G
R112
75
R127
68
R132
10K
R121
4.7K
PC_R
ISP_RX
C105
0.1uF
C106
0.1uF
C107
0.1uF
C108
0.1uF
JK111
SPG09-DB-009
1
2
3
4
5
6
7
8
9
10
R159
12K
SIDE_VIN
SIDE_LIN
R145
75
SIDE_RIN
R147
220K
R152
10K
R146
220KR153
10K
R158
12K
JK110
SPG09-DB-010
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
IR_OUT
C110
0.01uF
25V
SIDE_HDMI
C101
0.01uF
25V
C109
0.01uF
25V
C100
0.01uF
25V
C102
0.01uF
25V
R124
220K
PC_AUD_R
R125
10K PC_AUD_L
R131
12K
R123
220K R130 12K
R126
10K
R539
0HOTEL
R535
1K
NONE_HOTEL
R529
470K
MUTE_LINE
MNT_LOUT
C114
10uF
16V
NONE_HOTEL
SPK_R-_HOTEL
C111
10uF
16V
SPK_R+_HOTEL
AUDIO_R
MNT_ROUT
R540
0
HOTEL
MUTE_LINE
R528
470K
R532
0HOTEL
R509
220K
EU
SC2_RIN
R521
12K
EU
R511
10K
EU
R522
12K
EU
R512
10K
EU
SC2_LIN
R510
220K
EU
SC2_ID
R502
75
EU
SC2_VIN
R513
10K
EU
R523
3K
EU
Q502
2SC3875S(ALY)E
B
C
Q504
2SC3875S(ALY)
E
B
C
R533
1K
NONE_HOTEL
C112
10uF
16V
EU
R514
12K
R505
10K
MUTE_LINE
R508
75
TV_ROUT
SC1_VIN
SC1_RIN
TV_LOUT
R506
10K
MUTE_LINE
Q505
2SC3875S(ALY)
EU
E
B
C
R520
3K
EU
R503
220K
R531
470K
EU
SC1_LIN R534
1K
EU
R515
12K
R530
470K
EU
Q503
2SC3875S(ALY)
EU
E
B
C
R537
1K
EU
SC1_ID
R504
220K
C113
10uF
16V
EU
C115 220uF 16V
EU TV_VOUT
Q501
2SC3875S(ALY)
EU
E
BCSC1_FB R536 22
EU
Q500
2SC3875S(ALY)
EU
E
BC
R526
3K
EU
R541
3K
EU
R525
3K
EU
R519
75
EU
R524 1K
EU
R527 75
EU
SC1_R
R518
75
EU
SC1_G
R517
75
EU
SC1_B
R516
75
EU
R507
20K
EU
R500
0
NONE_EU
R501
0
NONE_EU
+3.3V_MST
C116
100uF
16V
EU
MNT_VOUT
R542
75
EU
JK113
PPJ231-01
NONE_EU
8
6
7
5
4
R133
100
R134
100
R135
10K R136 10K
JK100
YKF45-7058V
BOT_HDMI
14
13
5
20
12
11
2
19
18
10
4
1
17
9
8
3
16
7
6
15
JK101
YKF45-7054V
14
13
5
20
12
11
2
19
18
10
4
1
17
9
8
3
16
7
6
15
JK106
PPJ235-01
4A
5A
3A
4B
3C
4C
5C
USB_DN
USB_DP
+5V_MULTI
JK112
KJA-UB-4-0004
1234
5
TMDS3_RX2-
DDC_SDA3
R100
1K
SIDE_HDMI HPD_MST_3
Q102
2SC3875S
SIDE_HDMI
RT1C3904-T112
E
B
C
TMDS3_RX1-
TMDS3_RX0+
TMDS3_RXC-
CEC
JK102
KJA-ET-0-0032
SIDE_HDMI
14 NC
13 CEC
5DATA1_SHIELD
20
JACK_GND
12 CLK-
11 CLK_SHIELD
2DATA2_SHIELD
19 HPD
18 +5V_POWER
10 CLK+
4DATA1+
1DATA2+
17 DDC/CEC_GND
9DATA0-
8DATA0_SHIELD
3DATA2-
16 SDA
7DATA0+
6DATA1-
15 SCL
TMDS3_RX0-
R105
10K
SIDE_HDMI
DDC_SCL3
TMDS3_RX2+
TMDS3_RXC+
+5V_HDMI_3
TMDS3_RX1+
JK103
PEJ027-01
6B
7B
5
4
7A
6A
3
ROM_SDA
ROM_SCL
DSUB_SDA
DSUB_SCL
R142 100
NONE_RGB
R143 100
NONE_RGB
R144 100
NONE_RGB
R150 100
NONE_RGB
R180
5.1
R181
5.1
COMP1_PR
R148
10K
NONE_EU
JK105
PPJ234-01
EU
5A
6A
4A
7B
5B
7C
5C
5D
4E
5E
6E
R174
10K
R179
12K
COMP2_R
R178
12K
R154
12K
NONE_EU
COMP1_Y
R165
75
COMP1_PB
R137
75
NONE_EU
R169
220K
R138
75
NONE_EU
R166
75
R175
10K
COMP2_PR
R139
75
NONE_EU
COMP2_PB
R140
220K
NONE_EU
R167
75
COMP1_R
R155
12K
NONE_EU
R168
220K
R149
10K
NONE_EU
R141
220K
NONE_EU
COMP2_Y
JK107
PPJ239-01
NONE_EU
5J
6J
4J
7K
5K
7L
5L
5M
4N [RD2]CONTACT
5N [RD2]O-SPRING_2
6N [RD2]E-LUG
6D [GN1]E-LUG
5D [GN1]O-SPRING
4D [GN1]CONTACT
7E [BL1]E-LUG-S
5E [BL1]O-SPRING
7F [RD1]E-LUG-S
5F [RD1]O-SPRING_1
4F [RD1]CONTACT_1
5G [WH1]O-SPRING
4H [RD1]CONTACT_2
5H [RD1]O-SPRING_2
6H [RD1]E-LUG
COMP2_L
COMP1_L
IC101
CAT24C02WI-GT3
3
A2
2
A1
4
VSS
1
A0
5SDA
6SCL
7WP
8VCC
IC102
CAT24C02WI-GT3
3
A2
2
A1
4
VSS
1
A0
5SDA
6SCL
7WP
8VCC
IC100
CAT24C02WI-GT3
3
A2
2
A1
4
VSS
1
A0
5SDA
6SCL
7WP
8VCC
JK116
PPJ241-01
NONE_EU
3[WH]L_OUT
5[WH]GND
4[RD]R_OUT
CEC
D103
30V
MMBD301LT1G
D104
10V
BSS83
Q103
S
B
D
GR106
56K
CEC_C
+3.3V_MPLL
EYE_SDA
EYE_SCL
R543 100
R544 100
JK114
PSC008-02
EU
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
23
SHIELD
22 AV_DET
JK115
PSC008-02
EU
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
23
SHIELD
22 AV_DET
R538
5.6K
EU
1 4INPUT
[ Slim Jack : 6630TGA004Q ] [ Slim Jack : 6630G00001E ]
[ Slim Jack : EAG59023302 ]
[ Slim Jack : EAG59023301_SCREW ]
[ Slim Jack : EAG42463001]
[ EAG41945401 ]
EAX61365502(BPR)
H6 Revolution Circuit Diagram
[ SIDE HDMI ]
H6 R 2009/11/05
HDMI CEC
Copyright © 2010 LG Electronics Inc. All rights reserved.
Only for training and service purposes
LGE Internal Use Only

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.
Key / Power / LVDS / Option
TXCE0-
TXCE0+
TXCE1-
TXCE1+
TXCE2-
TXCE2+
TXCLKE-
TXCLKE+
TXCE3-
TXCE3+
TXCE4+
TXCO0-
TXCO0+
TXCO1-
TXCO1+
TXCO2-
TXCO2+
TXCLKO-
TXCLKO+
TXCO3-
TXCO3+
TXCO4-
TXCO4+
TXCE4-
R221
4.7K
IR
LED_R
KEY2
KEY1
EYE_SDA
EYE_SCL
R222
4.7K
AUDIO_R
IC200
AP2121N-3.3TRE1
1
GND
2VOUT 3
VIN
IC205
AZ1117H-ADJTRE1(EH11A)
2
OUTPUT
3
INPUT 1ADJ/GND
IC203
AZ1085S-3.3TR/E1
1
ADJ/GND
2OUTPUT 3
INPUT
Q200
RT1C3904-T112
E
BC
RL_ON/POWER_ON
R212
36
1/10W
1%
Q202
2SC3052
HOTEL
E
B
C
R232
22
HOTEL
IR_OUT
R227
4.7K
HOTEL
R224
4.7K
HOTEL
C211
0.01uF
25V
C209
0.01uF
25V
Q201
RTR030P02
S D
G
R202 10K
R201
10K
R200 10K
R211
75
1%
C216
0.01uF
25V
C219
100uF
16V
C220
0.01uF
25V
C227
0.01uF
25V
C201
0.01uF
25V C206
22uF
16V
C200
22uF
16V
C207
22uF
16V
+17V_TI
+5V_ST
+3.3V_MPLL
+5V_ST
+1.8V_DDR
+3.3V_MPLL
+3.3V_MPLL
+3.3V_MST
+3.3V_MST
+5V_ST
+3.3V_MST
SW_RESET
SPK_R+_HOTEL
SPK_R-_HOTEL
P201
TF05-51S
FHD
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
ROM_TX
ROM_RX
ROM_SCL
ROM_SDA
P_SCL
P_SDA
R209
1K
READY
R220
10K R223
10K
+3.3V_MPLL
P203
12507WS-12L
1IR
2GND
3KEY1
4KEY2
5RED_LED
6GND
7SCL
8SDA
9GND
10 3.3V_MPLL
11 3.3V_MST
12 WHITE_LED
13
GND
P204
12507WS-08L
HOTEL
1
2
3
4
5
6
7
8
9
LED_BL
D200
KDS184S
A1
C
A2
P202
SMAW200-H26S1
HD
19
14
9
4
18
13
8
3
17
12
7
2
16
11
6
1
20
15
10
5
21 22
23 24
25 26
27
ROM_RX
R230
100
R240
10K
+3.3V_MPLL
P_SCL P_SDA
ROM_SCL ROM_SDA
ROM_TX
TXCE0- TXCE0+
TXCE1- TXCE1+
TXCE2- TXCE2+
TXCLKE- TXCLKE+
TXCE3- TXCE3+
TXCE4- TXCE4+
C205
0.01uF
25V
M5V_ON L201
MLB-201209-0120P-N2
120-ohm
+5V_MULTI
+5V_ST
+17V_TI
R226
4.7K
ERROR_DET
+5V_MULTI
R236
100
C208
100uF
16V
C212
0.01uF
25V
R231
100
R203 100
RL_ON/POWER_ON
AC_DET
C228
0.1uF
HOTEL
DISP_EN
R218 100
R219
470
DISP_EN
C226
47uF
16V
C214
100uF
16V
BU2
SMT-5030D
READY
1
LEAD+
2
LEAD-
3
DUMMY
+5V_MULTI
R241
100
READY
D201
1N4148W
READY
Q203
2SC3875S(ALY)
READY
E
B
C
BUZZ_PWM
R242
10K
READY
R247
READY
R246
10.5K
1%
C236
READY
R244
3.9K
1%
R245
3.6K
R243
100K
C232 READY
C231
0.01uF
C229
10uF
16V
ZD200
READY
C230
READY
C237
100uF
16V
C233
4700pF
50V
C238
READY
C235
0.1uF
C234
22uF
16V
3225
IC202
AZ1117H-ADJTRE1(EH11A)
2
OUTPUT
3
INPUT 1ADJ/GND
C225
100uF
16V
R225
330
1/10W
1%
C223
READY
C221
0.1uF
L203
CBC3225T330KR
ZD201
READY
C215 READY
R216
READY
C204
READY
+5V_TU
L200
CB3216PA501E
C224
0.1uF
16V
C218
22uF
16V
3225
C202
10uF
16V
+17V_TI
R207
100K
C222
100uF
16V
C217
4700pF
50V
R217 110 1/10W 1%
R213
3.6K
C213
READY
C210
0.01uF
R208
68K R215
10K
R1
0
R6
0
R2
0
R3
0
R5
0
R4
0
R8
0
R7
0
IC204
MP2305DS
3
SW
2
IN
4
GND
1
BS
5FB
6COMP
7EN
8SS
IC201
MP2305DS
3
SW
2
IN
4
GND
1
BS
5FB
6COMP
7EN
8SS
+1.2V_MST
CGND4
CGND1
CGND2
CGND3
P200
SMAW200-H18S1
14
9
4
18
13
8
3
17
12
7
2
16
11
6
1
15
10
5
19
R248
0
READY
LED_W
+5V_ST
R210
0
R228
0
READY
AC_DET
L202
22uH
L803
10uH
Hotel Option
KEY/IR Interface
MAX 300mA
12mA
16mA MAIN SUB MICOM
MAIN I2C PULL UP
RS232C-TRANCEIVER
CEC LEVEL SHIFT
DDR2 & Vref
85mA
1391mA
MAX 1A
TYPICAL 3A
59mA
MAIN IC : 4 PAGE
1420mA 1420mA
3.2A / P-CHANNEL
356mA
1.899V
Power Block
2 4Key / Power
USB
LVDS Block
HOTEL OPTION
EAX61365502(BPR)
H6 Revolution Circuit Diagram
 

 
H6 R
Buzzer ready
C1
R1
C5 C9
L1
D1
R2
R5
C8
R3
C2
C6
OUT:1.27V
930mA
MAIN IC CORE
R4 C7
V=0.923X(1+R1/R3)=1.266V
THE RECOMMANDED VALUE OF R3 IS 10K
C1
C2
R3
L1
R4
C8
R5
D1
C7
C5 C9
R2
C6
R1
 

 
V=0.923X(1+R1/R3)=7.2V
THE RECOMMANDED VALUE OF R3 IS 10K
TUNER
SEPARATE GND
2009/11/05
Copyright © 2010 LG Electronics Inc. All rights reserved.
Only for training and service purposes
LGE Internal Use Only

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.
Tuner / Amp / DDR
DDR2_A[11]
DDR2_D[9]
DDR2_A[9] DDR2_A[4]
DDR2_D[1]
DDR2_A[10] DDR2_A[12]
DDR2_D[14] DDR2_D[4] DDR2_D[2]
DDR2_A[2]
DDR2_D[13] DDR2_D[6]
DDR2_A[0] DDR2_A[1]
DDR2_D[10] DDR2_D[0]
DDR2_A[3] DDR2_A[8] DDR2_A[7]
DDR2_D[12] DDR2_D[15] DDR2_D[11]
DDR2_A[6]
DDR2_D[8] DDR2_A[5] DDR2_D[5] DDR2_D[7] DDR2_D[3]
SPK_L-
C306
4.7uF
10V
R309
18K
C337
0.1uF
C366
0.1uF
SPK_R+
R320
3.3
C353
0.033uF
50V
SPK_L+
C369
0.1uF
R323
3.3
L309
120-ohm
C367
0.1uF
+3.3V_AVDD
C333
0.1uF
R321
3.3
L310
120-ohm
+17V_TI
AVSS
C374
0.01uF
C373
0.01uF
R314 470
+17V_TI
SPK_R-
C340
0.1uF
AVSS
R302
0
C372
0.01uF
SPK_R+
SPK_L+
SPK_R-
I2S_WS
C331 0.033uF
50V
R313
470
A_SDA
AC_DET
AVSS
R322
3.3
AVSS
SW_RESET
+3.3V_DVDD
SPK_L-
A_SCL
+17V_TI
C315
10uF 16V
R315 22K
R308
200
1%
C370
0.1uF
C300
10uF 16V
+3.3V_AVDD
+3.3V_DVDD
C332
0.033uF
50V
I2S_SDO
C341
0.1uF
C359
0.033uF
50V
I2S_MCLK
I2S_SCK
+3.3V_MST
+1.8V_DDR
+1.8V_DDR
R324
1K
R325
1K
V_REF
DDR2_MCLK
DDR2_A[0-12]
DDR2_DQS1M
DDR2_BA0
DDR2_DQM1
R338
56
DDR2_DQS1P
DDR2_BA1
DDR2_RASZ DDR2_DQM0
V_REF
DDR2_DQS0M
R336
56
DDR2_CKE
IC303
H5PS5162FFR-S6C
Hynix
J2 VREF J8 CK
H2
VSSQ2
B7 UDQS N8 A4 P8 A8 L1 NC4 L2 BA0 R8 NC3 K7 RAS
F8
VSSQ3
F3 LDM P3 A9 M3 A1 N3 A5 K8 CK
R3 NC5 L3 BA1 J7 VSSDL L7 CAS
F2
VSSQ4
B3 UDM M2 A10/AP K2 CKE R7 NC6 M7 A2 N7 A6 M8 A0 J1 VDDL K3 WE
E8 LDQS P7 A11 K9 ODT A2 NC1 N2 A3 P2 A7
H8
VSSQ1
F7 LDQS A8 UDQS
R2 A12 L8 CS E2 NC2
E7
VSSQ5 D8 VSSQ6 D2 VSSQ7 A7 VSSQ8 B8 VSSQ9 B2
VSSQ10
P9
VSS1 N1 VSS2 J3 VSS3 E3 VSS4 A3 VSS5
G9
VDDQ1 G7 VDDQ2 G3 VDDQ3 G1 VDDQ4 E9 VDDQ5 C9 VDDQ6 C7 VDDQ7 C3 VDDQ8 C1 VDDQ9 A9
VDDQ10
R1
VDD1 M9 VDD2 J9 VDD3 E1 VDD4 A1 VDD5
B9
DQ15 B1 DQ14 D9 DQ13 D1 DQ12 D3 DQ11 D7 DQ10 C2
DQ9 C8 DQ8 F9 DQ7 F1 DQ6 H9 DQ5 H1 DQ4 H3 DQ3 H7 DQ2 G2 DQ1 G8 DQ0
DDR2_D[0-15]
DDR2_CASZ
R340
56
R341
56
+1.8V_DDR
DDR2_ODT
R339
56
R342
READY
DDR2_WEZ DDR2_MCLKZ
+1.8V_DDR
R337
56
DDR2_DQS0P
C371
0.01uF
IC300
TAS5709PHPR
1
OUT_A
2
PVDD_A_1
3
PVDD_A_2
4
BST_A
5
GVDD_OUT_1
6
SSTIMER
7
OC_ADJ
8
NC
9
AVSS
10
PLL_FLTM
11
PLL_FLTP
12
VR_ANA
13
AVDD
14
TESTOUT
15
MCLK
16
OSC_RES
17
DVSS_1
18
VR_DIG
19
PDN
20
LRCLK
21
SCLK
22
SDIN
23
SDA
24
SCL
25
RESET
26
STEST
27
DVDD
28
DVSS_2
29
GND
30
AGND
31
VREG
32
GVDD_OUT_2
33
BST_D
34
PVDD_D_1
35
PVDD_D_2
36
OUT_D
37 PGND_CD_1
38 PGND_CD_2
39 OUT_C
40 PVDD_C_1
41 PVDD_C_2
42 BST_C
43 BST_B
44 PVDD_B_1
45 PVDD_B_2
46 OUT_B
47 PGND_AB_1
48 PGND_AB_2
C301
1000pF
50V
C302
0.1uF
C304
0.1uF
C313
0.047uF
C316 4700pF
C317
0.1uF
C318
1000pF
C319 4700pF
C320
0.047uF
C321 2200pF
C322
0.1uF
C380
0.1uF
C381
0.1uF
C382
0.1uF
C383
0.1uF
C384
0.1uF
C385
0.1uF
C386
0.1uF
C387
0.1uF
C388
0.1uF C389 0.1uF
C395
0.1uF
16V
R304
22
R306
22
R305
22
R307
22
C309
0.1uF
+5V_TU
C364
0.68uF
C363
0.68uF
L300
BLM18BD102SN1D
EU
10K
R317
EU
IF_AGC_SEL
R316
100
EU C312
4.7uF
35V
EU
C305
27pF
S_SDA
R311
330
R312
330 S_SCL
C308
27pF
R343
0
EU
C314
0.1uF
50V
L301
120-ohm
TV_MAIN
TV_VOUT
Q301
ISA1530AC1
E
B
C
Q304
ISA1530AC1
EU
E
B
C
+5V_TU
C323
READY
MAIN_SIF
R310
0
R301
4.7K
R303
READY
+17V_TI
L302
120-ohmC324
0.1uF
+17V_AMP
IC303-*1
K4T51163QG-HCE7
Samsung
J2
VREF
J8
CK
H2 VSSQ_2
B7
UDQS
N8
A4
P8
A8
L1
NC_4
L2
BA0
R8
NC_3
K7
RAS
F8 VSSQ_3
F3
LDM
P3
A9
M3
A1
N3
A5
K8
CK
R3
NC_5
L3
BA1
J7
VSSDL
L7
CAS
F2 VSSQ_4
B3
UDM
M2
A10/AP
K2
CKE
R7
NC_6
M7
A2
N7
A6
M8
A0
J1
VDDL
K3
WE
E8
LDQS
P7
A11
K9
ODT
A2
NC_1
N2
A3
P2
A7
H8 VSSQ_1
F7
LDQS
A8
UDQS
R2
A12
L8
CS
E2
NC_2
E7 VSSQ_5
D8 VSSQ_6
D2 VSSQ_7
A7 VSSQ_8
B8 VSSQ_9
B2 VSSQ_10
P9 VSS_1
N1 VSS_2
J3 VSS_3
E3 VSS_4
A3 VSS_5
G9 VDDQ_1
G7 VDDQ_2
G3 VDDQ_3
G1 VDDQ_4
E9 VDDQ_5
C9 VDDQ_6
C7 VDDQ_7
C3 VDDQ_8
C1 VDDQ_9
A9 VDDQ_10
R1 VDD_1
M9 VDD_2
J9 VDD_3
E1 VDD_4
A1 VDD_5
B9 DQ15
B1 DQ14
D9 DQ13
D1 DQ12
D3 DQ11
D7 DQ10
C2 DQ9
C8 DQ8
F9 DQ7
F1 DQ6
H9 DQ5
H1 DQ4
H3 DQ3
H7 DQ2
G2 DQ1
G8 DQ0
P300
SMAW250-H04R
1
2
3
4
Q300
2SC3875S(ALY)
EU
E
B
C
R318
270
R319
270
+17V_AMP
R344
6.8K EU
R352
4.7K
EU
+17V_AMP
R334
6.8K
R332
5.6K
R335
6.8K
C392
33pF
Q306
2SC3875S(ALY)
EU
E
B
C
R327
4.7K
R326
4.7K
R353
4.7K EU
C390
6800pF
50V
MNT_ROUT
R346
5.6K
EU
R347 5.6K
EU
R350 1K
EU
MNT_L_AMP
+17V_AMP
R349 10K
EU
C393
33pF
+17V_AMP
Q302
2SC3875S(ALY)
E
B
C
C394
33pF
EU
MNT_R_AMP
C396
33pF
EU
IC302
LM324D
3
3
2
2
4
4
1
1
6
6
5
5
7
788
99
10 10
11 11
12 12
13 13
14 14
+17V_AMP
TV_LOUT
C397
6800pF
50V
EU
R351 1K
EU
R345
6.8K
EU
MNT_LOUT
Q303
2SC3875S(ALY)
E
B
C
R328
1K
C398
6800pF
50V
EU
R348 10K
EU
Q305
2SC3875S(ALY)
EU
E
B
C
R329
1K
TV_R_AMP
C391
6800pF
50V
TV_ROUT
R333
5.6K
TV_L_AMP
TU300
TAFJ-Z001D
5MOPLL_AS
11 VIDEO
2NC_2
10 NC_4
4RF_AGC
1NC_1
9SIF
8NC_3
3+B[5V]
7SDA
6SCL
12 GND
13
SHIELD
TU300-*1
TAFJ-S001D
PAL EU Tuner
5MOPLL_AS
11 VIDEO
2NC_2
10 NC_4
4RF_AGC
1NC_1
9SIF
8NC_3
3+B[5V]
7SDA
6SCL
12 GND
13
SHIELD
TU300-*2
TAFJ-H001F
5MOPLL_AS
11 VIDEO
2NC_2
10 NC_4
4RF_AGC
1NC_1
9SIF
8NC_3
3+B[5V]
7SDA
6SCL
12 GND
13
SHIELD
L307
AD-9060
EAP61008401
2S
1S 1F
2F
L308
AD-9060
EAP61008401
2S
1S 1F
2F
R330
15K 1/16W
5%
R33115K
1/16W
5%
C307
100uF
25V
C326
100uF
25V
C303
100uF
25V
C325
100uF
25V
R300
1K
C355
0.1uF
R354
180
EU
C327 1uF
C328
1uF
This parts are Located
on AVSS area.
Separate DGND AND AVSS
Close to DDR2 IC
DDR Memory for Main IC
Audio Amp Tuner(7mm)
Gaim Amp for MNT out
EAX61365502(BPR)
H6 Revolution Circuit Diagram
3 4Tuner/Amp/DDR
H6 R
AMP :GAIN X 4
2009/11/05
Copyright © 2010 LG Electronics Inc. All rights reserved.
Only for training and service purposes
LGE Internal Use Only

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.
Main
DDR2_D[3]
DDR2_D[1]
DDR2_D[6]
DDR2_A[0] DDR2_A[2] DDR2_A[4] DDR2_A[6] DDR2_A[1] DDR2_A[10]
DDR2_D[11]
DDR2_A[5]
DDR2_D[12]
DDR2_D[9]
DDR2_D[14]
DDR2_A[3] DDR2_A[7] DDR2_A[12] DDR2_A[9]
DDR2_D[15]
DDR2_D[8]
DDR2_D[10]
DDR2_D[13]
DDR2_D[7]
DDR2_D[0]
DDR2_D[2]
DDR2_D[5]
DDR2_A[8] DDR2_A[11]
DDR2_D[4]
TXCO4-
TXCO3+
TXCLKO+
TXCLKO-
TXCO2+
TXCO2-
TXCO3-
TXCO1+
TXCO1-
TXCO0+
TXCO0-
TXCO4+
TXCE4- TXCE3+ TXCE3- TXCLKE+ TXCLKE- TXCE2+ TXCE2- TXCE1+ TXCE4+
TXCE1-
TXCE0+ TXCE0-
DSUB_SCL
R408
100
C45420pF
+1.2V_MST
AR412
56
AR408
56
R445
100
R422 47
R474
1K
R441100
R419 470
R431 47
R444
1M
+3.3V_MST
DSUB_SDA
R415 47
AR415
56
I2S_MCLK
R446 100
I2S_SCK I2S_SDO
CEC_C
I2S_WS
R464
100
S_SDA
EYE_SDA
AR410
56
R458 4.7K
+3.3V_MST
LED_R
C409
10uF
C45520pF
R437 100
R472 22
R423 47 R478 4.7K
C451
2.2uF
+3.3V_MST
SPI_DI
C444
2.2uF
R453 100
R412 47
+3.3V_MST
C4492.2uF
R440100
M_SCL
+3.3V_MPLL
R430 47
R438 100
R460
100
R456 4.7K
FLASH_WP
R432 47
HPD_MST_1
+3.3V_MST
R471 22
MNT_R_AMP
X400
12MHz
R411
4.7K
R476
1K
READY
MNT_L_AMP
R436 390
R401
4.7K
R424 47
R417 47
R413 47
SW_RESET
R448 100
C417 2.2uF
DISP_EN
HPD_MST_2
IC402
W25X64VSFIG
3
NC_1
2
VCC
4
NC_2
1
HOLD
6
NC_4
5
NC_3
7
CS
8
DO 9WP
10 GND
11 NC_5
12 NC_6
13 NC_7
14 NC_8
15 DIO
16 CLK
ISP_RX
R449 100
+1.2V_MST
R434 47
AR409
56
R452 4.7K
+1.8V_DDR
+3.3V_MST
R461 56
AR411 56
R418 47
R450 4.7K
AR413
56
R477 4.7K
R426 47
R443
100
R465
100
READY
A_SCL
C412
10uF
R439
100
R442
100
M_SDA
M_SCL
R462 100
S_SCL
+3.3V_MST
MUTE_LINE
AR406
56
+3.3V_MST
R421 47
R427 470
C4462.2uF
R433 470
C4482.2uF
R400
4.7K
R473
1K
READY
+1.8V_DDR
R428
47
R409
100
M_SDA
EYE_SCL
RL_ON/POWER_ON
R425 47
C4472.2uF
+3.3V_MST
AR414
56
A_SDA
HPD_MST_3
R420 47
C450
2.2uF
M_SDA
R466
100
R416 47
R455
1K
R475
1K
R469
100
C4452.2uF
+3.3V_MST
V_REF
C418 2.2uF
C443
4.7uF
+3.3V_MST
+3.3V_MST
C402
0.1uF
C406 0.1uF
C407 0.1uF
C408 0.1uF
C410 0.1uF
C411
0.1uF
C415
0.1uF
C419 0.1uF
C420 0.1uF
C421 0.047uF
C422 0.047uF
C423 0.047uF
C424 0.047uF
C425 0.047uF
C426 0.047uF
C427 0.047uF
C428 0.047uF
C429 0.047uF
C430 0.047uF
C431 0.047uF
C432 0.047uF
C433 0.047uF
C434 0.047uF
C435 0.047uF
C438
1000pF
C439 0.1uF
C440 1000pF
C441 1000pF
C442 1000pF
C452 0.1uF
R435 22K R414 22K
C471
0.1uF
C469
0.1uF
C467
0.1uF
C465
0.1uF
C463
0.1uF
C461
0.1uF
C400
0.01uF
25V
C413 0.01uF
C416 0.01uF C414 0.01uF
C462
0.01uF
25V
C453
0.01uF
25V
C459 0.01uF 25V
C458
0.01uF
25V
C404
0.01uF
25V
C466
0.01uF
25V
C464
0.01uF
25V
C468
0.01uF
25V
C470
0.01uF
25V
C472
0.01uF
25V
C460
0.01uF
25V
C456
0.01uF
25V C457
0.01uF
25V
R457 22
R459 22
R470 22
R467 22
R429
47 C436 0.047uF
C437 0.047uF
ROM_RX ROM_TX
C473 0.047uF
EU
R482 47
EU
R484 100
EU
R485 22K
EU
TV_R_AMP
C475 0.01uF
EU
TV_L_AMP
C474 0.01uF
EU
R483 100
EU
R486 22K
EU C4772.2uF
EU
C476
2.2uF
EU
IF_AGC_SEL
MNT_VOUT_T
Q401
EU
E
B
C
R406
470
EU
Q400
EU
E
B
C
R404
220
EU
MNT_VOUT
AR407 22
1/16W
M5V_ON
P_SCL
R403
100
R447
22
R463
22 R468 4.7K
R487 4.7K
+3.3V_MST
P_SDA
R488
30K
EU
R489
15K
EU
C478
10uF
EU
+5V_MULTI
+5V_MULTI
R490 100
LED_BL
R407
75
EU
TMDS2_RXC-
DDC_SCL2
KEY1
SPI_CLK
DDC_SDA3
SPI_CZ
SC1_RIN
TMDS3_RX0+
COMP2_Y
KEY2
PC_HS
DDR2_MCLK
TMDS1_RX0-
DDR2_MCLKZ
PC_AUD_R
DDR2_DQM0
TXD
DDR2_DQS0P
PC_VS
USB_DP
TMDS3_RX1-
DDR2_DQS1M
SYS_RESET
COMP1_Y
DDC_SCL3
DDR2_CASZ
TMDS3_RXC-
TV_MAIN
TMDS2_RX2-
TMDS3_RXC+
TMDS2_RX1-
COMP2_R SC1_LIN DDC_SDA1
TMDS2_RXC+
COMP2_L
TMDS1_RXC-
AC_DET
SIDE_RIN
SPI_DI
PC_R
DDR2_BA1
SIDE_LIN
SPI_DO
COMP1_L
MAIN_SIF
TMDS1_RXC+
TMDS1_RX2+
IR
TMDS2_RX2+
DDR2_ODT
SIDE_VIN
SC1_VIN
TMDS3_RX0-
SPI_CZ
PC_G
M_SCL
COMP2_PR
DDC_SCL1
PC_B
FLASH_WP
TMDS3_RX2+
RXD
PC_AUD_L
DDC_SDA2
USB_DN
TMDS1_RX1+
TMDS1_RX2-
COMP1_PR
DDR2_A[0-12]
LED_W
DDR2_D[0-15]
TXD
COMP2_PB
DDR2_DQS1P
TMDS2_RX0+
TMDS3_RX1+
DDR2_DQM1
COMP1_PB
TMDS2_RX0-
DDR2_DQS0M
COMP1_R
RXD
DDR2_BA0
SPI_CLK
TMDS3_RX2-
DDR2_CKE
TMDS2_RX1+
DDR2_WEZ
DDR2_RASZ
SPI_DO
TMDS1_RX1-
TMDS1_RX0+
SC2_VIN
SC2_RIN SC2_LIN
SC1_FB SC1_ID
SC2_ID
MNT_VOUT_T
ERROR_DET
AR400
10
1/16W
AR401
10
1/16W
AR402
10
1/16W
AR403
10
1/16W
AR404
10
1/16W
AR405
10
1/16W
IC401
CAT24WC08W-T
3
A2
2
A1
4
VSS
1
A0
5SDA
6SCL
7WP
8VCC
IC400
AT24C64CN-SH-T
3
A2
2
A1
4
GND
1
A0
5SDA
6SCL
7WP
8VCC
IC403
LGE4767A (Matrix SD Divx_ Non RM_NON SRS)
SD Divx_NON RM/SRS
1
RXBCKN
2
RXBCKP
3
RXB0N
4
RXB0P
5
HOTPLUGB
6
RXB1N
7
RXB1P
8
AVDD_33_1
9
RXB2N
10
RXB2P
11
RXACKN
12
RXACKP
13
RXA0N
14
RXA0P
15
AVDD_33_2
16
RXA1N
17
RXA1P
18
GND_1
19
RXA2N
20
RXA2P
21
HOTPLUGA
22
REXT
23
VCLAMP
24
REFP
25
REFM
26
BIN1P
27
SOGIN1
28
GIN1P
29
RIN1P
30
BINM
31
BIN0P
32
GINM
33
GIN0P
34
SOGIN0
35
RINM
36
RIN0P
37
AVDD_33_3
38
GND_2
39
BIN2P
40
GIN2P
41
SOGIN2
42
RIN2P
43
CVBS6
44
CVBS5
45
CVBS4
46
CVBS3
47
CVBS2
48
CVBS1
49
VCOM1
50
CVBS0
51
VCOM0
52
AVDD_33_4
53
CVBSOUT
54
GND_3
55
SIF0P
56
SIF0M
57
VDDC_1
58
AUL5
59
AUR5
60
AUVRM
61
AUOUTL2
62
AUOUTR2
63
AUOUTL1
64
AUOUTR1
65
AUL0
66
AUR0
67
AUL1
68
AUR1
69
AUL2
70
AUR2
71
AUL3
72
AUR3
73
AUCOM
74
AUL4
75
AUR4
76
GND_4
77
AUVRP
78
AUVAG
79
AVDD_AU
80
GND_5
81
VDDC_2
82
DDCA_CK
83
DDCA_DA
84
DDCDA_CK
85
DDCDA_DA
86
DDCDB_CK
87
DDCDB_DA
88
GPIO20
89
VDDP_1
90
VDDC_3
91
UART2_RX
92
UART2_TX
93
DDCDC_CK
94
RXCCKN
95
RXCCKP
96
DDCDC_DA
97
RXC0N
98
RXC0P
99
GND_6
100
RXC1N
101
RXC1P
102
AVDD_DM
103
RXC2N
104
RXC2P
105
HOTPLUGC
106
USB1_DM
107
USB1_DP
108
SCK
109
SDI
110
SDO
111
SCZ
112
PWM0
113
PWM1
114
PWM2
115
PWM3
116
LVA4P
117
LVA4M
118
LVA3P
119
LVA3M
120
LVACKP
121
LVACKM
122
LVA2P
123
LVA2M
124
LVA1P
125
LVA1M
126
LVA0P
127
LVA0M
128
VDDP_2
129 LVB4P
130 LVB4M
131 LVB3P
132 LVB3M
133 LVBCKP
134 LVBCKM
135 LVB2P
136 LVB2M
137 LVB1P
138 LVB1M
139 LVB0P
140 LVB0M
141 AVDD_LPLL
142 GND_7
143 VDDC_4
144 GPIO150/I2C_OUT_MUTE
145 GPIO151/I2C_OUT_SD2
146 GPIO152/I2C_OUT_SD3
147 GND_8
148 GPIO51
149 GPIO52
150 GPIO53
151 GPIO54
152 GPIO55
153 GPIO56
154 GPIO57
155 GPIO58
156 VDDP_3
157 VDDC_5
158 B_MDATA[4]
159 B_MDATA[3]
160 GND_9
161 B_MDATA[1]
162 B_MDATA[6]
163 AVDD_DDR_1
164 B_MDATA[11]
165 B_MDATA[12]
166 GND_10
167 B_MDATA[9]
168 B_MDATA[14]
169 AVDD_DDR_2
170 B_DDR2_DQM[1]
171 B_DDR2_DQM[0]
172 GND_11
173 B_DDR2_DQS[0]
174 B_DDR2_DQSB[0]
175 AVDD_DDR_3
176 VDDP_4
177 GND_12
178 B_DDR2_DQS[1]
179 B_DDR2_DQSB[1]
180 AVDD_DDR_4
181 B_MDATA[15]
182 B_MDATA[8]
183 GND_13
184 B_MDATA[10]
185 B_MDATA[13]
186 AVDD_DDR_5
187 B_MDATA[7]
188 B_MDATA[0]
189 B_MDATA[2]
190 B_MDATA[5]
191 B_MCLK
192 B_MCLKZ
193 GND_14 194 AVDD_MEMPLL 195 MVREF 196 A_ODT 197 A_RASZ 198 A_CASZ 199 A_MADR[0] 200 A_MADR[2] 201 A_MADR[4] 202 GND_15 203 A_MADR[6] 204 A_MADR[8] 205 A_MADR[11] 206 A_WEZ 207 A_BADR[1] 208 A_BADR[0] 209 A_MADR[1] 210 A_MADR[10] 211 AVDD_DDR_6 212 A_MADR[5] 213 A_MADR[9] 214 A_MADR[12] 215 A_MADR[7] 216 A_MADR[3] 217 A_MCLKE 218 VDDC_6 219 I2S_IN_WS/GPIO67 220 I2S_IN_BCK/GPIO68 221 I2S_IN_SD 222 I2S_OUT_MCK 223 I2S_OUT_WS 224 VDDP_5 225 GND_16 226 VDDC_7 227 I2S_OUT_BCK 228 I2S_OUT_SD 229 SPDIFO 230 UART2_RX/I2CM_SDA 231 UART2_TX/I2CM_SCK 232 UART1_RX/GPIO86 233 UART1_TX/GPIO87 234 GND_17 235 GND_18 236 USB0_DM 237 USB0_DP 238 SAR0 239 SAR1 240 SAR2 241 SAR3 242 AVDD_MPLL 243 XOUT 244 XIN 245 GPIO134 246 GPIO135 247 GPIO138 248 GPIO139 249 GPIO140 250 IRIN 251 HSYNC0 252 VSYNC0 253 HSYNC1 254 VSYNC1 255 CEC 256 HWRESET
IC403-*1
LGE4766A (Matrix Only MP3_NON SRS)
MATRIX_ONLY MP3
1
RXBCKN
2
RXBCKP
3
RXB0N
4
RXB0P
5
HOTPLUGB
6
RXB1N
7
RXB1P
8
AVDD_33_1
9
RXB2N
10
RXB2P
11
RXACKN
12
RXACKP
13
RXA0N
14
RXA0P
15
AVDD_33_2
16
RXA1N
17
RXA1P
18
GND_1
19
RXA2N
20
RXA2P
21
HOTPLUGA
22
REXT
23
VCLAMP
24
REFP
25
REFM
26
BIN1P
27
SOGIN1
28
GIN1P
29
RIN1P
30
BINM
31
BIN0P
32
GINM
33
GIN0P
34
SOGIN0
35
RINM
36
RIN0P
37
AVDD_33_3
38
GND_2
39
BIN2P
40
GIN2P
41
SOGIN2
42
RIN2P
43
CVBS6
44
CVBS5
45
CVBS4
46
CVBS3
47
CVBS2
48
CVBS1
49
VCOM1
50
CVBS0
51
VCOM0
52
AVDD_33_4
53
CVBSOUT
54
GND_3
55
SIF0P
56
SIF0M
57
VDDC_1
58
AUL5
59
AUR5
60
AUVRM
61
AUOUTL2
62
AUOUTR2
63
AUOUTL1
64
AUOUTR1
65
AUL0
66
AUR0
67
AUL1
68
AUR1
69
AUL2
70
AUR2
71
AUL3
72
AUR3
73
AUCOM
74
AUL4
75
AUR4
76
GND_4
77
AUVRP
78
AUVAG
79
AVDD_AU
80
GND_5
81
VDDC_2
82
DDCA_CK
83
DDCA_DA
84
DDCDA_CK
85
DDCDA_DA
86
DDCDB_CK
87
DDCDB_DA
88
GPIO20
89
VDDP_1
90
VDDC_3
91
UART2_RX
92
UART2_TX
93
DDCDC_CK
94
RXCCKN
95
RXCCKP
96
DDCDC_DA
97
RXC0N
98
RXC0P
99
GND_6
100
RXC1N
101
RXC1P
102
AVDD_DM
103
RXC2N
104
RXC2P
105
HOTPLUGC
106
USB1_DM
107
USB1_DP
108
SCK
109
SDI
110
SDO
111
SCZ
112
PWM0
113
PWM1
114
PWM2
115
PWM3
116
LVA4P
117
LVA4M
118
LVA3P
119
LVA3M
120
LVACKP
121
LVACKM
122
LVA2P
123
LVA2M
124
LVA1P
125
LVA1M
126
LVA0P
127
LVA0M
128
VDDP_2
129 LVB4P
130 LVB4M
131 LVB3P
132 LVB3M
133 LVBCKP
134 LVBCKM
135 LVB2P
136 LVB2M
137 LVB1P
138 LVB1M
139 LVB0P
140 LVB0M
141 AVDD_LPLL
142 GND_7
143 VDDC_4
144 GPIO150/I2C_OUT_MUTE
145 GPIO151/I2C_OUT_SD2
146 GPIO152/I2C_OUT_SD3
147 GND_8
148 GPIO51
149 GPIO52
150 GPIO53
151 GPIO54
152 GPIO55
153 GPIO56
154 GPIO57
155 GPIO58
156 VDDP_3
157 VDDC_5
158 B_MDATA[4]
159 B_MDATA[3]
160 GND_9
161 B_MDATA[1]
162 B_MDATA[6]
163 AVDD_DDR_1
164 B_MDATA[11]
165 B_MDATA[12]
166 GND_10
167 B_MDATA[9]
168 B_MDATA[14]
169 AVDD_DDR_2
170 B_DDR2_DQM[1]
171 B_DDR2_DQM[0]
172 GND_11
173 B_DDR2_DQS[0]
174 B_DDR2_DQSB[0]
175 AVDD_DDR_3
176 VDDP_4
177 GND_12
178 B_DDR2_DQS[1]
179 B_DDR2_DQSB[1]
180 AVDD_DDR_4
181 B_MDATA[15]
182 B_MDATA[8]
183 GND_13
184 B_MDATA[10]
185 B_MDATA[13]
186 AVDD_DDR_5
187 B_MDATA[7]
188 B_MDATA[0]
189 B_MDATA[2]
190 B_MDATA[5]
191 B_MCLK
192 B_MCLKZ
193 GND_14 194 AVDD_MEMPLL 195 MVREF 196 A_ODT 197 A_RASZ 198 A_CASZ 199 A_MADR[0] 200 A_MADR[2] 201 A_MADR[4] 202 GND_15 203 A_MADR[6] 204 A_MADR[8] 205 A_MADR[11] 206 A_WEZ 207 A_BADR[1] 208 A_BADR[0] 209 A_MADR[1] 210 A_MADR[10] 211 AVDD_DDR_6 212 A_MADR[5] 213 A_MADR[9] 214 A_MADR[12] 215 A_MADR[7] 216 A_MADR[3] 217 A_MCLKE 218 VDDC_6 219 I2S_IN_WS/GPIO67 220 I2S_IN_BCK/GPIO68 221 I2S_IN_SD 222 I2S_OUT_MCK 223 I2S_OUT_WS 224 VDDP_5 225 GND_16 226 VDDC_7 227 I2S_OUT_BCK 228 I2S_OUT_SD 229 SPDIFO 230 UART2_RX/I2CM_SDA 231 UART2_TX/I2CM_SCK 232 UART1_RX/GPIO86 233 UART1_TX/GPIO87 234 GND_17 235 GND_18 236 USB0_DM 237 USB0_DP 238 SAR0 239 SAR1 240 SAR2 241 SAR3 242 AVDD_MPLL 243 XOUT 244 XIN 245 GPIO134 246 GPIO135 247 GPIO138 248 GPIO139 249 GPIO140 250 IRIN 251 HSYNC0 252 VSYNC0 253 HSYNC1 254 VSYNC1 255 CEC 256 HWRESET
IC403-*2
LGE4765A (Matrix basic_NON_SRS)
MATRIX BASIC
1
RXBCKN
2
RXBCKP
3
RXB0N
4
RXB0P
5
HOTPLUGB
6
RXB1N
7
RXB1P
8
AVDD_33_1
9
RXB2N
10
RXB2P
11
RXACKN
12
RXACKP
13
RXA0N
14
RXA0P
15
AVDD_33_2
16
RXA1N
17
RXA1P
18
GND_1
19
RXA2N
20
RXA2P
21
HOTPLUGA
22
REXT
23
VCLAMP
24
REFP
25
REFM
26
BIN1P
27
SOGIN1
28
GIN1P
29
RIN1P
30
BINM
31
BIN0P
32
GINM
33
GIN0P
34
SOGIN0
35
RINM
36
RIN0P
37
AVDD_33_3
38
GND_2
39
BIN2P
40
GIN2P
41
SOGIN2
42
RIN2P
43
CVBS6
44
CVBS5
45
CVBS4
46
CVBS3
47
CVBS2
48
CVBS1
49
VCOM1
50
CVBS0
51
VCOM0
52
AVDD_33_4
53
CVBSOUT
54
GND_3
55
SIF0P
56
SIF0M
57
VDDC_1
58
AUL5
59
AUR5
60
AUVRM
61
AUOUTL2
62
AUOUTR2
63
AUOUTL1
64
AUOUTR1
65
AUL0
66
AUR0
67
AUL1
68
AUR1
69
AUL2
70
AUR2
71
AUL3
72
AUR3
73
AUCOM
74
AUL4
75
AUR4
76
GND_4
77
AUVRP
78
AUVAG
79
AVDD_AU
80
GND_5
81
VDDC_2
82
DDCA_CK
83
DDCA_DA
84
DDCDA_CK
85
DDCDA_DA
86
DDCDB_CK
87
DDCDB_DA
88
GPIO20
89
VDDP_1
90
VDDC_3
91
UART2_RX
92
UART2_TX
93
DDCDC_CK
94
RXCCKN
95
RXCCKP
96
DDCDC_DA
97
RXC0N
98
RXC0P
99
GND_6
100
RXC1N
101
RXC1P
102
AVDD_DM
103
RXC2N
104
RXC2P
105
HOTPLUGC
106
USB1_DM
107
USB1_DP
108
SCK
109
SDI
110
SDO
111
SCZ
112
PWM0
113
PWM1
114
PWM2
115
PWM3
116
LVA4P
117
LVA4M
118
LVA3P
119
LVA3M
120
LVACKP
121
LVACKM
122
LVA2P
123
LVA2M
124
LVA1P
125
LVA1M
126
LVA0P
127
LVA0M
128
VDDP_2
129 LVB4P
130 LVB4M
131 LVB3P
132 LVB3M
133 LVBCKP
134 LVBCKM
135 LVB2P
136 LVB2M
137 LVB1P
138 LVB1M
139 LVB0P
140 LVB0M
141 AVDD_LPLL
142 GND_7
143 VDDC_4
144 GPIO150/I2C_OUT_MUTE
145 GPIO151/I2C_OUT_SD2
146 GPIO152/I2C_OUT_SD3
147 GND_8
148 GPIO51
149 GPIO52
150 GPIO53
151 GPIO54
152 GPIO55
153 GPIO56
154 GPIO57
155 GPIO58
156 VDDP_3
157 VDDC_5
158 B_MDATA[4]
159 B_MDATA[3]
160 GND_9
161 B_MDATA[1]
162 B_MDATA[6]
163 AVDD_DDR_1
164 B_MDATA[11]
165 B_MDATA[12]
166 GND_10
167 B_MDATA[9]
168 B_MDATA[14]
169 AVDD_DDR_2
170 B_DDR2_DQM[1]
171 B_DDR2_DQM[0]
172 GND_11
173 B_DDR2_DQS[0]
174 B_DDR2_DQSB[0]
175 AVDD_DDR_3
176 VDDP_4
177 GND_12
178 B_DDR2_DQS[1]
179 B_DDR2_DQSB[1]
180 AVDD_DDR_4
181 B_MDATA[15]
182 B_MDATA[8]
183 GND_13
184 B_MDATA[10]
185 B_MDATA[13]
186 AVDD_DDR_5
187 B_MDATA[7]
188 B_MDATA[0]
189 B_MDATA[2]
190 B_MDATA[5]
191 B_MCLK
192 B_MCLKZ
193 GND_14 194 AVDD_MEMPLL 195 MVREF 196 A_ODT 197 A_RASZ 198 A_CASZ 199 A_MADR[0] 200 A_MADR[2] 201 A_MADR[4] 202 GND_15 203 A_MADR[6] 204 A_MADR[8] 205 A_MADR[11] 206 A_WEZ 207 A_BADR[1] 208 A_BADR[0] 209 A_MADR[1] 210 A_MADR[10] 211 AVDD_DDR_6 212 A_MADR[5] 213 A_MADR[9] 214 A_MADR[12] 215 A_MADR[7] 216 A_MADR[3] 217 A_MCLKE 218 VDDC_6 219 I2S_IN_WS/GPIO67 220 I2S_IN_BCK/GPIO68 221 I2S_IN_SD 222 I2S_OUT_MCK 223 I2S_OUT_WS 224 VDDP_5 225 GND_16 226 VDDC_7 227 I2S_OUT_BCK 228 I2S_OUT_SD 229 SPDIFO 230 UART2_RX/I2CM_SDA 231 UART2_TX/I2CM_SCK 232 UART1_RX/GPIO86 233 UART1_TX/GPIO87 234 GND_17 235 GND_18 236 USB0_DM 237 USB0_DP 238 SAR0 239 SAR1 240 SAR2 241 SAR3 242 AVDD_MPLL 243 XOUT 244 XIN 245 GPIO134 246 GPIO135 247 GPIO138 248 GPIO139 249 GPIO140 250 IRIN 251 HSYNC0 252 VSYNC0 253 HSYNC1 254 VSYNC1 255 CEC 256 HWRESET
IC403-*3
LGE4768A (Matrix Only SD Divx_RM_NON SRS)
MATRIX_SD DIVX_RM
1
RXBCKN
2
RXBCKP
3
RXB0N
4
RXB0P
5
HOTPLUGB
6
RXB1N
7
RXB1P
8
AVDD_33_1
9
RXB2N
10
RXB2P
11
RXACKN
12
RXACKP
13
RXA0N
14
RXA0P
15
AVDD_33_2
16
RXA1N
17
RXA1P
18
GND_1
19
RXA2N
20
RXA2P
21
HOTPLUGA
22
REXT
23
VCLAMP
24
REFP
25
REFM
26
BIN1P
27
SOGIN1
28
GIN1P
29
RIN1P
30
BINM
31
BIN0P
32
GINM
33
GIN0P
34
SOGIN0
35
RINM
36
RIN0P
37
AVDD_33_3
38
GND_2
39
BIN2P
40
GIN2P
41
SOGIN2
42
RIN2P
43
CVBS6
44
CVBS5
45
CVBS4
46
CVBS3
47
CVBS2
48
CVBS1
49
VCOM1
50
CVBS0
51
VCOM0
52
AVDD_33_4
53
CVBSOUT
54
GND_3
55
SIF0P
56
SIF0M
57
VDDC_1
58
AUL5
59
AUR5
60
AUVRM
61
AUOUTL2
62
AUOUTR2
63
AUOUTL1
64
AUOUTR1
65
AUL0
66
AUR0
67
AUL1
68
AUR1
69
AUL2
70
AUR2
71
AUL3
72
AUR3
73
AUCOM
74
AUL4
75
AUR4
76
GND_4
77
AUVRP
78
AUVAG
79
AVDD_AU
80
GND_5
81
VDDC_2
82
DDCA_CK
83
DDCA_DA
84
DDCDA_CK
85
DDCDA_DA
86
DDCDB_CK
87
DDCDB_DA
88
GPIO20
89
VDDP_1
90
VDDC_3
91
UART2_RX
92
UART2_TX
93
DDCDC_CK
94
RXCCKN
95
RXCCKP
96
DDCDC_DA
97
RXC0N
98
RXC0P
99
GND_6
100
RXC1N
101
RXC1P
102
AVDD_DM
103
RXC2N
104
RXC2P
105
HOTPLUGC
106
USB1_DM
107
USB1_DP
108
SCK
109
SDI
110
SDO
111
SCZ
112
PWM0
113
PWM1
114
PWM2
115
PWM3
116
LVA4P
117
LVA4M
118
LVA3P
119
LVA3M
120
LVACKP
121
LVACKM
122
LVA2P
123
LVA2M
124
LVA1P
125
LVA1M
126
LVA0P
127
LVA0M
128
VDDP_2
129 LVB4P
130 LVB4M
131 LVB3P
132 LVB3M
133 LVBCKP
134 LVBCKM
135 LVB2P
136 LVB2M
137 LVB1P
138 LVB1M
139 LVB0P
140 LVB0M
141 AVDD_LPLL
142 GND_7
143 VDDC_4
144 GPIO150/I2C_OUT_MUTE
145 GPIO151/I2C_OUT_SD2
146 GPIO152/I2C_OUT_SD3
147 GND_8
148 GPIO51
149 GPIO52
150 GPIO53
151 GPIO54
152 GPIO55
153 GPIO56
154 GPIO57
155 GPIO58
156 VDDP_3
157 VDDC_5
158 B_MDATA[4]
159 B_MDATA[3]
160 GND_9
161 B_MDATA[1]
162 B_MDATA[6]
163 AVDD_DDR_1
164 B_MDATA[11]
165 B_MDATA[12]
166 GND_10
167 B_MDATA[9]
168 B_MDATA[14]
169 AVDD_DDR_2
170 B_DDR2_DQM[1]
171 B_DDR2_DQM[0]
172 GND_11
173 B_DDR2_DQS[0]
174 B_DDR2_DQSB[0]
175 AVDD_DDR_3
176 VDDP_4
177 GND_12
178 B_DDR2_DQS[1]
179 B_DDR2_DQSB[1]
180 AVDD_DDR_4
181 B_MDATA[15]
182 B_MDATA[8]
183 GND_13
184 B_MDATA[10]
185 B_MDATA[13]
186 AVDD_DDR_5
187 B_MDATA[7]
188 B_MDATA[0]
189 B_MDATA[2]
190 B_MDATA[5]
191 B_MCLK
192 B_MCLKZ
193 GND_14 194 AVDD_MEMPLL 195 MVREF 196 A_ODT 197 A_RASZ 198 A_CASZ 199 A_MADR[0] 200 A_MADR[2] 201 A_MADR[4] 202 GND_15 203 A_MADR[6] 204 A_MADR[8] 205 A_MADR[11] 206 A_WEZ 207 A_BADR[1] 208 A_BADR[0] 209 A_MADR[1] 210 A_MADR[10] 211 AVDD_DDR_6 212 A_MADR[5] 213 A_MADR[9] 214 A_MADR[12] 215 A_MADR[7] 216 A_MADR[3] 217 A_MCLKE 218 VDDC_6 219 I2S_IN_WS/GPIO67 220 I2S_IN_BCK/GPIO68 221 I2S_IN_SD 222 I2S_OUT_MCK 223 I2S_OUT_WS 224 VDDP_5 225 GND_16 226 VDDC_7 227 I2S_OUT_BCK 228 I2S_OUT_SD 229 SPDIFO 230 UART2_RX/I2CM_SDA 231 UART2_TX/I2CM_SCK 232 UART1_RX/GPIO86 233 UART1_TX/GPIO87 234 GND_17 235 GND_18 236 USB0_DM 237 USB0_DP 238 SAR0 239 SAR1 240 SAR2 241 SAR3 242 AVDD_MPLL 243 XOUT 244 XIN 245 GPIO134 246 GPIO135 247 GPIO138 248 GPIO139 249 GPIO140 250 IRIN 251 HSYNC0 252 VSYNC0 253 HSYNC1 254 VSYNC1 255 CEC 256 HWRESET
BUZZ_PWM
SC1_B
R479 0
EU
SC1_G
R480 0
EU
SC1_R
R481 0
EU
R451
22
1/10W
5%
R454
22
1/10W
5%
C403
4.7uF
10V
C401
0.1uF
SYS_RESET
R410
22
C405
0.1uF
16V
R405
33K
+3.3V_MPLL
D401
KDS181
5V
SCART_AUDIO IN
3.3V
Close to IC
with width trace
HDMI_2
scart RGB INPUT
I2S_OUT
3.3V
MOVING LED
HDMI_3
SCART H\V SYNC
PCM 5V
USB PART T2
[MODE SELECTION]
3.3V
Close to IC as close as
possible with width trace
3.3V
S-VIDEO
Close to IC as close as possible
HDMI_1
Close to IC as close as possible
SCART_CVBS
FLASH
3.3V
5V
5V
3.3V
5V
5V5V
SUB MICOM
SCART_AUDIO out
Main Flash Memory
Main EEPROM
HDCP EEPROM
4 4Main
ROM D/L
RX,TX
FHD LVDS
HD LVDS
GAIN X 4
Vout Amp
EAX61365502(BPR)
H6 Revolution Circuit Diagram
H6 R 2009/11/05
MStar Reset
Copyright © 2010 LG Electronics Inc. All rights reserved.
Only for training and service purposes
LGE Internal Use Only
