LG PN65 Series User manual

OWNER’S MANUAL
PLASMA TV
Please read this manual carefully before operating
your set and retain it for future reference.
P/NO : MFL67710008 (1304-REV04)
Printed in Korea
www.lg.com
PN45**
PN65**

A-2 TABLE OF CONTENTS
TABLE OF CONTENTS
A-3 SETTING UP THE TV
A-3 Attaching the stand
A-4 Tidying cables
A-5 MAKING CONNETIONS
A-5 Antenna Connection

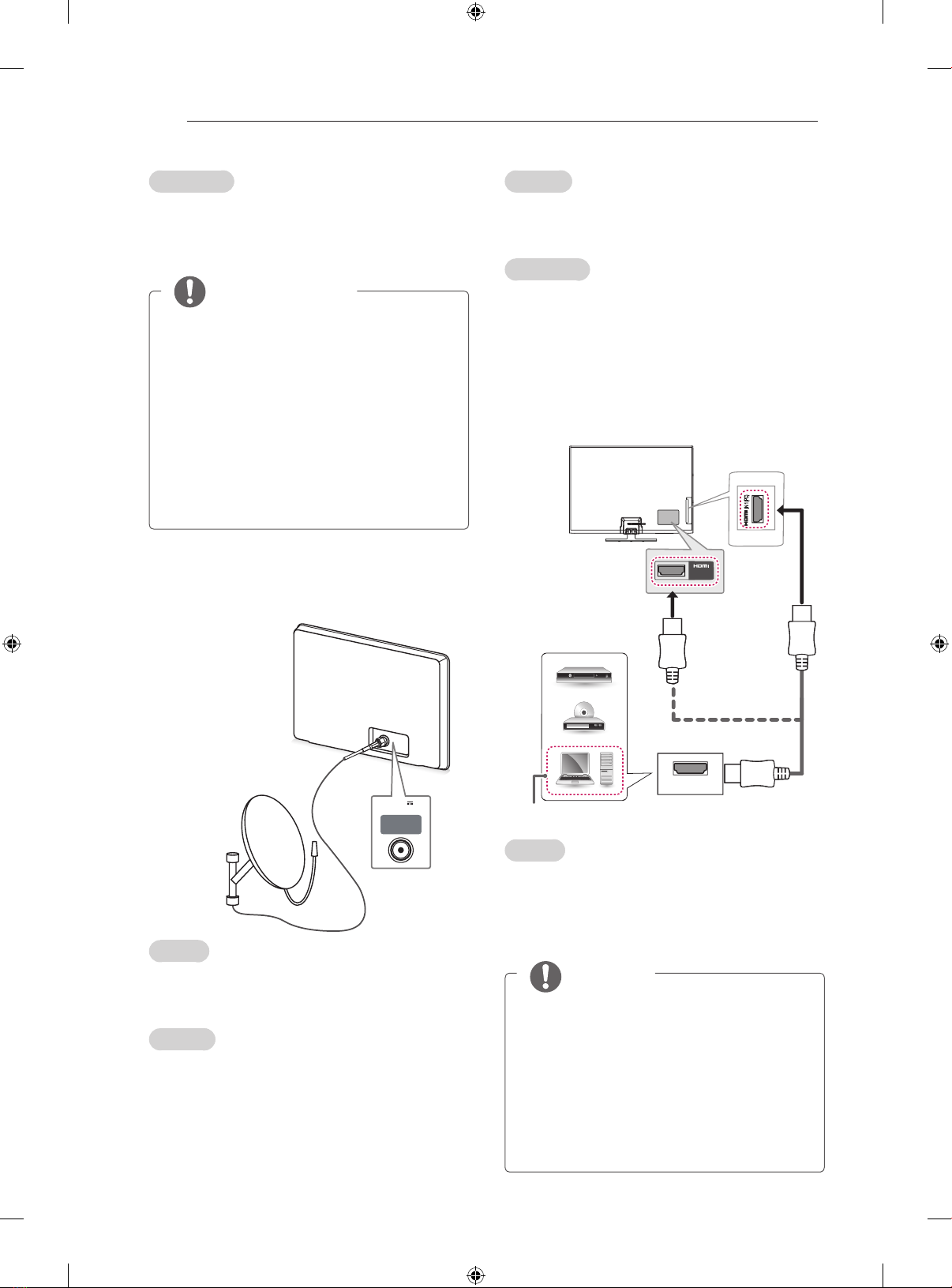

A-6 Satellite dish Connection
A-6 HDMI Connection
A-8 DVI to HDMI Connection

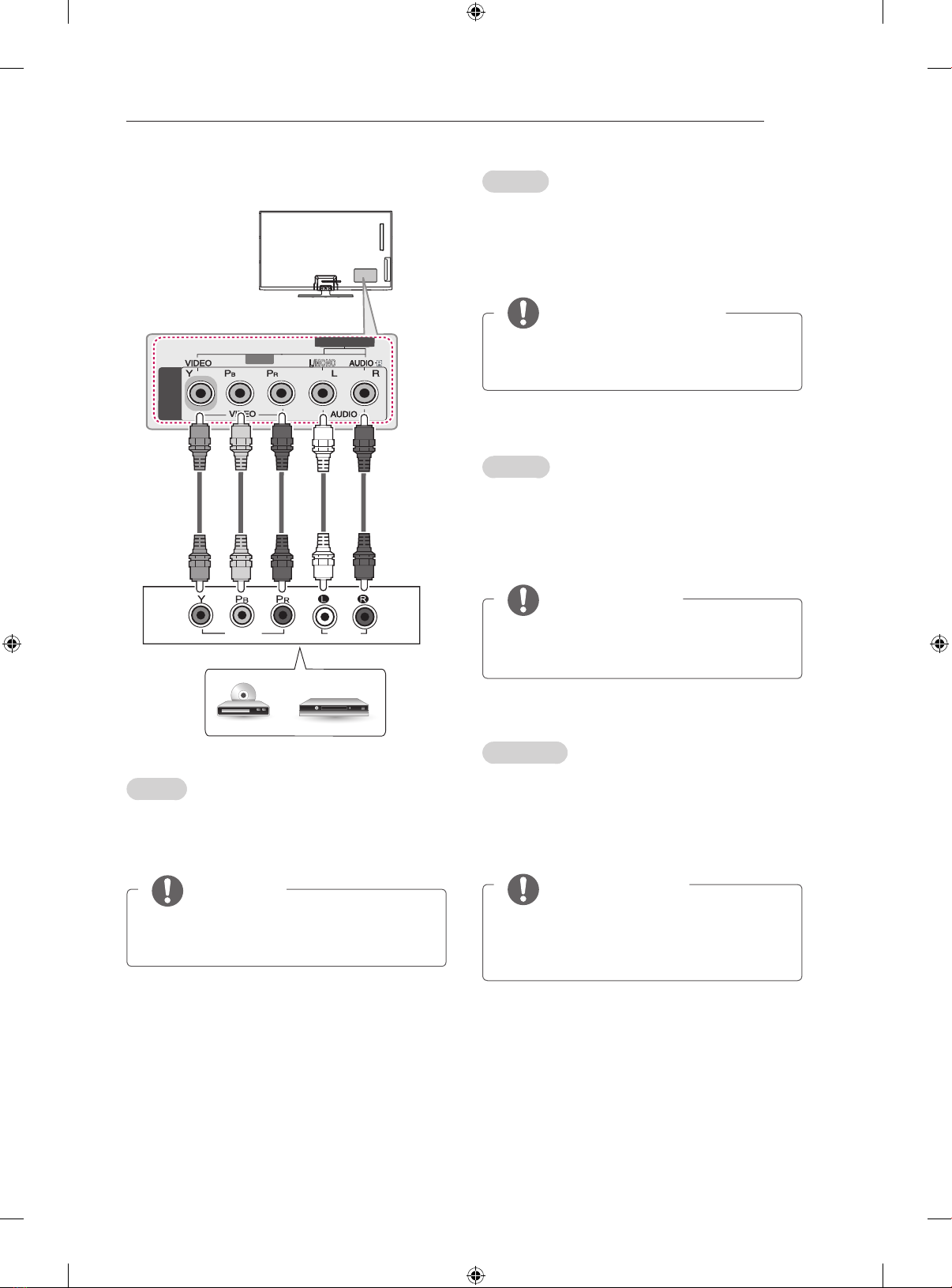

A-9 Component Connection

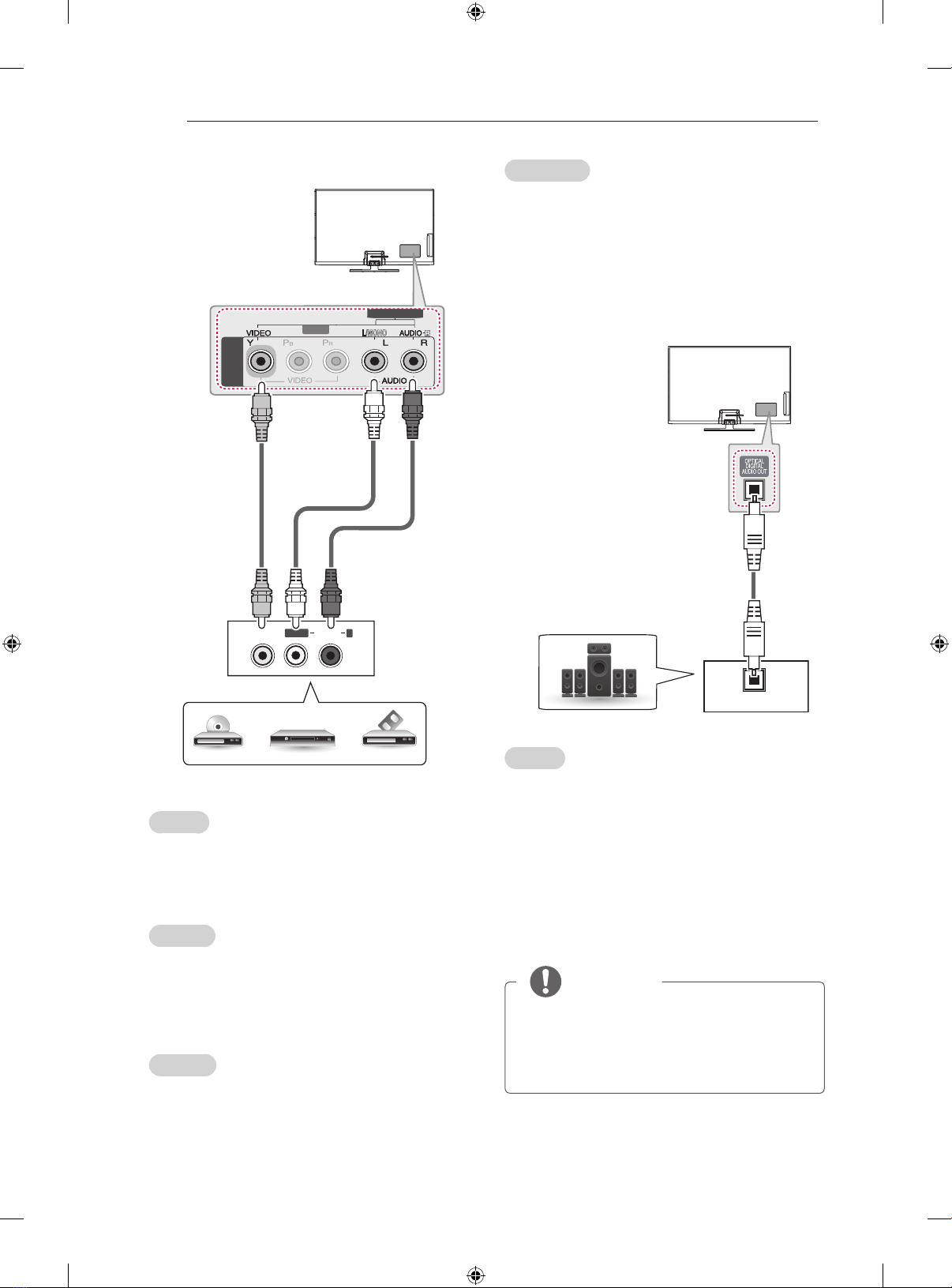

A-10 Composite Connection
A-10 Audio Connection
A-10 - Digital optical audio connection

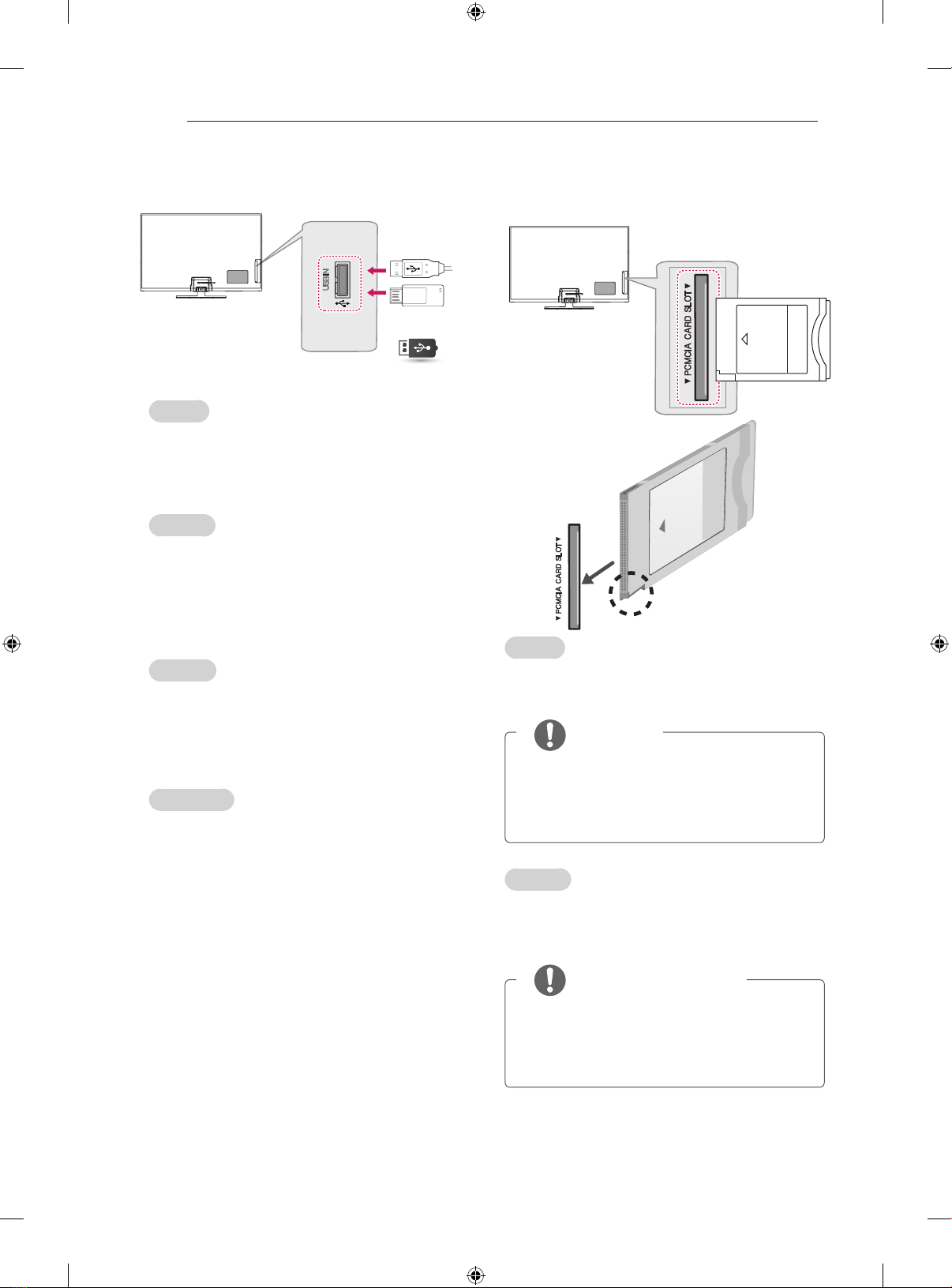

A-12 USB Connection
A-12 CI module Connection

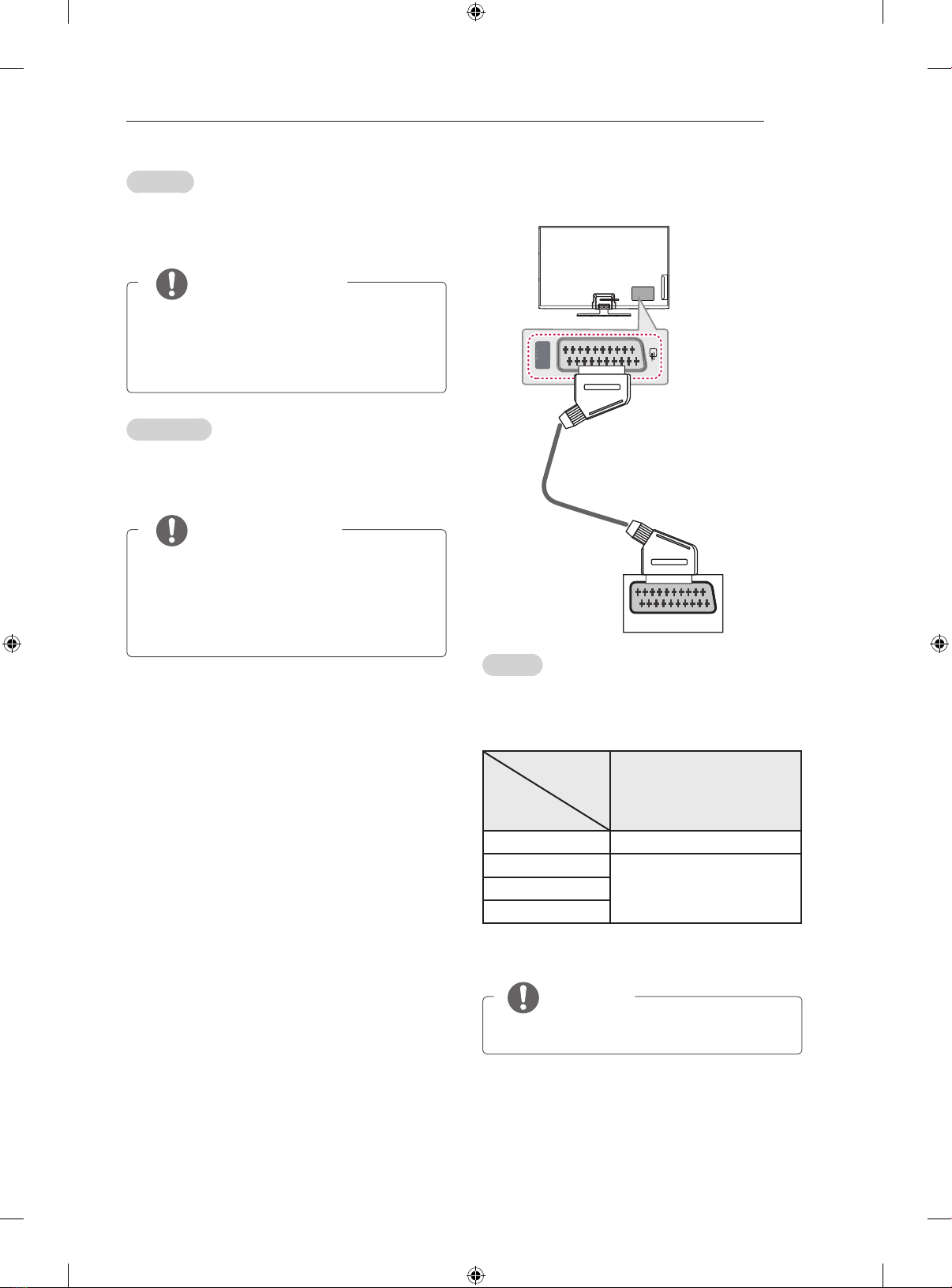

A-13 Euro Scart Connection
LANGUAGE LIST
English
Русский
Қазақша
Українська
LANGUAGE
COMMON
B-1 SPECIFICATIONS
COMMON

A-3
SETTING UP THE TV
SETTING UP THE TV
Image shown may differ from your TV.
Attaching the stand
1
Front
Stand Base
Stand Body
Only 50PN45**,
50/60PN65**
3 EA
M5 x 16
Only 42PN45**
3 EA
M4 x 14
2
3
Only 50PN45**,
50/60PN65**
4 EA
M5 x 16
Only 42PN45**
4 EA
M4 x 14
To detach the stand
(Only 50PN45**, 50PN65**)
M5 x 16
4 EA
1

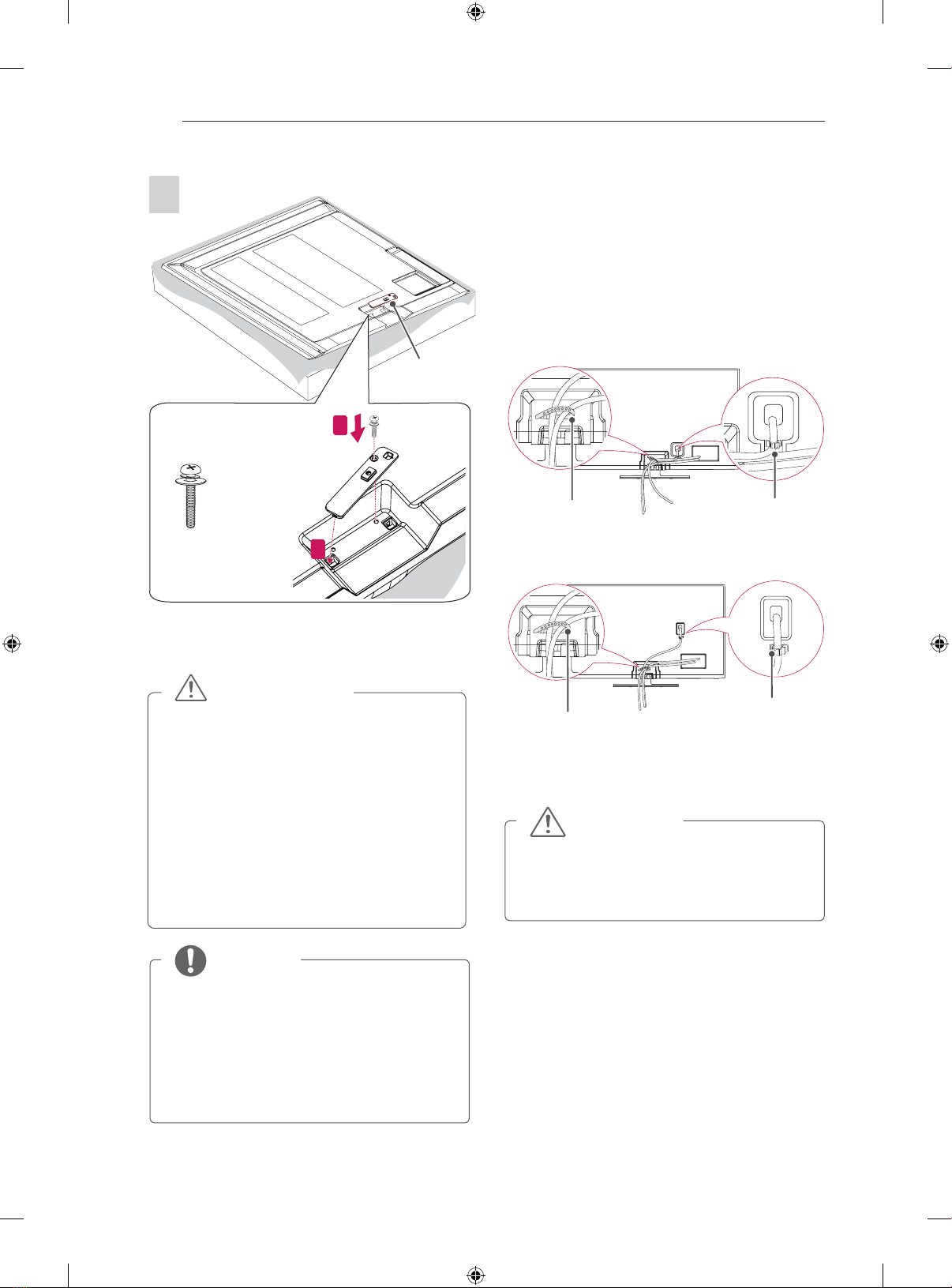

A-4 SETTING UP THE TV
1
2
1
2
2
Protection
cover
M5 x 16
1 EA
CAUTION
yWhen attaching the stand to the TV
set, place the screen facing down on a
cushioned table or flat surface to protect the
screen from scratches.
yMake sure that the screws are inserted
correctly and fastened securely. If they are
not fastened securely enough, the TV may
tilt forward after being installed. Do not use
too much force and over tighten the screws;
otherwise screw may be damaged and not
tighten correctly.
NOTE
yWhen installing the wall mounting bracket,
use the Protection Cover.
yThis will protect the opening from
accumulating dust and dirt.
yRemove the stand before installing the TV
on a wall mount by performing the stand
attachment in reverse.
Tidying cables
1 Install the Power Cord Holder and Power Cord.
It will help prevent the power cable from being
removed by accident.
2 Gather and bind the cables with the Cable
Holder.
(Only 42PN45**)
Power cord holder
(Depending on model)
Cable holder
(Only 50PN45**, 50/60PN65**)
Power cord holder
(Depending on model)
Cable holder
CAUTION
yDo not move the TV by holding the cable
holder and power cable holder, as the cable
holders may break, and injuries and damage
to the TV may occur.

A-5
MAKING CONNECTIONS
MAKING
CONNECTIONS
This section on MAKING CONNECTIONS mainly
uses diagrams for the PN45** models.

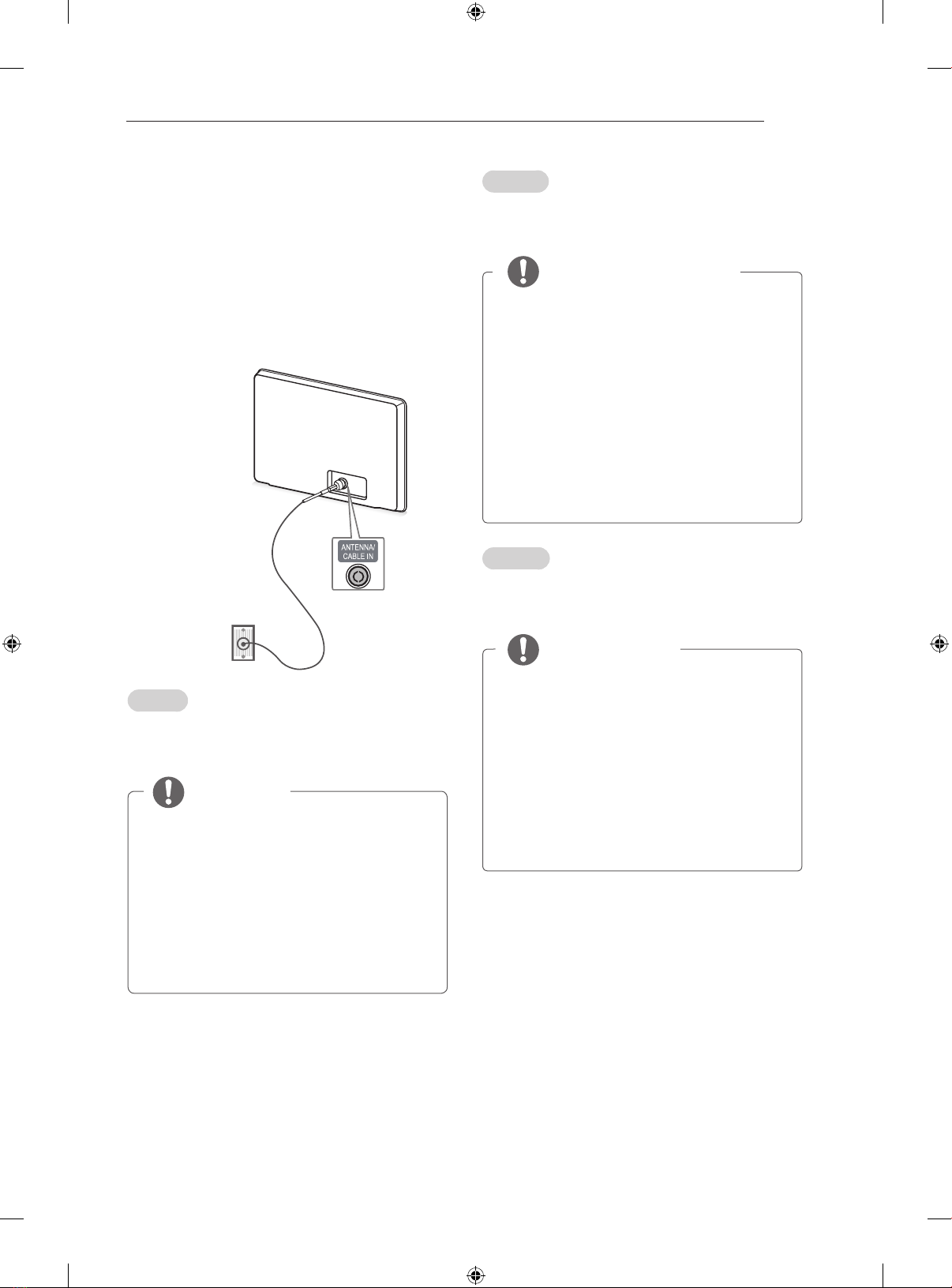

Antenna Connection
Wall Antenna
Socket
English
Connect the TV to a wall antenna socket with an
RF cable (75 Ω).
NOTE
yUse a signal splitter to use more than 2 TVs.
yIf the image quality is poor, install a signal
amplifier properly to improve the image
quality.
yIf the image quality is poor with an antenna
connected, try to realign the antenna in the
correct direction.
yAn antenna cable and converter are not
supplied.
ySupported DTV Audio: MPEG, Dolby Digital,
Dolby Digital Plus, HE-AAC
Русский
Подключите телевизор к настенной антенной
розетке с помощью телевизионного кабеля (75 Ω).
ПРИМЕЧАНИЕ
yДля подключения нескольких телевизоров
используйте антенный разветвитель.
yПри плохом качестве изображения
правильно установите усилитель сигнала,
чтобы обеспечить изображение более
высокого качества.
yЕсли после подключения антенны
качество изображение плохое, направьте
антенну в правильном направлении.
yАнтенный кабель и преобразователь в
комплект поставки не входят.
yПоддерживаемый формат DTV Audio:
MPEG, Dolby Digital, Dolby Digital Plus,
HE-AAC
Қазақша
RF кабелі (75 Ω) арқылы теледидарды
қабырғадағы антенна ұясына жалғаңыз.
ЕСКЕРТПЕ
y2-ден көп ТД пайдалану үшін сигнал
сплиттерін пайдаланыңыз.
yЕгер бейне сапасы нашар болса,
бейне сапасын жақсарту үшін сигнал
күшейткішін тиісті түрде орнатыңыз.
yЕгер антенна қосылған күйде бейне
сапасы нашар болса, антеннаның
бағытын түзетіңіз.
yАнтенна кабелі және конвертер
қамтамасыз етілмеген.
yҚолдау көрсетілетін DTV аудио: MPEG,
Dolby Digital, Dolby Digital Plus, HE-AAC
