LG RU-42PX10C - - 42" Plasma TV User manual

PLASMATV
MODELS: RU-42PX10/10C/10H/11/11C/11H
RU-50PX10/10C/10H/11/110/11 H
read this manual carefully and completely before
for future reference.
_er and serial number of the TV in the
the back cover and relate this
require service,

Waming/Caution
• iiLJ_......... iarning/Caut on
WARNING/CAUTION
WARNING/CAUTION:
TO REDUCE THE RISK OF ELECTRIC SHOCK DO NOT REMOVE COVER (OR BACK). NO USER
SERVICEABLE PARTS INSIDE. REFER TO QUALIFIED SERVICE PERSONNEL.
The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to
the presence of uninsulated "dangerous voltage" within the product's enclosure that may be of suffi-
cient magnitude to constitute a risk of electric shock to persons.
The exclamation point within an equilateral triangle is intended to alert the user to the presence of
important operating and maintenance (servicing) instructions in the literature accompanying the appli-
ance.
WARNING/CAUTION:
TO PREVENT FIRE OR SHOCK HAZARDS, DO NOT EXPOSE THIS PRODUCT TO RAIN OR MOISTURE.
Foe NOTICE
AClass B digital device
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part
15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in
a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one or more of the following measures:
-Reorient or relocate the receiving antenna.
-Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
-Consult the dealer or an experienced radio/TV technician for help.
•Any changes or modifications not expressly approved by the party responsible for compli=
ance could void the user's authority to operate the equipment.
CAUTION:
Do not attempt to modify this product in any way without written authorization from LG Electronics. Unauthorized mod-
ificationcould void the user's authority to operate this product.
COMPLIANCE:
The responsible party for this product's compliance is:
LG Electronics U.S.A., Inc
1000 Sylvan Avenue, Englewood Cliffs, NJ 07632
1-800-243-0000
http://www.lgusa.com
WARNING/CAUTION
TO REDUCE THE RISK OF FIRE AND ELECTRIC SHOCK, DO NOT EXPOSE THIS PRODUCT TO
RAIN OR MOISTURE.
2 Plasma TV

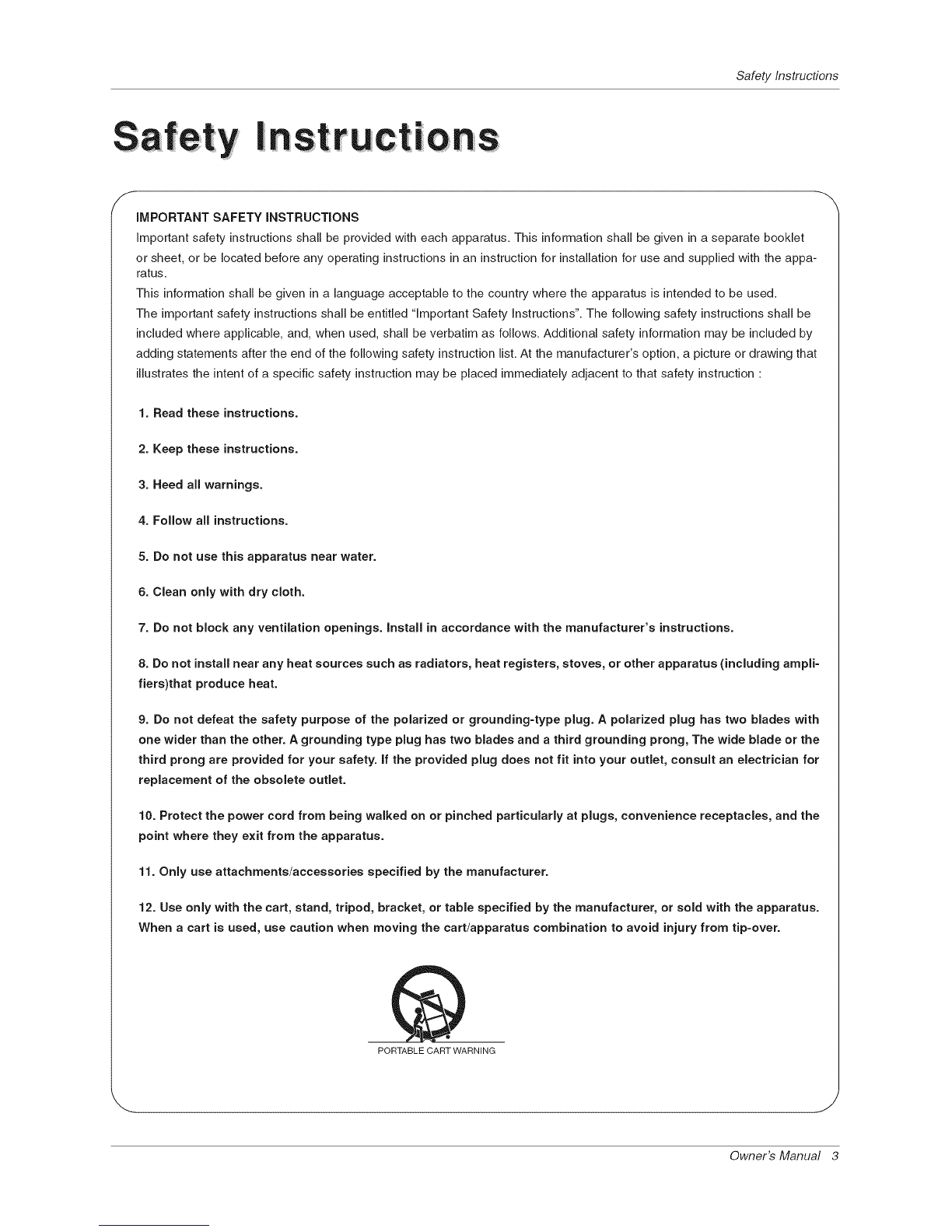

SafetyInstructions
!nstruc|i, ons
f
IMPORTANT SAFETY INSTRUCTIONS
important safety instructions shall be provided with each apparatus. This information shall be given in a separate booklet
or sheet, or be located before any operating instructions in an instruction for installation for use and supplied with the appa-
ratus.
This information shall be given in a language acceptable to the country where the apparatus is intended to be used.
The important safety instructions shall be entitled "important Safety instructions". The following safety instructions shall be
included where applicable, and, when used, shall be verbatim as follows. Additional safety information may be included by
adding statements after the end of the following safety instruction list. At the manufacturer's option, a picture or drawing that
illustrates the intent of a specific safety instruction may be placed immediately adjacent to that safety instruction :
1. Head these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with dry cloth.
7. Do not block any ventilation openings. Install in accordance with the manufacturer's instructions.
8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including ampii-
tiers)that produce heat.
9. Do not defeat the safety purpose of the polarized or grounding-type plug. Apolarized plug has two blades with
one wider than the other. Agrounding type plug has two blades and a third grounding prong, The wide blade or the
third prong are provided for your safety, if the provided plug does not fit into your outlet, consult an electrician for
replacement of the obsolete outlet.
10. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the
point where they exit from the apparatus.
11. Only use attachments/accessories specified by the manufacturer.
12. Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus.
When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.
Q
PORTABLE CART WARNING
Owner's Manual 3

SafetyInstructions

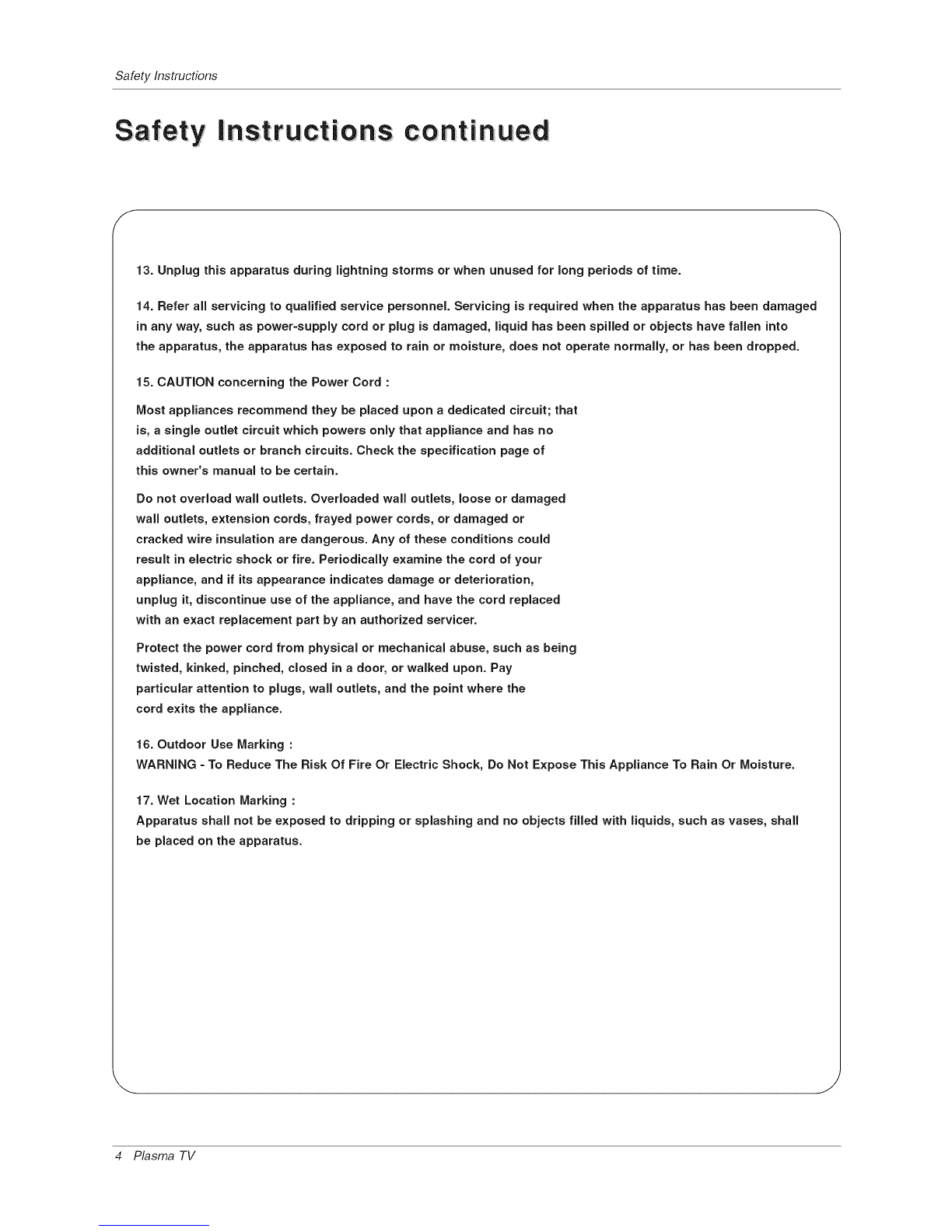

Instructions contin ued
13. Unplug this apparatus during lightning storms or when unused for long periods of time.
14. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged
in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into
the apparatus, the apparatus has exposed to rain or moisture, does not operate normally, or has been dropped.
15. CAUTION concerning the Power Cord :
Most appliances recommend they be placed upon a dedicated circuit; that
is, a single outlet circuit which powers only that appliance and has no
additional outlets or branch circuits. Check the specification page of
this owner's manual to be certain.
Do not overload wall outlets. Overloaded wall outlets, loose or damaged
wall outlets, extension cords, frayed power cords, or damaged or
cracked wire insulation are dangerous. Any of these conditions could
result in electric shock or fire. Periodically examine the cord of your
appliance, and if its appearance indicates damage or deterioration,
unplug it, discontinue use of the appliance, and have the cord replaced
with an exact replacement part by an authorized servicer.
Protect the power cord from physical or mechanical abuse, such as being
twisted, kinked, pinched, closed in a door, or walked upon. Pay
particular attention to plugs, wall outlets, and the point where the
cord exits the appliance.
16. Outdoor Use Marking :
WARNING -To Reduce The Risk Of Fire Or Electric Shock, Do Not Expose This Appliance To Rain Or Moisture.
17. Wet Location Marking :
Apparatus shall not be exposed to dripping or splashing and no objects filled with liquids, such as vases, shall
be placed on the apparatus.
.... j
4 Plasma TV

Introduction

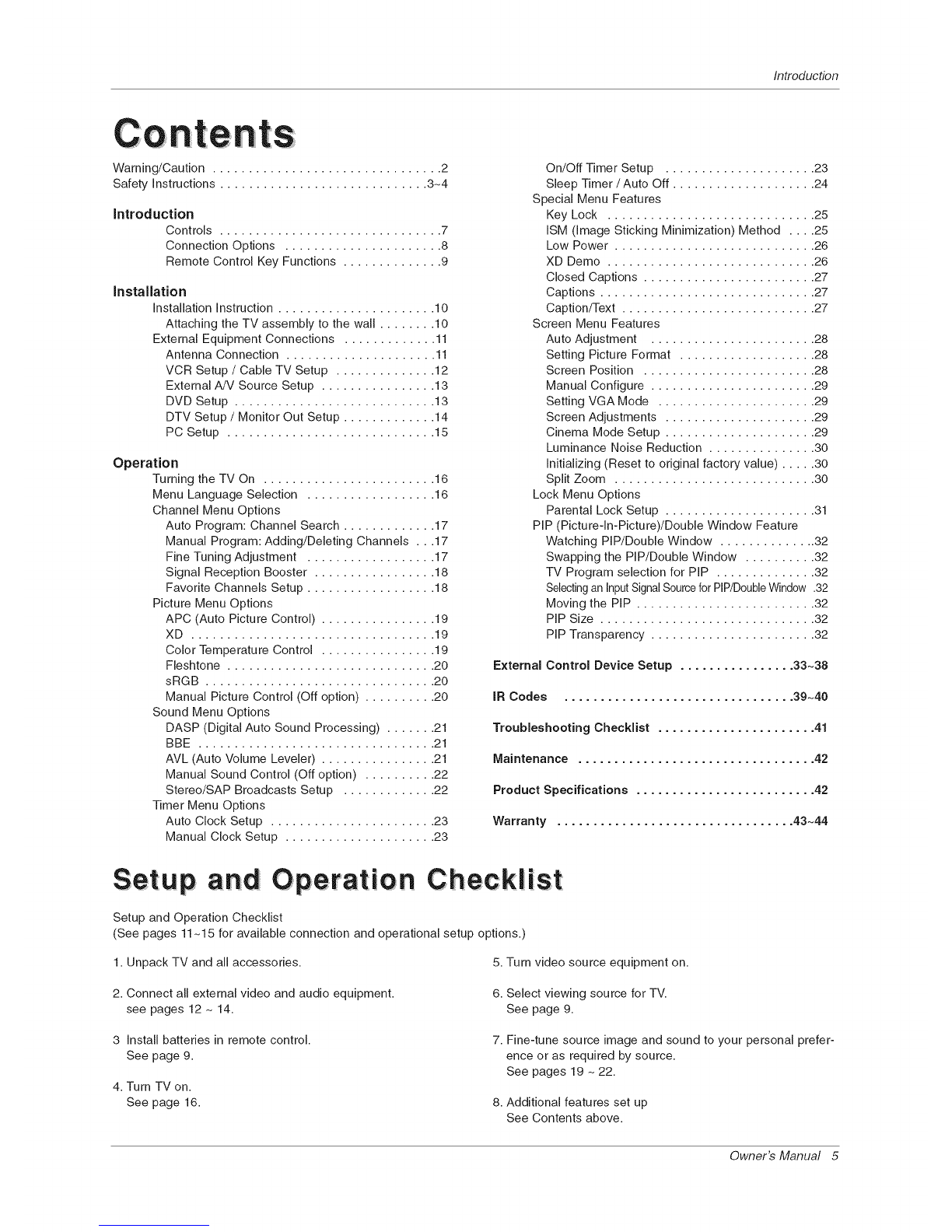

Contents
Warning/Caution ................................ 2
Safety instructions ............................. 3-4
introduction
Controls ............................... 7
Connection Options ...................... 8
Remote Control Key Functions .............. 9
installation
installation instruction ...................... 10
Attaching the TV assembly to the wall ........ 10
External Equipment Connections ............. 11
Antenna Connection ..................... 11
VCR Setup /Cable TV Setup .............. 12
External AJV Source Setup ................ 13
DVD Setup ............................ 13
DTV Setup /Monitor Out Setup ............. 14
PC Setup ............................. 15
Operation
Turning the TV On ........................ 16
Menu Language Selection .................. 16
Channel Menu Options
Auto Program: Channel Search ............. 17
Manual Program: Adding/Deleting Channels . . .17
Fine Tuning Adjustment .................. 17
Signal Reception Booster ................. 18
Favorite Channels Setup .................. 18
Picture Menu Options
APC (Auto Picture Control) ................ 19
XD .................................. 19
Color Temperature Control ................ 19
Fleshtone ............................. 20
sRGB ................................ 20
Manual Picture Control (Off option) .......... 20
Sound Menu Options
DASP (Digital Auto Sound Processing) ....... 21
BBE ................................. 21
AVL (Auto Volume Leveler) ................ 21
Manual Sound Control (Off option) .......... 22
Stereo/SAP Broadcasts Setup ............. 22
Timer Menu Options
Auto Clock Setup ....................... 23
Manual Clock Setup ..................... 23
On/Off Timer Setup ..................... 23
Sleep Timer /Auto Off .................... 24
Special Menu Features
Key Lock ............................. 25
ISM (image Sticking Minimization) Method .... 25
Low Power ............................ 26
XD Demo ............................. 26
Closed Captions ........................ 27
Captions .............................. 27
Caption/Text ........................... 27
Screen Menu Features
Auto Adjustment ....................... 28
Setting Picture Format ................... 28
Screen Position ........................ 28
Manual Configure ....................... 29
Setting VGA Mode ...................... 29
Screen Adjustments ..................... 29
Cinema Mode Setup ..................... 29
Luminance Noise Reduction ............... 30
initializing (Reset to original factory value) ..... 30
Split Zoom ............................ 30
Lock Menu Options
Parental Lock Setup ..................... 31
PIP (Picture-ln-Picture)/Double Window Feature
Watching PIP/Double Window .............. 32
Swapping the PIP/Double Window .......... 32
TV Program selection for PIP .............. 32
Selectingan InputSignalSourcefor PIP/DoubleWindow .32
Moving the PIP ......................... 32
PIP Size .............................. 32
PIP Transparency ....................... 32
External Control Device Setup ................ 33~38
IR Codes ................................ 39~40
Troubleshooting Checklist ...................... 41
Maintenance ................................. 42
Product Specifications ......................... 42
Warranty ................................. 43~44
Setup and
Setup and Operation Checklist
(See pages 11-15 for available connection and operational setup options.)
1. Unpack TV and all accessories. 5. Turn video source equipment on.
2. Connect all external video and audio equipment.
see pages 12 - 14. 6. Select viewing source for TV. See page 9.
3install batteries in remote control.
See page 9.
4. Turn TV on.
See page 16.
7. Fine-tune source image and sound to your personal prefer-
ence or as required by source.
See pages 19 - 22.
8. Additional features set up
See Contents above.
Owner's Manual 5
