LG 42PG20R User manual

PLASMA TV
MANUAL DE SERVIÇO
ATENÇÃO
Antes de reparar este chassis, leia as PRECAUÇÕES DE SEGURANÇA
contidas neste manual.
CHASSIS : PP81A
MODELO : 42PG20R 42PG20R-MA
website:http://biz.LGservice.com
Internal Use Only
CH
VOL
MENU
INPUT ENTER

- 2 -
Copyright © 2007 LG Electronics. Inc. All right reserved.
Only for training and service purposes LGE Internal Use Only
CONTEÚDO
CONTEÚDO............................................................................................................... 2
PRECAUÇÕES DE SEGURANÇA ............................................................................3
INSTRUÇÕES DE REGULAÇÃO ..............................................................................4
DIAGRAMA DE BLOCOS ........................................................................................12
VISTAS EXPLODIDAS............................................................................................. 14
DIAGRAMA ELÉTRICO................................................................................................
PAINEL DE CIRCUITO IMPRESSO .............................................................................

- 3 -
Copyright © 2007 LG Electronics. Inc. All right reserved.
Only for training and service purposes LGE Internal Use Only
PRECAUÇÕES DE SEGURANÇA
ADVERTÊNCIA : Antes de reparar este chassis., leia as “ PRECAUÇÕES DE RADIAÇÃO POR RAIO X “, “ INSTRUÇÕES
DE SEGURANÇA “ e “ AVISO SOBRE SEGURANÇA DE PRODUTOS “.
Muitas partes elétricas e mecânicas neste chassis, tem características relacionadas com a segurança. Estas características
frequentemente não são verificadas nas inspeções visuais e a proteção que proporcionam contra a RADIAÇÃO DE RAIO “ X “ nem
sempre se obtem utilizando componente com maior potência ou de maior isolação. As peças que têm essas características de
segurança são identificadas por uma marca [ ] impressa sobre o diagrama esquemático e a marca [ ★] impressa na lista de
partes elétricas. Antes de substituir algum destes componentes, leia cuidadosamente este manual. O uso de peças de reposição que
não tenham as mesmas características de segurança, como especificado na lista de material de reposição, pode gerar Radiação de
Raios “X”.
1. Quando o receptor está em operação, são geradas tensões
potencialmente altas em torno de 25-29 kV. Operar o receptor
fora de seu gabinete ou com a tampa traseira removida pode
causar perigo de choque elétrico.
(1) Ninguém deverá tentar reparar o aparelho sem estar
familiarizado com as precauções que são necessárias
quando se trabalha com um equipamento de alta tensão.
(2) Sempre descarregue o anodo do cinescópio ao terra para
evitar o risco de choque elétrico antes de remover o conector
do anodo (chupeta de alta tensão).
(3) Descarregue completamente o potencial do cinescópio
antes de manuseá-lo. O cinescópio é de alto vácuo, e se
quebrar, os fragmentos de vidro são expelidos violentamente.
2. S e queimar algúm fusível deste receptor de televisão,
substitua-o por outro especificado na lista de peças elétricas.
3. Quando substituir placas de circuito impresso ou módulos, fixe
seus fios nos terminais antes de soldar.
4. Quando substituir uma resistência de potência (resistor de
película de óxido metálico) no painel de circuito impresso,
mantenha os seus terminais com 10mm de distância do
painel.
5. Mantenha os fios e cabos distantes de componentes de alta
potência e de alta temperatura.
6. Este receptor deve operar em redes de 100 a 240 V AC.
7. Antes de devolver este aparelho ao cliente, faça uma
verificação de fuga de corrente sobre as partes metálicas
expostas do gabinete, tais com antenas, terminais, cabeças
de parafusos, tampas de metal, alavancas de controle, etc., e
certifique-se de que o aparelho funciona sem perigo de
choque elétrico. Ligue o cabo de rede do aparelho
diretamente a uma tomada de força de 100-240 V AC. Não
utilize um transformador de isolação durante este teste.
Utilize um voltímetro de no mínimo 1KW por Volt de
sensibilidade, da forma que se segue.
Quando a unidade estiver conectada ao AC, pulse o
comutador primeiramente em “ON” (ligado) e em seguida em
“OFF” (desligado), meça desde um ponto de terra conhecido
(tal como um terminal de terra central da rede elétrica) a
todas as partes metálicas expostas do televisor ( antenas,
teclas metálicas, capas metálicas, alavancas de controle,
etc..) especialmente qualquer parte metálica que possa
oferecer um caminho ao chassis. Nenhuma medição de
corrente elétrica deve exceder 0,5 mA. Repita a prova
mudando a posição do pluque de rede na tomada AC.
Qualquer medição que não esteja dentro dos limites aqui
especificados, representam risco potencial de choque elé
trico que deve ser sanado antes que o aparelho retorne ao
cliente.

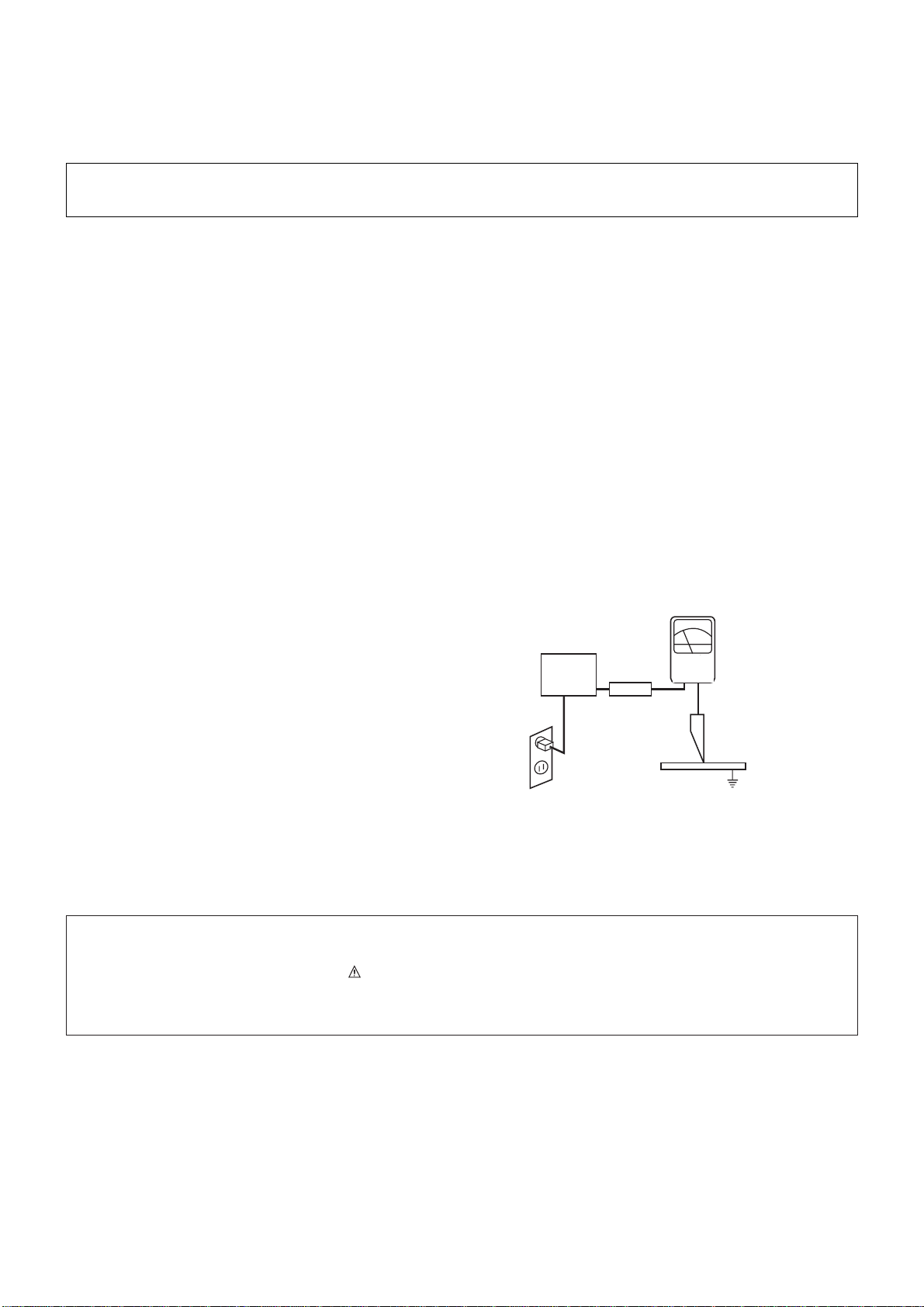

INSTRUÇÕES DE SEGURANÇA
AVISO SOBRE SEGURANÇA DE PRODUTO
DEVICE
UNDER
TEST
TEST ALL
EXPOSED MET AL
SURFACES
2-WIRE CORD
ALSO TEST WITH
PLUG REVERSED
(USING AC ADAPTER
PLUG AS REQUIRED)
EAR TH
GROUND
LEAKAGE
CURRENT
TESTER
(READING SHOULD
NO T BE ABOVE
0.5mA)
+-
Aparelho
a ser
examinado
Probador
de fuga de
corriente
A leitura não deve
exceder 0.5mA
Prove todas as
superficies
metálicas
Também prove com
o plugue de rede
invertendo a
polaridade
Terra

- 4 -
Copyright © 2007 LG Electronics. Inc. All right reserved.
Only for training and service purposes LGE Internal Use Only
INSTRUÇÕES DE REGULAÇÃO
1. Application Range
This spec. sheet is applied to all of the PP81A Chassis.
2. Specification
(1) Because this is not a hot chassis, it is not necessary to use
an isolation transformer. However, the use of isolation
transformer will help protect test instrument.
(2) Adjustment must be done in the correct order.
(3) The adjustment must be performed in the circumstance of
25±5cC of temperature and 65±10% of relative humidity if
there is no specific designation.
(4) The input voltage of the receiver must keep 100~240V,
50/60Hz.
(5) Before adjustment, execute Heat-Run for 30 minutes at RF
no signal.
3. ADC calibration
3-1. PC input ADC
(1) Auto RGB Gain/Offset Adjustment
1) Convert to PC in Input-source
2) Signal equipment displays
Output Voltage : 700 mVp-p
Impress Resolution XGA (1024 x 768 @ 60Hz)
Model : 60 in Pattern Generator
Pattern : 54 in Pattern Generator (MSPG-925 SERISE)
[1/2 Black & White Pattern (Refer below picture)].
3) Adjust by commanding AUTO_COLOR_ADJUST(0xF1)
0x00 0x02 instruction.
(2) Confirmation
1) We confirm whether “0xB6(RGB)” address of EEPROM
“0xA2” is “0xAA” or not.
2) If “0xB6(RGB)” address of EEPROM “0xB2” isn’t “0xAA”,
we adjust once more
3) We can confirm the ADC values from “0xB0~0xB5(RGB)”
addresses in a page “0xA2”
[Manual ADC process using Service Remocon. After enter
Service Mode by pushing “ADJ” key, execute “ADC Adjust” by
pushing “G” key at “Adjust-RGB”.
3-2. COMPONENT input ADC
(1) Component Gain/Offset Adjustment
1) Convert to Component in Input-source
2) Signal equipment displays
Impress Resolution 720P
MODEL : 216 in Pattern Generator(720P Mode)
PATTERN : 33 in Pattern Generator( MSPG-925 SERISE)
3) Adjust by commanding AUTO_COLOR_ADJUST(0xF1)
0x00 0x02 instruction
(2) Confirmation
1) We confirm whether “0xC8(720P)” address of EEPROM
“0xA2” is “0xAA” or not.
2) If “0xC8(720P)” address of EEPROM “0xA2” isn’t “0xAA”,
we adjust once more
3) We can confirm the ADC values from “0xB9~0xBE(480i)/
0xC2~(1080i)” addresses in a page “0xA2”

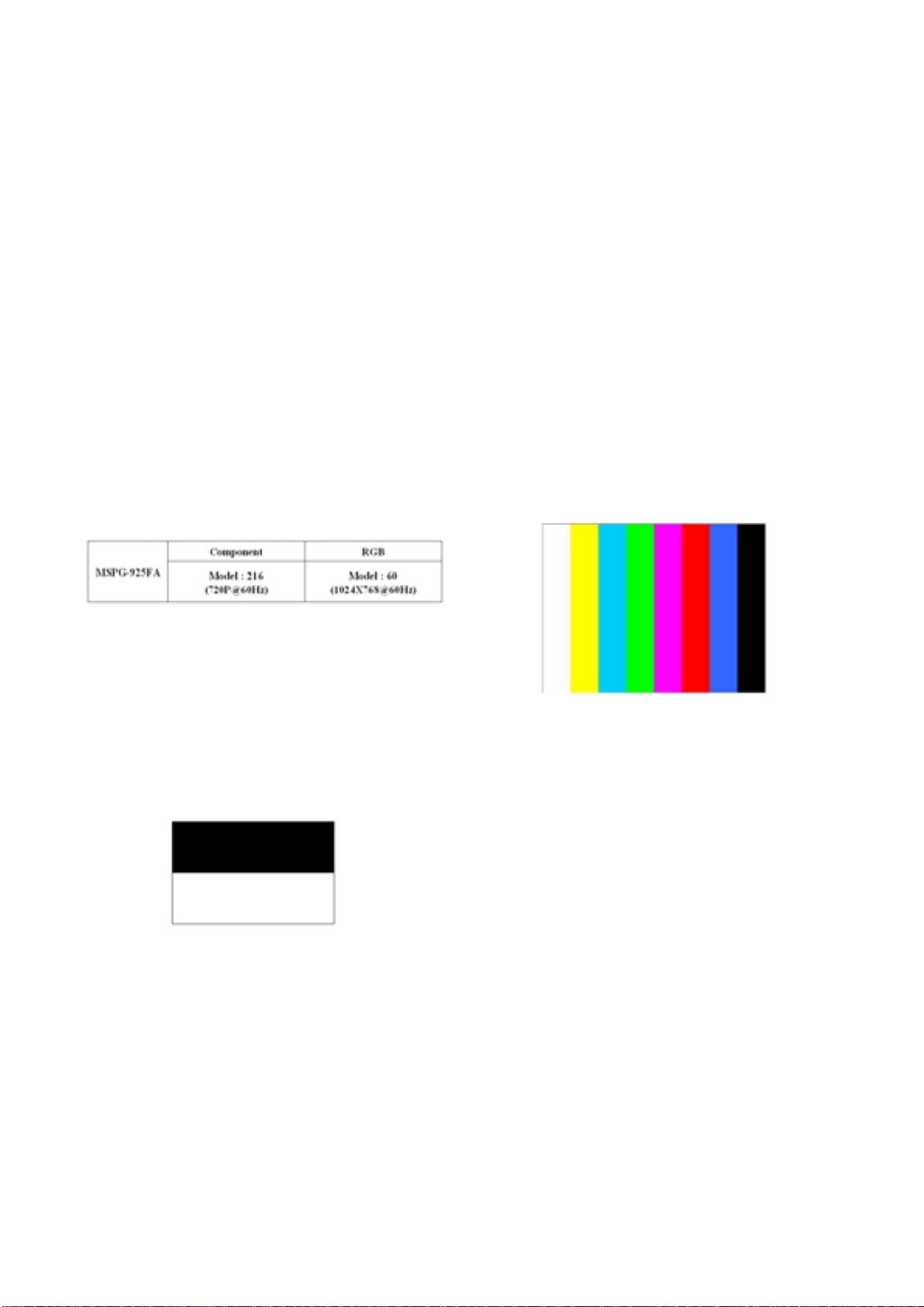

<Fig. 1>
Adjustment pattern (COMPONENT)

- 5 -
Copyright © 2007 LG Electronics. Inc. All right reserved.
Only for training and service purposes LGE Internal Use Only
4. PCB Assembly Adjustment Items
4-1. Option Adjustment Following BOM
Tool Option1
Tool Option2
Area Option
* Profile: Must be changed the option value because being
different with some setting value depend on module, inch
and market
* Equipment : Adjustment Remote Controller
(1) Push the IN-START key in the Adjust R/C.
(2) Input the Option Number that was specified in the BOM,
into the Shipping area.
(3) Select “Tool Option1/ Tool Option2/ Area Option” by using
D/E(CH+/-) key, and press the number key(0~9)
consecutively
ex) If the value of Tool Option1 is 7, input the data using
number key “7” (Fig. 2)
Caution: Don’t Push “IN-STOP” key after PCB assembly
adjustment.
(4) Adjustment method
Before PCBA check, have to change the Tool option and
Area option
[About PDP
After done all adjustments, Press IN-START button and
compare Tool option and Area option value with its BOM, if it
is correctly same then Change “RF mode” and then unplug
the AC cable.
If it is not same, then correct it same with BOM and unplug AC
cable.
For correct it to the model°Øs module from factory JIG model.
[Don’t push The IN-STOP KEY after completing the function
inspection.
5. S/W Program Download
5-1. Profile
This is for downloading the s/w to the flash memory of the
IC803
5-2. Equipment
(1) PC
(2) ISP_tool program
(3) Download jig
5-3. Connection Structure
5-4. Connection Condition
(1) IC name and circuit number : Flash Memory and IC803
(2) Use voltage : 3.3V (5 pin)
(3) SCL : 15 pin
(4) SDA : 12 pin
(5) Tact time : about 2min and 30seconds
6. Download Method (PCB Ass’y)
6-1. Preliminary Steps
(1) Connect the download jig to D-sub jack
(2) Connect the PC to USB jack
<Fig. 2>

- 6 -
Copyright © 2007 LG Electronics. Inc. All right reserved.
Only for training and service purposes LGE Internal Use Only
6-2. Download Steps
(1) Execute ‘ISP Tool’ program in PC, then a main window will
be opened
(2) Click the connect button and confirm “Dialog Box”.
(3) Read and write bin file
Click “(1)Read” tab, and then load download file(XXXX.bin)
by clicking “Read”.
(4) Click “Auto(2)” tab and set as below
(5) Click “Run(3)”.
(6) After downloading, check “OK(4)” message.
7. EDID(The Extended Display
Identification Data) / DDC
(Display Data Channel) Download
[Caution
- Use the proper signal cable for EDID Download
- Never connect HDMI & D-SUB Cable at the same time.
- Use the proper cables below for EDID Writing
7-1. Profile:To be possible for plug and play
7-2. Equipment
(1) Adjusting PC with S/W for writing EDID Data.(S/W: EDID
TESTER Ver.2.5)
(2) A Jig for EDID Download
(3) Cable : Serial(9Pin or USB) to D-sub 15Pin cable, D-sub
15Pin cable, DVI to HDMI cable.
7-3. Connection Structure
Caution: Never connect HDMI & D-SUB Cable at the same time.

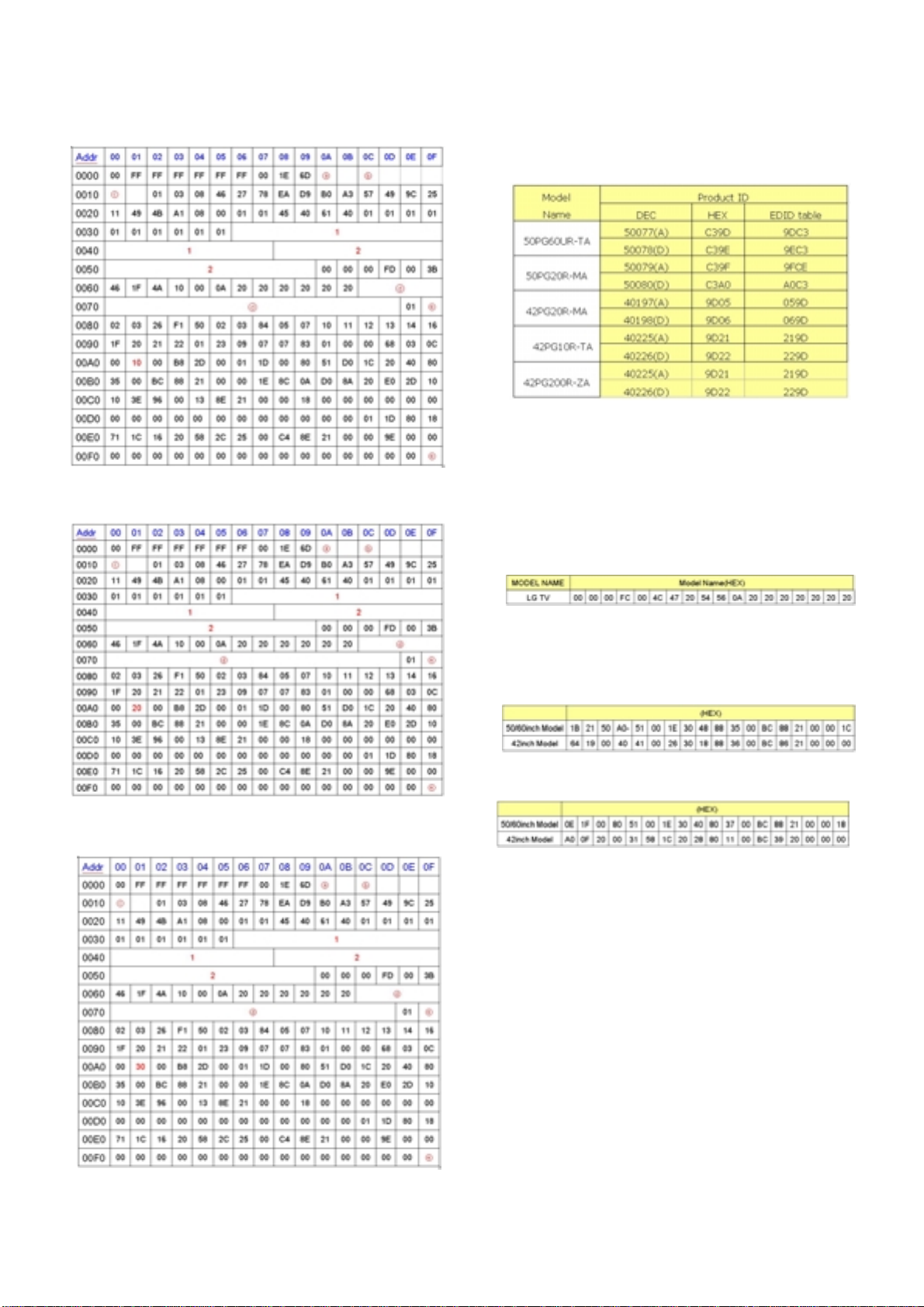

7-4. EDID Data
OXGA EDID DATA
<Analog : 128bytes>
<Fig. 3> Connection Diagram of DDC Download

- 7 -
Copyright © 2007 LG Electronics. Inc. All right reserved.
Only for training and service purposes LGE Internal Use Only
<HDMI 1 : 256bytes>
<HDMI 2 : 256bytes>
<HDMI 3 : 256bytes>
ODetail EDID Options are below (ⓐ, ⓑ, ⓒ, ⓓ, ⓔ)
ⓐProduct ID
ⓑSerial No
=> Controlled on production line
ⓒMonth, Year
=> Controlled on production line:
ex) Monthly: ‘11’ -> ‘0B’
Year: ‘2007’ -> ‘11’
ⓓModel Name(Hex)
ⓔChecksum
=> Changeable by total EDID data
1) 42inch Model
2) 50/60inch Model

- 8 -
Copyright © 2007 LG Electronics. Inc. All right reserved.
Only for training and service purposes LGE Internal Use Only
7-5. Preparation for Adjustment
(1) As above Fig. 3, Connect the Set, EDID Download Jig,,
PC & Cable
(2) Turn on the PC & EDID Download Jig. And Execute the
S/W : EDID TESTER Ver.2.5
(3) Set up the S/W option
Repeat Number : 5
Device Address : A0
PageByte : 8
(4) Power on the Set
1) Sequence of Adjustment
1. DDC data of Analog-RGB
(1) Init the data
(2) Load the EDID data.(Open File).
(3) Set the S/W as below.
(4) Push the “Write Data & Verify” button. And confirm “Yes”.
(5) If the writing is finished, you will see the “OK” message.
8. HDCP(High-Bandwidth Digital Contents Protection)
(1) Connect D-sub Signal Cable to D-Sub Jack
(2) Input HDCP key with HDCP-key- in-program
(3) HDCP Key value is stored on Main M-STAR
IC(LGE6891DD) which is 0x80~0x90 addresses of
0x00~0x01 page(EEPROM MAP PAGE0~PAGE1 / START
:A080)
(4) Play the Equipment(DVD Player) included HDCP Key and
confirm whether picture is displayed or not of using DVD
Player.
(5) HDCP Key value is different among the sets

- 9 -
Copyright © 2007 LG Electronics. Inc. All right reserved.
Only for training and service purposes LGE Internal Use Only
9. Adjustment of White Balance
9-1. Purpose and Principle for Adjustment
of the Color Temperature
(1) Purpose: Adjust the color temperature to reduce the
deviation of the module color temperature.
(2) Principle : To adjust the white balance without the
saturation, Fix the one of R/G/B gain to C0 and decrease
the others.
(3) Adjustment mode: Two modes of Cool and Warm
(Cool data is automatically calibrated by the Medium data)
9-2. Required Equipment
(1) Remote controller for adjustment
(2) Color Analyzer : CA-100+ or CA-210 or same product
- PLASMA TV(ch : 10)
(3) Auto W/B adjustment instrument(only for Auto adjustment)
- Do the white balance adjustment under the 10LUX
[Notice: When using the Color Analyzer with PDP,
recommend the CA-100 more than CA-210.
If CA-100 can not available, it is also good to use the CA-210.
(4) PC (for communication through RGB)
(5) Pattern Generator (MSPG-925FA etc.)
-Before white balance, press the ADJ key 2times and do
the reset like Fig. 4
-To enter White-balance mode, press the ADJ key 2times.
[Caution: System control Host should be “DDC” for adjustment.
9-3. Connecting Diagram of Equipment for
Measuring(For Automatic Adjustment)
(1) Enter the adjustment mode of the white balance
- Enter the white balance adjustment mode at the same time
heat-run mode when pushing the power on by power only
key
- Maintain the white balance adjustment mode with same
condition of Heat-run
- Maintain after AC off/on in status of Heat-run pattern display
(2) Release the white balance adjustment mode
- Release the adjust mode after AC off/on or std-by off/on in
status of finishing the Hear-run mode
- Release the Adjust mode when receiving the aging off
command(F3 00 00) from adjustment equipment)
(3) Enter the adjust mode of white balance
- Enter the white balance adjustment mode with aging
command(F3, 00, FF)
OColor Temperature & Color Coordinates Setting
- When adjusting the Color Temperature, Color Analyzer CA-
210(Matrix should be corrected through CH10 of CS-1000)
should be used. When CA-210 have used, it don’t need to fit
the CH10.
- Adjust the Color Temperature based below adjustment color
coordinates.
OTarget Value CA-210(LCD : CH 9, PDP : CH10), CA-100(PDP)
(Standard color coordinate and temperature when using the
CA-100+ or CA210 equipment)
OSynchronization relation between PSM and CSM
<Fig. 4>
PSM
Vivid
Mild
CSM
Cool
Warm

- 10 -
Copyright © 2007 LG Electronics. Inc. All right reserved.
Only for training and service purposes LGE Internal Use Only
ODDC Adjustment Command Set
[R/G/B GAIN max value : C0
Adjustment
Adjustment
Adjustment

- 11 -
Copyright © 2007 LG Electronics. Inc. All right reserved.
Only for training and service purposes LGE Internal Use Only
9-4. Adjustment of White Balance for
Manual Adjustment
Adjustment mode: Two modes of Medium(Vivid) and Warm
(Cool data is automatically calibrated by the Medium data)
- Equipment : 1) Color analyzer(CA100+, CA210) should be
used in the calibrated ch by CS-1000(.(LCD :
CH9, PDP : CH10)
2) Adjustment remocon
- For manual adjustment, it is also possible by the following
sequence.
Operate the zero-calibration of the CA-100+ or CA-210, then
stick sensor to the module when adjusting.
(1) Select white pattern of heat-run by pressing “POWER ON”
key on remote control for adjustment then operate heat run
longer than 15 minutes. (recommend)
(If not executed this step, the condition for W/B will be
different)
(2) Changing to the AV mode by remote control.(Push front-
AV)
(3) Input external pattern(85% white pattern).
(4) Stick sensor to center of the screen and select each items
(Red/Green/Blue Gain and Offset) using D/E(CH +/-) key
on R/C..
(5) Adjust R/ G/B Gain using F/G(VOL +/-) key on R/C.
(6) Adjust two modes of Medium(Vivid) and Warm as below
figure.
(Fix the one of R/G/B and change the others)
1) Default : Medium(Vivid)
2) Push the “VOL +” key twice : Warm
[Refer to the below case to know what value is fixed.
[CASE]
First adjust the coordinate much away from the target value(x, y).
1. x, y > target
1) Decrease the R, G.
2. x, y < target
1) First decrease the B gain,
2) Decrease the one of the others.
- In case of decreasing the x, decreasing the R : fix G
- In case of decreasing the y , decreasing the G : fix R
3. x > target , y < target
1) First decrease B, so make y a little more than the target.
2) Adjust x value by decreasing the R
4. x < target , y > target
1) First decrease B, so make x a little more than the target.
2) Adjust x value by decreasing the G
(7) When adjustment is completed, Exit adjustment mode
using EXIT key on R/C.
Caution: Each PCB assembly must be checked by check JIG set.
(Because power PCB Assembly damages to PDP
Module, especially be careful)
10. POWER PCB Assy Voltage
Adjustment(Va, Vs voltage Adjustment)
10-1. Test Equipment:D.M.M 1EA
10-2. Connection Diagram for Measuring
Refer to Fig. 5
10-3. Adjustment Method
(1) Va Adjustment
1) After receiving 100% Full White Pattern, HEAT RUN.
2) Connect + terminal of D. M..M. to Va pin of P812,
connect -terminal to GND pin of P812.
3) After turning VR901,voltage of D.M.M adjustment as
same as Va voltage which on label of panel right/top
(deviation; ±0.5V)
(2) Vs Adjustment
1) Connect + terminal of D. M..M. to Vs pin of P812,
connect -terminal to GND pin of P812.
2) After turning VR951 401, voltage of D.M.M adjustment
as same as Vs voltage which on label of panel right/top
( deviation ; ±0.5V)
<Fig. 7> Connection Diagram of Power Adjustment for Measuring

- 12 -
Copyright © 2007 LG Electronics. Inc. All right reserved.
Only for training and service purposes LGE Internal Use Only
DIAGRAMA DE BLOCOS
Block Diagram (In/Out)
AV1 in
SideAV in
(AV2 in)
Comp1 in Comp2 in
RGB in
(D/L)
AV out
CVBS IN
Y/Pb/Pr IN
R/G/B/HS/VS IN
CVBS IN
LINE OUT
LINE IN
LINE_MUTE
RS-232C Rx/Tx MX3232
RF
(Tuner)
PC Audio
in
DISPLAY MODULE
EDID NVM
EDID NVM
HDMI1 HDMI2 HDMI3
USB
TMDS351PAG
HDMI MUX
Zoran
VADDIS-966XD MPEG Decoder
DDR MEM
DDR MEM
SERIAL
FLASH
Mstar
Romeo
LGE6891CD
TW9910
Sub Decoder
NTP3000A
Digital
Audio AMP
MAIN NVM
MC74HC4066
Audio SW
LM324
X4 AMP
SERIAL
FLASH
BD2041
Protect IC
EDID NVM DDC/HDP/CEC
TMDS(HDMI in)
DDC/HPD/CEC
TMDS(HDMI in)
TMDS(HDMI in)
USB(AV I/O, Data I/O)
+5V
CVBS OUT
656 IN
SW_RESET
PART_I2C
PART_I2C
SW_RESET
I2S OUT
PART_I2C
LVDS
EN
MPEG RX/TX
MPEG RESET I2S IN
656 IN
TMDS(HDMI in)
DDC/HPD/CEC
DDC/HPD/CEC
[CEC not through HDMI MUX, direct JACK to MAIN IC]
DDC
DDC
DDC
UART_Rx/Tx
AUDIO_SW LINE IN
LINE IN
LINE IN
Y/Pb/Pr IN LINE IN
Y/C IN
LINE IN
EDID NVM
ROM_I2C
DSUB_DDC
x0.55 x0.55
x0.55
x0.55 S_VIDEO_DET LINE_MUTE
LINE OUT
CVBS OUT x4
x4
x0.55
LINE IN CVBS IN
SIF IN
TUNER_I2C
PART_I2C
ROM_I2C
HDMI_SEL

- 13 -
Copyright © 2007 LG Electronics. Inc. All right reserved.
Only for training and service purposes LGE Internal Use Only
Block Diagram (I2C & Communication Line)
AV1 in
SideAV in
(AV2 in)
Comp1 in Comp2 in
RGB in
(D/L)
AV out
CVBS IN
Y/Pb/Pr IN
R/G/B/HS/VS IN
CVBS IN
LINE OUT
LINE
IN
LINE_MUTE
RS-232C Rx/Tx MX3232
RF
(Tuner)
PC Audio
in
DISPLAY MODULE
EDID NVM
EDID NVM
HDMI1 HDMI2 HDMI3
USB
TMDS351PAG
HDMI MUX
Zoran
VADDIS-966XD MPEG Decoder
DDR MEM
DDR MEM
SERIAL
FLASH
Mstar
Romeo
LGE6891CD
TW9910
Sub Decoder
NTP3000A
Digital
Audio AMP
MAIN NVM
MC74HC4066
Audio SW
LM324
X4 AMP
SERIAL
FLASH
BD2041
Protect IC
EDID NVM DDC/HDP/CEC
TMDS(HDMI in)
DDC/HPD/CEC
TMDS(HDMI in)
TMDS(HDMI in)
USB(AV I/O, Data I/O)
+5V
CVBS
OUT
656 IN
SW_RESET
PART_I2C
PART_I2C
SW_RESET
I2S OUT
PART_I2C
LVDS
EN
MPEG RX/TX
MPEG RESET I2S IN
656 IN
TMDS(HDMI in)
DDC/HPD/CEC
DDC/HPD/CEC
[CEC not through HDMI MUX, direct JACK to MAIN IC]
DDC
DDC
DDC
UART_Rx/Tx
AUDIO_SW LINE
IN
LINE
IN
LINE
IN
Y/Pb/Pr IN LINE
IN
Y/C IN
LINE
IN
EDID NVM
ROM_I2C
DSUB_DDC
x0.55 x0.55
x0.55
x0.55 S_VIDEO_DET LINE_MUTE
LINE OUT
CVBS OUT x4
x4
x0.55
LINE
IN
CVBS IN
SIF IN
TUNER_I2C
PART_I2C
ROM_I2C
HDMI_SEL

- 14 -
Copyright © 2007 LG Electronics. Inc. All right reserved.
Only for training and service purposes LGE Internal Use Only
VISTAS EXPLODIDAS
A2
300
305
302
200
202
560
571 120
561
570 301
260
590 501
270 603
520
203 240
205
204
206
250 602
601
580
900
400
201
303
304
306
Many electrical and mechanical parts in this chassis have special safety-related characteristics. These
parts are identified by in the Schematic Diagram and EXPLODED VIEW.
It is essential that these special safety parts should be replaced with the same components as
recommended in this manual to prevent X-RADIATION, Shock, Fire, or other Hazards.
Do not modify the original design without permission of manufacturer.
IMPORTANT SAFETY NOTICE

Copyright © 2008 LG Electronics. Inc. All right reserved.
Only for training and service purposes LGE Internal Use Only

Copyright © 2008 LG Electronics. Inc. All right reserved.
Only for training and service purposes LGE Internal Use Only

Copyright © 2008 LG Electronics. Inc. All right reserved.
Only for training and service purposes LGE Internal Use Only

Copyright © 2008 LG Electronics. Inc. All right reserved.
Only for training and service purposes LGE Internal Use Only

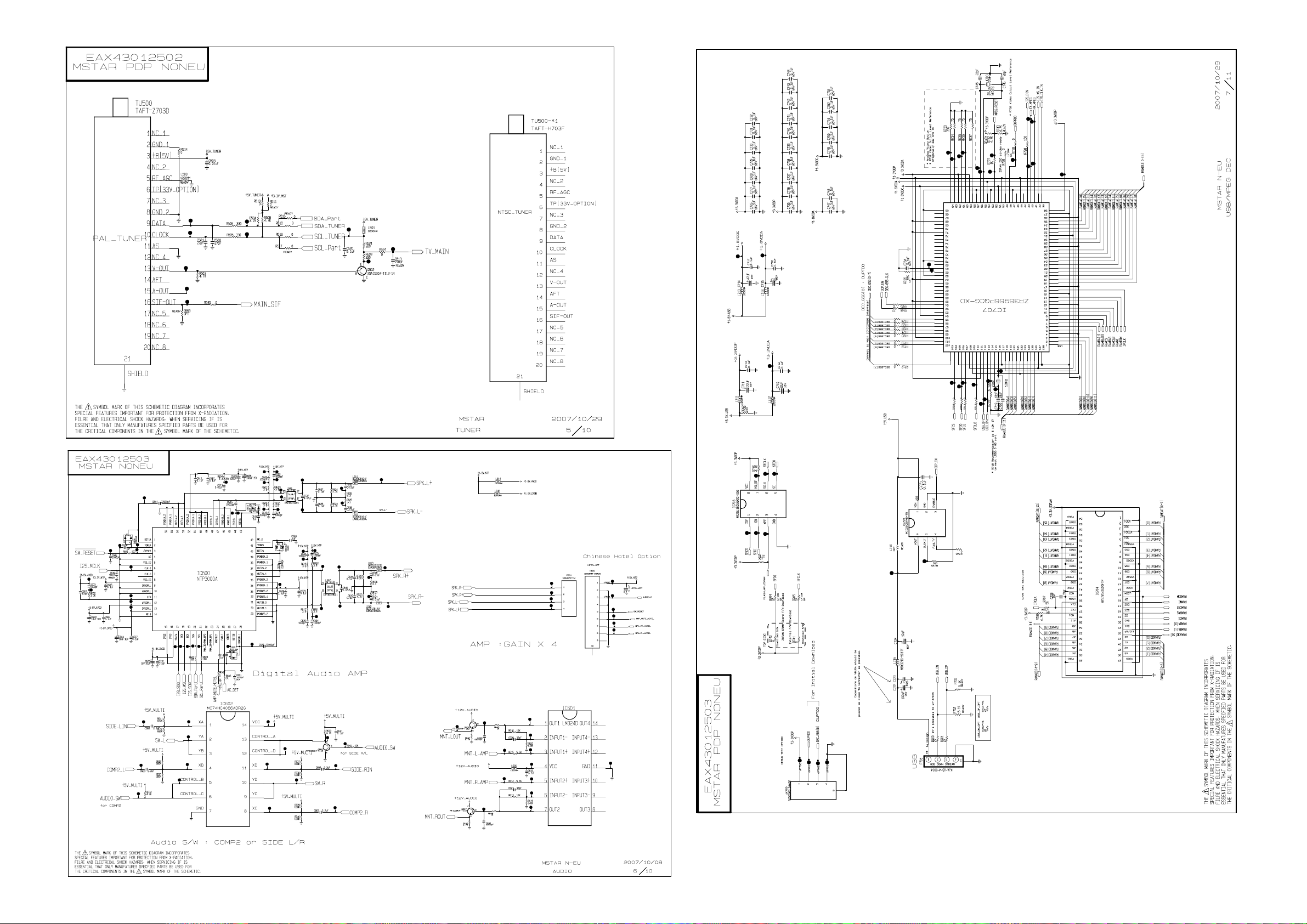

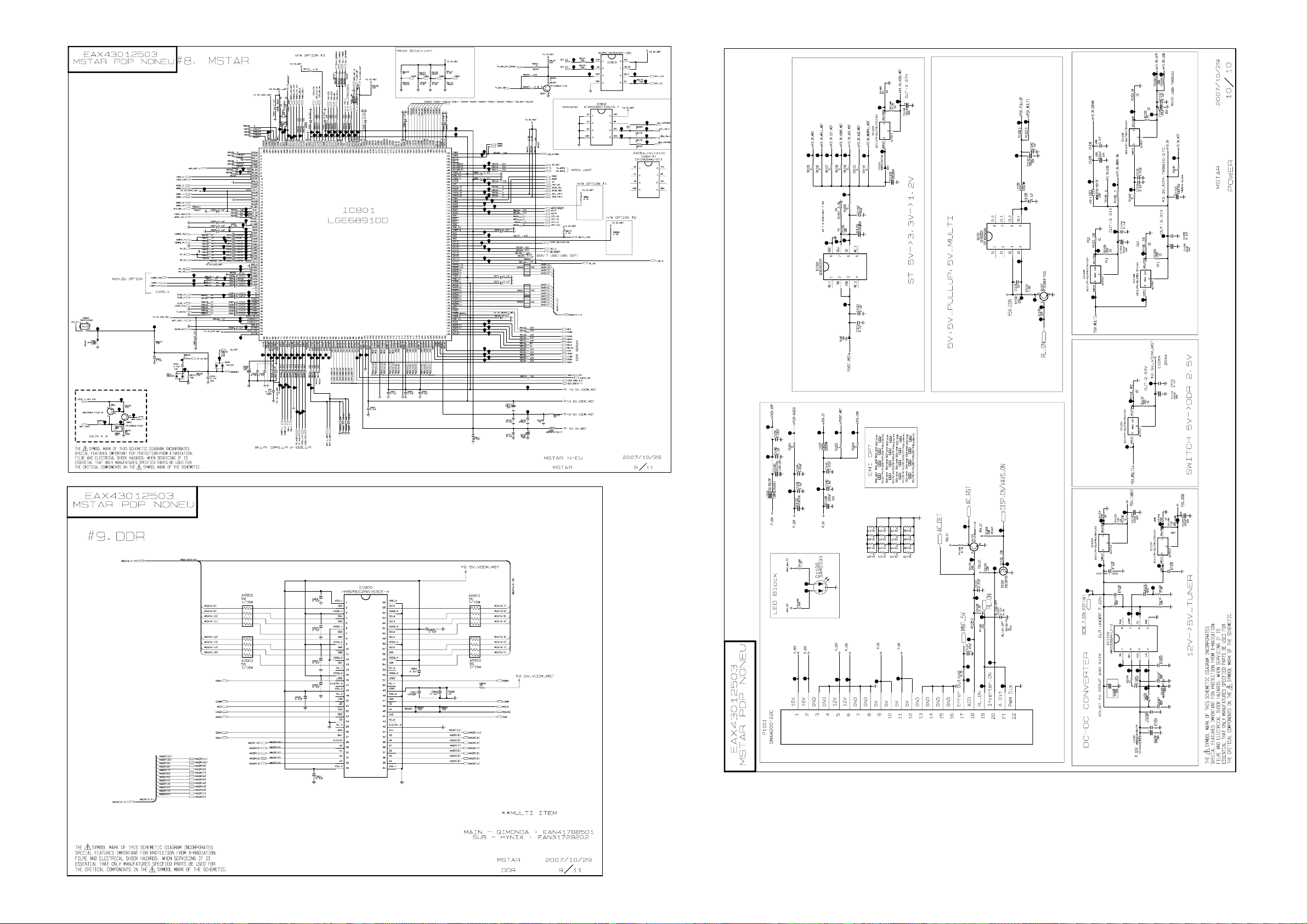

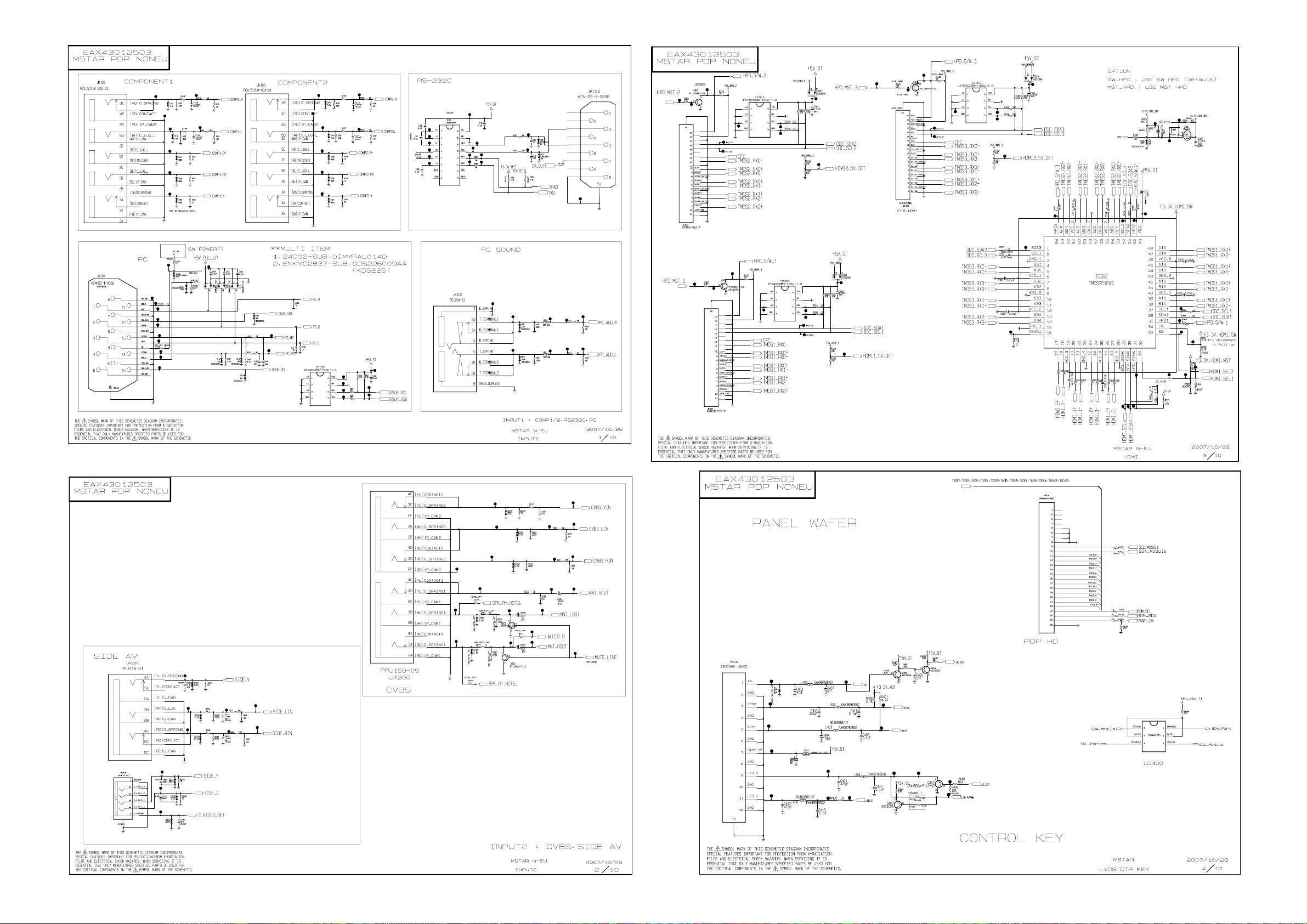

MAIN(TOP)
MAIN(BOTTOM)
CONTROL(TOP)
CONTROL(BOTTOM)
PRE-AMP(TOP)
PRE-AMP(BOTTOM)

Depto de Assistência Técnica
Av. D. Pedro I, W7777 - Distrito Industrial
Piracangagua II - Taubaté - SP - Brasil
Cx. Postal 324 - CEP 12.010-970
Tel. : [phone] Fax. : [phone]
Jan., 2008
Printed in KoreaP/NO : MFL41859303
LG Electronics Inc.
