LG LSGL6337F User manual

Condential
MFL69401912_Rev00. 01082021
30" Slide-In Gas Range
SERVICE MANUAL
CAUTION
BEFORE SERVICING THE UNIT, READ THE SAFETY PRECAUTIONS IN THIS MANUAL.
MODEL: LSGL6337F, LSGL6337D
Any reproduction, duplication, distribution (including by way of email, facsimile or other electronic means), publication,
modification, copying or transmission of this Service Manual is STRICTLY PROHIBITED unless you have obtained the
prior written consent of the LG Electronics entity from which you received this Service Manual.
The material covered by this prohibition includes, without limitation, any text, graphics or logos in this Service Manual.
Copyright © 2021 LG Electronics Inc. All rights reserved. Only training and service purposes

Copyright © LG Electronics Inc. All rights reserved.
Only training and service purposes
This LG Service Manual, “ 30” Slide-In Self-Cleaning Gas Range,” provides the technician with
information on the operation and service of the Slide-In Self-Cleaning Gas Range. It is to be
used as a training Service Manual. For specific information on the model being serviced, refer to
the “Owner’s Manual” or “Tech Sheet” provided with the gas range.
SAFETY PRECAUTIONS
• Repairs of the appliance should be carried out by a licensed technician only. Incorrect repairs may
result in dangerous situations. If you need repairs, contact an LG Service Center or your dealer.
•
If the power cord is defective, it must be replaced by a qualified service agent with a UL listed range cord.
• Electrical leads and cables should not be allowed to touch the oven.
• Rating plate is located on the left side of drawer.
• The power supply of the appliance should be turned off when it is being repaired.
FORWARD
LG Electronics assumes no responsibility for any repairs made
on our products by anyone other than Authorized Service Technicians.
WARNING
WARNING
• DISCONNECT power supply cord from the outlet before servicing.
• Replace all panels and parts before operating.
• RECONNECT all grounding devices.
- Failure to do so can result in severe personal injury, death or electrical shock.
• DO NOT Touch when the oven operates.
- The interior parts will be very hot.
Never Operate the Top Surface Cooking Section of this Appliance Unattended
• Failure to follow this warning statement could result in fire, explosion, or
burn hazard that could cause property damage, personal injury, or death.
• If a fire should occur, keep away from the appliance and immediately call
your fire department.
• DO NOT ATTEMPT TO EXTINGUISH AN OIL/GREASE FIRE WITH WATER
WARNING
If the information in this manual is not followed exactly, a fire or explosion may
result causing property damage, personal injury or death. If you smell gas:
• Do not try to light any appliance.
• Do not touch any electrical switch; do not use any phone in your building.
• Immediately call your gas supplier from a neighbor’s phone. Follow the gas
supplier’s instructions.
• If you cannot reach your gas supplier, call the fire department.

Copyright © LG Electronics Inc. All rights reserved.
Only training and service purposes
TABLE OF CONTENTS
(Page)
GENERAL ------------------------------------------------------------------------------------------------ 1-1 ~ 1-5
• Important safety instructions ------------------------------------------------------------------------------------------ 1-1 ~ 1-3
• Model & Serial number label and tech sheet locations ------------------------------------------------------------- 1-4
• Specifications ---------------------------------------------------------------------------------------------------------------------- 1-5
USING YOUR RANGE ---------------------------------------------------------------------------- 2-1 ~ 2-4
• General information -------------------------------------------------------------------------------------------------------------- 2-1
• Control panel features
-------------------------------------------------------------------------------------------------- 2-2 ~ 2-4
- To turn on on the surface burners
- Setting the Clock
- Start, Clear/Off
- To turn On/Off the oven light
- Timer On/Off
- Oven Temperature Adjustment
- Preheating Alarm Light ON/Off
- Beeper Volume
- Temperature Unit(°F or °C)
- Bake, Timed Bake
- Broil
- Time cook with warm
- Control Lock
- Changing hour mode on clock (12HR, 24HR)
- Self-Clean
- Auto Conversion
COMPONENT ACCESS ------------------------------------------------------------------------ 3-1 ~ 3-23

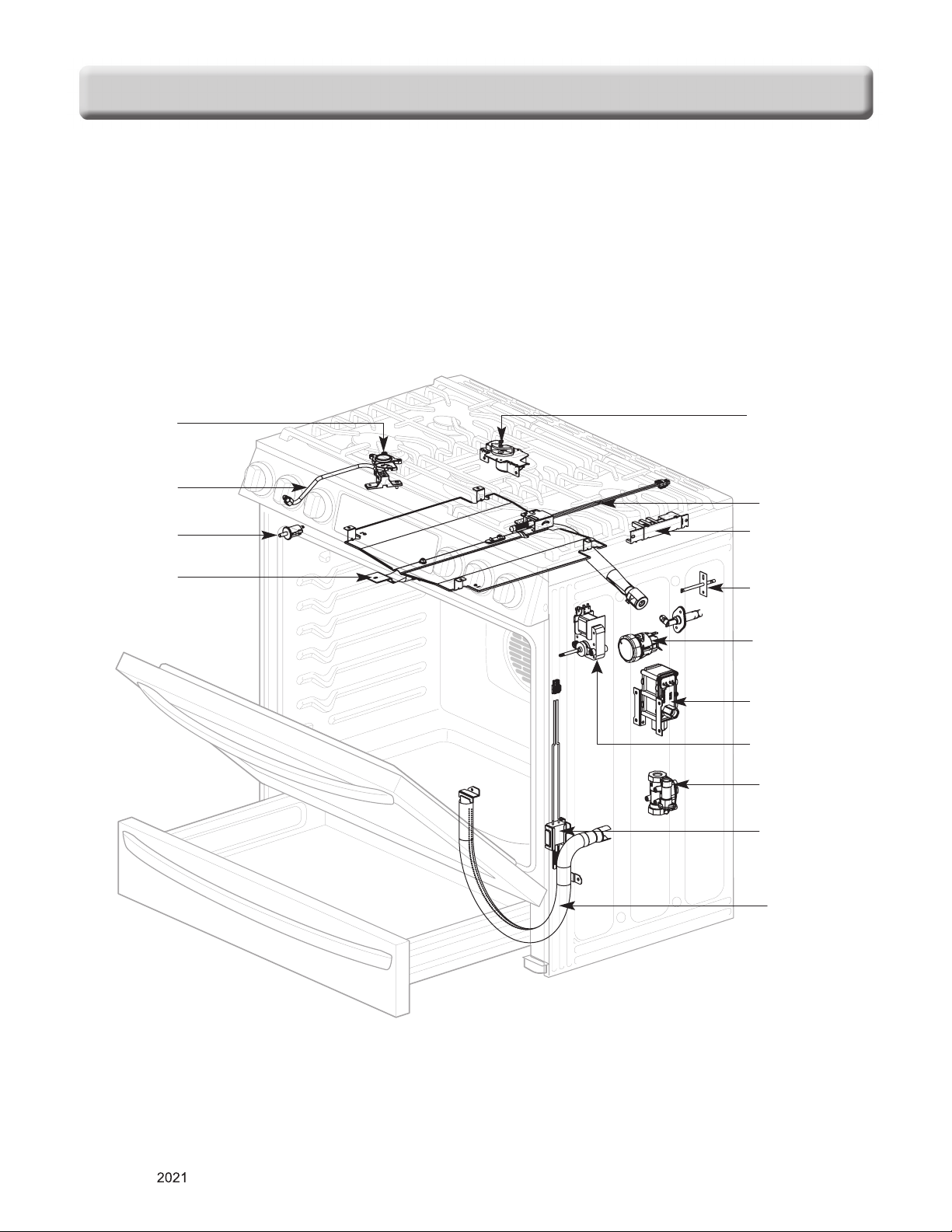

• Component Locations ---------------------------------------------------------------------------------------------------------- 3-1
• Removing the Back Cover ----------------------------------------------------------------------------------------------------- 3-2
• Removing the Oven Relay & Power PCB -------------------------------------------------------------------------------- 3-3
• Removiing the Cooktop Plate and the Spark Module --------------------------------------------------------------- 3-4
• Removing the Controller Panel and Main PCB
----------------------------------------------------------------------- 3-5
• Removing the Knob lighting PCB ------------------------------------------------------------------------------------------ 3-6
• Removing the Cooktop Parts
------------------------------------------------------------------------------------------ 3-7~3-8
• Removing the Door Switch ---------------------------------------------------------------------------------------------------- 3-9
• Removing the BROIL Burner assembly -------------------------------------------------------------------------------- 3-10
• Removing the Convection Burner assembly --------------------------------------------------------------------------- 3-11
• Removing the Convection Fan Blade and Fan Motor
------------------------------------------------------------- 3-12
• Removing the Oven light & Socket assembly ------------------------------------------------------------------------ 3-13
• Removing the latch drive assembly -------------------------------------------------------------------------------------- 3-14
- Door locking mechanism ------------------------------------------------------------------------------------------------- 3-14
• Removing the Oven temperature Sensor
------------------------------------------------------------------------------ 3-15
• Removing & Replacing the drawer --------------------------------------------------------------------------------------- 3-16
• Removing & Replacing the Lift-off Oven Door ----------------------------------------------------------------------- 3-17
• Removing the Oven Door Handle & Glass
-------------------------------------------------------------------- 3-18~3-19
• Removing the Oven Door Gasket ---------------------------------------------------------------------------------------- 3-20
• Removing a Side Panel
------------------------------------------------------------------------------------------------------ 3-21
• Removing the Oven Valve (Safety Valve) & Gas Regulator ----------------------------------------------------- 3-22
• Removing A InstaView PCB ------------------------------------------------------------------------------------------------- 3-23

Copyright © LG Electronics Inc. All rights reserved.
Only training and service purposes
(Page)
COMPONENT TEST -------------------------------------------------------------------------------- 4-1 ~ 4-4
• Convection Motor --------------------------------------------------------------------------------------------------------------- 4-1
• Door Lock Motor ------------------------------------------------------------------------------------------------------------------ 4-2
• Micro Switch (Normally open type) ----------------------------------------------------------------------------------------- 4-2
• Oven Sensor --------------------------------------------------------------------------------------------------------------------- 4-2
• Door Switch (Normally Closed type) --------------------------------------------------------------------------------------- 4-3
• Oven Lamp ------------------------------------------------------------------------------------------------------------------------- 4-3
• Broil or Bake Igniter --------------------------------------------------------------------------------------------------------------- 4-3
• Safety valve ------------------------------------------------------------------------------------------------------------------------- 4-4
• Ignition Switch --------------------------------------------------------------------------------------------------------------------- 4-4
CONVERSION TO LP GAS --------------------------------------------------------------------- 5-1 ~ 5-5
COMPOSITION OF CONTROL
---------------------------------------------------------------- 6-1 ~ 6-4
• Main PCB ---------------------------------------------------------------------------------------------------------------------------- 6-2
• Backlighting Module ------------------------------------------------------------------------------------------------------------- 6-2
• Power PCB -------------------------------------------------------------------------------------------------------------------------- 6-3
• LED Module ------------------------------------------------------------------------------------------------------------------------ 6-3
• Touch film
---------------------------------------------------------------------------------------------------------------------------- 6-4
• Knob lighting PCB ---------------------------------------------------------------------------------------------------------------- 6-4
• Wifi PCB ------------------------------------------------------------------------------------------------------------------------------ 6-4
DIAGNOSIS THROUGH SCHEMATIC ------------------------------------------------------ 7-1 ~ 7-3
CHECK THE FAILURE CODE (F-code)
----------------------------------------------------------- 8-1
FAILURE CODE SUMMARY
----------------------------------------------------------------------------- 9-1
CHECKING FLOW CHART BY FAILURE
------------------------------------------ 10-1 ~ 10-23
• No display (No power) ---------------------------------------------------------------------------------------------- 10-1 ~ 10-3
• No heating (including F9 error) ---------------------------------------------------------------------------------- 10-4 ~ 10-7
• Door lock system failure (including F10 error) ----------------------------------------------------------- 10-8 ~ 10-10
• Sensing fail (including F1, F2 error) ------------------------------------------------------------------------- 10-11 ~ 10-13
• Oven hot (including F6 error) ---------------------------------------------------------------------------------- 10-14 ~ 10-16
• No Key input --------------------------------------------------------------------------------------------------------------------- 10-17
• Oven lamp does not operate ---------------------------------------------------------------------------------- 10-18 ~ 10-19
• Convection Fan does not operated (including F7 error) --------------------------------------------- 10-20 ~ 10-21
• Probe Shorted (including F8 error) -------------------------------------------------------------------------- 10-22 ~ 10-23
TROUBLE SHOOTING ------------------------------------------------------------------------ 11-1 ~ 11-4
EXPLODED VIEW
------------------------------------------------------------------------------- 12-1 ~ 12-6

1-1
Copyright © LG Electronics Inc. All rights reserved.
Only training and service purposes
GENERAL
IMPORTANT SAFETY INSTRUCTIONS
Read and follow all instructions before using your oven to prevent the risk of fire, electric shock, injury to person, or
damage when using the range. This guide don’t cover all possible conditions that may occur. For further assistance
contact your service agent or manufacturer.
This is the safety alert symbol. This symbol alerts you to potential hazards that can kill or hunt you
and others. All safety messages will follow the safety alert symbol and either the word “WARNING”
or “CAUTION”. These word means :
This symbol will alert you to hazards or unsafe practices which could cause
serious bodily harm or death.
WARNING
This symbol will alert you to hazards or unsafe practices which could cause
bodily injury or property damage.
CAUTION
WARNING
• DO NOT step or sit on the door and install the Anti-Tip Bracket packed with range.
- The range could be tipped and injury might result from spilled hot liquid, food, or the range itself.
- If the range is pulled away from the wall for cleaning, service, or any other reason, ensure that the Anti-Tip
Device is properly reengaged when the range is pushed back against the wall.
• DISCONNECT power supply cord from the outlet before servicing.
• Replace all panels and parts before operating.
• RECONNECT all grounding devices.
- Failure to do so can result in severe personal injury, death or electrical shock.
• DO NOT touch burners, grates or interior surfaces of oven.
-Heating element may be hot even though they are off.
-Interior surfaces of an oven become hot enough to cause burns.
• During and after use, do not touch, or let clothing or other flammable materials
contact burners, grates or interior surfaces of oven until they have had sufficient
time to cool.
-Other surfaces of the appliance may become hot enough to cause burns among these surfaces are oven vent
openings and surfaces near these openings, oven doors, and windows of oven doors.
• DO NOT store items of interest to children in cabinets above a range or on the back guard of a range.
- Children climbing on the range to reach items could be seriously injured.
CAUTION
• Always use Pot Holders or oven mitts when removing food from the Drawer.
- You can be burned as cookware and plates will be hot.
• Be careful when you work on the gas range handling the sheet metal part.
- Sharp edge may be present and you can cut yourself.
• Be careful not to bend the fan blade
- Failure to do so can result in vibration, noise, and poor performance of convection when operating.
• Be careful not to scratch or chip the oven liner paint when you remove the oven light socket
in the next step.
• Turn power OFF before removing the Drawer.
• Be careful when removing and lifting the door.
• DO NOT lift the door by the handle.
- Failure to do so can result in personal injury as the door is very heavy.

1-2
Copyright © LG Electronics Inc. All rights reserved.
Only training and service purposes
GENERAL
IMPORTANT SAFETY INSTRUCTIONS
WARNING
• DISCONNECT power supply cord from
the outlet before servicing.
• Replace all panels and parts before
operating.
• RECONNECT all grounding devices.
- Failure to do so can result in severe personal
injury, death or electrical shock.
• Be sure your appliance is properly installed and grounded by
a qualified technician.
• Do not repair or replace any part of the appliance unless
specifically recommended in the manual.
All other servicing should be referred to a qualified technician.
• Always disconnect power to appliance before servicing by
removing the fuse or switching off the circuit breaker
• DO NOT step or sit on the door and install the Anti-Tip
Bracket packed with range.
- The range could be tipped and injury might result from
spilled hot liquid, food, or the range itself.
- If the range is pulled away from the wall for cleaning,
service, or any other reason, ensure that the Anti-Tip
Device is properly reengaged when the range is pushed
back against the wall.
To reduce the risk of tipping of the range, the range must be
secured by properly installed anti-tip devices. To check if the
bracket is installed properly.
- Warming drawer : grasp the top rear edge of the Range
and carefully attempt to tilt it forward.
Verify that the anti-tip devices are engaged.
- Storage drawer : Remove drawer and verify leveling leg is
inserted into and fully secured by the anti-tip devices.
Refer to the installation manual for proper anti-tip bracket installation.
WARNING
• DO NOT touch burners, grates or
interior surfaces of oven.
- Burners, grates may be hot even though they are off.
-Interior surfaces of an oven become hot enough to
cause burns.
• During and after use, do not touch, or
let clothing or other flammable
materials contact burners, grates or
interior surfaces of oven until they
have had sufficient time to cool.
-
Other surfaces of the appliance may become hot
enough to cause burns among these surfaces are
oven vent openings and surfaces near these
openings, oven doors, and windows of oven doors.
WARNING
• DO NOT store items of interest to
children in cabinets above a range or
on the back guard of a range.
- Children climbing on the range to reach items
could be seriously injured.
WARNING
• ALL RANGES CAN TIP
• INJURY TO PERSONS
COULD RESULT
• INSTALL ANTI-TIP DEVICES
PACKED WITH RANGE
• SEE INSTALLATION
• Do Not Leave Children Alone - Children should not be left
alone or unattended in area where appliance is in use. They
should never be allowed to sit or stand on any part of the
appliance.
• Never Use Your Appliance for Warming or Heating the
Room.
• Storage in or on Appliance – Flammable materials should
not be stored in an oven or near surface units. Be sure all
packing materials are removed from the appliance before
operating it. Keep plastics, clothes and paper away from parts
of the appliance that may become hot
• Wear Proper Apparel – Loose-fitting or hanging garments
should never be worn while using the appliance.
• Do Not Use Water on Grease Fires – Turn off oven to avoid
spreading the flame. Smother the fire or flame by closing the
door or use dry chemical, baking soda or foam- type
extinguisher.
• Make sure your range is properly adjusted by a qualified
service technician or installer for the type of gas (natural or
LP) that is to be used. Your range can be converted for use
with either type of gas.
• NEVER block the vents (air holes)of the range. They provide
the air inlet and outlet that are necessary for the range to
operate properly with correct combustion. Air openings are
located at the rear of the cooktop, at the top and bottom of the
oven door, and at the bottom of the range under the warming
drawer.

1-3
Copyright © LG Electronics Inc. All rights reserved.
Only training and service purposes
GENERAL
SURFACE COOKING UNITS
• If the top burner flame goes out,gas is still flowing to the
burner until the knob is turned to the “OFF” position.Do not
leave the burners “ON” unattended.
• Use Proper Pan Size – This appliance is equipped with one
or more surface units of different sizes. Select utensils having
flat bottoms large enough to cover the surface unit heating
element. The use of undersized utensils will expose a portion
of the heating element to direct contact and may result in
ignition of clothing. Proper relationship of utensil to burner will
also improve efficiency.
• Never Leave Surface Units Unattended at High Heat
Settings – Boil overs may cause smoking and greasy
spillovers may ignite.
• Make Sure Reflector Pans or Drip Bowls Are in Place –
Absence of these pans or bowls during cooking may subject
wiring or components underneath to damage.
• Protective Liners – Do not use aluminum foil to line surface
unit drip bowls or oven bottoms, except as suggested in the
manual. Improper installation of these liners may result in a
risk of electric shock, or fire.
• Glazed Cooking Utensils – Only certain types of glass,
glass/ceramic, ceramic, earthenware, or other glazed utensils
are suitable for range-top service without breaking due to the
sudden change in temperature.
• Utensil Handles Should Be Turned Inward and Not Extend
Over Adjacent Surface Units – To reduce the risk of burns,
ignition of flammable materials, and spillage due to
unintentional contact with the utensil, the handle of a utensil
should be positioned so that it is turned inward, and does not
extend over adjacent surface units.
• Be sure you know which knobs operate each burner.
Make sure you turned on the correct burner.
• To prevent burns, always be sure that the controls for all
burners are at the “OFF” position and all grates are cool
before attempting to remove them.
IMPORTANT SAFETY INSTRUCTIONS
SELF-CLEAN OVENS
• Do Not Clean Door Gasket – The door gasket is essential
for a good seal. Care should be taken not to rub, damage, or
move the gasket.
• Do Not Use Oven Cleaners – No commercial oven cleaner
or oven liner protective coating of any kind should be used in
or around any part of the oven.
• Clean in the self-clean cycle only parts listed in this
manual. Before self-cleaning the oven, remove the broiler
pan and any utensils from the oven.
• Never keep pet birds in the kitchen – the health of birds is
extremely sensitive to the fumes released during an oven self-
clean cycle. Fumes may be harmful or fatal to birds. Move
birds to well-ventilated room.
• Important Instruction – In the event the self-clean mode “F”
code goes on, or three long beeps sound, oven is
malfunctioning in the self-clean mode. Turn off or disconnect
appliance from power supply and have serviced by a qualified
technician.
VENTILATING HOODS:
• Clean Ventilating Hoods Frequently – Grease should
not be allowed to accumulate on hood or filter.
•
When flaming foods under the hood, turn the fan on.
OVEN
• Use Care When Opening Door – Let hot air or steam escape
before you remove or replace food in the oven
• Do Not Heat Unopened Food Containers – Build-up of
pressure may cause container to burst and result in injury.
• Keep Oven Vent Ducts Unobstructed – the oven vent is
located above the center burner. This area could become hot
during oven use. Never block this vent and never place plastic
or heat-sensitive items on vent.
• Placement of Oven Racks – Always place oven racks in
desired location while oven is cool. If rack must be moved
while oven is hot, do not let potholder contact hot heating
element in oven.
• Do Not allow aluminum foil or meat probe to contact heating
elements.
DEEP FAT FRYERS:
• Use extreme caution when moving the grease kettle or
disposing of hot grease.

1-4
Copyright © LG Electronics Inc. All rights reserved.
Only training and service purposes
GENERAL
The Model/Serial Number label and Tech Sheet locations are shown below.
Model & Serial
Number Location
MODEL & SERIAL NUMBER LABEL
AND TECH SHEET LOCATIONS
Tech Sheet Location

1-5
Copyright © LG Electronics Inc. All rights reserved.
Only training and service purposes
GENERAL
SPECIFICATIONS
Model Number LSGL6337F, LSGL6337D
Category Convection
Overall Width
30"
Installation type Slide-In
Color availability Anti Finger STS
Control Oven Glass Touch
Cooktop Knob
Display LED
Electronic clock & timer Yes
Control lock capability Yes
Audible preheat signal Yes
Special function Setting (6 categories)
1. Set the hour mode on the clock (12 or 24 hours)
2. Set the convection auto conversion function On/Off
3. Adjust the oven temperature
4. Activate/deactivate the preheating alarm light
5. Set the beeper volume (Hi, Lo, Off)
6. Switch the temperature scale between Fahrenheit and Celsius
(℉/℃)
Cooktop Material STS(LSGL6337F), Enamel(LSGL6337D)
# of element 5
Input Rate
NAT / LP
[BTU/hr]
LR 9.1k / 7.5k
RR 5k / 4k
CR 10k / 10k
LF 18k / 12k
RF 22k / 16k
Oven Capacity(cu.fe) 6.3
Broil (NAT/ LP)[BTU/hr] 13.5k / 12.5k
Bake (BTU/hr) 19k / 17k
Convection system Yes
# of Racks 2 (1 Heavy duty, 1 offset)
Interior oven light auto / manual
Proof Yes
Warm Yes
Favorites No
Control Lock Yes
Broiler pan No
Drawer Type Storage
Dimensions Oven Interior(W x H x D) 24 7/8x 21 3/8x 20
Exterior - Width 30
Exterior - Height 36 (cooktop)
Exterior - Depth 26 7/8(without handle), 29 2/8(with handle)
Power Net weight: lbs (kg) 160.2 lb (72.7 kg)
Rating 120V 4.2A

2-1
Copyright © LG Electronics Inc. All rights reserved.
Only training and service purposes
USING YOUR RANGE
GENERAL INFORMATION
Rating Label
Model numbers are recorded on the rating label.
Rating label is located on the lower front right corner
of the oven frame. It can be seen by opening the
storage drawer or warming drawer. Before ordering
parts, write down the correct model and serial
number from rating label. This avoids incorrect
shipments and delays. Please refer to parts
reference material when ordering replacement parts.
Functional Operation
Bake Mode
Convection burner operates during bake mode.
Bake can be used to cook foods which are normally
baked. Oven must be preheated.
Broil Mode
Broil burner operates during broil mode. Broil can
be used to cook foods which are normally broiled.
Preheating is not required when using broil. All
foods should be turned at least once except fish,
which does not need to be turned.
Convection Bake / Roast Mode
During a convection bake the fan and the burner
run opposite of each other, however on a
convection roast the fan and burner operate at the
same time after preheat has been completed.
Convection bake should be used for cooking
casseroles and roasting meats. Oven should be
preheated for best results when using convection
bake. Pans do not need to be staggered.
Cooking Guide
Refer to the owners manual for recommendations
of times and temperatures. Times, rack position,
and temperatures may vary depending on
conditions and food type. For best results, always
check food at minimum time. When roasting,
choose rack position based on size of food item.
Convection
element
Broil burner

2-2
Copyright © LG Electronics Inc. All rights reserved.
Only training and service purposes
USING YOUR RANGE
CONTROL PANEL FEATURES
aSmart Diagnosis™
Use during the Smart Diagnosis feature.
bControl Lock
Press and hold the button for 3 seconds to lock
the control panel.
cCook Time
Press the button to set the desired amount of time
for food to cook. The oven shuts off when the set
cooking time runs out.
dStart Time
Press the button to set the delayed timed cook.
The oven starts at the set time.
eTemp
Press the button to set the oven temperature
during oven use.
fTimer On/Off / Wi-Fi
Press the button to set or cancel timer on oven.
Press and hold button for three seconds to
connect the appliance to a Wi-Fi network.
gKeep Warm
Press the button to keep food warm after cooking.
• This feature should be used after cooking in the
oven.
hSettings
Press button to select and adjust oven settings.
iClock
Press button to set the time of day.
jLight
Press the button to turn oven light on or off.
kSTART
Press the button to start all oven features.
lOven Mode Knob
Turn the knob to select oven operating mode.

2-3
Copyright © LG Electronics Inc. All rights reserved.
Only training and service purposes
USING YOUR RANGE
1. TO TURN ON THE SURFACE BURNER
1. Be sure all the surface burners are placed in
their respective positions.
2. Push the control knob in and turn it to the
“LITE” positions.
3. You can hear a little CLICKING noise - the
sound of the electric spark igniting the
burners.
4. To control the flame size, turn the knob. If the
knob stays at “LITE”, it will continue to click.
NOTE:
• When turning a burner to LITE, all the burners spark.
Do not attempt to disassemble or clean around any
burner while another burner is on. An electric shock
may result, which could cause you to knock over hot
cookware.
• The medium (left rear) and the large (left front) burners
are the primary burners for most cooking. These
general-purpose burners can be turned down from “HI”
to “LO” suit a wide range of cooking needs.
• The extra large burner (right front) is the maximum
output burner. Like the other four burners, it can be
turned down from “HI” to “LO” for a wide range of
cooking applications.
• This burner is also designed to quickly bring large
amounts of liquid to a boil. It has a special “Ultra Heat”
setting designed to be used with cookware 10 inches or
larger in diameter.
• The oval burner (center) is for large pots/pans or for use
with the griddle.
2. SETTING THE CLOCK
3. START, CLEAR/OFF
1. Touch START key to start oven.
2. Turn the Oven mode knob to cancel a
program during cooking or Erase during
programming.
4. TO TURN ON/OFF THE OVEN LIGHT
The oven light automatically turns ON when the
door is opened.
1. The oven light may also be manually turned
ON or OFF by press the OVEN LIGHT pad.
2. Knocking twice on the glass panel turns the
interior light on or off.
NOTE:
1. The oven light cannot be turned on if self-clean feature is
active.
2. The light turns off automatically after 90 seconds.
5. TIMER ON/OFF
To cancel timer at any time, touch TIMER ON/OFF
pad.
NOTE:
1. If you press TIMER ON/OFF key once, this allows you to
select “seconds”
(for example: if you press “5” and “6”, it means 56 seconds)
2. If you press TIMER ON/OFF key twice, this allows you to
select “minutes”
(for example: if you press “5” and “6”, it means 56 minutes)
6. OVEN TEMPERATURE ADJUSTMENT
The oven temperature can be adjusted from
-35°F (-19°C) to 35°F (19°C).
NOTE: The oven temperature adjustments made with this
feature will just change Bake, temperature.
1. Press Settings repeatedly until AdJU
appears in the display.
2. Use the number keys to enter the number of
degrees you want to adjust the oven
temperature.
Press Settings again to add a minus sign if
decreasing the temperature.
3. Press Start to accept the change.
TIMER
ON/OFF
Desired
time
TIMER
ON/OFF
Press Clock
Desired
Time START

2-4
Copyright © LG Electronics Inc. All rights reserved.
Only training and service purposes
USING YOUR RANGE
7. PREHEATING ALARM LIGHT ON/OFF
1. Press Settings repeatedly until PrE appears in
the display.
2. Press 1to turn the light on/off.
3. Press Start to accept the change.
8. BEEPER VOLUME
1. Press Settings repeatedly until Beep appears
in the display.
2. Press 1repeatedly to select Hi, Lo or Off.
3. Press Start to accept the change.
9. TEMPERATURE UNIT(°F or °C)
1. Press Settings repeatedly until Unit appears
in the display.
2. Press 1to select F(Fahrenheit) or C(Celsius).
3. Press Start to accept the change.
10. BAKE, TIMED BAKE
11. BROIL
12. TIMED COOK WITH WARM
13. CONTROL LOCK
14. CHANGING HOUR MODE ON CLOCK
(12HR, 24HR)
15. SELF-CLEAN
16. AUTO CONVERSION
START
SELF CLEAN
: 1 →3-hour
: 2 →4-hour
: 3 →5-hour
BAKE Desired
Temp.
COOK
TIME
Desired
time WARM START
Press and hold the Control Lock key for 3
seconds
(to activate or reactivate Control Lock)
Press and hold the Settings button for 3 seconds
Press 1 to select 12 or 24
hour. START
BAKE Desired
temperature START
COOK
TIME Desired time START
START
BROIL: 1 →High
: 2 →Low
Press Settings repeatedly until
Auto appears in the display. Press 1
Auto conversion
On/off START

3-1
Copyright © LG Electronics Inc. All rights reserved.
Only training and service purposes
Igniter (bake)
Door switch
Gas pressure
regulator
Igniter (broil)
Spark module
Bake burner
Lock Motor and
Micro Switch
Oven sensor
Broil burner
Burner Body
Pipe
Oven valve
Oven Light
Conv. Motor
COMPONENT ACCESS
This section instructs you on how to service each component inside the range. The components and their
locations are shown below.
COMPONENT LOCATIONS

3-2
Copyright © LG Electronics Inc. All rights reserved.
Only training and service purposes
COMPONENT ACCESS
1. Turn off the electrical supply and gas supply going
to the range.
2. Pull the range away from the wall so that you can
access the rear panel.
3. To remove the back cover, remove 15 screw from
the cover.
REMOVING THE BACK COVER
WARNING
• DISCONNECT power supply cord
from the outlet before servicing.
• Replace all panels and parts before
operating.
•
RECONNECT all grounding devices.
- Failure to do so can result in severe personal
injury, death or electrical shock.
CAUTION
• Be careful when you work on the gas
range handling the sheet metal part.
- Sharp edge may be present and you can cut yourself.

3-3
Copyright © LG Electronics Inc. All rights reserved.
Only training and service purposes
COMPONENT ACCESS
REMOVING THE OVEN RELAY & POWER PCB
1. Turn off the electrical supply and gas supply going
to the range.
2. Pull the range away from the wall so that you can
access the rear panel.
3. Remove the back cover (See step 3 on page 3-2)
Oven Relay &
Power PCB
4. To remove the PCB, Disconnect the 7ea housing
and remove the 2ea screw.
Screw
Screw
WARNING
• DISCONNECT power supply cord
from the outlet before servicing.
• Replace all panels and parts before
operating.
•
RECONNECT all grounding devices.
- Failure to do so can result in severe personal
injury, death or electrical shock.
CAUTION
• Be careful when you work on the
gas range handling the sheet metal
part.
- Sharp edge may be present and you can cut
yourself.

3-4
Copyright © LG Electronics Inc. All rights reserved.
Only training and service purposes
COMPONENT ACCESS
1. Turn off the electrical supply and gas supply going
to the range.
2. Pull the range away from the wall so that you can
access the rear panel.
3. Remove 8 screws on the back.
4. Remove the 15 screws from the cooktop plate.
REMOVING THE COOKTOP PLATE AND THE SPARK MODULE
5. After lifting the back of the top plate, pull it out
forward.
6. To remove spark plug, remove 5 screws and
disconnect harness connected to spark plug.
NOTE : Before lowering the top onto the front clips,
line up the burner body and with the cooktop.
WARNING
• DISCONNECT power supply cord
from the outlet before servicing.
• Replace all panels and parts before
operating.
•
RECONNECT all grounding devices.
- Failure to do so can result in severe personal
injury, death or electrical shock.
CAUTION
• Be careful when you work on the
gas range handling the sheet metal
part.
- Sharp edge may be present and you can cut
yourself.

3-5
Copyright © LG Electronics Inc. All rights reserved.
Only training and service purposes
COMPONENT ACCESS
1. Turn off the electrical supply and gas supply going
to the range.
2. Remove the cooktop plate. (see “Remove the
cooktop plate” on the 3-4 Page)
3. To disassemble controller panel, remove 6 screws
and take out the hook hanging from the side
panel.
4. To remove the main PCB supporter, remove 4
screws.
5. After disconnecting the 9 connectors, remove the
PCB from the PCB supporter.
6. Disconnect key pad wiring.
REMOVING THE CONTROLLER PANEL AND MAIN PCB
WARNING
• DISCONNECT power supply cord
from the outlet before servicing.
• Replace all panels and parts before
operating.
•
RECONNECT all grounding devices.
- Failure to do so can result in severe personal
injury, death or electrical shock.
CAUTION
• Be careful when you work on the
gas range handling the sheet metal
part.
- Sharp edge may be present and you can cut
yourself.

3-6
Copyright © LG Electronics Inc. All rights reserved.
Only training and service purposes
COMPONENT ACCESS
1. Turn off the electrical supply and gas supply going
to the range.
2. Release the knobs and Loosen 2 kinds of screws.
3. Remove the Knob ring.
4. After disconnecting the connector, remove the
PCB from the Knob ring.
REMOVING THE KNOB LIGHTING PCB
WARNING
• DISCONNECT power supply cord
from the outlet before servicing.
• Replace all panels and parts before
operating.
•
RECONNECT all grounding devices.
- Failure to do so can result in severe personal
injury, death or electrical shock.
CAUTION
• Be careful when you work on the
gas range handling the sheet metal
part.
- Sharp edge may be present and you can cut
yourself.

3-7
Copyright © LG Electronics Inc. All rights reserved.
Only training and service purposes
COMPONENT ACCESS
3. To remove the valve:
a) Remove the manifold panel (See the step 3 on
page 3-5).
b) Remove the 6 nuts from the valve.
c) Remove the ignition switch.
d) Remove the valve screw and remove the valve.
Valve Screw
Screw Seal
Valve Seal
Single
Burner valve
4. To remove the ignition switch:
Ignition
switch
REMOVING THE COOKTOP PARTS
WARNING
• DISCONNECT power supply cord
from the outlet before servicing.
• Replace all panels and parts before
operating.
•
RECONNECT all grounding devices.
- Failure to do so can result in severe personal
injury, death or electrical shock.
CAUTION
• The 2 lock tabs on each igniter
switch are fragile. Tab breakage can
occur if excessive release pressure
is applied.
• Check that the gas seal gasket on
the screw and the gas valve remain
in place before installing the new
gas valve.
NOTE: When servicing the burner housing or the
valve, it is necessary to service also the pipe which
is designated.
1. Turn off the electrical supply and gas supply going
to the range.
2. Remove the cooktop plate (See “REMOVING
THE COOKTOP PLATE” on page 3-4).
