LG LFX28995ST User manual

OWNER’S MANUAL
FRENCH DOOR
REFRIGERATOR
lease read this owner's manual thoroughly before
operating and keep it handy for reference at all times.
LFX28995**
P/No. : MFL62184422 www.lg.com
ENGLISH FRANÇAIS ESPAÑOL

2TABLE OF CONTENTS
ENGLISH
TABLE OF CONTENTS
4 PRODUCT FEATURES
5 IMPORTANT SAFETY
INSTRUCTIONS
8 COMPONENTS
8 Refrigerator Exterior
9 Refrigerator Interior
10 INSTALLATION
10 Installation Overview
10 Specifications
11 - LCD Display
11 - Modem FCC / IC Certification
12 Unpacking Your Refrigerator
12 Choosing the Proper Location
12 - Flooring
13 - Ambient Temperature
13 - Measuring the Clearances
13 Removing/Assembling the Refrigerator
Door Handles
14 Removing/Assembling the Freezer
Drawer Handle
14 Removing/Assembling the Doors and
Drawers
14 - Removing the Left Refrigerator Door
15 - Removing the Right Refrigerator Door
16 - Assembling the Right Refrigerator Door
16 - Assembling the Left Refrigerator Door
17 - Removing the Freezer Drawers
18 - Assembling the Freezer Drawers
19 Connecting the Water Line
19 - Before You Begin
19 - Water Pressure
19 - What You Will Need
20 - Water Line Installation Instructions
22 Turning On the Power
23 Leveling and Door Alignment
23 - Leveling
23 - Door Alignment
24 HOW TO USE
24 Before Use
25 Control Panel
25 - Control Panel Features
27 In-Door Ice Bin
27 - Detaching the In-Door Ice Bin
27 - Assembling the In-Door Ice Bin
28 Automatic Icemaker
28 - Turning the Automatic Icemaker On or
Off
29 - When You Should Turn the Icemaker Off
29 - Normal Sounds You May Hear
29 - Preparing for Vacation
30 Ice and Water Dispenser
30 - Dispenser
30 - Using the Dispenser
30 - Locking the Dispenser
30 - Cleaning the Dispenser Stand
31 Storing Food
31 - Food Preservation Location
32 - Food Storage Tips
32 - Storing Frozen Food
33 Humidity Controlled Crisper and
Glide’N’Serve
34 Detaching and Assembling the Storage
Bins
36 Adjusting the Refrigerator Shelves

3
TABLE OF CONTENTS
ENGLISH
37 SMART REFRIGERATOR
DISPLAY SCREEN
37 Before Use
37 - Smart Refrigerator display Screen
37 - Touch button Function
38 - Necessary Installation Parts
38 - Note Before Using
39 - Downloading The Smart Phone
Application
39 - Turning the touch screen on or off.
40 Home Screen
41 Basic button
42 Settings
42 - Brightness
42 - Volume
43 - Wireless Network
45 - Update
47 - Screen Saver
48 - Date / Time
49 - Zigbee
50 - Log In / Reset
52 Energy Saving
52 - Smart Grid
53 - Smart Saving
54 Food Manager
54 - Frequently used Items
56 - Food Manager by Category
57 - Food Manager Using Voice Recognition
59 - Food Manager Using Keyboard
61 - Phone
63 - Food List
64 - Recipes
64 - Grocery
65 - Deleting Individual Stored Items
65 - Removing All Stored Items
66 Recipes
67 - Recipes Search
68 - Recommended recipes by available
items.
69 Grocery
69 - Phone
70 - Remove Grocery
71 Food Guide
71 - Fruit / Vegetable Lists
72 Calendar
72 - Creating / Scheduling an event
74 - Edit / Delete event
75 - Calendar Menu Button
76 Memo
76 - Creating Memo
78 - Delete Memo
78 - Save memo to Home Screen
79 Photo Album
80 - View Photos
81 - Saving photo to Home Screen
82 Timer
82 - Setting the Timer
84 Using the Widgets
87 MAINTENANCE
87 Cleaning
88 Replacing the Water Filter
93 SMART DIAGNOSIS
93 Using Smart Diagnosis
94 TROUBLESHOOTING
104 WARRANTY

4PRODUCT FEATURES
ENGLISH
PRODUCT FEATURES
* Depending on the model, some of the following functions may not be available.
FILTERED WATER AND ICE DISPENSER
The water dispenser dispenses fresh, chilled water.
The ice dispenser dispenses cubed and crushed ice.
DOOR ALARM
The Door Alarm function is designed to prevent refrigerator malfunctioning
that could occur if a refrigerator door or freezer drawer remains open. If a
refrigerator door or freezer drawer is left open for more than 60 seconds, a
warning alarm sounds in 30 second intervals.
HUMIDITY CONTROLLED CRISPER
The Humidity Controlled Crisper is designed to help keep your fruits and
vegetables fresh and crisp. You can control the amount of humidity in the
crisper by adjusting the setting between Low and High.
LIDE‘N’SERVE
Glide`N’Serve provides storage space that keeps the compartment colder
than the refrigerator.
It is a convenient place to store sandwiches or meat to be cooked.
ICE PLUS
Ice production can be increased by approximately 20 percent when the
freezer section is maintained at the coldest temperature for a 24-hour
period.

5
IMPORTANT SAFETY INSTRUCTIONS
ENGLISH
IMPORTANT SAFETY INSTRUCTIONS
READ ALL INSTRUCTIONS BEFORE USING THE APPLIANCE.
This guide contains many important safety messages. Always read and obey all safety messages.
WARNIN You can be killed or seriously injured if you do not follow instructions.
CAUTION
Indicates an imminently hazardous situation which, if not avoided, may result
in minor or moderate injury, or product damage.
WARNIN
To reduce the risk of fire, electric shock, or personal injury when using your product, basic safety
precautions should be followed, including the following.
Power
NEVER unplug your refrigerator by pulling on the power cord. Always grip the plug firmly and
y
pull it straight out from the outlet.
Immediately repair or replace all power cords that have become frayed or otherwise
y
damaged. Do not use a cord that shows cracks or abrasion damage along its length or at
either the plug or connector end.
Do not use an uncertified power outlet.
y
Unplug the power plug immediately in the event of a blackout or thunderstorm.
y
Plug in the power plug with the power cord facing downward.
y
Installation
Contact an authorized service center when you install or relocate the refrigerator.
y
When moving your refrigerator away from the wall, be careful not to roll over or damage the
y
power cord.
Connect this product to a dedicated grounded electric outlet conforming with the rating prior
y
to use. It is the user’s responsibility to replace a standard 2-prong wall outlet with a standard
3-prong wall outlet.
Do not install the refrigerator where there may be a danger of falling.
y
Use
DO NOT allow children to climb, stand, or hang on the refrigerator doors or shelves in the
y
refrigerator. They could damage the refrigerator and seriously injure themselves.
Do not place heavy objects on the dispenser of the refrigerator or hang onto it.
y
Do not place heavy or dangerous objects (bottles with liquid) on the refrigerator.
y
Do not put live animals inside of the refrigerator.
y
Do not allow children to climb into the product when it is in use.
y
In the event of a gas leak (propane/LPG), ventilate sufficiently and contact an authorized
y
service center before use. Do not touch or disassemble the electric outlet of the refrigerator.
In the event of a refrigerant leak, move flammable objects away from the refrigerator.
y
Ventilate sufficiently and contact an authorized service center.
Do not use or place flammable substances (chemicals, medicine, cosmetics, etc) near the
y
refrigerator or store them inside the refrigerator. Do not place the refrigerator in the vicinity
of flammable gas.
This is the safety alert symbol. It alerts you to safety messages that inform you of
hazards that can kill or hurt you or others, or cause damage to the product.
All safety messages will be preceded by the safety alert symbol and the hazard
signal word WARNING or CAUTION. These words mean:

6IMPORTANT SAFETY INSTRUCTIONS
ENGLISH
Do not use this product for special purposes (storage of medicine or test materials or for ships,
y
etc).
Unplug the power plug before cleaning or repairing the refrigerator.
y
When you replace the light bulb in the refrigerator, unplug the refrigerator or turn off the power.
y
Do not modify or extend the power cord.
y
Do not use a dryer to dry the interior. Do not light a candle to remove the interior odor.
y
For your safety, this appliance must be properly grounded. Have the wall outlet and the circuit
y
checked by a qualified electrician to make sure the outlet is properly grounded.
Do not use an outlet that can be turned off with a switch. Do not use an extension cord. It is the
y
user’s responsibility to replace a standard 2-prong wall outlet with a standard 3-prong wall outlet.
Do not, under any circumstances, cut or remove the third (ground) prong from the power cord.
y
Do not use an adapter plug and plug the power plug into a multi-outlet extension cord.
y
Disconnect the power cord immediately if you hear a noise, smell a strange odor or detect
y
smoke.
Turn the power off if water or dust penetrates into the refrigerator. Call a service agent.
y
Do not disassemble or modify the refrigerator.
y
Do not put hands, feet, or metal objects below or behind the refrigerator.
y
Do not operate the refrigerator or touch the power cord with wet hands.
y
In refrigerators with automatic icemakers, avoid contact with the moving parts of the ejector
y
mechanism or with the heating element that releases the cubes. Do not place fingers or hands
on the automatic ice-making mechanism while the refrigerator is plugged in.
When dispensing ice from the dispenser, do not use crystal ceramics.
y
Do not touch the cold surfaces in the freezer compartment with wet or damp hands, when your
y
refrigerator is in operation.
Do not put glass containers, glass bottles or soda in the freezer.
y
This appliance is not intended for use by persons (including children) with reduced physical,
y
sensory or mental capabilities, or lack of experience and knowledge, unless they have been given
supervision or instruction concerning the use of the appliance by a person responsible for their
safety.
Do not refreeze frozen food that have thawed completely. It may result in a serious health issue.
y
If you are throwing away your old refrigerator, make sure the CFC coolant is removed for proper
y
disposal by a qualified servicer. If you release CFC coolant, you may be fined or imprisoned in
accordance with the relevant environmental law.
Junked or abandoned refrigerators are dangerous, even if they are sitting for only a few days.
y
When disposing the refrigerator, remove the packing materials from the door or take off the
doors but leave the shelves in place so that children may not easily climb inside.
READ ALL INSTRUCTIONS BEFORE USING THE APPLIANCE.
To reduce the risk of fire, electric shock, or personal injury when using your product, basic safety
precautions should be followed, including the following.

7
IMPORTANT SAFETY INSTRUCTIONS
ENGLISH
CAUTION
Installation
The refrigerator must be properly installed in accordance with the Installer Instructions that
y
were taped to the front of the refrigerator.
Be careful when you unpack and install the refrigerator. Immediately dispose of packing
y
materials (plastic) out of reach of children.
Use
Close the door carefully when children are around.
y
Keep fingers out of pinch point areas; clearances between the doors and cabinets are
y
necessarily small. Be careful closing doors when children are in the area.
If you store food properly, beware that it may fall and cause injury.
y
Maintenance
Do not use strong detergents like wax or thinners for cleaning. Clean with a soft fabric.
y
Wipe foreign objects (dust, water, etc) off the prongs of the power plug and contact areas
y
regularly.
READ ALL INSTRUCTIONS BEFORE USING THE APPLIANCE.
To reduce the risk of fire, electric shock, or personal injury when using your product, basic safety
precautions should be followed, including the following.
SAVE THESE INSTUCTIONS

8COMPONENTS
ENGLISH
COMPONENTS
Use this page to become more familiar with the parts and features of your refrigerator.
Page references are included for your convenience.
*The appearance and specifications of the actual product may differ depending on the model.

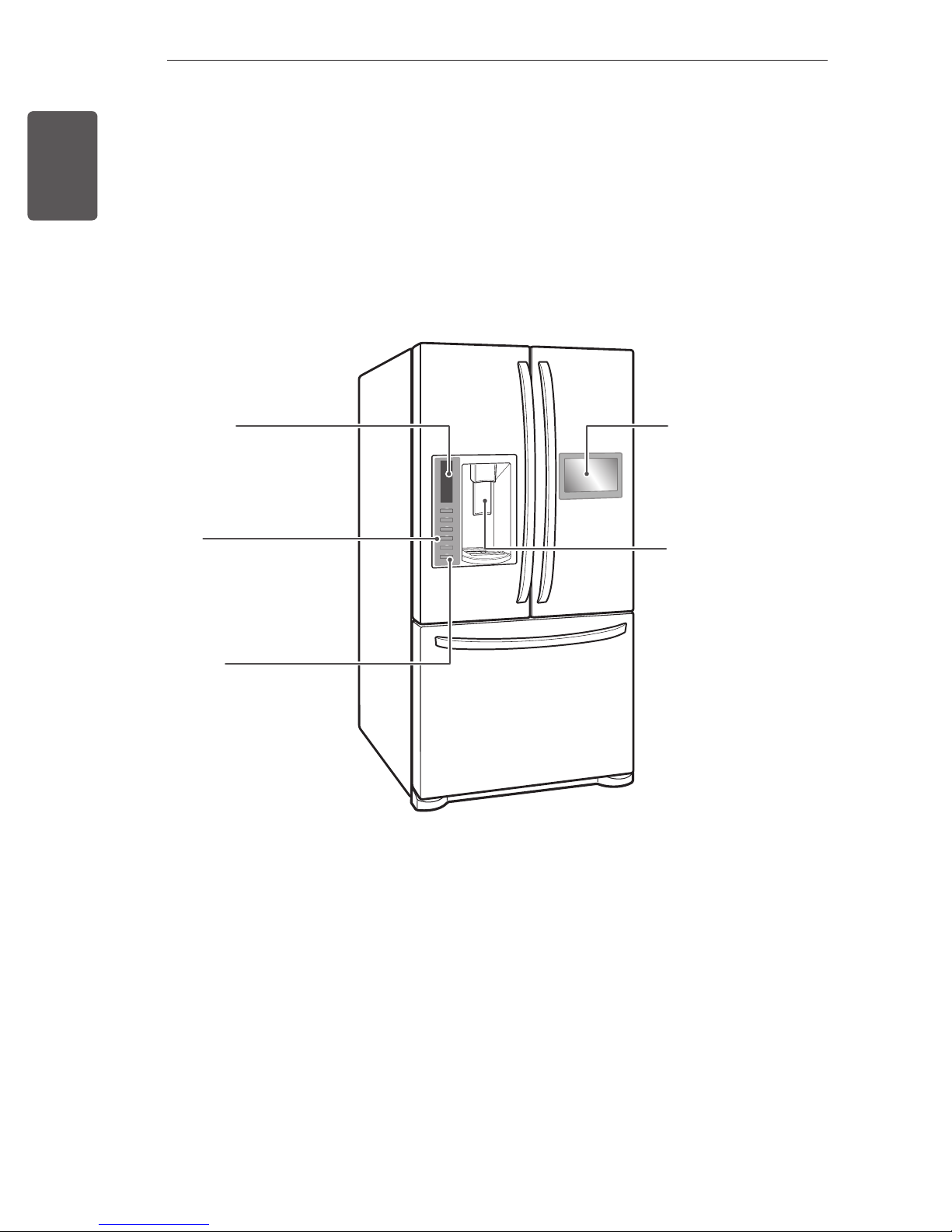

Refrigerator E terior
LED Display
Displays the refrigerator and
freezer temperature, the water
filter condition and the dispenser
status.
Ice Plus
When this feature is activated,
the freezer section will run at the
coldest temperature for a 24-hour
period to increase ice production.
Door Alarm
A warning alarm sounds at 30-
second intervals when the
refrigerator or freezer door is left
open for more than 60 seconds.
Filtered Water and
Ice Dispenser
Dispenses fresh, chilled,
filtered water through
the door. The ice
dispenser offers cubed
or crushed ice.
LCD Display
You can enjoy various
experiences by
conveniently and simply
operating the refrigerator
functions.

9
COMPONENTS
ENGLISH
Refrigerator Interior
Modular Door Bins
Dairy Product Bin
Pullout Drawer
LED Interior Lamps
The interior lamps light up the
inside of the refrigerator.
Refrigerator Shelves
The shelves in your
refrigerator are adjustable
to meet your individual
storage needs.
Durabase Divider
Durabase
Fixed Door Bins
Can Storage Bin
Used to preserve chilled
food or drinks.
Water Filter
Mullion
Folds in when the
left door is opened.
SpacePlus Ice System
Automatically produces
80-130 ice cubes in a
24-hour period.
Auto Closing Hinge
The refrigerator doors
and freezer drawers close
automatically when you push
them slightly.
(The door only closes
automatically when it is open
at an angle of less than 30°.)
Crispers
Controls humidity and
helps vegetables and
fruit to stay crisp.
lide’N’Serve
Allows you to store food items
at a different temperature than
the regular refrigerator area.
Smart Diagnosis Speaker
Hold your phone to this speaker when
activating Smart Diagnosis. Refer to the
Smart Diagnosis section for more details.
Holder cover

10 INSTALLATION
ENGLISH
1 Unpacking your
refrigerator
2 Choosing the proper
location
3 Disassembling/Assembling
4 Connecting the water
supply and water line
5 Leveling and Door
Alignment
INSTALLATION
Installation Overview
Please read the following installation instructions first after purchasing this product or transporting
it to another location.
Specifications
The appearance and specifications listed in this manual may vary due to constant product
improvements.
Bottom-freezer refrigerator model LFX28995
Description French door refrigerator
Electrical requirements 115 VAC @ 60 Hz
Min. / Max. Water pressure 20 - 120 psi (1.4 - 8.4 kgf/cm2)
Dimensions 35 3/4” (W) X 35 3/8” (D) X 69 3/4” (H), 47 5/8” (D w/ door open)
908 mm (W) X 899 mm (D) X 1 772 (H), 1 210 mm (D w/ door open)
Net weight 342 lb. (155kg)
Refrigerator storage
capacity
18.82 cu. ft.
Freezer storage capacity 8.79 cu. ft.

11
INSTALLATION
ENGLISH
WLAN (Wi-Fi) ZigBee
Model LGHA-WNA1105 LGHA-ZNA1105
Frequency Range 2412 ~ 2462 MHz 2405 ~ 2475 MHz
RF Max Power 802.11b(22.88 dBm)/802.11g(21.65dBm)/
802.11n(20.67dBm) 18.91dBm
Channel 11 15
Modulation type CCK/DSSS/OFDM DSSS
Processor Telechips (ARM Core)
ROM 2GB
RAM 512MB
LCD 10.1” TFT-LCD (1024 X 600)
Network 802.11 b/g/n
LCD Display
Modem FCC / IC Certification
- U.S. Regulatory Wireless Notice
This products emits radio frequency energy,
but the radiated output power of this device is
far below the FCC radio frequency exposure
limits. Nevertheless, the device should be
used in such a manner that the potential for
human contact with the antenna during normal
operation is minimized.
- FCC WARNING:
This equipment may generate or use radio
frequency energy. Changes or modifications
to this equipment may cause harmful
interference unless the modifications are
expressly approved in the instruction manual.
The user could lose the authority to operate
this equipment if an unauthorized change or
modification is made.
- Product Specification
NOTE
This device complies with part 15 of the
FCC rules.
Operation is subject to the following two
conditions :
(1) This device may not cause harmful
interference, and
(2) This device must accept any interference
received, including interference that may
cause undesired operation.
This device complies with RSS-210 of the
Industry Canada Rules.
Operation is subject to the following two
conditions:
(1) This device may not cause interference
and
(2) This device must accept any
interference, including interference that
may cause undesired operation of the
device.

12 INSTALLATION
ENGLISH
Choosing the Proper Location
Select a place where a water supply can
y
be easily connected for the automatic
icemaker.
Unpacking Your Refrigerator
WARNIN
Use two or more people to move and
y
install the refrigerator. Failure to do so
can result in back or other injury.
Your refrigerator is heavy. When moving
y
the refrigerator for cleaning or service,
be sure to protect the floor. Always pull
the refrigerator straight out when moving
it. Do not wiggle or walk the refrigerator
when trying to move it, as floor damage
could occur.
Keep flammable materials and vapors,
y
such as gasoline, away from the
refrigerator. Failure to do so can result in
fire, explosion, or death.
Remove tape and any temporary labels from your
refrigerator before using. Do not remove any
warning-type labels, the model and serial number
label, or the Tech Sheet that is located under the
front of the refrigerator.
To remove any remaining tape or glue, rub the
area briskly with your thumb. Tape or glue residue
can also be easily removed by rubbing a small
amount of liquid dish soap over the adhesive with
your fingers. Wipe with warm water and dry.
Do not use sharp instruments, rubbing alcohol,
flammable fluids, or abrasive cleaners to remove
tape or glue. These products can damage the
surface of your refrigerator.
Refrigerator shelves are installed in the shipping
position. Please reinstall shelves according to
your individual storage needs.
Flooring
To avoid noise and vibration, the unit must be
leveled and installed on a solidly constructed
floor. If required, adjust the leveling legs to
compensate for unevenness of the floor. The
front should be slightly higher than the rear to
aid in door closing. Leveling legs can be turned
easily by tipping the cabinet slightly. Turn the
leveling legs to the left to raise the unit or to
the right to lower it. (See Leveling and door
AlIgnment.)
NOTE
Installing on carpeting, soft tile surfaces,
a platform or weakly supported structure
is not recommended.
The refrigerator should always be plugged
y
into its own individual properly grounded
electrical outlet rated for 115 Volts, 60 Hz,
AC only, and fused at 15 or 20 amperes.
This provides the best performance
and also prevents overloading house
wiring circuits which could cause a fire
hazard from overheated wires. It is
recommended that a separate circuit
serving only this appliance be provided.
WARNIN
To reduce the risk of electric shock, do not
install the refrigerator in a wet or damp
area.
NOTE
The water pressure must be between
20 and 120 psi on models without a
water filter and between 43 and 121 psi
on models with a water filter.

13
INSTALLATION
ENGLISH
Ambient Temperature
Install this appliance in an area where the
temperature is between 55°F (13°C) and 110°F
(43°C). If the temperature around the appliance
is too low or high, cooling ability may be
adversely affected.
Measuring the Clearances
Too small of a distance from adjacent items
may result in lowered freezing capability and
increased electricity consumption charges.
Allow at least 24 inches (61 cm) in front of the
refrigerator to open the doors, and at least
2 inches (5.08 cm) between the back of the
refrigerator and the wall.
2” (5.08 cm)
24” (61 cm)
Removing/Assembling the
Refrigerator Door Handles
Removing the Handles
1Loosen the set screws with a 3/32 in.
Allen wrench and remove the handle.
2Loosen the mounting fasteners that
connect to the refrigerator door and handle
using a 1/4in. Allen wrench, remove the
mounting fasteners.
Assembling the Handles
1Assemble the mounting fasteners at
both ends of the handle using a 1/4in.
Allen wrench.
2Place the handle on the door by fitting
the handle footprints over the mounting
fasteners and tightening the set screws
with a 3/32 in. Allen wrench.
NOTE
Removing the doors is always
recommended when it is necessary to
move the refrigerator through a narrow
opening. If it is necessary to remove the
handles, follow the directions below.

14 INSTALLATION
ENGLISH
Removing/Assembling the
Freezer Drawer Handle
Removing the Handles

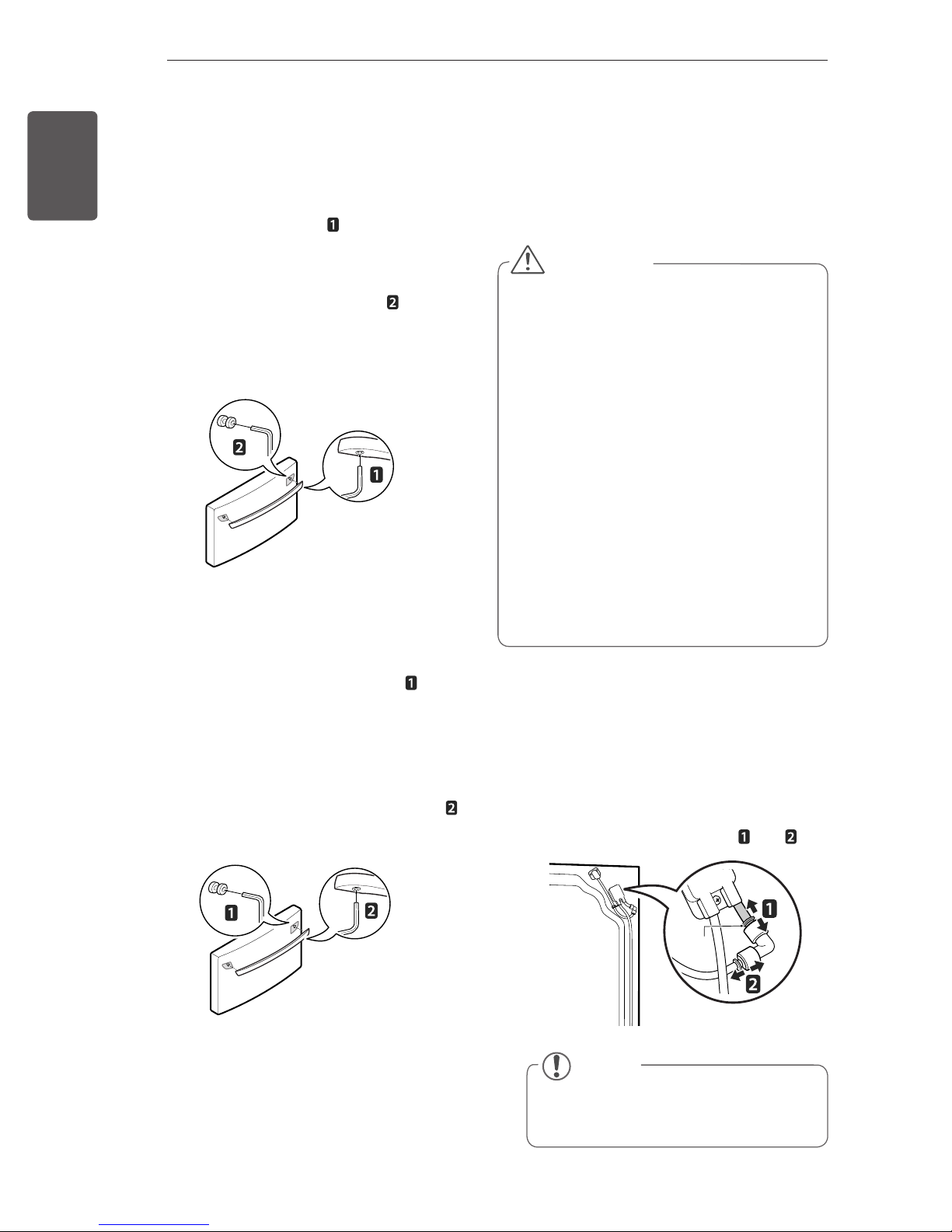

1Loosen the set screws located on the
lower side of the handle with a 1/8in. Allen
wrench and remove the handle.
2Loosen the mounting fasteners that
connect to the freezer drawer and handle
using a 1/4in. Allen wrench, and remove
the mounting fasteners.
Assembling the Handles
1Assemble the mounting fasteners at
both ends of the handle using a 1/4in. Allen
wrench.
2Place the handle on the door by fitting
the handle footprints over the mounting
fasteners and tightening the set screws
with a 1/8in. Allen wrench.
Removing the Left Refrigerator Door

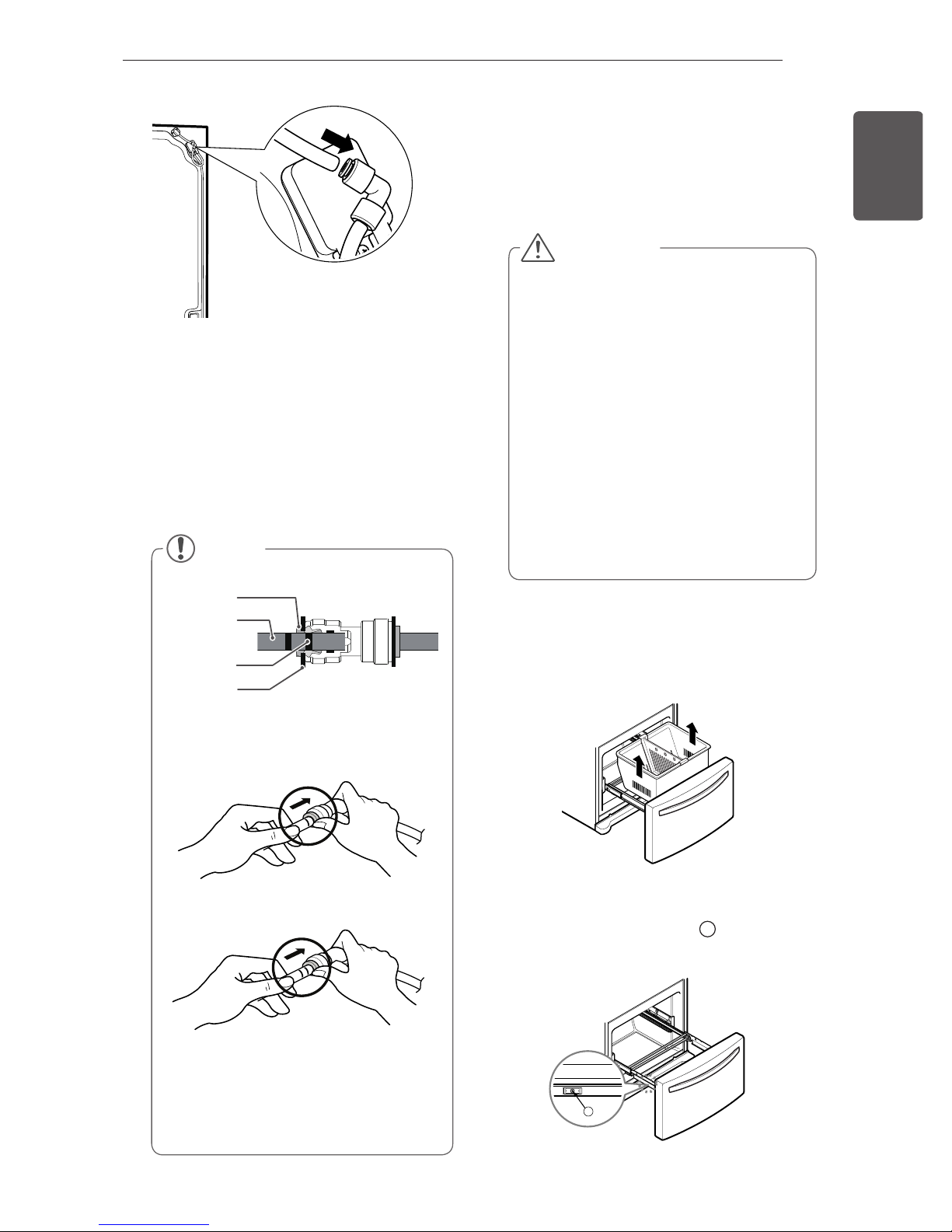

1The water supply is connected to the
upper right part of the rear surface of the
refrigerator. Remove the ring in the joint
area. Hold the water supply connection
and gently push the Collet to detach the
water supply line as shown in and .
NOTE
Detachment of the water supply line is
applicable only when detaching the left
refrigerator door.
WARNIN
If your entrance door is too narrow for the
y
refrigerator to pass through, remove the
refrigerator doors and move the refrigerator
sideways through the doorway.
Use two or more people to remove and
y
install the refrigerator doors. Failure to do
so can result in back or other injury.
Disconnect the electrical supply to the
y
refrigerator before installing. Failure to do
so could result in serious injury or death.
Do not put hands, feet or other objects into
y
the air vents or bottom of the refrigerator.
You may be injured or receive an electrical
shock.
Be careful when handling the hinge and
y
stopper. It may result in injury.
Remove food and bins from the doors and
y
drawers before detaching.
Collet
Removing/Assembling the
Doors and Drawers
Removing the doors is always recommended
when it is necessary to move the refrigerator
through a narrow opening.

15
INSTALLATION
ENGLISH
2Open the left door. Remove the top hinge
cover screw (1). Lift up the cover (2).
3Remove the cover.
4Pull out the tube (3).
5Disconnect all wire harnesses (4).
6Remove the grounding screw (5).
7Rotate the hinge lever (6)
counterclockwise. Lift the top hinge (7)
free of the hinge lever latch (8).
8Lift the door from the middle hinge pin and
remove the door.
9Place the door, inside facing up, on a non-
scratching surface.
CAUTION
When lifting the hinge free of the latch, be
careful that the door does not fall forward.
CAUTION
When lifting the hinge free of the latch, be
careful that the door does not fall forward.
Removing the Right Refrigerator Door
1Open the door. Remove the top hinge
cover screw (1). Lift up the cover (2).
2Remove the cover.
3Disconnect all wire harnesses (3).
4Rotate the hinge lever (4) clockwise.
Lift the top hinge (5) free of the hinge
lever latch (6).
5Lift the door from the middle hinge pin and
remove the door.
6Place the door, inside facing up, on a
non- scratching surface.
(2) (1)
(3)
(4)
(5)
(6)
(7) (8)
(2)
(4) (5) (6)
(1)
(3)

16 INSTALLATION
ENGLISH
1Lower the door onto the middle hinge pin.
2Fit the top hinge (7) over the hinge lever
latch (8) and into place.
3Rotate the lever (6) clockwise to secure
the hinge.
4Install the grounding screws (5) and
connect the two wire harnesses (4).
5Push the water tube (3) located at the top
of the left door into the hole beside the left
hinge on the top of the cabinet until it exits
through the back.
6Insert the water supply tube (3) into the
connector until you see only one scale
mark. Fully insert the tub cover (15 mm).
7Hook the tabs on the left side of the hinge
cover (1) under the edge of the top hinge (7)
and position the cover in place.
8Insert and tighten the cover screw (1).
1Lower the door onto the middle hinge
pin. Make sure that the plastic sleeve is
inserted into the bottom of the door.
2Fit the top hinge (5) over the hinge lever
latch (6) and into place.
3Rotate the lever (4) counterclockwise to
secure the hinge.
4Connect the two wire harnesses (3).
5Hook the tabs on the right side of the
hinge cover (2) under the edge of the top
hinge (5) and position the cover in place.
6Insert and tighten the cover screw (1).
Install the right-side door first.
Assembling the Right Refrigerator
Door
Assembling the Left Refrigerator
Door
Install the left refrigerator door after the right
door is installed.
(2)
(4) (5) (6)
(1)
(3)
(2) (1)
(3)
(4)
(5)
(6)
(7) (8)

17
INSTALLATION
ENGLISH
CAUTION
Use two or more people to remove and
y
install the freezer drawer. Failure to do so
can result in back or other injury.
Do not hold the handle when removing
y
or replacing the drawer. The handle may
come off and it could cause personal
injury.
Be careful of sharp hinges on both sides
y
of the drawer.
When you lay the drawer down, be
y
careful not to damage the floor.
Do not sit or stand on the freezer drawer.
y
To prevent accidents, keep children and
y
pets away from the drawer. Do not leave
the drawer open.
NOTE
1) Gently press the Collet and insert the
tube until only one line shows on the
tube.
(Correct)
(Incorrect)
2) Pull the tube to make sure that the
tube is tightly fastened and then insert
the clip.
Removing the Freezer Drawers
The top, middle and bottom drawers are all
removed in the same way. In the following
figures, the Pullout Drawer located above the
freezer drawer is not shown for clarity.
1Fully extend the freezer drawer. Lifting up
and out to remove the Dura Base basket
making sure to clear the rail system.
2Remove one white screw
1
on each side
of the rails.assembly.
Collet
Tube
Insert Line
Clip
9Insert the water supply tube at least 5/8 in.
(15 mm) into the connector.
10 Hook the tab on the door switch side
of the cover under the edge of the wire
opening in the cabinet top.
11 Position the cover into place. Insert and
tighten the cover screw.
1

18 INSTALLATION
ENGLISH
2
1
3
Lower door into final position and tighten the
screws.
4
With the drawer pulled out to full extension,
insert the lower basket in the rail assembly.
2
Hook the door support
1
into the rail tabs
2
on both sides.
Assembling the Freezer Drawer
1
With both hands, pull out each rail
simultaneously until both rails are fully
extended.
3
With both hands, grasp the sides of the door
and pull it up to separate it from the rails.
4
With both hands, hold each rail and push it in
to allow both rails to slide in simultaneously.
CAUTION
When you remove the drawer, do not
hold the handle. The handle may come
off and it could cause personal injury.
WARNIN
If the Durabase divider is removed, there is
y
enough open space for children or pets to
crawl inside. To prevent accidental child and
pet entrapment or suffocation risk, DO NOT
allow them to touch or go near the freezer
drawer.
DO NOT step or sit down on freezer
y
drawer.

19
INSTALLATION
ENGLISH
CAUTION
Wear eye protection during installation
to prevent injury.

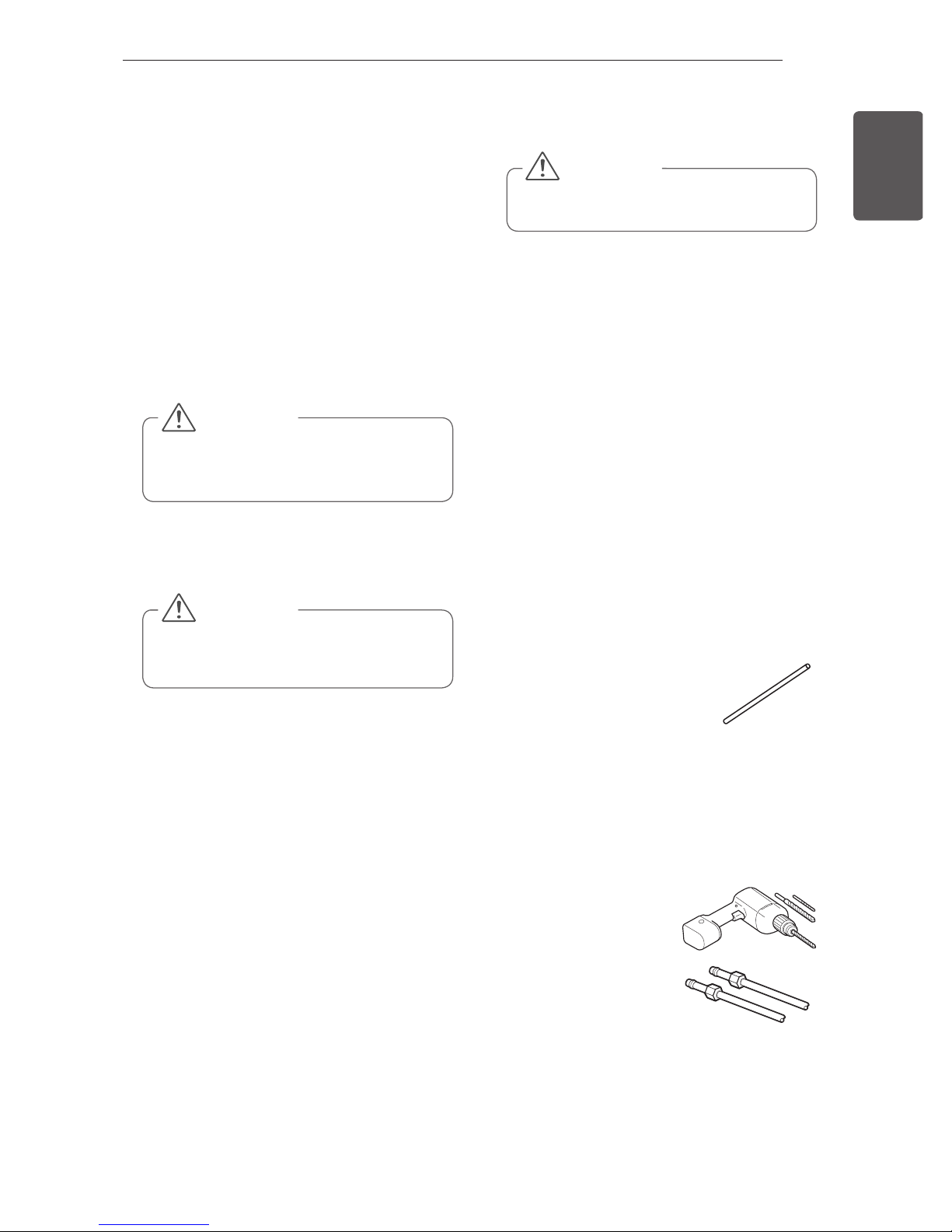

Connecting the Water Line
Before You Begin
This water line installation is not covered by the
refrigerator warranty. Follow these instructions
carefully to minimize the risk of expensive water
damage.
Water hammer (water banging in the pipes) in
house plumbing can cause damage to refrigerator
parts and can lead to water leakage or flooding.
Call a qualified plumber to correct water hammer
before installing the water supply line to the
refrigerator.
If you use your refrigerator before connecting
the water line, make sure the icemaker power
switch is in the OFF (O) position.
Water Pressure
A cold water supply. The water pressure must
be between 20 and 120 psi on models without
a water filter and between 43 and 121 psi on
models with a water filter.
If a reverse osmosis water filtration system is
connected to your cold water supply, this water
line installation is not covered by the refrigerator
warranty. Follow the following instructions
carefully to minimize the risk of expensive water
damage.
If a reverse osmosis water filtration system is
connected to your cold water supply, the water
pressure to the reverse osmosis system needs to
be a minimum of 40 to 60 psi (2.8 kgf/cm2~ 4.2
kgf/cm2, less than 2.0~3.0 sec. to fill a cup of 7 oz
capacity).
If the water pressure from the reverse osmosis
system is less than 21 psi or 1.5 kgf/cm2(takes
more than 4.0 sec to fill a cup of 7 oz capacity):
Check to see if the sediment filter in
y
the reverse osmosis system is blocked.
Replace the filter if necessary.
Allow the storage tank on the reverse
y
usage.
If the issue concerning water pressure
y
from reverse osmosis remains, call a
licensed, qualified plumber.
All installations must be in accordance
y
with local plumbing code requirements.
What You Will Need
Copper Tubing,
y¼ in. outer diameter, to
connect the refrigerator to the water
supply. Be sure both ends of the tubing
are cut square.
To determine how
y
much tubing you need:
measure the distance
from the water valve on the back of the
refrigerator to the water supply pipe.
Then, add 8 feet
(2.4 m). Be sure there is sufficient extra
tubing (about 8 feet [2.4 m] coiled into 3
turns of about 10 in. [25 cm] diameter)
to allow the refrigerator to move out
from the wall after installation.
Power drill.
y
½ in. or adjustable
y
wrench.
Flat blade and Phillips
y
head screwdrivers.
Two ¼ in. outer
y
diameter compression
nuts and 2 ferrules (sleeves) to connect the
copper tubing to the shutoff valve and
the refrigerator water valve.
CAUTION
Do not install the icemaker tubing in
areas where temperatures fall below
freezing.
CAUTION
To prevent burns and product damange,
only connect the refrigerator water line to
a cold water supply.

20 INSTALLATION
ENGLISH
NOTE
A self piercing saddle type water valve
should not be used.
NOTE
The hookup line cannot be white, plastic
tubing. Licensed plumbers must use
only copper tubing NDA tubing #49595
or 49599 or Cross Link Polyethylene
(PEX) tubing.
If your existing copper water line has a
y
flared fitting at the end, you will need
an adapter (available at plumbing supply
stores) to connect the water line to the
refrigerator OR you can cut off the flared
fitting with a tube
cutter and then use a
compression fitting.
Shutoff valve to
y
connect to the cold water line. The shutoff
valve should have a water inlet with a
minimum inside diameter of 5/32 in. at
the point of connection to the COLD
WATER LINE. Saddle-type shutoff valves
are included in many water supply kits.
Before purchasing,
make sure a saddle-
type valve complies
with your local
plumbing codes.

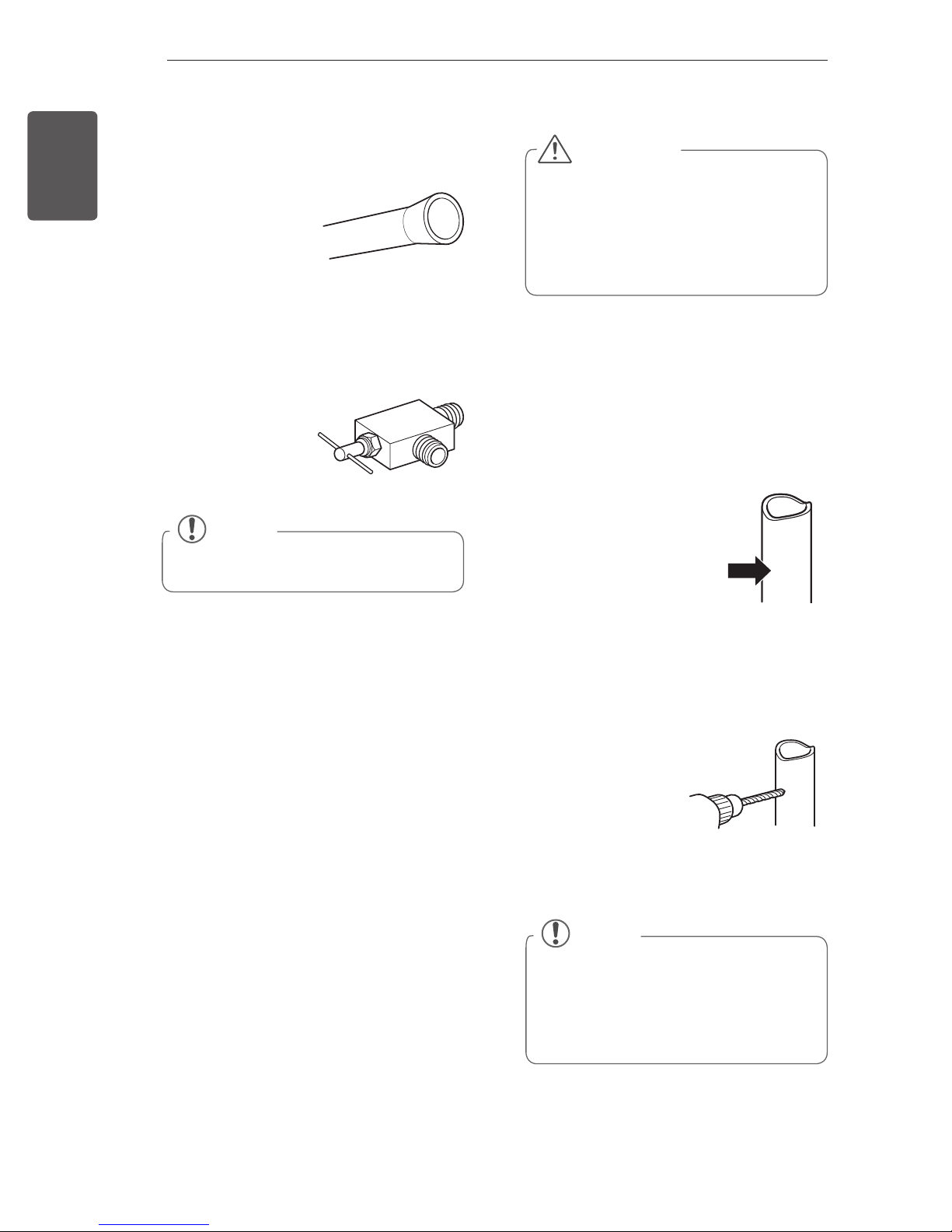

Water Line Installation Instructions
Install the shutoff valve on the nearest
frequently used drinking water line.
1SHUT OFF THE MAIN WATER SUPPLY
Turn on the nearest faucet to relieve the
pressure on the line.
2CHOOSE THE VALVE LOCATION
Choose a location for
the valve that is easily
accessible. It is best to
connect into the side of a
vertical water pipe. When
it is necessary to connect
into a horizontal water
pipe, make the connection to the top or
side, rather than at the bottom, to avoid
drawing off any sediment from the water
pipe.
3DRILL THE HOLE FOR THE VALVE
Drill a ¼ in. hole in
the water pipe using
a sharp bit. Remove
any burrs resulting
from drilling the hole
in the pipe. Be careful
not to allow water
to drain into the drill. Failure to drill a ¼ in.
hole may result in reduced ice production
or smaller cubes.
WARNIN
When using any electrical device
(such as a power drill) during
installation, be sure the device is
battery powered, double insulated
or grounded in a manner that will
prevent the hazard of electric shock.
