LG SK5R Specification sheet
SIMPLE MANUAL
Wireless
Sound Bar
Please read this manual carefully before operating your set
and retain it for future reference.
To view the instructions of advanced features,
visit http://www.lg.com and then download Owner's Manual.
Some of the content in this manual may differ from your unit.
SK5R
MODEL
www.lg.com
Copyright © 2018 LG Electronics Inc. All Rights Reserved.
MFL70547235
ENGLISH
SK5R.DSAUELK_SIM_ENG_MFL70547235.indd 1 2018-05-16 4:15:49
Subwoofer Connection1
Place the wireless subwoofer near the speaker and
follow steps below.
aConnect the power cord of wireless
subwoofer and sound bar to the outlet.
bTurn on the main unit :
The sound bar and wireless subwoofer will be
automatically connected. The subwoofer's
green LED turns on.
Subwoofer Connection Manually
If the subwoofer does not make sound, try to
connect manually.
aPress Pairing button on the rear of the
wireless subwoofer.
yThe green LED on the rear of wireless
subwoofer blinks quickly. (If the green LED
does not blink, press and hold the Pairing
button.)
bTurn on the main unit.
cPairing is completed.
yThe green LED on the rear of wireless
subwoofer turns on.
Keep the sound bar and the subwoofer away
from the device (ex. wireless router, microwave
oven, etc.) over 1 m to prevent wireless
interference.
!
1 m
Front Panel
1(Standby)···········Switches the unit ON or OFF
F(Function) ·······················Selects Function
o/p(Volume) ···················Adjusts Volume
Rear Panel
DC IN ·················· Connect to the AC adapter
OPTICAL IN · · · · · · · · · · · Connect to an Optical device
PORTABLE IN ········ Connect to a Portable device
USB ·················· Connect to a USB device
HDMI OUT (TV ARC) ·············· Connect to a TV
HDMI IN ········· Connect to HDMI out on a device
The buttons are located on the side.
SK5R.DSAUELK_SIM_ENG_MFL70547235.indd 2 2018-05-16 4:15:50
ASC/DTS V:X/BASS BLAST: Selects the sound effect.
REAR +/-: Adjusts the volume level of rear speakers. (For
rear speakers)
Adjustment of the Rear speakers volume
levels and using Surround Sound are applied
only when the rear speakers are connected.
WOOFER +/-: Adjusts the volume level of subwoofer.
AUTO POWER ON/OFF: Automatically turns on by an
input source.
Replacement of battery
Remote control
aConnect the sound bar to the TV using
Optical cable.
bSet up [External Speaker (Optical)] on
your TV setting menu.
TV
TV
TV Connection2
Optical Connection
HDMI(ARC) Connection
aConnect the sound bar to the TV using
HDMI cable.
bSet up [External Speaker (HDMI ARC)] on
your TV setting menu.
Connect with the Sound Bar and TV using
Optical ( ) or HDMI ARC ( ).
Additional Device Connection
aConnect to the external device as follows.
TV
OR
(Set-top Box,
Player etc.)
bSet the input source by pressing Fon the remote
control or unit repeatedly.
yHDMI connection is unavailable if your TV
does not support HDMI ARC.
yIf this unit is connected by OPTICAL and
ARC at the same time, the ARC signal is a
high priority.
SK5R.DSAUELK_SIM_ENG_MFL70547235.indd 3 2018-05-16 4:15:51
Specication
Power
consumption Refer to the main label.
AC adapter
yModel :
DA-38A25
yManufacturer : Asian Power
Devices Inc.
yInput :
100 - 240 V ~ 50 - 60 Hz
yOutput : 25 V 01.52 A
Dimensions
(W x H x D)
Approx.
891.0 mm X 57.5 mm X 87.8 mm
With foot
Bus Power
Supply (USB) 5 V 0 500 mA
Amplier
(Total RMS
Output power)
480 W RMS
Design and specications are subject to change without
notice.
Rear Surround sound
Wireless Rear Speakers Kit included for real
surround sound. (SPJ4-S)
OPEN SOURCE SOFTWARE NOTICE IN-
FORMATION
To obtain the source code under GPL, LGPL, MPL, and
other open source licenses, that is contained in this
product, please visit http://opensource.lge.com.
In addition to the source code, all referred license terms,
warranty disclaimers and copyright notices are available
for download.
LG Electronics will also provide open source code to you
on CD-ROM for a charge covering the cost of performing
such distribution (such as the cost of media, shipping
and handling) upon email request to
opensourc[email protected].
This offer is valid for a period of three years after our last
shipment of this product. This offer is valid to anyone in
receipt of this information.
Additional Information
IMPORTANT SAFETY NOTICE
The cord grip for the plug tted to this product is built
into the existing power cord as supplied. If, for any
reason you need to shorten the cord.
DO NOT RE-USE THE PLUG.
A new plug must be used to ensure your continued
safety by securing the plug to the power cord in
accordance with Plug & Socket Regulations 1994.
SK5R.DSAUELK_SIM_ENG_MFL70547235.indd 4 2018-05-16 4:15:51
SK5R.DSAUELK_SIM_ENG_MFL70547235.indd 5 2018-05-16 4:15:52

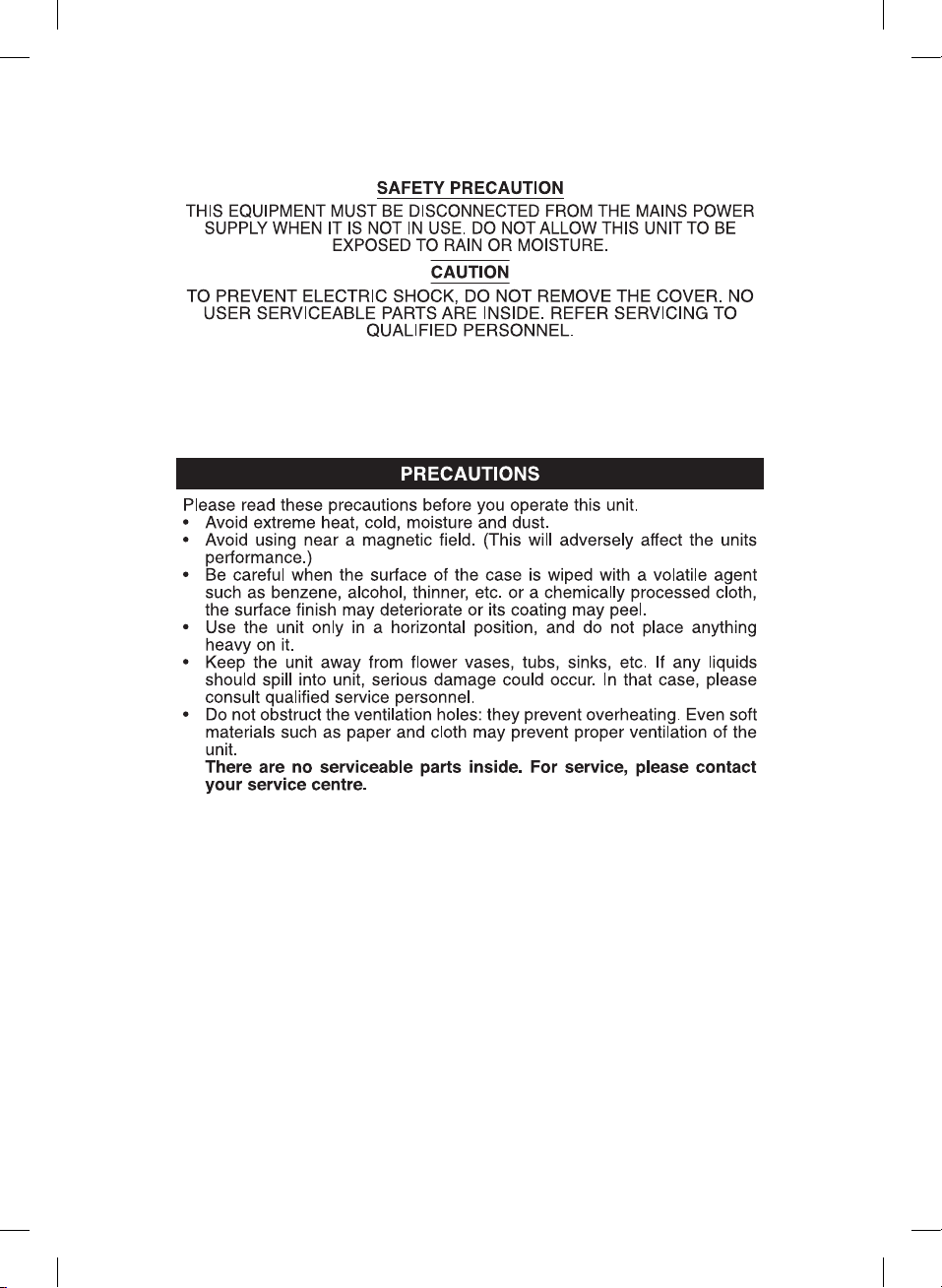

Please read these precautions before you operate this unit.
•
Please read these precautions before you operate this unit.
•
SK5R.DSAUELK_SIM_ENG_MFL70547235.indd 6 2018-05-16 4:15:52
http://www.lg.com
SK5R
MFL70547235
2018©
www.lg.com
SK5R.DSAUELK_SIM_ARA_MFL70547235.indd 1 2018-05-16 4:16:39
1
F
o/p
.
Pairing
y LED
).
y LED
.
sound bar
(
. 1 )
!
1 m
SK5R.DSAUELK_SIM_ARA_MFL70547235.indd 2 2018-05-16 4:16:40
:ASC/DTS V:X/BASS BLAST
:REAR -/+
:WOOFER -/+
:AUTO POWER ON/OFF
HDMI(ARC)
.)
a
b
a
.
b
y HDMI
.HDMI ARC
yOPTICAL
ARC ARC
.
يفاضإ زاهج ةلصو
a
TV
OR
)
(
F b
TV
TV
SK5R.DSAUELK_SIM_ARA_MFL70547235.indd 3 2018-05-16 4:16:41
.
0
0
)RMS
RMS
)
LGPLGPL
MPL
.
.
SK5R.DSAUELK_SIM_ARA_MFL70547235.indd 4 2018-05-16 4:16:41
SK5R.DSAUELK_SIM_ARA_MFL70547235.indd 5 2018-05-16 4:16:42
SK5R.DSAUELK_SIM_ARA_MFL70547235.indd 6 2018-05-16 4:16:42

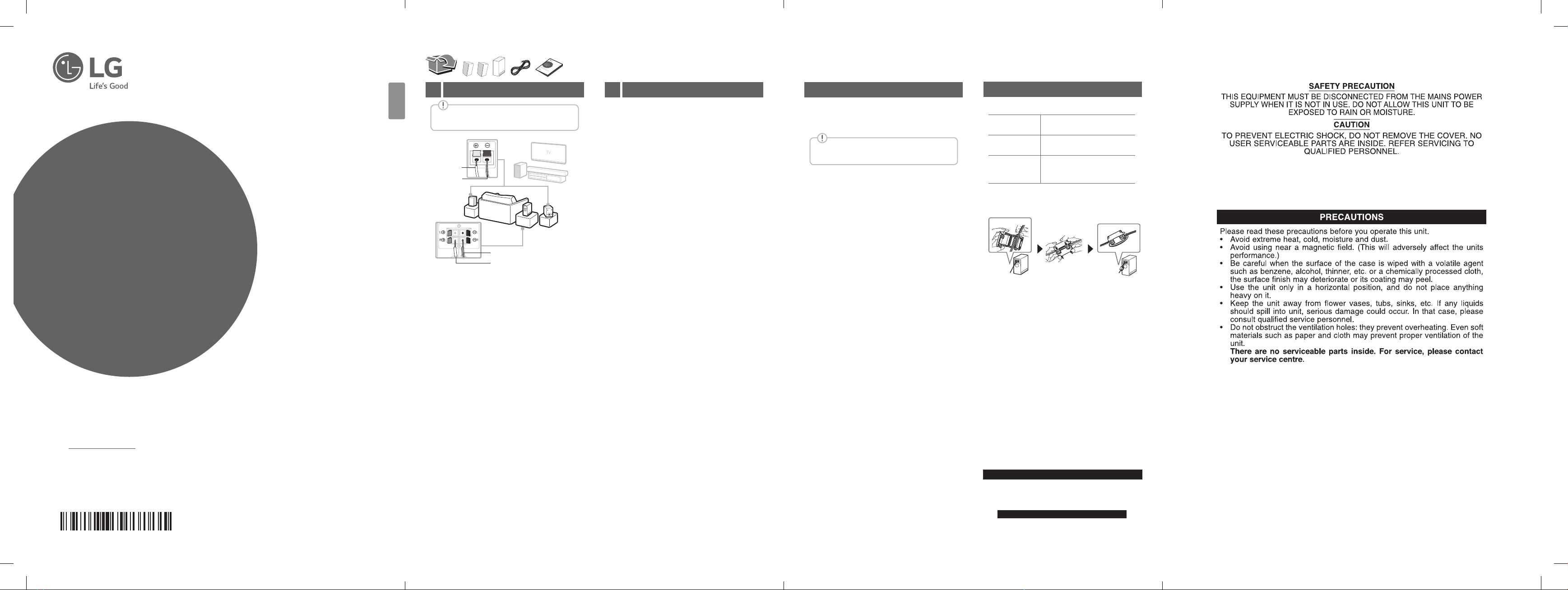

SIMPLE MANUAL
Wireless
Rear Speakers
Kit
www.lg.com
Please read this manual carefully before operating your set
and retain it for future reference.
To view the instructions of advanced features,
visit http://www.lg.com and then download Owner's Manual.
Some of the content in this manual may differ from your unit.
SPJ4-S
MODEL
ENGLISH
Copyright © 2018 LG Electronics Inc. All Rights Reserved.
MFL70547238
Additional Information
Specication of Wireless reciever
Power
requirement
Refer to the main label on the
wireless receiver.
Power
consumption
Refer to the main label on the
wireless receiver.
Dimensions
(W x H x D)
Approx.
60.0 mm x 220.0 mm x
175.0 mm
Design and specications are subject to change
without notice.
About Ferrite Core (Optional)
twice
Surround Sound On/Off
When you turn on surround function, you can enjoy
magnicent surround sound for all the input sound
source with rear speakers.
The initial setting for the surround function is
OFF, turn the surround function ON to use it.
Surround On: Press and hold REAR obutton on the
remote control about 2 seconds.
Surround Off: Press and hold REAR pbutton on the
remote control about 2 seconds.
aConnect the power cord of wireless receiver to
the outlet.
bTurn on the unit: The unit and wireless receiver
will be automatically connected. The receiver's
yellow - green LED turns on.
Wireless Receiver Connection Manually
If the rear speakers do not make sound, try to
connect manually.
aPress PAIRING button on the rear of the
wireless receiver.
yThe yellow - green LED on the wireless receiver
blinks quickly.
bTurn on the main unit.
cPairing is completed.
yThe yellow - green LED on the wireless receiver
turns on.
Rear Speakers Connection1 Wireless Receiver Connection2
aConnect the speaker cables to rear speakers
correctly.
bConnect the Wireless Receiver and the rear
speakers (Grey: right, Blue: left) with the speaker
cables.
cTurn on the Surrond function to enjoy surround
sound.
Speaker design and connection method may
be different according to models.
Rear speaker
(Left)
Wireless
Receiver Rear speaker
(Right)
Transparent
Black stripe
Transparent
Black stripe
IMPORTANT SAFETY NOTICE
The cord grip for the plug tted to this product is built
into the existing power cord as supplied. If, for any
reason you need to shorten the cord.
DO NOT RE-USE THE PLUG.
A new plug must be used to ensure your continued
safety by securing the plug to the power cord in
accordance with Plug & Socket Regulations 1994.
Please read these precautions before you operate this unit.
•
Please read these precautions before you operate this unit.
•
SPJ4-S(SK5R).DSAUELK_SIM_ENG_ARA_MFL70547238.indd 1-4 2018-05-17 4:29:30
PAIRING
yLED
yLED
o
p
MFL70547238
2018©
SPJ4-S(SK5R).DSAUELK_SIM_ENG_ARA_MFL70547238.indd 5-8 2018-05-17 4:29:31
