LG SP9YA Specification sheet
www.lg.com
Copyright © 2021 LG Electronics Inc. All Rights Reserved.2104_Rev02
MFL71796934
SP9YA
SIMPLE MANUAL
Wi-Fi
SOUND BAR
ENGLISH
Specication
Power requirements
yRefer to the main label.
Power consumption
yRefer to the main label.
Dimensions (W x H x D): Approx. 1220.0 mm x 57.0 mm x 145.0
mm
Bus Power Supply (USB): 5 V 0500 mA
Amplier (Total RMS Output power): 520 W RMS
OPEN SOURCE SOFTWARE NOTICE INFORMATION
To obtain the source code under GPL, LGPL, MPL, and other open
source licenses, that is contained in this product, please visit
http://opensource.lge.com.
In addition to the source code, all referred license terms, warranty
disclaimers and copyright notices are available for download.
LG Electronics will also provide open source code to you on
CD-ROM for a charge covering the cost of performing such
distribution (such as the cost of media, shipping, and handling)
upon email request to opensour[email protected].
This offer is valid for a period of three years after our last
shipment of this product. This offer is valid to anyone in receipt of
this information.
POWER: This unit operates on a mains supply of
110 - 240 V ~ 50 / 60 Hz.
Wiring: This unit is supplied with a BS 1363 approved main plug.
When replacing the fuse, always use a fuse of the same rating
and approved to BS 1362. Never use this plug with the fuse
cover omitted. To obtain a replacement fuse cover contact your
dealer. If the type of plug supplied is not suitable for the mains
sockets in your home, then the plug should be removed and a
suitable type tted. Please refer to the wiring instructions below:
Warning: A mains plug removed from the mains lead of this unit
must be destroyed. A mains plug with bared wires is hazardous
if inserted in a mains socket. Do not connect either wire to the
earth pin, marked with the letter E or with the earth symbol 6
or coloured green or green and yellow. If any other plug is tted,
use same rating of fuse in the plug.
Important: The wires in this mains lead are coloured in
accordance with the following codes:
- BLUE: NEUTRAL, BROWN: LIVE - As the colours of the wires
in the mains lead of this unit may not correspond with the
coloured marking identifying the terminals in your plug, proceed
as follows: The wire which is coloured blue must be connected to
the terminal which is marked with the letter N or coloured black.
The wire which is coloured brown must be connected to the
terminal which is marked with the letter L or coloured red.
SP9YA.DSGPLLK_SIMPLE (Sheet)_MFL71796934.indd 1-2 2021-03-25 10:17:31
ENGLISH

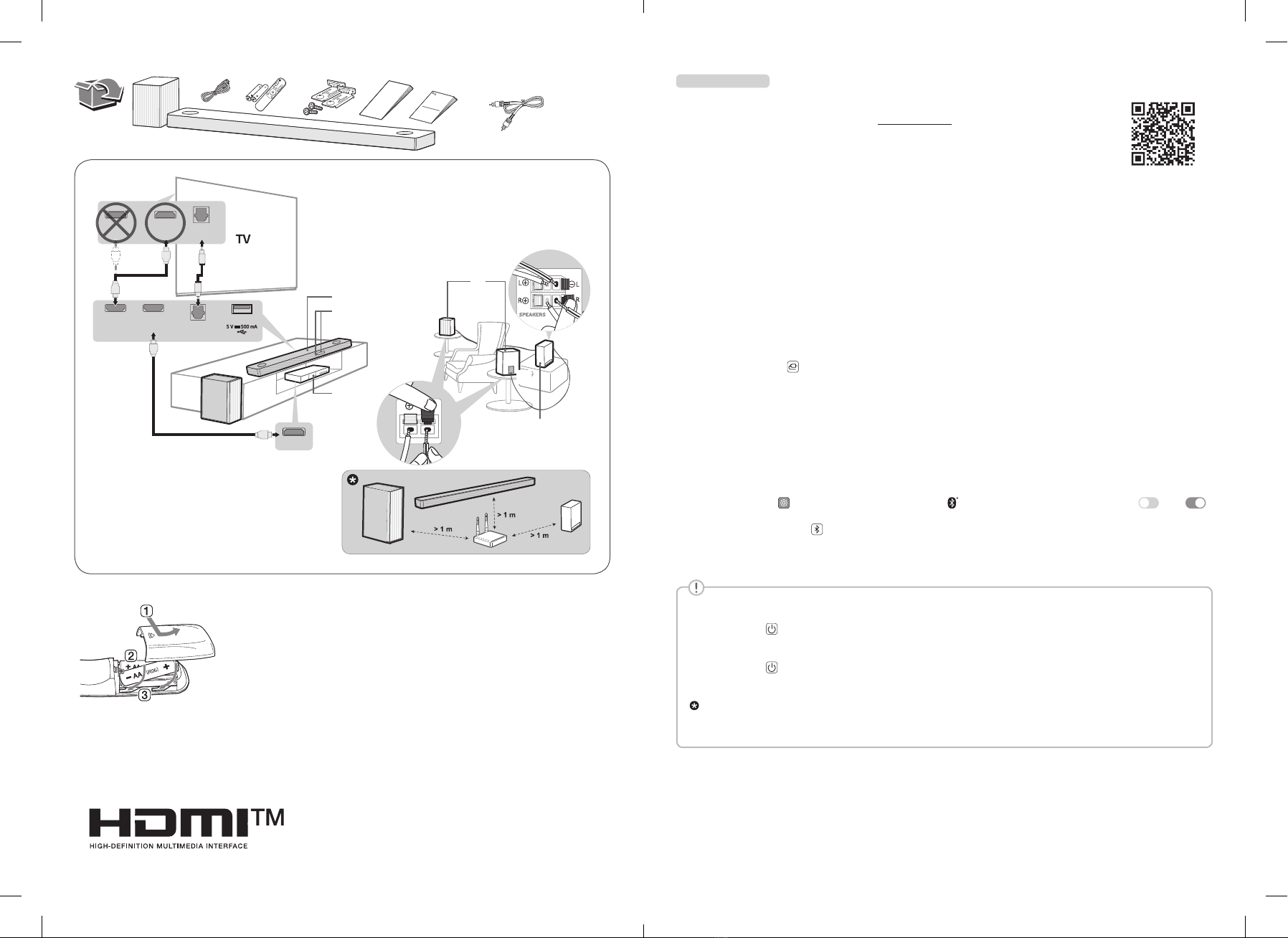

Installing and Using the Product
Please read this manual carefully before operating your set and retain it for future reference.
To view the instructions of advanced features, visit http://www.lg.com or scan QR code and then download
Owner’s Manual. Some of the content in this manual may differ from your product.
ASound bar
B Remote Control Receiver / Status Display
CRear Speakers / Wireless Receiver (Sold separately, SPK8-S)
D Wireless Subwoofer - Install it close to the sound bar.
E External Device - (Blu-ray player, game console, etc.)
aConnectthesoundbartoyourTVviaanopticalcableoranHDMIcable.
b If you are using an external device (ex. Blu-ray player, game console, etc.), connect it to the sound bar via an HDMI cable.
c If you purchased the rear speakers and wireless receiver separately, connect the rear speakers to the wireless receiver via a speaker
cable. When connecting the rear speakers to the wireless receiver, connect the black striped cable to the negative terminal of each
speaker and the remaining cable to the positive terminal of each speaker.
d Connect to power in the following order: wireless subwoofer [ wireless receiver [ sound bar. Then, turn on the sound bar. When
the connection is automatically established with the sound bar, the LEDs on the wireless subwoofer and the wireless receiver will
light up in green.
eUsingtheproductwithyourTV
A Press the Function button repeatedly until “OPT/HDMIARC” appears on the status display.
B On your TV’s settings, set the output speaker to [HDMI ARC], [Optical], or [External Speaker].
C When the TV is properly connected to the product, “OPT”, “ARC”, or “E-ARC” will appear on the status display with a sound.
f ConnectingtheproducttoyoursmartphoneviaWi-Fi
A Connect your smartphone to Wi-Fi.
B Install the LG Sound Bar app on Google Play or the App Store.
C Run the LG Sound Bar app and follow the instructions.
D The product will connect to your smartphone and you can control the product with LG Sound Bar app.
gConnectingtheproducttoyoursmartphoneviaBluetooth
A Tap the Settings button on your smartphone and select Bluetooth. Turn on the Bluetooth function. ( Off >
On)
BPress the Bluetoothpair button. After a moment, you will see “BTREADY” on the status display.
C Find and tap “LG_Speaker_SP9YA_XXXX” or the name you registered on the Google Home app.
D When the product is connected to your smartphone via Bluetooth, you can see the status display change from “PAIRED” [
“ConnectedBluetoothdevicename” [ “BT”.
IfyouseearedLEDonthebackofthewirelesssubwooferoronthefrontofthewirelessreceiver,itmeansthatthesoundbarisnot
connectedtothespeakers.Ifthisisthecase,connecttheminthefollowingorder.
APress the Power button on the sound bar to turn it off.
BPress the PAIRING (Pairing) button on the back of the disconnected wireless subwoofer or wireless receiver. Check if each LED blinks green.
-If you still see a red LED on the back of the wireless subwoofer, press and hold the button on the back of the subwoofer again.
CPress the Power button on the sound bar to turn it on.
D When the connection is established, you will see a green LED light on the back of the wireless subwoofer or on the front of the wireless
receiver light up in green.
Keep the sound bar, the subwoofer and wireless receiver away from the device (ex. wireless router, microwave oven, etc.) over 1 m to prevent
wireless interference.
ySome speakers may not make sound depend on the input source. Select CINEMA sound mode to listen through all speakers.
yDesign and specications are subject to change without notice.
yGoogle Play is a trademark of Google LLC.
HDMI OUT
OPTICAL IN
(TV eARC/ARC)
HDMI OUT HDMI IN
HDMI IN
(ARC)
HDMI IN OPTICAL
OUT
a
b
DE
C
B
A
a
C
c
c
c
Replacement of Battery
SP9YA.DSGPLLK_SIMPLE (Sheet)_MFL71796934.indd 3-4 2021-03-25 10:17:32
