OWNER’S MANUAL
Mini Hi-Fi System
Please read this manual carefully before operating
your set and retain it for future reference.
DM7630 (DM7630, NS7630V/S/C/W)
ENGLISH
DM7630-AU_DZAFLLK_ENG.indd 1 2014-04-01  11:22:56

1 Getting Started
Getting Started2
Getting Started
1

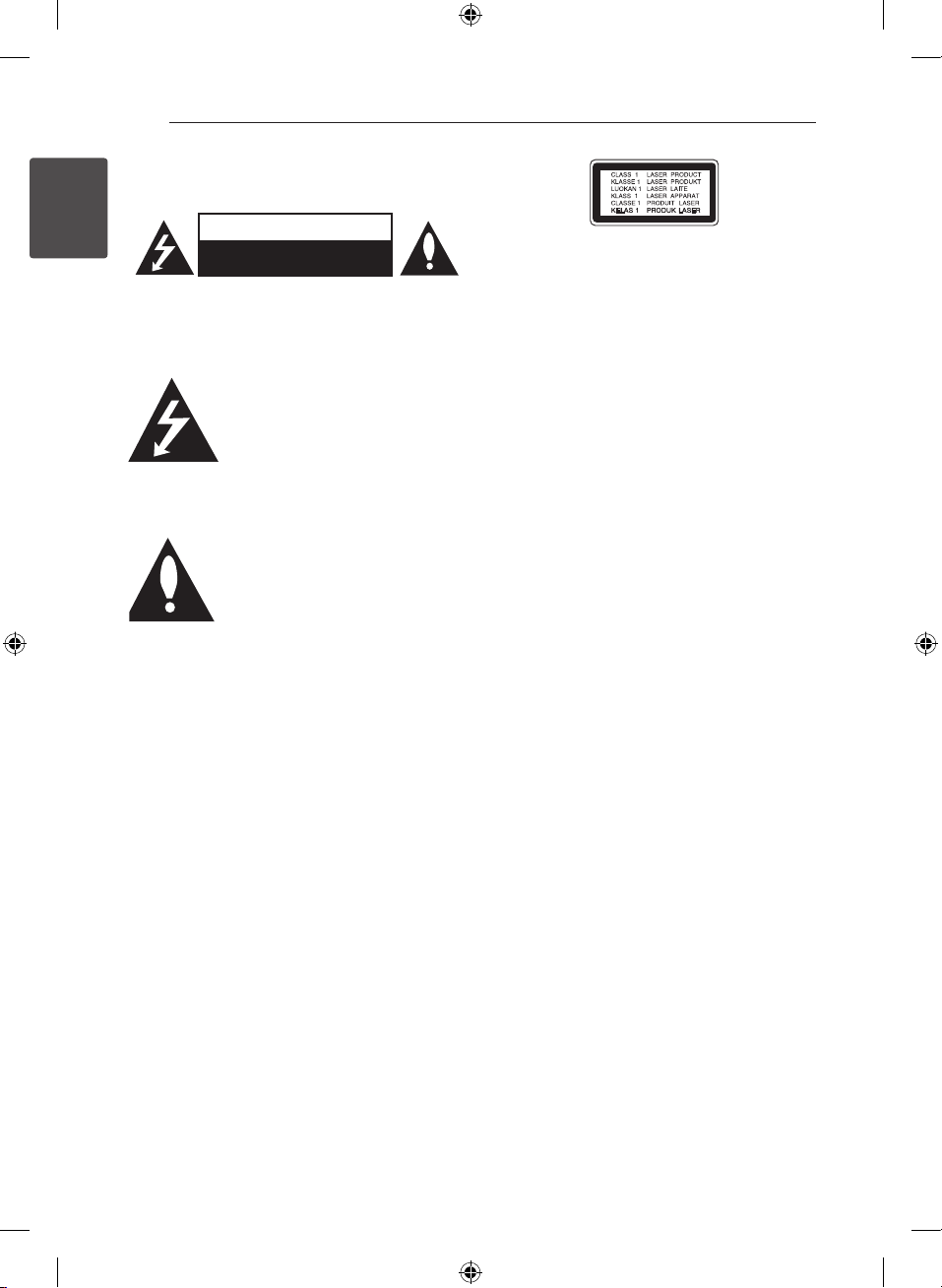

Safety Information
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION: TO REDUCE THE RISK OF ELECTRIC
SHOCK DO NOT REMOVE COVER (OR BACK) NO
USER-SERVICEABLE PARTS INSIDE REFER SERVICING
TO QUALIFIED SERVICE PERSONNEL.
This lightning ash with arrowhead
symbol within an equilateral triangle
is intended to alert the user to the
presence of uninsulated dangerous
voltage within the product’s
enclosure that may be of sucient
magnitude to constitute a risk of
electric shock to persons.
The exclamation point within an
equilateral triangle is intended
to alert the user to the presence
of important operating and
maintenance (servicing) instructions
in the literature accompanying the
product.
WARNING: TO PREVENT FIRE OR ELECTRIC SHOCK
HAZARD, DO NOT EXPOSE THIS PRODUCT TO RAIN
OR MOISTURE.
WARNING: Do not install this equipment in a
conned space such as a book case or similar unit.
CAUTION: Do not block any ventilation openings.
Install in accordance with the manufacturer’s
instructions.
Slots and openings in the cabinet are provided for
ventilation and to ensure reliable operation of the
product and to protect it from over heating. The
openings shall be never be blocked by placing
the product on a bed, sofa, rug or other similar
surface. This product shall not be placed in a built-
in installation such as a bookcase or rack unless
proper ventilation is provided or the manufacturer’s
instruction has been adhered to.
CAUTION: This product employs a Laser System.
To ensure proper use of this product, please read
this owner’s manual carefully and retain it for future
reference. Shall the unit require maintenance,
contact an authorized service center.
Use of controls, adjustments or the performance of
procedures other than those specied herein may
result in hazardous radiation exposure.
To prevent direct exposure to laser beam, do not
try to open the enclosure.
DM7630-AU_DZAFLLK_ENG.indd 2 2014-04-01  11:22:57

Getting Started 3
Getting Started
1
CAUTION concerning the Power Cord
Most appliances recommend they be placed upon
a dedicated circuit;
That is, a single outlet circuit which powers only
that appliance and has no additional outlets or
branch circuits. Check the specication page of this
owner’s manual to be certain. Do not overload wall
outlets. Overloaded wall outlets, loose or damaged
wall outlets, extension cords, frayed power cords, or
damaged or cracked wire insulation are dangerous.
Any of these conditions could result in electric
shock or re. Periodically examine the cord of your
appliance, and if its appearance indicates damage
or deterioration, unplug it, discontinue use of the
appliance, and have the cord replaced with an
exact replacement part by an authorized service
center. Protect the power cord from physical or
mechanical abuse, such as being twisted, kinked,
pinched, closed in a door, or walked upon. Pay
particular attention to plugs, wall outlets, and
the point where the cord exits the appliance. To
disconnect power from the mains, pull out the
mains cord plug. When installing the product,
ensure that the plug is easily accessible.
This device is equipped with a portable battery or
accumulator.
Safety way to remove the battery or the
battery from the equipment: Remove the
old battery or battery pack, follow the steps
in reverse order than the assembly. To prevent
contamination of the environment and bring on
possible threat to human and animal health, the
old battery or the battery put it in the appropriate
container at designated collection points. Do
not dispose of batteries or battery together with
other waste. It is recommended that you use
local, free reimbursement systems batteries and
accumulators. The battery shall not be exposed to
excessive heat such as sunshine, re or the like.
CAUTION: The apparatus shall not be exposed to
water (dripping or splashing) and no objects lled
with liquids, such as vases, shall be placed on the
apparatus.
DM7630-AU_DZAFLLK_ENG.indd 3 2014-04-01  11:22:57

Table of Contents4
Table of Contents
1 Getting Started
2 Safety Information
6 Unique Features
6 Accessories
6 Introduction
8 – Playable file Requirement
9 – Compatible USB Devices
9 – USB device requirement
10 Front panel
12 Rear panel

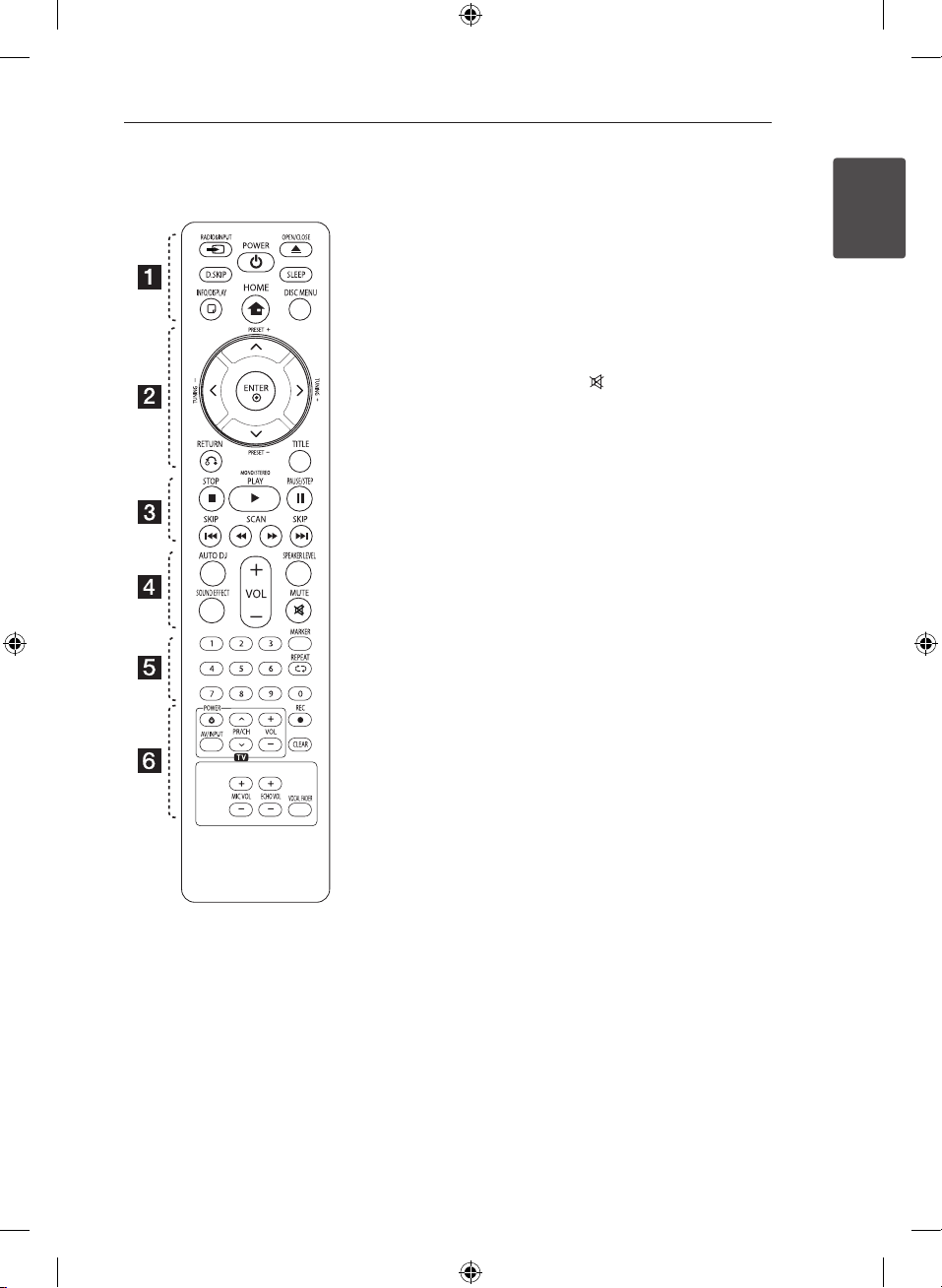

13 Remote control
2 Connecting
14 Attaching the speakers to the unit

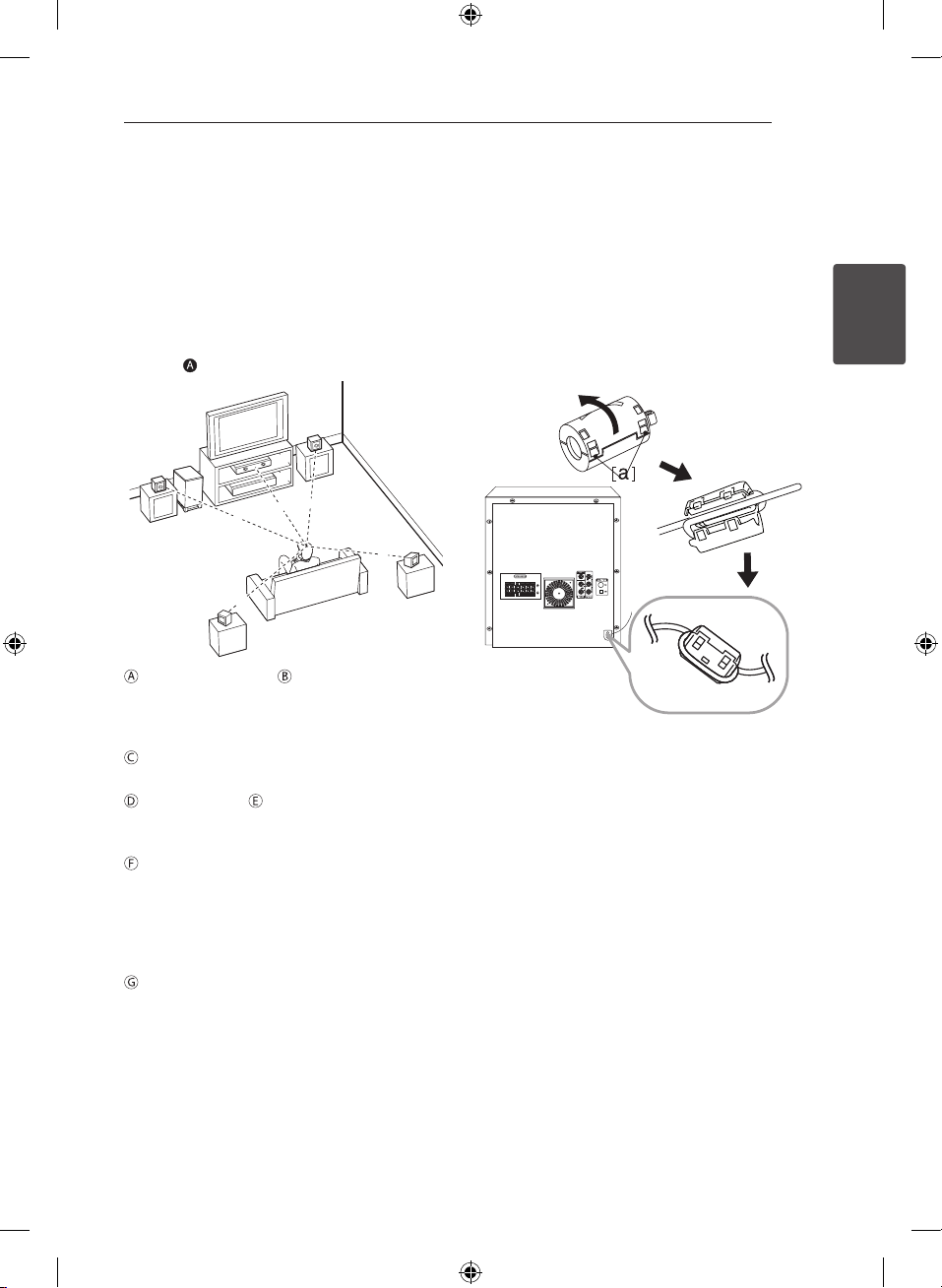

15 Positioning the system
15 How to Attach the Ferrite Core
16 Connections to Your TV

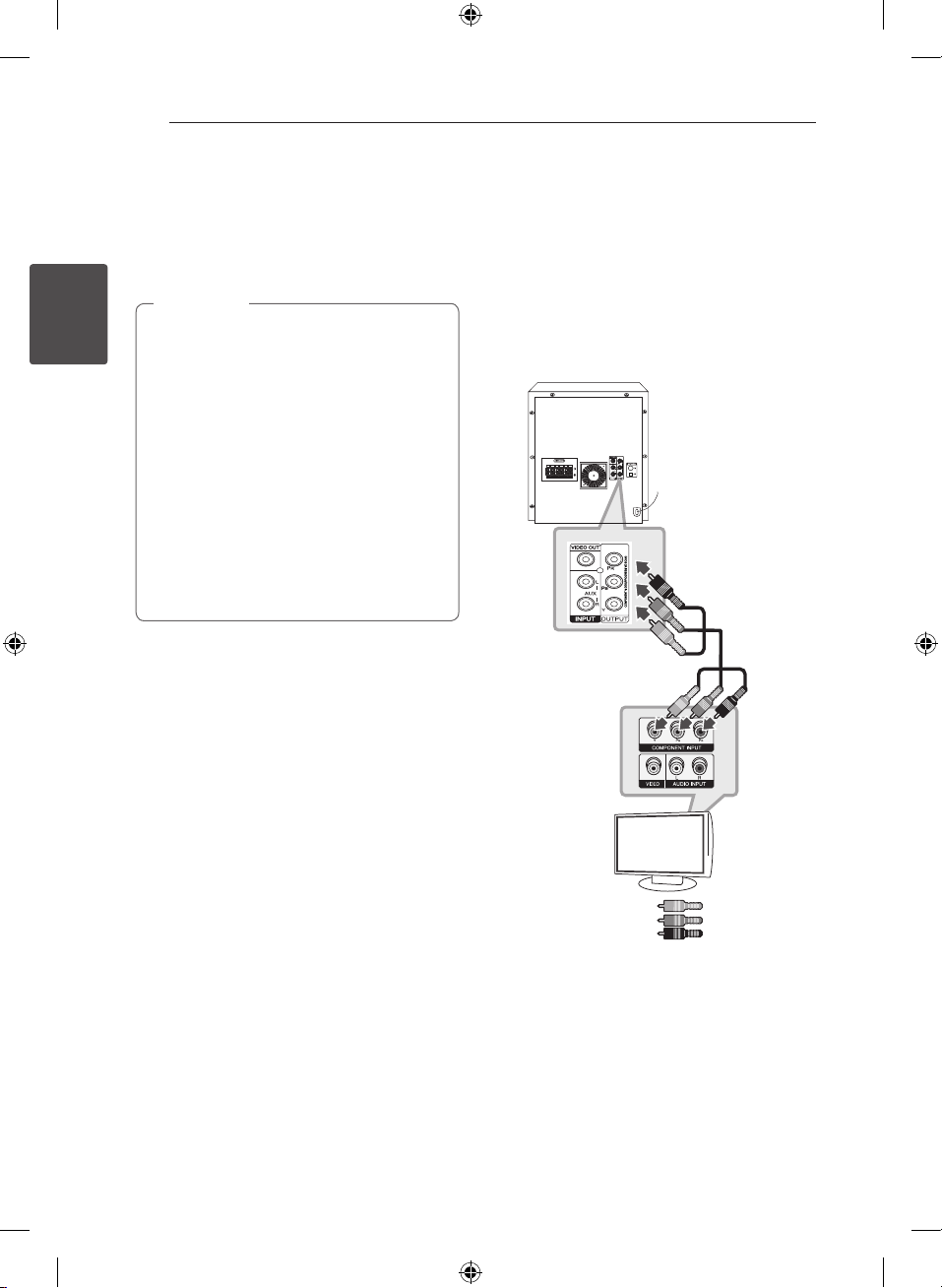

16 Component Video Connection
17 – Video Connection

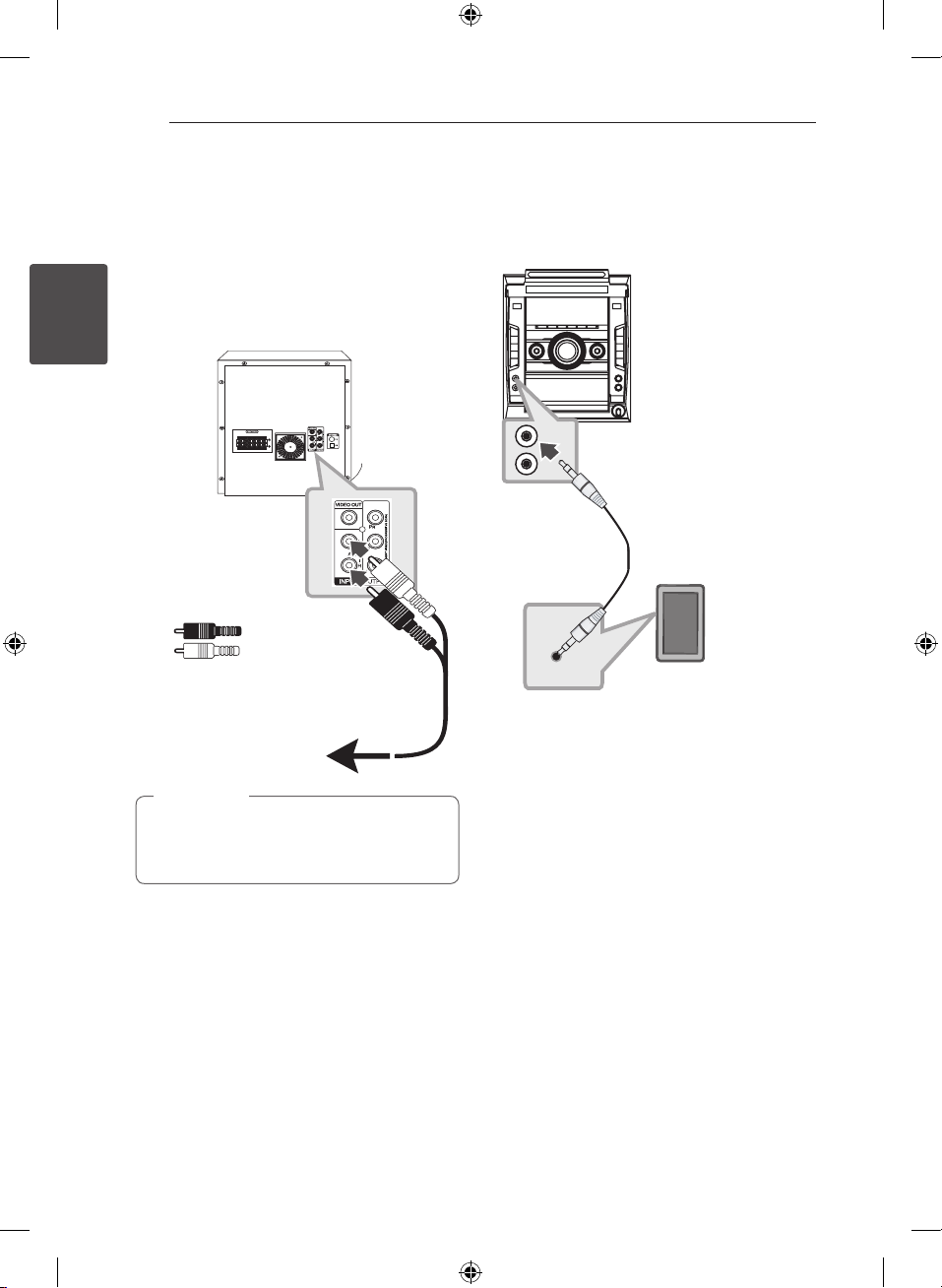

18 Optional Equipment Connection
18 – AUX In Connection
18 – AUDIO (PORT. IN) In Connection
19 – USB Connection
19 Antenna Connection
3 System setting
20 Adjust the setup settings
20 – OSD Initial language settings -
Optional
20 – To display and exit the Setup menu
21 – Language
21 – Display
22 – Audio
23 – Lock (Parental Control)
24 – Others
DM7630-AU_DZAFLLK_ENG.indd 4 2014-04-01  11:22:57

Table of Contents 5
1
2
3
4
5
6
4 Operating
25 Using the Home Menu
25 Basic Operations
25 – CD / USB
26 Other Operations
26 – Displaying Disc Information on-screen
27 – To display the DVD Menu
27 – To display the DVD title
27 – Starting play from selected time
28 – Marked Playback
29 – AUTO DJ playback
29 – Viewing a PHOTO file
30 – Sleep Timer Setting
30 – Dimmer
30 – Turn off the sound temporarily
32 Radio Operations
32 – Listening to the radio
32 – Presetting the Radio Stations
32 – Deleting all the saved stations
32 – Deleting a saved station
32 – Improving poor FM reception
33 – Setting the Clock
33 – Using your player as an alarm clock
34 Sound adjustment
34 – Setting the surround mode
35 – Adjust the speaker level settings
35 – Setting the USER EQ
35 Advanced Operations
35 – Listening to music from your external
device
36 – Recording to USB
5 Troubleshooting
37 Troubleshooting
6 Appendix
38 Maintenance
38 – Handling the Unit
38 – Notes on Discs
39 Area Codes
40 Language Codes
41 Trademarks and Licenses
42 Specifications
DM7630-AU_DZAFLLK_ENG.indd 5 2014-04-01  11:22:57

Getting Started6
Getting Started
1
Unique Features
Portable In
Listen to music from your portable device. (MP3,
Notebook, etc)
USB Direct Recording
Records music from CD to your USB device.

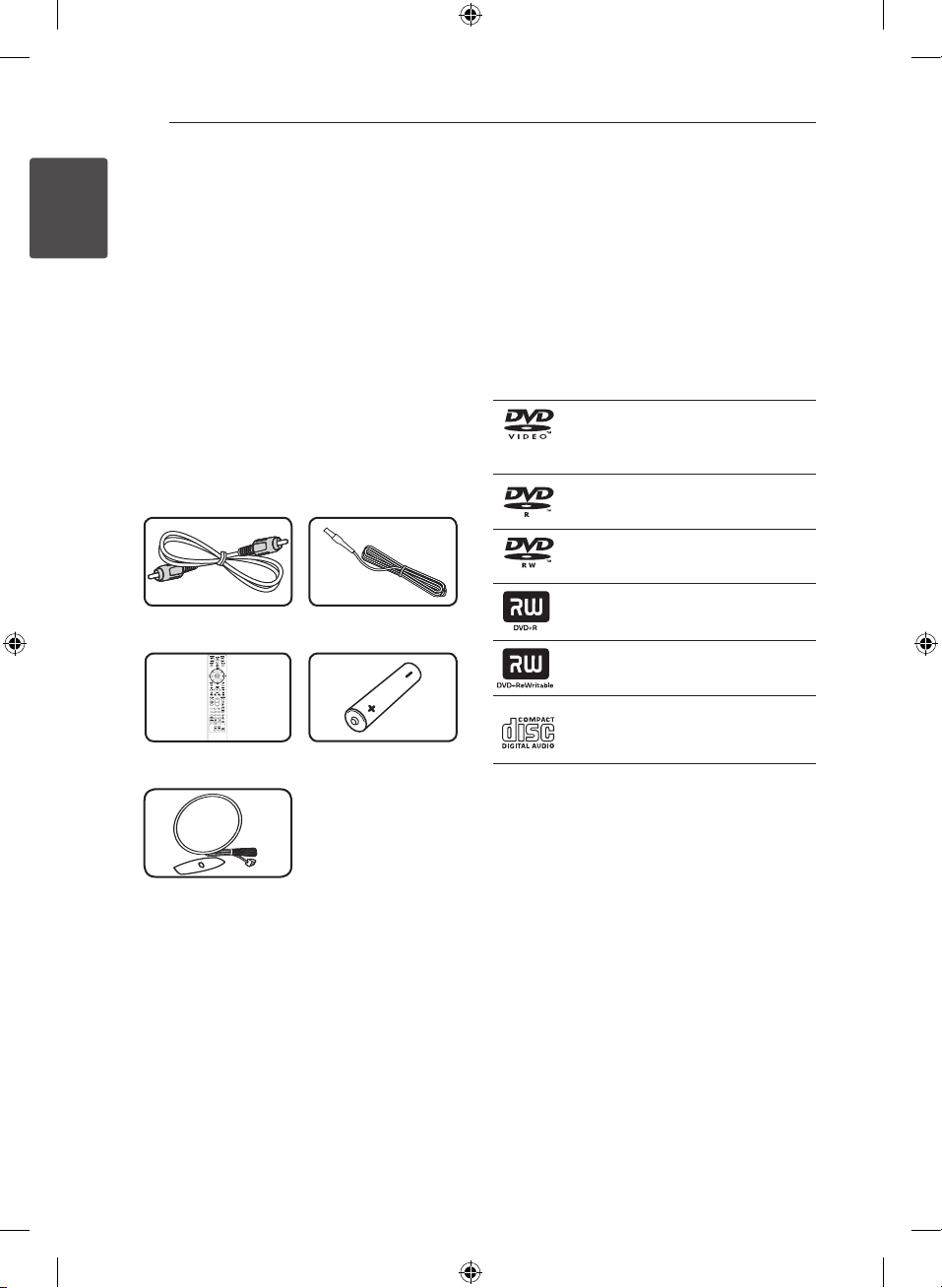

Accessories
Please check and identify the supplied accessories.
Video cable (1) FM antenna (1)
Remote control (1) Batteries (1)
AM antenna (1)
Introduction
Playable Discs
This unit plays DVD±R/RW and CD-R/RW that
contains audio titles, DivX, MP3, WMA and/or
JPEG les. Some DVD±RW/DVD±R or CD-RW/
CD-R cannot be played on this unit due to the
recording quality or physical condition of the disc,
or the characteristics of the recording device and
authoring software.
DVD-VIDEO (8 cm/12 cm disc)
Discs such as movies that can be
purchased or rented.
DVD±R (8 cm/12 cm disc)
Video mode and nalized only.
DVD-RW (8 cm/12 cm disc)
Video mode and nalized only.
DVD+R: Video mode only
Supports the double layer disc also.
DVD+RW (8 cm/12 cm disc)
Video mode and nalized only.
Audio CD: Music CDs or CD-R/CD-
RW in music CD format that can be
purchased.
About the “7” Symbol Display
“7” may appear on your TV display during
operation and indicates that the function explained
in this owner’s manual is not available on that
specic media.
DM7630-AU_DZAFLLK_ENG.indd 6 2014-04-01  11:23:00

Getting Started 7
Getting Started
1
Symbols Used in this Manual
DVD DVD and nalized DVD±R/RW
ACD Audio CDs
WMA WMA les
MP3 MP3 les
MOVIE Video les contained in the
USB/Disc
PHOTO Photo les
, Note
Indicates special notes and operating features.
, Tip
Indicates tip and hints for making the task easier.
> Caution
Indicates cautions for preventing possible damages
from abuse.
Regional Codes
This unit has a regional code printed on the rear of
the unit. This unit can play only DVD discs labeled
same as the rear of the unit or “ALL”.
yMost DVD discs have a globe with one or more
numbers in it clearly visible on the cover. This
number must match your unit’s regional code or
the disc cannot play.
yIf you try to play a DVD with a dierent regional
code from your unit, the message“Check
Regional Code” appears on the TV screen.
DM7630-AU_DZAFLLK_ENG.indd 7 2014-04-01  11:23:00

Getting Started8
Getting Started
1
Playable file Requirement
MP3/WMA music file requirement
MP3/ WMA le compatibility with this unit is limited
as follows :
•Sampling Frequency : 32 - 48 kHz (MP3), 32 - 48
kHz (WMA)
•Bit rate : 32 - 320 kbps (MP3), 40 - 192 kbps
(WMA)
•Maximum les : Under 999
•File extensions : “.mp3”/ “.wma”
•CD-ROM le format : ISO9660/ JOLIET
•We recommend that you use “Easy-CD Creator”,
which creates an ISO 9660 le system.
Photo file requirement
Photo le compatibility with this unit is limited as
follows :
• Maxpixelinwidth:2760x2048pixel
• Maximumfiles:Under999
• Somediscsmaynotoperateduetoa
different recording format or the condition
of disc.
• Fileextensions:“.jpg”
• CD-ROMfileformat:ISO9660/JOLIET
DivX file requirement
DivX le compatibility with this unit is limited as
follows :
•Available resolution:
up to 800 x 600 (W x H) pixels.
•The le name of the DivX subtitle should be
entered 45 characters or less.
•If there is a code impossible to express in the
DivX le, it may be displayed as a“ _“ mark on the
display.
•Frame rate : less than 30 fps.
•If the video and audio structure of recorded
les are not interleaved, either video or audio is
output.
•Playable DivX le : “.avi”, “.mpg”, “.mpeg”, “.divx”
•Playable Subtitle format : SubRip (*.srt/ *.txt), SAMI
(*.smi), SubStation Alpha (*.ssa/ *.txt), MicroDVD
(*.sub/ *.txt), SubViewer 2.0 (*.sub/ *.txt), Vobsub
(*.sub)
yPlayable Codec format : “DIVX3.xx”,“DIVX4.xx”,
“DIVX5.xx”, “MP4V3”, “3IVX”.
yPlayable Audio format : “AC3”, “PCM”, “MP3”, “WMA”.
•Sampling frequency : between 32 to 48 kHz
(MP3), between 32 to 48 kHz (WMA)
•Bit rate : between 32 to 320 kbps (MP3), 40 to 192
kbps (WMA)
•For Discs formatted in Live le system, you can
not use it on this unit.
•If the name of movie le is dierent from that of
the subtitle le, during playback of a DivX le,
subtitle may not be display.
•If you play a DivX le dier from DivX spec, it may
not operate normally.
DM7630-AU_DZAFLLK_ENG.indd 8 2014-04-01  11:23:00

Getting Started 9
Getting Started
1
Compatible USB Devices
yMP3 Player : Flash type MP3 player.
yUSB Flash Drive : Devices that support USB2.0 or
USB1.1.
yThe USB function of this unit does not support
some USB devices.
USB device requirement
•Devices which require additional program
installation when you have connected it to a
computer, are not supported.
•Do not extract the USB device while in operation.
•For a large capacity USB, it may take longer than
a few minute to be searched.
•To prevent data loss, back up all data.
•If you use a USB extension cable or USB hub, the
USB device is not recognized.
•Using NTFS le system is not supported. (Only
FAT(16/ 32) le system is supported.)
•This unit is not supported when the total
number of les is 1000 or more.
•External HDD, Card readers, Locked devices, or
hard type USB devices are not supported.
•USB port of the unit cannot be connected to PC.
The unit cannot be used as a storage device.
DM7630-AU_DZAFLLK_ENG.indd 9 2014-04-01  11:23:00

Getting Started10
Getting Started
1
Front panel
a
b
c
d
e
f
g
h
i
j
k
DM7630-AU_DZAFLLK_ENG.indd 10 2014-04-01  11:23:00
