LG CodePlus PIVD100R User manual

© Copyright 2012, LG Electronics U.S.A., Inc.
CodePlus™ PIVD100R
Pro:Idiom® Video Distribution
Transcoder System
Installation & Setup Guide
Warranty
P/N: 206-4202 (Rev A)

2206-4202
WARNING:
TO REDUCE THE RISK OF ELECTRIC SHOCK DO NOT REMOVE COVER (OR BACK). NO
USER-SERVICEABLE PARTS INSIDE. REFER TO QUALIFIED SERVICE PERSONNEL.
The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert
the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure
that may be of sufficient magnitude to constitute a risk of electric shock to persons.
The exclamation point within an equilateral triangle is intended to alert the user to the presence
of important operating and maintenance (servicing) instructions in the literature accompanying
the appliance.
WARNING:
TO PREVENT FIRE OR SHOCK HAZARDS, DO NOT EXPOSE THIS PRODUCT TO RAIN
OR MOISTURE.
Apparatus shall not be exposed to dripping or splashing and no objects filled with liquids, such
as vases, shall be placed on the apparatus.
L’appareil ne doit pas être exposé à des égouttements d’eau ou des éclaboussures et de plus
qu’aucun objet rempli de liquide tel que des vases ne doit être placé sur l’appareil.
REGULATORY INFORMATION:
This equipment has been tested and found to comply with the limits for a Class A digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference when the equipment is operated in a commercial envi-
ronment. This equipment generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instruction manual, may cause harmful interference
to radio communications. Operation of this equipment in a residential area is likely to cause
harmful interference in which case the user should be required to correct the interference at
his own expense.
CAUTION:
Do not attempt to modify this product in any way without written authorization from LG
Electronics U.S.A., Inc. Unauthorized modification could void the user’s authority to operate
this product.
NOTE TO SATELLITE DISH INSTALLER:
This reminder is provided to call your attention to Articles 810 and 820 of the 2002 National
Electrical Code. Refer to Article 810, in particular 810-1 and 810-15, for required grounding of
the metal dish antenna. Refer also to 810-2 which, by reference to Article 820, requires that
the satellite dish coaxial cable shield be connected to the grounding system of the building as
close to the point of cable entry as practical.
COMPLIANCE:
The responsible party for this product’s compliance is: LG Electronics U.S.A., Inc.
2000 Millbrook Drive, Lincolnshire, IL 60069, USA • Phone: [phone]
WARNING
RISK OF ELECTRIC SHOCK
DO NOT OPEN
For Customer Support/Service, please call: 1-888-865-3026
The latest product information and documentation is available online at:
www.LGsolutions.com/products
Marketed and Distributed in the United States by LG Electronics U.S.A., Inc.
2000 Millbrook Drive, Lincolnshire, IL 60069
© Copyright 2012, LG Electronics U.S.A., Inc.

3
206-4202
1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with dry cloth.
7. Do not block any ventilation openings.
Install in accordance with the manufac-
turer's instructions.
8. Do not install near any heat sources,
such as radiators, heat registers, stoves,
or other apparatus (including amplifiers)
that produce heat.
9. Do not defeat the safety purpose of the
polarized or grounding-type plug. A polar-
ized plug has two blades with one wider
than the other. A grounding-type plug has
two blades and a third grounding prong.
The wide blade or the third prong are
provided for your safety. If the provided
plug does not fit into your outlet, consult
an electrician for replacement of the
obsolete outlet.
10. Protect the power cord from being walked
on or pinched, particularly at plugs,
convenience receptacles, and the point
where it exits from the apparatus.
11. Only use attachments/accessories
specified by the manufacturer.
12. Use only with the cart, stand, tripod,
bracket, or table specified by the
manufacturer or sold with the apparatus.
When a cart is used, use caution when
moving the cart/apparatus combination
in order to avoid injury from tip-over.
13. Refer all servicing to qualied service
personnel. Servicing is required when the
apparatus has been damaged in any way,
such as power-supply cord or plug is
damaged, liquid has been spilled or
objects have fallen into the apparatus, the
apparatus has been exposed to rain or
moisture, does not operate normally, or
has been dropped.
14. Power Sources
This product should be operated only from the
type of power source indicated on the marking
label. If you are not sure of the type of power
supply to your INSTALLATION, consult your
product dealer or local power company.
15. Overloading
Do not overload wall power outlets and
extension cords as this can result in a risk of
fire or electric shock.
16. Disconnect Device
The AC mains plug is used as the disconnect
device. The disconnect device must remain
readily operable.
17. Object and Liquid Entry
Never push objects of any kind into this
product through openings as they may touch
dangerous voltage points or short-out parts
that could result in a fire or electric shock.
Never spill liquid of any kind on the product.
Do not use liquid cleaners or aerosol cleaners.
18. Outdoor Use
Warning: To prevent fire or shock
hazards, do not expose this product
to rain or moisture.
19. Wet Location
Do not use this product near water or mois-
ture or in an area, such as a basement, that
might become flooded. The apparatus shall
not be exposed to dripping or splashing and
no objects filled with liquids, such as vases,
shall be placed on the apparatus.
20. Test Equipment
In some cases, LG has supplied or recom-
mended the use of test equipment and
devices for the setup and testing of the equip-
ment. The operation and maintenance of test
equipment is described in their associated
instruction manuals. Please refer to these
manuals for explicit instructions regarding the
safe use and handling of the equipment.
(Continued on next page)
IMPORTANT SAFETY INSTRUCTIONS

4206-4202
(Continued from previous page)
21. Damage Requiring Service
Unplug this product from the wall power
outlet and refer servicing to qualied service
personnel under the following conditions:
a. If the power-supply cord or plug is damaged.
b. If liquid has been spilled, or objects have
fallen into the product.
c. If the product has been exposed to rain or
water.
d. If the product does not operate normally
by following the operating instructions.
Adjust only those controls that are covered
by the operating instructions, as an
improper adjustment of other controls may
result in damage and will often require
extensive work by a qualied technician to
restore the product to its normal operation.
e. If the product has been dropped or the
cabinet has been damaged.
f. If the product exhibits a distinct change in
performance.
22. Servicing
Caution: These servicing instruc-
tions are for use by qualied service
personnel only. To reduce the risk
of electrical shock, do not perform any
servicing other than that described in the
operating instructions unless you are
qualied to do so.
23. Replacement Parts
When replacement parts are required, be sure
the service technician uses replacement parts
specied by the manufacturer or that have the
same characteristics as the original parts.
Unauthorized substitutions may result in re,
electric shock, or other hazards.
24. Safety Check
Upon completion of any service or repairs to
this product, ask the service technician to
perform safety checks to determine that the
product is in proper operating condition.

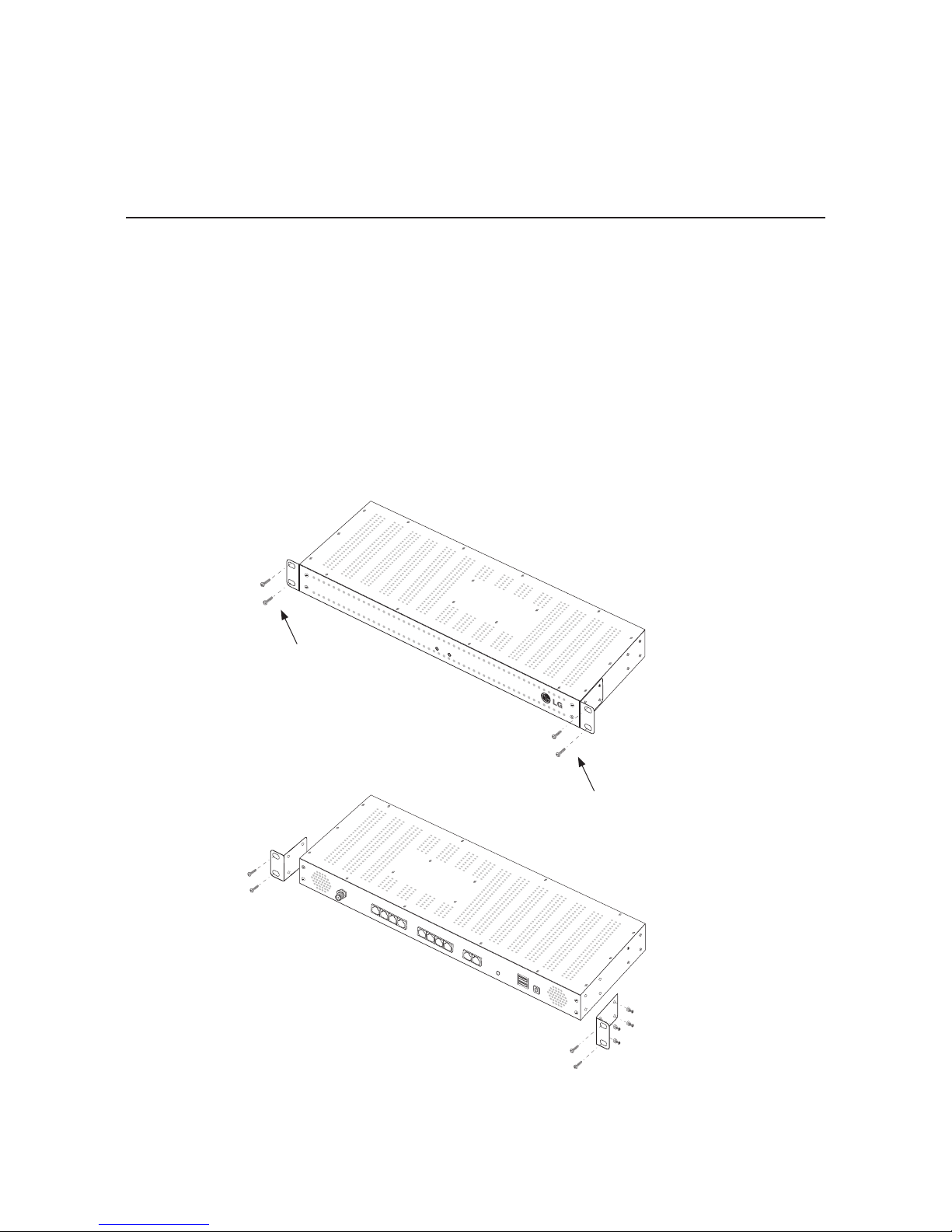

PIVD100R Rack Installation
(also see pages 11 and 12)
To install the PIVD100R in a rack:
• Carefully slide the PIVD100R into a standard
19-inch equipment rack.
• When mounting in the rack, make sure to use
the appropriate hardware. ALL FOUR MOUNT-
ING SCREWS MUST BE USED.
• This equipment is not designed to support
other devices. Do NOT stack other equipment
on the top of the PIVD100R.
• Rear cabling must be dressed and supported
so that the weight of the cabling is not a strain
on the PIVD100R connectors.
• MOUNTING OF THE EQUIPMENT IN THE
RACK SHOULD BE SUCH THAT A HAZARD-
OUS CONDITION IS NOT ACHIEVED DUE TO
UNEVEN MECHANICAL LOADING.
Rack-mount Considerations
A. Elevated Operating Ambient
If installed in a closed or multi-unit rack
assembly, the operating ambient tempera-
ture of the rack environment may be greater
than room ambient. Therefore, consideration
should be given to installing the equipment in
an environment compatible with the maximum
ambient temperature (Tma) specified by the
manufacturer (see Specifications information
in this document).
IMPORTANT SAFETY INSTRUCTIONS
Caution: Refer all servicing to qualied
service personnel.
(Continued on next page)

5
206-4202
(Continued from previous page)

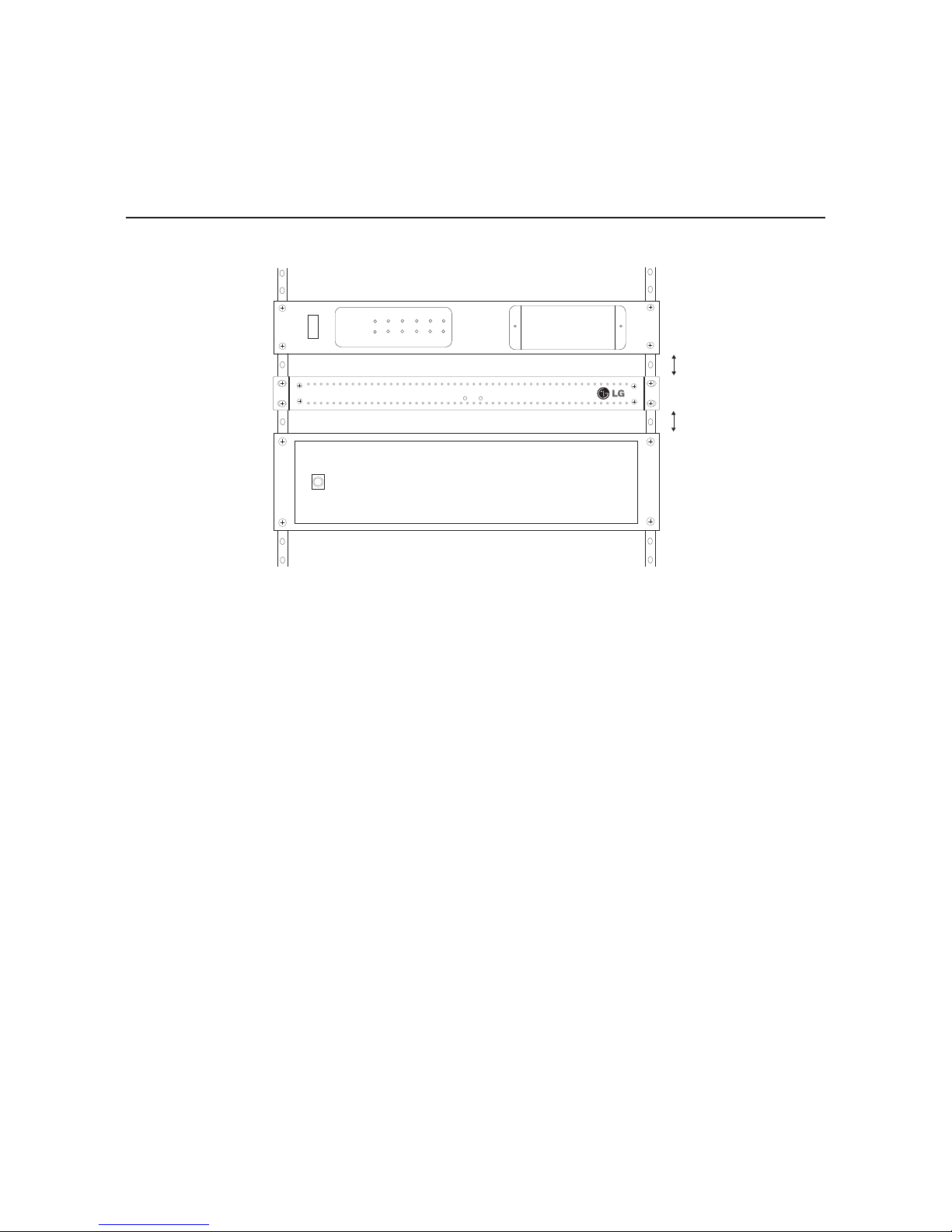

B. Reduced Air Flow
Installation of the equipment in a rack should
be such that the amount of air flow required
for safe operation of the equipment is not
compromised. To ventilate the system nor-
mally and avoid overheating, leave at least
1 inch (2.5 cm) on each side (including top
and bottom) of the PIVD100R. Do NOT stack
other equipment on the top of the PIVD100R.
C. Circuit Overloading
Consideration should be given to the
connection of the equipment to the supply
circuit and the effect that overloading of the
circuits might have on overcurrent protection
and supply wiring.
D. Reliable Earthing
Maintain reliable earthing of rack-mounted
equipment. Particular attention should be
given to supply connections other than direct
connections to the branch circuit (e.g. use of
power strips).
E. Mains Outlet Earthing
The apparatus with Class I construction must
be connected to a mains socket outlet with a
protective earthing connection.
PIVD100R Server Installation on a Flat Surface
To install the PIVD100R on a level surface (table
top, shelf, etc.):
• Install the equipment in an environment
compatible with the maximum operating
ambient temperature (Tma) specied by the
manufacturer (see Specications information
in this document).
• Place spacers or rubber feet (not provided) on
the bottom of the PIVD100R .
• Carefully place the PIVD100R on the level
surface.
• To ventilate the system normally and avoid
overheating, leave at least 1 inch (2.5 cm) on
each side (including top and bottom) of the
PIVD100R. Do NOT stack other equipment on
the top of the PIVD100R.
IMPORTANT SAFETY INSTRUCTIONS

6206-4202
Safety Warnings ....................... 2
Important Safety Instructions. . . . . . . . . . . . 3 – 5
Table of Contents . . . . . . . . . . . . . . . . . . . . . . 6
PIVD100R Product Description . . . . . . . . . . . . 7
Setup Information . . . . . . . . . . . . . . . . . . . . 8 – 9
Rear and Front Panel Overviews . . . . . . . . . 10
Rack Installation . . . . . . . . . . . . . . . . . . . 11 – 12
Typical Rack Installation . . . . . . . . . . . . . . 11
Rack-mount Considerations . . . . . . . . . . . . 12
System Setup . . . . . . . . . . . . . . . . . . . . . 13 – 19
Typical Setup Flowchart for PIVD100R
with RF Output ...................... 13
Typical Setup Flowchart for PIVD100R
with IP Output ....................... 14
Typical System Installation . . . . . . . . . . . . . 15
Network and Communication Setup . . . . . . . 20
Configuration Options via GUI . . . . . . . . 21 – 36
Access the PIVD100R Web GUI . . . . . . . . 21
PIVD100R System Status . . . . . . . . . . . . . 22
STB Information ..................... 23
STB Menu Options . . . . . . . . . . . . . . . . . . . 24
PIVD100R System Setup Options . . . . . . . 27
MUX Setup Options . . . . . . . . . . . . . . . . . . 32
PIVD100R Maintenance Options . . . . . . . 34
Configuration Options via Command
Line .............................37 – 60
Log In to the PIVD100R and Access
the Main Menu ...................... 37
View System Information . . . . . . . . . . . . . . 38
Monitor the System . . . . . . . . . . . . . . . . . . 38
STB Menu Commands . . . . . . . . . . . . . . . . 40
Setup Menu Commands . . . . . . . . . . . . . . 45
Update Menu Commands . . . . . . . . . . . . . 56
Pro:Idiom Menu Commands . . . . . . . . . . . 58
Reset the System . . . . . . . . . . . . . . . . . . . . 60
Exit the Current Session . . . . . . . . . . . . . . 60
Troubleshooting . . . . . . . . . . . . . . . . . . . . 61 – 65
PIVD100R Setup . . . . . . . . . . . . . . . . . . . . 61
PIVD100R Communication . . . . . . . . . . . . 62
Receiver Reception . . . . . . . . . . . . . . . . . . 63
Specifications ........................ 66
Document Revision History / Notes . . . . . . . 67
Open Source Software Notice . . . . . . . . . . . . 68
Warranty . . . . . . . . . . . . . . . . . . . . . Back Cover
Table of Contents

7
206-4202
PIVD100R Product Description
The LG CodePlus™ PIVD100R Pro:Idiom
® Video Distribution Transcoder System provides a
flexible 8- to 16-program HDTV solution for system providers who provide satellite delivered
content to commercial facilities (hotels, hospitals, etc.). The PIVD100R incorporates eight
100BaseTX Ethernet interface X-Ports that connect up to eight satellite set-top boxes (STBs)
from either DIRECTV
® or DISH Network ® satellite service.
Features
• Two output options: RF or IP (concurrent operation not supported)
− RF output: The PIVD100R generates four contiguous 256-QAM cable channels, with
up to two DIRECTV or three DISH Network program streams multiplexed on each
channel. This capability provides up to 8 HD programs of DIRECTV content or up to
12 HD programs of DISH Network content.
− IP output: The PIVD100R provides up to 8 HD programs of DIRECTV content or up
to 16 HD programs of DISH Network content.
• Transcodes satellite content for distribution
• Built-in Pro:Idiom content protection
• Supports Pro:Idiom encryption key maintenance
• Transcoded output supports Closed Captions and V-Chip (Parental Control)
(if included in the signal source)
• Remote management capability over Ethernet via either graphical user interface (GUI) or
command line interface
• Unit does not require local monitor, keyboard, or mouse connection
• Small, lightweight chassis
• 19-inch rack-mountable
• 1U height prole to minimize rack space usage
The PIVD100R converts satellite MPEG-4 HD programming to an encrypted, encoded
transport stream. A Pro:Idiom-compatible television is required to view premium HD content,
and a proper session ID must be set at the TV in order for Pro:Idiom decryption to be enabled.
LG’s Pay-Per-View (PPV) partners can set up this session through their interface. LG’s Free-
To-Guest (FTG) Mode of operation also enables Pro:Idiom decryption.
Multiple PIVD100R units may be combined in the head end to deliver an entire channel
lineup of HD programming.
Note: Design and specifications subject to change without prior notice.

8206-4202
This document provides installation and setup support only for the PIVD100R. The satellite
dish antenna and satellite STBs must be installed and operating before you proceed to set up
the PIVD100R. LG recommends that the system be professionally installed.
Check the following items before you begin the PIVD100R installation and setup procedures.
Satellite Dish Antenna
__ The satellite dish must be located where it will have unobstructed access to the satellite
signals. At least RG-6 or larger coaxial cables must be installed between the satellite dish
antenna system and the satellite STB. Refer to documentation provided with the satellite
dish antenna.
__ Ensure the appropriate satellite dish configuration (either 3-LNB or 5-LNB depending on
the satellite provider) is in place for MPEG-4 HD channel reception. If the number of
transcoders exceeds the dish antenna capacity, multi-switch equipment will be required.
For more information, refer to the manufacturer’s documentation.
Satellite STBs
__ DIRECTV satellite service: Up to eight COM 23 satellite STBs are supported for either RF
or IP output.
__ DISH Network satellite service: Up to six ViP
® 222 or ViP 222k satellite STBs are
supported for RF output, or up to eight ViP 222 or ViP 222k satellite STBs are supported
for IP output.
__ Refer to the manufacturer’s documentation, and carefully follow the system setup
procedures for each satellite STB. (The satellite STBs provide the X-Port signal inputs
for the PIVD100R.)
__ Authorization from the satellite service provider is required for HD channels. Contact the
provider to get subscription programming authorization for each satellite STB.
PIVD100R
__ Unpack the PIVD100R unit and all accessories.
PIVD100R Accessories: • AC Power Cord and Adapter
• 8 x 1 meter CAT5E Cables (for X-Port connections)
__ Select the location for mounting the PIVD100R. Ensure that adequate ventilation is
available .
__ Obtain the necessary attachment hardware to mount the PIVD100R chassis in its targeted
location.
__ Plan and install the necessary cabling and network (Ethernet) and AC power access for
the PIVD100R. You will also need the following to connect a PC directly to the PIVD100R
for system setup purposes: FTDI TTL-USB cable (P/N TTL-232R-5V-AJ).
Setup Information

9
206-4202
Setup Information (Cont.)
Channel Assignments for RF Output
__ Create a channel assignment plan for the installation site, or modify an existing plan to
incorporate the RF output of the PIVD100R. Ensure that up to four contiguous CATV
channels are allocated for the PIVD100R RF output. The PIVD100R uses a 256-QAM
modulation format, thereby occupying approximately 24 MHz of frequency spectrum.
The RF start channel is user-assigned during system setup, and the remaining channels
are then automatically assigned per EIA-542 STD CATV frequency allocation standards.
For example, if the RF start channel assignment is channel “2,” the three remaining
channels will be “3” “4” and “5”. However, if the RF start channel assignment is “6,” the
three remaining channels will be “95” “96” and “97”. Refer to EIA-542 STD CATV frequency
allocation tables for further information as required.
The highest available RF channel number for the PIVD100R is “135.” Thus, to allocate
all four channels available for PIVD100R RF output, the RF start channel must be set no
higher than “132.”
Channel Assignments for IP Output
__ The PIVD100R outputs IPv4 multicast streams. Ensure the institution’s IP network and
room receivers support IPv4 multicast and that the network is capable of selectively routing
multicast traffic. Refer to vendor equipment documentation for further information.
__ Create a channel assignment plan for the installation site, or modify an existing plan to
incorporate the IP output of the PIVD100R. Ensure that up to 16 unused and unreserved
IPv4 multicast addresses, within the designated range 224.0.0.0 to 239.255.255.255, are
allocated for the PIVD100R IP output.
IP channels are user-assigned during system setup. You may opt to specify an IP start
channel and enable the system to auto-increment the remaining channel assignments. For
example, if the IP start channel assignment is “227.0.0.40,” the remaining channels will be
“227.0.0.41,” “227.0.0.42,” etc. Or, you may opt to manually specify the IP details for each
IP channel.
__ Reserve at least one User Datagram Protocol (UDP) port for the multicast data streams.
You can use the system default (1234) or another unassigned port number for each data
stream, as required, for example, 50000, 50001, etc. The port(s) must avoid conict with
other protocols in use.
Note: Refer to the IANA IPv4 Multicast Address Space Registry and/or the IANA Service
Name and Transport Protocol Port Number Registry for further IP address/port information as
required.

10 206-4202
Rear and Front Panel Overviews
Feature & Control
(Ethernet) Ports
USB Ports
RF Out
AC Power
Cord & Adapter
RF-OUT
POWER
USB
Service Port
X-Port 8 7 6 5 X-Port 4 3 2 1
Feature Port Control Port
Service Port
X-Ports
4, 3, 2, 1
X-Ports
8, 7, 6, 5
Disconnect Device
The AC mains plug is used
as the disconnect device.
The disconnect device must
remain readily operable.
STATUS LED
POWER LED
PWR STATUS
PIVD100R Rear View
PIVD100R Front View
Ventilation Holes
Air flow must not be obstructed. To
ventilate the system normally and
avoid overheating, leave at least 1
inch (2.5 cm) on each side (including
top and bottom) of the PIVD100R.
Do NOT stack other equipment on
the top of the PIVD100R.

11
206-4202
PWR STATUS
RF-OUT
POWER
USB
Service Port
X-Port 8 7 6 5 X-Port 4 3 2 1
Feature Port Control Port
Rack Installation
Typical Rack Installation
1. (Optional) As shipped, the PIVD100R mounting brackets are attached ush with the front of
the unit (see diagram a). If desired, the mounting brackets may be detached from the unit
and reattached, for example, so that they are ush with the rear of the unit (see diagram b).
If you wish to change the location/orientation of the mounting brackets, carefully remove
each of the four (M4 x 10 mm) screws and attendant washers (one at and one lock washer
per screw) holding each bracket in place. Then, use the same screws and washers to
reattach the mounting brackets in the desired location.
2. Carefully slide the chassis into a standard 19-inch equipment rack.
3. Use all four mounting screws to secure the chassis to the rack.
PWR STATUS
RF-OUT
POWER
USB
Service Port
X-Port 8 7 6 5 X-Port 4 3 2 1
Feature Port Control Port
To rack
Use at washer and
lock washer with each
M4 x 10 mounting
bracket screw.
To rack
(a)
(b)

12 206-4202
Rack Installation (Cont.)
Rack-mount Considerations
A. Elevated Operating Ambient
If installed in a closed or multi-unit rack assembly, the operating ambient temperature of the
rack environment may be greater than room ambient. Therefore, consideration should be given
to installing the equipment in an environment compatible with the maximum ambient tempera-
ture (Tma) specified by the manufacturer (see Specifications information in this document).
B. Reduced Air Flow
Installation of the equipment in a rack should be such that the amount of air flow required for
safe operation of the equipment is not compromised. To ventilate the system normally and
avoid overheating, leave at least 1 inch (2.5 cm) on each side (including top and bottom) of
the PIVD100R. Do NOT stack other equipment on the top of the PIVD100R.
C. Circuit Overloading
Consideration should be given to the connection of the equipment to the supply circuit and
the effect that overloading of the circuits might have on overcurrent protection and supply
wiring.
D. Reliable Earthing
Maintain reliable earthing of rack-mounted equipment. Particular attention should be given
to supply connections other than direct connections to the branch circuit (e.g. use of power
strips).
E. Mains Outlet Earthing
The apparatus with Class I construction must be connected to a mains socket outlet with a
protective earthing connection.
PWR STATUS
PWR STATUS
Front View
of Rack Cabinet
1 inch minimum
1 inch minimum

13
206-4202
System Setup
Refer to the following diagrams, and complete the system installation as described on pages
15 to 19.
Caution: Do NOT make system connections until instructed to do so during the
system installation procedure. In some instances, configuration steps must be
performed before physical connections are made.
Typical Setup Flow Chart for PIVD100R with RF Output
CAT5E
Cable
Feature Port
PIVD100R
IP
Distribution
Network
Network
Room
Receiver
Room
Receiver
Room
Receiver
Laptop
PC
Service Port
Connection
Ethernet
Satellite
STB
X-Port n **
Satellite Signal/
Distribution *
Satellite In
X-Port 3
X-Port 2
X-Port 1
.
.
.
RF
Cable
RF Out
PIVD100R
RF
Distribution
System
Network
Room
Receiver
Room
Receiver
Room
Receiver
Laptop
PC
Service Port
Connection
Ethernet
Satellite
STB
X-Port n **
Satellite Signal/
Distribution *
Satellite In
X-Port 3
X-Port 2
X-Port 1
.
.
.
* Multi-switch will be necessary if the number
of transcoders exceeds the dish antenna’s
capacity.
** Where n is the last X-Port used. Up to eight
COM 23 or six ViP 222/ViP 222k STBs are
supported for RF output.

14 206-4202
System Setup (Cont.)
CAT5E
Cable
Feature Port
PIVD100R
IP
Distribution
Network
Network
Room
Receiver
Room
Receiver
Room
Receiver
Laptop
PC
Service Port
Connection
Ethernet
Satellite
STB
X-Port n **
Satellite Signal/
Distribution *
Satellite In
X-Port 3
X-Port 2
X-Port 1
.
.
.
RF
Cable
RF Out
PIVD100R
RF
Distribution
System
Network
Room
Receiver
Room
Receiver
Room
Receiver
Laptop
PC
Service Port
Connection
Ethernet
Satellite
STB
X-Port n **
Satellite Signal/
Distribution *
Satellite In
X-Port 3
X-Port 2
X-Port 1
.
.
.
* Multi-switch will be necessary if the number
of transcoders exceeds the dish antenna’s
capacity.
** Where n is the last X-Port used. Up to
eight COM 23 or ViP 222/ViP 222k STBs are
supported for IP output.
Typical Setup Flow Chart for PIVD100R with IP Output

15
206-4202
Typical System Installation
(see also Typical Setup Flow Charts on the previous pages)
1. Verify that each satellite STB is set up and functioning. Each STB should be powered up,
initialized, authorized, and displaying the default channel properly—refer to the manufacturer’s
documentation.
Caution: Do NOT make any connections between the satellite STBs and the
PIVD100R until you have verified that the STBs are authorized and functioning
properly.
2. For each satellite STB: Connect one of the supplied CAT5E cables between one of the
X-Ports on the PIVD100R rear panel and the ETHERNET port on the satellite STB.
Note: Once you make the connection between a satellite STB and the PIVD100R, STB
front panel and remote control functionality may be limited. If necessary, to restore IR
remote usability, unplug the X-Port cable and reset the STB. (The STB/tuner channels will
be set later during the system setup.)
3. To enable remote management, connect one end of a CAT5 RJ-45 Ethernet cable to the
Control Port on the PIVD100R rear panel, and connect the other end of the cable to the
institution’s network.
Caution: The subnet 192.168.0.x is reserved for STB communication and
cannot be used for the Control Port network subnet. This is the only restriction;
for example, you can use 192.168.1.x, 10.x.x.x, etc. Contact your service
representative for further information.
4. Connect the PIVD100R power supply to the POWER connector on the PIVD100R rear
panel. Then, plug the AC power cord into a powered AC line receptacle. When power is
applied, the PWR (Power) LED on the PIVD100R front panel will initially flash red and then
turn green.
The boot-up process for the PIVD100R may take up to 90 seconds. When boot-up is
complete, the STATUS LED on the PIVD100R front panel will light continuously green.
5. Once the STATUS LED is green, use the FTDI TTL-232R-5V-AJ cable to connect a PC to
the Service Port on the PIVD100R rear panel.
6. Using HyperTerminal or an equivalent terminal emulation program on the PC, congure the
serial port as follows: Bits per second/baud = 115200; Data bits = 8; Parity = None; Stop
bits = 1; Flow Control = None
Once the connection is established, you should see a login prompt. (If the login prompt is
not automatically displayed, press Enter to refresh the screen.)
7. At the login as: prompt, type admin and press Enter. Then, type the admin user
password (provided by LG) at the password: prompt.
System Setup (Cont.)
(Continued on next page)

16 206-4202
(Continued from previous page)
8. At the Command > prompt, type info and press Enter. (Note that you can press Enter at
any PIVD100R command prompt to view current menu.)
The initial System Information display identifies PIVD100R default configuration settings,
including the Control Port IP address, the STB type, and the output conguration, for
example:
PIVD100R
Pro:Idiom Video Distribution Transcoder System
Copyright (c) 2010-2012 LG Electronics U.S.A., Inc.
Copyright (c) 2010-2012 Zenith Electronics LLC
SN: 101-12470001
Version 1.5
HW id: 3-207-79-4
Ctrl MAC: 00:0C:63:3B:00:BE
Ctrl IP: 136.166.60.92
STB Type: DirecTV
Output: RF
RF config: Mode 2, QAM-B, RF: 6 MHz, 5.36 MSps
RF channels: 3 4 5 6
Local time: Thu Mar 22 14:42:02 CDT 2012
9. Check the Ctrl IP (Control Port IP address) eld in the System Information display. By
default, the PIVD100R uses DHCP; thus, the DHCP server, if congured, assigns an IP
address to the PIVD100R once the PIVD100R successfully connects to the network.
• If the Ctrl IP eld shows an IP address, the PIVD100R is up and running on the network.
Continue with step 10.
• If the network is congured for DHCP but the Ctrl IP eld is blank, refer to “Network Setup”
troubleshooting information on page 61.
• If the network is not congured for DHCP, you will need to congure a static IP address
for the PIVD100R. Complete steps 10 to 13 (as required), and then set the PIVD100R IP
address using the commands indicated in step 14.
10. Check the Output eld in the System Information display. If the default value (RF) does not
identify the appropriate output type, set the output mode as follows:
a) At the Command > prompt, type setup and press Enter to access the Setup Menu.
b) Use the Setup Menu “omode” command, as described on page 47, to set the appropriate
output mode.
11. The next step depends on the output mode:
• If you are setting up the system for RF output, continue with step 12.
• If you are setting up the system for IP output, go to step 13.
System Setup (Cont.)
(Continued on next page)

17
206-4202
(Continued from previous page)
12. (RF output only) Complete PIVD100R RF output configuration as follows:
a) If the Command > prompt is on display, type setup and press Enter to access the
Setup Menu.
b) Use the Setup Menu “rf” command, as described on page 50, to congure the RF mode
and the RF channels.
Note: By default, the PIVD100R is configured for QAM-B RF output; thus, when you are
prompted to select the RF mode (initial prompt before RF channel configuration), the
default value shown in square brackets should show the appropriate option for RF output.
c) Connect RF OUT on the PIVD100R rear panel to the RF distribution center combiner,
and balance the RF signal so that the signal level at the TV(s) is between 0 to +7 dBmV.
Caution: For proper system performance, the PIVD100R signal level at the
TV input (ANTENNA IN) must be between 0 to +7 dBmV. Note that additional
equipment (i.e., attenuators) may be required to adjust the signal level.
d) Go to step 14.
13. (IP output only) Complete PIVD100R IP output configuration as follows:
a) If the Command > prompt is on display, type setup and press Enter to access the
Setup Menu.
b) At the Setup Command > prompt, type ipout and press Enter to access the IP
Output Conguration Menu.
c) The IP Output Conguration Menu offers two options for configuring output IP channels:
• To manually congure the output IP channels, use the “set’’ command. You will need
to specify a multicast IP address and the multicast port number for each STB/tuner.
• To auto-congure output IP channels from a base multicast IP address and port
number, use the “ll” command. Once you enter the base multicast IP address and
the multicast port number, the system will auto-increment the remaining IP channels.
Refer to “Congure the IP Output” on pages 50 to 53 for further information on the IP
Output Conguration Menu commands. Make sure to use the IP Output Conguration
Menu “apply” command to conrm and apply the conguration data to the system.
d) Once you have completed the output IP channel conguration, at the next IP
Output Command > prompt, type exit and press Enter to return to the Setup Menu
prompt.
e) Connect a CAT5E or better cable between the Feature Port on the PIVD100R rear
panel and the institution’s IP distribution network.
f) Continue with step 14.
System Setup (Cont.)
(Continued on next page)

18 206-4202
(Continued from previous page)
14. (Optional) For remote management purposes, you can set a static IP address for the
PIVD100R Control Port as follows:
a) If the Command > prompt is on display, type setup and press Enter to access the
Setup Menu.
b) At the Setup Command > prompt, type setip and press Enter. The system will
display the current network configuration, followed by the Network Configuration Menu.
c) Use the Network Configuration Menu “ip” and “dns” commands to configure the Control
Port. Refer to “Configure the Control Port” on pages 48 to 49 for further information.
Note: Review the New Network Configuration overview carefully before you confirm
the Control Port configuration settings. Ensure that each of the addresses was entered
correctly.
Note: If you change the Control Port configuration, you will be prompted to reset the
system. If you intend to modify additional configuration settings during the current session,
you may wait until all changes are complete before you reset the system.
15. Once all physical connections to the PIVD100R have been made and the Control Port IP
address has been assigned or configured, you also have the option to complete the
system setup remotely using either the web GUI or the command line interface.
• To complete the system setup in the current session (via the Service Port), continue with
step 16.
• If you wish to complete the setup remotely, reset the system at this time: At either the
Command > prompt or the Setup Command > prompt, type reset and press Enter.
When you are ready, establish remote communication with the PIVD100R, and then
continue with step 16. Note that you may use the GUI to perform the conguration steps,
if desired. Refer to “Network and Communication Setup” on page 20 for information on
establishing remote communication with the PIVD100R and/or “Conguration Options
via GUI” on pages 21 to 36 for further information on the GUI.
16. Check the STB Type field in the System Information display (if necessary, you can rerun
the “info” command from either the Command > or Setup Command > prompt). If the
default value (DIRECTV) does not identify the appropriate service provider, set the STB
type as follows:
a) If the Command > prompt is on display, type setup and press Enter to access the
Setup Menu.
b) Use the Setup Menu “type” command, as described on page 47, to select the STB
type.
System Setup (Cont.)
(Continued on next page)

19
206-4202
System Setup (Cont.)
(Continued from previous page)
Note: If you set a new STB type, you will be prompted to reset the system. If you intend to
modify additional configuration settings during the current session, you may wait until all
changes are complete before you reset the system.
17. If the Setup Command > prompt is on display, type exit and press Enter to return to the
Command > prompt.
18. Set the channel(s) on each of the installed STBs as follows:
a) At the Command > prompt, type stb and press Enter to access the STB Menu.
b) At the Enter STB number > prompt, type the number of the PIVD100R X-Port
connected to the STB for which you wish to set the channel(s). Then, press Enter.
The system will identify the current STB and then display an STB command prompt,
for example:
Current STB: STB-1
STB-1 Command >
c) Use the STB Menu “channel” command, as described on page 42, to set the STB/
tuner channel. If applicable, make sure to set the channel for both STB tuners.
d) Use the STB Menu “stb” command, as described on page 41, to access the STB Menu
for the next STB for which you wish to set the channel(s). Then, use the “channel”
command to set the channel(s) for the (newly) current STB.
Repeat this step to set the channel on each STB/tuner.
19. At the STB Command > prompt, type exit and press Enter to return to the Command >
prompt.
20. (Optional) If you wish to review the system settings at this time, at the Command >
prompt, type info and press Enter to display the system information.
Note: You can also run the “monitor” command, if desired, to review the system settings.
See “Monitor the System” on page 38 for further information.
21. At the Command > prompt, type reset and press Enter to reset the system.
Note: This initiates a reset of the PIVD100R and may also initiate a reset of one or more
STBs, if required. Once the PIVD100R is reset (may take up to 90 seconds), it may then
take up to 10 minutes for the PIVD100R to reestablish communication with the STBs. After
the system reset, the PIVD100R resumes normal operation.
22. Check one or more room receivers to make sure all content is properly mapped and
available.

20 206-4202
This section describes PIVD100R communication options for configuration purposes.
Note: Before you proceed with any additional configuration, the system should
be installed and operating as described in the system installation procedure on
pages 15 to 19.
Also note that configuration updates periodically require that you reset the PIVD100R. Make
sure to reset the unit when directed to do so.
There are three options for communicating with the PIVD100R.
• When the PIVD100R is connected to an IP network, you can use a standard Internet
browser to communicate with the PIVD100R via a graphical user interface (GUI).
• When the PIVD100R is connected to an IP network, you can also use an SSH client to
communicate with the PIVD100R via a command line interface.
• To establish a direct connection to the PIVD100R, connect a PC to the serial port on the
PIVD100R using the FTDI TTL-USB cable (P/N TTL-232R-5V-AJ). Plug the USB end of
the cable into an open USB port on your PC. If necessary, install the device driver. Plug the
other end of the cable into the Service Port jack on the PIVD100R rear panel.
Using HyperTerminal or an equivalent terminal emulation program on the PC, configure the
serial port as follows:
− Bits per second/baud = 115200
− Data bits = 8
− Parity = None
− Stop bits = 1
− Flow Control = None
PIVD100R conguration options via web GUI are described on pages 21 to 36; PIVD100R
conguration options via command line are described on pages 37 to 60. For security and
control purposes, some options available from the command line menus are not available
from the GUI.
You will need to know the “admin” user password in order to log in to either the web GUI
or the command line interface. If necessary, consult the system administrator to obtain the
“admin” user password.
Note: The default network setting for the PIVD100R is DHCP, in which case the server
assigns an IP address to the PIVD100R. If necessary, consult the network administrator to
obtain the IP address that has been assigned to the PIVD100R.
Note: If you want to connect the PC directly to the PIVD100R Control Port using an Ethernet
CAT5E cable, in order to establish communication you must rst connect the PC to the
PIVD100R Service Port and set the PIVD100R’s IP address (see “Congure the Control Port”
on pages 48 to 49). The PIVD100R’s IP address must be on the same subnet as the PC’s IP
address.
Network and Communication Setup
