LG STB-6500 User manual

INSTALLATION MANUAL
STB-6500
www.lg.com
Copyright © 2020 LG Electronics Inc. All Rights Reserved.
Please read this manual carefully before operating your set and retain it
for future reference.
*MFL71757901*
(2007-REV00)

ENGLISH
2
Table of contents
4 First Use Wizard
4 - Screen Resolution
5 Basic Settings
5 - Language & Location
6 - Network Settings
7 - Portal Settings
8 - Voice Service Coverage
9 Data Cloning
9 Solution Settings
9 - Language & Location selection
10 - Automatically for Setup
15 - Manually for Setup
18 Installation Menu Settings
19 Installation Menu
19 Introduction
20 LG Hotel Mode Setup
20 - Power On Status
21 - Volume
21 - Key Management
22 - Limited Mode
22 - DTV Programme Update
23 - Power On Default
23 - Aux Source Setting
23 - Power Management
23 - Radio Video Blank
23 - Factory Reset
24 Network
24 - MAC Address
24 - Network Settings
25 - LG Connect
25 - IP Stream Control
25 - Wake On LAN
25 - VLAN ID
25 - Ping Test
26 Pro:Centric
26 - Mode
26 - WORF
26 - Room Number Setting
26 - Media Type
27 - Receive Data
27 - Native EPG
28 General
28 - Configuration Setup
33 - External Speaker / Line Out
33 - Set ID Setup
33 - Power Saving
34 - HCEC Setup
35 - Clock Setup
36 - Developer Mode
36 - Security
37 Portal Settings
37 - Portal Mode
37 - Auto Start
37 - PreLoaded App
38 - Website Shortcut
38 - Input Shortcut
39 - Hotel Directory
39 - Portal Editor
40 - Portal Manager
42 Media Share
42 - Smart Share
42 - Screen Share
42 - Media Renderer
42 - DIAL
42 - STB Name
43 - SoftAP
44 - Beacon
45 Display
45 - Resolution
45 - Display On Time Setup
45 - HDMI Input Setup
45 - Volume Preset
45 - SIMPLINK Out
46 STB Manager
46 - Diagnostics
51 - USB Download Menu

ENGLISH
3
56 IR Codes
57 External control device Setup
57 RS-232C Setup
57 Phone jack Type
57 Type of Connector : D-Sub 9-Pin Male
58 RS-232C Configurations
58 Communication Parameters
58 IR OUT Using Guide
58 - Suitable / Not Recommend remote-controller data
format
58 - IR Receiver specifications
59 Command Reference List
60 Transmission / Receiving Protocol

ENGLISH
4
First Use Wizard
* Images shown may differ from your STB.
Screen Resolution
The rst time you turn ON the STB/display panel, a prompt to select the screen resolution will be displayed, and you will need to select the
appropriate option — 2160p, 1080p, 720p, 1366 x 768 — for the STB’s video output format.You cannot proceed with STB conguration until you
make a selection.
•The STB’s default video output resolution is 1080p. If you select this option, the Please Select the Screen Resolution screen will close and the EZ-
Manager WizardWelcome screen will be displayed.
•If you select one of the other four resolution options, a Changing the Resolution screen will be displayed, and the STB will reboot within a few
seconds to change the resolution per your selection. When the STB reboot is complete (it may take several minutes), you will be prompted to
conrm the new video output resolution. Use the arrow keys on the Installer Remote to select YES in the conrmation window, and then press
OK on the Installer Remote.
•If there is no user interaction within 10 seconds, or if you select “No”in the confirmation window, the STB will reboot and revert to the default
resolution. After this reboot is complete, the Please Select the Screen Resolution screen will be redisplayed.

ENGLISH
5
(Depending on model)
•There are four options - Basic Settings, Data Cloning, Solution Settings, and Installation Menu Settings. Each menu can access by Start button.
Basic Settings
(Depending on model)
This menu is for basic settings related to language, network, portal, voice service coverage and programme tuning without SI (Pro:Centric) setting. There
are four steps for it.

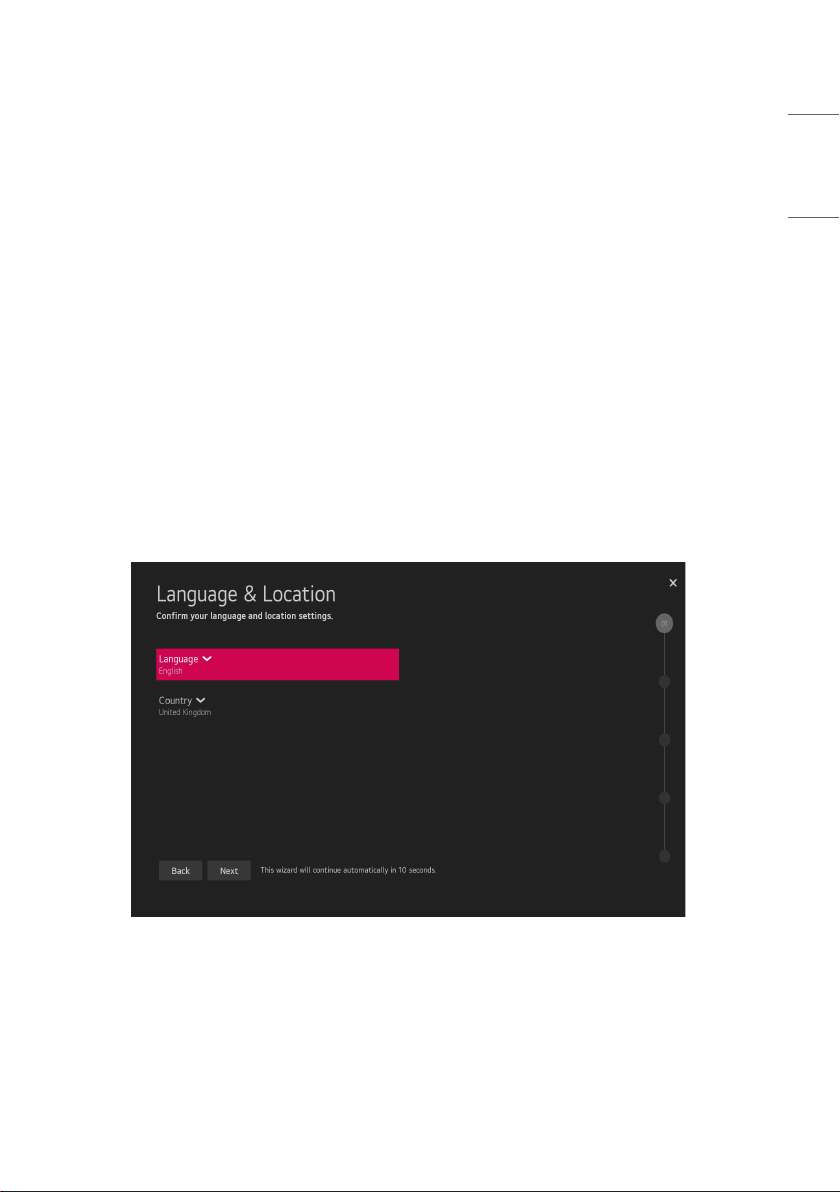

Language & Location
(Depending on model)
•Select the Language and Country. Some countries need to select the Time Zone.

ENGLISH
6
Network Settings
(Depending on model)
•Set Network connection. You can connect easily to wired/wireless network. (“Network Settings”on page 24)
Wireless (AutoWi-Fi) : Connect a default hidden SSID/PW. (SSID : lgwebostv, PW : procentric, Security : WPA/WPA2 PSK)

ENGLISH
7
Portal Settings
(Depending on model)
•Set the Portal Mode and Portal Auto Start.
Portal Mode
(Depending on model)
•You can select‘Default Portal’(Use webOS default portal),‘Customizable Portal’(Use editable Portal), or ‘None’(Do not use portal).
Portal Auto Start
•You can select‘On’or‘Off’. If you select‘On’, Portal (Home Launcher) will be execute automatically after STB on.

ENGLISH
8

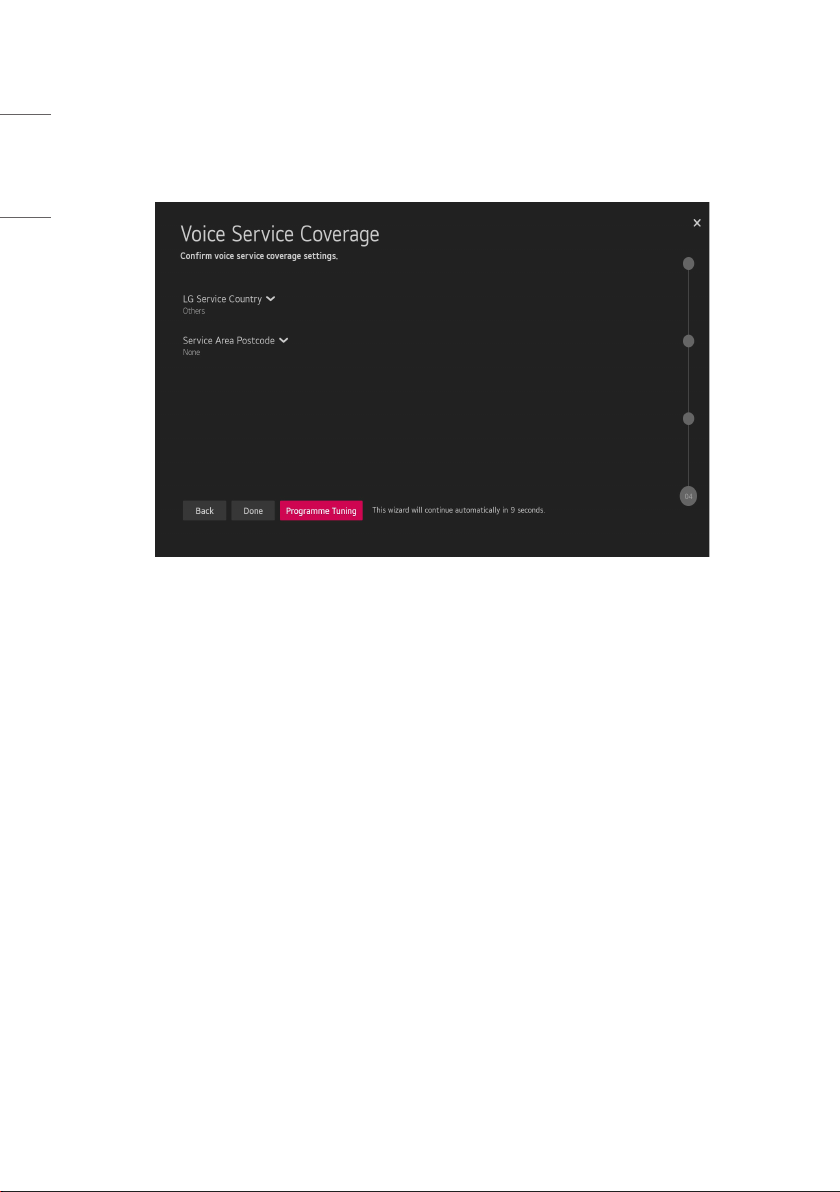

Voice Service Coverage
(Depending on model)
•Set the voice service coverage. You can set LG Service Country and Service Area Postcode(Depending on model) for voice service.

ENGLISH
9
Data Cloning
(Depending on model)
Access Data cloning menu of STB Manager application for applying cloning le.
Solution Settings
(Depending on model)
The Pro:Centric Platform enables you to simply install, manage and use guest-centric solutions. The default Domain“procentric.local”and IP Server
Address are needed to be registered in DNS STB will contact the IP Server using the default Domain“procentric.local”via IP on server search page. If
STB doesn’t contact the Server, STB will search the pre-dened programme earlier than all programmes. (Only DVB-C)
The frequencies of pre-dened programmes are below.
•Germany:‘51000, 858000, 778000, 698000, 618000, 538000, 458000, 378000, 298000, 218000, 138000 KHz’.
•Philippines 6 MHz:‘57000, 651000, 591000, 531000, 471000, 411000, 351000, 291000, 231000, 171000, 111000 KHz’.
•Other Country:‘50000, 842000, 762000, 682000, 602000, 522000, 442000, 362000, 282000, 202000, 122000 KHz’.
Language & Location selection
(Depending on model)
•Please select the Language and Country. Some countries need to select the Time Zone.

ENGLISH
10
Automatically for Setup
(Depending on model)
1 From the STB Conguration Options screen, you can choose how to proceed with the conguration of this STB. Whether you will congure the
STB for Pro:Centric operation via the wizard or use a USB memory device to congure the STB, you may rst wish to set the Room Number on
the STB. Also, you can congure the network environment.
•Complete initial download of maintenance(On/Off Toggle): you can choose the option whether to skip the maintenance files download during the
EZ-Manager process.
•If you intend to set Room Number as part of the STB configuration, use the Room Number option to assign the Room # for this STB before you
continue with additional configuration.
•In the Label field, use the Left/Right arrow keys to specify a North, South, East, or West designation for this STB .
•In the Room Number field, you can use the number keys on the Installation Remote to direct enter a room number or use the virtual keyboard on the
STB screen.

ENGLISH
11
•If you intend to apply the files via USB, use USB Configuration option to access STB Manager app. (“ STB Manager”on page 46)
•If you intend to set network, use the Network Settings option. You can connect easily to wired/wireless network by this option. (“Network Settings”on
page 24)
Wireless (AutoWi-Fi) : Connect a default hidden SSID/PW. (SSID : lgwebostv, PW : procentric, Security : WPA/WPA2 PSK)

ENGLISH
12

ENGLISH
13

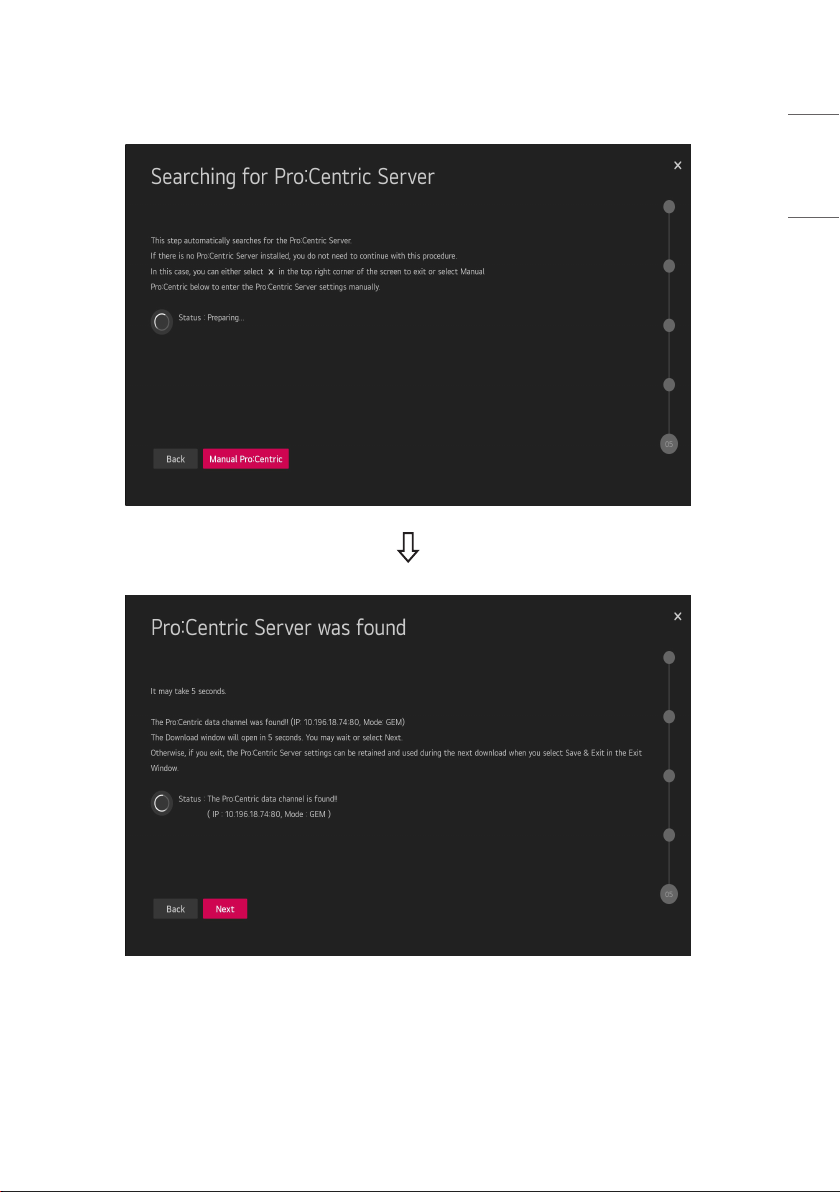

2 This step automatically searches for the Pro:Centric Server. If was found the Pro:Centric data programme, select the Next.

ENGLISH
14
3 Downloading the Pro:Centric application les takes few minutes.
4 After the installation is completed, the following screen will be displayed.

ENGLISH
15
Manually for Setup
(Depending on model)
1 Select a Label and/or enter the Room Number using the numeric keypad on the remotes or using the virtual keyboard on the STB screen. To
continue, move and select Next.
2 Please select the Manual Pro:Centric.

ENGLISH
16

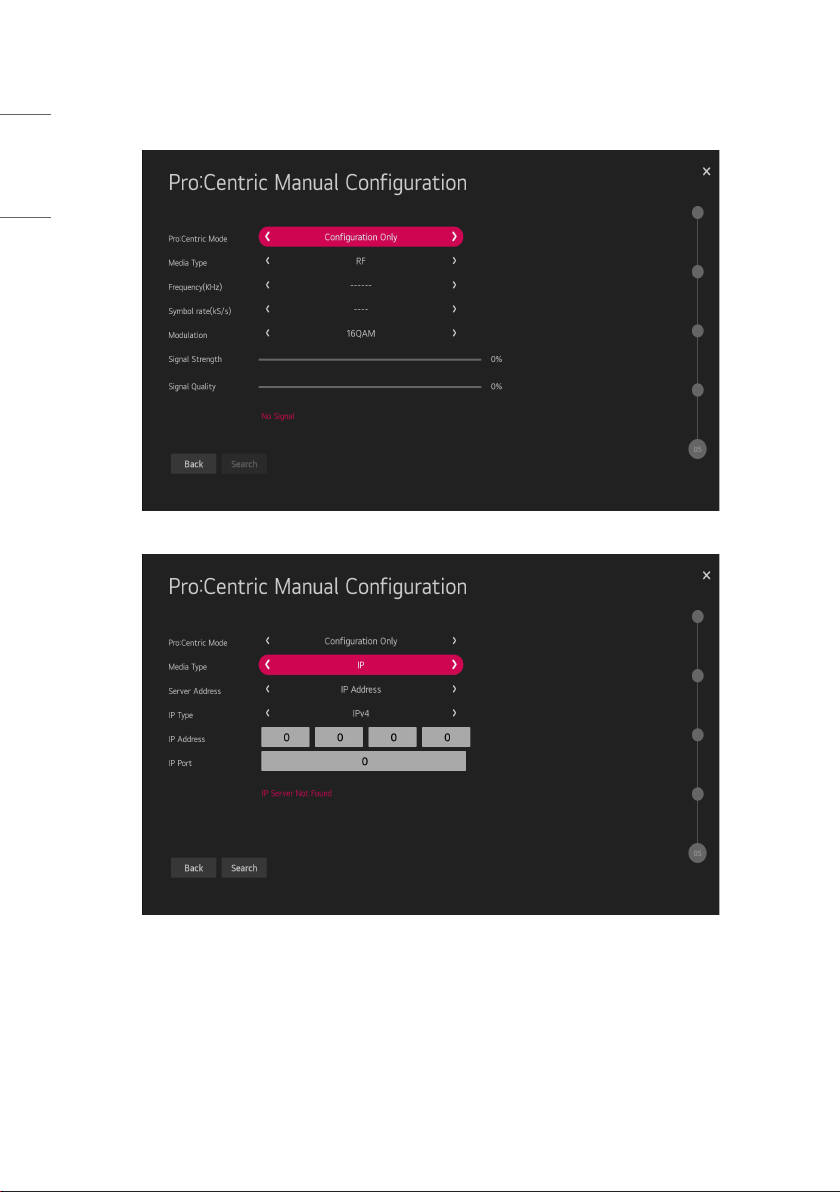

3 Congure the appropriate Pro:Centric settings in the STB. (RF varies depending on model.)

ENGLISH
17
4 Downloading the Pro:Centric application les takes few minutes.

ENGLISH
18
5 After the installation is completed, the following screen will be displayed.
Installation Menu Settings
(Depending on model)
Access Installation menu for commercial feature settings.

ENGLISH
19
Installation Menu
* Images shown may differ from your STB.
Introduction
The abundant functions for Hotel STB linked with software installation can be projected on OSD as‘Installation Menu’.
The wide range of hotel features can be performed simply on additional window to enhance the LG hotel STB’s easy installation and convenient
operation for Hotelier and System Integrators.
1 Press the Setting button for more than 5 seconds using the user remote control, banner will appear at top left on the screen.
2 Enter a four digit password and press button.
-The STB is set with the initial password“1-1-0-5”.

ENGLISH
20

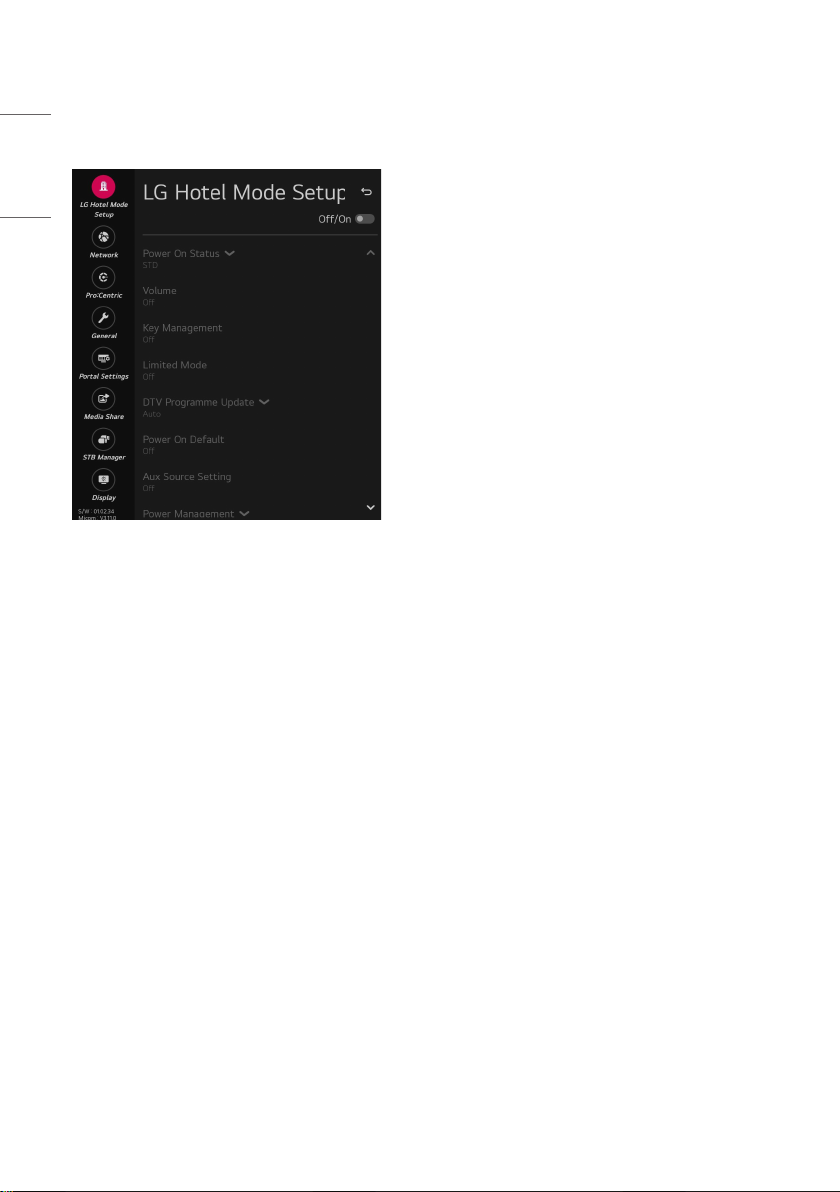

LG Hotel Mode Setup
When‘LG Hotel Mode Setup’is set to On, all functions of Hotel Mode apply.
Power On Status
•Decide to select working status of STB Set when turn on main power.
•You can select PWR, STD, LST.
•PWR always make STB set On status when turn on main power.
•STD make Stand-by status when turn on main power.
•LST make STB set work like previous power status. As same concept as Power Backup mode; If main power were turned off in Power On status, STB set
would work in On status. If main power were turned off in Stand-by status, STB set would work in Stand-by status.
•If there Block All is IR Operation from Key Management, In order to turn on the STB when turned off situation, change the value of the PWR.
(Reference the Key Management)
