LG 32LD660H User manual

Master TV Setup
pages 10 – 13
Cloning Information
pages 24 – 32
FTG Mode of Operation
pages 33 – 44
EXPERIENCED INSTALLER
32LD660H 37LD660H 42LD660H
32LD665H 37LD665H 42LD665H
32LV555H 37LV555H 42LV555H 47LV555H 55LV555H
© Copyright 2012 LG Electronics U.S.A., Inc. P/N: 206-4200 (Rev D)
Commercial Mode Setup Guide
Note: Selected features shown in this guide may not be available on all models.
Lodging Guest Interactive Pro:Centric
® TVs

2206-4200
MODEL and SERIAL NUMBER
The model and serial numbers of this TV are located on the
back of the cabinet. For future reference, LG suggests that
you record those numbers here:
Model No._________________ Serial No._______________
WARNING:
TO REDUCE THE RISK OF ELECTRIC SHOCK DO NOT REMOVE COVER (OR BACK). NO USER-
SERVICEABLE PARTS INSIDE. REFER TO QUALIFIED SERVICE PERSONNEL.
The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to
the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient
magnitude to constitute a risk of electric shock to persons.
The exclamation point within an equilateral triangle is intended to alert the user to the presence of important
operating and maintenance (servicing) instructions in the literature accompanying the appliance.
WARNING:
TO PREVENT FIRE OR SHOCK HAZARDS, DO NOT EXPOSE THIS PRODUCT TO RAIN OR MOISTURE.
POWER CORD POLARIZATION:
This product is equipped with a 3-wire grounding-type alternating current power plug. This plug will fit into the
power outlet only one way. This is a safety feature. If you are unable to insert the plug fully into the outlet, contact
your electrician to replace your obsolete outlet. Do not defeat the safety purpose of the 3-wire grounding-type plug.
NOTE TO CABLE/TV INSTALLER:
This reminder is provided to call the cable TV system installer’s attention to Article 820-40 of the National Electrical
Code (U.S.A.). The code provides guidelines for proper grounding and, in particular, specifies that the cable ground
shall be connected to the grounding system of the building, as close to the point of the cable entry as practical.
REGULATORY INFORMATION:
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of
the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the
equipment is operated in a residential installation. This equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a particular installation. If this equip-
ment does cause harmful interference to radio or television reception, which can be determined by turning the equip-
ment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment to an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
CAUTION:
Do not attempt to modify this product in any way without written authorization from LG Electronics U.S.A., Inc.
Unauthorized modification could void the user’s authority to operate this product.
COMPLIANCE:
The responsible party for this product’s compliance is: LG Electronics U.S.A., Inc.
1000 Sylvan Avenue, Englewood Cliffs, NJ 07632, USA • Phone: [phone]
WARNING
RISK OF ELECTRIC SHOCK
DO NOT OPEN
© Copyright 2012 LG Electronics U.S.A., Inc.
For Customer Support/Service, please call:
1-888-865-3026
The latest product information and documentation is
available online at:
www.LGsolutions.com/products
Marketed and Distributed in the United States by LG Electronics U.S.A., Inc.
1000 Sylvan Avenue, Englewood Cliffs, NJ 07632

3
206-4200
IMPORTANT SAFETY INSTRUCTIONS
1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with dry cloth.
7. Do not block any ventilation openings. Install in accor-
dance with the manufacturer’s instructions.
8. Do not install near any heat sources, such as radiators,
heat registers, stoves, or other apparatus (including
amplifiers) that produce heat.
9. Do not defeat the safety purpose of the polarized or
grounding-type plug. A polarized plug has two blades
with one wider than the other. A grounding-type plug
has two blades and a third grounding prong. The wide
blade or the third prong are provided for your safety. If
the provided plug does not fit into your outlet, consult
an electrician for replacement of the obsolete outlet.
10. Protect the power cord from being walked on or pinched,
particularly at plugs, convenience receptacles, and the
point where it exits from the apparatus.
11. Only use attachments/accessories specified by the
manufacturer.
12. Use only with the cart, stand, tripod, bracket, or table
specified by the manufacturer or sold with the apparatus.
When a cart is used, use caution when moving the cart/
apparatus combination in order to avoid injury from
tip-over.
13. Refer all servicing to qualied service personnel.
Servicing is required when the apparatus has been
damaged in any way, such as power-supply cord or
plug is damaged, liquid has been spilled or objects
have fallen into the apparatus, the apparatus has been
exposed to rain or moisture, does not operate normally,
or has been dropped.
14. Never touch this apparatus or antenna during a thunder or
lightning storm.
15. When mounting a TV on the wall, make sure not to install
the TV by the hanging power and signal cables on the back
of the TV.
16. Do not allow an impact shock or any objects to fall into the
product, and do not drop objects onto the screen.
17. Power Cord
Caution: It is recommended that appliances be placed
upon a dedicated circuit; that is, a single outlet circuit
which powers only that appliance and has no additional
outlets or branch circuits. Check the specification page
in the Owner’s Manual to be certain.
Periodically examine the cord of your appliance, and if its
appearance indicates damage or deterioration, unplug it,
discontinue use of the appliance, and have the cord replaced
with an exact replacement part by an authorized servicer.
Protect the power cord from physical or mechanical abuse,
such as twisting, kinking, or pinching or being closed in a
door or walked upon. Pay particular attention to plugs, wall
outlets, and the point where the cord exits the appliance.
Do not use a damaged or loose power cord. Be sure to grasp
the plug when unplugging the power cord. Do not pull on the
power cord to unplug the TV.
18. Overloading
Do not connect too many appliances to the same AC power
outlet as this could result in fire or electric shock. Do not
overload wall outlets. Overloaded wall outlets, loose or
damaged wall outlets, extension cords, frayed power cords,
or damaged or cracked wire insulation are dangerous. Any of
these conditions could result in re or electric shock.
19. Outdoor Use/Wet Location
Warning: To reduce the risk of re or electrical
shock, do not expose this product to rain,
moisture or other liquids.
Do not touch the TV with wet hands. Do not install this product
near ammable objects such as gasoline or candles or expose
the TV to direct air conditioning.
Do not expose to dripping or splashing and do not place
objects lled with liquids, such as vases, cups, etc., on or over
the apparatus (e.g., on shelves above the unit).
20. Grounding
Ensure that you connect the earth ground wire to prevent
possible electric shock (i.e., a TV with a three-prong grounded
AC plug must be connected to a three-prong grounded AC
outlet). If grounding methods are not possible, have a quali-
ed electrician install a separate circuit breaker. Do not try to
ground the unit by connecting it to telephone wires, lightning
rods, or gas pipes.
21. Disconnect Device
The mains plug is the disconnecting device. The plug must
remain readily operable.
As long as this unit is connected to the AC wall outlet, it is not
disconnected from the AC power source even if you turn off
this unit by SWITCH.
(Continued on next page)
PORTABLE CART WARNING

4206-4200
IMPORTANT SAFETY INSTRUCTIONS
(Continued from previous page)
22. Outdoor Antenna Grounding
If an outside antenna or cable system is connected to the
product, follow the precautions below.
An outdoor antenna system should not be located in the
vicinity of overhead power lines or other electric light or power
circuits or where it can come into contact with such power
lines or circuits as death or serious injury can occur.
Be sure the antenna system is grounded so as to provide
some protection against voltage surges and built-up static
charges.
Article 810 of the National Electrical Code (NEC) in the U.S.A.
provides information with respect to proper grounding of the
mast and supporting structure, grounding of the lead-in wire
to an antenna-discharge unit, size of grounding conductors,
location of antenna-discharge unit, connection to grounding
electrodes, and requirements for the grounding electrode.

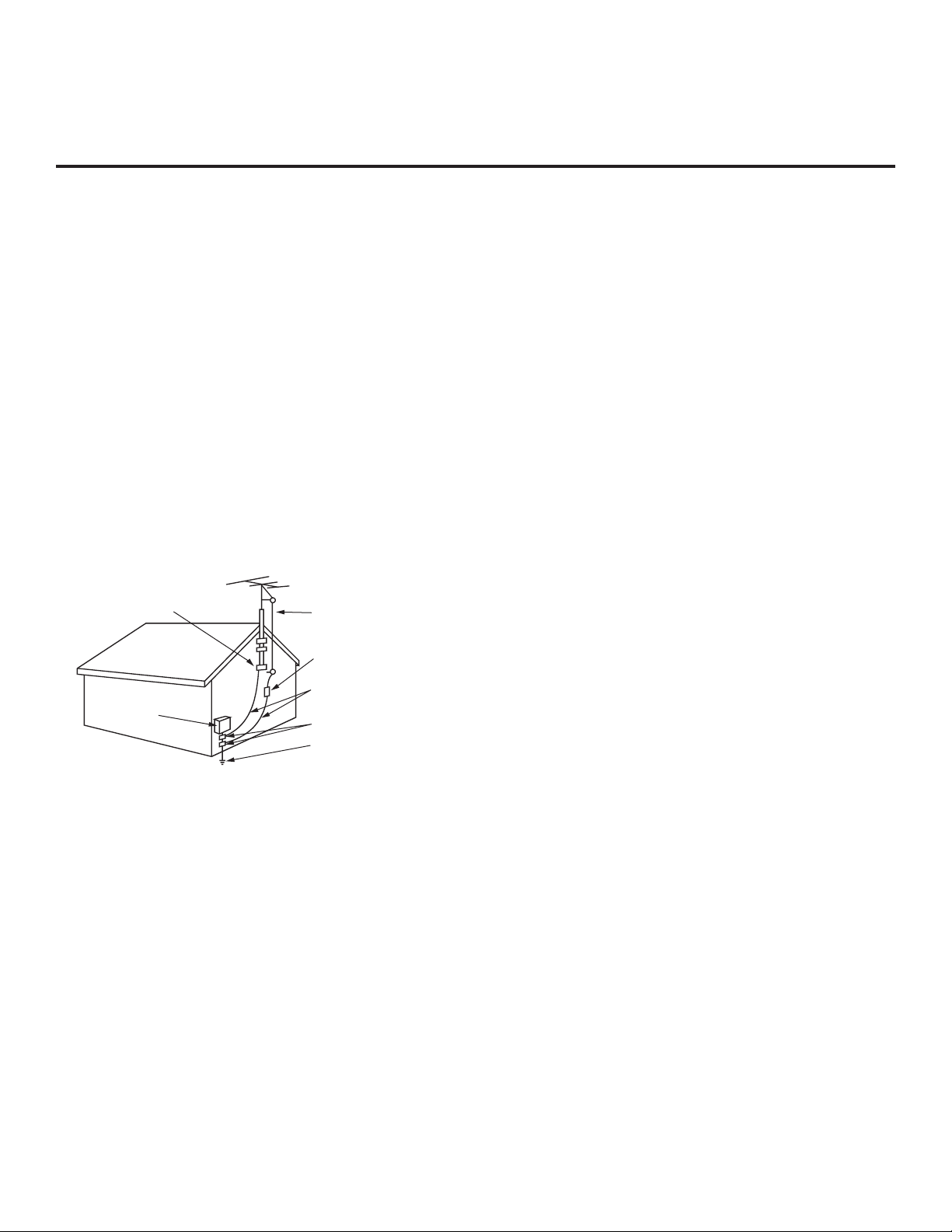

Antenna Grounding According to NEC, ANSI/NFPA 70
23. Cleaning
When cleaning, unplug the power cord and wipe gently with
a soft cloth to prevent scratching. Do not spray water or other
liquids directly on the TV as electric shock may occur. Do not
clean with chemicals such as alcohol, thinners or benzene.
24. Transporting Product
Make sure the TV is turned Off and unplugged and that all
cables have been removed. It may take two or more people
to carry larger TVs. Do not press against or put stress on the
front panel of the TV during transport.
25. Ventilation
Install the TV where there is proper ventilation. Do not install
in a conned space such as a bookcase. Do not cover the TV
with cloth or other materials (e.g., plastic) while it is plugged
in. Do not install in excessively dusty places.
26. Do not touch the ventilation openings, as they may become
hot while the TV is operating.
27. If you smell smoke or other odors coming from the TV or
hear strange sounds, unplug the power cord, and contact an
authorized service center.
28. Do not press against the front panel of the TV with your
hand or a sharp object (e.g., a nail, pencil, or pen) or make a
scratch on it.
29. Keep the product away from direct sunlight.
30. Dot Defect
The LCD panel is a high technology product with resolution
of two million to six million pixels. In a very few cases, you
could see ne dots on the screen while you are viewing the
TV. Those dots are deactivated pixels and do not affect the
performance and reliability of the TV.
31. Generated Sound
“Cracking”: A cracking noise that occurs while the TV is
On or when it is turned Off is generated by plastic thermal
contraction due to temperature and humidity. This noise is
common for products where thermal deformation is required.
Electrical circuit humming/panel buzzing: A low level noise is
generated from a high-speed switching circuit, which supplies
a large amount of current to operate a product. It varies
depending on the product. This generated sound does not
affect the performance and reliability of the product.
32. For LCD TV
If the TV feels cold to the touch, there may be a small “icker”
when it is turned On. This is normal; there is nothing wrong
with the TV. Some minute dot defects may be visible on the
screen, appearing as tiny red, green, or blue spots. However,
they have no adverse effect on the TV’s performance. Avoid
touching the LCD screen or holding your nger(s) against it for
long periods of time. Doing so may produce some temporary
distortion effects on the screen.
Antenna Lead in Wire
Antenna Discharge Unit
(NEC Section 810-20)
Grounding Conductor
(NEC Section 810-21)
Ground Clamps
Power Service Grounding
Electrode System (NEC
Art 250, Part H)
Ground Clamp
Electric Service
Equipment

5
206-4200
Table of Contents
Safety Warnings.................................. 2
Important Safety Instructions . . . . . . . . . . . . . . . . . . . . . . 3 – 4
Table of Contents................................. 5
Commercial Mode Overview . . . . . . . . . . . . . . . . . . . . . . 6 – 7
Setup Checklist................................. 6
Pass-through Mode.............................. 6
FTG Mode..................................... 7
Remote Management in FTG Mode . . . . . . . . . . . . . . . . . 7
External MPI Control............................. 7
Pro:Centric Operation............................8 – 9
Pro:Centric TV Interactive Menu Features . . . . . . . . . . . . 8
Pro:Centric Setup ............................... 9
Master TV Setup .............................10 – 13
Before You Begin .............................. 10
Cloning Methods............................... 10
Clonable TV Setup Menu Features . . . . . . . . . . . . . . . . 10
Master TV Setup Procedure . . . . . . . . . . . . . . . . . . . . . . .11
Installer Menu ...............................14 – 22
Accessing the Installer Menu . . . . . . . . . . . . . . . . . . . . . 14
Using the Installer Menu . . . . . . . . . . . . . . . . . . . . . . . . . 15
Exiting the Installer Menu and Activating Updates . . . . . 15
Channel Icons / Custom Text Labels
(2-5-4 + MENU Mode)............................. 23
Cloning Overview ............................... 24
USB Cloning Procedures......................25 – 28
Learning / Teaching a Master TV Setup using
a USB Memory Device / .tlx File. . . . . . . . . . . . . . . . . . . 25
Learning / Teaching a Master TV Setup using
a USB Memory Device / .tll File . . . . . . . . . . . . . . . . . . . . 27
Clone Programmer Cloning Procedures .........29 – 32
Learning / Teaching a Master TV Setup using
a TLL-1100A Clone Programmer . . . . . . . . . . . . . . . . . . 29
Learning / Teaching a Master TV Setup using
an LT2002 Clone Programmer . . . . . . . . . . . . . . . . . . . . 31
FTG Mode of Operation Overview ..............33 – 34
FTG Mode via CPU or EBL . . . . . . . . . . . . . . . . . . . . . . 33
Determining the TV Operating Mode . . . . . . . . . . . . . . . 34
FTG Mode via CPU ...........................35 – 39
Creating an FTG Configuration File using the
FTG File Manager.............................. 35
Teaching FTG Configuration to a TV . . . . . . . . . . . . . . . 37
Learning an FTG Configuration File from a TV . . . . . . . 38
Optional Manual Configuration / TV Setup . . . . . . . . . . . 39
FTG Mode via EBL (Local Configuration) ........... 40
FTG File Manager Utilities Overview . . . . . . . . . . . . . . 41 – 44
FTG File Manager Main Screen . . . . . . . . . . . . . . . . . . . 41
FTG Channel Map Configuration Utility . . . . . . . . . . . . . 42
FTG Channel Map Editor . . . . . . . . . . . . . . . . . . . . . . . . 43
FTG Installer Menu Configuration Utility. . . . . . . . . . . . . 44
IP Environment Setup ........................45 – 46
Access the IP Environment Menu. . . . . . . . . . . . . . . . . . 45
Network Setup ................................ 45
Offset Setup .................................. 45
Pro:Centric Setup .............................. 46
Remote Jack Pack / TV Connections & Setup . . . . . . . . . 47
References
Upgrading TV/PTC Software using a USB Memory
Device......................................... 48
Downloading a Splash Screen using a USB Memory
Device......................................... 49
Power Consumption Settings . . . . . . . . . . . . . . . . . . . . 50 – 51
TV Camport Auto Sense Operation . . . . . . . . . . . . . . . . . . 52
TV Aux Input Configuration . . . . . . . . . . . . . . . . . . . . . . . . 53
b-LAN Setup & Overview.......................... 54
RJP Model List and Input Auto-sensing Hierarchy. . . . . . . 55
Restoring Factory Defaults on the TV(s) . . . . . . . . . . . . . . 56
TV Zone Restrictions ............................. 57
LD660H/LD665H Rear Jack Panel . . . . . . . . . . . . . . . . . . 58
LV555H Rear Jack Panel . . . . . . . . . . . . . . . . . . . . . . . . . . 59
Side Connections Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . 60
RF Antenna Connection........................... 61
Installer Remote Control Typical Key Functions . . . . . . . . 62
Troubleshooting ..............................63 – 66
General Troubleshooting. . . . . . . . . . . . . . . . . . . . . . . . . 63
Troubleshooting Flow Chart . . . . . . . . . . . . . . . . . . . . . . 64
Commercial Mode Check / FTG Operation
Troubleshooting ............................... 65
Clone Programmer Troubleshooting . . . . . . . . . . . . . . . . 66
Glossary of Terms ............................... 67
Document Revision History / Open Source Software Notice 68
Back Cover..................................... 69
Notes
• Installer Menu content is intended for use primarily by qualied TV electronics technicians.
• Refer to the Owner’s Manual for additional information on TV installation, features, specications, maintenance, and safety instructions.
• Design and specications subject to change without prior notice.

6206-4200
Commercial Mode Overview
Typical Installer Menu
xxLD66xH PTC INSTALLER MENU
CPU-CTV
000 INSTALLER SEQ 000
UPN 000-000-000-000 ASIC D279
PTC V1.00.022 CPU V3.41.00
Installer Menu
To create a Master TV Setup, you will need to know
how to access the commercial controller (PTC)
Installer Menu and make changes to the default
values as required. If necessary, familiarize yourself
with the Installer Menu and how to make and save
changes. Refer to pages 14 to 22 for information on
accessing the Installer Menu and for detailed
descriptions of the Installer Menu items.
TV Setup Menus
On-screen setup menus control the features of the
TV. Use the Installer Remote to access the TV setup
menus, and set the TV features to the desired
configuration for the end user. Refer to the Owner’s
Manual for detailed information on the TV setup
menus.
This document describes how to set up LD660H/LD665H and LV555H Pro:Centric
® TVs for Commercial
Mode operation. LG commercial TV functionality is based on “ownership” of the Channel Map; that is,
the Channel Map resides in the TV’s CPU, Protocol Translator Card (PTC), or embedded b-LAN™ (EBL)
module, or it resides externally from the TV (i.e., in a device from the solution provider).
Each of these TV models is capable of Free-To-Guest (FTG) Mode operation via the TV CPU. Alternatively,
the EBL module can be configured either for Pass-through Mode (default) or FTG Mode. When neither the
CPU nor EBL is in FTG Mode, these TV models also allow external control via the TV’s MPI port.
Setup Checklist
Note: This document provides information specific to Commercial Mode operation. Refer to the Owner’s
Manual for detailed information on TV installation and hardware and cable connections.
Installation
__ Unpack TV and all accessories.
__ Install batteries in the Installer Remote.
__ Install TV on VESA mount or stand.
Note: It may be advisable to make all cable
connections before installing on VESA mount
or stand, as appropriate.
Hardware Connections
__ Install any additional hardware as
appropriate to your institution, LAN, etc.
Cable Connections
__ Make all rear jack panel and MPI card slot
connections, as appropriate.
Commercial Mode Setup
__ Complete appropriate procedures as described
in this document for Commercial Mode operation.
Pass-through Mode
This mode allows you to create a Master TV Setup for cloning purposes for TVs that are to remain in Pass-
through Mode. This mode also allows external control via the GAME CONTROL/MPI port on the TV rear jack
panel. Use the Installer Remote to congure Installer Menu items as required for TV operation and set up TV
features (Channel, Picture, Audio, etc.). See “Master TV Setup” on pages 10 to 13 for detailed information.
TV Setup Menus
PICTURE AUDIO
INPUT
OPTION
TIME
USB
CHANNEL
LOCK

7
206-4200
Commercial Mode Overview (Cont.)
External MPI Control
To control the TV using an external MPI control device, you must use the TV’s GAME CONTROL/MPI port
for communication purposes. In these TVs, Installer Menu item 118 POWER SAVINGS controls the power
circuitry for both the embedded b-LAN module and the GAME CONTROL/MPI port; therefore, to ensure
that the GAME CONTROL/MPI port circuitry is powered, thus enabling MPI communication, Installer Menu
item 118 POWER SAVINGS must be set appropriately. See Installer Menu item descriptions as well as
Reference section, “b-LAN Setup & Overview,” for further information.
FTG Mode
This mode enables Pro:Idiom
® decryption and also allows logical channel mapping of physical channels
to remove the need for dash tuning. TV operation in FTG Mode is based on which element of the TV owns
the FTG Logical Channel Map—the CPU or the EBL. Understanding the application in which the TV will be
used is vital in determining the owner.
As indicated above, FTG mode operation in the LD660H/LD665H and LV555H models can be provided
either by the TV CPU or EBL. These are two separate and distinct FTG Modes of operation, each with
its own unique advantages and requirements as described later in this document. When the TV CPU is
configured with an FTG Channel Map, the CPU controls the operation of the TV, and when the EBL is
configured with an FTG Channel Map, the EBL controls the operation of the TV.
Once it is determined whether the TV CPU or the EBL will own the FTG Channel Map, conguration can
begin. Conguration of either requires a PC application—the LG FTG File Manager for the TV CPU or
the LG FTG Device Conguration Application for the EBL. Each application provides utilities that enable
you to create/edit an FTG Channel Map and congure Installer Menu settings. See pages 33 to 44 for
further information on FTG Mode operation and conguration.
Remote Management in FTG Mode
When the TV is configured for FTG Mode via CPU, remote management of the FTG Channel Map and
FTG Installer Menu settings is provided by a Pro:Centric server. Refer to the Pro:Centric Server
Admin Client User Guide for further information.
When the TV is configured for FTG Mode via EBL, the b-LAN module, which is internal to the TV, allows
hotel/institution head end equipment (for example, an FMA-LG101) with b-LAN technology to communicate
with the TV to provide remote management of the FTG Channel Map and FTG Installer Menu settings. See
Reference section, “b-LAN Setup & Overview,” for further information.
Cloning
Cloning refers to the process of capturing a Master TV Setup and transferring it to a Target TV. Both TVs
must be in Pass-through Mode and both TVs must be identical models. The Master TV’s clonable setup
menu options should be configured as part of the Master TV Setup. If there are features in the Master TV’s
setup—channel icons or labels, digital font options, etc.—that are not set or that are set incorrectly, those
features also will not be set or will be set incorrectly in the Target TVs. Refer to pages 24 to 32 for detailed
information on cloning requirements and procedures.

8206-4200
Pro:Centric TV Interactive Menu Features
When running the Pro:Centric application, the interactive Pro:Centric TV enables guests to locate and
select television entertainment using an interactive channel guide, check the daily weather, and view hotel
and surrounding amenities via custom billboards and points-of-interest maps.
Pro:Centric application features include:
• Portal and information screens/pages (including a “Welcome” page) that include branding logos.
• An optional customized user interface (custom “skins”).
• Billboards and points-of-interest maps that can be customized to focus on hotel amenities, local attractions
and businesses, restaurants, news, events, etc.
• An optional Weather billboard that includes a local radar map, current conditions, and a four day forecast.
• An interactive channel guide that provides a channel list with channel icons. An electronic program
guide (EPG) is an optional feature that displays up to three days of programming information viewable
by channel and time.
• Video spooling that enables the hotel to deliver a video le to guest TVs for promotion and information
purposes.
The Pro:Centric server Admin Client web editor/content wizard is provided for customer conguration of
portal messages and billboards/maps.
Note: Customized content is typically dened by the service integrator and/or hotel administrators. LG
does not provide hotel-specic content.
Pro:Centric Interactive Menu Navigation
Use the Pro:Centric TV remote control to operate both interactive menus and regular TV features. Press
PORTAL on the remote to access the interactive menus.
Note: Interactive menu options may vary, depending on Pro:Centric features enabled for the site. The
following are default interactive menus.
Channel Guide
Shows available TV networks and logical channels. When available, EPG
data provides additional channel and program information.
Information
Typically displays information on hotel amenities, for example, restaurants,
in-room dining, business centers, facilities, etc., as well as information on
local weather and attractions.
Help
Provides help for navigating the interactive menus.
Watch TV
Removes the interactive menu from the screen and returns to the previously
tuned TV channel.
Pro:Centric Operation

9
206-4200
Pro:Centric Operation (Cont.)
Pro:Centric Setup
Administration and management options for the Pro:Centric server are described in detail in the
Pro:Centric Server Admin Client User Guide. This document describes only those settings that must be
specied on the TVs.
On the TVs, the Data Channel must be set appropriately to enable Pro:Centric remote management/
administration facilities, while the Pro:Centric Application Mode must be set appropriately to enable the
Pro:Centric application.
• Remote management/administration (TV E-Z Installation): The Pro:Centric server Admin Client provides
remote management/administration facilities for downloading splash screens and software/firmware
updates as well as facilities for downloading the FTG Channel Map and FTG Installer Menu settings for
TVs that are in FTG Mode via CPU.
• Pro:Centric application: The application, which operates in conjunction with FTG and PPV Modes,
comprises the Pro:Centric interactive menus/features described on the previous page. Pro:Centric
application settings are managed via the Pro:Centric server Admin Client.
The Data Channel and Pro:Centric Application Mode can be set using one of the following methods:
• If the TV is in Pass-through Mode, either:
− Set Installer Menu items 098 PRO:CENTRIC and 119 DATA CHANNEL to the appropriate values.
Refer to “Installer Menu” information on pages 14 to 22 for further information. Also, as necessary,
refer to “Master TV Setup” information on pages 10 to 13 and/or cloning information on pages 24 to 32.
− Set the Pro:Centric and Data Channel values in the Pro:Centric Menu. See “Access the IP Environment
Menu” on page 45 and “Pro:Centric Setup” on page 46 for further information.
• If the TV is in FTG Mode (via CPU or EBL), use the appropriate software to update the Pro:Centric
and Data Channel Installer Menu items, and then transfer the FTG Installer Menu settings to the TV in
accordance with the FTG Mode of conguration. Refer to FTG Mode information on pages 33 to 44 for
further information.

10 206-4200
Master TV Setup
This section describes how to create a Master TV Setup for cloning purposes when the TV is in Pass-
through Mode.
Note: Refer to FTG Mode information on pages 33 to 44 for details on entering FTG Mode and conguring/
editing FTG Channel Map and FTG Installer Menu settings.
Note: Cloning requirements and procedures are described in detail on pages 24 to 32.
Before You Begin
• It is recommended that you disconnect all Aux inputs if you intend to run Auto Tuning (Channel Search).
Under certain conditions, Auto Tuning is disabled if there is an Aux input active.
• Determine which cloning tool—USB memory device or clone programmer—is appropriate for your
application; several of the Master TV Setup procedure steps are dependent on the cloning tool to be
used. See “Cloning Methods” below for further information.
• If you intend to use a USB memory device, determine the type of le—either the new “.tlx” le format or
the legacy “.tll” le format—to use for cloning purposes; several of the Master TV Setup procedure steps
are dependent on the desired le type. See “Cloning Methods” below for further information.
Cloning Methods
See also “Clonable TV Setup Menu Features” list below.
Using a USB Memory Device / .tlx File
• The .tlx le format clones the following menu settings: Installer Menu settings, IP Environment Offset
Setup and Pro:Centric Setup settings (see pages 45 and 46), and all TV sources’ (analog, digital, AV1,
HDMI, etc.) clonable setup menu settings. See “Clonable TV Setup Menu Features” list below.
• Not intended for cloning an auto-tuned/edited Channel Map, as the channel lineup is converted to a logical
FTG Channel Map when saved (Learned) from a TV to a .tlx le. If the .tlx le with the FTG Channel Map
is then used for Teaching purposes, all Target TVs will be congured for FTG Mode via CPU.
Using a USB Memory Device / .tll File
The .tll le format clones the contents of the commercial controller (PTC) memory, including an auto-tuned/
edited Channel Map, Installer Menu settings, and one TV source’s (analog, digital, or Aux) clonable setup
menu settings. See “Clonable TV Setup Menu Features” list below.
Using a Clone Programmer (TLL-1100A or LT2002)
Both the TLL-1100A and LT2002 clone the contents of the commercial controller (PTC) memory, including
an auto-tuned/edited Channel Map, Installer Menu settings, and one TV source’s (analog or Aux) clonable
setup menu settings. See “Clonable TV Setup Menu Features” list below.
Clonable TV Setup Menu Features
Channel
Auto Tuning (Channel Lineup)
Manual Tuning
Channel Edit
Channel Label
Picture Mode
Audio
Auto Volume
Clear Voice
Sound Mode
Balance
TV Speaker
Time
Auto Clock
Auto Off (Sleep Timer)
Option
Menu Language
Audio Language
Caption
Power Indicator *
Lock
Movie Rating
TV Rating – Children
TV Rating – General
Note: Some menu options vary between analog and digital channels and Aux inputs.
* LV555H only

11
206-4200
Typical Installer Menu
Note: The Installer Menu header will vary
depending on the TV you are setting up.
Adjust the values for these
Installer Menu items.
Master TV Setup Procedure
1. Set Installer Menu items.
This step provides specic instruction only on the Installer Menu
items that should be set on a Master TV. Refer to pages 14 to 22
for detailed information on all Installer Menu items.
a) Turn ON the TV. Then, use the Installer Remote to
access the PTC Installer Menu (see “Accessing the Installer
Menu” on page 14 for further information).
b) Set Installer Menu item 117 FACT DEFAULT to 001 and press
ENTER on the Installer Remote.
This clears all Installer Menu custom settings, channel lineup,
etc. and restores the factory default settings. The value will
change back to 0 after the PTC has been restored to factory
default condition. This step ensures that the TV Channel
Memory will be the active channel lineup.
c) Set Installer Menu item 003 BAND/AFC, as appropriate.
• Broadcast: Set to 000. • HRC: Set to 002.
• CATV: Set to 001 (default). • IRC: Set to 003.
d) Set any other Installer Menu items that affect your TV pro-
gramming network to the required conguration. For example,
enable/disable Aux inputs, set a Start Channel, etc.
e) After you have adjusted all Installer Menu item settings as
required, press ENTER once on the Installer Remote to save
your changes; then, press ENTER again to exit the menu.
2. Set up TV features.
On-screen setup menus control the features of the TV. Press
MENU on the Installer Remote to access the TV setup menus,
and then set Channel, Picture, Audio, Lock, Time, etc. options to
the desired configurations. See also “Clonable TV Setup Menu
Features” list on previous page.
Note: If you intend to clone the PTC, remember that only one TV
source’s clonable setup menu settings will be cloned. Thus, for a
clone programmer, the TV setup menu settings should be applica-
ble to either an analog channel or Aux input, while for a USB
device / .tll file, the TV setup menu settings should be applicable
to the analog or digital channel or Aux input to which the Target
TV will be set during the Teaching process.
Note: If desired and if appropriate depending on the cloning
method you intend to use (see “Cloning Methods” on previous
page), you can run Auto Tuning (see step 3) prior to completing
this step.
(Continued on next page)
xxLD66xH PTC INSTALLER MENU
CPU-CTV
000 INSTALLER SEQ 000
UPN 000-000-000-000 ASIC D279
PTC V1.00.022 CPU V3.41.00
117 FACT DEFAULT 000
003 BAND/AFC 001
Master TV Setup (Cont.)
Use the TV setup menus to set the TV
features to the desired configuration
for the end user.
PICTURE AUDIO
INPUT
OPTION
TIME
USB
CHANNEL
LOCK

12 206-4200
Master TV Setup (Cont.)
(Continued from previous page)
3. (Optional) Run Auto Tuning.
Note: If you intend to use a USB memory device / .tlx file
for cloning purposes, DO NOT run Auto Tuning. If you
Teach a .tlx file with an auto-tuned/edited Channel Map
to a Target TV, this will put the Target TV in FTG Mode
via CPU. Proceed to step 6 to verify the TV setup. (Steps
4 and 5 are not applicable for .tlx files.)
If you run Auto Tuning with the intention to clone the resulting
Channel Map, you must use a USB memory device / .tll file or a
clone programmer for this cloning purpose.
a) To search for all available analog and digital channels, go to the
Channel Menu, select the Auto Tuning option, and follow the
on-screen instructions.
b) Use the Channel Edit option in the Channel Menu to edit the
channel lineup, as necessary, to include only free to guest
(non-encrypted) channels.
• Add/delete channels per your system requirements.

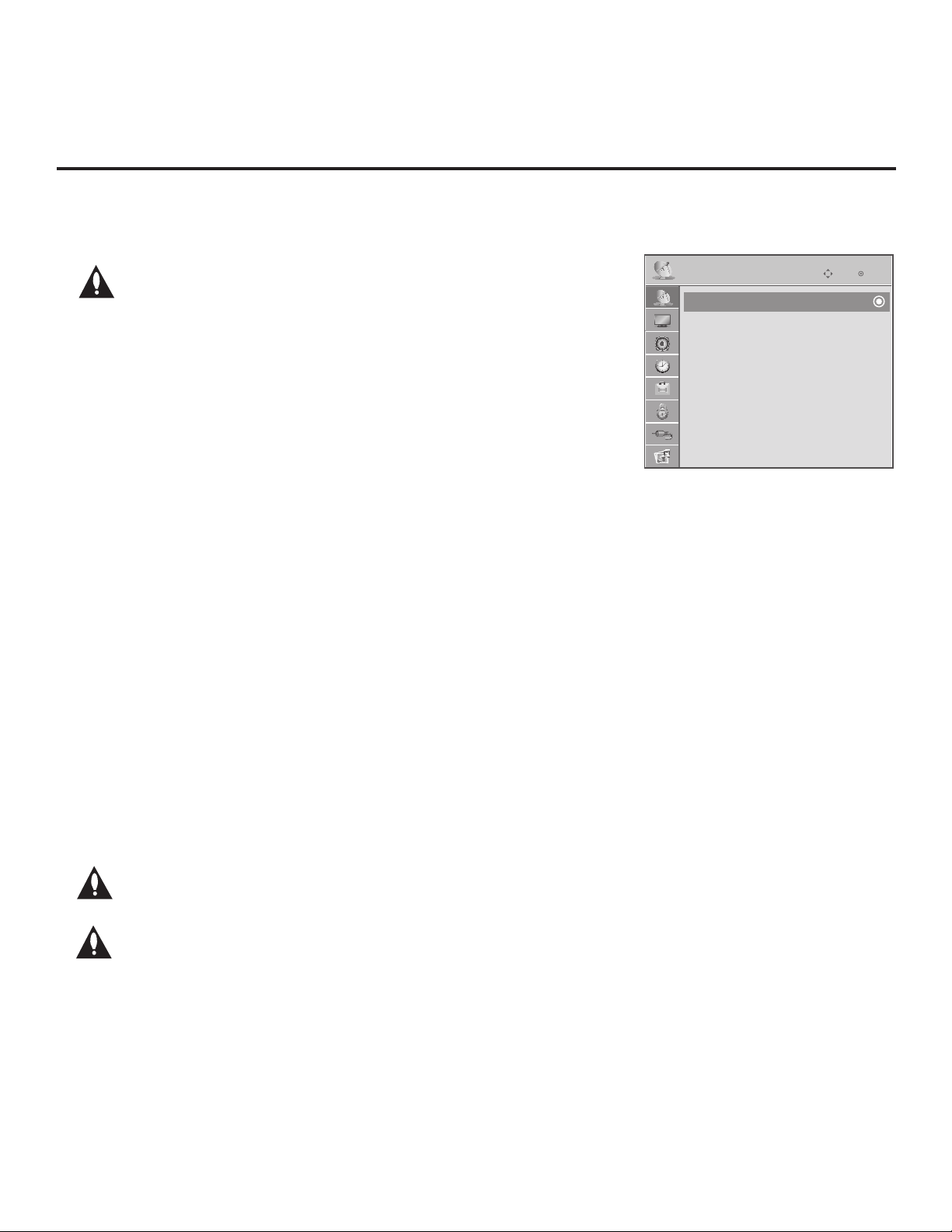

(Optional) Use Channel Menu options
to run Auto Tuning, edit channels, and
select channel icons.
CHANNEL
Enter
Move
(Continued on next page)
• Use the Channel Label option in the Channel Menu to select the appropriate trademark/
icon for each channel’s Channel-Time on-screen display. Icons are available for familiar
channels, such as ABC, CBS, NBC, etc. Identiable labels (icons) should enable the end
user to readily know what common networks are available.
Note: If you intend to clone the PTC and Installer Menu item 103 ATSC TUNE MODE is
set for Physical Channel tuning (default and recommended setting), channels with minor
channel numbers higher than 255 will not transfer correctly in step 4. If item 103 is set for
Virtual Channel tuning and either the major or minor channel numbers are higher than
255, the channel(s) will not transfer correctly in step 4.
Note: If you intend to clone the PTC, you can add the channel icons in this step or as
described in step 5. Also in step 5, you can add custom text labels for channels without
icons.
4. Transfer the TV setup menu settings to the commercial controller (PTC):
2-5-5 + MENU Mode
Note: This step is essential for successful cloning using a USB memory device /
.tll file or a clone programmer. Without this step, the PTC will not contain any of
the TV setup menu settings.
Note: The maximum number of channels (analog, digital, and Aux inputs) that can
be transferred to the PTC is 141. An attempt to transfer more than 141 channels of
any combination will result in a Channel Map of exactly 141 channels; any extra
channels will not be available in the PTC Channel Map. For example, if you en-
abled three Aux inputs in the Installer Menu and Auto Tuning found 141 channels,
you must edit the Channel Map to decrease the number of analog/digital channels
to (at most) 138.
Auto Tuning
Manual Tuning
Channel Edit
Channel Label

13
206-4200
5. (Optional) Add Custom Channel and Aux Input Labels:
2-5-4 + MENU Mode
Note: 2-5-4 + MENU Mode enables you to add/edit channel icons and
custom text labels in the PTC once the Master TV Setup has been
transferred as described in the previous step.
Access the Installer Menu, and press 2-5-4 + MENU on the Installer
Remote. Add/edit custom text labels and/or change icons for the
Channel-Time on-screen displays (see 2-5-4 + MENU procedural
information on page 23). Note that broadcast digital channels often
already have a broadcaster generated label. When you are finished,
press MENU to exit 2-5-4 + MENU Mode.
6. Verify the TV setup.
As applicable, verify that the channel lineup, channel icons, and custom
text labels are correct. Also, make sure the TV features are set per your
requirements.
7. (Recommended) Lock the channel lineup.
Access the Installer Menu. Set item 028 CH. OVERIDE to 000 and
press ENTER to lock the channel lineup and restrict access to the TV
setup menus. Press ENTER again to save your changes and exit the
Installer Menu.*
The Master TV Setup is now ready to be copied to the predetermined
cloning tool—a USB memory device (.tlx or .tll le) or a clone programmer.
See cloning procedures in this document.
Master TV Setup (Cont.)
After verifying the TV Setup, set Installer
Menu item 028 CH. OVERIDE to 000.*
DIGITAL
WXYZ
MONO STEREO SAP
19-3
Custom text label “WXYZ” created
in 2-5-4 + MENU Mode.
* This step prevents end users from
accessing channel settings (i.e., the
Channel Menu will be inaccessible/
grayed out).
028 CH. OVERIDE 000
(Continued from previous page)
a) After the TV channel lineup has been edited and channel label icons added, tune to
the channel (source) for which you wish to transfer TV setup menu settings.
Note: If you intend to use a clone programmer for cloning purposes, this must be
either an analog channel or Aux input.
b) Access the Installer Menu, and press 2-5-5 + MENU on the Installer Remote to
initiate the transfer of the Master TV Setup to the PTC. The TV exits the Installer
Menu and then tunes through the channels in the channel lineup during the
transfer. When the transfer is complete, the TV tunes back to the channel that
was tuned before the transfer began.

14 206-4200
Installer Menu
Typical Installer Menu
Use the Installer Menu to set up, change, or view operational settings. Refer to the table on pages
16 and 17 for brief descriptions of Installer Menu items. More detailed descriptions follow the table
listing.
Accessing the Installer Menu
1. Turn ON the TV.
2. Using an Installer Remote, press MENU repeatedly until the
on-screen display of the TV setup menus (if the TV is in
Pass-through Mode) or the Function Menu (if the TV is not in
Pass-through Mode) no longer toggles, and then press the
Installer Menu entry sequence (e.g., 9-8-7-6) + ENTER to
access the Installer Menu.
Note: The default Installer Menu entry sequence is “9876”;
however, if Installer Menu item 000 INSTALLER SEQUENCE
has been modied, the entry sequence may be one of three
additional options. See Installer Menu detailed descriptions for
further information.
The Installer Menu opens with item 000 INSTALLER SEQ 000.
xxLD66xH PTC INSTALLER MENU
CPU-CTV
000 INSTALLER SEQ 000
UPN 000-000-000-000 ASIC D279
PTC V1.00.022 CPU V3.41.00
Note: If the password (entry sequence) is not entered or registered correctly,
you will see the message “ENTER PASSWORD 0000” at the top of the screen
instead of the Installer Menu header. Once you re-enter the correct password
(e.g., press 9-8-7-6 + ENTER), the Installer Menu will display.
Note: If the TV is not in Pass-through Mode, the Installer Menu is accessible as
read-only.
As part of the Installer Menu header, two 3-character acronyms are displayed to
indicate the TV’s current conguration mode. The table below lists all possible
mode identiers for these TV models.
Acronym Description
CPU-CTV Pass-through Mode with Channel Map in CPU
CPU-FTG FTG Mode via CPU
EBL-FTG FTG Mode via EBL
EBL-LNT LodgeNet PPV Mode
MPI-EXT External MPI Control
MPI-FTG FTG Mode via FTG device
PTC-CTV Pass-through Mode with Channel Map in PTC

15
206-4200
Using the Installer Menu
Refer to the table starting on the next page for an overview of the available Installer Menu items,
including their item numbers, functions, value ranges, and default values.
Installer Menu items not relevant to these TV models are not present in the Installer Menu; therefore,
some numbers are missing. For example, item 006 will not appear. In addition, items that are
dependent on other Installer Menu item settings will not be initially accessible. For example, item 046
STRT AUX SRCE will not display in the Installer Menu unless item 004 STRT CHANNEL is set to 0.
Navigation within the Installer Menu
Use the Up/Down arrow keys on the Installer Remote to sequence through the available menu
items, or access an item directly by keying in the item number and then pressing MENU. For
example, to access the SLEEP TIMER option, which is item 015, press 0-1-5 + MENU.
Changing Installer Menu Settings
To change an Installer Menu item value, use the Left/Right arrow keys on the Installer Remote, or
enter a valid value directly. To save the new setting, press ENTER, or use the Up/Down arrow keys
to navigate to a new Installer Menu item if you have additional items to edit. Note that invalid values
will not be saved.
Exiting the Installer Menu and Activating Updates
After you have adjusted all required Installer Menu item settings, press ENTER once on the Installer
Remote to save your changes; then, press ENTER again to exit the Installer Menu. Any changes
you make will be stored in non-volatile memory.
Note: Each time you exit the Installer Menu in Pass-through Mode, all V-Chip (Parental Control)
settings in the TV are reset to their default values; that is, the Lock System, if previously enabled
from the Lock setup menu (see the Owner’s Manual for additional information), will now be disabled,
and the individual Parental Control settings will be restored to default values.
Installer Menu (Cont.)

16 206-4200
Installer Menu (Cont.)
Installer Menu Items 000 through 073
Menu
Item Function Value Range Default Value Brief Description of Function
000 INSTALLER SEQ 0 ~ 3 0 Leave default set to 0.
001 POWER MANAGE 0 ~ 7 0 Sets number of hours of no activity before automatic shutoff.
002 AC ON 0 / 1 0 Set to 1 to enable Auto Turn ON when AC power is applied.
003 BAND/AFC 0 ~ 3 1 Selects Tuning Band: 0=Broadcast, 1=CATV, 2=HRC, 3=IRC
004 STRT CHANNEL 0 ~ 127, 253,
255 255
Channel tuned when TV is turned ON. (Set to 255 to tune to channel
tuned before TV turned OFF.)
005 CHAN LOCK 0 / 1 0 If set to 1, cannot tune from current channel.
007 STRT VOLUME 0 ~ 63, 255 255 Volume level when TV is turned ON. (Set to 255 to use volume level
before TV turned OFF.)
008 MIN VOLUME 0 ~ 63 0 Sets minimum allowable volume setting.
009 MAX VOLUME 0 ~ 63 63 Sets maximum allowable volume setting.
010 MUTE DISABLE 0 / 1 0 Set to 1 to disable Mute Function.
011 KEY DEFEAT 0 / 1 0 Set to 1 to disable menu navigation keys on display panel.
015 SLEEP TIMER 0 / 1 1 Set to 1 to enable Sleep Timer.
016 EN TIMER 0 / 1 0 Set to 1 to enable On/Off Timers.
017 ALARM 0 / 1 1 Set to 1 to enable Alarm.
020 FEATURE LEVEL 0, 16 ~ 24 0 Determines an additional IR code scheme to which the TV will respond.
021 V-CHIP 0 / 1 1 Set to 1 to enable V-Chip (Parental Control) functions.
022 MAX BLK HRS 0 ~ 99 12 Sets number of V-Chip blocking hours.
023 CAPTION LOCK 0 / 1 0 Set to 1 to retain caption setting set before TV turned OFF.
028 CH. OVERIDE 0 / 1 1 If set to 0, limits direct access to favorite channels.
029 OLD OCV 0 / 1 0 Set to 1 to change MPI operation to OCV.
030 ACK MASK 0 / 1 0 If set to 1, enables ACK feature of MPI.
031 POLL RATE 20 ~ 169 94 Selects poll rate for MPI.
032 TIMING PULSE 186 ~ 227 207 Sets baud rate for MPI.
034 CAMPORT EN 0 / 1 1 Set to 1 to enable Video 2 input.
035 COMPPORT EN.
(HDMI1 ENABLE) 0 / 1 1 Set to 0 to disable HDMI 1. Set to 1 enable HDMI 1.
038 YPrPb EN. 0 / 1 1 Set to 1 to enable display panel Component Video 1 input jacks.
039 REAR AUX EN 0 / 1 1 Set to 1 to enable display panel Video 1 input jack.
040 AUTO CAMPORT 0 / 1 1 Set to 1 to automatically switch to Camport. If set to 1, STRT AUX SRCE
cannot be set to 2.
046 STRT AUX SRCE 1 ~ 6, 255 6 Sets the starting Aux source (if item 004 STRT CHANNEL is set to 0).
047 AUX STATUS 0 / 1 0 Set to 1 for MPI Aux source to be reported as a channel number instead of
Channel 0.
053 DIS. CH-TIME 0 / 1 0 Set to 1 to disable Channel-Time display.
069 EN. CH-T COL. 0 / 1 1 Set to 1 to enable custom color for the Channel-Time display.
070 FOR. CH-TIME 0 ~ 7 2 Chooses custom foreground color for the Channel-Time display.
071 BCK. CH-TIME 0 ~ 7 2 Chooses custom background color for the Channel-Time display.
073 CH NOT AVBLE 0 / 1 0 If set to 1 and item 028 CH. OVERIDE is set to 0, “NOT AVAILABLE” message
is displayed if user direct tunes a channel that is not in the favorite channel list.

17
206-4200
Installer Menu Items 075 through 122
Menu
Item Function Value Range Default Value Brief Description of Function
075 REVERT CH 0 / 1 0 If set to 1 and loss of MPI communication occurs, TV tunes to Start Channel.
078 UPN MSB 0 ~ 255 0 User programmable number, most significant byte.
079 UPN MSB-1 0 ~ 255 0 User programmable number, most significant byte - 1.
080 UPN MSB-2 0 ~ 255 0 User programmable number, most significant byte - 2.
081 UPN LSB 0 ~ 255 0 User programmable number, least significant byte.
082 CHKSM ERROR 0 / 1 1 If set to 1, enforces rigid MPI checksum.
083 HANDSHK TIME 0 ~ 5 5 Relaxes MPI timing to be compatible with PC-based Windows-
controlled systems.
084 PERMANENT BLK 0 / 1 0 Removes block hours setting for Parental Control and makes block permanent.
087 REAR RGB EN. 0 / 1 / 17 1 Dependent on item 093 RJP AVAILABLE setting. Set to 0 to disable RGB input.
Set to 1 to enable RGB input. Set to 17 for Auto Configure.
088 EN NOISE MUTE 0 / 1 1 If set to 1, audio is muted if no signal is present.
090 KEY LOCK 0 / 1 0 If set to 1, keyboard is locked out, IR is still functional.
091 YPrPb2 EN
(HDMI2 ENABLE) 0 / 1 1 Set to 0 to disable HDMI 2. Set to 1 to enable HDMI 2.
093 RJP AVAILABLE 0, 1, 2, 5, 6 0 Set to 0 to disable. Set to 1, 2, 5, or 6 for HDMI or DVI Mode. (See
detailed descriptions.)
094 SAP MENU EN 0 / 1 1 Set to 0 to disable feature on Function Menu. Set to 1 to enable feature on
Function Menu.
096 DEF. ASP. RATIO 0 ~ 4 2 Sets default aspect ratio at power up. See detailed descriptions and item 106.
098 PRO:CENTRIC 0 ~ 2 0
Set to 0 to disable Pro:Centric operation. Set to 1 for Flash Mode. Set to 2 for
GEM (Java Application) Mode.
099 BACK LIGHTING
1 ~ 100, 101 ~
200, 201, 202, 255
202 Sets the level of the TV picture back lighting. (See detailed descriptions.)
102 ATSC BAND 0 ~ 4 4 Selects ATSC band.
103 ATSC TUNE MODE 0 / 1 1 Set to 1 (default) for Physical Channel scan. Set to 0 for Virtual Channel scan.
104 START MINOR CH 0 ~ 255 0 Selects Minor Start Channel. Set to 0 for NTSC.
106 ASP RATIO LOCK 0 / 1 0 To retain set aspect ratio on power cycle, set to 1. Set to 0 for default ratio on
power cycle.
116 VIDEO MUTE EN 0 / 1 0 Set to 0 for Normal. Set to 1 for Blank.
117 FACT DEFAULT 0 / 1 0 Set to 0 for Normal. Set to 1 to load presets for all Installer Menu settings.
118 POWER SAVINGS 1 / 3 / 7 3 Determines the powered status of the embedded b-LAN module and the
GAME CONTROL/MPI port. (See detailed descriptions.)
119 DATA CHANNEL 0 ~ 135, 253 0 Set to 0 to disable. Set to the RF channel number of the data channel for
Pro:Centric or TV E-Z Installation data. (See detailed descriptions.)
121 P:C RF WAKE HR 0 ~ 23, 128 128 Sets the hour for Wake On RF. The value “128” is displayed as “OFF.” Directly
entering 128 turns the Wake On RF feature OFF.
122 P:C RF WAKE MN 0 ~ 59 0 Sets the minute for Wake On RF.
Installer Menu (Cont.)
Caution: Installer Menu settings may affect options available
from the TV setup menus or the Function Menu.

18 206-4200
Installer Menu (Cont.)
Detailed Descriptions of Installer Menu Items
000 - INSTALLER SEQUENCE
Species entry sequence to the Installer Menu.
0 = 9876 1 = 4321
2 = 1478 3 = 3698
001 - POWER MANAGE (Power Management)
Determines hours of no activity before automatic shutoff. The
Power Management function is for saving energy. If set to 0,
Power Management is Off. Settings range from 0 ~ 7, with 1 ~ 7
representing the hours that the unit will remain ON, unless there
has been activity from either the control panel or remote control.
002 - AC ON (AC Power Switchable)
If set to 1, this allows the TV to turn ON when AC power is applied.
Pressing the ON button is not necessary. This is desirable if the TV
is plugged into a cable box or a power outlet controlled by a wall
switch. Use the Left/Right arrow keys to choose 0 or 1, where 0 is
the default (OFF), and 1 is ON.
Note: If set to 1 (ON), the TV does not respond to ON/OFF
commands from either the remote or the display panel, and the
SLEEP TIMER is also nonfunctional.
003 - BAND/AFC (Band/Automatic Frequency Control)
There are four possible settings for this option:
0 = Broadcast 1 = CATV (default)
2 = HRC 3 = IRC
If some channels were not found by Auto Tuning (Channel
Search), select the appropriate Band setting here, and add the
channels using the Channel Edit option in the Channel Menu.
004 - STRT CHANNEL (Start Channel)
If active, this function allows you to determine the initial Major
Start Channel number when the TV is turned ON. This feature is
useful for an in-house information channel, since the TV would
always select that channel when it is turned ON. If set to 255,
the last channel tuned before the TV was turned OFF will be the
channel tuned when the TV is turned ON again.
0 = Aux 127 = Map to Major CH 4
1 ~ 125 = Major CH # 253 = IP Start Channel
126 = Map to Major CH 3 255 = Last Channel
Note: For a digital Start Channel, always remember to set item
104 to the Minor Start Channel number.
Note: 126 and 127 are mapped only in LodgeNet PPV Mode.
Note: The IP Start Channel shown above can only be set in the
FTG File Manager, which is used to congure TV CPUs for FTG
Mode. The same applies for the additional Major Channel number
range of 128 ~ 135 in Physical tuning and 128~999 in Virtual tuning
mode. This means that these values, if set, will only be visible in the
read-only Installer Menu when the TV is in FTG Mode via CPU. The
read-only display also will show additional information about the
channel, for example, the IP address and port number, etc.
005 - CHAN LOCK (Channel Lock)
Channel Lock is ideal if the system must always be on the same
channel. Changing channels with the Channel Up/Down or keypad
numbers is impossible. Channel Lock is inactive if set to 0 (default).
Generally, this feature is used in connection with item 004 STRT
CHANNEL where the Start Channel may, for example, be set to
3 or 4. If the Start Channel is 3, then the TV will remain locked on
channel 3.
NOTE: For items 007, 008, and 009
For legacy reasons, the scale used is 0 – 63. The PTC software
will translate this to the 0 – 100 scale used by the TV.
To translate a TV volume level to the Installer Menu value, use
the following formula:
Installer Value = TV Value x 63
100
Enter only the whole number (disregard fractions).
007 - STRT VOLUME (Start Volume)
This function allows the Installer to determine the initial volume
level setting when the TV is turned ON. This feature is useful
for an in-house information channel, since the TV would always
select that volume level when it is turned ON. The range of values
are 0 - 63, 255. If 255 is selected, the current volume level will be
retained in memory when the TV is turned OFF; at turn ON, the
volume level will be automatically set at the previous or last level.
008 - MIN VOLUME (Minimum Volume)
This function determines the minimum volume level allowable
with the Volume (VOL) Up/Down control. In this way, for example,
someone cannot set the volume too low to hear. The value range
is from 0 to 63. Use the Left/Right arrow keys to change values.
The factory default is 0, which provides the full range of volume
control, if item 009 MAX VOLUME is also set to 63. It may be best
to set the same value on every TV.
Note: The minimum volume level cannot have a value setting
higher than the maximum volume level (described below).
009 - MAX VOLUME (Maximum Volume)
This function determines the maximum volume level allowable
with the Volume (VOL) Up/Down control. In this way, for example,
someone cannot set the volume level high enough to disturb
others. The value range is 0 to 63, with 63 as the default, which
gives the user the full range of volume control, if item 008 MIN
VOLUME is also set at 0. Use the Left/Right arrow keys to change
values. It may be best to set the same value on every TV.
Note: The maximum volume level cannot have a value setting
lower than the minimum volume level (described above).

19
206-4200
Installer Menu (Cont.)
010 - MUTE DISABLE
Enables or disables sound mute function. If set to 1, sound cannot
be muted. If set to 0, sound can be muted.
011 - KEY DEFEAT (Keyboard Defeat)
If set to 1, KEY DEFEAT prevents the end user from accessing
the on-screen menu(s) from the display panel—MENU, ENTER,
and menu navigation keys do not function. If set to 0, those keys
do function.
Note: Users can always access the menu(s) by pressing MENU
on the remote.
015 - SLEEP TIMER
If set to 1, the Sleep Timer feature may be used. If set to 0, the
Sleep Timer is not available.
016 - EN TIMER (Enable On/Off Timers)
If set to 1, the Timer function is available to the end user and
enabled continuously. Set to 0 to disable On/Off timers.
Note: Clock must be set in order for timers to be used.
017 - ALARM
Gives the installer the option of making the Alarm function avail-
able to the end user. If set to 1, the Alarm function is available to
the end user. Set to 0 to disable the Alarm function.
Note: Clock must be set before the Alarm function will work.
020 - FEATURE LEVEL
Determines an additional IR code scheme to which the TV will
respond, allowing for the use of unique IR codes based on “bed
number” in a multi-TV single room installation. First determine the
IR mode; then select the bed number.
Values IR Mode Bed #
0 Disabled N/A
16 – 24 Multi-code Remote 1 – 9
Note: For further information, see documentation for the accessory
package that includes the multi-code remote.
021 - V-CHIP (Parental Control)
Set to 1 to activate V-Chip (Parental Control) and have it available
to the end user to lter and control or otherwise restrict program-
ming content that can appear. Set to 0 to turn the V-Chip feature
Off (not available to user); no programming restrictions can be set.
022 - MAX BLK HRS (Maximum Block Hours)
Sets hours from 0 to 99 for the maximum V-Chip (Parental Control)
block hours. Default setting is for 12 blocking hours.
Note: This item is not available in the Installer Menu unless item
084 PERMANENT BLK is set to 0.
023 - CAPTION LOCK
If set to 0, captions are OFF when the TV is turned ON. Set to 1 to
use the caption setting congured before the TV was turned OFF
when the TV is turned ON.
028 - CH. OVERIDE (Channel Override)
If set to 1, the user can select channels with either Channel Up/
Down or by direct keypad entry. If set to 0, only those channels
that are active in the TV’s memory can be selected.
029 - OLD OCV (On Command Video™)
Set to 1 for operation with systems from On Command Corporation.
030 - ACK MASK
MPI Communication Parameter. When set to 1, enables ACK
feature of MPI.
031 - POLL RATE
MPI Communication Parameter. Selects poll rate for MPI. Step
size of 16 ms. Changing from default may affect communication
via MPI.
032 - TIMING PULSE
MPI Communication Parameter. Sets baud rate for MPI. Step size
of 4.3 uS. Changing from default may affect communication via
MPI.
034 - CAMPORT EN. (Camera Port Enable)
Set to 1 to enable Video 2 input on display panel. If set to 0, Video
2 input on display panel is not functional.
035 - COMPPORT EN. (HDMI1 Enable)
Set to 1 to enable display panel HDMI 1 input. Set to 0 to disable
display panel HDMI 1 input.
Note: This setting is ignored if item 093 RJP AVAILABLE is set to 1.
038 - YPrPb EN. (Rear Component Video Enable)
Set to 1 to enable display panel rear Component Video input jacks.
Set to 0 to disable display panel rear Component Video input jacks.
039 - REAR AUX EN. (Rear Aux Enable)
Set to 1 to enable display panel rear Aux (Video 1) input. Set to 0
to disable display panel rear Aux (Video 1) input.
040 - AUTO CAMPORT
Set to 1 to automatically switch to Camport when equipment is
connected to front Video input. Set to 0 to disable front Video
automatic source selection. If set to 1, STRT AUX SRCE cannot
be set to 2.
Note: If set to 1, item 093 RJP AVAILABLE is automatically set to 0.

20 206-4200
Installer Menu (Cont.)
046 - STRT AUX SRCE (Start Aux Source)
Sets the starting Aux source. When turned ON, the TV will tune to
starting Aux source if item 004 STRT CHANNEL is set to 0.
If item 093 RJP AVAILABLE is set to 0 and item 040 AUTO
CAMPORT is set to 0:
1 = Video 1 4 = RGB 255 = Last Aux
2 = Video 2 5 = HDMI 2
3 = HDMI 1 6 = Component
If item 093 RJP AVAILABLE is set to 1:
2 = Video 2 5 = HDMI 2 6 = Component
If item 040 AUTO CAMPORT is set to 1:
1 = Video 1 4 = RGB 6 = Component
3 = HDMI 1 5 = HDMI 2
Note: This item is not available in the Installer Menu unless item
004 STRT CHANNEL is set to 0.
047 - AUX STATUS
Set to 1 for MPI Aux source to be reported as a channel number
instead of channel 0. Set to 0 to disable Aux identication change.
Controls MPI status channel response for Aux inputs.
053 - DIS. CH-TIME (Disable Channel-Time)
Set to 1 to disable the Channel-Time display; Channel-Time
display will not appear. Set to 0 to enable the Channel-Time
display.
069 - EN. CH-T COL. (Enable Channel-Time Custom Color)
Set to 1 to enable custom color for the Channel-Time display. Set
to 0 to disable custom color for the Channel-Time display.
070 - FOR. CH-TIME (Channel-Time Display Foreground Color)
Set according to Color Chart:
0 = Black 3 = Cyan 6 = Yellow
1 = Blue 4 = Red 7 = White
2 = Green 5 = Violet
Note: If foreground color and background color are the same, the
menu background will be transparent.
Note: Applies only to “Channel Not Available” message if item
073 CH NOT AVBLE is set to 1 (enabled). Also, items 070 FOR.
CH-TIME and 071 BCK. CH-TIME are not available in the Installer
Menu when item 069 EN. CH-T COL. is set to 0.
071 - BCK. CH-TIME (Channel-Time Display Background Color)
See description for item 070 FOR. CH-TIME above. The color
chart is the same for both items.
073 - CH NOT AVBLE (Channel Not Available)
If set to 1 and item 028 CH. OVERIDE is set to 0, a “NOT AVAIL-
ABLE” message is displayed when a user direct tunes a channel
that is not in the channel scan list available in memory.
Note: This item is not available in the Installer Menu when item
028 CH. OVERIDE is set to 1.
075 - REVERT CH (Revert to Start Channel)
If set to 1 and loss of MPI communication occurs, TV automatically
tunes to the specied Start Channel.
Note: This item is not available in the Installer Menu when item
004 STRT CHANNEL is set to 255.
078 - UPN MSB (UPN Most Signicant Byte)
User programmable number, most signicant byte readable by
MPI command. Note: Not linked to serial number.
079 - UPN MSB-1 (UPN Most Signicant Byte-1)
User programmable number, most signicant byte-1 readable by
MPI command. Note: Not linked to serial number.
080 - UPN MSB-2 (UPN Most Signicant Byte-2)
User programmable number, most signicant byte-2 readable by
MPI command. Note: Not linked to serial number.
081 - UPN LSB (UPN Least Signicant Byte)
User programmable number, least signicant byte readable by
MPI command. Note: Not linked to serial number.
082 - CHKSM ERROR (Checksum Error)
Enforces rigid MPI checksum validation. Set to 1 for validation.
Set to 0 to disable (does not check checksum on MPI async port).
SPI is always checked.
083 - HANDSHK TIME (Handshake Time)
Adds an additional delay to the handshake time which is 64 msec,
thus relaxing MPI timing requirements to be compatible with PC-
based Windows controlled systems. Range is 0 - 5.
(Timeout = 25.5MS + [25.5 MS* Handshake time].)
084 - PERMANENT BLK (Permanent Block)
Allows Lock (Parental Control) blocking schemes to be permanent
by disabling the blocking hours function. Set to 1 to install Parental
Control restrictions permanently. Set to 0 for user-specied hours
control of blocking schemes.
087 - REAR RGB EN. (Rear RGB Enable)
Controls access to rear RGB input on TV. Set to 0 to disable RGB
input. Set to 1 to enable RGB input. Set to 17 to initiate a one-
time automatic conguration after an AC power cycle; otherwise,
automatic adjustment will be performed each time the RGB input
is accessed.
088 - EN NOISE MUTE (Enable Noise Mute)
If set to 1, audio mutes when no signal is present.
090 - KEY LOCK
If set to 1, display panel Channel, Volume, and Caption buttons
are disabled, Power button remains enabled. If set to 0, Channel,
Volume, Caption, and Power buttons are all enabled.
