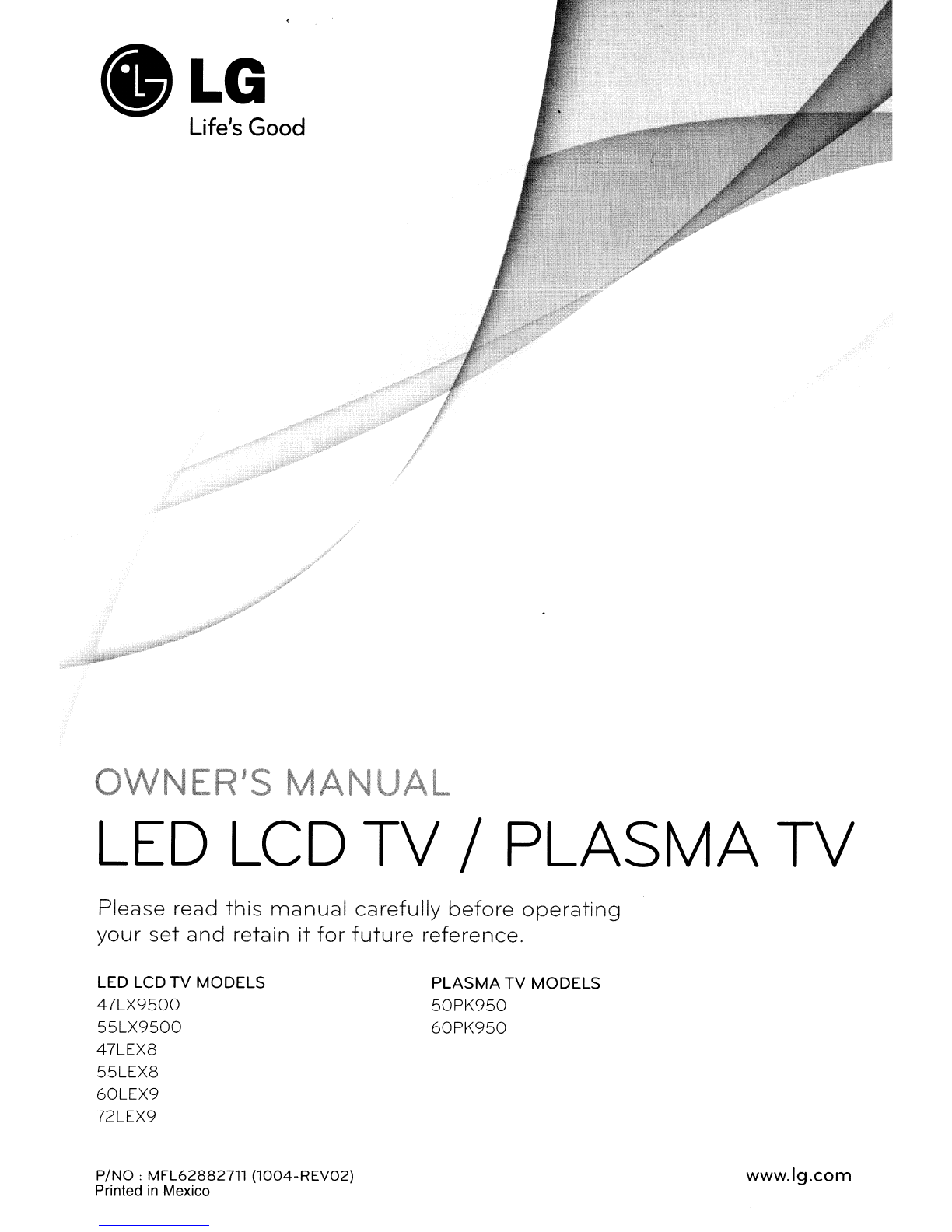

LG 47LX9500 User manual

.LG
Life's Good
OWNER'S MANUAL
LED LCD TV /PLASMA TV
Please read this manual carefully before operating
your set and retain it for future reference.
LED LCD TV MODELS
47LX9500
55LX9500
47LEX8
55LEX8
60LEX9
72LEX9
PINO :MFL62882711 (l004-REV02)
Printed in Mexico
PLASMA TV MODELS
50PK950
60PK950
www.lg.com

WARNING / CAUTION
TO REDUCE THE RISK OF ELECTRIC
SHOCK DO NOT REMOVE COVER (OR
BACK) NO USER SERVICEABLE PARTS
INSIDE. REFER TO QUALIFIED SERVICE
PERSONNEL.
The lightning flash with arrowhead
A. symbol, within an e. quilateral trian-
agle, is intended to alert the user to
the presence of uninsulated "dan-
gerous voltage" within the product's enclo-
sure that may beoT sufficient magnitude to
constitute arisk of electric shock to persons.
A
The exclamation point within an equi-
... .lateral triangle is intended to alert
the user to the presence of impor-
tant operating and maintenance
(servicing) instructions in the literature
accompanying the appliance.
WARNING/CAUTION
TO REDUCE THE RISK OF FIRE AND
ELECTRIC SHOCK, DO NOT EXPOSE THIS
PRODUCT TO RAIN OR MOISTURE.
NOTE TO CABLE/TV INSTALLER
This reminder is provided to call the CATV system
installer's attention to Article 820-40 of the National
Electric Code (USA). The code provides guide-
lines for proper grounding and, in particular, speci-
fies that the cable ground shall be connected to the
grounding system of the building, as close to the
point of the cable entry as practical.
WARNING /CAUTION
To prevent fire or shock hazards, do not expose
this product to rain or moisture.
FCC Notice
Class Bdigital device
This equipment has been tested and found to
comply with the limits for aClass B digital device,
pursuant to Part 15 of the FCC Rules. These
limits are designed to provide reasonable pro-
tection against harmful interference in a residen-
tial installation. This equipment generates, uses
and can radiate radio frequency energy and, if not
installed and used in accordance with the
instructions, may cause harmful interference to
radio communications. However, there is no
guarantee that interference will not occur in a
particular installation. If this equipment does
cause harmful interference to radio or television
reception, which can be determined by turning
the equipment off and on, the user is encour-
aged to try to correct the interference by one or
more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equip-
ment and receiver.
-
Connect the equipment to an outlet on a circuit
different from that to which the receiver is con-
nected.
- Consult the dealer or an experienced radio/TV
technician for help.
This device complies with part 15
of the FCC Rules.
Operation is subject to the following two condi-
tions: (1) This device may not cause (harmful)
interference, and (2) this device must accept
any interference received, including interference
that may cause undesired operation (of the
device).
Any changes or modifications in construction of
this device which are not expressly approved by
the party responsible for compliance could void
the user's authority to operate the equipment
CAUTION
Do not attempt to modify this product in any
way without written authorization from LG
Electronics. Unauthorized modification could
void the user's authority to operate this product.
2
IMPORTANT INFORMATION TO PREVENT "IMAGE
BURN /BURN-IN" ON YOUR TV SCREEN
• When a fixed image (e.g. logos, screen menus, video game, and computer display) is displayed on
the TV for an extended period, it can become permanently imprinted on the screen. This phenom-
enon is known as "image burn" or "burn-in." Image burn is not covered under the manufacturer's
warranty.
•In
order to prevent image burn, avoid displaying a fixed image on your TV screen for a prolonged
period (2 or more hours for LCD, 1 or more
hours for Plasma).
!l! Image burn can also occur on the letter-
boxed areas of your TV if you use the 4:3
aspect ratio setting for an extended period.

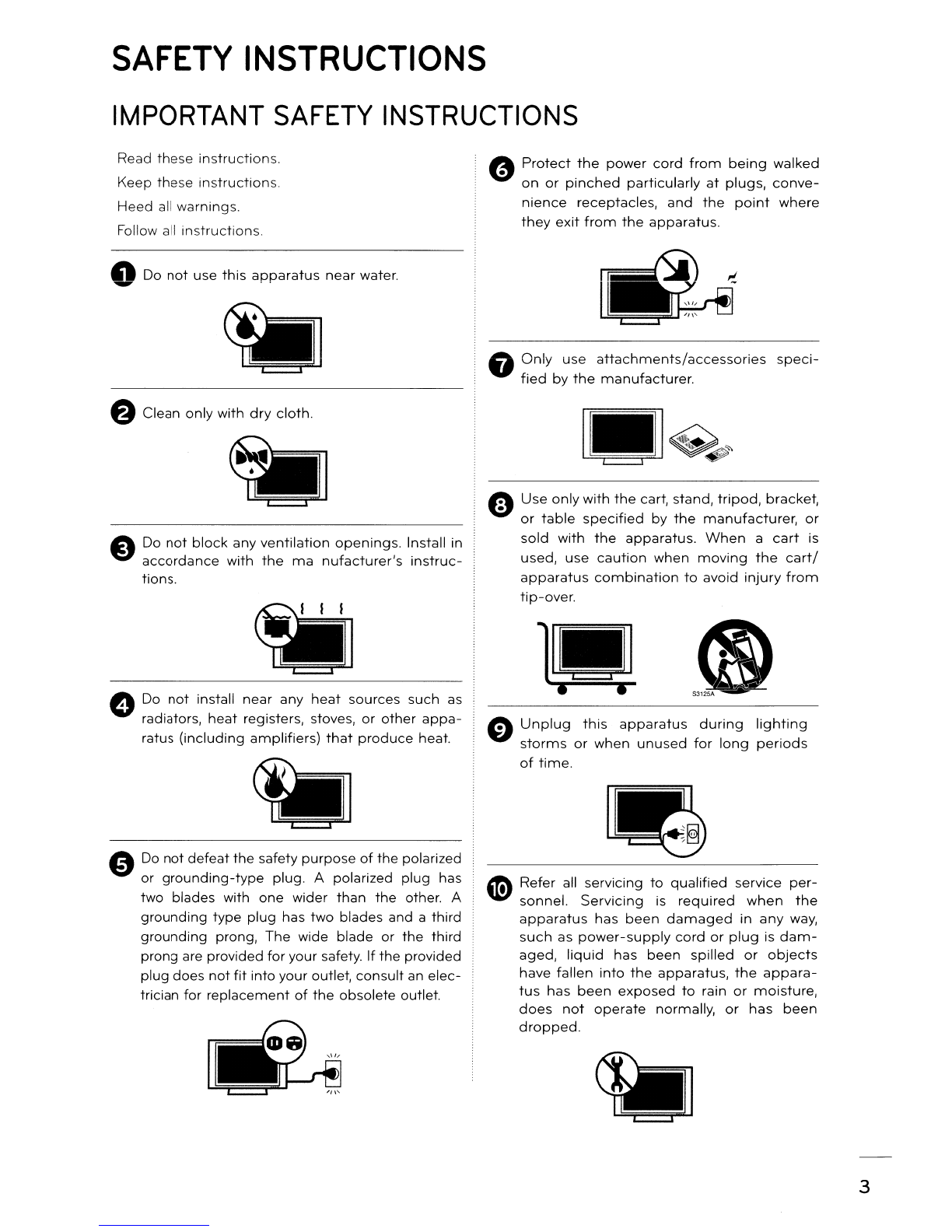

SAFETY INSTRUCTIONS
IMPORTANT SAFETY INSTRUCTIONS
Read these instructions.
Keep these instructions.
Heed all warnings.
Follow all
instructions.
o Protect the power cord from being walked
•
on or pinched particularly at plugs, conve-
nience receptacles, and the point where
they exit from the apparatus.
•
G Only use attachments/accessories speci-
fied by the manufacturer.
9 Use only with the cart, stand, tripod, bracket,
or table specified by the manufacturer, or
sold with the apparatus. When a cart is
used,
use caution when moving the cart/
apparatus combination to avoid injury from
tip-over.
(;) Refer all servicing to qualified service per-
sonnel. Servicing is required when the
apparatus has been damaged in any way,
such as power-supply cord or plug is dam-
aged, liquid has been spilled or objects
have fallen into the apparatus, the appara-
tus has been exposed to rain or moisture,
does not operate normally, or has been
dropped.
o Unplug this apparatus during lighting
storms or when unused for long periods
of time.
ADo not use this apparatus near water.
-.
(» Do not install near any heat sources such as
radiators,
heat registers, stoves, or other appa-
ratus (including amplifiers) that produce heat.
oDo not block any ventilation openings. Install in
accordance with the ma nufacturer's instruc-
tions.
eClean only with dry cloth.
oDo not defeat the safety purpose of the polarized
or
grounding-type plug. Apolarized plug has
two blades with
one wider than the other. A
grounding type plug has two blades and a third
grounding prong, The wide blade or the third
prong are provided for your safety. If the provided
plug does not fit into your outlet, consult an elec-
trician for replacement of the obsolete outlet.
3

4

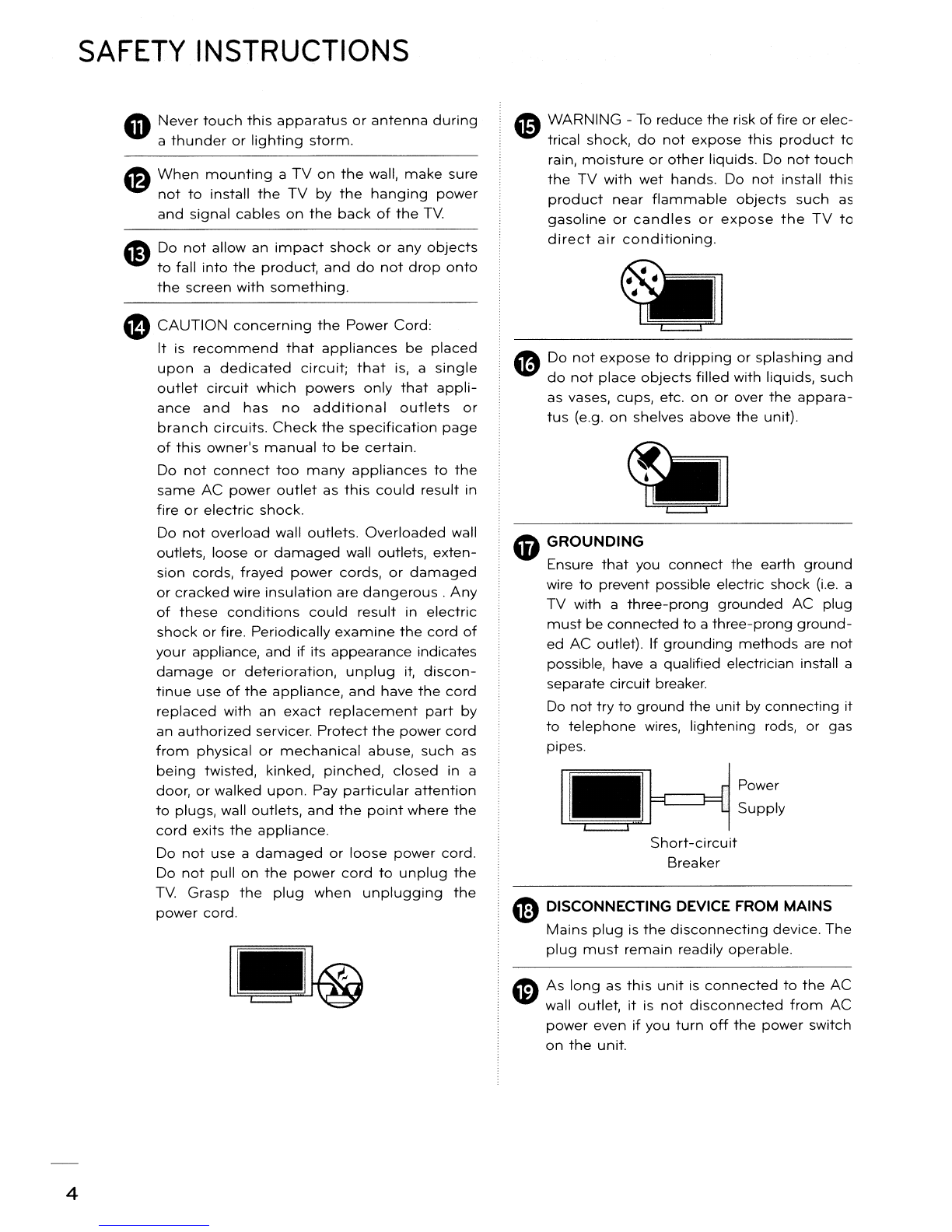

SAFETY INSTRUCTIONS
_ Never touch this apparatus or antenna during
a thunder or lighting storm.
e When mounting a TV on the wall, make sure
not to Install the TV by the hanging power
and signal cables on the back of the TV.
4D Do not allow an impact shock or any objects
to fall into the product, and do not drop onto
the screen with something.
e CAUTION concerning the Power Cord:
It is recommend that appliances be placed
upon a dedicated circuit; that is, a single
outlet circuit which powers only that appli-
ance and has no additional outlets or
branch circuits. Check the specification page
of this owner's manual to be certain.
Do not connect too many appliances to the
same AC power outlet as this could result in
fire or electric shock.
Do not overload wall outlets. Overloaded wall
outlets, loose
or damaged wall outlets, exten-
sion cords, frayed power cords, or damaged
or cracked wire insulation are dangerous. Any
of these conditions could result in electric
shock or fire. Periodically examine the cord of
your appliance, and if its appearance indicates
damage or deterioration, unplug it, discon-
tinue use of the appliance, and have the cord
replaced with an exact replacement part by
an authorized servicer. Protect the power cord
from physical or mechanical abuse, such as
being twisted, kinked, pinched, closed in a
door,
or walked upon. Pay particular attention
to plugs, wall outlets, and the point where the
cord exits the appliance.
Do not use a damaged or loose power cord.
Do not pull on the power cord to unplug the
TV. Grasp the plug when unplugging the
power cord.
~ WARNING - To reduce the risk of fire or elec-
trical shock, do not expose this product to
rain, moisture or other liquids. Do not touch
the TV with wet hands. Do not install this
product near flammable objects such as
gasoline or candles or expose the TV to
direct air conditioning.
o Do not expose to dripping or splashing and
do not place objects filled with liquids, such
as vases, cups, etc. on or over the appara-
tus (e.g. on shelves above the unit).
49 GROUNDING
Ensure that you connect the earth ground
wire to prevent possible electric shock (i.e. a
TV with a three-prong grounded AC plug
must be connected to a three-prong ground-
ed AC outlet). If grounding methods are not
possible, have aqualified electrician install a
separate
circuit breaker.
Do
not try to ground the unit by connecting it
to telephone wires, lightening rods, or gas
pipes.
Short-circuit
Breaker
4D DISCONNECTING DEVICE FROM MAINS
Mains plug is the disconnecting device. The
plug must remain readily operable.
~ As long as this unit is connected to the AC
wall outlet, it is not disconnected from AC
power even if you turn off the power switch
on the unit.

~ ANTENNAS
Outdoor antenna grounding
If an outdoor antenna is installed, follow the
precautions below. An outdoor antenna sys-
tem should not be located in the vicinity of
overhead power lines or other electric light or
power circuits, or where it can come in contact
with such power lines or circuits as death or
serious injury can occur.
Be sure
the antenna system is grounded so as
to provide some protection against voltage
surges and built-up static charges.
Section 810 of the National Electrical Code
(NEe) in the U.S.A. provides information with
respect to proper grounding of the mast and
supporting structure, grounding of the lead-in
wire to an antenna discharge unit, size of
grounding conductors, location of antenna
discharge unit, connection to grounding elec-
trodes and requirements for the grounding
electrode.
Antenna grounding according to the National
Electrical Code, ANSI/NFPA
70
Ground Clamp
Antenna Discharge Unit
(NEe Section 81O~20)
Grounding Conductor
(NEe Section 810-21)
Ground Clamps
/ Power Service Grounding
_...--- Electrode System (NEC
.Art 250, Part H)
NEC: National Electrical Code
GCleaning
When cleaning, unplug the power cord and
rub gently with a soft cloth to prevent
scratching. Do not spray water or other liquids
directly on the TV as electric shock may occur.
Do
not clean with chemicals such as alcohol,
thinners or benzene.
~ Moving
Make sure the product is turned off, unplugged
and all cables have been removed. It may take
2
or more people to carry larger TVs. Do not
press against or put stress on the front panel
of the TV.
~ Ventilation
Install your TV where there is proper ventila-
tion. Do not install in a confined space such
as a bookcase. Do not cover the product
with cloth or other materials (e.g.) plastic
while plugged in. Do not install in exces-
sively dusty places.
~ Take care not to touch the ventilation open-
ings. When watching the TV for a long
period, the ventilation openings may
become hot.
~ If you smell smoke or other odors coming
from the TV or hear strange sounds, unplug
the power cord contact an authorized service
center.
~ Do not press strongly upon the panel with
hand or sharp object such as nail, pencil or
pen, or make a scratch on it.
~ Keep the product away from direct sunlight.
~ For LED LCD TV
If the TV feels cold to the touch, there may be
asmall "flicker" when it is turned on. This is
normal, there is nothing wrong with TV.
Some minute dot defects may be visible on
the screen, appearing as tiny red, green, or
blue spots. However, they have no adverse
effect on the monitor's performance.
Avoid touching the LCD screen or holding
your finger(s) against it for long periods of
time. Doing so may produce some tempo-
rary distortion effects on the screen.
5

CONTENTS
24
25
25
26
27
29
30
32
Turning On TV
Initial Setting
On-Screen Menus Selection
Netcast Menu
Troubleshooting .
Maintenance
Open Source Software Notice
Product Specifications
~',.">";
AP,PENOiK ,' .. '.. . ".
2
. .. 3
WARNING /CAUTION
SAFETY INSTRUCTIONS
..
PREPARATION
Accessories 7
Optional Extras 8
Stand Instruction 9
VESA Wall Mounting 11
Cable Management 13
Desktop Pedestal Installation .15
Swivel Stand 15
Kensington Security System. 15
'f;~TgRNAkEQUIPMENTFS£TUP
,", .' ,. ,. ""
Connecting your TV
16
Network Setup .17
HOW TO USE THE OWNER'S MANUAL ON THE CD-ROM
To view the Owner's Manual on the CD-ROM, Adobe Acrobat Reader must be installed on your Pc.
The "ACRORD" folder on the CD-ROM contains the installation programs for them.
If you want to install those programs, Open the "My Computer"-+ Open the "LG"-+ Open the
"ACRORD"-+ double-click your language.
TO VIEW THE OWNER'S MANUAL ON THE CD-ROM
The Owner's Manual files are included in the supplied CD-ROM.
Load the supplied CD-ROM into the CD-ROM drive of your Pc.
After awhile, the web page of the CD-ROM will open automatically. (for Window only)
.,f the web page does not appear automatically, open the Owner's Manual file
directly.
Open the "My computer"-+ Open the "LG"-+ Open the "index.htm" file.
o NOTE
It,,·
'''''''7 ~;::-'-"~ •. ";.~:::::;.-=;:::.~-
When you click, display the PDF file.
You can find the
desired contents
easily using the
bookmark.
TO VIEW THE SIMPLE MANUAL
You can easily and effectively access the TV information by viewing a simple manual on the TV
Select
Simple Manual.
Select the part of the manual you
want to see.
6

PREPARATION
ACCESSORIES
Ensure that the following accessories are included with your TV. If an accessory is missing, please con-
tact the dealer where you purchased the TV.
The accessories included may differ from the images below.
Owner's Manual CD Manual,
Nero
MediaHome 4
Essentials CD
Remote Control,
Batteries (AAA) Motion Remote Control,
Strap,
Batteries (AA)
Not included with all models
Option Extras
Polishing Cloth
• Wipe spots on the exterior only
with the polishing cloth.
•Do not wipe roughly when remov-
ing stains. Excessive pressure may
cause scratches or discoloration.
D-sub 15 pin Cable
When using the VGA (D-sub 15
pin cable) PC connection, the
user must use shielded signal
interface cables with ferrite cores
to maintain standards compli-
ance.
Not included with all models
Ferrite core can be used to reduce the electromagnetic
waves that may interfere with the TV Install the Ferrite
core on the power cable close to the wall plug.
Ferrite Core
(Black)
Ferrite Core
(White)
Ferrite core can be used to reduce the electromagnetic
wave when connecting the LAN cable. Place the ferrite
core far from TV and wind the LAN cable in the ferrite
core once.
7

47/55LX9500, 47/55LEX8,60/72LEX9
rX4 x4
(M4 x12) (M4 x 22)
Screws for stand assembly
(Refer to P10) Cable
Holder
(Refer to p.14)
!31----I1IIII--=, x2
Component gender cable,
AV gender cable
Stand Rear Cover
Plasma TV
(For 50PK950)
Cable
Management Clip
(Refer to P13)
Protection Cover
(Refer to P9)
Power CordCable Holder
(Refer to P13)
(M4 x14) (M4 X 28)
Screws for stand assembly
(Refer to P9)
Wireless LAN for
Broadband/DLNA Adaptor
(AN-WF100)
OPTIONAL EXTRAS
Optional extras can be changed or modified for quality improvement without any notification.
Contact your dealer for buying these items.
These devices only work with compatible LG LED LCD TV and Plasma TV.
(For 47/55LX9500)
Wireless Media Box
(AN-WL 100W)
Wireless LAN for Broadband/
DLNA Adaptor
(AN-WF100)
3D Glasses
(AG-S100)
8

STAND INSTRUCTIONS (For SO/60PK9S0)
• Image shown may differ from your TV
INSTALLATION (For 50PK950)
o Carefully place the TV screen side down on
a cushioned surface to protect the screen
from damage.
a Assemble the parts of the STAND BODY
~ with the STAND BASE of the TV
DETACHMENT
oCarefully place the TV screen side down on
a cushioned surface to protect the screen
from damage.
Remove the screws that hold the stand on.
STAND BODY
1 ..
6==='='\=' =S~~AND BASE
50PK950
60PK950
o Assemble the parts of the CABLE
MANAGEMENT CLIP with
the STAND
BODY.
CABLE
MANAGEMENT
CLIP
•-, I STAND BODY
,-
I
U
Detach the stand from TV
e Assemble the TV as shown.
Install
the 4screws into the holes shown.
PROTECTION COVER
After removing the stand, install the included
PROTECTION COVER over the hole for the
stand.
Press
the PROTECTION COVER into the TV until
you hear it click.
When installing the wall mounting bracket, use
the PROTECTION COVER.
..
4':OTECTION COVER
Fix a guide to the outside.
9

PREPARATION
STAND INSTRUCTIONS (For 47/55LX9500, 47/55LEX8)
, Image shown may differ from your TV
INSTALLATION DETACHMENT
o
Carefully place the TV screen side down on
a cushioned surface to protect the screen
from damage.
o
Carefully place the TV screen side down on
a cushioned surface to protect the screen
from damage.
Assemble the parts of the STAND
BODY
with the STAND BASE of the TV
At this time, tighten the screws that
hold the STAND BODY on
~
'~.:r ..... -",- - '"""::""':7.' -".'''''c
",,;%.';-: ~~
£(;0,;~_;-·'·""-
c' ,_.~" ~::;"
--_--.JI
o Detach the STAND REAR COVER from TV
oInstall the 4screws into the holes shown
o Assemble the part of the STAND
REAR COVER
with the TV
o Detach the stand from TV
o Remove the screws that hold the stand on.
M4 x 12
M4 x 22
STAND REAR
COVER
oNOTE
When assembling the desk type stand, make sure the screws are fully tightened (If not tightened
fully, the TV can tilt forward after the product installation). Do not over tighten.
10
