LG LCD Colour Television User manual

Colour Television
OWNER’S MANUAL
Please read this manual carefully before operating your set.
Retain it for future reference.
Record model number and serial number of the set.
See the label attached on the back cover and quote this infor-
mation to your dealer when you require service.
Model number :
Serial number :

Contents
Installation 3
Location and function of controls 4
Remote control handset
Battery installation
Front panel / Side panel
Basic operation 7
On and off / Programme selection
Volume adjustment / Quick view
Mute function
On screen language selection (option)
On screen menus 8
Menu selection
Setting up TV stations 9
Auto programme tuning
Manual programme tuning
Programme edit
Favourite programme
Calling the programme table
Picture adjustment 15
PSM (Picture Status Memory)
Picture adjustment / Eye (option)
Turbo picture selection (option)
Sound adjustment (option) 17
SSM (Sound Status Memory) / Sound adjustment
Turbo sound selection (option)
Sound output selection (option)
Stereo/Dual reception (option)
NICAM reception (option)
Time setting 20
Setting the clock / Setting the On/Off timer
Auto sleep
Other functions 21
TV and AV modes / Auto AV switching (option)
Child lock / Blue back (option) / Tilt (option)
Degaussing (option) / Games (option) / Sleep timer
Teletext (option) 24
Switch on/off / SIMPLE text
TOP text (option) / FASTEXT / Special teletext functions
Connection of external equipment 27
Aerial socket
Audio/Video in/out sockets (option)
Euro scart socket (option)
S-video/Audio in sockets (S-AV) (option)
Component in sockets (option)
Headphone socket (option)
Troubleshooting check list 31
2

Installation
Power
This set operates on an AC mains supply, the voltage is as indicat-
ed on the label on the back cover. Never apply DC power to the set.
In the event of thunderstorms or powercuts, please pull out the aer-
ial and mains plugs.
Warning
To prevent fire or shock hazard, do not expose the set to rain or
moisture.
Do not place anything containing liquid on top of the set, this may
cause a fire or could give an electric shock.
Service
Never remove the back cover of the set as this can expose you to
very high voltage and other hazards. If the set does not operate
properly, unplug it and call your dealer.
Aerial
Connect the aerial cable to the socket marked +75 Ω on the back
cover. For the best reception an outdoor aerial should be used.
Location
Position your set so that no bright light or sunlight falls directly onto
the screen. Care should be taken not to expose the set to any
unnecessary vibration, moisture, dust or heat. Also ensure that the
set is placed in a position to allow a free flow of air. Do not cover
the ventilation openings on the back cover.
3

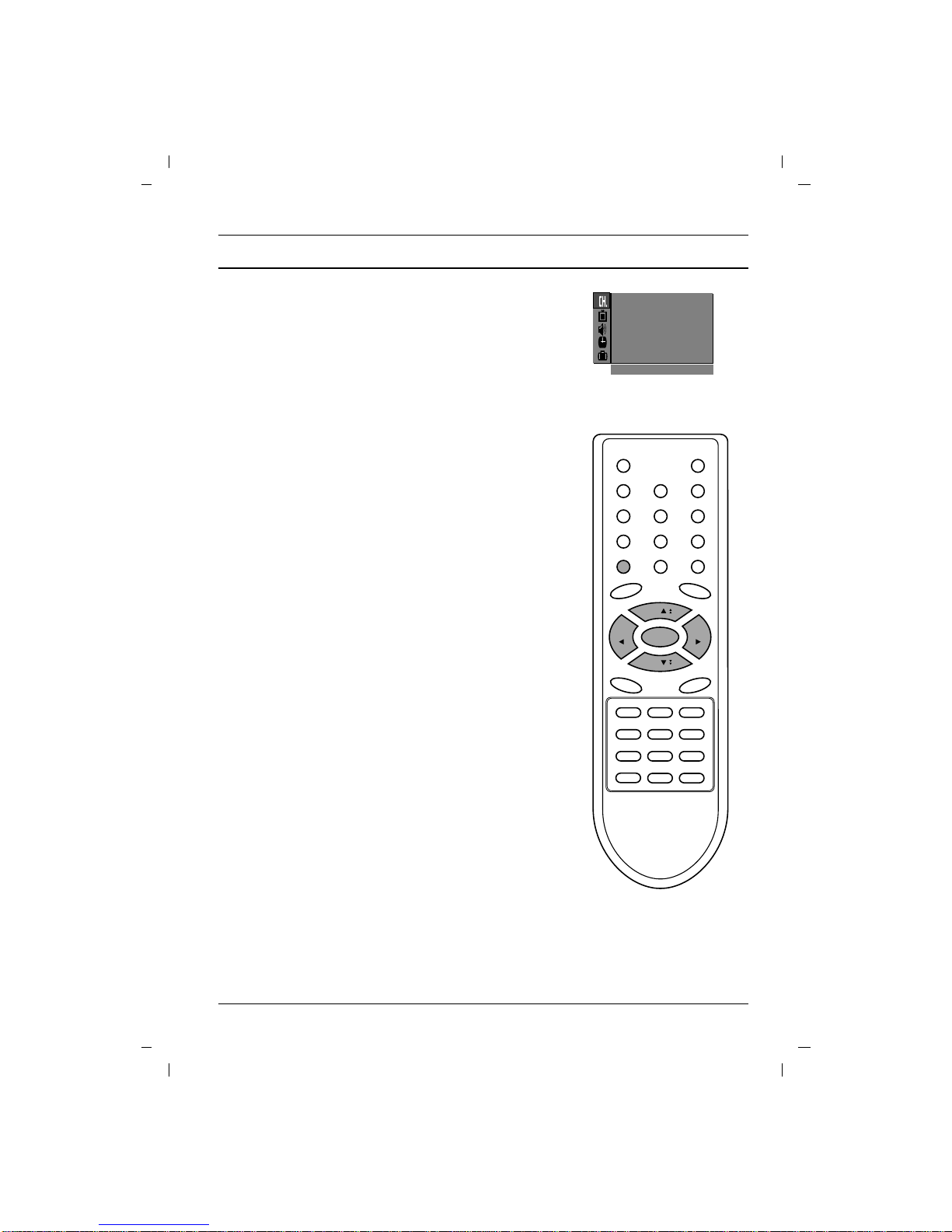

All the functions can be controlled with the remote control handset.
Some functions can also be adjusted with the buttons on the front
panel of the set.

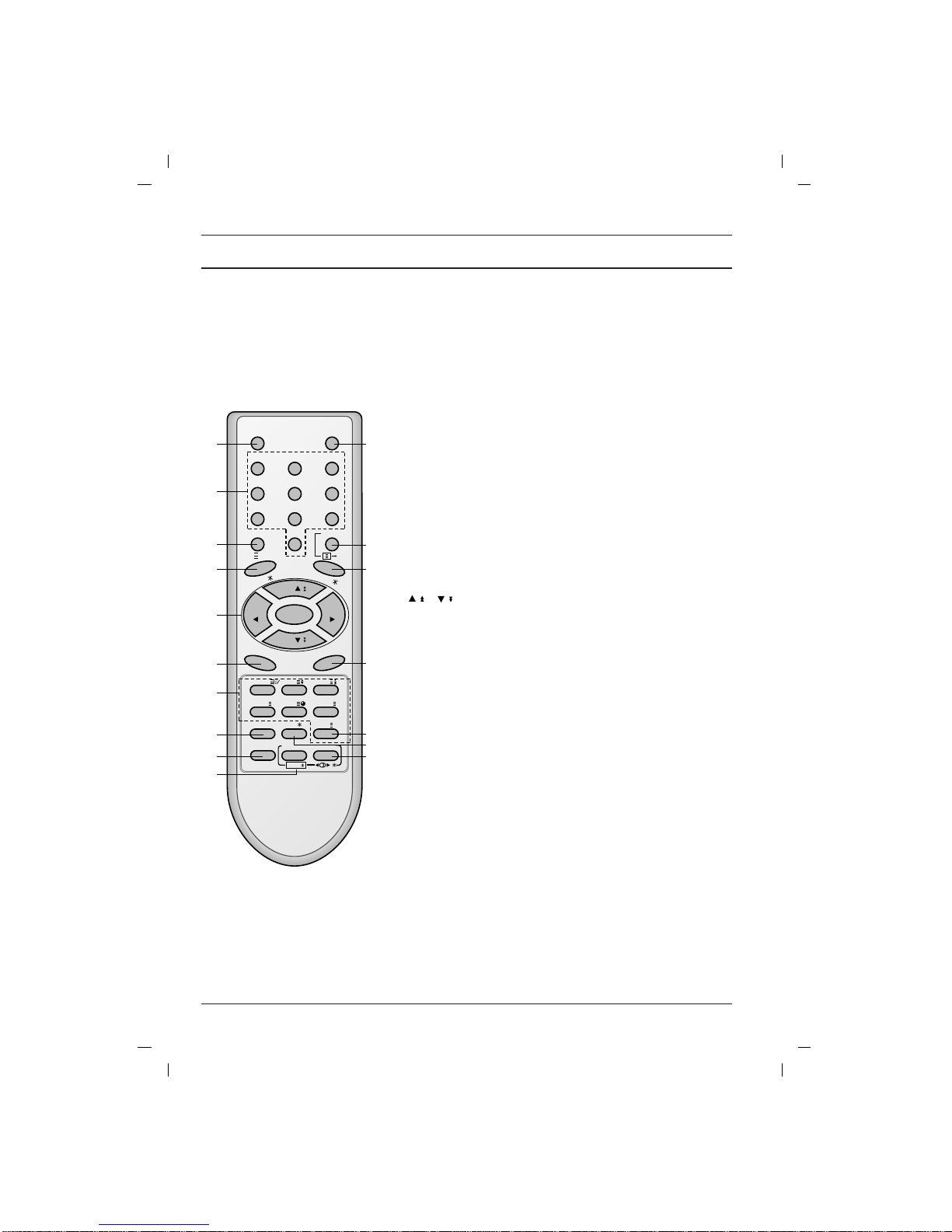

Remote control handset
Before you use the remote control handset, please install the bat-
teries. See the next page.
1. POWER
switches the set on from standby or off to standby.
2. NUMBER BUTTONS
switches the set on from standby or directly select a number.
3. MENU (or INDEX)
selects a menu.
selects an index page in the teletext mode (only TELETEXT
models). (option)
4. EYE/*(option)
switches the eye function on or off.
5. / (Programme Up/Down)
selects a programme or a menu item.
switches the set on from standby.
scans programmes automatically.
FF/ GG(Volume Up/Down)
adjusts the volume.
adjusts menu settings.
OK
accepts your selection or displays the current mode.
6. Q.VIEW
returns to the previously viewed programme.
7. TELETEXT BUTTONS (option)
These buttons are used for teletext.
For further details, see the ‘Teletext’ section.
8. PSM (Picture Status Memory)
recalls your preferred picture setting.
9. FAVOURITE
selects a favorite programme.
10. TURBO PICTURE / SOUND BUTTON (option)
selects Turbo picture and sound.
Location and function of controls
4
( )
( )
POWER MUTE
123
456
789
MENU/INDEX
TV/AV
TV
0
i
TEXT/MIX/ SIZE/ HOLD/
EYE/
Q.VIEW
LIST
I / II /
( )
PR
( )
PR
OK VOLVOL
UPDATE/
PSM SSM/ SLEEP/ M
X
TIME/ REVEAL/
?
PICTURE SOUND
/
TURBO/
FAVOURITE
1
2
3
4
5
6
8
10
9
11
12
13
14
15
17
16
(With TELETEXT)
7

POWER MUTE
1 2 3
4 5 6
7 8 9
MENU/INDEX
TV/AV
0
EYE/
Q.VIEW
LIST
I / II /
( )
PR
( )
PR
OK VOLVOL
PSM SSM/ SLEEP
PICTURE SOUND
/
TURBO/
FAVOURITE
TV
1
2
3
4
5
6
8
10
9
Location and function of controls
5
11. MUTE
switches the sound on or off.
12. TV/AV
selects TV or AV mode.
switches the set on from standby.
13. I/II/*(option)
selects the language during dual language broadcast. (option)
selects the sound output.
14. LIST
displays the programme table.
15. SLEEP
sets the sleep timer.
16. SSM/*(Sound Status Memory) (option)
recalls your preferred sound setting.
17. SURROUND (ºº/*) (option)
selects surround sound.
*: No function
COLOURED BUTTONS : These buttons are used for teletext (only
TELETEXT models) or programme edit.
Battery installation
The remote control handset is powered by two AAA type batteries.
To load the batteries, turn the remote control handset over and
open the battery compartment. Install two batteries as indicated by
the polarity symbols ( and ) marked inside the compartment.
Note : To avoid damage from possible battery leakage, remove the
batteries if you do not plan to use the remote control handset for an
extended period of time.
+
-
11
12
13
14
15
17
16
(Without TELETEXT)

Location and function of controls
6

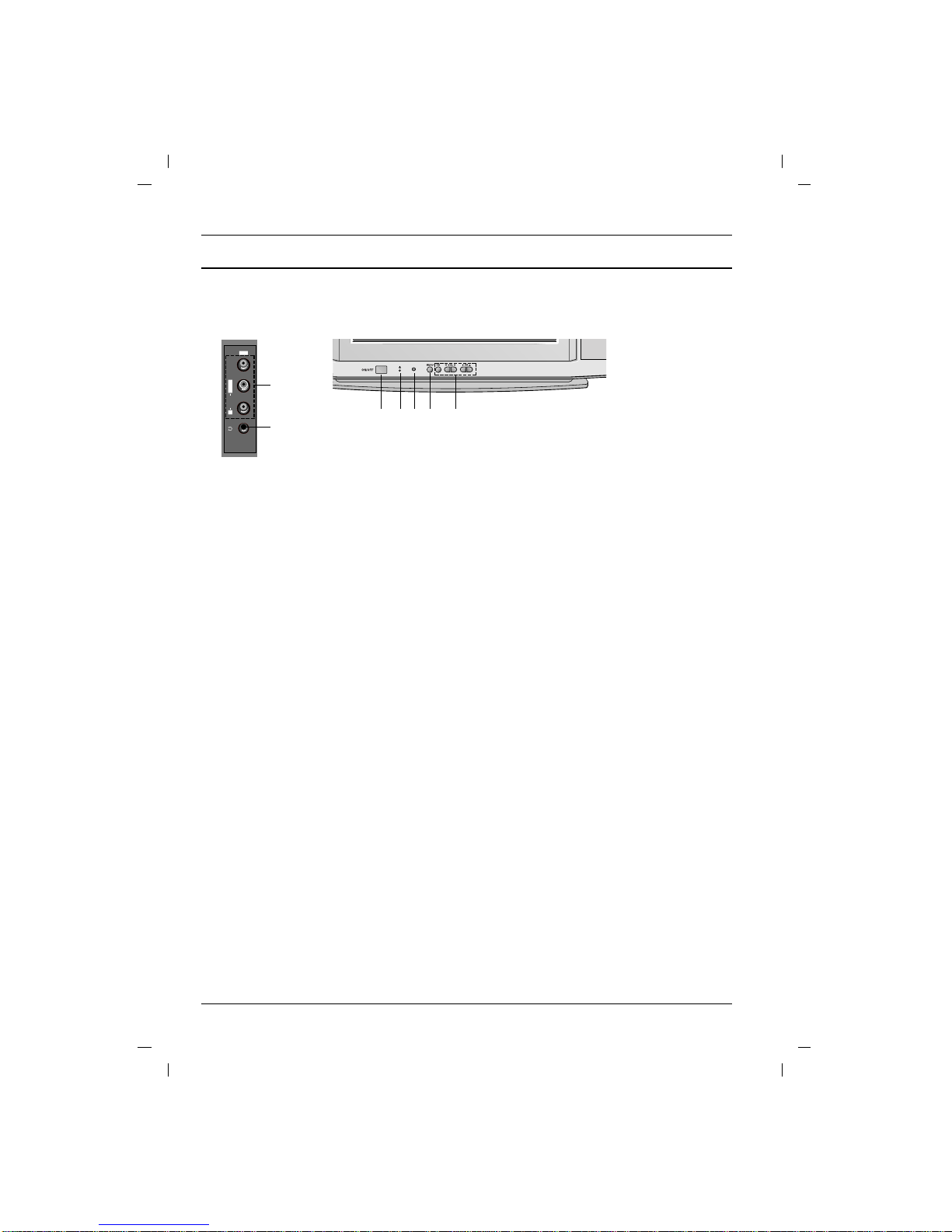

Front panel
Side panel
1. MAIN POWER (ON/OFF)
switches the set on or off.
2. POWER/STANDBY INDICATOR
illuminates brightly when the set is in standby mode.
dims when the set is switched on.
3. REMOTE CONTROL SENSOR
Note : Only use the supplied remote control handset. (When you use others, they’ll be not able to
function.)
4. MENU
selects a menu.
5. OK
accepts your selection or displays the current mode.
FF/ GG(Volume Up/Down)
adjusts the volume.
adjusts menu settings.
DD/ EE(Programme Up/Down)
selects a programme or a menu item.
switches the set on from standby.
6. AUDIO/VIDEO IN SOCKETS (AV2) (option)
Connect the audio/video out sockets of external equipment to these sockets.
7. HEADPHONE SOCKET (option)
Connect the headphone plug to this socket.
Note : Shown is a simplified representation of front or side panel. Here shown may be somewhat dif-
ferent from your set.
VIDEO
L/MONO
R
AUDIO
AV2
7
6
21FS2 series
1 2 3 4 5

Basic operation

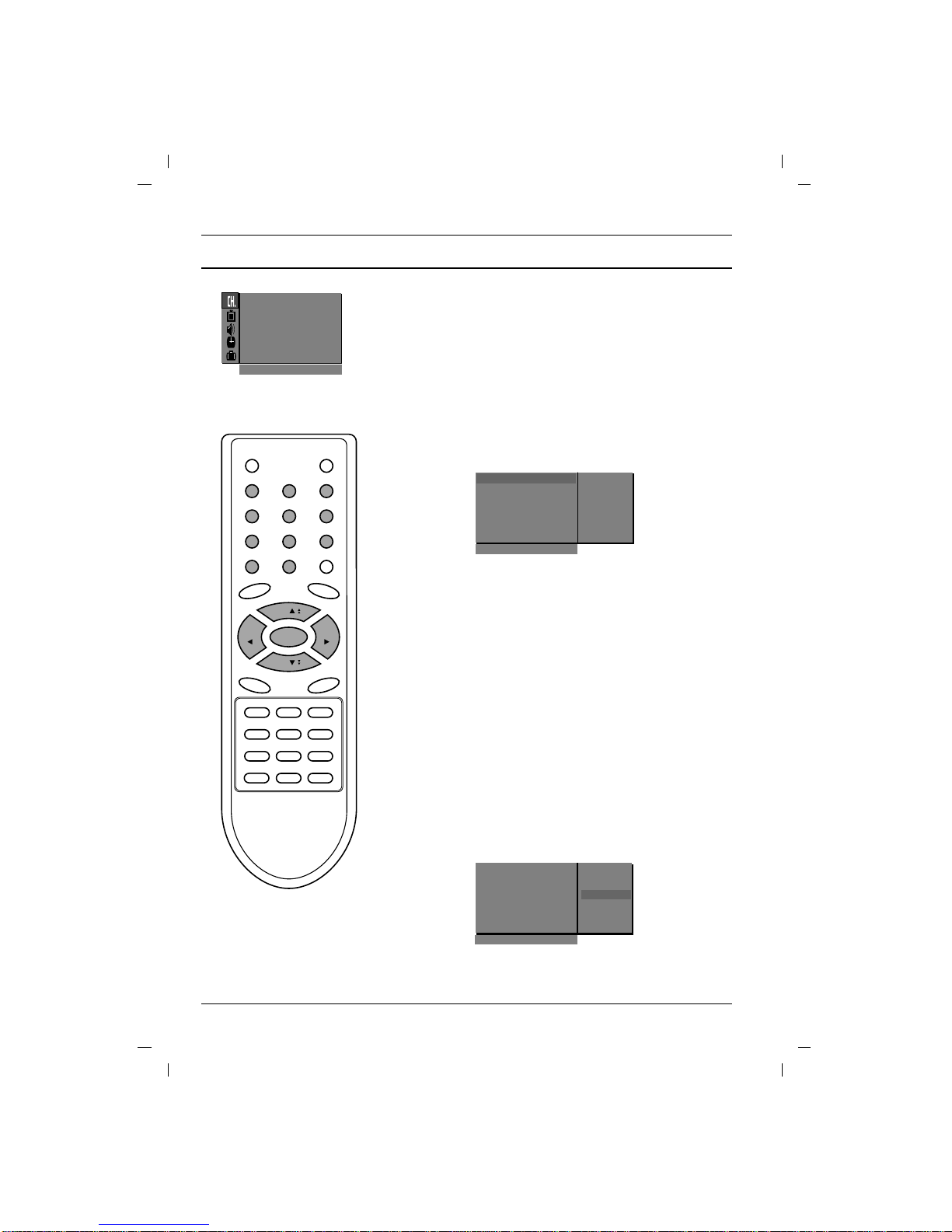

On and off
1. Press the main power button to switch the set on.
2. If the set is in standby mode, press the POWER, DD/ EE, TV/AV
or NUMBER buttons on the remote control handset to switch it
on fully.
3. Press the POWER button on the remote control handset.
The set reverts to standby mode.
4. Press the main power button again to switch the set off.
Note : If, while the set is switched on, the mains plug is discon-
nected the set will switch to standby or power on when the mains
plug is replaced in the mains power socket.
Programme selection
You can select a programme number with the DD/ EEor NUMBER
buttons.
Volume adjustment
Press the FF/ GGbutton to adjust the volume.
Quick view
Press the Q.VIEW button to view the last programme you were
watching.
Mute function
Press the MUTE button. The sound is switched off and the display
W
appears.
You can cancel it by pressing the MUTE, FF/ GG,SSM/*, I/II/*,
TURBO SOUND button.
On screen language selection (option)
The menu can be displayed on the screen in desired language.
First select your language.
1. Press the MENU button and then DD/ EEbutton to select the
Special menu.
2. Press the GGbutton to select Language.
3. Press the GGbutton and then DD/ EEbutton to select your desired
language.
All the on screen displays will appear in the selected language.
Press the OK or FFbutton to select the Special menu.
4. Repeatedly press the MENU button to return to normal TV
viewing.
7
POWER MUTE
1 2 3
4 5 6
7 8 9
MENU
TV/AV
0
Q.VIEW
I / II /
( )
PR
( )
PR
OK VOLVOL
SSM/
PICTURE SOUND
/
TURBO/
FAVOURITE

The dialogue between you and your set takes place on screen with
an operator menu. The buttons required for the operating steps are
also displayed.
Menu selection
1. Press the MENU button and then DD/ EEbutton to display each
menu.
2. Press the GGbutton and then DD/ EEbutton to select a menu item.
3. Press the GGbutton to display the sub menu or the pull-down
menu.
4. Change the setting of an item in the sub or pull-down menu with
FF/ GGor DD/ EE.
You can move to the higher level menu with OK or FFbutton and
to move to the lower level menu press the GGbutton.
Note :
a. In the teletext mode, menus are not displayed.
b. In some models, the
Normal / Turbo search will not display,
only the
Start will display in the Auto programme menu.
c. In mono models, the Sound menu does not appear.
d. In some models, Tilt , Degauss , Game or Booster will not dis-
play.
e. On some models, the Language will not display.
On screen menus
8
MENU
( )
PR
( )
PR
OK VOLVOL
TV programme
Auto O programme {
Manual O programme {
Programme O edit {
FavouriteOprogramme {
()O}{OOKOMENU
System {
StorageOfrom {
NormalOsearch {
TurboOsearch {
0OOARO1DOOO5OOSO69
O1OOCO03OOO6OOSO17
O2OOCO12OOO7OOSO22
O3OOSO66OOO8OOCO09
O4OOSO67OOO9OOCO11
DeleteOOOCopy
MoveOOOOOSkip
O0OOCO03
Picture menu
Station menu
PSM {
Contrast {
Brightness {
Colour {
Sharpness {
()O}{OOKOMENU
Sound menu
()O}{OOKOMENU
Special menu
()O}{OOKOMENU
Time menu
()O}{OOKOMENU
()O}{OOKOMENU
Storage {
System {
Channel {
Search {
Name {
Booster {
()O}{OOKOMENU
()}{OOKOMENU
System {
Storage {
Station
Sound
Time
Special
Auto programme
Manual programme
Programme edit
BG
I
DK
M
2
SSM {
AVL {
DBS {
Balance {
Clock {
Offotime {
Onotime {
Autoosleep {
Language {
Input {
Childolock {
Blueoback {
Tilt {
Degauss {
Game {

9
Setting up TV stations
Up to 100 TV stations can be stored by programme numbers (0 to
99). Once you have preset the stations, you will be able to use the
DD/ EEor NUMBER buttons to scan the stations you programmed.
Stations can be tuned using automatic or manual modes.
Note : In some models up to 200 TV stations can be stored.

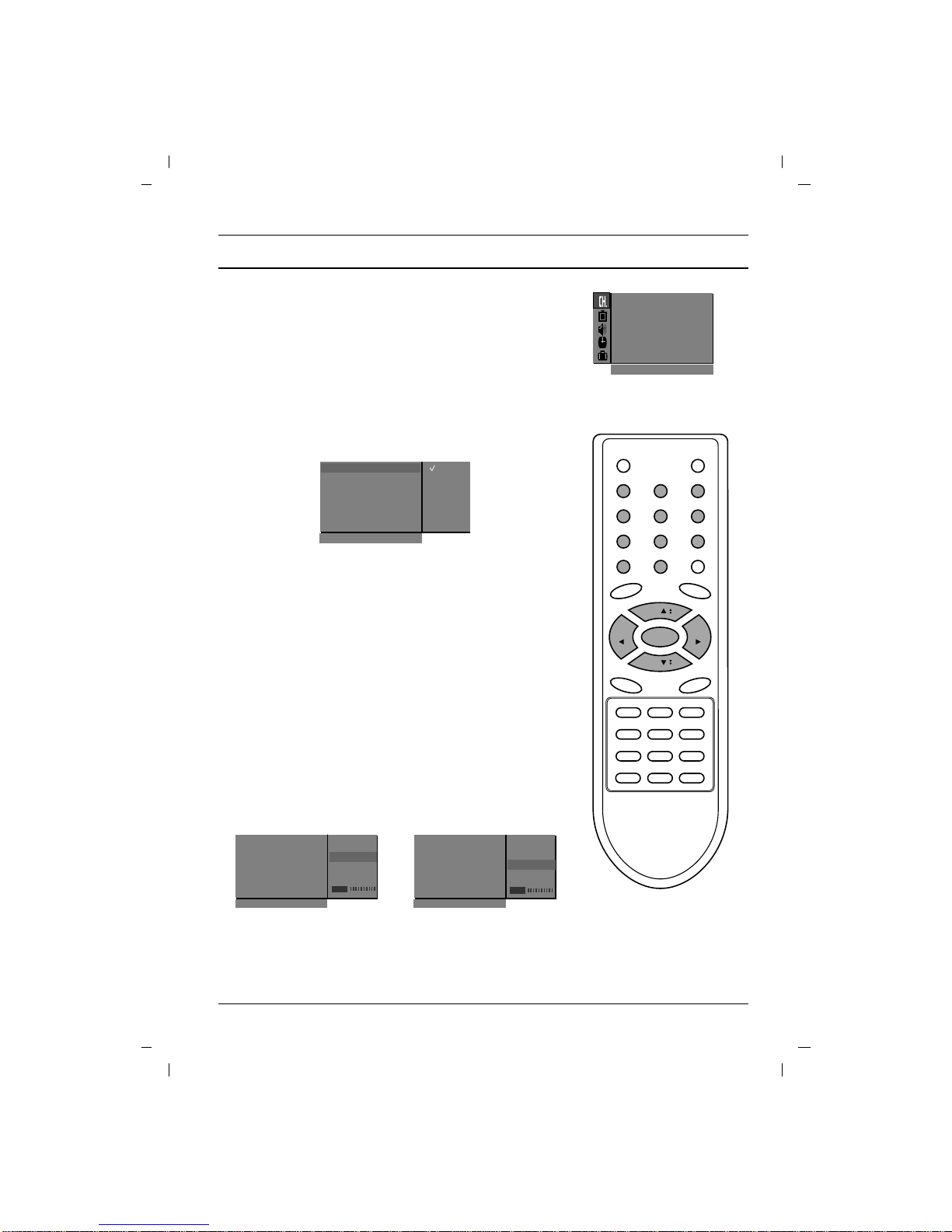

Auto programme tuning
All stations that can be received are stored by this method. It is rec-
ommended that you use auto programme during installation of this set.
1. Press the MENU button to select the Station menu.
2. Press the GGbutton and then DD/ EEbutton to select Auto pro-
gramme.
3. Press the GGbutton to display the Auto programme menu.
4. Press the GGbutton. Select a TV system with the DD/ EEbutton
on the System pull-down menu;
BG : (Asia/New Zealand/M.East/Africa/Australia)
I: (Hong Kong/South Africa)
DK : (East Europe/China/Africa/CIS)
M : (USA/Korea/Philippines) (option)
5. Press the OK or FFbutton.
6. Press the DD/ EEbutton to select Storage from.
7. Press the GGbutton. Select the beginning programme number
with the FF/ GGbutton or NUMBER buttons on the Storage
from pull-down menu. Any number under 10 is entered with a
numeric ‘0’in front of it, i.e. ‘05’for 5.
8. Press the OK button.
9. Press the DD/ EEbutton to select Normal or Turbo search.
Option: In some models, you can only select Start.
Note :
a.
Turbo search is faster than Normal search and in some mod-
els, these searches will automatically store all receivable stations.
b. If the programmed station has poor quality sound, select the
system again in the
Manual programme menu.
10. Press the GGbutton to begin auto programming.
All receivable stations are stored.
To stop auto programming, press the MENU button.
When auto programming is completed, the Programme edit
menu appears on the screen. See the ‘Programme edit’ section
to edit the stored programme.
11. Repeatedly press the MENU button to return to normal TV
viewing.
1 2 3
4 5 6
7 8 9
MENU
TV/AV
0
( )
PR
( )
PR
OK VOLVOL
Auto O programme {
Manual
O programme {
Programme
O edit {
FavouriteOprogramme {
()O}{OOKOMENU
System {
StorageOfrom {
NormalOsearch {
TurboOsearch {
BG
I
DK
M
()O}{OOKOMENU
OOCO01O(BG)
736%
(Normal search) (Turbo search)
Station
Auto programme
System {
StorageOfrom {
NormalOsearch {
TurboOsearch {
System {
StorageOfrom {
NormalOsearch {
TurboOsearch {
MENU MENU
736%
OOCO01O(BG)
Auto programme Auto programme
System {

Setting up TV stations
Auto programme scan
To automatically scan the pictures of stored programmes, press
theDD( ) or EE( ) button for about 3 seconds. The picture of stored
programmes appears on the screen one by one.
Tostopautoprogrammescanning, press anybutton except VCRbuttons.
Manual programme tuning
Manual programme lets you manually tune and arrange the sta-
tions in whatever order you desire. Also you can assign a station
name with five characters to each programme number.
1. Press the MENU button to select the Station menu.
2. Press the GGbutton and then DD/ EEbutton to select Manual
programme.
3. Press the GGbutton to display the Manual programme menu.
4. Press the DD/ EEbutton to select Storage.
5. Press the GGbutton to select the programme number. Select the
desired programme number (0 to 99) with the FF/ GGbutton or
NUMBER buttons on the Storage pull-down menu.Any number
under 10 is entered with a numeric ‘0’in front of it, i.e. ‘05’for 5.
6. Press the OK button.
7. Press the DD/ EEbutton to select System.
8. Press the GGbutton. Select a TV system with the DD/ EEbutton
on the System pull-down menu;
BG : (Asia/New Zealand/M.East/Africa/Australia)
I: (Hong Kong/South Africa)
DK : (East Europe/China/Africa/CIS)
M : (USA/Korea/Philippines) (option)
9. Press the OK or FFbutton.
10. Press the DD/ EEbutton to select Channel.
11. Press the GGbutton. Press the DD/ EEbutton to select V/UHF
or Cable on the Channel pull-down menu.
If possible, select the channel number directly with the number
buttons. Any number under 10 is entered with a numeric ‘0’in
front of it, i.e. ‘05’for 5.
12. Press the OK or FFbutton.
13. Press the DD/ EEbutton to select Search.
14. Press the GGbutton. Press the FF/ GGbutton to commence
searching on the Search pull-down menu. If a station is found
the search will stop.
15. Press the OK button to store it. The display Stored will appear.
16. To store another station, repeat steps 4 to 15.
17. Repeatedly press the MENU button to return to normal TV
viewing.
EE
EE
DD
DD
10
1 2 3
4 5 6
7 8 9
MENU
TV/AV
0
( )
PR
( )
PR
OK VOLVOL
Auto O programme {
Manual
O programme {
Programme
O edit {
FavouriteOprogramme {
()O}{OOKOMENU
Station
Storage {
System {
Channel {
Search {
Name {
Booster {
2
Storage {
()O}{OOKOMENU
Manual programme
Storage {
System {
Channel {
Search {
Name {
Booster {
Stored
Manual programme
{{{
