LG V-4800HTV User manual

VACUUM CLEANER
SERVICE MANUAL
MODEL : V-4800HTV
CAUTION
BEFORE SERVICING THE UNIT, READ THE
"SAFETY PRECAUTIONS" IN THIS MANUAL.
Website http://biz.lgservice.com
삼흥
정판
P/NO : 3828Fi5719N
January, 2009
Printed in Korea

-2-
CONTENTS
SAFETY PRECAUTIONS.............................................................................................................................3
CAUTIONS ...................................................................................................................................................3
DESCRIPTION..............................................................................................................................................4
SPECIFICATIONS ........................................................................................................................................4
DISASSEMBLY ........................................................................................................................................5~6
TROUBLE SHOOTING ............................................................................................................................7~9
SCHEMATIC DIAGRAM.............................................................................................................................10
PRINTED CIRCUIT BOARD ......................................................................................................................10
EXPLODED VIEW ................................................................................................................................11~13
REPLACEMENT PARTS LIST.............................................................................................................14~15

-3-
SAFETY PRECAUTIONS
BEFORE OPERATING THIS VACUUM CLEANER, READ THIS SERVICE MANUAL THOROUGHLY, AND
OBSERVE EACH POINT CAREFULLY.
1. Filter
1)
The filter is composed of a motor safety filter, a exhaust
filter and a paper bag or a cloth bag..
2) Never use the vacuum cleaner without filters.
It may harm the motor.
3) When the cloth bag, the motor safety filter and the
exhaust filter are soiled, wash the filter with neutral
cleanser.
NOTE : Re-use of the cloth bag, motor safety filter.
• Never wash the filter in a washing machine or in a
dishwasher.
• Never use hot water for washing the filter.
•
Re-use the filter after drying it completely in the shade.
• Do not dry near fire or direct sun ray.
2. Dust indicator
When the dust bag is full of dust, the indicator turns to red
(Suction power will be reduced). Then, change the paper
bag with the new one or clean the cloth bag.
3. Avoid sucking such materials as:
1) Liquid or wet dust :
Clogs the ventilation holes, reduces the suction power
significantly and harms the motor.
2) Inflammable liquids such as benzene, alcohol or
solvents.
3) Burning objects such as cigarette butts.
4) Bulky objects such as vinyl, paper etc.
5) Sharp objects such as needles, pins, metal or glass
particles etc.
4. Attachments
• Nozzle : for cleaning wooden floor, the room floor and
carpet.
• Crevice Tool : for cleaning any crevice, inside corners
of window frames. (However, do not use
the crevice tool more than 20 minutes.)
• Dusting Brush : for delicate vacuuming of fabrics on the
furniture, curtains, etc.
• Upholstery Nozzle : for vacuuming the dust on the
upholstery.
5. Close supervision is necessary when this
vacuum cleaner is used by or near children.
Children's carelessness may cause damage to
the cleaner or injure persons.
6. Air exhausted from the vacuum cleaner is
normally warm. But if extraordinarily hot air is
exhausted, check if the telescopic tube, hose
or dust bag is clogged or not.
7. Electric shock could occur if used outdoors or
on wet surfaces.
CAUTIONS
BEFORE ATTEMPTING TO SERVICE OR ADJUST ANY PART OF THE VACUUM CLEANER, DISCONNECT THE
ELECTRICAL POWER SUPPLY CORD FROM THE WALL OUTLET.
1. Motor exchange
1) Separate the Body Cover and Body Base by
unfastening the screws.
2) After disconnecting the lead wires, replace the old motor
with a new one.
2. In case of exchanging other parts, refer to the
exploded view.

-4-

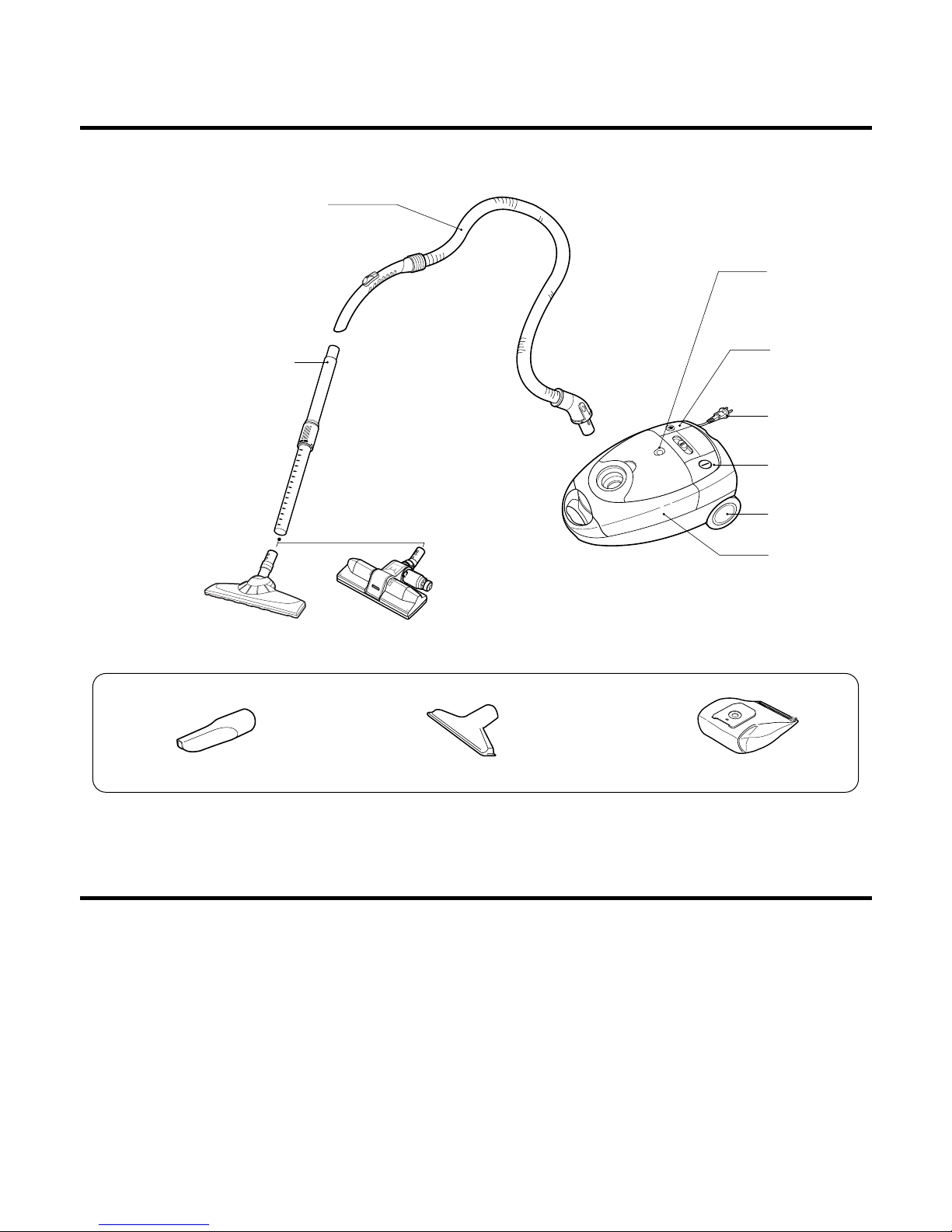

DESCRIPTION
CANISTER
Dust Indicator
Cord Reel
Button
Nozzle Assembly,Floor Nozzle Assembly,Quilt
Telescopic Pipe
Assembly
Flexible Hose Assembly
Filter cover
Wheel
Switch Button
(ON/OFF)
Power Cord
Nozzle Assembly,Upholstery Filter Assembly,ClothNozzle,Crevice
ATTACHMENT S
SPECIFICATIONS
• MODEL : REFER TO THE COVER PAGE
• POWER SOURCE : ON RATING PLATE
• POWER CONSUMPTION : ON RATING PLATE
• POWER CONTROL :
- MAIN : SLIDE CONTROL ON BODY COVER
• CAPACITY : 5.3ℓ/ 6ℓ
• CORD LENGTH : 6 m
• NET WEIGHT : 7.4 kg
• PACKING WEIGHT : 8.5 kg
• NET DIMENSION : 305×522×235 (W×D×H)mm
•
PACKING DIMENSION :358×577×370 (W×D×H)mm
• ATTACHMENTS
HOSE ASSEMBLY, FLEXIBLE ........................................1EA
PIPE ASSEMBLY, TELESCOPIC ....................................1EA
NOZZLE ASSEMBLY, FLOOR ........................................1EA
NOZZLE ASSEMBLY,QUILT ...........................................1EA
NOZZLE,CREVICE............................................................1EA
NOZZLE ASSEMBLY, UPHOLSTERY ............................1EA
FILTER ASSEMBLY,CLOTH ............................................1EA
• This specifications are subject to change according to the buyer's request.

• Almost all the parts of this vacuum cleaner can be
assembled with a screw driver and each connecting
component easily fits each other.
Disassemble one by one referring to the exploded
view.
•
If possible, don’t disassemble except for the necessary
parts. It is not necessary to disassemble the parts that
are not detailed in the exploded view.
1. Body Cover Assembly Replacement
1) Grasp carrying handle and open filter cover by lifting
latch.
2) Open the filter cover and remove the two screws
fastening the body base in the direction of arrow.
3) Lift body cover in the direction of the arrow.
4) Strip off the lead wires from the push switch and others.
2. Filter cover assembly replacement
1) Push the hinge side by inserting flat screw driver in
crack between hinge and body cover.
-5-
Filter Cover
Set Latch
Carrying
Handle
Push Switch
Hinge
DISASSEMBLY
NOTE : Before attempting to service or adjust any part of the vacuum cleaner, disconnect the electrical power supply cord
from the wall outlet.

-6-
3. Push Switch Assembly Replacement
1) Push the s/w button hook in the direction of the arrow.
2) Push the push switch down grasping the wings of push
switch by long nose.
4. PWB Assembly Replacement.
1) Push the hook carefully and take out the control cover.
2) Remove the two screws fastening the P.W.B Assembly on the
body cover.
2) When reassembling, assemble after sliding the lever of
PWB Assembly and control knob to the left side.
5. Motor Assembly Replacement
• Lift the motor assembly in direction of the arrow after
stripping off the lead wires.
• Push the hook side by inserting flat screw driver in the
direction of the arrow in case of motor case.
6. Cord Reel Assembly Replacement
• Lift the cord reel assembly from the body base in direction
of the arrow.
Push Switch
Long Nose
Cord Reel
Button
Lever
Control Knob
Motor Assembly
Cord Reel Assembly

-7-
TROUBLE SHOOTING GUIDE
1. SWITCH ON BUT MOTOR DOES NOT TURN
2. SWITCH ON, MOTOR DOES NOT TURN BUT BUZZES
CHECKING CAUSE SOLUTION
Check the power
source
Abnormal
Normal
Poor plug insertion Insert again
The fuse is melt down in the
coverknife switch Exchange the fuse
Power cord cut Repair or exchange
Interior lead wire cut Exchange the lead wire
Motor armature cut Exchange the motor
Ball bearing defacement Exchange the motor
Impeller hindrance
(Caused by foreign matters)
Remove the foreign
matters
Motor(stator armature) coil
cut or damaged Exchange the motor
Poor contact carbon
brush defaced Exchange or repair
Poor switch contact point Exchange the switch

-8-
3. SWITCH OFF BUT MOTOR TURNS
4. WEAK SUCTION POWER
Poor connection Repair
Poor switch Exchange the switch
Carbon brush defaced Exchange the motor
Motor armature cut
Low rotation speed
Exchange the motor
Foreign matters attached to
the impeller
Remove the foreign
matters
Low voltage Inquire to the Power utility
company
Hose and extension wands
are clogged with foreign
matters
Remove the foreign
matters in the hose or
extension wands
Filter bag or cloth bag is filled
with inhaled foreign matters
Motor turns normally,
but suction power is
weak
Remove the foreign
matters or exchange the
filter bag or clean the cloth bag
The slide knob on the handle
is opened
Close the slide knob by
sliding it

-9-
5. VIBRATION NOISES
6. RADIO, TV RECEPTION DISTURBANCE
7. IMPROPER TUBE OF NOZZLE CONNECTION
Loose parts Secure firmly
Unbalanced motor assembly Exchange or repair the motor
Foreign matters are attached
to the impeller Remove the foreign matters
Poor cord, lead wire Exchange cord, lead wire
Poor rectification of carbon
brush Exchange the the motor
Bent connection parts Exchange the parts
Poor connection
(Caused by foreign matters)
Remove the foreign matters
and reconnect
Poor electric connector or
receiver
Repair the electric connector or
receiver
Poor capacitor Exchange the capacitor
Poor rectification of carbon
brush Exchange the motor
Armature is cut or foreign
matters
Exchange motor
Remove foreign matters

-10-
SCHEMATIC DIAGRAM
PRINTED CIRCUIT BOARD

-11-
AHJBA1
AJWBA1
MCKBH1
AHDBR1
MAMBB1
MDSBA1
MDJBM1
MEGBC1
MEGBC2
ACQBM1
MCQBM1
EAUBA1
MDSBA2
MCQBA1

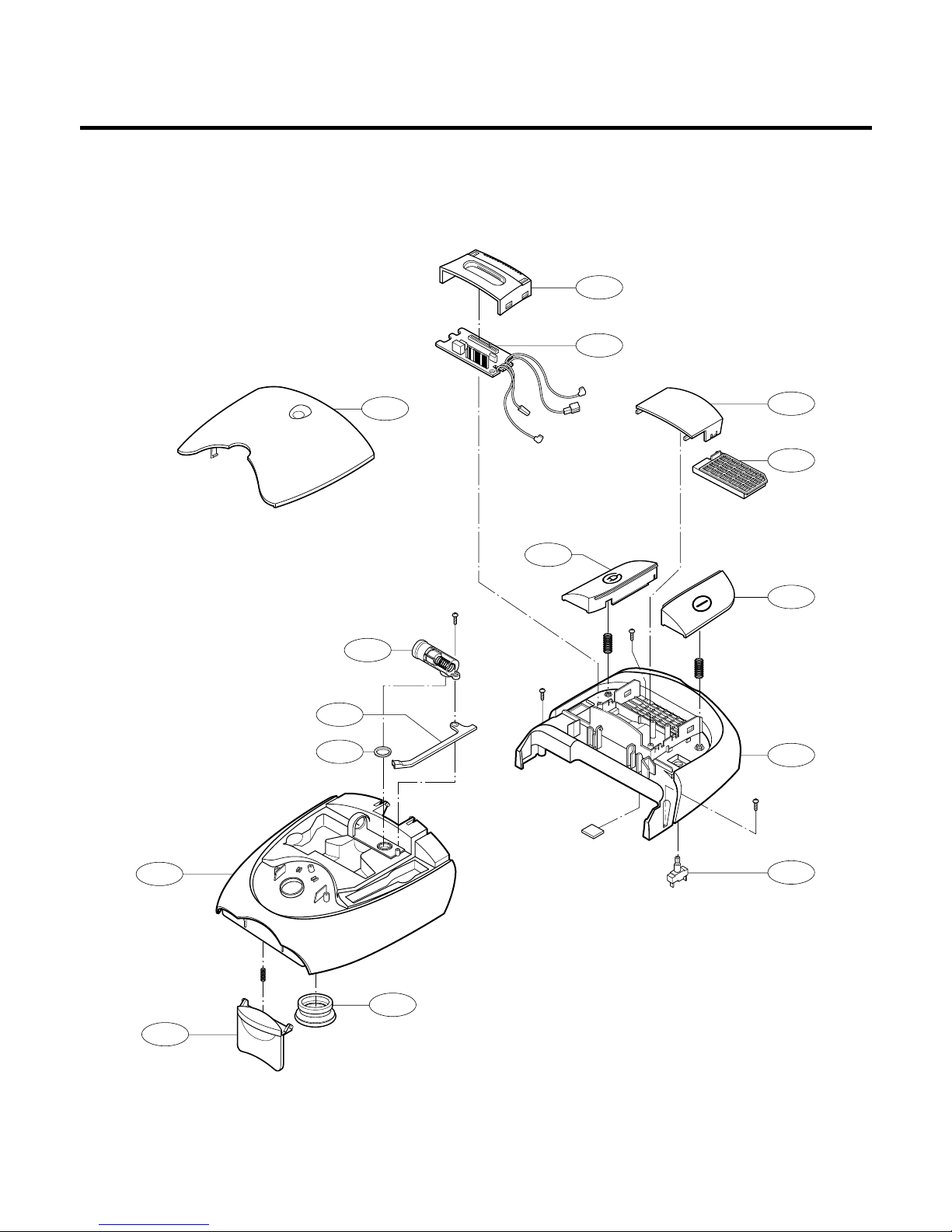

EXPLODED VIEW
V-4800HTV(V-C4380HTV.ACVPDEI)
BASE ASSEMBLY, BODY
#EV#

-12-
MCKCC1
EBRBM1
MFGCA1
MDSCA1
MCKCG1
MCKCF1
AESCA1
MBGCC1
MCKCE1
MCKCB1
EBFCP1
MDSCA2
MCKCW1
MBGCR1
ADQBE1
COVER ASSEMBLY, BODY
#EV#

-13-
AEMAF1
AGRPT1
AGBN44
AGBN58
ADQBH1
AGBCN1
MFVAC1

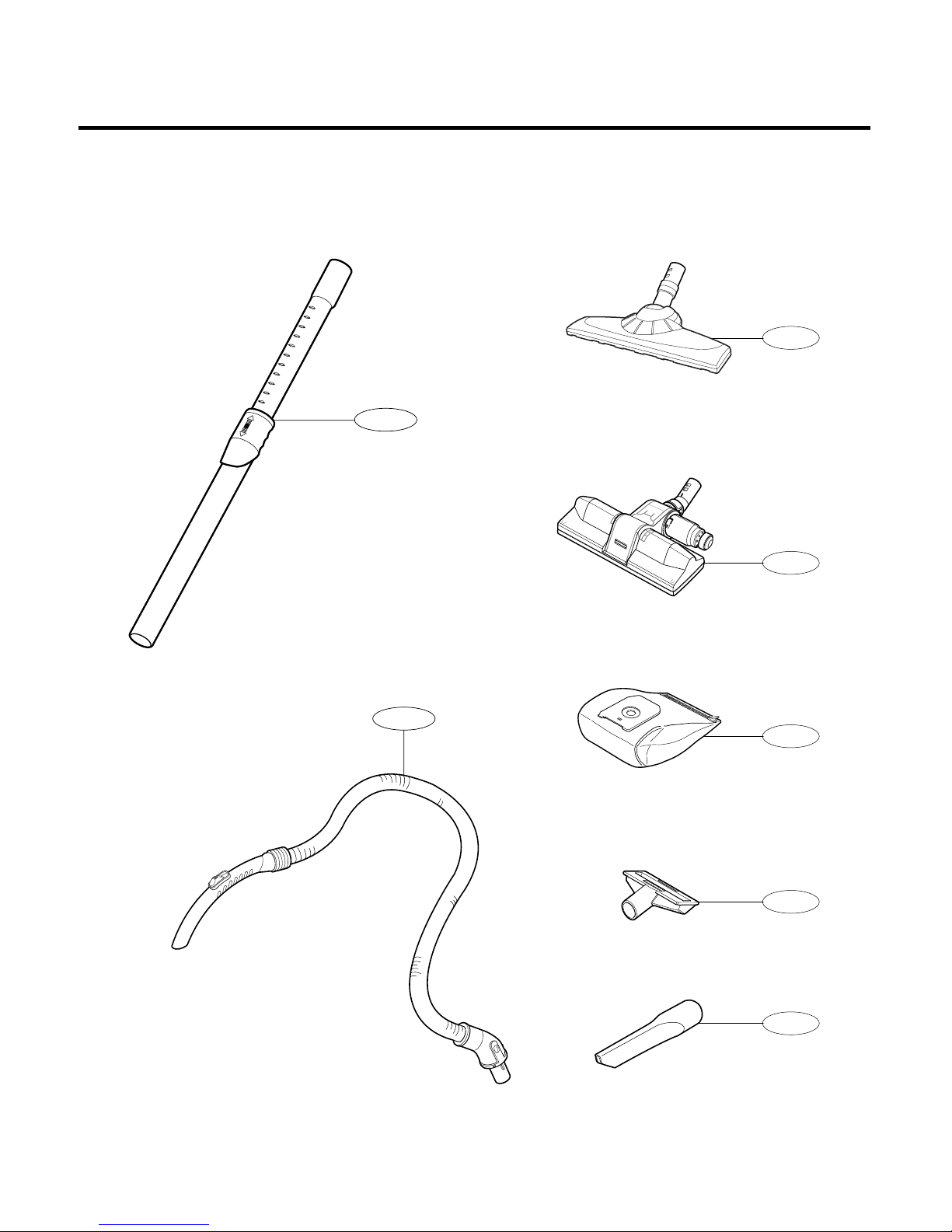

ACCESSORIES
#EV#

-14-
REPLACEMENT PARTS LIST
ABCCB1 5203FI2068A Brush Assembly,Dust R
ACQBM1 3551FI2418A Cover Assembly,Motor R
ADQBE1 5231FI3772B Filter Assembly,Exhaust R
ADQBH1 5231FI2444F Filter Assembly,Cloth R
ADQBH1 5231FI2471B Filter Assembly,Paper R
AEMAF1 5215FI1331K Hose Assembly,Flexible R
AESCA1 3520FI3475F Indicator Assembly R
AGBCN1 5248FI2259C Nozzle Assembly,Upholstery R
AGBN44 AGB32599101 Nozzle Assembly,Floor R
AGBN58 5249FI1411B Nozzle Assembly,Quilt R
AGRPT1 5201FI2487A Pipe Assembly,Telescopic R
AHDBR1 4687FI1480Y Reel Assembly R
AHJBA1 4441FI3608B Roller Assembly R
AJWBA1 4660FI2417A Wheel R
EAUBA1 4681FI2462A AC Motor Assembly R
EBFCP1 6601FI3149B Switch,Push Button R
EBRBM1 6871FX2123C PCB Assembly,Main R
MAMBB1 3040FI1463A Base,Body R
MAY000 3890FG1234A Box,Color R
MBGCC1 5020FI2340C Button,Control R
MBGCR1 5020FI2341C Button,Cord Reel R
MCKBH1 3550FI1633C Cover,Handle R
MCKCB1 3550FI1620A Cover,Body R
MCKCC1 3550FI2535A Cover,Control R
MCKCE1 3550FI1632C Cover,Exhaust Filter R
MCKCF1 3550FI1621C Cover,Filter R
MCKCG1 3550FI1622C Cover,Accessory R
MCKCW1 3550FI3820A Cover,Wire R
MCQBA1 3940FI3646A Damper,Absorbing R
MCQBM1 3920FI2416A Damper,Motor Mount R
MDJBM1 5231FI4518E Filter,Motor Safety R
MDSBA1 3920FI1278A Gasket R
MDSBA2 3920FI3775A Gasket R
MDSCA1 4036FI4074A Gasket R
MDSCA2 4036FI4334C Gasket R
MEGBB1 3500FI2238D Holder,Bag R
MEGBC1 4930FI2442A Holder,Cord R
MEGBC1 4930FI3791B Holder,Cord R
LOC. NO. PART NO. DESCRIPTION
SVC REMARK
R : SERVICE PARTS

-15-
MEGBC2 4930FI2441A Holder,Cord R
MEGCH1 4930FI2459B Holder,Suction Pipe R
MFGCA1 4026FI2412C Locker R
MFL552 3828FI2844B Manual,Owners R
MFVAC1 5058FI3584A Nozzle,Crevice R
LOC. NO. PART NO. DESCRIPTION
SVC REMARK
R : SERVICE PARTS
