LG VK53 NH Series User manual

Model
Language
Page
)H*W(eziSlairetaM
Designer
Designer Confirm
Color(cover/body)
Part No. Description
Date
No. Date
Chage Record
Change content ECO No.
1
2
3
4
5
6
7
8
9
Paper
2015.10.25
80
MFL67854620
1/1
145×205（mm）
N.T.Luan
Owners Manual
English/Arabic/Hebrew
VK53**NH***/VK53**NR***/VK53**NN***

VK53**NH***
VK53**NR***
VK53**NN***
NEW TYPE CYCLONE VACUUM CLEANER
This information contains important instructions for the safe use and maintenance
of the vacuum cleaner. Especially, please read all of the information on page 3, 4, 5,6
for your safety. Please keep this manual in an easily accessible place and refer to it
anytime.
MFL67854620

3~6
7
7~10
11~12
13
14
15
16
17
What to do if your vacuum cleaner does not work ......................................
26
What to do when suction power decreases
..................................................
26
Cleaning Turbine nozzle ................................................................................................................ 18
Using accessory nozzles.......................................................................................................... 19~20
Emptying dust tank ........................................................................................................................ 21
Cleaning dust tank ......................................................................................................................... 22
Cleaning filters and air guide tank ..........................................................................................
23
Cleaning exhaust filter ................................................................................................................... 24
Assembling Tank Cover & Tank assembly ...................................................................................... 25
2

IMPORTANT SAFETY INSTRUCTIONS
Read and follow all instructions before using your vacuum cleaner to prevent the risk of fire,electric
shock, personal injury,or damage when using the vacuum cleaner.This guide do not cover all possible
conditions that may occur.Always contact your service agent or manufacturer about problems that you do
not understand. This appliance complies with the following ECDirectives:-2006/95/EC Low Voltage
Directive-2004/108/EC EMC Directive.
WARNING
CAUTION
This is the safety alert symbol.
This symbol alerts you to potential hazards that can kill or hurt you and others.
All safety messages will follow the safety alert symbol and either the word “WARNING” or
“CAUTION.” These words mean:
This symbol will alert you to hazards or unsafe practices which could cause
serious bodily harm or death.
This symbol will alert you to hazards or unsafe practices which could cause
bodily injury or property damage.
WARNING
•
•
•
Do not use the vacuum cleaner if the power cord
or plug is damaged or faulty.
If the power cord is damaged, it must be replaced by
an approved LG Electronics Service Agent to avoid a
hazard.
This appliance is not intended for use by persons
(including children) with reduced physical, sen-
sory or mental capabilities, or lack of experience
and knowledge, unless they have been given su-
pervision or instruction concerning use of the ap-
pliance by a person responsible for their safety.
Children should be supervised to ensure that they do
not play with the appliance.
This appliance can be used by children aged from
8 years and above and persons with reduced
physical, sensory or mental capabilities or lack of
experience and knowledge if they have been given
3

•
Do not plug in if control knob is not in
OFF position.
Personal injury or product damage could result.
(Depending on model)
• Turn off all controls before unplugging.
Failure to do so could result in electrical
shock or personal injury.
• Do not change the plug in any way.
Failure to do so could result in electrical
shock or personal injury or product damage.
Doing so result in death. If plug does not fit,
contact a qualified electrician to install the
proper outlet.
• Repairs to electrical appliances may
only be performed by qualified service
engineers.
Improper repairs may lead to serious hazards
for the user.
• Do not use an extension cord with this
vacuum cleaner
Fire hazard or product damage could result.
• Using proper voltage.
Using improper voltage may result in damage
to the motor and possible injury to the user.
Proper voltage is listed onthe bottom of vacuum
cleaner.
WARNING
• Do not continue to vacuum if any parts
appear missing or damaged.
Personal injury or product damage could result.
In these cases, contact LG Electronics Service
Agent to avoid hazard.
• Disconnect electrical supply before servicing
or cleaning the unit or when cleaner is not in
use.
Failure to do so could result in electrical shock or
personal injury.
•
•
Do not vacuum flammable or explosive
substances such as gasoline, benzene, thinners,
propane (liquids or gases).
The fumes from these substances can create a fire
hazard or explosion. Doing so could result in death
or personal injury.
•
Do not handle plug or vacuum cleaner with
wet hands.
Doing so could result in death or electrical shock.
•
•
Do not unplug by pulling on cord.
Doing so could result in product damage or electrical
shock. To unplug, grasp the plug, not the cord.
Keep hair, loose clothing, fingers, and all parts
of the body away from openings and moving
parts.
Failure to do so could result in electrical shock or
personal injury.
•
Do not pull or carry by cord, use cord as a
handle, close a door on cord, or pull cord
around sharp edges or corners. Do not run
vacuum cleaner over cord. Keep cord away
from heated surfaces.
Failure to do so could result in electrical shock
or personal injury or fire or product damage.
•
Do not allow to be used as toy. Close
attention is necessary when used by or
near children.
Personal injury or product damage could result.
• Do not use vacuum cleaner if it has been
under water.
Personal injury or product damage could result.
In these cases, contact LG Electronics Service
Agent to avoid hazard.
Do not vacuum liquid, blade, gesso,
substances, or small particles like cement,
burning or smoking such as cigarettes, or
hot ashes in cleaning.
supervision or instruction concerning use of the
appliance in a safe way and understand the haz-
ards involved. Children shall not play with the ap-
pliance. Cleaning and user maintenance shall not
be made by children without supervision.
4

CAUTION
• Do not put any objects into openings.
Failure to do so could result in product
damage.
• Do not use with any opening blocked:
keep free of dust, lint, hair, and anything
that may reduce air flow.
Failure to do so could result in product
damage.
• Do not use vacuum cleaner without
dust tank and/or
filters in place.
Failure to do so could result in product
damage.
• Always clean the dust bin after vacuuming
carpet cleaners or fresheners, powders
and fine dust.
These products clog the filters,reduce airflow
and can cause damage to the cleaner.
Failure to clean the dust bin could cause
permanent damage to the cleaner.
(Depending on model)
• Do not use vacuum cleaner to pick up
sharp hard objects, small toys, pins,
paper clips, etc.
They may damage the cleaner or dust bin.
• Store the vacuum cleaner indoors.
Put the vacuum cleaner away after use to
prevent tripping over it.
• Only use parts produced or
recommended by LG Electronics
Service Agents.
Failure to do so could result in product
damage.
• Use only as described in this manual.
Use only with LG recommended or
approved attachments and accessories.
Failure to do so could result in personal
injury or product damage.
• To avoid personal injury and to prevent
the machine from falling when cleaning
stairs, always place it at the bottom of
stairs.
Failure to do so could result in personal
injury or product damage.
• Use accessory nozzles in sofa mode.
Failure to do so could result in product
damage.
• Don ’t grasp the tank handle when you
are moving the vacuum cleaner.
The vacuum cleaner s body may fall when
separating tank and body. Personal injury
or product damage could result. You should
grasp the carrier handle when you
aremoving the
vacuum cleaner.
(Depending on model)
• If after emptying the dust tank the
indicator light is on(red), clean the dust
tank.
Failure to do so could result in product
damage. (Depending on model)
• Make sure the filters (exhaust filter and
motor safety filter) are completely
dry before replacing in the machine.
Failure to do so could result in product damage.
• Do not dry the filter in an oven or
microwave.
Failure to do so could result in fire hazard.
• Do not dry the filter in a clothes dryer.
Failure to do so could result in fire hazard.
• Do not dry near an open flame.
Failure to do so could result in fire hazard.
IMPORTANT SAFETY INSTRUCTIONS
WARNING
• Keep children away and beware of
obstructions when rewinding the cord
to prevent personal injury.
The cord moves rapidly when rewinding.
(Depending on model)
• The hose contains electrical wires. Do not
use it if it is damaged, cut or punctured.
Failure to do so could result in death,or electrical
shock. (Depending on model)
5

Thermal protector :
This vacuum cleaner has a special thermostat that protects the vacuum cleaner in case of
motor overheating. If the vacuum cleaner suddenly shuts off, turn off the switch and unplug
the vacuum cleaner. Check the vacuum cleaner for possible source of overheating such as
a full dust tank, a blocked hose or clogged filter. If these conditions are found, fix them and
wait at least 30 minutes before attempting to use the vacuum cleaner. After the 30 minute
period, plug the vacuum cleaner back in and turn on the switch.
CAUTION
IMPORTANT SAFETY INSTRUCTIONS
This hose contains electrical connections:
- do not use to suck up water;
- do not immerse in water for cleaning;
- the hose should be checked regularly and must not be
used if damaged.
6

7

8

9

3

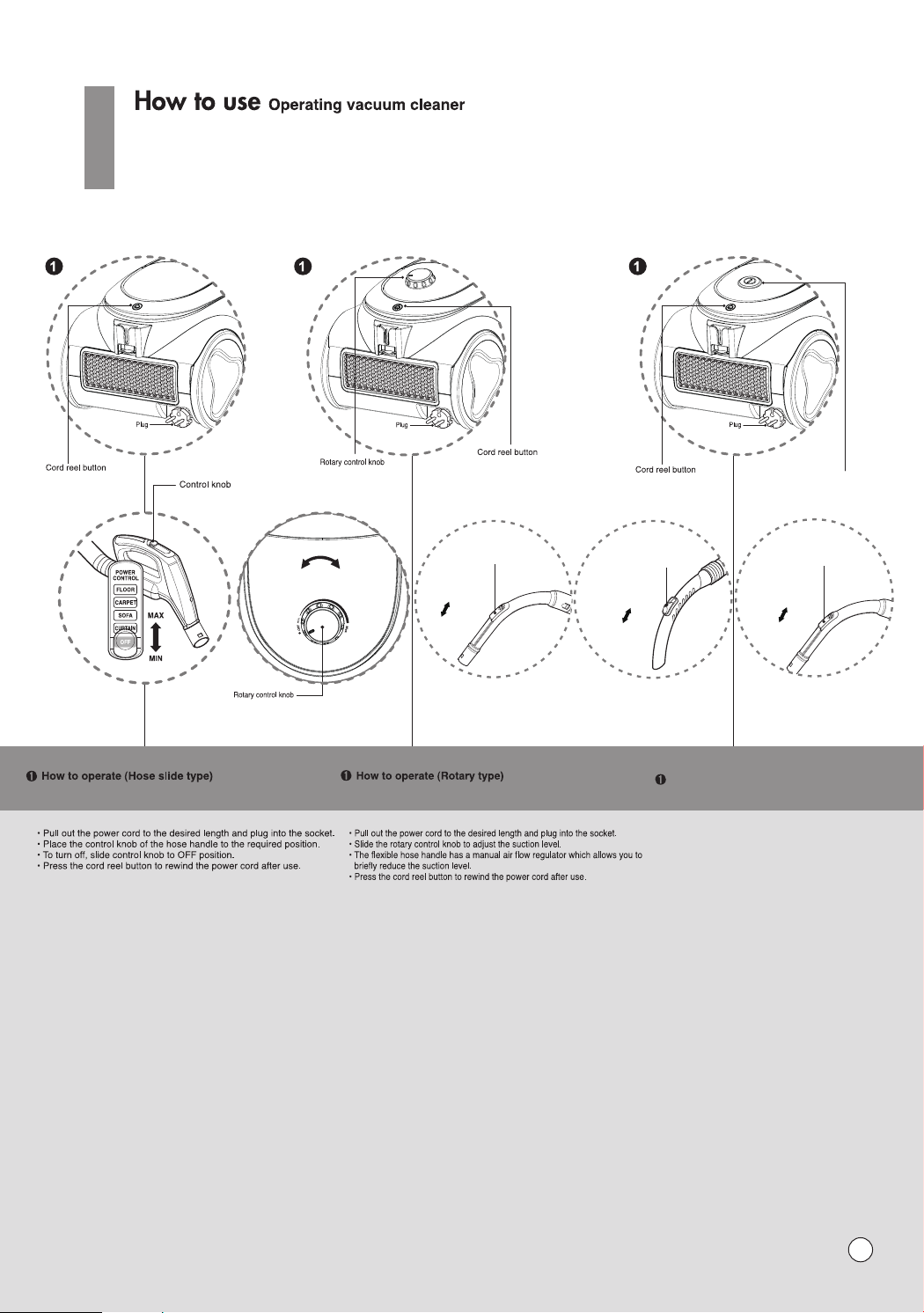

ON/OFF type
10

Power switch
MIN MAX
Air Flow Regulator
Open
Close
• Pull out the power cord to the desired length and plug
into the socket.
• Press power switch to start the vacuum cleaner.
• The flexible hose handle has a manual air flow regulator
which allows you to briefly reduce the suction level.
• Press the cord reel button to rewind the power cord after use.
How to operate (ON/OFF type)
Air Flow Regulator Air Flow Regulator
Open
Open
Close
Close
11

32
12

13

14

15

16

17

18

19
