LG VC74070NCAQ User manual
VC74070NCAQ
www.lg.com
MFL68480307
OWNER’S MANUAL
LG CORDLESS VACUUM CLEANER
This information contains important instructions for the safe use and maintenance
of the vacuum cleaner. Especially, please read all of the information on page 7, 8, 9
for your safety. Please keep this manual in an easily accessible place and refer to it
anytime.
3
目錄
Table of contents
重要安全說明.......................................................................................................... 4~6
Important safety instructions.............................................................................. 7~9
使用方式 ............................................................................................................. 10~19
How to use
.............................................................................................................10~11
Assembling vacuum cleaner
.................................................................................................................. 12
Operating vacuum cleaner
................................................................................. 13
Using carpet and floor nozzle and Hard floor nozzle
..................................................................................................................... 14
Using accessory nozzles
.................................................................................................................. 15
Charging the Vacuum Cleaner
............................................................................................................................. 16
Emptying dust tank
............................................................................................................................. 17
Cleaning dust tank
..................................................................................... 18
Cleaning air filter and motor safety filter
..................................................................................................................... 19
Cleaning exhaust filter
若真空吸塵器無法運作要如何處理 .......................................................................... 20
What to do if your vacuum cleaner does not work
................................................................................. 20
What to do when the vacuum cleaner does not work
............................................................................................ 20
What to do when the suction performance decreases
4
重要安全說明
警告
注意事項
注意事項
警告
5
警告
重要安全說明
•在維修或清潔裝置前或不使用吸塵器時，請切斷電源供
應。
•請勿使用真空吸塵器吸取正在燃燒或冒煙的物品，例如
香煙或熱灰燼。
•請勿清掃可燃性或爆炸性物質，例如汽油、苯、稀釋
劑、丙烷 (液體或氣體)。
•請勿在手潮濕時操作插頭或真空吸塵器。
•請勿用拉電線的方式來拔下插頭。
•請讓頭髮、寬鬆衣物、手指和所有身體部位遠離開口處
及移動的零件。
•軟管含有電纜線。若軟管受損、被刺穿，請勿使用。
•請勿當作玩具使用。 當由兒童使用或在兒童附近使用
時，請務必格外注意。
•若電源線或插頭受損或故障，請勿使用真空吸塵器。
•若真空吸塵器泡在水中，請勿使用。
•若任何零件似乎遺失或受損，請勿繼續使用吸塵器。
•請勿將延長線使用在本真空吸塵器上。
•請使用正確電壓。
•在拔下插頭之前請先關閉所有控制器。
•請勿以任何方式更換插頭。
•電器維修僅可以由合格維修工程師執行。
•請勿用水清洗真空吸塵器機身。
•請勿讓任何金屬接觸充電端子以及機身與軟管的連接接
頭。
•在清潔機身之前，請拔下電源線並關閉主電源。 請務必
使用乾布來清潔機身。
•請避免將產品尤其是電池放在靠近任何熱源或陽光直射
的地方。
•在處置電池時，請依照適當的處置方法。
•請勿在浴室中使用本產品。
•當本產品發生問題時，請停止使用吸塵器並關閉主電
源。
•請勿將本產品放在靠近工業油煙或金屬微粒的地方。
•若電池漏液，請避免接觸皮膚或眼睛。 若電池液接觸到
皮膚或眼睛，請立即用大量清水沖洗該部位並尋求醫療
照護。
6
過熱保護器：
注意事項
重要安全說明
•請勿將任何東西放入開口處。
•任何開口處堵塞時請勿使用：清除灰塵、線頭、毛髮以
及任何可能減少氣流的東西。
•在塵箱及/或過濾器未裝好時請勿使用真空吸塵器。
•在使用真空吸塵器清掃地毯 清潔劑或清新劑、粉末或細
灰後，請務必清理集塵筒
•請勿使用真空吸塵器來吸取尖銳硬質 物品、小玩具、別
針、紙夾等。
• 請將真空吸塵器存放在室內。
•真空吸塵器在沒有監督的情況下不適合幼童或體弱的人
使用。
•僅可使用 LG 電子產品服務代理商生產或建議的零件。
•僅可依照本手冊所述的方式使用。僅可使用 LG 建議或
許可的附件和配件。
•為避免人身傷害並防止機器掉落，在清潔樓梯時請將機
器遠放在樓梯底部。
•在移動真空吸塵器時請勿抓住塵箱把手。
•請確定過濾器 (馬達安全過濾器及空氣過濾器) 在機器中
更換時為完全乾燥。
•請勿在烤箱或微波爐中烘乾過濾器。
•請勿在烘衣機中烘乾過濾器。
•請勿在靠近開放火焰的地方進行烘乾。
•請勿使用尚未乾燥的過濾器。
•若電源線損壞，必須由經過核可的 LG 電子產品服務代
理商更換，以免造成危險。
•身體、感知或心理能力較弱者或缺乏經驗及知識的人群
(包括兒童) 不宜使用該電器，除非有負責其安全的人員
給予有關使用該電器的監督或指引。
•用於主機身的電池是專為本真空吸塵器而設計。切勿將
該電池用於任何其他產品。
•請勿使用地板吸嘴來清潔高層區域。
•在弄乾過濾器時，請勿使用加熱裝置如乾燥器或加熱
器。將其留置在通風處並讓其完全乾燥。
•在吸嘴頭仍連在機身上時請勿搬運真空吸塵器。
•請經常清空集塵筒以使其保持清潔。
•請務必在過濾器裝置已裝在集塵筒中時才使用真空吸塵
器。
•當主電源開啟時切勿拆下軟管或管子。
•僅可將本真空吸塵器用於家庭用途。
7
IMPORTANT SAFETY INSTRUCTIONS
Read and follow all instructions before using your vacuum cleaner to prevent the risk of fire, electric shock, personal
injury, or damage when using the vacuum cleaner. This guide do not cover all possible conditions that may occur.
Always contact your service agent or manufacturer about problems that you do not understand. This appliance
complies with the following EC Directives :-2006/95/EC Low Voltage Directive -2004/108/EC EMC Directive.
This is the safety alert symbol.
This symbol alerts you to potential hazards that can kill or hurt you and others.
All safety messages will follow the safety alert symbol and either the word “WARNING” or “CAUTION.”
These words mean:
This symbol will alert you to hazards or unsafe practices which could cause serious
bodily harm or death.
This symbol will alert you to hazards or unsafe practices which could cause bodily
injury or property damage.
CAUTION
WARNING
WARNING
1. This appliance is not intended for use by persons
(including children) with reduced physical, sensory
or mental capabilities, or lack of experience
and knowledge, unless they have been given
supervision or instruction concerning use of the
appliance by a person responsible for their safety.
2. Children should be supervised to ensure that they
do not play with the appliance.
3. If the supply cord is damaged, it must be replaced
by LG Electronics Service Agent in order to avoid
a hazard.
4. This appliance can be used by children aged from
8 years and above and persons with reduced
physical, sensory or mental capabilities or lack
of experience and knowledge if they have been
given supervision or instruction concerning use of
the appliance in a safe way and understand the
hazards involved. Children shall not play with the
appliance. Cleaning and user maintenance shall
not be made by children without supervision.
8
WARNING
5.
CAUTION: This hose contains electrical connections:
– do not use to suck up water ;
– do not immerse in water for cleaning;
– the hose should be checked regularly and must
not be used if damaged.
IMPORTANT SAFETY INSTRUCTIONS
WARNING
• Disconnect electrical supply before servicing or
cleaning the unit or when cleaner is not in use.
Failure to do so could result in electrical shock or
personal injury.
• Do not use vacuum cleaner to pick up anything that is
burning or smoking such as cigarettes, or hot ashes.
Doing so could result in death, fire or electrical shock.
• Do not vacuum flammable or explosive substances
such as gasoline, benzene, thinners, propane (liquids
or gases).
The fumes from these substances can create a fire
hazard or explosion. Doing so could result in death or
personal injury.
• Do not handle plug or vacuum cleaner with wet hands.
Doing so could result in death or electrical shock.
• Do not unplug by pulling on cord.
Doing so could result in product damage or electrical
shock. To unplug, grasp the plug, not the cord.
• Keep hair, loose clothing, fingers, and all parts of the
body away from openings and moving parts.
Failure to do so could result in electrical shock or
personal injury.
• The hose contains electrical wires. Do not use it if it is
damaged, cut punctured.
Failure to do so could result in death, or electrical shock.
• Do not allow to be used as toy. Close attention is
necessary when used by or near children.
Personal injury or product damage could result.
• Do not use the vacuum cleaner if the power cord or
plug is damaged or faulty.
Personal injury or product damage could result. In these
cases, contact LG Electronics Service Agent to avoid
hazard.
• Do not use vacuum cleaner if it has been under water.
Personal injury or product damage could result. In these
cases, contact LG Electronics Service Agent to avoid
hazard.
• Do not continue to vacuum if any parts appear
missing or damaged.
Personal injury or product damage could result. In these
cases, contact LG Electronics Service Agent to avoid
hazard.
•
Do not use an extension cord with this vacuum cleaner.
Fire hazard or product damage could result.
• Using proper voltage.
Using improper voltage may result in damage to the
motor and possible injury to the user. Proper voltage is
listed on the bottom of vacuum cleaner.
• Turn off all controls before unplugging.
Failure to do so could result in electrical shock or
personal injury.
• Do not change the plug in any way.
Failure to do so could result in electrical shock or
personal injury or product damage. Doing so result in
death. If plug does not fit, contact a qualified electrician to
install the proper outlet.
If the supply cord is damaged, it must be replaced by
the manufacturer, its service agent or similarly qualified
persons in order to avoid a hazard.
• Repairs to electrical appliances may only be
performed by qualified service engineers.
Improper repairs may lead to serious hazards for the user.
• Do not wash the body of the vacuum cleaner with
water.
•
Do not allow any metals to touch the charging terminal
and the connecting joints of the body and hose.
• Before cleaning the body, unplug the power cord and
turn off the main power. Always use a dry cloth to
clean the body.
• Avoid placing the product, the battery in particular,
near any heat source or direct sunlight.
There is danger of an explosion or a fire.
• When disposing of batteries, please follow
appropriate disposal methods.
There is danger of an explosion.
• Do not use the product in bathrooms.
• When a problem occurs with the product, stop
vacuuming and turn off the main power.
• Do not place the product near industrial oil fumes or
metal particulates.
Doing so could result in fire or damage to the product.
• If the battery has leaked, avoid contact with the skin
or eyes. If the battery fluid gets on your skin or in
your eyes, immediately rinse the affected part with
plenty of water and seek medical attention.
Battery fluid may cause a burn on your skin or loss of
eyesight.
9
Thermal protector :
This vacuum cleaner has a special thermostat that protects the vacuum cleaner in case of motor
overheating. If the vacuum cleaner suddenly shuts off, turn off the main power switch. Check the
vacuum cleaner for possible source of overheating such as a full dust tank, a blocked hose or
clogged filter. If these conditions are found, fix them and wait at least 30 minutes before attempting
to use the vacuum cleaner. After the 30 minute period, turn on the main power switch.
If the vacuum cleaner still does not run, contact a qualified electrician.
CAUTION
IMPORTANT SAFETY INSTRUCTIONS
• Do not put any objects into openings.
Failure to do so could result in product damage.
• Do not use with any opening blocked: keep free of
dust, lint, hair, and anything that may reduce air
flow.
Failure to do so could result in product damage.
• Do not use vacuum cleaner without the dust tank
and/or filters in place.
Failure to do so could result in product damage.
• Always clean the dust bin after vacuuming carpet
cleaners or fresheners, powders and fine dust.
These products clog the filters, reduce airflow and can
cause damage to the cleaner. Failure to clean the dust
bin could cause permanent damage to the cleaner.
• Do not use vacuum cleaner to pick up sharp hard
objects, small toys, pins, paper clips, etc.
They may damage the cleaner or dust bin.
• Store the vacuum cleaner indoors.
Put the vacuum cleaner away after use to prevent
tripping over it.
• The vacuum cleaner is not intended to use by young
children or infirm people without supervision.
Failure to do so could result in personal injury or product
damage.
• Only use parts produced or recommended by LG
Electronics Service Agents.
Failure to do so could result in product damage.
• Use only as described in this manual. Use only with
LG recommended or approved attachments and
accessories.
Failure to do so could result in personal injury or product
damage.
• To avoid personal injury and to prevent the machine
from falling when cleaning stairs, always place it at
the bottom of stairs.
Failure to do so could result in personal injury or product
damage.
• Do not grasp the tank handle when you are moving
the vacuum cleaner.
The vacuum cleaner’s body may fall when separating
tank and body. Personal injury or product damage could
result.
You should grasp the carrier handle when you are
moving the vacuum cleaner. (Page 12)
• Make sure the filters (motor safety filter and air filter)
are completely dry before replacing in the machine.
Failure to do so could result in product damage.
• Do not dry the filter in an oven or microwave.
Failure to do so could result in fire hazard.
• Do not dry the filter in a clothes dryer.
Failure to do so could result in fire hazard.
• Do not dry near an open flame.
Failure to do so could result in fire hazard.
• Do not use filters that is not dried.
• If the power cord is damaged, it must be replaced by
an approved LG Electronics Service Agent to avoid
a hazard.
• This appliance is not intended for use by persons
(including children) with reduced physical, sensory
or mental capabilities, or lack of experience
and knowledge, unless they have been given
supervision or instruction concerning use of the
appliance by a person responsible for their safety.
Children should be supervised to ensure that they do not
play with the appliance.
• The battery for the main body is designed for this
vacuum cleaner only. Never use it for any other
product.
Doing so could result in re or damage to the product.
• Do not use the oor nozzle to clean high areas.
• When you dry the lter, do not use a heating device
such as a dryer or heater. Leave it in an airy place
and let it dry completely.
• Do not carry the vacuum cleaner with the nozzle
head connected to the body.
• Empty the dust bin frequently to keep it clean.
• Always use the vacuum cleaner with the lter unit
assembled in the dust bin.
• Never remove the hose or pipe when the main power
is On.
• Use this vacuum cleaner for household use only.
10
Spring latch
Telescopic pipe
Hose Handle
➊ 地毯與地板吸嘴 (依機型而定)
Carpet and floor nozzle (depend on model)
Push the nozzle into the telescopic pipe.
➋ 伸縮管
Telescopic pipe
•
•
•
• Push telescopic pipe firmly into
hose handle.
• Grasp the spring latch to expand.
• Pull out the pipe to desired length.
使用方式 組裝真空吸塵器
How to use Assembling vacuum cleaner
11
Fitting pipe
Flexible Hose
Button
Battery indicator
Charging terminal
Attachment Point
咔嗒！
Click!

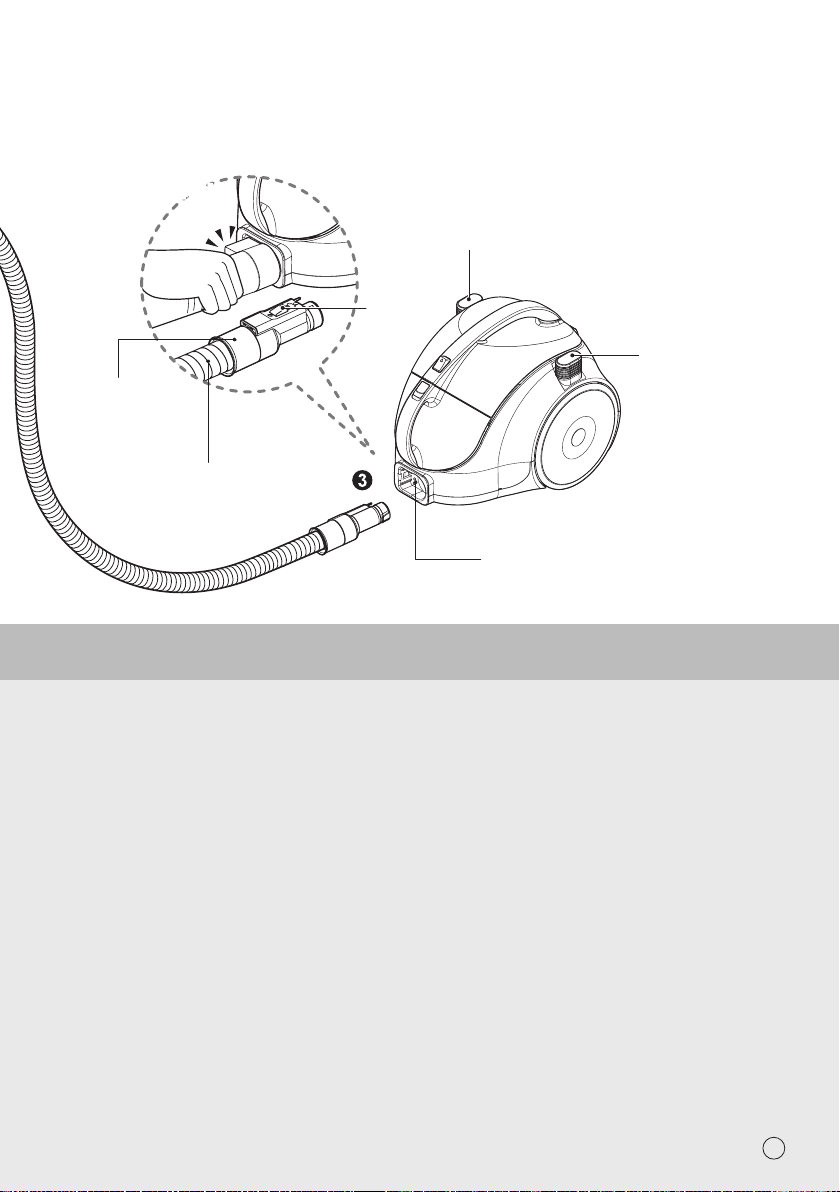

➌ 將軟管連接到真空吸塵器
Connecting the hose to the vacuum cleaner
Push the fitting pipe on the flexible hose into the attachment point
on the vacuum cleaner.
To remove the flexible hose from the vacuum cleaner,press the
button situated on the fitting pipe, then pull the fitting pipe out of the
vacuum cleaner.
12
使用方式 操作真空吸塵器
How to use Operating vacuum cleaner
Charging terminal
Control Button
Power button
MAX line.
Control mode button
Main power button
➋ 清空塵箱
Emptying the dust tank
•
• Always empty the dust
tank when the dust tank
level reaches the MAX
line.
➊ 操作方式
How to operate
•
•
•
•
•
•
• Please disconnect the charging
cord from the product.
• To operate the vacuum cleaner,
press down the power button
for about
1 second.
• When you turn it on, Mode is the
Middle power.
• You can control Mode of the
power using ‘ + ’, ‘ – ’ Button.
• To turn off, Push the power
button.
• After the used, Please connect
the charging cord to the product.
➌ 停駐模式
Park mode
•
•
• Turn off the Main power switch
before park.
• To store during vacuuming,
for example to move a small
piece of furniture or a rug,
use park mode to support the
flexible hose and nozzle.
- Slide the hook on the nozzle
into the slot on the side of
vacuum cleaner.
➍ 存放
Storage
•
•
• After the used product,
please connect the
charging cord to the
product.
• You can store your
vacuum cleaner in a
vertical position by
sliding the hook on the
nozzle into the slot on
the underside of the
vacuum cleaner.
警 告
WARNING
No liquid suction.
Liquid suction can cause defects.
13
• 清潔地毯與地板吸嘴
• Cleaning carpet and floor nozzle
•
• Clean the hole and brush of
nozzle.

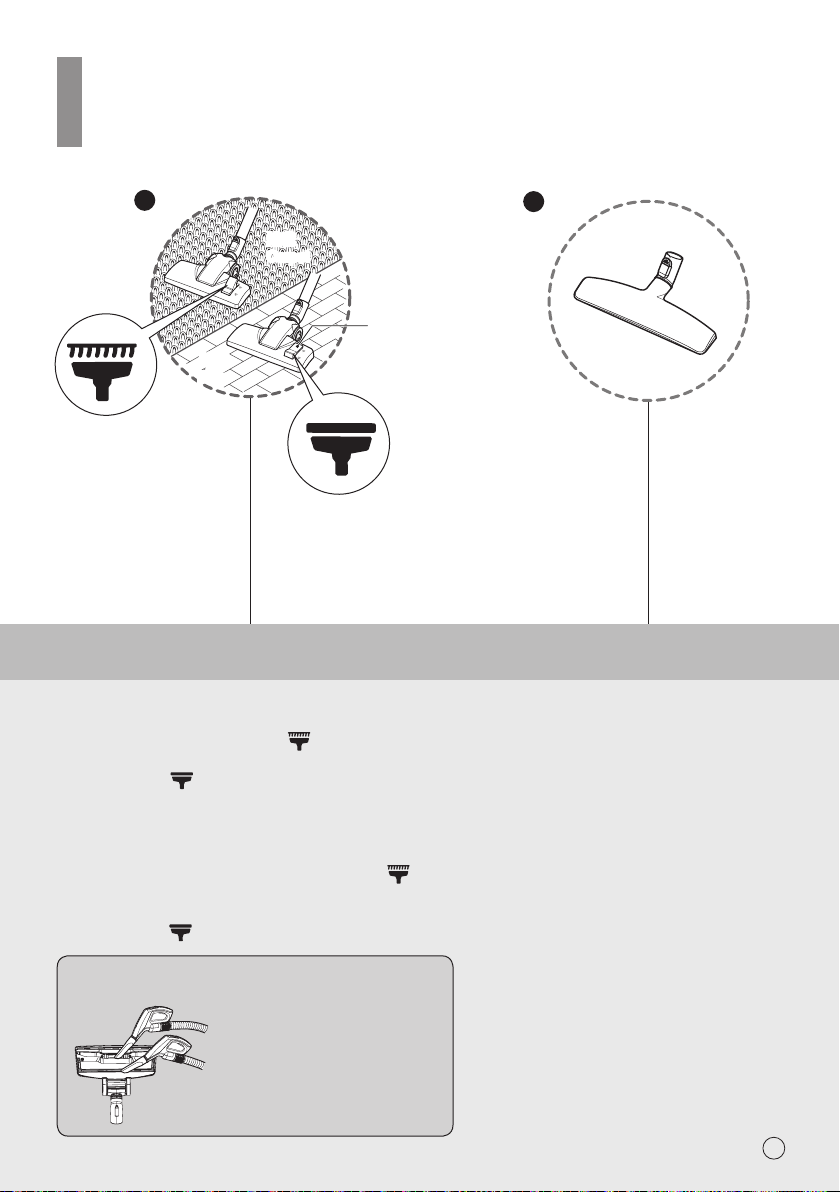

使用方式 使用地毯與地板吸嘴及硬質地板吸嘴
How to use Using carpet and floor nozzle and Hard floor nozzle
1
2
2
地毯
Carpet
地板
Floor
Pedal
➋ 硬質地板吸嘴 (依機型而定)
Hard floor nozzle (depend on model)
•
• Efficient cleaning of hard floors
(wood, linoleum, etc)
➊ 地毯與地板吸嘴 (依機型而定)
Carpet and floor nozzle (depend on model)
• 雙位置吸嘴 配備有踏板，
• 地毯或地墊位置
• 硬質地板位置
• The 2 position nozzle This is equipped with
a pedal which allows you to alter its position
according to the type of floor to be cleaned.
• Carpet or rug position Press the pedal ( ) to
lower brush.
• Hard floor position (tiles, parquets floor) Press
the pedal ( ) to lift the brush up.
14
3 4

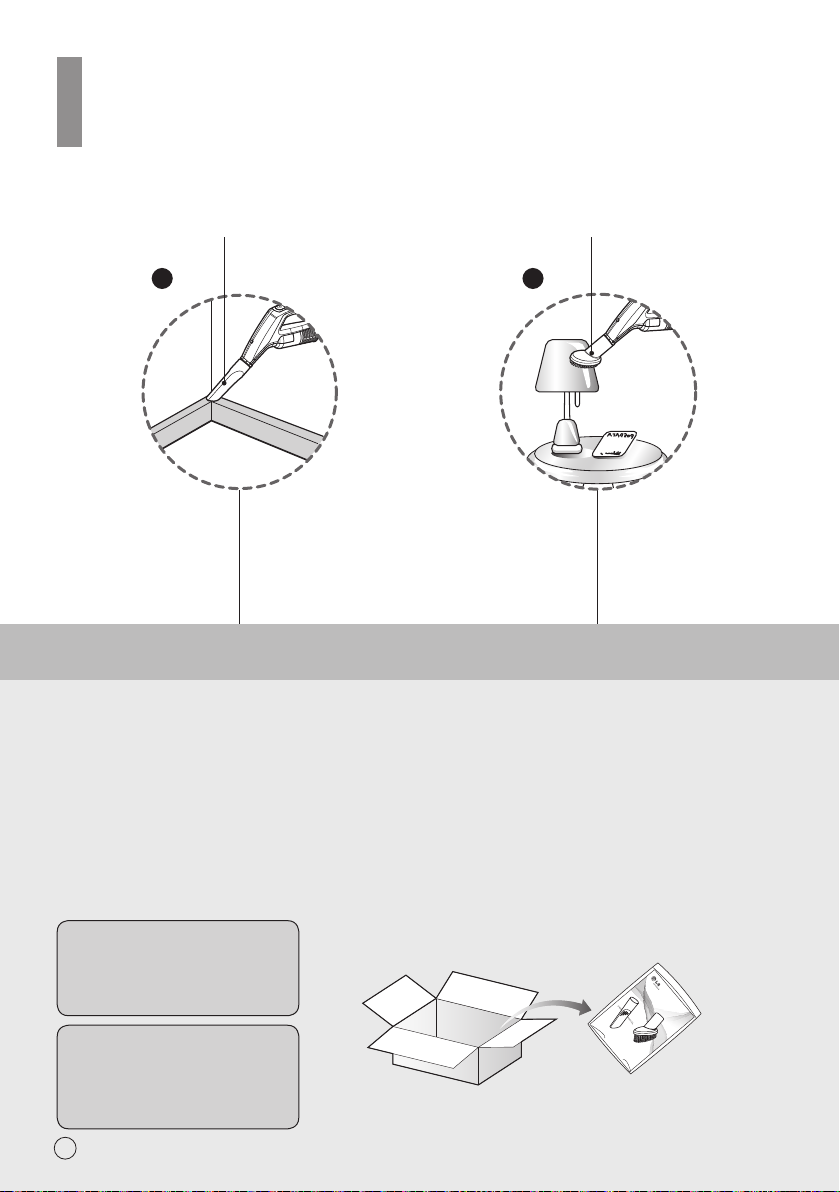

使用方式 使用配件吸嘴
How to use Using accessory nozzles
Dusting brush
Crevice tool
➌ 縫隙工具
Crevice tool
Crevice tool is for vacuuming in those
normally hard-to-reach places such as
reaching cobwebs or between the
cushions of a sofa.
➍ 除塵刷
Dusting brush
Dusting brush is for vacuuming picture
frames, furniture frames, books and
other irregular surfaces.
注意
NOTICE
Be cautious to use the product
on TV, LCD, Monitor or furniture,
it can cause small scratch.
• PE 袋 •
• PE BAG •
• 配件吸嘴跟使用手冊放在「PE 袋」內。
• Accessory nozzles are included in the "PE BAG" with
owner's manual.
15
使用方式 充電真空吸塵器
How to use Charging the Vacuum Cleaner
Charging terminal
When the battery is low
•
•
•
•
• When the battery is low, use the power cord
to recharge the battery.
• Please insert the power cord all the way into
the main charging terminal.
• When the battery is completely drained, the
charging time is approximately 4 hours.
• To prevent mal-function, the vacuum cleaner
will not operate during charging.
電池電量指示燈
Battery level indicator
The battery indicator shows the following battery
power levels.
①When the battery power level is low, the
battery indicator shows one blinking light.
②When the battery is fully charged, the vacuum
cleaner runs for 17 minutes on high-powered
mode.
③In case of operating the protection circuit,
You can charge & use the product after
approximately one hour later.
16
使用方式 清空塵箱
How to use Emptying dust tank
拉出
Pull out
Tank separation Button
MAX line.
①
②
裝回塵箱
Assembling the dust tank
Tank handle
Carrier handle
NOTICE
• If suction power decreases after
emptying the dust tank, clean
the dust tank next page
Dust tank cap
Cleaning the dust “tank”
①Grasp the handle of the
tank and then press the
tank separation button.
Pull out the dust tank.
②Empty the tank and then
assemble the dust tank
as shown.
移動真空吸塵器
•
Moving the vacuum cleaner
•
Don't grasp the tank handle when you are moving the vacuum cleaner. The
vacuum cleaner's body may fall when separating tank and body. You should
grasp the carrier handle when you are moving the vacuum cleaner.
注意
17
使用方式 清潔塵箱
How to use Cleaning dust tank
拉出
Pull out
Tank separation Button
① ②
③④
①Press tank separation button and pull out
the dust tank.
②Raise the dust tank cap.
③Wash the dust tank.
④Dry fully in shade so that moisture is
entirely removed.
注意
NOTICE
If suction power decreases after cleaning the
dust tank, clean the air filter and the motor
safety filter. Next page
18

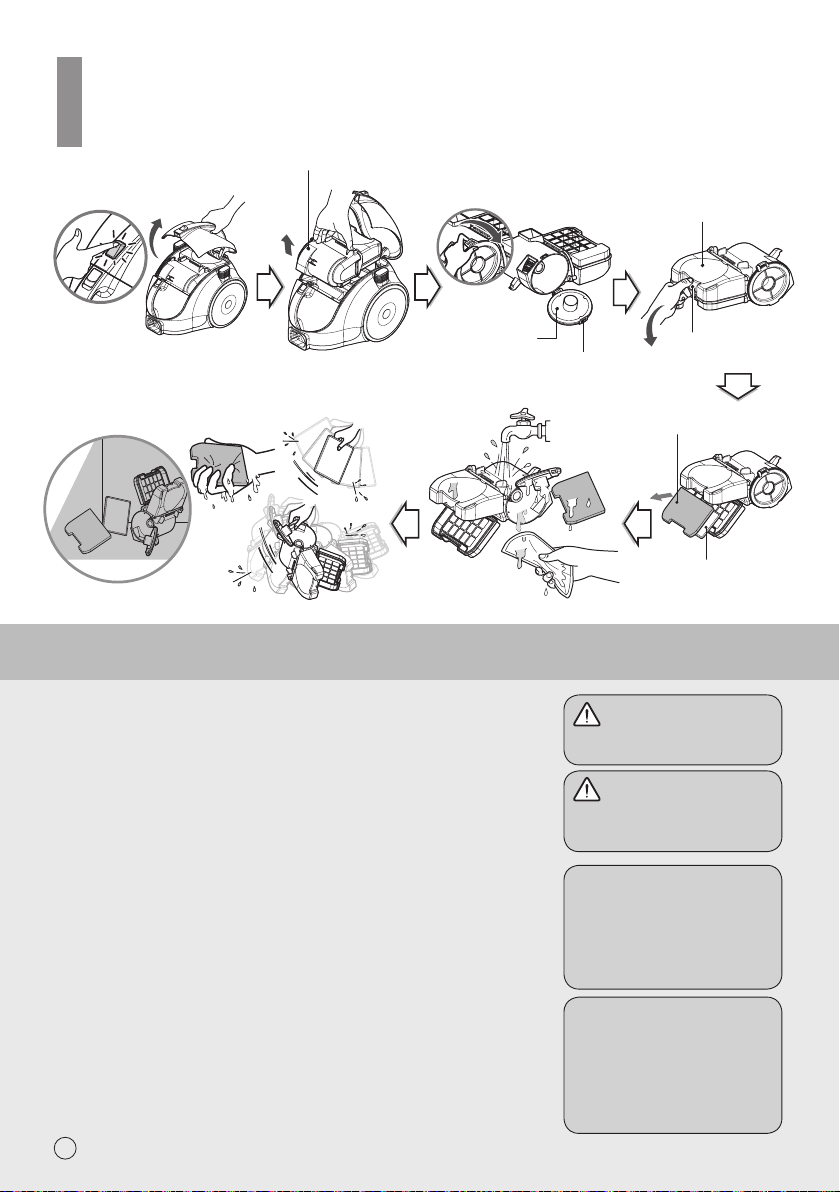

使用方式 清潔空氣過濾網與馬達安全過濾網
How to use Cleaning air filter and motor safety filter
① ② ③ ④
Air filter cover lever
⑤⑥⑦
Air filter
Guide cover lever
Motor safety filter
Dust separator
Air filter cover
Guide cover
If suction power decreases after cleaning the dust tank clean the air filter and the
motor safety filter. The air filter and the motor safety filter are located on the top of the
vacuum cleaner as above the figure.
①Open the vacuum cleaner cover by pulling the button.
②Grasp the handle of the dust separator and take out it.
③Open the guide cover by pulling the guide cover lever and remove the dust.
④Open the air filter cover by pushing the air filter cover lever and take out the air filter.
⑤Separate the Air filter & Motor safety filter from the dust separate.
⑥Wash the air filter and the motor safety filter.
Do not wash filters with hot water.
⑦Dry fully in shade so that moisture is entirely removed. The air filter and the motor
safety filter should be cleaned as above the figure.
注意
NOTICE
If filters are damaged, do not
use them. In this cases,
contact LG Electronics Servic
Agent. Wash filters at least
every 1 months.
WARNING
Dry fully for more than 24
hours in shade.
警告
19

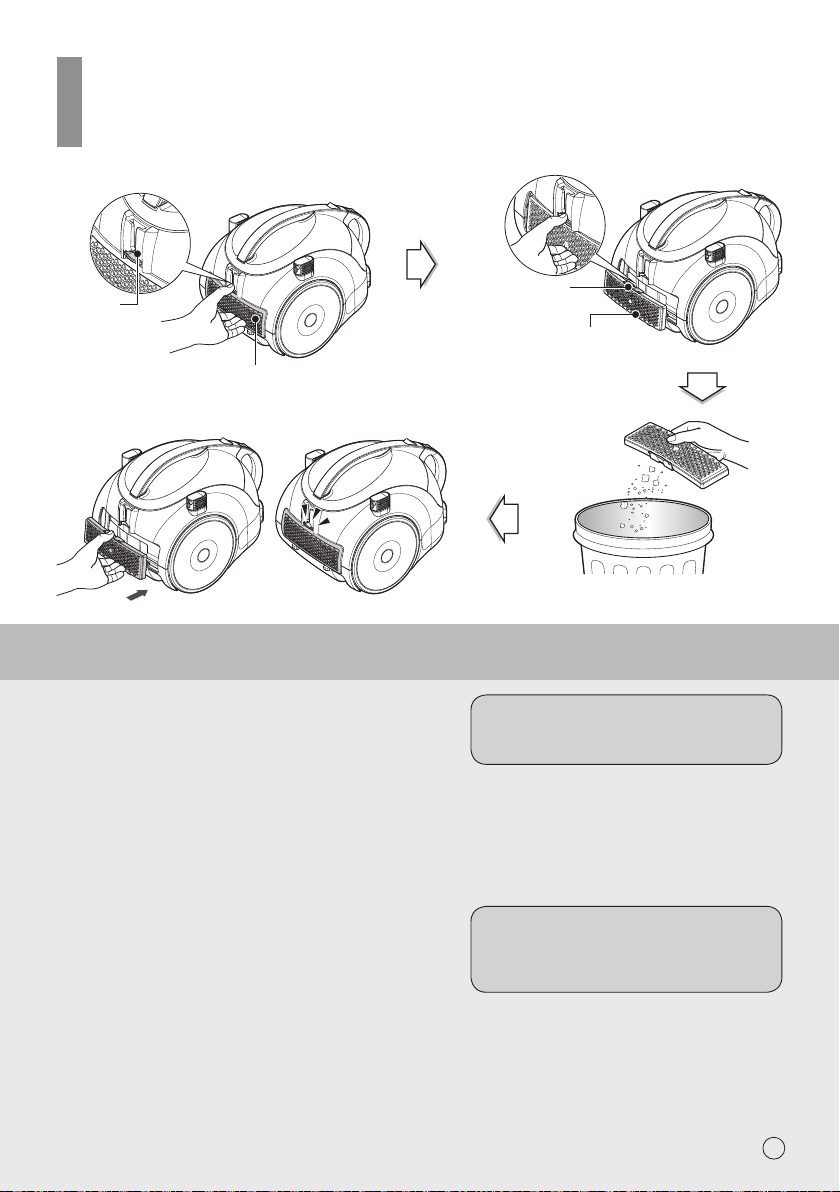

使用方式 清潔排氣濾網
How to use Cleaning exhaust filter
①②
③
④
Exhaust filter cover
Lever
Lever
Exhaust filter
•
排氣濾器裝回
•
•
• The exhaust filter is reusable.
①To clean the exhaust filter, remove the exhaust filter
cover on the body by pulling it out.
②Separate the exhaust filter.
③Dust off filter.(Do not wash filter with water.)
④Insert the projection of exhaust filter into the grooves
on the body and push the exhaust filter.
Exhaust filter cover assembling
• Fit exhaust filter cover lugs to the grooves of vacuum
cleaner body.
• Join it the body.
注意
NOTICE
The exhaust filter should be cleaned at
least a year.
20
若真空吸塵器無法運作要如何處理
What to do if your vacuum cleaner does not work
Check the charging cord is disconnected and please make sure that the main switch is turned on.
當真空吸塵器無法運作時要如何處理
•
•
•
當真空吸塵器無法運作時要如何處理
•
•
•
What to do when the vacuum cleaner does not work
• Check if the battery has been charged.
• Check if the main power switch is on.
• Disassemble the body and hose, and the reassemble them.
What to do when the suction performance decreases
• Check nozzles, the hose, telescopic tube, dust separator, and dust bin to see if there are any
large foreign objects and remove them using chopsticks or tweezers.
• Check if the motor-protecting filter or exhaust filter is dirty.
• Check if the dust separator is correctly attached to the body.
The equipment complies with requirements of the Technical Regulation, in terms of restrictions for the
use of certain dangerous substances in electrical and electronic equipment.
處置您的舊電器
Disposal of your old appliance
1. All electrical and electronic products should be disposed of separately from the
municipal waste stream via designated collection facilities appointed by the government
or the local authorities.
2. The correct disposal of your old appliance will help prevent potential negative
consequences for the environment and human health.
3. For more detailed information about disposal of your old appliance, please contact your
city office, waste disposal service or the shop where you purchased the product.
廢電池請回收
Other manuals for VC74070NCAQ
3
Table of contents
Other LG Vacuum Cleaner manuals
