LG VC83203 User manual

OWNER’S MANUAL
 
 
 
VC83203****
VC83201****
www.lg.com
All manuals and user guides at all-guides.com

2

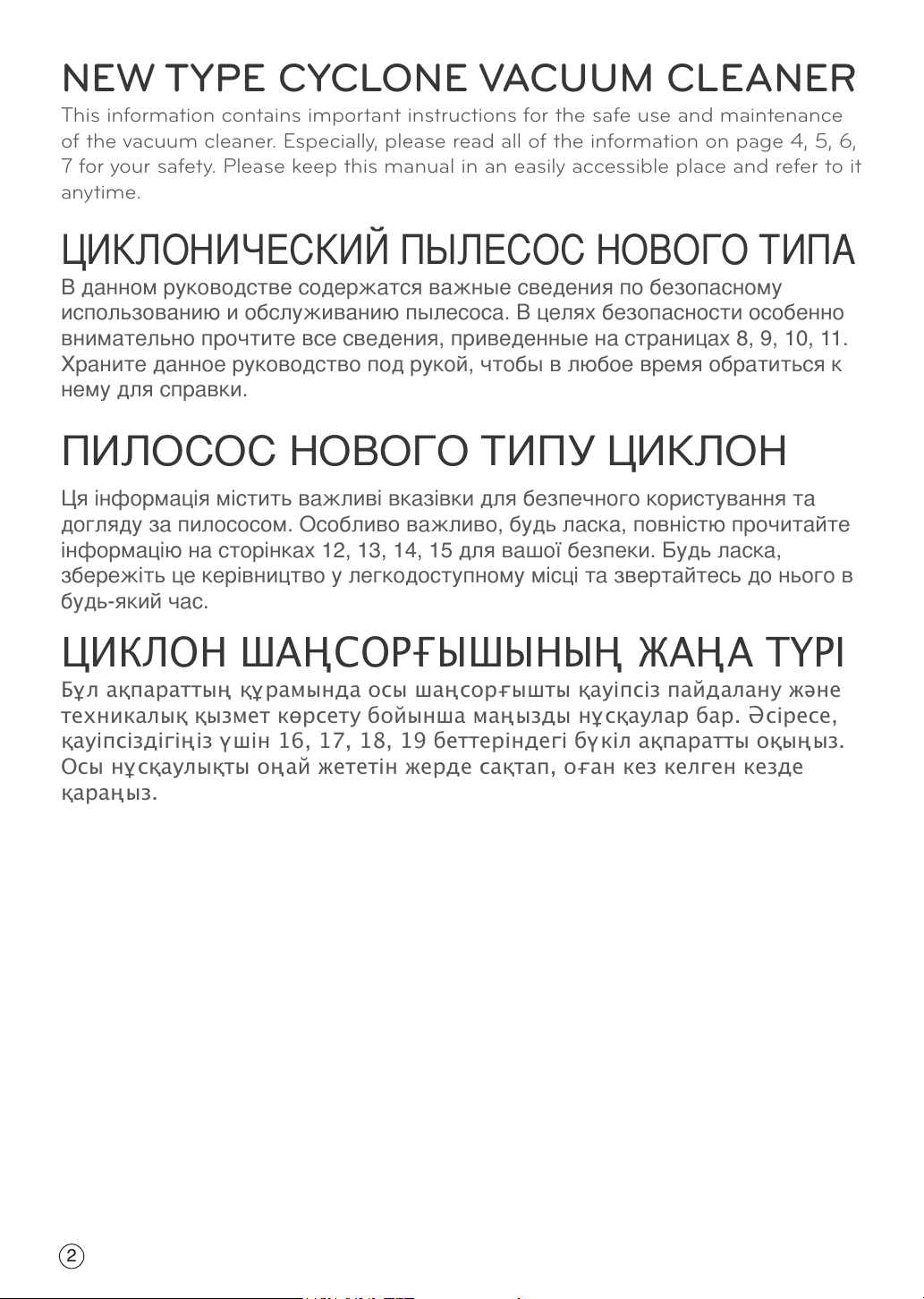

NEW TYPE CYCLONE VACUUM CLEANER
This information contains important instructions for the safe use and maintenance
of the vacuum cleaner. Especially, please read all of the information on page 4, 5, 6,
7 for your safety. Please keep this manual in an easily accessible place and refer to it
anytime.
   
        
  .  ,  ,  
   12, 13, 14, 15   .  ,
          
- .
   
       
   .    
   ,    8, 9, 10, 11.
    ,      
  .
   
       
      . ,
  16, 17, 18, 19    .
     ,    
.
All manuals and user guides at all-guides.com

3
Table of contents



Important safety instructions................................................................................................................................. 4~7
     ..................................................................................................... 8~11
    ............................................................................................................................. 12~15
    .............................................................................................. 16~19
How to use ................................................................................................................................................................ 20
 
 
  

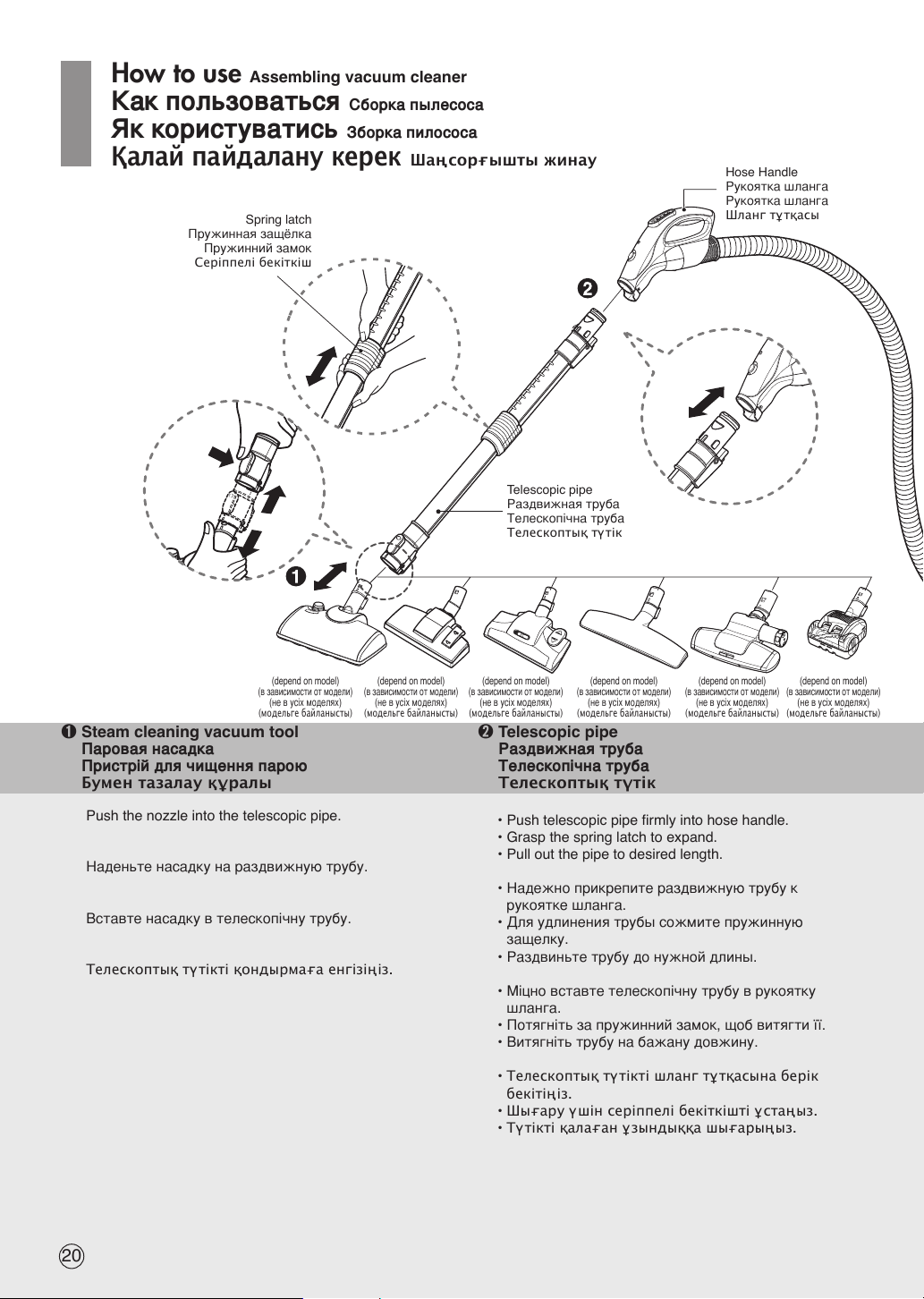

Assembling vacuum cleaner ............................................................................................................................................................. 20
 
 
 
Operating vacuum cleaner ................................................................................................................................................................ 22
  
 
 
Using carpet and floor nozzle and Hard floor nozzle ......................................................................................................................... 23
      /     
      /    
     /   
Using All Floor nozzle and mini turbine nozzle .................................................................................................................................. 24
       -p 
         
epca ee a ee ea a a 
Using the accessory nozzles ............................................................................................................................................................. 25
  
  
  
Using the sani punch nozzle .............................................................................................................................................................. 26
   Sani punch
  Sani Punch
"Sani punch"  
Basic using method of the steam cleaner .......................................................................................................................................... 31
     
   
    
Vacuum cleaning, Steam cleaning, Simultaneous vacuum steam cleaning ...................................................................................... 32
 ,  ,     
, ,     
  ,  ,        
When cleaning hardwood/laminated/general floor/carpet, When removing old stain/floor stain ....................................................... 33
  , , , ,       
      // /,     /  
// / ,  /  
How to supply water, How to replace and clean the microfiber cloth ................................................................................................ 34
  ,      
  ,      
   ,     
Emptying dust tank ........................................................................................................................................................................... 35
 
 
  
Cleaning dust tank ............................................................................................................................................................................ 36
 
 
  
Cleaning air filter and motor safety filter ........................................................................................................................................... 37
      
      
      
Cleaning exhaust filter ...................................................................................................................................................................... 38
  
  
   
Storage method after use .................................................................................................................................................................. 39
   
   
   
What to do if your vacuum cleaner does not work ............................................................................................... 40
 ,    
 ,    
      
What to do when suction performance decreases ................................................................................................ 40
 ,   
 ,    
     
All manuals and user guides at all-guides.com

4

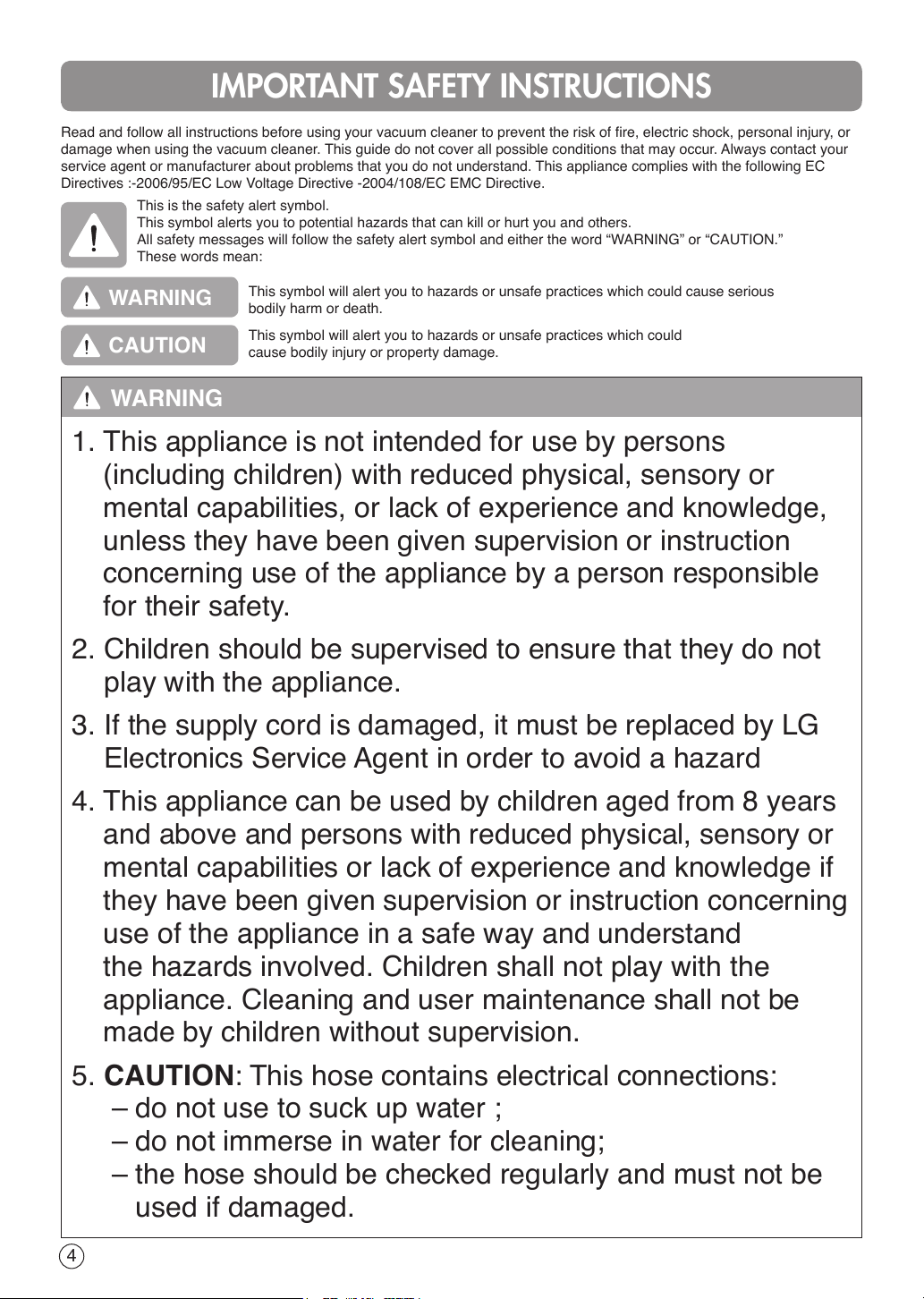

IMPORTANT SAFETY INSTRUCTIONS
Read and follow all instructions before using your vacuum cleaner to prevent the risk of fire, electric shock, personal injury, or
damage when using the vacuum cleaner. This guide do not cover all possible conditions that may occur. Always contact your
service agent or manufacturer about problems that you do not understand. This appliance complies with the following EC
Directives :-2006/95/EC Low Voltage Directive -2004/108/EC EMC Directive.
This is the safety alert symbol.
This symbol alerts you to potential hazards that can kill or hurt you and others.
All safety messages will follow the safety alert symbol and either the word “WARNING” or “CAUTION.”
These words mean:
This symbol will alert you to hazards or unsafe practices which could cause serious
bodily harm or death.
This symbol will alert you to hazards or unsafe practices which could
cause bodily injury or property damage.
WARNING
CAUTION
WARNING
1. This appliance is not intended for use by persons
(including children) with reduced physical, sensory or
mental capabilities, or lack of experience and knowledge,
unless they have been given supervision or instruction
concerning use of the appliance by a person responsible
for their safety.
2. Children should be supervised to ensure that they do not
play with the appliance.
3. If the supply cord is damaged, it must be replaced by LG
Electronics Service Agent in order to avoid a hazard
4. This appliance can be used by children aged from 8 years
and above and persons with reduced physical, sensory or
mental capabilities or lack of experience and knowledge if
they have been given supervision or instruction concerning
use of the appliance in a safe way and understand
the hazards involved. Children shall not play with the
appliance. Cleaning and user maintenance shall not be
made by children without supervision.

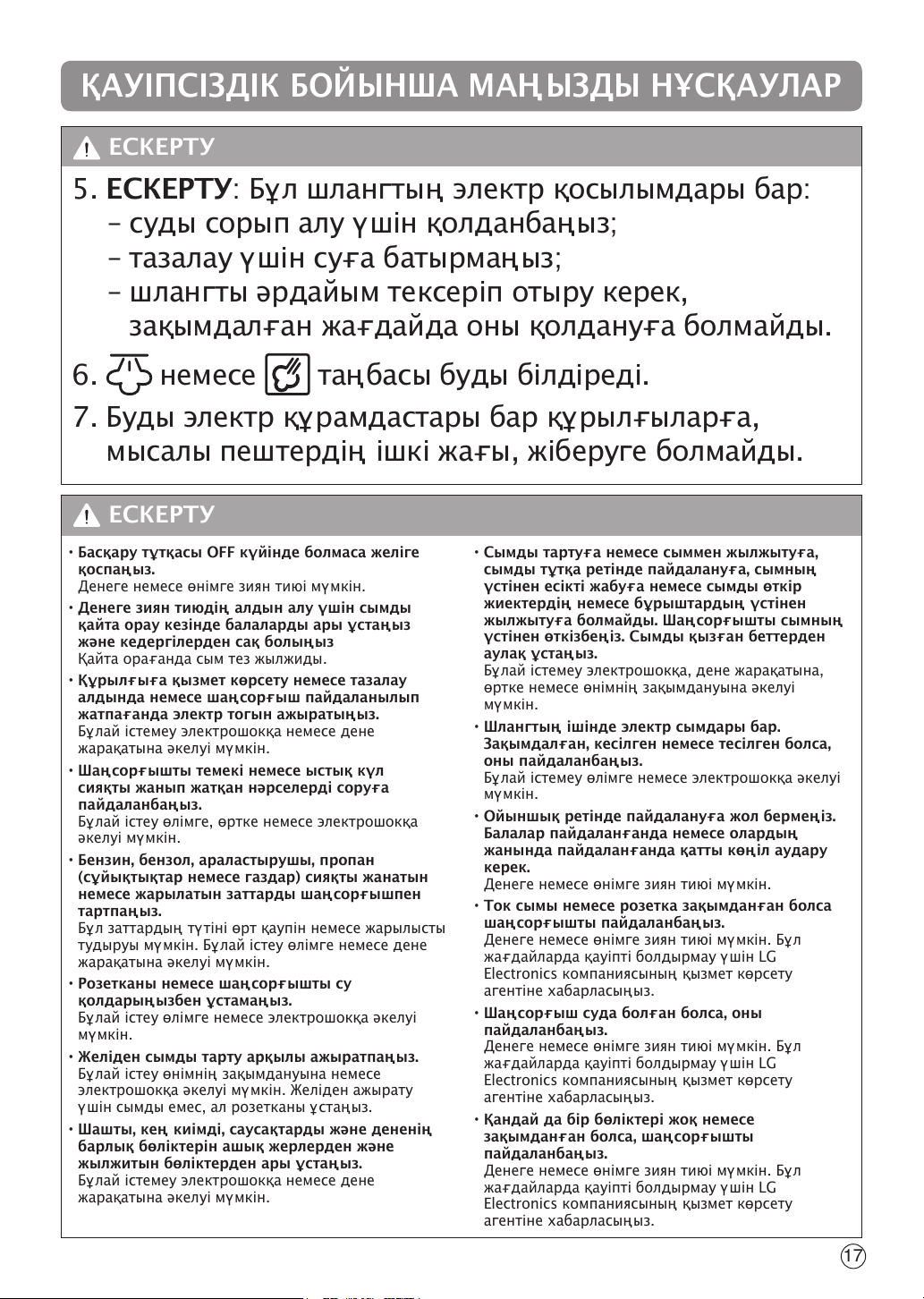

5. CAUTION: This hose contains electrical connections:
– do not use to suck up water ;
– do not immerse in water for cleaning;
– the hose should be checked regularly and must not be
used if damaged.
All manuals and user guides at all-guides.com

5
IMPORTANT SAFETY INSTRUCTIONS
• Do not plug in if control knob is not in OFF position.
Personal injury or product damage could result.
• Keep children away and beware of obstructions
when rewinding the cord to prevent personal injury
The cord moves rapidly when rewinding.
• Disconnect electrical supply before servicing or
cleaning the unit or when cleaner is not in use.
Failure to do so could result in electrical shock or
personal injury.
• Do not use vacuum cleaner to pick up anything that is
burning or smoking such as cigarettes, or hot ashes.
Doing so could result in death, fire or electrical shock.
• Do not vacuum flammable or explosive substances
such as gasoline, benzene, thinners, propane
(liquids or gases).
The fumes from these substances can create a fire
hazard or explosion. Doing so could result in death or
personal injury.
• Do not handle plug or vacuum cleaner with wet
hands.
Doing so could result in death or electrical shock.
• Do not unplug by pulling on cord.
Doing so could result in product damage or electrical
shock. To unplug, grasp the plug, not the cord.
• Keep hair, loose clothing, fingers, and all parts of
the body away from openings and moving parts.
Failure to do so could result in electrical shock or
personal injury.
• Do not pull or carry by cord, use cord as a handle,
close a door on cord, or pull cord around sharp
edges or corners. Do not run vacuum cleaner over
cord. Keep cord away from heated surfaces.
Failure to do so could result in electrical shock or
personal injury or fire or product damage.
• The hose contains electrical wires. Do not use it if it
is damaged, cut punctured.
Failure to do so could result in death, or electrical shock.
• Do not allow to be used as toy. Close attention is
necessary when used by or near children.
Personal injury or product damage could result.
• Do not use the vacuum cleaner if the power cord or
plug is damaged or faulty.
Personal injury or product damage could result. In these
cases, contact LG Electronics Service Agent to avoid
hazard.
• Do not use vacuum cleaner if it has been under water.
Personal injury or product damage could result. In these
cases, contact LG Electronics Service Agent to avoid
hazard.
• Do not continue to vacuum if any parts appear
missing or damaged.
Personal injury or product damage could result. In these
cases, contact LG Electronics Service Agent to avoid
hazard.
• Do not use an extension cord with this vacuum
cleaner.
Fire hazard or product damage could result.

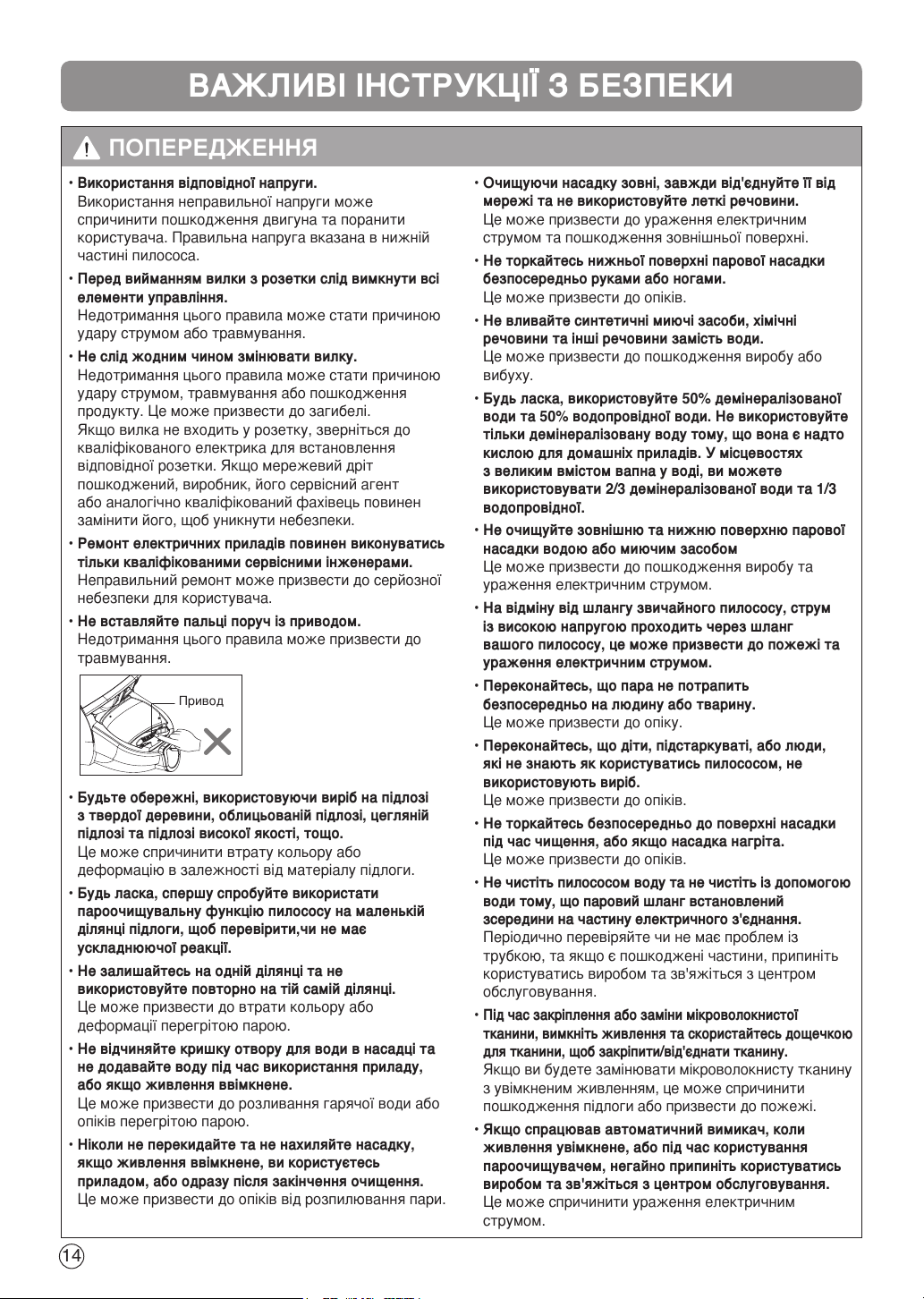

• Using proper voltage.
Using improper voltage may result in damage to the
motor and possible injury to the user. Proper voltage is
listed on the bottom of vacuum cleaner.
• Turn off all controls before unplugging.
Failure to do so could result in electrical shock or
personal injury.
• Do not change the plug in any way.
Failure to do so could result in electrical shock or
personal injury or product damage. Doing so result in
death. If plug does not fit, contact a qualified electrician to
install the proper outlet.
If the supply cord is damaged, it must be replaced by
the manufacturer, its service agent or similarly qualified
persons in order to avoid a hazard.
• Repairs to electrical appliances may only be
performed by qualified service engineers.
Improper repairs may lead to serious hazards for the user.
• Do not put fingers near the gear.
Failure to do so could result in personal injury.
WARNING
gear
WARNING

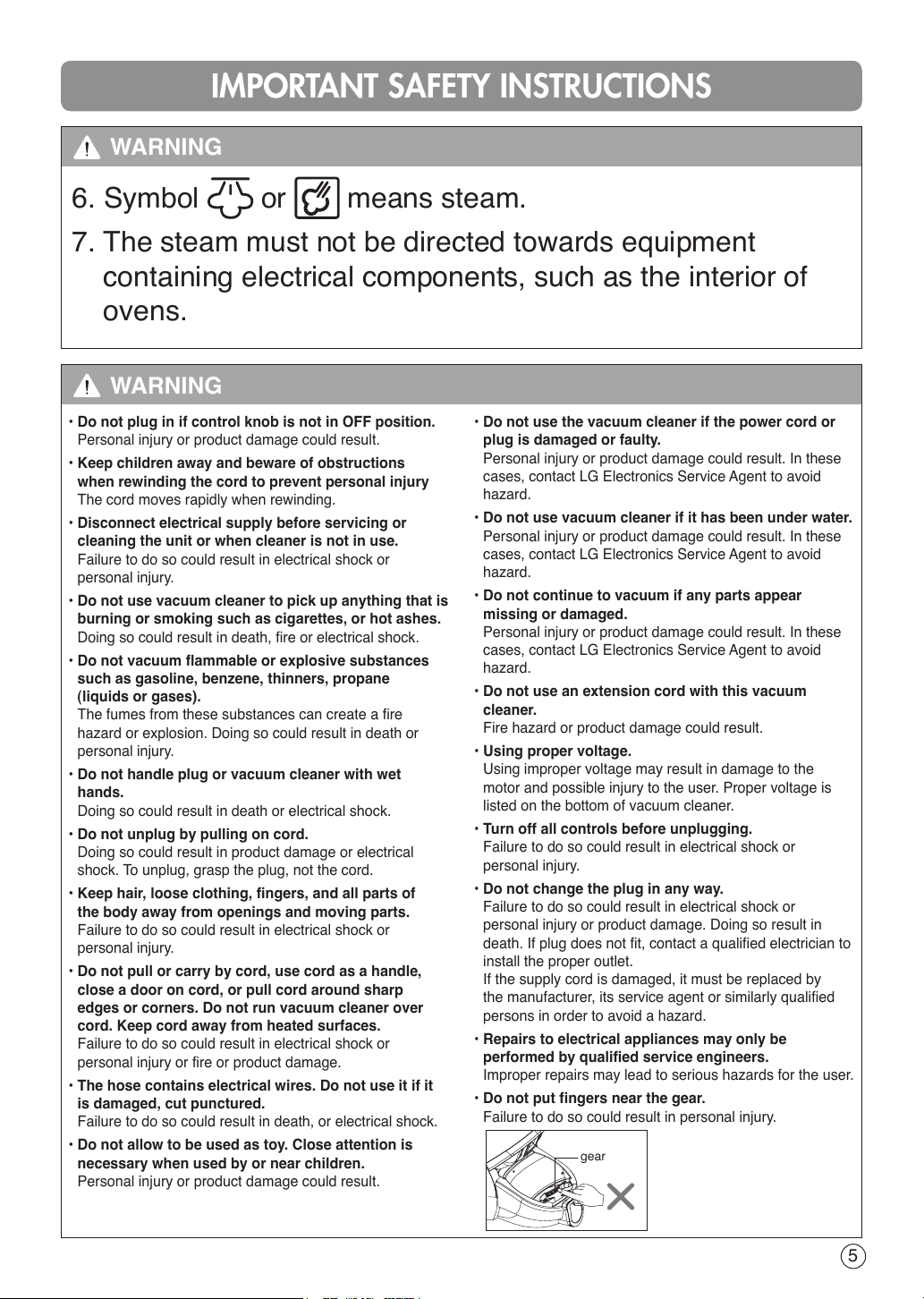

6. Symbol or means steam.
7. The steam must not be directed towards equipment
containing electrical components, such as the interior of
ovens.
All manuals and user guides at all-guides.com

6
• Be careful when using the product on hardwood,
coated floor, brick floor and high quality floor etc.
It can cause discoloration or deformation depending on
the floor material.
• Please try your vacuum cleaner with steam function
on a little floor area beforehand, in order to chek
there is no awkward reaction.
• Do not stay in one location or use it on the same
location repeatedly.
It can cause discoloration or deformation by the hot heat
of the steam.
• Do not open the water hole cap of the nozzle or
supply water when the product is being used or when
the power is turned on.
It can cause burns or overspill the hot water by hot heat of
the steam.
• Never flip or tilt the steam nozzle when the power
is turned on, being used for cleaning or right after
finishing cleaning.
It can cause burns from the spraying of steam.
• When cleaning the exterior of the nozzle, always
unplug the power and do not use volatile substance.
It can cause electric shock and exterior damage.
• Do not touch the bottom surface of the steam nozzle
directly with you hands or feet.
It can cause burns.
• Do not pour in synthetic detergent, chemical
substance and other substances instead of water.
It can cause product damage or explosion.
• Please use 50% demineralized water and 50% tap
water. Do not use only demineralized water, because
it is too acid for home appliances. In regions more
calcareous, vous can use 2/3 demineralized water and
1/3 tap water.
• Do not clean the exterior and bottom surface of the
steam nozzle with water or detergent
It can cause product damage and electric shock.
• Unlike the hose of the existing cleaner, high current
flows through the hose, this can cause fire and
electric shock.
• Make sure the steam is not applied directly to human
or animal.
It can cause a direct burn.
• Make sure that the children, the elderly or people who
does not know how to operate the cleaner, do not use
the product.
It can cause burns.
• Do not directly touch the surface of the nozzle when
cleaning or when the nozzle is heated.
It can cause burns.
• Do not vacuum water or clean with water because the
steaming hose is internally installed on the electric
connection part.
Periodically check whether there are any problems with
the pipe and if there are any damaged parts, stop using
the product and contact the service center.
• When attaching or replacing the microfiber cloth,
turn off the power and use the cloth board to attach/
detach the cloth.
If you replace the microfiber cloth with the power on, it
can cause damage on the floor or cause a fire.
• When the circuit breaker operated when the power
is turned on or when using the steam cleaner,
immediately stop using the product and contact the
AS center.
It can cause electric shock may occur.
IMPORTANT SAFETY INSTRUCTIONS
WARNING
All manuals and user guides at all-guides.com

7

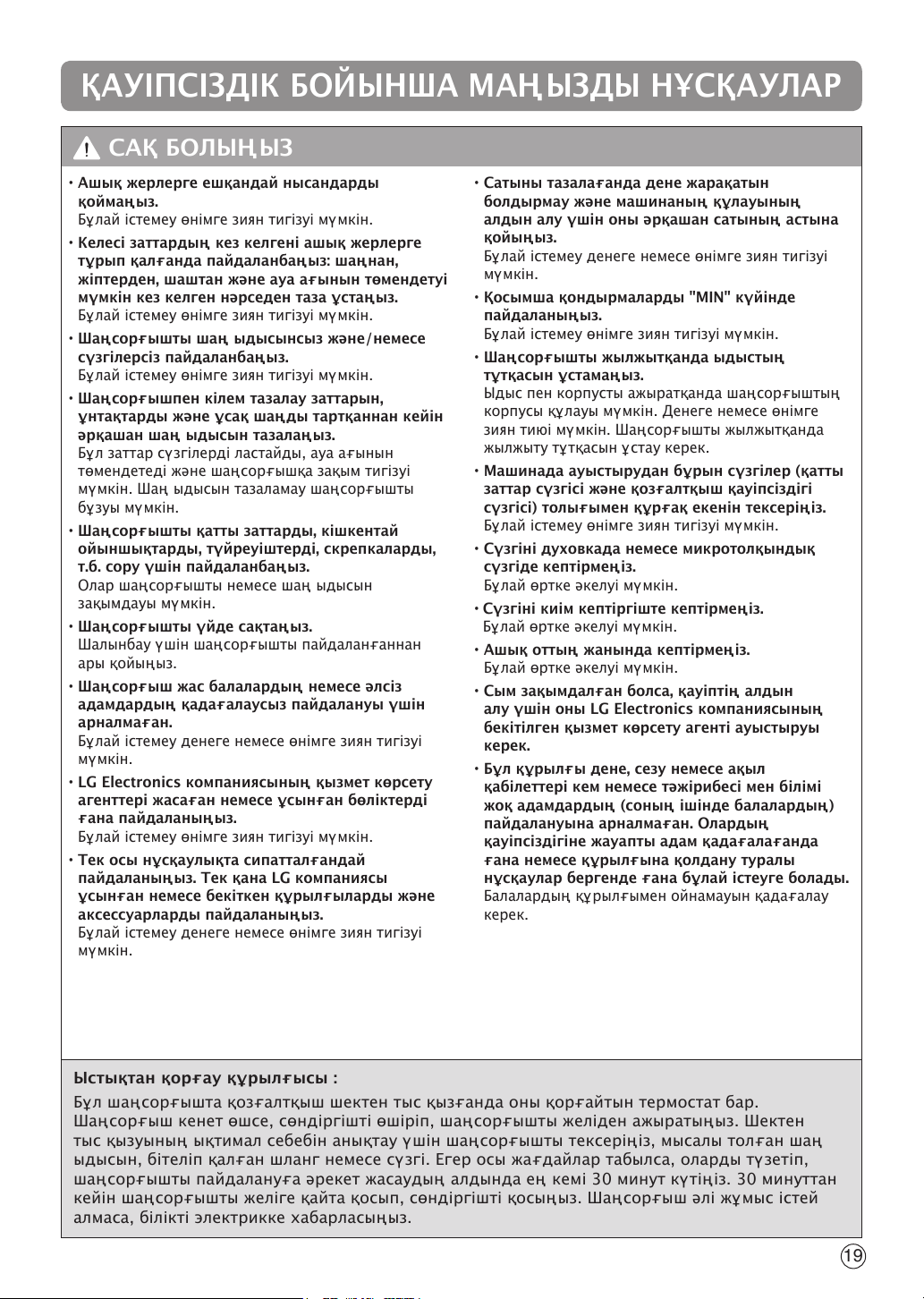

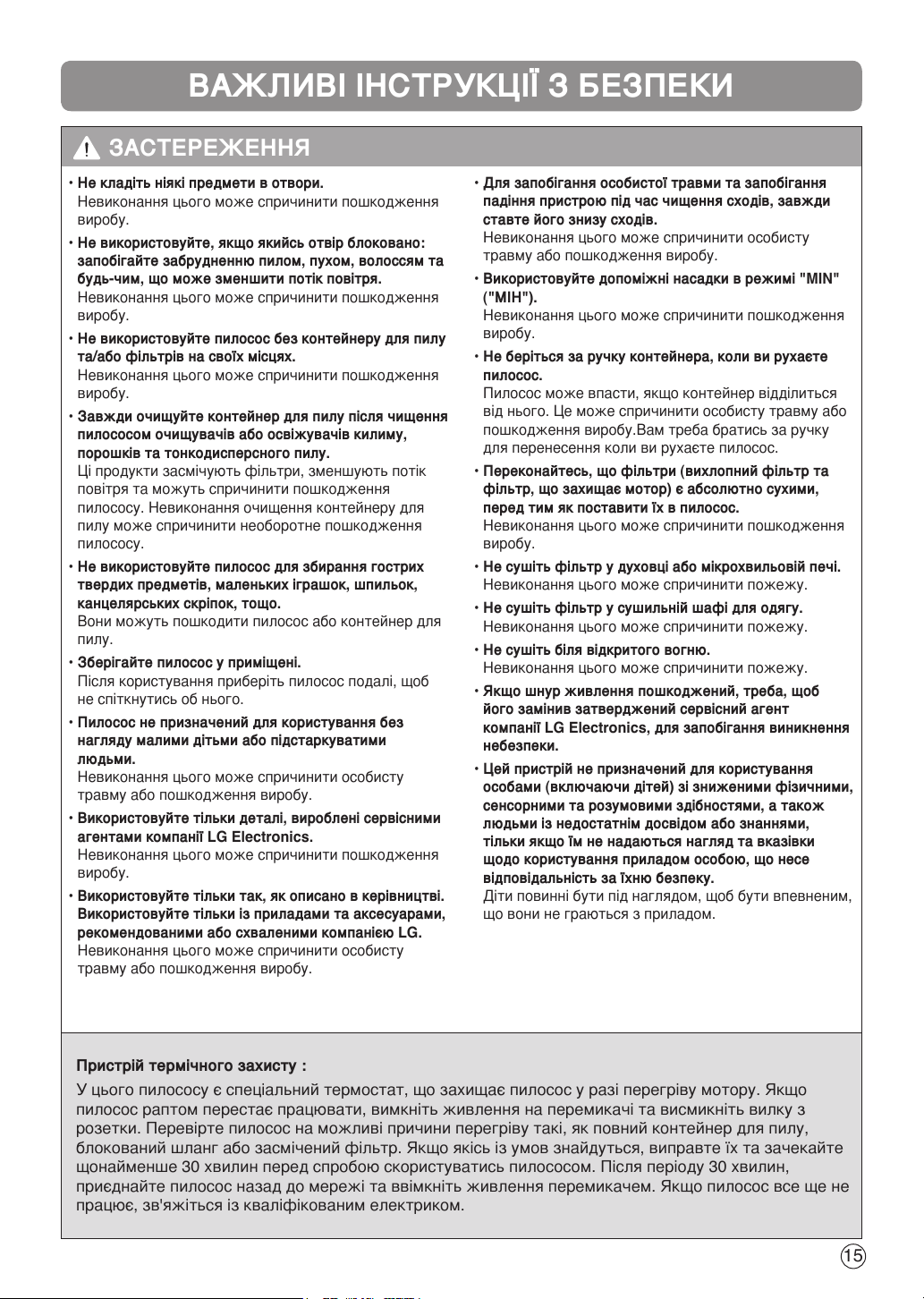

IMPORTANT SAFETY INSTRUCTIONS
CAUTION
• Do not put any objects into openings.
Failure to do so could result in product damage.
• Do not use with any opening blocked: keep free of
dust, lint, hair, and anything that may reduce air flow.
Failure to do so could result in product damage.
• Do not use vacuum cleaner without dust tank and/or
filters in place.
Failure to do so could result in product damage.
• Always clean the dust bin after vacuuming carpet
cleaners or fresheners, powders and fine dust.
These products clog the filters,reduce airflow and can
cause damage to the cleaner. Failure to clean the dust bin
could cause permanent damage to the cleaner.
• Do not use vacuum cleaner to pick up sharp hard
objects, small toys, pins, paper clips, etc.
They may damage the cleaner or dust bin.
• Store the vacuum cleaner indoors.
Put the vacuum cleaner away after use to prevent tripping
over it.
• The vacuum cleaner is not intended to use by young
children or infirm people without supervision.
Failure to do so could result in personal injury or product
damage.
• Only use parts produced or recommended by LG
Electronics Service Agents.
Failure to do so could result in product damage.
• Use only as described in this manual. Use only with
LG recommended or approved attachments and
accessories.
Failure to do so could result in personal injury or product
damage.
• To avoid personal injury and to prevent the machine
from falling when cleaning stairs, always place it at
the bottom of stairs.
Failure to do so could result in personal injury or product
damage.
• Use accessory nozzles in "MIN" mode.
Failure to do so could result in product damage.
• Dont grasp the tank handle when you are moving the
vacuum cleaner.
The vacuum cleaners body may fall when separating
tank and body. Personal injury or product damage could
result. You should grasp the carrier handle when you
are moving the vacuum cleaner.
• Make sure the filters (exhaust filter and motor safety
filter) are completely dry before replacing in the
machine.
Failure to do so could result in product damage.
• Do not dry the filter in an oven or microwave.
Failure to do so could result in fire hazard.
• Do not dry the filter in a clothes dryer.
Failure to do so could result in fire hazard.
• Do not dry near an open flame.
Failure to do so could result in fire hazard.
• If the power cord is damaged, it must be replaced by
an approved LG Electronics Service Agent to avoid a
hazard.
• This appliance is not intended for use by persons
(including children) with reduced physical, sensory
or mental capabilities, or lack of experience and
knowledge, unless they have been given supervision
or instruction concerning use of the appliance by a
person responsible for their safety.
Children should be supervised to ensure that they do not
play with the appliance.
Thermal protector :
This vacuum cleaner has a special thermostat that protects the vacuum cleaner in case of motor
overheating. If the vacuum cleaner suddenly shuts off, turn off the switch and unplug the vacuum cleaner.
Check the vacuum cleaner for possible source of overheating such as a full dust tank, a blocked hose or
clogged filter. If these conditions are found, fix them and wait at least 30 minutes before attempting to use
the vacuum cleaner. After the 30 minute period, plug the vacuum cleaner back in and turn on the switch.
If the vacuum cleaner still does not run, contact a qualified electrician.
All manuals and user guides at all-guides.com

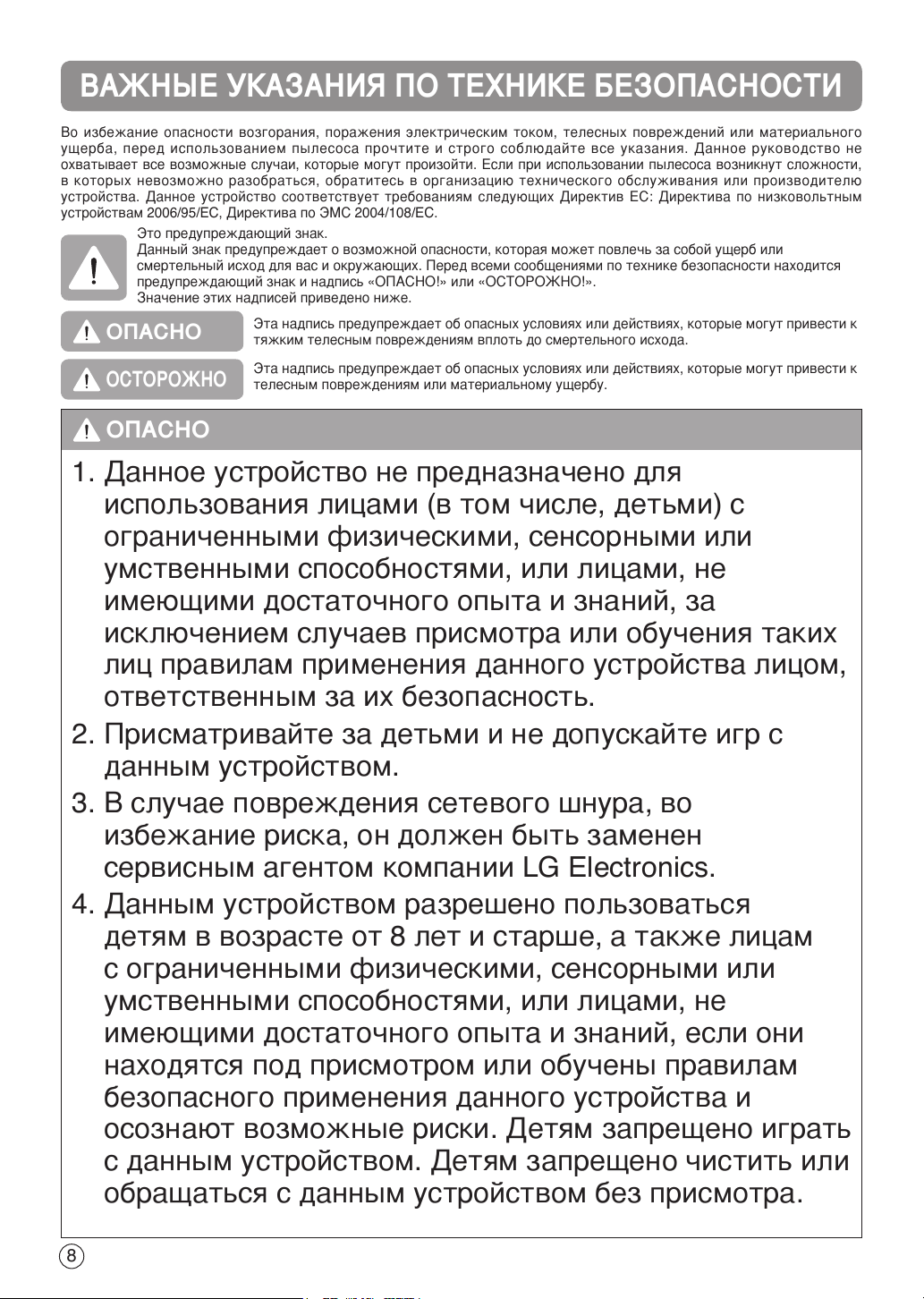

8
    
   ,   ,    
,         .   
   ,   .      ,
   ,       
.       :   
 2006/95/EC,    2004/108/EC.
  .
     ,       
     .       
    «!»  «!».
    .
       ,    
      .
       ,    
    .



1.     
  (  , ) 
 ,  
 ,  , 
    , 
     
     ,
   .
2.        
 .
3.     , 
 ,    
   LG Electronics.
4.    
    8   ,   
  ,  
 ,  , 
    ,  
     
    
  .   
  .    
     .
All manuals and user guides at all-guides.com

9
    
5. !:   
 :
-     ;
-       ;
-   ;   
   .
6. C    .
7.     ,
  , ,
   .

•     ,  
     OFF ().
     
    .
•      
      
    .
      .
•  ,   
,     .
    
     
.
•       
  – ,    ..
    , 
     
  .
•    
 ,   , ,
 ,    
 .
      
 .   
      
 .
•       
 .
      
     
.
•     ,   .
      
  .   
     ,    .
•     , , 
        .
    
     
.
•      ,  
 ;     
,     , 
      . 
   .  
   .
   
    , 
,    .
•     . 
 ,   ,   .
    
     
    .
•      . 
 ,    
    .
     
    .
•   ,    
    .
     
    . 
  ,  
      LG
Electronics.
•   ,     
  .
     
    . 
  ,  
      LG
Electronics.

All manuals and user guides at all-guides.com

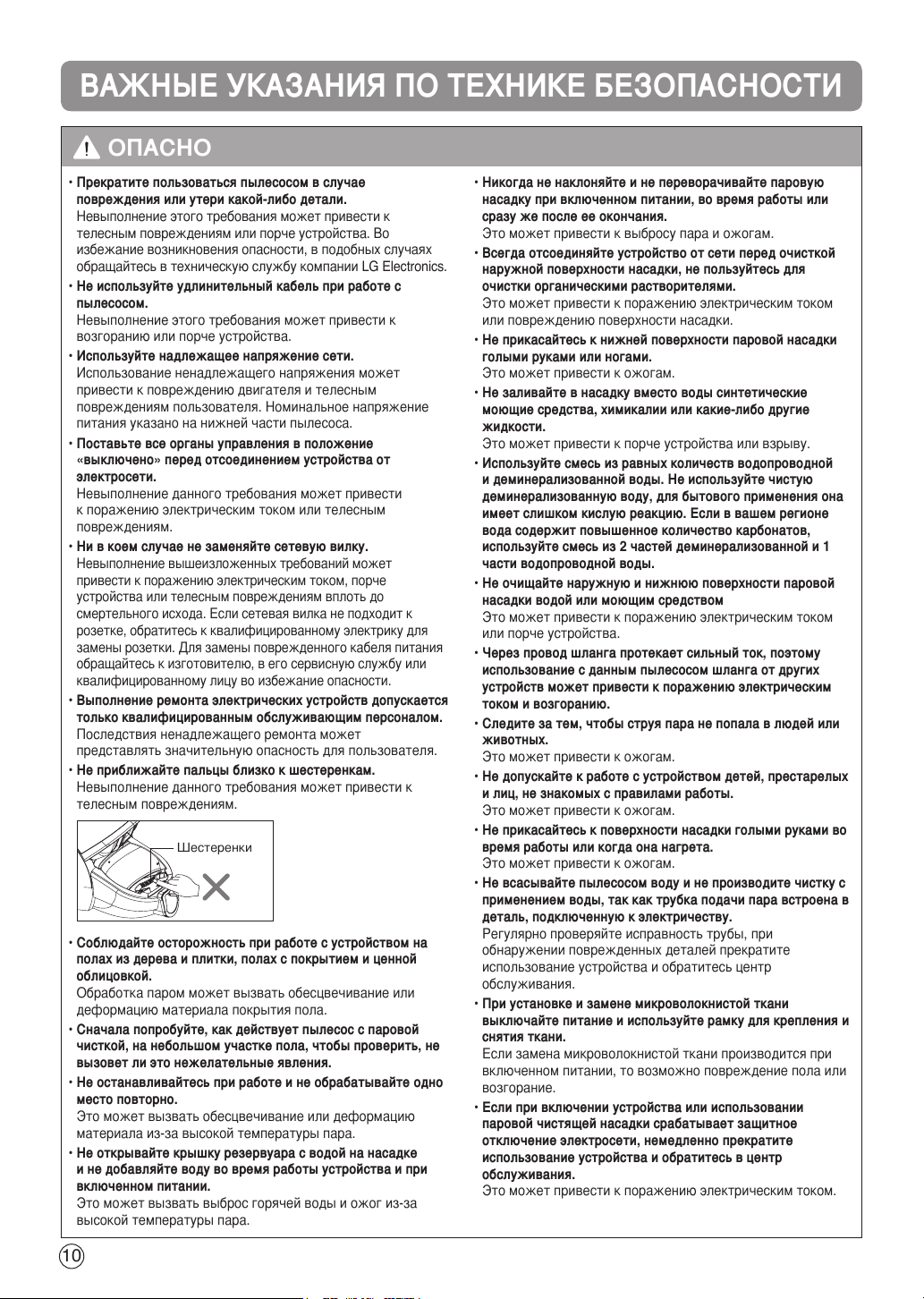

10
    
•     
   - .
     
    . 
  ,   
     LG Electronics.
•       
.
     
   .
•    .
   
     
 .  
     .
•      
«»    
.
    
     
.
•        .
   
    , 
     
 .      
,     
 .     
  ,     
    .
•     
   .
   
    .
•      .
     
 .
•       
    ,     
.
     
   .
•  ,     
,    ,  , 
    .
•        
 .
     
 -   .
•        
         
 .
        -
  .
•       
   ,    
    .
       .
•       
  ,   
  .
      
   .
•       
   .
    .
•       
 ,   - 
.
       .
•      
  .   
 ,    
   .    
    ,
   2    1
  .
•       
    
      
  .
•      , 
      
     
  .
•   ,        
.
    .
•       , 
 ,     .
    .
•        
     .
    .
•         
 ,       
,   .
   , 
   
    
.
•      
       
 .
     
 ,     
.
•      
    
 ,  
     
.
      .



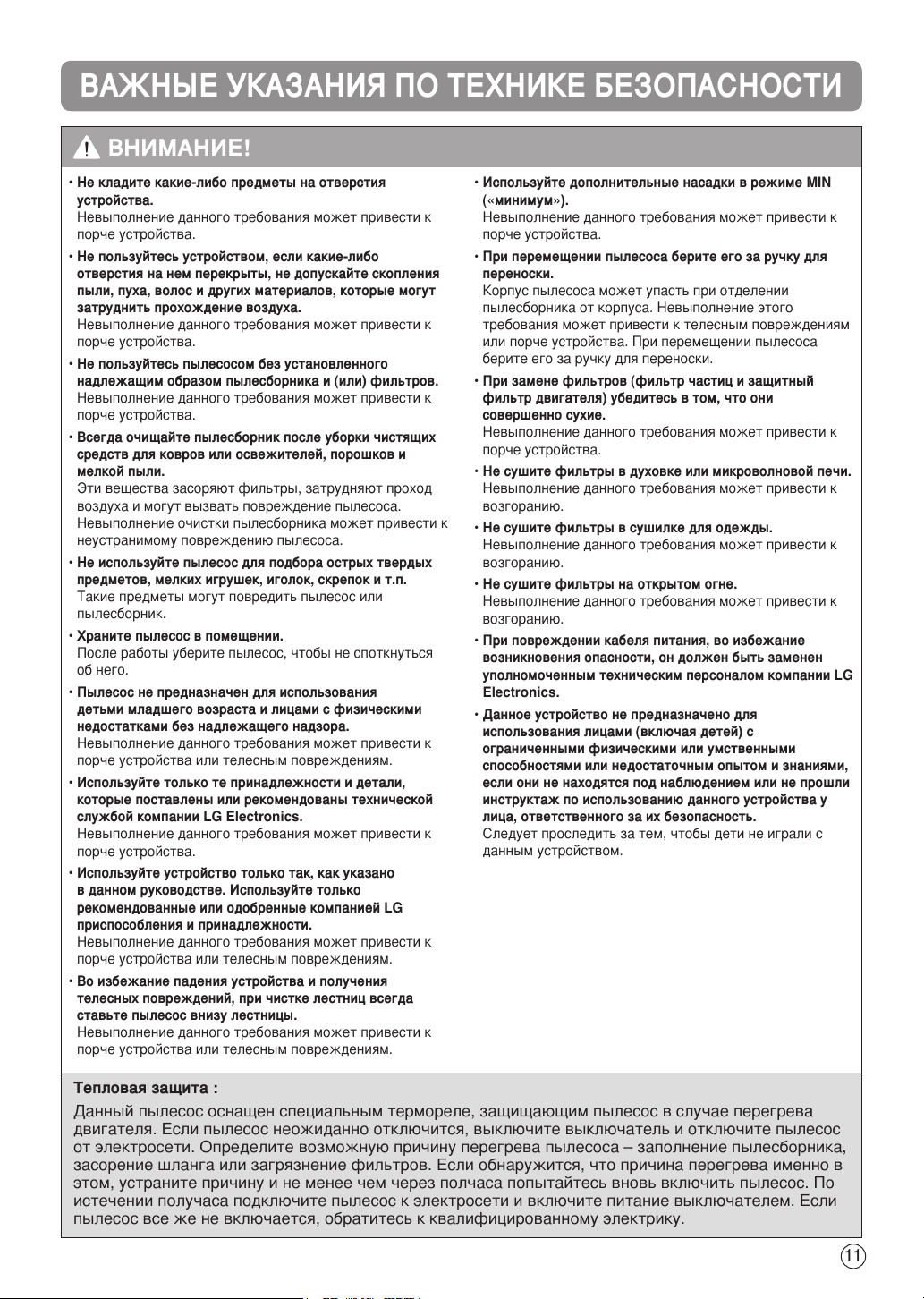

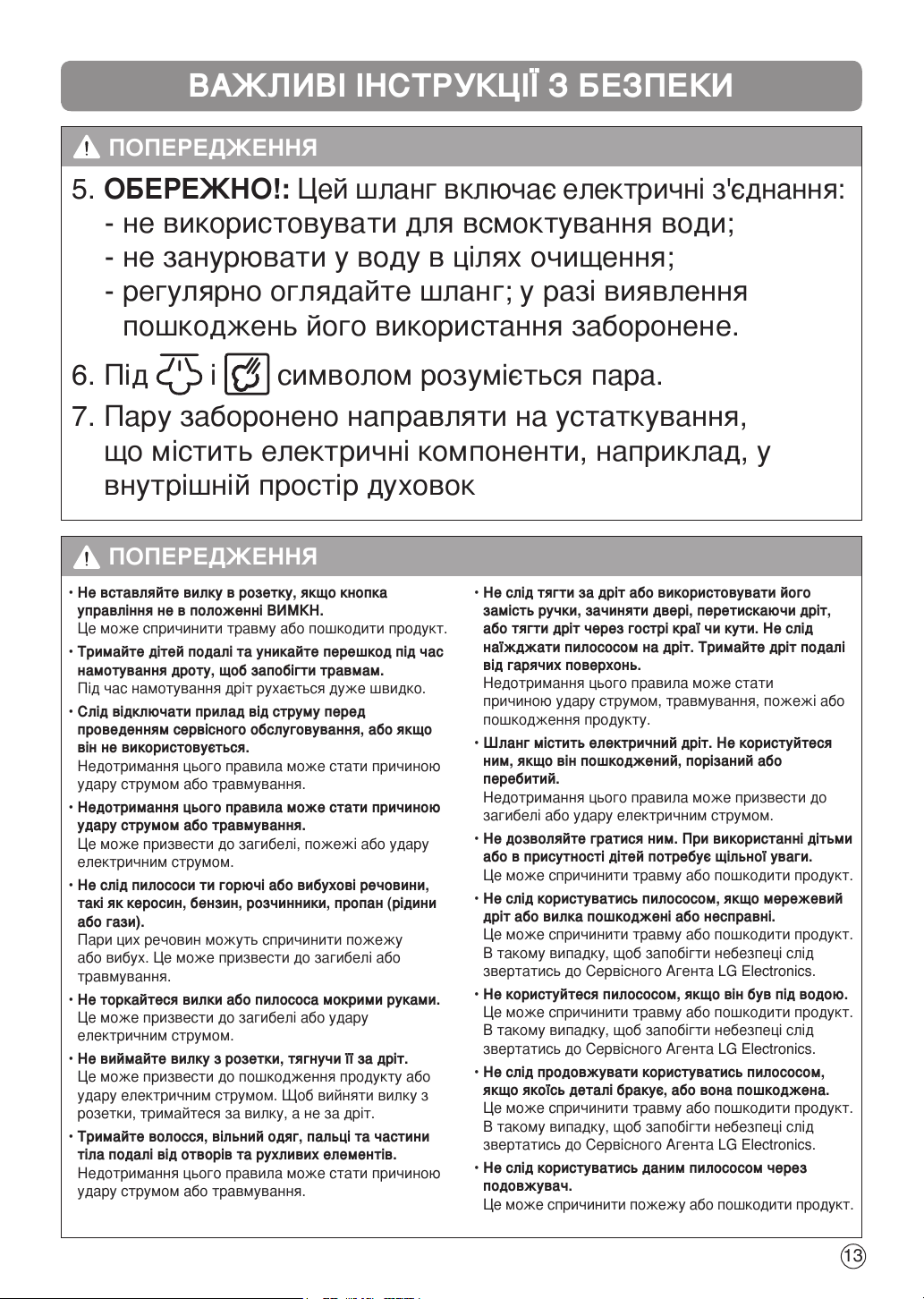

All manuals and user guides at all-guides.com
