LG VK7314 User manual
VK7314**
www.lg.com
OWNER’S MANUAL
BZ03
2
NEW TYPE CYCLONE VACUUM CLEANER
This information contains important instructions for the safe use and maintenance
of the vacuum cleaner. Especially, please read all of the information on page 4, 5, 6
for your safety. Please keep this manual in an easily accessible place and refer to it
anytime.
.
,
. 7, 8, 9.
, .
.
, 10, 11, 12 . -,
,
- .
. ,
13, 14, 15 .
,
.
3
Table of contents
Important safety instructions ...................................................................................... 4~6
........................................................ 7~9
........................................................................ 10~12
................................................... 13~15
How to use ................................................................................................................. 16~25
Assembling vacuum cleaner ........................................................................................................................ 16~17
Operating vacuum cleaner ................................................................................................................................. 18

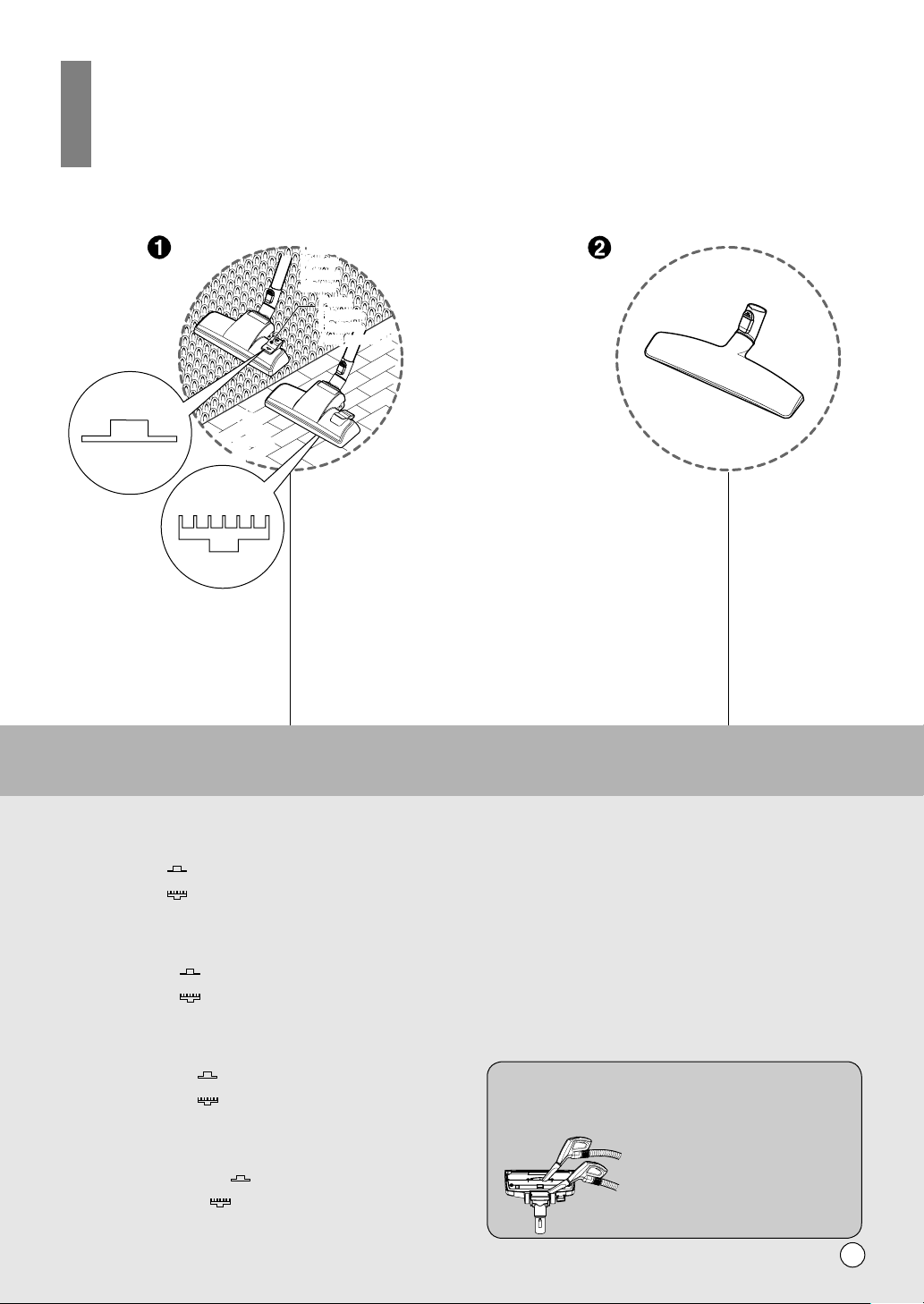

Using carpet and floor nozzle/Hard floor nozzle ................................................................................................ 19
/
/
/

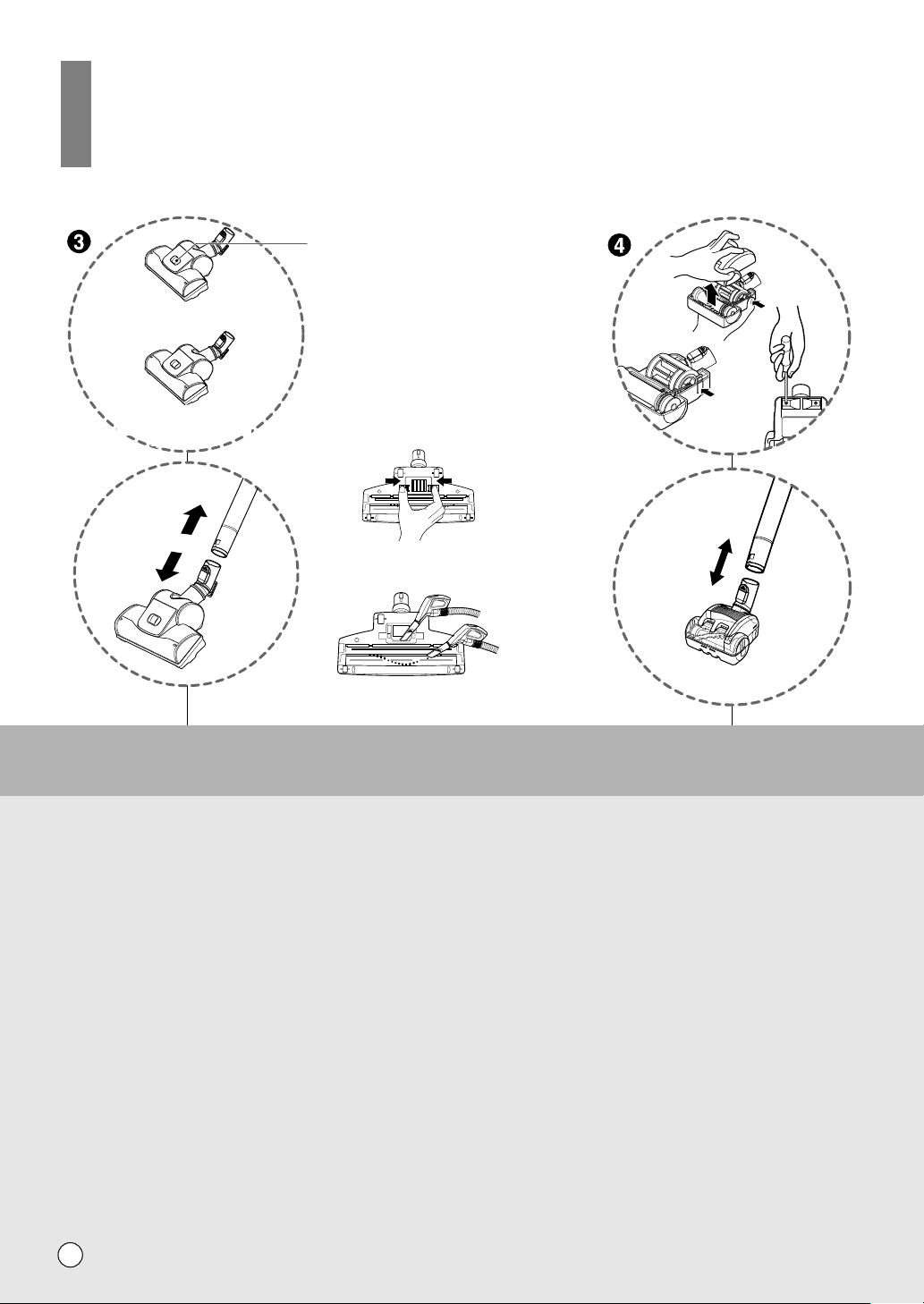

Using carpet master nozzle and mini turbine nozzle ........................................................................................... 20
-
Carpet Master -
" "
Using accessory nozzles .................................................................................................................................... 21
Emptying dust tank ............................................................................................................................................. 22
Cleaning dust tank ............................................................................................................................................. 23
Cleaning air filter and motor safety filter ............................................................................................................. 24
Cleaning exhaust filter ........................................................................................................................................ 25
What to do if your vacuum cleaner does not work ..................................................... 26
,
,
What to do when suction performance decreases ...................................................... 26
,
,
4
IMPORTANT SAFETY INSTRUCTIONS
Read and follow all instructions before using your vacuum cleaner to prevent the risk of fire, electric shock, personal injury, or
damage when using the vacuum cleaner. This guide do not cover all possible conditions that may occur. Always contact your
service agent or manufacturer about problems that you do not understand. This appliance complies with the following EC
Directives : 2006/95/EC Low Voltage Directive 2004/108/EC EMC Directive.
This is the safety alert symbol.
This symbol alerts you to potential hazards that can kill or hurt you and others.
All safety messages will follow the safety alert symbol and either the word “WARNING” or “CAUTION.”
These words mean:
This symbol will alert you to hazards or unsafe practices which could cause serious
bodily harm or death.
This symbol will alert you to hazards or unsafe practices which could
cause bodily injury or property damage.
WARNING
CAUTION
WARNING
1. This appliance is not intended for use by persons
(including children) with reduced physical, sensory or
mental capabilities, or lack of experience and knowledge,
unless they have been given supervision or instruction
concerning use of the appliance by a person responsible
for their safety.
2. Children should be supervised to ensure that they do not
play with the appliance.
3. If the supply cord is damaged, it must be replaced by LG
Electronics Service Agent in order to avoid a hazard
4. This appliance can be used by children aged from 8 years
and above and persons with reduced physical, sensory or
mental capabilities or lack of experience and knowledge if
they have been given supervision or instruction concerning
use of the appliance in a safe way and understand
the hazards involved. Children shall not play with the
appliance. Cleaning and user maintenance shall not be
made by children without supervision.
5
IMPORTANT SAFETY INSTRUCTIONS
• Do not plug in if control switch is not in OFF position.
Personal injury or product damage could result.
• Keep children away and beware of obstructions when
rewinding the cord to prevent personal injury
The cord moves rapidly when rewinding.
• Disconnect electrical supply before servicing or
cleaning the unit or when cleaner is not in use.
Failure to do so could result in electrical shock or
personal injury.
• Do not use vacuum cleaner to pick up anything that
is burning or smoking such as cigarettes, or hot
ashes.
Doing so could result in death, fire or electrical shock.
• Do not vacuum flammable or explosive substances
such as gasoline, benzene, thinners, propane (liquids
or gases).
The fumes from these substances can create a fire
hazard or explosion. Doing so could result in death or
personal injury.
• Do not handle plug or vacuum cleaner with wet
hands.
Doing so could result in death or electrical shock.
• Do not unplug by pulling on cord.
Doing so could result in product damage or electrical
shock. To unplug, grasp the plug, not the cord.
• Keep hair, loose clothing, fingers, and all parts of the
body away from openings and moving parts.
Failure to do so could result in electrical shock or
personal injury.
• Do not pull or carry by cord, use cord as a handle,
close a door on cord, or pull cord around sharp
edges or corners. Do not run vacuum cleaner over
cord. Keep cord away from heated surfaces.
Failure to do so could result in electrical shock or
personal injury or fire or product damage.
• The hose contains electrical wires. Do not use it if it
is damaged, cut or punctured.
Failure to do so could result in death,or electrical shock.
• Do not allow to be used as toy. Close attention is
necessary when used by or near children.
Personal injury or product damage could result.
• Do not use the vacuum cleaner if the power cord or
plug is damaged or faulty.
Personal injury or product damage could result. In these
cases, contact LG Electronics Service Agent to avoid
hazard.
• Do not use vacuum cleaner if it has been under water.
Personal injury or product damage could result. In these
cases, contact LG Electronics Service Agent to avoid
hazard.
• Do not continue to vacuum if any parts appear
missing or damaged.
Personal injury or product damage could result. In these
cases, contact LG Electronics Service Agent to avoid
hazard.
• Do not use an extension cord with this vacuum
cleaner
Fire hazard or product damage could result.
• Using proper voltage.
Using improper voltage may result in damage to the
motor and possible injury to the user. Proper voltage is
listed on the bottom of vacuum cleaner.
• Turn off all controls before unplugging.
Failure to do so could result in electrical shock or
personal injury.
• Do not change the plug in any way.
Failure to do so could result in electrical shock or
personal injury or product damage. Doing so result in
death. If plug does not fit, contact a qualified electrician to
install the proper outlet.
• Repairs to electrical appliances may only be
performed by qualified service engineers.
Improper repairs may lead to serious hazards for the
user.
WARNING
6
IMPORTANT SAFETY INSTRUCTIONS
• Do not put any objects into openings.
Failure to do so could result in product damage.
• Do not use with any opening blocked: keep free of
dust, lint, hair, and anything that may reduce air flow.
Failure to do so could result in product damage.
• Do not use vacuum cleaner without dust tank and/or
filters in place.
Failure to do so could result in product damage.
• Always clean the dust bin after vacuuming carpet
cleaners or fresheners, powders and fine dust.
These products clog the filters,reduce airflow and can
cause damage to the cleaner. Failure to clean the dust bin
could cause permanent damage to the cleaner.
• Do not use vacuum cleaner to pick up sharp hard
objects, small toys, pins, paper clips, etc.
They may damage the cleaner or dust bin.
• Store the vacuum cleaner indoors.
Put the vacuum cleaner away after use to prevent tripping
over it.
• The vacuum cleaner is not intended to use by young
children or infirm people without supervision.
Failure to do so could result in personal injury or product
damage.
• Only use parts produced or recommended by LG
Electronics Service Agents.
Failure to do so could result in product damage.
• Use only as described in this manual. Use only with
LG recommended or approved attachments and
accessories.
Failure to do so could result in personal injury or product
damage.
• To avoid personal injury and to prevent the machine
from falling when cleaning stairs, always place it at
the bottom of stairs.
Failure to do so could result in personal injury or product
damage.
• Use accessory nozzles in "MIN" mode.
Failure to do so could result in product damage.
• Dont grasp the tank handle when you are moving the
vacuum cleaner.
The vacuum cleaners body may fall when separating
tank and body. Personal injury or product damage could
result. You should grasp the carrier handle when you
are moving the vacuum cleaner.
• If after emptying the dust tank the indicator light is
on(red), clean the dust tank.
Failure to do so could result in product damage.
• Make sure the filters (exhaust filter and motor safety
filter) are completely dry before replacing in the
machine.
Failure to do so could result in product damage.
• Do not dry the filter in an oven or microwave.
Failure to do so could result in fire hazard.
• Do not dry the filter in a clothes dryer.
Failure to do so could result in fire hazard.
• Do not dry near an open flame.
Failure to do so could result in fire hazard.
• If the power cord is damaged, it must be replaced by
an approved LG Electronics Service Agent to avoid a
hazard.
• This appliance is not intended for use by persons
(including children) with reduced physical, sensory
or mental capabilities, or lack of experience and
knowledge, unless they have been given supervision
or instruction concerning use of the appliance by a
person responsible for their safety.
Children should be supervised to ensure that they do not
play with the appliance.
Thermal protector :
This vacuum cleaner has a special thermostat that protects the vacuum cleaner in case of motor overheating.
If the vacuum cleaner suddenly shuts off, turn off the switch and unplug the vacuum cleaner.
Check the vacuum cleaner for possible source of overheating such as a full dust tank, a blocked hose or clogged
filter. If these conditions are found, fix them and wait at least 30 minutes before attempting to use the vacuum
cleaner. After the 30 minute period, plug the vacuum cleaner back in and turn on the switch.
If the vacuum cleaner still does not run, contact a qualified electrician.
CAUTION
7
, ,
, . ,
. .
: 2006/95/EC 2004/108/EC.
.
,
.
«» «». :
,
, .
,
.
1.
( , )
,
, ,
,
,
.
2.
.
3. ,
,
LG Electronics.
4.
8 ,
,
, ,
,
.
.
8
• ,
OFF (.).
.
• ,
, ,
, .
.
•
,
, .
.
•
,
.
,
.
•
, , ,
, (
).
. ,
.
•
.
.
• , .
.
, ,
.
• , ,
,
.
.
• ,
,
.
.
.
, ,
.
• .
,
.
.
• , – .
; ,
.
.
•
.
.
LG Electronics .
•
.
.
LG Electronics .
• , -
, .
.
LG Electronics
.
•
.
.
•
.
.
.
• ,
.
.
• .
,
.
. ,
-
.
•
.
.
9
•
.
.
• :
, , ,
.
.
• /
.
.
•
, .
,
.
,
.
•
, , ,
..
.
• .
,
.
•
.
.
• ,
LG Electronics
.
.
• ,
.
,
LG.
.
•
.
.
•
«MIN».
.
•
.
,
.
.
.
•
( ), .
.
•
( ),
, .
.
•
.
.
• .
.
•
.
.
•
LG Electronics.
•
( )
,
,
, -
,
.
- , ,
.
:
,
. ,
. , , ,
, . -
30 , . 30
. -
, -.
10
, ,
, .
, . , ,
. :2006/95/EC –
, 2004/108/EC – .
.
,
.
«» «». :
,
.
,
.
1.
( , )
, ,
,
,
, .
2.
.
3. ,
,
LG Electronics.
4.
8 ,
, ,
,
,
.
.
.
11
• ,
OFF.
.
• ,
,
.
.
•
, ,
, .
.
• - ,
, ,
.
,
.
•
, , ,
, ( ).
.
.
•
.
.
• , .
.
, , .
• , ,
.
.
• ,
, ,
.
.
.
, ,
.
• .
,
.
.
• .
,
, .
.
• ,
.
. ,
LG Electronics.
• ,
.
. ,
LG Electronics.
•
.
. ,
LG Electronics.
•
.
.
•
.
.
.
•
.
.
• .
,
.
.
,
.
•
.
.
12
• .
.
• , -
:
, , -,
.
.
•
/ .
.
•
,
,
.
,
,
. ,
.
• ,
, , ,
.
.
• .
,
.
•
.
.
• , LG
Electronics
.
.
•
, .
,
LG.
.
•
,
.
.
• MIN.
.
•
.
,
.
.
.
•
( ), ,
.
.
• (
) , ,
.
.
• .
.
• .
.
• .
.
•
;
LG Electronics.
•
( ) ,
,
,
, .
, .
:
, .
, .
, , , ,
. , 30
. 30
.
, .
13
, ,
, .
.
. : 2006/95/EC
- 2004/108/EC .
.
.
"" " " . :
.
.
1. ( ) ,
,
.
2.
.
3. ,
LG Electronics
.
4. 8
,
,
, .
.
.
14
•
.
.
•
.
•
.
.
•
.
,
.
• , , ,
( )
.
.
.
•
.
.
• .
.
, .
• , ,
.
.
• ,
,
.
.
.
, ,
.
• .
, ,
.
.
• .
.
.
• ,
.
.
LG Electronics
.
• ,
.
.
LG Electronics
.
•
,
.
.
LG Electronics
.
•
.
• .
.
.
•
.
.
• .
,
.
.
,
.
•
.
.
15
•
.
.
•
: ,
,
.
.
•
/
.
.
•
,
.
,
.
.
•
,
, ,
, .. .
.
•
.
.
•
.
.
•
LG Electronics
.
.
•
. LG
.
.
•
.
.
•
"MIN"
.
.
•
.
.
.
.
•
() ,
.
.
• (
) .
.
•
.
.
• .
.
• .
.
•
,
LG Electronics
.
•
,
( )
.
.
.
:
.
, , .
,
, . , ,
30 . 30
, .
, .
16
Telescopic pipe
• Push telescopic pipe firmly into hose handle.
• Grasp the spring latch to expand.
• Pull out the pipe to desired length.
•
.
• ,
.
• .
• .
• , .
• .
•
.
• .
• .
Carpet and floor nozzle
Push the nozzle into the telescopic pipe.
.
.
.
Spring latch
Telescopic pipe
(depend on model)
( )
( )
( )
(depend on model)
( )
( )
( )
(depend on model)
( )
( )
( )
(depend on model)
( )
( )
( )
How to use Assembling vacuum cleaner
Hose handle
17
Click!
!
!
!
Button
Attachme nt point
Connecting the hose to the vacuum cleaner
Push the fitting pipe on the flexible hose into the attachment point on the vacuum
cleaner.
To remove the flexible hose from the vacuum cleaner, press the button situated on
the fitting pipe, then pull the fitting pipe out of the vacuum cleaner.
.
, ,
, .
.
, ,
,
.
.
, .
18
How to use Operating vacuum cleaner
Park mode
• To store during vacuuming, for example to move a
small piece of furniture or a rug, use park mode to
support the flexible hose and nozzle.
- Slide the hook on the nozzle into the slot on the side
of vacuum cleaner.
•
, ,
- ,
.
-
.
• ,
, ,
,
.
-
.
•
,
,
.
-
.
Storage
• When you have switched off and unplugged the vacuum
cleaner, press the cord reel button to automatically rewind
the cord.
• You can store your vacuum cleaner in a vertical position by
sliding the hook on the nozzle into the slot on the underside
of the vacuum cleaner.
•
,
,
.
• ,
.
• ,
,
, .
•
,
.
•
,
,
.
•
.
How to operate
• Pull out the power cord to the desired length and
plug into the socket.
• Place the control knob of the hose handle to the
required position.
• To turn off, slide control knob to OFF position.
• Press the cord reel button to rewind the power cord
after use.
•
.
•
.
• ,
OFF (.).
•
,
.
•
.
•
.
• ,
.
• ,
.
•
,
.
•
,
.
•
.
•
.
•
.
Control knob
Cord reel button
Plug, ,
,
WARNING
No liquid suction.
Liquid suction can cause defects.
.
.
.
.
.
,
.
19
How to use Using carpet and floor nozzle/ hard floor nozzle
/
/
/
Carpet and floor nozzle(depend on model)
( )
( )
( )
• The 2 position nozzle
This is equipped with a pedal which allows you to alter its position according to the
type of floor to be cleaned.
• Carpet or rug position
Press the pedal ( ) to lower brush.
• Hard floor position (tiles, parquets floor)
Press the pedal ( ) to lift the brush up.
•
,
.
•
( ) .
• (, )
( ) .
•
,
, .
•
( ), .
• (, )
( ), .
•
2
.
•
( ) .
•
(, )
( ) .
Hard floor nozzle (depend on model)
( )
( )
( )
• Efficient cleaning of hard floors
(wood, linoleum, etc)
•
(, ..)
•
(, )
•
(, , ..)
• Cleaning carpet and floor nozzle
•
•
•
• Clean the hole and the brush of the nozzle.
• .
• .
•
.
Carpet
Pedal
Floor
20
How to use Using carpet master nozzle and mini turbine nozzle
-
Carpet Master -
" "
Carpet master (depend on model)
( )
Carpet Master ( )
" " ( )
• Cleaning turbine brush nozzle.
• Press the button on the rear side of the nozzle to separate the air cover.
• Use the crevice tool to clean the brush and the fan.
• -
• ,
.
• , .
• .
• .
• .
• .
•
.
•
.
Mini turbine nozzle (depend on model)
- ( )
- ( )
( )
• Mini turbine is used for stairs and other hard-to-reach places.
• To clean the mini turbine nozzle, remove the nozzle cover :
Remove 2 screws on the bottom and take mini turbine nozzle cover off as
shown.
• Frequently clean and remove hair, string, and lint build-up in the brush
area. Failure to do so could damage to mini turbine nozzle.
• -
.
• - :
2 -
, .
• , ,
.
-.
• -
.
• -, :
,
.
• , ,
.
- .i
•
.
•
:
2 ,
.
• , .
.
Air regulator
Long carpet
Short carpet
Cleaning carpet master
Carpet Master
" "
Open
Bottom
Other manuals for VK7314
3
Table of contents
Other LG Vacuum Cleaner manuals
