OWNER’S MANUAL
NEW TYPE CYCLONE
VACUUM CLEANER
VK7920****
This information contains important instructions for the safe use and
maintenance of the vacuum cleaner. Especially, please read all of the
information on page 4, 5 for your safety. Please keep this manual in an
easily accessible place and refer to it anytime.
P/No.: MFL62546629 www.lg.com

2

Table of contents
3
Important safety instructions ....................................................................... 4~5
How to use .................................................................................................... 6~21
Assembling vacuum cleaner ...................................................................................................... 6~7
Operating vacuum cleaner ............................................................................................................. 8
Using carpet and floor nozzle/ hard floor nozzle ............................................................................ 9
Using carpet master nozzle and mini turbine nozzle .................................................................... 10
Using 2 in 1 nozzle ....................................................................................................................... 11
Using accessory nozzles .............................................................................................................. 12
Using sani punch nozzle ......................................................................................................... 13~17
Emptying dust tank ....................................................................................................................... 18
Cleaning dust tank ........................................................................................................................ 19
Cleaning dust separator ................................................................................................................20
Cleaning exhaust filter .................................................................................................................. 21
What to do if your vacuum cleaner does not work ....................................... 22
What to do when suction power decreases .................................................. 22

IMPORTANT SAFETY INSTRUCTIONS
4
Read and follow all instructions before using your vacuum cleaner to prevent the risk of fire, electric shock, personal injury, or
damage when using the vacuum cleaner. This guide do not cover all possible conditions that may occur. Always contact your
service agent or manufacturer about problems that you do not understand. This appliance complies with the following EC
Directives :-2006/95/EC Low Voltage Directive -2004/108/EC EMC Directive.
This is the safety alert symbol.
This symbol alerts you to potential hazards that can kill or hurt you and others.
All safety messages will follow the safety alert symbol and either the word “WARNING” or “CAUTION.”
These words mean:
This symbol will alert you to hazards or unsafe practices which could cause serious
bodily harm or death.
This symbol will alert you to hazards or unsafe practices which could
cause bodily injury or property damage.
• Do not plug in if control knob is not in OFF position.
Personal injury or product damage could result.
• Keep children away and beware of obstructions
when rewinding the cord to prevent personal injury
The cord moves rapidly when rewinding.
• Disconnect electrical supply before servicing or
cleaning the unit or when cleaner is not in use.
Failure to do so could result in electrical shock or personal injury.
• Do not use vacuum cleaner to pick up anything that
is burning or smoking such as cigarettes, or hot
ashes.
Doing so could result in death, fire or electrical shock.
• Do not vacuum flammable or explosive substances
such as gasoline, benzene, thinners, propane
(liquids or gases).
The fumes from these substances can create a fire
hazard or explosion. Doing so could result in death or
personal injury.
• Do not handle plug or vacuum cleaner with wet
hands.
Doing so could result in death or electrical shock.
• Do not unplug by pulling on cord.
Doing so could result in product damage or electrical
shock. To unplug, grasp the plug, not the cord.
• Keep hair, loose clothing, fingers, and all parts of
the body away from openings and moving parts.
Failure to do so could result in electrical shock or personal
injury.
• Do not pull or carry by cord, use cord as a handle,
close a door on cord, or pull cord around sharp
edges or corners. Do not run vacuum cleaner over
cord. Keep cord away from heated surfaces.
Failure to do so could result in electrical shock or personal
injury or fire or product damage.
• The hose contains electrical wires. Do not use it if it is
damaged, ccut or punctured.
Failure to do so could result in death, or electrical shock.
• Do not allow to be used as toy. Close attention is
necessary when used by or near children.
Personal injury or product damage could result.
• Do not use the vacuum cleaner if the power cord or
plug is damaged or faulty.
Personal injury or product damage could result. In these
cases, contact LG Electronics Service Agent to avoid hazard.
•
Do not use vacuum cleaner if it has been under water.
Personal injury or product damage could result. In these
cases, contact LG Electronics Service Agent to avoid hazard.
• Do not continue to vacuum if any parts appear
missing or damaged.
Personal injury or product damage could result. In these
cases, contact LG Electronics Service Agent to avoid hazard.
• Do not use an extension cord with this vacuum
cleaner.
Fire hazard or product damage could result.
• Using proper voltage.
Using improper voltage may result in damage to the
motor and possible injury to the user. Proper voltage is
listed on the bottom of vacuum cleaner.
• Turn off all controls before unplugging.
Failure to do so could result in electrical shock or personal injury.
• Do not change the plug in any way.
Failure to do so could result in electrical shock or personal
injury or product damage. Doing so result in death. If plug
does not fit, contact a qualified electrician to install the
proper outlet.
If the supply cord is damaged, it must be replaced by the
manufacturer, its service agent or similarly qualified
persons in order to avoid a hazard.
• Repairs to electrical appliances may only be
performed by qualified service engineers.
Improper repairs may lead to serious hazards for the user.
• Do not put fingers near the gear.
Failure to do so could result in personal injury.
WARNING
CAUTION
WARNING

5
IMPORTANT SAFETY INSTRUCTIONS
• Do not put any objects into openings.
Failure to do so could result in product damage.
•
Do not use with any opening blocked: keep free of
dust, lint, hair, and anything that may reduce air flow.
Failure to do so could result in product damage.
• Do not use vacuum cleaner without the dust tank
and/or filters in place.
Failure to do so could result in product damage.
• Always clean the dust bin after vacuuming carpet
cleaners or fresheners, powders and fine dust.
These products clog the filters, reduce airflow and can
cause damage to the cleaner. Failure to clean the dust bin
could cause permanent damage to the cleaner.
• Do not use vacuum cleaner to pick up sharp hard
objects, small toys, pins, paper clips, etc.
They may damage the cleaner or dust bin.
• Store the vacuum cleaner indoors.
Put the vacuum cleaner away after use to prevent tripping
over it.
• The vacuum cleaner is not intended to use by young
children or infirm people without supervision.
Failure to do so could result in personal injury or product
damage.
• Only use parts produced or recommended by LG
Electronics Service Agents.
Failure to do so could result in product damage.
• Use only as described in this manual. Use only with
LG recommended or approved attachments and
accessories.
Failure to do so could result in personal injury or product
damage.
• To avoid personal injury and to prevent the machine
from falling when cleaning stairs, always place it at
the bottom of stairs.
Failure to do so could result in personal injury or product
damage.
• Use accessory nozzles in sofa mode.
Failure to do so could result in product damage.
• Don’t grasp the tank handle when you are moving
the vacuum cleaner.
The vacuum cleaner’s body may fall when separating
tank and body. Personal injury or product damage could
result. You should grasp the carrier handle when you are
moving the vacuum cleaner. (Page 18)
• If after emptying the dust tank the alarm sounds,
clean the dust tank.
Failure to do so could result in product damage.
• Make sure the filters (exhaust filter and motor safety
filter) are completely dry before replacing in the
machine.
Failure to do so could result in product damage.
• Do not dry the filter in an oven or microwave.
Failure to do so could result in fire hazard.
• Do not dry the filter in a clothes dryer.
Failure to do so could result in fire hazard.
• Do not dry near an open flame.
Failure to do so could result in fire hazard.
• Do not use filters that is not dried.
• If the power cord is damaged, it must be replaced by
an approved LG Electronics Service Agent to avoid a
hazard.
• This appliance is not intended for use by persons
(including children) with reduced physical, sensory
or mental capabilities, or lack of experience and
knowledge, unless they have been given supervision
or instruction concerning use of the appliance by a
person responsible for their safety.
Children should be supervised to ensure that they do not
play with the appliance.
CAUTION
Thermal protector :
This vacuum cleaner has a special thermostat that protects the vacuum cleaner in case of motor
overheating. If the vacuum cleaner suddenly shuts off, turn off the switch and unplug the vacuum cleaner.
Check the vacuum cleaner for possible source of overheating such as a full dust tank, a blocked hose or
clogged filter. If these conditions are found, fix them and wait at least 30 minutes before attempting to use
the vacuum cleaner. After the 30 minute period, plug the vacuum cleaner back in and turn on the switch.
If the vacuum cleaner still does not run, contact a qualified electrician.

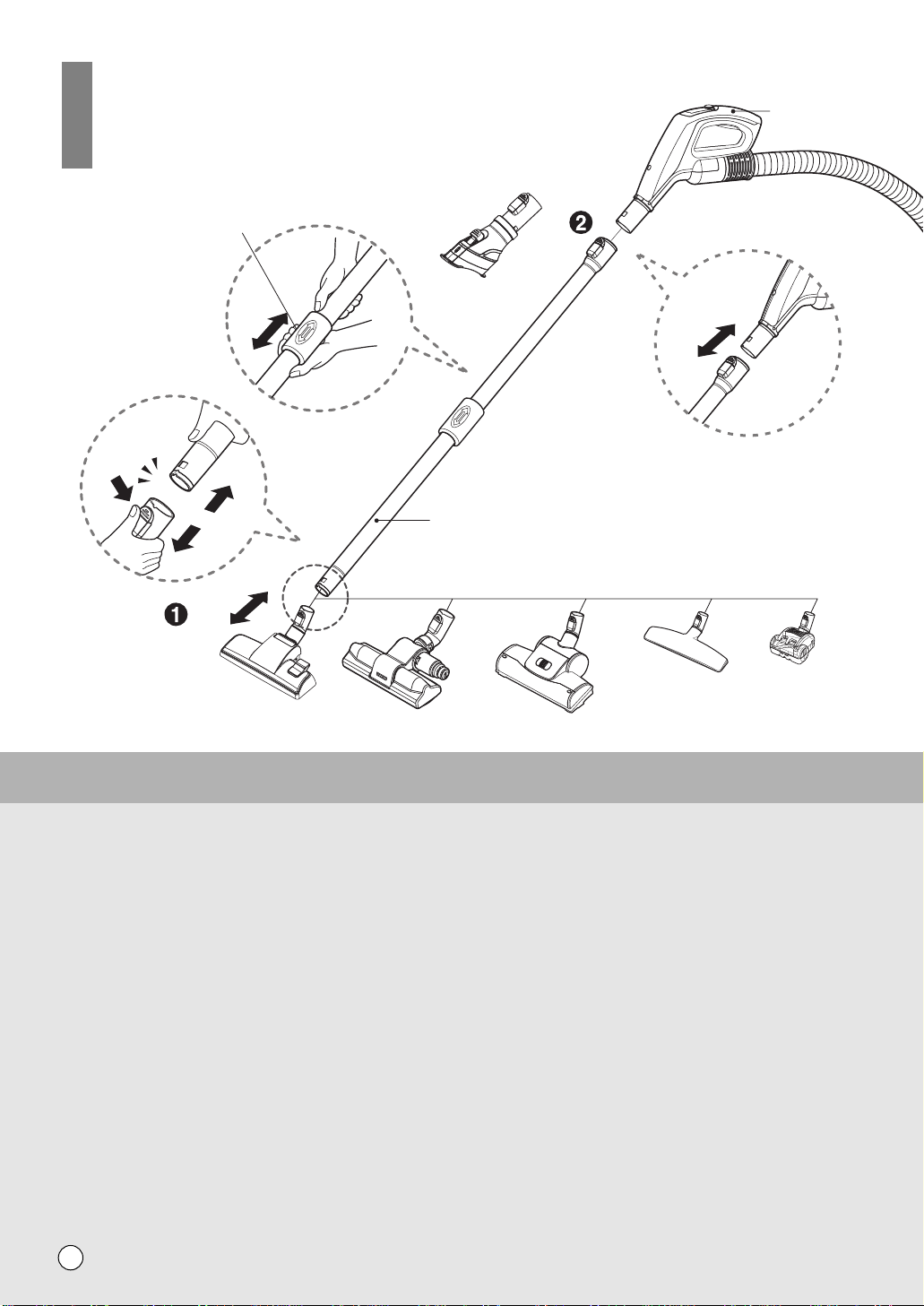

How to use Assembling vacuum cleaner

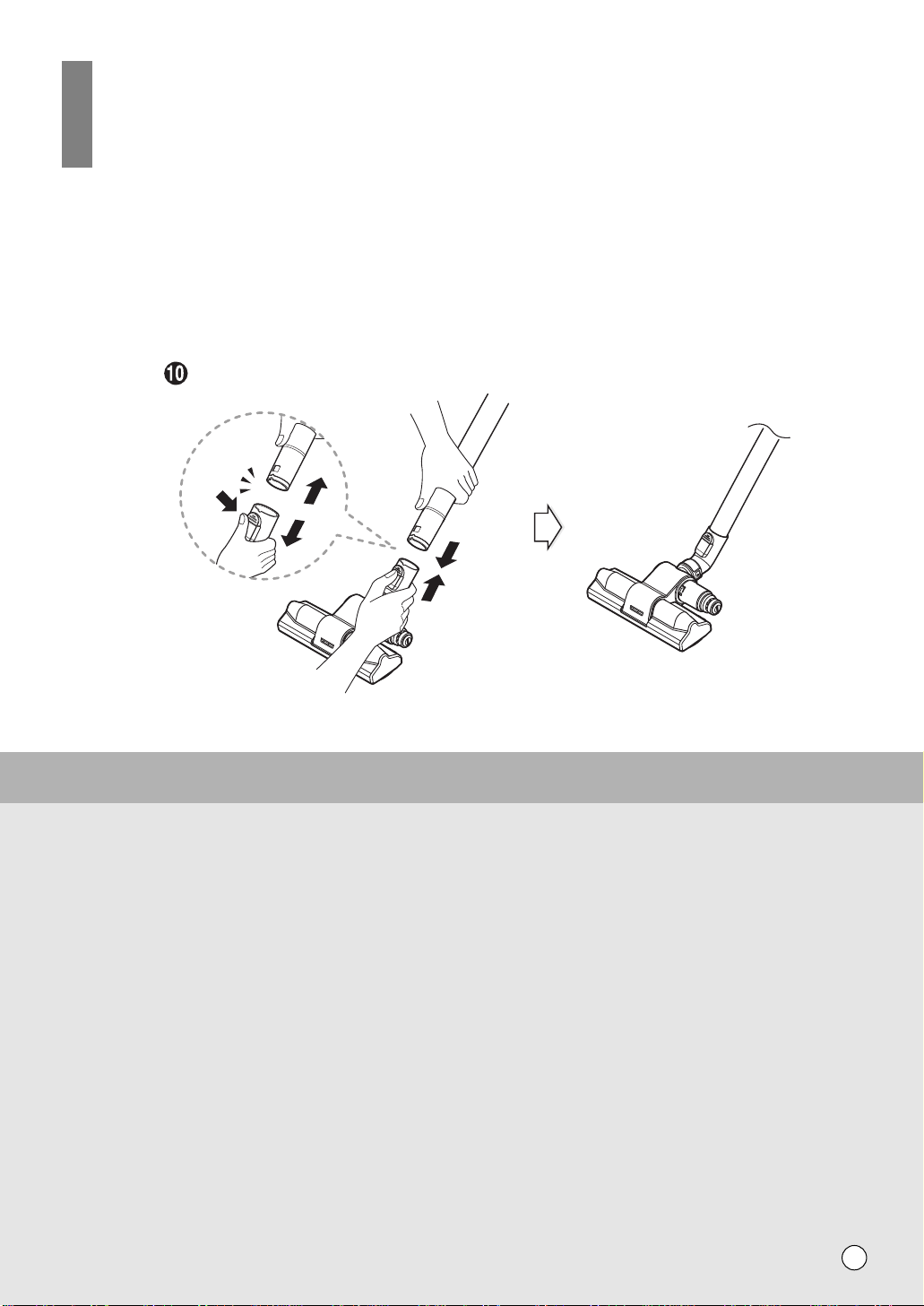

❶Carpet and floor nozzle (depend on model) ❷Telescopic pipe
• Push the hose handle firmly into the telescopic pipe.
Push the telescopic pipe into the nozzle. • Grasp the spring latch to expand.
• Pull out the pipe to desired length.
(depend on model)
(depend on model) (depend on model) (depend on model) (depend on model) (depend on model)
6
Hose handle
Spring latch
Telescopic pipe

7
❸Connecting the hose to the vacuum cleaner
Push the fitting pipe on the flexible hose into the attachment
point on the vacuum cleaner.
To remove the flexible hose from the vacuum cleaner, press the
button situated on the fitting pipe, then pull the fitting pipe out of
the vacuum cleaner.
Fitting pipe
Click!
Flexible hose
Button
Attachment point

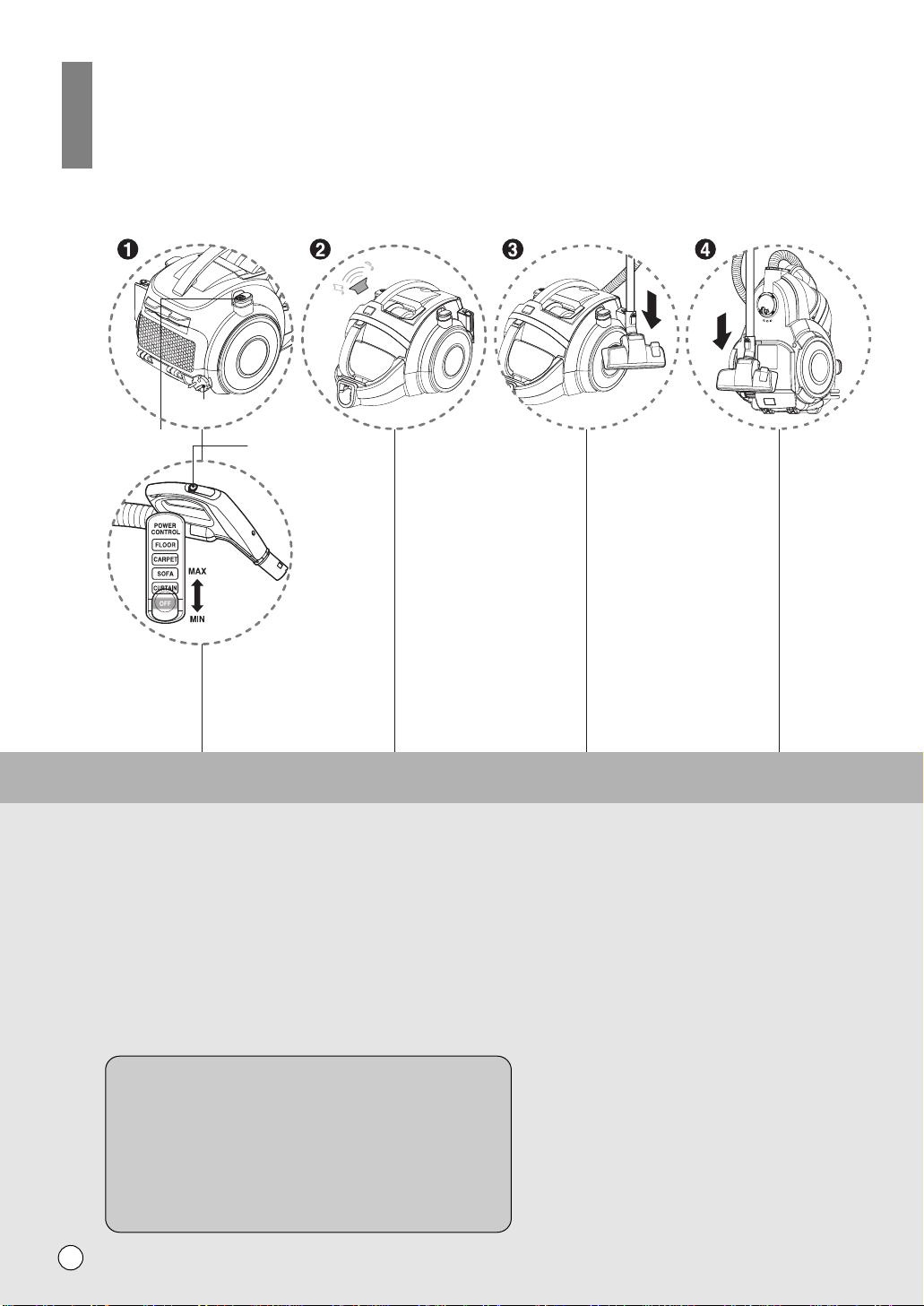

How to use Operating vacuum cleaner
❷Alarm sound
• Alarm will sound when the
dust tank is full or the air
filter is clogged.
• After about 1min 30sec,
vacuum cleaner turn itself
off and alarm will sound.
• Empty the dust tank and
reuse the vacuum cleaner.
❸Park mode
• To store during vacuuming,
for example to move a small
piece of furniture or a rug,
use park mode to support
the flexible hose and nozzle.
- Slide the hook on the
nozzle into the slot on the
side of vacuum cleaner.
❹Storage
• When you have switched off
and unplugged the vacuum
cleaner, press the cord reel
button to automatically
rewind the cord.
• You can store your
vacuum cleaner in a
vertical position by
sliding the hook on the
nozzle into the slot on
the underside of the
vacuum cleaner.
NOTICE
When alarm sounds :
1. The dust tank is full
󳦈Turn off the vacuum cleaner and empty the dust tank
2. Power is on without the dust tank
󳦈Turn of the vacuum cleaner and reattach the dust tank
3. Rotating plate in the dust tank is restricted because obstruction
󳦈Turn of the vacuum cleaner and remove obstruction
8
❶How to operate
• Pull out the power cord to the
desired length and plug into the
socket.
• Place the control knob of the
hose
handle to the required position.
• To turn off, slide control knob to
OFF position.
• Press the cord reel button to
rewind the power cord after use.
Plug
Cord reel button Regulator

9
How to use Using carpet and floor nozzle/ hard floor nozzle
❶Carpet and floor nozzle(depend on model)
• The 2 position nozzle
This is equipped with a pedal which allows you to
alter its position according to the type of floor to
be cleaned.
• Carpet or rug position
Press the pedal ( ) to lower brush.
• Hard floor position (tiles, parquets floor)
Press the pedal ( ) to lift the brush up.
❷ Hard floor nozzle (depend on model)
• Efficient cleaning of hard floors
(wood, linoleum, etc)

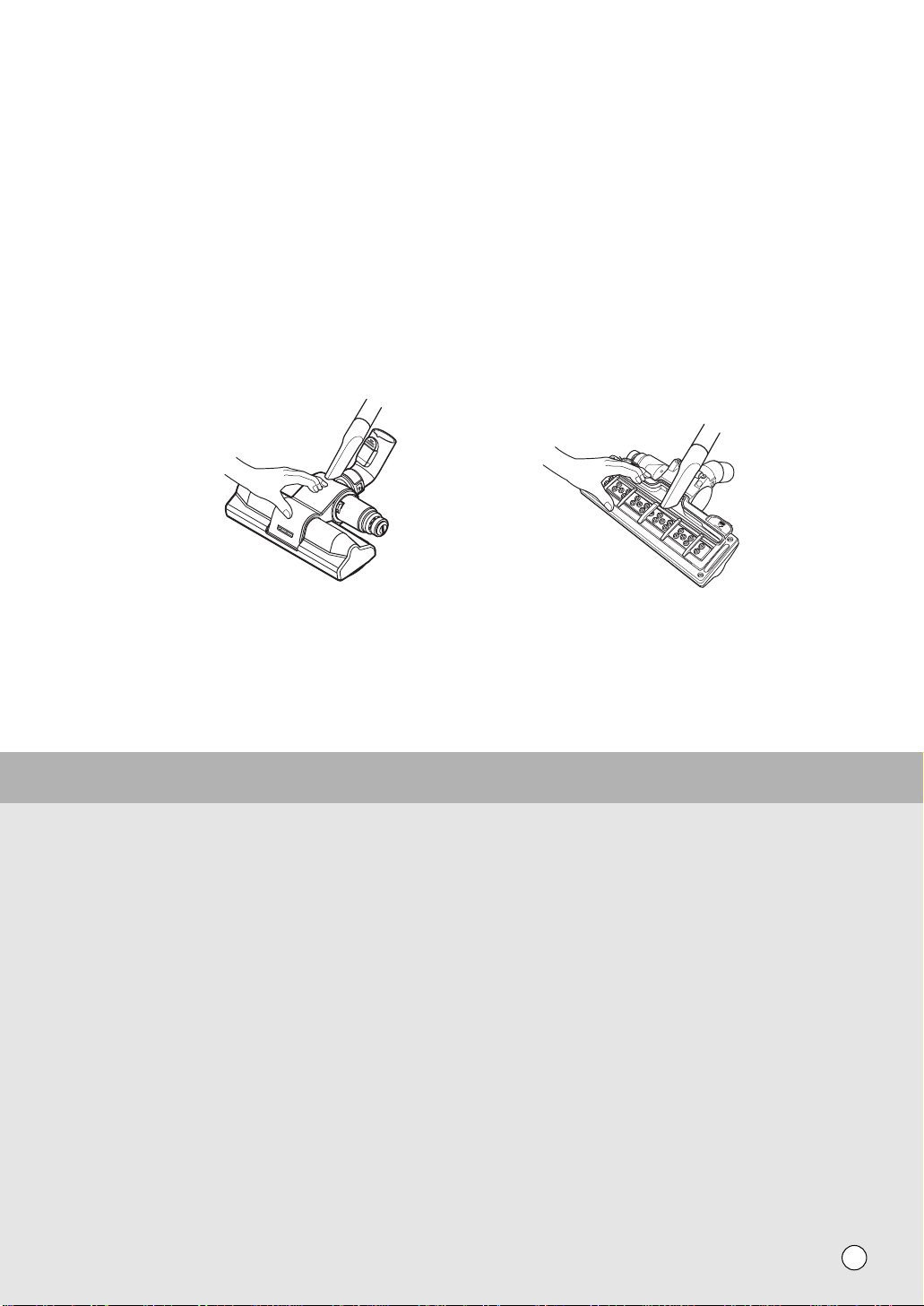

• Cleaning carpet and floor nozzle
• Clean the hole
and the brush
of the nozzle.

10
How to use Using carpet master nozzle and mini turbine nozzle
❸Carpet master (depend on model)
• Cleaning turbine brush nozzle.
• Press the button on the rear side of the nozzle to separate
the air cover.
• Use the crevice tool to clean the brush and the fan.
❹Mini turbine nozzle (depend on model)
• Mini turbine is used for stairs and other hard-to-
reach places.
• To clean the mini turbine nozzle, remove the
nozzle cover :
Remove 2 screws on the bottom and take mini
turbine nozzle cover off as shown.
• Frequently clean and remove hair, string, and lint
build-up in the brush area. Failure to do so could
damage to mini turbine nozzle.

11

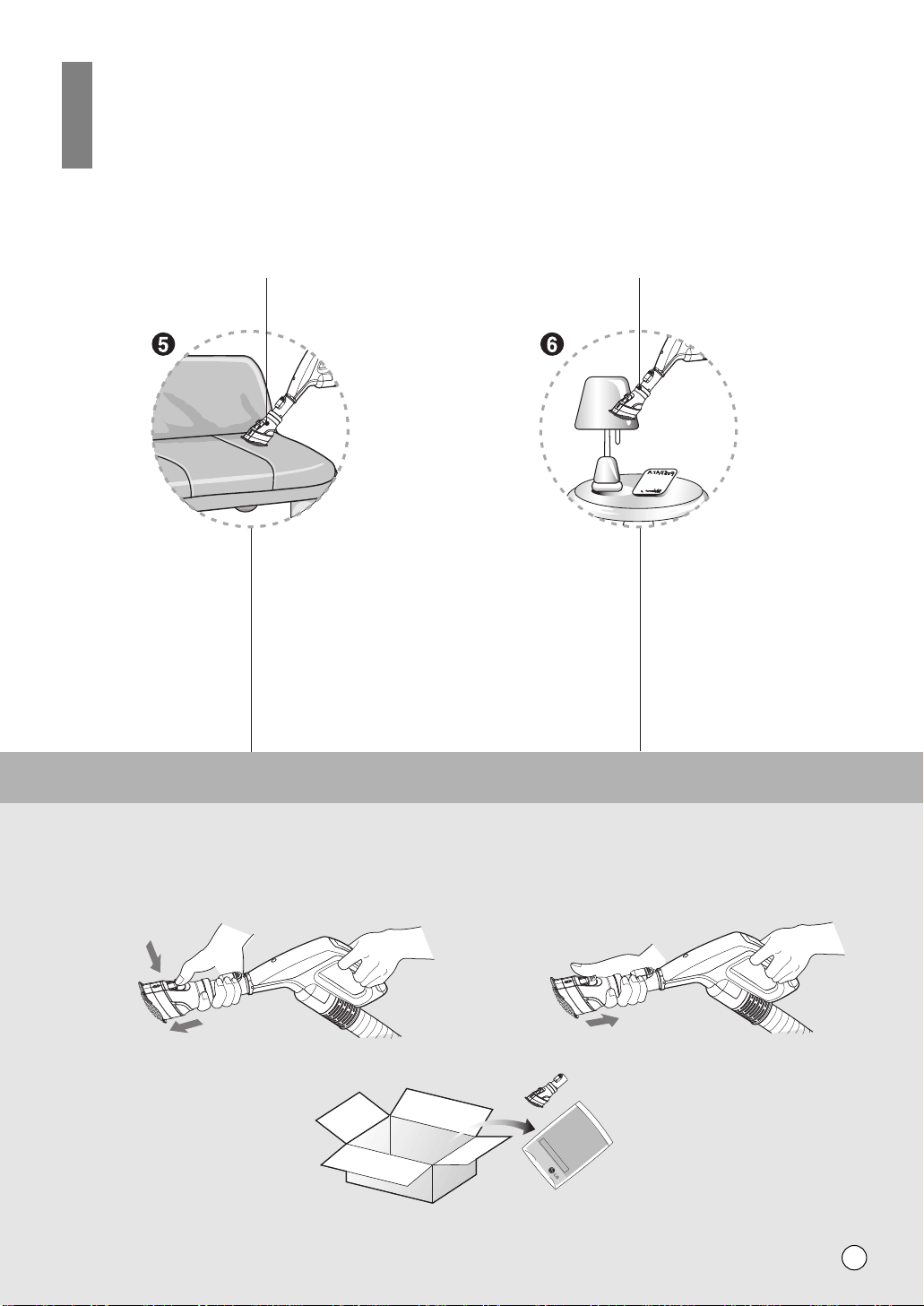

How to use Using 2 in 1 nozzle
❺Upholstery nozzle(depend on model)
Upholstery nozzle is for vacuuming upholstery, mattresses etc.
❻Dusting brush(depend on model)
Dusting brush is for vacuuming picture
frames, furniture frames, books and other
irregular surfaces.
• 2 in 1 nozzle included in the
"BOX" with owner's manual(depend on model)
Upholstery nozzle Dusting brush
< Upholstery nozzle mode > < Dusting brush mode >
Push the
button
Pull the
cover

Crevice tool Upholstery nozzle Dusting brush
12
❽Upholstery nozzle
(depend on model)
Upholstery nozzle is for vacuuming
upholstery, mattresses etc.
The thread collectors help to plck up
the tnreads and fluff.
❾Dusting brush
(depend on model)
Dusting brush is for vacuurning
picture frames, furniture frames,
books and other irreguiar surfaces.
NOTICE
Use accessory in the sofa mode.
How to use Using accessory nozzles
• Accessory nozzles included in the "PE BAG" with owner's manual
(depend on model)
❼Crevice tool
(depend on model)
Crevice tool is for vacuuming in
those nomally hard-to-reach place
such as reaching cobwebs or
between the cushios of sofa.

How to use Using sani punch nozzle
Features
This nozzle picks up even dust inside through beating.
The bottom part can be separated to be cleaned.
Since the bottom does not stick to the surface, vacuuming
iseasy.
How to use
Follow the directions below for properuse.
Assembly
Connect the nozzle to the telescopic pipe.
13
❿Sani punch nozzle|
(depend on meodel)
Set the suction power control switch to MAX POWER before vacuuming.
Depending on the type of bedding, handling may be awkward or it may cause a lot
of noise.
If this is the case, adjust the suction power control switch to a lower setting.

This Sani Punch nozzle is for effective cleaning of beds and blankets to remove mites and dust.
Effective cleaning
Bed & blanket
Bulky & heavy blanket Light blanket & sheet
14
When using on the bed
Lay out the blanket and vacuum it on the bed
When using on the floor
It is easier to clean a light blanket or sheetby
pushing the nozzle in the direction of the arrow.
To increase cleaning efficiency for light blankets,
lay on top of a bulky blanket and then clean.

For simple cleaning of the vacuum nozzle, detach the Sani Punch nozzle from the telescopic pipe and attach the crevice tool
to vacuum dust.
15
Top Bottom
Since the vibrator inside is composed of precision parts, never disassemble the body.
Be careful not to let foreign objects clog the air suction part on top of the vacuum nozzle.
Since removal of the punch bar may cause performance problems, do not warp or remove it.
Attach the bottom plate properly before using. Without this bottom plate, it may not function.
Since this vacuum nozzle has been made exclusively for cleaning beds, blankets and upholstery, use it only for
these cleaning purposes.
(Using it to clean the floor may result soiling it or a drop in performance, do not use it for such purposes.)

Follow the instruction below for through washing.
(Do not soak the entire body of the vacuum nozzle in water, it may cause the vibrator to malfunction)
16
1 2 3
4 5 6
Bottom plate
Punch bar
❶Press the button on
the rear side of the
vacuum nozzle to
separate the bottom
plate.
❷Wipe all the soiled parts
of the vacuum nozzle
body with a cloth.
❸Wash the removed bot-
tom plate with water
and dry it.
❹Straighten the
punch bar on the
lower section.
❺Insert the attachment
projections on bottom
plate to the vacuum
nozzle grooves.
❻Push down the
tabs to secure.
Bottom plate
Punch bar

17
❶Push the button 2-3 times
when the dust is filled in
the dustbin while cleaning
❷When the dust is fully
filled after cleaning,
take the bin and turn it
counterclockwise to
disconnect
❸Waste the dust in the bin ❹Take the bin to fix into the
projection part and then turn
it clockwise to connect.
projection part

18
How to use Emptying dust tank
The dust tank needs emptying when alarm sounds.
• Turn off the vacuum cleaner and unplug it.
• Grasp the handle of the tank and then press the tank
separation button.
• Pull out the dust tank.
• Empty the tank and then assemble the dust tank as shown.
Assembling the dust tank
Moving the vacuum cleaner
• Don't grasp the tank handle when you are moving the vacuum
cleaner. The vacuum cleaner's body may fall when separating tank
and body. You should grasp the carrier handle when you are moving
the vacuum cleaner.
②②Pull out
①①Push the button
Tank handle
Dust tank cap
Tank separation button
Tank handle Carrier handle
NOTICE
• If suction power decreases after emptying the dust tank, clean the
dust tank 󳥴next page
• Since the dust tank is full, alarm sounds for 1 min 30 sec
and suction power will decrease for a while, then vacuum
cleaner will turn itself off.

19

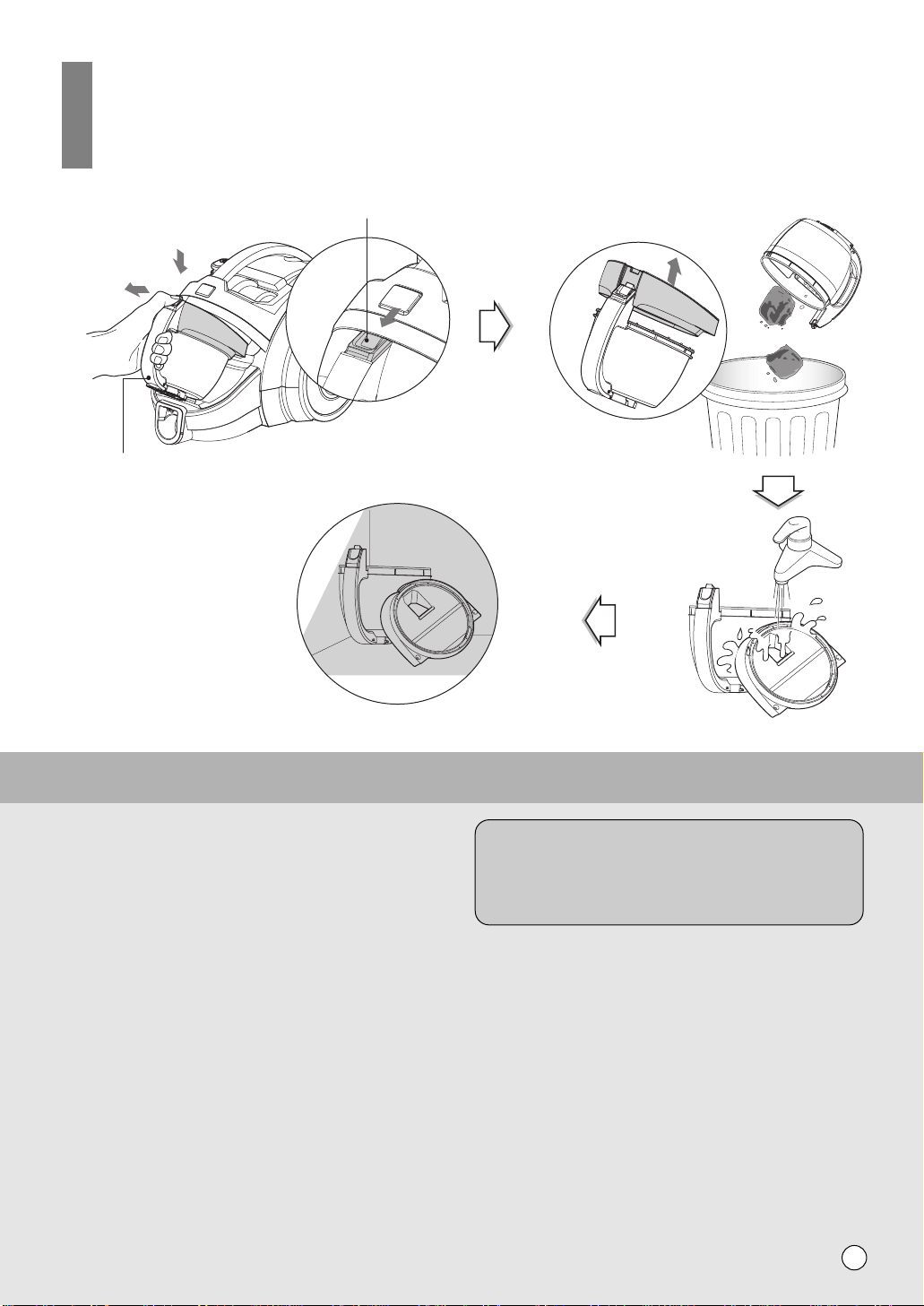

• Press tank separation button and pull out the dust tank.
• Raise the dust tank cap.
• Wash the dust tank.
• Dry fully in shade so that moisture is entirely removed.
NOTICE
If suction power decreases after cleaning the dust tank,
clean the air filter and the motor safety filter. 󳥴Next page
Tank handle
Tank separation button
②②Pull out
①①Push the button
How to use Cleaning dust tank
