ROBOTIC CLEANER
SERVICE MANUAL
MODEL : VR5901LVM / VR5902LVM /
VR5902LV / VR5906LM / VR1027R
CAUTION
BEFORE SERVICING THE UNIT, READ THE
“SAFETY PRECAUTIONS” IN THIS MANUAL.
Internal Use Only
Website: http://biz.lgservice.com
P/No.: MFL66305801

9
SPECIFICATIONS
Main Body
Home Station
Remote Control
Product
Model
Battery
Consumption Power
Charging time
Cleaning time
Velocity
Cleaning Modes
Weight
Size(Dia. x Height)
Accessary
Functions
Robotic Cleaner
VR5901LVM/VR5902LVM
LiPB , DC 16.8V
18W
Under 3 hours
about 75 min.
35 cm/s(Max.)
Cell by Cell /Zigzag/Spot
3 Kg
ø360 x 90
Home Station /Remote Control /Filter / Mop
Obstacle Detection / Cliff Detection / Timer
Voice Alram / Auto charging / Mop Cleaning
Model
Size(WxLxH)
Input
Consumption Power
Output
VR591
204 x 158x 125
AC 110V-240V, 50Hz/60Hz
23W
DC 17.1 / 1.1A
Model
Battery
Type
Operating Range
Size(WxLxH)
AKB66476105(Black)
D C 3 V (A A A, 2ea)
Infrared(38kHz)
5 m
45 x115 x 22

10
PARTS SPECIFICATIONS
Suction Motor Maker: STANDARD
ITEMS
1.0 STANDARD OPERATING
CONDITION
1.1 RATED VOLTAGE
1.2
OPERATING VOLTAGE RANGE
1.3 RATED LOAD
1.4
DIRECTION OF ROTATION
1.5 OPERATING TEMP, HU-
MID, RANGE
1.6 STORAGE TEMP, HUMID,
RANGE
2.0 TESTING CONDITION
2.1 POWER SUPPLY
2.2
MOTOR MOUNTING POSOTION
2.3 TEMPERATURE/HUMIDITY
2.4 DIRECTION OF ROTATION
3.0 ELECTRICAL CHARACTERISTICS
3.1 NO LOAD CURRENT
3.2 NO LOAD SPEED
3.3
RATED LOAD CURRENT
3.4 RATED LOAD SPEED
3.5 STALL CURRENT
3.6 STALL TORQUE
3.7
INSULATION RESISTANCE
3.8 DIELECTRIC STRENGTH
3.9
PERFORMANCE CURVE
SPECIFICATIONS
12.0 V
8.0 V ~ 24.0 V
5.0 mN.m ᴾ@51 gf.cm
CCW & CW
-10 ᴱ@@75 ᴱ
5 %RH ~ 95 %RH
-10 ᴱ@@75 ᴱ
5 %RH ~ 95 %RH
DC onstant power supply
Shaft output side wl any direction
10 ᴱ@@30 ᴱ
30 %RH ~ 95 %RH
Refer to JIS standard (20 ᴱᴦ2
ᴱ,65%ᴦ5%) in case of problems
CCW
200 mA (max.)
9600 rpm ᴦ@10% rpm
800 mA (max.)
8500 rpm ᴦ@10% rpm
6.0 A (max.)
35.0 mN.m (min.)
10 MΩ 500 VDC 1 minute
10 mA 250 VAC 1 second
RS385-ST-2265
CONDITIONS
DC constant power supply between motor terminal
Pulley load
View point: Shaft output direction
View point: Shaft output direction
General
30~60 sec run-in period before
measurement taken
Based on measurement at two different load
( 7.35mN.m & 21mN.m)
Applied between motor housing and terminal without failure
Between motor terminal and motor metal housing

11
PARTS SPECIFICATIONS
Maker: STANDARDAgitator Motor
ITEMS
1.0 STANDARD OPERATING
CONDITION
1.1 RATED VOLTAGE
1.2
OPERATING VOLTAGE RANGE
1.3 RATED LOAD
1.4
DIRECTION OF ROTATION
1.5 OPERATING TEMP, HU-
MID, RANGE
1.6 STORAGE TEMP, HUMID,
RANGE
2.0 TESTING CONDITION
2.1 POWER SUPPLY
2.2
MOTOR MOUNTING POSOTION
2.3 TEMPERATURE/HUMIDITY
2.4 DIRECTION OF ROTATION
3.0 ELECTRICAL CHARACTERISTICS
3.1 NO LOAD CURRENT
3.2 NO LOAD SPEED
3.3
RATED LOAD CURRENT
3.4 RATED LOAD SPEED
3.5 STALL CURRENT
3.6 STALL TORQUE
3.7
INSULATION RESISTANCE
3.8 DIELECTRIC STRENGTH
3.9
PERFORMANCE CURVE
SPECIFICATIONS
12.0 V
8.0 V ~ 24.0 V
4.0 mN.m ᴾ@40.8 gf.cm
CCW & CW
-10 ᴱ@@75 ᴱ
5 %RH ~ 95 %RH
-10 ᴱ@@75 ᴱ
5 %RH ~ 95 %RH
DC onstant power supply
Shaft output side wl any direction
10 ᴱ@@30 ᴱ
30 %RH ~ 95 %RH
Refer to JIS standard (20 ᴱᴦ2
ᴱ,65%ᴦ5%) in case of problems
CCW
70 mA (max.)
3700 rpm ᴦ@15% rpm
270 mA (max.)
3100 rpm ᴦ@15% rpm
1.5 A (max.)
35.0 mN.m (min.)
10 MΩ 500 VDC 1 minute
AC 500V 2.0 mA for one minute or
RS395-ST-15130
CONDITIONS
DC constant power supply between motor terminal
Pulley load
View point: Shaft output direction
View point: Shaft output direction
General
30~60 sec run-in period before
measurement taken
Based on measurement at two different load
( 7.35mN.m & 21mN.m)
Applied between motor housing and terminal without failure
Between motor terminal and motor metal housing
AC 600V 2.0 mA for one second

12
PARTS SPECIFICATIONS
Wheel Motor Maker: STANDARD
ITEMS
1.0 STANDARD OPERATING
CONDITION
1.1 RATED VOLTAGE
1.2
OPERATING VOLTAGE RANGE
1.3 RATED LOAD
1.4
DIRECTION OF ROTATION
1.5 OPERATING TEMP, HU-
MID, RANGE
1.6 STORAGE TEMP, HUMID,
RANGE
2.0 TESTING CONDITION
2.1 POWER SUPPLY
2.2
MOTOR MOUNTING POSOTION
2.3 TEMPERATURE/HUMIDITY
2.4 DIRECTION OF ROTATION
3.0 ELECTRICAL CHARACTERISTICS
3.1 NO LOAD CURRENT
3.2 NO LOAD SPEED
3.3
RATED LOAD CURRENT
3.4 RATED LOAD SPEED
3.5 STALL CURRENT
3.6 STALL TORQUE
3.7
INSULATION RESISTANCE
3.8 DIELECTRIC STRENGTH
3.9
PERFORMANCE CURVE
SPECIFICATIONS
15.0 V
8.0 V ~ 24.0 V
4.0 mN.m ᴾ@40.8 gf.cm
CCW & CW
-10 ᴱ@@75 ᴱ
5 %RH ~ 95 %RH
-10 ᴱ@@75 ᴱ
5 %RH ~ 95 %RH
DC onstant power supply
Shaft output side wl any direction
10 ᴱ@@30 ᴱ
30 %RH ~ 95 %RH
Refer to JIS standard (20 ᴱᴦ2
ᴱ,65%ᴦ5%) in case of problems
CW
70 mA (max.)
4500 rpm ᴦ@10% rpm
270 mA (max.)
8500 rpm ᴦ@10% rpm
2.0 A (max.)
28.0 mN.m (min.)
10 MΩ 500 VDC 1 minute
AC 500V 2.0 mA for one minute or
RS385-ST-15150
CONDITIONS
DC constant power supply between motor terminal
Pulley load
View point: Shaft output direction
View point: Shaft output direction
General
30~60 sec run-in period before
measurement taken
Based on measurement at two different load
( 7.35mN.m & 21mN.m)
Applied between motor housing and terminal without failure
Between motor terminal and motor metal housing
AC 600V 2.0 mA for one second

13

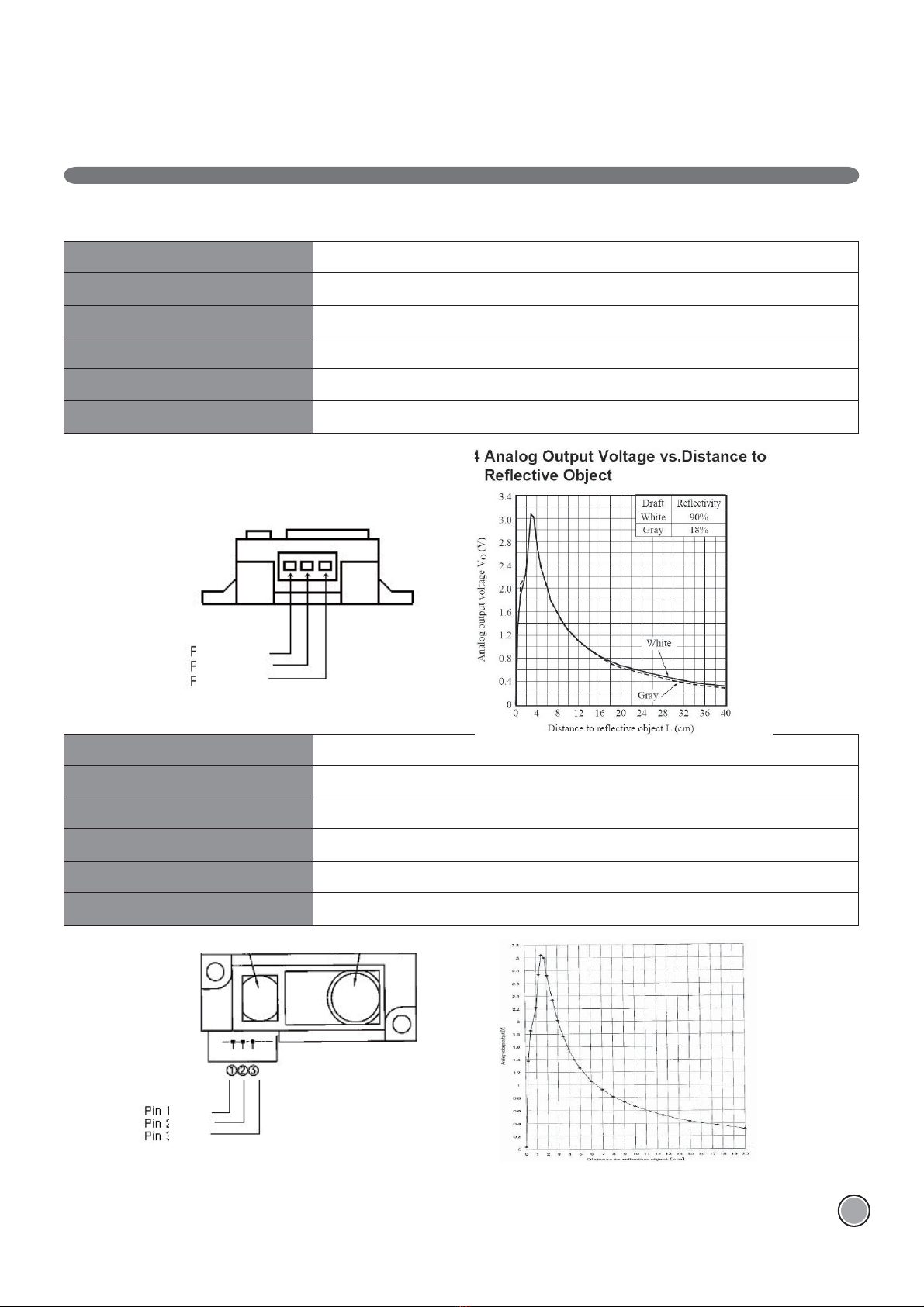

PARTS SPECIFICATIONS
IR Sensor Maker: SHARP
Model
Operating Voltage
Detection Range
Output Voltage(L=30)
Delta (Vmax.-Vmin.)
Average Current
Model
Operating Voltage
Detection Range
Output Voltage(L=30)
Delta (Vmax.-Vmin.)
Average Current
GP2Y041SK0F
DC 4.5V ~ 5.5V
4 ~ 30 cm
Min = 0.25 / Typ = 0.4 / Max = 0.55 (V)
Min = 1.95 / Typ = 2.25 / Max = 2.55 (V)
Typ = 12 / Max = 22 (mA)
GP2Y051SK0F
DC 4.5V ~ 5.5V
2 ~ 15 cm
Min = 0.25 / Typ = 0.4 / Max = 0.55 (V)
Min = 1.95 / Typ = 2.25 / Max = 2.55 (V)
Typ = 12 / Max = 22 (mA)
Analog Output Voltage vs. Distance to
Reflective Object
ٻ
Pin 1 : VO
Pin 2 : GND
Pin 3 : Vcc
Pin 1 : VO
Pin 2 : GND
Pin 3 : Vcc

REPLACEMENT PARTS LIST
EBRBM1
MCKBW1
AJWBA1
MDTTA1
MDTTA3
EADCS6
MDSBA1
EADBS4
EAUBA2
EABCS1
EADBS5
MEABA1
EBDBS1
MDQBF1
EBRAP3
MHYBC1 MDTTA5 EAUBA1
MASBB1
MDTTA2
MAMBB1
MCKBW2
MSJBE1 MSJBE2
MDTTA6
MDTTA4

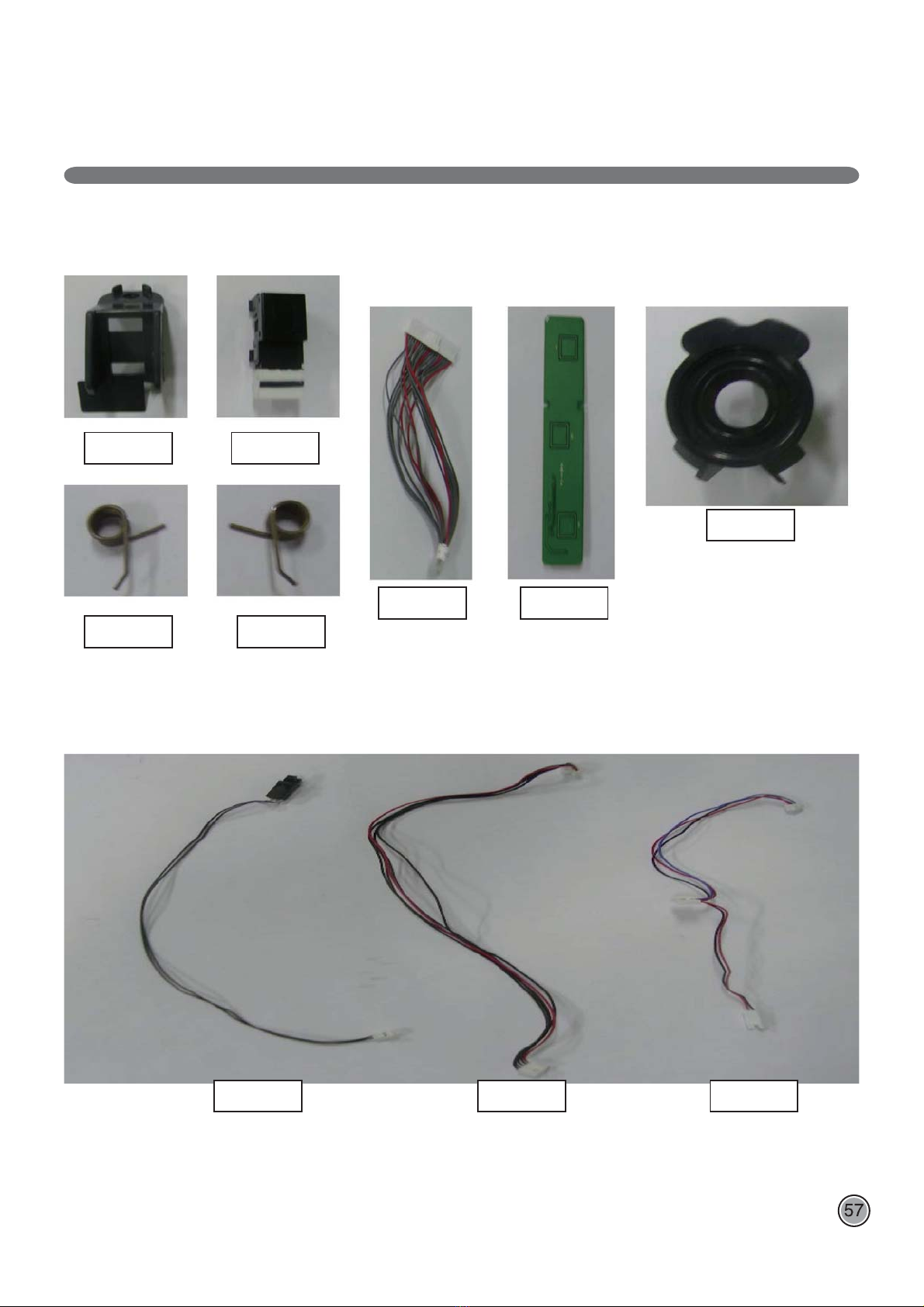

REPLACEMENT PARTS LIST
AANBN1 EACAA1
EADBS6
EBDBS2
MEABH2 EADBS9
MJPCC1 EADBS2 EADBS3
ABCCB1
AHRBA1
EBFBW1
MEABH1
EADBS7
EADBS8
MKCCL1
EBDBS3
EBRAP1
EBRAP2

REPLACEMENT PARTS LIST
AHJBR2
MCDBA1
MCKBI1
AHJBR1
MHJBS1
MDQBC1
MBDBU1
FACBP1 MEGBF1

MCKCT1
MCKBD1 MCKAD1
EBDCS1
MCKCI1
MKCAG1
MGWCR2
REPLACEMENT PARTS LIST

REPLACEMENT PARTS LIST
MEGCF3
MHYCA1
EADCS3
EBDCS2
MHYCA2
AFKCL1 EADCS2 EADCS1
EBRAP4
MEGCS1

REPLACEMENT PARTS LIST
EBRCA1
EADCS5
MHYBC2 MJPCC2
EADCS4
MJGBP1
EAYAC1
MKCCL2
EBRCC1

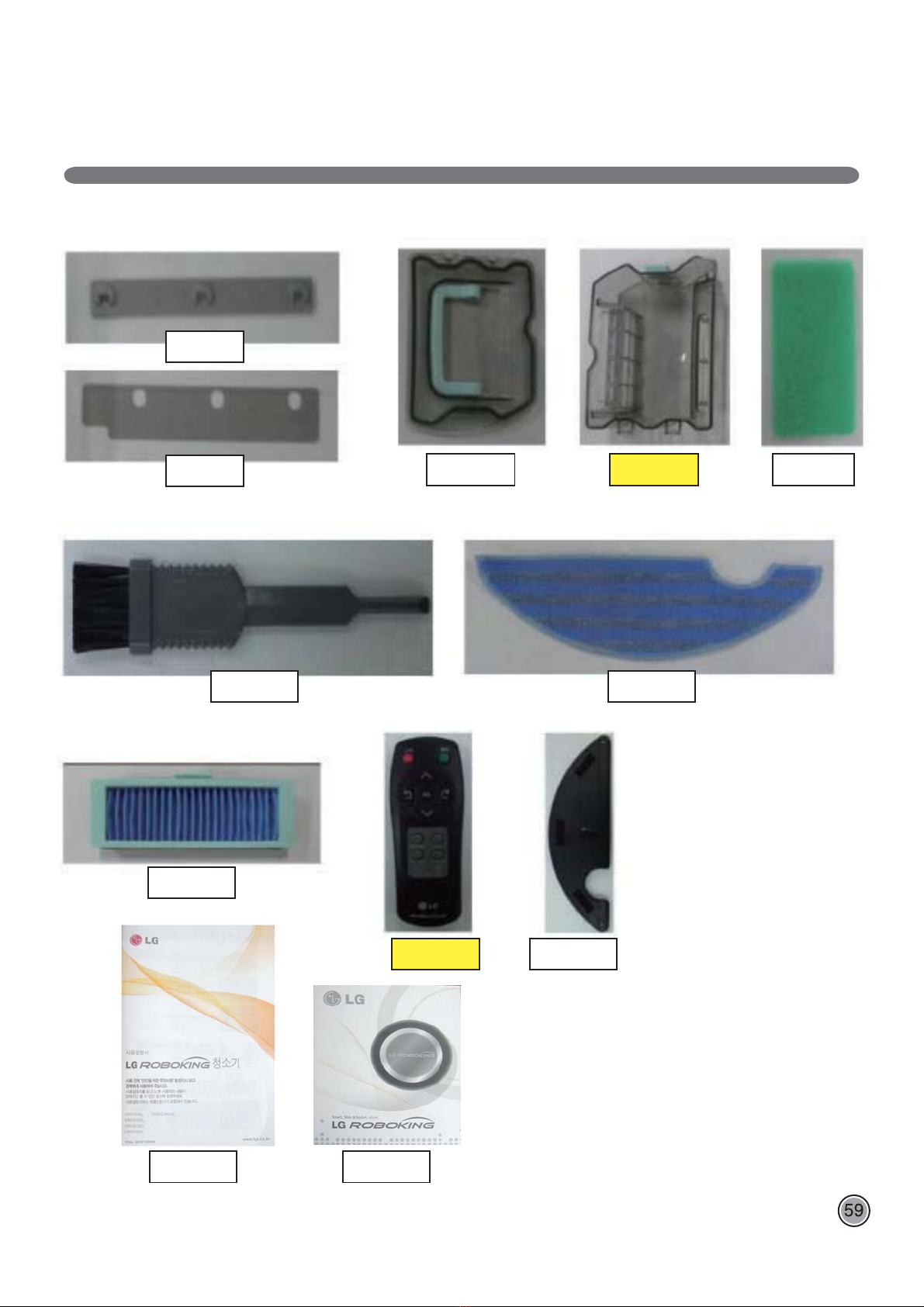

REPLACEMENT PARTS LIST
MGJCC1
MDQCF1
ABCAF1 MFQAM1
ADVTF1
AGBAM1
MFL552 MAY000
MCKOA1 MSJBE3AJLTD2
AKBAR1

REPLACEMENT PARTS LIST
VR5901LVM(VR5901LVM.ABKQLGE)
R : SERVICE PARTS
AANBN1 AAN73469101 Base Assembly,Nozzle R
ABCAF1 5203FI3754A Brush Assembly,Filter R
ABCCB1 ABC72909401 Brush Assembly R
ADVTF1 ADV72968401 Frame Assembly,Filter R
AFKCL1 AFK72909201 Locker Assembly R
AGBAM1 AGB72911303 Nozzle Assembly,Mop R
AHJBR1 AHJ72909401 Roller Assembly R
AHJBR2 AHJ72909402 Roller Assembly R
AHRBA1 AHR72909401 Shaft Assembly,Agitator R
AJLTD2 AJL73011902 Tank Assembly,Dust R
AJWBA1 AJW72909701 Wheel Assembly R
AJWBA1 AJW72909701 Wheel Assembly R
AKBAR1 AKB66476105 Remote Controller Assembly R
EABCS1 6401FI1001D Speaker,Full Range R
EACAA1 EAC60766102 Rechargeable Battery,Lithium R
EADBS2 EAD60809901 Harness,Single R
EADBS3 EAD60842001 Harness,Single R
EADBS4 EAD60811501 Harness,Single R
EADBS5 EAD60810001 Harness,Single R
EADBS6 EAD60810401 Harness,Single R
EADBS7 EAD60810301 Harness,Single R
EADBS8 EAD60810201 Harness,Single R
EADBS9 EAD60809701 Harness,Single R
EADCS1 EAD60812901 Harness,Single R
EADCS2 EAD60813001 Harness,Single R
EADCS3 EAD60813101 Harness,Single R
EADCS4 EAD60813301 Harness,Single R
EADCS5 EAD60813201 Harness,Single R
EADCS6 EAD60842101 Harness,Single R
EADCS6 EAD60842101 Harness,Single R
EAUBA1 EAU60695601 Motor Assembly,DC R
EAUBA2 EAU60696201 Motor Assembly,DC,Fan R
EAYAC1 EAY60751903 Charger,Battery R
EBDBS1 EBD60662501 Sensor Assembly R
EBDBS2 EBD60661401 Sensor Assembly R
EBDBS3 6501FI3002C Sensor Assembly R
EBDCS1 EBD60663102 Sensor Assembly R
EBDCS2 EBD60662601 Sensor Assembly R
EBFBW1 EBF60755202 Switch,Rocker R
EBRCC1 EBR62994402 PCB Assembly,Power R
EBRCA1 EBR62993101 PCB Assembly,Sub R
EBRAP2 EBR62993001 PCB Assembly,Sub R
EBRAP3 EBR62994201 PCB Assembly,Sub R
EBRAP4 EBR62994001 PCB Assembly,Sub R
EBRAP5 EBR62995001 PCB Assembly,Sub R
EBRBM1 EBR62979903 PCB Assembly,Main R
FACBP1 1PZZFI3002A Pin,Common R
MAMBB1 MAM61850301 Base,Body R
MASBB1 4400FI3355B Belt R
LOC. NO. PART NO. DESCRIPTION SVC REMARK

REPLACEMENT PARTS LIST
R : SERVICE PARTS
MAY000 MAY64321601 Box R
MBDBU1 MBD61883801 Bumper, Body R
MCDBA1 MCD61842801 Connector,Pin R
MCKAD1 MKC62000703 Window,Display R
MCKBD1 ACW72936107 Decor Assembly R
MCKBW1 MCK62265403 Cover,Wheel R
MCKBW2 MCK62265503 Cover,Wheel R
MCKCI1 MCK62265704 Cover,Inner R
MCKCT1 MCK62266212 Cover,Top R
MCKOA1 MCK63607801 Cover,Dust R
MDQBC1 MDQ61887101 Frame,Caster R
MDQBF1 MDQ61886901 Frame,Filter R
MDQCF1 MDQ61887001 Frame,Filter R
MDSBA1 MDS61952901 Gasket R
MDTTA1 MDT62027102 Gear R
MDTTA2 MDT62027101 Gear R
MDTTA3 MDT61844601 Gear R
MDTTA4 MDT61844701 Gear R
MDTTA5 MDT61844801 Gear R
MDTTA6 MDT61843901 Gear R
MEABA1 MEA61865501 Guide,Air R
MEABH1 MEG61882301 Holder,Fixing R
MEABH2 MEG61875601 Holder,Fixing R
MEGBF1 MEG61879701 Holder,Fixing R
MEGCF3 MEG61879501 Holder,Fixing R
MEGCS1 MEG61876201 Holder,Sensor R
MFL552 3828FI3868P Manual,Owners R
MFQAM1 MFQ61841301 Mop R
MGJCC1 MGJ61912101 Plate,Cover R
MGWCR2 MGW61845701 Reflector R
MHJBS1 MHJ61848501 Shaft R
MHYBC1 4970FI3224Q Spring,Coil R
MHYBC1 4970FI3224Q Spring,Coil R
MHYBC2 4970FI3224P Spring,Coil R
MHYCA1 MHY61869601 Spring R
MHYCA2 MHY61869602 Spring R
MJGBP1 MGJ61912201 Plate,Guide R
MJPCC1 MJP61844601 Terminal,Contact R
MJPCC2 MJP61844901 Terminal,Contact R
MKCAG1 MKC62038701 Window,Glass R
MKCCL1 MKC62155602 Window,LED R
MKCCL2 MKC62000901 Window,LED R
MSJBE1 MDJ61935401 Filter,Exhaust R
MSJBE2 MDJ61935402 Filter,Exhaust R
MSJBE3 MDJ62305401 Filter,Exhaust R
LOC. NO. PART NO. DESCRIPTION SVC REMARK

REPLACEMENT PARTS LIST
VR5902LVM(VR5902LVM.AAEQGPA)
R : SERVICE PARTS
AANBN1 AAN73469101 Base Assembly,Nozzle R
ABCAF1 5203FI3754A Brush Assembly,Filter R
ADVTF1 ADV72968401 Frame Assembly,Filter R
AFKCL1 AFK72909201 Locker Assembly R
AGBAM1 AGB72911306 Nozzle Assembly,Mop R
AHJBR1 AHJ72909401 Roller Assembly R
AHJBR2 AHJ72909402 Roller Assembly R
AHRBA1 AHR72909401 Shaft Assembly,Agitator R
AJLTD2 AJL73011902 Tank Assembly,Dust R
AJWBA1 AJW72909701 Wheel Assembly R
AJWBA1 AJW72909701 Wheel Assembly R
AKBAR1 AKB66476105 Remote Controller Assembly R
EABCS1 6401FI1001D Speaker,Full Range R
EACAA1 EAC60766102 Rechargeable Battery,Lithium R
EADBS2 EAD60809901 Harness,Single R
EADBS3 EAD60842001 Harness,Single R
EADBS4 EAD60811501 Harness,Single R
EADBS5 EAD60810001 Harness,Single R
EADBS6 EAD60810401 Harness,Single R
EADBS7 EAD60810301 Harness,Single R
EADBS8 EAD60810201 Harness,Single R
EADBS9 EAD60809701 Harness,Single R
EADCS1 EAD60812901 Harness,Single R
EADCS2 EAD60813001 Harness,Single R
EADCS3 EAD60813101 Harness,Single R
EADCS4 EAD60813301 Harness,Single R
EADCS5 EAD60813201 Harness,Single R
EADCS6 EAD60842101 Harness,Single R
EADCS6 EAD60842101 Harness,Single R
EAUBA1 EAU60695601 Motor Assembly,DC R
EAUBA2 EAU60696201 Motor Assembly,DC,Fan R
EBDBS1 EBD60662501 Sensor Assembly R
EBDBS2 EBD60661401 Sensor Assembly R
EBDBS3 6501FI3002C Sensor Assembly R
EBDCS1 EBD60663102 Sensor Assembly R
EBDCS2 EBD60662601 Sensor Assembly R
EBFBW1 EBF60755202 Switch,Rocker R
EBRCC1 EBR62994402 PCB Assembly,Power R
EBRCA1 EBR62993101 PCB Assembly,Sub R
EBRAP2 EBR62993001 PCB Assembly,Sub R
EBRAP3 EBR62994201 PCB Assembly,Sub R
EBRAP4 EBR62994001 PCB Assembly,Sub R
EBRAP5 EBR62995001 PCB Assembly,Sub R
EBRBM1 EBR62979904 PCB Assembly,Main R
FACBP1 1PZZFI3002A Pin,Common R
MAMBB1 MAM61850301 Base,Body R
MASBB1 4400FI3355B Belt R
MAY000 MAY64321601 Box R
MBDBU1 MBD61883801 Bumper, Body R
LOC. NO. PART NO. DESCRIPTION SVC REMARK

REPLACEMENT PARTS LIST
R : SERVICE PARTS
MCDBA1 MCD61842801 Connector,Pin R
MCKAD1 MKC62000703 Window,Display R
MCKBD1 ACW72936106 Decor Assembly R
MCKBW1 MCK62265403 Cover,Wheel R
MCKBW2 MCK62265503 Cover,Wheel R
MCKCI1 MCK62265704 Cover,Inner R
MCKCT1 MCK62266211 Cover,Top R
MCKOA1 MCK63607801 Cover,Dust R
MDQBC1 MDQ61887101 Frame,Caster R
MDQBF1 MDQ61886901 Frame,Filter R
MDQCF1 MDQ61887001 Frame,Filter R
MDSBA1 MDS61952901 Gasket R
MDTTA1 MDT62027102 Gear R
MDTTA2 MDT62027101 Gear R
MDTTA3 MDT61844601 Gear R
MDTTA4 MDT61844701 Gear R
MDTTA5 MDT61844801 Gear R
MDTTA6 MDT61843901 Gear R
MEABA1 MEA61865501 Guide,Air R
MEABH1 MEG61882301 Holder,Fixing R
MEABH2 MEG61875601 Holder,Fixing R
MEGBF1 MEG61879701 Holder,Fixing R
MEGCF3 MEG61879501 Holder,Fixing R
MEGCS1 MEG61876201 Holder,Sensor R
MFL552 3828FI3868Q Manual,Owners R
MFQAM1 MFQ61841301 Mop R
MGJCC1 MGJ61912101 Plate,Cover R
MGWCR2 MGW61845701 Reflector R
MHJBS1 MHJ61848501 Shaft R
MHYBC1 4970FI3224Q Spring,Coil R
MHYBC1 4970FI3224Q Spring,Coil R
MHYBC2 4970FI3224P Spring,Coil R
MHYCA1 MHY61869601 Spring R
MHYCA2 MHY61869602 Spring R
MJGBP1 MGJ61912201 Plate,Guide R
MJPCC1 MJP61844601 Terminal,Contact R
MJPCC2 MJP61844901 Terminal,Contact R
MKCAG1 MKC62038701 Window,Glass R
MKCCL1 MKC62155602 Window,LED R
MKCCL2 MKC62000901 Window,LED R
MSJBE1 MDJ61935401 Filter,Exhaust R
MSJBE2 MDJ61935402 Filter,Exhaust R
MSJBE3 MDJ62305401 Filter,Exhaust R
WTP003 1TPL0302416 Screw,Tapping R
LOC. NO. PART NO. DESCRIPTION SVC REMARK

REPLACEMENT PARTS LIST
VR5902LVM(VR5902LVM.AAEQGSF)
R : SERVICE PARTS
AANBN1 AAN73469101 Base Assembly,Nozzle R
ABCAF1 5203FI3754A Brush Assembly,Filter R
ADVTF1 ADV72968401 Frame Assembly,Filter R
AFKCL1 AFK72909201 Locker Assembly R
AGBAM1 AGB72911304 Nozzle Assembly,Mop R
AHJBR1 AHJ72909401 Roller Assembly R
AHJBR2 AHJ72909402 Roller Assembly R
AHRBA1 AHR72909401 Shaft Assembly,Agitator R
AJLTD2 AJL73011902 Tank Assembly,Dust R
AJWBA1 AJW72909701 Wheel Assembly R
AJWBA1 AJW72909701 Wheel Assembly R
AKBAR1 AKB66476105 Remote Controller Assembly R
EABCS1 6401FI1001D Speaker,Full Range R
EACAA1 EAC60766102 Rechargeable Battery,Lithium R
EADBS2 EAD60809901 Harness,Single R
EADBS3 EAD60842001 Harness,Single R
EADBS4 EAD60811501 Harness,Single R
EADBS5 EAD60810001 Harness,Single R
EADBS6 EAD60810401 Harness,Single R
EADBS7 EAD60810301 Harness,Single R
EADBS8 EAD60810201 Harness,Single R
EADBS9 EAD60809701 Harness,Single R
EADCS1 EAD60812901 Harness,Single R
EADCS2 EAD60813001 Harness,Single R
EADCS3 EAD60813101 Harness,Single R
EADCS4 EAD60813301 Harness,Single R
EADCS5 EAD60813201 Harness,Single R
EADCS6 EAD60842101 Harness,Single R
EADCS6 EAD60842101 Harness,Single R
EAUBA1 EAU60695601 Motor Assembly,DC R
EAUBA2 EAU60696201 Motor Assembly,DC,Fan R
EBDBS1 EBD60662501 Sensor Assembly R
EBDBS2 EBD60661401 Sensor Assembly R
EBDBS3 6501FI3002C Sensor Assembly R
EBDCS1 EBD60663102 Sensor Assembly R
EBDCS2 EBD60662601 Sensor Assembly R
EBFBW1 EBF60755202 Switch,Rocker R
EBRCC1 EBR62994402 PCB Assembly,Power R
EBRCA1 EBR62993101 PCB Assembly,Sub R
EBRAP2 EBR62993001 PCB Assembly,Sub R
EBRAP3 EBR62994201 PCB Assembly,Sub R
EBRAP4 EBR62994001 PCB Assembly,Sub R
EBRAP5 EBR62995001 PCB Assembly,Sub R
EBRBM1 EBR62979905 PCB Assembly,Main R
FACBP1 1PZZFI3002A Pin,Common R
MAMBB1 MAM61850301 Base,Body R
MASBB1 4400FI3355B Belt R
MAY000 MAY64321601 Box R
MBDBU1 MBD61883801 Bumper, Body R
LOC. NO. PART NO. DESCRIPTION SVC REMARK

REPLACEMENT PARTS LIST
R : SERVICE PARTS
MCDBA1 MCD61842801 Connector,Pin R
MCKAD1 MKC62000703 Window,Display R
MCKBD1 ACW72936106 Decor Assembly R
MCKBW1 MCK62265403 Cover,Wheel R
MCKBW2 MCK62265503 Cover,Wheel R
MCKCI1 MCK62265704 Cover,Inner R
MCKCT1 MCK62266211 Cover,Top R
MCKOA1 MCK63607801 Cover,Dust R
MDQBC1 MDQ61887101 Frame,Caster R
MDQBF1 MDQ61886901 Frame,Filter R
MDQCF1 MDQ61887001 Frame,Filter R
MDSBA1 MDS61952901 Gasket R
MDTTA1 MDT62027102 Gear R
MDTTA2 MDT62027101 Gear R
MDTTA3 MDT61844601 Gear R
MDTTA4 MDT61844701 Gear R
MDTTA5 MDT61844801 Gear R
MDTTA6 MDT61843901 Gear R
MEABA1 MEA61865501 Guide,Air R
MEABH1 MEG61882301 Holder,Fixing R
MEABH2 MEG61875601 Holder,Fixing R
MEGBF1 MEG61879701 Holder,Fixing R
MEGCF3 MEG61879501 Holder,Fixing R
MEGCS1 MEG61876201 Holder,Sensor R
MFL552 3828FI3868R Manual,Owners R
MFQAM1 MFQ61841301 Mop R
MGJCC1 MGJ61912101 Plate,Cover R
MGWCR2 MGW61845701 Reflector R
MHJBS1 MHJ61848501 Shaft R
MHYBC1 4970FI3224Q Spring,Coil R
MHYBC1 4970FI3224Q Spring,Coil R
MHYBC2 4970FI3224P Spring,Coil R
MHYCA1 MHY61869601 Spring R
MHYCA2 MHY61869602 Spring R
MJGBP1 MGJ61912201 Plate,Guide R
MJPCC1 MJP61844601 Terminal,Contact R
MJPCC2 MJP61844901 Terminal,Contact R
MKCAG1 MKC62038701 Window,Glass R
MKCCL1 MKC62155602 Window,LED R
MKCCL2 MKC62000901 Window,LED R
MSJBE1 MDJ61935401 Filter,Exhaust R
MSJBE2 MDJ61935402 Filter,Exhaust R
MSJBE3 MDJ62305401 Filter,Exhaust R
LOC. NO. PART NO. DESCRIPTION SVC REMARK

REPLACEMENT PARTS LIST
VR5902LVM(VR5902LVM.AAEQLGE)
R : SERVICE PARTS
AANBN1 AAN73469101 Base Assembly,Nozzle R
ABCAF1 5203FI3754A Brush Assembly,Filter R
ABCCB1 ABC72909401 Brush Assembly R
ADVTF1 ADV72968401 Frame Assembly,Filter R
AFKCL1 AFK72909201 Locker Assembly R
AGBAM1 AGB72911303 Nozzle Assembly,Mop R
AHJBR1 AHJ72909401 Roller Assembly R
AHJBR2 AHJ72909402 Roller Assembly R
AHRBA1 AHR72909401 Shaft Assembly,Agitator R
AJLTD2 AJL73011902 Tank Assembly,Dust R
AJWBA1 AJW72909701 Wheel Assembly R
AJWBA1 AJW72909701 Wheel Assembly R
AKBAR1 AKB66476105 Remote Controller Assembly R
EABCS1 6401FI1001D Speaker,Full Range R
EACAA1 EAC60766102 Rechargeable Battery,Lithium R
EADBS2 EAD60809901 Harness,Single R
EADBS3 EAD60842001 Harness,Single R
EADBS4 EAD60811501 Harness,Single R
EADBS5 EAD60810001 Harness,Single R
EADBS6 EAD60810401 Harness,Single R
EADBS7 EAD60810301 Harness,Single R
EADBS8 EAD60810201 Harness,Single R
EADBS9 EAD60809701 Harness,Single R
EADCS1 EAD60812901 Harness,Single R
EADCS2 EAD60813001 Harness,Single R
EADCS3 EAD60813101 Harness,Single R
EADCS4 EAD60813301 Harness,Single R
EADCS5 EAD60813201 Harness,Single R
EADCS6 EAD60842101 Harness,Single R
EADCS6 EAD60842101 Harness,Single R
EAUBA1 EAU60695601 Motor Assembly,DC R
EAUBA2 EAU60696201 Motor Assembly,DC,Fan R
EAYAC1 EAY60751903 Charger,Battery R
EBDBS1 EBD60662501 Sensor Assembly R
EBDBS2 EBD60661401 Sensor Assembly R
EBDBS3 6501FI3002C Sensor Assembly R
EBDCS1 EBD60663102 Sensor Assembly R
EBDCS2 EBD60662601 Sensor Assembly R
EBFBW1 EBF60755202 Switch,Rocker R
EBRCC1 EBR62994402 PCB Assembly,Power R
EBRCA1 EBR62993101 PCB Assembly,Sub R
EBRAP2 EBR62993001 PCB Assembly,Sub R
EBRAP3 EBR62994201 PCB Assembly,Sub R
EBRAP4 EBR62994001 PCB Assembly,Sub R
EBRAP5 EBR62995001 PCB Assembly,Sub R
EBRBM1 EBR62979903 PCB Assembly,Main R
FACBP1 1PZZFI3002A Pin,Common R
MAMBB1 MAM61850301 Base,Body R
MASBB1 4400FI3355B Belt R
LOC. NO. PART NO. DESCRIPTION SVC REMARK
