LG HCEZ2426S User manual

OWNER'S MANUAL
RANGE HOOD
Before beginning installation, read these instructions
carefully. This will simplify installation and ensure that the
product is installed correctly and safely. Leave these
instructions near the product after installation for future
reference.
ENGLISH
HCEZ2426S HCEZ3626S
MFL71950201
Rev.01_111723
www.lg.com
Copyright © 2023 LG Electronics Inc. All Rights Reserved.

TABLE OF CONTENTS
This manual may contain images or
content that may be different from the
model you purchased.
This manual is subject to revision by the
manufacturer.
SAFETY INSTRUCTIONS
READ ALL INSTRUCTIONS BEFORE USE...........................................................3
WARNING............................................................................................................3
CAUTION .............................................................................................................7
CARING FOR THE ENVIRONMENT....................................................................8
INSTALLATION
Product Overview.............................................................................................10
Installation ........................................................................................................11
OPERATION
Using the Appliance.........................................................................................15
SMART FUNCTIONS
LG ThinQ Application.......................................................................................16
MAINTENANCE
Cleaning and Replacing...................................................................................19
TROUBLESHOOTING
Before Calling for Service................................................................................21
APPENDIX
Product Fiche....................................................................................................23

3
SAFETY INSTRUCTIONS
ENGLISH
SAFETY INSTRUCTIONS
READ ALL INSTRUCTIONS BEFORE USE
The following safety guidelines are intended to prevent unforeseen
risks or damage from unsafe or incorrect operation of the appliance.
The guidelines are separated into ‘
WARNING ’ and ‘ CAUTION ’ as
described below.
Safety Messages
WARNING
WARNING
• To reduce the risk of explosion, fire, death, electric shock, injury or
scalding to persons when using this product, follow basic
precautions, including the following:
Installation
• This appliance is to be properly installed and earthed only by a
suitably qualified person.
• Follow the local laws applicable for external air evacuation.
This symbol is displayed to indicate matters and operations
that can cause risk. Read the part with this symbol carefully
and follow the instructions in order to avoid risk.
WARNING
This indicates that the failure to follow the instructions can
cause serious injury or death.
CAUTION
This indicates that the failure to follow the instructions can
cause the minor injury or damage to the product.

4
SAFETY INSTRUCTIONS
• The manufacturer will not be held liable for any damages resulting
from incorrect or improper installation.
• The minimum safety distance between the cooker top and the range
hood is 650 mm.
• If the instructions for installation for the gas hob specify a greater
distance specified above, this has to be taken into account.
Regulations concerning the discharge of air have to be fulfilled.
• Check that the mains voltage corresponds to that indicated on the
rating plate fixed to the inside of the range hood.
• Check that the domestic power supply guarantees adequate
earthing.
• Connect the range hood to the exhaust flue through a pipe of
minimum diameter 150 mm. The route of the flue must be as short as
possible.
• Do not connect the range hood to exhaust ducts carrying combustion
flumes (boilers, fireplaces, etc.).
• If the range hood is used in conjunction with non-electrical
appliances (e.g. gas burning appliances), a sufficient degree of
aeration must be guaranteed in the room in order to prevent the
backflow of exhaust gas. The kitchen must have an opening
communicating directly with the open air in order to guarantee the
entry of clean air. When the range hood is used in conjunction with
appliances supplied with energy other than electric, the negative
pressure in the room must not exceed 0.04 mbar to prevent fumes
being drawn back into the room by the range hood.
• Children may put packaging material over their heads or wrap
themselves up in it and suffocate. Keep packaging material away
from children. Do not let children play with packaging material.
• Children may breathe in or swallow small parts, causing them to
suffocate. Keep small parts away from children. Do not let children
play with small parts.
• The air must not be discharged into a flue that is used for exhausting
fumes from appliances burning gas or other fuels.

5
SAFETY INSTRUCTIONS
ENGLISH
• Do not install the range hood near a heat producing appliance for
solid fuel (e.g.wood or coal) unless a closed, nonremovable cover is
available. There must be no flying sparks.
• Observe 'INSTALLATION' when installing the appliance.
Operation
• The range hood has been designed exclusively for domestic use to
eliminate kitchen smells. The appliance uses 4 hob elements at most.
• Never use the range hood for purposes other than for which it has
been designed. The range hood is for home use only, not suitable for
barbecue, roast shop and other commercial purposes.
• Never leave high naked flames under the range hood when it is in
operation.
• Adjust the flame intensity to direct it onto the bottom of the pan only,
making sure that it does not engulf the sides.
• Deep fat fryers must be continuously monitored during use:
overheated oil can burst into flames.
• Do not flame under the range hood; risk of fire. Grease deposits in
the grease filter may catch fire. Never work with naked flames close
to the appliance (e.g. flambéing).
• This appliance can be used by children aged from 8 years and above
and persons with reduced physical, sensory or mental capabilities or
lack of experience and knowledge if they have been given supervision
or instruction concerning use of the appliance in a safe way and
understand the hazards involved.
• Children should be supervised to ensure that they do not play with
the appliance.
• There shall be adequate ventilation of the room when the range hood
is used at the same time as appliances burning gas or other fuels.
• Accessible parts may become hot when used with cooking
appliances. Never touch hot parts. Keep children at a safe distance.
• Hot oil and fat can ignite very quickly. Never leave hot fat or oil
unattended. Never use water to put out burning oil or fat. Switch off

6
SAFETY INSTRUCTIONS
the hotplate. Extinguish flames carefully using a lid, fire blanket or
something similar.
• When gas burners are in operation without any cookware placed on
them, they can build up a lot of heat. A range hood installed above the
cooker may become damaged or catch fire. Only operate the gas
burners with cookware on them.
• Operating several gas burners at the same time gives rise to a great
deal of heat. A range hood installed above the cooker may become
damaged or catch fire. Never operate two gas burners
simultaneously on the highest flame for longer than 15 minutes. One
large burner of more than 5 kW (wok) is equivalent to the power of
two gas burners.
• Components inside the appliance may have sharp edges. Wear
protective gloves.
• Items placed on the appliance may fall down. Do not place any
objects on the appliance.
• The light emitted by LED lights is very dazzling, and can damage the
eyes (risk group 1). Do not look directly into the switched on LED
lights for longer than 100 seconds.
• Plug the power cord to socket outlet with earthing continuity
terminal.
• Use the unit according to the instructions to avoid any fire hazard.
• Never operate the appliance without a grease filter.
Maintenance
• Do not repair or replace any part of the appliance unless specifically
recommended in the manual. All other servicing should be done by a
qualified technician.
• Cleaning and user maintenance shall not be made by children
without supervision.
• There is a fire risk if cleaning is not carried out in accordance with the
instructions.
• Switch off or unplug the appliance from the mains supply before
carrying out any maintenance work.

7
SAFETY INSTRUCTIONS
ENGLISH
• Clean and/or replace the filters after the specified time period (Fire
hazard).
• Fatty deposits in the grease filter may catch fire. Regularly clean the
grease filter.
• Prior to any maintenance, cleaning operation, ensure the power is cut
off. Penetrating moisture may cause an electric shock. Do not use wet
sponge cloths.
• If the supply cord is damaged, it must be replaced by the
manufacturer, service agent or similarly qualified person in order to
avoid a hazard. The replaced power cord should be provided by
manufacturer or seller.
• If the plug or cord is damaged, contact an LG Electronics Customer
Information Centre.
CAUTION
CAUTION
• To reduce the risk of injury to persons, malfunction, or damage to the
product or property when using the appliance, follow basic safety
precautions, including the following:
Maintenance
• Do not use corrosive detergent for cleaning. The proper function of
the unit is conditioned by the regularity of the maintenance.
• If there is any fault occurred with the appliance, contact an LG
Electronics Customer Information Centre.
• The grease filters may become damaged if they are squeezed. Do not
squeeze the grease filters.
Disposal
• Used appliances must be rendered unusable prior to disposal so that
they no longer present a risk. To achieve this, disconnect from the
mains supply and remove the power supply cable.

8
SAFETY INSTRUCTIONS
• For the protection of the environment, used appliances must be
disposed of properly.
• Your local City Council will inform you of times for collecting special
waste or identify public disposal facilities for you.
CARING FOR THE ENVIRONMENT
Disposal of Your Old Appliance
• This crossed-out wheeled bin symbol indicates that waste
electrical and electronic products (WEEE) should be
disposed of separately from the municipal waste stream.
• Old electrical products can contain hazardous substances
so correct disposal of your old appliance will help prevent
potential negative consequences for the environment and
human health. Your old appliance may contain reusable
parts that could be used to repair other products, and
other valuable materials that can be recycled to conserve
limited resources.
• You can take your appliance either to the shop where you
purchased the product, or contact your local government
waste office for details of your nearest authorised WEEE
collection point. For the most up to date information for
your country please see www.lg.com/global/recycling.

9
SAFETY INSTRUCTIONS
ENGLISH
Disposal of Packaging
CAUTION
• Your new appliance has been correctly packaged for transportation.
Remove all of the packaging material before putting the appliance
into use.
• The packaging material can be completely recycled. You can obtain
addresses for environmentally-friendly disposal operations from
your local City Council.
• If you wish to store your appliance away temporarily, choose a dry,
dust-free place. Dust and damp may adversely affect the working
parts in the appliance.

10
INSTALLATION
INSTALLATION
Product Overview
Parts
HCEZ3626S
HCEZ2426S
a Control Panel
b Light
c Hood Body
d Grease Filter
Accessories
a Hood Fixing Bracket (1 ea)
b Chimney Fixing Brackets (2 ea)
c Screws (Φ4.2 mm x 9.5 mm, 6 ea)
d Screws (Φ5 mm x 50 mm, 7 ea)
e Wall Plugs (7 ea)
f Activated Charcoal Filters (2 ea)
g Exhaust Pipe with Tape (1 ea)
h Upper Decorative Chimney (1 ea)
i Lower Decorative Chimney (1 ea)
NOTE
• Always wear work gloves for all installation and
maintenance operations.
• Wall plugs are provided to secure the hood to
most types of walls/ceilings. However, a
qualified technician must verify suitability of the
materials in accordance with the type of wall/
ceiling. The wall/ceiling must be strong enough
to take the weight of the hood. Do not tile, grout
or silicone this appliance to the wall. Surface
mounting only.

11
INSTALLATION
ENGLISH
Scope of Delivery
After unpacking all parts and accessories, check for
any damage in transit and completeness of the
delivery.
Specifications
The parameters are tested under conditions of 230
V 50 Hz when the voltage is 220-240 V~ 50/60 Hz
and without activated charcoal filters.
Installation

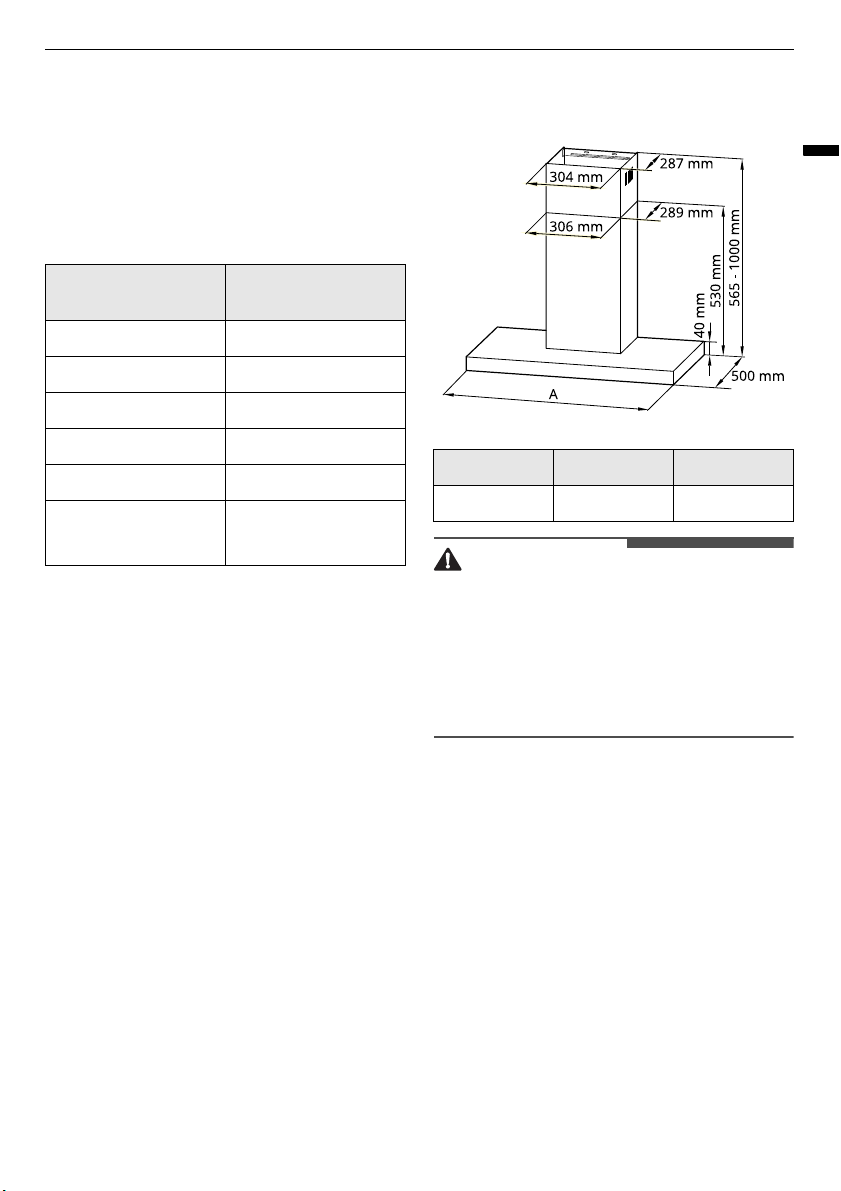

Dimensions and Clearances
• Make sure the appliance is placed horizontally to
avoid grease collection at one end.
• After installation, make sure that the plug can be
pulled out if necessary.
• The appliance should be placed 650-750 mm up
from the cooking plate for safety and effective
operation.
• There must be adequate ventilation of the room
when the appliance is working.
WARNING
• The air must not be discharged into a flue that is
used for exhausting fumes from appliances
burning gas or other fuels.
• Do not install the range hood near a heat
producing appliance for solid fuel (e.g. wood or
coal) unless a closed, nonremovable cover is
available. There must be no flying sparks.
Model HCEZ2426S
HCEZ3626S
Voltage 220 - 240 V ~ 50/60 Hz
Rated Power 253 W
Lighting Power 2 x 1.5 W
Motor Power 250 W
Diameter of Air Tube 150 mm
Air Flow 600 m
3
/h (High), 830
m
3
/h (Booster)
Model HCEZ2426S HCEZ3626S
A 598 mm 898 mm

12
INSTALLATION

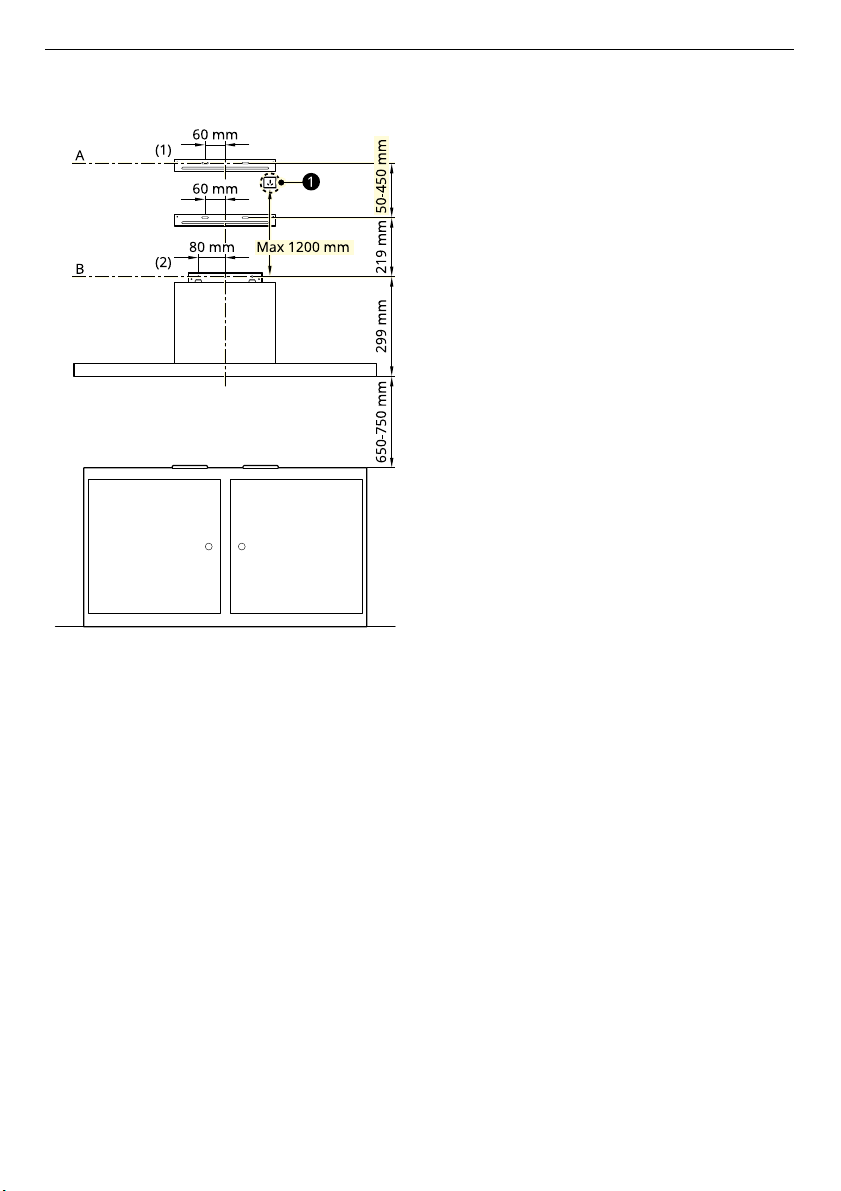

Wall Drilling and Bracket Fixing
a Power Socket
As a first step, proceed with the previous
drawings:
1 Make sure that there are no electrical lines,
water lines or other utilities in the drilling area
before drilling.
2 A vertical line up to the ceiling or up to the
upper limit, at the center of the area in which
the range hood is to be fitted.
3 A horizontal line A at 1218 - 1718 mm above the
cooker top.
4 A horizontal line B at a minimum 949 mm
above the cooker top.
Mark points:
1 Mark a point (1) on the horizontal line A, 60 mm
to the right of the vertical reference line.
2 Repeat this operation on the other
side,checking that the two marks are leveled.
3 Mark a point (2) on the horizontal line B, 80 mm
to the right of the vertical reference line.
4 Repeat this operation on the other side and on
the vertical reference line, checking that the
three marks are leveled.
Fix the wall plug:
1 Drill at the marked points (1) (2), using a Φ10
mm drill bit.
2 Insert the wall plugs into the holes (1) (2).
Choose the working mode
The range hood can be operated in recirculation or
extraction-air mode. Extraction-air mode, the air is
discharged out of the house by a pipe.
Recirculation mode, the air is purified and
discharged into the house through two rows of
holes on the adjustable decorative chimney.
For recirculation mode, assembled activated
charcoal filters on each side as cover to both the
shield grids of the motor impeller, then turn

13
INSTALLATION
ENGLISH
clockwise a . For the disassembly, turn counter-
clockwise
b .
NOTE
• For recirculation mode, without the exhaust
pipe, install activated charcoal filters. When
activated charcoal filters attached, the suction
power will be lowered.

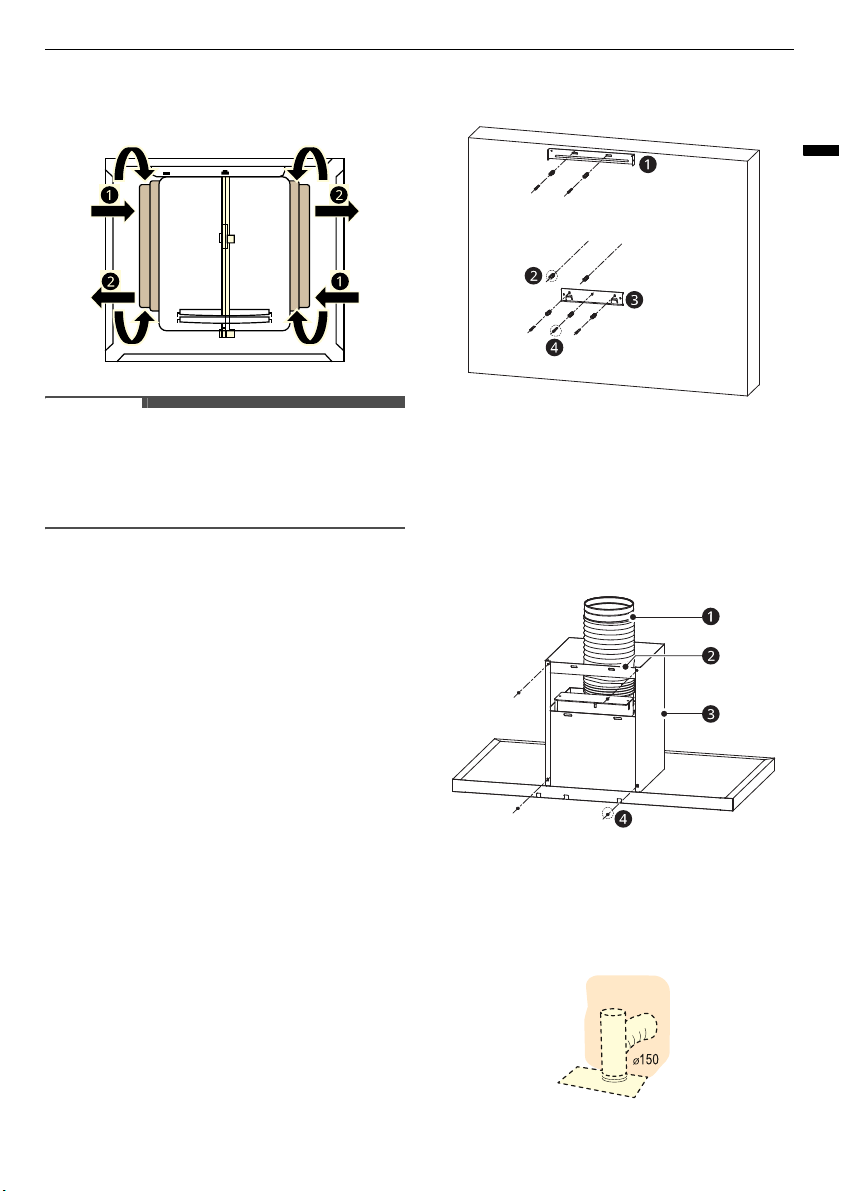

Installing the Appliance
1 Remove the protective film from the decorative
chimney and hood body.
2 Remove all metal grease filters using the
handles provided. See MAINTENANCE chapter.
3 Fix the hood fixing bracket c at mark point (2)
and the chimney fixing bracket
a at mark
point (1) with the wall plugs
b and screws d to
the wall. Install 2 wall plugs
b on the wall for
step 6.
b Wall Plugs (7 ea)
d Screws (Φ5 mm x 50 mm, 5 ea)
4 Fix the exhaust pipe (only for extraction-air
mode)
a and lower decorative chimney c on
the main body, connect the chimney fixing
bracket
b and lower decorative chimney.
d Screws (Φ4.2 mm x 9.5 mm, 4 ea)
Fix the exhaust pipe in position using tapes.
When installing the ducted version, connect
the appliance to the chimney using either a
flexible or rigid pipe Φ150 mm, the choice of
which is left to the installer.

14
INSTALLATION

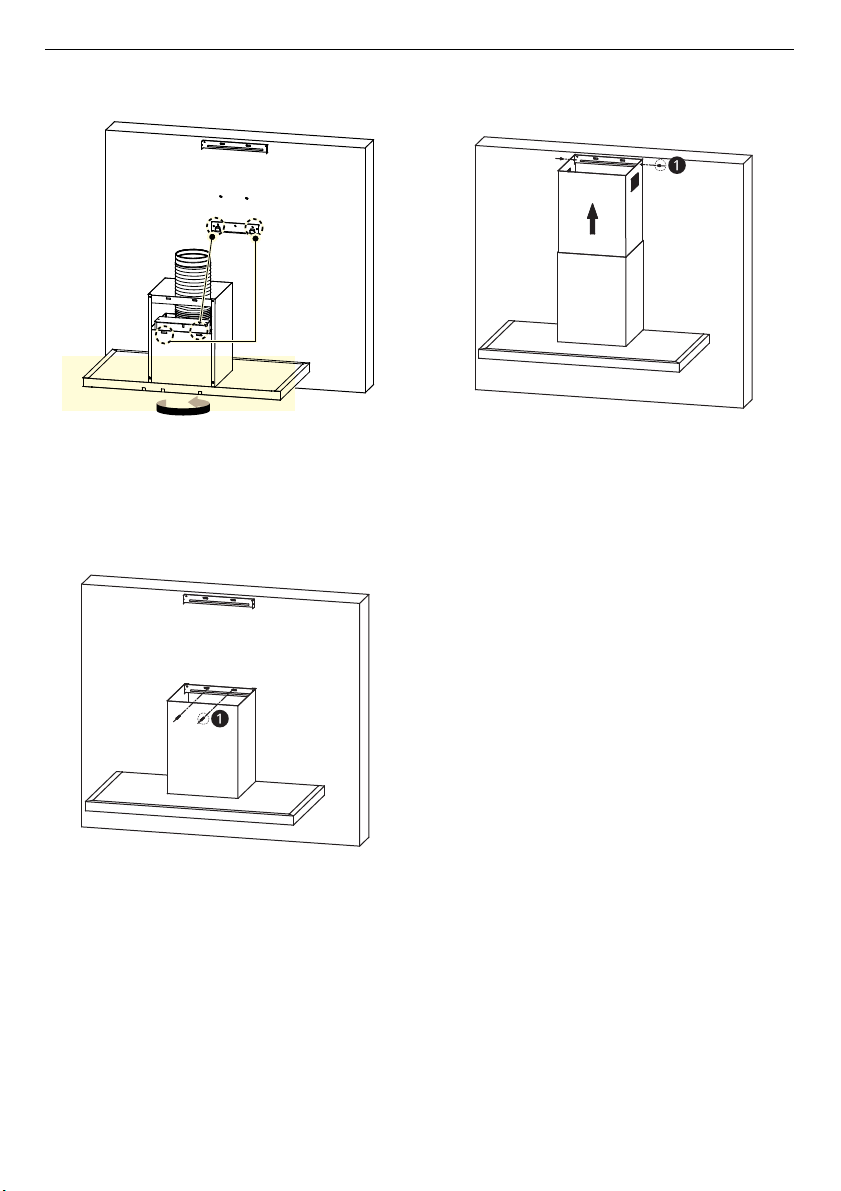

5 Hang the appliance on the hood fixing bracket.
6 After connecting the exhaust pipe securely, fix
the chimney fixing bracket with 2 screws
a
with prepared wall plugs to prevent the
appliance from accidentally sliding off the
hood fixing bracket.
a Screws (Φ5 mm x 50 mm, 2 ea)
7 Connect the power cord.
8 Fit the upper decorative chimney with the
outlet grill at the top.
a Screws (Φ4.2 mm x 9.5 mm, 2 ea)

15
OPERATION
ENGLISH
OPERATION
Using the Appliance

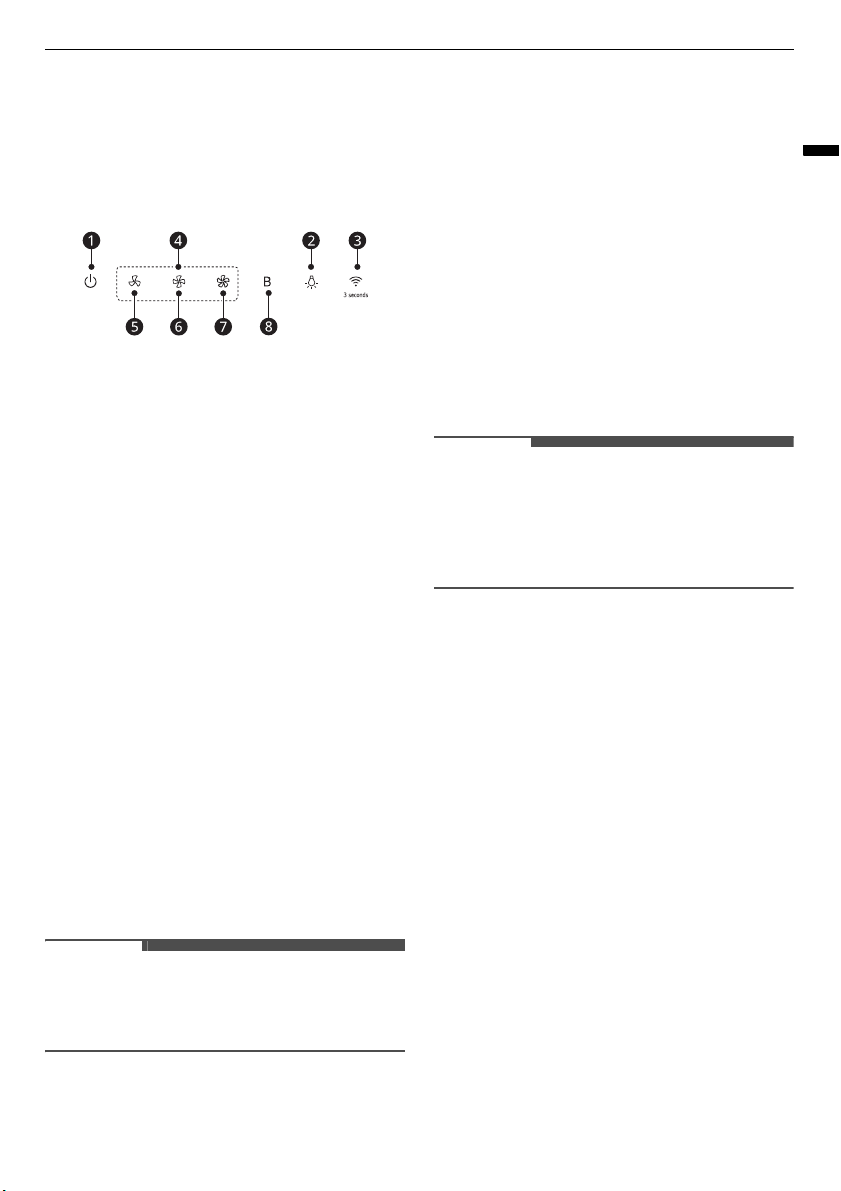

Control Panel
a Power
• When you press the Power button, the appliance
will turn on. At this time, a beep sound will heard,
the motor will run at low speed and the
Power
button,
Low Speed e button and lamp LEDs will
be on (power-on state). If you turn off the power
while using the product, the appliance operates
at the speed mode it was using.
b Light
• The Light button independently controls the
lights free from the effect of other buttons.
• When you press this button once, a beep sound
will be heard, the lights and the
Light button LED
will be on.
• When you press this button again, a beep sound
will be heard, the lights and the
Light button LED
will be off.
c Wi-Fi Connection
• Press the Wi-Fi connection button 3 seconds. Wi-
Fi
LED wii be flashing.
• When product connected with smartphone,
Wi-
Fi
LED will be stopped flashing. Follow the
instructions in the
LG ThinQ application on your
smartphone for using the
Wi-Fi function.
NOTE
• Wi-Fi is not working with any connection
problems or any faults, malfunctions, or errors
caused by network connection.
d Speed Selection
Depending on the effect of each button, the
appliance will operate in one of three modes: low
speed mode, middle speed mode, and high speed
mode.
•
e Low Speed
• f Middle Speed
• g High Speed
h Boost
This appliance has a booster function (boost speed
mode). To activate the booster, press
Boost button
while the appliance is in use and it will increase
speed for 7 minutes, the boost speed will
automatically revert to high speed after running 7
minutes.
NOTE
• We recommend that you switch on the appliance
for a few minutes before you start cooking, and
then leave it running for approximately 8
minutes afterwards to ensure that all odours are
extracted.

16
SMART FUNCTIONS
SMART FUNCTIONS
LG ThinQ Application
This feature is only available on models with Wi-Fi.
The
LG ThinQ application allows you to
communicate with the appliance using a
smartphone.
LG ThinQ Application Features
Communicate with the appliance from a
smartphone using the convenient smart features.
Induction pairing
Allows you to choose which range hood to work
with your induction.
Monitoring
This function helps you check the operation status
of the product, speed mode.
Remote control
This function helps you control the speed mode.
NOTE
• If you change your wireless router, Internet
service provider, or password, delete the
registered appliance from the
LG ThinQ
application and register it again.
• The application is subject to change for
appliance improvement purposes without notice
to users.
• Functions may vary by model.
Installing LG ThinQ Application
and Connecting an LG
Appliance
Models with QR Code

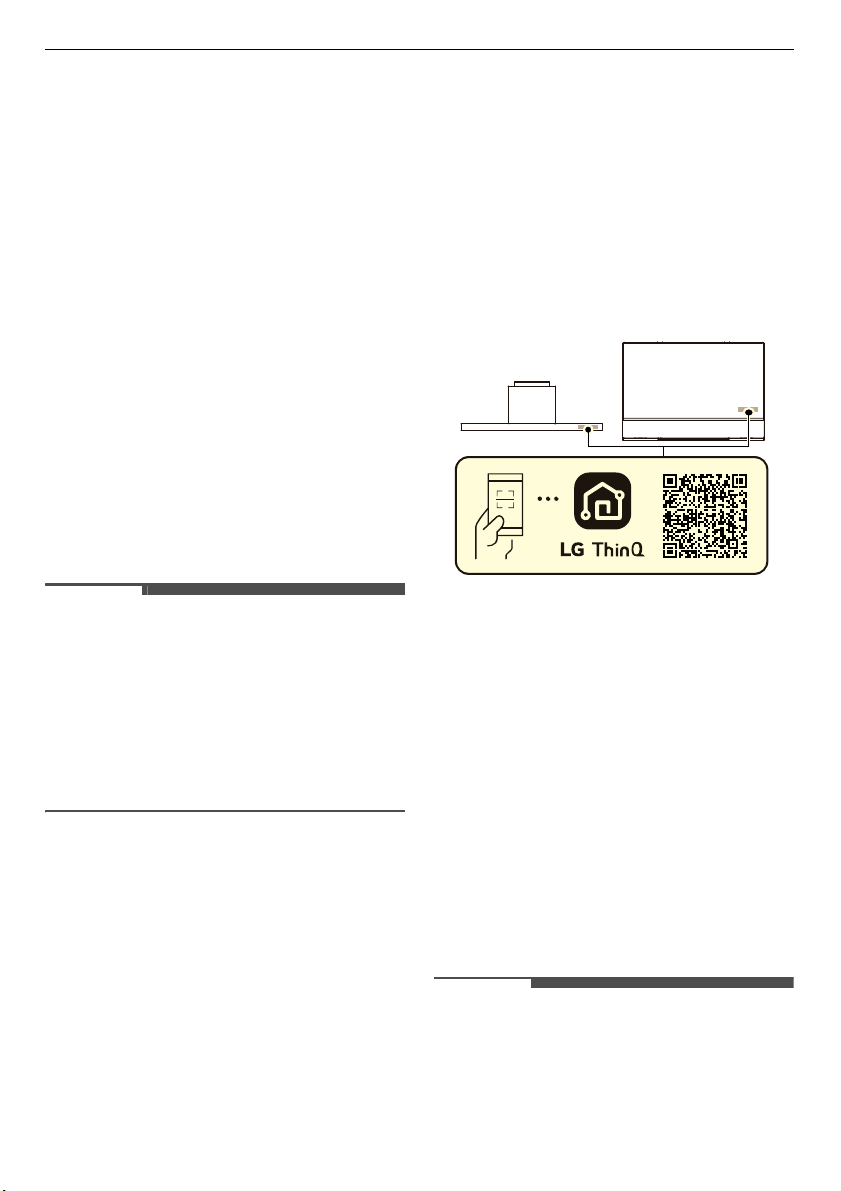

Scan the QR code attached to the product using the
camera or a QR code reader application on your
smartphone.
Models without QR Code
1 Search for and install the LG ThinQ application
from the Google Play Store or Apple App Store
on a smartphone.
2 Run the LG ThinQ application and sign in with
your existing account or create an LG account
to sign in.
3 Touch the add ( ~ ) button on the LG ThinQ
application to connect your LG appliance.
Follow the instructions in the application to
complete the process.
NOTE
• To verify the Wi-Fi connection, check that the Wi-
Fi indicator on the control panel is lit.
• The appliance supports 2.4 GHz Wi-Fi networks
only. To check your network frequency, contact
your Internet service provider or refer to your
wireless router manual.

17
SMART FUNCTIONS
ENGLISH
• LG ThinQ is not responsible for any network
connection problems or any faults,
malfunctions, or errors caused by network
connection.
• The surrounding wireless environment can
make the wireless network service run slowly.
• If the distance between the appliance and the
wireless router is too far, the signal strength
becomes weak. It may take a long time to
connect or installation may fail.
• If the appliance is having trouble connecting to
the Wi-Fi network, it may be too far from the
router. Purchase a Wi-Fi repeater (range
extender) to improve the Wi-Fi signal strength.
• The network connection may not work properly
depending on the Internet service provider.
• The Wi-Fi connection may not connect or may be
interrupted because of the home network
environment.
• The appliance cannot be connected due to
problems with the wireless signal transmission.
Unplug the appliance and wait about a minute
before trying again.
• If the firewall on your wireless router is enabled,
disable the firewall or add an exception to it.
• The wireless network name (SSID) should be a
combination of English letters and numbers. (Do
not use special characters.)
• Smartphone user interface (UI) may vary
depending on the mobile operating system (OS)
and the manufacturer.
• If the security protocol of the router is set to
WEP , you may fail to set up the network. Please
change it to other security protocols (
WPA2 is
recommended) and connect the product again.
• To disable the Wi-Fi function, press and hold the
Wi-Fi connection button for 3 seconds. The Wi-Fi
indicator will be turned off.
• To reconnect the appliance or add another user,
press and hold the
Wi-Fi connection button for 3
seconds to temporarily turn it off. Run the
LG
ThinQ
application and follow the instructions in
the application to connect the appliance.
Radio Equipment Specifications
Wireless function S/W version: V 1.0
For consideration of the user, this device should be
installed and operated with a minimum distance of
20 cm between the device and the body.
Declaration of Conformity
Hereby, LG Electronics declares that the radio
equipment type Range Hood is in compliance with
Directive 2014/53/EU. The full text of the EU
declaration of conformity is available at the
following internet address:
http://www.lg.com/global/support/cedoc/cedoc#
LG Electronics European Shared Service Centre B.V.
Krijgsman 1, 1186 DM Amstelveen,
TheNetherlands
Open Source Software Notice
Information
To obtain the source code that is contained in this
product, under GPL, LGPL, MPL, and other open
source licenses that have the obligation to disclose
source code, and to access all referred license
terms, copyright notices and other relevant
documents, please visit https://
opensource.lge.com.
LG Electronics will also provide open source code to
you on CD-ROM for a charge covering the cost of
performing such distribution (such as the cost of
Module Name LCWB-001
Wireless LAN
Frequency Range
2412 MHz - 2472 MHz
Wireless LAN Output
Power (Max)
18.14 dBm
Bluetooth Frequency
Range
2402 MHz - 2480 MHz
Bluetooth Output
Power (Max)
7.03 dBm

18
SMART FUNCTIONS
media, shipping, and handling) upon email request
to [e-mail].
This offer is valid to anyone in receipt of this
information for a period of three years after our
last shipment of this product.

19
MAINTENANCE
ENGLISH
MAINTENANCE
Cleaning and Replacing
WARNING
• Switch off or unplug the appliance from the
mains supply before carrying out any
maintenance work.
• Make sure that the appliance is shut off before
cleaning.
CAUTION
• Falling grease filters may damage the hob
below. Grip below the grease filter with one
hand.
Cleaning
Cleaning the appliance
1 Observe the instructions of the cleaning agent
manufacturer.
2 Clean stainless steel surfaces in the direction of
the finish using a sponge cloth and hot soapy
water. To protect the main body from corrosive
of the long time accumulation of dirt, the range
hood should be cleaned with hot water with
noncorrosive detergent every two months.
3 Dry with a soft cloth.
4 Apply a thin layer of the stainless steel cleaning
product to stainless steel surfaces using a soft
cloth.
Cleaning Grease Filters in the
Dishwasher
1 Remove all grease filters.
2 Put the grease filters into a dishwasher with
detergent, set the temperature below 60
degrees. The filters must be cleaned every 2
months of operation, or more frequently for
particularly heavy usage, and can be washed in
a dishwasher.
3 Do not use abrasive detergent for it will
damage the appliance.
4 Allow the grease filters to drain.
5 Fitting the grease filters.
The pictures in this manual are for reference
only and may vary depending on the model.
NOTE
• Steam cleaner is not to be used.
• When cleaning the grease filter in the dish-
washer, light discolouration may occur. This
discolouration has no effect on the performance
of the grease filters.
Cleaning Grease Filters manually
1 Observe the instructions of the cleaning agent
manufacturer.

20
MAINTENANCE
2 Soak the grease filter in hot soapy water.
3 Use a brush to clean the grease filters.
4 Rinse the grease filters thoroughly.
5 Allow the grease filters to drain.
6 Fitting the grease filters.
Cleaning the Control Panel
1 Observe the instructions of the cleaning agent
manufacturer.
2 Clean using a damp sponge cloth and hot
soapy water.
3 Dry with a soft cloth.
Replacing
Replacing the Activated Charcoal
Filter (Recirculation Version)
These filters are not washable and cannot be
regenerated, and must be replaced approximately
every 4 months of operation, or more frequently
with heavy usage.

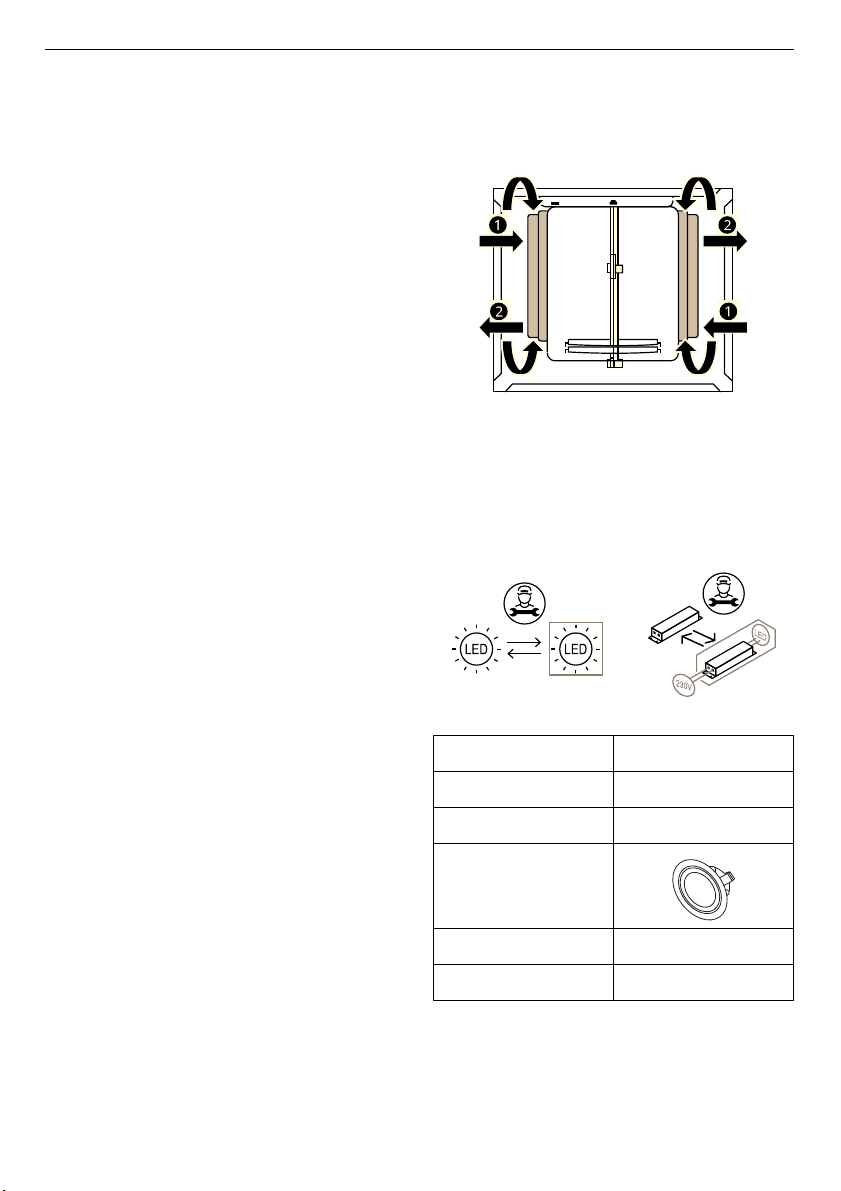

1 Remove the grease filters.
2 Remove the saturated activated charcoal filter.
For the disassembly, turn counter-clockwise
b .
3 Fit the new activated charcoal filters, apply one
on each side as cover to both the shield grids of
the motor impeller, then turn clockwise
a .
Replacing the Light
LED light
Call for service. Repairs should be performed by a
licensed technician only. Improper repair may
result in considerable danger to you and others.
Round/Diameter 70 mm
Max. Power 1.5 W
Voltage DC 12 V
Lamp Cap -
ILCOS D code DSR-1.5-S-70
