Lg F4dv710h series User manual

www.lg.com

OWNER'S MANUAL

WASHER-

DRYER

Before beginning installation, read these instructions carefully.

This will simplify installation and ensure that the product is installed correctly

and safely. Leave these instructions near the product after installation for future

reference.

EN ENGLISH

FWV796WTS FWV796STS F4DV709H* F4DV709H2T

F4DV710H* F4DV710H2T

MFL71445975

Rev.02_082819

TABLE OF CONTENTS This manual may contain images or content

different from the model you purchased.

This manual is subject to revision by the

manufacturer.

IMPORTANT SAFETY INSTRUCTIONS ........................................3

READ ALL INSTRUCTIONS BEFORE USE.....................................................3

WARNING.........................................................................................................3

CARING FOR THE ENVIRONMENT................................................................8

Disposal of Your Old Appliance.........................................................................8

INSTALLATION...............................................................................9

Parts and Specifications....................................................................................9

Installation Place Requirements...................................................................... 11

Unpacking the Appliance.................................................................................12

Levelling the Appliance ...................................................................................13

Connecting the Water Inlet Hose ....................................................................14

Installing the Drain Hose.................................................................................16

OPERATION .................................................................................17

Operation Overview ........................................................................................17

Preparing the Wash Load ...............................................................................17

Adding Detergents and Softeners...................................................................18

Control Panel ..................................................................................................21

Programme Table............................................................................................22

Extra Options and Functions...........................................................................27

SMART FUNCTIONS....................................................................31

Using LG SmartThinQ Application ..................................................................31

Using Smart Diagnosis....................................................................................33

MAINTENANCE............................................................................35

Cleaning After Every Wash .............................................................................35

Cleaning the Appliance Periodically................................................................35

TROUBLESHOOTING..................................................................38

Before Calling for Service ...............................................................................38

OPERATING DATA.......................................................................45

Product Fiche..................................................................................................45

IMPORTANT SAFETY INSTRUCTIONS

READ ALL INSTRUCTIONS BEFORE USE

The following safety guidelines are intended to prevent unforeseen risks

or damage from unsafe or incorrect operation of the appliance.

The guidelines are separated into ‘WARNING’ and ‘CAUTION’ as

described below.

Safety Messages

This symbol is displayed to indicate matters and operations

that can cause risk. Read the part with this symbol carefully

and follow the instructions in order to avoid risk.

WARNING

This indicates that the failure to follow the instructions can cause

serious injury or death.

CAUTION

This indicates that the failure to follow the instructions can cause the

minor injury or damage to the product.

WARNING

To reduce the risk of explosion, fire, death, electric shock,

injury or scalding to persons when using this product, follow

basic precautions, including the following:

Technical Safety

•This appliance can be used by children aged from 8 years and above

and persons with reduced physical, sensory or mental capabilities

or lack of experience and knowledge if they have been given

supervision or instruction concerning use of the appliance in a safe

way and understand the hazards involved. Children shall not play

with the appliance. Cleaning and user maintenance shall not be made

by children without supervision.

•Children of less than 3 years should be kept away unless

continuously supervised.

•If the power cord is damaged, it must be replaced by the

manufacturer, its service agent or similarly qualified persons in order

to avoid a hazard.

•Ventilation openings must not be obstructed by a carpet.

•This appliance is intended to be used in household only and not in

applications such as;

−Staff kitchen areas in shops, offices and other working

environments;

−Farm houses;

−By clients in hotels, motels and other residential type

environments;

−Bed and breakfast type environments;

−Areas for communal use in blocks of flats or in launderettes

•Use a new hose or hose-set supplied with the appliance. Reusing old

hoses can cause a water leak and subsequent property damage.

•The water pressure must be between 100 and 1000 kPa.

•The maximum capacity in some cycles for dry clothes to be used:

FWV796WTS FWV796STS

F4DV709H* F4DV709H2T

F4DV710H*

F4DV710H2T

9 kg (Wash) / 6 kg (Dry) 10.5 kg (Wash) / 7 kg (Dry)

Installation

•Never attempt to operate the appliance if it is damaged,

malfunctioning, partially disassembled, or has missing or broken

parts, including a damaged cord or plug.

•This appliance should only be transported by two or more people

holding the appliance securely.

•Do not install the appliance in a damp and dusty place. Do not install

or store the appliance in any outdoor area, or any area that is subject

to weathering conditions such as direct sunlight, wind, or rain or

temperatures below freezing.

•Tighten the drain hose to avoid separation.

•If the power cord is damaged or the hole of the socket outlet is loose,

do not use the power cord and contact an authorized service centre.

•Do not plug multiple socket outlets, an extension power cable or

adapter with this appliance.

•This appliance must not be installed behind a lockable door, a

sliding door or a door with a hinge on the opposite side to that of the

appliance, in such a way that a full opening of the appliance door is

restricted.

•This appliance must be grounded. In the event of malfunction or

breakdown, grounding will reduce the risk of electric shock by

providing a path of least resistance for electric current.

•This appliance is equipped with a power cord having an equipment

grounding conductor and a grounding power plug. The power plug

must be plugged into an appropriate socket outlet that is installed and

grounded in accordance with all local codes and ordinances.

•Improper connection of the equipment-grounding conductor can

result in risk of electric shock. Check with a qualified electrician or

service personnel if you are in doubt as to whether the appliance is

properly grounded.

•Do not modify the power plug provided with the appliance. If it

does not fit the outlet, have a proper outlet installed by a qualified

electrician.

Operation

•Do not attempt to separate any panels or disassemble the appliance.

•Do not apply any sharp objects to the control panel in order to

operate the appliance.

•Do not repair or replace any part of the appliance. All repairs

and servicing must be performed by qualified service personnel

unless specifically recommended in this Owner’s Manual. Use only

authorized factory parts.

•Do not put animals, such as pets into the appliance.

•Keep the area underneath and around the appliance free of

combustible materials such as lint, paper, rags, chemicals, etc.

•Do not leave the appliance door open. Children may hang on the

door or crawl inside the appliance, causing damage or injury.

•Use new hose or hose-set supplied with the appliance. Reusing old

hoses can cause a water leak and subsequent property damage.

•Do not put in, wash or dry articles that have been cleaned in, washed

in, soaked in, or spotted with combustible or explosive substances

(such as waxes, wax removers, oil, paint, gasoline, degreasers,

drycleaning solvents, kerosene, petrol, spot removers, turpentine,

vegetable oil, cooking oil, acetone, alcohol, etc.). Improper use can

cause fire or explosion.

•Never reach into the appliance while it is operating. Wait until the

drum has completely stopped.

•In case of flood, disconnect the power plug and contact the LG

Electronics customer information centre.

•Do not push down the door excessively, when the appliance door is

open.

•Do not touch the door during a high temperature programme.

•Do not use flammable gas and combustible substances (benzene,

gasoline, thinner, petroleum, alcohol, etc.) near the appliance.

•If the drain hose or inlet hose is frozen during winter, use it only after

thawing.

•Keep all washing detergents, softener and bleach away from children.

•Do not touch the power plug or the appliance controls with wet hands.

•Do not bend the power cable excessively or place a heavy object on

it.

•Do not wash rugs, mats, shoes or pet blankets, or any other items

other than clothes or sheets, in this machine.

•This appliance must only be used for domestic household purposes

and should not be used in mobile applications.

•If there is a gas leakage (isobutane, propane, natural gas, etc.),

do not touch the appliance or power plug and ventilate the area

immediately.

Technical Safety for Using the Dryer

•Do not dry unwashed items in the appliance.

•Items that have been soiled with substances such as cooking oil,

vegetable oil, acetone, alcohol, petroleum, kerosene, spot removers,

turpentine, waxes and wax removers should be washed in hot water

with an extra amount of detergent before being dried in the appliance.

•Never stop the appliance before the end of the drying cycle unless

all items are quickly removed and spread out so that the heat is

dissipated.

•Items such as foam rubber (latex foam), shower caps, waterproof

textiles, rubber backed articles and clothes or pillows fitted with foam

rubber pads should not be dried in the appliance.

•Fabric softeners, or similar products, should be used as specified by

the fabric softener instructions.

•Remove all objects from pockets such as lighters and matches.

•The appliance is not to be used if industrial chemicals have been

used for cleaning.

Maintenance

•Securely plug the power plug in the socket outlet after completely

removing any moisture and dust.

•Disconnect the appliance from the power supply before cleaning the

appliance. Setting the controls to the OFF or stand by position does

not disconnect this appliance from the power supply.

•Do not spray water inside or outside the appliance to clean it.

•Never unplug the appliance by pulling on the power cable. Always

grip the power plug firmly and pull straight out from the socket outlet.

Disposal

•Before discarding an old appliance, unplug it. Cut off the cable

directly behind the appliance to prevent misuse.

•Dispose of all packaging materials (such as plastic bags and

styrofoam) away from children. The packaging materials can cause

suffocation.

•Remove the door before disposing of or discarding this appliance to

avoid the danger of children or small animals getting trapped inside.

CARING FOR THE ENVIRONMENT

Disposal of Your Old Appliance

•This crossed-out wheeled bin symbol indicates that waste electrical and electronic

products (WEEE) should be disposed of separately from the municipal waste

stream.

•Old electrical products can contain hazardous substances so correct disposal

of your old appliance will help prevent potential negative consequences for the

environment and human health. Your old appliance may contain reusable parts that

could be used to repair other products, and other valuable materials that can be

recycled to conserve limited resources.

•You can take your appliance either to the shop where you purchased the product,

or contact your local government waste office for details of your nearest authorised

WEEE collection point. For the most up to date information for your country, please

see www.lg.com/global/recycling.

INSTALLATION

Front View

a Control Panel

b Detergent dispenser drawer

c Drum

d Door

e Cover cap

f Drain pump filter

g Drain plug

h Adjustable feet

Rear View

a Power plug

b Transit bolts

c Drain hose

Parts and Specifications

NOTE

•Appearance and specifications may change without notice to improve the quality of the appliance.

Accessories

* This feature is only available on some models.

a Cold water inlet hose*

b Spanner

c Caps for covering transit bolt holes*

d Anti-slip sheets*

e Elbow bracket for securing drain hose*

f Tie strap*

Specifications

Model FWV796WTS FWV796STS F4DV709H* F4DV709H2T

F4DV710H* F4DV710H2T

Power Supply 220 - 240 V~, 50 Hz

Dimension (Width x Depth x

Height) 600 mm X 560 mm X 850 mm

Product Weight 73 kg

•No further backflow protection required for connection to the water inlet.

Installation Place

Requirements

Before installing the appliance, check the following

information to make sure that the appliance should

be installed in a correct place.

Installation Location

•Install the appliance on a flat hard floor.

(Allowable slope under the appliance: 1°)

•Never try to correct any unevenness in the

floor with pieces of wood, cardboard or similar

materials under the appliance.

•If it is impossible to avoid positioning the

appliance next to a gas cooker or coal burning

stove, an insulation (850 X 600 mm) covered

with aluminium foil on the side facing the cooker

or stove must be inserted between the two

appliances.

•Ensure that when the appliance is installed, it is

easily accessible for an engineer in the event of

a breakdown.

•With the appliance installed, adjust all four feet

using the transit bolt spanner provided to ensure

the appliance is stable, and a clearance of

approximately 5 mm is left between the top of

the appliance and the underside of any worktop.

•Additional clearance should have 100 mm for

the wall and 20 mm for rear, right and left side.

100 mm

20 mm

5 mm

20 mm

WARNING

•This appliance must only be used for domestic

household purposes and should not be used in

mobile applications.

NOTE

•If the appliance is installed on a raised platform,

it must be securely fastened in order to eliminate

the risk of falling off.

Wooden Floors (Suspended

Floors)

When installing the appliance on wooden floors,

use rubber cups to prevent the appliance from

excessive vibration and unbalance.

•To prevent vibration, we recommend you to

place rubber cups aat least 15 mm thick of the

each foot of the appliance, secured to at least

two floor beams with screws.

•If possible, install the appliance in one of the

corners of the room, where the floor is more

stable.

•Fit the rubber cups to reduce vibration.

CAUTION

•This appliance must only be used for domestic

household purposes and should not be used in

mobile applications.

•If the appliance is installed on the unstable

floor (e.g. wooden floor), the warranty dose not

cover any damages and cost occured due to the

installation on the unstable floor.

NOTE

•You can purchase rubber cups (Part

No.4620ER4002B) from the LG Electronics

service centre.

Ventilation

•Make sure that air circulation around the

appliance should not be impeded by carpets,

rugs, etc.

Ambient Temperature

•Do not install the appliance in rooms where

freezing temperatures may occur. Frozen hoses

may burst under pressure. The reliability of

the electronic control unit may be impaired at

temperatures below freezing point.

•If the appliance is delivered in winter and

temperatures are below freezing, place the

appliance at room temperature for a few hours

before putting it into operation.

Electrical Connection

•Do not use an extension cord or double adapter.

•Always unplug the appliance and turn off the

water inlet after use.

•Connect the appliance to an earthed socket in

accordance with current wiring regulations.

•The appliance must be positioned so that the

plug is easily accessible.

•Power outlet must be at least 1 meter of either

side of the location of the appliance.

WARNING

•Repairs to the appliance must only be carried

out by the qualified personnel. Repairs carried

out by inexperienced persons may cause injury

or serious malfunctioning. Contact your LG

Electronics service centre.

•The power plug must be plugged into an

appropriate socket outlet that is installed and

grounded in accordance with all local codes and

ordinances.

Unpacking the Appliance

Lifting the Appliance Off the Foam

Base

* This feature is only available on some models.

After removing the carton and shipping material, lift

the appliance off the foam base.

•Make sure the tub support a* comes off with

the base and is not stuck to the bottom of the

appliance.

•If you must lay the appliance down to remove

the carton base b, always protect the side of

the appliance and lay it carefully on its side. Do

not lay the appliance on its front or back.

Removing the Bolt Assemblies

1 Starting with the bottom two transit bolts a, use

the spanner (included) to fully loosen all transit

bolts by turning them counterclockwise.

2 Remove the bolt assemblies by wiggling them

slightly while pulling them out.

3 Install the hole caps.

•Locate the hole caps bincluded in the

accessory pack or attached on the back.

Levelling the Appliance

Checking the Level

When installing the appliance, the appliance should

be aligned and perfectly level.

•If the appliance is not aligned and level properly,

the appliance may be damaged or may not

operate properly.

Adjusting and Levelling the Feet

When installing the appliance, the appliance should

be aligned and perfectly level. If the appliance is not

aligned and level properly, the appliance may be

damaged or may not operate properly.

1 Turn the adjustable feet as required if the floor

is uneven.

•Do not insert pieces of wood etc. under the

feet.

•Make sure that all four feet should be stable

and resting on the floor.

2 Check if the appliance is perfectly level using a

spirit level a.

3 Secure the adjusting feet with the lock nuts b

by turning counterclockwise against the bottom

of the appliance.

4 Check if all lock nuts at the bottom of the

appliance are secured properly.

NOTE

•Proper placement and levelling of the appliance

will ensure long, regular, and reliable operation.

•The appliance must be horizontal and stand

firmly in position.

•It must not ‘Seesaw’ across corners under the

load.

•Do not let the feet of the appliance get wet.

Failure to do so may cause vibration or noise.

Using Anti-Slip Sheets

This feature is only available on some models.

If you install the appliance on a slippery surface, it

may move because of excessive vibration. Incorrect

levelling may cause malfunction through noise and

vibration. If this occurs, install the anti-slip sheets

under the levelling feet and adjust the level.

1 Clean the floor to attach the anti-slip sheets.

•Use a dry rag to remove and clean foreign

objects and moisture. If moisture remains,

the anti-slip sheets may slip.

2 Adjust the level after placing the appliance in

the installation area.

3 Place the adhesive side aof the anti-slip

sheets on the floor.

•The most effective way is to install the anti-

slip sheets under the front feet. If it is difficult

to place the sheets under the front feet of the

appliance, attach them under the rear feet.

4 Put the appliance on the anti-slip sheets.

•Do not attach the adhesive side aof anti-slip

sheets to the feet of the appliance.

NOTE

•Additional anti-slip sheets are available at LG

Electronics service centre.

Connecting the Water Inlet

Hose

Note for Connection

•Water pressure must be between 100 kPa

and 1000 kPa (1.0 - 10.0 kgf/cm²). If the

water pressure is more than 1000 kPa, a

decompression device should be installed.

•Do not overtighten the water inlet hose to all

valves.

•Periodically check the condition of the hose and

replace the hose if necessary.

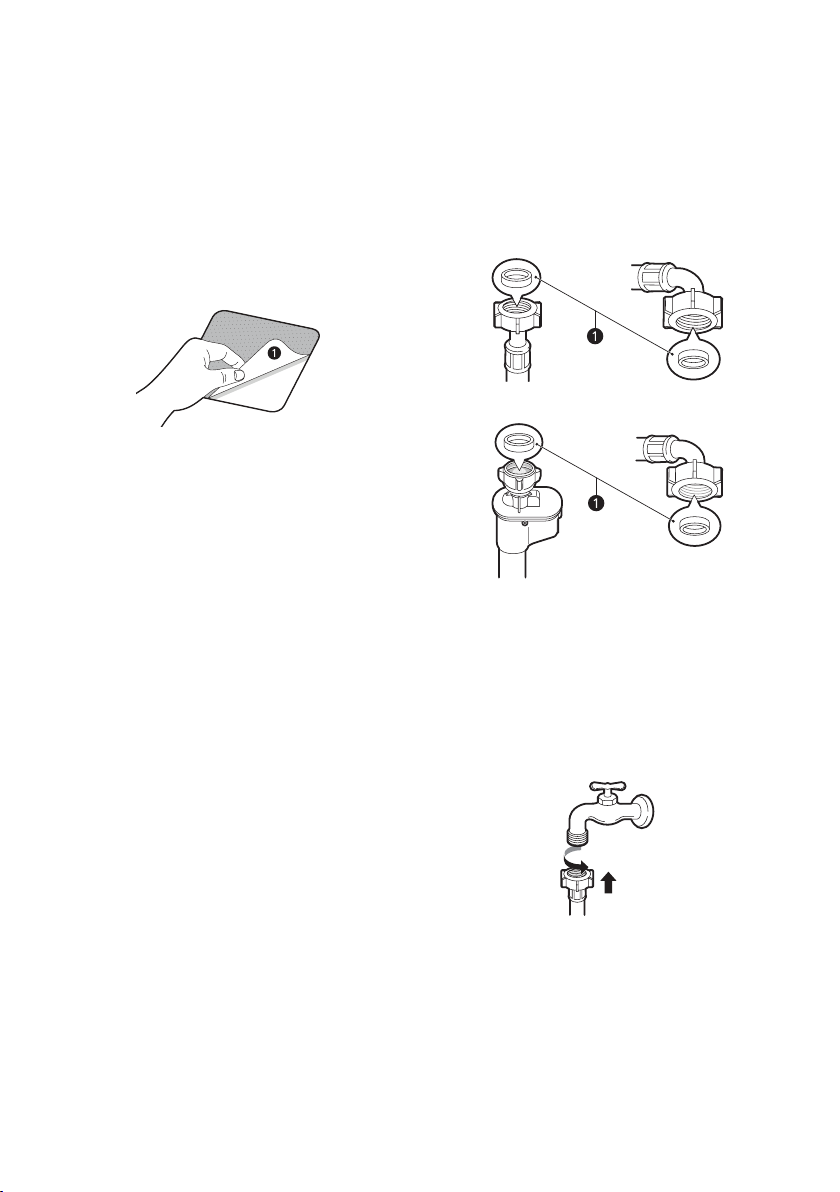

Checking the Rubber Seal on the

Water Inlet Hose

Two rubber seals aare supplied with the water

inlet hoses. They are used to prevent water leaks.

Make sure that the connection to taps should be

sufficiently tight.

Connecting Hose to Water Tap

Screw - Type Hose to Tap with Thread

Screw the hose connector to the water supply,

which has ¾” threaded union.

NOTE

•Before connecting the inlet hose to the water

tap, turn on the water tap to flush out foreign

substances (dirt, sand, sawdust, and etc.) in the

water lines. Let the water drain into a bucket,

and check the water temperature.

Connecting Screw-Type Hose to Tap

Without Thread

1 Loose the four fixing screws.

Fixing screw

Upper

connector

Rubber

seal

2 Remove the guide plate if the tap is too large to

fit the adapter.

Guide plate

3 Push the adapter onto the end of the tap so that

the rubber seal forms a watertight connection.

Tighten the four fixing screws.

4 Push the supply hose vertically upwards so

that the rubber seal within the hose can adhere

completely to the tap and then tighten it by

screwing it to the right.

Plate

Supply

hose

Connecting One Touch Type Hose

to Tap Without Thread

1 Unscrew the adapter ring plate and loose the

four fixing screws.

Ring plate

2 Remove the guide plate if the tap is too large to

fit the adapter.

Guide plate

3 Push the adapter onto the end of the tap so that

the rubber seal forms a watertight connection.

Tighten the four fixing screws and the adapter

ring plate.

4 Pull the connector latch plate down, push the

supply hose onto the adapter, and release the

connector latch plate. Make sure the adapter

locks into place.

Latch plate

NOTE

•After connecting the supply hose to the water

tap, turn on the water tap to flush out foreign

substances (dirt, sand, sawdust, and etc.) in the

water lines. Let the water drain into a bucket, and

check the water temperature.

Connecting Hose to the Appliance

Screw the water line to the water supply on the

back of the appliance.

NOTE

•After completing connection, if water leaks from

the hose, repeat the same steps. Use the most

conventional type of tap for the water supply. If

the tap is square or too big, remove the guide

plate before inserting the tap into the adaptor.

•Make sure that the hose should not be kinked

or trapped.

Installing the Drain Hose

For Model with Drain Pump

The drain hose should not be placed higher than

100 cm above the floor. Water in the appliance may

not drain or may drain slowly.

•Securing the drain hose correctly will protect the

floor from damage due to water leakage.

_DN

•If the drain hose is too long, do not force it back

into the appliance. This will cause abnormal

noise.

•When installing the drain hose to a sink, secure

it tightly with string.

OPERATION

Operation Overview

Using the Appliance

Before the first wash, select the Cotton wash

programme and add a half amount of the detergent.

Start the appliance without laundry. This will remove

possible residues and water from the drum that may

have been left during manufacturing.

1 Sort laundry and load items.

•Sort laundry by fabric type, soil level, colour

and load size as needed. Open the door and

load items into the appliance.

2 Add detergent or softener.

•Add the proper amount of detergent to the

detergent dispenser drawer. If desired, add

bleach or fabric softener to the appropriate

areas of the dispenser.

3 Turn on the appliance.

•Press the Power button to turn on the

appliance.

4 Choose the desired cycle.

•Press the cycle button repeatedly or turn the

cycle selector knob until the desired cycle is

selected.

•Now select a wash temperature and spin

speed. Pay attention to the care labeling of

your clothes.

5 Begin cycle.

•Press the Start/Pause button to begin the

cycle. The appliance will agitate briefly

without water to measure the weight of the

load. If the Start/Pause button is not pressed

within 15 minutes, the appliance will shut off

and all settings will be lost.

6 End of cycle.

•When the cycle is finished, a melody will

sound. Immediately remove your clothing

from the appliance to reduce wrinkling.

Check around the door seal when removing

the load for small items that may be caught

in the seal.

Preparing the Wash Load

Sort laundry for best washing results, and then

prepare laundry according to the symbols on the

care labels.

Sorting the Wash Load

•For best washing results, sort your clothes

according to the symbol on the care labels

according to the type of fabric and washing

temperature and wash them with adapted spin

speed.

•Soil (Heavy, Normal, Light): Separate clothes

according to amount of soil.

•Colour (White, Lights, Darks): Separate white

fabrics from coloured fabrics. Wash new dark

and colored garments separately at first.

•Lint (Lint producers, Collectors): Wash lint

producers and lint collectors separately.

Checking the Clothes Care Label

Symbols on the care labels

The symbols tell you about the fabric content of

your garment and how it should be washed.

Symbol Wash / Fabric type

•Normal Wash

•Cotton, Mixed Fabrics

•Easy Care

•Synthetic, Mixed Fabrics

•Special Delicate Wash

•Delicates

•Hand Wash Only

•Wool, Silk

•Do not wash

NOTE

•The dashes under the symbol give you

information about the type of fabric and the

maximum allowance of mechanical stress.

Checking the Clothes before

•Combine large and small items in a load. Load

large items first.

•Large items should not be more than half of the

total wash load. Do not wash single items. This

may cause an unbalanced load. Add one or two

Popular Washer Dryer manuals by other brands

Smeg

Smeg WDI14C7-2 instruction manual

GE Unitized Spacemaker WSM2480DWW Dimension Guide

Whirlpool

Whirlpool AWZ 410 quick start guide

Siemens

Siemens WN34A1L0DN Instruction manual and installation instructions

Bosch

Bosch WVD24420EU Maxx 5 Operating and installation instructions

Whirlpool

Whirlpool WWDC9614 Daily reference guide

Frigidaire

Frigidaire GLGH1642DS1 installation instructions

Hotpoint Ariston

Hotpoint Ariston AQUALTIS AQM8F 49 U Instructions for installation and use

AEG

AEG L7WEC166R user manual

Hotpoint

Hotpoint WDD 960 P Instructions for use

Indesit

Indesit WIB101 Instructions for use

montpellier

montpellier MWD7512 Installation and operating instructions

Bosch

Bosch WDU8H541GB/01 User manual and installation instructions

Beko

Beko HTV 8743 XG user manual

Miele

Miele WTR860WPM Installation

Hoover

Hoover HW160M Service manual

AEG

AEG L 75480 WD user manual

Whirlpool

Whirlpool WGT3300S Dimensions and installation information

LG F4DV710H Series User manual

Popular Washer Dryer manuals by other brands
