LG F4V5RGP Series User manual

OWNER'S MANUAL
WASHER AND DRYER
Before beginning installation, read these instructions
carefully. This will simplify installation and ensure that the
product is installed correctly and safely. Leave these
instructions near the product after installation for future
reference.
ENGLISH
F4V5*GP** / FV1409D4V
MFL71670309
Rev.07_101023
www.lg.com
Copyright © 2019-2023 LG Electronics Inc. All Rights Reserved.

TABLE OF CONTENTS
This manual may contain images or
content that may be different from the
model you purchased.
This manual is subject to revision by the
manufacturer.
SAFETY INSTRUCTIONS
READ ALL INSTRUCTIONS BEFORE USE...........................................................3
WARNING............................................................................................................3
INSTALLATION
Parts and Specifications ....................................................................................9
Installation Place Requirements ....................................................................12
Unpacking the Appliance ................................................................................13

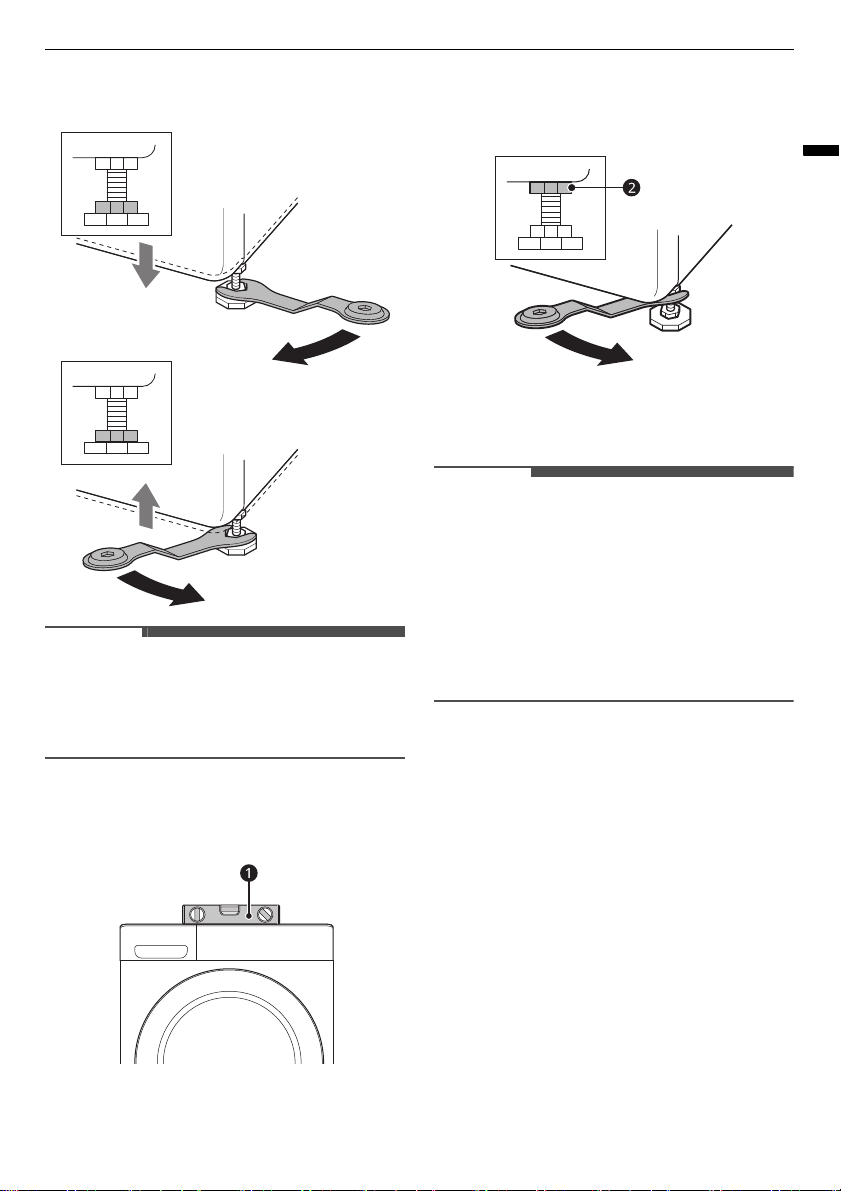

Levelling the Appliance ...................................................................................14
Connecting the Water Supply Hose...............................................................16
Installing the Drain Hose ................................................................................18
OPERATION
Operation Overview.........................................................................................20
Control Panel ....................................................................................................21
Preparing the Wash Load ...............................................................................24
Adding Detergents and Softeners .................................................................25
Programme Table ............................................................................................27
Drying Programme ..........................................................................................31
Extra Options and Functions ..........................................................................34
SMART FUNCTIONS
LG ThinQ Application.......................................................................................37
Smart Diagnosis ...............................................................................................39
MAINTENANCE
Cleaning After Every Wash..............................................................................41
Cleaning the Appliance Periodically ..............................................................41
TROUBLESHOOTING
Before Calling for Service................................................................................45

3
SAFETY INSTRUCTIONS
ENGLISH
SAFETY INSTRUCTIONS
READ ALL INSTRUCTIONS BEFORE USE
The following safety guidelines are intended to prevent unforeseen
risks or damage from unsafe or incorrect operation of the appliance.
The guidelines are separated into ‘WARNING’ and ‘CAUTION’ as
described below.
Safety Messages
WARNING
WARNING
To reduce the risk of explosion, fire, death, electric shock, injury or
scalding to persons when using this product, follow basic precautions,
including the following:
Technical Safety
• This appliance is not intended for use by persons (including children)
with reduced physical, sensory or mental capabilities, or lack of
experience and knowledge, unless they have been given supervision
or instruction concerning use of the appliance by a person
responsible for their safety.
This symbol is displayed to indicate matters and operations
that can cause risk. Read the part with this symbol carefully
and follow the instructions in order to avoid risk.
WARNING
This indicates that the failure to follow the instructions can
cause serious injury or death.
CAUTION
This indicates that the failure to follow the instructions can
cause the minor injury or damage to the product.

4
SAFETY INSTRUCTIONS
• Children should be supervised to ensure that they do not play with
the appliance.
• If the power cord is damaged, it must be replaced by the
manufacturer, its service agent or similarly qualified persons in order
to avoid a hazard.
• Use a new hose or hose-set supplied with the appliance. Reusing old
hoses can cause a water leak and subsequent property damage.
• Ventilation openings must not be obstructed by a carpet.
• This appliance is intended to be used in household only.
• The inlet water pressure must be between 50 kPa and 800 kPa.
Maximum Capacity
The maximum capacity in some cycles for dry clothes to be used is:
The recommended maximum capacity for each washing programme
may differ. To get good wash results, please refer to Programme Table
in OPERATION chapter for further details.
Technical Safety for Using the Dryer
• Do not dry unwashed items in the appliance.
• Items that have been soiled with substances such as cooking oil,
vegetable oil, acetone, alcohol, petroleum, kerosene, spot removers,
turpentine, waxes and wax removers should be washed in hot water
with an extra amount of detergent before being dried in the
appliance.
• Never stop the appliance before the end of the drying cycle unless all
items are quickly removed and spread out so that the heat is
dissipated.
• Items such as foam rubber (latex foam), shower caps, waterproof
textiles, rubber backed articles and clothes or pillows fitted with foam
rubber pads should not be dried in the appliance.
F4V5RGP** FV1409D4V / F4V5VGP2T
Wash (10.5 kg) / Dry (7 kg) Wash (9 kg) / Dry (6 kg)

5
SAFETY INSTRUCTIONS
ENGLISH
• Fabric softeners, or similar products, should be used as specified by
the fabric softener instructions.
• Remove all objects from pockets such as lighters and matches.
• The appliance is not to be used if industrial chemicals have been used
for cleaning.
Installation
• This appliance should only be transported by two or more people
holding the appliance securely.
• Do not install the appliance in a damp and dusty place. Do not install
or store the appliance in any outdoor area, or any area that is subject
to weathering conditions such as direct sunlight, wind, rain, or
temperatures below freezing.
• Make sure the power plug is completely pushed into the power
outlet.
• Do not plug the appliance into multiple outlet sockets, power boards,
or an extension power cable.
• Do not modify the power plug provided with the appliance. If it does
not fit the power outlet, have a proper outlet installed by a qualified
electrician.
• This appliance is equipped with a power cord having an equipment-
earthing / grounding conductor (earthing pin) and a grounding
power plug. The power plug must be plugged into an appropriate
outlet socket that is installed and earthed / grounded in accordance
with all local codes and ordinances.
• Improper connection of the equipment-grounding conductor can
result in risk of electric shock. Check with a qualified electrician or
service personnel if you are in doubt as to whether the appliance is
properly grounded.
Operation
• Never attempt to operate the appliance if it is damaged,
malfunctioning, partially disassembled, or has missing or broken
parts, including a damaged cord or plug.

6
SAFETY INSTRUCTIONS
• Do not apply any sharp objects to the control panel in order to
operate the appliance.
• Do not attempt to separate any panels or disassemble the appliance.
• Do not repair or replace any part of the appliance. All repairs and
servicing must be performed by qualified service personnel unless
specifically recommended in this Owner's Manual. Use only
authorized factory parts.
• Do not push down the door excessively, when the appliance door is
open.
• Do not put animals, such as pets into the appliance.
• Do not wash any items that are specified by the manufacturer as not
washable on the care label.
• Keep the area underneath and around the appliance free of
combustible materials such as lint, paper, rags, chemicals, etc.
• Do not leave the appliance door open. Children may hang on the door
or crawl inside the appliance, causing damage or injury.
• Do not put in, wash or dry articles that have been cleaned in, washed
in, soaked in, or spotted with combustible or explosive substances
(such as waxes, wax removers, oil, paint, gasoline, degreasers,
drycleaning solvents, kerosene, petrol, spot removers, turpentine,
vegetable oil, cooking oil, acetone, alcohol, etc.). Improper use can
cause fire or explosion.
• Do not use or store flammable or combustible substances (ether,
benzene, alcohol, chemical, LPG, combustible spray, gasoline,
thinner, petroleum, insecticide, air freshener, cosmetics, etc.) near
the appliance.
• Never reach into the appliance while it is operating. Wait until the
drum has completely stopped.
• Do not touch the door during a high temperature programme.
• In case of a water leak from the appliance or flood, disconnect the
power plug and contact the LG Electronics customer information
centre.

7
SAFETY INSTRUCTIONS
ENGLISH
• Turn off water taps to relieve pressure on hoses and valves and to
minimize leakage if a break or rupture should occur. Check the
condition of the fill hoses; they should be replaced after 5 years.
• If there is a gas leakage (isobutane, propane, natural gas, etc.) within
the home, do not touch the appliance or power plug and ventilate the
area immediately.
• If the drain hose or inlet hose is frozen during winter, use it only after
thawing.
• Keep all washing detergents, softener and bleach away from
children.
• Do not touch the power plug or the appliance controls with wet
hands.
• Do not bend the power cable excessively or place a heavy object on it.
• Avoid touching any water that is drained from the appliance during
the wash.
• Make sure that drainage is working properly. If water is not drained
properly, your floor may get flooded.
• When the air temperature is high and the water temperature is low,
condensation may occur and thus wet the floor.
• Wipe off dirt or dust on the contacts of the power plug.
Maintenance
• Disconnect the appliance from the power supply before cleaning the
appliance. Setting the controls to the OFF or stand by position does
not disconnect this appliance from the power supply.
• Securely plug the power plug in the outlet socket after completely
removing any moisture and dust.
• Do not spray water inside or outside the appliance to clean it.
• Never unplug the appliance by pulling on the power cable. Always
grip the power plug firmly and pull straight out from the outlet
socket.
• Only qualified service personnel from LG Electronics service centre
should disassemble, repair, or modify the appliance. Contact an LG

8
SAFETY INSTRUCTIONS
Electronics customer information centre if you move and install the
appliance in a different location.
Disposal
• Before discarding an old appliance, unplug it. Cut off the cable
directly behind the appliance to prevent misuse.
• Dispose of all packaging materials (such as plastic bags and
styrofoam) away from children. The packaging materials can cause
suffocation.
• Cut off the power cord and remove the door before disposing of this
appliance to avoid the danger of children or small animals getting
trapped inside.

9
INSTALLATION
ENGLISH
INSTALLATION
Parts and Specifications
NOTE
• Appearance and specifications may change without notice to improve the quality of the appliance.
Front View
a Control Panel
b Detergent Dispenser Drawer
c Drum
d Door
e Cover Cap
f Drain Plug
g Drain Pump Filter
h Levelling Feet
Rear View
a Power Plug
b Transit Bolts
c Drain Hose

10
INSTALLATION
Specifications
Dimension(mm)
Model F4V5*GP** FV1409D4V
Power Supply 220‒240 V~, 50 Hz 230 V~, 60 Hz
Product Weight 73 kg
W 600 D 565 D'' 1100
H850D'620

11
INSTALLATION
ENGLISH
Accessories
*1 The included accessories vary depending on the model you purchased.
Cold Supply Hose Anti–slip Sheets*1
Spanner Elbow Bracket for Securing Drain Hose
Caps for Covering Transit Bolt Holes Tie Strap*1

12
INSTALLATION
Installation Place
Requirements
Before installing the appliance, check the following
information to make sure that the appliance
should be installed in a correct place.
Installation Location
• This appliance must be installed on firm flooring
to minimize vibration during the spin cycle.
Concrete flooring is best, being far less prone to
vibration during the spin cycle than wooden
floorboards or a carpeted surface.
• If it is impossible to avoid positioning the
appliance next to a gas cooker or coal burning
stove, an insulation (850 X 600 mm) covered with
aluminum foil on the side facing the cooker or
stove must be inserted between the two
appliances.
• Ensure that when the appliance is installed, it is
easily accessible for an engineer in the event of a
breakdown.
• When installing the appliance, adjust all four feet
using the transit bolt spanner provided to
ensure the appliance is stable.
• Ensure that there is enough room for full
opening of the appliance door.

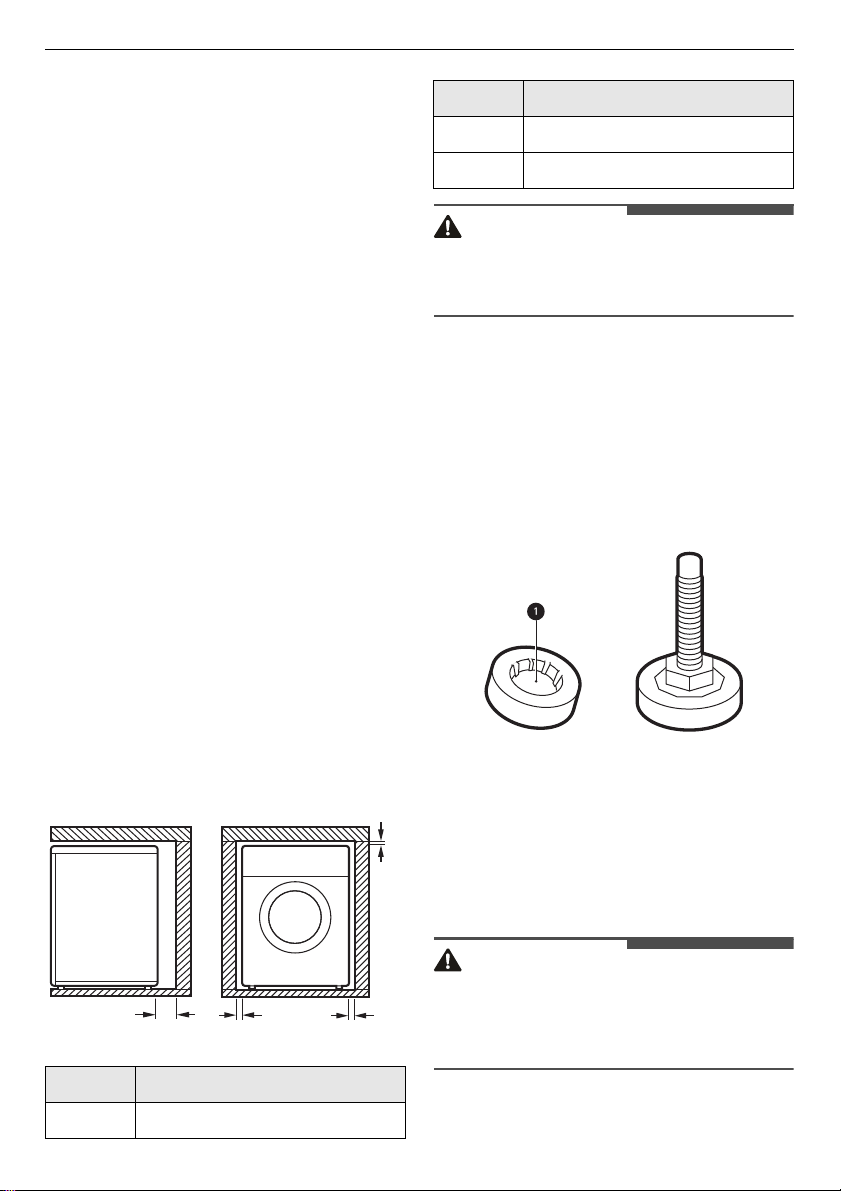

• To ensure sufficient clearance for water inlet
hoses, drain hose and airflow, allow minimum
clearances of at least 20 mm at the sides and 100
mm behind the appliance. Be sure to allow for
wall, door, or floor moldings that may increase
the required clearances.
WARNING
• This appliance must only be used for domestic
household purposes and should not be used in
mobile applications.
Wooden Floors (Suspended
Floors)
When installing the appliance on wooden floors,
use rubber cups to reduce excessive vibration and
unbalance. Timber or suspended type flooring may
contribute to excessive vibration and unbalance,
errors and malfunction.
• To reduce vibration, we recommend placing at
least 15 mm thickness of rubber cups
a under
each adjusting foot of the appliance, secured to
at least two floor beams with screws.
• If possible, install the appliance in one of the
corners of the room, where the floor is more
stable.
• Fit the rubber cups to reduce vibration.
CAUTION
• If the appliance is installed on the unstable floor
(e.g. wooden floor), the warranty does not cover
any damages and cost occurred due to the
installation on the unstable floor.
Index Clearance (mm)
A
100
A C
B
C
B 5
C 20
Index Clearance (mm)

13
INSTALLATION
ENGLISH
NOTE
• You can purchase rubber cups (part No.
4620ER4002B ) from the LG service centre.
Ventilation
• Make sure that air circulation around the
appliance should not be impeded by carpets,
rugs, etc.
Ambient Temperature
• Do not install the appliance in rooms where
freezing temperatures may occur. Frozen hoses
may burst under pressure. The reliability of the
electronic control unit may be impaired at
temperatures below freezing point.
• If the appliance is delivered in winter and
temperatures are below freezing, place the
appliance at room temperature for a few hours
before putting it into operation.
Electrical Connection
• Do not use an extension cord or double adapter.
• Always unplug the appliance and turn off the
water supply after use.
• Connect the appliance to an earthed socket in
accordance with current wiring regulations.
• The appliance must be positioned so that the
plug is easily accessible.
• Power outlet must be within 1 meter of either
side of the appliance.
WARNING
• Repairs to the appliance must only be carried out
by qualified personnel. Repairs carried out by
inexperienced persons may cause injury or
serious malfunctioning. Contact your local
authorised LG repairer.
• The power plug must be plugged into an
appropriate outlet socket that is installed and
grounded/earthed in accordance with all local
codes and ordinances.
Unpacking the Appliance
Lifting the Appliance Off the
Foam Base
After removing the carton and shipping material,
lift the appliance off the foam base.
• Make sure the tub support
a * comes off with
the base and is not stuck to the bottom of the
appliance.
• If you must lay the appliance down to remove
the carton base
b , always protect the side of the
appliance and lay it carefully on its side. Do not
lay the appliance on its front or back.
* This feature may vary depending on the model
purchased.
Removing the Transit Bolt
Assemblies
To prevent the appliance from severe vibration and
breakage, remove transit bolts and retainers.
*

14
INSTALLATION
1 Starting with the bottom two transit bolts a ,
use the spanner (included) to fully loosen all
transit bolts by turning them counterclockwise.
2 Remove the bolt assemblies by wiggling them
slightly while pulling them out.
3 Install the hole caps.
• Locate the hole caps
b included in the
accessory pack or attached on the back.
NOTE
• Save the transit bolts and retainers for future
use.
• Transport this appliance for the prevention of
breakage as below:
- The transit bolts are reinstalled.
- The power cord is secured to the back of the
appliance.
Levelling the Appliance
Checking the Level
When pushing down the edges of the top plate
diagonally, the appliance should not move up and
down at all (check both directions).
• If the appliance rocks when pushing the top
plate of the appliance diagonally, adjust the feet
again.
• Check whether the appliance is perfectly level
after installation.
NOTE
• Timber or suspended type flooring may
contribute to excessive vibration and unbalance.
Reinforcement or bracing of the timber floor
may need to be considered to stop or reduce
excessive noise and vibration.
• Never try to level any uneven floor by putting
pieces of wood, cardboard or similar materials
under the appliance.
Adjusting and Levelling the Feet
When installing the appliance, the appliance
should be aligned and perfectly level. If the
appliance is not aligned and level properly, the
appliance may be damaged or may not operate
properly.
1 Turn the levelling feet as required if the floor is
uneven.
• Do not insert pieces of wood etc. under the
feet.

15
INSTALLATION
ENGLISH
• Make sure that all four feet are stable and
resting on the floor.
NOTE
• Do not install the washing machine on a plinth,
stand or elevated surface unless it is
manufactured by LG Electronics for use with this
model.
2 Check if the appliance is perfectly level using a
spirit level
a .
3 Secure the levelling feet with the lock nuts b
by turning anti-clockwise against the bottom of
the appliance.
4 Check if all lock nuts at the bottom of the
appliance are secured properly.
NOTE
• Proper placement and levelling of the appliance
will ensure long, regular, and reliable operation.
• The appliance must be 100% horizontal and
stand firmly in position on a hard flat floor.
• It must not ‘Seesaw’ across corners under the
load.
• Do not let the feet of the appliance get wet.
Failure to do so may cause vibration or noise.
Using Anti-Slip Sheets
This feature may vary depending on the model
purchased.
If you install the appliance on a slippery surface, it
may move because of excessive vibration.
Incorrect levelling may cause malfunction through
noise and vibration. If this occurs, install the anti-
slip sheets under the levelling feet and adjust the
level.
1 Clean the floor to attach the anti-slip sheets.
• Use a dry rag to remove and clean foreign
objects and moisture. If moisture remains,
the anti-slip sheets may slip.

16
INSTALLATION
2 Adjust the level after placing the appliance in
the installation area.
3 Place the adhesive side a of the anti-slip
sheets on the floor.
• The most effective way is to install the anti-
slip sheets under the front feet. If it is
difficult to place the sheets under the front
feet of the appliance, attach them under the
rear feet.
4 Put the appliance on the anti-slip sheets.
• Do not attach the adhesive side
a of anti-
slip sheets to the feet of the appliance.
NOTE
• Additional anti-slip sheets are available at LG
Electronics service centre.
Connecting the Water Supply
Hose
Note for Connection
• Water pressure must be between 50 kPa and 800
kPa
(0.5‒8.0 kgf/cm²). If the water pressure is
more than
800 kPa , a decompression device
should be installed.
• Periodically check the condition of the water
supply hose and replace the water supply hose if
necessary.
NOTE
• Do not overtighten the water supply hose or use
mechanical devices to tighten onto the inlet
valves.
• No further backflow protection required for
connection to the water inlet.
Checking the Rubber Seal
Two rubber seals a are supplied with the water
supply hose. They are used to prevent water leaks.
Connection to taps is sufficiently tight.
• Do not use mechanical devices such as multi
grips to tighten the water supply hose. Ensure
that the curved end of the water supply hose is
connected to the appliance.
Connecting the Hose to the Water
Tap
Connecting Screw-Type Hose to Tap with Thread
Screw the supply hose connector onto the water
supply tap.

17
INSTALLATION
ENGLISH
Connecting Screw-Type Hose to Tap Without
Thread
1 Loosen the 4 fixing screws a .
2 Remove the guide plate b if the tap is too large
to fit the adapter.
3 Push the adapter onto the end of the tap so
that the rubber seal is connected to be
watertight. Tighten the 4 fixing screws.
4 Push the inlet hose c vertically upwards so
that the rubber seal within the hose can adhere
completely to the tap and then tighten the
hose by screwing it to the right.
Connecting One Touch Type Hose to Tap Without
Thread
1 Unscrew the adapter ring plate d and loose
the 4 fixing screws.
2 Remove the guide plate e if the tap is too large
to fit the adapter.
3 Push the adapter onto the end of the tap so
that the rubber seal is connected to be
watertight. Tighten the 4 fixing screws and the
adapter ring plate.
4 Pull the connector latch plate f down, push
the inlet hose onto the adapter, and release the

18
INSTALLATION
connector latch plate. Make sure the adapter
locks into place.
NOTE
• After connecting the water inlet hose to the
water tap, turn on the water tap to flush out
foreign substances (dirt, sand, sawdust, and etc.)
in the water lines. Let the water drain into a
bucket, and check the water temperature.
Connecting the Hose to the
Appliance
Screw the supply hose to the water inlet valve on
the back of the appliance.
• Do not connect the hose to the hot water supply
for models with one water inlet. Connect to the
cold water supply only.
NOTE
• After completing connection, if water leaks from
the hose, repeat the same steps. Use the most
conventional type of tap for the water supply. In
case that the tap is square or too big, remove the
guide plate before inserting the tap into the
adaptor.
• Make sure that the hose should not be kinked or
trapped.
Installing the Drain Hose
Installing the Drain Hose with the
Elbow Bracket
The drain hose should not be placed higher than
100 cm above the floor. Water in the appliance may
not drain or may drain slowly.
• Securing the drain hose correctly will protect the
floor from damage due to water leakage.
• If the drain hose is too long, do not force it back
into the appliance. This will cause abnormal
noise.

19
INSTALLATION
ENGLISH
• When installing the drain hose to a sink, secure it
tightly with string.

20
OPERATION
OPERATION
Operation Overview
Using the Appliance
Before the first wash, select the Cotton wash
programme and add a half amount of the
detergent. Start the appliance without clothes. This
will remove possible residues and water from the
drum that may have been left during
manufacturing.
1 Sort clothes and load items.
• Sort clothes by fabric type, soil level, colour
and load size as needed. Open the door and
load items into the appliance.
CAUTION
• Before closing the door, ensure that all clothes
and items are inside the tub and not
overhanging on the rubber door seal where they
will become caught when the door is closed.
Failing to do so will cause damage to the door
seal and the clothes.
• Remove items from the flexible door seal gasket
to prevent clothing and door seal damage.
2 Add cleaning products or detergent and
softener.
• Add the proper amount of detergent to the
detergent dispenser. If desired, add bleach
or fabric softener to the appropriate areas of
the dispenser.
3 Turn on the appliance.
• Press the
Power button to turn on the
appliance.
4 Choose the desired cycle.
• Press the cycle button repeatedly or turn the
cycle selector knob until the desired cycle is
selected.
• Now select a wash temperature and spin
speed. Pay attention to the fabric care label
of your clothes.
5 Begin cycle.
• Press the
Start/Pause button to begin the
cycle. The appliance will agitate briefly
without water to measure the weight of the
load. If the
Start/Pause button is not
pressed within a certain time, the appliance
will shut off and all settings will be lost.
6 End of cycle.
• When the cycle is finished, a melody will
sound. Immediately remove your clothing
from the appliance to reduce wrinkling.
Check around the door seal when removing
the load for small items that may be caught
in the seal.
