LG WT-H950 User manual

Washing Machine
OWNER'S MANUAL
Please read this manual carefull before operating our set.
Retain it for future reference.
Record model name and serial number of the set.
Quote this information to our dealer when ou require service.
MODEL : WT-H950
WT-H800

roduct Features
P
FUZZY logic control
A built-in load sensor automatically detects and measures the laundry
load and a microprocessor optimizes washing conditions such as ideal
water consumption and washing time.
Advanced technology is built into the Electronic Control System which
ensures the best washing result.
Turbo Drum DD washing
The Turbo Drum DD washing machine does not operate with the lid open.
If the lid is opened during wash, rinse and spin cycles, the machine will stop automatically.
sensors
The sensor automatically detects the quantity of a Detergent put by a user and the
temperature and the quality of water to make the best washing algorithm for
washing and rinsing, which can give the best washing effect.
START WASHING
AUTO
POWER
OFF
SENSING
Laundr Sensor
Water Level Sensor
SETTING
Optimum
Washing
Condition
Please close the door slowly. Allowing the door to drop without support, or excessive
force to the door in any way could result in physical injury or damage to the door
assembly.
The advanced Blushless DC motor rotates the Tub directly
without belt and clutch, thereby reducing the noise of the
washer.
The washing machine adjusts to optimum speed according to the
chosen wash cycle.
Stains are removed
by pulsator
movement
Stains are removed
by the tub movement With low speed spinning of the tub,
stains are removed
Low Noise Direct Drive System
Indentations on the stainless steel washing tub combined with the movement of
the water creates a gentle whirl around the clothes improving washing efficiency.
Fully Stainless Steel Washing Tub
Drum Rotate Penetration wash from
centrifugal wash

ontents
C
Introduction
Before Starting to Wash
Washing Programs
Additional unction
Program
Installation
Care and Maintenance
Troubleshooting
Terms of Warranty
Specification
Safety Information 4
Identification of Parts 7
Function Information 8
Preparation Before Washing 9
Use of Water, Dispenser Drawer, Detergent, Bleach and Softener 10
Special Guide for Stain Removal 13
Function of each Button 14
FUZZY Wash 16
WOOL Wash 16
QUICK WASH 16
JEANS Wash 16
ECO COTTON 16
SOAK Wash 18
FAVORITE Wash 19
SILENT Wash 20
TUB CLEAN 21
AIR DRY 22
TUB DRY 22
Option Washing 23
DELAY START (RESERVATION) Wash 24
Other Useful Functions 25
Installation 26
Connecting Water Supply Hose 29
Grounding Method 32
Cleaning and Maintenance 33
Common washing problems 35
Troubleshooting 36
Terms of Warranty 37
Specification 38
READ THIS MANUAL
Inside you will find many helpful hints on how to use and maintain your washer
properly. Just a little preventive care on your part can save you a great deal of time and
money over the life of your washer. You will find many answers to common problems
in the Troubleshooting section. If you review our chart of Troubleshooting Tips first, you
may not need to call for service at all.

afety Information
S
4
Introduction
Read carefully and thoroughly through this booklet as it contains important safety information
that will protect the user from unexpected dangers and prevent potential damages to the product.
This booklet is divided into 2 parts : Warning and Caution.
: This is a warning sign specifying user’s applications which might
be dangerous.
: This is a sign specifying ‘Strictly orbidden’ applications.
Warning: ailure to comply with the instructions under this
sign may result in major physical injuries or death.
Caution
: ailure to comply with the instructions under this
sign may result in minor physical injuries or
damages to the product.
Warning
• Under certain conditions, hydrogen gas may be produced in a water heater that has not been used for
two weeks or more. Hydrogen gas can be explosive under these circumstances.
If the HO water has not been used for two weeks or more, prevent the possibility of damage or injury
by turning on all Hot water faucets and allowing them to run for several minutes. Do this before using
any electrical appliance which is connected to the HO water system. his simple procedure will
allow any built-up hydrogen gas to escape. Since the gas is flammable, do not smoke or use an open
flame or appliance during this process.
his appliance is not intended for use by persons (including children) with reduced physical, sensory
or mental capabilities, or lack of experience and knowledge, unless they have been given supervision
or instruction concerning use of the appliance by a person responsible for their safety.
• he base opening must not be obstructed by carpeting when the washing machine is installed on a
carpeted floor.
• Install or store where it will not be exposed to temperatures below freezing or exposed to the
weather.
If the product is exposed to such conditions, electric shock, fire, break down or deformation
may occur.
• Properly ground washer to conform with all governing codes and ordinances. Follow details in
Installation Instructions.
If not grounded properly, break down and leakage of electricity may occur, which may cause
electric shock.
• Must be positioned so that the plug is accessible.
If the plug is placed between the wall and the machine, it may get damaged, possibly causing
fire or electric shock.
• Make sure the plug is completely pushed into the outlet.
Failure to do so may cause electric shock and fire due to overheating.
If this appliance is supplied from a cord extension set or electrical portable outlet device, the cord
extension set or electrical portable outlet device must be positioned so that it is not subject to
splashing or ingress of moisture.
his appliance has been designed to operate from a 240 volt, 50Hz town power supply.
WATER
HEATER
SAFETY
Caution
PROPER
INSTALLATION

afety Information
S
5
Introduction
Warning
• Keep the area underneath and around your appliances free of combustible
materials such as lint, paper, rags, chemical, etc.
Operating with such materials around the machine may trigger
explosion or fire.
• Close supervision is necessary if this appliance is used by or near children.
Do not allow children to play on, with, or inside this or any other appliance.
There is potential danger that children might drown or suffocate in the tub.
Do not touch the power plug with a wet hand.
It will cause electric shock
Do not put your hand, foot or anything under the washing machine
while the washing machine is in operation.
There is a rotating mechanism under the machine, so you could be injured.
• Make sure that drainage is working properly.
If water is not drained properly, your floor may get flooded. Flooded floors
may induce electricity leakage, further resulting in electric shock or fire.
• If, during spinning, opening the lid does not stop the tub within about 15 seconds,
immediately discontinue operating the machine.
all for repair. A machine that spins with its door open may cause injuries.
Never reach into washer while the tub is rotating at any speed.
Wait until the machine has completely stopped before opening the lid.
Even slow rotation can cause injury.
Never attempt to operate this appliance if it is damaged, malfunctioning, partially
disassembled, or has missing or broken parts, including a damaged cord or plug.
Operating with a damaged plug may cause electric shock.
Do not use water hotter than 50°C.
Use of excessively hot water may cause damage to fabrics or cause
leakage of water.
• Use this appliance only for its intended purpose as described in this Owner’s Manual.
• he laundry process can reduce the flame retardancy of fabrics. o avoid such a result,
carefully follow the garment manufacturer’s wash and care instructions.
• o minimize the possibility of electric shock, unplug this appliance from the power
supply or disconnect the washer at the household distribution panel by removing the
fuse or switching off the cirduit breaker before attempting any maintenance or cleaning.
YOUR
LAUNDRY
AREA
Caution
WHEN USING
THE WASHER
NOTE : Pressing Power button to turn off does NOT
disconnect the appliance from the power supply.

6
Introduction
afety Information
S
Warning
Do not use a plug socket and wiring equipment for more than their rated capacity.
Exceeding the limit may lead to electric shock, fire , break down, and/or
deformation of parts.
Do not mix chlorine bleach with ammonia or acids such as vinegar and/or rust remover.
Mixing different chemicals can produce toxic gases which may cause death.
Do not wash or dry articles that have been cleaned in, washed in, soaked in, or spotted
with combustible or explosive substances (such as wax, oil, paint, gasoline, dry-
cleaning solvents, kerosene, etc). Do not add these substances to the wash water.
Do not use or place these substances around your washer or dryer during operation.
It may ignite or explode.
• urn off water faucets to relieve pressure on hoses and valves and to minimize leakage
if a break or rupture should occur. Check the condition of the fill hoses; they may need
replacement after 5years.
• When the air temperature is high and the water temperature is low, condensation may
occur and thus wet the floor.
• Wipe off dirt or dust on the contacts of the power plug.
Using unclean power plug may cause fire.
• Before discarding a washer, or removing it from service, remove the washer lid to
prevent children from hiding inside.
hildren may be trapped and suffocated if the lid is left intact.
Do not attempt to repair or replace any part of this appliance unless specifically
recommended in this Owner’s Manual, or in published user-repair instructions
that you understand and have the skills to carry out.
Operating the machine with improperly replaced parts may be a
cause for fire or electric shock.
Do not tamper with controls.
It may lead to electric shock, fire , break down, deformation.
Do not yank the power cord in an attempt to disconnect the power plug.
Securely hold the power plug to unplug the machine.
Failure to observe these instructions may cause electric shock or fire
due to short-circuit .
When you are cleaning the washing machine, do not apply water directly to any
part of the washing machine.
It will cause short circuit and electric shock.
WHEN USING
THE WASHER
Caution
WHEN NOT
IN USE

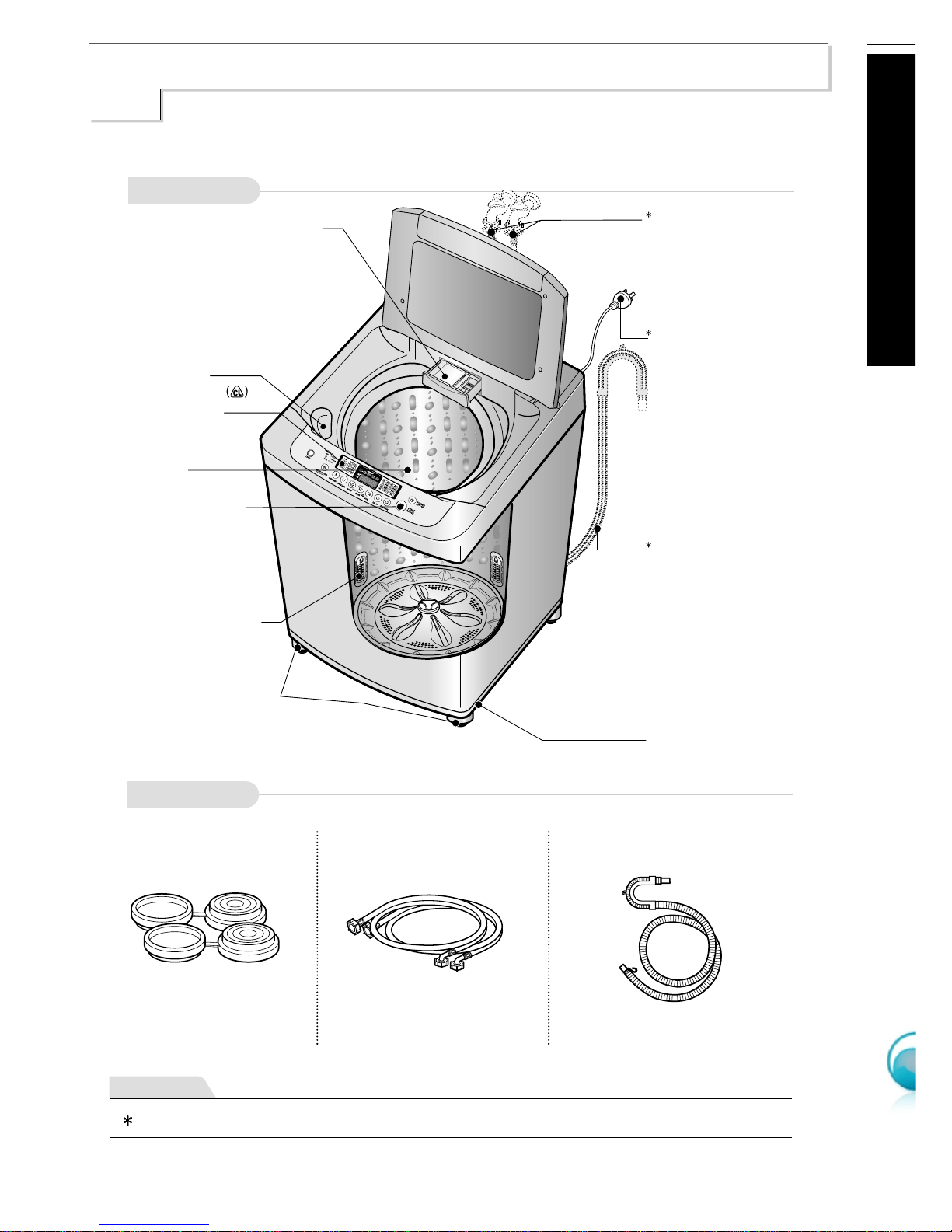

dentification of Parts
I
7
Introduction
WATER SUPPLY
HOSE
FUNCTION
SELECTOR
TUB
BASE
ADJUSTABLE LEGS
DRAIN HOSE
for pump model
POWER PLUG
START/PAUSE
BUTTON
Use to start or
stop the washing
machine
temporarily.
Make sure the
water does not
leak.
If the supply cord is
damaged, it must be
replaced by the
manufacturer or its
service agents or
similarly qualified
person in order to
avoid a hazard.
Check if the drain
hose is placed into
the laundry tub and
secured before
operating the
washing machine.
If the drain hose is
not elevated,the
water will syphon out
completely.
Use to level the washing
machine for correct
balance & spin
operation.
Multi Clean Filter
POWDER DETERGENT BOX
FOR DELAYED WASHING /
SOFTENER BOX
BLEACH
DISPENSER
Body
“” Part can be different according to the model.
NOTE
Accessories
Drain hose
Inlet hose
1 Each for cold and
hot water
2 Pieces
Height adjustment
plate

unction Information
F
8
Introduction
Our machine provides various washing methods which suits various conditions
and types of laundry.
FUZZY Wash
JEANS Wash
WOOL Wash
QUICK WASH
SOAK Wash
DELAY START Wash
OPTION WASH
Use this Program for mixed loads e.g. sheets, towels, -shirts. (refer to page 16)
ECO COTTON
Use this program to save water consumption. (refer to page 16)
FAVORITE Wash
his setting allows you to store your FAVORI E wash conditions in the normal cycle memory. (refer to page 19)
SILENT Wash
Use this program to wash quietly at night. (refer to page 20)
Use this Program for heavily soiled durable garments e.g. overalls, jeans.
hick and heavy clothes or those which are excessively dirty like jeans or working uniforms can be washed. (refer to page 16)
Wool clothes (lingerie, wool, etc.) which may be easily damaged can be washed. (refer to page 16)
he fibers of machine washable woolens have been specifically modified to prevent felting when they are machine washed.
Most handknitted garments are not made of machine washable wool and we recommend that you hand wash them
• Before washing your woolens check the care label for the washing instructions.
• When washing woolens use a mild Detergent recommended for washing wool.
• Hand washed woolens may be spun in a washing machine to reduce the time they take to dry.
• o dry woolens lay them down flat on a towel and pat into shape. Dry woolens out of direct sunlight.
( he heat and tumble action of a dryer may cause shrinkage or felting of woolen garments.)
Some wool underlays and sheepskin products can be washed in a washing machine but may cause pump blockages.
(Ensure that the whole article is suitable for machine washing and not just the backing material.)
You may wish to handwash these articles and place them in the machine to spin dry.
QUICK WASH can be selected to wash lightly soiled clothes of less than 2.0 kg in a short time. (refer to page 16)
SOAK Wash can be selected to wash heavily soiled laundry by soaking in water for some time to help remove dirt and
grime. (refer to page 18)
DELAY S AR Wash is used to delay the finishing time of the operation.
he number of hours to be delayed can be set by the user accordingly. (refer to page 24)
When the user needs only SPIN, RINSE/SPIN, RINSE, WASH/RINSE, WASH, WASH/RINSE/SPIN,
SOAK/WASH/RINSE/SPIN. (refer to page 23)
TUB CLEAN
Use this program to clean the inside of washing machine especially Inner tub & Outer tub . (refer to page 21)
Washing according to the condition of laundry
Other washing method
Different types of laundry washing

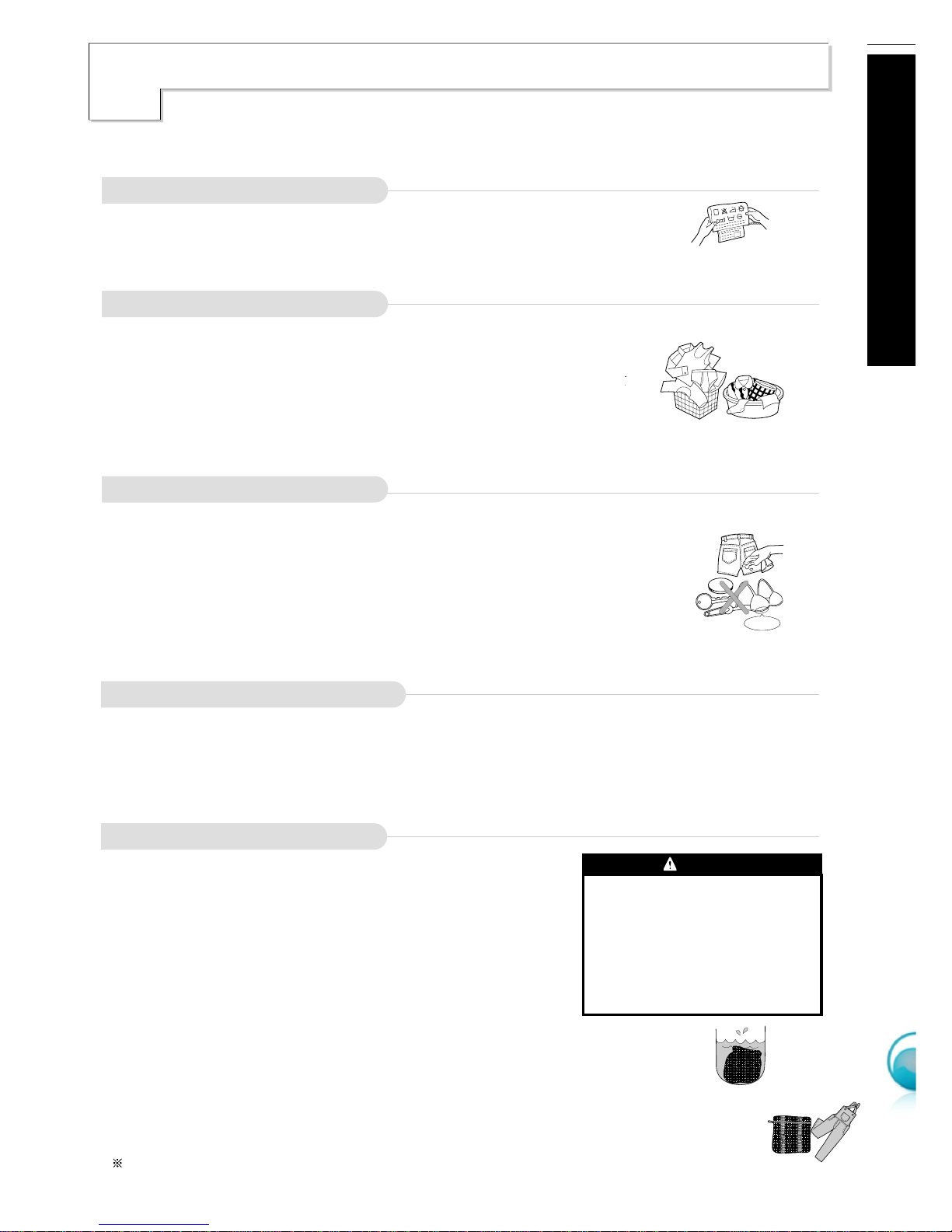

reparation Before Washing
P
9
Before Starting to Wash
•heck all pockets to make sure that they are empty. hings such as nails, hairclips, matches,
pens, coins, and keys can damage both your washer and your clothes.
•Mend any torn garments or loose buttons. ears or holes may become larger during washing.
• Remove belts, underwires, etc. to prevent damage to the machine or your clothes.
• Pretreat any dirt and stains.
• Make sure the clothes are washable in water.
• Check the washing instructions.
• Remove tissue in pockets.
o get the best results, different fabrics need to be washed in different ways.
• SOIL (Heavy, Normal, Light)
Separate clothes according to the type and amount of soil.
• OLOR (Whites, Lights, Darks) Separate white fabrics from colored fabrics.
• LINT (Lint producers, Collectors) Separate lint producers and lint collectors.
Lint Producers erry cloth, Chenille, owels, Nappies, Diapers
Lint Collectors Synthetics, Corduroy, Permanent Press, Socks
WIRE
Sorting
Check before Loading
* Look for a care label on your clothes. his will tell you about the fabric content of your garment
and how it should be washed.
Sort clothes into loads that can be washed with the same wash cycle, Water emperature and spin speed.
Care Labels
Use nylon nets for long, DELICA E items. For laundry with long strings or long length , a net will prevent
tangling during washing. Fasten zippers, hook, and strings to make sure that these items don't snag on other clothes.
Nylon net is not supplied by LG.
Clothes like downs and woollens are light weight, large and float easily. Use a nylon net and
wash them in a small amount of water. If the laundry floats during the wash cycle, it may
become damaged. Use dissolved Detergent to prevent the Detergent from clumping.
Light and Large-sized clothing
Long laundry items
Do not wash fabrics containing flammable materials (waxes, cleaning fluids, etc.).
Load Size
he WA ER LEVEL should just cover the clothes. Adjust the load size
accordingly. Loosely load clothes no higher than the top row of holes in the
washer tub. o add items after washer has started, press Start button and
submerge additional items. Close the lid and press Start button again to restart.
Loading
• Pretreat shirt collars and cuffs with a pre-wash product or liquid Detergent when placing them in the washer.
Before washing treat special stains with bar soaps, liquid Detergent or a paste of water and granular Detergent.
• Use a pretreat soil and stain remover. Do not apply these products directly onto the machine or to the clothes whilst near the
machine as the over spray will discolour the machine and can dissolve it's cosmetic text.
reat stains AS SOON AS POSSIBLE. he longer they are left the harder they are to remove. (For more detail refer to page13)
Pretreatment on stains or heavy soil
ire Hazard
Never place items in the washer that are
dampened with gasoline or other flammable
fluids.
No washer can completel remove oil.
Do not dr an thing that has ever had an t pe
of oil on it (including cooking oils).
Doing so can result in death, explosion, or fire.
WARNING

10
Before Starting to Wash

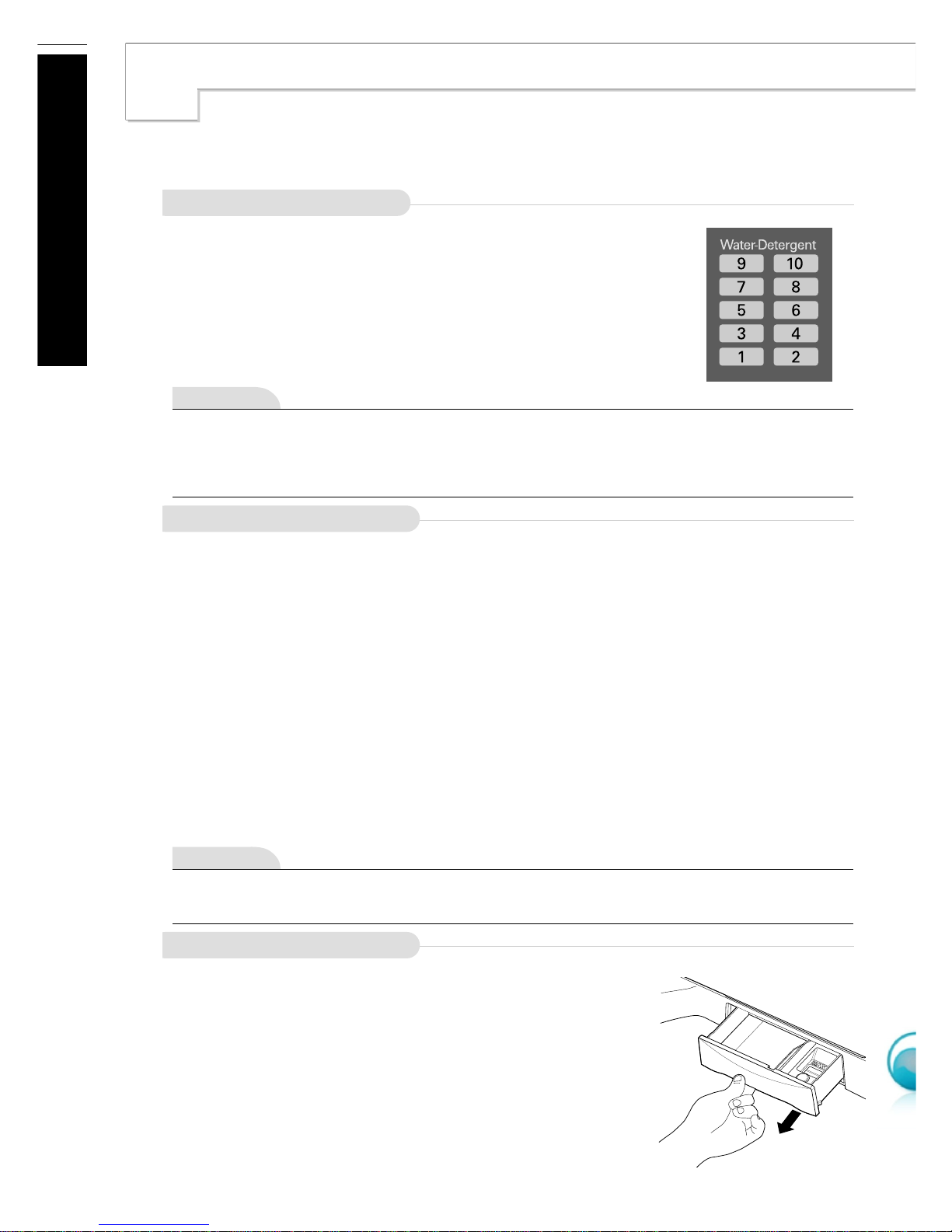

se of Water, Dispenser Drawer, Detergent, Bleach and Softener
U
• he temperature of the water impacts the effectiveness of all laundry additives and therefore, the cleaning results.
We recommend temperatures of:
- HO 49~55°C…(120-140˚F) White items, diapers, underclothing and heavily soiled, colorfast items.
- WARM 29~40°C…(85-105˚F) Most items
- COLD* 18~24°C…(65-75˚F) Only very bright colors with light soil.
• When washing in COLD water additional steps may be needed:
- Adjust Detergent amount and pre-dissolve Detergent in WARM water and add to the machine by hand.
- Pretreat spots and stains
- Soak heavily soiled items
- Use appropriate bleach
* emperature below 18°C…(65˚F) will not activate laundry additives and may cause lint, residue, poor cleaning, etc.
In addition, Detergent manufactures and care labels define COLD water as 26~29°C…(80-85˚F).
If the temperature of the water in the tub is too cold for your hands, the Detergent will not activate and clean effectively.
Water Temperature
Using Water
• he machine sets the appropriate temperature automatically according to the wash program .
• You can change the Water emperature by pressing the WATER TEMP. button. (refer to page 14)
• his machine detects the quantity of laundry automatically, then sets the
WA ER LEVEL and displays the amount of detergent to be used.
• When you select a wash program, the WA ER LEVEL and amount of
Detergent (to be used) will be shown on the control panel.
• he following table shows the amount of water.
• When the WA ER LEVEL is automatically detected, it may differ depending
on the quantity of laundry even though the same WA ER LEVEL is indicated
on the control panel.
Amount of WATER LEVEL
Using the Dispenser Drawer
NOTE
If iron is present in the water the clothes may become an all-over yellow or they may be stained with brown or orange
spots or streaks. Iron is not always visible. Installation of water softener or an iron filter may be necessary for severe cases.
NOTE
[ Minimum water amount ]
It depends on laundry load and washer model. If adding water manually at the beginning of a wash, the water
sensor will then allow the machine to start washing when the minimum amount of water has been added.

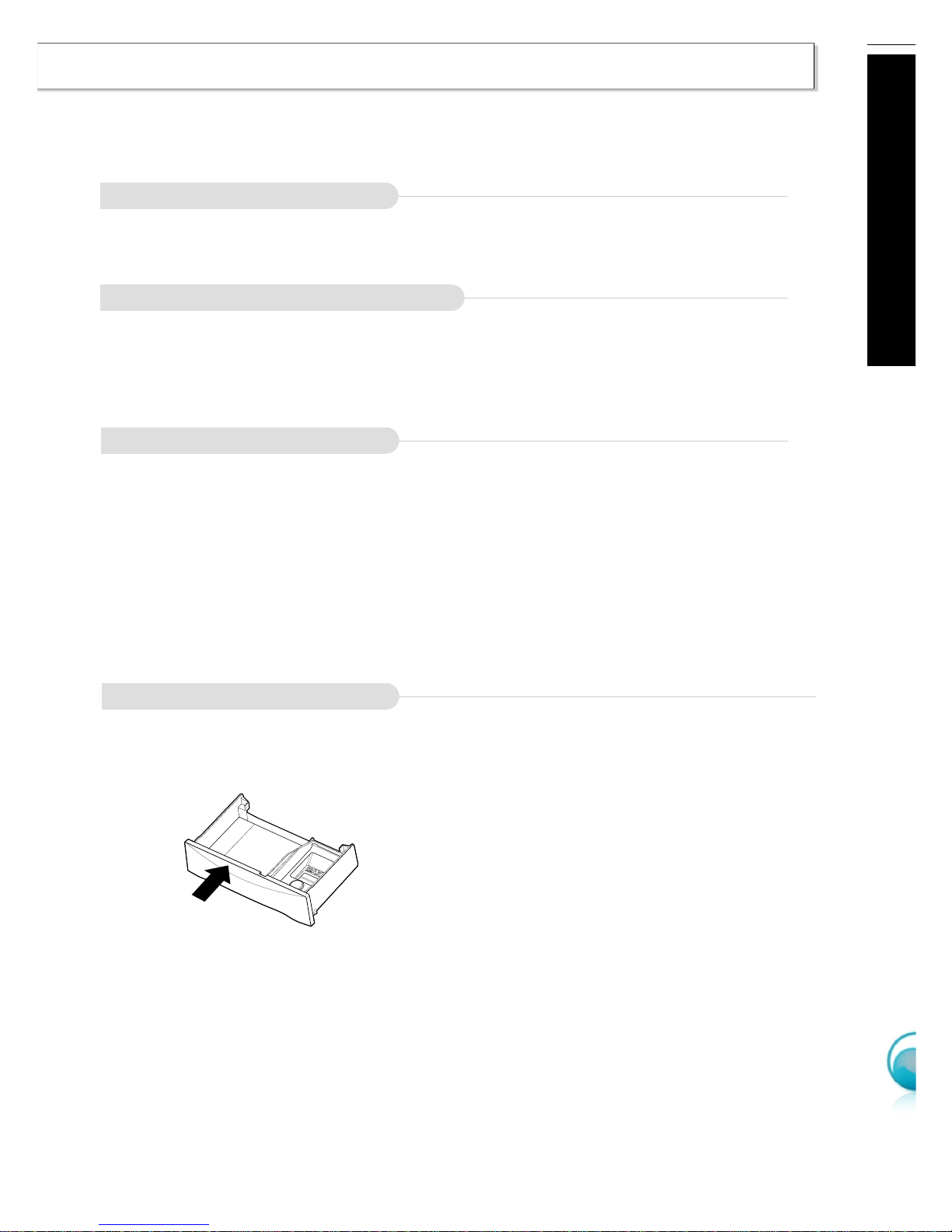

he dispenser drawer contains 2 compartments:
• Liquid Fabric Softener
• Liquid or Powder Low-Sudsing, High-Efficiency Detergent
he dispenser automatically dispenses additives at the proper time in the wash cycle.
1. Slowly open the dispenser drawer by pulling the drawer out until it stops.
2. After adding laundry products, slowly close the dispenser drawer. Closing the
drawer too quickly could result in early dispensing of additives.
• Avoid overfilling or splashing when adding laundry products to the dispenser. Doing
so could result in early dispensing of laundry products.
At the end of the cycle, you may see water in the compartments. his is part of the
normal operation of the washer.
NOTE : Do not use bleach in the dispenser drawer.
