LG WXLC-1116B User manual

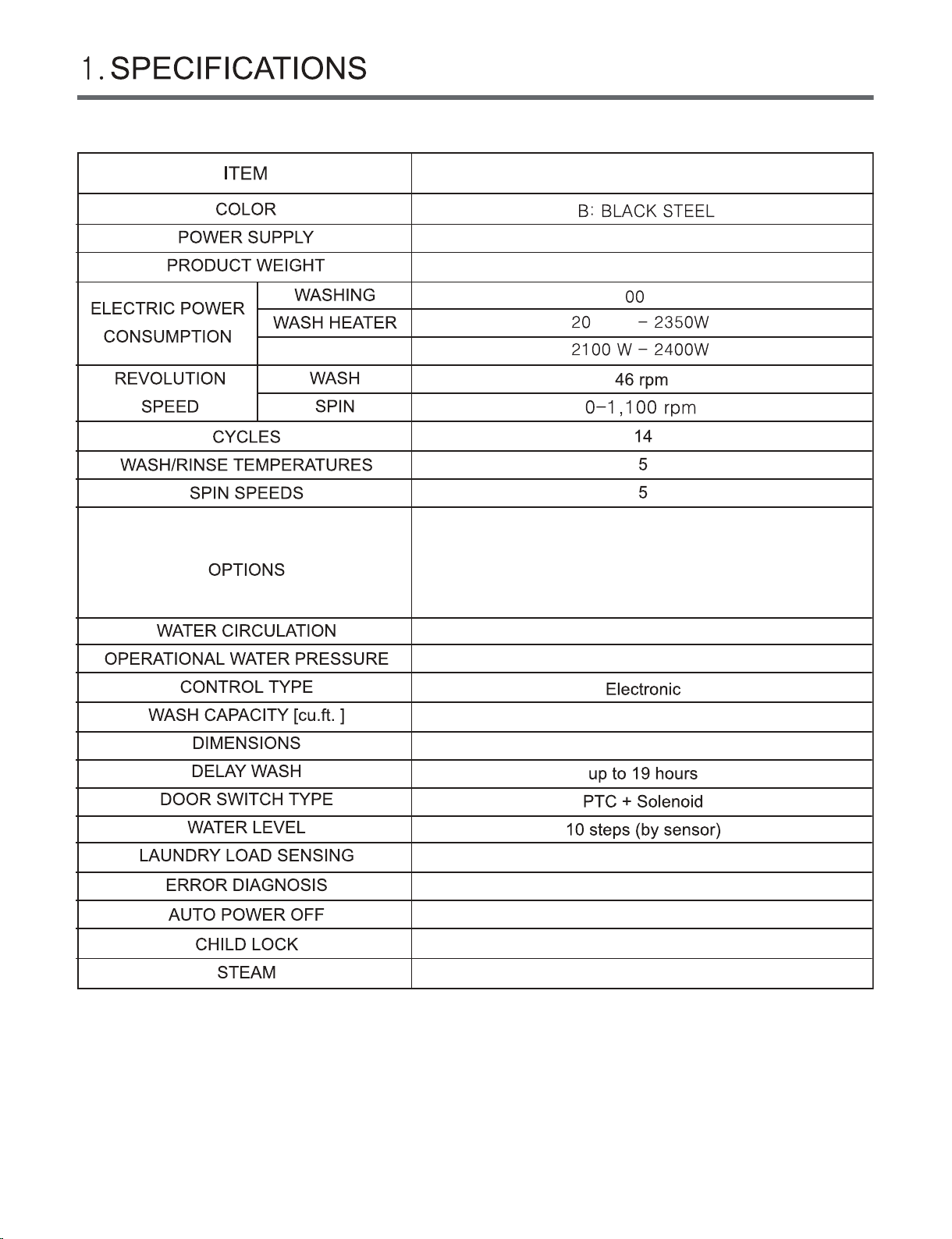

MODEL : WXLC-1116B
CONFIDENTIAL

2
14.5 and 142 psi (100 – 980kPa)
16/9 kg
27” (W) X 32
13/16” (D) X 38
13/16” (H) (D with door open)
95kg
2 W
WXLC-1116B
DRYING
Cotton, Heavy Duty, Baby Care, Hygiene, Allergy Care,
Sportswear, Light Soil, Speed Wash, Quiet Wash, Colour Care,
Duvet, Wool, Rinse+Spin, Download Cycle.
220 - 240 V~, 50 Hz
00 W
O
O
O
O
O
O

3

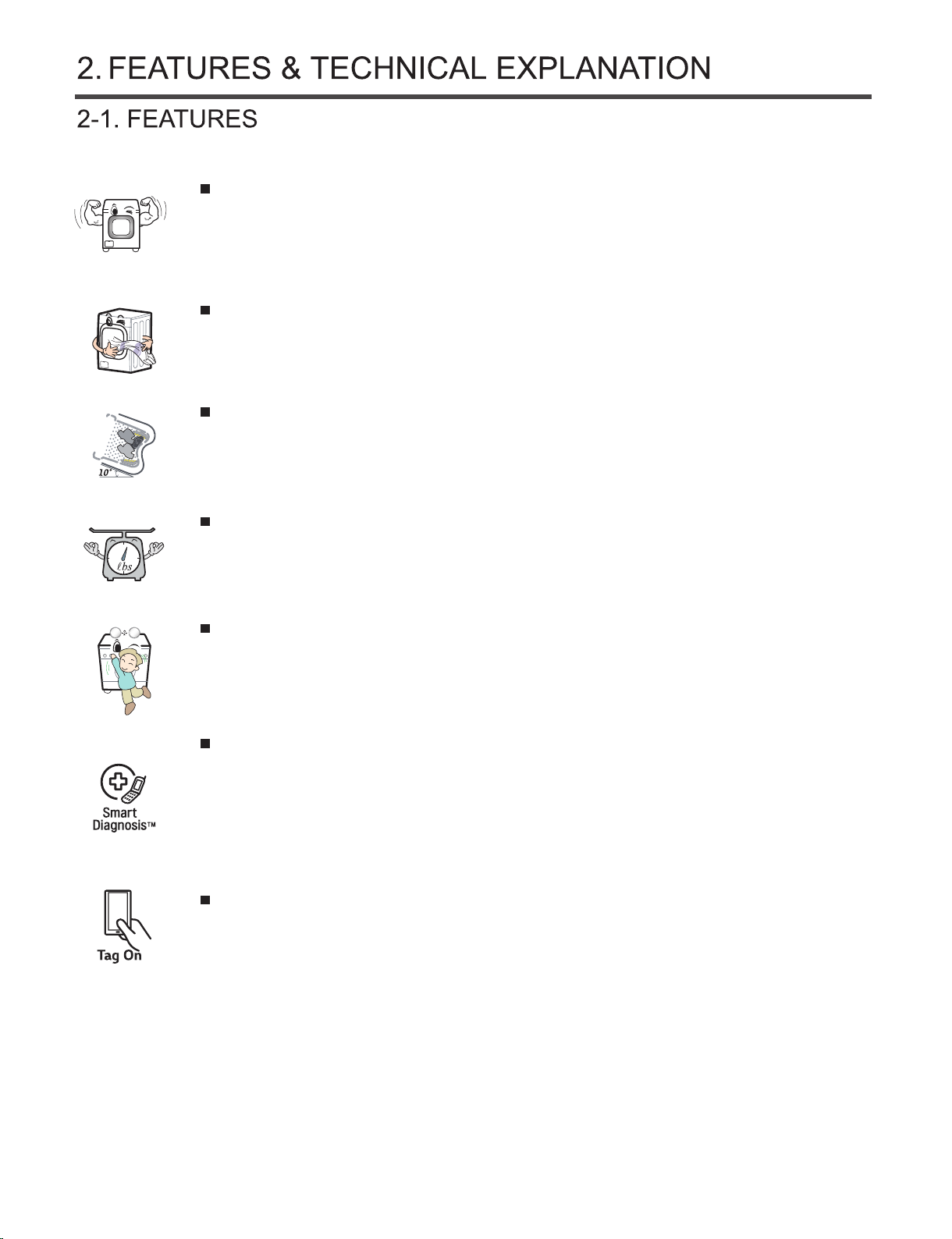

Ultra Capacity
The larger drum enables not just higher head drop and stronger centrifugal force,
but also less tangling and wrinkling of the laundry. Heavier loads, such as king size
comforters, blankets, and curtains, can be washed.
Direct Drive System
The advanced brushless DC motor directly drives the drum without belt and pulley.
Tilted Drum and Extra Large Door Opening
Tilted drum and extra large opening make it possible to load and unload clothing
more easily.
Automatic Wash Load Detection
Automatically detects the load and optimizes the washing time.
Control Lock
The control lock prevents children from pressing any button to change the settings
during operation.
SMART DIAGNOSIS TM
Should you experience any technical difficulty with your washing machine, is capable
of producing multiple distinct different motions for optimal washing performance
with very little noise and vibration. The motor assembly also contains fewer moving
parts, thus resulting in fewer repairs.
NFC (Tag On Function)
This feature uses LG Smart DiagnosisTM, Cycle Download, and Laundry Stats when
you touch the LG appliance’s Tag On logo with your NFC equipped smartphone.

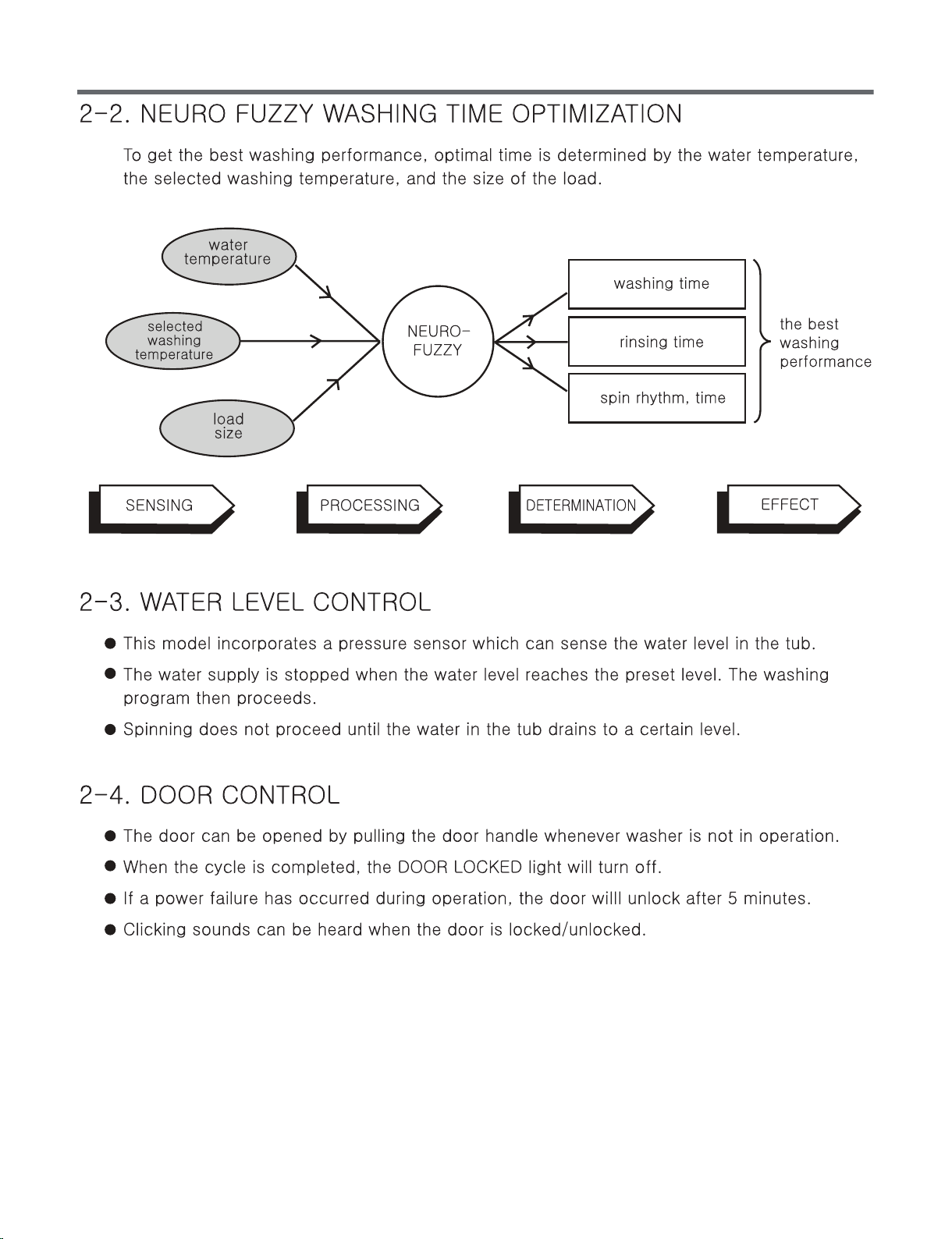

4

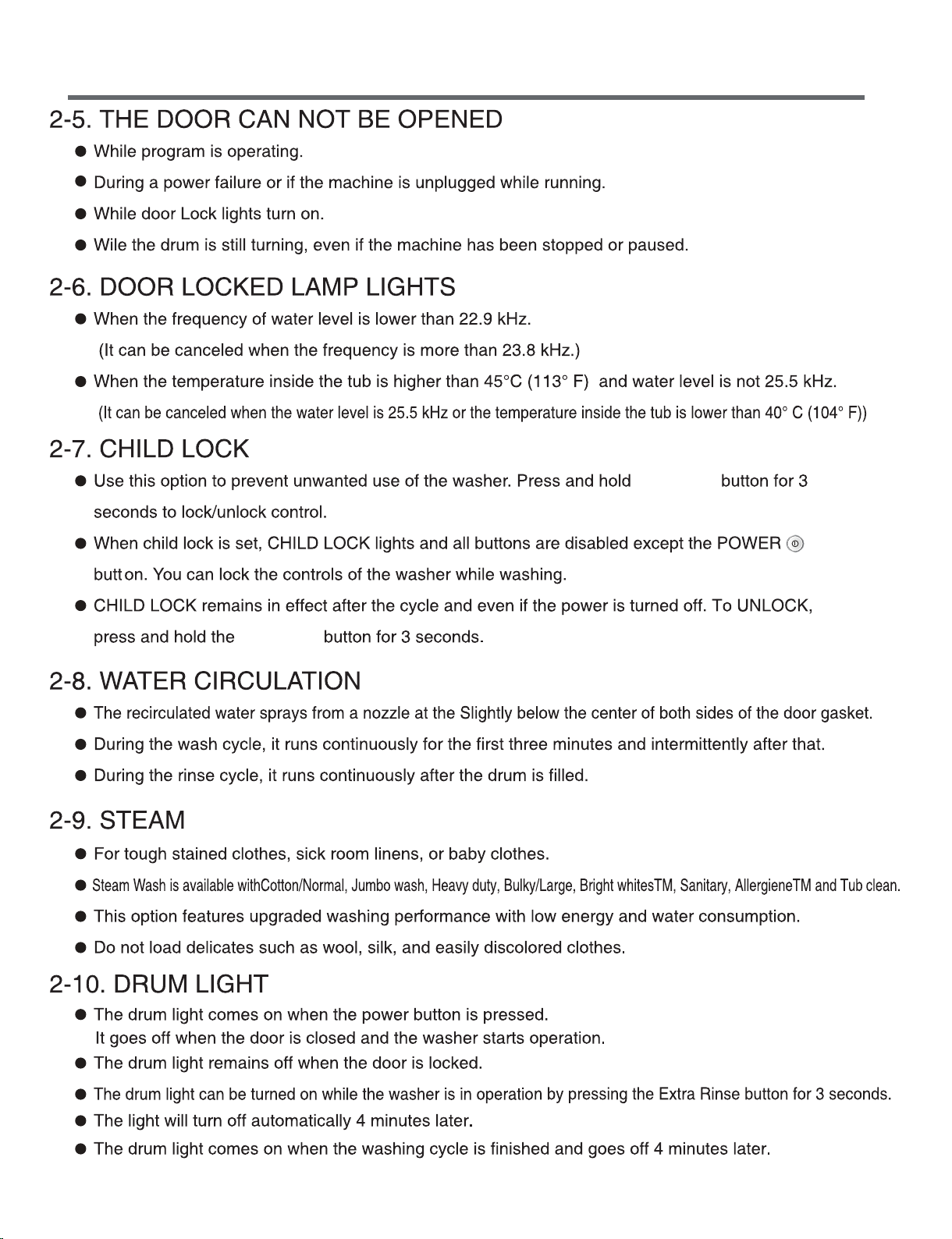

5
Pre Wash
Pre Wash

6
NOTE
Contact LG Customer Service at 0800-898-899 if any accessories are missing.
For your safety and for extended product life, use only authorized components. The manufacturer is not responsible
for product malfunction or accidents caused by the use of separately purchased unauthorized components or parts.
The images in this guide may be different from the actual components and accessories, and are subject to change by
the manufacturer without prior notice for product improvement purposes.

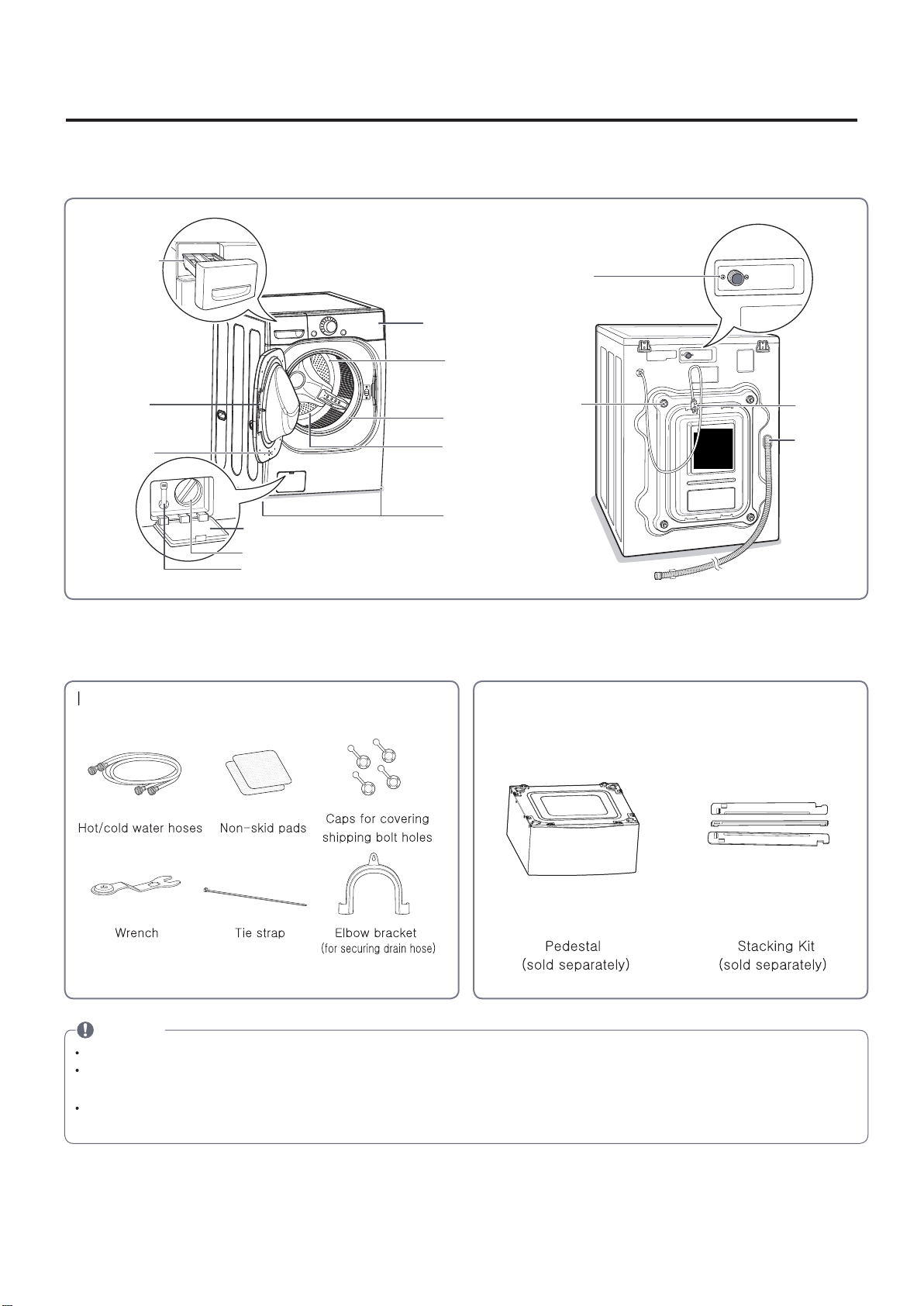

Parts and Accessories
Parts
Accessories
Water inlets
Shipping
bolts
Power cord
Drain hose
NCLUDED Accessories OPIONAL Accessories
Detergent
dispenser
drawer
(See page 20)
Door
Magnet Door
Plunger
(see page 3)
Control panel
(See page 9)
Door
seal
Water
circulation
and steam
nozzles
Tub
Leveling
feet
Drain pump filter cover
Drain pump filter
Drain hose
3. PARTS IDENTIFICATION

7
1
2
3
4
5
6
7
Before servicing, ask the customer what the trouble is.
When installing or repairing the washer, put on long gloves and safety glasses.
Check the setup (power supply is 120 V
AC, remove the transit bolts, level the washer, etc.)
Check with the troubleshooting guide.
Plan your service method by referring to the disassembly instructions.
Service the unit.
After servicing, operate the appliance to see whether it functions correctly.
STANDARD INSTALLATION
The appliance should be installed as follows:
Remove the 4 shipping bolts
with the supplied wrench.
Remove the lower boits fist.
It is easier that way.
Keep the shipping bolts and
spanner for future use.
Insert the 4 caps (provided)
into the hole.
Turn clockwise to raise;
counterclockwise to lower.
Turn the leveling feet to
adjust the appliance.
Lower
Higher
REMOVE THE SHIPPING
BOLTS INSTALL THE APPLIANCE ON A FLAT AND FIRM SURFACE
ADJUST THE
LEVELING
Keeping
4. INSTALLATION & TEST

8
Verify that the rubber washer is inside of the
valve connector.
Tighten the inlet hose securely to prevent leaks.
Install the inlet hose to correct temperature
water tap.
Otherwise, it cause drips on the drawer panel
handle and drawer panel.

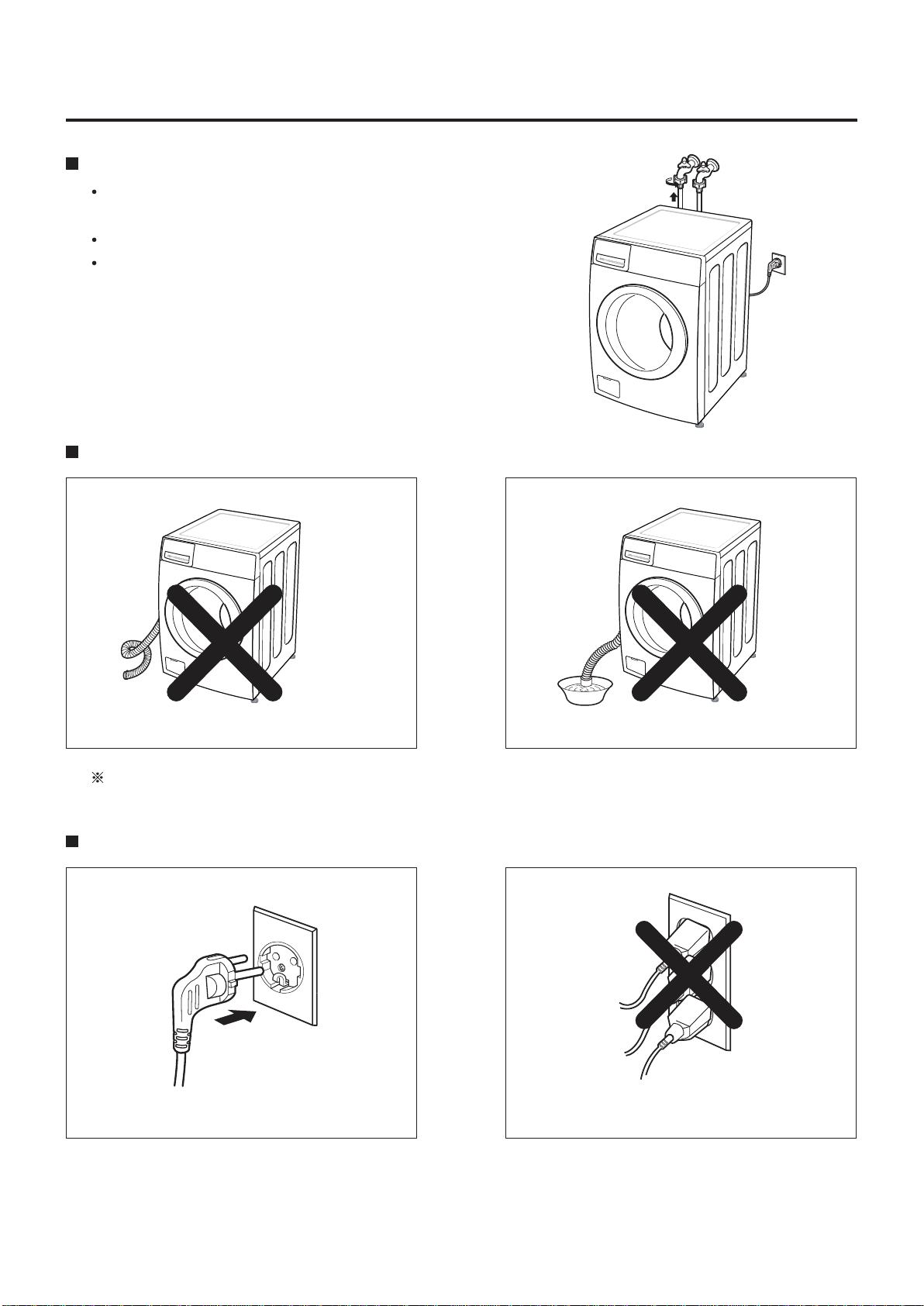

HOW TO CONNECT THE INLET HOSE
CONNECT THE DRAIN HOSE
•Make sure that the hose is not twisted.
CONNECT POWER PLUG
The end of the drain hose should be placed less than 96” from the floor.
•Avoid submerging the end of the hose.
•Connect the power plug to the wall outlet. •Avoid connecting several electric devices,
as doing so may cause a fire.
Hot Cold

9

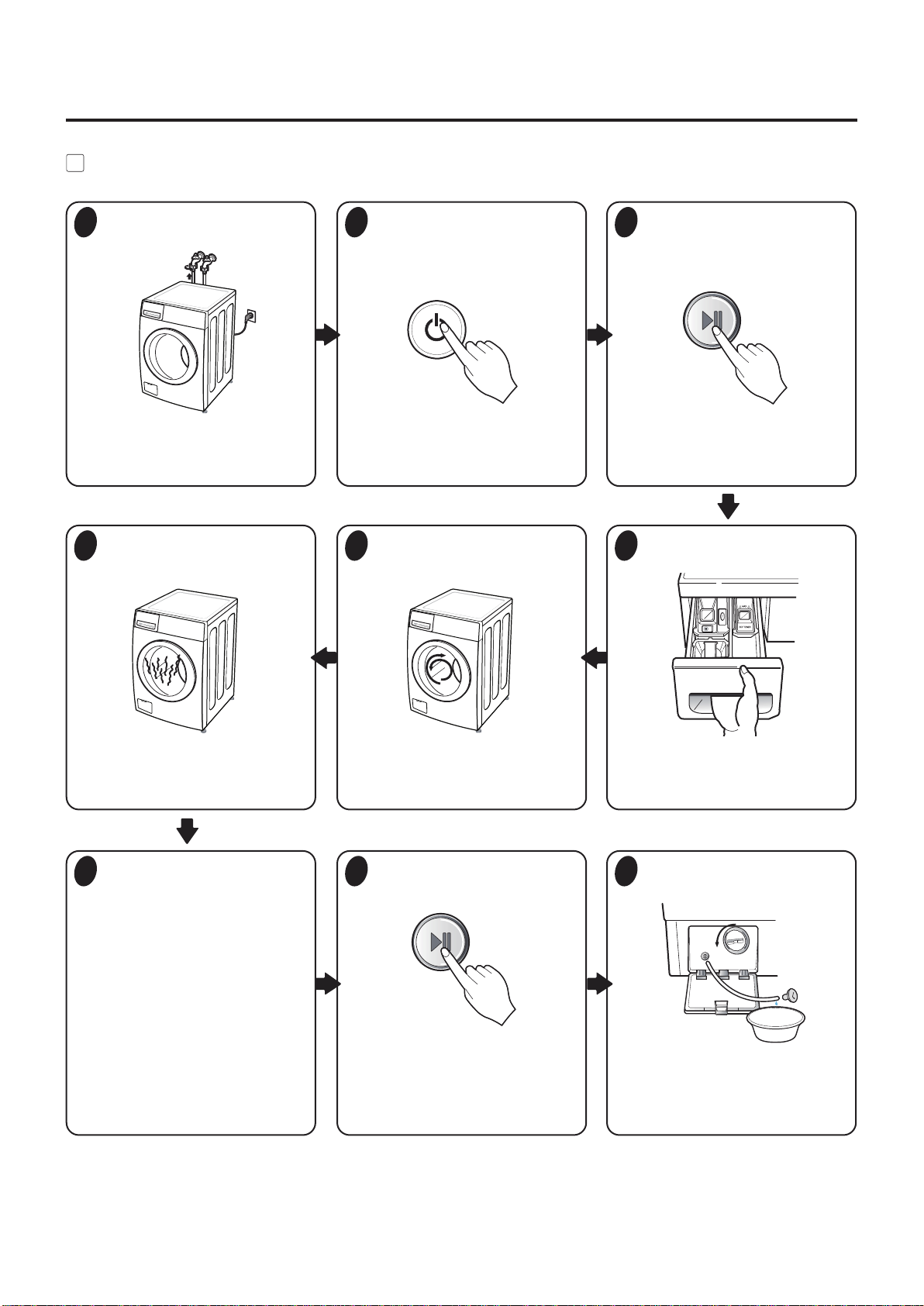

7TEST OPERATION
1Preparation for
washing.
•Connect the power plug to the
outlet.
•Connect the inlet hoses.
2Press the POWER button. 3Press the START/PAUSE
button.
•Listen for a click to determine if the
door has locked.
6Check the water heating
function.
•Press the WASH/RINSE button
and the present temperature will
be displayed.
•Check if the drum rotates
clockwise and counterclockwise.
5Check the automatic reverse
rotation. 4Check the water supply.
•Check if water is supplied through
the detergent dispenser.
7Check the drain and spin
functions.
•Power off and the power on.
•Press the SPIN SPEED button.
•Press the START/PAUSE button.
•Check the spin and drain functions.
•Listen for a click to determine if the
door is unlocking.
8Press the START/PAUSE
button. 9Water removal
•If SERVICE is needed during
check, remove the remaining
water by pulling out the hose cap.

10
WXLC-1116B
5. OPERATION

11

Wash,Rinse , Spin,Temp.

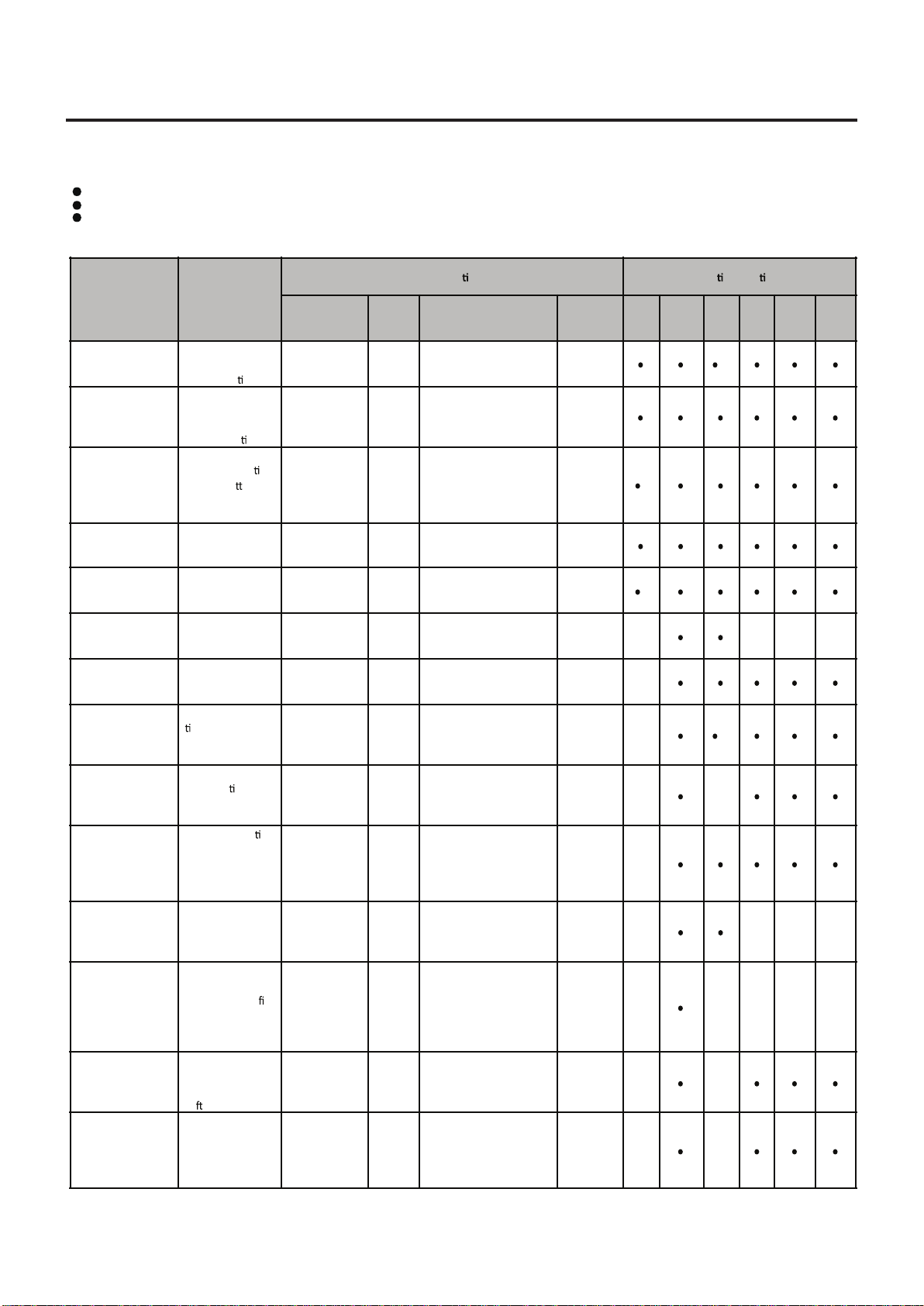

5-2. Cycle Guide
= Available Option
* = This option is automatically inserted in the programme and can be deselected.
** = This option is automatically inserted in the programme and cannot be deselected.
Cycle Fabric type
Basic Op on Addi onal Op ons
Wash Rinse Spin Temp. Steam Delay
End
Turbo
Clean
Turbo
Dry
Air
Dry
Time
Dry
Co�on
Washes the laundry
by combining various
drum mo ons.
Medium(Light->
Soak)3 (1 -> 5) High(Extra Low-> Extra High)40 (Cold->60) **
Heavy Duty
Suitable for washing
heavily soiled laundry
though more powerfu
l
drum rota on.
Intensive(Intensive
->Soak)
3 (1 -> 5) Medium (Extra Low-> Extra High)
Baby Care
Provides clothes care
with gentle mo on
and be er
performance by
steam.
Pre Wash 4 (1 -> 5) Medium
(Extra Low-> Extra High)
*
Hygiene
Washes laundry in a
cycle at a high
temperature.
Medium(Medium,
Soak)3 (1 -> 5) Medium(Extra Low-> Extra High)95 ( C)
Allergy Care
Reduces allergens
such as house mites,
pollen and fur.
Medium Medium(Extra Low-> Extra High)*
Sportswear
Suitable for special
items like sports and
outdoor wear.
Medium 3 (1 -> 5) Extra Low 30 (Cold-> 30)
Light Soil
Washes the small
amount of laundry
(less than 8 lb).
Medium(Medium
-> Soak) 3 (1 -> 5) High(Extra Low-> Extra High)Cold
Speed Wash
Provides fast washing
me for small loads
and lightly soiled
clothes.
Medium 1 (1 -> 5) Medium
(Extra Low-> Extra High)
40 (Cold-> 30) **
Quiet Wash
Provides less noise
and vibra on than
other washing
programme.
Medium(Light->
Soak)4 (1 -> 5) Low (Extra Low-> Extra High)40 (Cold-> 30)
Colour Care
Provides protec on
for colored clothes
and reduces the
damage to the
clothes.
Medium 3 (1 -> 5) Low (Extra Low-> Extra High)30 (Cold-> 30)
Duvet
This cycle is for large
items such as bed
cover, pillows, sofa
covers, etc.
Medium) 4 (1 -> 5) Medium(Extra Low-> Medium)Cold
(Cold->30)
Wool
Suitable for washing
lingerie, sheer and
lacy clothes speci ed
as machine-washable
by the manufacturer
of clothes.
Medium 3 (1 -> 5) Low (Extra Low -> Low)Cold
(Cold->30)
Rinse + Spin
Use for laundry that
need rinsing only of to
add rinse-added fabri
c
so ener to laundry.
1 (1 -> 5) Medium
(Extra Low-> Extra High)
Download Cycle
For downloadable
cycles. If you did not
download any cycles,
the default is
Drain+Spin.
Medium
(Extra Low-> Extra High)
4 (1 -> 5)
Medium(Light->

14

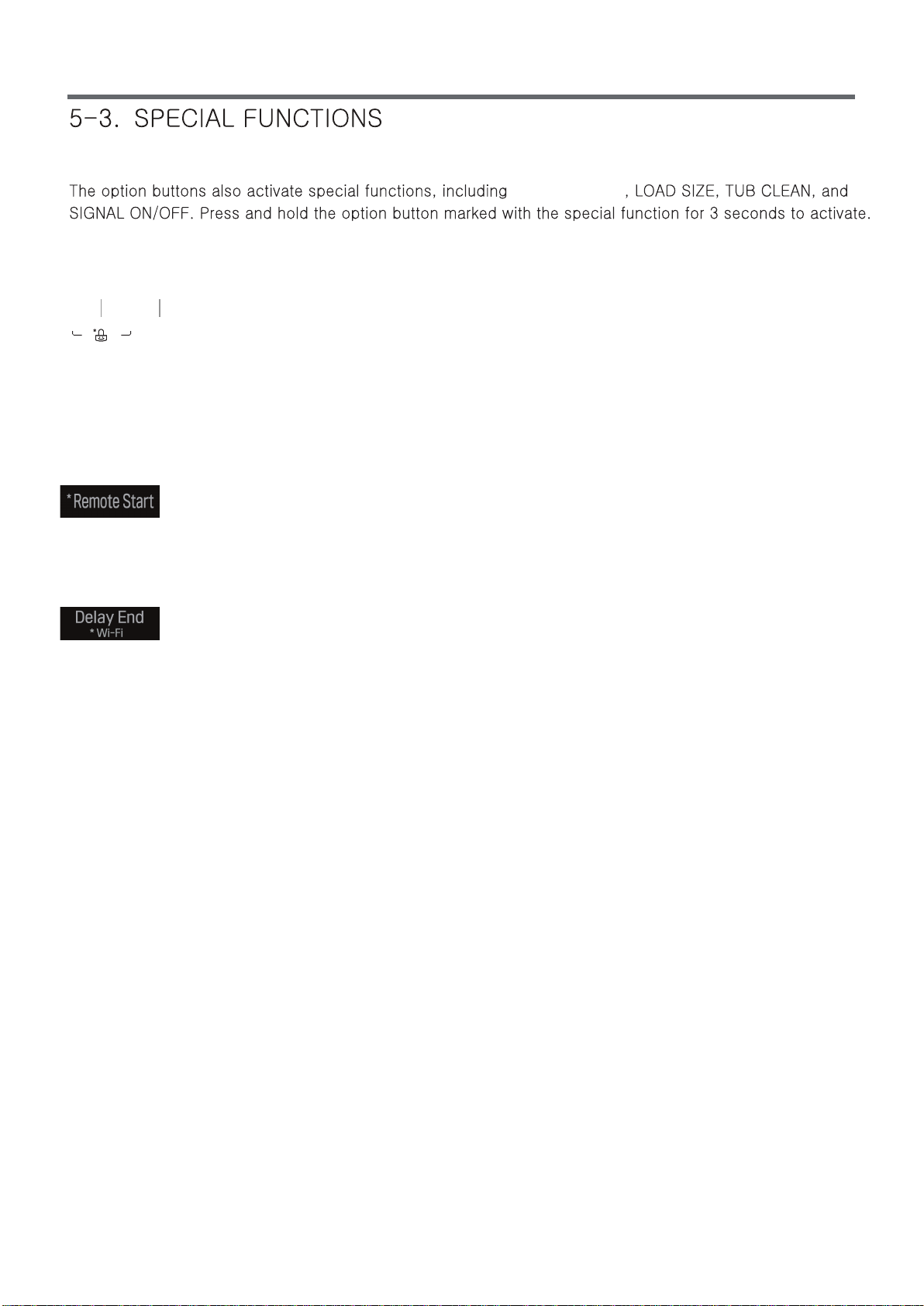

Remote Start
. yletomerecnailpparuoylortnocotenohptramsaesU
hcumwohwonkuoyosnoitarepoelcycruoyrotinomotelbissopsiti,oslA
time is left in the cycle.
Wi- Fi Connect
Use this option for connecting to the internet through your home Wi- Fi network

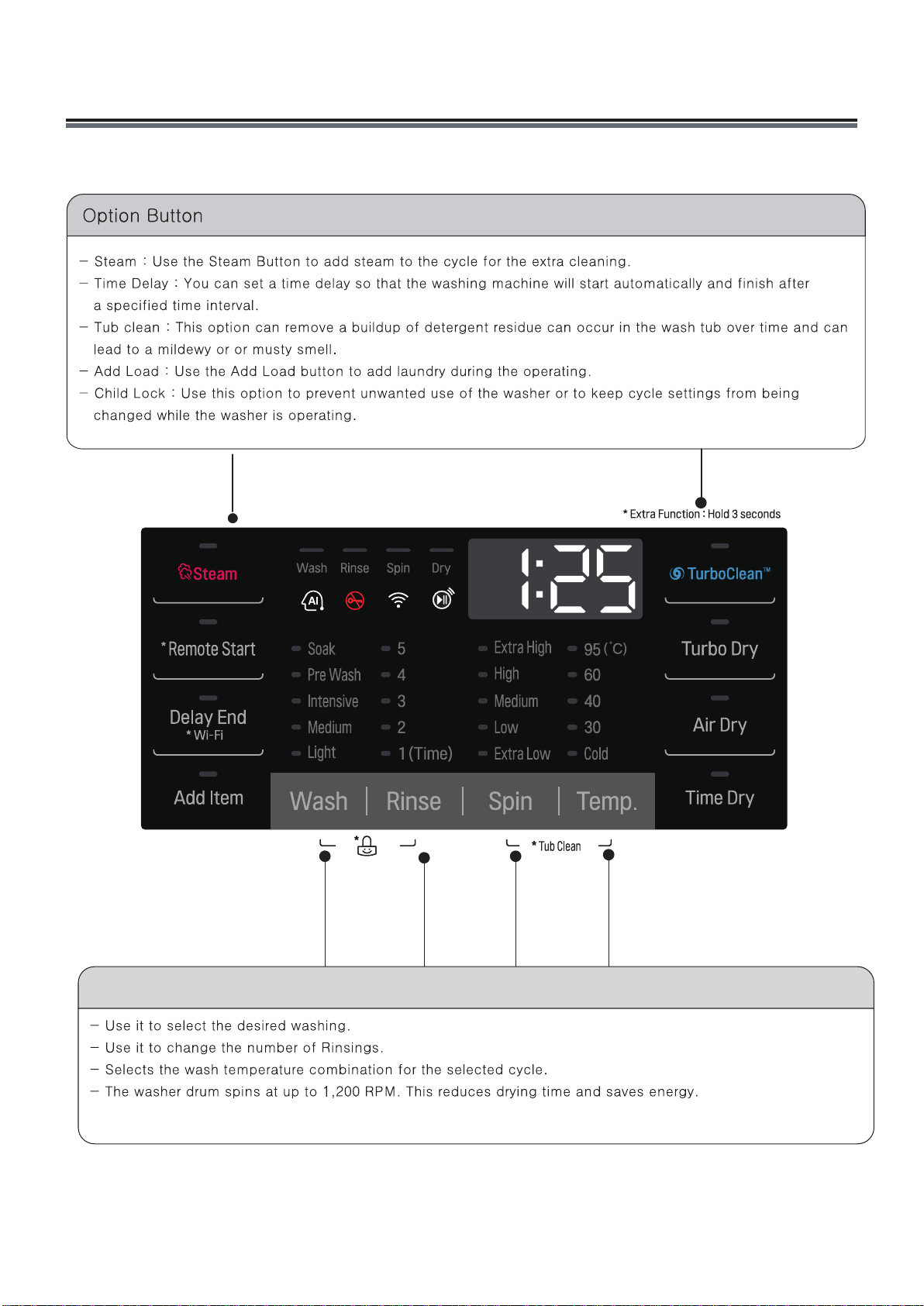

CONTROL LOCK
CONTROL LOCK
Wash Resin
Use this option to prevent unwanted use of the washer or to keep cycle settings from being
changed while the washer is operating. Press and hold the Wash + Rinse button for 3seconds
to activate or deactivate The child lock function The child lock indicator will be shown in the
display. And all buttons are disabled except the ON/OFF button NOTE : CHILD LOCK lasts
after the end of cycle. If you want to deactivate this function, Press and hold the Wash + Rinse
button for 3 seconds.

15
5-4. Explanation of each process
No. noitanalpxEssecorP
1. Stay •Electrical power is supplied.
•Washer is ready to work and the micom is in the active mode.
2. Water
supply •After loading laundry and selecting a course and a cycle, water is supplied and drum rotates.
•When a user selects Pre-wash course, water is supplied through pre
wash valve.
3.
Soaking
and washing
laundry
•To get laundry wet, drum rotates clockwise and counterclockwise.
•If water amount is insufficient at this time, the Inlet valve will supply
water again.
4.
Heating and
washing
•The heater heats the water in drum to the selected water temperature
and drum rotates for washing.
5.
6.
Washing
and heating
/ washing
•When the water temperature reaches to the selected temperature,
the heating stops and only the drum rotates.
•If water temperature becomes lower than selected because of
re-supplied water, the heating starts again.
7. Washing •Fuzzy logic decides washing time according to the laundry load, water
temperature, and other factors.
8. Drainage •A pump motor drains the water from the drum.
•After sensing drained water amount by water level frequency, spin starts.
•When a heating course is selected, stay cooling process is performed to
decrease the water temperature gradually to prevent laundry from being
damaged and for safety reasons.
9. Untangling
(Sensing
eccent-
ricity)
•It balances laundry load and senses the eccentricity of the load, to only
allow spinning without vibration.
•If the eccentricity is worse than the allowed level, it repeats the
disentangling process. When the repeated time is more than allowed
level, it displays UE.
•If the eccentricity is good, the intermittent spin starts.
•During this process, the drain pump works for drainage intermittently.

16
No. noitanalpxEssecorP
10 Intermittent
spin •To reach the correct set speed, the motor rotates clockwise and counterclockwise directions after spin process starts.
•If the water level frequency is lower than 23.0 kHz,
a washer senses suds and starts suds removal process.
11 Rinse
spin •In this process, the remaining water during washing process is extracted and the selected speed is kept.
•Removing suds process is in active mode at this cycle.
12 Remaining
spin •After spin finishes, the drum rotates by remaining spin power until it stops. Motor power is off.
•This process is overlapped with next process.
13 Rinse water
supply •Water supply for rinse process.
14 Rinse •Rinsing process.
15 Last
drainage •After spin finishes and power is not supplied to motor, the drum rotates by remaining spin power.
•If rinse hold is selected, the drainage is not proceeded after rinse
finishes.
16 Disentangling •The same as item 9.
17
Intermittent spin
•The same as item A.
18
19
20
21
22
Main spin1 •The same as item B.
Main spin2•At the end of a main spin, the spin speed will reach the selected rpm.
Remaining spin•The same with item C.
Disentangling•After spin finishes, disentangling starts to remove unbalanced
laundry.
End •After ‘end’ signal is displayed, it stays for 8 seconds and power is
automatically turned off. (Auto type door switch)
•After door switch is off, end signal is displayed in the case of
manual type and it takes around 2 minute to turn off door switch.

6. WIRING DIAGRAM / PROGRAM CHART
FUSE
THERMOSTAT
WH
WH
BR BL

18
WASH or RINSE Time Delay

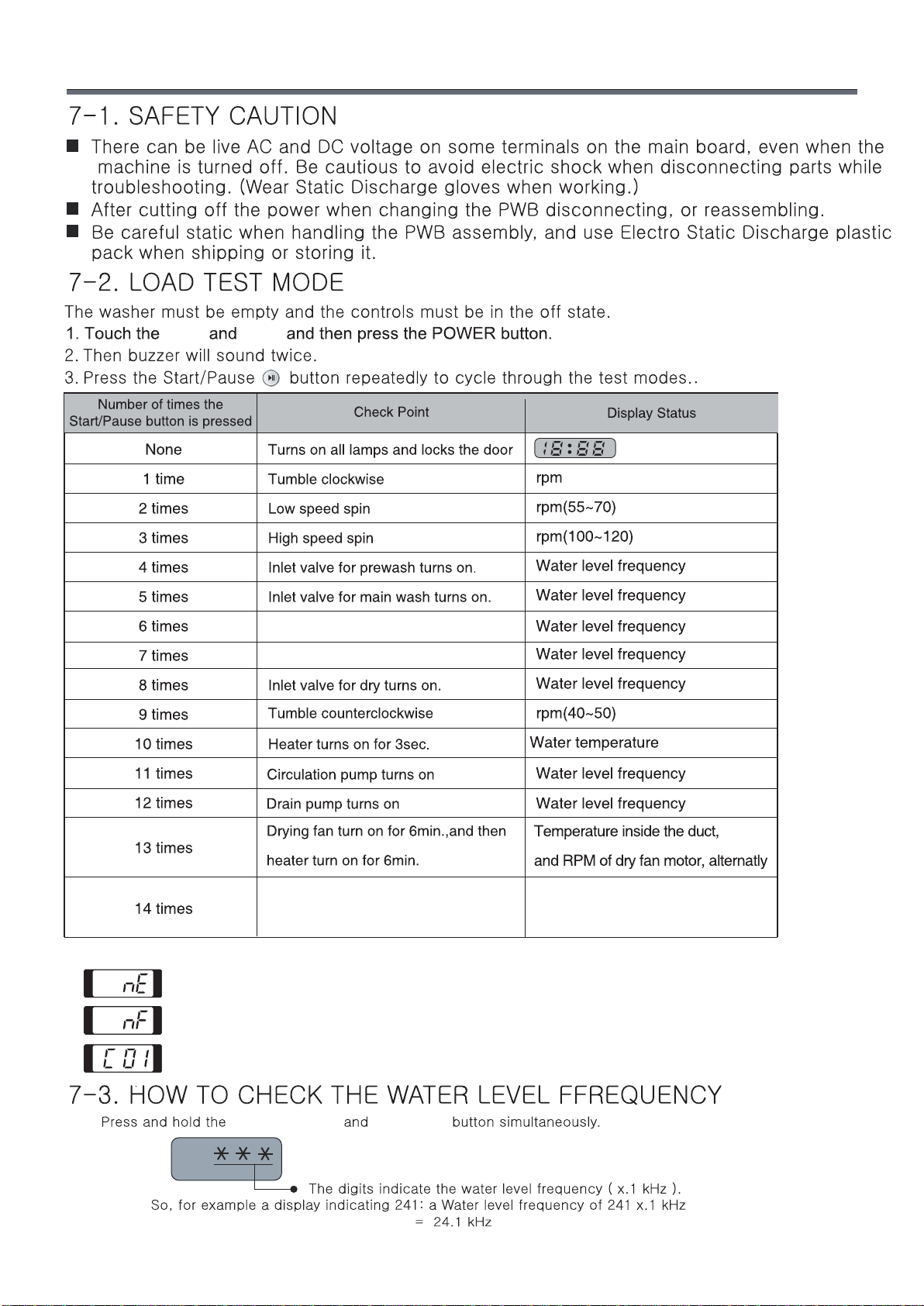

7. TEST MODE
(229 ~ 255)
(229 ~ 255)
(229 ~ 255)
(229 ~ 255)
(50)
Inlet valve for hot water turns on. (229 ~ 255)
Inlet valve for Bleach turns on.
. ,Drum Lamp turn off.
(229 ~ 255)
(229 ~ 255)
Modem Error Check (nF / nE) Modem Error happen: can’t go to next
step but can turn off by Power Button.
※This error display LQC Test Mode only for Wi-Fi model.
There is a problem with the connection between display pcb and Wi-Fi module.
Please change this service part.
There is a problem Wi-Fi module.
Please change this service part.
There is no problem with Wi-Fi module.
This is wi-fi program version. Wi-Fi version can be change.
SPIN SOIL

19

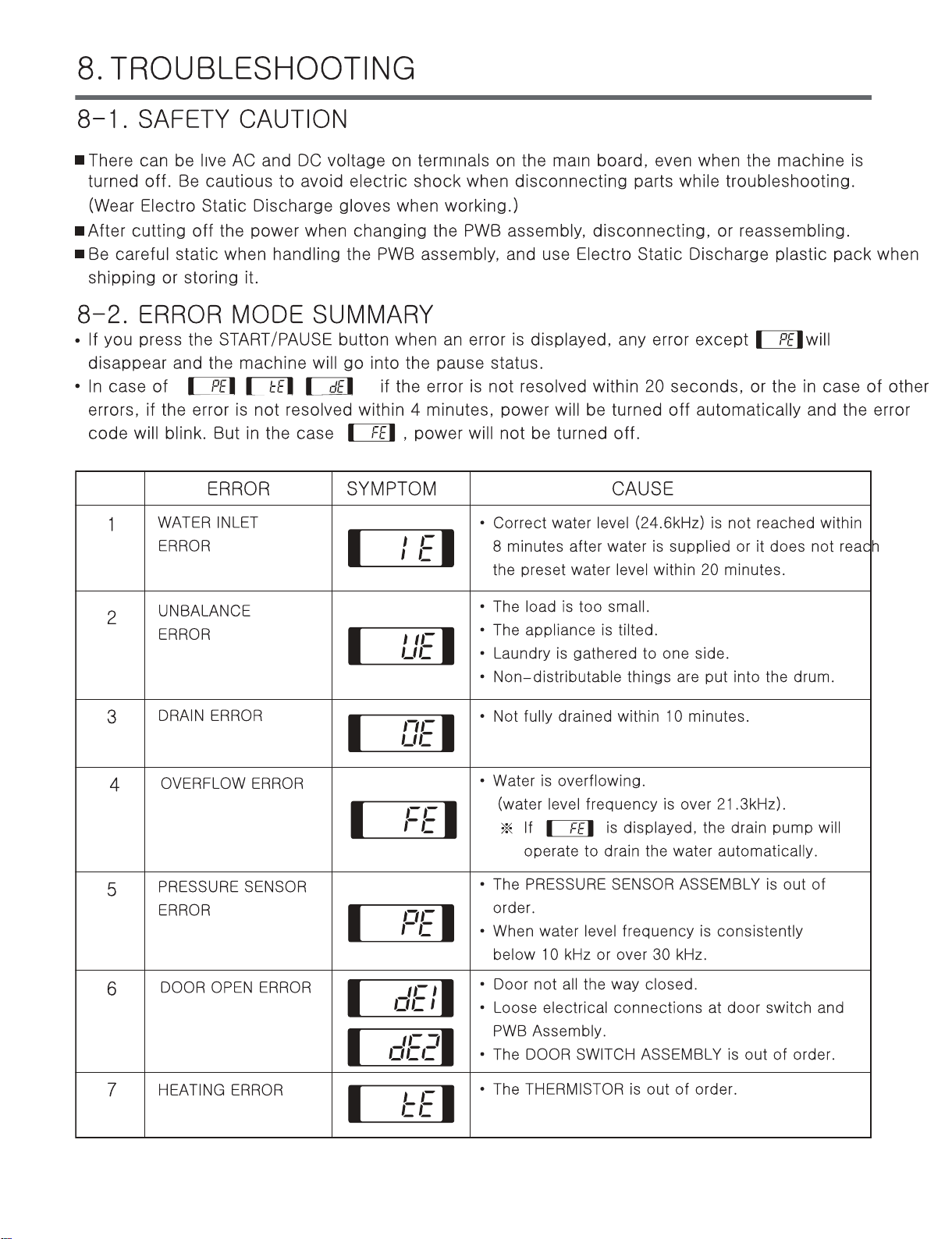

20
If the washing machine detects too many suds, it
displays this error code and adds a Suds Reducing
cycle. This adds about two hours to the cycle time.
If too many suds are detected during spinning, the
washing machine stops to help prevent leaking.
WIFI Modem is not connected.
WIFI Modem Self Check function Error
“ go” : Circuit and Connect pin : Normal
“ - - ” : Circuit and Connect pin : NG
Gray
