LG AN-VC100 User manual

OWNER’S MANUAL
Video Call Camera
Please read this manual carefully before operating your set and
retain it for future reference.
AN-VC100
www.lg.com
1463
M004

2
CONTENTS
PREPARATION
Accessories .......................................................... 3
Overview ............................................................... 3
Installing the Video Call Camera ....................... 4
USING Skype
Start Skype........................................................... 5
Create account / Sign in..................................... 5
Skype menu ..........................................................7
Contacts.............................................................................7
Add Contact......................................................................7
Call Phones .......................................................................7
History................................................................................ 8
My Information ............................................................... 8
Settings ............................................................................ 8
Make a Video Call to the Contact...................... 9
Make a Call (Voice only) to a Contact ..............10
Receiving a Call ..................................................10
Call when watching TV .......................................10
APPENDIX
Troubleshooting ...................................................11
Product Specifications.......................................12
Product Handling
Do not let the camera get wet. Liquid getting into the camera could cause a short circuit.■
Wipe the camera gently with a dry cloth to remove any dust or dirt. If the product is very dirty, spray a■
mild detergent on the cloth first.
Do not clean with thinner, alcohol, benzene or any other volatile agent.■
These may damage the product's surface or affect its operation.
Do not disassemble, repair or alter the product. Incorrect disassembly may cause a fire, electric shock,■
or injury.
Do not shake the camera.■
Do not pull on the cable.■
Installation Instructions
Make sure you have enough space for connections when installing the product.■
Do not install in a dusty, dirty or moist area.■
Do not install in direct sunlight or near a heat source.■
Magnetic objects, such as speakers, may interfere with the camera’s operation.■
Install the product in a place with moderate temperature and humidity. The recommended temperature■
range is 0 °C (32 °F) to 40 °C (104 °F).
Strong electromagnetic waves from other devices could interfere with the camera’s operation.■
Remove all the protective plastic bags (Vinyl) before use.■
The product and company names contained in this manual may or may not be registered trademarks or
copyrights, and are only used for identification or explanatory purposes. All trademarks reserved.
The AN-VC100 is a Video Call Camera that can be used with some LG TVs.
The following model lines are supported:
LED LCD / LCD TV: LEX, LX, LE8, LE7, LE59, LE58, LE56, LE55, LE54, LD8, LD7, LD6, and LD5 series
PDP TV: PX9, PK9, PK7, and PK5 series
(*every model line listed is not available in every country).

3
PREPARATION
PREPARATION
ACCESSORIES
Stand Holder USB Cable
Owner’s manual Quick Start Guide

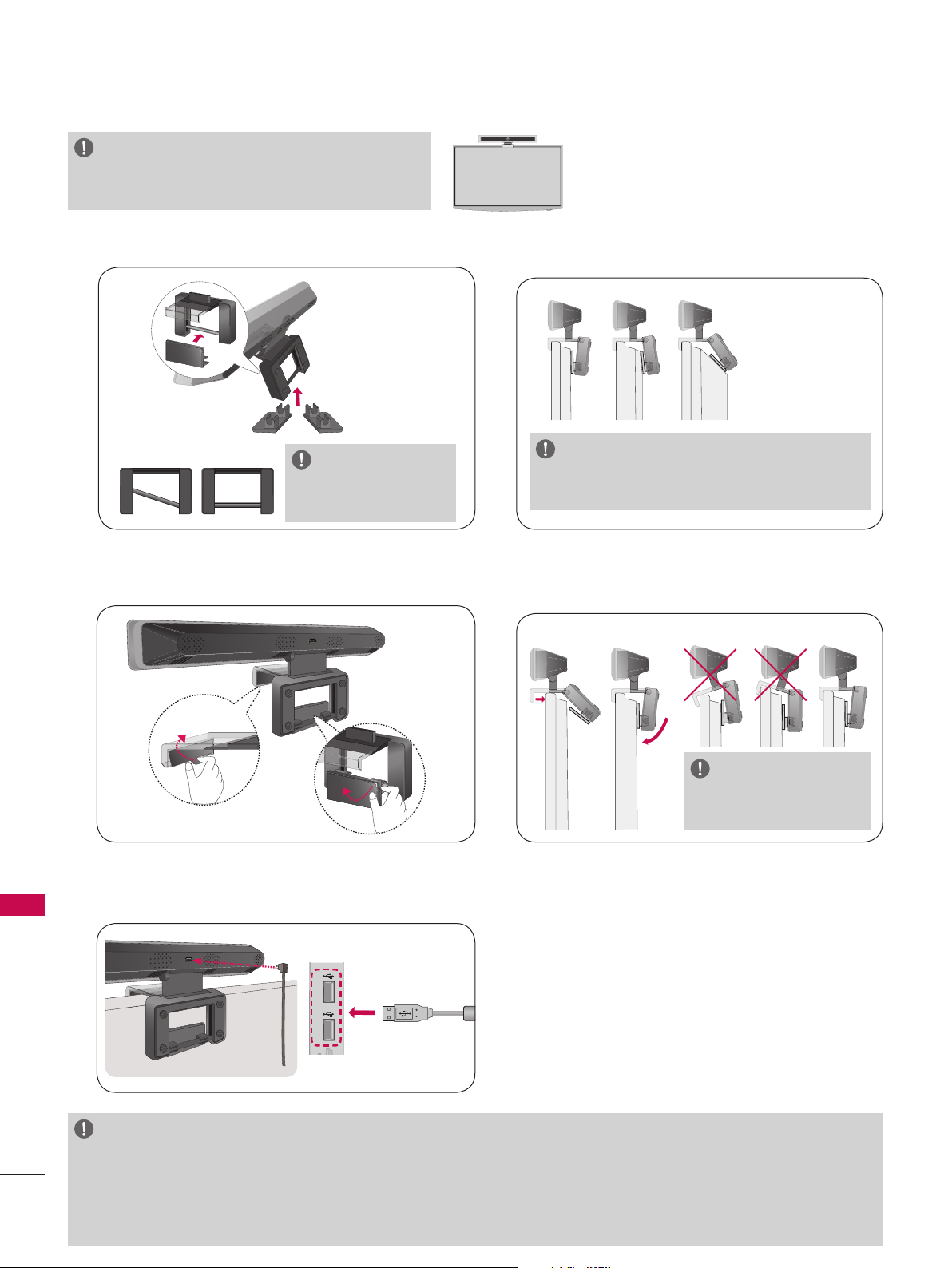

INSTALLING THE VIDEO CALL CAMERA
AN-VC100
a b c
d e f
Attach the holder to the camera stand. Different installations are needed for
different TV models.
NOTE: Differentmounting positions
NOTE:
Remove the double sided tape cover from both
of the camera stand and holder.
Bad Ba d Good
After selecting a suitable location for the
camera, attach the stand holder to the TV
with double-sided tape.
A B
NOTE:
Connect a USB cable to the back of the
camera and the side of the TV.
Select the Skype icon from the menu.
NOTE:
TV
TV
A Select . B Select .
NOTE:
NOTE:
For best results when using a external speakers on your TV, only use the front right/left (stereo) speakers when using►
Skype.
When making a video call with Skype using a PC, the Skype software version for Windows should be 4.2 or newer.►
(Visit the Skype homepage (www.skype.com) for operating systems other than Windows, e.g. OS X, Linux, etc.)
No emergency calls on Skype
Skype is not a replacement for your ordinary
telephone and can’t be used for emergency calling.
OVERVIEW
Video Call Camera
Lens Stand
Activity Indicator
Microphones
Microphones
Double-sided tape x2

4
PREPARATION
PREPARATION
INSTALLING THE VIDEO CALL CAMERA
Attach the holder to the camera stand. Different installations are needed for
different TV models.
1 2
NOTE
Set up with television switched off.►
Any objects located within 1.2 m (47 inches) of the Video Call Camera may not be in focus.►
When using external speakers, allow sufficient space between the microphones and the speakers.►
After setting up the camera, do not bend the stand forward or back more than necessary.►
3
5
4
TV
Remove the double sided tape cover from both
of the camera stand and holder.
Connect a USB cable to the back of the camera
and the side of the TV.
After selecting a suitable location for the
camera, attach the stand holder to the TV
with double-sided tape.
NOTE: Different mounting positions
Tilt angle should be no more than 10 degrees►
downward and 30 degrees upward.
Stand holder
or
Camera stand
Video Call Camera
TV
NOTE:
For the best quality video and audio outputs,►
install the camera on the top-center of your TV.
NOTE:
Stand shaft must be►
installed horizontally.
Bad Good
Bad Bad Good
A B
NOTE:
Camera stand must be►
installed horizontally.
TV
IN 4
AV IN 2
VIDEO
AUDIO
L(MONO)
R
H/P USB IN 1 USB IN 2
TV

5
USING Skype
USING Skype

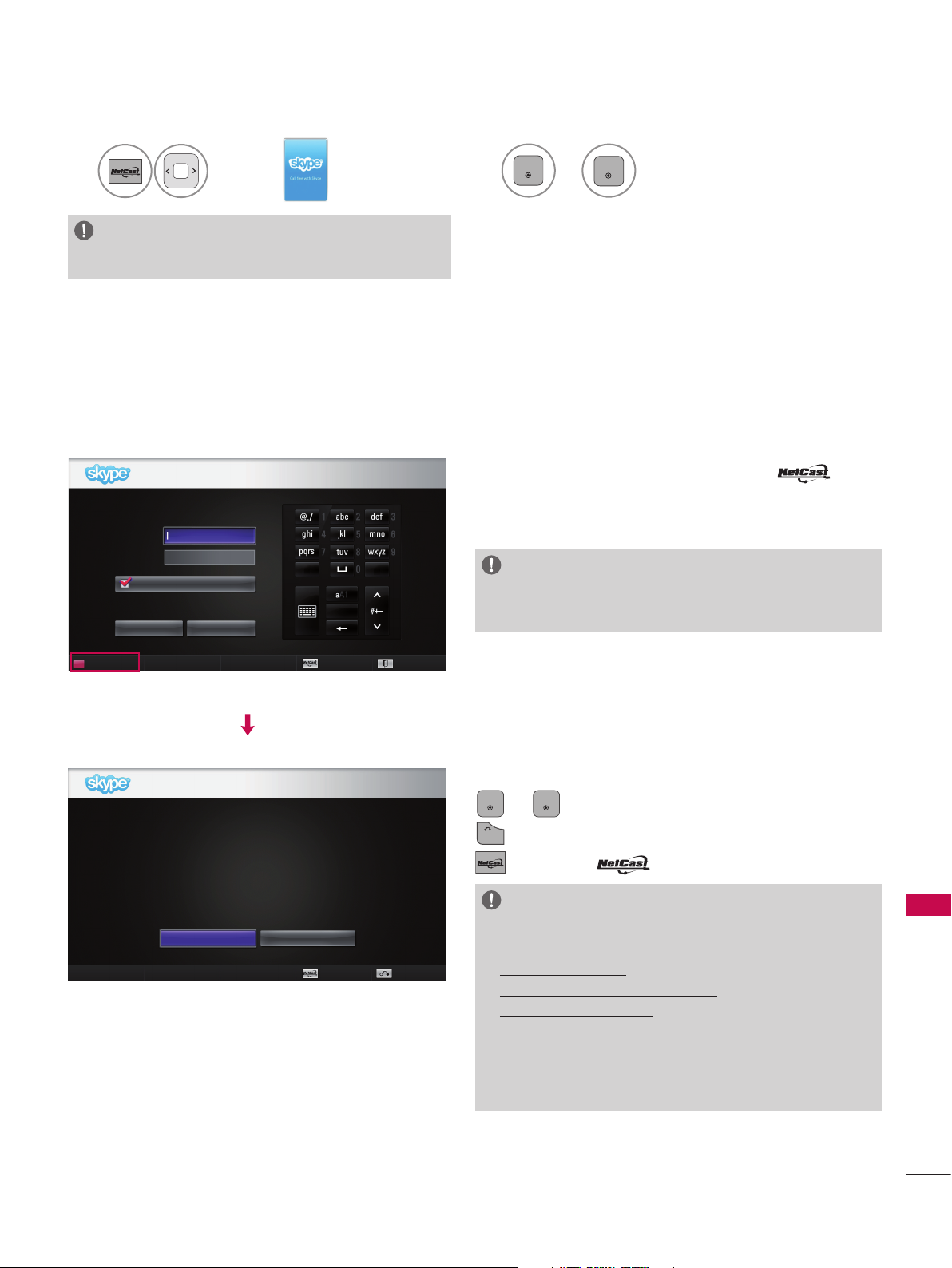

START Skype
1Select .
NOTE:
Skype must be connected to a network to operate.►
2
ENTER
OK
or
ENTER
OK
Start Skype.

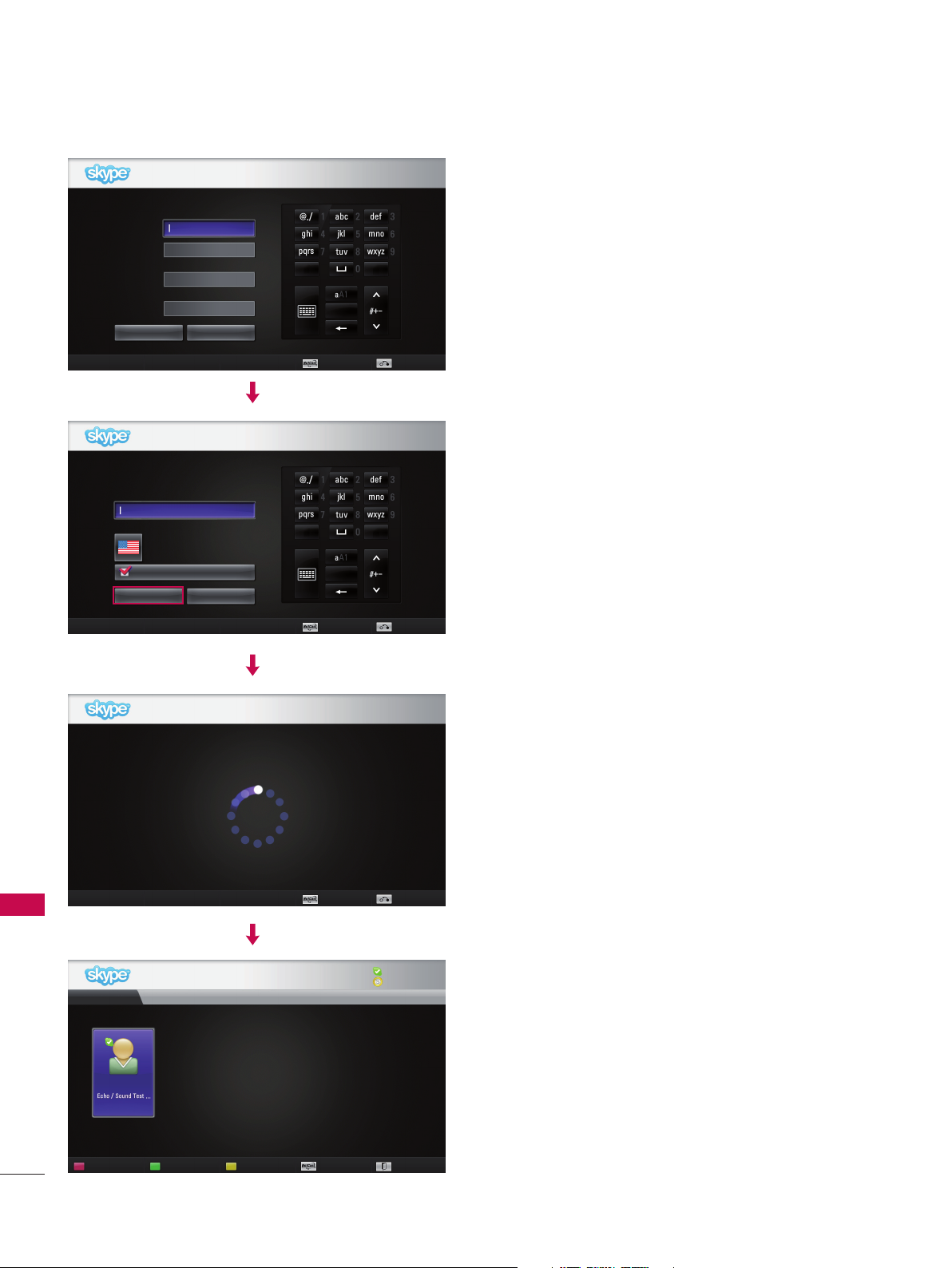

CREATE ACCOUNT / SIGN IN
After selecting the Skype icon from the
menu, enter your Skype name and password. Choose
“Sign me in when Skype starts” to sign in
automatically when the TV is switched on.
NOTE:
If you do not have a Skype account, press the►RED
button on the remote control to create an account.
This screen will appear if you choose to create an account.
ENTER
OK
or
ENTER
OK
: Select a menu.
BACK
: Return to the previous screen.
: Return to menu.
NOTE:
For more details about the Skype service, click the item►
you want to read.
1. Terms of Service
2. End User License Agreement
3. Skype Privacy Policy
These may be changed without user notification.►
You can check the latest information at
www.skype.com/tos, www.skype.com/eula or
www.skype.com/privacy.
Create account
No Emergency Calls. Skype is not a replacement for your ordinary
telephone and cannot be used for emergency calling.
I have read and accept Skype’s terms and conditions at
www.skype.com/eula, www.skype.com/tos, and the privacy statement at
www.skype.com/privacy.
Welcome to Skype
Skype Name
Password
Sign me in when Skype starts up
Sign in
Create account
Cancel
Exit
Back
Agree Disagree
NetCast
NetCast
