LG Smart Cam Pro User manual
2
ENGLISH
IMPORTANT SAFETY
INSTRUCTION
• Read these instructions.
• Keep these instructions.
• Heed all warnings.
• Follow all instructions.
• Do not use this apparatus near water.
• Clean only with dry cloth.
• Do not block any ventilation openings. Install in
accordance with the manufacturer’s instructions.
• Do not install near any heat sources such as radi-
ators, heat registers, stoves, or other apparatus
(including ampliers) that produce heat.
• Do not defeat the safety purpose of the
polarized or grounding-type plug. A polarized
plug has two blades with one wider than the
other. A grounding type plug has two blades
and a third grounding prong. The wide blade or
the third prong are provided for your safety. If
the provided plug does not t into your outlet,
consult an electrician for replacement of the
obsolete outlet.
• Protect the power cord from being walked on
or pinched particularly at plugs, convenience
receptacles, and the point where they exit from
the apparatus.
• Only use attachments/accessories specied by
the manufacturer.
• Unplug this apparatus during lightning storms or
when unused for long periods of time.
• Refer all servicing to qualied service personnel.
Servicing is required when the apparatus has
been damaged in any way, such as power-supply
cord or plug is damaged, liquid has been spilled
or objects have fallen into the apparatus, the
apparatus has been exposed to rain or moisture,
does not operate normally, or has been dropped.
3
ENGLISH
SAFETY PRECAUTIONS
For safe use, read the following precautions and
use the product as instructed.
WARNING
Indicates a case where serious injury or death may
occur if the warnings are violated.
CAUTION
Indicates a case where minor injury or product
damage may occur if the precautions are violated.
CAUTION
• This product is for indoor use only.
Precautions for Moving the
Product
WARNING
• Make sure the product is turned off, unplugged,
and all cables have been removed before the
product is moved.
- You may be electrocuted or the product can
be damaged.
• Do not drop or cause an impact on the product.
- Product can be damaged.
Precautions for Use
CAUTION
• Disconnecting the Device from the Main Power
- The power plug is the disconnecting device. In
case of an emergency, the power plug must
remain readily accessible.
• If you install the product in a place that does
not meet the recommended conditions, this
may cause serious damage to the life cycle, and
appearance. Please do not install the product
in places such as where there is an abundance
of ne dust or oil mist, chemical substances are
used, exposed to direct sunlight, the tempera-
ture is very high or low, the humidity is very high.
4
ENGLISH
• Do not take the product apart arbitrarily. If you
suspect a product failure, contact your dealer
to have the product repaired. If the product is
taken apart arbitrarily, it will not be covered by
the warranty.
• Do not apply excessive force to the button, or
use a pointed tool to press it. Doing so may
damage the button.
• If the product plays an unknown sound or emits
a strange smell or smoke, disconnect the power
cord immediately and contact the service center.
• Do not moving when the product is in use.
• Do not allow an impact shock, any objects to fall
into the product.
• Do not expose to dripping or splashing and do
not place objects lled with liquids, such as
vases, cups, etc. on or over the apparatus (e.g.,
on shelves above the unit).
• Do not use high voltage electrical equipment
near the device (e.g., a bug zapper). This may
result in product malfunction.
• Do not press strongly upon the button or lens
with a hand or a sharp object such as a nail, pen-
cil, or pen, or make a scratch on it. It may cause
damage to product.
• If a camera noise occurs, it can be improved by
adjusting the picture mode of the connected
display.
• When using the product as a security device,
please connect it to the UPS.
• Recommended HDMI cable types (3 m (9.84 ft)
or less)
- Ultra High Speed HDMI®/™ cable

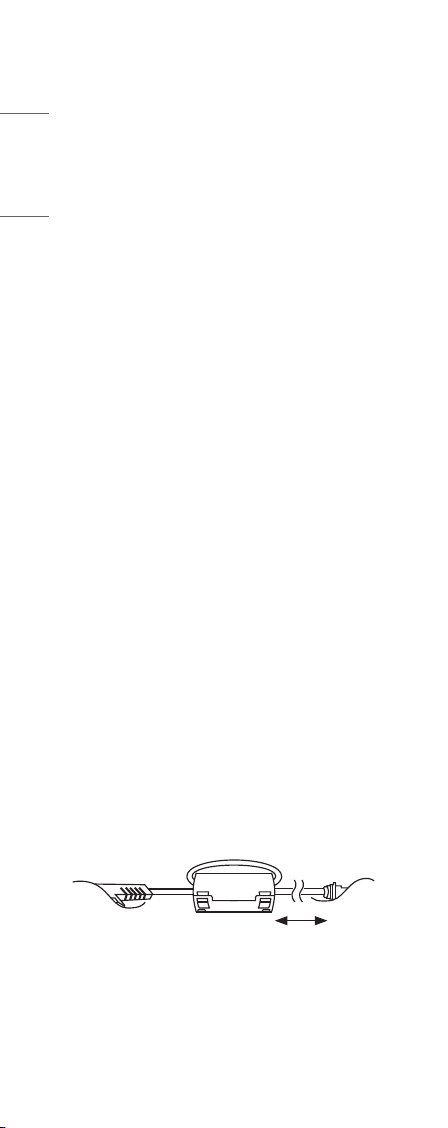

• How to use ferrite core
- Use the ferrite core to reduce the electromag-
netic interference in the adaptor. Wind the DC
part of adaptor on the ferrite core once.
[Adaptor side] [Device side]
10 cm (+/-2 cm)
3.9 inches (+/-0.7 inches)
5
ENGLISH
Precautions for Cleaning
the Product
CAUTION
• When cleaning the product, unplug the power
cord and wipe it gently with a soft cloth. Do
not spray water or other liquids directly on the
product. Especially, do not clean your product
with chemicals including glass cleaner, any type
of air freshener, insecticide, lubricants, wax (car,
industrial), abrasive, thinner, benzene, alcohol,
etc., which can damage the product.
- This may result in re, electric shock or
product damage (deformation, corrosion or
breakage).
Precautions for Storage
CAUTION
• When not in use, turn off the power of the
device before storing.
• If not in use for a prolonged period of time, com-
pletely disconnect the adapter and store it.
• Avoid direct light (sunlight, electric light, etc.),
and store it in a dry location at room tempera-
ture.
• Store away from places vulnerable to re, such
as areas where chemicals and gas are generated.
Disposal Method
CAUTION
• Do not dispose of the product arbitrarily, but
follow your local disposal procedures.
6
ENGLISH
BROWSING OUR
PRODUCTS
Due to the version changes of the product after
this user manual was published, the illustrations in
the manual may differ from the actual product.
The information provided in this user manual is
subject to change without notice.
LG Take-back & Recycling Policy
(For USA)
LG Electronics offers a customized e-waste
take-back & recycling service that meets local
needs and requirements in the countries where
e-waste regulations are in place, and also
provides product take-back & recycling service
voluntarily in some regions. LG Electronics
evaluates product’s recyclability at the design
step selectively, with the goal of improving
recyclability where practicable. Through these
activities, LG Electronics seeks to contribute to
conserving natural resource and protecting the
environment. For more information, please visit
our global site at
https://www.lg.com/recycling
7
ENGLISH
Product Composition
Power Cord / Adapter Owner’s Manual /
Remote Control
HDMI Angle Gender Cable Management
RGB RS-232C/D-Sub RS-232CRS-232C
MPI cable RS-232C cable
LAN cable HDMI cable
Ferrite core
8
ENGLISH
Removing protective Sheet
before use
Before using the product, remove the protective
sheet.
Recommendations when
using Cable Management
Adapter
, HDMI
LAN
, RS-232C
MPI
USB C-type
9
ENGLISH
Attaching the Cable Man-
agement
1 Remove the protection paper from the adhe-
sive side of the tape and attach to the back of
the Cable Management as shown
2 After removing the other side protection paper
from the tape. stick Cable Management to
the TV.
10
ENGLISH
Kensington Lock
Connect the Kensington security system cable
between the monitor and product.
NOTE
• The Kensington lock device is an optional spec-
ication.
• This is a general illustration of installation and
may look different from the product held by the
customer.
11
ENGLISH
REMOTE CONTROL
The descriptions in this manual are based on the
buttons on the remote control. Please read this
manual carefully to use the monitor correctly. To
install batteries, open the battery cover, place bat-
teries (1.5 V AAA) matching and terminals
to the labels inside the compartment, and close
the battery cover. To remove the batteries, perform
the installation actions in reverse. The illustrations
may differ from the actual accessories.
CAUTION
• Do not mix new batteries with old batteries. This
may cause the batteries to overheat and leak.
• Be sure to point the remote control toward the
remote control sensor on the product.
• Some features of the remote control may not be
supported in certain models.
• Failure to match the correct polarities of the
battery may cause the battery to burst or leak,
resulting in re, personal injury, or ambient
pollution.
• This apparatus uses batteries. In your commu-
nity there might be regulations that require you
to dispose of these batteries properly due to
environmental considerations. Please contact
your local authorities for disposal or recycling
information.
• The product’s internal and external batteries
should not be exposed to excessive heat such as
direct sunlight, re, or the like.
• Risk of re or explosion if the battery is replaced
by an incorrect type.
12
ENGLISH
13
ENGLISH
(POWER) Turns the Camera On/Off.
(POWER) Turns the TV device On/Off.
(HOME) Return to Home screen.
(BACK) Return to Previous stage.
(SETTINGS) Setting the Menu for Camera/
Audio/Network/Time/etc.
Navigation keys.
Select and adjust functions.
(Volume Up/Down) Adjusts the volume level.
(MIC Mute) Mutes the MIC.
Power Standby mode
You can enter standby mode in the following cases:
1 Power button located on the side of the
product.
2 Power button of remote control.
3 Sleep icon in the home app provided by the
product
4 Installation/General/Power Saving/Keyless
off Hours settings
5 When there is no key input in the time out
home app for 60 seconds.
14
ENGLISH

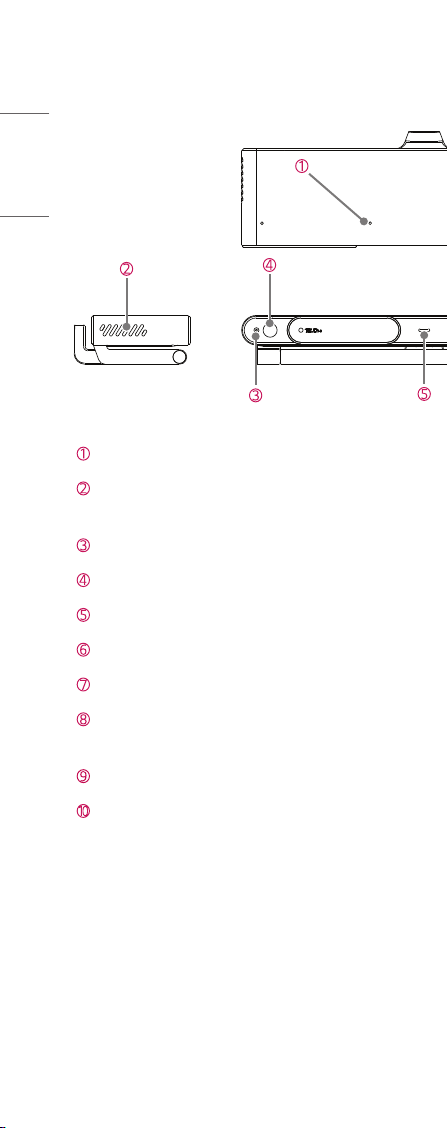

Name of Individual Parts
Microphone (x4)
Speaker (1.3W)
* For playing call or alarm tones.
LED
12MP wide RGB camera
Status LED (3 color LED)
IR Remote Receiver
ALS Sensor
12MP NV Camera
* NV : Night Vision
IR LED (x4)
Button
* Power on / off mode changes by pressing button.
15
ENGLISH
Name of Individual Parts
Microphone (x4)
Speaker (1.3W)
* For playing call or alarm tones.
LED
12MP wide RGB camera
Status LED (3 color LED)
IR Remote Receiver
ALS Sensor
12MP NV Camera
* NV : Night Vision
IR LED (x4)
Button
* Power on / off mode changes by pressing button.
16
ENGLISH
INSTALLING THE
PRODUCT
Set Holding
1
2
17
ENGLISH
3
4
18
ENGLISH
On The Monitor
- Right angle gender applied structure
- Make sure the product does not interfere to the
other cable when installing it.
1 Unfold the hinge and mount and secure it to
the top of the set.
Monitor
Front
Bottom
Top
19
ENGLISH
Stand
- Floor mounting with hinged structure stand
Accessory Connection
- When xing with accessories, use the Bottom
Tap Hole.
- Tap Hole: M6, Depth 5.0 mm (0.19 inches) (Max)
Bottom Side
M6, Depth 5.0 mm (0.19 inches) (MAX)
20
ENGLISH
CONNECTING
Name Connection and Communication Method
Power supply by connecting adapter DC PLUG.
Connect to TV.
The Ethernet communication indicator LED using TCP/IP does not light up.
* These ports are not for end user.
Connect a HDMI source device, e.g., STB, PC, DVD player.
(USB Type-C 3.1) For connecting USB devices for use in Pro:Centric Application.
* Compatiable model
This manual suits for next models
1
Table of contents
Other LG Webcam manuals
