SAVE THESE INSTRUCTIONS
GUARDE ESTAS INSTRUCCIONES
Assembly Instructions
Instrucciones de Ensamblaje
Email or call customer service for help first.
Envie correo electrónico o llame al servicio para
obtener ayuda primero.
1-972-395-8993
Monday-Friday 9am - 4pm CST
[email protected]
Do Not Return!
No Vuelvas!
LEGACY HOME
FURNISHINGS & DECOR
Hall Tree
Perchero
C1910129
120mns
Helpful advice
1. Follow the assembly instructions carefully.
2. Check to ensure all parts, fasteners and hardware
are present.
3. To prevent product damage, assemble the furniture
on top of the carton.
4. Clean surface of furniture with a duster or damp
cloth only. Do not use abrasive cleaners.
1. Siga a tentamente las instrucciones de montaje.
2. Asegúrese de que la caja contiene todas las piezas,
sujeciones y materiales.
3. Monte el mueble sobre la caja para evitar dañarlo.
4. Limpie la superficie del mueble utilizando solamente
un plumero o un paño húmedo, no use productos de
limpieza abrasivos
Consejos útiles
Parts list/Lista de piezas
01
ITEM DESCRIPTION DESCRIPCIÓN
QUANTITY
1
2
1
1
4
1
1
1
1
1
3
4
5
6
7
8
Seat panel Panel
Left side frame
Right side frame
Metal frame
Bottom panel
Connect tube
Back panel
Mirror
1
9Mirror back panel
Marco izquierdo
Marco derecho
Marco inferior
Estante
Tubo de conexión
Tablero posterior
Marco delante de espejo
Tablero detrás de espejo
1
10 Connect tube Tubo de conexión
2
11 Connect tube Tubo de conexión
LEGACY HOME
FURNISHINGS & DECOR
02
Hardware/Lista de materiales
Parts list/Lista de piezas
LEGACY HOME
FURNISHINGS & DECOR
A
ITEM IMAGE DESCRIPTION DESCRIPCIÓN QUANTITY
6
Ø4 x 14 mm Screw
B12
Ø4 x 16 mm Screw
C10
Ø4 x 14 mm Screw
Φ4×14 mm Tornillo
Φ4×16 mm Tornillo
Φ4×14 mm Tornillo
03

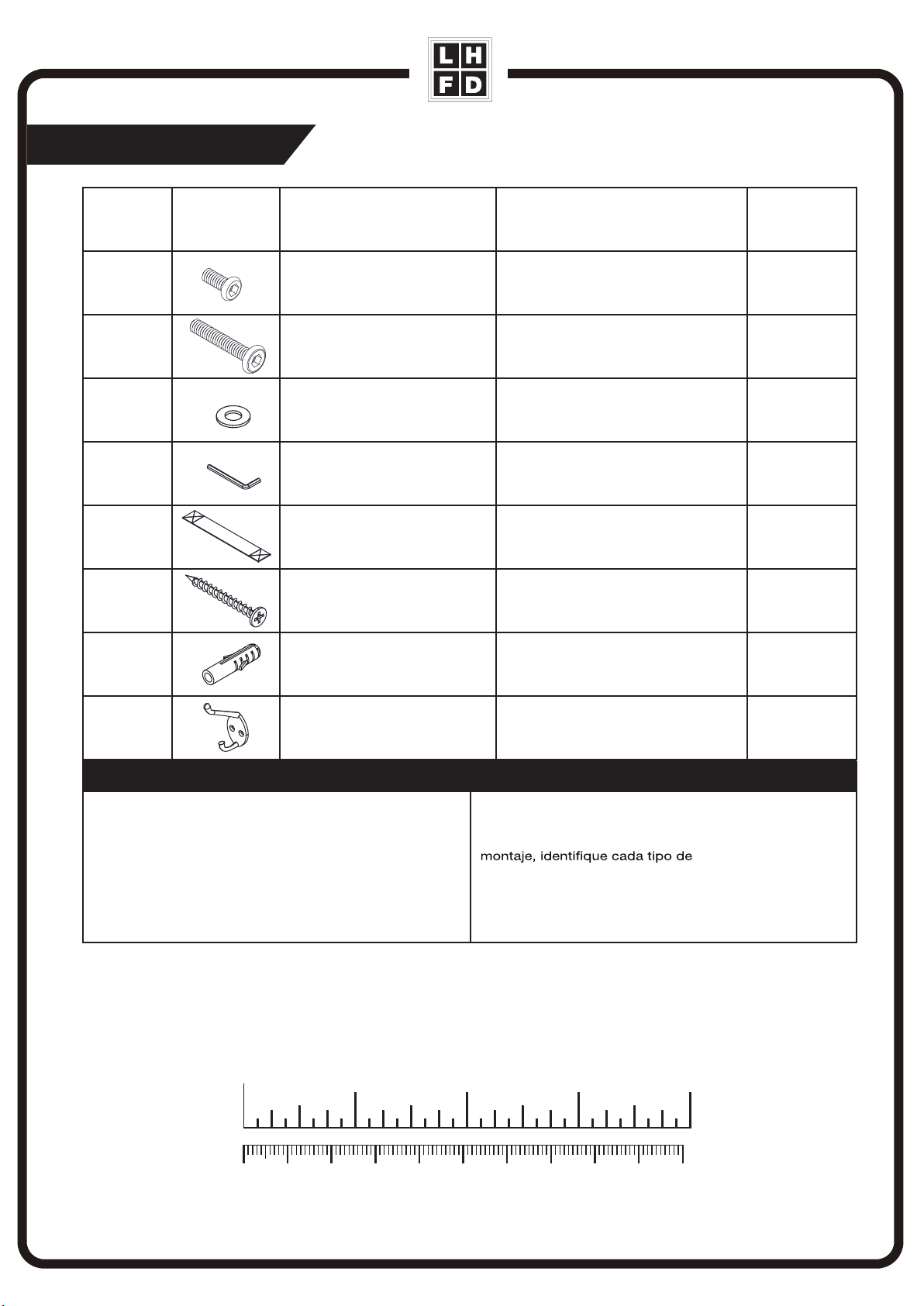

Hardware/Lista de materiales
ITEM IMAGE DESCRIPTION DESCRIPCIÓN QUANTITY
D6
M6 x 15 mm Hexagon bolt
E28
M6 x 40 mm Hexagon bolt
F12
Flat Washers
G
H
I
J
1
Hexagon Wrench
2
Fabric strip
M6 x 15mm Tornillo hexagonal
M6 x 40mm Tornillo hexagonal
Arandela plana
Llave Allen
Tira de tela
Using the wrong screw will cause
damage.
Before you begin assembly check
to ensure all parts are present.
Screws are actual size.
El uso del tornillo incorrecto puede
provocar daños al producto.
Antes de iniciar la operación de
tornillo.
Estudie detenidamente las siguientes
ilustraciones de los tornillos
(ESCALA REAL)
Note/Nota
2

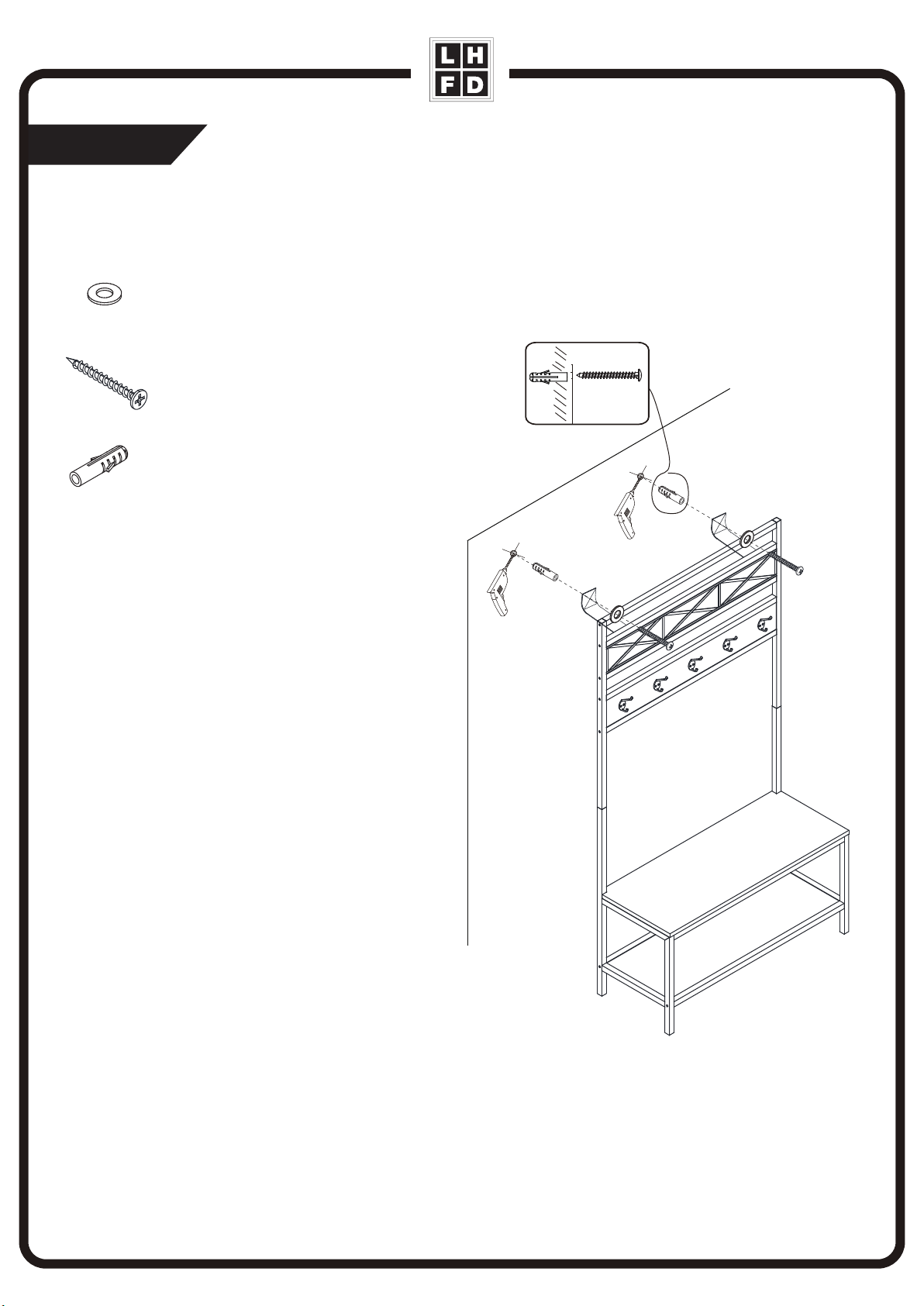

Ø3.8 x 40 mm Screw
2
Wall anchor
Φ3.8×40 mm Tornillo
Expansión de plástico
ACUTAL SIZE / ESCALA REAL
inches 1 2 3 4
10 20 30 40 50 60 70 80 90 100mm
K5
Hook Percha
LEGACY HOME
FURNISHINGS & DECOR
04
This product can expose you to chemicals including
Formaldehyde, which is known to the State of California to
cause cancer or birth defects or other reproductive harm. For
more information go to www.P65Warnings.ca.gov/furniture
Este producto puede exponerlo a sustancias quím icas,
incluyendo el formaldehído, el cual es conocido en el estado
de California como causante de cáncer, defectos de nacimiento
u otros daños reproductivos. Para obtener más información
vaya a www.P65Warnings.ca.gov/furniture
WARNING
ADVERTENCIA
LEGACY HOME
FURNISHINGS & DECOR
05

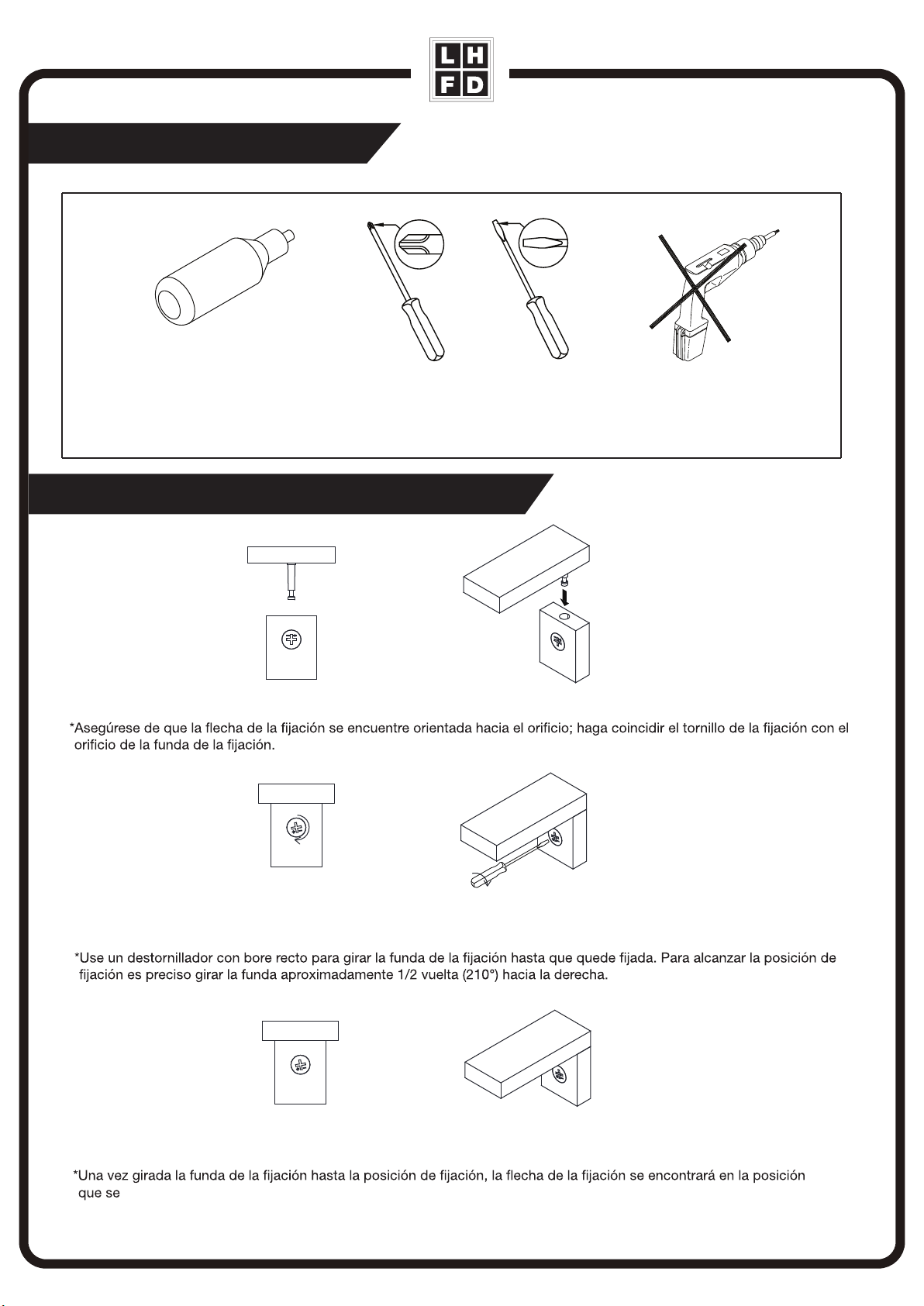

Necessary tools/Herramientas necesarias
*Ensure that the cam lock arrow is pointed to the hole, align the cam lock screw to the hole of the cam lock case.
*Use a straight edge scr
ewdriver to turn cam lock case until it is locked.Locked position is approximately 1/2 turn(210°)
clock-wise.
*After turnning the cam lock case to the locked position,the cam lock arrow will be located in the position shown above.
muestra en la ilustración anterior.
Glue not enclosed (We recommend to apply some glue into holes before inserting wood dowels.)
Colle non fournie (Nous vous recommandons d’appliquer quelques gouttes de colle dans les trous avant
d’y introduire les chevilles de bois.)
madera.)
Glue not included ( We recommend to apply some glue into holes before inserting wood dowels .)
Cola, no incluida (Le recomendamos colocarunas gotas de cola en los oricios antes de insertar las clavijas de madera.)
How to use cam lock system/Cómo usar el sistema de jación
Unlocked
Déverrouillé
#1
Nº1
Locked
Desbloqueado
#2
Nº2
#3
Nº3
LEGACY HOME
FURNISHINGS & DECOR
06
E x 4
F x 4
B x 6
G
F
B
E
Connect Seat panel (1) with Metal frame (4), use 4 Hexagon bolts (E) and 4 Flat washers (F). Hand tighten bolts
with Hexagon wrench (G).
Conecte el Panel (1) al Marco inferior (4) con 4 Tornillos hexagonales (E) y 4 Arandelas planas (F).Cerrarlos bien
con la Llave Allen (G).
Connect 2 Connect tubes (6) with Bottom panel (5), use 6 Screws (B).
Conecte 2 Tubos de conexión (6) al Estante (5) con 6 Tornillos (B).
Step 2/Paso 2
G
Step 1/Paso 1
Attention: In order to help your assembly, do not lock the screw tightly until
you have assembled all the other parts.
Atención: Con el fin de facilitar su montaje, no apretar el tornillo firmemente
hasta que haya ensamblad o todas las otras partes.
LEGACY HOME
FURNISHINGS & DECOR
07
F
E
E
E x 7
F x 2
G
E x 5
G
Step 3/Paso 3
Conncet Left side frame (2) with Metal frame (4) and Bottom panel (5), use 5 Hexagon bolts (E). Hand tighten bolts
with Hexagon wrench (G).
Conecte el Marco izquierdo (2), el Marco inferior (4) al Estante (5) con 5 Tornillos hexagonales (E). Cerrarlos
bien con la Llave Allen (G).
Connect Left side frame (2) with Seat panel (1), use 2 Hexagon bolts (E) and 2 Flat washers (F). Connect Right side
frame (3) with Bottom panel (5), use 5 Hexagon bolts (E). Hand tighten bolts with Hexagon wrench (G).
Conecte el Marco izquierdo (2) al Panel (1) con 2 Tornillos hexagonales (E) y 2 Arandelas planas (F). Conecte
el Marco derecho (3) al módulo con 5 Tornillos hexagonales (E) .Cerrarlos bien con la Llave Allen (G).
Step 4/Paso 4
LEGACY HOME
FURNISHINGS & DECOR
G
G
08
Step 5/Paso 5
Connect Right side frame (3) with Seat panel (1), use 2 Hexagon bolts (E) and 2 Flat washers (F). Hand tighten bolts
with Hexagon wrench (G).
Conecte el Marco derecho (3) al Panel (1) con 2 Tornillos hexagonales (E) y 2 Arandelas planas (F). Cerrarlos
bien con la Llave Allen (G).
E
Connect 2 Connect tubes (6) with Back panel (7), use 6 Screws (B).
Conecte 2 Tubos de conexión (6) al Tablero posterior (7) con 6 Tornillos (B).
Step 6/Paso 6
LEGACY HOME
FURNISHINGS & DECOR
E x 2
F x 2
G
B x 6
G
F
B
09
Step 7/Paso 7
Fasten 5 Hooks (K) to Back panel (7), use 10 Screws (C).
Utilice 10 Tornillos (C) para bloquear 5 perchas (K) al Tablero posterior (7).
Insert Mirror panel (9) into Mirror (8).Connect Mirror panel (9) with Mirror (8), use 4 Screws (A). Fasten 2 Flat
washers (F) and 2 Fabric strips (H) to Mirror(8), use 2 Screws (A).
Inserte Tablero detrás de espejo (9) en el Marco delante de espejo (8).Conectarlos con 4 Tornillos (A). Utilice 2
Tornillos (A) para bloquear 2 Arandelas planas (F), 2 Tiras de tela (H) al Marco delante de espejo (8).
Step 8/Paso 8
LEGACY HOME
FURNISHINGS & DECOR
C x 10
K x 5
A x 6
F x 2
H x 2
C
K
A
F
H
