IPEX6001U-WP-W IPEX6002U-WP-W Install Guide
3
1. Installaon Guide
2. IPEX6001U-WP-W
3. 3-pin Removable Phoenix Screw Terminal
4. IR Emier
Product Features
IPEX6001U-WP-W
The IPEX6001U-WP-W is a 3 gang US wall plate SDVoE AVoIP encoder. The DigitalinxIP IPEX6001U-WP-W
supports IP-based switching and extension of 4K/60Hz (4:4:4) video with zero frame latency up to 100 meters
when using CAT6A F/UTP cabling. The encoder supports independent routing of all AV, USB 2.0, IR, Ethernet
and RS232 signals over a 10Gbps network. AV inputs on the IPEX6001U-WP include HDMI and USB-C
and the device will auto switch to whichever is connected last. IPEX6001U-WP-W has Icron
USB2.0 High Speed host port (USB-B or C can be used as host) allowing USB signals to be routed to
IPEX6002U-WP's or IPEX-USB2-C client devices. All encoders, decoders, and transceivers on an AV
network can simultaneously transmit and receive full 4K 60 4:4:4 signals. The IPEX6001U-WP-W is HDMI 2.0
and HDCP 2.2 compliant and supports all video resolutions that fit into the HDMI 2.0 timing envelope of
594 MHz, such as 4K@60Hz 4:4:4 24bpp and 4K@60Hz 4:2:0 30bpp HDR, including DolbyVision, HDR10 and
HLG. The encoder features light compression technology which is activated automatically when the raw data
rate exceeds the 10Gbps Ethernet bandwidth so that all supported timing formats can be delivered through a
single 10G Ethernet cable.
IPEX6001U-WP-W can be powered over the network via POE+ or by using the optional 24V power supply.
Optional 24V power supply is required if USB-C device charging is desired and is part number PS-24D-5A.
The IPEX6001U-WP-W can be used in a point to point installation or in a matrix configuration that supports
routing of one to one and one to many including multi-view for single display outputs and video wall
configurations up to an 8x5 (Rows x Columns).
When multiple encoders, decoders, or transceivers are deployed in an AV network, an Arranger hardware
controller is required for basic system access and operation.
Port speed requirements for each encoder range from 6-9Gbps for 4K signals and 3.2Gbps for 1080P signals,
therefore the IPEX6001U-WP-W requires a 10GbE managed network switch for optimal performance, 1GbE
managed network switches are not supported.
Package Contents

IPEX6001U-WP-W IPEX6002U-WP-W Install Guide
4
1. Installaon Guide
2. IPEX6002U-WP-W
3. 3-pin Removable Phoenix Screw Terminal
4. IR Receiver
Product Features
IPEX6002U-WP-W
The IPEX6002U-WP-W is an AVoIP powered A/V decoder. The DigitalinxIP IPEX6002U-WP-W supports IP-based
switching and extension of true 4K/60Hz (4:4:4) video with zero frame latency up to 100 meters when using
CAT6A F/UTP cabling. The decoder supports independent routing of all AV, USB 2.0, IR, Ethernet and RS232
signals. IPEX6002U-WP-W has Icron USB2.0 High Speed client ports allowing USB signals to be
routed to IPEX6001U-WP's or IPEX-USB2-H Host devices. All encoders, decoders, & transceivers on an
AV network can simultaneously transmit and receive full 4K 60 4:4:4 signals. The IPEX6002U-WP-W is HDMI
2.0 and HDCP 2.2 compliant and supports all video resolutions that fit into the HDMI 2.0 timing envelope of
594 MHz, such as 4K@60Hz 4:4:4 24bpp and 4K@60Hz 4:2:0 30bpp HDR, including DolbyVision, HDR10 and
HLG. The decoders features light compression technology which is activated automatically when the raw data
rate exceeds the Ethernet bandwidth so that all supported timing formats can be delivered through a single
10G Ethernet cable.
IPEX6002U-WP-W can be powered over the network via POE+ or by using the optional 24V power supply
PS-24D-5A.
The IPEX6002U-WP-W can be used in a point to point installation or in a matrix configuration that supports
routing of one to one and one to many including multi-view for single display outputs and video wall
configurations up to an 8x5 (Rows x Columns).
When multiple encoders, decoders, or transceivers are deployed in an AV network, an Arranger hardware
controller is required for basic system access and operation.
Port speed requirements for each encoder is 6-9Gbps for 4K signals and 3.2Gbps for 1080P signals, therefore
the IPEX6002U-WP-W requires a 10GbE managed network switch for optimal performance, 1GbE managed
network switches are not supported.
Package Contents

IPEX6001U-WP-W IPEX6002U-WP-W Install Guide
5
Front and Rear Panels

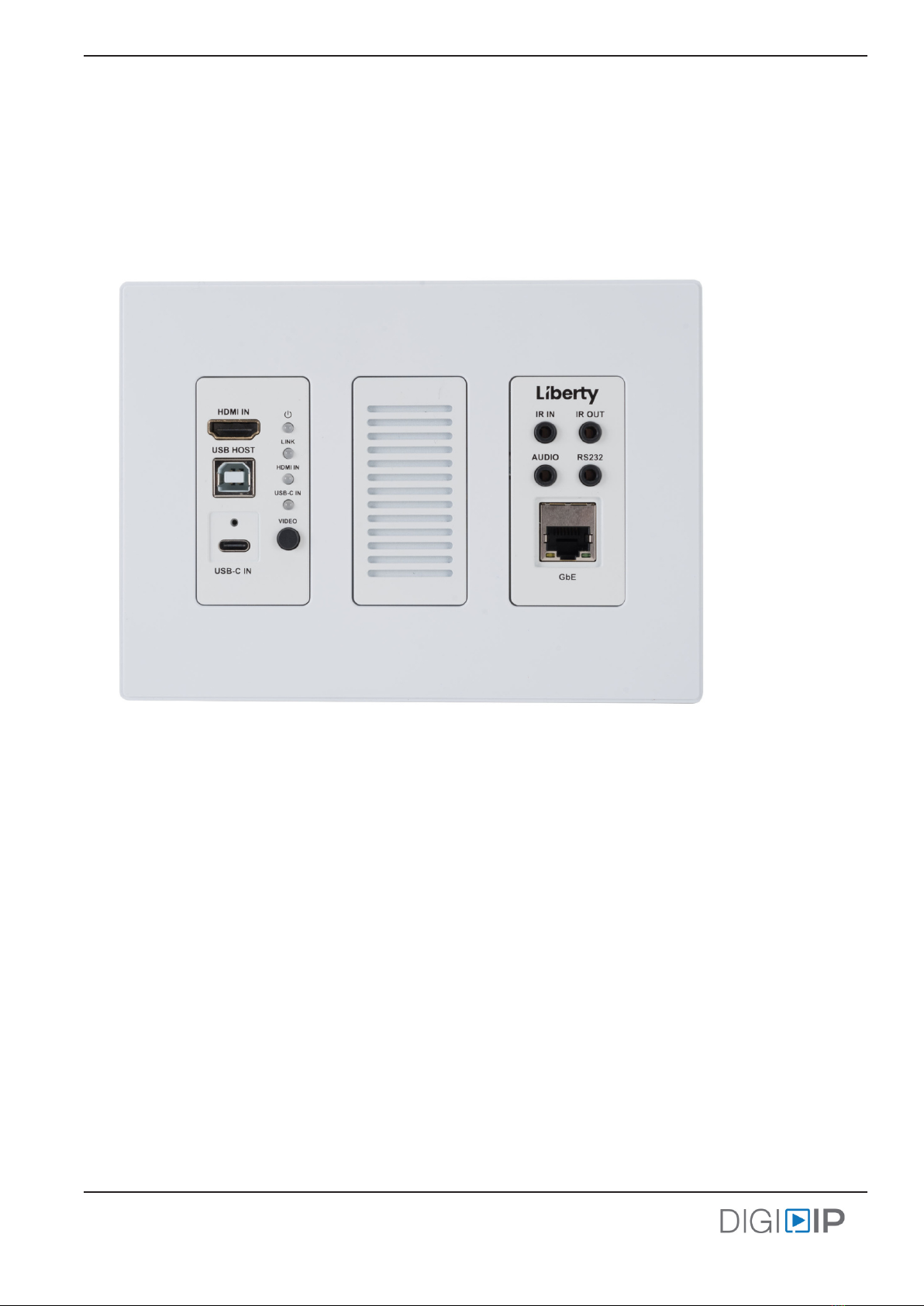

IPEX6001U-WP-W Front Panel
1. Inputs : (USBC, HDMI)
2. 1gb LAN connecon pass through
3. Source buon select if in manual mode
4. LEDs:
•USBC and HDMI show source acve
•Link; BLINKING; device is connected to switch and or another device. OFF; device is not connected
to switch or another device
•Power ; On device is power on. O device power o.
5. Analog audio input/output
6. IR receiver in / IR emier output
7. USB B Host Connecon
8. RS232 / serial connecon
1
2
3
45
6
78
1

IPEX6001U-WP-W IPEX6002U-WP-W Install Guide
6
IPEX60001U-WP-W Rear Panel
1. 10GBaseT AV Network connection with PoE+ support.
2. Power used to power device (if PoE+ is unavailable) and/or
provide charging power for USB-C up to 65w. Optional power
supply part number PS-24D-5A
1
2

IPEX6001U-WP-W IPEX6002U-WP-W Install Guide
7
Front and Rear Panels
IPEX6002U-WP-W Front Panel
1. LEDs:
• Video On; video is passing to display. No video is passing
•Link; BLINKING; device is connected to switch and or another device. OFF; device is not connected to
switch or another device
•Power ; On device is power on. O device power o.
2. HDMI connecon for display / projector
3. 1gb LAN connecon for pass through
4. Analog audio output
5. IR receiver in
6. USB A client / device Connecon
7. IR emier output
8. RS232 / serial connecon
1
2
3
4
5
6
7
8

IPEX6001U-WP-W IPEX6002U-WP-W Install Guide
8
IPEX60002U-WP-W Rear Panel
1. 10GBaseT AV Network connection with PoE+
support.
2. Power used to power device (when PoE+ is
unavailable). Optional power supply part number
PS-24D-5A
1
2

IPEX6001U-WP-W IPEX6002U-WP-W Install Guide
9
System Installation Instructions
Connect IPEX6001U-WP-W, IPEX6002U-WP-W to Network Switch
Congure a 10GbE managed network switch for mulcast video operaon.
Note: A 1G network switch cannot be used with the 6000 series due to the high port speed requirements of the
IPEX6001U-WP-W, IPEX6002U-WP-W a 10GbE managed network switch is required.
Liberty has documented several network switch sengs for many common switch manufacturers, see
documents related to this product on the product page of the Liberty AV website (www.libav.com).
Best Practice
When installing the AV endpoints, create a spreadsheet of all AVoIP transceivers notang the MAC address, the
aached source/sync and the desired transceiver funcon, i.e. encoder, decoder or both. This will aid in fast
nal system commissioning that could be done remotely by accessing the AV system server via VPN or via port
forwarding. See Arranger Documentaon for more informaon on how to access the server and set up port
forwarding.

IPEX6001U-WP-W IPEX6002U-WP-W Install Guide
10
Arranger Server Login
Connect Arranger Controller
Once the hardware controller has been connected to the AV Network, the Arranger server applicaon can be
accessed via web browser on any PC that is connected to the same AV Network switch. By default the IP address
for the Arranger server is 169.254.1.1. For inial system setup your PC will need to be in the same Network ID, i.e.
169.254/16.
Upon rst login of the Arranger server you will be asked for an unlock code for your license, once the license has
been entered you will be prompted for login credenals, by default the user name is admin and the password is
admin to login to the system initially.
Once logged in you will be asked to change the admin login password.
Best Practice
Log the changed password that you created in your project documentation.
Once logged in you can congure, manage and control all signal types for the DigitalinxIP 6000 series transceivers.
A complete operaon manual and API for the Arranger system is located in the Arranger server applicaon.
The provided Arranger hardware controller with the DigitalinxIP system should be hardwired via Ethernet to the
AV network switch.
Arranger is an AVoIP server applicaon that will congure and manage all transceiver components on an AV
Network. Arranger is licensed per endpoint for one AV Network and a license unlock code should have been
provided upon purchase of the Arranger DigiIP 6000 series license.
If you are missing the license unlock code contact [e-mail] and have serial number of the hardware
controller nearby to conrm system license

IPEX6001U-WP-W IPEX6002U-WP-W Install Guide
11
Connecting IR Circuits
The IR connecons on the transceivers provide a means to control remote IR equipment.
Note: Please ensure power is disconnected from the encoders and decoders before connecng the IR receiver to
the IR input ports on the devices.
Connecting Serial / RS232 Compatible Devices
The RS232 connecons on the transceivers provide a means to control 3rd party devices using serial commands.

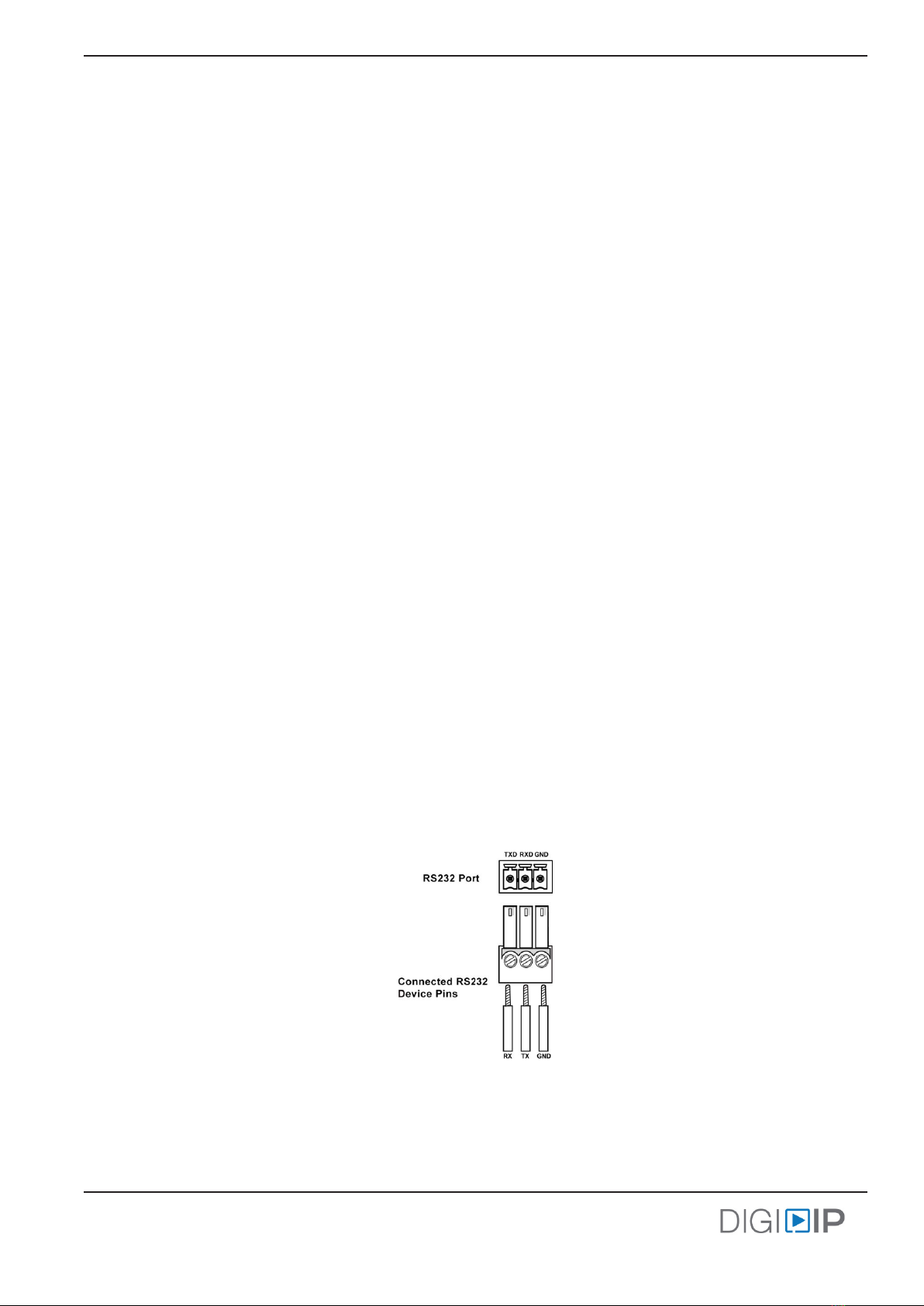

Connect the TX, RX, and ground control signal wires to the removable 3-pole terminal block, be sure the wiring
from transceiver to the device is TX - RX, RX - TX, G - G. See illustraon below
Connecting HDMI Devices
Connecting Audio Devices
Use only high quality High Speed HDMI cables rated for 18Gbps, do not exceed HDMI cable lengths over 5m/15’ for
transceiver HDMI connecons to AV sources and displays.
The 3.5mm analog audio I/O connecon can be congured as an input or an output and is congured in the
Arranger server. Connect a 3.5mm stereo audio cable to the transceivers audio I/O port
Note: Audio output is 2 channel stereo audio only and is not capable of downmixing mul channel audio
Connecting USB Devices
A IPEX6001U-WP-W a USB host and IPEX6002U-WP-W is a client. Connect USB components with USB 2.0 rated
cables, do not exceed cable lengths over 5m/15’
Note: IPEX6000TC-C supports USB 2.0 Full Speed signals up to 12Mbps, which is ideal for simple KVM or touch
control. Do not use high quality USB microphones or webcams on the transceiver. IPEX6001U-WP-W and IPEX6002U-
WP-W supports USB 2.0 High Speed signals up to 480Mbps.

IPEX6001U-WP-W IPEX6002U-WP-W Install Guide
12

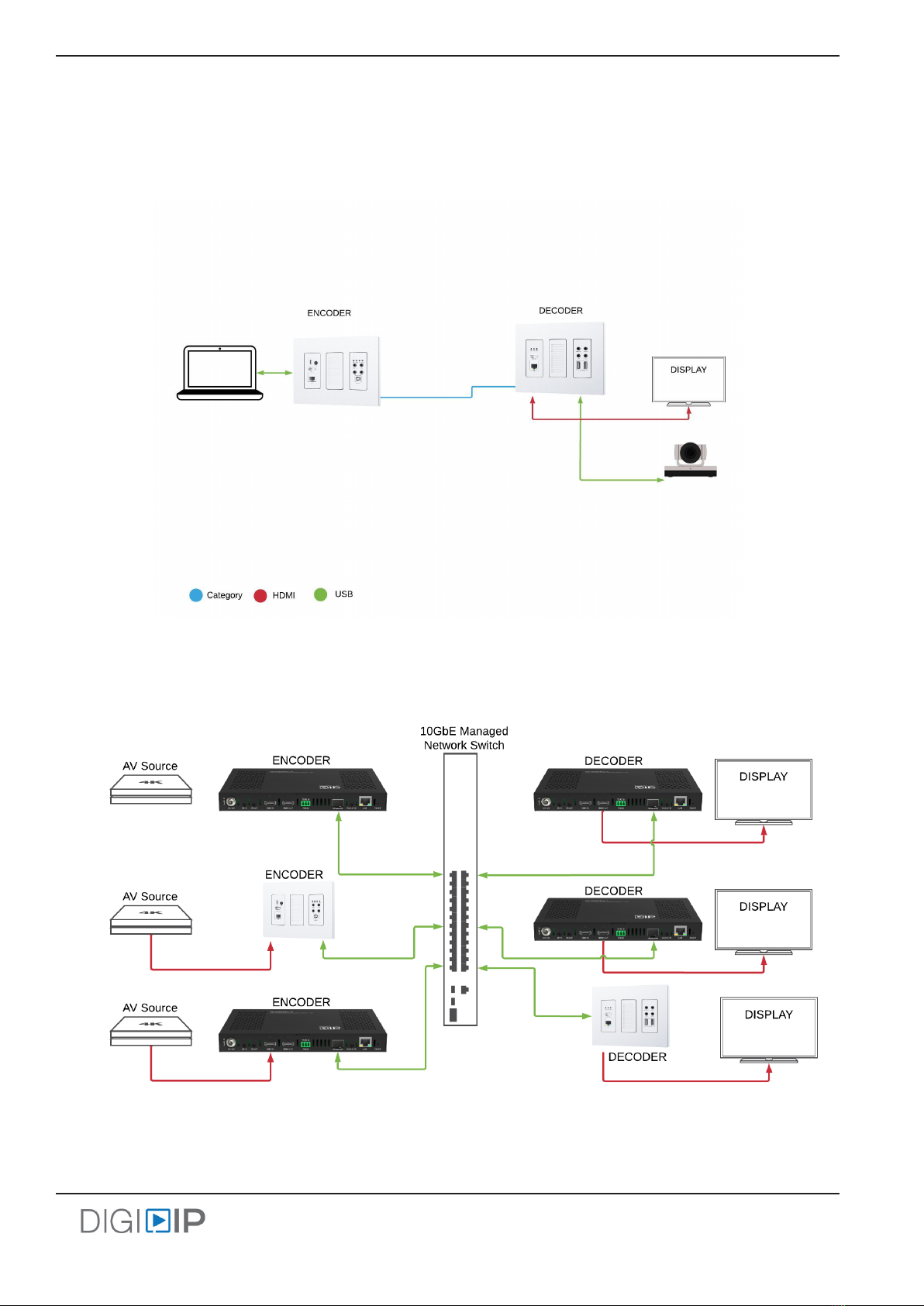

Point to Point AV Extender
A/V Network Matrix
Application Diagrams
Note: Transceiver mode (encoder, decoder or both) can be congured by Arranger server

IPEX6001U-WPTechnical Specifications
Input/Output Connecons
HDMI Input One (1) HDMI Type A Receptacle
USBC Input One (1) USBC
LAN 10GbE: One (1) 8P8C port (Shielded RJ45)
LAN: One (1) 8P8C port (Shielded RJ45)
Power One (1) 2 Pin 3.5mm phoenix connector
RS232 Port One (1) 3.5 mm TRS Receptacle
USB Device One (1) USB Type B Port
Audio Input / Output One (1) 3.5 mm TRS Receptacle
IR Input One (1) 3.5 mm TRS Receptacle
IR Output One (1) 3.5 mm TRS Receptacle
Supported Audio, Video and Control
Video Input Resoluons Resoluons up to 4K@60Hz, 4:4:4
Supports HDR Metadata, including DolbyVision, HDR10 and HLG
Video Output Resoluons Resoluons up to 4K@60Hz, 4:4:4
Supports HDR Metadata, including DolbyVision, HDR10 and HLG
Video Compliance HDMI 2.0 and HDCP 2.2
Embedded Audio HDMI: LPCM, 2.0/5.1/7.1 channel, 44.1/48/96/192 kHz, Dolby True HD, up to 7.1,192kHz, DTS-
HD Master, up to 7.1,192kHz, Dolby Digital AC-3 (DVD format), DTS version 1 (DVD format)
Analog / 3.5mm: Unbalanced 2 channel stereo
Supported Baud Rates 300, 600, 1200, 2400, 4800, 9600, 19200, 38400, 57600, 115200
USB Compliance USB 2.0 High speed up to 480Mbps
Video Wall Scale Capability Up to 8x5
Streaming Signal Characteriscs
Maximum Distance (point to point) 100m (984 ) when using Cat6a/7
Maximum Distance (matrix, mul-view, video wall) 100m (984 ) when using Cat 6a/7
Cable Requirements Cat6a/7
Encoding Data Rate 4K Signals: Up to 8Gbps
1080p Signals: Up to 4Gbps
End to End Latency Zero Frame Latency
Chassis and Environmental
Dimensions (H x W x D) 105.6 mm x 140 mm x 47 mm (0.98in x 8.5 in x 5.5 in)
Weight 0.76kg / 1.67 lbs
Operang Temperature 0° to +45° C (+32° to +113° F)
Operang Humidity 10% to 90%, Non-condensing
Storage Temperature -20° to +70° C (-4° to +140° F)
Storage Humidity 10% to 90%, Non-condensing
Power and Regulatory
Power Input 24V DC 5A or 48V DC PoE+ (Power over Ethernet)
Power Consumpon 10.1 was
ESD Protecon 8kV air, 4kV contact
Regulatory FCC, CE, RoHS
Other
Warranty 5 years
Included Accessories Installaon Guide, Wall plate plasc cover, 3-pin Removable Screw Terminal, IR emier, IR
receiver
Compable Transceiver IPEX6000TC-C, IPEX6000TC-F, IPEX6002U-WP-W
Distances and picture quality may be aected by cable grade, cable quality, source and desnaon equipment, RF and electrical interference, and cable
patches.

IPEX6002U-WPTechnical Specifications
Input/Output Connecons
HDMI output One (1) HDMI Type A Receptacle
LAN 10GbE: One (1) 8P8C port (Shielded RJ45)
LAN: One (1) 8P8C port (Shielded RJ45)
Power One (1) 2 Pin 3.5mm phoenix connector
RS232 Port One (1) 3.5 mm TRS Receptacle
USB Device One (2) USB Type A female 01814548 Port
Audio Input / Output One (1) 3.5 mm TRS Receptacle
IR Input One (1) 3.5 mm TRS Receptacle
IR Output One (1) 3.5 mm TRS Receptacle
Supported Audio, Video and Control
Video Input Resoluons Resoluons up to 4K@60Hz, 4:4:4
Supports HDR Metadata, including DolbyVision, HDR10 and HLG
Video Output Resoluons Resoluons up to 4K@60Hz, 4:4:4
Supports HDR Metadata, including DolbyVision, HDR10 and HLG
Video Compliance HDMI 2.0 and HDCP 2.2
Embedded Audio HDMI: LPCM, 2.0/5.1/7.1 channel, 44.1/48/96/192 kHz, Dolby True HD, up to 7.1,192kHz, DTS-
HD Master, up to 7.1,192kHz, Dolby Digital AC-3 (DVD format), DTS version 1 (DVD format)
Analog / 3.5mm: Unbalanced 2 channel stereo
Supported Baud Rates 300, 600, 1200, 2400, 4800, 9600, 19200, 38400, 57600, 115200
USB Compliance USB 2.0 High speed up to 480Mbps
Video Wall Scale Capability Up to 8x5
Streaming Signal Characteriscs
Maximum Distance (point to point) 100m (984 ) when using Cat6a/7
Maximum Distance (matrix, mul-view, video wall) 100m (984 ) when using Cat 6a/7
Cable Requirements Cat6a/7
Encoding Data Rate 4K Signals: Up to 8Gbps
1080p Signals: Up to 4Gbps
End to End Latency Zero Frame Latency
Chassis and Environmental
Dimensions (H x W x D) 105.6 mm x 140 mm x 47 mm (0.98in x 8.5 in x 5.5 in)
Weight 0.76kg / 1.67 lbs
Operang Temperature 0° to +45° C (+32° to +113° F)
Operang Humidity 10% to 90%, Non-condensing
Storage Temperature -20° to +70° C (-4° to +140° F)
Storage Humidity 10% to 90%, Non-condensing
Power and Regulatory
Power Input 24V DC 5A or 48V DC PoE+ (Power over Ethernet)
Power Consumpon 10.1 was
ESD Protecon 8kV air, 4kV contact
Regulatory FCC, CE, RoHS
Other
Warranty 5 years
Included Accessories Installaon Guide, Wall plate plasc cover, 3-pin Removable Screw Terminal, IR emier, IR
receiver
Compable Transceiver IPEX6000TC-C, IPEX6000TC-F, IPEX6001U-WP-W
Distances and picture quality may be aected by cable grade, cable quality, source and desnaon equipment, RF and electrical interference, and cable
patches.

Thank you for your purchase.
For Technical Support please call our toll free number at
800-530-8998 or email us at [e-mail]
www.libav.com
1490 Garden of the Gods Suite F
Colorado Springs, Colorado
80907 USA
Phone: [phone]
Fax: [phone]
Toll-Free: 800-530-8998
