LIBERTY AV SOLUTIONS DL-SCU33-SW User manual

www.libav.com 800.530.8998
USER MANUAL
Web-Conferencing Room Switcher
DL-SCU33-SW
2021V1.0

USER MANUAL / DL-SCU33-SW
2
Thanks for choosing Liberty AV’s DL-SCU33-SW Web-Conferencing Room Switcher! The switcher/
hub (DL-SCU33-SW) is a multi-format switcher that provides AV switching and USB routing for BYOM
(bring your own meeting) devices to connect to dedicated cloud-based room systems. Users will be
able to easily bring-their-own-meeting (i.e. Teams desktop client) in spaces running dedicated cloud-
based room clients (i.e. Zoom room client). The devices allows USB peripherals to switch between
dedicated room systems and BYOM devices such as laptops. In addition, when BYOM is enabled,
users can integrate their laptop into a dual screen environment by mirroring the laptop’s output. The
device’s compact size allows for exible mounting locations such as behind a display or underneath
the table; mounting brackets come included. The USB-C port provides up to 60 watts of charging
power creating the all-in-one cable experience. Built-in USB hub provides easy connection of devices
like cameras, microphones, and speakers. Easily switch between modes from third-party devices
ranging from a keypad/button or leave it set to auto switch. Integrated digital I/O ports and the built-
in scheduler provide users with touchless display control using the built-in CEC controller. The
control software has an event-driven architecture allowing conguration to be a breeze. The existing
HDMI presentation cable can be used in either, dedicated or BYOM mode; no need to add another
HDMI cable.
The collaboration switcher simplies meeting room and presentation space system integration
by providing two video modes (BYOM mode and Standard mode) with three HDMI inputs, one
USB-C input and three HDMI outputs. The USB-C input supports video, data (USB host) and power
charging up to 60w. There is a 4-port USB client hub built with 3 USB host ports that can be switched
independently.
The switcher supports resolution up to 4K@60Hz@4:4:4, is HDCP 2.2-compliant and has a built-in
USB 3.0 switching hub for control and integration of USB devices such as USB cameras
and microphones.
The switcher supports auto switching and allows users to control the system functionality via TCP/IP,
Digital I/O, contact and front panel.
PRODUCT OVERVIEW
PACKAGE CONTENTS
(x1) User Manual (x1) DL-SCU33-SW HDMI
2.0 Web-Conferencing
Room Switcher
(x4) Power Adaptor
(24V DC 5A)

USER MANUAL / DL-SCU33-SW 3
1. Dip Switch:
Auto: Allows for switching between modes using the video sync detected on the USB-C Alt
mode setting.
Manual: isables video auto switching based on the connectivity of the USB-C port. In manual
mode, the USB-C port can be used for charging purposes.
2. Laptop Mode:
Female HDMI Port: Connect a laptop for BYOM mode.
Female USB-C Port: Connect a laptop for BYOM mode or to charge a device using “convenience”
power. Port provides display alt mode, USB data transfer and power.
Female USB B: Connect a laptop for BYOM mode.
3. Room PC Mode:
Female HDMI port: Connect a dedicated room computer for dedicated room systems.
Second HDMI port: For dedicated room computers using dual display.
Female USB B: Connect to the dedicated room computer.
4. CONTROL:
Female micro USB: Intended for FW updates or other conguration.
Dip switch: Select between 5 or 12 volts for the occupancy sensor power.
3-pin Phoenix connector: Digital I/O port for an occupancy sensor.
3-pin Phoenix connector: Contact closure.
5. POWER
Barrel Din connector: DC 24V power supply connection.
FRONT PANEL PRODUCT BREAKDOWN

USER MANUAL / DL-SCU33-SW
4
1. CONTROL
Female RJ45 connection for connecting into the device via the LAN.
Control the device from a third-party system through the integrated network and/or access the
built in web GUI.
2. USB Client Connectivity
Female USB-A 3.0 port. Connect up to four USB peripherals such as cameras and microphones.
3. DISPLAY-OUT
Female HDMI outputs
4. SHARE-OUT
Female HDMI output
5. AUDIO-OUT
Female 3.5 audio jack
6. EDID
Dip switch for setting EDID settings
7. RESET
Push button for resetting the device
REAR PANEL PRODUCT BREAKDOWN

USER MANUAL / DL-SCU33-SW 5
REAR PANEL PRODUCT BREAKDOWN MODES
SWITCHING BETWEEN MODES
BYOM Mode
BYOM (Bring Your Own Meeting) mode allows users to bring their own device to meeting.
1. USB-C or HDMI of LAPTOP IN will switch to 2 HDMI outputs of DISPLAY OUT.
2. USB clients will switch to the USB host connected to the LAPTOP IN (USB-B port if the HDMI source is
connected OR, the USB-C port.
3. Audio output will be extracted from USB-C or HDMO of the LAPTOP IN.
*Note: The HDMI signal will be selected if both USB-C and HDMI of LAPTOP IN are connected.
** Note: The USB-C will need to be set to manual or enabled for BYOM. By default, the USB-C port will
be set for Standard Mode.
Standard Mode
1. 2 HDMI inputs of ROOM PC IN will switch to DISPLAY separately. USB-C or HDMI of LAPTOP IN will
switch to SHARE OUT.
2. USB clients will switch to the USB-B host of ROOM PC IN.
3. Audio output will de-embedded from 1-HDMI of ROOM PC-IN.
Manual Switching
When the DIP switch next to the LAPTOP-IN is selected to MANUAL, the switcher is now in manual
switching mode.
One can select BYOM or STANDARD mode via:
• Web GUI landing page
• Occupancy sensor connected via digital i/o
• Control from a third-party device
• Predened schedule
• Push button connected via contact closure can select BYOM or STANDARD mode via web GUI
• QR code
Auto Switching
When the DIP switch of rear panel is selected to AUTO, the switcher is in auto-switching mode. BYOM or
STANDARD mode will be automatically selected by signal detected according to the following rules:
1. If the USB-C or USB-B signal of LAPTOP IN is detected, BYOM mode is selected.
2. If neither the USB-C or USB-B signal of LAPTOP IN is detected, STANDARD mode is selected.
The DL-SCU33-SW collaboration switcher provides two modes to select from which allows users to
choose from either a dedicated in-room PC running software or from their own laptop that they
brought into the meeting space. The switcher is NOT a matrix switcher, and does not allow for custom
routing of AV and USB signals.

USER MANUAL / DL-SCU33-SW
6
Dedicated Room System (Standard): The collaboration switcher gets installed in series within the
dedicated room systems signal chain, ideal for post- or pre-install and is purpose-built for single or
dual screen enviroments. The shared content output allows for a dedicated room system to use the
connected HDMI OR USB-C cable for wired HDMI screen sharing, injecting the content into the software
running on the dedicated PC. This uses an HDMI to USB capture card to communicate between local
device content with the application such as Zoom or a Zoom Room.
Note: The HDMI content sharing output is optional and is not required for system functionality.
SYSTEM MODE: STANDARD
(DEDICATED ROOM PC WITHOUT LAPTOP)
DEDICATED PC
Using any software
application
AUDIO EXTRACTION
Route audio to your displays or
convert to an analog output
USB PERIPHERALS
Cameras, microphones, DSP
SINGLE OR DUAL SCREEN
Application showing a dedicated room PC with
NO laptop connection
The diagrams within this section are conceptual. The switcher can be installed in various locations
such as underneath the table, equipment rack, lectern or behind a display.

USER MANUAL / DL-SCU33-SW 7
USB PERIPHERALS
Cameras, microphones, DSP
SINGLE OR DUAL SCREEN
DEDICATED PC
Using any software
application
DEDICATED PC
Wired content sharing
using an HDMI to USB
capture device
SYSTEM MODE: STANDARD
(DEDICATED ROOM PC WITH LAPTOP)
Application showing a dedicated room PC with
a laptop connection for wired content sharing
In Standard mode, the HDMI signal from the laptop connection will route out of the SHARE OUTPUT.
This is intended for wired content sharing when using third-party UC software such as Zoom. Certain
UC software companies allow laptop content to be directly shared to the room system for screen share
during a video call or locally.
The USB-C connection will send adequate power to charge the device, receive audio and 4K@60Hz video
signals for video output and transferring USB data. Note: A full-featured USB-C cable must be used along
with a laptop with a full-featured USB-C port.
AUDIO EXTRACTION
Route audio to your displays or
convert to an analog output

USER MANUAL / DL-SCU33-SW
8
SYSTEM MODE: BYOM (LAPTOP)
BYOM (Bring Your Own Meeting): Based on how the collaboration switcher is congured, the LAPTOP IN
connection provides the ability for users to connect to the meeting space assets from their own device,
such as the display, amplier, camera and microphone OR be used for wired content sharing within a
dedicated room system.
1. CONTENT: USB-C or HDMI from the LAPTOP IN connection will switch to the 2 HDMI outputs from
DISPLAY OUT. The content will be mirrored to each output. The switcher can be wired for dual or single
screen applications.
2. USB: The USB devices connected to the USB 3.0 section client ports will switch to the laptop USB host
(USB-B port ties to HDMI or USB-C port if USB-C source is connected).
Note: HDMI signal will be selected if both USB-C and HDMI of LAPTOP IN are connected.
USB PERIPHERALS
Cameras, microphones, DSP
AUDIO EXTRACTION
Route audio to your displays or
convert to an analog output
Application showing BYOM MODE
SINGLE OR DUAL SCREEN
DEDICATED PC
No longer part of
the system
BYOM
Takes over the room
assets

USER MANUAL / DL-SCU33-SW 9
WEB GUI INTERFACE: START UP
The device has a built in web GUI allowing for conguration along with being controlled via TCP/IP.
The default IP settings are:
IP Address: 192.168.0.178
Subnet Mask: 255.255.255.0
Type 192.168.0.178 in the web browser, and you will see the Welcome webpage:
Click on the “Get Started” button and you will be sent to the Operation Page

USER MANUAL / DL-SCU33-SW
10
The Operators page provides basic controls, allowing for easy switching between modes, audio
adjustments and power cycling. The room name and logo can be updated within the admin settings
based on your preferences.
WEB GUI INTERFACE: OPERATORS PAGE
Web View
Mobile View
The predened GUI provides the following functionality:
• Mode Selection: Select between BYOM or Standard.
• Audio Boost: Boost the HDMI output TV via CEC.
• Power: Turn on/o the unit.

USER MANUAL / DL-SCU33-SW 11
CONTACTLESS MEETING CONTROL
Use the built-in web GUI home page for providing users with remote control over the system.
It’s quick and easy to create your digi-QR code:
1. Make sure your device is online and has an IP address.
2. Choose a QR code generator -Free options:
qr-code-generator.com
QR Code Monkey
3. Paste URL of the switcher into the generator (using dynamic updates, if asked)
4. Print, promote and publish this unique QR code for use.
Example

USER MANUAL / DL-SCU33-SW
12
Note: The Admin page, is NOT available when using a mobile phone.

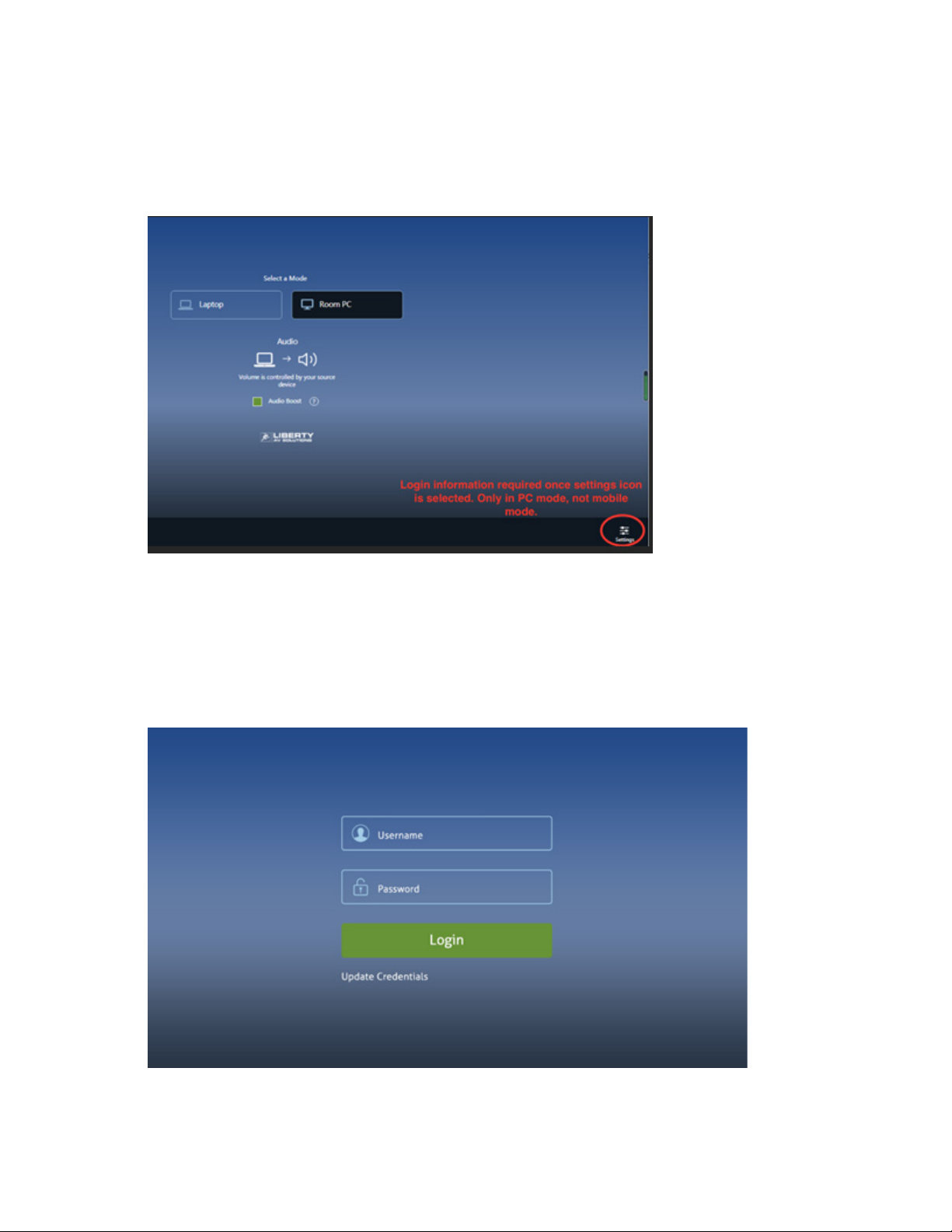

Click the “Settings” icon in the bottom right-hand corner to access the admin page to congure the device.
WEB GUI INTERFACE: ADMIN PAGE
A login pop-up will appear asking for login information.
Default username: admin
Default password: admin
Here one can update the credentials for enhanced security.

USER MANUAL / DL-SCU33-SW 13
WEB GUI INTERFACE: ADMIN PAGE
The DL-SCu33 provides automation through an event-driven architecture where actions are executed as
events happen.
Event:apply to the cases you want something to happen (for instance turning a display ON).
Label: freely select any name for your event. We have input generic text that can be left alone.
Trigger: is the action that starts an automation. These can be a user tripping a sensor, the completion of
a timer or changes in state of the device. In fact, triggering an event can activate any number of actions,
enabling an automated experience for the user.
Actions: are events you can force to occur in reaction to a trigger enabling a range of possibilities to
automate the user experience.

USER MANUAL / DL-SCU33-SW
14

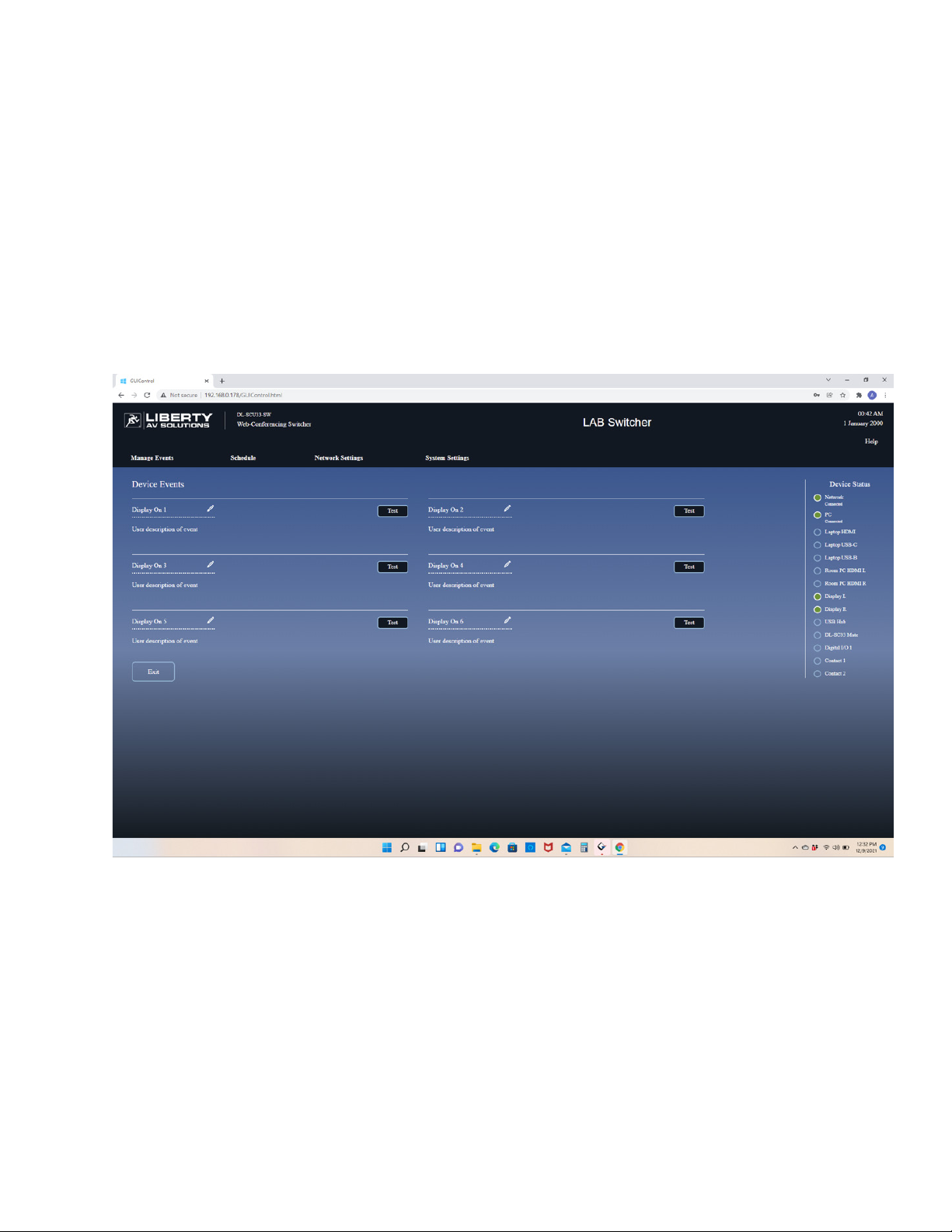

WEB GUI INTERFACE: MANAGE EVENTS
Event list: 6 events list here, click the pencil for event setting.
Here you will be able to update the event name, and set CEC commands to be sent when the event
is triggered.
Manage Events

USER MANUAL / DL-SCU33-SW 15
WEB GUI INTERFACE: SCHEDULE
• Current date/ time setting.
• System on/o setting.
• IPv4 and IPv6 setting.
Schedule
Network Setting

USER MANUAL / DL-SCU33-SW
16
• Room name, welcome message and logo setting.
• Time setting:
1. Auto/ Manual setting.
2. Daylight saving time.
• System Conguration:
1. Upload or download conguration le.
2. Firmware update.
3. Factory reset.
Login credentials
WEB GUI INTERFACE: SYSTEM SETTINGS
Within the system settings, you will be able to update the following:

USER MANUAL / DL-SCU33-SW 17
RS232 CONTROL
RS232 commands can be transmitted to the unit for local control. The baud rate supports 9600(default),
19200, 38400, 57600 or 115200.
RS232 Control Software
• Installation/uninstallation
• Installation: Copy the control software le to the computer connected with the transmitter.
• Uninstallation: Delete all the control software les in corresponding le path.
• Basic Settings
First connect the transmitter with all input devices and output devices needed, then connect it with a
PC which is installed with RS232 control software. Double-click the software icon to run this software.
Here we take the software CommWatch.exe as example. The icon is shown as below:
The interface of the control software is shown as below:
Please set the parameters of COM number, bound rate, data bit, stop bit and the parity bit correctly, and
then you are able to send command in command sending area.

USER MANUAL / DL-SCU33-SW
18
RS232 Command
Communication protocol: RS232 Communication Protocol
Baud rate: 115200 Data bit: 8 Stop bit: 1 Parity bit: none
The end mark of command is “<CR><LF>”.
Command Function Command & Feedback Example
>Help Get the list of all commands >Help SetAV
<Set the HDMI switch mode
>SetAV Param
Param = M1,M2
M1 - BYOM Mode
M2 - Standard Mode
>GetFirewareVersion Get the rmware version >GetFirewareVersion
<V1.0.0
>FactoryReset Factory Default >FactoryReset
<FactoryReset_True
>SetAV Param Set the HDMI switch mode
Param = M1, M2
M1 - BYOM Mode
M2 - Standard Mode
>SetAV M1
<AV M1
>GetAV Get the HDMI switch mode >GetAV
<AV M1
>SetAudioMute
Param
Enable/Disable audio mute
Param = ON, FF
ON - ON
FF - OFF
>SetAudioMute ON
<AudioMute ON
>SetEDID Param1 To
Param2
Set the EDID mode
Param1 = 00 ~ 04
00~04 - Input
Param2 = 00 ~ 12
00 - 1920x1080@60 8bit Stereo (default)
01 - WUXGA 1920x1200
02 - 1920x1080@60 8bit High Denition
Audio
03 - 3840x2160@60Hz 4:2:0 Deep Color
Stereo Audio
04 - 3840x2160@60Hz Deep Color Stereo
Audio
05 - 3840x2160@30Hz 8bit Stereo Audio
06 - 3840x2160@60Hz Deep Color High
Denition Audio
07 - 3840x2160@60Hz Deep Color HDR
LPCM 6CH
08 - copy EDID from Share output
09 - copy EDID from HDMI L output
10 - copy EDID from HDMI R output
11 - EDID passthrough(follow HDMI share)
>SetEDID 01 To 01
<EDID
IN 01
STA 01
RS232 CONTROL COMMANDS

USER MANUAL / DL-SCU33-SW 19
Command Function Command & Feedback Example
>GetEDID Get the EDID mode >GetEDID
<EDID
IN 01 02 03 04
STA 01 01 01 01
>SetPower Param Enter/exit standby mode
Param = On, O
O - Power o
On - Power on
>SetPower On
<Power On
>GetPower Get the standby status >GetPower
<Power On
>SetIOMode Param Set Contact I/O mode
Param = 1 ~ 2
1 - IO Mode 1
2 - IO Mode 2
>SetIOMode 1
<IOMode 1
>GetIOMode Get Contact IO mode >GetIOMode
<IOMode 1
>SetCtlCecOn Param Enable/Disable CEC control
Param = ON,FF
ON - ON
FF - OFF
>SetCtlCecOn
<SetCtlCecOn ON
>GetCtlCecOn Get CEC control status >GetCtlCecOn
<GetCtlCecOn ON
>SetSchedule
<Param1,Param2,
Param3,Param4,
Param5,Param6,
Param7,Param8,
Param9,Param10,
Param10>
Set Schedule time
Param1 = 0 ~ 24(hour)
Param2 = 0 ~ 60(min)
Param3 = 0 ~ 24(hour)
Param4 = 0 ~ 60(min)
Param5 = 0 ~ 1(Sun)
Param6 = 0 ~ 1(Mon)
Param7 = 0 ~ 1(Tues)
Param8 = 0 ~ 1(Wed)
Param9 = 0 ~ 1(Turs)
Param10 = 0 ~ 1(Fri)
Param11 = 0 ~ 1(Sat)
>SetSchedule <1,0,1,0,0,1,1,1,1,1,1>
<SetSchedule <1,0,1,0,0,1,1,1,1,1,1>
>GetSchedule Get Schedule time >GetSchedule
<Time: 1,0,1,0,0,1,1,1,1,1,1>
>SetDaylight Param Set Daylight on/o
Param = On, O
O - Power o
On - Power on
>SetDaylight On
<Daylight On
>GetDaylight Get Daylight on/o >GetDaylight
<Daylight On
>SetTime
<Param,Param1,Para
m2,Param3,Param4,P
aram5>
Initialize the time setting
Param = 1970 ~ 2099(year)
Param1 = 1 ~ 12(month)
Param2 = 1 ~ 31(date)
Param3 = 0 ~ 24(hour)
Param4 = 0 ~ 60(min)
Param5 = 0 ~ 60(sec)
>SetTime <2020,1,1,1,1,1>
<SetTime <2020,1,1,1,1,1>
RS232 CONTROL COMMANDS

USER MANUAL / DL-SCU33-SW
20
Command Function Command & Feedback Example
>GetTime Get current time >GetTime
<Time: 2020,1,1,1,1,1>
>GetIpAddress Get the IP to access GUI >GetIpAddress
<IP: 192.168.0.178
>SetIP
<XXX.XXX.XXX.XXX>
<YYY.YYY.YYY.YYY>
<ZZZ.ZZZ.ZZZ.ZZZ>
Set the GUI IP address
XXX = 0 ~ 255(IP ADDRESS)
YYY = 0 ~ 255(MASK)
ZZZ = 0 ~ 255(GATE)
>SetIP <192.168.0.178>
<255.255.255.0> <192.168.0.1>
<SetIP <192.168.0.178>
<255.255.255.0> <192.168.0.1>
>SetCecSrcMenu
Param
Send CEC MENU command to source
Param = 1~3
1 - HOSTA HDMI
2 - HOSTB(L) HDMI
3 - HOSTB(R) HDMI
>SetCecSrcMenu 1
<CecSrcMenu 1
>SetCecSrcUp Param Send CEC UP command to source
Param = 1~3
1 - HOSTA HDMI
2 - HOSTB(L) HDMI
3 - HOSTB(R) HDMI
>SetCecSrcUp 1
<CecSrcUp 1
>SetCecSrcDown
Param
Send CEC DOWN command to source
Param = 1~3
1 - HOSTA HDMI
2 - HOSTB(L) HDMI
3 - HOSTB(R) HDMI
>SetCecSrcDown 1
<CecSrcDown 1
>SetCecSrcLeft Param Send CEC LEFT command to source
Param = 1~3
1 - HOSTA HDMI
2 - HOSTB(L) HDMI
3 - HOSTB(R) HDMI
>SetCecSrcLeft 1
<CecSrcLeft 1
>SetCecSrcRight
Param
Send CEC RIGHT command to source
Param = 1~3
1 - HOSTA HDMI
2 - HOSTB(L) HDMI
3 - HOSTB(R) HDMI
>SetCecSrcRight 1
<CecSrcRight 1
>SetCecSrcBack
Param
Send CEC BACK command to source
Param = 1~3
1 - HOSTA HDMI
2 - HOSTB(L) HDMI
3 - HOSTB(R) HDMI
>SetCecSrcBack 1
<CecSrcBack 1
>SetCecSrcEnter
Param
Send CEC ENTER command to source
Param = 1~3
1 - HOSTA HDMI
2 - HOSTB(L) HDMI
3 - HOSTB(R) HDMI
>SetCecSrcEnter 1
<CecSrcEnter 1
>SetCecSrcOn Param Send CEC ON command to source
Param = 1~3
1 - HOSTA HDMI
2 - HOSTB(L) HDMI
3 - HOSTB(R) HDMI
>SetCecSrcOn 1
<CecSrcOn 1
RS232 CONTROL COMMANDS
