Lifemax QM894 Use and care manual

OWNER’S MANUAL/ASSEMBLY INSTRUCTION
This product is intended for indoor, home use only and is not to be used in a commercial setting.
Manufactured for Bluestem Brands, Inc. by Body Flex Sports, Inc.
Product Code : QM894 / Model #: BRF712
PLEASE READ MANUAL CAREFULLY BEFORE ATTEMPTING TO ASSEMBLE OR USE
YOUR NEW EXERCISE EQUIPMENT. RETAIN FOR FUTURE USE.
Warning :
Maximum Weight
Capacity is 250 lbs

QM894 Page 1
PLEASE KEEP THESE INSTRUCTIONS FOR FUTURE USE & REFERENCE.
DO NOT DISCARD.
WARNING: SERIOUS INJURIES AND EVEN DEATH CAN OCCUR IF THE PROPER SAFETY PRECAUTIONS
ARE NOT FOLLOWED.

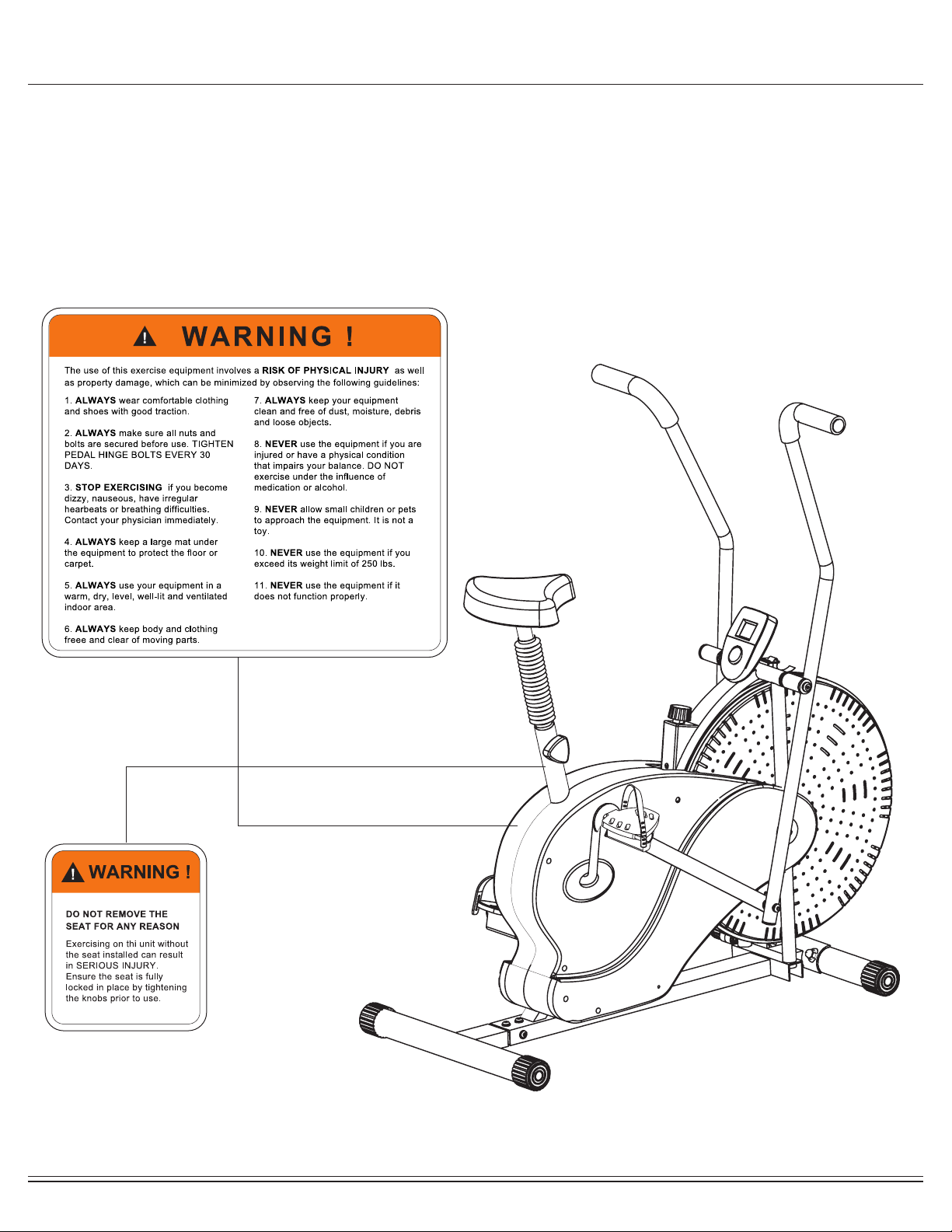

The diagram below highlights and reviews many of the important Safety and Warning labels also found on the unit.
Please ensure any user of the unit familiarizes themselves with these Safety and Warning guidelines before use.

QM894 Page 2
Before you undertake any exercise program, please be sure to
consult with your doctor.
Frequent strenuous exercise should be approved by your
doctor and proper use of your product is essential.
Excessive or incorrect training may result to health injuries.
Please read this manual carefully before commencing the
assembly of your product or starting to exercise.
• Please keep all children away from this item when in use.
Do not allow children to climb or play on this item when it
is not in use.
• Supervise teenagers while they use this unit.
• For your own safety, always ensure that there is at least
3 feet of free space in all directions around your product
while you are exercising.
• Regularly check to see that all nuts, bolts and ttings are
securely tightened. Periodically check all moving parts for
obvious signs of wear or damage.
• Any adjustment devices that could interfere with the user’s
movement on this unit should not be left projecting.
• Clean only with a damp cloth, do not use solvent
cleaners. Lubricate the moving parts of your unit every 30
days with a silicone-based grease or product.
If you are in any doubt, do not use your product; contact
CUSTOMER SUPPORT.
• Before use, always ensure that your product is positioned
on a solid, hard-at surface.
• Do not place on carpet. If necessary, use a rubber mat
underneath to reduce the possibility of slipping.
• Always wear appropriate clothing and footwear such as
training shoes when exercising. Do not wear loose clothing
that could become caught in moving parts during exercise.
• Do not use this unit if it is not functioning properly or if it is
not fully assembled.
• Do not use this unit for commercial purposes. This unit is
for home use only.
• Before use, you must read and understand all instructions
& warnings stated in this Owner’s Manual as well as
posted on the equipment.
• It is the facility owner’s responsibility to properly instruct
users on the proper operation of the equipment and to
warn them of the potential hazards.
• If at any time during exercise you feel faint, dizzy or
experience pain, stop and consult your physician.
Your product is intended for use in clean dry conditions. You
should avoid storage in excessively cold or damp places as
this may lead to corrosion and other related problems.
If you have any questions concerning the assembly of your
item or if any parts are missing, please DO NOT RETURN
THE ITEM TO THE STORE OR CONTACT THE
RETAILER.
Our dedicated customer service sta󰀨 can help you with
any questions you may have regarding the assembly of this
unit and can also mail you replacement parts.
Customer Support is open 9:00 a.m. to 5:00 p.m. (Pacic
Time) Monday through Friday.
Please contact us by any of the following means :
Body Flex Sports, Inc.
21717 Ferrero Parkway, Walnut, CA 91789
Telephone: [phone] - 6789
Fax: [phone] - 6707
Email: info@bodyexsports.com
Body Flex Sports warrants your product for a period of
1 year for the frame and 90 days on all parts if the item is used
for the intended purpose, properly maintained and not used
commercially.
Any alterations or incorrect assembly of the product will void
this warranty.
Proof of purchase must be presented for any warranty
validation (no exceptions). This warranty applies to the original
purchaser only and is not transferable.
This warranty does not cover abuse or defects caused during
use, storage or assembly. During the warranty period, Body
Flex Sports reserves the right to:
1. provide replacement parts to the purchaser in an e󰀨ort to
repair the item.
2. repair the product returned to our warehouse (at the
purchaser’s cost).
3. replace the product if neither of the two previously
mentioned actions e󰀨ect repair. This warranty does not
cover normal wear and tear on upholstery.
- Ruler with both Metric and English measurements
- 2 x Adjustable Wrenches
- 1 x Philips (”Crosshead”) Screw Driver
Your product is suitable for users weighing :
250 pounds or less
General Information
Safety Storage and Use
Questions
Customer Support
Warranty
Assembling Tools
Weight Limit

QM894 Page 3
Before Assembly
1. Take a few minutes to familiarize yourself with the parts and hardware included with your product.
2. Assembly may require two people.
3. Check the frame for any damage and check any wiring (if present) for rips or tears. If you detect damage, rips, or
tears, please contact our Customer Support Team before beginning any assembly.
4. Make sure all the hardware needed is included.
5. It is very important to follow the assembly instructions correctly and to make sure all parts are attached correctly and
rmly tightened when the assembly process is complete.
6. Parts that are not tightened correctly will seem loose and can cause irritating noises and will cause damage to the
equipment.
1. It is only necessary to tighten the bolts and nuts to “nger tight” during the assembly process. This will make it
easier to complete certain steps by allowing more tolerance for all the parts to t properly.
2. Do not tighten all the nuts onto the bolts securely until after you have completed assembly of your product.
3. Use wrenches, pliers, or ratchet and sockets to tighten the bolts and nuts.
4. The Nylon Nut should thread onto the Hex Bolt until the end of the Hex Bolt has passed through the Nylon insert
inside the Nut. Please follow this guideline everytime you see this Nylon Nut icon throughout the assembly steps.
Nylon Lock Safety Nuts
Tools Required For Assembly
WARNING
PLEASE NOTE : Many of the parts and hardwares listed on the parts list are already pre-assembled or
installed on the unit.
Tool Description/Purpose
Ruler (with both Metric and English measurements)
QTY: 1
Use to measure the length or size of hardware including
bolts to ensure you are using the correct part.
Adjustable or at wrenches
QTY: 2
Use to securely install parts including nuts and bolts.

4
Part Listing
The following parts list describes all of the parts illustrated on the exploded diagram on the following page.
PLEASE NOTE : most of these parts are already pre-assembled on your unit.
# Description
1B Main Frame
2A Front Stabilizer
3 Rear Stabilizer
4LA Left Handlebar
4RA Right Handlebar
5E Seat Tube (enhanced)
6L Left Linkage
6R Right Linkage
7L Left Pedal
7R Right Pedal
8 Monitor
9 Seat
10 Washer (M8)
11 Nylon Nut (M8)
12A Bellows
13 Bolt (M10x18 mm)
14 Spring Washer (M10)
15 D Shape Washer (M10)
16 Handlebar Axle (Φ15.8x305 mm)
17 Knob (M12x17 mm)
18 Bolt (M8x43 mm)
19 Washer (M8)
20 Nylon Nut (M8)
21 Big Washer (d17.5xΦ34x2 mm)
22 Bushing (Φ12.8xΦ21x8 mm)
23L Left Nylon Nut w/Black inner nylon ring (1/2”)
23R Right Nylon Nut w/White inner nylon ring (1/2”)
24 Bolt (M8x16 mm)
25 Spring Washer (M8)
26 Carriage Bolt (M10x57 mm)
27 Arc Washer (M10)
28 Cap Nut (M10)
29 Special Washer (Φ16xΦ28x0.3 mm)
30 Round Cap (50)
34 Bushing (Φ8.3xΦ18x5 mm)
35 Bearing (TY-6201)
36 Tension Control
# Description
37A Monitor Wire (Lower)
37B Monitor Wire (/Upper)
38 Friction Belt (L1030x1200xB18xH1.5 mm)
39 Bushing (Φ28x4xΦ24 mm)
40 Foam Grip (Φ23xΦ33x275 mm)
41 Round Cap (25 mm)
42 Screw (ST4.8x18 mm)
43L Left Chain Cover
43R Right Chain Cover
44 Screw (ST4.8x19 mm)
45 Screw (ST4.8x45 mm)
46 Screw (ST4.8x30 mm)
47 Screw (ST4.8x16mm)
48 Left Nut for Crankshaft
49 Washer for Crankshaft
50 Left Crankshaft Bearing Collar
51 Crankshaft Bearing Set
52 Bearing Brace
53 Right Crankshaft Bearing Collar
54 Washer (d20x40x3 mm)
55 Chain wheel with Crankshaft
56 Chain (1/4"x1/8")
58 Spring (Φ1.8xΦ10x32xN9 mm)
59 Nut (M10x1xH9.5xS15 mm)
60 Adjustable Bolt (M6x36xΦ10x5 mm)
61 Nut (M6xH5xS10 mm)
62 U Bracket(30x10x1.5 mm)
63 Nut (M10x1xH5xS17 mm)
64 Fan Wheel Axle (Φ10x150xM10x1.0x39x26 mm)
65 Bushing
66 Fan Wheel (Φ503x85 mm)
67 Gear Shaft
68 Nut (M10x1xH5xS17 mm)
69 Sensor
70 Washer (d10xΦ20x2 mm)
71 Crank Cover (85x64x4 mm)
72 Washer (M10)
QM894 Page

5
Exploded View

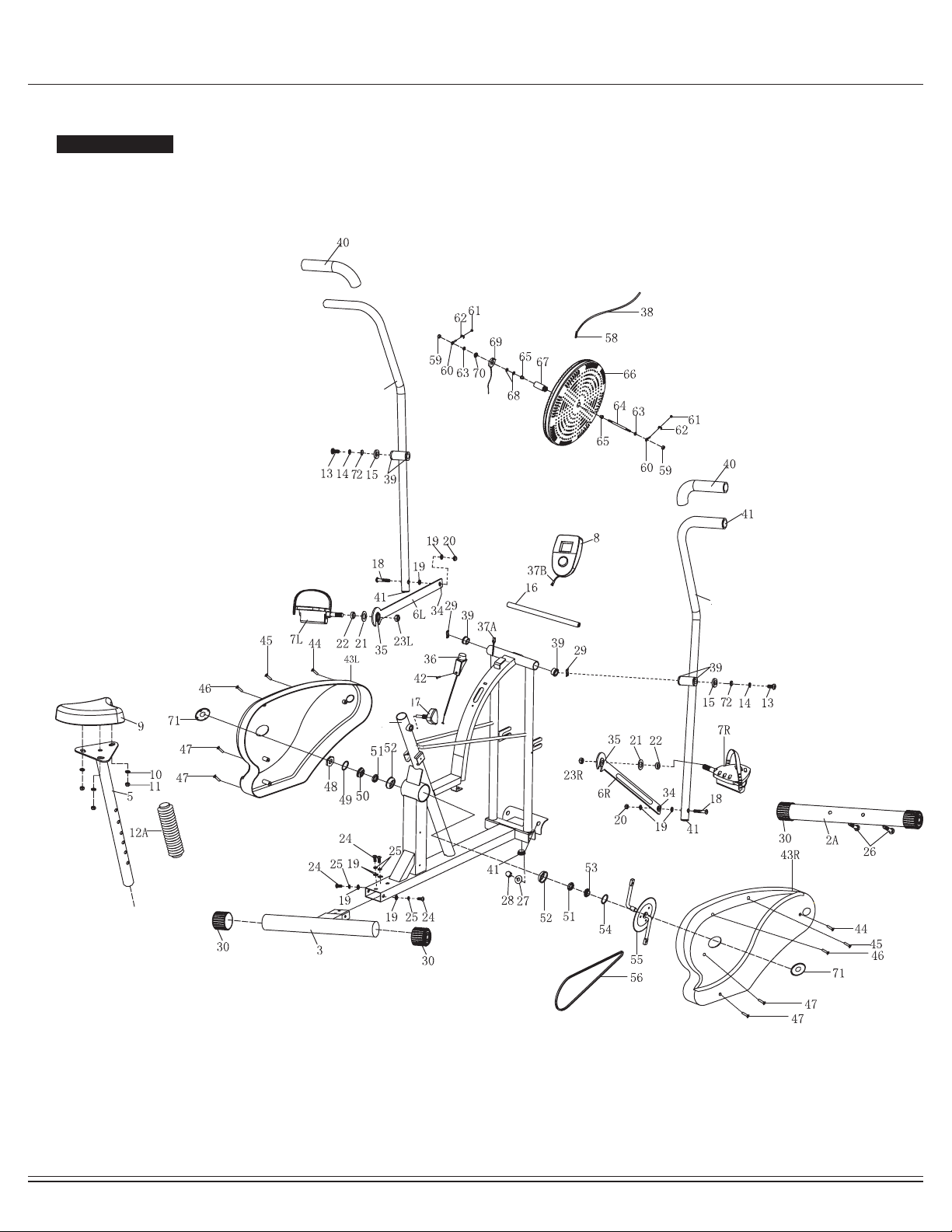

The following diagram is provided to help you familiarize yourself with the parts and hardware that will be used during the
assembly process.
: : Not all of the parts and hardware you see here will be used while you are assembling the machine
because some of these items are already pre-installed. Please use this page only as a reference guide for parts and
hardware.
PLEASE NOTE
1B
4LA
4RA
E
QM894 Page

6
#13 Bolt (M10x18 mm)
[2 pieces]
Pre-assembled
#18 Bolt (M8x43 mm)
[2 pieces]
#24 Bolt (M8x16 mm)
[4 pieces]
#26 Carriage Bolt (M10x57 mm)
[2 pieces]
#10 Washer (M8)
[3 pieces]
Pre-assembled
#11 Nylon Nut (M8)
[3 pieces]
Pre-assembled
#20 Nylon Nut (M8)
[2 pieces]
#17 Knob (M12)
[1 piece]
S17-S19
[1 piece]
6mm Allen Wrench
[2 pieces]
#22 Bushing
[2 pieces]
#23L Left Nylon Nut
w/ BLACK inner nylon ring
[1 piece]
#23R Right Nylon Nut
w/ WHITE inner nylon ring
[1 piece]
#28 Cap Nut (M10)
[2 pieces]
#21 Big Washer
[2 pieces]
#25 Spring Washer (M8)
[4 pieces]
#27 Arc Washer (M10)
[2 pieces]
#29 Special Washer
[2 pieces]
Pre-assembled
#14 Sring Washer (M10)
[2 pieces]
Pre-assembled
#15 D Shape Washer (M10)
[2 pieces]
Pre-assembled
#19 Washer (M8)
[8 pieces]
Hardware and Tool List
Bolts
Washers
Nuts
Others
Tools (Included)
#72 Washer (M10)
[2 pieces]
Pre-assembled
S13-S15
[1 piece]

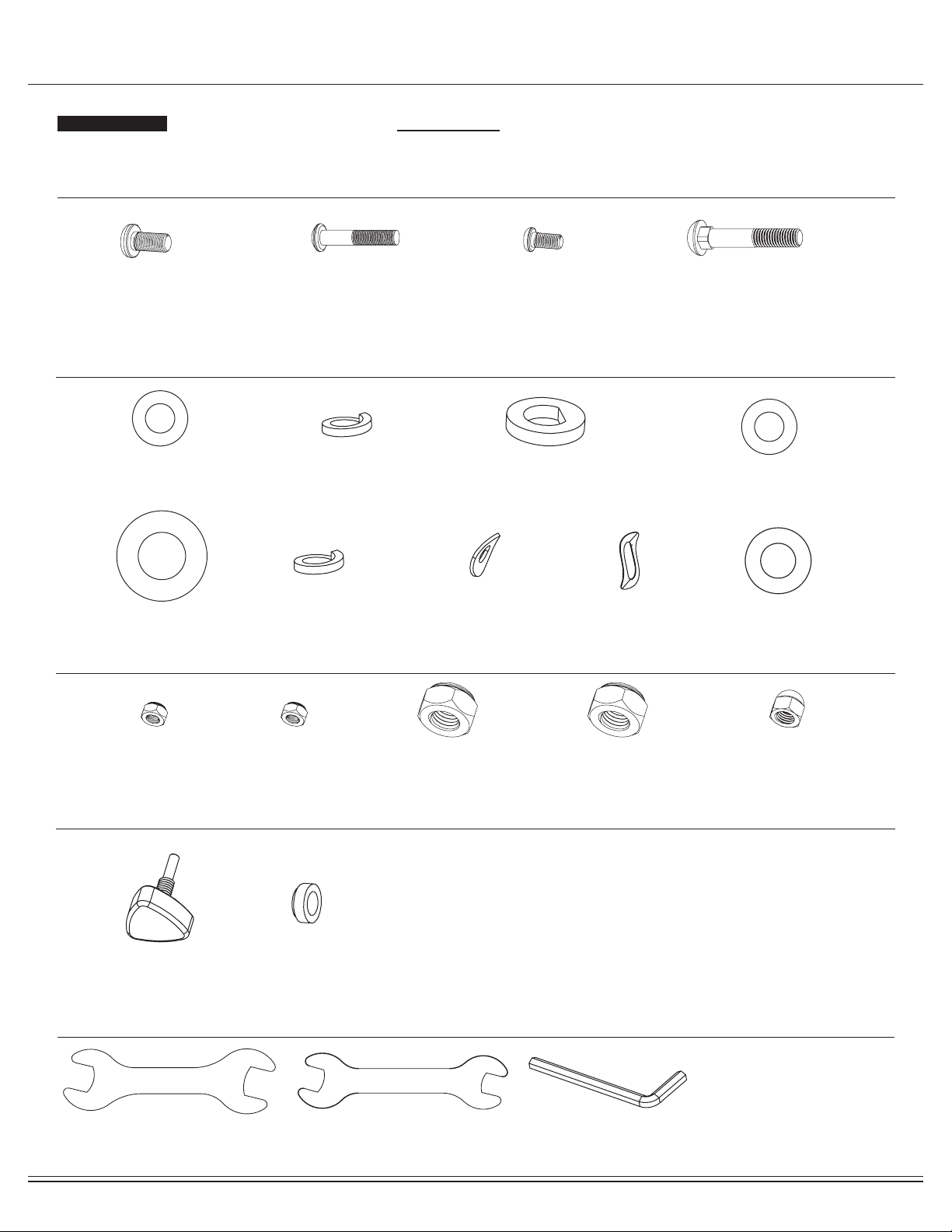

The following hardware is used to assemble your unit. Please take a moment to familiarize yourself with these items.
PLEASE NOTE : Most of these parts are already pre-assembled on your unit. Do not be alarmed if you see parts on this
page that are not included in your hardware packet.
QM894 Page

7
Assembly STEP 1
FRONT STABILIZER ASSEMBLY
Secure the Front Stabilizer (#2A) to the Main Frame (#1B)
with two Carriage Bolts (#26), two Arc Washers (#27) and two
Cap Nuts (#28).
Hardware Required
1B
#26 Carriage Bolt (M10x57 mm)
[2 pieces]
#28 Cap Nut
[2 pieces]
#27 Arc Washer (M10)
[2 pieces]
QM894 Page

8
Assembly STEP 2
REAR STABILIZER ASSEMBLY
Secure the Rear Stabilizer (#3) to the Main Frame (#1B) with
four Bolts (#24), four Spring Washers (#25) and four Washers
(#19).
Hardware Required
1B
#24 Bolt (M8x16 mm)
[4 pieces]
#25 Spring Washer (M8)
[4 pieces]
#19 Washer (M8)
[4 pieces]
QM894 Page

9
Assembly STEP 3A

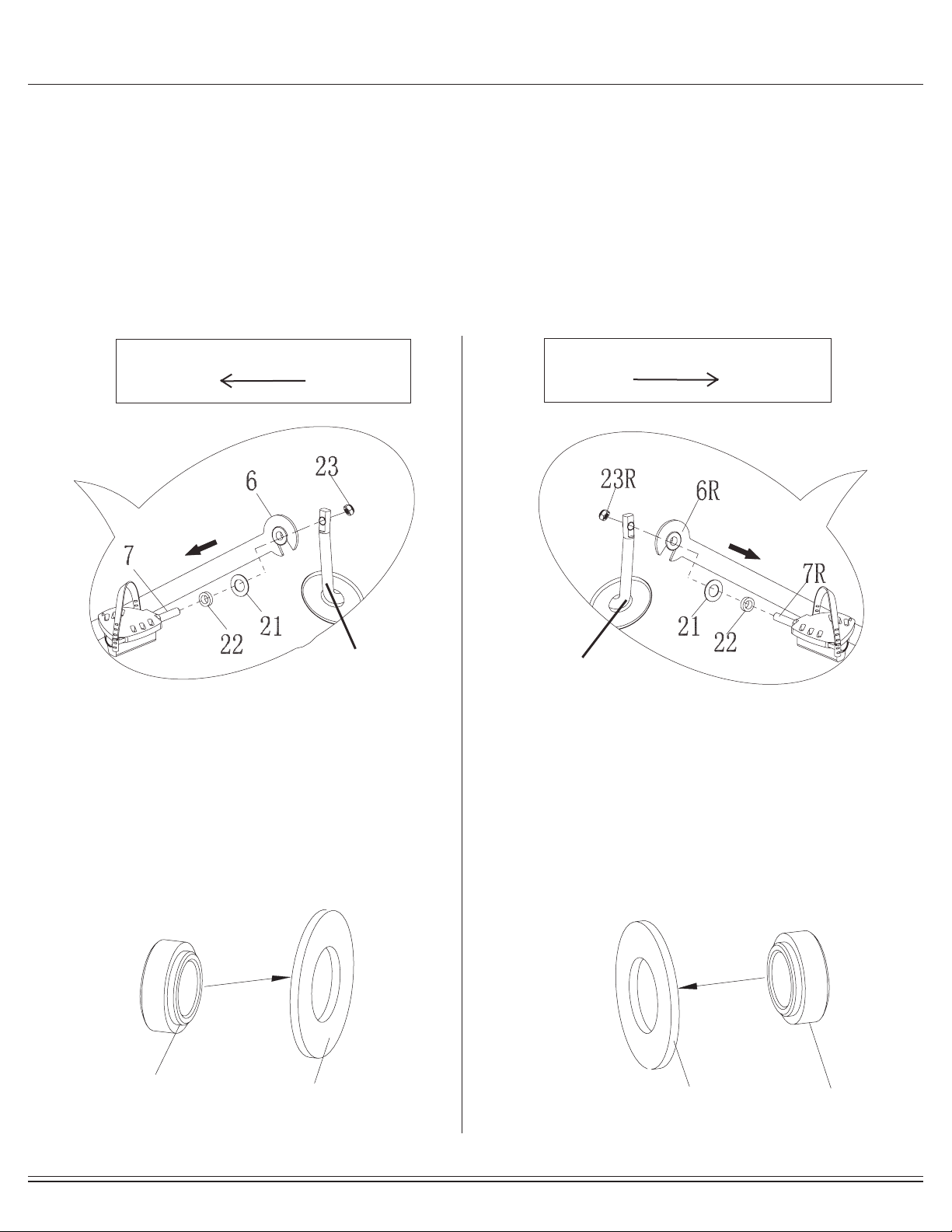

Attach the Right Pedal (#7R) to the Right Linkage (#6R) using a
Bushing (#22) and a Big Washer (#21) in between. Then screw
the Right Pedal (#7R) tightly into the right crank and then secure
it with the Right Nylon Nut (#23R)*. Repeat this process on the
left side**.
Please Note :
• Left Hand Side: Turn COUNTERCLOCKWISE to tighten the
Left Pedal (#7L) on the left crank. Then turn CLOCKWISE to
tighten the Left Nylon Nut (#23L) [BLACK inner nylon ring] to
secure the left pedal assembly.
• Right Hand Side: Turn CLOCKWISE to tighten the Right
Pedal (#7R) on the right crank. Then turn COUNTER-
CLOCKWISE to tighten the Right Nylon Nut (#23R) [WHITE
inner nylon ring] to secure the right pedal assembly.
Hardware Required
#22 Bushing
[2 pieces]
#23L Left Nylon Nut
w/ BLACK inner nylon ring
[1 piece]
#23R Right Nylon Nut
w/ WHITE inner nylon ring
[1 piece]
#21 Big Washer
[2 pieces]
Right Crank
1B
QM894 Page

10
Assembly STEP 3B
**LEFT Side:
FOR PROPER ASSEMBLY, please ensure that the Left
Linkage (#6L) is assembled to the outter edge (away from
shroud) of the Left Crank.
The order of parts (from inner side to outter) should look
like the exploded diagram below in the following sequence:
Left Nylon Nut (#23L) > Left Crank > Left Linkage (#6L)
> Big Washer(#21) > Bushing (#22) > Left Pedal (#7L)
**RIGHT Side:
FOR PROPER ASSEMBLY, please ensure that the Right
Linkage (#6R) is assembled to the outter edge (away from
shroud) of the Right Crank.
The order of parts (from inner side to outter) should look like
the exploded diagram below in the following sequence:
Right Nylon Nut (#23R) > Right Crank > Right Linkage
(#6R) >Big Washer(#21) > Bushing (#22) > Right Pedal
(#7R)
Please Note :
LEFT SIDE: Please ensure that the notched side of Bushing (#22) is
facing Big Washer (#21) from the left side so that Bushing (#22) can be
inserted into Big Washer (#21) and the two pieces t ushed together.
Please refer to the exploded diagram for correct orientation and
positioning.
Please Note :
RIGHT SIDE: Please ensure that the notched side of Bushing (#22)
is facing Big Washer (#21) from the right side so that Bushing (#22)
can be inserted into Big Washer (#21) and the two pieces t
ushed together. Please refer to the exploded diagram for correct
orientation and positioning.
Left Crank
INNER (SIDE)OUTTER (SIDE)
**LEFT Side:
L
LL
INNER (SIDE) OUTTER (SIDE)
*RIGHT Side:
Right Crank
22 21 21 22
QM894 Page

11
Assembly STEP 4A
Remove the two Special Washers (#29), two D Shape
Washers
(#14), and two Bolts (#13) that are pre-assembled on the
Handlebar Axle (#16) Set them aside close by as they will
be used in this step.
(#15), two Washers (#72), two Spring Washers

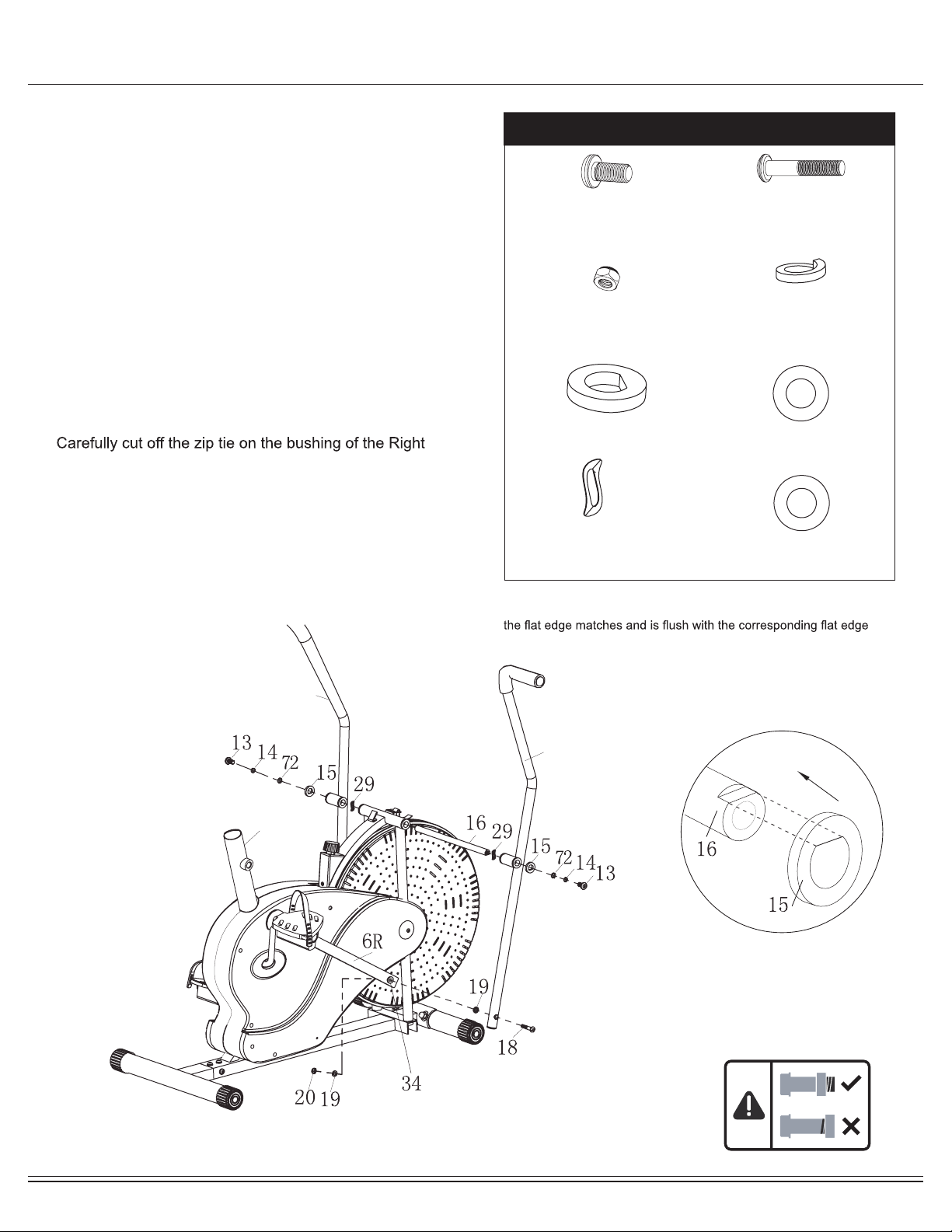

Insert the Handlebar Axle (#16) through the Main Frame
(#1B), making sure the Handlebar Axle (#16) is centered.
If you encounter too much friction, try using WD40 or
Vaseline as a lubricant.
Next, on the right side, slide one Special Washer (#29) on
Handlebar Axle (#16) followed by Right Handlebar (#4RA)
and secure with one D Shape Washer (#15)*** [please see
close-up diagram/note below], one Washer (#72), one Spring ,
Washer (#14) and one Bolt (#13). Repeat this process on
the left side using Left Handlebar (#4LA).
Linkage (#6R). With the help of an assistant, on the
right side as shown in drawing below, insert one Bolt (#18)
through the Right Handlebar (#4RA) followed by one Washer
(#19) and then the Bushing (#34) of Right Linkage (#6R).
Secure these together from the other “inner” side of Right
Linkage (#6R) using one other Washer (#19) and one Nylon
Nut (#20). Repeat this process on the left
side with the Left Handlebar (#4LA).
Hardware Required
4LA
4RA
1B
[***When assembling D Shape Washer (#15), please ensure
of Handlebar Axle (#16) as marked in close-up diagram below.]
#13 Bolt (M10x18 mm)
[2 pieces]
#18 Bolt (M8x43 mm)
[2 pieces]
#20 Nylon Nut (M8)
[2 pieces]
#29 Special Washer
[2 pieces]
#14 Spring Washer (M10)
[2 pieces]
#15 D Shape Washer (M10)
[2 pieces]
#19 Washer (M8)
[4 pieces]
#72 Washer (M10)
[2 pieces]
QM894 Page

12
Assembly STEP 4B
**LEFT Side:
Please ensure that the Left Handlebar (#4L) is assembled
to the outter edge (away from shroud) of the Left Linkage
(#6L).
The order of parts (from inner side to outter) should look
like the exploded diagram below in the following sequence:
Nylon Nut (#20) > Washer (#19) > Bushing (#34)
of Left Linkage (#6L) > Washer (#19) >
Left Handlebar (#4L) > Bolt (#18)
*RIGHT Side:
Please ensure that the Right Handlebar (#4R) is
assembled to the outter edge (away from shroud) of
the Right Linkage (#6R).
The order of parts (from inner side to outter) should
look like the exploded diagram below in the following
sequence:
Nylon Nut (#20) > Washer (#19) > Bushing (#34)
of Right Linkage (#6R) > Washer (#19) > Right
Handlebar (#4R) > Bolt (#18)
INNER (SIDE)OUTTER (SIDE)
**LEFT Side:
4LA
INNER (SIDE) OUTTER (SIDE)
*RIGHT Side:
4RA
QM894 Page

13
Assembly STEP 5
Remove the three Washers (#10) and three Nuts (#11) that
are pre-assembled on the Seat (#9). Then, attach the Seat
(#9) to the Seat Tube (enhanced) (5E) and secure it with three
Washers (#10) and three Nuts (#11) that were previously
removed.
Attach Bellows (#12A) to the Seat Tube (enhanced) (#5E) as
shown in illustration below.
Insert the Seat Tube (enhanced) (#5E) into the opening of the
post that is protruding from the Main Frame (#1B) a minimum
of 4 inches to engage the lowest hole. Please ensure that the
hole on the Seat Tube (enhanced) (#5E) is facing the same
side as the hole located on the Main Frame (#1B) and
insert the Knob (#17) through the Main Frame (#1B) post and
through the hole on the Seat Tube (enhanced) (#5E). Please
refer to the illustration below.
Always ensure that the Knob (#17) is securely tightened
and engaged through the hole on the Main Frame (#1B) and
thehole setting most comfortable to you on the
Seat Tube (enhanced) (#5E) for your safety.
Hardware Required
E
1B
#10 Washer (M8)
[3 pieces]
#11 Nylon Nut (M8)
[3 pieces]
#17 Knob (M12)
[1 piece]
QM894 Page

14
Assembly STEP 6
Attach the Monitor (#8) to the Main Frame (#1B) and then
connect the Monitor Wire (#37A) to the Monitor Wire (#37B).
No Hardware Required
Hardware Required
1B
THE ASSEMBLY PROCESS IS NOW COMPLETE.
However, for your own safety, please make sure to read this entire Owner’s Manual which includes
safety instructions and warnings, as well as any safety/warning labels a󰀩xed to the product before use.
For your safety , please visually and functionally inspect and test the unit after assembly is complete.
QM894 Page

15
Tension Adjustment
WARNING:
If the Friction Belt (#38) is tightened to an extremely tight/taut setting against the ywheel, you may risk
damaging, over-wearing, over-stressing and/or breaking the Friction Belt (#38).
Please see below for more details to prevent damage and breakage.
1. FOR TENSION ADJUSTMENT:
Simply turn the Tension Control (#36).
• To increase tension (+ higher resistance and more di󰀩cult), turn clockwise.
• To decrease tension (- lower resistance and less di󰀩cult), turn counter-clockwise.
***WARNING: Please turn the Tension Control (#36) gently. DO NOT use excess force to avoid damaging any parts of
your unit.
2. FOR CALIBRATING TENSION ADJUSTMENT SYSTEM:
• Gently turn Tension Control (#36) counter-clockwise and keep turning until the knob can no longer turn
(i.e. decrease the tension fully).
• Adjust the Friction Belt (#38) so that when you gently tug it out away from ywheel, there is a 1" distance of
slack between the Friction Belt (#38) and the ywheel as shown in diagram.
***WARNING: It is important you check for this minimum of 1-inch distance to avoid damaging, over-wearing,
over-stressing and/or breaking the Friction Belt (#38).
NOTE:
It is normal for the Friction Belt (#38) to periodically loosen due to regular use. Repeat the below process anytime you
feel it may be necessary to recalibrate the tension adjustment system.
1-inch Distance
(use this measurement as a “test” when you gently
tug on Friction Belt (#38) away from ywheel)
NOTE:
In order to clearly show parts used in Tension Adjustment
process, this drawing has been modied and does not show all
parts nor full assembly.
1-inch
08
38
36
QM894 Page

16
Computer Operation
*IMPORTANT NOTE :
Please remember that the functions in this computer are only meant to be tools to
monitor your workout progress; they are not meant to provide medical information
or be used for medical purposes. Please consult a physician before beginning any
workout program.
TIME : Displays the total amount of time using the machine.
SPEED : Displays current speed.
DISTANCE : Displays the distance traveled.
CALORIES : Displays the amount of calories burned.
ODOMETER : Displays total accumulated distance. ODO will reset when MODE is pressed for 3 seconds or
when batteries are changed.
SCAN : The monitor will then rotate displaying through the following functions: time,speed,distance,
calories and odometer. Each function will display for 4 seconds.
1. If the display is faint or shows no gures ,please replace the batteries.
2. The monitor will automatically shut o󰀨 if there is no signal received after 4 minutes .
3. The monitor will auto-power on when exercise and/or motion input is detected.
4. The monitor will automatically start calculating when you start to exercise and will stop calculating when you stop
exercising for 4 seconds .
FUNCTION
NOTE:
Operation Procedures
Specications
AUTO SCAN Every 4 seconds
TIME 00:00-99:59 min
SPEED 0.0-99 mi/h
CALORIES 0.0-999.9 KCal
DISTANCE 0.0-999.9 mi.
BATTERY TYPE 2 pcs of AA
OPERATING TEMP 32°F - 104°F
STORAGE TEMP 32°F - 160°F
FUNCTIONS
MODE :
Press to select the display function of your choice.
The unit can be reset by changing battery or pressing
the MODE key for 3 seconds.
Key Function
QM894 Page

17
Computer Operation
NOTES (Regarding the Computer Monitor):
Warning: This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference.
(2) This device must accept any interference received, including interference that may cause undesired operation.
Caution:
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and
can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the equipment o󰀨 and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit di󰀨erent from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
QM894 Page

18
Safety and Maintenance
• Make sure all nuts, bolts, and screws are tightened prior to use.
• Be sure that all adjustment locking devices and safety devices are properly engaged prior to use!
• Never over-tighten the above-mentioned devices and parts to avoid damage to the unit.
• Check for loose parts and components and make proper adjustments prior to use.
• Check to see if there are any tears or bends in the welding or metal prior to use. If tears or bends are found,
DO NOT use the unit and contact our CUSTOMER SUPPORT.
• Extreme care must be taken to not allow your feet, ngers, hair, clothing, and/or any loose items to be snagged into any portion of the bike when
the unit is in motion. Failure to follow these instructions could result in serious injury, including the loss of ngers.
• Always wait for the pedals and other moving parts (which can gain great momentum during riding) to come to a
complete stop before dismounting the unit to avoid serious injury.
NOTE : Always wait for the pedals and/or any other moving parts (which can gain great momentum during riding) to come to a complete stop before
dismounting the unit to avoid serious injury.
• To reduce speed on the bike, you may use the combinations of your feet on the Left/Right Pedals (#7L/R) and your hands on the Left/Right Handle-
bars (#4LA/#4RA) to gently and safely apply counter-momentum.
• Wait for the pedals to come to a complete stop.
• Now you may safely dismount the unit
NOTE :
To safely move, transport, and/or store the unit, please seek the help of capable assistants (minimum of 2 people).
• Position one person on each side of the bike (one on the left, and one on the right).
• Have each person use the hand closest to the Seat (#9) to grip it. Then, grip the other hand from underneath the respective Handlebar (#4LA or
#4RA). (These are the safest areas to avoid injury during this process.)
• Have both people simultaneously lift the unit to move/transport the unit to the desired area.
• Using one hand to hold Seat Tube (enhanced) (#5E), unscrew Knob (#17) using the other hand.
• Slide and adjust Seat Tube (enhanced) (#5E) to the desired hole setting to your preferred height.
• Holding Seat Tube (enhanced) (#5E) at this setting, re-insert/re-screw Knob (#17), ensuring it engages and
fully inserts through the holes of Main Frame (#1B) and Seat Tube (enhanced) (#5E). Please make sure to securely tighten Seat Tube (enhanced)
(#5E) but not over-tighten.
• Before sitting on the cycle, press down rmly and pull up slightly on the seat to make sure it is engaged and secure.
• Please review all safety instructions and warnings in this entire Owner’s Manual, as well as any safety/warning labels a󰀩xed to
the product before use.
• Do not use solvent cleaners. If you are in any doubt, do not use your cleansing product; contact
CUSTOMER SUPPORT.
• The specic parts on your unit which may see possible signs of wear after prolonged use are listed as follows
(please check these parts before each use):
Tension Control (#36); Left/Right Pedals (#7L/#7R); Left/Right Handlebars (#4LA/#4RA).
• For any replacement warning labels, please contact our CUSTOMER SUPPORT at
1 [phone] or 1 [phone], or mail in a written request to:
Body Flex Sports Inc.
21717 Ferrero Parkway
Walnut, CA 91789
More detailed information about how to reach our CUSTOMER SUPPORT may be found on Page 2 of the
Owner’s Manual under the “CUSTOMER SUPPORT” section.
Safety & Warning
How To (Emergency) Stop
How To Move/Transport The Bike For StorageStorage
How To Adjust The SeatStorage
Maintenance & Care
QM894 Page

19
Troubleshooting
If the computer is not displaying the CALORIES/DISTANCE/TIME/(ETC.)
functions (or you are getting inaccurate readings), please adjust
the following:
1. Check to ensure all computer sensor wires are properly
connected and are not damaged.
2. You may need to refer to installation/assembly directions for the sensor
wires in this manual.
If the computer display is blank & not displaying any data (or does not
appear to power on), please adjust the following:
1. Check to ensure all sensor wires are all properly connected and are not
damaged.
2. Check to ensure the AC Adapter* or Batteries* are properly plugged in or
fully charged.
3. Check your product manual to determine if your model uses either AC
Adapter or batteries to power your unit.
(AFTER COMPLETE ASSEMBLY)
Troubleshoot Area
Calories/Distance/
Time (Etc.)
Computer Display
Solution
QM894 Page
