Lifescan One Touch ll User manual

®
OWNER’S BOOKLET
MANUEL DU PROPRIÉTAIRE
BLOOD GLUCOSE MONITORING SYSTEM
SYSTÈME DE CONTRÔLE DE LA GLYCÉMIE
LSI-97-051 OT2.bklt.C.Eg 10/8/97 3:10 PM Page 1 (1,1)

®
Blood Glucose Monitoring System
OWNER’S BOOKLET
LSI-97-051 OT2.bklt.C.Eg 10/8/97 3:10 PM Page 3 (1,1)

6-VOLT
1
✔
R
Normal Glucose Control
Solution - Blue Formula
“J” size Battery (installed) Memory Button “M” Code Button “C” Check Strip
Test Strip
Test Spot
Lancet
Test Strip Holder
PENLET®II with Cap
Display
On/Off Button
Data Port
Test Area
ONE TOUCH®
Normal Glucose
Control Solution
— Blue Formula
LSI-97-051 OT2.bklt.C.Eg 10/8/97 3:10 PM Page 4 (1,1)

Dear ONE TOUCH®II Owner:
Congratulations! You’ve selected a very
sophisticated, yet easy-to-use, blood glucose
monitoring system for home testing. Your
ONE TOUCH II System will give you the
accurate test results you need when you
follow a few simple steps.
Everything you need to know about using
the ONE TOUCH II System is included in
this booklet.
If you would like a helpful/instructional
audio cassette tape of the ONE TOUCH II
test procedure, please call LifeScan Canada
Customer Service at 1 800 663-5521.
Blood glucose monitoring plays an important
part in controlling your diabetes. The
results you obtain with the ONE TOUCH II
System can help you and your healthcare
professional monitor and adjust your
treatment plan (diet, exercise and
medication) to help you gain control.
Please make sure that you review this
Owner’s Booklet thoroughly before testing
your blood glucose. If after reviewing the
Owner’s Booklet you still have questions,
please feel free to call our toll-free number
and speak with our Technical Service
Department.
Thank you for choosing ONE TOUCH II.
Sincerely,
Jackie Graham
Customer Service Manager
LifeScan Canada Ltd.
P.S. Don’t forget to complete and mail the
warranty registration card. When we receive
your warranty card, we’ll send you a handy
carrying case to hold your Meter and testing
supplies.
LSI-97-051 OT2.bklt.C.Eg 10/8/97 3:10 PM Page 5 (1,1)

The ONE TOUCH®II System is intended for in vitro diagnostic use only. (This
legally required statement simply means that the Meter should be used only
for testing purposes, and only outside the body.)
CAUTION: Before using any product to test your blood
glucose (sugar), read all instructions and practice the
test. Consult your diabetes healthcare professional for
advice regarding selection of equipment, testing times,
and procedures. These recommendations apply to all
blood glucose monitoring systems and are supported by
the Diabetes Educator section of the Canadian Diabetes
Association.
LSI-97-051 OT2.bklt.C.Eg 10/8/97 3:10 PM Page 6 (1,1)

TABLE OF CONTENTS 1. Tips for Getting Good Results 6
2. Getting Started 7
3. Checking the System 11
4. Coding the Meter 19
5. Getting a Drop of Blood 21
6. Testing Your Blood 26
7. Troubleshooting 34
8. Cleaning and Maintaining the Meter 41
9. Setting Date, Time, and Other Special Functions 51
10. Recalling Tests from Meter Memory 62
11. Summary of Display Messages 68
12. Questions and Answers 75
13. Specifications 84
14. Guarantee and Warranty 85
LSI-97-051 OT2.bklt.C.Eg 10/8/97 3:10 PM Page 7 (1,1)

u
✔Carefully read this
Owner’s Booklet and all
other instructional material
provided with your blood
glucose monitoring system
and test supplies.
u
✔Clean your Meter
regularly (at lease once a
week) by following the
instructions in Chapter 8,
Cleaning and Maintaining
the Meter.
u
✔Use the Check Strip
daily to check the Meter,
and use Control Solution
periodically to test the
system and your procedure.
(See Chapter 3, Checking
the System.)
u
✔Periodically review
your use of the Meter
with your healthcare
professional.
u
✔Never make any
significant changes to
your medication program
without consulting your
doctor or other healthcare
professional.
u
✔If the way you feel is
not consistent with your
blood glucose monitoring
results, contact your
physician or healthcare
professional immediately.
u
✔Do not store
ONE TOUCH®Test Strips
outside of the vial. Only
foil-wrapped Test Strips
can be stored in your carry
case.
•6•
1. TIPS FOR GETTING GOOD RESULTS
LSI-97-051 OT2.bklt.C.Eg 10/8/97 3:10 PM Page 6 (1,1)

2. GETTING STARTED
Before you read about the
test procedure, please study
this diagram to become
familiar with the various
parts of your ONE TOUCH®II
Meter.
•7•
Memory Button "M" Code Button "C"
Battery
Compartment
(on back)
Display
On/Off
Button
Data Port
Test Area with
Protective Coating
Test Strip
Holder
LSI-97-051 OT2.bklt.C.Eg 10/8/97 3:10 PM Page 7 (1,1)

ON/OFF BUTTON. This
button turns the Meter on
and off.
DISPLAY. This is where you
read your test results and
the simple messages that
help guide you through the
test procedure.
BATTERY
COMPARTMENT. Holds
one J-size battery. The
battery is already installed
in your Meter. (Replacement
instructions are provided in
Chapter 8, Cleaning and
Maintaining the Meter.)
MEMORY BUTTON (M).
The ONE TOUCH®II Meter
automatically stores your
test results. You push this
button when you want to
recall past test results. (See
Chapter 10, Recalling Tests
from Meter Memory.)
CODE BUTTON (C). Each
package of Test Strips has a
code number on the label.
You will use the Code
Button to set the Meter code
to match the code number
on the Test Strip package.
(See Chapter 4, Coding the
Meter.)
LANGUAGE CONVERSION.
The ONE TOUCH II Meter
can display messages in
nineteen languages: English,
Spanish, French, Italian,
Dutch, Portuguese, Swedish,
German, Danish, Finnish,
Norwegian, Polish,
Hungarian, Turkish, Czech,
Greek, Russian, Japanese,
and a Symbolic language.
Your Meter is set at the
factory in English. By using
the Code Button and
Memory Button, you can set
the Meter in the language of
your choice. (See Chapter 9,
Setting Date, Time, and
Other Special Functions, for
instructions.) For further
information regarding
language displays, contact
•8•
LSI-97-051 OT2.bklt.C.Eg 10/8/97 3:10 PM Page 8 (1,1)

the LifeScan Technical
Service Department via the
toll-free numbers listed
below:
Canada 1 800 663-5521
U.S.A. 1 800 227-8862
MEASUREMENT
CONVERSION. The
ONE TOUCH II Meter can
display units either in
mmol/L or mg/dL. To select
the unit measurement of
your choice, see Chapter 9,
Setting Date, Time, and
Other Special Functions for
instructions. All example
results in this Owner’s
Booklet appear in mmol/L.
Verify which unit of
measure you are using
before you begin testing.
TEST STRIP HOLDER. The
dark gray Test Strip Holder
holds the Test Strip in
place. The Meter reads the
color of the reacted Test
Strip through the small hole
in the Test Strip Holder. The
Test Strip Holder needs to
be removed from the Meter
for cleaning. (See the
instructions in Chapter 8,
Cleaning and Maintaining
the Meter.)
TEST AREA. When the Test
Strip Holder is removed, the
Test Area is exposed. The
Test Area has a clear,
protective coating over the
Meter optics that must be
kept clean and lint-free for
accurate results. Be careful
not to scratch or damage
this coating. (See Chapter 8,
Cleaning and Maintaining
the Meter.)
DATA PORT. This port lets
you access the information
stored in the Meter’s
memory with a Data
Manager™from LifeScan,
or other data management
•9•
LSI-97-051 OT2.bklt.C.Eg 10/8/97 3:10 PM Page 9 (1,1)

systems. (See Chapter 9,
Setting Date, Time, and
Other Special Functions.)
TEST STRIPS. ONE TOUCH®
Test Strips come in a
moisture-proof, light-
protected vial or foil package.
Because the Test Strips are
sensitive to moisture and
light, it’s important to keep
them sealed until you’re
ready to use them. DO NOT
put unwrapped Test Strips
in your Carry Case.
T E S T S T R I P
10
CODE:
TEST FOR GLUCOSE
IN WHOLE BLOOD
OPEN HERE
Milpites,CA Made in U.S.A. 51-453B
INC.
R
T E S T S T R I P
10
CODE:
TEST FOR GLUCOSE
IN WHOLE BLOOD
OPEN HERE
Milpites,CA Made in U.S.A. 51-453B
INC.
R
a company
TEST SUMMARY
IMPORTANT: Read detailed
instructions in your ONE TOUCH II
Owners Booklet before doing a test.
LifeScan Technical Service -
U.S.A. 1 800 227-8862
Canada 1 800 663-5521
1.
Press On/Off Button
3.
Insert Test Strip
4.
Apply Blood sample
Cleaning instructions on reverse side
PASD'ALCOOL
NOALCOHOL
PASD'ALCOOL
NOALCOHOL
PASD'ALCOOL
NOALCOHOL
R
code10
T E S T S T R I P
10
CODE:
TESTFOR GLUCOSE
INWHOLE BLOOD
OPEN HERE
Milpites,CAMadein U.S.A. 51-453B
INC.
R
2.
Check code
•10 •
LSI-97-051 OT2.bklt.C.Eg 10/8/97 3:10 PM Page 10 (1,1)

There are two ways to make
sure your ONE TOUCH®II
System is working properly.
The Check Strip is used to
check that the Meter is
operating properly.
ONE TOUCH®Normal
Glucose Control Solution —
Blue Formula is used to
check that both the Meter
and the Test Strips are
working together as a
system, and that you are
performing the test
procedure correctly. These
checks are simple but very
important quality control
steps that you must perform
routinely to make sure you
get accurate results.
CAUTION: If your
Control Solution or
Check Strip results fall
outside of their expected
ranges, the system is not
functioning properly.
DO NOT use the system
to test your blood
glucose until you get
both a Control Solution
and a Check Strip
reading that falls within
the expected ranges.
Normal
Control
Solution
1
✔
2
✔
Check Strip
R
Normal Glucose Control
Solution - Blue Formula
•11 •
3. CHECKING THE SYSTEM
LSI-97-051 OT2.bklt.C.Eg 10/8/97 3:10 PM Page 11 (1,1)

If either of these problems
occur, you should first
attempt to determine the
cause of the problem by
reviewing the instructions
in this Owner’s Booklet. If
you cannot resolve the
problem, contact the
LifeScan Technical Service
Department via the toll-free
numbers listed below:
Canada 1 800 663-5521
U.S.A. 1 800 227-8862
IMPORTANT: The
expected range* for the
ONE TOUCH®Normal
Glucose Control Solution —
Blue Formula is printed on
the Test Strip package.
* Note: The control range is
shown in two different units
of measure: mmol/L (used
in Canada and European
countries) and mg/dL (used
widely in the U.S.). This
range is for the Glucose
Control Solution only, it is
not intended as a recom-
mended range for your
blood glucose test results.
Checking your
ONE TOUCH II System
with Glucose Control
Solution
ONE TOUCH Normal
Glucose Control Solution —
Blue Formula should be
used instead of blood to
practice the test procedure
or to make sure your Meter
and Test Strips are
functioning properly.
Use only ONE TOUCH
Normal Glucose Control
Solution — Blue Formula.
Do not use ONE TOUCH
Glucose Control Solution
(clear formula) with the
ONE TOUCH II Meter. You
•12 •
LSI-97-051 OT2.bklt.C.Eg 10/8/97 3:10 PM Page 12 (1,1)

can purchase ONE TOUCH®
Normal Glucose Control
Solution — Blue Formula
from your Authorized
LifeScan Distributor or
retail pharmacy.
To do a Control Solution
test, follow the same
procedure you would if you
were testing your blood, (as
described in Chapter 6,
Testing Your Blood), using
Control Solution instead of
blood. Your Control Solution
results will appear on the
Meter display as follows:
c 5.8
contrl
(example)
Before you use the Meter to
test your blood glucose,
practice using the Control
Solution until you can do
three tests in a row that are
within the expected glucose
control range. Then you
will know that you have
mastered the test procedure.
Thereafter, you should test
the Meter with the Control
Solution:
u
✔At least once a week.
u
✔When you begin using a
new package of Test Strips.
u
✔Whenever you suspect
the Meter or Test Strips may
not be functioning properly;
e.g., whenever your results
are not consistent with how
you feel.
•13 •
LSI-97-051 OT2.bklt.C.Eg 10/8/97 3:10 PM Page 13 (1,1)

Checking the Meter with
the Check Strip
A plastic (purple and white)
Check Strip is included
with your ONE TOUCH®II
Meter. The Check Strip is
used to check that your
Meter is operating properly.
You must use the Check
Strip:
u
✔At least once a day.
u
✔After cleaning the meter.
u
✔Before adjusting your
medication based on your
Meter result.
u
✔Whenever your results
are not consistent with how
you feel or when you sus-
pect that your results are
not accurate.
u
✔Whenever this message
appears:
Anotok
redo A
Before doing a Check Strip
test, make sure the Test
Strip Holder and the Test
Area are clean, dry, and lint-
free. Check that the white
and purple surfaces of the
Check Strip are clean and
dry. For cleaning
information, see Cleaning
and Maintaining the Check
Strip in this chapter. Do
Check Strip tests at room
temperature—between 18°C
and 26°C (64°F–79°F).
1
✔
2
✔
Front Back
•14 •
LSI-97-051 OT2.bklt.C.Eg 10/8/97 3:10 PM Page 14 (1,1)

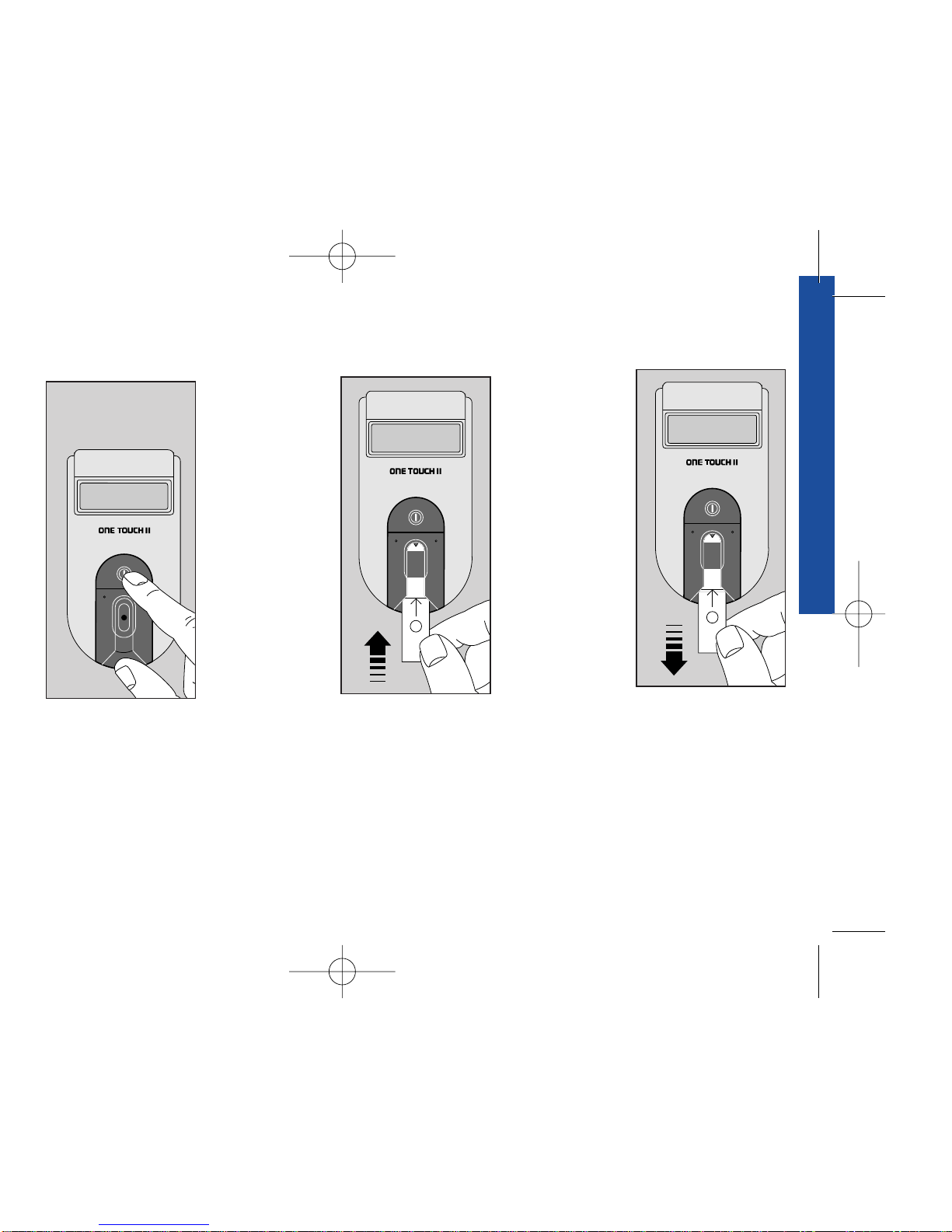

How to use the Check
Strip
Step 1:
Press
On/Off
Button.
code 7
(example)
will appear
on the
display.
(The code
number
does not need to be set to
do a Check Strip test.)
insert
strip
appears.
Slide the
Check
Strip into
the Test
Strip
Holder
with the
notched
end first,
Side 1
(purple) facing up.
wait
appears for a few moments.
Step 2:
When
apply
sample
appears,
pull out
the Check
Strip from
the Test
Strip
Holder.
1
✔
sample
1
✔
strip
code 7
•15 •
LSI-97-051 OT2.bklt.C.Eg 10/8/97 3:10 PM Page 15 (1,1)

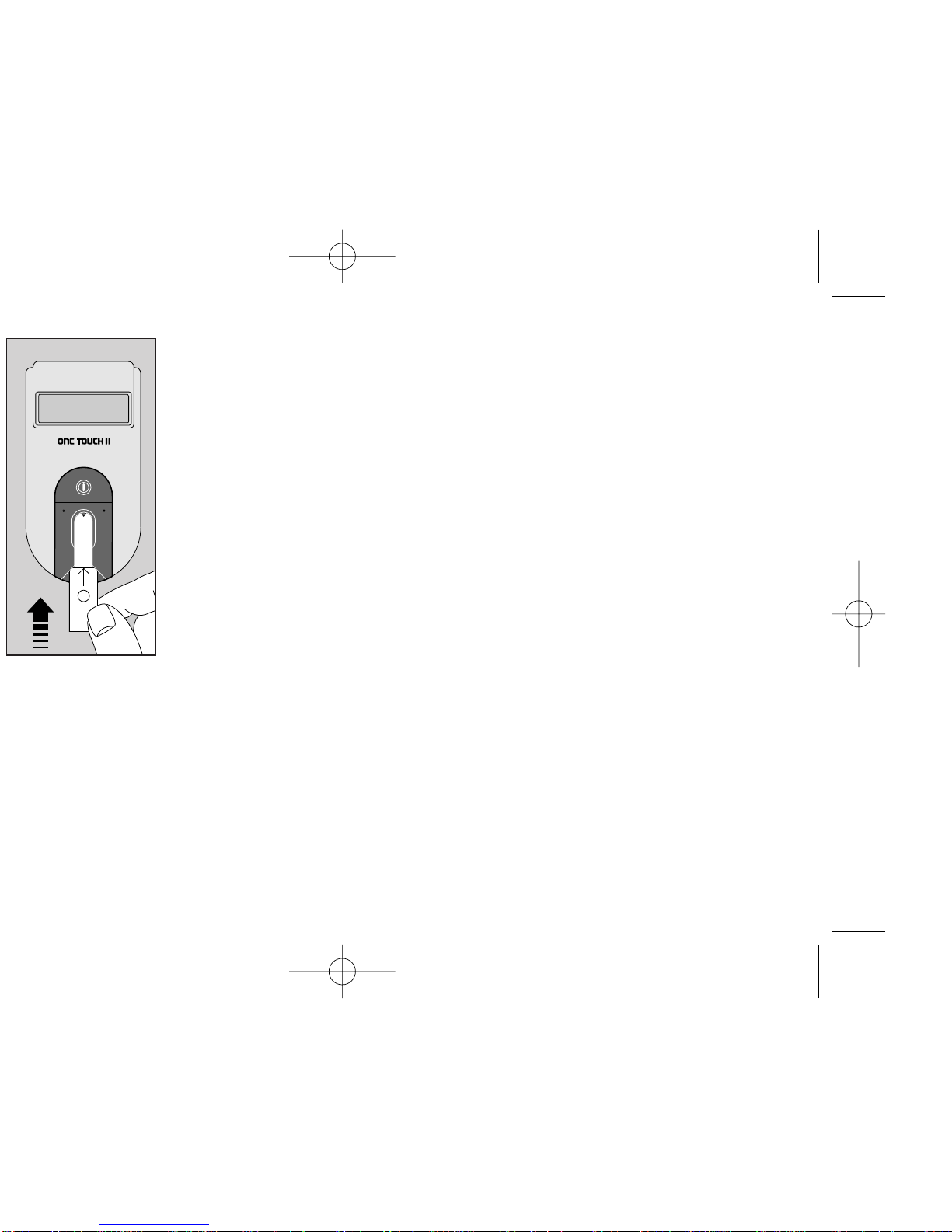

Step 3:
When
insert
side 2
appears,
turn the
Check Strip
over and
with Side 2
(white)
facing up,
insert it
back into the Test Strip
Holder, notched end first.
The Meter counts down
from 4 to 0, then
A 3 .9
A ok
(example)
appears if the number falls
within the acceptable Check
Strip range. The Meter
automatically tells you if
the reading falls within the
correct Check Strip range.
The range is also printed on
the back of the Meter in
both mmol/L and mg/dL.
You may now proceed with
a blood glucose test. These
messages will continue to
display until the Meter is
turned off, or for 2 minutes,
when the Meter automa-
tically turns off.
If the reading is not within
the acceptable Check Strip
range, the Meter display
will read
A 2 .1
Anotok
redo A
(example)
Go back to Step 1 and
repeat the Check Strip test.
If this message appears
again, clean your Meter by
following the steps in
2
✔
side 2
•16 •
LSI-97-051 OT2.bklt.C.Eg 10/8/97 3:10 PM Page 16 (1,1)

Chapter 8, Cleaning and
Maintaining the Meter. For
further assistance, call the
LifeScan Technical Service
Department toll-free.
Canada 1 800 663-5521
U.S.A. 1 800 227-8862
The next time you turn on
your Meter
code 7
redo A
(example)
will appear, indicating your
Check Strip was out of
range at the last reading.
This message will continue
to appear each time the
Meter is turned on until you
perform a Check Strip
reading that falls in the
acceptable range.
Cleaning and Maintaining
the Check Strip
u
✔Check that the white
and purple surfaces of the
Check Strip are clean; if
needed, wipe with a soft
cloth or tissue dampened
with water. Dry thoroughly.
u
✔Do not put blood,
alcohol, Control Solution,
or any other fluid (except
water) on your Check Strip.
u
✔Avoid scratching the
white and purple surfaces of
the Check Strip.
CAUTION: Your blood
glucose test result may
be inaccurate if your
Check Strip reading
does not fall in the
acceptable range.
•17 •
LSI-97-051 OT2.bklt.C.Eg 10/8/97 3:10 PM Page 17 (1,1)

u
✔Do not expose the Check
Strip to direct sunlight for
extended periods of time.
u
✔If you lose or damage
the Check Strip, call the
LifeScan Technical Service
Department for a free
replacement.
•18 •
LSI-97-051 OT2.bklt.C.Eg 10/8/97 3:10 PM Page 18 (1,1)

Set the code before using
the Meter for the first time
and every time you open a
new package or change to a
different package of Test
Strips.
Step 1:
Press
On/Off
Button
Push the
On/Off
Button to
turn the
Meter on.
code 7
(example)
appears on the display for
several seconds, then
insert
strip
The code
numbers
on Test
Strip
packages
range
between
1 and 16.
If the
number
on the
Meter
display is the same as the
code number on your new
Test Strip package, you may
proceed with a blood test.
(See Chapter 6, Testing Your
Blood.) If it is not the same,
go on to Step 2.
10
Code
t
e
s
t
f
o
r
t
h
e
q
u
a
n
t
i
t
i
e
s
m
e
a
s
u
r
m
t
e
s
t
f
o
r
t
h
e
q
u
a
n
t
i
t
i
e
s
m
e
a
s
u
r
m
t
e
s
t
f
o
r
t
h
e
q
u
a
n
t
i
t
i
e
s
m
e
a
s
u
r
m
t
e
s
t
f
o
r
t
h
e
q
u
a
n
t
i
t
i
e
s
m
e
a
s
u
r
m
t
e
s
t
f
o
r
t
h
e
q
u
a
n
t
i
t
i
e
s
m
e
a
s
u
r
m
t
e
s
t
f
o
r
t
h
e
q
u
a
n
t
i
t
i
e
s
m
e
a
s
u
r
m
t
e
s
t
f
o
r
t
h
e
q
u
a
n
t
i
t
i
e
s
m
e
a
s
u
r
m
t
e
s
t
f
o
r
t
h
e
q
u
a
n
t
i
t
i
e
s
m
e
a
s
u
r
m
t
e
s
t
f
o
r
t
h
e
q
u
a
n
t
i
t
i
e
s
m
e
a
s
u
r
m
t
e
s
t
f
o
r
t
h
e
q
u
a
n
t
i
t
i
e
s
m
e
a
s
u
r
m
t
e
s
t
f
o
r
t
h
e
q
u
a
n
t
i
t
i
e
s
m
e
a
s
u
r
m
t
e
s
t
f
o
r
t
h
e
q
u
a
n
t
i
t
i
e
s
m
e
a
s
u
r
m
t
e
s
t
f
o
r
t
h
e
q
u
a
n
t
i
t
i
e
s
m
e
a
s
u
r
m
T E S T S T R I P
10
CODE:
OPEN
HERE
INC.
Milpites,CA Made in U.S.A. 51-453B
TESTFORGLUCOSE
IN WHOLEBLOOD
R
code 7
CAUTION: You must
match the code number
on the Meter display to
the code number on
the Test Strip package
you’re using. If the code
number on the Meter
display does not match
the number on the Test
Strip package, you will
get an inaccurate result.
•19 •
4. CODING THE METER
LSI-97-051 OT2.bklt.C.Eg 10/8/97 3:10 PM Page 19 (1,1)
