LIFESTYLE APPLIANCES MILANO LFS690 User manual

1
WARNING
Improper installation,
adjustment, alteration, service or
maintenance can cause injury or
property damage. Read this
instruction manual thoroughly
before installing or servicing this
equipment.
WARNING
1. Do not store or use gasoline or
other flammable vapors and
liquids in the vicinity of this or
any other appliance.
2. An LPG tank not connected for
use should not be stored in the
vicinity of this or any other
appliance.
DANGER
If you smell gas:
1. Shut off gas to the appliance.
2. Extinguish any open flames.
3. Open the oven door.
4. If the odor continues, keep
away from the appliance and
immediately call your gas
supplier or fire department.
WARNING
For Outdoor Use Only
Lifestyle Appliances Ltd.
LFS 690 FOR DPOA
LFS 691 FOR DPOD
LFS690 FOR MILANO
LFS691 FOR VERONA

2
Oven Operation 1-2-3
Before Cooking:
Step 1 Keep your oven a safe distance away from your property.*
Step 2 Always perform a leak test.*
Step 3 Keep children away from the oven.
During Cooking:
(To avoid tripping safety valves, please follow these instructions carefully!)
Step 1 Turn gas tank on slowly.
Step 2 Use protective gloves when oven gets hot.
After Cooking:
Step 1 Burn oven for 10-15 minutes to burn off food residue.
Step 2 Wait until the oven is completely cooled before closing oven door.
Step 3 Clean up grease build-up and cover your oven.
* Please refer to the owner's manual for details.
WARNING
1. Do not store or use gasoline or
other flammable liquids or vapors in
the vicinity of this or any other
appliance.
2.An LPG cylinder not connected for
use should not be stored in the
vicinity of this or any other appliance.
DANGER
If you smell gas:
1. Shut off gas to the appliance.
2. Extinguish any open flame.
3. Open oven door.
4. If odor continues, keep away from
the appliance and immediately call
your gas supplier or your fire
department.
Always read and understand the WARNINGS and INSTRUCTIONS that are contained in this
manual before attempting to use this gas barbecue grill to prevent possible bodily injury or property
damage.
Always keep this manual for convenient future reference.

TABLE OF CONTENTS
3

Safety Information ……………………………………………………………… 4
Package Contents ……………………………………………………………… 5
Hardware Contents……………………………………………………………… 6
Assembly Instruction ………………………………………………………… 7
Connecting and disconnecting the gas bottle ………………………………… 14
Operating Instructions ……………………………………………………… 16
Care and maintenance ………………………………………………………… 21
Explored diagram …………………………………………………………… 24

Safety Information
4
Please read and understand this entire manual before attempting to assemble, operate or
1. This oven
is intended for use outdoors and should not be used in a building, garage or any
other
enclosed or covered area.
2. This outdoor oven
is not intended for installation in or on recreation vehicles and/or boats.
3. Aminimum clearance of 61cm ( 24 inches)
from combustible constructions to the sides of the grill
and
61 cm ( 24 inches)
from the back of the grill to combustible constructions must be maintained.
This outdoor cooking gas appliance must not be placed under overhead combustible construction.
4. Inspect the hoses before each use for excessive abrasion or wear, or cuts that may affect
safe
operation of the grill. If there is evidence of excessive abrasion or wear, or the hose is cut,
it must be
replaced prior to the grill being put into operation. The replacement hose assembly
must be those
specified by the manufacturer.
5
. Keep your oven
in an area clear and free from combustible materials, gasoline and other
flammable vapors
and liquids.
6
. DO NOT obstruct the flow of combustion and ventilation air to this appliance.
7. Keep the ventilation openings of the tank enclosure free and clear from debris.
8.
Check all gas connections for leaks with a soapy water solution and brush. Never use an open
flame to check for leaks.
9. Never use charcoal in the oven .
10 . Never use the grill in windy areas.
11
-
.
12. Never use the grill without the drip tray installed and
hung under the burner box. Without the drip tray, hot
grease and debris could leak downward and produce a fire hazard.
install theproduct.
.Use only Propane for this appliance. 13Kg Patio Gas Bottle is compatible with the regulator supplied
13. The cylinder used must include a collar to protect the cylinder valve
14. Do not store a spare LPG cylinder under or near the appliance

PACKAGE CONTENTS
5
PART DESCRIPTION QUANTITY PART DESCRIPTION QUANTITY
A Main Body 1 D Bottom Grill 1
B Cooking Grill 2 E Fat Cup 1
C Pizza Stone 1 F Smoker Box 1
G Flame Tamer 1

6
HARDWARE CONTENTS
The following list is included inside the pizza oven carton:
Battery 1 pc
The following list is not included inside the pizza oven carton, but needed when the user is
assembling the pizza oven.
Phillips Head Screwdriver
1 pc

7
ASSEMBLY INSTRUCTIONS
Before beginning assembly of product, make sure all parts are present. Compare parts with
package contents list and hardware contents list. If any part is missing or damaged, do not
attempt to assemble the product.
Assembly tip! (Please lightly tighten the screws during assembly of the cart. When
the cart is completed THEN TIGHTEN ALL THE screws. This will make it easier to
make all the holes align properly)
1. Use screw M6*40h2 pcs, nut
M6h2 pcs and flat washer
18*6.4*1h2 pcs to fix the weight
under the base panel. (Note:
These screws MUST be
tightened at this time as it will
be hard to reach them after cart
assembly)
2. Use screw M6*12×16 pcs to
attach swivel castor with lock×2
pcs and fixed castor×2 pcs onto
the bottom of the base panel.
(Note: The locking wheels
should go in the BACK of the
cart near the weight)

8

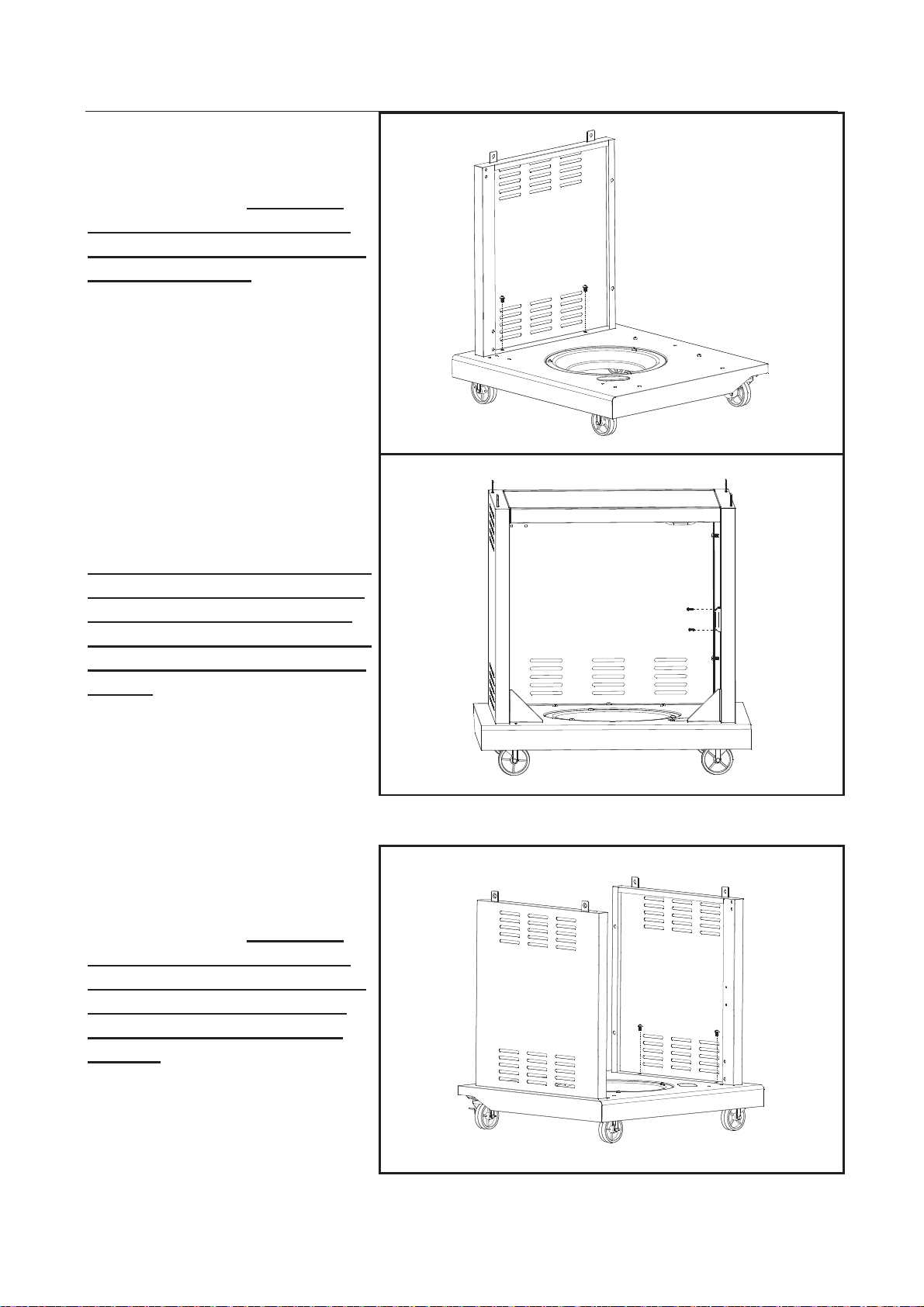

3. Use screw M6*12×2 pcs to fix
the left side panel onto the base
panel of the stand. (Note: The
panel should have the “small
holes at the top” to the front of
the cart assembly)
4. Use screw M3*12×2 pcs and
nut M3×2 pcs to attach the door
magnet onto the right side panel.
(Note: Please attach the magnet
BEFORE you put the right side
panel on. Check to verify that
the magnet points to the FRONT
of the cart. This holds the door
closed)
5. Use screw M6*12×2 pcs to fix
the right side panel onto the base
panel of the stand. (Note: The
panel should have the “small
holes at the top” to the front of
the cart assembly. The Right
side panel also has the door
magnet)

9

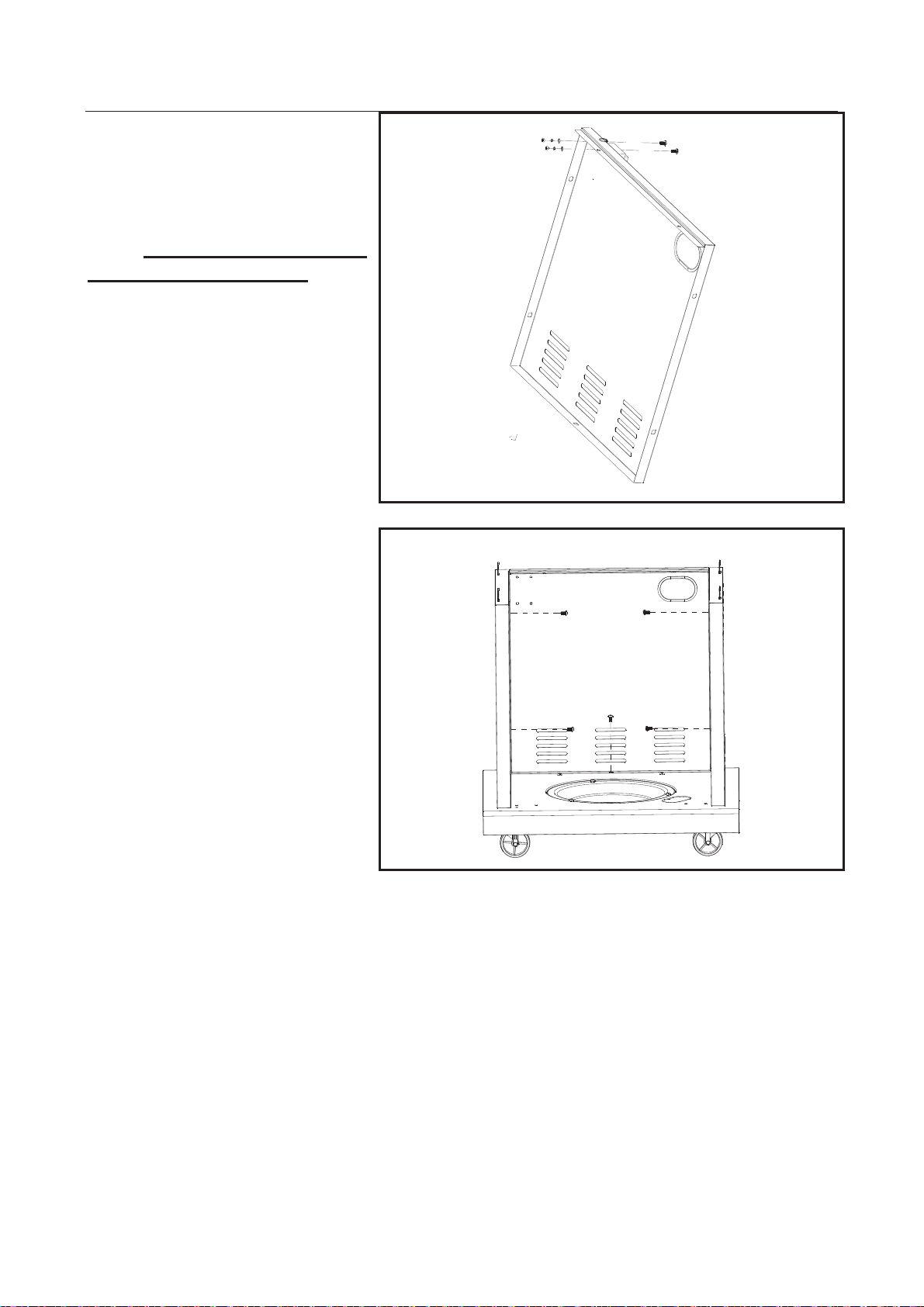

6. Use screw M5*12×2 pcs and
nut M5×2 pcs to attach the
battery case onto the
outside of the back panel of the
stand. (Note: These screws can
be tightened at this time)
7. Use screw M6*12×5 pcs to
attach the stand base panel onto
the base panel, between the two
side panels.

10
8. Use screw M4*10×4 pcs to fix
the stand door horizontal beam
between the two side panels.
(Note: Please fasten the upper
two screws first, and then the
lower two screws.)
9. Use screw M4*10×4 pcs to fix
the stand top panel on the top of
the two side panels and back
panel. (Note: These screws can
be tightened at this time)

11
11. First, insert the door lower axis
into the hole in the base panel.
Next, push down the door upper
spring axis and let go of the spring
when it is pointed to the hole in the
horizontal beam. (Note: You may
need to add 1 or 2 washers
18*6.4*1 on the bottom pin so
the door will close evenly)
ALMOST FINISHED!!
12. Put the oven assembly on the
stand-top panel. Use screw
M6*12×4 pcs to fasten the oven
onto the stand. (Note: These
screws can be tightened at this
time)

12

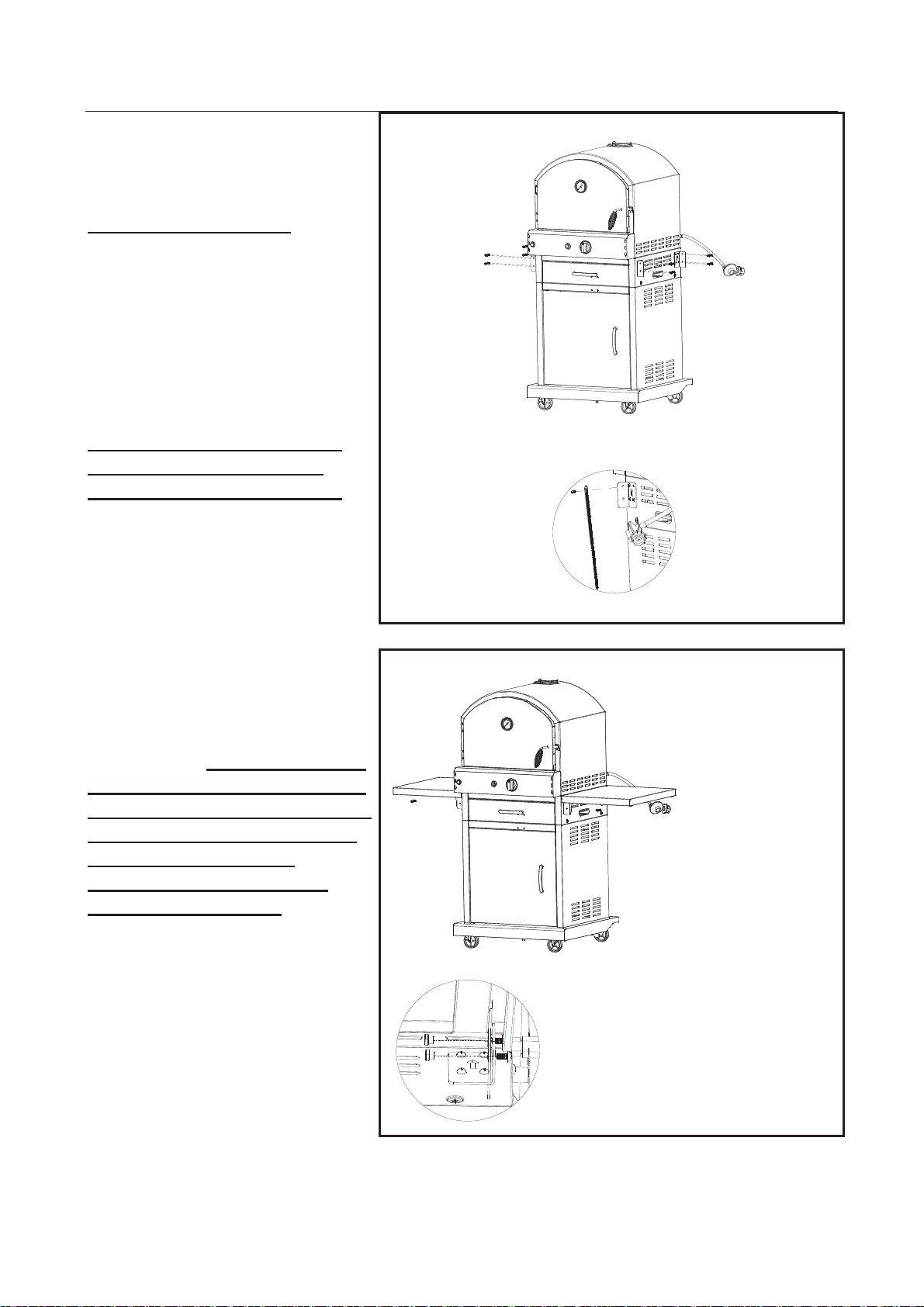

13. Use screw M5*10×16 pcs to
attach side shelf bracket×4 pcs
onto the drawer side panels.
(Note: Arrows face UP)
14. Using one of the screw M5*10
to fix the match holder onto the
front bracket of right side shelf.
(This step may be skipped if
you do not want or need a
“match holder” on your unit)
15. Use screw M6*12×8 pcs and
special nut TB31-05-03×8 pcs to
hang side shelf×2 pcs onto the
four brackets. (Notes (2): Attach
the top set of screws and bolts
and hang the shelf from them to
assist in attaching the bottom
screws and nuts to the
shelf.These screws can be
tightened at this time)

13
16. Use screw M4*8×3 pcs to fix
the chimney assembly onto the
top of the oven exterior. (Note:
These screws can be tightened
at this time)
17. Use screw M5*35×4 pcs to fix
the back heat shield onto the back
panel of the oven. The order is:
screwėback heat shieldėheat
insulation washerėflat washerė
oven back panel.
18. Put the following accessories
into the oven and close the oven
door:
- base grill×1 pc
- pizza stone×1 pc
- cooking grill×2 pcs
- smoker box×1 pc (hang on the
cooking grill, exact position is
according to the food position
inside the oven)
- flame tamer×1 pc

14

15

16
PRE-OPERATION LEAK TESTING
Although all gas connections on the grill are leak tested prior to shipment, a complete gas
tightness check must be performed at the installation site due to possible shifting during
shipment, installation or excessive pressure unknowingly being applied to the unit.
Periodically check the whole system for leaks and immediately check the system if the
smell of gas is detected.
1. Do not smoke while leak testing.
2. Extinguish all open flames.
3. Never leak test with an open flame.
4. Mix a solution of equal parts mild detergent or liquid soap and water.
5. Turn off the burner control knobs.
6. Turn the gas supply on at the regulator attached to the gas bottle.
7. Apply the soap solution to connections of the fuel supply assembly. If no soap bubbles
appear, there is no gas leak. If bubbles form at the connections, a leak is detected. If a leak
is detected, immediately turn off the gas supply, tighten any leaking fittings, turn gas on,
and repeat steps 1-3.
8. Turn off the gas supply at the regulator attached to the gas bottle .
9. Turn on the burner control knobs for a moment to release the pressure in the hose, then
turn the control knobs back off.
10. Wash off soapy solution with cold water and towel dry.
Check all gas supply fittings before each use and each time the gas supply cylinder is
connected to the regulator. Have a qualified service technician leak test the grill any time a
part of the gas system is replaced.
It is also recommended that you perform a leak test at least once a year whether or not the
LPG gassupply cylinder has been disconnected.
WARNING When leak testing this appliance, make sure to test and tighten all loose
connections. A slight leak in the system can result in a low flame or hazardous condition.
Most LPG gas tanks now come equipped with a leak detector mechanism internal to the
tank. When gas is allowed to escape rapidly, it shuts off the gas supply. A leak may
significantly reduce the gas flow, making the grill difficult to light or causing low flames.
If you cannot stop a gas leak, turn off the gas supply and call your local gas company. If
QHFHVVDU\UHSODFHWKHIDXOW\SDUWZLWKWKHPDQXIDFWXUHUÿVUHFRPPHQGHGUHSODFHPHQWSDUW
A slight leak could cause a fire.

17
.
Clearance to combustible construction: A minimum of 61 cm (24 inches) from the sides and
back must be maintained from the gas grill above
and below the cooking surface to adjacent vertical
combustible construction.
Clearance to non-combustible construction: A
minimum of 61 cm (24 inches) clearance from the
back of the grill to non-combustible construction is
required for the lid to fully open.
Storage of an outdoor gas cooking appliance
indoor is permissible only if the cylinder is
disconnected and removed from the appliance.

18
WARNING Heat and smoke exhaust out of
the chimney and the ventilation holes on the bottom
of two oven side panels (See Fig. 8). Make sure to
keep anything that could be damaged by heat or
smoke away from the heat and smoke exhaust
holes.
GENERAL RULES
Do not leave the grill unattended while cooking!
1. Make sure the grill has been leak-tested and is properly located.
2. Light the grill burners using the instructions provided in this manual.
3. Turn the control knobs to desired temperature - High or Low - and preheat the grill for 10
minutes before cooking.
4. Adjust heat settings to meet your cooking needs for desired results.
5. Allow grill to cool down, wipe off any splatters or grease and clean the drip tray as needed.
6. Do not put a cover on the grill while it is still hot as it could start a fire.
BEFORE AND AFTER LIGHTING
1. Ensure your grill is located on a level surface.
2. Keep the gas grill area clean and free from combustible materials, gasoline, and other
flammable vapors and liquids.
3. Ensure nothing is obstructing the flow of combustion and ventilation air.
4. Ensure the ventilation of the cylinder enclosure is free and clear of debris.
5. Visually check burner flames.
WARNING Check the gas supply line for cuts, wear or abrasion.
Always keep your face and body as far away from the grill as possible when lighting.
Do not attempt to “light” the grill if the odor of gas is
present!!

19
Operating Instructions

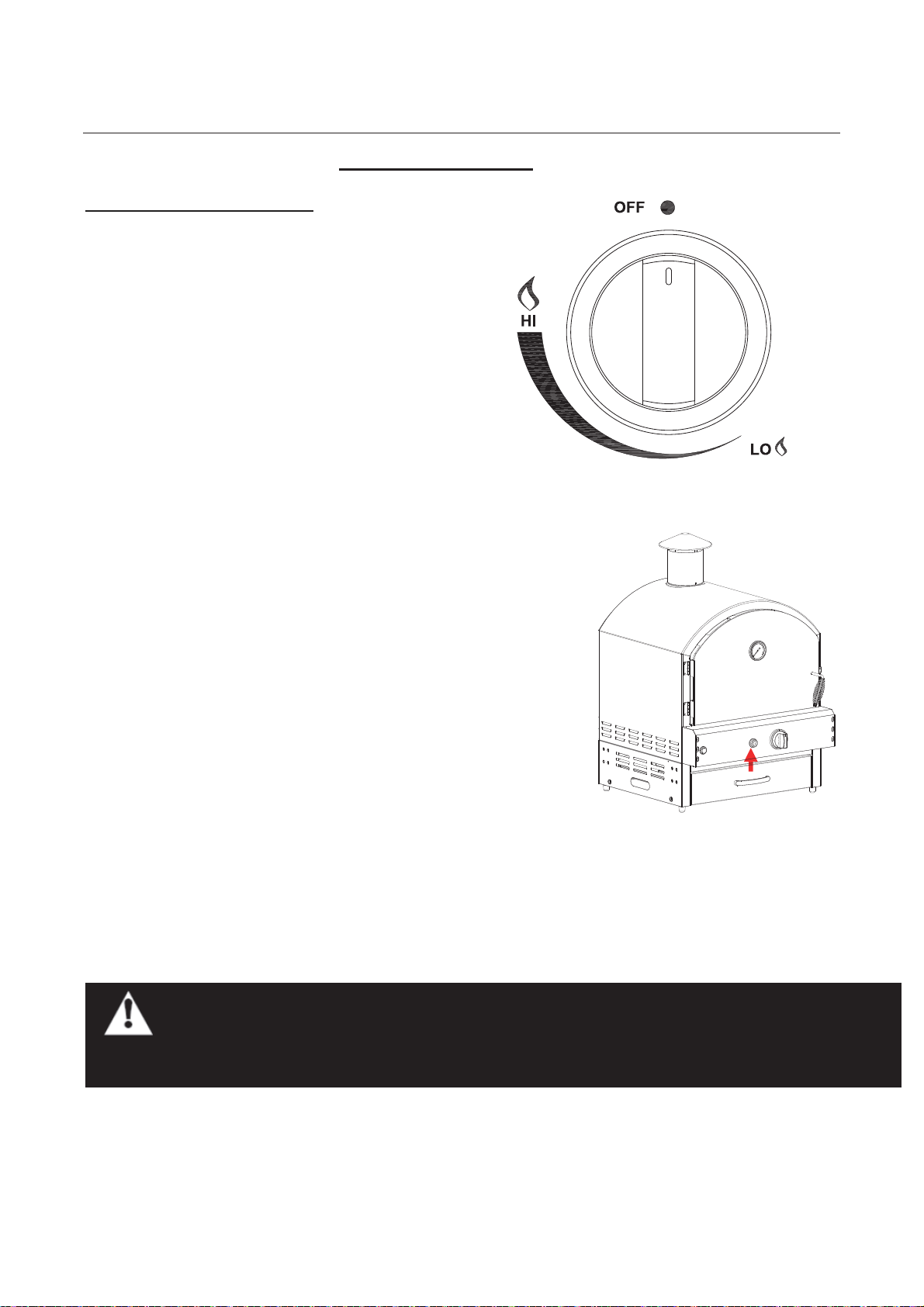

GRILL BURNER LIGHTING
Warning: Do not lean over grill when lighting. Turn
off LPGsupply at cylinder when appliance is not in
use.
Main Burner Lighting Illustration:
1. Check that the control knobs are in the OFF
position.
2. Open valve at tank fully by turning
counterclockwise.
3. The door must always be in the OPEN position
for lighting;
4. Push the Electronic Ignition down 3 to 4 seconds
while turning the control knob to the HIGH position.
The burner should ignite.
If ignition does not take place within 5 seconds,
immediately turn the control knob to the OFF position. Wait
5 minutes and repeat step 4 above or refer to match lighting
instructions in manual.
If by chance the electronic igniter does not light the burner,
the burner may be lit with a match attached to the match
extender, located on the inside of the cabinet door.
Remove the base grate and pizza stone. Keep your face as
far away from the burner surface as possible and pass the
match extender to the ports of the main burner tubes.
Position the match near the burner ports and push and turn
the control knob counterclockwise to the “HIGH” position. After the burner has lit, turn the knob
to the "LP LOW" position and carefully place the flame tamers and grates back in position.
Then turn the control knob to the desired setting.
Keep any electrical supply cords and the fuel supply
away from any heated surfaces.
Main Burner Control Knob

20
USING THE GRILL LIGHT
Light Operation Instruction
WARNING
Keep any electrical supply cord away from any heated surface.
Do not turn on the lights when the hood is closed.
IMPAIRED VENTILATION OF HOT AIR FROM GRILL - In order for the burners to function
properly, hot air created by the burners must have a way to escape. The burners may become
deprived of oxygen, causing them to backfire, especially if the burner output is set at HIGH. If
this occurs repeatedly, the burners may crack. This is the reason your grill was designed with
ventilation louvers. These design features give the hot air an escape route. Accordingly, never
operate your grill with very little or no open space at the cooking surface (the cooking grids
provide sufficient space). Also, never cover the ventilation louvers with foil or other materials
that prevent air flow. Specifically, do not cover the entire surface with foil, a large pan, etc.

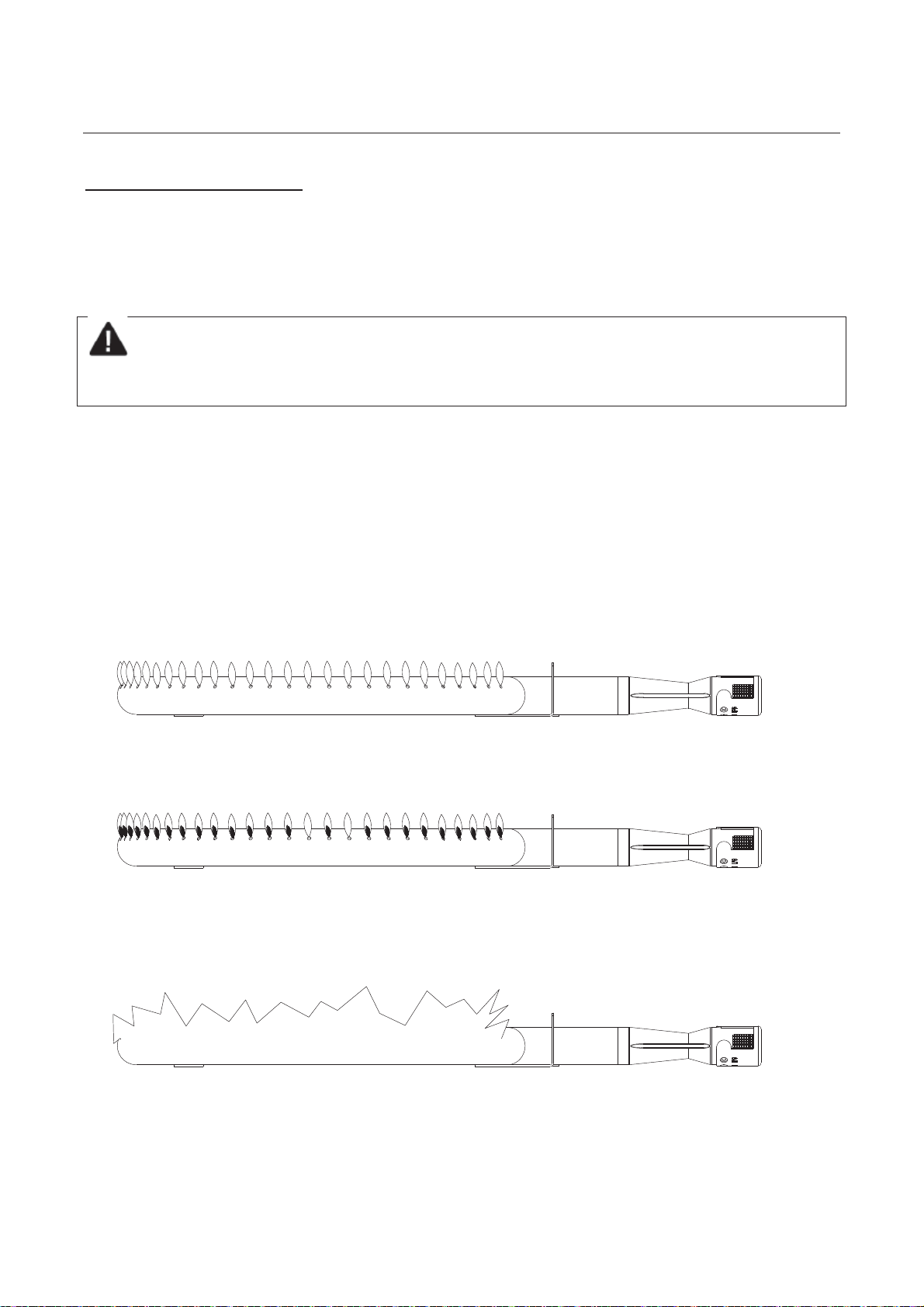

Poor Combustion:wavy,yellow
flames-too little air
Out of Acjustment:Hard blue
flames-too much air
Normal:Soft blue flames
1, Make sure the light’s power switch on the control panel is in the “OFF” position .
2, Fit 4 x AA batteries in the power pack and correctly connect the USB lead .
3, Turn the light’s power switch to “ON.”
