LiFud LF-GSD040YG User manual

LF-GSD040YG DALI-2 Tunable White Flicker-free LED Driver
www.lifud.com | Technical support: China (HQ): [phone]
1
Product Description
LF-GSD040YG is a 40W constant current DALI or PUSH dimmable LED driver. Its rated input voltage ranges from
198 to 264Vac and output current is adjustable from 550mA to 1050mA via a DIP switch, in steps of 50mA.
Features
DALI or PUSH dimming (logarithmic or linear dimming curve selectable on DALI interface)
Constant current output and output current adjustable via DIP switch
Built-in active PFC function
Standby power consumption <0.5W
CCT change: 2700-6500K
IP20
Suitable for Class II light fixtures
5-year warranty (please refer to the warranty condition)
Applications
Horticultural lighting
Indoor office lighting
Decorative lighting
Commercial lighting
Residential lighting

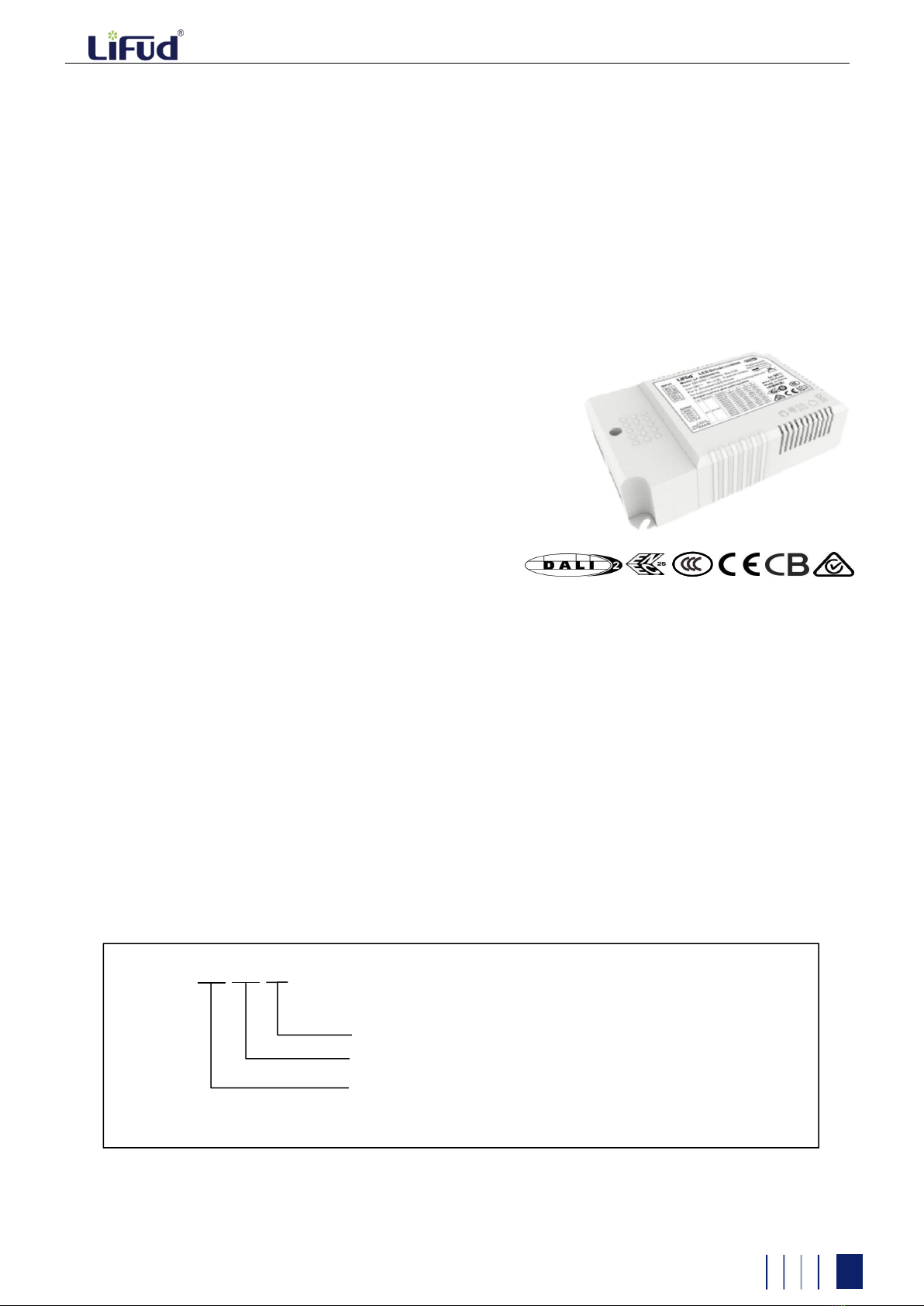

Product Naming
YG: tunable white LED driver
040: rated power: 40W
G: isolated design; SD: intelligent dimmable product
LF-GSD 040 YG

LF-GSD040YG DALI-2 Tunable White Flicker-free LED Driver
www.lifud.com | Technical support: China (HQ): [phone]
2
Electrical Characteristics
Model
LF-GSD040YG
Output
Output Voltage
20-42V
Output Current
The output current is adjustable via DIP switch.
Please refer to the DIP switch table.
550mA
600mA
650mA
700mA
750mA
800mA
850mA
900mA
950mA
1000mA
1050mA
Flicker Index
IEC-Pst≤1%, CIE SVM≤0.4%, modulation depth≤1%
(Complies with flicker-free standard: IEEE Std 1789-2015)
Ripple Current
<5% (rated current)
<3% (rated current)
Current Tolerance
±5%
Temperature Drift
±5%
Start-up Time
<1S@230Vac
Input
Input Voltage
220-240Vac (voltage limit: 198-264Vac)
DC Input Voltage
310-340Vdc (voltage limit: 280-374Vdc)
Input Frequency
47Hz-63Hz
Input Current
0.3A max.
Power Factor
≥0.9
≥0.92
≥0.94
≥0.95
THD
≤15%
Efficiency
≥85%
≥86%
≥87%
Inrush Current
≤60A&100uS@230Vac
Load Quantity
Carried by the
Circuit Breaker
Circuit Breaker Model
B10
C10
B16
C16
Quantity (pcs)
22
22
35
35
Leakage Current
≤0.7mA
Standby Power
Consumption
≤0.5W (when DALI OFF signal is effective)
Protection
Characteristics
Open Circuit
Protection
<59V
Short Circuit
Protection
Hiccup mode (auto-recovery)
Environment
Descriptions
Operating
Temperature
-30℃- +45℃
Operating
Humidity
20-90%RH (no condensation)
Storage
Temperature/
Humidity
-30℃- 80℃(six months under class I environment);
10-90%RH (no condensation)
Atmospheric
Pressure
86kPa~106kPa

LF-GSD040YG DALI-2 Tunable White Flicker-free LED Driver
www.lifud.com | Technical support: China (HQ): [phone]
3
Safety and
Electromagnetic
Compatibility
Certifications
ENEC, CE, CB, RCM, CCC
Withstanding
Voltage
I/P-O/P: 3.75kV 5mA 60S
Insulation
Resistance
I/P-O/P: >100MΩ@500Vdc
Safety
Standards
ENEC: EN61347-1: 2015, EN 61347-2-13: 2014/A1: 2017,
EN 62384: 2016/A1: 2009
CCC: GB19510.1-2009, GB19510.14-2009
RCM: AS 61347.2-13: 2018
CE-LVD: EN 61347-2-13: 2014/A1: 2017, EN 61347-1: 2015,
EN 62493: 2015
CB: IEC 61347-1: 2015, IEC61347-2-3: 2014,
IEC 61347-2-13: 2014/AMD1: 2016
EMI
CE-EMC/RCM: EN55015, EN61000-3-2, EN61000-3-3
CCC: GB/T17743, GB17625.1, GB17625.2
EMS
CE-EMC/RCM: EN61000-4-2,3,4,5 (lightning strike 1kV),6,11
CCC: GB/T17626.2, 3, 4, 5 (lightning strike 1kV),6,11
Others
IP Rating
IP20
RoHS
RoHS 2.0 (EU) 2015/863
Warranty
Condition
5 yrs (TC≤77℃)
DALI Standard
IEC 62386-101 102 207 209: DALI-2
Remarks
1. It is recommended that customer should install over voltage and under voltage
protection devices and surge protection devices in the power supply circuits of the
light fixtures to ensure safety before connecting to electricity.
2. The LED driver used in combination with the end device is one of the accessories of
the whole light fixture, and the EMC of the whole light fixture is not only susceptible to
the driver itself, but to the LED light fixture and the whole light fixture's wiring. Thus,
the manufacturer of LED light fixture should re-confirm the EMC of the whole light
fixture before the whole light fixture is finished.
3. The test conditions of the circuit breaker configuration quantity are the same as that of
the inrush current test.
4. Unless otherwise stated, the parameters above are test results under the conditions of
ambient temperature of 25℃, humidity of 50%, DALI signal input, 100% load,
maximum output current, CCT of 3115K and input voltage of 230Vac.

LF-GSD040YG DALI-2 Tunable White Flicker-free LED Driver
www.lifud.com | Technical support: China (HQ): [phone]
4
Product Characteristic Curves
PF Curve
Efficiency Curve
Lifetime Curve

LF-GSD040YG DALI-2 Tunable White Flicker-free LED Driver
www.lifud.com | Technical support: China (HQ): [phone]
5
Dimming Operation Instructions
Terminals
INPUT
OUTPUT
AC-L
AC live wire input
WW+
Positive electrode output of warm white light
AC-N
AC neutral wire input
WW-
Negative electrode output of warm white light
PUSH
PUSH dimming input
CW+
Positive electrode output of cold white light
DA1
DA1 dimming signal input
CW-
Negative electrode output of cold white light
DA2
DA2 dimming signal input
Product DIP Switch
Remark: except the known DIP switch methods, the default current of other methods is 1050mA (max).

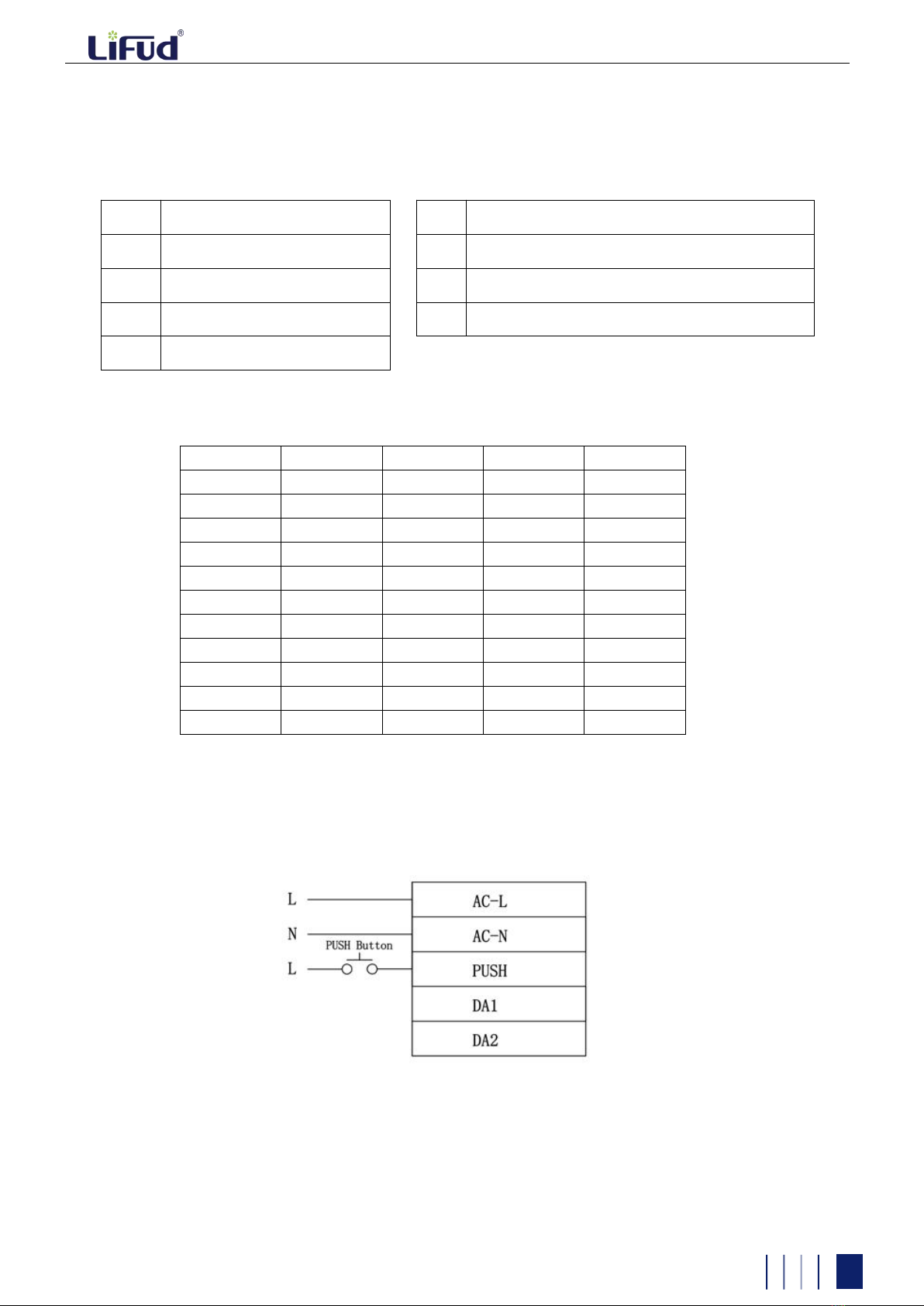

Wiring Diagram of PUSH CCT Change
In PUSH dimming mode, continuously click twice (the time of each click is not less than 100ms, and the
interval of two clicks is not more than 200ms) to enable the switch between dimmable and tunable white
functions.
The PUSH dimming mode has the memory function in case of any power failure. Power on the driver again
and the light will return to the state before the power failure.
I rated (CC)
1
2
3
4
1050mA
OFF
OFF
OFF
OFF
1000mA
OFF
OFF
OFF
ON
950mA
OFF
OFF
ON
OFF
900mA
OFF
OFF
ON
ON
850mA
OFF
ON
OFF
OFF
800mA
OFF
ON
OFF
ON
750mA
OFF
ON
ON
OFF
700mA
OFF
ON
ON
ON
650mA
ON
OFF
OFF
OFF
600mA
ON
OFF
OFF
ON
550mA
ON
OFF
ON
OFF

LF-GSD040YG DALI-2 Tunable White Flicker-free LED Driver
www.lifud.com | Technical support: China (HQ): [phone]
6

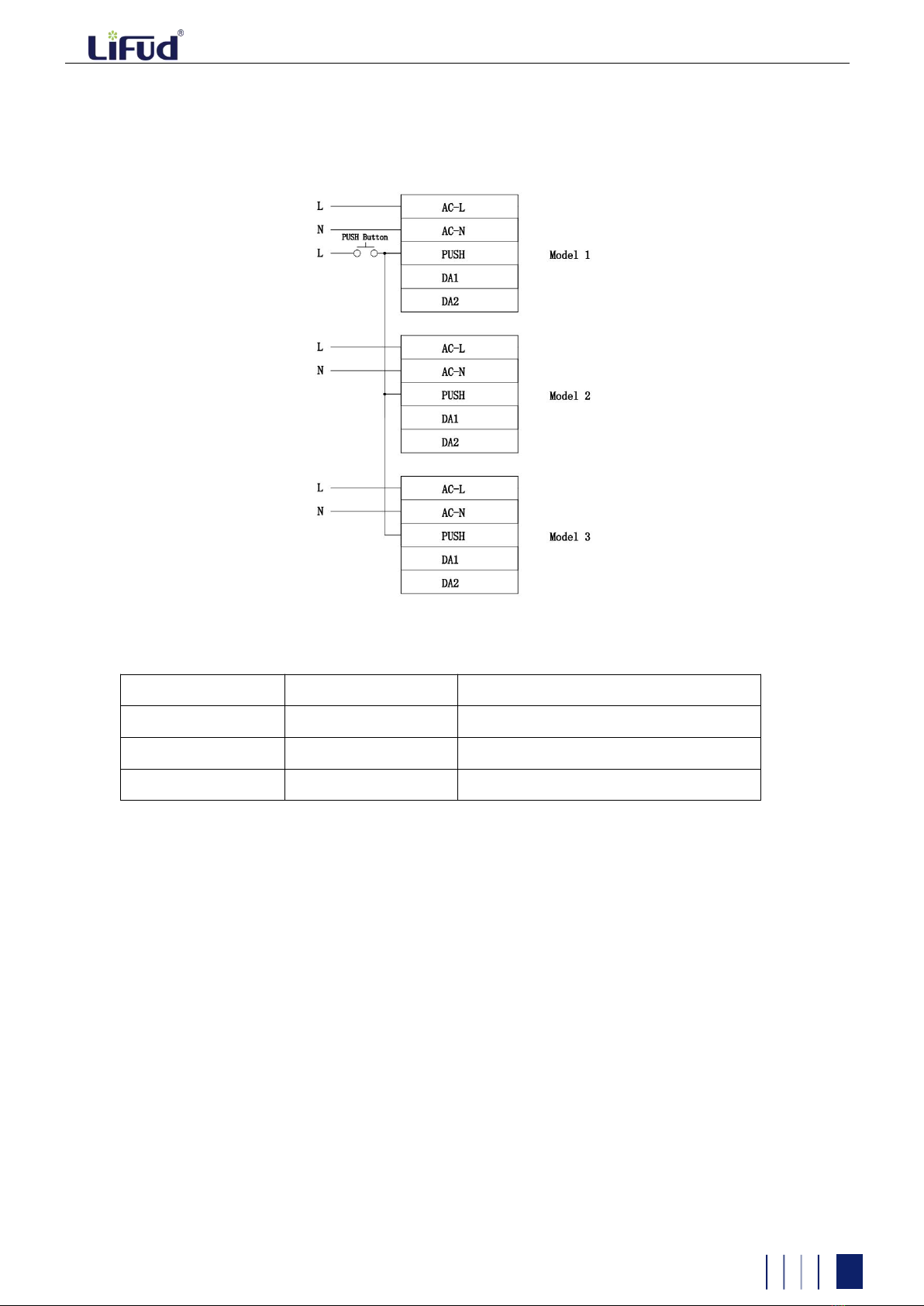

Wiring Diagram of PUSH Synchronous Dimming For Multiple Drivers
Connect the PUSH signals of multiple drivers together.
Connect these PUSH dimming signals to wire L via PUSH button.
PUSH Dimming Operation Instructions
The PUSH operation won’t cause any variations if it’s less than 0.1 sec
Minimum dimming depth of PUSH dimming: 5% (Iout)
Default output state when entering into the PUSH mode for the first time: dimming (100% brightness; two-
channel output with 50% warm light and 50% cold light)
For the first long press on the PUSH button, the CCT (warm light and cold light) remains unchanged and
the brightness decreases.
The present PUSH dimming direction is opposite to the former one.
Operation
Operation Time
Function
Instant Push
0.1-0.5 sec
Light on / off
Long Push
0.6 - 4.6 sec
Dim up/down
Reset Push
>9 sec
Reset to 50% brightness

LF-GSD040YG DALI-2 Tunable White Flicker-free LED Driver
www.lifud.com | Technical support: China (HQ): [phone]
7
PUSH CCT Change Operation Instructions
The PUSH operation won’t cause any variations if it’s less than 0.1 sec
Minimum CCT of PUSH dimming: warm light; maximum: cold light.
Default output state when entering into the PUSH CCT change mode for the first time: two-channel output
with 50% warm light and 50% cold light.
For the first long press on the PUSH button, the brightness remains unchanged and the CCT change
adjusts to the cold light.
The present direction of PUSH CCT change is opposite to the former one.
DALI Dimming Operation Instructions
Factory default settings: two-channel output with 50% warm light and 50% cold light; 100% brightness
Connect the DALI signal to the DA1 and DA2 terminals.
DALI protocol includes 16 groups and 64 IP addresses.
Minimum dimming depth of DALI dimming: 5% (Iout).
Operation
Operation Time
Function
Instant Push
0.1-0.5 sec
Light on / off
Long Push
0.6 - 4.6 sec
CCT change of luminaire
Reset Push
>9 sec
Reset to the two-channel output with 50%
warm light and 50% cold light
CCT Curve
DALI CCT Instruction

LF-GSD040YG DALI-2 Tunable White Flicker-free LED Driver
www.lifud.com | Technical support: China (HQ): [phone]
8
Instructions on Switch of Dimming Modes
When powering the driver on for the first time, the driver enters into DALI mode; 100% brightness; two-
channel output with 50% warm light and 50% cold light.
The switch between DALI and PUSH modes:
1．Switch to PUSH mode: long press on the PUSH button for more than 0.6 sec; the present output state is
the former one memorized by PUSH mode.
2．Switch to DALI mode: the moment the driver receives any DALI instructions; for non-dimmable instructions,
the present output state remains unchanged; for dimmable instructions, the driver dims up and down.
Label
Dimensions (unit: mm )

LF-GSD040YG DALI-2 Tunable White Flicker-free LED Driver
www.lifud.com | Technical support: China (HQ): [phone]
9
Packaging Specifications
Transportation & Storage
Transportation
Suitable transportation means: vehicles, boats and aircraft.
During transportation, there should be awnings for rain protection and sun protection. Civilized loading and
unloading are required. There should be no severe vibration or impact.
Storage
Storage in accordance with the provisions of the Class I environment. For products which have been
stored for more than six months, they mustn’t be used until they pass the re-inspection.
Attention
Please use this product according to its specifications otherwise there may be malfunction.
Use light fixtures that have not been certified or are not compatible with the LED drivers may cause fire or other
hazards.
Man-made damage, any use beyond the specification and non-original-factory modification are not covered by
warranty.
Remark: The final interpretation right of the contents of this data sheet belongs to Lifud Technology Co., Ltd.
Model
LF-GSD040YG
Packaging Dimension
385*285*210mm (L*W*H)
Quantity
8 pcs/layer; 6 layers/ctn; 48 pcs/ctn
Weight
0.2192 kg/pc; 11.7 kg/ctn
