Lightmen Orb 300 User manual

TABLE OF CONTENTS
SAFETY
DIMENSIONS
01
02
03
03
04
05
●
●
●
●
●
●
●
●
●
●
●
●
●
SAFETY
05
07
10
08
08
DESCRIPTION
INTRODUCTION
POWER CONNECTING
PHOTOMETRICS
DMX CONNECTING
TECHNICAL SPECIFICATION
MENU
MENU DESCRIPTION
DMX CHANNELS
TROUBLE SHOOTING 11
Before carrying out any operations with the unit, carefully read this instruction
manual and keep it with cure for future reference. It contains important information
about the installation, usage and maintenance of the unit.
WARNING
General instruction
The products referred to in this manual conform to the European Community Directives and are there-
fore marked with.
The unit is supplied with hazardous network voltage (230V~). Leave servicing to skilled personnel only.
Never make any modifications on the unit not described in this instruction manual, otherwise you will
risk an electric shock.
Connection must be made to a power supply system fitted with efficient earthing (Class I appliance ac-
cording to standard EN 60598-1). It is, moreover, recommended to protect the supply lines of the units
from indirect contact and/or shorting to earth by using appropriately sized residual current devices.
The connection to the main network of electric distribution must be carried out by a qualified electrical
installer. Check that the main frequency and voltage correspond to those for which the unit is designed
as given on the electrical data label.
This unit is not for home use, only professional applications.
Never use the fixture under the following conditions:
-in places wet;
-in places subject to vibrations or bumps;
-in places with an ambient temperature of over 45°
Make certain that no inflammable liquids, water or metal objects enter the fixture.
All work must always be carried out by qualified technical personnel. Contact the nearest sales point
for an inspection or contact the manufacturer directly.
If the unit is to be put out of operation definitively, take it to a local recycling plant for a disposal
Warnings and installation precautions
If this device will be operated in any way different to the one described in this manual, it may suffer
damage and the guarantee becomes void. Furthermore, any other operation may lead to dangers like
short circuit, burns, electric shock, etc.
Before starting any maintenance work or cleaning the projector, cut off power from the main suply.
● Always additionally secure the projector with the safety rope. When carrying out any work, always comply
scrupulously with all the regulations (particularly regarding safety) currently in force in the country
in which the fixture’s being used.
●For inside use only. Not designed for outside use.
The minimum distance between the fixture and surrounding walls must be more than 50cm and the
air vents at the housing must not be covered in any case.
●
●
●
Install the fixture in a well ventilated place.
Keep any inflammable material at a safe distance from the fixture.
The maximum temperature that can be reached on the external surface of the fitting, in a thermally
steady state, is high. After power off, please cool down over 15 minutes.
●
Shields, lenses or ultraviolet screens shall be changed if they have become damaged to such an extent
that their effectiveness is impaired.
●The lamp(LED) shall be changed if it has become damaged or thermally deformed.
●Never look directly at the light beam. Please note that fast changes in lighting, e.g. flashing light,
may trigger epileptic seizures in photosensitive persons or persons with epilepsy.
1 2

296
203
380
371
188
1
2
10
4
6
4
78
9
12
3
5

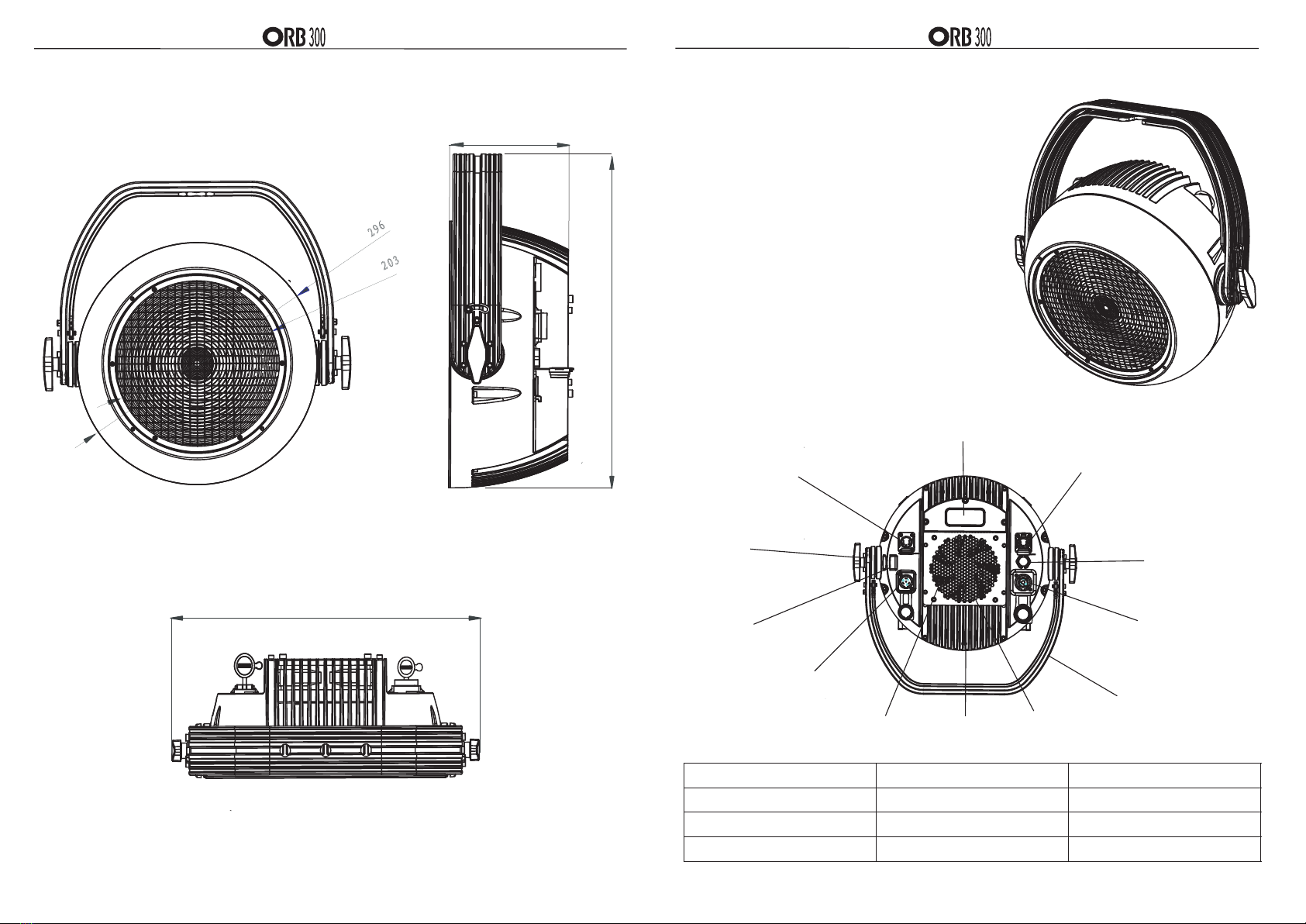

DIMENSIONS DESCRIPTION
INTRODUCTION
1. 5-Pin XLR IN 2.OLED Display 3.
5-Pin XLR OUT
4. Breather Valve 6. Bracket
5. PowerCon OUT
7. Fan Grill 8. Heat Sink 9. Fan (IP65)
10.
PowerCon In
11. Safety Loop 12. Bracket Knob
Breakthrough design delivers massive blinding output
with old-school red shift effect
Proprietary LED configuration produces stunning classic
halogen feel
Variety of dimming curves to accurately evoke the look
and feel of classic blinders
Outdoor-rated, touring-ready construction and design
11
3

Power In Power Out
WARNING
Power Connecting
Subsequent
Menu Function Navigation
Mode
Menu
Up
Down
Enter
Function Description
Menu Option
Up
Down
Confirm
Effect
Enter the Menu
Scroll Up
Confirm the Chosen Menu
Illustration
Menu Operation
Increase the Numeric Value
Save the Function
INTRODUCTION
135710
1021 520
25516 255
2835
PHOTOMETRIC
DMX CONNECTION
Subsequent
DMX512 Contoller
Scroll Down
Decrease the Numeric Value
Using POWER CON In/Out
Power cable connected in series
Attention• •due to the power rating• •
one 1.5mm² power cable can connect 5 units maximum
Do not connect more than 5 unitsin series with one power cable.
Do not use damaged power cables.
Turn off the power when the units are not in use.
Beam Angle: 32°
5 6

DMX CONNECTION
MODE ALLOCATION
0072CH
3CH
001-002 001 003 005
010001-004 001 004 007
4CH 013001-004 001 005 009
DMX INPUT
1
3
2
45
1
3
2
45
COMMON
DMX—
DMX+
Not Used
DMX OUTPUT
Not Used
DMX 512 Controller
5CH 016001-005 001 006 011
Power connections：PowerCon IN/OUT
Data connections：5-Pin XLR IN/OUT
Thermal:
Cooling: Active
Max. Ambient: 40°C
Min. Ambient: -20°C
Max Housing: 61°C
Physical:
Dimensions: 380 x 188 x 371mm
Weight: 8.5 KG
Misc/Options:
Power Cord: Included (PowerCon)
Mounting Clamp: Not included
Touring Case：Not included
TECHNICAL SPECIFICATION
Photometrics:
Light Source: Proprietary red-shifting LED combo
Beam Angle：32°
Field Angle：56°
Output：1027 LUX @ 5 Meters
Key Features:
Color Mixing: Amber + White
Strobe：0-30HZ
Dimming: 4 dimming curve modes
IP rating：IP65
Control:
Protocol: DMX512
DMX Channels: 2、3、4、5
Display：digital function menu with 4 touch buttons
Power:
Mains：100-240VAC 50/60HZ
Consumption：260W/ 230V
I/O:
Follow above method for subsequent fixtures, calculating starting addresses as indicated.
Relation between DMX and Address
STARTING ADDRESS
1ST FIXTURE STARTING ADDRESS
4TH FIXTURE
STARTING ADDRESS
3RD FIXTURE
STARTING ADDRESS
2ND FIXTURE
7 8

MENU MENU DESCRIPTION
NO. Main Menu Submenu Submenu Defaults
1 DMX Address <001> Default：001
2 DMX Channel
2Ch
Default：5CH
3Ch
4Ch
5Ch
3 Static Dimmer <255> Default：Dimmer=255; Strobe=0
Strobe <0>
4 Auto Show
Auto 1 <100>
Default：Auto 1; Speed:100
Auto 2 <100>
Auto 3 <100>
5 Red Shift On Default：On
6 Master/Slave Master Default：Slave
Slave
7 Dimmer Mode Default：0FF
Dimmer 1
Dimmer 2
Dimmer 3
8 LED Frequency
600Hz
Default：1200HZ
1200 Hz
2000 Hz
4000 Hz
25KHz
9 Fan Mode Auto Default：Auto
On
10 Back Light
On Default：On
10S
20S
30S
11 Key Lock On Default：On
12 Information
Fixture Hours <9999>
Version <V1.0>
13 Reset Factory No Default：No
Yes
DMX Function
1. DMX Address : Set DMX starting address at a value between 001-512.
2. DMX Channels : Selectable DMX mode 2 / 3 / 4 / 5 channels.
Static
Sets the intensity of the light output and selects the strobe frequency.
Auto Show
Three Automatic Programs available.
Red Shift
Turns on or off the red shift.
Master/Slave
Assign fixture to operate as either Master or Slave unit in daisy-chained configurations.
Dimmer Mode
Four selectable dimmer curves: OFF, Dimmer 1, 2, 3 (fast, medium, slow ).
LED Frequency
Five selectable PWM frequencies: 600 / 1200 / 2000 / 4000 / 25HZ.
FAN MODE
Active, Fan control.
Back light
Set delay time for menu display to go dark at either 10, 20 or 30 seconds or choose always ON.
Key lock
Password protection option.
Information
Displays fixture run time, software version and UID.
Factory Reset
Restore factory settings.
UID
9 10

DMX CHANNELS TROUBLE SHOOTING
2CH Function Value Percent/Setting
1 Dimmer 000-255 0-100%
2Red Shift On/OFF 1-000
2-255
ON
OFF
3CH Function Value Percent/Setting
1 Dimmer 000-255 0-100%
2 Dimmer Fine 000-255 0-100%
3 Red Shift On/OFF 1-000
2-255
ON
OFF
4CH Function Value Percent/Setting Remarks
1 Dimmer 000-255 0-100%
2 Red Shift On/OFF 1-000
2-255
ON
OFF
3 Strobe Rate 000-010
011-255
No Function
Strobe slow to fast when running auto programs
4 Strobe Pre-Programs
000-010
011--080
081-160
161-240
241-255
No function
Auto 1 slow to fast
Auto 2 slow to fast
Auto 3 slow to fast
No function
5CH Function Value Percent/Setting
1 Dimmer 000-255 0-100%
2 Dimmer Fine 000-255 0-100%
3 Red Shift On/OFF 1-000
2-255
ON
OFF
4 Strobe Rate 000-010
011-255
No Function
Strobe slow to fast
5Strobe Pre-Programs
000-010
011--080
081-160
161-240
241-255
No function
Auto 1 slow to fast
Auto 2 slow to fast
Auto 3 slow to fast
No function
Problem Possible Causes Checklist and Remedies
Fixture does not light up
•No mains supply
•Dimmer fader set to 0
•All color faders set to 0
•Faulty LED
•Faulty LED board
•Check the power supply voltage
•Increase the value of the dimmer channels
•Increase the value of the color channels
•Replace the LED board
•Replace the LED board
General low light intensity •Dirty lens assembly
•Misaligned lens assembly •Clean the fixture regularly •Install lens assembly properly
Fixture does not power up
•No power
•Loose or damaged power cord
•Faulty internal power supply
•Check for power on power outlet
•Check power cord
•Replace internal power supply
Fixture does not respond to DMX
•Wrong DMX addressing
•Damaged DMX cables
•Bouncing signals
•Check control panel and unit addressing
•Check DMX cables
•Install terminator as suggested
