Lightolier Calculite ProSpec PA1H3070 User manual

Ceiling Cutout: 7 3/16" L X 7 3/16" W
Ordering Information: PAR 30 MH Series A
Cat. No. Lamp Ceiling Trim Aperture Finis
PA1H3070BL (1) 70W PAR 30 MH Overlap Black with White Flange
PA1H3070WL (1) 70W PAR 30 MH Overlap White with White Flange
PA1H3070BTL (1) 70W PAR 30 MH Trimless Black
PA1H3070WTL (1) 70W PAR 30 MH Trimless White
8
10
11
14 7/8"
8"
13"
9"
5
6
7
9
12
13
12
34
1 3/4"
8 3/4"
Depth
12 3/8" L X 10" W
6" L X 6" W Opening
7 3/16" L X 7 3/16" W Cutout
PA1H3070BL (Flanged) Black/White
PA1H3070WL (Flanged) White
PA1H3070BTL (Trimless) Black
PA1H3070WTL (Trimless) White
Flanged Trimless
T
Calculite®ProSpec®Linear Downlight PA1H3070
Page 1 of 2 1 Light PAR30 MH Series A
Job Information Type:
Job Name:
Cat. No.:
Lamp(s):
Notes:
Lig tolier a Genlyte Thomas Company www.lightolier.com
631 Airport Road, Fall River, MA 02720 • [phone] • Fax [phone]
We reserve the right to change details of design, materials and finish.
© 2002 Genlyte Thomas Group LLC (Lightolier Division) • A0902

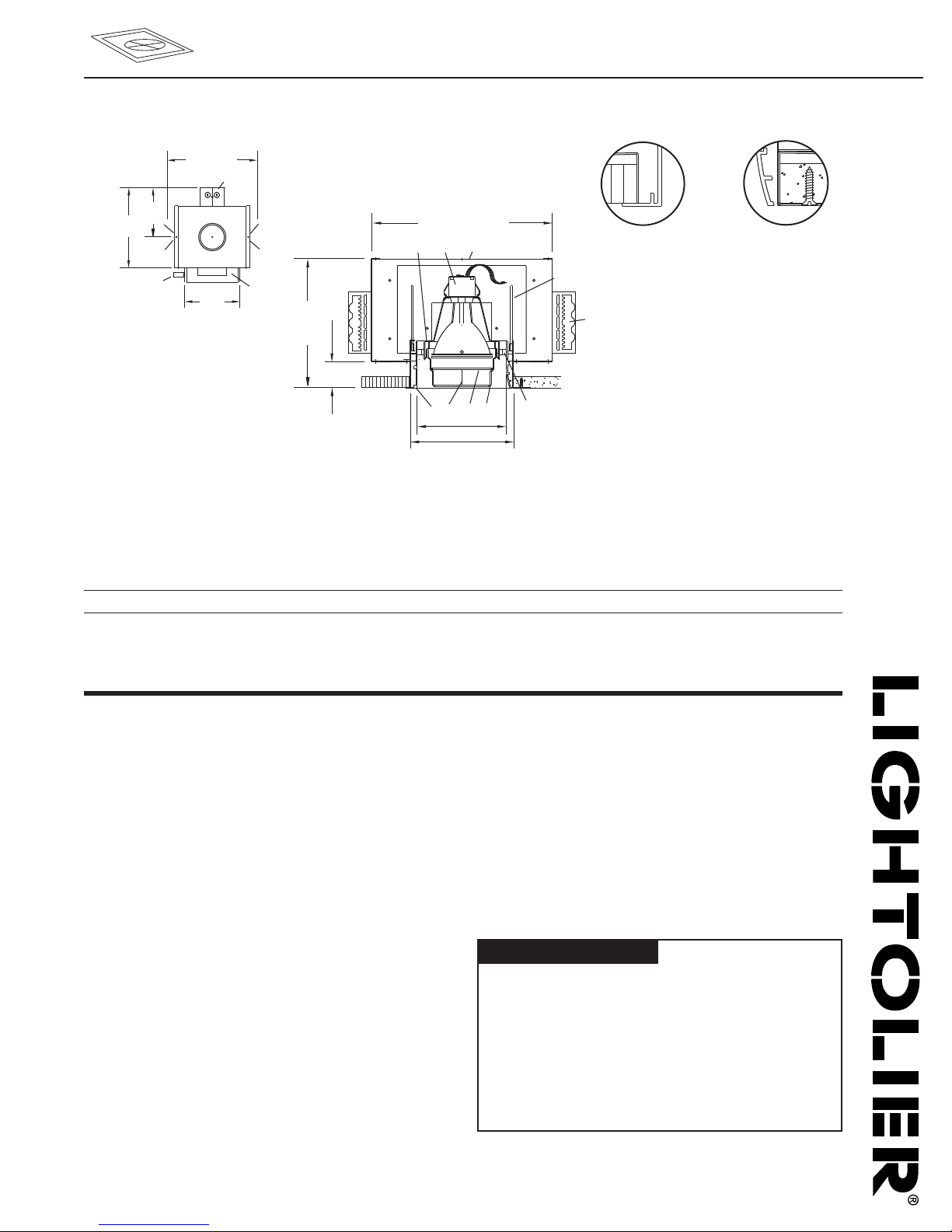

Features
1. Aperture Frame: Provides clean support for lamp holders and overlapping
flange or trimless installation. Extruded aluminum. Rigidly welded together
on all corners.
2. Media Cartridge: Allows convenient loading and removal of up to two
accessories. Easily installed and removed for lamping with a simple twisting
motion. Constructed of die-formed aluminum.
3. Cross Blade Louver: Extruded aluminum. 1" deep, provides additional
shielding and can be easily removed.
4. Adjustable Ring: Allows 360° horizontal and 30° (on width) and 45° (on
length) vertical adjustment.
5. Tortiontite Spring: For easy installation of aperture frame.
6. Housing: Die-formed 22 ga. steel. Finish: Black
7. Mounting Brackets: Adjustable vertically from outside of housing.
8. T ermal Protector: Meets NEC , UL, and CSA requirements.
9. Lamp older: Porcelain medium based; nickel plated screw shell. 5KV pulse
rated, prewired with #18 SF-1 leads to ballast housing.
10. Junction Box: 14 ga. steel, 4" x 3 1/2" x 3" box. Allows inspection from
below.
11. Ballast Housing: Die-formed 18 ga. steel.
12. Lamp and Accessory Support: .032" steel, flared for easy entry of Media
Cartridge.
13. Lens Retaining Ring: .093" spring steel rod. Holds accessories in place.
Electrical
Electronic Ballast: High Power Factor. Input watts: 78; line current: .67 amps.
Accessible from below.
UL listed for through branch circuit wiring with maximum of (8) no. 12 AWG
90°C.
Finis
All painted finishes are powder coated baked enamel.
Options & Accessories
Accessories: 3 3/4" dia. series, filters, lenses, screens and louvers (2) max.
Label
UL/cUL (Suitable for Damp Location), I.B.E.W.

(FC) is initial footcandles at center of beam.
Beam length (L) and beam width (W) are to
where the candlepower is reduced to 50%
of center beam candlepower.
CBCP is center beam candlepower.
(C) is distance to the center of the beam.
Performance data shown is based on bare
lamp photometrics of MasterColor™lamps
by Philips Lighting. Contact lamp manufac-
turers for availability and performance.
Accent Lig ting Performance Data
0° Aiming Angle 30° Aiming angle 30° Aiming Angle 45° Aiming Angle
DFC LW DC FC LW D CFC LW D CFC LW
Beam Spread Rated
50% Max CP CBCP Life-Hrs
9000
9000
68000
10000
10°
Lamp
70W PAR30
MC/MH) FL
70W PAR30
MC/MH) SP
70w
15’ 302 2.6’ 2.6’
20’ 170 3.5’ 3.5’
25’ 109 4.4’ 4.4’
30’ 76 5.2’ 5.2’
8’ 8.0’ 376 2.8’ 2.0’
12’ 12.0’ 167 4.2’ 3.0’
18’ 16.0’ 74 5.6’ 4.0’
20’ 20.0’ 60 7.1’ 4.9’
7’ 204 5.1’ 5.1’
10’ 100 7.3’ 7.3’
13’ 59 9.5’ 9.5’
16’ 39 11.6’ 11.6’
6’ 3.5’ 180 6.1’ 5.0’
9’ 5.2’ 80 9.1’ 7.6’
12’ 6.9’ 45 12.2’ 10.1’
15’ 8.7’ 29 15.2’ 12.6’
4’ 4.0’ 221 6.7’ 4.1’
6’ 6.0’ 98 10.1’ 6.2’
8’ 8.0’ 55 13.4’ 8.2’
10’ 10.0’ 35 16.8’ 10.3’
2’ 3.5’ 313 9.7’ 2.9’
3’ 5.2’ 139 14.5’ 4.4’
4’ 6.9’ 78 19.3’ 5.8’
5’ 8.7’ 50 24.2’ 7.3’
10’ 5.8’ 442 2.3’ 2.0’
15’ 8.7’ 196 3.5’ 3.0’
20’ 11.5’ 110 4.7’ 4.0’
25' 14.4’ 71 5.8’ 5.1’
5’ 8.7’ 340 3.6’ 1.7’
8’ 13.9’ 133 5.7’ 2.9’
11’ 19.1’ 70 7.9’ 3.8’
14’ 24.2’ 43 10.0’ 4.9’
40°
Calculite®ProSpec®Linear Downlight PA1H3070
Page 2 of 2 1 Light PAR30 MH Series A
Lig tolier a Genlyte Thomas Company www.lightolier.com
631 Airport Road, Fall River, MA 02720 • [phone] • Fax [phone]
We reserve the right to change details of design, materials and finish.
© 2002 Genlyte Thomas Group LLC (Lightolier Division) • A0902
