Allen-Bradley GuardShield 450L PAC User manual

Installation Instructions
Original Instructions
GuardShield 450L PAC Safety Light Curtain
Catalog Numbers 450L-E4A1L0150YD, 450L-E4A2L0600YD, 450L-E4A3L0900YD, 450L-E4A4L1050YD
Figure 1 - Package Content (Stick, Mounting Brackets, and Test Rod)
Figure 2 - Remove Red Slot Cover
Figure 3 - Check DIP Switches on Connection Plug-in
Figure 4 - Insert Plug-in
If a 450L PAC safety light curtain is used and operated with a cascading plug-in,
remove the gray slot cover insert and mount the cascading plug-in, similar to the
connection plug-in.
Figure 5 - Tighten Screws (0.38 N•m [3.36 lb•in], Max)
Figure 6 - Install Mounting Kit (0.7 N•m [6.19 lb•in], Max)
Confirm that both connection plug-ins are at the same end of the light curtain
sticks.
Figure 7 - Position of Transmitter and Receiver Sticks
Figure 8 - Install, Connect, Power-up, and Align Complete System
The 450L PAC safety light curtain sticks have an integrated laser alignment
system. This system can be switched on/off by placing a finger on the optical
switch, which is the square next to the hand symbol on the front window.
IMPORTANT See 450L-UM001 in Additional Resource on page 4 for
in-depth instructions and technical information.
IMPORTANT The plug-in must be ordered and supplied separately.

2Rockwell Automation Publication 450L-IN009A-EN-P - March 2022
GuardShield 450L PAC Safety Light Curtain Installation Instructions
Figure 9 - Use the Integrated Laser Alignment System for Positioning
The450L PAC is a Perimeter Access Control safety light curtain that is designed for
whole body detection to create a safety perimeter around a machine or hazardous
location. To verify correct operation, first place the machine or hazardous location
in a safe state. Then interrupt the beams, refer to Figure 11 for the beam positions
of different models. Confirm that the OSSD safety output switches to the OFF state
(refer to Table 2 on page 3 for the indicator status) and remains OFF for as long as
the beams are interrupted.
Figure 10 - 450L PAC Overall and Mounting Dimensions
Figure 11 - 450L PAC Beam Heights
ATTENTION: Do not stare into the beam. Laser Class 2.
Conforms to 21 CFR 1040.10.
Laser Optical Switch
30 mm
(1.18 in.)
30 mm
(1.18 in.)
30 mm
(1.18 in.) 30 mm
(1.18 in.)
42.5 mm
(1.67 in.)
13 mm
(0.51 in.)
29.9 mm
(1.18 in.)
8 mm
(0.31 in.)
17.6 mm
(0.69 in.)
14.9 mm
(0.59 in.)
7.6 mm
(0.3 in.)
ABCD
Cat. No. Number of
Beams
ABCD
Protective
Height
Mounting
Value
Mounting
Value Total Length
450L-
E4A1L0150YD 1150 mm (5.91 in.) 185.5 mm (7.3 in.) 215 mm (8.46 in.) 235 mm (9.25 in.)
450L-
E4A2L0600YD 2600 mm (23.62 in.) 635.5 mm (25.02 in.) 665 mm (26.18 in.) 685 mm (26.97 in.)
450L-
E4A3L0900YD 3900 mm
(35.43 in.) 935.5 mm (36.83 in.) 965 mm (37.99 in.) 985 mm (38.78 in.)
450L-
E4A4L1050YD 41050 mm (41.34 in.) 1085.5 mm (42.74 in.) 1115 mm (43.9 in.) 1135 mm (44.68 in.)
Table 1 - DIP Switch Functionality
450L-APR-ON-5:
450L-APR-EDM-8: DIP 1…4 DIP 1…8 50L-APU-UN-8: 450L-APR-MU-8: DIP 1…12 DIP 1…12
Switch Number Switch Function Default Description
1—OFF—
2 Low range activation OFF OFF: Disabled
ON: Enabled
3BeamcodingOFF
OFF: Disabled
ON: Enabled
4—OFF
OFF: Disabled
ON: Invalid selection
(error)
5
Combination activation of
the following start modes:
Automatic start
Manual (re) start
Manual cold start
Manual start with off
function
OFF DIP 5: OFF
DIP 6: OFF
Automatic start (Default)
DIP 5: ON
DIP 6: OFF
Manual (re) start
DIP 5: OFF
DIP 6: ON
Manual cold start
DIP 5: ON
DIP 6: ON
Manual start with off
function
6OFF
7 External Device Monitor OFF —
8
Muting
OFF For details, see
publication 450L-UM001
in Additional Resource
on page 4
9OFF
10 OFF
11 OFF
12 — OFF —
Distance to reference plane (for example, ground)

Rockwell Automation Publication 450L-IN009A-EN-P - March 2022 3
GuardShield 450L PAC Safety Light Curtain Installation Instructions
CE Marking and EC Conformity
The present product complies with the requirements of the current European and
national directives: 2006/42/EC (Machinery); 2014/30/EU (EMC); 2011/65/EU (ROHS)
Conformity has been verified. The corresponding declaration can be downloaded
at rok.auto/certifications. Rockwell Automation B.V.; Rivium Promenade 160; 2909
LM Capelle aan den ljssel; The Netherlands.
Table 2 - Status Indicators on a 450L PAC GuardShield Light Curtain
(Colors and Functions) for Normal Operation
No. Marking
Status
Indicator
Name
Color Behavior Description
1STS Status
indicator
Green On Power on and system is OK
Green Red Blinking
Configuration that is changed
or receiver was operated
previously with another
transmitter (see 450L-UM001 in
Additional Resource on page 4)
Green Off Blinking See Troubleshooting in 450L-
UM001 in Additional Resource on
page 4
Off Red Blinking
Red On
2 Transmitter Green
On Plug-in identifies stick as a
transmitter
Blinking 1 Hz
(50:50)
See Troubleshooting in 450L-
UM001 in Additional Resource on
page 4
Blinking 1 Hz
(98:2) Reduced range and/or beam coding is activated
Off Stick is receiver
3 Receiver Green
On Plug-in identifies stick as a
receiver
Blinking 1 Hz
(98:2) Reduced range and/or beam coding is activated
— Off Stick is transmitter
4OUT Safety
outputs
Green On Safety outputs are on (receiver)
Red On Safety outputs are off (receiver)
—Off Transmitter
5
Regional
light
intensity
level 1
Green
On Bottom half zone is not
interrupted, and intensity is OK
Blinking 1 Hz
(50:50) Bottom half zone intensity is at the limit
— Off Bottom half zone interrupted
6
Regional
light
intensity
level 2
Green
On Top half zone is not interrupted,
and intensity is OK
Blinking 1 Hz
(50:50) Top half zone intensity is at the limit
— Off Top half zone interrupted
7RES Start Amber On Start required (receiver)
— Off No start is required (receiver)
8MUT Muting Orange Off Light curtain that is not muted On Light curtain that is muted
Orange Off Blinking Muting error
9BLK
Blanking
(not
supported
on 450L
PAC)
—— — —
—— — —
—— — —
10 CAS Cascading Red
Off
No cascading plug-in that is
inserted or Tx OSSDs of
connected cascade are in ON
state (Rx only)
On OSSDs of connected cascade
are in OFF state (Rx only)
Red Off Blinking Error cascading plug-in
ATTENTION: A 450L GuardShield™ safety light curtain system
is intended to be part of the safety-related control system of a
machine. Before installation, perform a thorough risk
assessment to determine whether the specifications of this
device are suitable for all foreseeable operational and
environmental characteristics of the application.
The following applications and/or environmental conditions
can lead to misuse and potentially cause severe injuries or
death (for more information see IEC 62046):
• Machines that eject materials, swarf, or component parts
• Risk of injury from thermal or other radiation
• Unacceptable noise levels
• Transparent objects are detected
• An environment that exceeds the specification limits
provided in publication 450L-UM001.
Some but not all possible limits are electrostatic discharge,
radio frequency interference, vibration/shock, ambient light,
pollution, temperature, and humidity.
Without additional measures (IEC 62998), 450L-PAC
GuardShield safety light curtains are not designed to be used
in the following applications:
•Outdoors
• Under water
• Explosive atmospheres
• Altitudes over 3000 m (1.86 miles) above sea level
• With enhanced ionizing or radar radiation
ATTENTION: The protective system must be tested for proper
operation after each change to the configuration. The 450L
GuardShield safety light curtain cannot be used with machines
that cannot be stopped electrically in an emergency. Always
maintain the required safety distance (see publication 450L-
UM001 in Additional Resource on page 4) between the 450L
GuardShield safety light curtain and a dangerous machine
movement. Additional mechanical protective devices have to
be installed if hazardous machine elements can be reached
without passing through the protective field. Improper
installation can result in serious injury or death. Never connect
the safety outputs (OSSDs) to +24V DC. The Auxiliary output is
only a status output for diagnosis purposes, for example, to
connect an indicator lamp. Do not connect this output to fulfill
safety functions. If the safety outputs are connected to +24V
DC, they are in the ON state and cannot stop hazardous
machine/application movements. Do not open or attempt to
repair or modify the 450L safety light curtain. Removal of either
of the gray safety light curtain end caps or the transparent
front window voids the warranty terms of this product. Do not
insert or remove plug-ins when power is applied to the plug-in.
Make sure that the power supply is protected against overload
(fuse with 3 A in the 24V DC circuit). Installation must be in
accordance with the publication 450L-UM001 in Additional
Resource on page 4 and implemented by qualified personnel
exclusively.
Damage occurs to the light curtain when screws are
overtightened. To avoid pollution or contamination, the
installation of a plug-in into a stick must be implemented in a
dry and clean area. Make sure that the rubber seal at the plug-
in does not get out of place when the plug-in is inserted in the
light curtain.

Publication 450L-IN009A-EN-P - March 2022 | Supersedes Publication XXXX-X.X.X- Month Year
Copyright © 2022 Rockwell Automation, Inc. All rights reserved. Printed in the U.S.A.
Rockwell Otomasyon Ticaret A.Ş. Kar Plaza İş Merkezi E Blok Kat:6 34752 İçerenköy, İstanbul, Tel: [phone] EEE Yönetmeliğine Uygundur
Allen-Bradley, expanding human possibility, Guardmaster, GuardShield, and Rockwell Automation are trademarks of Rockwell Automation, Inc.
Trademarks not belonging to Rockwell Automation are property of their respective companies.
Your comments help us serve your documentation needs better. If you have any suggestions on how to improve our content, complete the form at rok.auto/docfeedback.
For technical support, visit rok.auto/support.
PN-639616
10006238370 Ver 00
Waste Electrical and Electronic Equipment (WEEE)
Rockwell Automation maintains current product environmental compliance information on its website at rok.auto/pec.
At the end of life, this equipment should be collected separately from any unsorted municipal waste.
.
Additional Resource
To download publications, visit rok.auto/literature and search for the following
publication numbers.

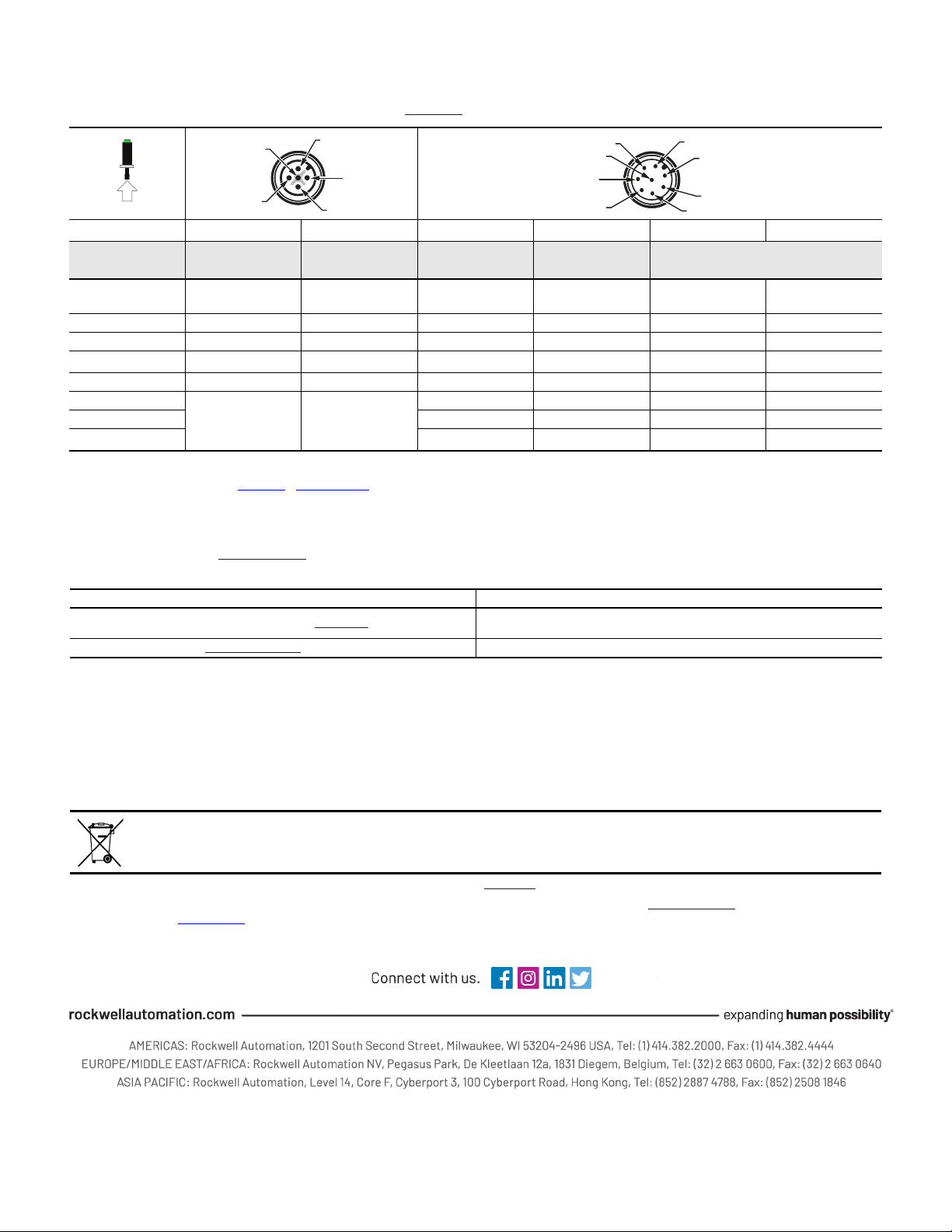

Table 3 - Pin Assignment Connection Plug-in
For cascading plug-in (catalog number 450L-APC-IO-8, see publication 450L-UM001).
Stick Behavior Tx(1) Rx(1) Tx(1) Rx(1) Tx(1) Rx(1)
Plug-in Cat. No. 450L-APT-PW-5 450L-APR-ON-5 450L-APT-PW-8 450L-APR-ED-8 (2)
450L-APR-MU-8 (3) 450L-APU-UN-8
Pin 1 +24V DC +24V DC Do not connect Auxiliary output (OSSD
emulation) (2) Do not connect Auxiliary output (OSSD
emulation)
Pin 2 Do not connect OSSD1 +24V DC +24V DC +24V DC +24V DC
Pin 3 0V (Ground) 0V (GND) Earth PE Earth PE Earth PE Earth PE
Pin 4 Do not connect OSSD2 Do not connect EDM (Input)(2) (4) EDM input(3)
Pin 5 Earth PE Earth PE Do not connect OSSD1 Do not connect OSSD1
Pin 6
——
Auxiliary output (Lockout) OSSD2 Auxiliary output (Lockout) OSSD2
Pin 7 0V (GND) 0V (GND) 0V (GND) 0V (GND)
Pin 8 Do not connect Start(2) (4) Start(2)
(1) Tx=Transmitter, Rx=Receiver
(2) If set with DIP switches.
(3) For muting applications, see publication 450L-UM001 in Additional Resource.
(4) Pin 4 connected to pin 8 (short circuited).
Plug Type
5
4
3
1
2
56
7
8
4
3
1
2
Resource Description
GuardShield Safety Light Curtain User Manual, publication 450L-UM001 Provides product-specific guidelines for installing the 450L-B and 450L-E POC and 450L-PAC
safety light curtain systems.
Product Certifications website, rok.auto/certifications Provides declarations of conformity, certificates, and other certification details.
