Lightspeed 5G-500G User manual

USER Manual Page 2 of 65
Table of contents
Table of contents ...........................................................................................................................2
FCC Warning Message:................................................................................................................3
Copyright.......................................................................................................................................4
1. INTRODUCTION....................................................................................................................5
2. BRIEF INFORMATION ..........................................................................................................6
3. SETTING YOUR PC ENVIRONMENT ................................................................................15

USER Manual Page 3 of 65
FCC Warning Message:
Any changes or modifications not expressly approved by the party responsible for compliance
could void your authority to operate the equipment.
Note: This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates,
uses and can radiate radio frequency energy and, if not installed and used in accordance with
the instructions, may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be determined by turning
the equipment off and on, the user is encouraged to try to correct the interference by one or
more of the following measures:
—Reorient or relocate the receiving antenna.
—Increase the separation between the equipment and receiver.
—Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
—Consult the dealer or an experienced radio/TV technician for help.
RF exposure statements
1. This Transmitter must not be co‐located or operating in conjunction with any other antenna or
transmitter.
2. This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled
environment. This equipment should be installed and operated with a minimum distance of 20
centimeters between the radiator and your body or nearby persons..

USER Manual Page 4 of 65
Copyright
This user manual describes features, especially usage of 5G gateway 500G including
hardware and software. LIGHTSPEED has made best effort to ensure that the information
contained in this document is accurate and reliable. This document is the property of
LIGHTSPEED and implies no license under patents, copyrights, trade secrets. No part of this
publication should be copied, reproduced, stored in a retrieval system, or transmitted, in any
form or by any means (electronic, mechanical, photographic, or otherwise) without the prior
permission of LIGHTSPEED.
Purpose
This manual includes how to use and configurethe 5G gateway 500G (Model name).
Revision History
This user manual is based on firmware version V1.0
Trademarks
All other products or technologies are the trademarks or registered trademarks of their
respective companies
Headquarter
LIGHTSPEED International Co.
No.20 Lane 526 Nioupu E. Rd. HsinChu Taiwan.

USER Manual Page 5 of 65
1. INTRODUCTION
1.1. OVERVIEW
5G gateway 500G is a wireless mobile internet access device with 4 ports 10/100/1000
Mbps Ethernet interfaces, 1 port 2.5Gbps WAN and 802.11b/g/n/ac/ax to performwireless
internet service between PC and wireless WAN via5G Cellular station.
5G gateway 500G incorporates a 5G modem, SoC, system memories, 4 Giga LANs, 1
2.5Gbps WAN 802.11 b/g/n/ac/ax, Embedded OS, various network protocols for wireless
internet.
5G gateway 500Ghas some special function on wireless mobile internet like always on-
line, demands on-line etc.It also provides IP flittering, Mac flittering for tight security
application.
5G gateway 500Gcan be remote update anytime it is needed. Keep alive function to
ensure router is on-line all the time.
5G gateway 500G is the best choice for industrial application.
1.2. MAIN FEATURE
Wireless mobile internet access device
Integrated wireless mobile 5G
41Gbps Ethernet interfaces, 2.5 Giga bits WAN
Adopt Embedded Operating System
OpenWRT User friendly Web-based Management Tool
Status LED indicates of the device status
An external power jack
Support various Network Protocol
DHCP Server
NAT(Network Address Translation)
Remote updating via HTTPS is available
802.11 b/g/n/ac/ax2.5Gbps Wifi with WPS function
IP filtering, Mac filtering to ensure tight security access.
Keep Alive function to make sure system are on-line all the time.

USER Manual Page 6 of 65
2. BRIEF INFORMATION
2.1. APPEARANCE
Below arethe appearance and the each part of name of 5G gateway 500G.
Figure 1: Each part’s name of 5G gateway 500G - front view
Figure 2: Each part’s name of 5G gateway 500G - rear view
2.2. DESCRIPTION OF EACH PART
2.3. POWER
Must connect the given power adapter DC 12V/5A on this jack. Gateway rating 12V,5A.

USER Manual Page 7 of 65
2.3.1. WPS(Push button)Wi-Fi Protected Setup (WPS) is designed to make the process of
connecting to a secure wireless network from a computer or other device easier.
2.3.2. Reset (Push button)
It is software reset for5G gateway 500G.
2.3.3. WiFi ANT1, ANT2, ANT3 & ANT4
There are 4WiFi antennas with dual-bands 2.4GHz & 5GHz.
2.3.4. USB 3.0Type A female connector for USB 3.0 device.
2.3.5. WAN
2.5Gbps WAN port for ADSL or other wide-band devices.
2.3.6. LAN 1,2,3,4.
User can connect 5G gateway 500G with Host PC, HUB, Router etc, via Giga LAN.
2.3.7. Console
This port is hidden inside of unit to see the diagnostic data via this console port.
Normally this port is for debugging. It is for manufacturer use only. The console port is
using special TTL interface cable with setting as 57600bps 8 data bitnone parity 1 stop
bit.
2.3.8. 4 fix WiFi 2.4G+5G antennas
These are for WiFi 802.11b/g/n/ac/ax 2.4GHz & 5GHz dual-bands antennas to do both
transmit & receive.
2.3.9. LED WiFi 2.4G 5G
LED
State
Description
Green
ON
Indicates WiFi connected.
BLINK
Indicates data are existed via WiFi
OFF
Indicates WiFi disconnected.
2.3.10. LED LAN 1, 2, 3, 4.The RJ-45 connector (LAN port) has 4 LEDs. Below the table shows
each status of LAN connection.
LED
State
Description
Green
ON
Indicates LAN connected.
BLINK
Indicates data are existed via LAN.
OFF
Indicates LAN disconnected.
[Table 1: LED Description on LAN port]
2.2.12 LED WAN
LED
State
Description

USER Manual Page 8 of 65
Green
ON
Indicates WAN connected.
BLINK
Indicates data are existed via WAN.
OFF
Indicates WAN disconnected.
2.2.13 LEDWPS
LED
State
Description
Green
ON
Indicates WPS is press
BLINK
Indicates data are existed via WPS
OFF
Indicates WPS is off.
2.2.14 LED ZB BT
LED
State
Description
Green
ON
Indicates ZigBee/Bluetooth is on
BLINK
Indicates data are existed via ZigBee/Bluetooth
OFF
IndicateZigBee/Bluetooth is off.
2.2.15 LED CELL 5G
LED
State
Description
Green
ON
Indicates cellular 5G module is on
BLINK
Indicates data are existed via 5G module.
OFF
Indicate cellular 5G module is off.
2.2.16 LED PWR
LED
State
Description
Red
ON
Indicates power is on
OFF
Indicatepower is off.
2.2.17 U-SIM Socket
It has 1 SIM sockets. Please follow direction to insert SIM card.
Push-in to insert and push-out to remove. It has SIM card cover for protection.
Please turn-off power, then remove SIM card cover before inserting SIM card.

USER Manual Page 9 of 65
2.2.18 CELL5G ANT1, ANT2, ANT3, ANT4
Cellular 5G antennas with SMA connectors.
These connectors ANT1, ANT2, ANT3 & ANT4 should be connected to 5G antennas.
2.2.19 ZIGBEE BT ANT
1 fix 2.4GHz antenna for Zigbee & Bluetooth(optional)

USER Manual Page 10 of 65
2.4. Packages
2.4.1. 5G gateway 500G
2.4.2. UTP Cable (Direct)
2.4.3. DC12V/5AAdapter
2.4.4. Fix WiFi antenna: 4pcs.
2.4.5. 5G antenna 4pcs.

USER Manual Page 11 of 65
2.5. SOFTWARE COMPOSITION.
2.5.1. OpenWRT Web-based configuration page
5G gateway 500G has a OpenWRTweb-based configuration page that user can set the
options of 5G gateway 500G for user’s purpose.
* This version namewill be changed whenever this is updated.

USER Manual Page 12 of 65
2.6. BEFORE USAGE
2.6.1. Installation
5G gateway 500G is a wireless mobile internet access device with PC or other
LANdevices via 5G mobile station.
Please follow below steps when you install this device.
2.6.1.1. Turn off power before Inserting U-SIM card.
2.6.1.2. Connect the proper 5G antennas 4 pieces.
2.6.1.3. Connect the LAN cable between PC and LAN port of this device.
2.6.1.4. Connect the power adapter.
Figure 3: Installation of 5G gateway 500G

USER Manual Page 13 of 65
Checking device
5G gateway 500G is set by PPP (NAT Router) in the first time.
When you get this device in the first time, please check whether this device is correct
or not.
Please follow below steps to check this device seeing the 11-Status LED’s operation.
2.6.2. Install 5G gateway 500Gas following the “3.1 Installation.”
* Be sure the LAN cable must be connected between PC and 5G gateway 500G.
2.6.3. When you plug in power, the LED named “PWR”is on.
2.6.4. The LED named “CELL 5G”is on.
* You can see this LED on in 20 seconds. When this LED is not on, contact us or our office.
2.6.5. The LED named “LAN”is on. If LAN 1 is inserted, then LAN No.1 LED will be on.

USER Manual Page 14 of 65
2.7. Understanding basic operation
2.7.1. Mobile Gateway mode
On Mobile Gatewaymode, 5G gateway 500G has an IP from ISP(Internet Service
Provider) then 5G gateway 500G keeps the IP and shares the IP with connected Host
PC via NAT.
The main feature is that 5G gateway 500G has the mobile IP from ISP and your PC
connected with 5G gateway 500G has a private IP from DHCP of 5G gateway 500G.
Please refer the [WAN] settings.

USER Manual Page 15 of 65
3. SETTING YOUR PC ENVIRONMENT
3.1. SETTING HOST PC
3.1.1. 5G gateway 500G is set byModem routermode/Always On-lineat first time. So just
connect an LAN cable (Direct) between your PC and LAN port of 5G gateway 500G. Set
the network environment of your PC as automatically.
3.1.2. Setting Host PC’s network environment
3.1.2.1. We assumed that the user uses the Windows . To connect between PC and 5G
gateway 500G, click “My Network Places” and the right button on your mouse then
click [properties] menu.

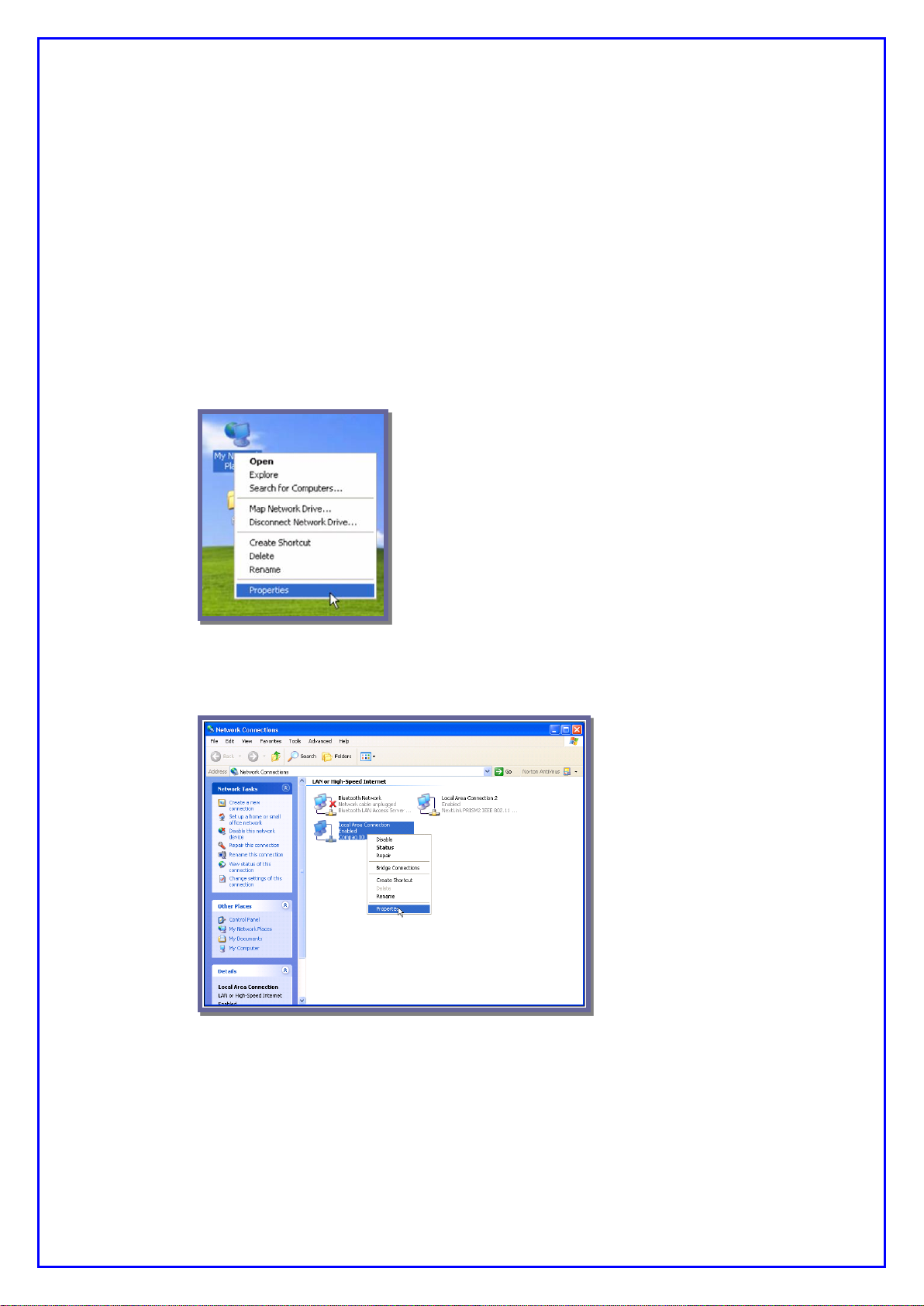

Figure 4: Step 1 of setting your PC’s network environment.
3.1.2.2. Check the “Local Area Connection” then click the right button on your mouse then click
[Properties] menu.
Figure 5: Step 2 of setting your PC’s network environment

USER Manual Page 16 of 65
3.1.2.3. Double click the “Internet Protocol [TCP/IP]” item.
Figure 6: Step 3 of setting your PC’s network environment
3.1.2.4. Check the “Obtain an IP address automatically” .
Figure 7: Step 4 of setting your PC’s network environment
3.1.2.5. Host PC’s setting is finished. Connect a LAN cable and a power cable on 5G gateway
500G. Wait till the “IP” LED is on then access Internet wirelessly.

USER Manual Page 17 of 65
3.2. Configuration interface
3.2.1. This web-based configuration are give you to easily program the 5G gateway 500G
3.2.2. How to access
Lunch the web browser and puthttp://192.168.1.1on the address filed in browser than
pop-up login page like follow
Default login credential is
User name: root
Password:
(No password)

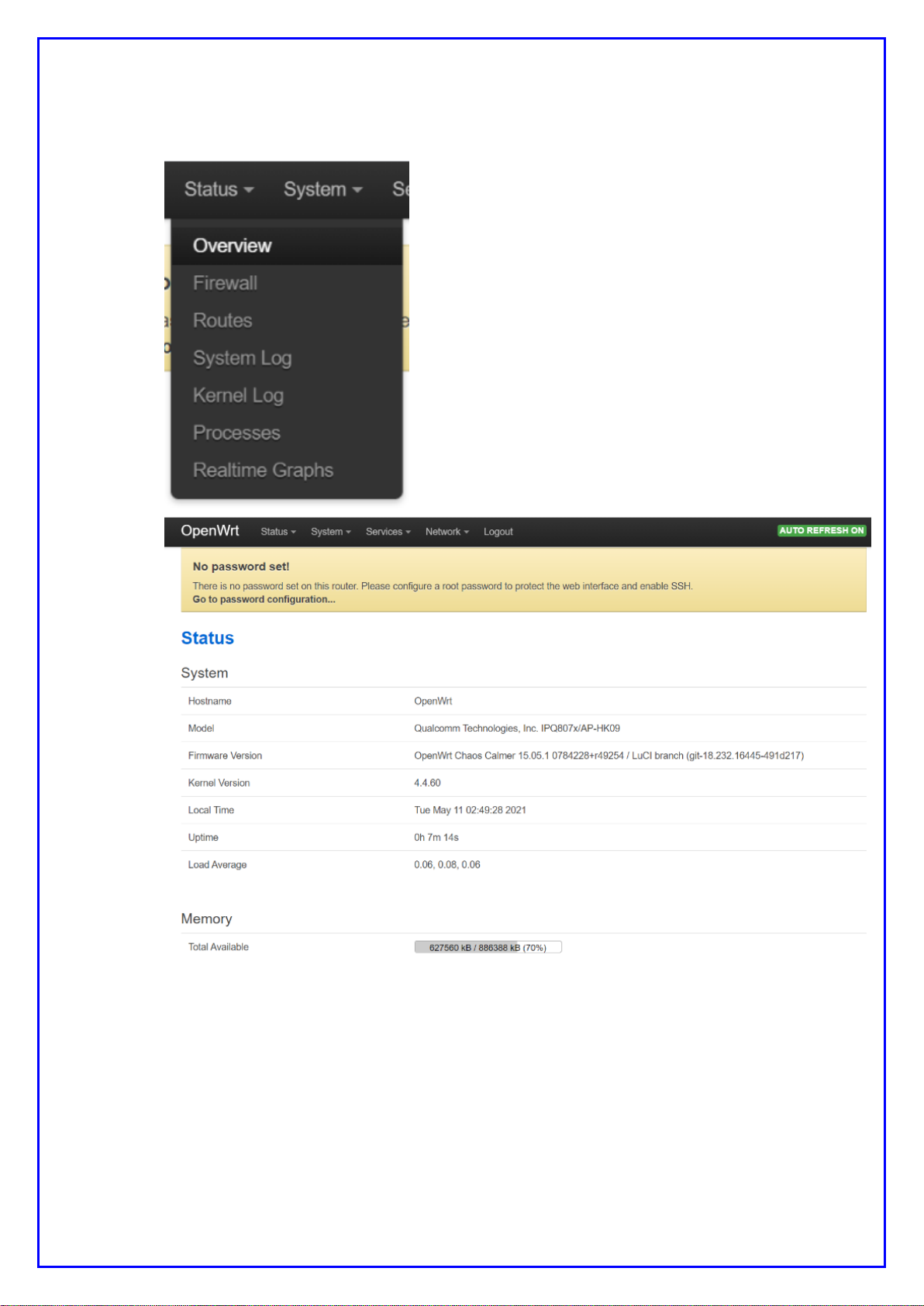

Under “Status”, select “Overview”, it will show all the current status.

USER Manual Page 18 of 65

USER Manual Page 19 of 65

USER Manual Page 20 of 65
Select “Firewall”.
It will show all firewall options:
