This guide describes how to set up and use your Zulu® ANR aviation headset for the best
sound quality, Active Noise Reduction (ANR), safety, and comfort. Lightspeed offers the
following Zulu headset models:
Zulu—Battery-powered, for flexibility when switching between aircraft
ZuluP—Panel-powered, for installation in aircraft
ZuluC—Battery-powered helicopter version
ZuluCP—Panel-powered helicopter version
ZuluCD—Standard Zulu with coiled upper cord
For more details on Zulu models, see “Zulu configurations available,” on page 17.
Where to nd key information in this guide
For information on… See…
How to fit your headset for the best “Fitting your headset,” on page 6
comfort and noise reduction
How to use Zulu’s controls and features “Using your Zulu headset,” on page 8
How to get the best sound from your “Getting the best possible performance
Zulu headset from your Zulu,” on page 10
When to change Zulu’s Stereo or Mono “Matching Zulu’s Stereo/Mono setting to
setting your audio panel signal,” on page 10
How to turn down music automatically “Using Auto MusicMute to quiet auxiliary
during radio communications devices,” on page 9
How to set up Bluetooth devices “Using a Bluetooth device,” on page 12
Answer to commonly asked questions “Frequently Asked Questions,” on page 16
How to contact Lightspeed “How to contact Lightspeed,” on page 18
INTRODUCTION
4Zulu User Guide

What’s in the box
Your Zulu headset package includes (clockwise, from top left):
• Carryingcase
• Thisuserguide
• ZuluANRheadsetwith
Zulu Controller
• TwoAAbatteries(for
battery powered
headsets)
• Cordclip
• Warrantycard
• Cellphonecablewith
standard 2.5mm
connector
• Audiodevice/iPhone
cable with standard
3.5mm connector
Zulu User Guide 5

Fitting your headset
A good headset fit is a key part of
both comfort and ANR performance.
Zulu’s Active Noise Reduction feature
requires a good seal around your ears
and a symmetrical fit over your head.
When properly fitted, the ear cups
should completely cover your ears and
the headband should rest lightly on
top of your head.

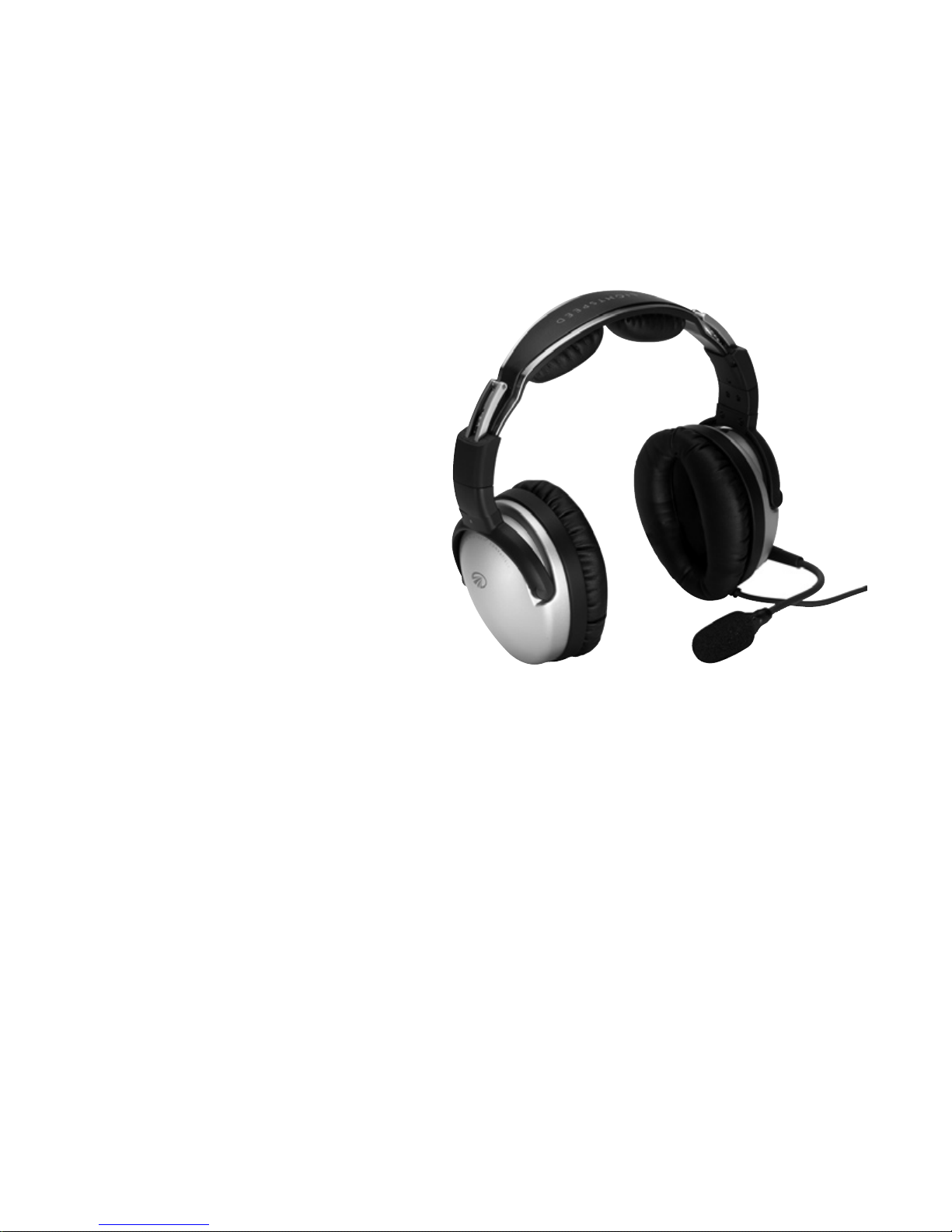

To fit the headset to your head:
1. Fully extend both ear cup sliders.
2. Put the headset on with the
microphone and cord to your left.
3. Pressing the top of the headband down onto your head, slide up each ear cup until it
covers your entire ear without pinching any part of your ear under the seal. Make sure
the two ear cup sliders are extended an equal amount.
4. Position the microphone 1/8 inch from your mouth.
The Zulu headset adjusts to fit most adults. If you have a small head or are using the
headset for a child, contact Lightspeed for different headpads.
SETTING UP ZULU
6Zulu User Guide

Changing batteries and monitoring battery life
The Zulu:CD and Zulu:C battery –powered headsets require two AA
batteries (included). Use alkaline batteries for best performance.

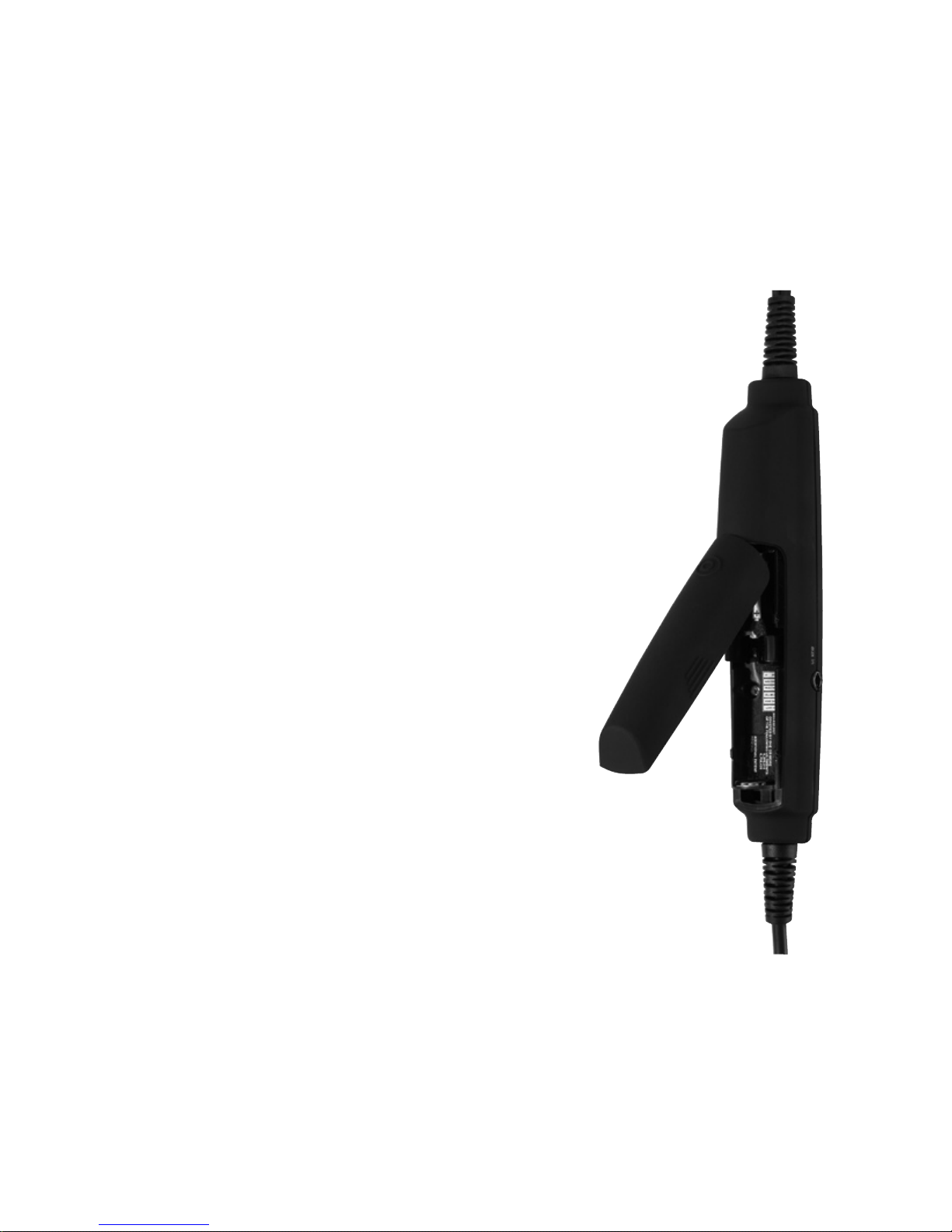

To install batteries, open the battery/DIP switch door on the back of the
Zulu controller, either by pressing down on the circle icon to pop open
the door or by prying open the door along its notched edges.
When Zulu is turned on and battery power is strong, the power
indicator LED flashes green. Under normal conditions, a set of
batteries provide up to 50 hours use; however, heavy Bluetooth use
can significantly reduce battery life.
When batteries run low, the power LED flashes red. If the power
LED flashes red when you first turn on the headset, Lightspeed
recommends that you install fresh batteries before take-off. If
batteries run low during flight, it’s best to keep Zulu
powered on continuously until you can change the
batteries safely.
Zulu’s power shuts off automatically two minutes after
you remove the headset from your head.
Battery/DIP switch door for
battery-powered headsets
Zulu User Guide 7

The Zulu Controller
APower indicator LED: Flashes green when power is supplied to
Zulu and batteries are strong. Flashes red when batteries are low.
BPower button: Powers on headset, turning on Active Noise
Reduction (ANR). Press button once to turn Zulu on; press and
hold to turn Zulu off.
CVolume control: Lets you control audio panel volume with
individual sliders for each ear. Does not affect the volume of
auxiliary devices.
DFRC (Front Row Center) button: Turns on and off Front Row
Center. Front Row Center enhances stereo so that it seems to
come from all around you, not just right and left.
EBluetooth indicator LED: Flashes blue when Bluetooth mode is on
and red when Bluetooth is being turned off. In pairing mode,
flashes alternating red and blue.
FBluetooth button: Turns on and off the Bluetooth signal and
controls Bluetooth-connected devices.
GAuxiliary input jack: Provides a wired input for audio devices such
as music players and cell phones.
HBluetooth volume buttons: Controls the volume of Bluetooth
devices.
IAuto MusicMute button: Quiets music and audio from auxiliary devices
during radio communications. Does not affect cell phone calls.
USING YOUR ZULU HEADSET
A
B
C
D
E
F
G
H
I
8Zulu User Guide

Turning Zulu on and o
When you turn on Zulu, you turn on Active Noise Reduction (ANR) as well. To turn on Zulu,
press the power button once. When power is supplied to Zulu, the power indicator LED flashes
green. (For battery-powered headsets, the power LED flashes red when batteries are low; see
“Changing and monitoring battery life,”on page 7).
To turn off Zulu, press and hold the power button until the power LED turns off. During
shutdown, the power LED glows briefly to show the power status, either green for full
power or red for low batteries.
Zulu’s power shuts off automatically two minutes after you remove the headset from your head.
Using Front Row Center to enhance stereo
The FRC button toggles on and off Front Row Center. Front Row Center gives you a
theater-like experience, enhancing stereo sound reproduction so that audio seems to
come from all around you, not just from your right and left.
Using Auto MusicMute to quiet auxiliary devices
The bottom-most button on the Zulu Controller toggles on and off Auto MusicMute.
When radio communications come in from the panel, Auto MusicMute decreases the
volume of auxiliary devices by 80%. To test whether Auto MusicMute is enabled, simply
talk into your headset microphone while playing music over a wired or Bluetooth auxiliary
device (see “Using auxiliary devices,” on page 11). If Auto MusicMute is on, it will turn down
your auxiliary music when you start to talk.
Note: Auto MusicMute does not affect cell phone calls.
Zulu User Guide 9

Matching Zulu’s Stereo/Mono setting to your audio panel signal

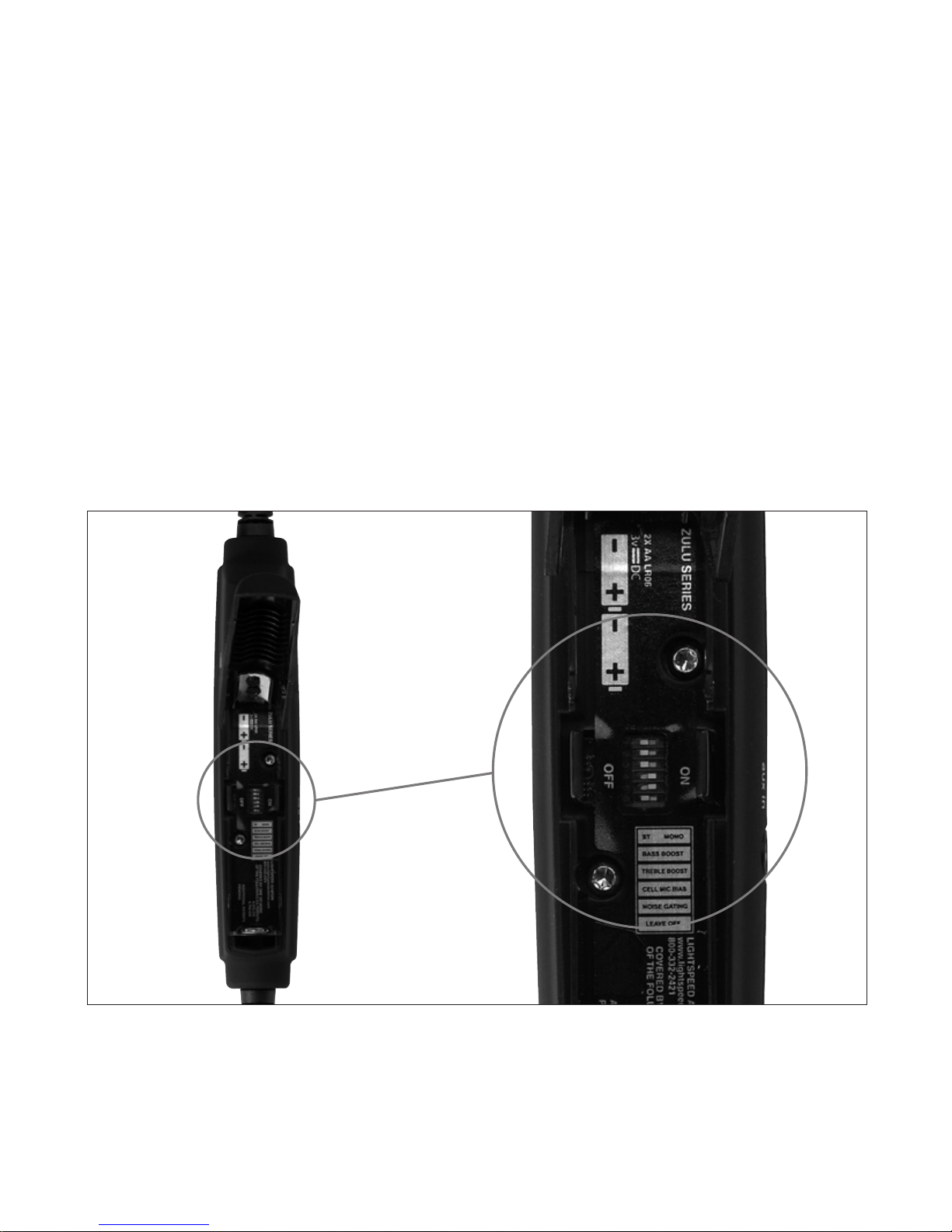

For best results, Zulu’s Stereo/Mono DIP switch setting should match the signal from your
audio panel. If you are using a stereo audio panel, Zulu should be set to Stereo for the best
sound quality. If you are using a mono audio panel, Zulu should be set to Mono;
otherwise, you will hear radio communications in only one ear. The Stereo/Mono DIP
switch does not affect auxiliary devices, so you can enjoy auxiliary audio in both stereo
and Front Row Center regardless of how the Stereo/Mono DIP switch is set. For
information on setting DIP switches, see “Setting DIP switches,” on page 14.
Getting the best possible performance from Zulu
Follow these tips to get the best possible performance from your Zulu headset:
• Makesureyouhaveanexcellentt-see“Fittingyourheadset,”onpage6.
• Foratheater-likelisteningexperience,pressFRCbuttontoturnonFrontRowCenter.
• Forthebestsoundqualitywhenlisteningtomusicorotheraudioentertainment,use
an audio device that is plugged into the auxiliary jack.
• MakesureZulu’sStereo/MonoDIPswitchsettingmatchesthesignalfromyouraudio
panel; see “Matching Zulu’s Stereo/Mono setting to your audio panel signal,” above.
• Ifyouneedalittlehelphearingspeechclearlyduringradiocommunicationsorphone
calls, try using Treble boost, (see“Setting DIP switches,” on page 14). If you do not need
the extra boost, keep this feature turned off for a more realistic sound.
• Toreducestaticnoiseduringphonecalls,keepcellsphonesatleast12inchesfromthe
Zulu Controller and headset when making calls.
