Lincat ECO8 User guide

IS 331 ECN 3823 Page 1 of 12
Installation, Operating and Servicing
Instructions
Electric Convection Oven
ECO8, ECO9
Please make a note of your product details for
future use:
Date Purchased:_________________________
Model Number:__________________________
Serial Number:__________________________
Dealer:_________________________________
_______________________________________

IS 331 ECN 3823 Page 2 of 12
CONTENTS
Important Information
2
Warnings and Precautions
3
Technical Data
3
Checklist of Enclosures
3
Installation and Commissioning
3-5
Operating Instructions
5-7
Cleaning
7
Servicing, Maintenance and Component Replacement
8-9
Fault Finding
9
Spare Parts List
10
Accessories
11
Service Information and Guarantee
12
IMPORTANT INFORMATION
Read these instructions carefully before using this product, paying particular
attention to all sections that carry warning symbols, caution symbols and notices.
Ensure that these are understood at all times.
WARNING!
This symbol is used whenever there is a risk of personal injury.
CAUTION!
This symbol is used whenever there is a risk of damaging your Lincat product.
NOTE:
This symbol is used to provide additional information, hints and tips.
KEEP THIS MANUAL FOR FUTURE REFERENCE

IS 331 ECN 3823 Page 3 of 12
WARNINGS AND PRECAUTIONS
This appliance must be installed, commissioned and serviced by a qualified person
in accordance with national and local regulations in force in the country of
installation.
If the supply cord is damaged, it must be replaced by the manufacturer, its service
agent or similarly qualified person.
Ensure that the plug/socket is accessible at all times.
Strip plastic coating and clean the appliance before use.
During operation parts may become hot - avoid accidental contact.
Disconnect this appliance before servicing, maintenance or cleaning.
TECHNICAL DATA
Model
Height (mm)
Width (mm)
Depth (mm)
Weight (kg)
ECO8
570
790
700
68
ECO9
650
765
810
75
CHECK LIST OF ENCLOSURES
Warranty Card
Instructions Manual
Shelves (3 off ECO8, 4 off ECO9)
Water connection hose
INSTALLATION AND COMMISSIONING
This appliance must be earthed.
An equipotential bonding terminal is provided to allow cross bonding with other
equipment.
If replacing the plug connect the terminals as follows:
Green and Yellow wire Earth E
Blue wire Neutral N
Brown wire Live L

IS 331 ECN 3823 Page 4 of 12
Means of isolation with at least 3mm contact separation in all poles must be
incorporated into the fixed wiring of the ECO9.
The fixed wiring insulation must be protected by insulated sleeving having a
temperature rating of 60 Deg C.
Supply cords shall be oil resistant, sheathed flexible cable not lighter than ordinary
polychloroprene or equivalent elastomer sheathed cord (code 60245 IEC 57)

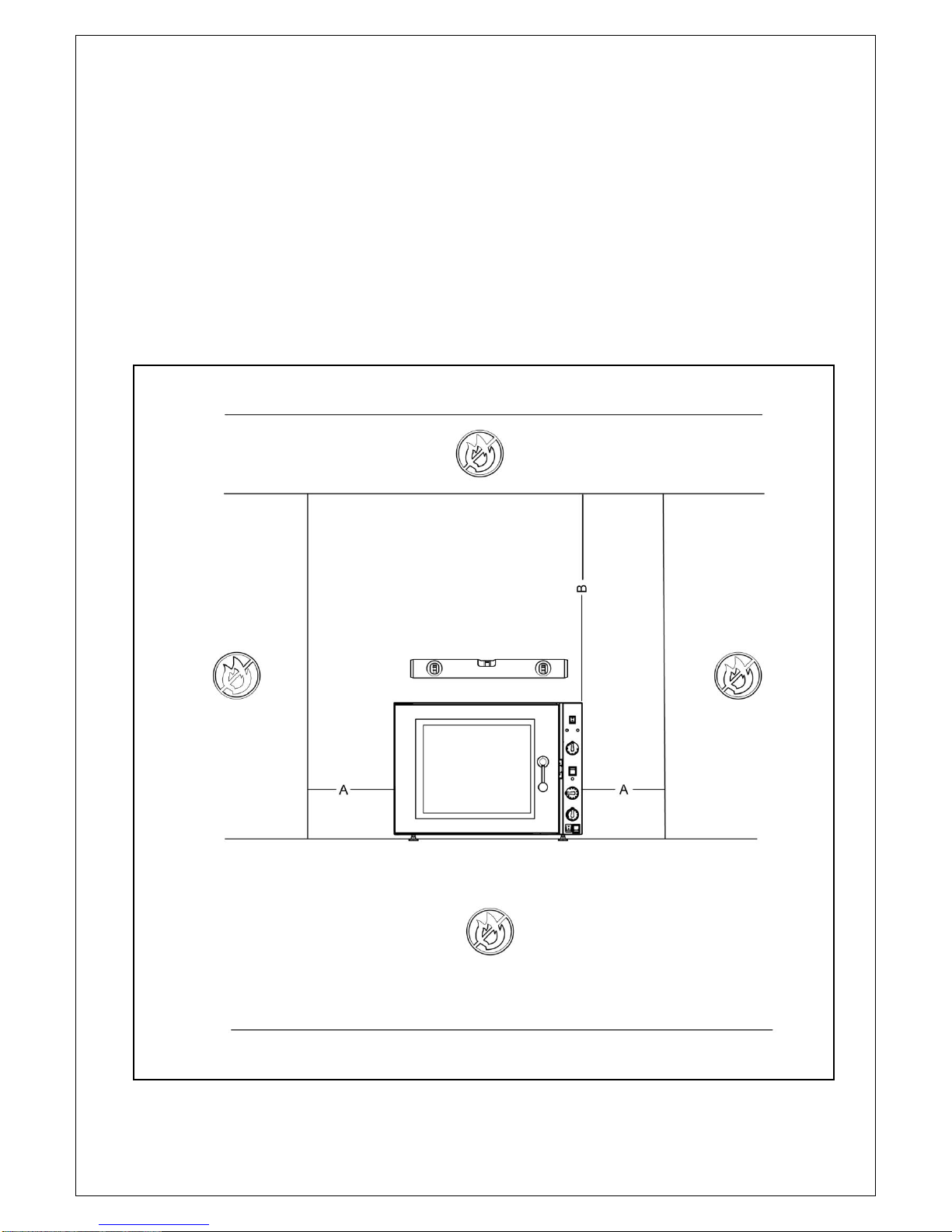

Install this appliance on a level surface ensuring all vents are unobstructed. Any
partitions, walls or furniture must be of non-combustible material. Minimum
distances A 100mm B 1000mm –see Fig 1. Leave 100mm clearance at the back,
as the flue is rear facing.
Fig 1

IS 331 ECN 3823 Page 5 of 12
Model ECO8 is fitted with a 3 pin plug for connection to a standard switched socket.
Model ECO9 must be connected by a qualified electrician (see power ratings).

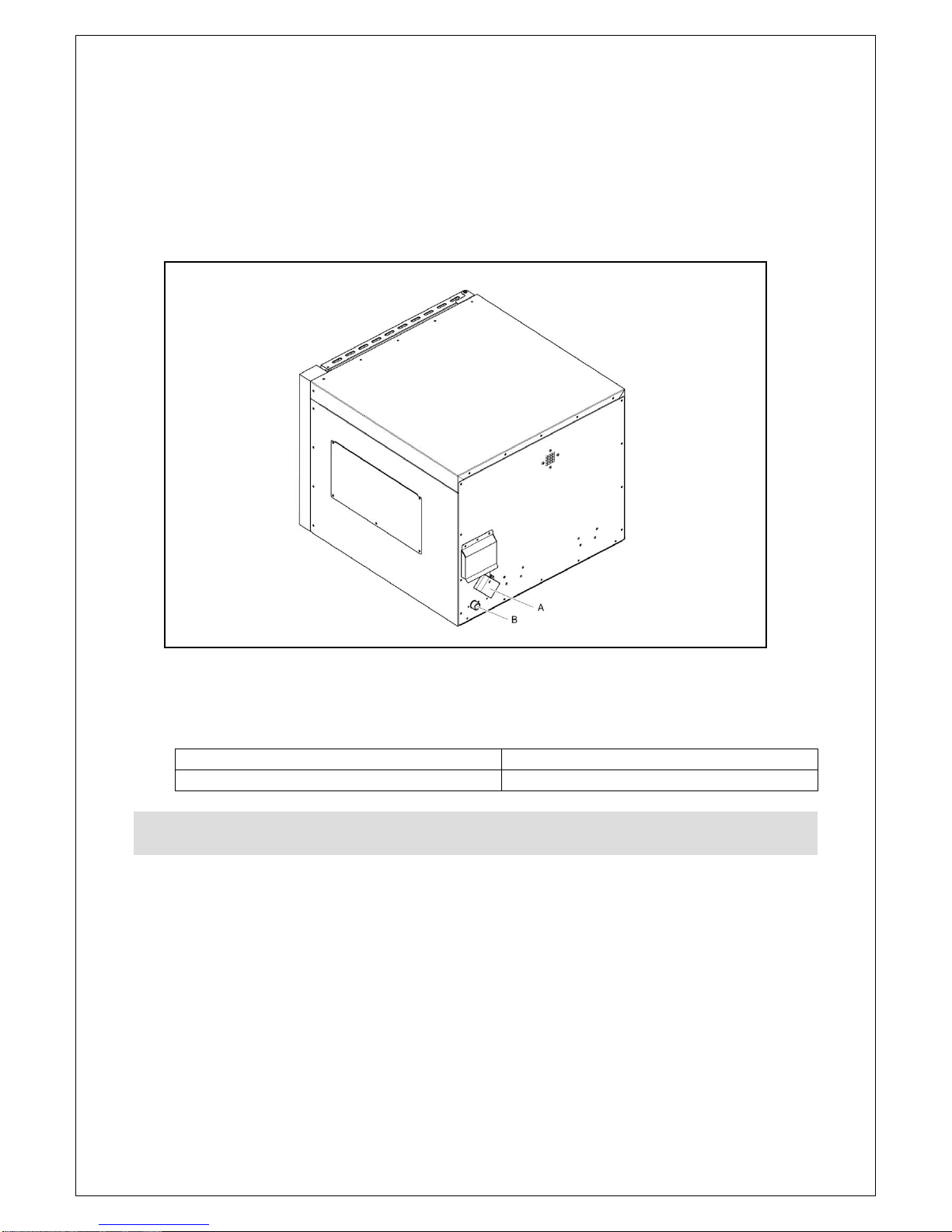

The ECO9 electrical inlet (A) and water supply valve (B) are shown in Fig 2. The
ECO8 has the water supply valve on the opposite side. The water supply pressure
must be from 0.2-10 bar (20kPa-1,000kPa). Screw one end of the connection hose
to the back of the oven and the other to your water supply tap. Use the hose set
supplied with the appliance –old hose sets are not to be re-used.
Fig 2
Power Ratings
ECO8
3.0kW
ECO9
7.5kW
OPERATING INSTRUCTIONS
Only qualified or trained personnel should use this appliance.

IS 331 ECN 3823 Page 6 of 12
Fig 3
1. On/Off switch 2. Power supply indicator 3. Oven temperature indicator 4.Temperature
control knob 5. Cook and hold switch 6. Cook and hold indicator 7. Cook and hold timer
8. 60 minute timer 9. Interior light switch 10. Water injection switch

IS 331 ECN 3823 Page 7 of 12
Cooking
(Fig 3)
Connect the appliance to the electricity supply. The green neon (2) illuminates
indicating power to the appliance.
Turn the mains switch (1) on.
Turn the control knob (4) to the required temperature.
The amber neon (3) goes out when the oven reaches temperature.
Cook and hold function
Switch the cook and hold switch (5) on –the cook and hold indicator (6) illuminates.
Set the timer (7) to the required cooking time. After the time set has elapsed, the
oven cools to 80oC and maintains this temperature until switched off.
Additional functions
The light switch (9) operates the interior light.
The water injection switch (10) sprays water into the oven to create steam.
The 60 minute timer knob (8) rings when the set time has elapsed.
CLEANING
Do not use a water jet or steam cleaner, and do not immerse this appliance.
Clean all panels with warm water and mild detergent, do not use abrasive
materials. Dry with a soft cloth.
Avoid damaging the thermostat bulbs inside the oven when cleaning.
Carb’n Off or a similar cleaner may be used.
To assist cleaning remove shelf supports –see Servicing.

IS 331 ECN 3823 Page 8 of 12
SERVICING, MAINTENANCE AND
COMPONENT REPLACEMENT
Door inner glass
Slide the glass up and out of the lower clamps, slide down to remove from upper
clamps.
Slide new glass into lower clamps. Clip into top clamps.
Light bulb
Carefully remove the glass cover using a flat bladed screwdriver. Unscrew the
bulb.
Fit new bulb and replace cover.
Shelf racks
(Fig 4 –Door removed for clarity)
To remove shelf racks, swivel locking tabs (A) and lift rack upwards. Lift the rack
free from lower retaining pins, then tilt bottom inwards and lower from top retaining
pins to remove.
Refit by sliding rack upwards onto upper retaining pins, then pull down over lower
retaining pins. Secure by swivelling locking tabs down.
On ECO9, use inner pins for shelves, outer pins for standard baking trays.

IS 331 ECN 3823 Page 9 of 12
Fig 4
Please refer to the Service Help Desk number on the final page of this manual.
FAULT FINDING

IS 331 ECN 3823 Page 10 of 12
Part Number
Description
Used on
BU81
Bush –parking lever
ECO8, ECO9
CO215
Contactor
ECO9
EL141
Side element
ECO9
EL190
Base element
ECO9
EL236
Element
ECO8
FA102
Fan blade
ECO9
FA106
Fan
ECO8
FA12
Fan
ECO9
FE10
Foot
ECO8, ECO9
GL205
Inner glass
ECO8
GL503
Inner glass
ECO9
KN246
Door handle knob
ECO8, ECO9
KN247
60 minute timer knob
ECO8, ECO9
KN248
180 minute timer knob
ECO8, ECO9
KN249
Thermostat knob
ECO8, ECO9
LA14
Light assembly
ECO8, ECO9
NE42
Green neon
ECO8, ECO9
NE43
Amber neon
ECO8, ECO9
PI12
Inlet connection hose
ECO8, ECO9
PL202
Plug and lead
ECO8
SE05
Door seal
ECO9
SE76
Door seal
ECO8
SH109
Shelf
ECO8, ECO9
SO1
Solenoid valve
ECO8, ECO9
S/R0079
Cooling fan
ECO9
SW23
Rocker switch
ECO8, ECO9
SW32
Plunger microswitch
ECO8, ECO9
SW34
Changeover switch
ECO8, ECO9
SW35
Momentary switch
ECO8, ECO9
SW66
Switch –black/green
ECO8, ECO9
TE10
Terminal block - small
ECO9
TE45
Terminal block –3 phase
ECO9
TH107
Thermostat
ECO8, ECO9
TI34
180 minute timer
ECO8, ECO9
TI37
60 minute timer
ECO8, ECO9
TH63
Cut out thermostat
ECO9
SPARE PARTS LIST
