THANKS FOR PURCHASING OUR PRODUCT
ProMig 180
Inverter MIG/MAG/MMA Semi-auto ARC Welding Machine
Operation Manual
(Read the manual carefully before installation ,operation and maintenance)
Advanced Product

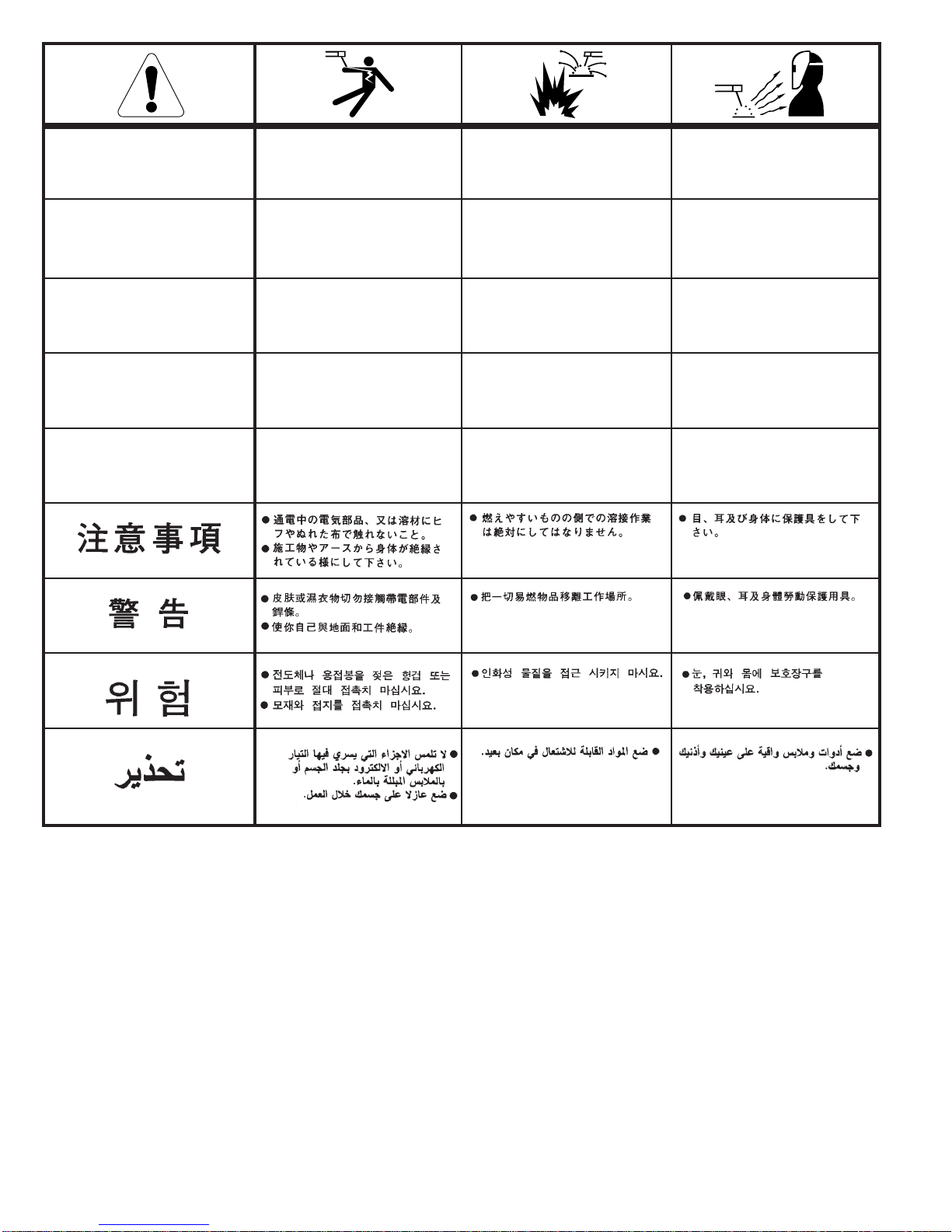

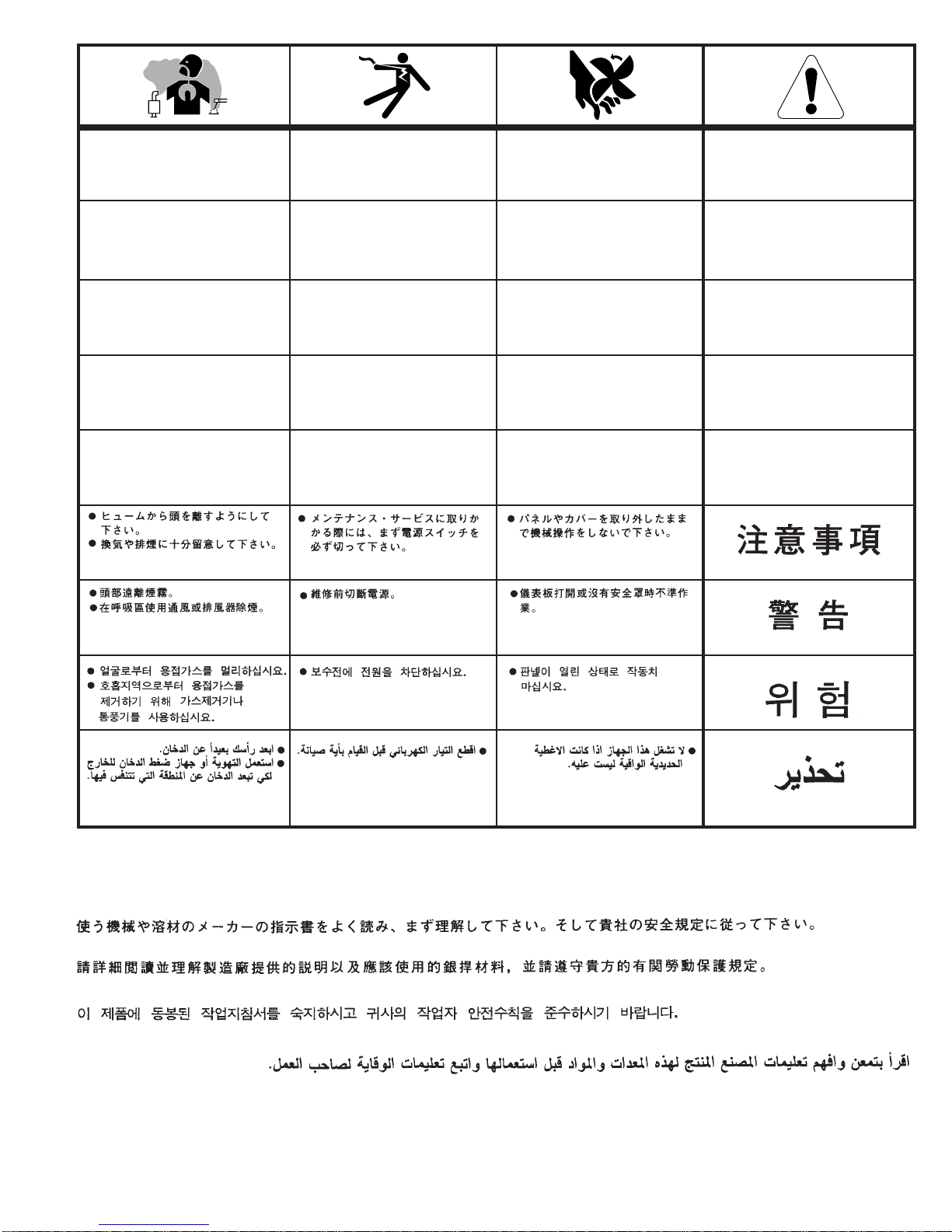

SAFETY PRECAUTIONS
Follow these precautions carefully. Improper use of any welder
can result in injury or death.
1. ONLY CONNECT WELDER TO A POWER SOURCE FOR WHICH IT WAS DESIGEND.
The specification plate on the welder lists this information. When welding outdoors only use an
extension cord intended for such use.
2. ONLY OPERATE WELDER IN DRY LOCATIONS and on cement or masonry floor. Keep
area clean and uncluttered.
3. KEEP ALL COMBUSTIBLES AWAY FROM WORK SITE.
4. DO NOT WEAR CLOTHING THAT HAS BEEN CONTAMINATED with grease or oil.
5. KEEP CABLES DRY AND FREE FROM OIL AND GREASE and never coil around
shoulders.
6. SECURE WORK WITH CLAMPS or other means; don't overreach when working.
7. NEVER STRIKE AN ARC ON A COMPRESSED GAS CYLINDER
8. DON'T ALLOW THE INSULATED PORTION OF THE ELECTRODE HOLDER TO TOUCH
THE WELDING GROUND WHILE CURRENT IS FLOWING.
9. SHUT OFF POWER AND UNPLUG MACHINE WHEN REPAIRING OR ADJUSTING.
Inspect before every use. Only use identical replacement parl.
10. FOLLOW ALL MANUFACTURER'S RULES on operating switches and making
adjustments.
11. ALWAYS WEAR PROTECTIVE CLOTHING when welding . This includes: long sleeved
shirt(leather sleeves), protective apron without pockets, long protective pants and boots. When
handing hot materials, wear asbestos gloves.
12. ALWAYS WEAR A WELDER'S HELMET WITH PROTECTIVE EYE PIECE when welding.
Arcs may cause blindness. Wear a protective cap underneath the helmet.
13. WHEN WELDING OVERHEAD, BEWARE OF HOT METAL DROPPINGS. Always protect
the head, hand, feet and body.
14. KEEP A FIRE EXTINGUISHER CLOSE BY AT ALL TIMES.
15. DO NOT EXCEED THE DUTY CYCLE OF THE MACHINE. The rated cycle of a welding
machine is the percentage of a ten minute period that the machine can operate safely at a
given output setting.
16. KEEP ALL CHILDREN AWAY FROM WORK AREA. When storing equipment, make sure
it is out of reach of children.
17. GUARD AGAINST ELECTRIC SHOCK. DO not work when tired. Do not let body come
In'contact with grounded surfaces.

Prolegomenon
We do very appreciated for your selecting our products.
This kind of welding power Model ProMig 180 is taken foreign advanced technology to
develop and manufacture the new generation inverter integrated controlling Semi-auto MIG/
MAG ARC Welding machine.
It can be composed the ProMig 180 MIG/MAG/MMA ARC Welding system equipped with
wire feeder and welding gun .It has many characteristic such as easy Arc starting .good Arc
springiness .adjustable arc thrusting ,low splash,good welding form ,easy welding operation,
wide range and electricity save.
The MIG/MAG semi-auto Arc welding machine model ProMig 180 is advanced welding
machine and it can be compared with foreign products.
This operation manual can help you for the machine installation, operation and
maintenance correctly and safely.Pay attention to the points as following.
．Installation of the power cord. Be grounded correctly.
. Don't put sundries under the welder.Otherwise it will affect the heat released.
. Installation for the positive and negative cable of the power output.
. Welding voltage selection
. Welding current selection (speed of wire feeder)
The amendment right and the explanation right of the manual belonging to my company.
We have no special notice if the manual is amended.
1

1. Main characteristic and suitable range
This kind of welding power Model ProMig 180 is taken foreign advanced technology to
develop and manufacture the new generation inverter integrated controlling Semi-auto MIG/
MAG Arc welding machine.It makes use of the import key parts such as Siemens IGBT module
of Germany,alloy magnetic core and the resume diode module of America. It has the perfect
performance of high quality ,good reliability, quick speed of welding current, steady welding
process,low splash and good welding form . Anyway,It becomes the welding very easy.
1.1 Structure of the ProMig 180 MIG/MAG/MMA semi-auto Arc welding machine
a.The name of the model
ProMig 180
Model improvement
max welding current
Semi-auto MIG/MAG Arc welding machine
b. Composing of the product
This product is composed by three parts as following
★
Power source(ProMig 180 )
★
welding gun
1.2 Suitable range of the ProMig 180
★
Suitable material: low-carbon steel, stainless steel
★
Thickness of the material:low-carbon steel and stainless:more than 0.5mm
★
Suitable position:all positions
★φ
Suitable wire : 0.6,0.8,solid wire/flux cord wire.
1.3 Characteristic of ProMig 180
★
Wide output current 30-180A: 0.6 -----------30-100A
0.8------------50-180A
★
Steady welding process,low splash,easy control,good welding form.
★
High efficiency: 180A/23V the duty cycle is 35%
150A/21.5V the duty cycle is 60%
120A/20V the duty cycle is 100%
continuous wire feed,the max speed of wire feed is -330(12m)/min
2

2.Main technical Data :
★
Input Voltage 1~220V/230V/240V ; 50/60Hz
★
Rated Input current 30 A
★
Rated Input power 6.6KVA
★
No-load Voltage 55~75V
★±±
Voltage adjusting Range 14 3V~23.5 3V
★
Current output Range 30~180A (MIG/MAG)
15~160A(MMA)
★
Suitable wire 0.6 , 0.8
★
Duty cycle 180A/23V the duty cycle is 35%
150A/21.5V the duty cycle is 60%
120A/20V the duty cycle is 100%
★η≥
Efficiency 0.85
★λ
Power factor =0.8
★
Insulation class F
★
Protection class of shell fan cooling
Note:(1) Adjust the no-load voltage according to the requirements. Normally it is 70V.
3.Function
3.1 Adjusting function for the welding voltage and welding current
3.1.1 ProMig 180 supply the adjusting range at MIG/MAG as following,
±±
Welding voltage : 14V 3V~23.5V 3V use the voltage adjusting knob
Welding current : 30A~180A use the current adjusting knob
3.1.2 ProMig 180 supply the adjusting range at MMA as following,
Welding current : 15A~160A use the welding current knob on the panel.
3

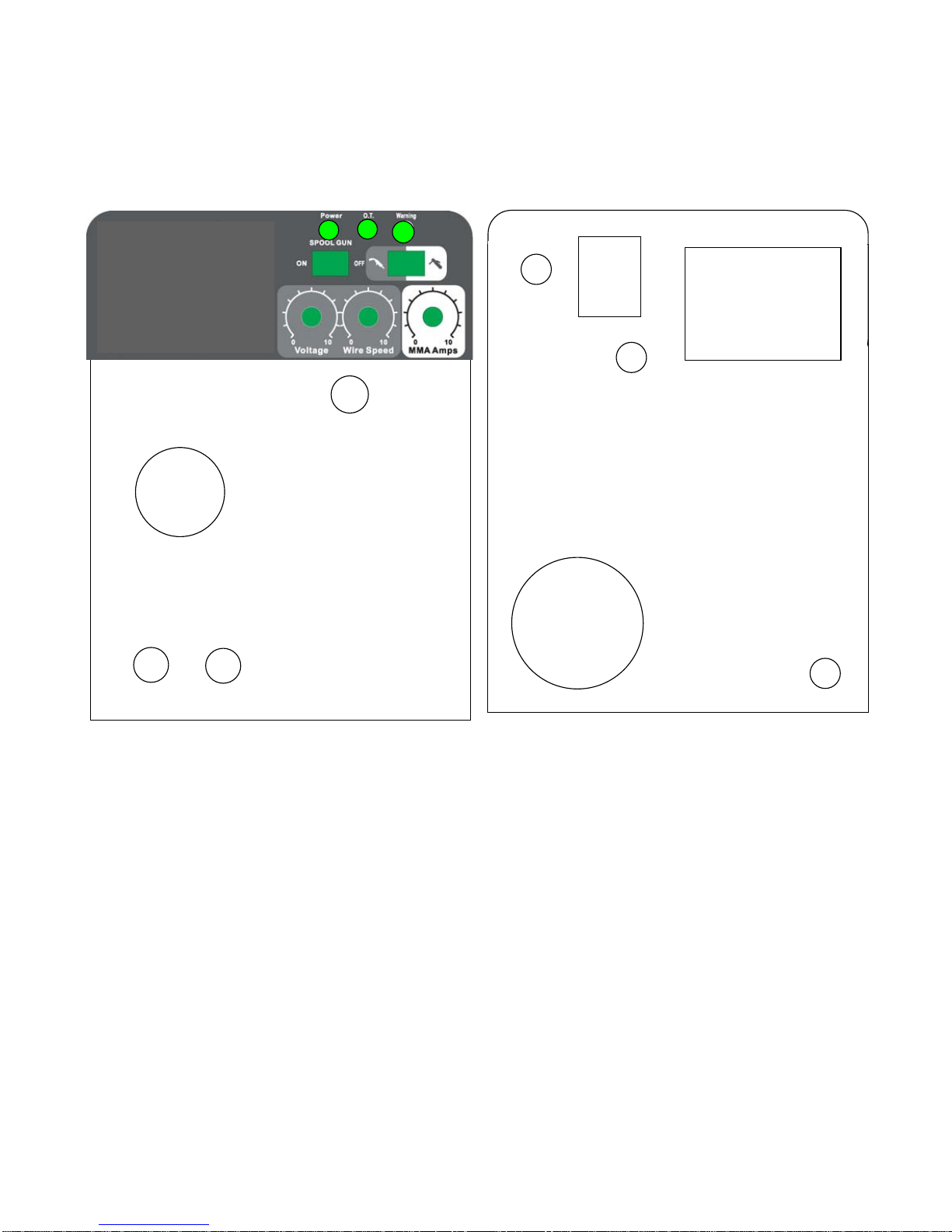

4. Indicating and warning on the ProMig 180 control panel
4.1 Indicating and adjusting
FRONT PANEL BACK PANEL
4.1.1 MIG Voltage regulator 4.1.2 MIG Current regulator
4.1.3 MMA Current regulator
4.1.4 Power indicating
If the indicating light is on the control circuit connects the power already.
4.1.5 MIG over heat indicating
4.1.6 MMA over heat indicating or output shorted
4.1.7 Switch for MIG or MMA
4.1.8 MIG torth CONNECTOR
4.1.9 output"-" 4.1.10 output"+"
4.1.11 incoming line of the power
4.1.12 power switch
4.1.13 Gas inlet
4.1.14 nameplate
4.1.15 FAN 4
9
-
10
8
+
12
15
11
14
16
13
1
7
2
4
3
6
5
17
18
ProMig 180

4.1.16 grounding column
4.1.17 Spool Gun switch
4.1.18 Spool Gun socket
5.Safe and installation caution
Read the safe caution before installation and operation .It come down to the high voltage
electricity,electric Arc and high temperature splash.So keep the safe regulation ,operate the
machine properly,avoid the danger of electricity and high temperature arc.
★
Check if any damage ot out looking ot the welder.
★
Confirm the capacity:more than 30A.
★
Power source is grounded,diagram 6
★
Prohibit the combustible goods in the welding locale.
★
There is fire proof measure in the welding locale with favorable ventilated condition.
★
There is smoke discharge system if the welding is operated inside the house in order
to keep the safety of workers.
★
The welding operator must be professional workers.
★
The operator must be fitted with safe accessories .Such as safe shoes,gloves,cover,
welding make and welding dress etc.

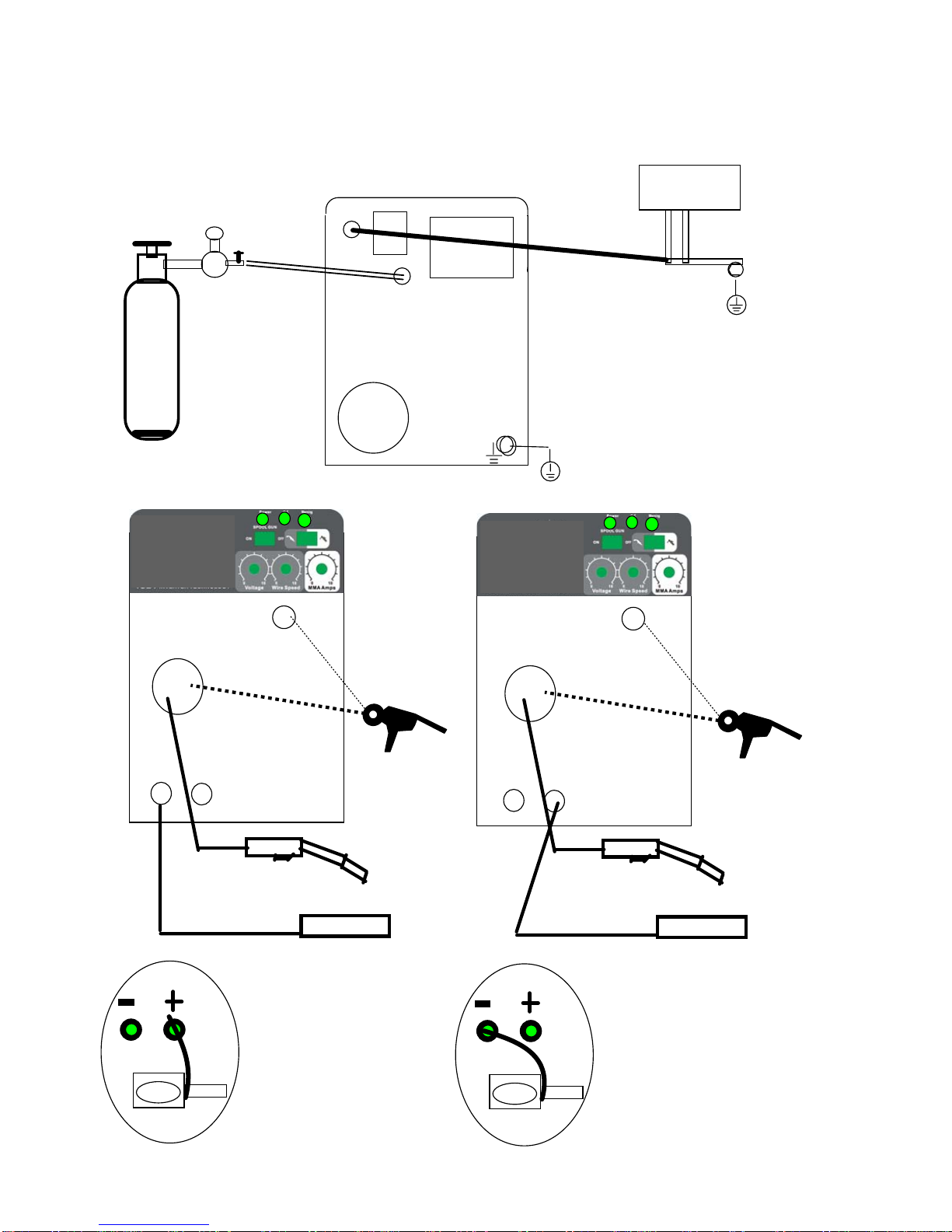

6. Explanation of installation
6.1 MIG/MAG welding
put the switch"7" MIG/MMA SWITCH into "MIG"
★Check the products according to the packing list when open the package.
★
Grounded protection.Attached the diagram 6
The power source is 220Vac/(50~60Hz) .The yellow/green double cable is grounding
cable.Be sure to connect the yellow/green double cable into the grounding connection in the
welding locale .Another way is selecting the M8 bolt on the back on the machine and connect
the grounding as the diagram as following.
★
Install the welding gun on the front panel and screw the welding gun ,then lock the bolt.
★Connect the gas pipe with the gas bottle according to the locale conditions. Check the
air proof conditions to ensure the good airproof.
5

CO2
flow meter
yellow/green double cable
diagram 6
air breaker
diagram 7
working piece
welding gun
GAS
12
15
11 14
16
13
gasinlet
or
diagram 7
working piece
welding gun
NO GAS
9
-
10
8
+
1
7
2
4
3
6
5
OR OR
1
7
2
4
3
6
5
9
-
10
8
+
ProMig 180
ProMig 180

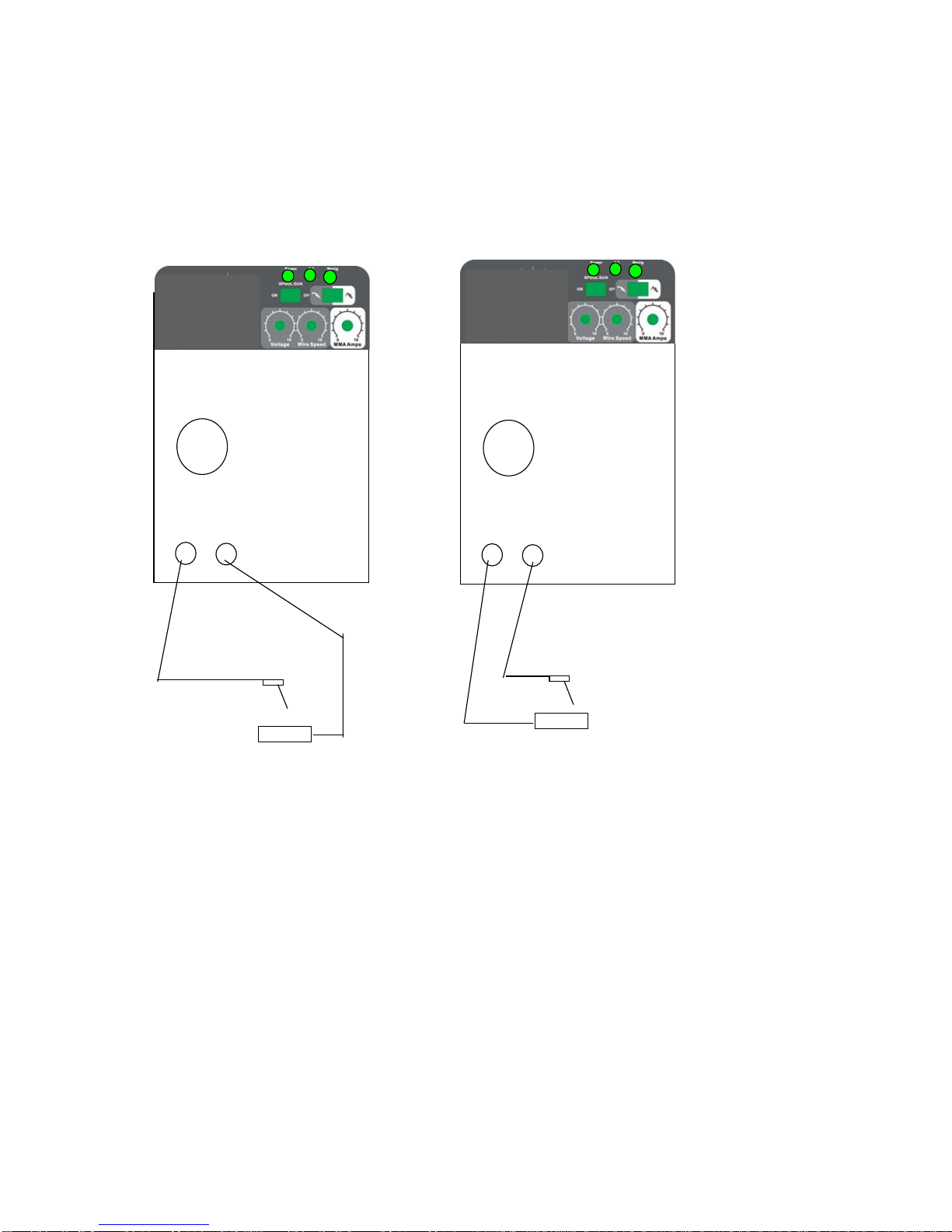

6.2 MMA welding
put the switch "7" MIG/MMA SWITCH into "MMA(TIG)"
Selecting empiric formula: I=40*d ,d is dia. of the electrode.
Notice positive and negative connection during welding.
A positive connection B negative connection
7
ELECTRODE
HOLDER
WORKPIECE
ELECTRODE
HOLDER
WORKPIECE
17
2
4
3
6
5
9
-
10
8
+
17
2
4
3
6
5
9
-
10
8
+
1
7
2
4
3
6
5
1
7
2
4
3
6
5
ProMig 180
ProMig 180

7. Operatings
★
"ON" and "OFF" indicating switch on the back panel.
★
Preset the welding voltage ,welding current(wire speed).and Arc force.Diagram 4
★
Confirm the specification of the wire feed hose
★Confirm the specification of nib base .It affects the extended length of the wire .
★Confirm the specification of nib. It affects the electric resistance.
★Confirm the wire slot of the roller is suitable for the diameter of the wire. Different
diameter of wire select different wire slot. Otherwise it affects the wire feed result.
★Confirm the pressure of the roller to avoid slipping.
If the pressure is not enough ,the wire feed is slow speed.
If the pressure is too much ,the wire will be anamorphic.
The wire feeder can not work properly.
★
Confirm the flow of the gas and air proof.
We suggest the gas flow to be "L" more than 10D(D-diameter of wire ).If the selection is
not proper,it also affects the welding quality.When using the CO2gas,please confirm if the
heating power works properly or not .
★Straight the hose of welding gun as much as possible .The bending radius can not be
less than 160mm.Otherwise it affects the wire feeder.
7.1 working process
press the switch of the gun ,the normal welding begins.Relax the switch,the arc stops.
7.2 Gas inspection
Press the switch of the gun before the wire roller is firmed,preset the gas flow through the
meter to check if it is gas proof.Otherwise ,it affects the welding result.
7.3Rip into the wire
Select the specification of the wire ,materials according to the craft requirements.Firm the
bolt and press the button on the front panel.The speed of ripping wire can be controlled by the
welding current knob.Unload the nib if necessary and load it again after the wire is out.
8. working elements

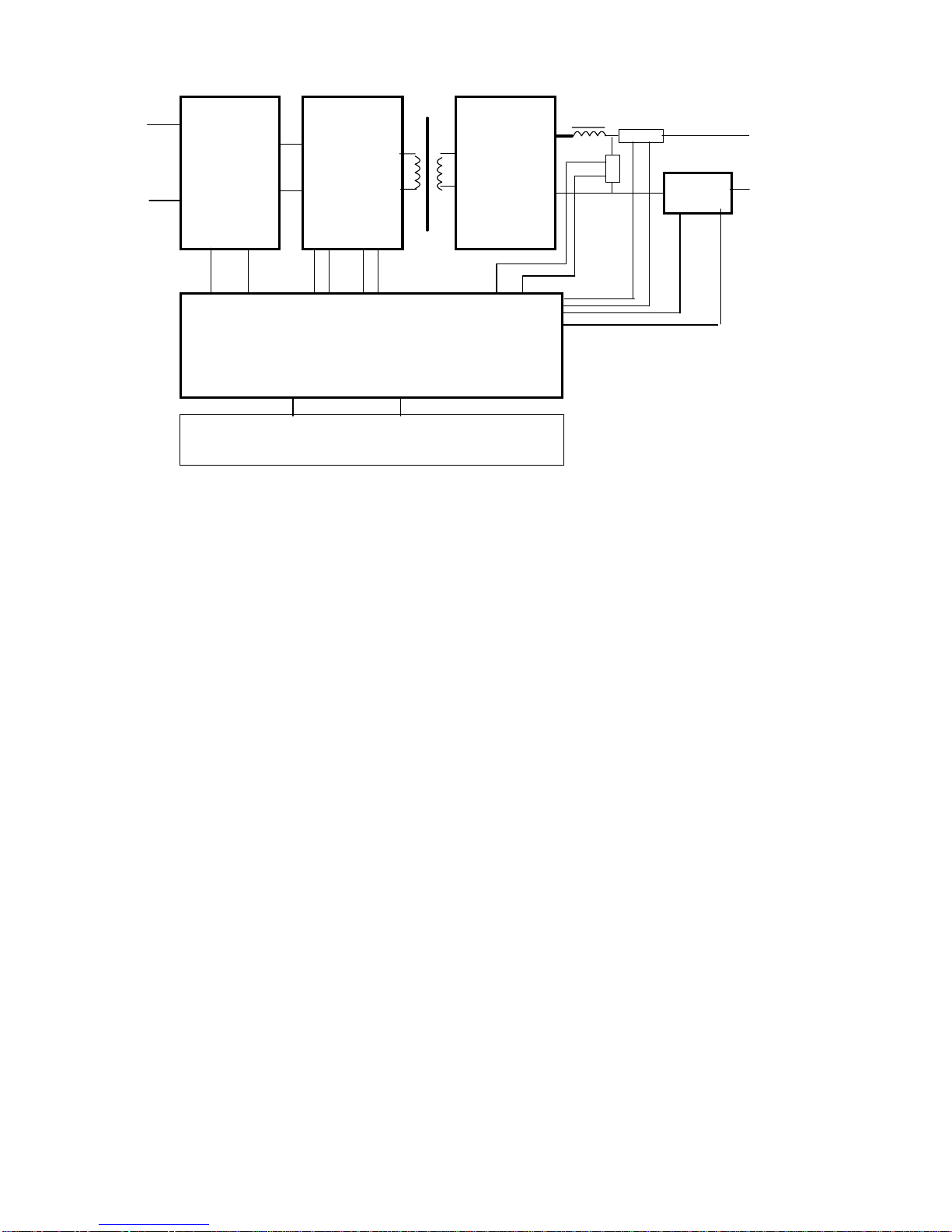

Diagram for the ProMig 180 working elements.Digram9
8

Input AC 220V/230V/240V,rectifier and filter it into 300VDC.
Control the IGBT by PWM+PFM,inverter the 300VDC to 20KHZ AC.
High frequency transformer pass the power by insulation and voltage reducing with high
efficiency.
Output the second rectifier and the second filter.Output the required welding current and
voltage.
9.Maintenance
Check the safety measure be efficiency.
Get rid of the dust for the power source (FORexample,dry compressed air)
Before operating,,Check the "workpiece" "torch"connectors of the power panel if they are
relaxed
.Check the connection between the grounding cable and plug if they are relaxed,(If
relaxed,the serious heating will damage the quick connectors)
.Check the fan if it works regularly.charge it if it is trouble.
Check the insulation and breakage of the input power cord
.Change it in time to ensure the safety.
check if there is any noisy for the wire feed motor.
Check the abrasion of the wire feed hose.Get rid of the dust inside of the hose.(!~2times /
40kg wire)
.Get rid of the splash inside the nib regularly to ensure the guaranteed result by the gas
blow.
9
+
working piece
welding gun
IGBT
rectifier
filter
input
inverter
circuit
rectifier
filter
output
control circuit
input wire
panel indictor
feeder
Digram 9

Check the abrasion of the nib.Change it in time.(suggest 5~10pieces nibs/40kg wire).
10.Troubles and Remedy
Troubles and remedy and remedy are as the form 10 as following
10
4.warning led lights
RED color (use MM
A)
1.aeration is not good
2.The temperature is too high
3.over-load use
4.Thermostat broken
5.Control plate broken
6.output shorted (holder)
1.get rid of the bar 0.5m around
2.Reduce the temperature
3.Reduce the use loading
4.Change the thermostat(JUC-OF)
5.Check and change the
control plate
6.remove holder
5.Wire feeder not
work ( welding curre
nt not adjustable)
1.the fuse broken
2.Potentiometer line fall down
or Potentiometer broken
3.the wire blocked
4.the drive circuit broken
5. no output
6.other reasons
1.Change the fuse 5A/250V
(on left panel,open wire feeder case)
2.Connect the lines or Change it
3.Check the gun
4.Change the control panel
5.Contact with the namufacturer
6.Contact with the namufacturer
6.Welding Voltage
not adjustable
1.Potentiometer line fall down
2.Potentiometer broken
3.The circuit broken
1.Connect the lines
2.Change it
3.Change the control pcb
Troubles Cause Remedy
1.Fan not works
properly 1.the fan line lose 2.Fan breakage 1.Connect the line 2.Change the fan
2.No indicating on
the front panel 1.the power line lose 2.Indicating light broken 1.Check the power,Connect the line 2.Change it(φ8)
3.Over heating light
on(use mig)
1.aeration is not good
2.The temperature is too high
3.over-load use
4.Thermostat broken
5.Control plate broken
1.get rid of the bar 0.5m around
2.Reduce the temperature
3.Reduce the use loading
4.Change the thermostat(JUC-OF)
5.Check and change the
control plate

11.Transportation,storage and environment conditions
★The package (Wooden cases or cartons)of the manufacturer is suitable for air ,sea ,
railway and highway (three class more) transportation..
★Pay attention to the indication on the package during the transportation.
★the environment conditions
℃℃
A Temperature range operating 0 ~ 40
℃℃
transportation -25 ~+55
℃
B The air humidity 40 50%RH
℃
20 90%RH
C The dust ,acid and causticity gas in the environment must be lower than the normal
level (The welding process produced not included)
D Rain proof when it is used outside.
12.Quality Guaranteed
If you have any problem of the quality ,please contact us in time .We generally have one year
quality guarantee on condition that you operate or transport the machine properly according to
the operation manual.
11

13.ACCESSORIES:SEE PACKING LIST,PLEASE
PACKING LIST
★★★★★★★★★★★★★★★★★★★★★★★★
No.
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
Certificate of quality
───────────────────────
Name of product:MIG/MAG / MMA Semi-auto ARC Welding Machine
Type of product: ProMig 180
Packing No:
Test results of this welder fulfils_____________
_________technical requirements and its release
from the works is granted.
Inspector_________ Date___________
ProMig 180
Welding machine 1
connector+cable+Ground pliers 1
MIG welding torch 1
Gas hose 1
Spool welding torch(QLBT 8m) 1 optional accessory
connector+cable+holder 1 optional accessory
flow meter 1 optional accessory
Operation instructions 1
Certificate of quality 1

WARNING
AVISO DE
PRECAUCION
ATTENTION
WARNUNG
ATENÇÃO
Spanish
French
German
Portuguese
Japanese
Chinese
Korean
Arabic
READ AND UNDERSTAND THE MANUFACTURER’S INSTRUCTION FOR THIS EQUIPMENT AND THE CONSUMABLES TO BE
USED AND FOLLOW YOUR EMPLOYER’S SAFETY PRACTICES.
SE RECOMIENDA LEER Y ENTENDER LAS INSTRUCCIONES DEL FABRICANTE PARA EL USO DE ESTE EQUIPO Y LOS
CONSUMIBLES QUE VA A UTILIZAR, SIGA LAS MEDIDAS DE SEGURIDAD DE SU SUPERVISOR.
LISEZ ET COMPRENEZ LES INSTRUCTIONS DU FABRICANT EN CE QUI REGARDE CET EQUIPMENT ET LES PRODUITS A
ETRE EMPLOYES ET SUIVEZ LES PROCEDURES DE SECURITE DE VOTRE EMPLOYEUR.
LESEN SIE UND BEFOLGEN SIE DIE BETRIEBSANLEITUNG DER ANLAGE UND DEN ELEKTRODENEINSATZ DES HER-
STELLERS. DIE UNFALLVERHÜTUNGSVORSCHRIFTEN DES ARBEITGEBERS SIND EBENFALLS ZU BEACHTEN.
●Do not touch electrically live parts or
electrode with skin or wet clothing.
●Insulate yourself from work and
ground.
●No toque las partes o los electrodos
bajo carga con la piel o ropa moja-
da.
●Aislese del trabajo y de la tierra.
●Ne laissez ni la peau ni des vête-
ments mouillés entrer en contact
avec des pièces sous tension.
●Isolez-vous du travail et de la terre.
●Berühren Sie keine stromführenden
Teile oder Elektroden mit Ihrem
Körper oder feuchter Kleidung!
●Isolieren Sie sich von den
Elektroden und dem Erdboden!
●Não toque partes elétricas e elec-
trodos com a pele ou roupa molha-
da.
●Isole-se da peça e terra.
●Keep flammable materials away.
●Mantenga el material combustible
fuera del área de trabajo.
●Gardez à l’écart de tout matériel
inflammable.
●Entfernen Sie brennbarres Material!
●Mantenha inflamáveis bem guarda-
dos.
●Wear eye, ear and body protection.
●Protéjase los ojos, los oídos y el
cuerpo.
●Protégez vos yeux, vos oreilles et
votre corps.
●Tragen Sie Augen-, Ohren- und Kör-
perschutz!
●Use proteção para a vista, ouvido e
corpo.

WARNING
AVISO DE
PRECAUCION
ATTENTION
WARNUNG
ATENÇÃO
Spanish
French
German
Portuguese
Japanese
Chinese
Korean
Arabic
LEIA E COMPREENDA AS INSTRUÇÕES DO FABRICANTE PARA ESTE EQUIPAMENTO E AS PARTES DE USO, E SIGA AS
PRÁTICAS DE SEGURANÇA DO EMPREGADOR.
●Keep your head out of fumes.
●Use ventilation or exhaust to
remove fumes from breathing zone.
●Los humos fuera de la zona de res-
piración.
●Mantenga la cabeza fuera de los
humos. Utilice ventilación o
aspiración para gases.
●Gardez la tête à l’écart des fumées.
●Utilisez un ventilateur ou un aspira-
teur pour ôter les fumées des zones
de travail.
●Vermeiden Sie das Einatmen von
Schweibrauch!
●Sorgen Sie für gute Be- und
Entlüftung des Arbeitsplatzes!
●Mantenha seu rosto da fumaça.
●Use ventilação e exhaustão para
remover fumo da zona respiratória.
●Turn power off before servicing.
●Desconectar el cable de ali-
mentación de poder de la máquina
antes de iniciar cualquier servicio.
●Débranchez le courant avant l’entre-
tien.
●Strom vor Wartungsarbeiten
abschalten! (Netzstrom völlig öff-
nen; Maschine anhalten!)
●Não opere com as tampas removidas.
●Desligue a corrente antes de fazer
serviço.
●Não toque as partes elétricas nuas.
●Do not operate with panel open or
guards off.
●No operar con panel abierto o
guardas quitadas.
●N’opérez pas avec les panneaux
ouverts ou avec les dispositifs de
protection enlevés.
●Anlage nie ohne Schutzgehäuse
oder Innenschutzverkleidung in
Betrieb setzen!
●Mantenha-se afastado das partes
moventes.
●Não opere com os paineis abertos
ou guardas removidas.
