Lindab RHR-CF User manual

lindab | we simplify construction
LindabResidential Heat Recovery
RHR-CF
Installation guide
© 2022.01 Lindab Ventilation. All forms of reproduction without written permission are forbidden. is the registered trademark of Lindab Ltd.
Lindab's products, systems, product and product group designations are protected by intellectual property rights (IPR).

RHR-CF
Installation instructions
1. Contents
1. Contents .......................................................................... 2
1.1 Contents 2
2 . Safety ............................................................................. 3
2.1
Essential safety rules 3
2.2
Safety requirements 3
2.3
Symbols 3
3.1 Use and storage of the manual 4
3.2Scope 4
3.3 Machine identification 4
4.1 Waste disposal 4
lindab | we simplify construction
3 . Manual ............................................................................ 4
4. End of use ...................................................................... 4
Lindab reserves the right to make changes without prior notice
2022-01-28
5. Range .............................................................................. 5
6. Dimensions ..................................................................... 7
6.1 Machine dimensions with packaging 9
7. Technical data/ energy .................................................. 10
7.1 Technical data/ energy - RHR-CF-V 10
7.2Technical data/ energy - RHR-CF-V PRO 11
7.3Technical data/ energy - RHR-CF-V PRO M 12
8 . Description of machine components .............................13
9 . Installation ........................................................................14
9.1 Installation instructions 14
9.2Wall installation of appliance 14
9.3Positioning the appliance 15
9.4Condensate drain connection 16
9.5Floor installation of appliance 16
10 . Electrical connections ...................................................17
10.1 Power board 17
10.2Dip switch configuration 19
10.3Connection with remote control 20
11 . Controller ....................................................................... 21
11.1 Installing controller on the wall 21
11.2T-EP touch controller 22
11.3Description of the controller 23
12 . Commissioning .............................................................. 24
13 . Humidity sensor ............................................................. 26
13.1 Moving the humidity sensor for unit PRO 26
14 . Condensate drain connection ..................................... 27
14.1 Setting the flow rates 27
14.2Standard calibration- left side configuration 27
14.3Right side configuration 29
14.4Automatic calibration 31
15 . Setting of the weekly programme ............................... 32
15.1 Selection of the preset weekly programmes 33
15.2Tables of settings for the preset programmes 34
15.3Creation of the free weekly programmes 35
15.4Tables of settings for the free programmes 36
16 . User operational procedures ....................................... 37
16.1 Start and stop the heat recovery unit 37
16.2Selecting the operating mode 37
16.3Manual ventilation function 38
16.4Automatic mode 38
16.5Automatic mode with humidity sensor 38
16.6Automatic mode with CO2 sensor 39
16.7Party mode 39
16.8Holiday mode 40
16.10 Setting the clock and the day of the week 41
16.9Activation of weekly programme 40
17. Supplementary functions ............................................. 41
17.1 Booster mode 41
17.2Fireplace function 41
17.3Boiler function 41
17.4Free cooling function 42
17.5Pre-treatment function with geothermal coil 43
17.6Summer mode 43
17.7Functions block screen 43
18. Antifreeze function ....................................................... 44
18.1 With integrated modulating electric resistance 44
18.2With external modulating electric heater 44
18.3Without electric resistance 44
18.4With preheating hydronic coil or ON/OFF resistance 44
18.5Antifreeze protective circuit chart 45
19. Menus ............................................................................ 46
19.1 Technical menu 46
19.2Installer menu 46
19.3Password-protected menu 46
19.4Parameters menu 47
19.5Read menu 49
19.6Read menu reports 50
19.7Alarms 50
21. Wiring diagrams ............................................................ 54
20.1 User maintenance 51
20.2Installer maintenance 52
20.3Check the heat exchanger 52
20.4Check the fans 53
20. Maintenance .................................................................. 51
22. Declaration of conformity ............................................ 60
2

The cleaning and maintenance to be carried out by the
user cannot be done by children without supervision.
Before performing any operation, make sure to:
•Always wear work gloves.
•Do not expose to flammable gases.
RISK OF INJURY/ MATERIAL DAMAGE/
DAMAGE TO APPLIANCE!
The appliance is very heavy.
Lifting it can cause injuries.
Have another person help you lift it in order to carry the
machine.
Lift it slowly and pay attention that it does not fall.
The fans can reach a speed of 3000 rpm.
Do not insert objects or your hands into the electric fan.
Do not remove the safety labels inside the appliance. If
illegible, have them replaced.
Make sure to earth the appliance.
Always request original spare parts when replacing
components.
The installation site must be chosen so that there is
sufficient space for the connections of the air pipes and to
allow maintenance to be carried out conveniently.
Make sure there is at least 1 m of open space in front of
the appliance to allow for maintenance operations.
If the appliance is hung on a wall, make sure the wall has a
superficial mass of at least 200 kg/m2. Otherwise use a
stand to install it on the floor (optional accessory sold
separately).
Do not install the appliance near bedrooms.
To improve environmental comfort, install silencers on the
ambient air input and return piping.
The appliances cannot be installed in environments cooler
than < 12°C.
The residential ventilation systems are designed for
constant operation to avoid the formation of condensation
and mould in the environments. The units can only be
switched off for scheduled maintenance.
The appliances cannot be used to dry structures and
masonry of new homes.
ATTENTION! It is strictly forbidden to operate the unit
before having connected the 4 air ducts to the ducting
system.
Installation instructions
Carefully read this booklet before starting
up the machine.
Attention! Carefully turn off the electrical
supply before removing protection.
Attention! Risk of injury/ material damage/
damage to appliance.
Operations which may be carried out by the
user
Repairs to be carried out exclusively by an
installer or authorised technician.
Always wear work gloves.
2.2 Essential safety rules
It is dangerous to touch the appliance when wet or with
bare feet.
Do not perform any type of intervention or maintenance
without first having disconnected power to the appliance.
Do not tamper with or modify the adjustment or safety
devices unless authorised or without instructions.
Do not twist, detach or pull the power cords coming out of
the appliance even when not plugged in.
Do not pour or spray water on the appliance.
Never insert anything through the filter seat holes.
Do not remove any protection without first having
disconnected power to the appliance.
Do not throw or leave any residual packing material within
the reach of children as it is a potential risk of danger.
Do not install the appliance in explosive or corrosive
atmospheres, in moist areas, outdoors or in extremely
dusty environments.
2.3 Safety requirements
The appliance cannot be used by children or by people
with reduced capabilities, or lack of necessary
experience and knowledge without supervision or
having received instructions regarding safe use of the
appliance and understanding the hazards related to it.
Children must not play with the appliance.
Lindab reserves the right to make changes without prior notice
2022-01-28
1. Disconnect electric power to the appliance.
2. Close the water supply valve of the coil and let it
cool off (pre-and post-heating coils if installed as
accessories).
3. Install a circuit breaker switch in an easily accessible
position near the appliance or appliances.
RISK OF INJURY!
For safety purposes, during installation, maintenance
and repairs, abide by the following:
RHR-CF
lindab | we simplify construction
2. Safety
2.1 Symbols
3

07/03
2017
230V
50Hz
MAXIMUM
POWER INPUT
- - - W
QUALITY
CONTROL
MAXIMUN
CURRENT INPUT
RHR - ---
- - - A
SIZE
TYPE
IP21
ENERGY- S
021B001
RHR-CF
lindab | we simplify construction
Lindab reserves the right to make changes without prior notice
2022-01-28
Installation instructions
3. Manual
3.1 Use and storage of the manual
This instruction manual is intended for the machine user, owner
and technical installer and must always be available for
consultation.
The instruction manual indicates the intended use of the machine,
its technical features and provides indications as to its correct
use, cleaning and adjustments.
It also provides important indications for maintenance, for
residual risks and to carry out operations carefully.
This manual must be considered as a part of the machine
and must be KEPT FOR FUTURE REFERENCE until the final
scrapping of the machine.
The instruction manual must always be available for consultation
and preserved in a dry and protected area.
Should it be lost or damaged, the user can request a new manual
from the manufacturer or retailer, indicating the model and serial
number of the machine shown on its rating plate.
This manual reflects the state of technology at the time it was
drafted. The manufacturer reserves the right to update production
and following manuals without being obliged to update previous
versions.
The manufacturer will not be held liable in cases of:
•improper use or misuse of the machine
•use nonconforming to that expressly specified in
this publication
•serious shortcomings in intended and recommended
maintenance
•changes to the machine or any unauthorised
intervention
•use of non-original spare parts or not specific for
the model
•total or partial failure to comply with the instructions
•exceptional events
3.2 Scope
BEFORE INSTALLING THE APPLIANCE READ THIS
MANUAL CAREFULLY
Residential ventilation appliances convey outdoor air
through the cross-flow heat exchanger and distribute it to
the different rooms by means of a duct distribution system.
Moist and stale air is suctioned and then, again passing
through the cross-flow heat exchanger, is exhausted to the
outside of the appliance by residential ventilation.
3.3 Machine identification
There is an identification label on each appliance bearing
the data of the manufacturer and the machine type (See
Figure “1”).
Fig.1.
4. End of use
4.1 Waste disposal
Consumables and replaced parts should be
disposed of safely and in accordance with
the environmental protection legislation.
4

5. Range
* Humidity sensor available as an accessory
** Pressure transducer for automatic control of flow rates available as an accessory
*** Models fitted with enthalpy heat exchangers
Lindab reserves the right to make changes without prior notice
2022-01-28
Installation instructions RHR-CF
lindab | we simplify construction
Model Version
Equipment
Side
Acoustic
Insulation
Integrated
Modulating
Electric
Resistance
Flow
Configuration
Integrated
Humidity
Sensor
Integrated
Automatic
Flow Rate
Control
Energy
Class
Electric
Resistance
Power
(W)
RHR-CF-V 170
STANDARD - -
Default LH
Reversible
* ** A -
RHR-CF-V 270
STANDARD - -
Default LH
Reversible
* ** A -
RHR-CF-V 360
STANDARD - -
Default LH
Reversible
* ** A -
RHR-CF-V 460
STANDARD X -
Default LH
Reversible
* ** A -
RHR-CF-V 600
STANDARD X
Default LH
Reversible
* ** A-
RHR-CF-V 170 EL
STANDARD - X
LH
* ** A 500
RHR-CF-V 270 EL
STANDARD - X
LH
* ** A 900
RHR-CF-V 360 EL
STANDARD - X
LH
* ** A 1250
RHR-CF-V 460 EL
STANDARD X X
LH
* ** A 1600
RHR-CF-V 600 EL
STANDARD X X
LH
* ** A2000
RHR-CF-V 170 ER
STANDARD - X
RH
* ** A 500
RHR-CF-V 270 ER
STANDARD - X
RH
* ** A 900
RHR-CF-V 360 ER
STANDARD - X
RH
* ** A 1250
RHR-CF-V 460 ER
STANDARD X X
RH
* ** A 1600
RHR-CF-V 600 ER
STANDARD X X
DX
* ** A 2000
RHR-CF-V 180 PRO
RHR-CF-V 180 PRO M ***
PRO X -
Default LH
Reversible
X X A+ -
RHR-CF-V 280 PRO
RHR-CF-V 280 PRO M ***
PRO X -
Default LH
Reversible
X X A+ -
RHR-CF-V 370 PRO
RHR-CF-V 370 PRO M ***
PRO X -
Default LH
Reversible
X X A+ -
RHR-CF-V 460 PRO
RHR-CF-V 460 PRO M ***
PRO X -
Default LH
Reversible
X X A -
RHR-CF-V 600 PRO
RHR-CF-V 600 PRO M ***
PRO X-
Default SX
Reversible
X X A -
RHR-CF-V 180 PRO EL
RHR-CF-V 180 PRO ELM ***
PRO X X
LH
X X A+ 500
RHR-CF-V 280 PRO EL
RHR-CF-V 280 PRO ELM ***
PRO X X
LH
X X A+ 900
RHR-CF-V 370 PRO EL
RHR-CF-V 370 PRO ELM***
PRO X X
LH
X X A+ 1250
RHR-CF-V 460 PRO EL
RHR-CF-V 460 PRO ELM ***
PRO X X
LH
X X A 1600
RHR-CF-V 600 PRO EL
RHR-CF-V 600 PRO ELM ***
PRO X X
SX X X A 2000
5

* Humidity sensor available as an accessory
** Pressure transducer for automatic control of flow rates available as an accessory
*** Models fitted with enthalpy heat exchangers
Lindab reserves the right to make changes without prior notice
2022-01-28
RHR-CF
lindab | we simplify construction
Installation instructions
5. Range
Model Version
Equip-
ment
Side
Acoustic
Insulation
Integrated
Modulating
Electric
Resistance
Flow
Configuration
Integrated
Humidity
Sensor
Integrated
Automatic
Flow Rate
Control
Energy
Class
Electric
Resistance
Power
(W)
RHR-CF-V 180 PRO ER
RHR-CF-V 180 PRO ERM***
PRO X X
RH
X X A+ 500
RHR-CF-V 280 PRO ER
RHR-CF-V 280 PRO ERM ***
PRO X X
RH
X X A+ 900
RHR-CF-V 370 PRO ER
RHR-CF-V 370 PRO ERM ***
PRO X X
RH
X X A+ 1250
RHR-CF-V 460 PRO ER
RHR-CF-V 460 PRO ERM ***
PRO X X
RH
X X A 1600
RHR-CF-V 600 PRO ER
RHR-CF-V 600 PRO ERM ***
PRO X X
DX X X A 2000
6

A
28
H
42
B 8
C
D D
E
8
F
Model A
(mm)
B
(mm)
ØC
(mm)
D
(mm)
E
(mm)
F
(mm)
H
(mm)
RHR-CF-V 170 547 505 125 106 93.5 212.5 1041
RHR-CF-V 270 547 580 160 106 111 240 1041
RHR-CF-V 360 547 630 160 106 111 290 1041
Lindab reserves the right to make changes without prior notice
2022-01-28
Installation instructions RHR-CF
lindab | we simplify construction

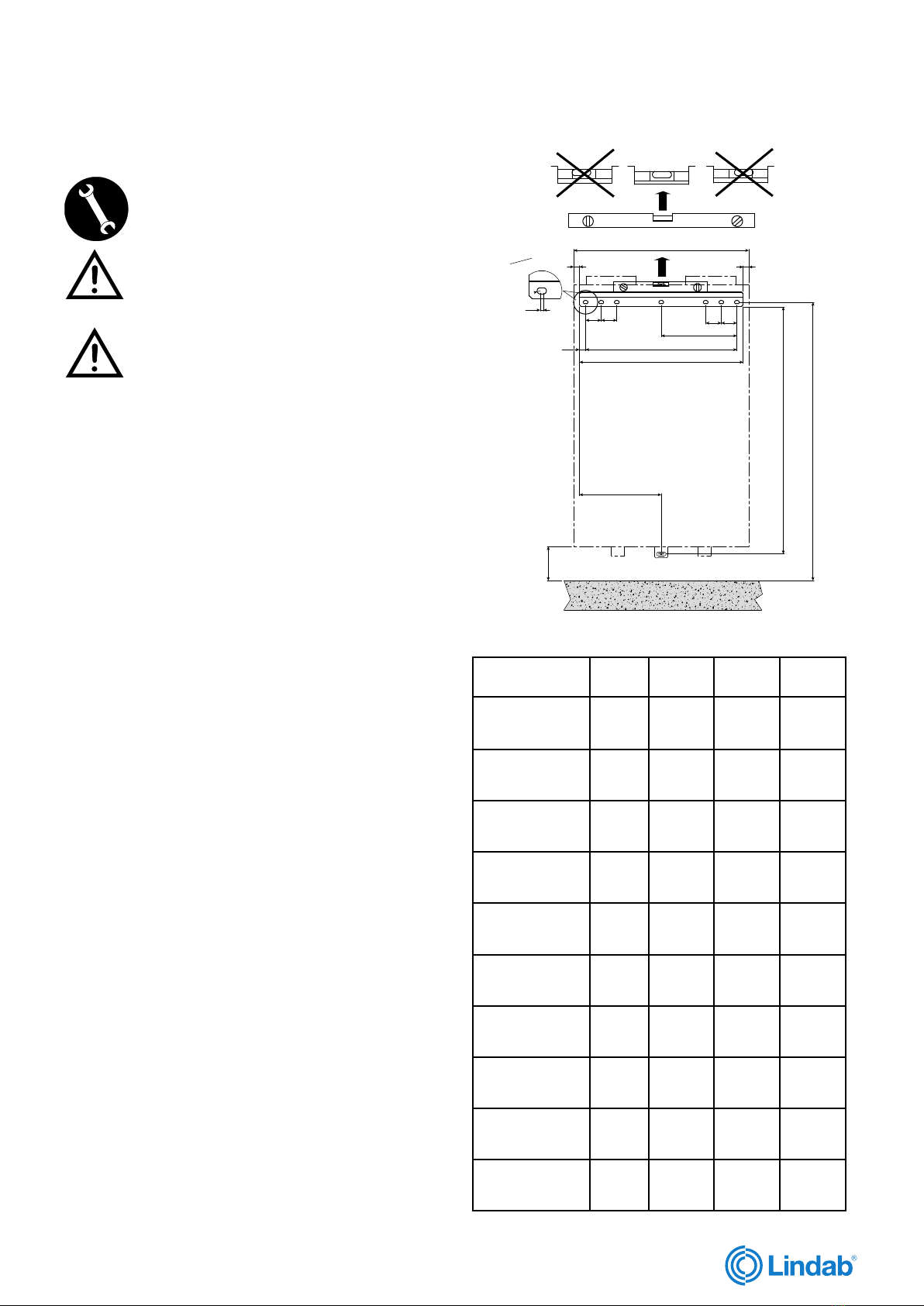

6. Dimensions
Fig. 2
7

A
H
42 28
B 8
C
D D
F
E
8
Model A
(mm)
B
(mm)
ØC
(mm)
D
(mm)
E
(mm)
F
(mm)
H
(mm)
Heat Exchangers Standard Enthalpy Heat Exchangers
RHR-CF-V 180 PRO RHR-CF-V 180 PROM 600 580 125 132 111 240 1041
RHR-CF-V 280 PRO RHR-CF-V 280 PROM 600 630 160 132 111 290 1041
RHR-CF-V 370 PRO RHR-CF-V 370 PROM 660 680 160 147 126 305 980
RHR-CF-V 460 PRO RHR-CF-V 460 PROM 660 680 180 147 126 305 980
RHR-CF-V 460 -660 680 180 147 126 305 980
RHR-CF-V 600 PRO RHR-CF-V 600 PROM 660 680 180 147 126 305 980
RHR-CF-V 600 -660 680 180 147 126 305 980
Lindab reserves the right to make changes without prior notice
2022-01-28
RHR-CF
lindab | we simplify construction
Installation instructions
6. Dimensions
Fig. 3
8

A
B
C
Model A
(mm)
B
(mm)
C
(mm)
WEIGHT
(KG)
Heat Exchangers Standard Enthalpy Heat Exchangers Heat Exchangers Standard Enthalpy Heat Exchangers
RHR-CF-V 170 -670 1200 685 56
RHR-CF-V 270 -670 1200 760 64
RHR-CF-V 360 -670 1200 810 66
RHR-CF-V 600 -780 1140 850 75 -
RHR-CF-V 460 -780 1140 850 75
RHR-CF-V 180 PRO RHR-CF-V 180 PRO M 720 1200 760 64 69
RHR-CF-V 280 PRO RHR-CF-V 280 PRO M 720 1200 810 66 71
RHR-CF-V 370 PRO RHR-CF-V 370 PRO M 780 1140 850 75 80
RHR-CF-V 460 PRO RHR-CF-V 460 PRO M 780 1140 850 75 80
RHR-CF-V 600 PRO RHR-CF-V 600 PRO M 780 1140 850 75 80
Lindab reserves the right to make changes without prior notice
2022-01-28
RHR-CF
lindab | we simplify construction
Installation instructions
6.1 Machine dimensions with packaging
-
-
-
-
Fig. 4
9

Model RHR-CF-V 170 RHR-CF-V 270 RHR-CF-V 360 RHR-CF-V 460 RHR-CF-V 600
Length mm 505 580 630 680 680
Width mm 547 547 547 660 660
Height mm 1041 1041 1041 980 980
Diameter of Connections -DN125 DN160 DN160 DN180 DN180
Weight kg 47 51 56 59 60
Maximum Flow Rate m3/h 170 270 360 460 600
Available Static pressure
at maximum flow rate
Pa 100 100 100 100 100
Flow rate of reference m3/h 120 190 250 320 420
Available Static pressure
at flow rate of reference
Pa 50 50 5050 50
Minimum Flow Rate m3/h 60 70 90 90 100
Maximum Available Static
Pressure Pa 250 250 350 400 450
Thermal Efficiency
at flow rate of reference
EN 13141-7
%87% 87% 90% 89% 88%
Filtering Efficiency
EN779 - ISO 16890 -F7 supply - M5 exhaust ePM1 55% - ePM10 50%
Fan Type -Centrifugal with EC brushless motor - Blades back - Curves at constant speed
Maximum power output
(fans and controllers)
W
45 76 125 215 300
Maximum current output
(fans and controllers)
A
0.6 1.1 1.5 2.0 2.2
Electric power supply -Single phase -230 V – 50 Hz
Consumption in standby -<1W
Safety Property -Protection: IP21
EC Compliant
Integrated modulating
electric resistance
-RHR-CF-V 170 EL
RHR-CF-V 170 ER
RHR-CF-V 270 EL
RHR-CF-V 270 ER
RHR-CF-V 360 EL
RHR-CF-V 360 ER
RHR-CF-V 460 EL
RHR-CF-V 460 ER
RHR-CF-V 600 EL
RHR-CF-V 600 ER
Preheating resistance
power
W500 900 1250 1600 2000
Maximum current output
with resistance
A357 9.2 10
Lindab reserves the right to make changes without prior notice
2022-01-28
RHR-CF
lindab | we simplify construction
Installation instructions
7. Technical data/ energy
7.1 Technical data/ energy - Standard RHR-CF-V
10

Model RHR-CF-V 180 PRO RHR-CF-V 280 PRO RHR-CF-V 370 PRO RHR-CF-V 460 PRO RHR-CF-V 600 PRO
Length mm 580 630 680 680 680
Width mm 600 600 600 660 660
Height mm 1041 1041 980 980 980
Diameter of Connections - DN125 DN160 DN160 DN180 DN180
Weight kg 47 51 56 59 60
Maximum Flow Rate m3/h 180 280 370 460 600
Available Static pressure
at maximum flow rate
Pa
100 100 100 100 100
Flow rate of reference m3/h 130 200 260 320 420
Available Static pressure at
flow rate of reference
Pa 50 50 50 50 50
Minimum Flow Rate m3/h 50 70 50 90 100
Maximum Available Static
Pressure Pa 160 240 390 400 450
Thermal Efficiency
at flow rate of reference
EN 13141-7
%
91% 91% 92% 89% 88%
Filtering Efficiency
EN779 - ISO 16890
- F7 supply - M5 exhaust
ePM1 55% - ePM10 50%
Fan Type - Centrifugal with EC brushless motor - Blades back -
Curves at constant spe-ed
Maximum power output
(fans and controllers) W50 70 120 215300
Maximum current output
(fans and controllers) A0.6 1.0 1.0 2.0 2.2
Electric power supply - Single phase -230 V – 50 Hz
Consumption in standby - <1W
Safety Property - Protection: IP21
EC Compliant
Models with integrated
modulating resistance
-
RHR-CF-V 180 PRO EL
RHR-CF-V 180 PRO ER
RHR-CF-V 280 PRO EL
RHR-CF-V 280 PRO ER
RHR-CF-V 370 PRO EL
RHR-CF-V 370 PRO ER
RHR-CF-V 460 PRO EL
RHR-CF-V 460 PRO ER
RHR-CF-V 600 PRO EL
RHR-CF-V 600 PRO ER
Preheating resistance
power W500 900 1250 1600 2000
Maximum current output
with resistance A3579.2210
Lindab reserves the right to make changes without prior notice
2022-01-28
RHR-CF
lindab | we simplify construction
Installation instructions
7.2 Technical data/ energy - RHR-CF-V PRO
11

Model
RHR-CF-V 180 PRO M RHR-CF-V 280 PRO M RHR-CF-V 370 PRO M RHR-CF-V 460 PRO M
RHR-CF-V 600 PRO M
Length mm 580 630 680 680 680
Width mm 600 600 660 660 660
Height mm 1041 1041 980 980 980
Diameter of Connections - DN125 DN160 DN160 DN180 DN180
Weight kg 52 5661 64 65
Maximum Flow Rate m3/h 180 280 370 460 600
Available Static pressure
at maximum flow rate Pa 100 100 100 100 100
Flow rate of reference m3/h 130 200 260 320 420
Available Static pressure
at flow rate of reference Pa 5050505050
Minimum Flow Rate m3/h 5070 5090 100
Maximum Available
Static Pressure Pa 160 240 390 400 450
Thermal Efficiency
at flow rate of reference
EN 13141-7 % 88.6% 84.8% 82.7% 81.5% 75,0%
Thermal hygromeric at flow
rate of reference
EN 13141-7 % 72.1% 65.6% 63.4% 58.4% 55.8%
Filtering Efficiency
EN779 - ISO 16890 -F7 supply - M5 exhaust
ePM1 55% - ePM10 50%
Fan Type - Centrifugal with EC brushless motor - Blades back -
Curves at constant speed
Maximum power output
(fans and controllers) W5070 120 215300
Maximum current output
(fans and controllers) A 0.6 1.0 1.0 2.0 2.2
Electric power supply - Single phase -230 V – 50 Hz
Consumption in standby - <1W
Safety Property - Protection: IP21
EC Compliant
Models with integrated
modulating resistance -
RHR-CF-V 180 PRO ELM
RHR-CF-V 180 PRO ERM
RHR-CF-V 280 PRO ELM
RHR-CF-V 280 PRO ERM
RHR-CF-V 370 PRO ELM
RHR-CF-V 370 PRO ERM
RHR-CF-V 460 PRO ELM
RHR-CF-V 460 PRO ERM
RHR-CF-V 600 PRO ELM
RHR-CF-V 600 PRO ERM
Preheating resistance
power W500 900 1250 1600 2000
Maximum current output
with resistance A 3 57 9.2 10
Lindab reserves the right to make changes without prior notice
2022-01-28
lindab | we simplify construction
Installation instructions
7.3 Technical data/ energy - RHR-CF-V PRO M Models fitted with enthalpy heat exchangers
RHR-CF
12

3
4
2
1
A B C D
12
8
10
9
7
6
511
30
13
14
16
15
17
18
20
19
25
26
23
22
21
24
27
28
29
Left side connection
(standard configuration)
Right side connection
(supplementary config.)
13 Outdoor air connection
Extracted stale air connection
14 Exhaust air connection Supply air connection
15 Supply air connection Exhaust air connection
16
Extracted stale air connection Outdoor air connection
17 Filter class F7
(outdoor air)
Filter class M5
(extracted stale air)
18 Filter class M5
(extracted stale air)
Filter class F7
(outdoor air)
19 Supply air fan Stale air
exhaust fan
20 Stale air
exhaust fan Supply air fan
21 Outdoor air temperature
probe (T1)
Extracted stale air
temperature probe (T3)
22 Extracted stale air
temperature probe (T3)
Outdoor air temperature
probe (T1)
23 Exhaust air temperature
probe
(T4)Supply air temperature
probe (T2)
24 Supply air temperature
probe (T2)
Exhaust air temperature
probe
25Condensate drain -
26 - Condensate drain
27 Bypass Damper
System
Bypass Damper
System
28 LH Integrated Resistance
(if any) -
29 -RH Integrated Resistance
(if any)
1 - Appliance for residential ventilation
2 - Power board
3 - T-EP capacitive touch controller
4 - Heat exchanger
5 - Hanging bracket
6 - Power cord
7 - Spacer foot
8 - Condensate drain plug
9 - Cable gland PG7
10 - Shank label (to use for right side connection)
11 - Suction cup
12 - Front cap (for remote control)
30 - T-EP support for wall mounting
Lindab reserves the right to make changes without prior notice
2022-01-28
Installation instructions RHR-CF
lindab | we simplify construction
8. Description of machine components
Fig. 5
Fig. 6
13

INSTALLATION TO BE CARRIED OUT
EXCLUSIVELY BY QUALIFIED PERSONNEL
Attention! Installation of the appliance for
residential ventilation must only be carried out
by qualified personnel to avoid damage or
injury.
Attention! To protect the system against dirt
and humidity, all the openings must remain
closed until commissioning, for example using
protective covers.
•The residential ventilation appliance should be
installed in dry environments with the temperature
above 12°C, for example in a utility room. Installation
temperature: from +12 °C to +40 °C.
•Relative humidity (installation environment): max. 60%.
•Storage temperature: -20 ° C to +60 ° C.
PLEASE NOTE: if the temperature in the installation room
drops below 12°C, there could occasionally be
condensate on the external covering of the appliance.
•Position the appliance so that the section up to the
external outlet of the outdoor air and exhaust air inlet
ducts is as short as possible.
•The vibrations produced by the residential ventilation
appliance must be dampened. The installed appliance
must be soundproofed.
•The residential ventilation appliance is mounted with a
wall bracket (supplied with the machine).
•The appliance can be mounted on the floor using
optional stands.
•The appliance must be accessible to perform
maintenance and repairs.
•Air flow rates must be set correctly in compliance with
standard DIN 1946, part 6.
•The appliance can be commissioned after having
completed installation of the entire residential
ventilation system.
Fig. 7
*Dimensions are also valid for enthalpy models
Model H MIN
(mm)
A
(mm)
B
(mm)
C
(mm)
RHR-CF-V 170
- 170 EL
- 170 ER
1190 600 11 1000
RHR-CF-V 270
- 270 EL
- 270 ER
1190 600 11 1000
RHR-CF-V 360
- 360 EL
- 360 ER
1190 600 11 1000
RHR-CF-V 460
- 460 EL
- 460 ER
1130 660 67.5940
ERHR-CF-V 600
- 600 EL
- 600 ER
1130 660 67.5 940
RHR-CF-V 180 PRO*
-180 PRO EL
-180 PRO ER 1190 600 37.5 1000
RHR-CF-V 280 PRO*
-280 PRO EL
-280 PRO ER
1190 600 37.5 1000
RHR-CF-V 370 PRO*
-370 PRO EL
-370 PRO ER
1130 660 67.5 940
RHR-CF-V 460 PRO*
-460 PRO EL
-460 PRO ER
1130 660 67.5 940
RHR-CF-V 600 PRO*
- 600 PRO EL
-600 PRO ER 1130 660 67.5 940
525
H MIN
MIN 200
485
242,5
5050
50 50
B
A
20
R5
5
B
OK
262,5
C
Lindab reserves the right to make changes without prior notice
2022-01-28
RHR-CF
lindab | we simplify construction
Installation instructions
9. Installation
9.1 Installation instructions
9.2 Wall installation of appliance
Fastening the bracket to the wall
Take the bracket and apply it to the wall, making sure that
it is attached in a horizontal position using a spirit level, as
described in the figure below (Fig. 7).
PLEASE NOTE: the screws are not included. Choose the
screws and relative plugs based on the type of wall.
1 - Position the bracket and drill the necessary holes
(Fig.7).
Make sure the appliance is horizontal.
2 - Secure the bracket by applying the screws.
14

1
2
3
8
1
2
3
Lindab reserves the right to make changes without prior notice
2022-01-28
RHR-CF
lindab | we simplify construction
Installation instructions
9.3 Positioning the appliance
1. Position the appliance by hooking it to the hanging
bracket (1).
2. Position the supplied spacer foot (2) to guarantee that
the appliance is level.
3. Secure the appliance to the wall (3).
4. Mount the condensate drain at the bottom of the
appliance.
PLEASE NOTE: the screws are not included in the supply.
Choose the screws and relative plugs based on the type of
wall.
Fig. 8
15

The connection for the condensate drain is located
underneath the appliance:
Connect the condensate drain to the domestic sewage
system using a duct or pipe (siphoned).
Condensate must be drained from a minimum height of
100 mm.
PLEASE NOTE: if you choose the version with right
side connection, invert the condensate drain plug (see
paragraph “How to change connection”).
1 1/2 " G
min 100
Attention! Make sure that the siphon of the
condensate drain connected to the domestic
sewer system is always full of water.
Attention! Make sure that the end of the siphon
is at least 100 mm below the water level.
OPTIONAL ACCESSORY
As an alternative, the residential ventilation appliance can be
installed using the floor stands.
Fixing the stands
200 ÷ 225
1
2
3
4
5
13
M8 x 20
200 ÷ 225
1
2
3
4
5
13
M8 x 20
Y
Lindab reserves the right to make changes without prior notice
2022-01-28
RHR-CF
lindab | we simplify construction
Installation instructions
9.4 Condensate drain connection
Fig. 9
9.5 Floor installation of appliance
Fig. 10
1. Fix the stands(1) using the screws (2) and
washers (3),supplied with the accessory, at the
bottom of the appliance (4). Fasten the crossbar
(5) to the support (1).
2. Lift the unit and position it vertically
3. Use a spirit level to check the position of the
appliance.
Fig. 11
16

230 V 50 HZ
230 V 50 HZ
•Take the power cord from the accessory bag.
•Couple the cord to the machine.
•Plug in the power cord.
97
RH-CO2
864
RS485
5
M16
KD1
KD2
DL2
M24
DL1
M23
MC2
DL3
M12
109876543
ON
ON
21
6543
ON
ON
21
T.Type
IAQ
T2T3T4 T1
TTL
321
CONTROL
EH2
FC-FC
F2
F1
C3-C3C2-C2C1-C1
BP
KNX
BD
F3
CONTROL
C1C1C2C2C3C3
FCFC
230VAC
L1 N1
FAN1
N L L
FAN2
N
EH1
1918
2223
EH4 EH3
2021
RS485
RH-CO2
KNX
DL3
F
FAN1
N1 - L1
DIP2
FAN2
EH2
F2
F1 EH1
FC-FC
C3-C3
C2-C2
C1-C1
MC1
IAQ
TTL
DL1
BD
T2
T3
T4
T1
DL2
BP
MC4
DIP1
0
D-
D+
Lindab reserves the right to make changes without prior notice
2022-01-28
Installation instructions RHR-CF
lindab | we simplify construction
10. Electrical connections
•Before installing the appliance, make sure that the
rated supply voltage is 230V - 50 Hz.
•Make sure that the electric system is suitable to
supply, in addition to the operating current required
by the unit, the current necessary to supply
the household appliances and equipment already in
use.
•Perform the electrical connections according to
national laws and standards in force.
•Install an omnipolar switch upstream of the unit with
a minimum contact distance of 3.5 mm.
•The unit must always be earthed.
•Check the power cord is in perfect condition. In no
case must you repair a damaged cord with
insulation tape or clamps.
If the power cord is damaged, it must be replaced
by the Technical Assistance Service or anyhow by
an indi-vidual with a similar qualification to prevent
any risk.
•The appliances for residential ventilation are built
with the display controller on board the unit.
•When the appliance is connected electrically the
controller is also powered.
Fig. 12
10.1 Power board
Fig. 13
17

Item Description Notes
N1-L1 230 Volt power terminals -
FFuse 5x20 -
FAN 1 230 Volt power supply - fan 1 -
FAN 2 230 Volt power supply - fan 2 -
F1 0-10 Volt signal - fan 1 Fan 2 with inverse configuration
F2 0-10 Volt signal - fan 2 Fan 1 with inverse configuration
T1 ÷ T4 Temperature sensors -
CONTROL Control panel T-EP controller supplied with unit
C1-C1 NO potential.free contact (input) Remote On/Off function – unit Off when the contact is
closed
C2-C2 NO potential-free contact (input) Booster function active when the contact is closed
C3-C3
NC potential-free contact (input) (active only if
JUMPER MC1 open)
See Fireplace and Boiler functions
FC-FC SPST Potential-free contact -
IAQ Internal relative humidity sensor -
RS485 Modbus Connection -
DIP 1 Configuration Dip Switch See Configuration Dip Switch table
DIP 2 Address Dip Switch for ModBus networks 8 Dip Switches - for max 60 units
MC4 Master/slave jumper or Modbus network
The network must be closed on the last unit in case of
RS485 Modbus connection. It is closed by closing Jumper
MC4.
BP Differential pressure sensor connection for
automatic air flow rate control
Accessory for RHR-CF-V models
Standard for RHR-CF-V PRO models
BD By-pass damper connection (Free Cooling) -
TTL Connection for additional boards Accessory/ Optional
EH1 PWM control preheating output -
EH2
Pre-Treatment output for controlling 230 Volt ON/
OFF actuators or enabling external modulating
resistance
Antifreeze with external systems
DL2 Power on LED -
DL3 Status and alarm LED See alarm table
Lindab reserves the right to make changes without prior notice
2022-01-28
RHR-CF
lindab | we simplify construction
Installation instructions
Power board key
18

DIP NO.
DEFAULT OFF
ON
1 OFF
LH Fan Config.
(standard configuration)
RH Fan Config.
Right side connection (supplementary config.)
2 OFF No Pre-Treatment Air Pre-Treatment Air Present
3 OFF If DIP2 ON
Modulating electric resistance
If DIP2 ON and DIP7 OFF Electric
Resistance ON/OFF
Hot water coil with ON/OFF valve
4 OFF N/A N/A
5 OFF N/A N/A
6 OFF FC-FC transmits error signal to
remote control unit
FC-FC closes with the unit in ON position in order to
provide the ignition consent of the accessory
electrostatic filter Crystall Round
7 OFF No Geothermal Hydronic Coil If DIP2 and DIP3 ON Geothermal
Hydronic Coil Present
8 OFF
9 OFF
If DIP2 ON
Internal modulating
preheating resistance
If DIP2 ON, DIP3 OFF
External modulating preheating resistance
10 OFF N/A N/A
Lindab reserves the right to make changes without prior notice
2022-01-28
RHR-CF
lindab | we simplify construction
10.2 Dip switch configuration (DIP1)
Installation instructions
Contact C3-C3
with atmospheric boiler start-up booster
Contact C3-C3 with function that
prevents negative ambient pressure in
presence of chimney
19

The control is provided by default fitted on the appli-ance,
however it can also be remoted by fitting it on the wall.
Always disconnect power
before accessing the unit.
1- Remove the controller from the front panel using the
suction cup accessory.
2- Remove the 3-pole connector coupled to the controller.
1
1a
3- Unscrew the top cover to access the electric
compartment where the power board is located.
4- Remove the cable connected to the CONTROL
connector (terminals 1-2-3) of the power board.
2
3
CONTROL
1 2 3
4
5- Perform the new connection to position the con-troller
on the wall, respecting the sequence of the terminal
numbers:
a) apply the supplied cable gland as indicated in the
figure;
b) fix the cable in the cable gland;
c) connect the cable to terminals1-2-3 from the power
board to the controller respecting the numbers
CONTROL PG7
Lindab reserves the right to make changes without prior notice
2022-01-28
RHR-CF
lindab | we simplify construction
Installation instructions
10.3 Connection with remote control
Fig. 14
20
