Viessmann VITODENS User manual

Operating instructions
for the system user
VIESMANN
Heating system with the Vitotronic 200 control unit, type HO1B
for weather-compensated mode
VITODENS
VITOLADENS
VITOPEND
5592 682 GB 1/2011 Please keep safe.

2
Please follow these safety instructions closely to prevent accidents and mate-
rial losses.
Safety instructions explained
Danger
This symbol warns against the
risk of injury.
!Please note
This symbol warns against the
risk of material losses and envi-
ronmental pollution.
Note
Details identified by the word "Note" con-
tain additional information.
Target group
These operating instructions are for the
heating system user.
This unit is not designed to be used by
persons (including children) with limited
bodily, sensory or mental capacities, or
lacking experience and/or lacking knowl-
edge, unless they are supervised by a
person responsible for their safety, or
have received instructions from such a
person as to how to use the unit.
!Please note
Children should be supervised.
Ensure that children do not play
with the unit.
Danger
Incorrectly executed work on the
heating system can lead to life-
threatening accidents.
■ Work on gas appliances must
only be carried out by a regis-
tered gas fitter.
■ Work on electrical equipment
must only be carried out by a
qualified electrician.
If you smell gas
Danger
Escaping gas can lead to explo-
sions which may result in serious
injury.
■ Do not smoke. Prevent naked
flames and sparks. Never
switch lights or electrical appli-
ances ON or OFF.
■ Close the gas shut-off valve.
■ Open windows and doors.
■ Remove all people from the
danger zone.
■ Notify your gas or electricity
supplier and your heating con-
tractor from outside the build-
ing.
■ Shut off the electricity supply to
the building from a safe place
(outside the building).
Safety instructions
For your safety
5592 682 GB

3
If you smell flue gas
Danger
Flue gas can lead to life-threat-
ening poisoning.
■ Shut down the heating system.
■ Ventilate the boiler room.
■ Close all doors in the living
space.
In case of fire
Danger
Fire creates the risk of burning
and explosions.
■ Shut down the heating system.
■ Close the shut-off valves of the
fuel lines.
■ Use a tested fire extinguisher,
class ABC.
Boiler room requirements
!Please note
Incorrect ambient conditions can
lead to damage to the heating
system and put the safe opera-
tion at risk.
■ Ensure ambient temperatures
above 0 ºC and below 35 ºC.
■ Prevent air contamination by
halogenated hydrocarbons
(e.g. as contained in paints,
solvents or cleaning fluids) and
excessive dust (e.g. through
grinding/polishing work).
■ Avoid continuously high humid-
ity levels (e.g. through frequent
drying of washing).
■ Never close existing ventilation
apertures.
Ancillary components, spare and
wearing parts
!Please note
Components that are not tested
with the heating system may lead
to damage to the heating system,
or may affect their various func-
tions.
Installation or replacement work
must only be carried out by quali-
fied personnel.
Safety instructions
For your safety (cont.)
5592 682 GB

4
Introductory information
Commissioning..................................................................................................... 6
Your system is preset at the factory..................................................................... 6
Terminology.......................................................................................................... 7
Tips on saving energy.......................................................................................... 7
Operation

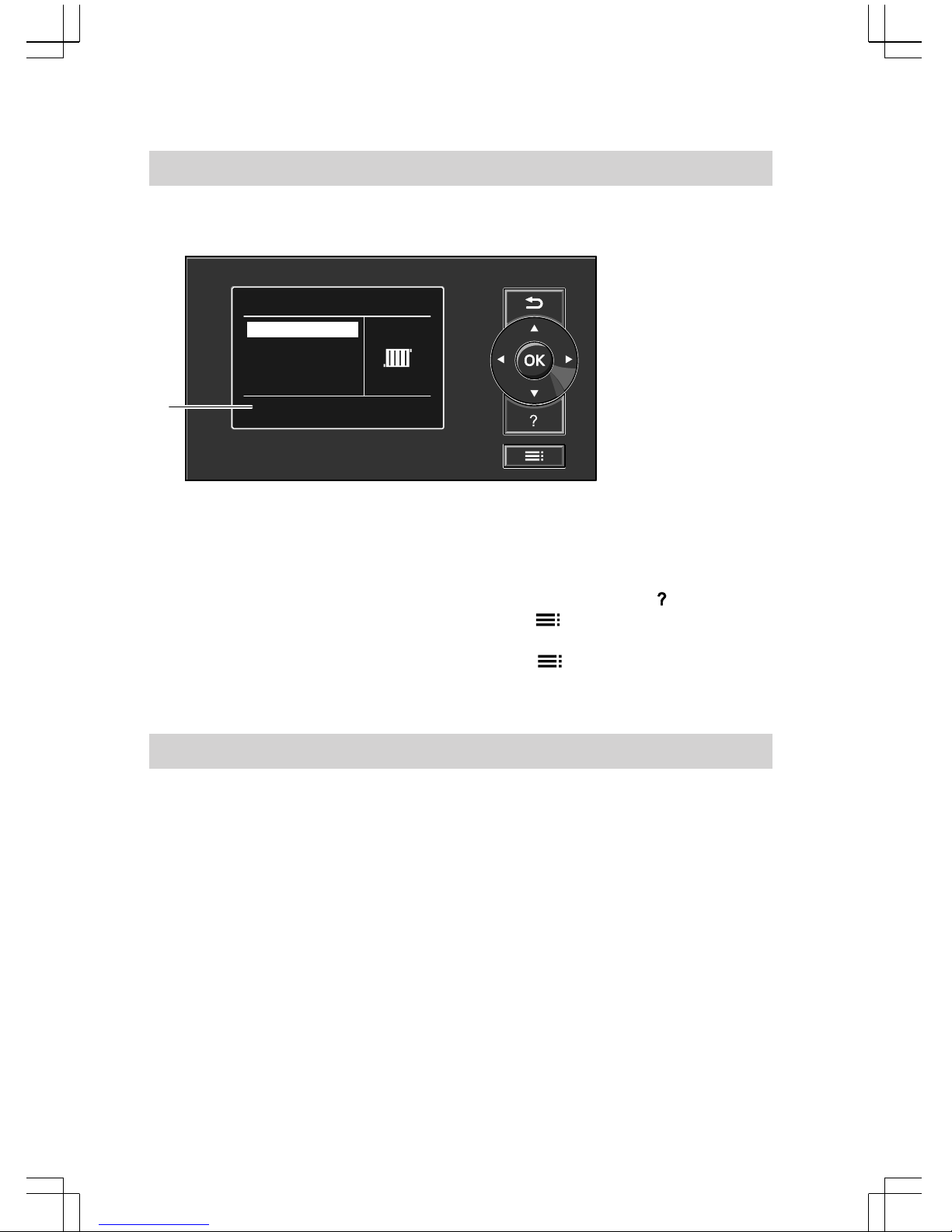

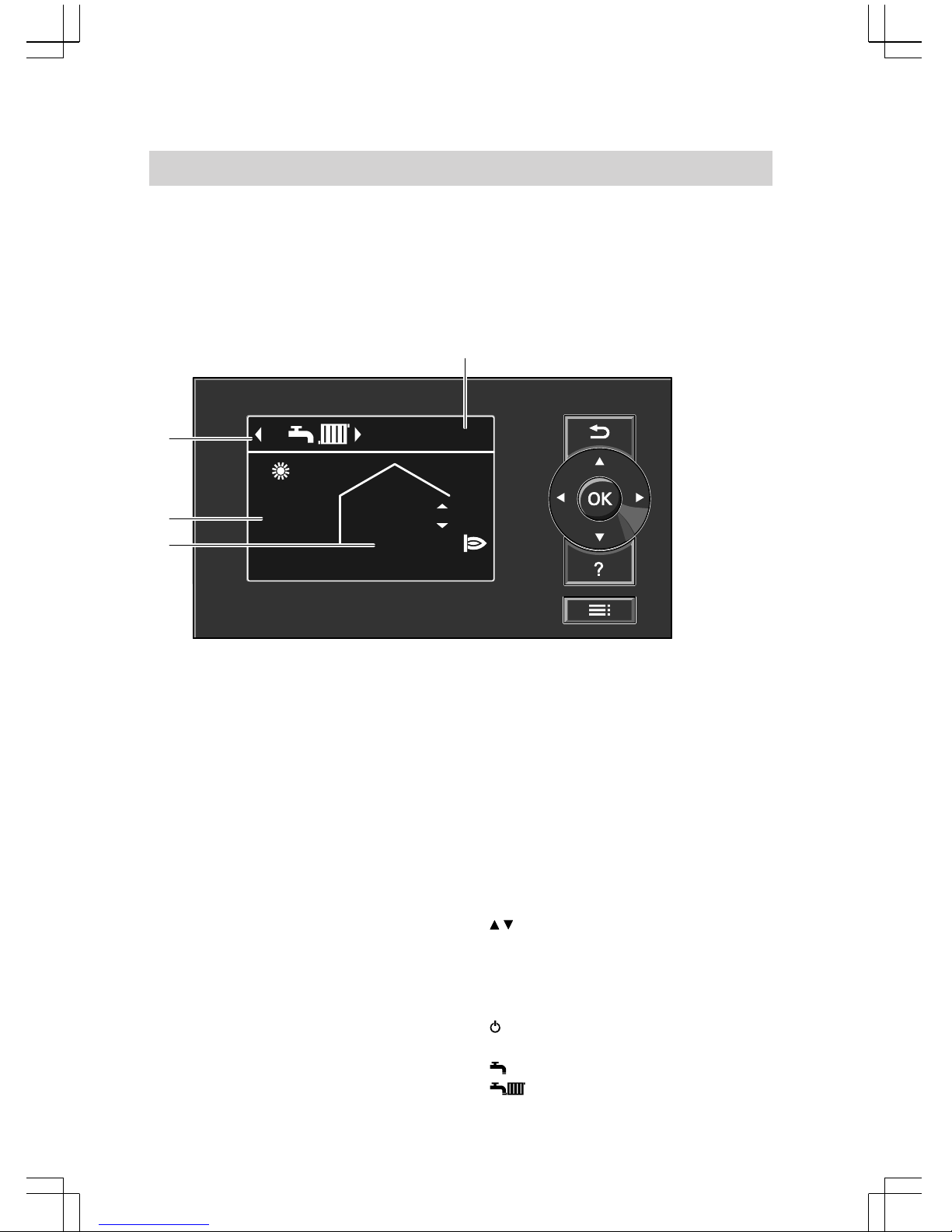

Controls................................................................................................................ 9
■Programming unit.............................................................................................. 9

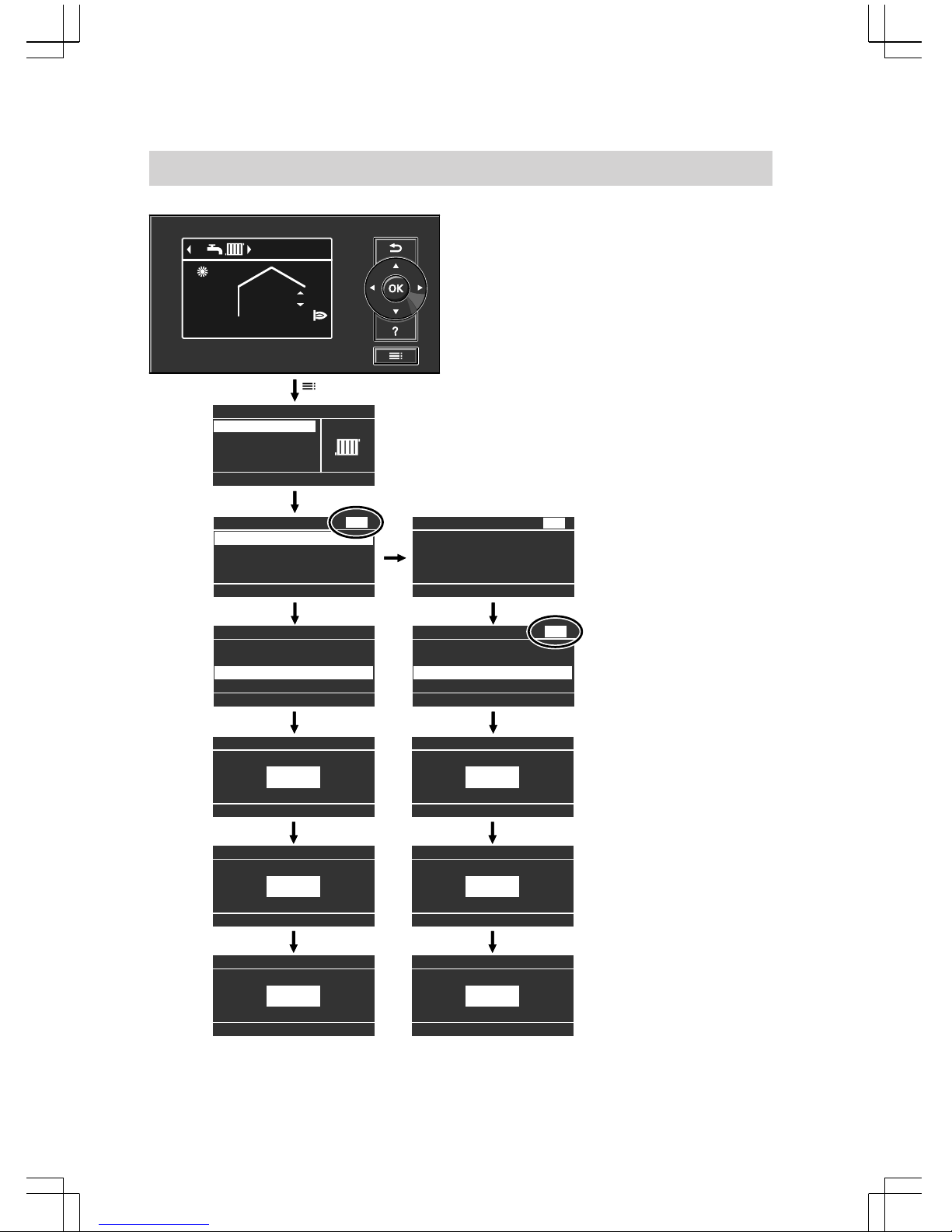

Menu.................................................................................................................... 10
How to use the controls........................................................................................ 12
Start-up/shutdown
Starting the heating system.................................................................................. 15
Shutting down the heating system....................................................................... 16
■ With frost protection monitoring........................................................................ 16
■ Without frost protection monitoring (shutdown)................................................ 16
Central heating
Required settings (central heating)...................................................................... 17
Selecting a heating circuit.................................................................................... 17
Setting the room temperature............................................................................... 18
Setting the heating program for central heating................................................... 19
Setting the time program for central heating........................................................ 19
Changing the heating curve................................................................................. 20
Stopping the central heating................................................................................. 21
Comfort and energy saving functions.............................................................. 22
DHW heating
Required settings (DHW heating)......................................................................... 25
Setting the DHW temperature.............................................................................. 25
Setting the heating program for DHW heating..................................................... 25
Setting the time program for DHW heating.......................................................... 26
■ Heating system with DHW circulation pump..................................................... 27
Stopping the DHW heating................................................................................... 28
Further adjustments
Setting the display contrast.................................................................................. 29
Setting the display brightness.............................................................................. 29
Entering names for the heating circuits................................................................ 29
Changing the standard menu............................................................................... 30
Setting the time and date..................................................................................... 30
Index
Index
5592 682 GB

5
Language selection.............................................................................................. 31
Setting the temperature unit (°C/°F)..................................................................... 31
Restoring factory settings..................................................................................... 31
Scanning
Scanning information............................................................................................ 32
Scanning the service messages........................................................................... 33
Scanning fault messages..................................................................................... 34
Emissions test mode......................................................................................... 36
What to do if...
Rooms are too cold.............................................................................................. 37
Rooms are too hot................................................................................................ 38
There is no hot water............................................................................................ 38
The DHW is too hot.............................................................................................. 39
"ã" flashes and "Fault" is displayed.................................................................... 39
"ë" flashes and "Service" is displayed................................................................ 39
"Controls locked out" is displayed........................................................................ 39
"External hook-up" is displayed............................................................................ 39
"External program" is displayed........................................................................... 39
Maintenance........................................................................................................ 40
Appendix
Ordering fuel oil.................................................................................................... 41
Menu overview..................................................................................................... 42
■ Extended menu................................................................................................. 42
■ Scanning options in the extended menu........................................................... 43
Terminology.......................................................................................................... 44
Keyword index.................................................................................................... 49
Index
Index (cont.)
5592 682 GB

6
The commissioning and matching of the
control unit to local conditions and build-
ing characteristics, as well as instructing
the user in the operation of the system,
must be carried out by your heating con-
tractor.
As the user of new combustion equip-
ment, you may be obliged to notify your
local flue gas inspector of the installation
[check local regulations]. Your local flue
gas inspector will also inform you [where
appropriate] about work he may be
required to perform on your combustion
equipment (e.g. regular checks, clean-
ing).
Your system is preset at the factory
The control unit is factory-set to "Heat-
ing and DHW".
Your heating system is therefore ready
for use:
Central heating
■ Between 6:00 and 22:00 h, the rooms
are heated with 20 °C "Set room
temp" (standard heating mode).
■ Between 22:00 and 6:00 h, the rooms
are heated with 3 °C "Set reduced
room temp" (reduced heating mode,
frost protection).
■ Your heating contractor can make fur-
ther settings for you during commis-
sioning.
You can change any settings individu-
ally at any time to suit your require-
ments (see chapter "Central heating").
DHW heating
■ Between 5:30 and 22:00 h, the DHW
is heated to 50 °C "Set DHW temper-
ature". Any installed DHW circulation
pump is ON.
■ Between 22:00 and 05:30 h, the DHW
cylinder temperature will not be rehea-
ted. Any installed DHW circulation
pump is OFF.
■ Your heating contractor can make fur-
ther settings for you during commis-
sioning.
You can change any settings individu-
ally at any time to suit your require-
ments (see chapter "DHW heating").
Frost protection
■ Your boiler and DHW cylinder are pro-
tected against frost.
Wintertime/summertime changeover
■ This changeover is automatic.
Time and date
■ The day and time were set by your
heating contractor during commission-
ing.
Introductory information
Commissioning
5592 682 GB

7
Power failure
■ All data is saved if there is a power
failure.
Terminology
To provide you with a better understand-
ing of the functions of your control unit,
the appendix contains the chapter "Ter-
minology" (see page 44).
Tips on saving energy
Utilise the setting options for the control
unit and remote control (if installed):
■ Never overheat your rooms. Every
degree by which the room temperature
is reduced saves up to 6 % on heating
costs.
Never set your room temperature
higher than 20 °C (see page 18).
■ Never set the DHW temperature too
high (see page 25).
■ Only activate the DHW circulation
pump for times when DHW is drawn
off. Set the time program for this (see
page 27).
■ Select the heating program that meets
your current requirements:
– For short absences (e.g. shopping
trips), select "Economy mode"
(see page 23).
As long as economy mode is activa-
ted, the room temperature is
reduced.
– If you are going away, set the "Hol-
iday program" (see page 23).
As long as the holiday program is
activated, the room temperature is
reduced and DHW heating is off.
– In summer, when you don't want to
heat any rooms but do need DHW,
select the heating program "Only
DHW" (see page 25).
Introductory information
Your system is preset at the factory (cont.)
5592 682 GB

8
In conjunction with a solar ther-
mal system:
DHW heating is set at the factory to
start at 05:30 h. On sunny days, the
DHW cylinder receives sufficient
heat from the solar thermal system
that the DHW temperature is still
high enough the next morning. You
can program DHW heating to start at
10:00 h, for example.
– If you don't want to heat the rooms
and you don't require DHW for an
extended period, select the heating
program "Standby mode" (see
page 16).
For additional energy saving functions of
the control unit, please contact your
heating contractor.
Further recommendations:
■ Correct ventilation/airing.
Briefly open windows fully and at the
same time close the thermostatic radi-
ator valves.
■ Close roller shutters (if installed) at
dusk.
■ Set thermostatic valves correctly.
■ Never cover radiators or thermostatic
valves.
■ Controlled DHW consumption: A
shower generally uses less energy
than a full bath.
Introductory information
Tips on saving energy (cont.)
5592 682 GB

9
You can change any settings on your
heating system centrally at the program-
ming unit of the control unit.
If remote control units are installed in
your rooms, you can also adjust the set-
tings at the remote control units.
Remote control operating instruc-
tions
Note
The programming unit can be placed in
a wall mounting base. This is available
as an accessory. Ask your heating con-
tractor for more information.
Programming unit
48°CBoiler temperature
HC1
14°C 21°C
Takes you to the previous step in
the menu or cancels a setting that
has been started.
Cursor keys
To scroll in the menu or to set val-
ues.
OK Confirms your selection or saves
the setting.
Calls up help texts for the selected
menu option.
Calls up the extended menu.
Menu "Help"
You can view a short guide giving an
explanation of the controls and informa-
tion about heating circuit selection (see
page 17).
Call up the short guide as follows:
■ If the screen saver is active (see
page 12):
Press .
■ If you are somewhere in the menu:
Press until the standard menu is
shown (see the following chapter).
Press .
Operation
Controls
5592 682 GB

10
There are two control levels available,
the "Standard menu" and the "Extended
menu".
Standard menu
B
C
A
48°CBoiler temperature
14°C 21°C
HC1
D
AHeader (shows the heating program
for the displayed heating circuit
D)
BCurrent outside temperature
CSet room temperature
DHeating circuit which is selected for
operation in the standard menu
Note
■ If your heating system has 2 or 3 heat-
ing circuits:
You can select the heating circuit
"HC1", "HC2" or "HC3" to be dis-
played in the standard menu (see
page 30).
■ If your heating system only has one
heating circuit:
No heating circuit name "HC..." is
shown in the header.
In the standard menu, you can adjust
and scan the most frequently used set-
tings for the heating circuit shown in
the header:
■ Set room temperature
Press the following keys:
/ for the required value.
OK to confirm.
■ Heating program
Heating programs:
Standby mode with frost protec-
tion monitoring
Only DHW
Heating and DHW
Operation
Menu
5592 682 GB

11
Press the following keys:
/ for the required heating program.
OK to confirm.
Note
For any other connected heating circuits,
use the settings in the extended menu.
Call up the standard menu as follows:
■ If the screen saver is active (see
page 12):
Press any key except .
■ If you are somewhere in the menu:
Keep pressing until the standard
menu appears.
Note
2 minutes after any setting has been
made, the display automatically reverts
to the standard menu.
Symbols on the display
These symbols are not always dis-
played, but appear subject to the system
version and the operating state.
Heating programs:
Standby mode with frost protec-
tion monitoring
Only DHW
Heating and DHW
Displays
HC1 (2, 3) To display the heating circuit
selected in the standard
menu.
To change this, see
page 30.
Frost protection monitoring
Central heating with stand-
ard room temperature
Central heating with
reduced room temperature
Party mode enabled
Economy mode enabled
In conjunction with a solar
thermal system:
Solar circuit pump is running
Burner in operation
Messages
Service message
Fault message
Operation
Menu (cont.)
5592 682 GB

12
Extended menu
Menu
Test mode
Continue with
Solar energy
DHW
Heating
OK
E
EDialogue line
In the extended menu, you can adjust
and scan the settings from the control
unit's range of functions used less fre-
quently, e.g. time programs and holiday
programs.
The menu overview can be found on
page 42.
Call up the extended menu as follows:
■ If the screen saver is active:
Press any key except , and then
press .
■ If you are somewhere in the menu:
Press .
How to use the controls
The screen saver will become active if
you have not adjusted any settings on
the programming unit for a few minutes.
The display brightness is reduced.
Operation
Menu (cont.)
5592 682 GB

13
14°C 21°C
B
C
BCurrent outside temperature CSet room temperature
1. Press OK. This takes you to the
standard menu (see page 10).
2. Press . This takes you to the
extended menu (see page 12).
The selected menu option is highligh-
ted in white.
The dialogue line E (see diagram on
page 12) then shows the necessary
instructions.
The following diagram shows how to
make settings with different dialogue
lines, using the set room temperature
setting as an example.
Operation
How to use the controls (cont.)
5592 682 GB

14
Vv
or
OK
Ú
OK
OK
Heating circuit 1
Economy mode
ÙÚ
Party mode
HC1
Continue with
Htg circ. selection ÙÚ
HC2
Was selected
Heating circuit 2
Set room temperature HC1
20°C
Change with (
Set room temperature HC1
22°C
Adopt with OK
Set room temperature HC1
22°C
Adopted
48°CBoiler temperature
HC1
14°C 21°C
OK
ê
ê
ÙÚ
HC1
Heating circuit 2
Economy mode
ÙÚ
Party mode
HC1
Continue with OK
ê
ê
ÙÚ
HC2
Set reduced room temp
Set reduced room temp
Set room temperature
Set room temperature
Menu
DHW
Continue with OK
Test mode
Solar energy
Heating
Vv
or
OK
Set room temperature HC2
20°C
Change with (
Set room temperature HC2
22°C
Adopt with OK
Set room temperature HC2
22°C
Adopted
OK / /
v v
Heating circuit 1
Economy mode
Party mode
HC1
Continue with OK
ê
ê
Set reduced room temp
Set room temperature
/
v v
OK
OK
Operation
How to use the controls (cont.)
5592 682 GB

15
0
123
4
bar
D
E
A B C
48°CBoiler temperature
HC1
14°C 21°C
AFault indicator (red)
BON indicator (green)
CReset button
DON/OFF switch
EPressure gauge
1. Check the heating system pressure
at the pressure gauge. The system
pressure is too low if the indicator
points to the area below 1.0 bar. In
this case, top up with water or notify
your local heating contractor.
2. For open flue operation:
Check that the ventilation apertures
of the installation room are open and
unrestricted.
Note
With open flue operation, the com-
bustion air is drawn from the installa-
tion room.
3. For Vitodens and Vitopend:
Open the gas shut-off valve.
For Vitoladens:
Open the shut-off valves in the oil
lines (at the oil tank and filter).
Note
Ask your heating contractor to
explain the positioning and handling
of these components.
4. Switch ON the power supply, e.g. at
a separate MCB/fuse or a mains iso-
lator.
5. Turn the ON/OFF switch " " ON.
After a short time, the standard menu
is displayed (see page 10) and the
green ON indicator illuminates. Your
heating system and, if installed, your
remote control unit are now ready for
operation.
Start-up/shutdown
Starting the heating system
5592 682 GB

16
With frost protection monitoring
For every heating circuit, select the heat-
ing program "Standby mode".
■ No central heating.
■ No DHW heating.
■ Frost protection for the boiler and the
DHW cylinder is enabled.
For the heating circuit displayed in
the header
Standard menu
1. / for the heating program
"Standby mode" (frost protection
monitoring).
2. OK as confirmation.
For the other heating circuits
Extended menu
1.
2. "Heating"
3. Select the heating circuit if necessary
(see page 17).
4. "Heating program"
5. "Standby mode" (frost protection
monitoring).
Note
The circulation pumps are briefly started
every 24 hours to prevent them from
seizing up.
Ending the heating program "Standby
mode"
Select another heating program.
Without frost protection monitoring (shutdown)
1. Switch the ON/OFF switch OFF.
2. Close the shut-off valves in the oil
lines (at the tank and filter) or close
the gas shut-off valve.
3. Isolate the heating system from its
main power supply, e.g. at a separate
MCB/fuse or a mains isolator.
4. Where outside temperatures of
below 3 °C are anticipated, please
take suitable measures to protect the
heating system against frost. If nec-
essary, contact your heating contrac-
tor.
Information on a prolonged shutdown
■ Circulation pumps may seize up as
they are not supplied with power.
■ After an extended shutdown, it may be
necessary to reset the date and time
(see page 30).
Start-up/shutdown
Shutting down the heating system
5592 682 GB

17
If you want central heating, check the
following points:
■ Have you selected the heating circuit?
For settings, see the next chapter.
■ Have you set the required room tem-
perature?
For settings, see page 18.
■ Have you set the correct heating pro-
gram?
For settings, see page 19.
■ Have you set the required time pro-
gram?
For settings, see page 19.

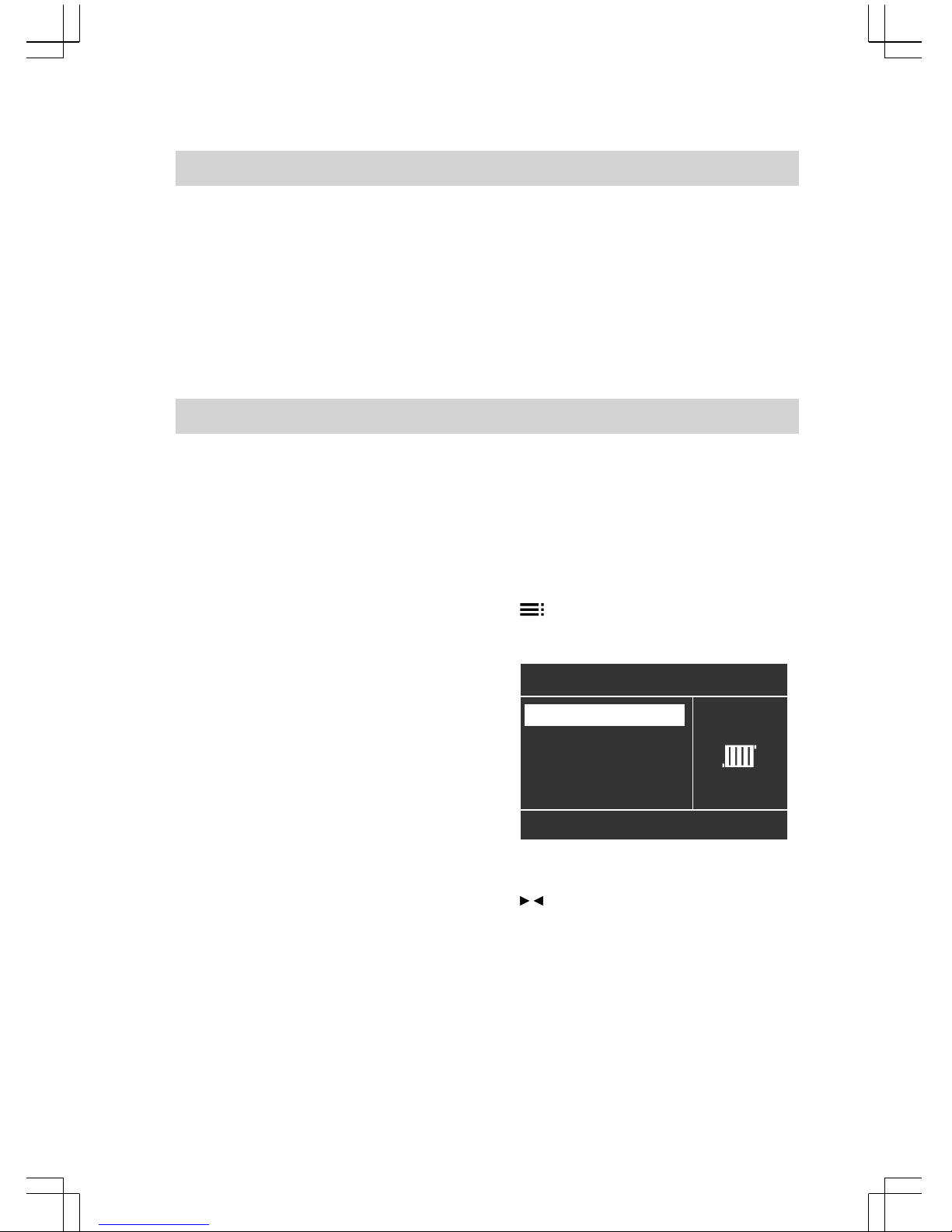

Selecting a heating circuit
The heating of all rooms can, if neces-
sary, be split over several heating cir-
cuits.
■ In the case of heating systems with
several heating circuits, for all central
heating settings, first select the heat-
ing circuit where you want to make a
change.
■ This selection is not possible in heat-
ing systems with only one heating cir-
cuit.
Example:
■"Heating circuit 1" is the heating cir-
cuit for the rooms occupied by you.
■"Heating circuit 2" is the heating cir-
cuit for the rooms of a separate apart-
ment.
The heating circuits are marked at the
factory as "Heating circuit 1" (HC1),
"Heating circuit 2" (HC2) and "Heating
circuit 3" (HC3).
If you or your heating contractor have
renamed the heating circuits (e.g. as
"Apartment", etc.), the name is displayed
instead of "Heating circuit ..." (see
page 29).
Extended menu
1.
2. "Heating"
Menu
Test mode
Continue with
Solar energy
DHW
Heating
OK
3. / for the required heating circuit.
Central heating
Required settings (central heating)
5592 682 GB

18
Ú
Htg circ. selection HC2
Was selected
Heating circuit 2
ÙÚ
HC2Heating circuit 1
Set reduced room temp
Set room temperature
Economy mode
Party mode
ÙÚ
HC1
Continue with OK
ê
ê
ÙÚ
HC1
Note

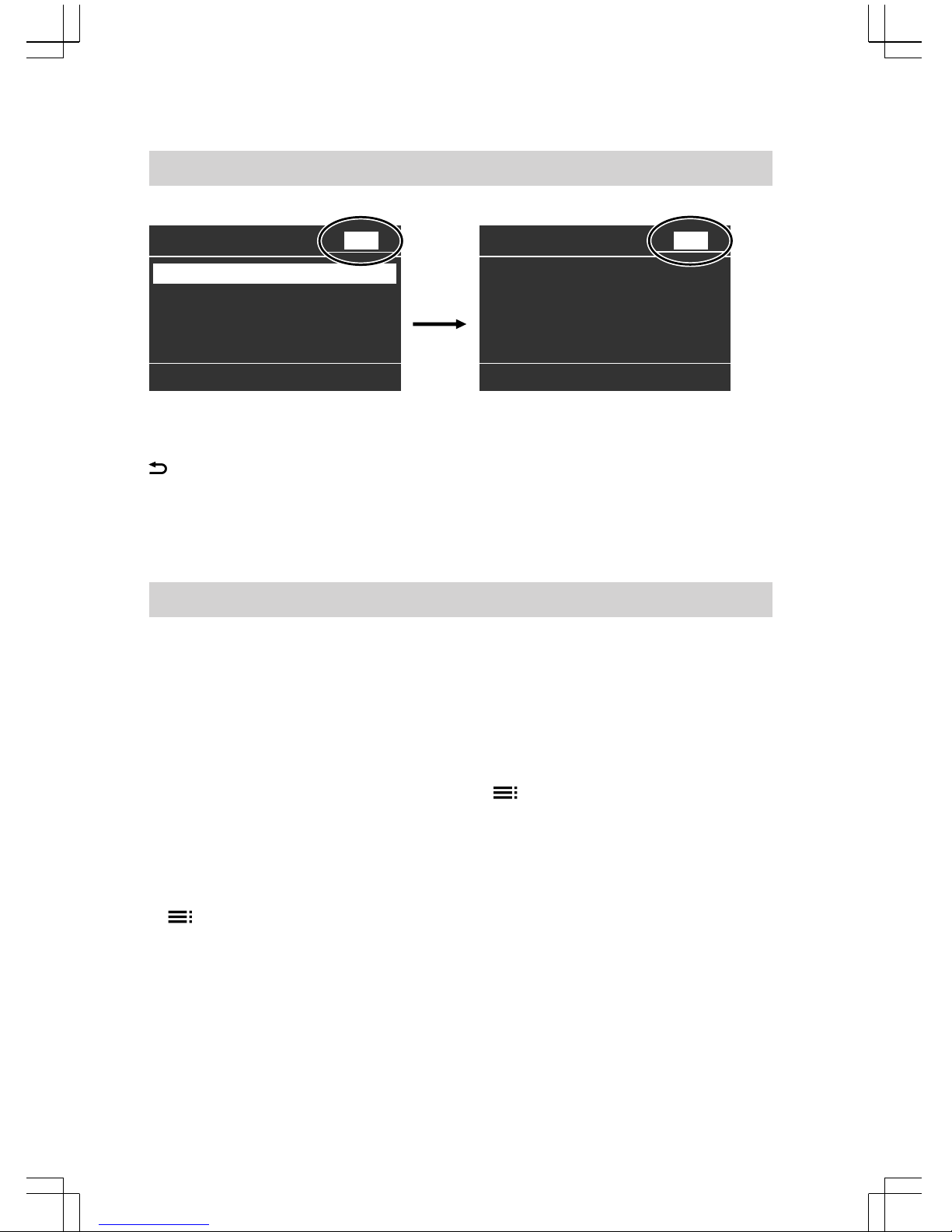

If you return to the standard menu with
, the header will again display "HC1"
(see page 10).
For changes to the heating circuit display
in the standard menu, see page 30.
Setting the room temperature
Setting the room temperature for
standard heating mode
Factory setting: 20 °C
For the heating circuit displayed in
the header
Proceed as described on page 10.
For the other heating circuits
Extended menu
1.
2. "Heating"
3. Select the heating circuit if necessary
(see page 17).
4. "Set room temperature"
5. Set the required value.
Setting the room temperature for
reduced heating mode (night set-
back)
Factory setting: 3 °C
Extended menu
1.
2. "Heating"
3. Select the heating circuit if necessary
(see page 17).
4. "Set reduced room temp"
5. Set the required value.
The rooms are heated to this tempera-
ture:
■ Between the time phases for standard
heating mode (see page 19).
■ In the holiday program (see
page 23).
Central heating
Selecting a heating circuit (cont.)
5592 682 GB

19
Factory setting: "Heating and DHW"
For the heating circuit displayed in
the header
Proceed as described on page 10.
For the other heating circuits
Extended menu
1.
2. "Heating"
3. Select the heating circuit if necessary
(see page 17).
4. "Heating program"
5. "Heating and DHW"
■ The rooms of the selected heating cir-
cuit are heated in accordance with the
room temperature and time program
settings.
■ DHW is reheated in accordance with
the set DHW temperature and time
program (see chapter "DHW heat-
ing").
Setting the time program for central heating
■ The time program for central heating is
made up of time phases. One time
phase from 6:00 to 22:00 h for every
day of the week is set at the factory.
■ You can set the time program individ-
ually, to be the same for every day of
the week or different:
You can select up to 4 time phases per
day for standard heating mode. Set the
start and end points for each time
phase. Between these time phases,
the rooms are heated with the reduced
room temperature (see chapter "Set-
ting the room temperature for reduced
heating mode").
■ When setting, bear in mind that your
heating system requires some time to
heat the rooms to the required tem-
perature.
■ In the extended menu, you can scan
the current time program under "Infor-
mation" (see chapter "Scanning infor-
mation", "Heating circuit ..." group).
Extended menu:
1.
2. "Heating"
3. Select the heating circuit if necessary
(see page 17).
4. "Heating time program"
5. Select part of the week or a day.
6. Select the time phase !, ?, § or
$.
7. Set the start and end points for the
relevant time phase.
Central heating
Setting the heating program for central heating
5592 682 GB

20
Example shown:
■ Time program for Monday to Friday
("Mo-Fr")
■Time phase !:
From 05:00 to 08:30 h
■Time phase ?:
From 16:30 to 23:00 h
Heating
Select with (
HC1
Mo-Fr
?16:30 - 23:00 u
0 2 4 6 8 10 12 14 16 18 20 22 24
!05:00 - 08:30 u
Normal
Normal
!?
Example:
You want to set the same time program
for every day except Monday:
Select the period "Monday–Sunday"
and set the time program.
Then select "Monday" and set the time
program for this.
Note
If you want to terminate the setting proc-
ess prematurely, keep pressing until
the required display appears.
Deleting a time phase
Set the time for the end point to the same
time that was set for the start point. The
display shows the selected time phase
"- - : - -".
Heating
Adopt with
HC1
§u
0 2 4 6 8 10 12 14 16 18 20 22 24
?- -:- - - - -:- - u
Normal
Normal
Mo-Fr
- -:- - - - -:- -
OK
Changing the heating curve
Your system's heating characteristics
are affected by the slope and the level of
the selected heating curve. Further
information about the heating curve can
be found under "Terminology" on
page 45.
Factory setting:
■ Slope: 1.4
■ Heating curve level: 0
■ Standard room temperature (set
value): 20 ºC
■ Reduced room temperature (set
value): 3 ºC
Extended menu:
1.
2. "Heating"
3. Select the heating circuit if necessary
(see page 17).
4. "Heating curve"
Central heating
Setting the time program for central heating (cont.)
5592 682 GB
