Linear Acoustic UMPAX v4 User manual

UPMAX v4 Surroundfield Controller
User Guide
Release Date: January 2019
Software Version: 0.0.20 and later
Linear Acoustic Inc.
Phone: [phone]
FAX: [phone]
Web: TelosAlliance.com/Linear

Warranty Information
For the latest Telos Alliance warranty, visit: telosalliance.com/warranty

Regulatory Notices and Fusing Information
FCC
This equipment has been tested and found to comply with the limits for a Class A digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference when the equipment is operated in a commercial environment. This
equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in
accordance with this instruction manual, may cause harmful interference to radio communications.
Operation of this equipment in a residential area is likely to cause harmful interference in which cas
e
the user will be required to correct the interference at his or her own expense.
Canada
This Class A digital apparatus complies with Canadian ICES-003.
UL
WARNING: Troubleshooting must be performed by a trained technician. Do not
attempt to service this equipment unless you are qualified to do so.
Check that the correct fuses have been installed. To reduce the risk of fire, replace
only with fuses of the same type and rating.
Exposed portions of the power supply assembly are electrically “hot”. In order to reduce the ris
k
of electrical shock, the power cord MUST be disconnected when the power supply assembly is
removed.

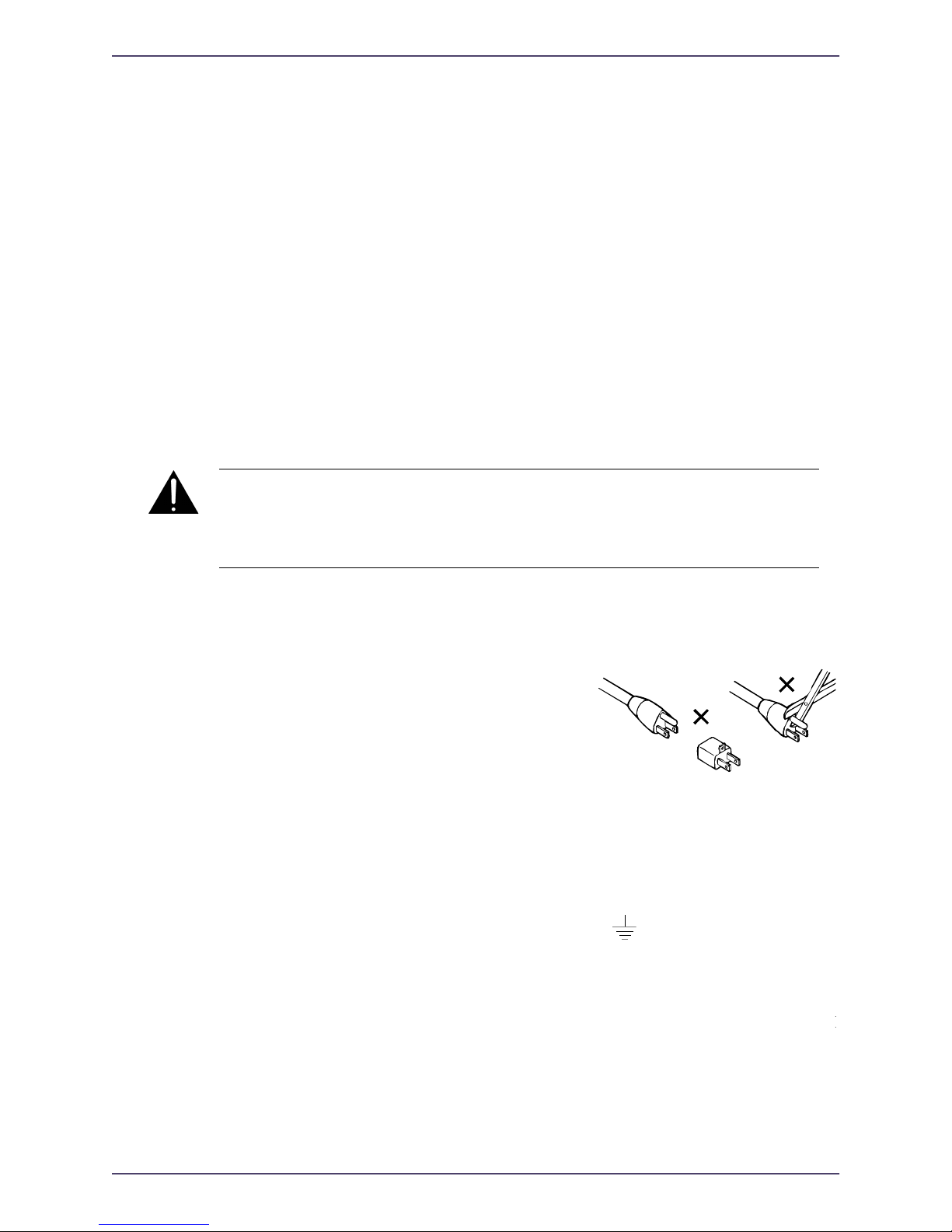

The ground terminal of the power plug is connected
directly to the chassis of the unit. For continued protection
against electric shock, a correctly wired and grounded
(earthed) three-pin power outlet must be used. Do not use
a ground-lifting adapter and never cut the ground pin on
the three-prong plug.
UK
As the colours of the cores in the mains lead may not correspond with the coloured markings
identifying the terminals in your plug, proceed as follows:
xThe core that is coloured green and yellow must be connected to the terminal in the
plug identified by the letter E or by the earth symbol or coloured green or green
and yellow.
xThe core that is coloured blue must be connected to the terminal that is marked with
t
letter N or coloured black.
xThe core that is coloured brown must be connected to the terminal that is marked wit
h
the letter L or coloured red.
xThis apparatus must be earthed.

U
s equipment complies with the EMC requirements of EN55103-1 and EN55103-2 when operated in an E2 environment
a
ccordance with this manual.
IMPORTANT SAFETY NOTICE
unit complies with the safety standard EN60065. The unit shall not be exposed to dripping or splashing and no objects filled with liquids, such as
e
e cups, shall be placed on the equipment. To ensure safe operation and to guard against potential shock hazard or risk of fire, the following must be
e
rved:
Ensure that your mains supply is in the correct range for the input power requirement of the unit.
Ensure fuses fitted are the correct rating and type as marked on the unit.
The unit must be earthed by connecting to a correctly wired and earthed power outlet.
The power cord supplied with this unit must be wired as follows:
Live—Brown Neutral—Blue Earth—Green/Yellow
IMPORTANT – NOTE DE SECURITE
m
ateriel est conforme à la norme EN60065. Ne pas exposer cet appareil aux éclaboussures ou aux gouttes de liquide. Ne pas poser d'objets remplis de
i
de, tels que des tasses de café, sur l'appareil. Pour vous assurer d'un fonctionnement sans danger et de prévenir
choc électrique ou tout risque d'incendie, veillez à observer les recommandations suivantes.
Le selecteur de tension doit être placé sur la valeur correspondante à votre alimentation réseau.
Les fusibles doivent correspondre à la valeur indiquée sur le materiel.
Le materiel doit être correctement relié à la terre.
Le cordon secteur livré avec le materiel doit être cablé de la manière suivante:
Phase—Brun Neutre—Bleu Terre—Vert/Jaune
WICHTIGER SICHERHEITSHINWEIS
s
es Gerät entspricht der Sicherheitsnorm EN60065. Das Gerät darf nicht mit Flüssigkeiten (Spritzwasser usw.) in Berührung kommen; stellen Sie
e
Gefäße, z.B. Kaffeetassen, auf das Gerät. Für das sichere Funktionieren des Gerätes und zur Unfallverhütung (elektrischer Schlag, Feuer) sind die
e
nden Regeln unbedingt einzuhalten:
Der Spannungswähler muß auf Ihre Netzspannung eingestellt sein.
Die Sicherungen müssen in Typ und Stromwert mit den Angaben auf dem Gerät übereinstimmen.
Die Erdung des Gerätes muß über eine geerdete Steckdose gewährleistet sein.
Das mitgelieferte Netzkabel muß wie folgt verdrahtet werden:
Phase—braun Nulleiter—blau Erde—grün/gelb
NORME DI SICUREZZA – IMPORTANTE
s
ta apparecchiatura è stata costruita in accordo alle norme di sicurezza EN60065. Il prodotto non deve essere sottoposto a schizzi, spruzzi e
c
iolamenti, e nessun tipo di oggetto riempito con liquidi, come ad esempio tazze di caffè, deve essere appoggiato sul dispositivo. Per una perfetta
r
ezza ed al fine di evitare eventuali rischi di scossa êlettrica o d'incendio vanno osservate le seguenti misure di sicurezza:
Assicurarsi che il selettore di cambio tensione sia posizionato sul valore corretto.
Assicurarsi che la portata ed il tipo di fusibili siano quelli prescritti dalla casa costruttrice.
L'apparecchiatura deve avere un collegamento di messa a terra ben eseguito; anche la connessione rete deve
avere un collegamento a terra.
Il cavo di alimentazione a corredo dell'apparecchiatura deve essere collegato come segue:
Filo tensione—Marrone Neutro—Blu Massa—Verde/Giallo
AVISO IMPORTANTE DE SEGURIDAD
unidad cumple con la norma de seguridad EN60065. La unidad no debe ser expuesta a goteos o salpicaduras y no deben colocarse sobre el equipo
p
ientes con liquidos, como tazas de cafe. Para asegurarse un funcionamiento seguro y prevenir cualquier posible peligro de descarga o riesgo de
n
dio, se han de observar las siguientes precauciones:
Asegúrese que el selector de tensión esté ajustado a la tensión correcta para su alimentación.
Asegúrese que los fusibles colocados son del tipo y valor correctos, tal como se marca en la unidad.
La unidad debe ser puesta a tierra, conectándola a un conector de red correctamente cableado y puesto a tierra.
El cable de red suministrado con esta unidad, debe ser cableado como sigue:
Vivo—Marrón Neutro—Azul Tierra—Verde/Amarillo
VIKTIGA SÄKERHETSÅTGÄRDER!
n
a enhet uppfyller säkerhetsstandard EN60065. Enheten får ej utsättas för yttre åverkan samt föremål innehållande vätska, såsom kaffemuggar, får ej
e
ras på utrustningen." För att garantera säkerheten och gardera mot eventuell elchock eller brandrisk, måste följande observeras:
Kontrollera att spänningsväljaren är inställd på korrekt nätspänning.
Konrollera att säkringarna är av rätt typ och för rätt strömstyrka så som anvisningarna på enheten föreskriver.
Enheten måste vara jordad genom anslutning till ett korrekt kopplat och jordat el-uttag.
El-sladden som medföljer denna enhet måste kopplas enligt foljande:
Fas—Brun Neutral—Blå Jord—Grön/Gul
BELANGRIJK VEILIGHEIDS-VOORSCHRIFT:
e
unit voldoet aan de EN60065 veiligheids-standaards. Dit apparaat mag niet worden blootgesteld aan vocht. Vanwege het risico dat er druppels in
a
pparaat vallen, dient u er geen vloeistoffen in bekers op te plaatsen. Voor een veilig gebruik en om het gevaar van electrische schokken en het risico
b
rand te vermijden, dienen de volgende regels in acht te worden genomen:
Controleer of de spanningscaroussel op het juiste Voltage staat.
Gebruik alleen zekeringen van de aangegeven typen en waarden.
Aansluiting van de unit alleen aan een geaarde wandcontactdoos.
De netkabel die met de unit wordt geleverd, moet als volgt worden aangesloten:
Fase—Bruin Nul—Blauw Aarde—Groen/Geel
F
E
NL
S
I
D
GB

Fusing Information
WARNING: To reduce the risk of fire, replace fuses only with the same type
and rating.
Both units use a universal switching power supply that handles the full range of
nominal mains voltages between 90 and 264 VAC and any frequency between 50 Hz
and 60 Hz.
Check Main Fuse
The Main fuse rating is:
T 1A L (1 Amp, 250 V, 20 mm, time-lag, low breaking capacity) for all operating
voltages.
WARNING: The power to the unit must be off when the following steps are
p
erformed. Ensure that the main power cable to the unit is not connected to a
p
ower source.
1. Open the fuse compartment door in the AC power input housing with a small flat-
blade screwdriver (Figure 1). Carefully pull out the fuse carrier.
2. Check that the replacement fuse has the correct rating. The fuse carrier must be
inserted into the compartment carefully. Do not force the carrier into the
compartment or both could be damaged.
3. Snap the fuse compartment door closed.
Figure 1 Checking the Main Fuse
Internal Fuse
The switching power supply contains a separate fuse. Most fault conditions should be
protected by the main fuse.
If you find it necessary to replace the internal fuse, be certain to replace it with a fuse
of the same type and rating as printed on the switching power supply board.

Linear Acoustic AERO.100 User Guide
vii
Table of Contents
List of Figures .........................................................................................................................................xi
Chapter 1: Introduction .................................................................................................................5
1.1 Principles of Operation..........................................................................................5
1.2 Warranty...................................................................................................................7
Chapter 2: Connections and Quick Setup.....................................................................9
2.1 Unpacking and Inspection.....................................................................................9
2.2 Installation ...............................................................................................................9
2.3 Rear Panel ..............................................................................................................10
2.3.1 Connection Ports..................................................................................10
2.4 Quick Setup Notes ...............................................................................................11
Chapter 3: Applications ..............................................................................................................13
3.1 Typical Scenarios ..................................................................................................13
3.1.1 General Notes.......................................................................................14
3.1.2 Two-Channel Interstitial Programming............................................14
3.1.3 Sports Production ................................................................................14
3.1.4 Music Applications...............................................................................15
3.2 Factory Presets ......................................................................................................15
Chapter 4: Detailed Operation...............................................................................................17
4.1 User Interface........................................................................................................17
4.2 Menu Navigation ..................................................................................................17
4.3 Statistics..................................................................................................................17
4.4 UPMAX Setup ......................................................................................................18
4.4.1 Presets Down To View .......................................................................18
4.4.2 User Preset ............................................................................................18

Linear Acoustic AERO.100 User Guide
viii
4.4.3 Preset Params........................................................................................18
4.5 I/O Menu ..............................................................................................................19
4.5.1 Master Bypass .......................................................................................19
4.5.2 GPI Control Enable.............................................................................19
4.5.3 GPI Function (1 - 4)............................................................................19
4.5.4 GPI Preset (1 - 4) .................................................................................20
4.5.5 Monitor Mode.......................................................................................20
4.5.6 Upmix LfRf When ...............................................................................20
4.5.7 When Upmixing, (Mute Ch 3 - 6 / Do Not Mute).........................20
4.5.8 Downmix Type.....................................................................................20
4.5.9 Downmix --> 7/8 ................................................................................20
4.5.10 Downmix Center Level .......................................................................20
4.5.11 Downmix Surround Level ..................................................................20
4.5.12 Downmix LFE Level...........................................................................21
4.5.13 7/8 in Channel Mode ..........................................................................21
4.5.14 SRC Bypass............................................................................................21
4.5.15 Headphone Boost ................................................................................21
4.5.16 Clock Source Type ...............................................................................21
4.5.17 Clock Source .........................................................................................21
4.5.18 Audio Input Sources (Channels 1-8).................................................21
4.5.19 SDI Embed ...........................................................................................22
4.5.20 SDI Out Destination (Channels 1-16) ..............................................22
4.5.21 Metadata Setup .....................................................................................22
4.5.22 Loudness Measurement.......................................................................23
4.5.23 GPO Alert When (1-4)........................................................................23
4.5.24 GPO Threshold (1-4) ..........................................................................23
4.5.25 GPO On Delay (1-4) ...........................................................................23
4.5.26 GPO Off Delay (1-4)...........................................................................23
4.6 Test Tone Control ................................................................................................23
4.6.1 Test Tone...............................................................................................23
4.6.2 Test Tone Type.....................................................................................24

Linear Acoustic AERO.100 User Guide
ix
4.6.3 Test Tone Frequency...........................................................................24
4.6.4 Test Amplitude .....................................................................................24
4.7 Analog Control......................................................................................................24
4.8 Communication.....................................................................................................24
4.9 System.....................................................................................................................24
4.10 Monitor Calibration (Analog Outputs)..............................................................24
4.10.1 Main Channel SPL Adjustment..........................................................25
4.10.2 Subwoofer SPL Adjustment ...............................................................26
Chapter 5: Troubleshooting ....................................................................................................27
5.1 Problems and Possible Causes............................................................................27
5.1.1 Unit won’t power on............................................................................27
5.1.2 Output Audio Clicks and Pops ..........................................................27
5.1.3 Unit is Not Upmixing..........................................................................28
5.1.4 Cannot Manually Control Upmixing.................................................28
5.1.5 Analog Outputs Have Noise ..............................................................28
Chapter 6: Specifications ..........................................................................................................29

Linear Acoustic AERO.100 User Guide
x

Linear Acoustic UPMAX v4 User Guide
xi
List of Figures
1-1 Audio Block Diagram .........................................................................................................................6
2-1 Rear Panel ...........................................................................................................................................10
6-1 Electrical .............................................................................................................................................29

Linear Acoustic UPMAX v4 User Guide
xii

Linear Acoustic UPMAX v4 User Guide Introduction
5
Chapter 1: Introduction
The Linear Acoustic UPMAX v4 produces a 5.1 channel audio signal that is perfect for
eventual transmission to all consumers. The unit accepts a 2-channel input and “upmixes”
it to fill as many of the 5.1 output channels as the user selects. Any input signal from mono
to stereo to LtRt (Left Total/Right Total) surround encoded audio and even three channel
(M&E plus Dialog) can be applied to the Main Inputs and an output will be produced that
maintains consistency with other 5.1 channel programming.
The UPMAX v4 provides the following features:
• Advanced upmixing algorithm for stable, convincing surround experience.
• Fully downmix compatible
• Upmixed surroundfield is infinitely adjustable
• External inputs allow crossfaded bypassing of upmixing to enable discrete 5.1 channel
audio to pass untouched, or mixing of external and upmixed content
• Built-in independent LoRo/LtRt encoder
• Relay bypassed I/O for “mission critical” broadcast applications.
• HD/SD-SDI I/O for audio and metadata
1.1 Principles of Operation
The UPMAX v4 contains two paths for audio signals. The first path contains an upmixer,
a bass extension filter to create the LFE (Low Frequency Effects) or subwoofer channel,
and a simple but powerful set of mix controls to vary each element of the surroundfield.
The second path provides discrete inputs for the Center, LFE, Ls (Left Surround), Rs
(Right Surround), Lf (Left Front) and Rf (Right Front) channels. The upmixed and discrete
outputs can be crossfaded between to allow smooth transitions between upmixed and dis-
crete audio.
Please refer to Figure 1-1. It should be noted that this diagram is a general representation
of signal flow. Please consult the appropriate section of this manual for an accurate de-
scription of actual functionality.

Linear Acoustic UPMAX v4 User Guide Introduction
6
Figure 1-1 Audio Block Diagram

Linear Acoustic UPMAX v4 User Guide Introduction
7
1.2 Warranty
For the latest Telos Alliance warranty, visit: telosalliance.com/warranty

Linear Acoustic UPMAX v4 User Guide Connections and Quick Setup
9
Chapter 2: Connections and Quick Setup
This chapter covers all required connections for the UPMAX v4.
2.1 Unpacking and Inspection
Before unpacking the unit, inspect the outer carton for shipping damage. If the carton
shows damage, inspect the unit in those areas. Please save the carefully designed shipping
carton and packing materials. In the unlikely event that the unit needs to be returned to the
factory, alternate cartons or packing materials may not be adequate and can cause damage
not covered by warranty.
The following essential items are provided with the unit:
• Bag containing:
• Quick-start sheet to get you up and running
• Two IEC power cords (style matches country of order);
• USB stick with this manual
• Spare fuses and a handy black pen.
• Warranty information: Please fill out and return the warranty card to Linear Acoustic
to ensure your software and documentation are kept up to date.
2.2 Installation
UPMAX v4 installation requires:
• One standard rack space unit with ADEQUATE VENTILATION (the unit relies on
convection cooling from side-panel vents);
• standard 75-Ohm BNC cables for digital signal connections;
To connect to digital equipment with 110-Ohm XLR connectors, use impedance-
matching transformers (available from Canare, Neutrik and other manufacturers).
• Proper reference. The unit will default to internal 48kHz with no signals applied, but
AES 1/2 or SDI can be used as the reference. For proper plant timing, proper refer-
ence selection in imperative. Note that if SDI embedding is active, clock source will
automatically be forced to SDI.

Linear Acoustic UPMAX v4 User Guide Connections and Quick Setup
10
2.3 Rear Panel
The rear panel of the UPMAX v4 contains its electrical I/O.
2.3.1 Connection Ports
All of the UPMAX v4’s connections are on the rear panel and are described in detail below.
See Chapter 5: Specifications for specific pinouts.

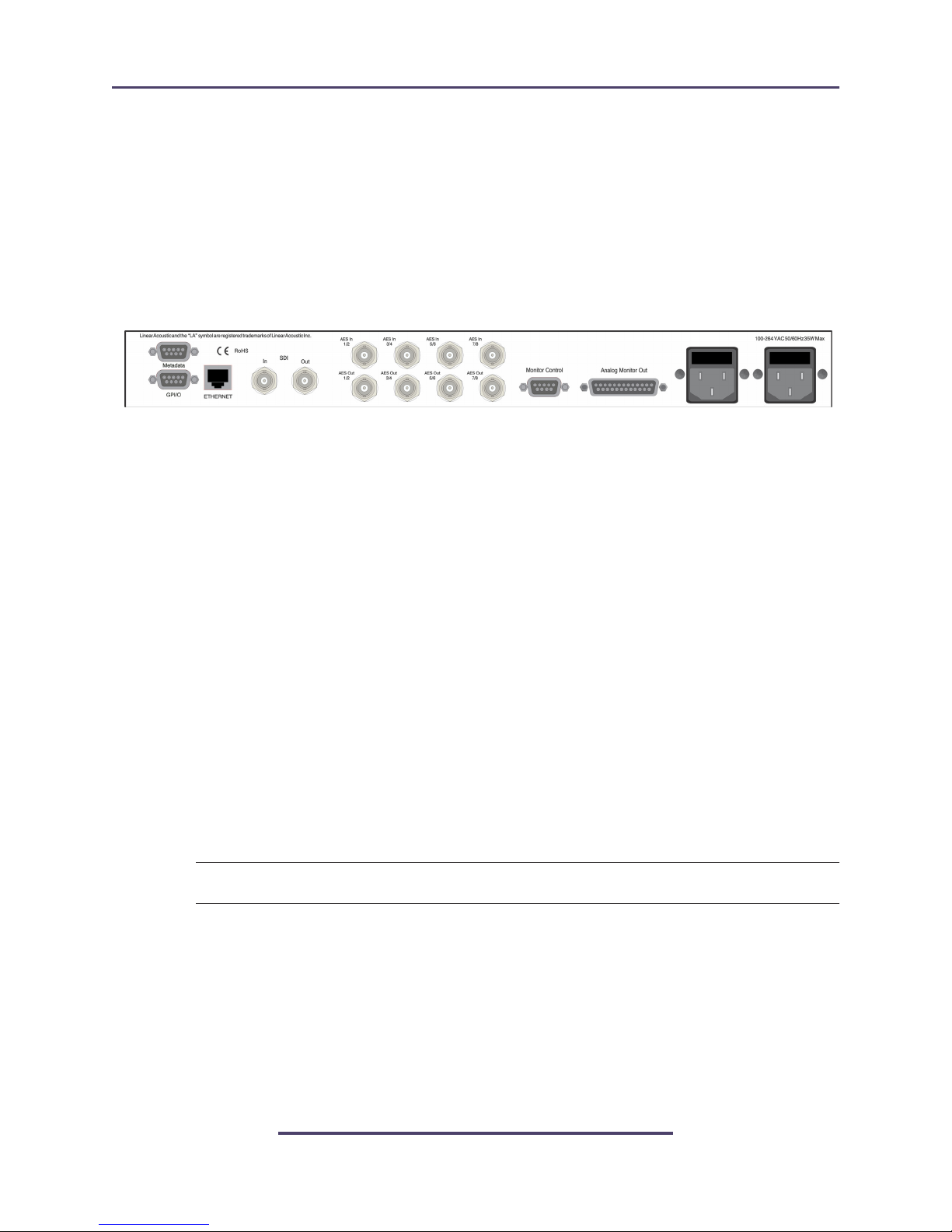

Figure 2-1 Rear Panel
•Metadata I/O: RS-485 connection accepts the metadata output of any SMPTE
RDD6 (i.e. Dolby) compliant metadata source. Can be used to control upmixing and
recall of presets.
•SDI Input/SDI Output: Allows access to all 16 audio channels for embedding and
de-embedding. VANC metadata per SMPTE 2020 can also be extracted.
•GPI/O: Connect dry contact closures here to control upmixing on/off. Note that
GPI functions require held closures for the duration of the desired function. Status of
GPI will be reflected on the corresponding GPO pin.
•ETHERNET: Used for software upgrades and SNMP monitoring.
•Main Audio Input: Connect the 48kHz PCM signals to these inputs. The input chan-
nels are arranged as follows: 1/2 = Left front/Right front, 3/4 = Center/LFE, 5/6 =
Left surround/Right surround, and 7/8 = Stereo Aux input.
NOTE: Appropriate reference should be applied AND selected for proper operation.
•Main Audio Outputs: Main 48kHz processed digital audio outputs. 1/2 = Left
Front/Right Front, 3/4 = Center/LFE, 5/6 = Left Surround/Right Surround.
• 7/8 (LoRo/LtRt) Output: A two channel downmixed version of the audio applied
to Inputs 1-6, or a time-aligned passthrough of the 7/8 input.
•Monitor Control: Remote control of analog volume, mute, and return to reference us-
ing a standard rotary encoder, switches, and LEDs (with series resistors). A suitable
high-quality remote control is available from Linear Acoustic.

Linear Acoustic UPMAX v4 User Guide Connections and Quick Setup
11
•Analog Monitor Outputs: A +4dBu balanced analog version of outputs 1-8. Volume
can be controlled from the front panel joystick encoder or via the Remote port.
2.4 Quick Setup Notes
The Linear Acoustic UPMAX v4 is configured at the factory and is ready to go on the air
after making the proper input and output connections and determining if upmixing is de-
sired.
• Apply a two-channel (stereo or LtRt) signal to Main Input 1/2
• The main menu will default to showing output meters, and you should see activity on
some or all of the first six meters.
• Upmixed audio will be output from the Main Out 1-6 AES outputs in the following
format: 1/2 = Left Front/Right Front, 3/4 = Center/LFE, 5/6 = Left Surround/
Right Surround
• You will also have audio on the analog outputs in the same format as above.
The best way to learn the processor is to explore the different settings with audio applied
and monitored. There are several factory presets to support many different tastes. Some
presets may not sound much different at first, but will perform very depending on program
content. When in doubt, try turning the upmixing process off or as a last resort use the
Master Bypass feature which will remove the UPMAX v4 completely from the signal path.

Linear Acoustic UPMAX v4 User Guide Applications
13
Chapter 3: Applications
The UPMAX v4 is intended to be used either in the production or distribution stages of
5.1 channel programming, and also selectively in transmission environments. Cable and
satellite facilities may find it useful as the distribution and transmission sections are usually
very close together. For terrestrial emission (transmission) applications such as at DTV sta-
tions, the Linear Acoustic AERO series of processors may be a more appropriate choice
as they contain requisite loudness control, dynamic range processing and additional useful
features such as Dolby encoding and decoding.
The Linear Acoustic UPMAX v4 is not a substitute for a good, discrete multichannel mix
(if one is available), however it is a useful tool for creating one.
That being said, the UPMAX v4 is an excellent tool useful in either creating a 5.1 channel
version of a program when few or no other elements exist, and also for creating a solid
foundation for a true discrete multichannel mix.
This chapter discusses several applications of the UPMAX v4:
• General application notes
• Integrating 2-channel commercials into a 5.1 channel program
• Creating a 5.1 channel sports program from stereo plus natural sources
• Use for music programming
• Discussion of presets stored in the unit
3.1 Typical Scenarios
Below are some application examples to give users some guidance in real-world situations.
However, before continuing, it is absolutely imperative that a proper multichannel moni-
toring environment be set up and calibrated before every mix. If the mix cannot be heard
properly, then it cannot be created properly.
The Linear Acoustic UPMAX v4 is useful almost anywhere a multichannel mix must be
created. From hands-on adjust-as-you-go environments like a music awards program to
set-and-forget applications like helping two-channel commercials fit into 5.1-channel pro-
gramming, the UPMAX v4 is the answer.

Linear Acoustic UPMAX v4 User Guide Applications
14
3.1.1 General Notes
The latency of the UPMAX v4 has been kept as low as possible. To take best advantage of
this, make sure it is installed in a synchronous system (i.e. as a send and return to a console)
and set the Sample Rate Converter Bypass to ON (i.e. SRCs are off). This will keep the
latency at around 4msec. Make sure to take care not to bring up both the send and return
audio else even this very low 4msec might cause comb filtering.
In general, an upmixer responds to level to control Left to Center to Right positioning, and
phase to control front to back positioning. UPMAX v4 operates across multiple bands to
minimize low frequency content causing center channel build-up. However, dialog can do
the same thing, especially announce dialog. It was discovered some years ago that simply
separating a mix into two parts: Main Stereo (no announce) and a separate Announce chan-
nel then upmixing only the Main Stereo and combining with a time aligned version of the
Announce audio produces a very wide and stable result free of odd sounding artifacts.
3.1.2 Two-Channel Interstitial Programming
One of the largest complaints viewers is the annoying fact that stereo commercials don’t
seem to “fit” into the 5.1-channel program. This is because in many cases, the commercials
are simply transmitted on the Left and Right channels of a 5.1-channel program. The net
result is that during the program, dialogue comes from the center speaker, but at commer-
cial or station breaks, all of the dialogue comes from the left and right speakers. It can be
a jarring experience.
The first application is one where the UPMAX v4 processes the stereo material allowing
it to fit nicely within a 5.1 channel program. Figure 3-1 shows this scenario. Note that the
two channel material is simply input to the UPMAX v4 and a 5.1 channel signal is available
at the output. Either of the Commercial or Music presets can be chosen, and are ex-
plained in detail at the end of this chapter.
3.1.3 Sports Production
Sports production could be as simple as creating an excellent and wide stereo mix with di-
alog on a separate bus. Using the UPMAX v4, the stereo mix can be turned into 5.1 and
the announce audio passed around the upmixer.
A Center Detect control was added to the Auto mode to facilitate handling this type of 3-
channel audio. It ignores the presence of audio on channel 3 (i.e. the announce audio), time
aligning it and summing it with the upmixed version of the audio from input channels 1-2.
This mode is also useful if the audio might be of several different flavors. With Center De-
tect set to off, Stereo, 3-channel, and 5.1 channel input audio can be automatically handled
with no operator intervention. A tip would be to adjust the crossfade timing to be as fast
as practical.
